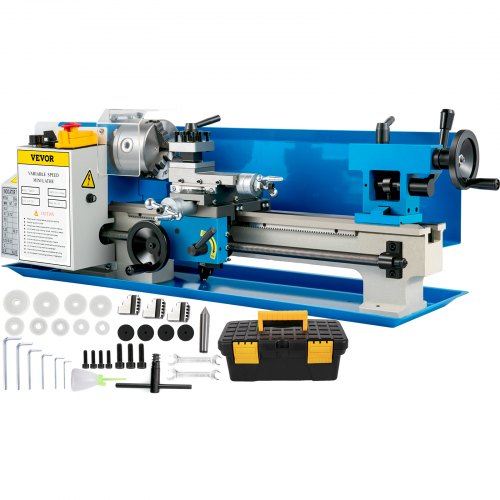

VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\" 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\" 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\" 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\" 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\" 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\" 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning
0618WXCC000000001V3

VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\" 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning

AU $923.99
923.99
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • Sturdy Aluminium Construction: The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splash guard provides max. protection.
  • Infinitely Variable Speeds: Spindle speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slide ways are obtained by raw material, heat hardening and grinding. Emergency stop button included.
  • Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Back splash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.0004" / 0.01 mm.
  • Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
  • Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\" 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning
Only 1 Left, order soon
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
7" x 14" Metal Lathe
550W Forceful Motor & Variable Speed & Sturdy Nylon Gears
The precision mini benchtop lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500 RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
  • Sturdy Aluminium Construction
  • Infinitely Variable Speeds
  • Accurate 3-jaw Chuck
  • Professional Compound Rest
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Heavy & Sturdy Machine
This lathe features an MT#2 taper and all the adjustment capability you need to work securely and accurately. It has a swing over bed of 7.09" / 180 mm and a swing over cross slide of 14" / 350 mm, so you can handle large projects.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Infinitely Variable Speeds
Variable speed from 0-2250 RPM. The feed speed can be adjusted according to the requirements of different workpieces. This metal lathe includes a large through-hole shaft to avoid inconvenience while working long pieces.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Professional Cross Slide
The lathe is esigned with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Specifications
  • Power of Motor: 550W DC Single Phase
  • Spindle Speed: 0 - 2250 RPM
  • Swing Over Bed: 7.09" / 180 mm
  • Swing Over Cross Slide: 4.3" / 110 mm
  • Chuck Diameter: 3.94" / 100 mm
  • Centers Distance: 13.78" / 350 mm
  • Spindle Bore: 0.83" / 21 mm
  • Spindle Taper: MT3
  • Tailstock Taper: MT2
  • Cross Slide Travel: 2.53" / 65 mm
  • Top Slide Travel: 1.36" / 35 mm
  • Spindle Accuracy: 0.0004" / 0.01 mm
  • Inch Thread: 12 - 52 T.P.I
  • Metric Thread: 0.5 - 2.5 mm
  • Net Weight: 102.7 lbs / 46.6 kg
  • Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Package Content
  • 1 x Mini Metal Lathe
  • 3 x Chuck Jaws
  • 1 x Lathe Center
  • 1 x Chuck Wrench
  • 2 x Wrench
  • 1 x Oil Can
  • 5 x Hex Wrenches
  • 9 x Plastic Nylon Gears
  • 2 x Handle
  • 4 x Rubber Feet
  • 4 x Screws
  • 1 x Tool Box
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
7" x 14" Metal Lathe
550W Forceful Motor & Variable Speed & Sturdy Nylon Gears
The precision mini benchtop lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500 RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
  • Sturdy Aluminium Construction
  • Infinitely Variable Speeds
  • Accurate 3-jaw Chuck
  • Professional Compound Rest
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Heavy & Sturdy Machine
This lathe features an MT#2 taper and all the adjustment capability you need to work securely and accurately. It has a swing over bed of 7.09" / 180 mm and a swing over cross slide of 14" / 350 mm, so you can handle large projects.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Infinitely Variable Speeds
Variable speed from 0-2250 RPM. The feed speed can be adjusted according to the requirements of different workpieces. This metal lathe includes a large through-hole shaft to avoid inconvenience while working long pieces.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Professional Cross Slide
The lathe is esigned with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Package Content
  • 1 x Mini Metal Lathe
  • 3 x Chuck Jaws
  • 1 x Lathe Center
  • 1 x Chuck Wrench
  • 2 x Wrench
  • 1 x Oil Can
  • 5 x Hex Wrenches
  • 9 x Plastic Nylon Gears
  • 2 x Handle
  • 4 x Rubber Feet
  • 4 x Screws
  • 1 x Tool Box
VEVOR Metal Lathe 7'' x 14'', Mini Metal Lathe 0-2500 RPM Variable Speed,Mini Lathe with 4\
Specifications
  • Power of Motor: 550W DC Single Phase
  • Spindle Speed: 0 - 2250 RPM
  • Swing Over Bed: 7.09" / 180 mm
  • Swing Over Cross Slide: 4.3" / 110 mm
  • Chuck Diameter: 3.94" / 100 mm
  • Centers Distance: 13.78" / 350 mm
  • Spindle Bore: 0.83" / 21 mm
  • Spindle Taper: MT3
  • Tailstock Taper: MT2
  • Cross Slide Travel: 2.53" / 65 mm
  • Top Slide Travel: 1.36" / 35 mm
  • Spindle Accuracy: 0.0004" / 0.01 mm
  • Inch Thread: 12 - 52 T.P.I
  • Metric Thread: 0.5 - 2.5 mm
  • Net Weight: 102.7 lbs / 46.6 kg
  • Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm

Specification

Power of Motor
550W DC Single Phase
Spindle Speed
0 - 2250 RPM
Swing Over Bed
7.09" / 180 mm
Swing Over Cross Slide
4.3" / 110 mm
Chuck Diameter
3.94" / 100 mm
Centers Distance
13.78" / 350 mm
Spindle Bore
0.83" / 21 mm
Spindle Taper
MT3
Tailstock Taper
MT2
Cross Slide Travel
2.53" / 65 mm
Top Slide Travel
1.36" / 35 mm
Spindle Accuracy
0.0004" / 0.01 mm
Inch Thread
12 - 52 T.P.I
Metric Thread
0.5 - 2.5 mm
Net Weight
102.7 lbs / 46.6 kg
Item Dimensions (L x W x H)
29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm
Questions and Answers
12 Questions
Do they really have tapered roller bearings in the headstock? "Spindle is supported by precision tapered roller bearings" Will I get a discount when I strip it to find the usual bearings found in all the other min lathes out there?
They are ball bearings.
By vevor
Are the gears made of metal or nylon?
The gears are made of nylon.
By vevor
You’ve mentioned both 10x10 and 12x12 tools fit, how is this possible?
It is generally recommended to use a 12x12mm turning tool.
By vevor
Can the 6" chuck be put on this machine?
No, this machine cannot accommodate 6-inch chucks.
By vevor
I’d like to replace pool cue shaft tips using this machine. Usually the shaft size is like this, tip side diameter is 12mm and the other side is 22mm and the length is 690-710mm. Is this machine suitable for me? And, to hold on tight, can I add three jaw chuck on the other side? Thanks!
This needs to be accessed through the through hole, because the diameter of the other side is 22mm and cannot fit in.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
91 Review(s)
Clear filters
Bob Bob
Grandpa
For my use it works great. Making some small parts. It was well packaged and worked without too much fuss to set up. Definitely a good buy.
Trelynn Trelynn
obligatory
It's not bad, hobby use without major pretensions
James Gibbs James Gibbs
James
I bought this lathe with a mindset that at is cheap.But boy I was pretty happy with it when it came everything was very nice . Every thing lined up I would tell anyone that wanted one too get it great value for the money
Renn N Sminkey Renn N Sminkey
Tool & Diemaker
This is the third lathe I bought. The first two I bought were from Ebay and they never delivered and I had to wait to get my money back. I did get my money back , but it delayed my projects from getting done for 6 months. I ordered this lathe from Vevor and they promised delivery in 1 week and they lived up to there promise . Do not delay ordering from this company, prices are going up so order now. This lathe is the best product out there . I bought this for pool cue repair and it works just what you would expect a good lathe to work. The quality is great. Well made heavy casting for the bed, great precision .0001 tol. Renn
ET ET
Mr.
The lathe arrived within a few days of purchase and was undamaged. The crate it was shipped in is a work of art and worth keeping. I have spent ~24 hours disassembling, cleaning, inspecting, deburring, honing, oiling, greasing, and reassembling the lathe's mechanical subsystems - tail stock, compound slide, cross slide, carriage, apron, ways, feed screw, rack gear, chuck, and stud gears. I also inspected the motor and electronics. I have posted >150 photos in the Facebook group Home Shop Machinist (https://www.facebook.com/groups/1104020856281121) of my progress - 10/12 (6), 10/23 (19), 10/26 (46), 10/28 (17), 10/31 (35), 11/04 (26), 11/07 (5). This is the second lathe I have owned. I am very pleased with it so far. I am looking for more accessories - MT3 ER32 collet chuck w/collets, MT3 dead center, faceplate and lathe dogs, follower/steady rest, MT2 live center, tooling. I am also planning a few upgrades - way covers and locks and/or stops for the slides. Once I get it mounted to a solid base I will align the tailstock, tool, and chuck. Once aligned I will begin to make parts with it. I look forward to many years of service from it. It is a fine addition to my small home shop.
Shane Shane
Mini metal lathe
Works good , fast shipping , good value for money. Over all I am happy with the product thank you vevor I’ll be buying from use again
donald pierce donald pierce
Very fast shipping , 7 x 14 lathe works perfectly very good bargain. so far very good equipment thank you
Marcus Porter Marcus Porter
compact precision lathe
mechanically very good and accurate. The instructions could be more, ie adjustments
Ed Wilson Ed Wilson
Lathe
Does exactly what I,bought it for. I have a small shop and it fits in perfectly.. Could not have used a bigger lathe.
Thomas Garrett Thomas Garrett
Mr.
Nice little machine, was well set up from the factory, I added a few perks as in the quick change toolpost and live center, also steel gear set. I spent a little time checking bolts , gib adjustments, cleaning, aligning center with the chuck. I must admit, everything was fairly close and machine runs quietly.
