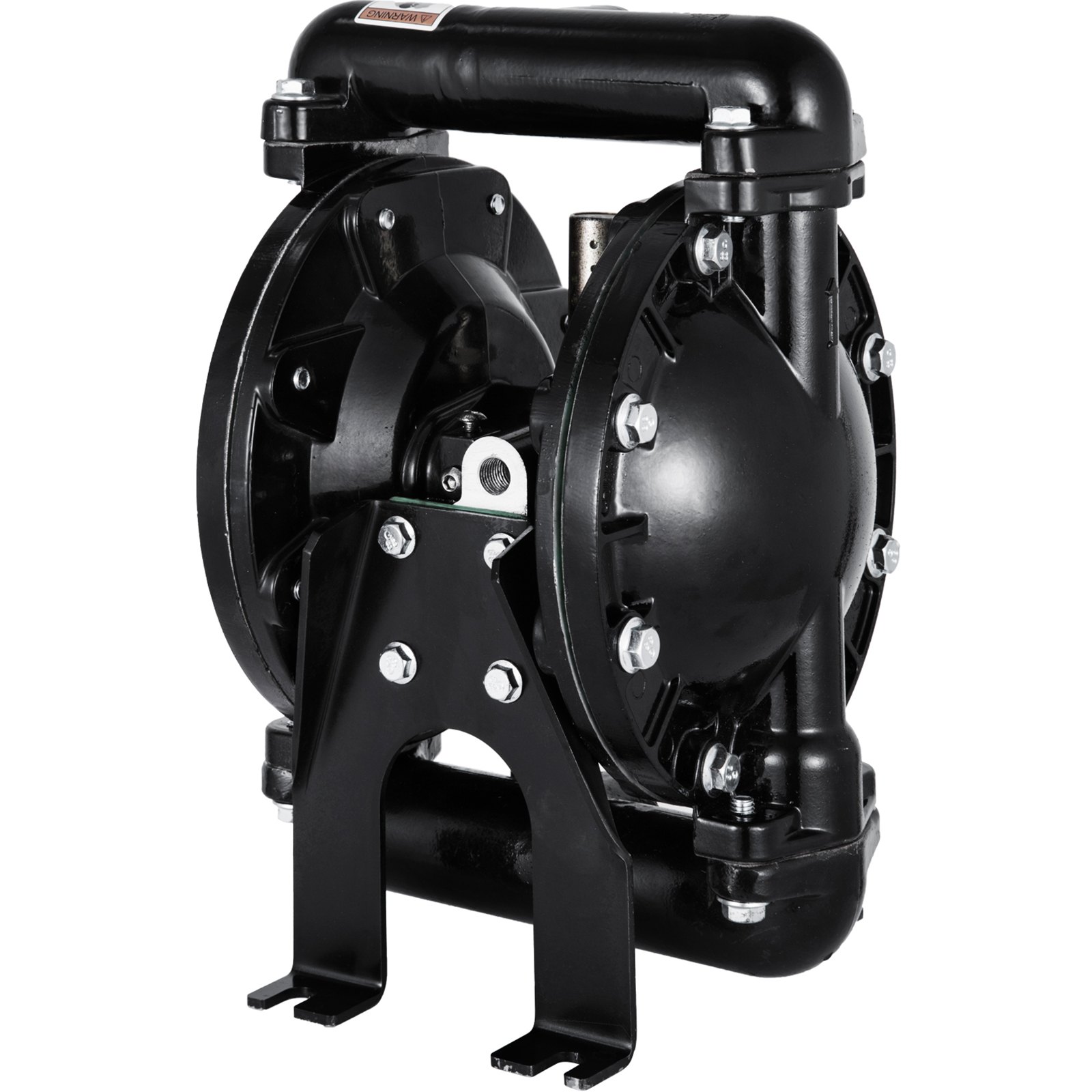

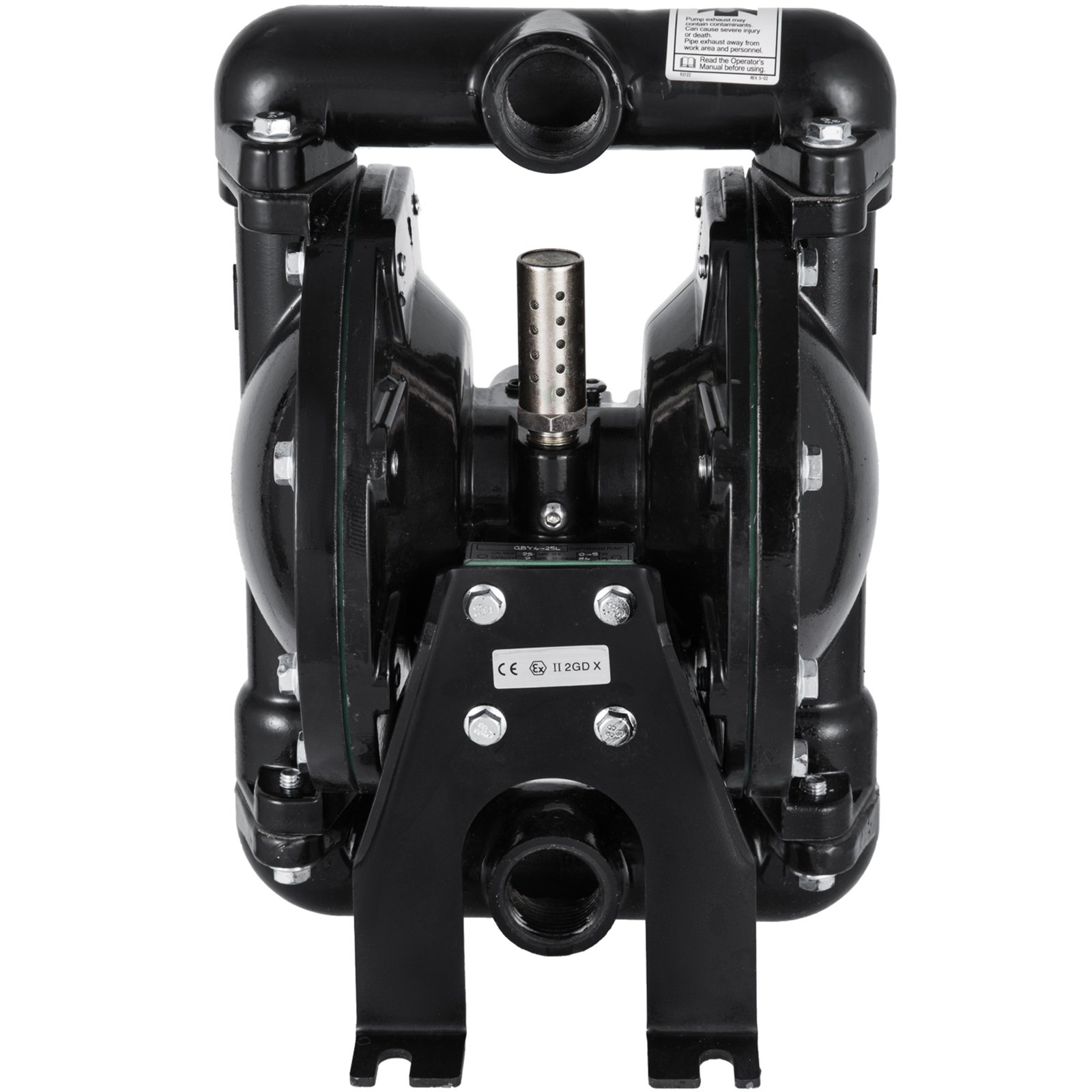

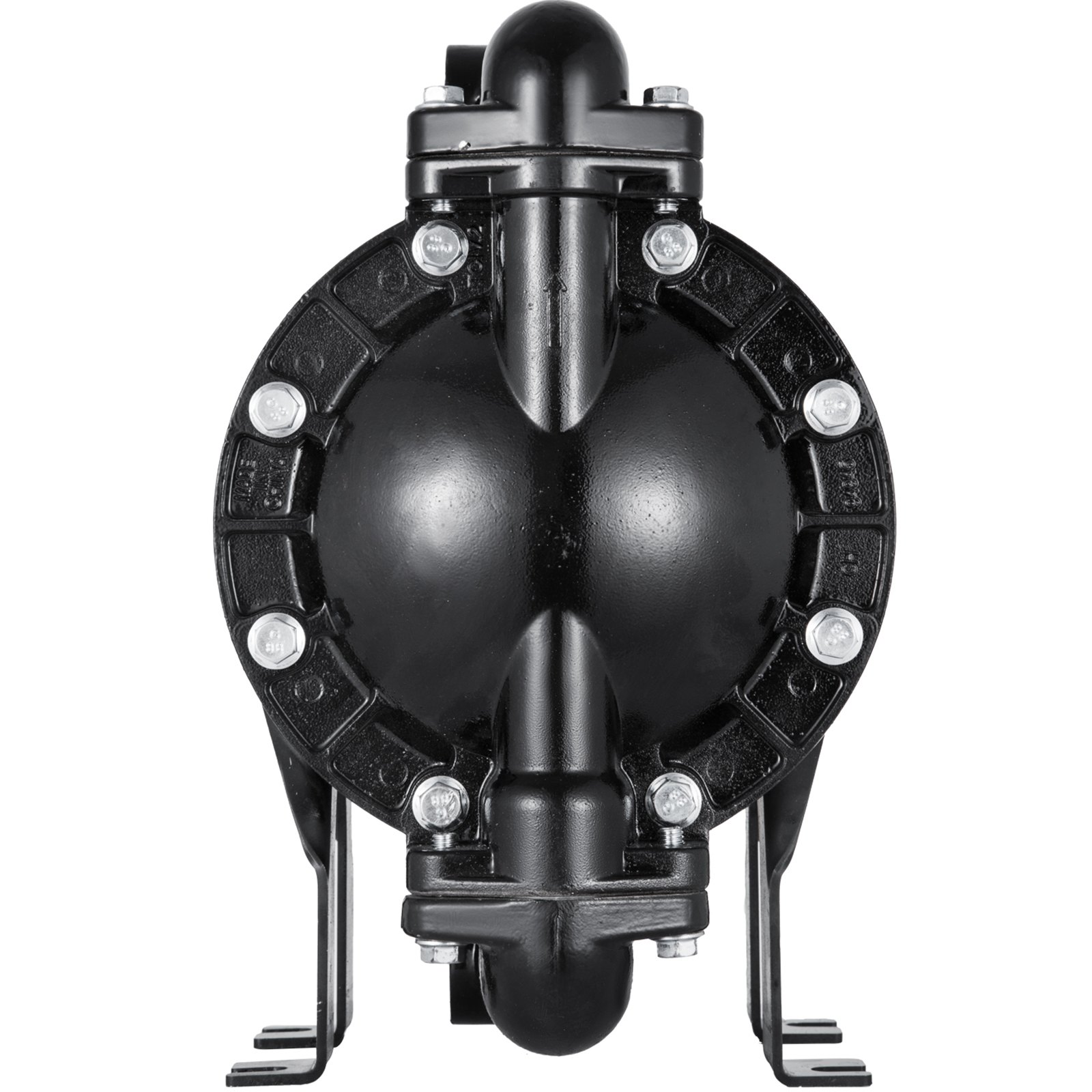

VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
YBGMBQBY4-25LF461V0

VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet

AU $236.99
236.99
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi; Max. Flow Rate:39.6 GPM; Max Head Lift:275.6 ft/84 m.
  • Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
  • Excellent Air-operated Performance: Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
  • Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
  • Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Only 1 Left, order soon
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet

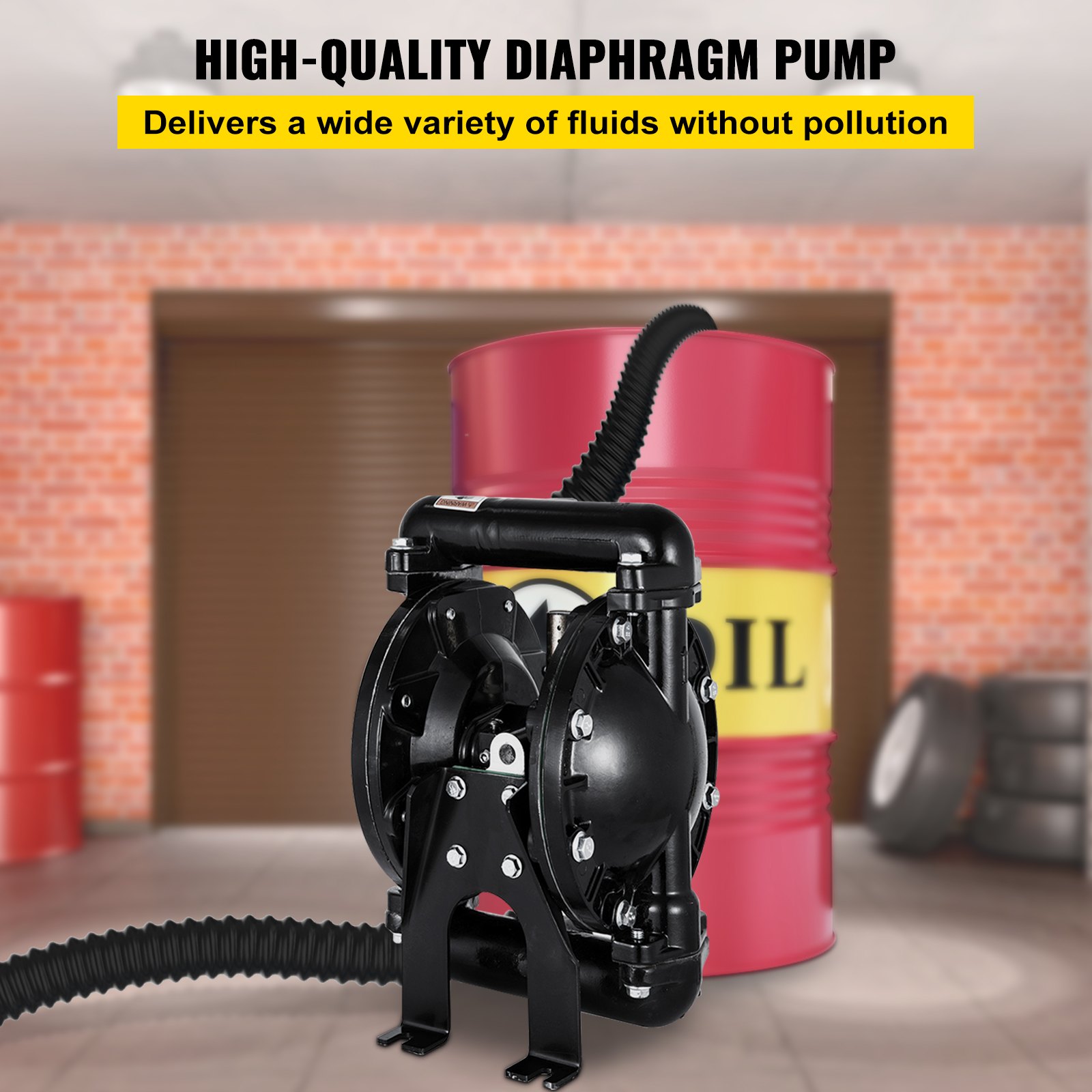

Air-Operated Double Diaphragm Pump Aluminum Alloy Construction & PTFE Diaphragm & 39.6 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted aluminum alloy body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
Premium Double PTFE Diaphragms
  • Sturdy & Leak-proof Construction
  • Excellent Air-operated Performance
  • Unique & Professional Designs
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet

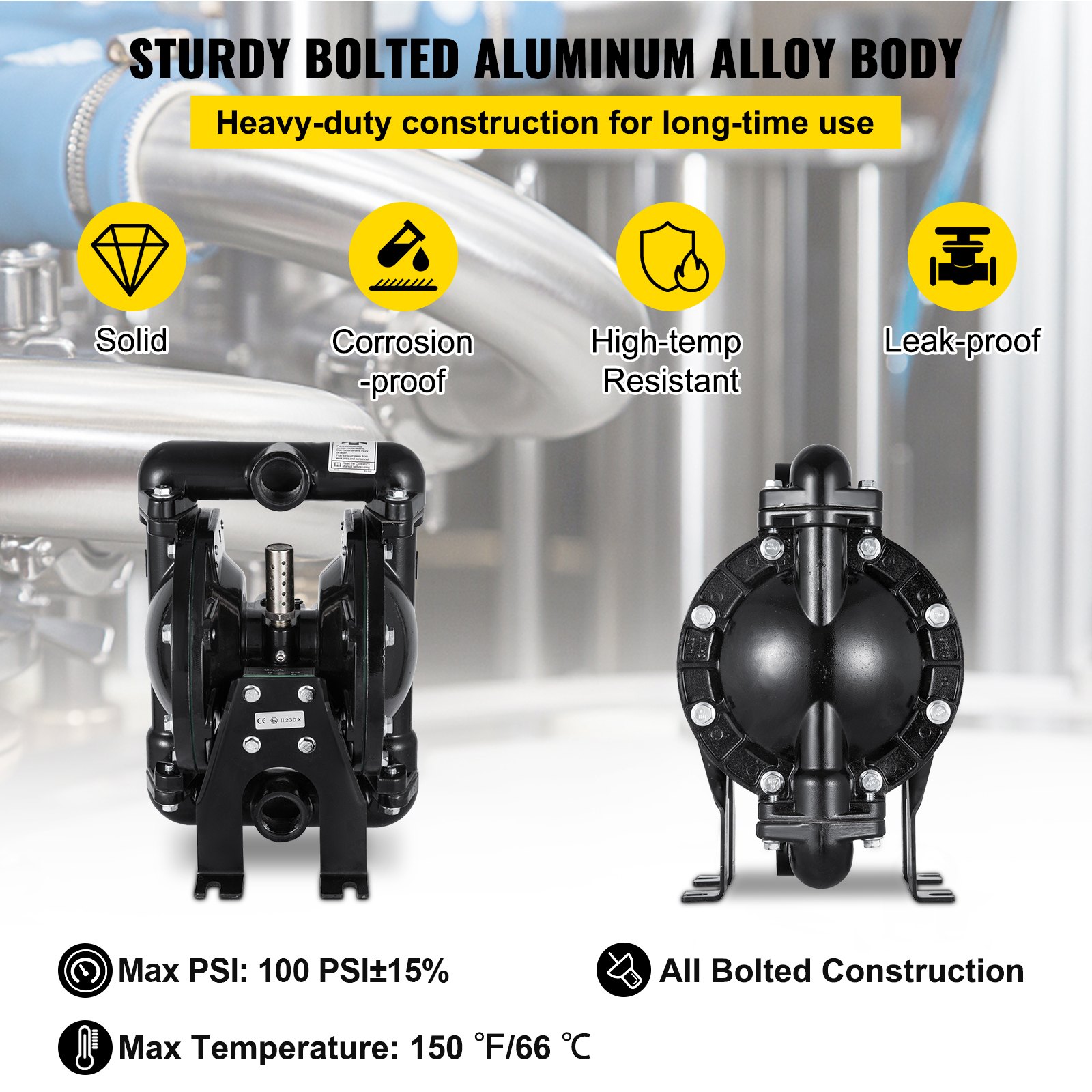

Sturdy Aluminum Alloy Body
The shell of the air-operated diaphragm pump adopts aluminum alloy construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet

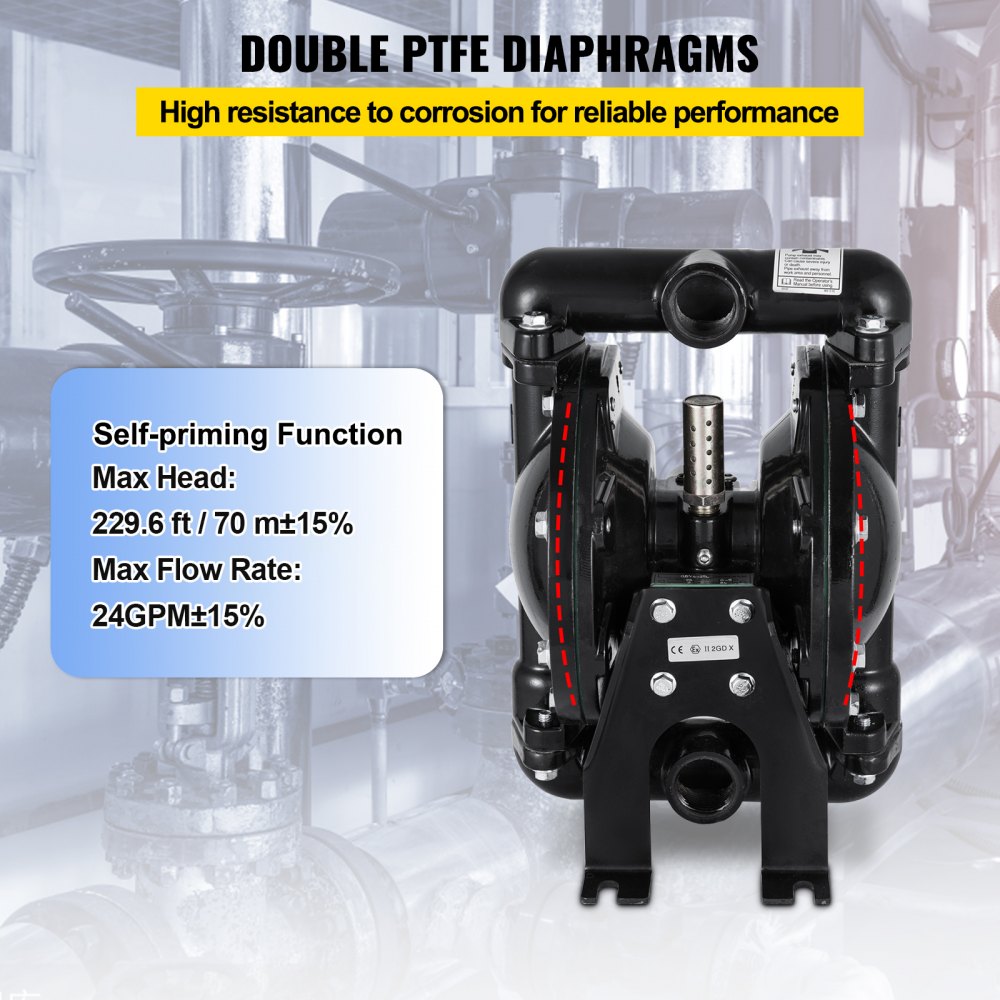

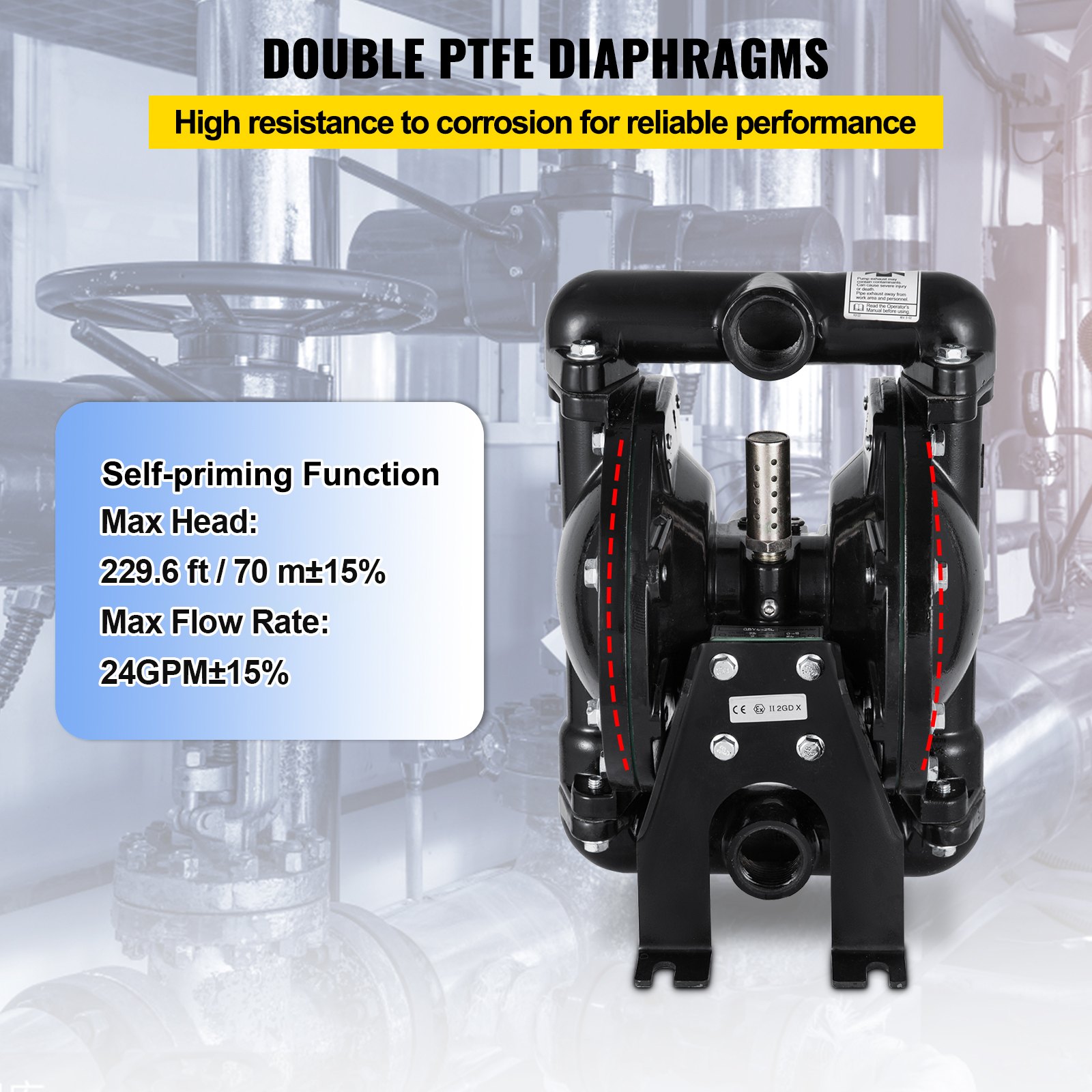

PTFE Double Diaphragm
The self-priming pump features double PTFE diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate:39.6 GPM; Max Head Lift:275.6 ft/84 m.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet

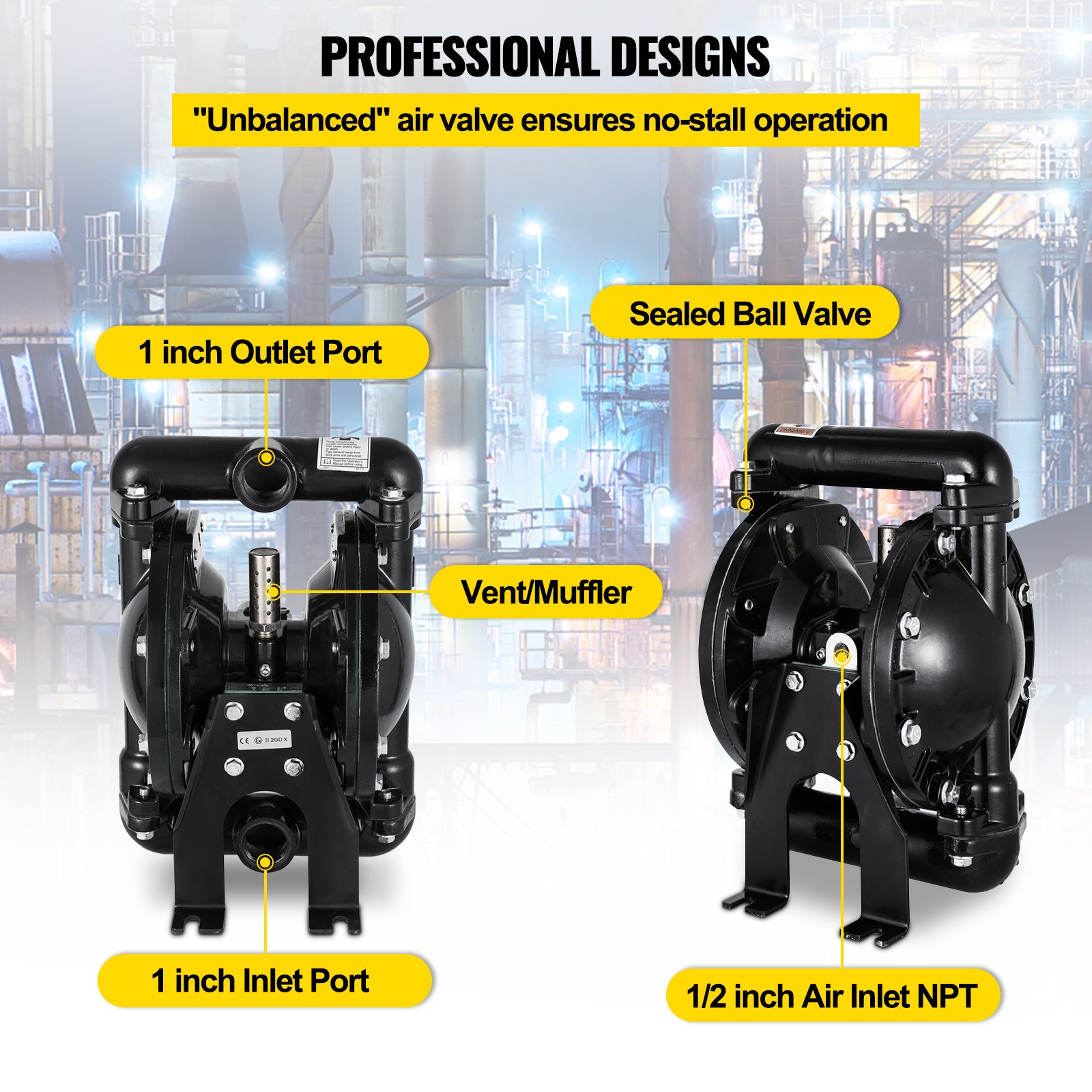

Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet

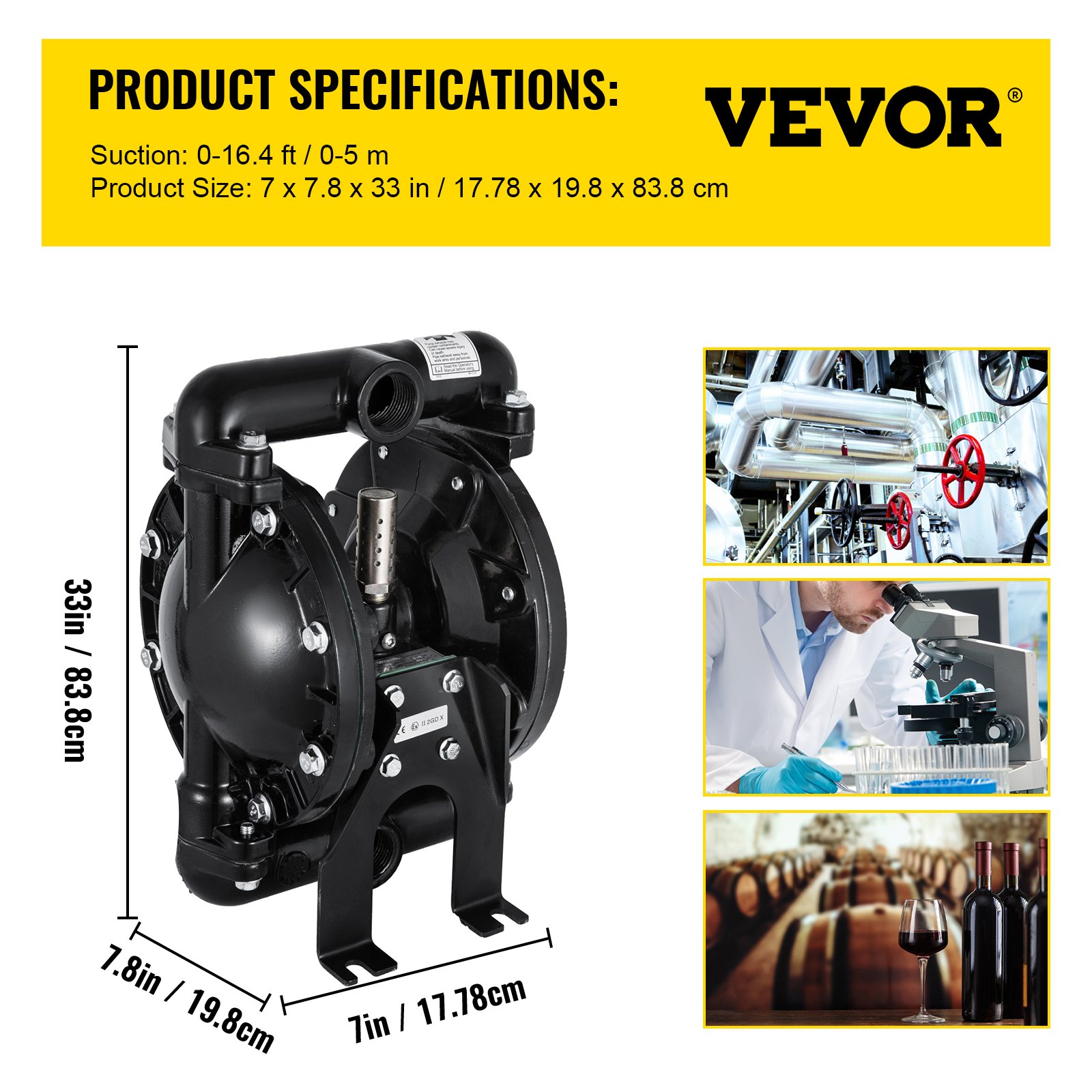

Specifications
  • Model: QBY4-25L F46
  • Type: Air-operated Double diaphragm
  • Diaphragm Material: PTFE
  • Body Material: Aluminum Alloy
  • Inlet/Outlet Port: 1 in / 25 mm
  • Air Inlet Size: NPT 1/2 in / 12.7 mm
  • Max Flow Rate: 39.6 GPM
  • Max Head: 84 m / 275.59 ft
  • Valve Type: Ball
  • Suction: 0-5 m / 0-16.4 ft
  • Max Suspended Solids: 3 mm / 1/8 in
  • Average Air Consumption: 38 CFM
  • Self-Priming Dry: 3 m / 10 ft
  • Self-Priming Wet: 4.6 m / 15 ft
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Package Content
  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Air-Operated Double Diaphragm Pump Aluminum Alloy Construction & PTFE Diaphragm & 39.6 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted aluminum alloy body and double PTFE diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
Premium Double PTFE Diaphragms
  • Sturdy & Leak-proof Construction
  • Excellent Air-operated Performance
  • Unique & Professional Designs
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Sturdy Aluminum Alloy Body
The shell of the air-operated diaphragm pump adopts aluminum alloy construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
PTFE Double Diaphragm
The self-priming pump features double PTFE diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate:39.6 GPM; Max Head Lift:275.6 ft/84 m.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Package Content
  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual
VEVOR Air-Operated Double Diaphragm Pump QBY4-25L F46 35 GPM 1 Inch Inlet Outlet
Specifications
  • Model: QBY4-25L F46
  • Type: Air-operated Double diaphragm
  • Diaphragm Material: PTFE
  • Body Material: Aluminum Alloy
  • Inlet/Outlet Port: 1 in / 25 mm
  • Air Inlet Size: NPT 1/2 in / 12.7 mm
  • Max Flow Rate: 39.6 GPM
  • Max Head: 84 m / 275.59 ft
  • Valve Type: Ball
  • Suction: 0-5 m / 0-16.4 ft
  • Max Suspended Solids: 3 mm / 1/8 in
  • Average Air Consumption: 38 CFM
  • Self-Priming Dry: 3 m / 10 ft
  • Self-Priming Wet: 4.6 m / 15 ft

Specification

Model
QBY4-25L F46
Type
Air-operated Double diaphragm
Diaphragm Material
PTFE
Body Material
Aluminum Alloy
Inlet/Outlet Port
1 in / 25 mm
Air Inlet Size
NPT 1/2 in / 12.7 mm
Max Flow Rate
39.6 GPM
Max Head
84 m / 275.59 ft
Valve Type
Ball
Suction
0-5 m / 0-16.4 ft
Max Suspended Solids
3 mm / 1/8 in
Average Air Consumption
38 CFM
Self-Priming Dry
3 m / 10 ft
Self-Priming Wet
4.6 m / 15 ft
Questions and Answers
3 Questions
can this pump LPG
Yes, it can pump LPG.
By vevor
what is the weight of this pump?
Its weight is 8.55kg.
By vevor
Battery operated? Details please
No, it is pneumatic.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
27 Review(s)
Clear filters
KT KT
Fleet Mgr.
Easy to order. Part arrived on time. Installed and working like a charm. Easy to order. Part arrived on time. Installed and working like a charm. Easy to order. Part arrived on time. Installed and working like a charm. Easy to order. Part arrived on time. Installed and working like a charm.
David David
President
Works Good for our application of removing garnet from our water jet tank and would recommend this to anyone needed to pump garnet
Hodgy Hodgy
diaphram pump
Great price, quality and lead time. We have purchased a second one of these diaphram pumps now and very happy with the performance.
VEVOR Customer VEVOR Customer
Work perfect great price
Work perfect great price
Erm Erm
Shop Supervisor
Works great for the application we are using it for. It's a strong pump and fits perfectly to the tank we mounted it to.
Jennifer Jennifer
It pumps cold used oil well enough
For the money this pump does the trick at moving used oils. It has the ability to move some of the trash that collects on the bottom of the tanks but slows it's cycling when it's really thick and gross. My unit has a smallish leak on one side of the output leg and the bolts are tight. Not sure what the deal is there. I've used it about 8x now and have moved about 375gallons of varied used oils. One batch has a lot of debris in the tank and was the main purpose for buying this unit. Be nice if the manual was a little clearer on English.
Product meets expectations Product meets expectations
Product meets expectations
Used to pump oil and works well
gary gary
Engineering Manager
You can't beat it for the price & reliability. The pump do last quite a while. .
José Rivera José Rivera
Mecánico industrial
Un buen servicio con productos accesibles a buen precio buena atención, recomendado para facilitar la nesecidad del cliente
Nitrolvr33 Nitrolvr33
Decent pump, great price
We use these to pump acrylic coatings (paint with sand in it) and they work great. Put a small air regulator right at the pump so you can easily control pump output, and make sure that all the pump bolts are tight before you use it. No problems.
