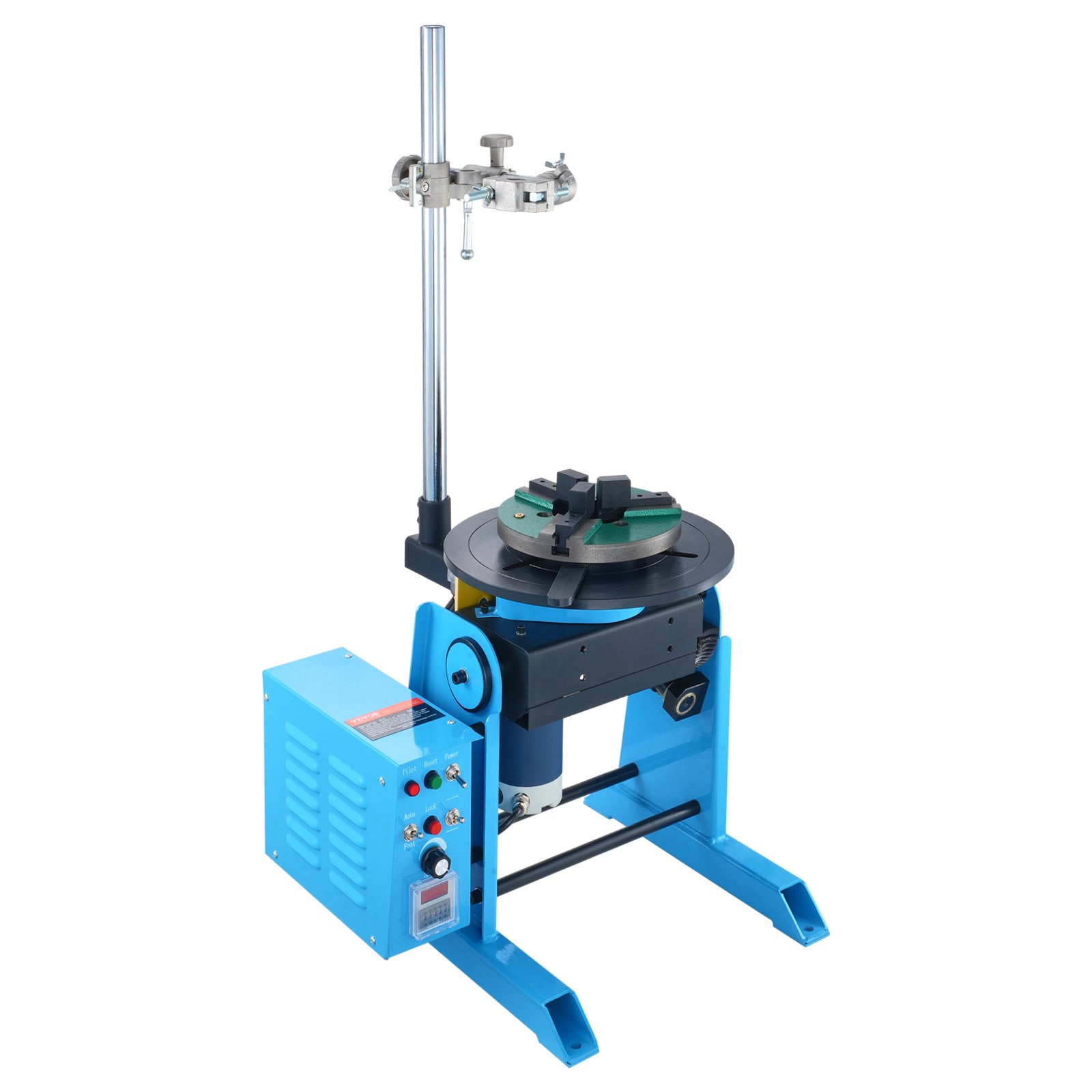

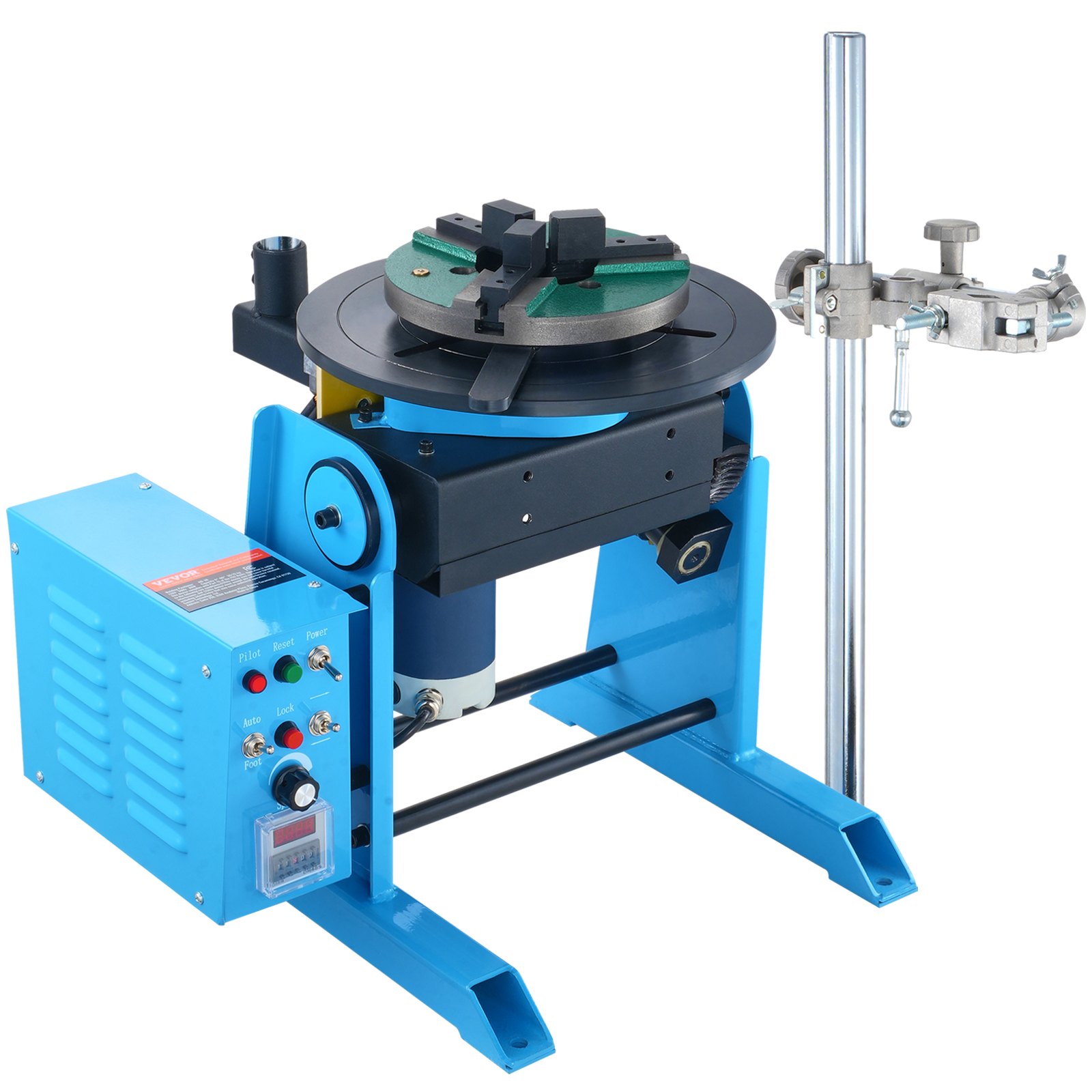

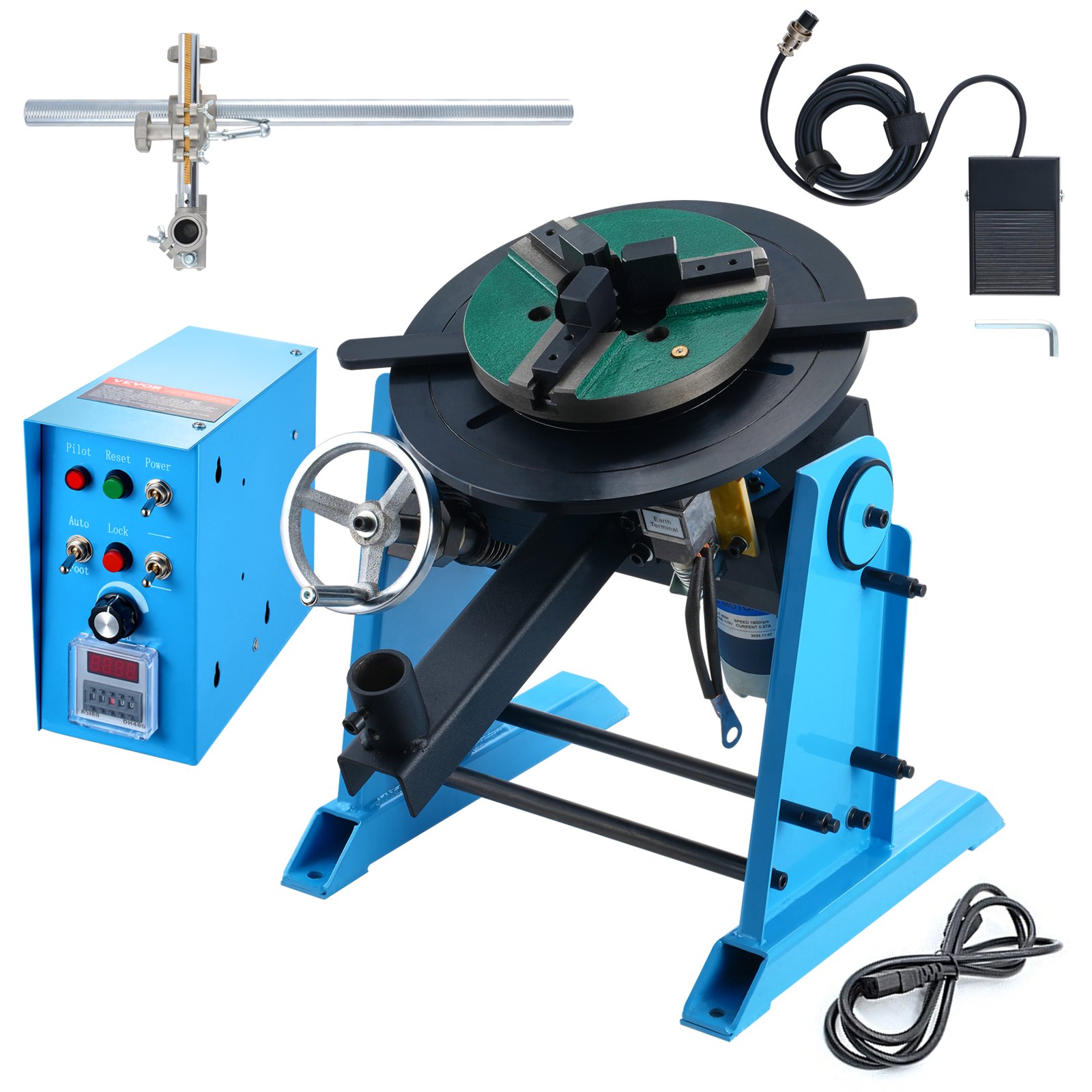

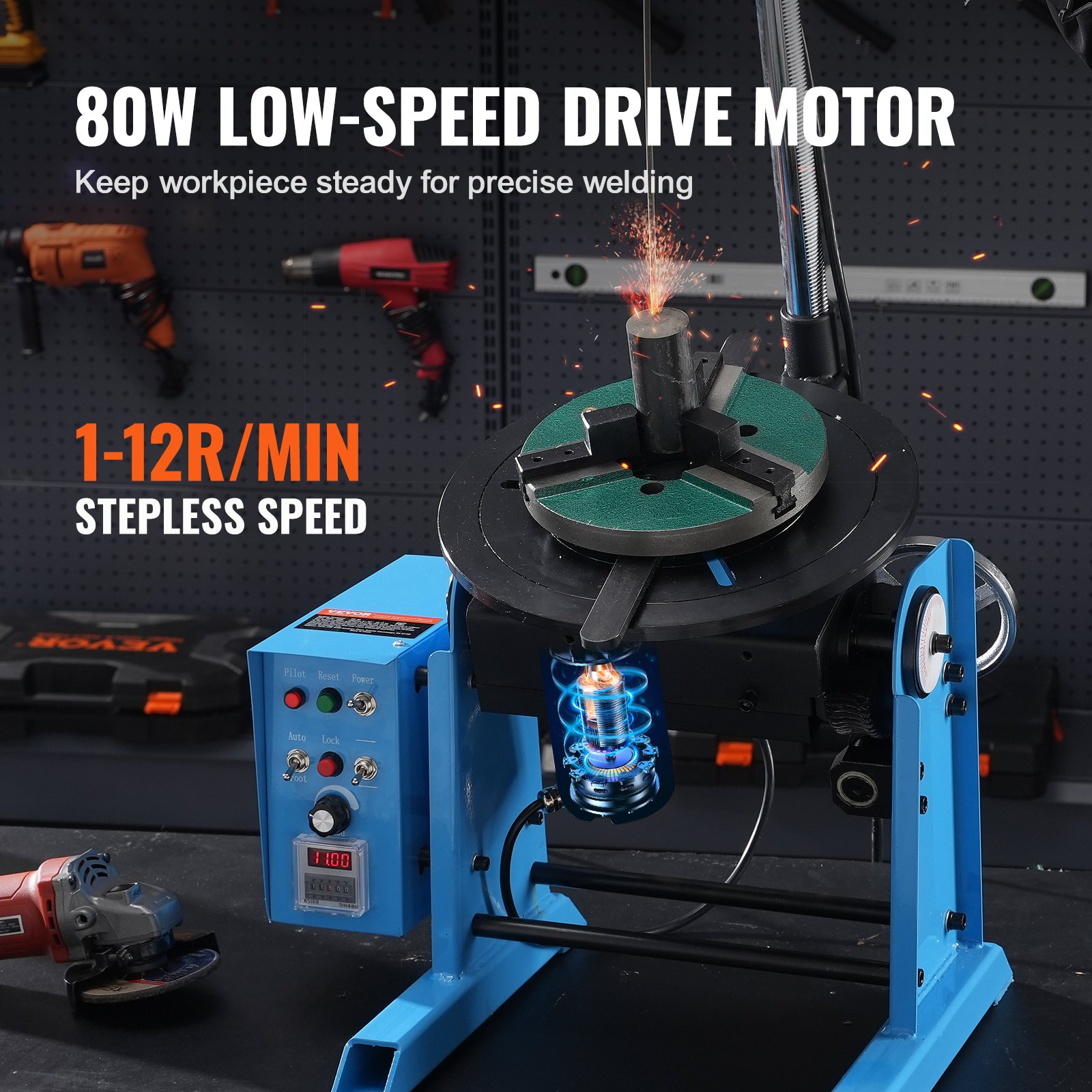

Smooth Rotation: VEVOR rotary welding positioner boasts 80W high quality motor that runs at 1-12 rpm low speed for stable and smooth operation. With a load capacity of up to 33.1 lbs/15kg (vertical) or 66.1lbs/30 Kg (horizontal), it offers excellent stability and supports efficient, precise welding.

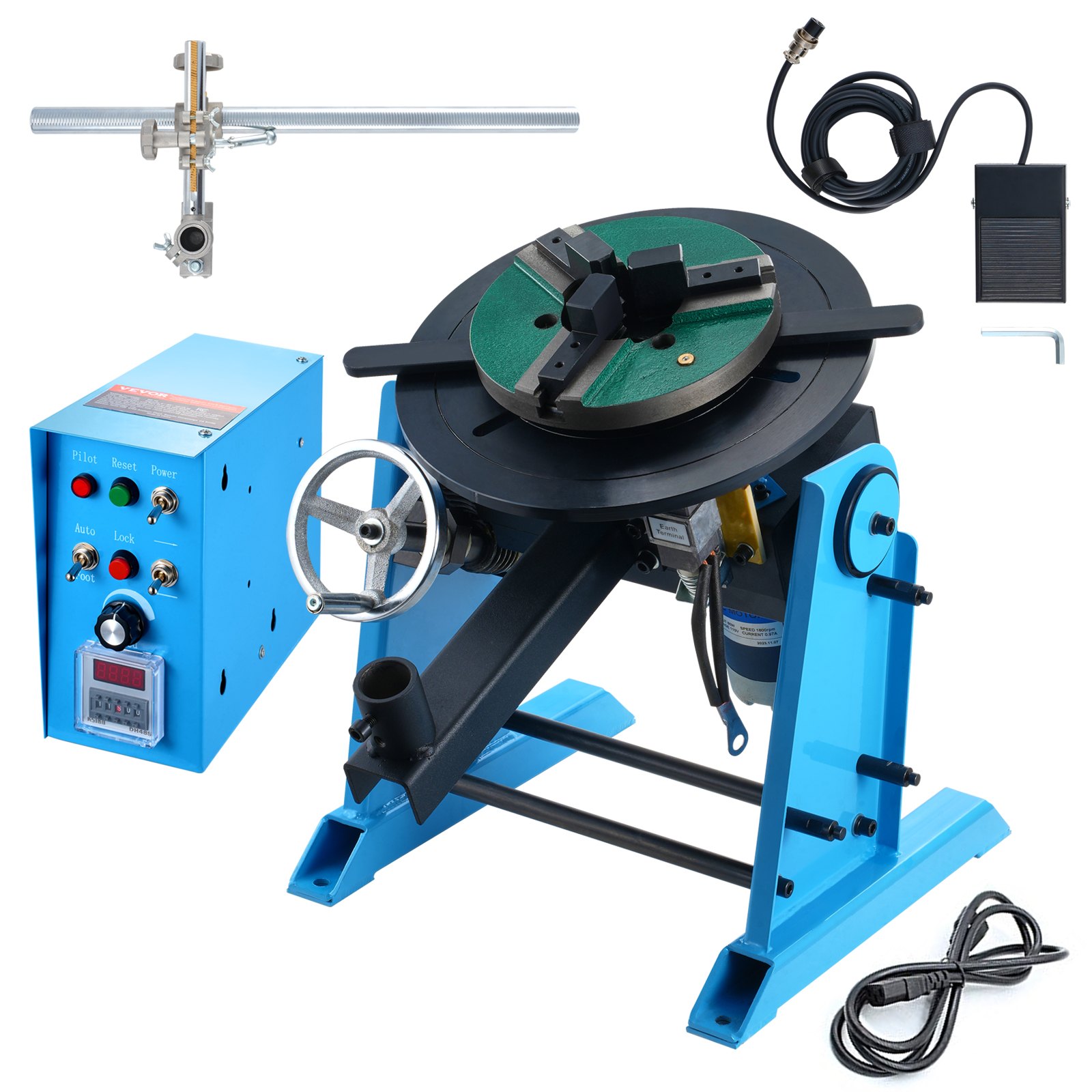

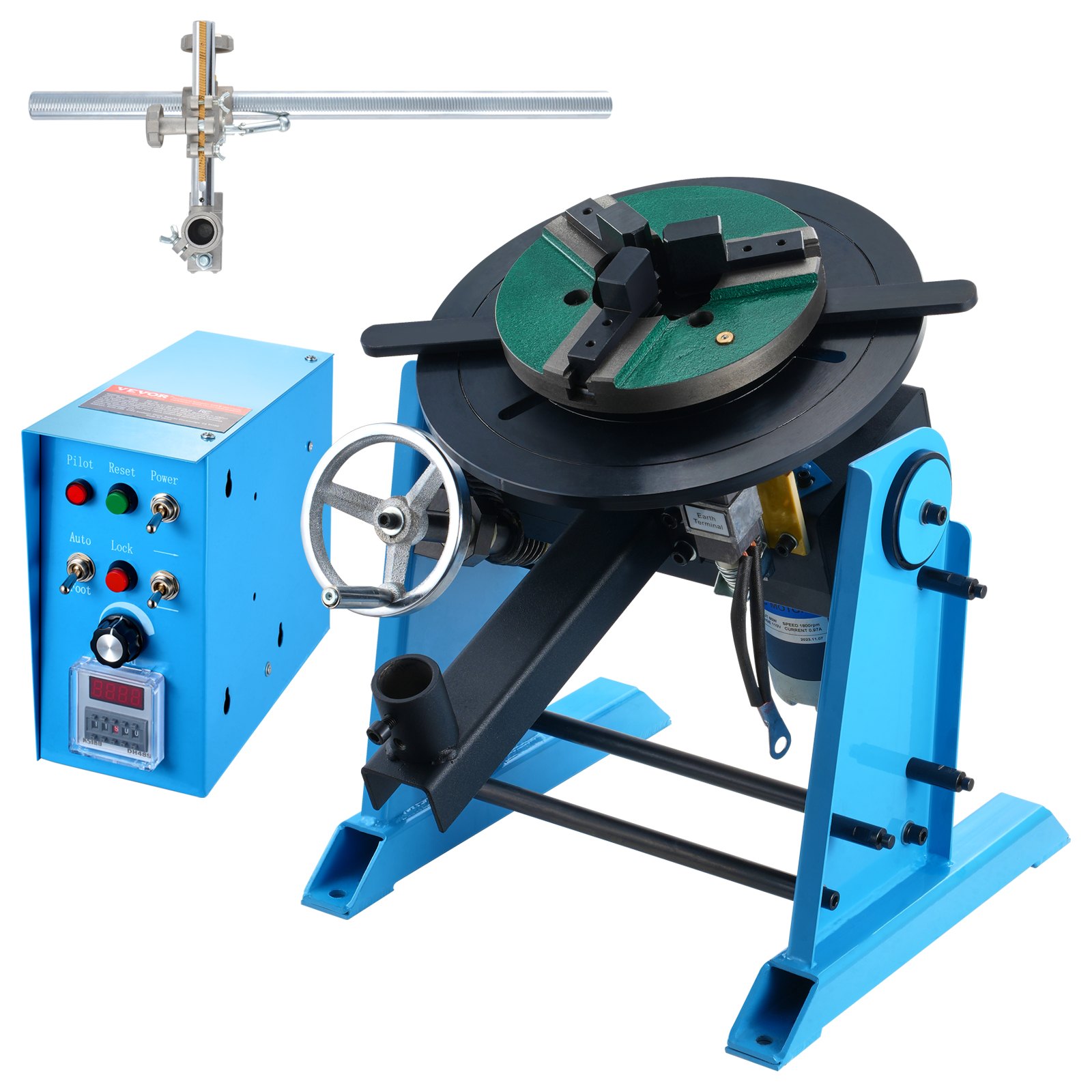

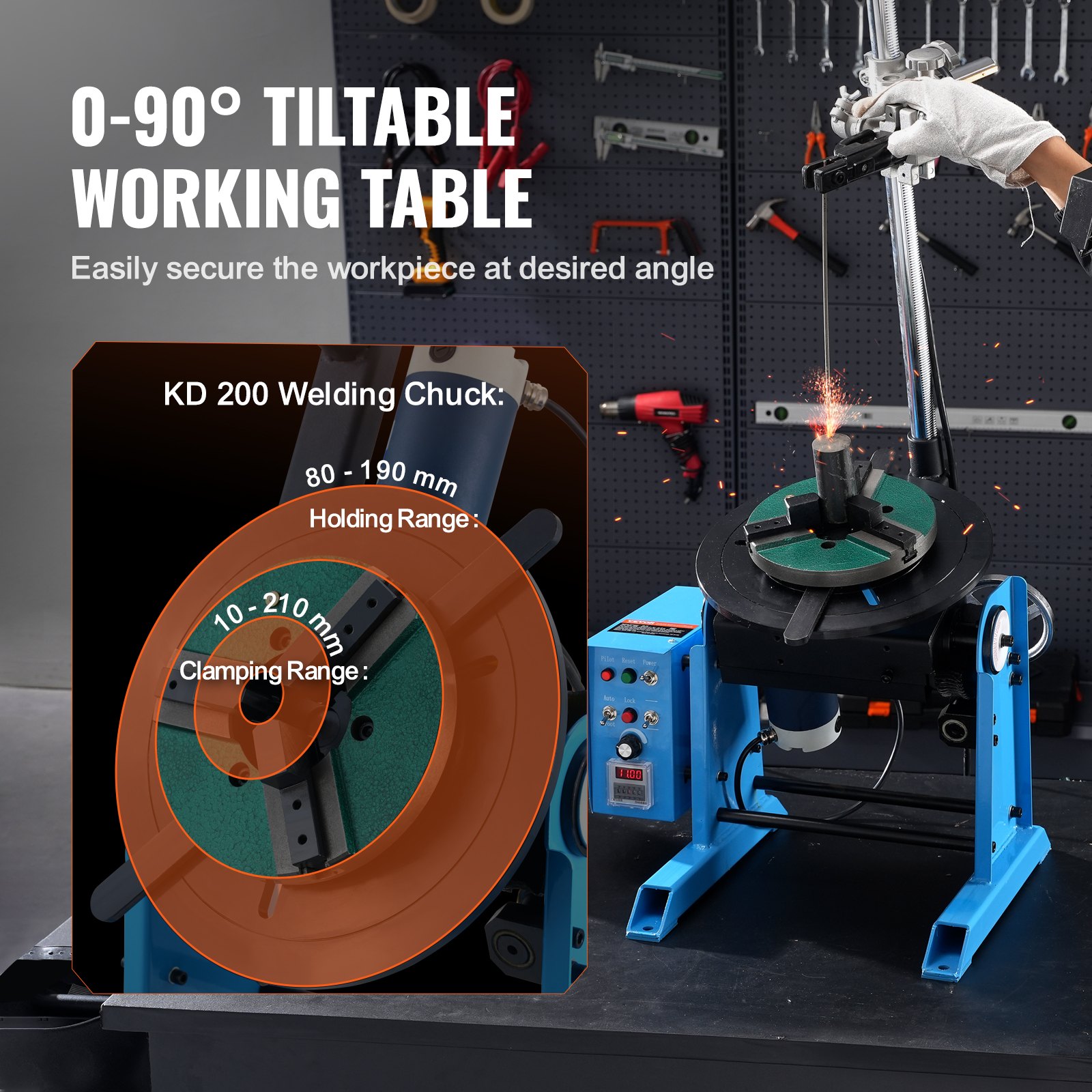

0-90° Tiltable Worktable: The welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the hand wheel. Plus, the worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece.
Precise & Stable Positioning: Equipped with a 315mm KD200 three-jaw chuck, featuring 10-210mm clamping range and 80-190m supporting range, it effectively prevents the weldment pieces from moving and falling. Also includes a welding gun stand holder to secure the welding gun in place.

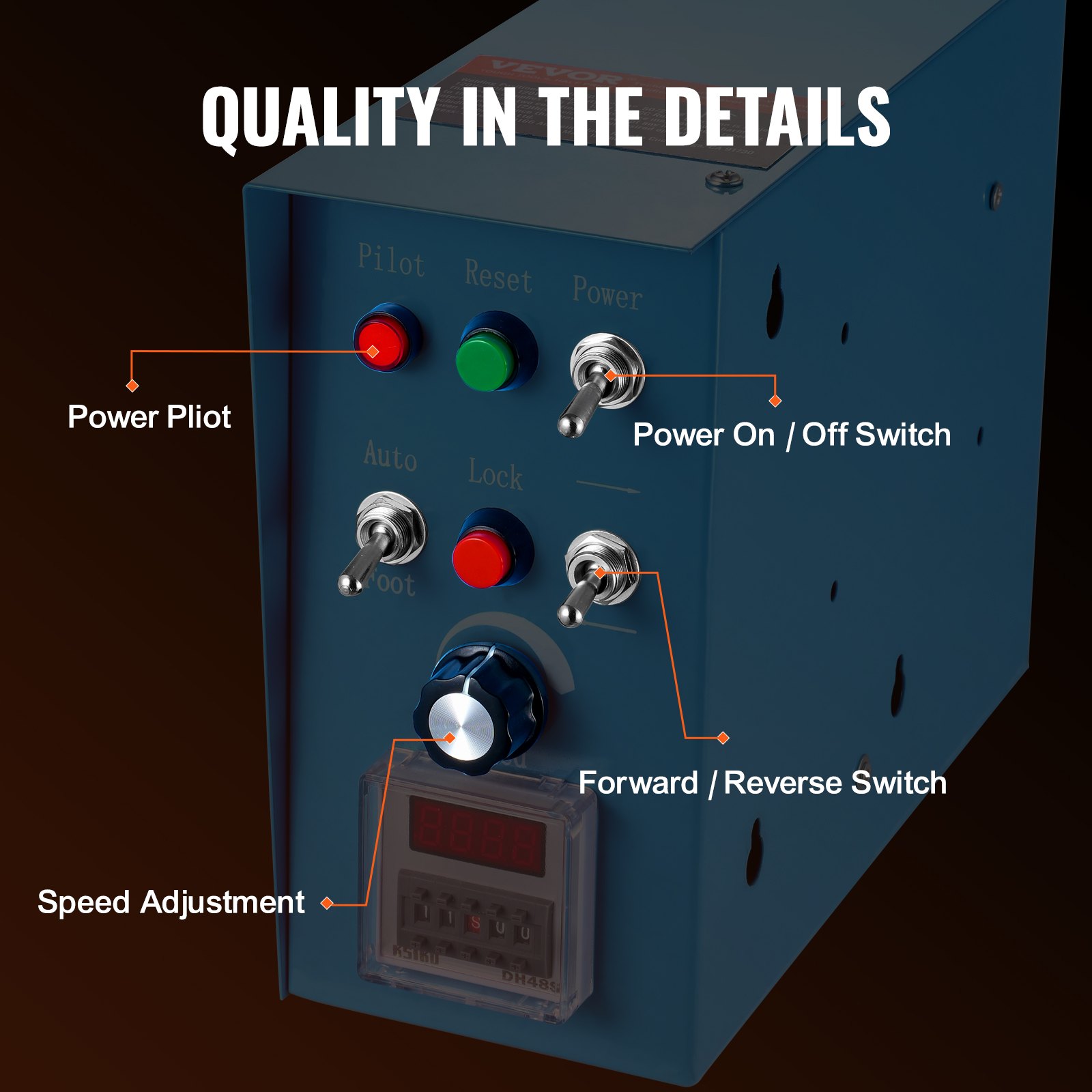

Easy to Operate & Control: The welder positioning turntable table offers 1-12 rpm stepless speed adjustment. You can easily control the rotation speed with the user-friendly control box. The convenient foot pedal switch also allows for easy control of table's 360 degrees rotation.

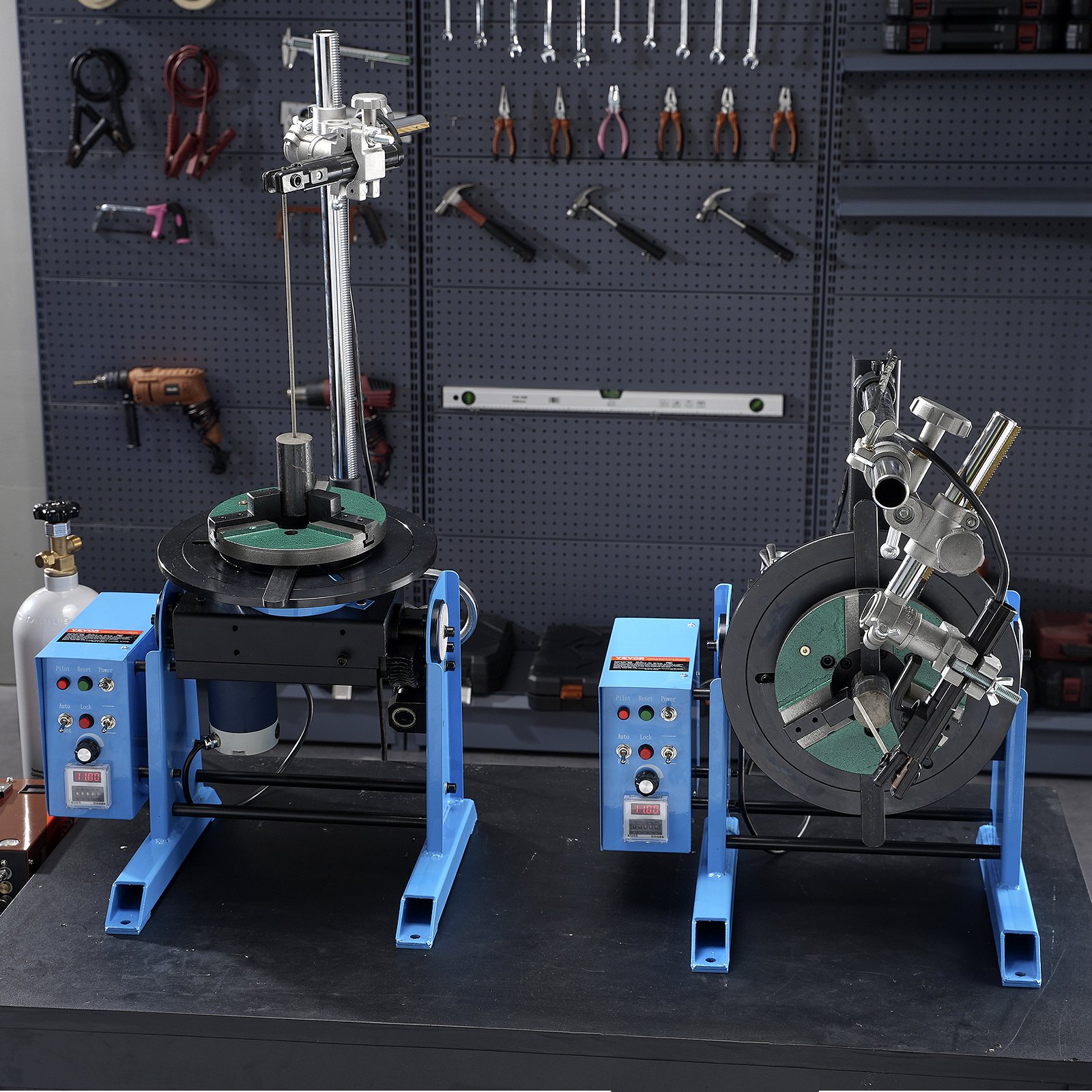

Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing. It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding. Elevate welding efficiency and precision with VEVOR!
I bought this version of the 3 positioners for one reason. It will run slow enough to allow both Mig and Tig welding operations. The others, as others have said are OK for Mig but too quick for Tig.
This model has a different motor/gearbox arrangement than the other 2. Testing today showed the gearing is slower than the specs say. My testing over 1 minute duration, with the adjuster knob just above zero and the time on 1 minute showed the turn table had only rotated approximately 0.2 RPM measured at the Platten edge. I have tested the mig function by welding together pie cut sections in to a 90 degree bend. This required rotation for 47 seconds to complete the weld on 32mm ERW tubing. Testing for Tig use is ongoing, but for the same size tubing. 38 X 1.6 wall. My initial estimate of rotation speed is 1 min and 10 seconds for one rotation. Easily within reach as the adjuster is only about 1/3 open.. The unit was delivered within the timeline and was well packaged. Assembly was easy. To be constructively critical, the mig stand is a blessing but really needs some more substantial tightening arrangements The wingnuts are too small to lock things in place. Having said that, the price whilst a significant jump from the 30kg version, does include this amazing adjustable arm wrest/mig attachment. Get the setup right and you almost have a robotic welder.
I am thoroughly impressed with this product, representing great value for money. I did have a small issue with one of the relays in the control box. Vevor we're all over the issue and had a resolution in a few days. A replacement relay is on its way. After sales service is the best I have been involved with. Well done. For the doubters, I bought this myself, I get no kick back from vevor. I am a retired maintenance worker from the oil and gas industry. Just trying to learn Mig/Tig as a hobby. Trying to manufacture exhausts in stainless steel.
See Less
See More
Craig
Reviewed on Jun 13,2025
Chuck is to small had to upgrade to 125 mm , then put in an angle lock as rotating plate now a lot heavier .
Also may have to lower the motor gear ratio , for a slower speed , for rotation welding .
Appart from that a great item at a good price .
See Less
See More
GPinAus
Reviewed on Feb 18,2025
Put to use and was really easy to use and improved the weld control. So much so we bought 2 x 50kg units recently as well.
See Less
See More
Dl
Reviewed on Nov 25,2024
Fonctionne bien
See Less
See More
macb
Reviewed on Nov 25,2024
Don’t mind the bad review, this machine is well worth it!
See Less
See More
andreas wunder
Reviewed on Nov 17,2024
hat sich mittlerweile im Einsatz bewährt
See Less
See More
B.
Reviewed on Jul 13,2024
good turntable for welding and is cheap and decent. I used to cut pipe stuff and it has mounting holes for bigger pieces that clamp cannot fit into
See Less
See More
Steve
Reviewed on May 12,2024
What a game changer. I regularly MIG weld short steel tubes to small plates, and this little beauty allows me to do perfect 6CFWs.
10/10.
See Less
See More
See all 8 reviews
About this item

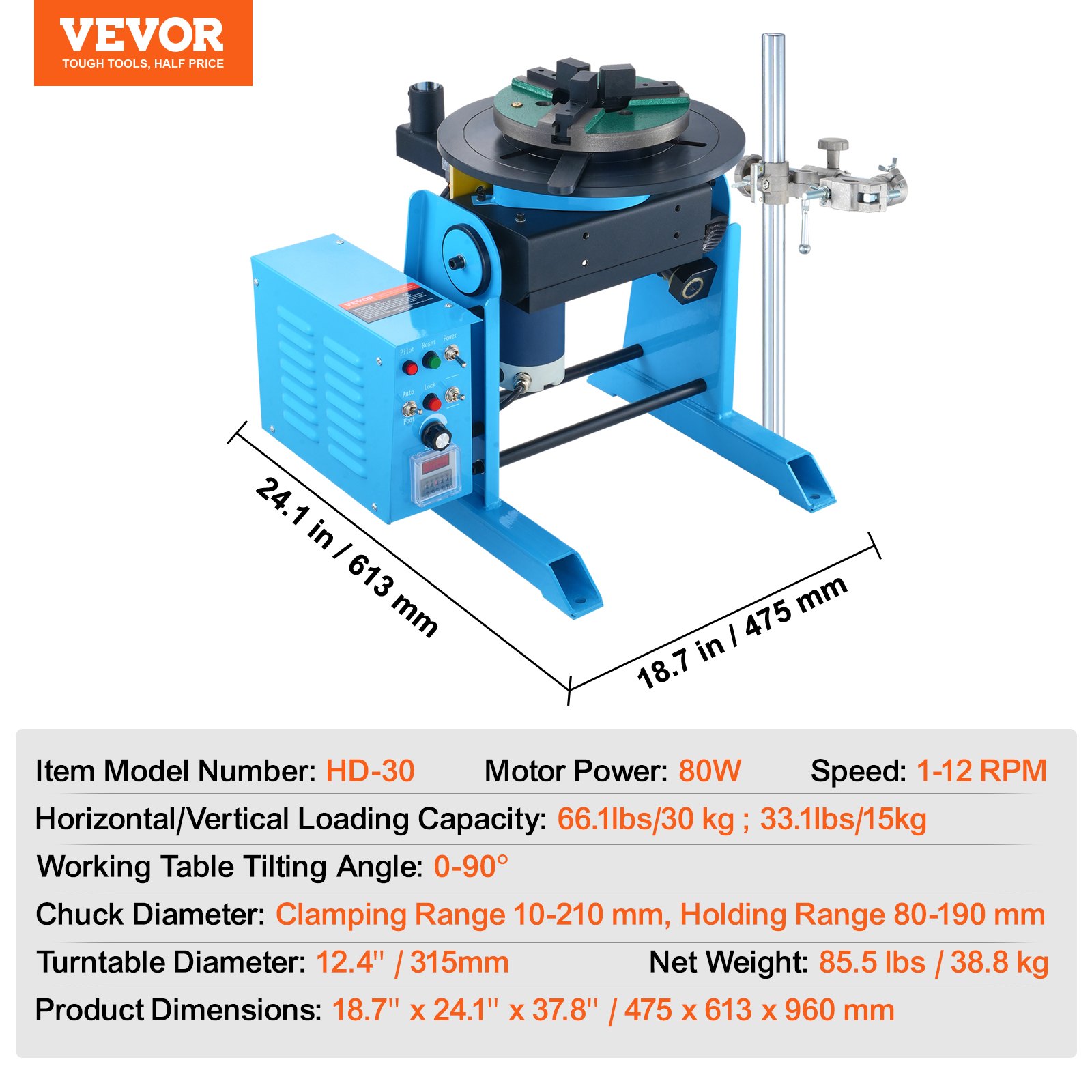

Product specification
Item Model Number
HD-30
Motor Power
80W
Speed
1-12 RPM
Horizontal/Vertical Load Capacity
66.1lbs/30 kg ; 33.1lbs / 15kg
Working Table Tilting Angle
0-90°
Chuck Diameter
Clamping Range 10-210 mm, Holding Range 80-190 mm
Turntable Diameter
12.4'' / 315mm
Net Weight
85.5 lbs / 38.8 kg
Product Dimensions
18.7'' x 24.1'' x 37.8'' / 475 x 613 x 960 mm
Description
Master Welding Projects with Precision and Ease
Choose VEVOR rotary welding positioner makes welding effortless and accurate. Elevate your welding skills and exceptional welds with 0-90° tiltable worktable, 1-12 rpm stepless speed control, KD200 three-jaw chuck, strong load capacity, easy-to-use control box, and welding gun stand holder.

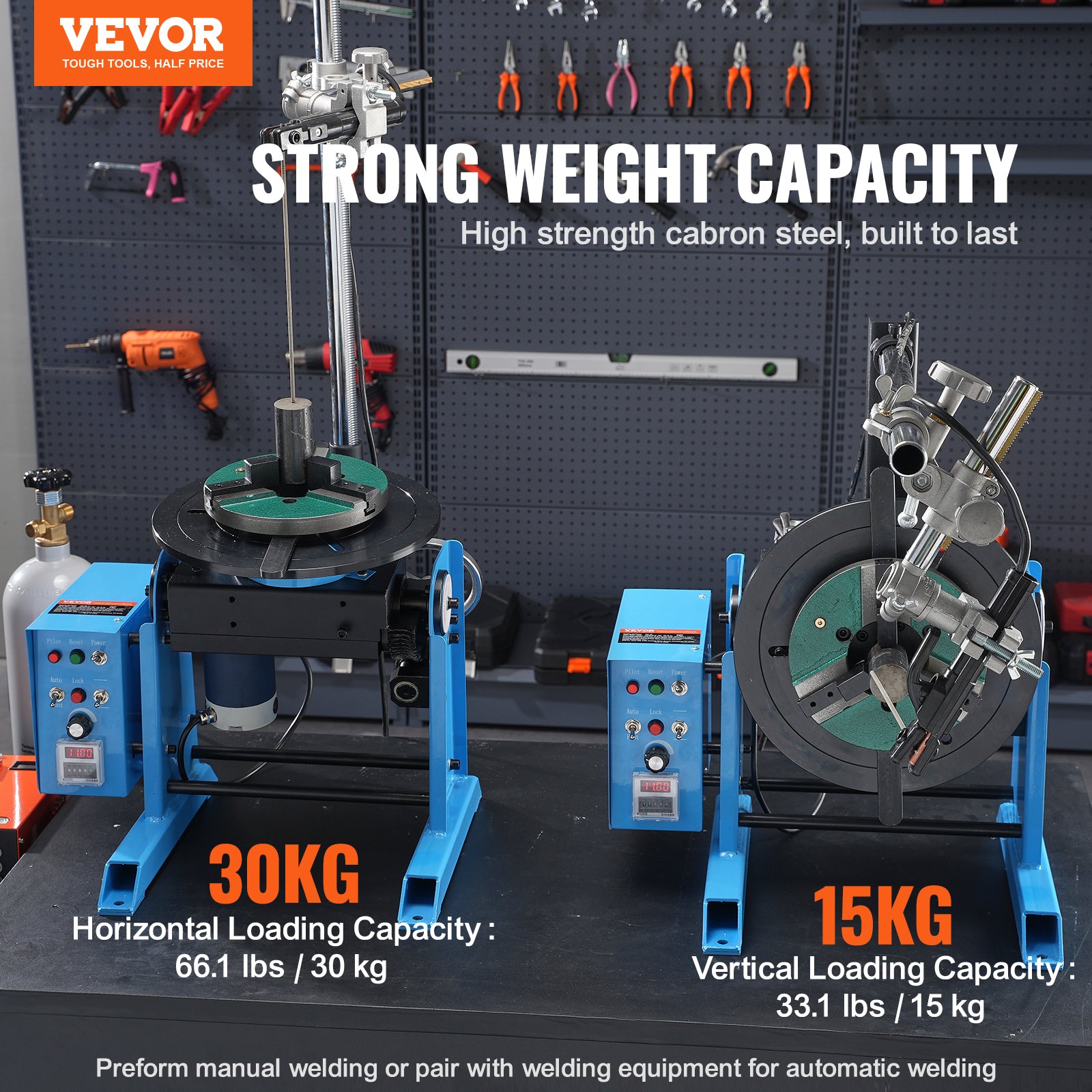

Constructed with high-strength carbon steel, our welding positioner turntable table boasts exceptional 33.1 lbs (vertical) or 66.1 lbs (horizontal) load-bearing capacities. Robust and durable structure can handle various welding tasks while offering corrosion resistance for long-term use.
Our positioner features a worm gear turning structure with a self-locking function, ensuring precise and stable positioning of welding workpiece. The hand wheel can securely fix the worktable at desired angle, while the welding gun stand holder allows for precise positioning of the gun.
Control the worktable's 360° rotation effortlessly with the foot pedal switch, providing flexibility during welding. The user-friendly control box allows for stepless speed adjustment (1-12rpm), catering to the requirements of different welding tasks and ensuring a smooth welding process.
Our welding positioner is suitable for a variety of welding tasks, ensuring that you achieve precise and efficient welding results. Whether it's metal welding, large pipe welding, heavy machinery welding, or automated welding, our welding positioner is up to the task.
