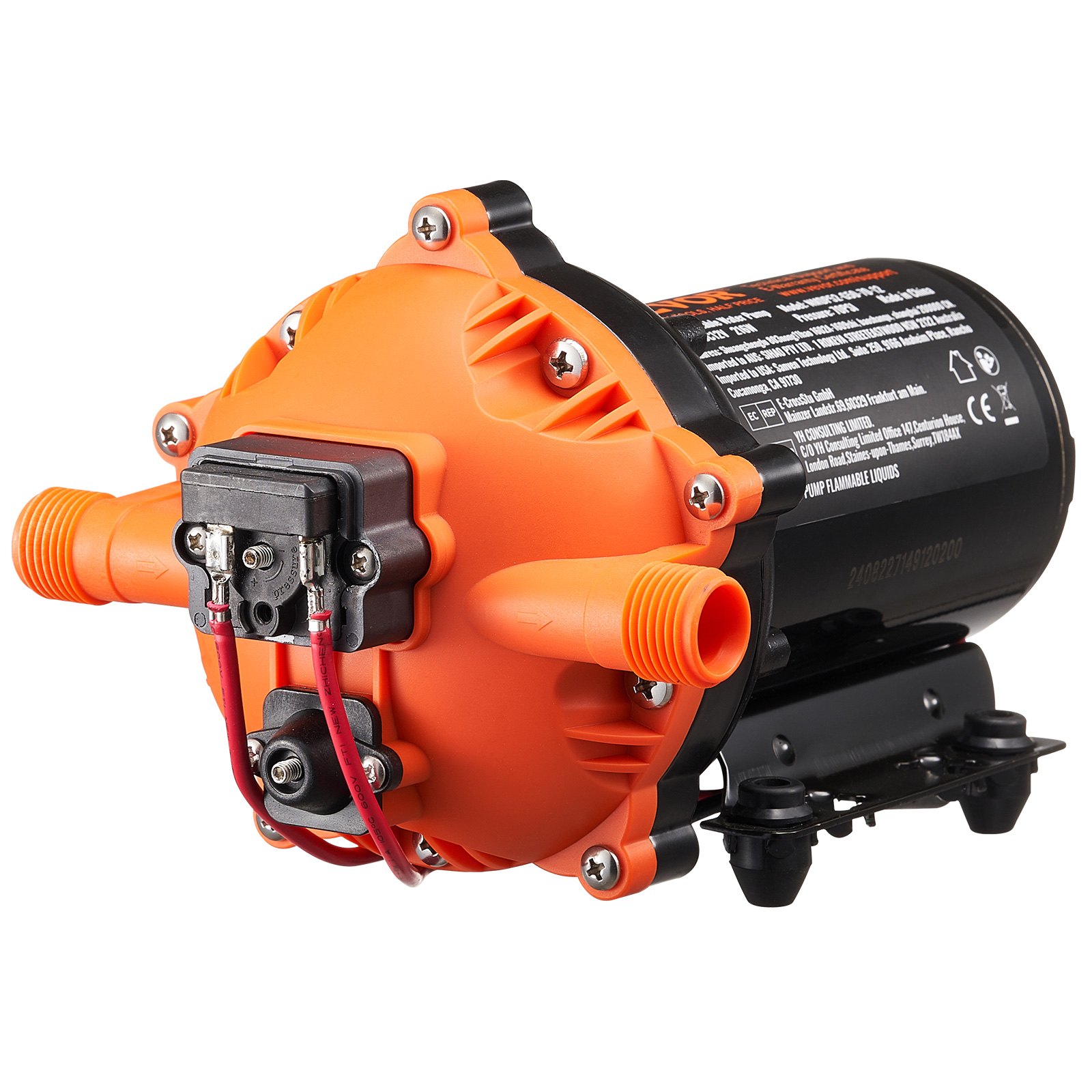

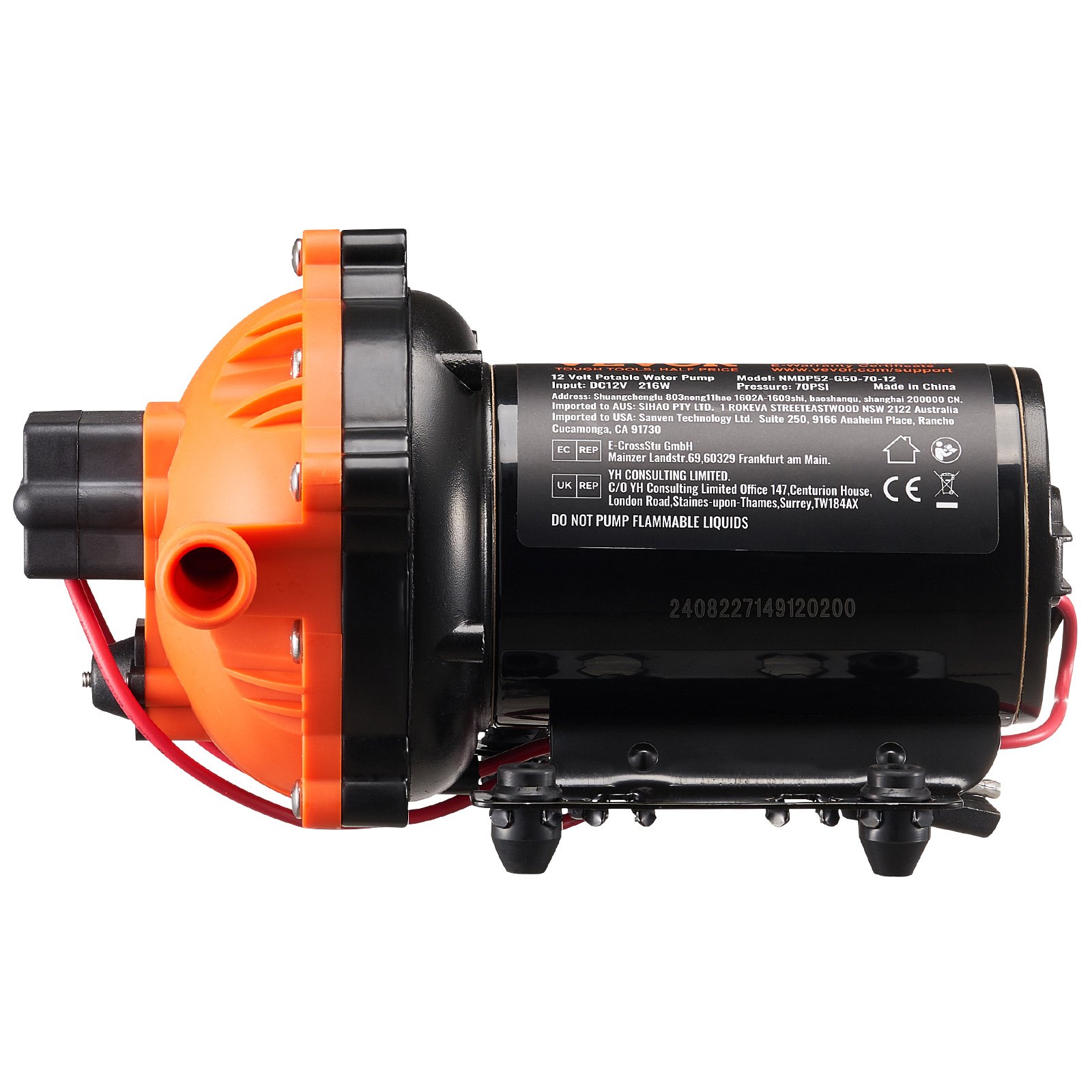

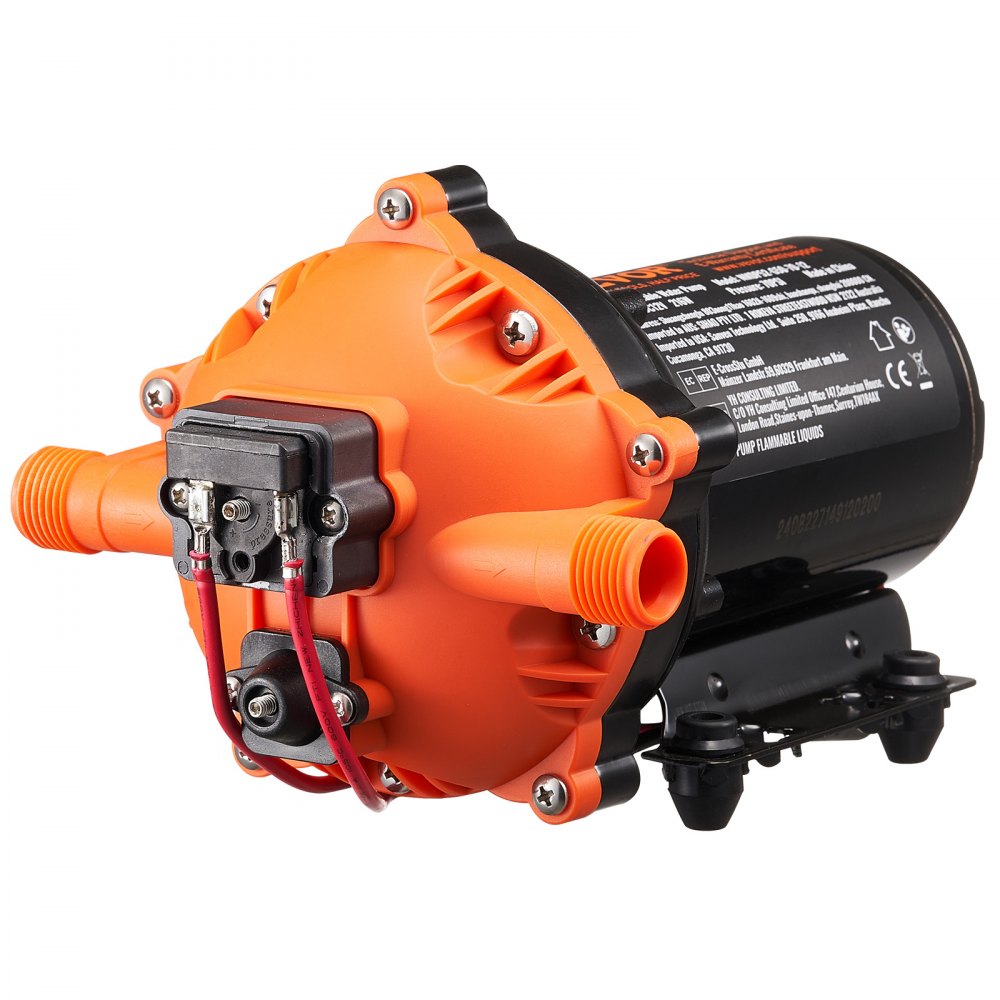

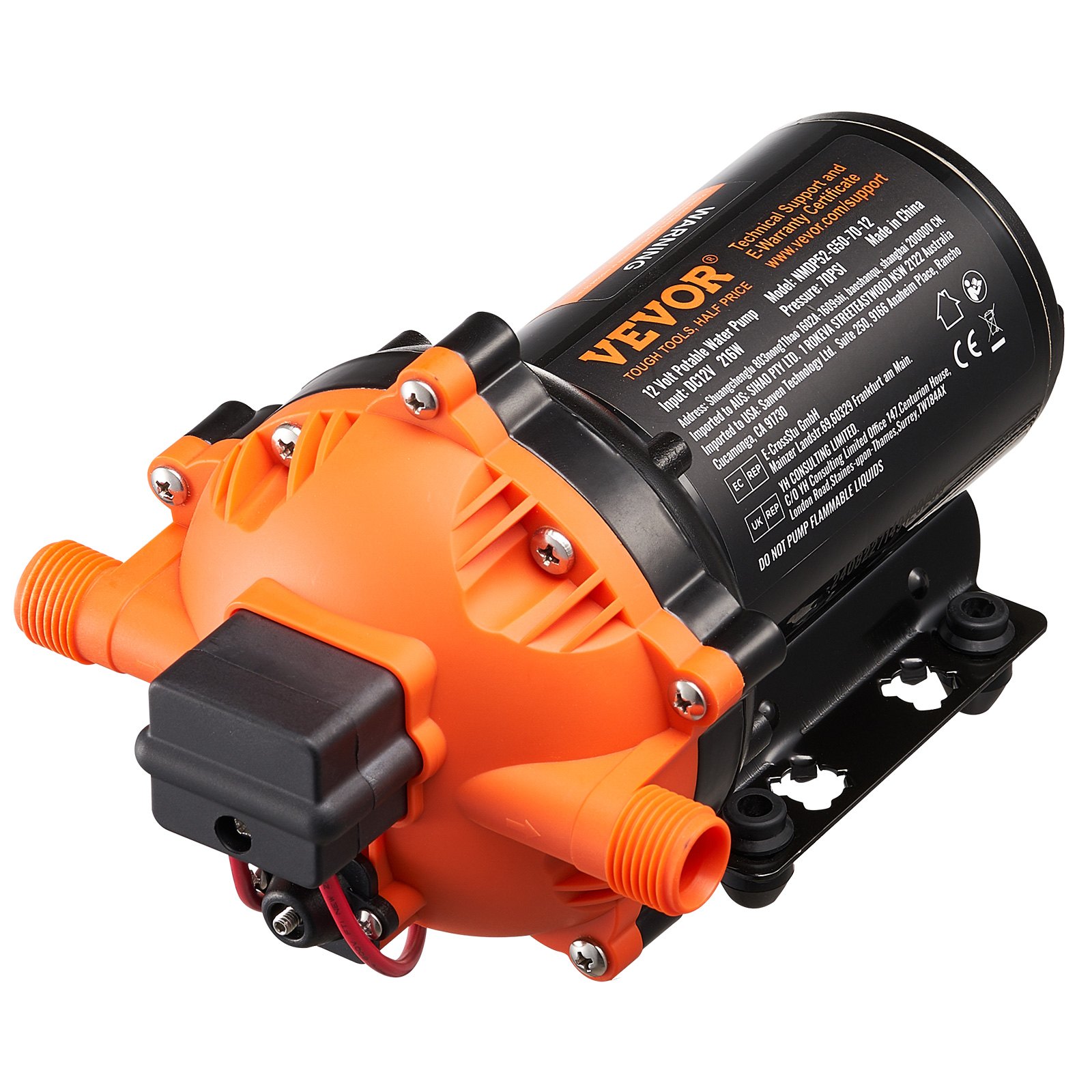

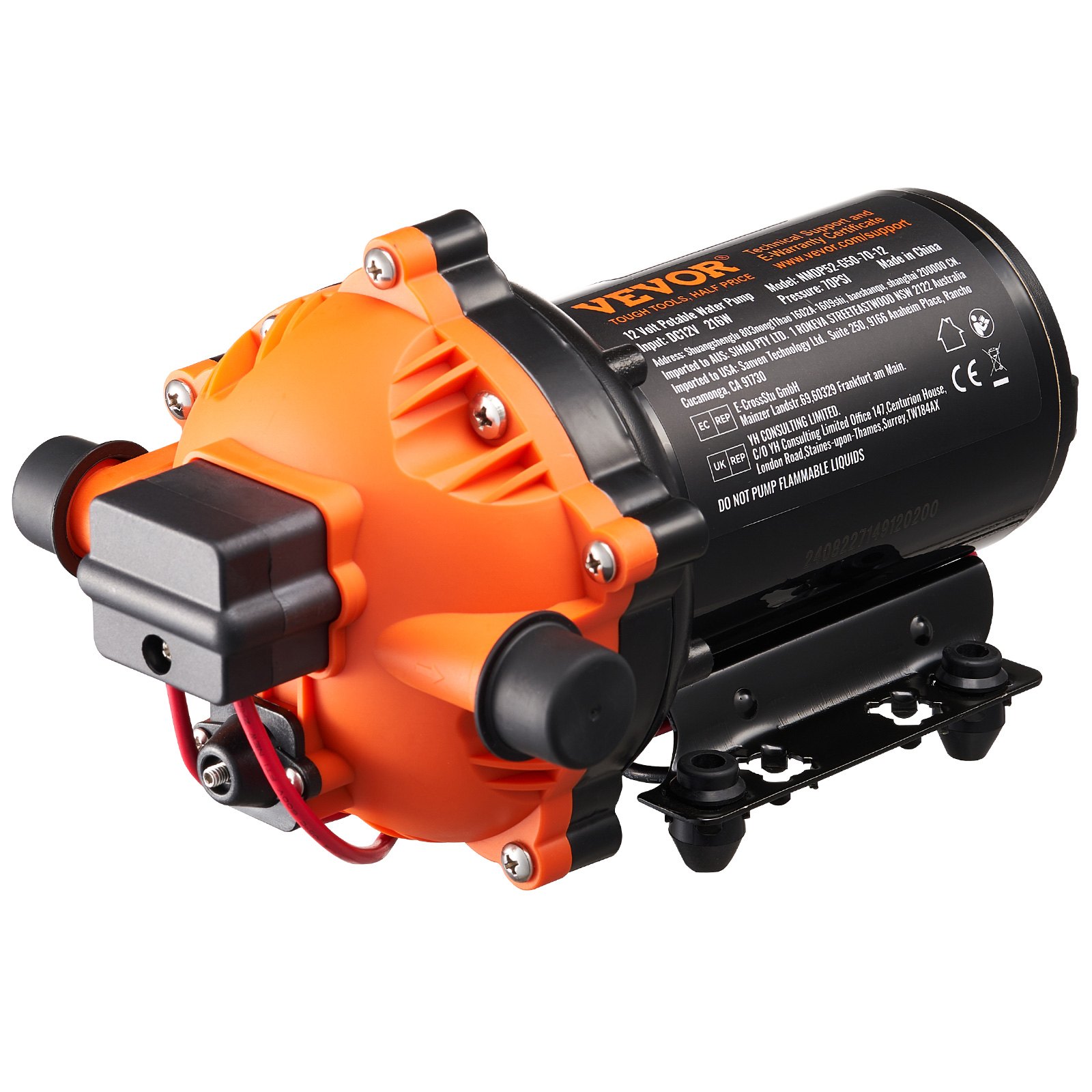

VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
+12
More
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage
VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage VEVOR 12V Diaphragm Pump, 5 GPM (18.93 L/min), 5-Chamber DC Water Pump with Automatic Pressure Switch 40-100 PSI Adjustable, 1/2'' MNPT Port, for Agricultural Irrigation Construction Site Drainage

Features & Details

  • Say Goodbye to Low Water Pressure: Upgrade to our 5-chamber water pump delivering a high flow rate of 5.0 GPM (18.93 L/min) at a steady 70 PSI. It's designed to meet all your daily water needs efficiently and reliably, saving you valuable time.
  • Automatic Pressure Switch: Customize your water pressure with an adjustable range from 40 to 100 PSI. The on-demand pressure switch automatically starts the pump when you open the faucet and stops it when you close it. Tested over 200,000 times for durability, it's built to last.

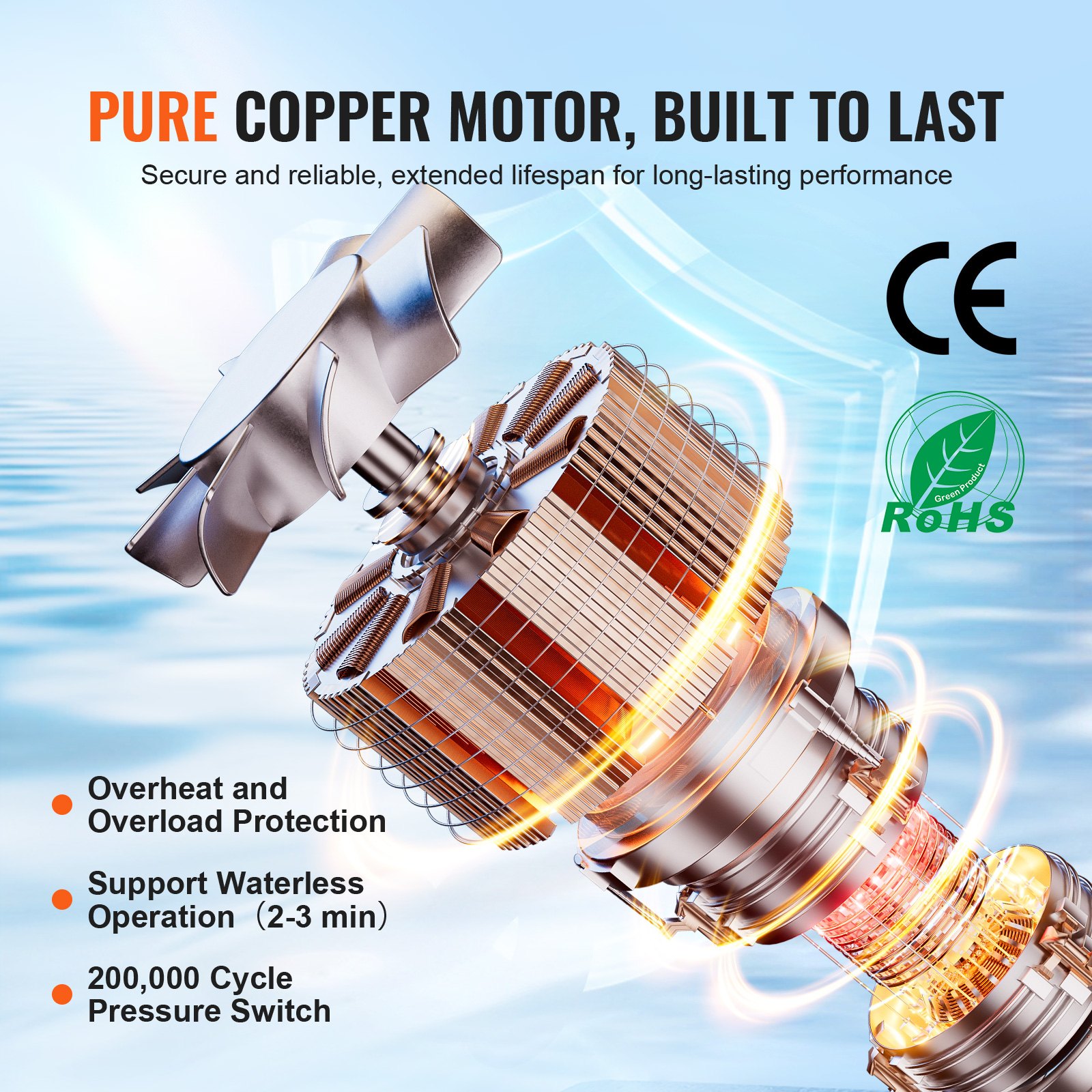

  • Ultra-Quiet Operation: Our diaphragm pump features a pure copper motor for smooth and quiet performance. The plastic pump body and noise-reducing base effectively minimize sound, so it won't disrupt your work or sleep.
  • Security You Can Trust: Certified by CE and ROHS. This water pump includes overheat and overload protection to extend its lifespan. Plus, it supports dry running and has a built-in check valve bypass switch to ensure uninterrupted water supply even if the pump or check valve fails.
  • Standard Size, Easy Replacement: Our 12V diaphragm pump is equipped with standard 1/2" MNPT inlet and outlet. It can be used in large-flow scenarios, such as agricultural irrigation, construction site drainage, industrial water circulation, municipal emergency drainage, and yacht deck cleaning. Note: The pump is not waterproof and is not suitable for outdoor use.

Frequently Bought Together

Reviews 4.9
All reviews are from verified purchases
Average rating based on 8 reviews

See all 8 reviews

About this item

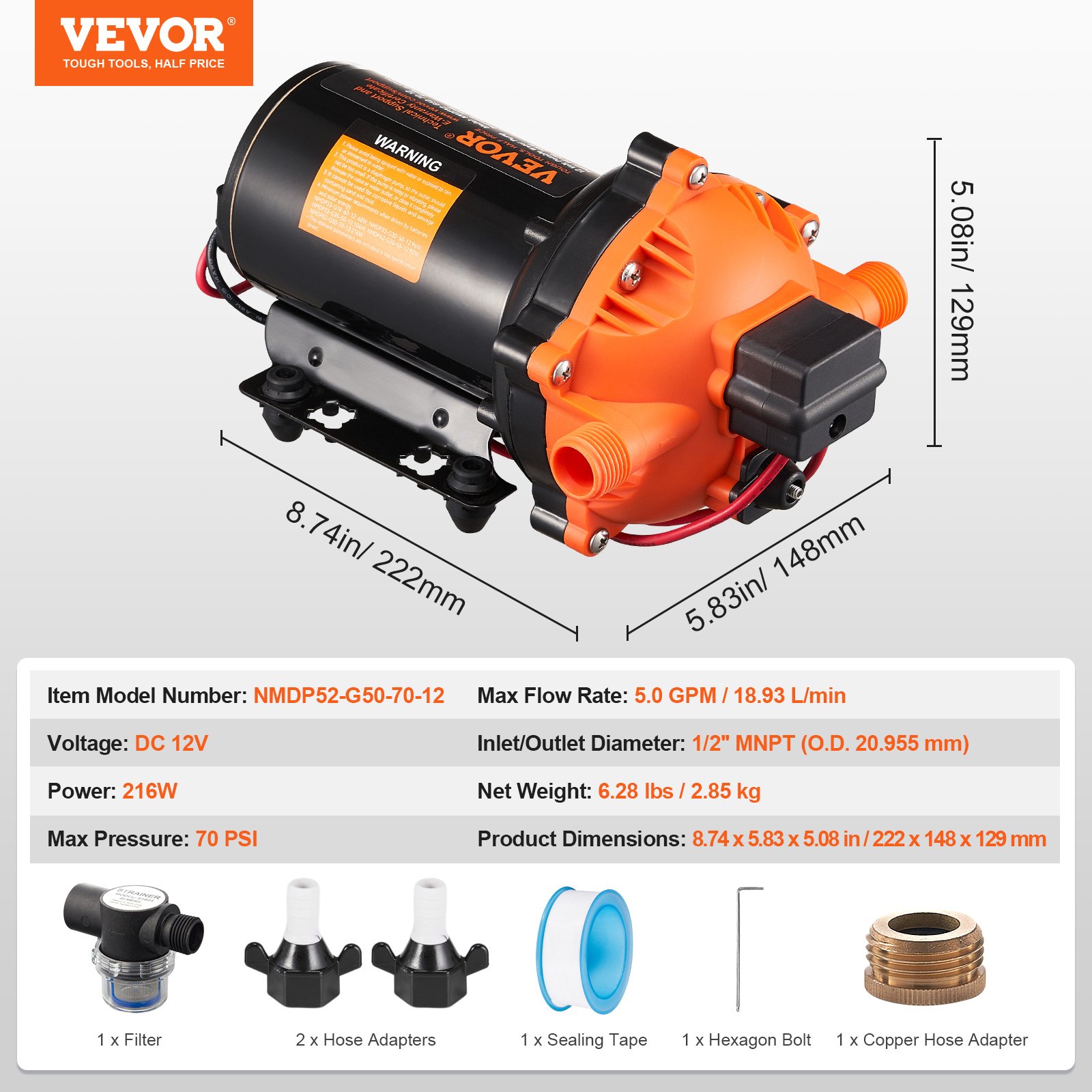

Product specification
Item Model Number
NMDP52-G50-70-12
Voltage
DC 12V
Power
216W
Max Pressure
70 PSI
Max Flow Rate
5.0 GPM / 18.93 L/min
Inlet/Outlet Diameter
1/2'' MNPT (O.D. 20.955 mm)
Net Weight
6.28 lbs / 2.85 kg
Product Dimensions
8.74 x 5.83 x 5.08 in / 222 x 148 x 129 mm
Description

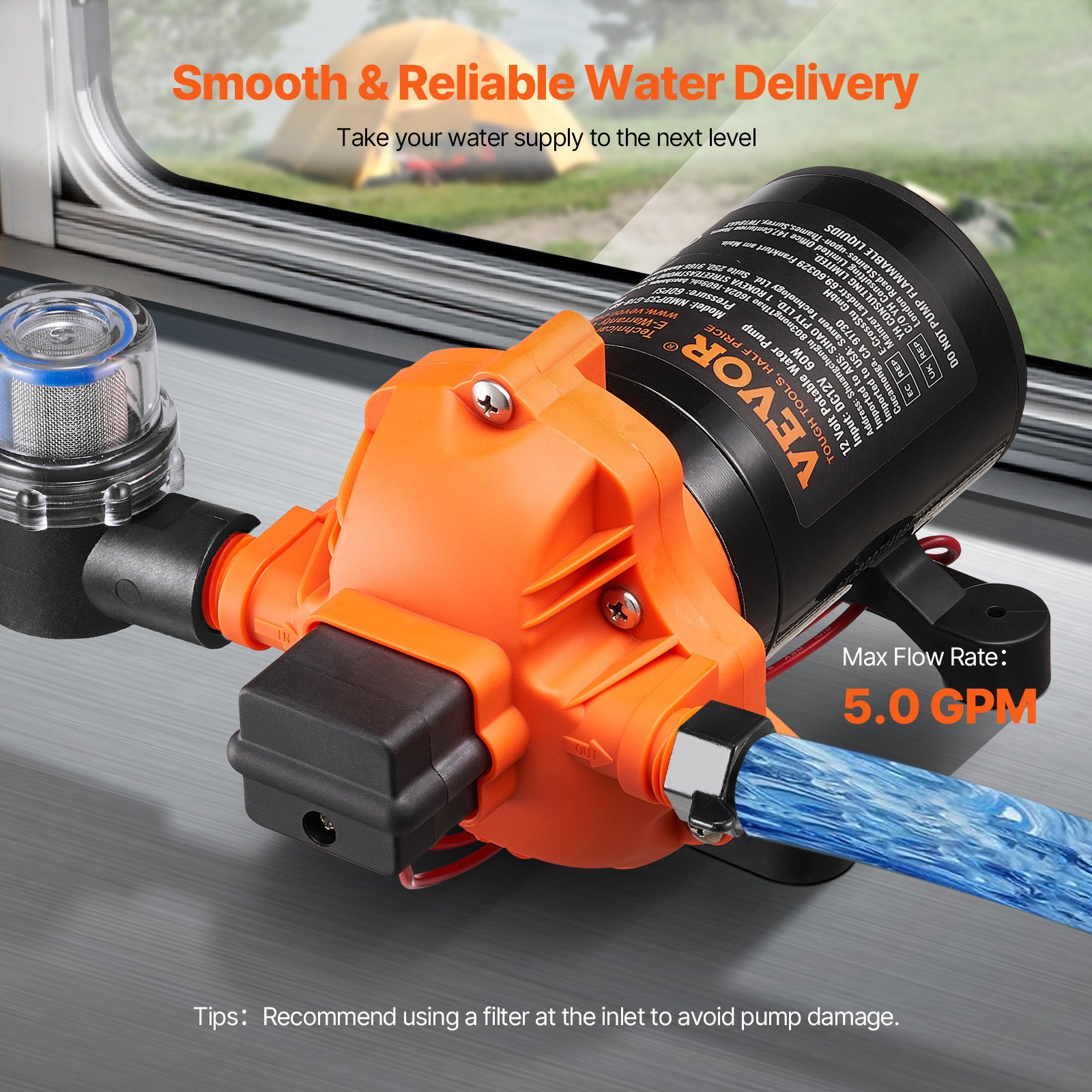

Potable Water Pump, 5.0 GPM High Flow Rate
This diaphragm pump delivers an impressive 5.0 GPM (18.93 L/min) flow rate and a 70 PSI preset pressure, ensuring efficient and reliable water supply. It features 40 to 100 PSI adjustable pressure, a pure copper motor, and a standard 1/2" MNPT port. Elevate your water system today!

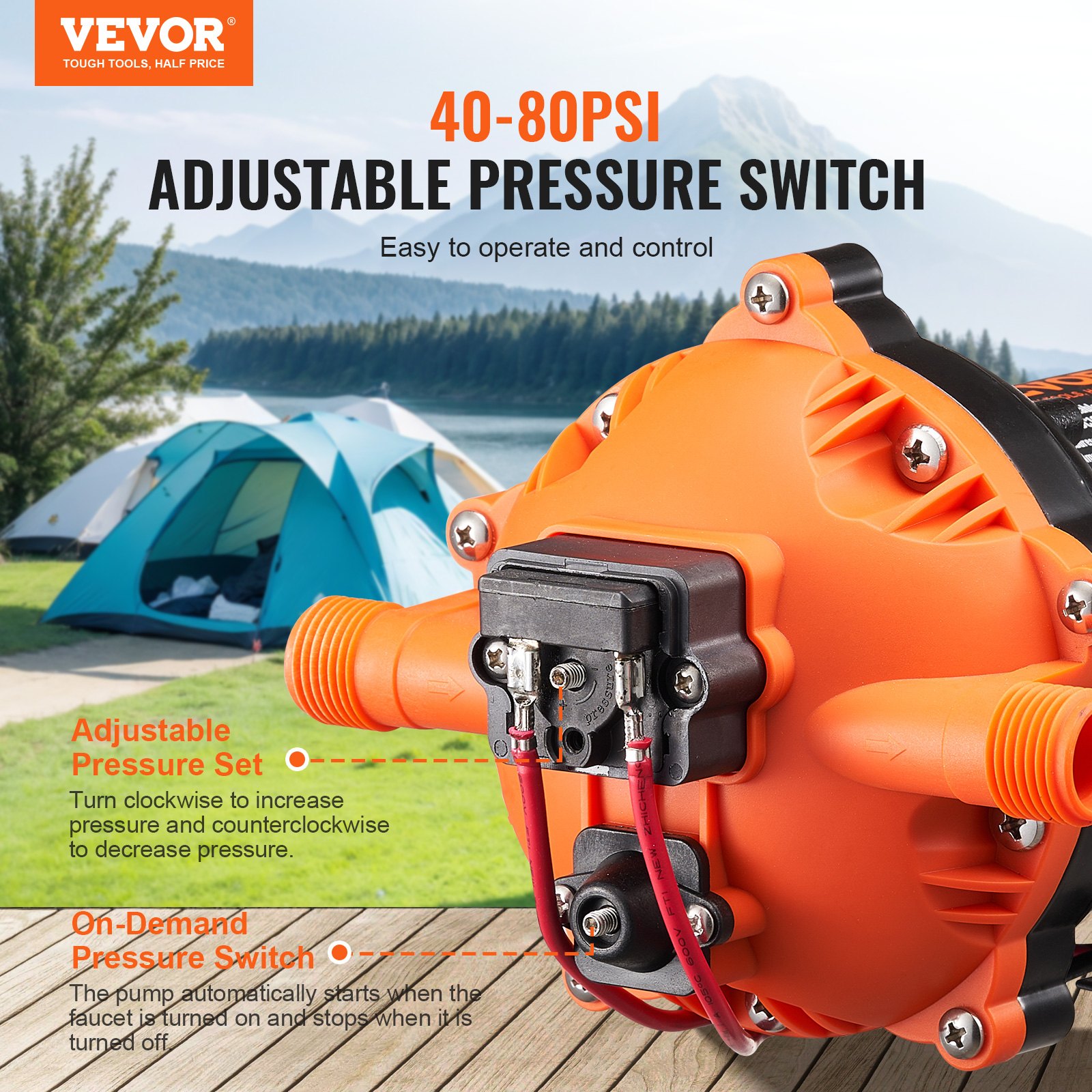

Customize your water pressure effortlessly with our diaphragm pump. Just open the pressure switch with a screwdriver, find the center screw hole, and turn clockwise to increase pressure or counterclockwise to decrease it. Tailor your water usage to fit your needs and save water efficiently.
Our water pump with pressure switch features a high-quality motor paired with a plastic pump body, effectively reducing noise. The anti-vibration base and cushion design further minimize sound, providing a quiet and efficient water pumping solution for a peaceful environment.
Both the inlet and outlet feature standard 1/2" MNPT interfaces, our water pump with pressure switch ensuring compatibility with your existing pump. Replacement and installation are quick and hassle-free.
Engineered to avoid overheating and overload, this 12V water pump ensures stable operation under optimal conditions. Experience consistent flow and pressure for continuous high-efficiency performance, keeping your tasks running smoothly without interruptions.
Product guides and documents
User manual-en (PDF) Review

Questions and Answers (2)

2 Questions
Ask a Question
Is the pump motor brushed or brushless ?
Answer This Question
The pump motor is brushed.
By vevor
Helpful ( 0 )
What are the seals inside the pump made of?
Answer This Question
It is EPDM.
By vevor
Helpful ( 0 )
