6 String Solar PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Our PV Combiner Box is a perfect device designed to reduce the connection line between PV modules and inverters, facilitate maintenance and improve reliability. Equipped with high-voltage lightning arresters, 15A DC fuses, and circuit breakers to play a role in circuit protection and lightning protection. It supports photovoltaic On-Grid/Off-Grid solar power generation systems, solar panel systems, up to 1080W in 12V system, 2160W in 24V system, 4320W in 48V system.
- Professional PV Combiner Box
- Secure & Reliable Protection
- IP65 Waterproof & ABS Shell
- Easy Installation & Wiring
High Voltage Lightning Arrester
The combiner box for solar systems is built with a professional high voltage lightning arrester to provide lightning and rain protection. Both positive and negative with thunder proof protection.

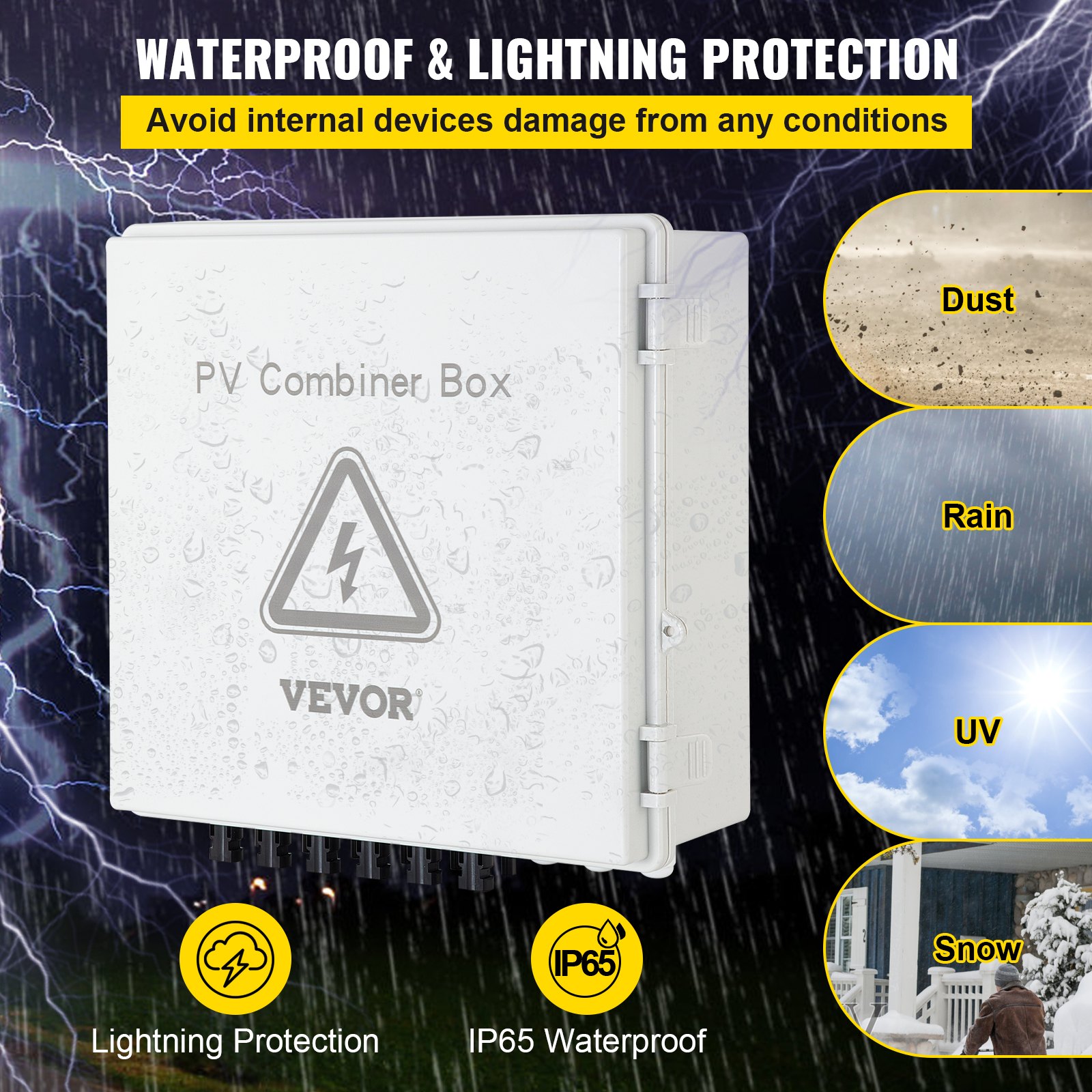

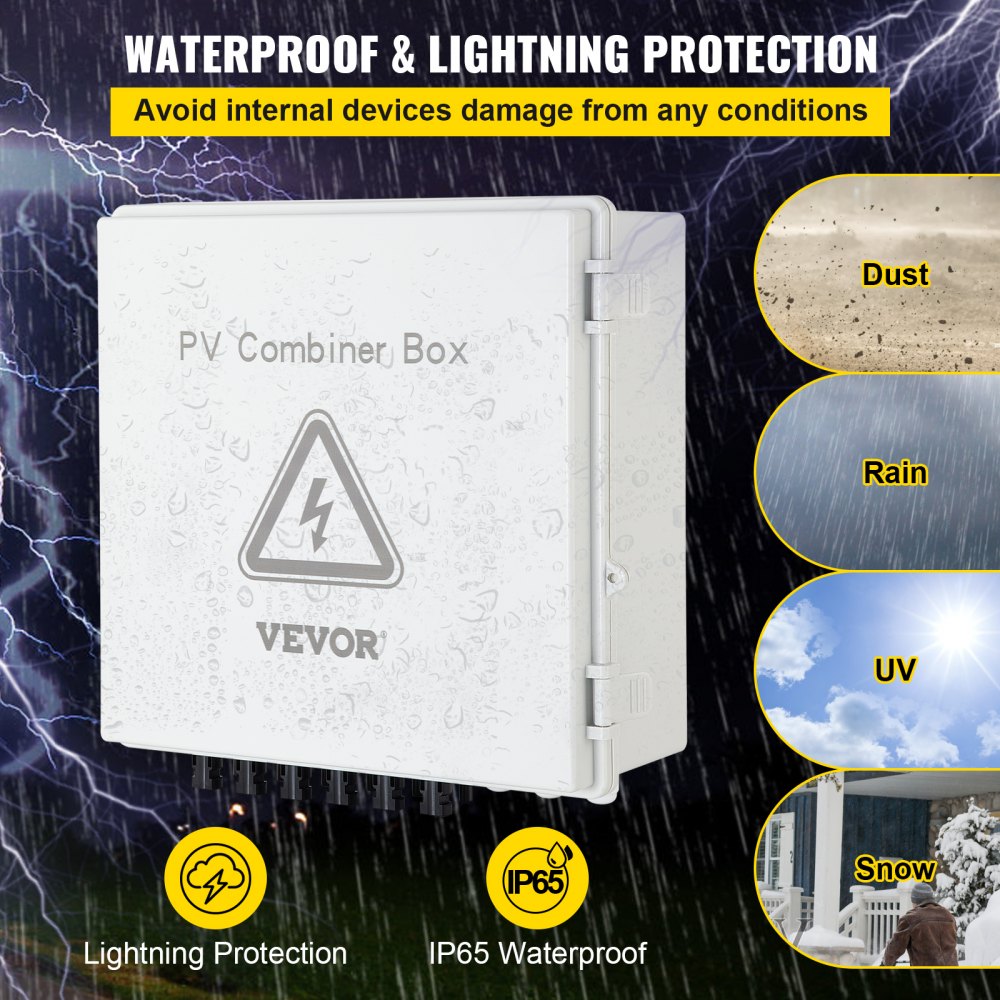

IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures even more security on construction sites.

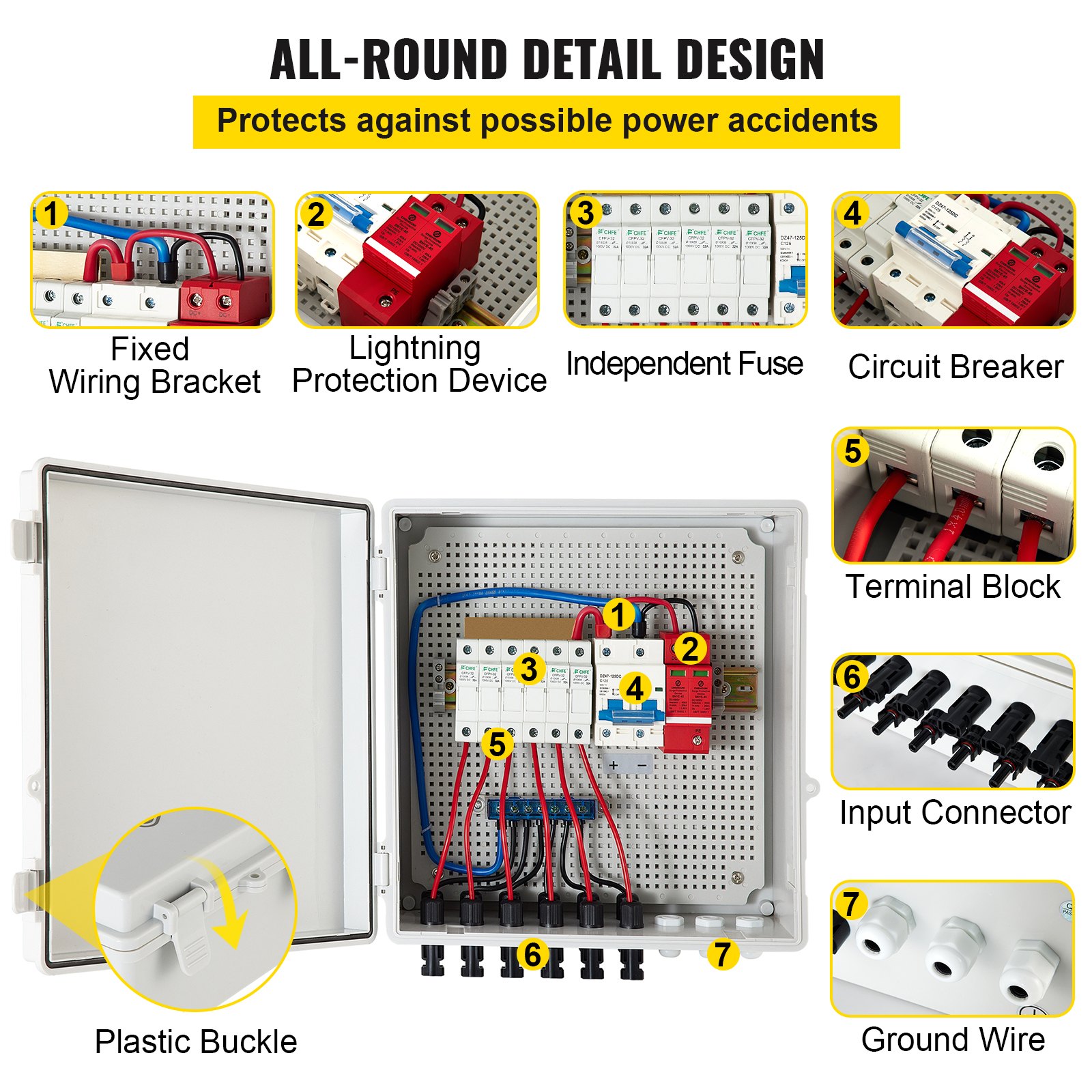

Thoughtful Design

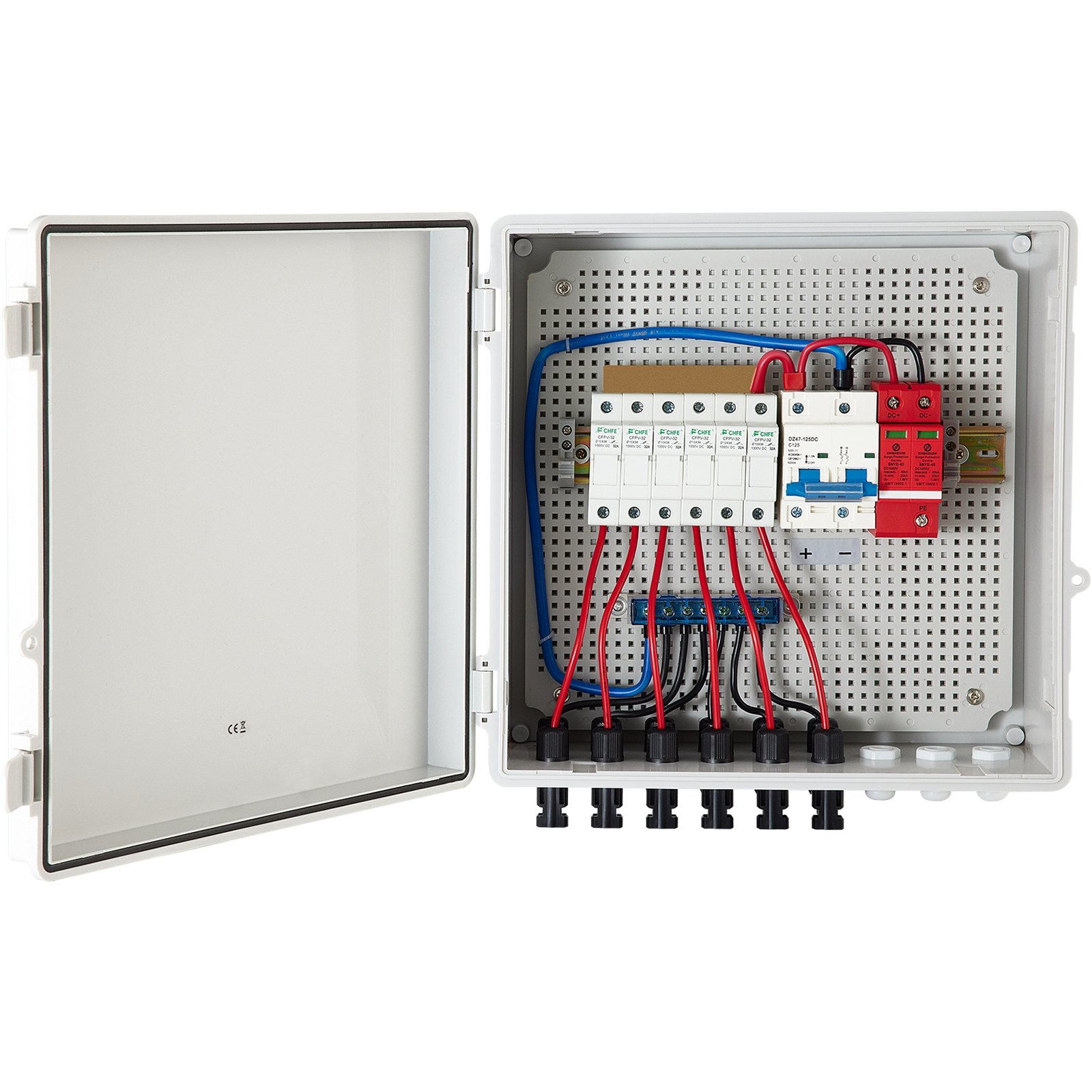

The PV combiner features 6 x 15A fuses for good current limiting characteristics and breaking high ability. 125A air circuit breaker can cut off and connect the load circuit, providing short-circuit fault protection.

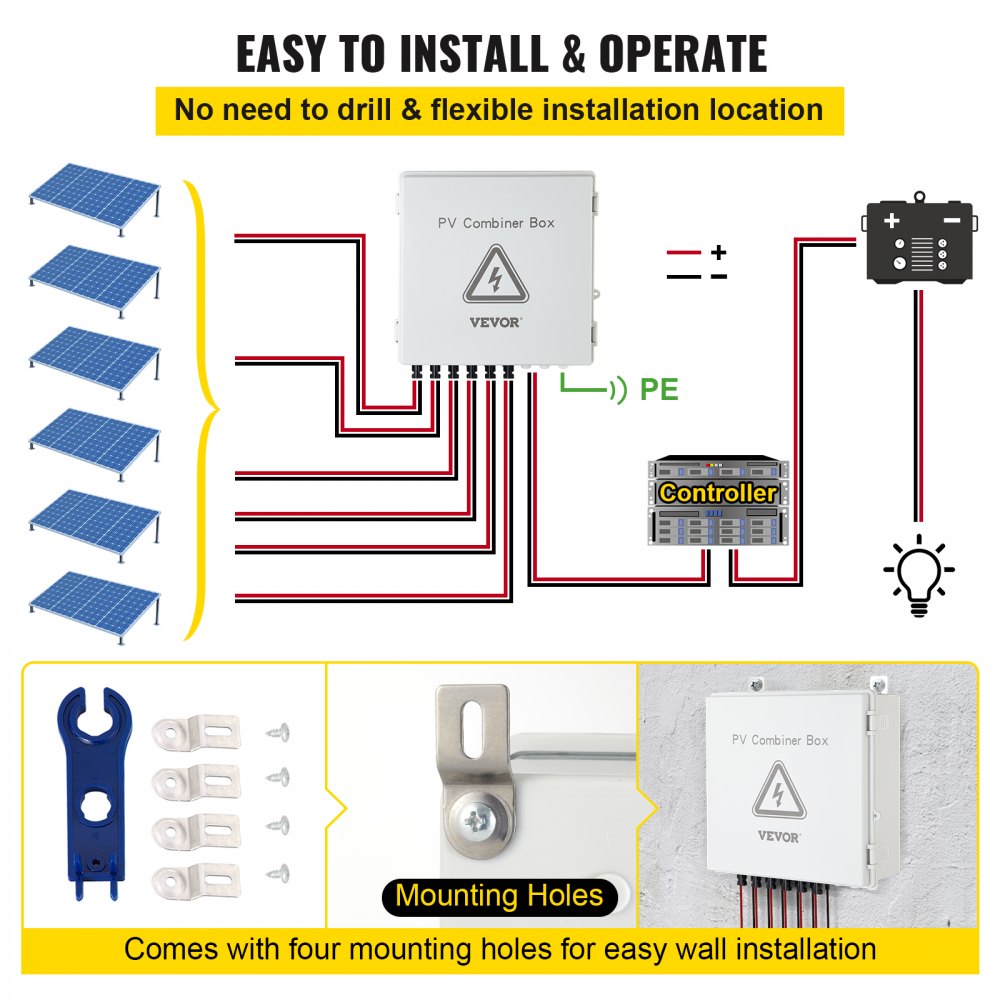

Simple & Straightforward Connection

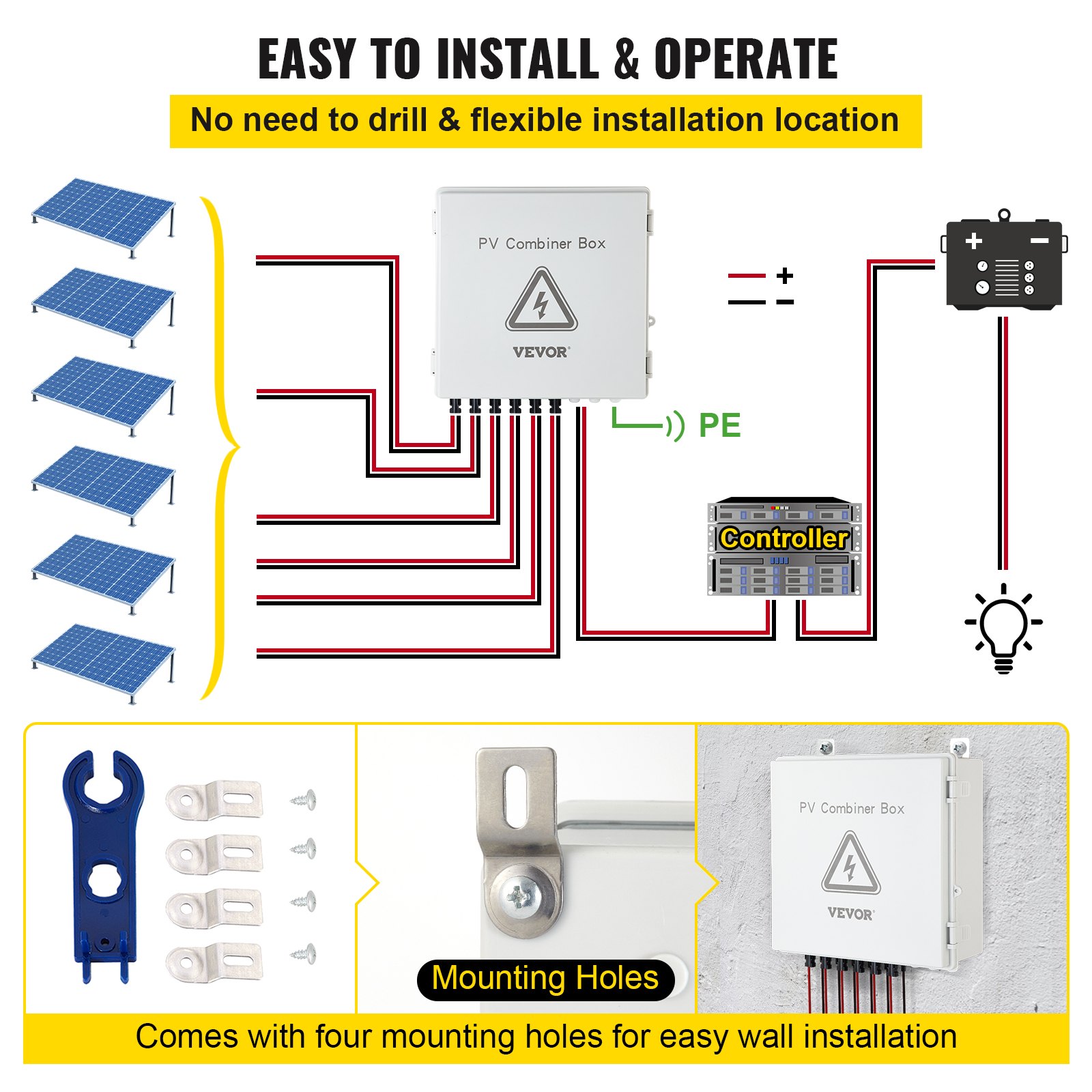

All wires are pre-wired in the solar breaker combiner box, very sturdy to combine your solar panels, making your solar panel system connection easier. It comes with complete mounting accessories to be installed anywhere.

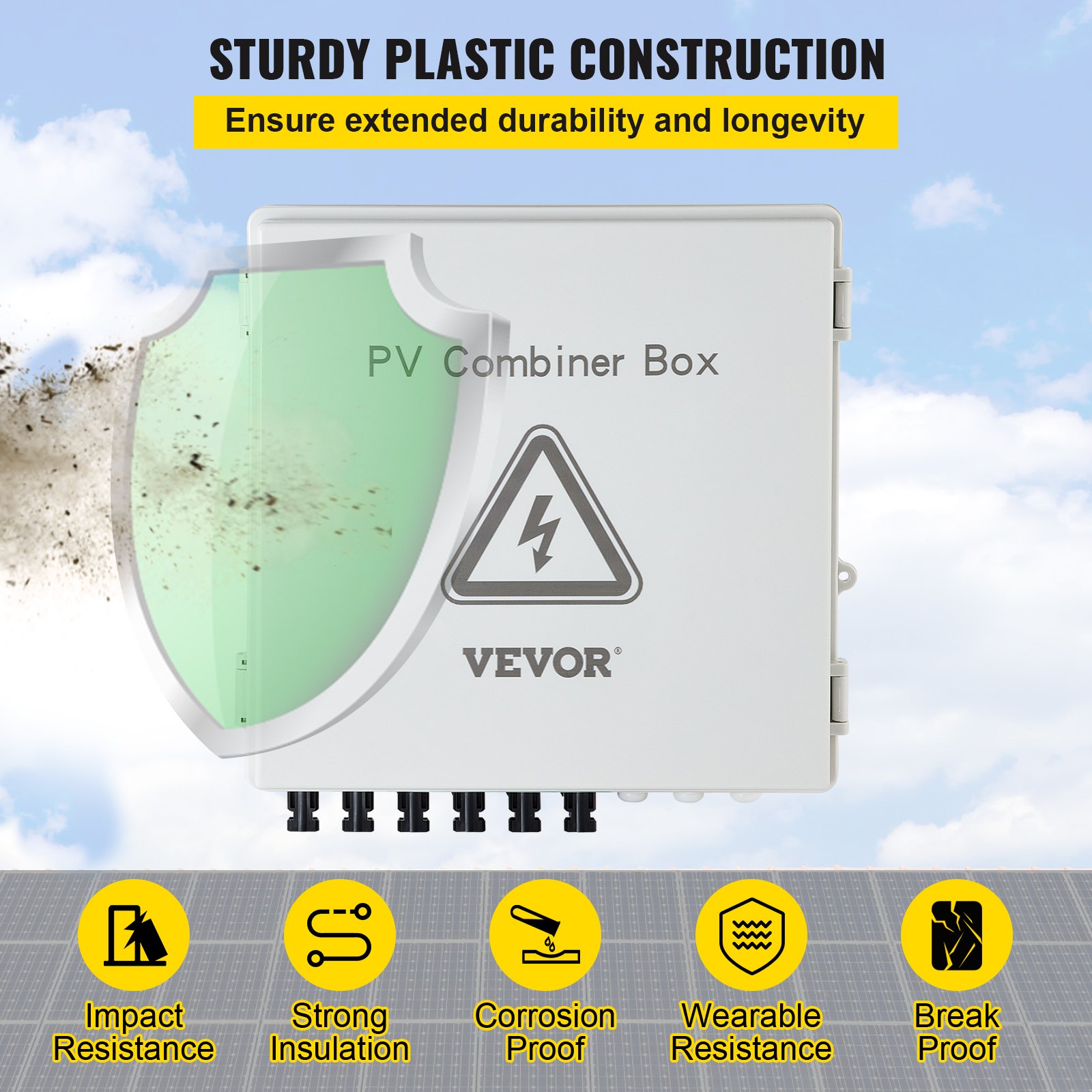

Premium ABS Material
The board wall distributor features ABS material with high impact strength, good weather resistance, and strong wear resistance. In addition, the plastic coating protects against water and dirt.

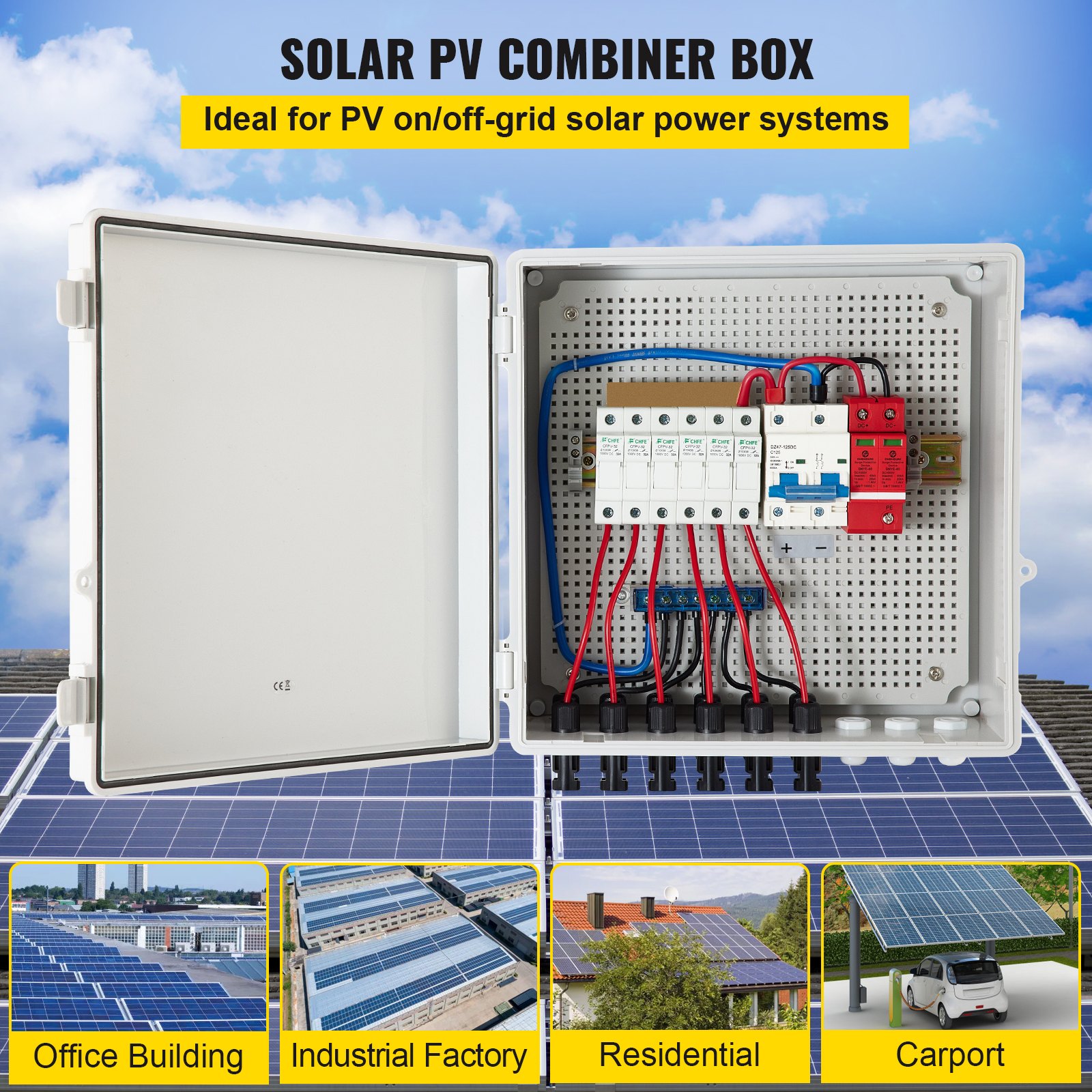

Extensive Application
The solar breaker combiner box is ideal for photovoltaic grid-connected and off-grid power generation systems. It is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc.
Package Content
- 1 x PV Combiner Box
- 1 x Solar Connector Tool
- 4 x Mounting Buckles
- 4 x Screws
- 1 x Product Manual
Specifications
- Model: SWHL-6
- Number Of Max. Connection PV Array: 6
- Max. Input Current of Single PV Array: 15A
- Total Input Current of PV Array: 90A
- Max Input Voltage of Single PV Array: 500V
- Protection Grade: IP65
- Operational Environment Temperature: -30℃ to 70℃ / -22℉ to 158℉
- Relative Humidity: 0-95%, No Condensation
- Surge Lightning Protection: Yes
- Air Circuit Breaker Parameter: 500V, 125A; ON/OFF

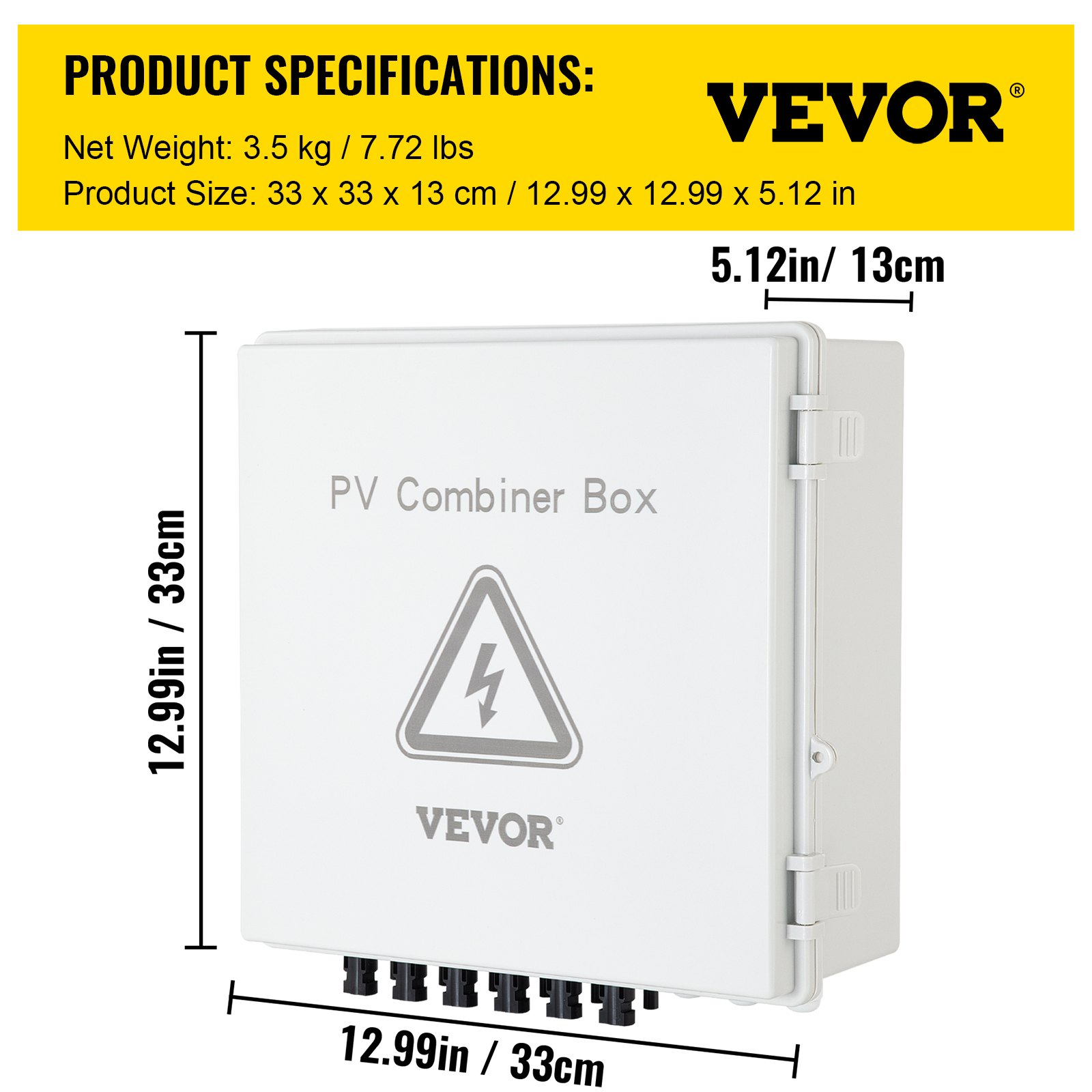

- Product Dimensions(L x W x H): 33 x 33 x 13 cm / 12.99 x 12.99 x 5.12 in
