Features & Details

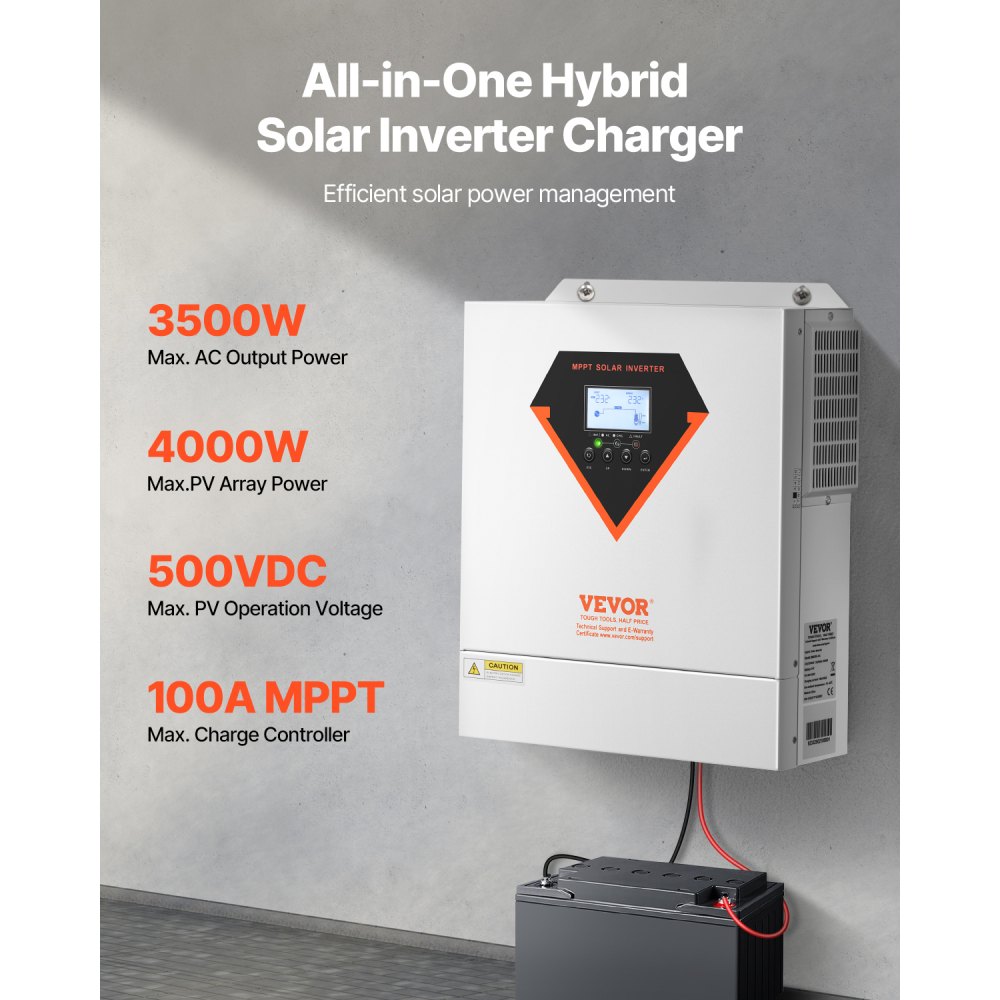

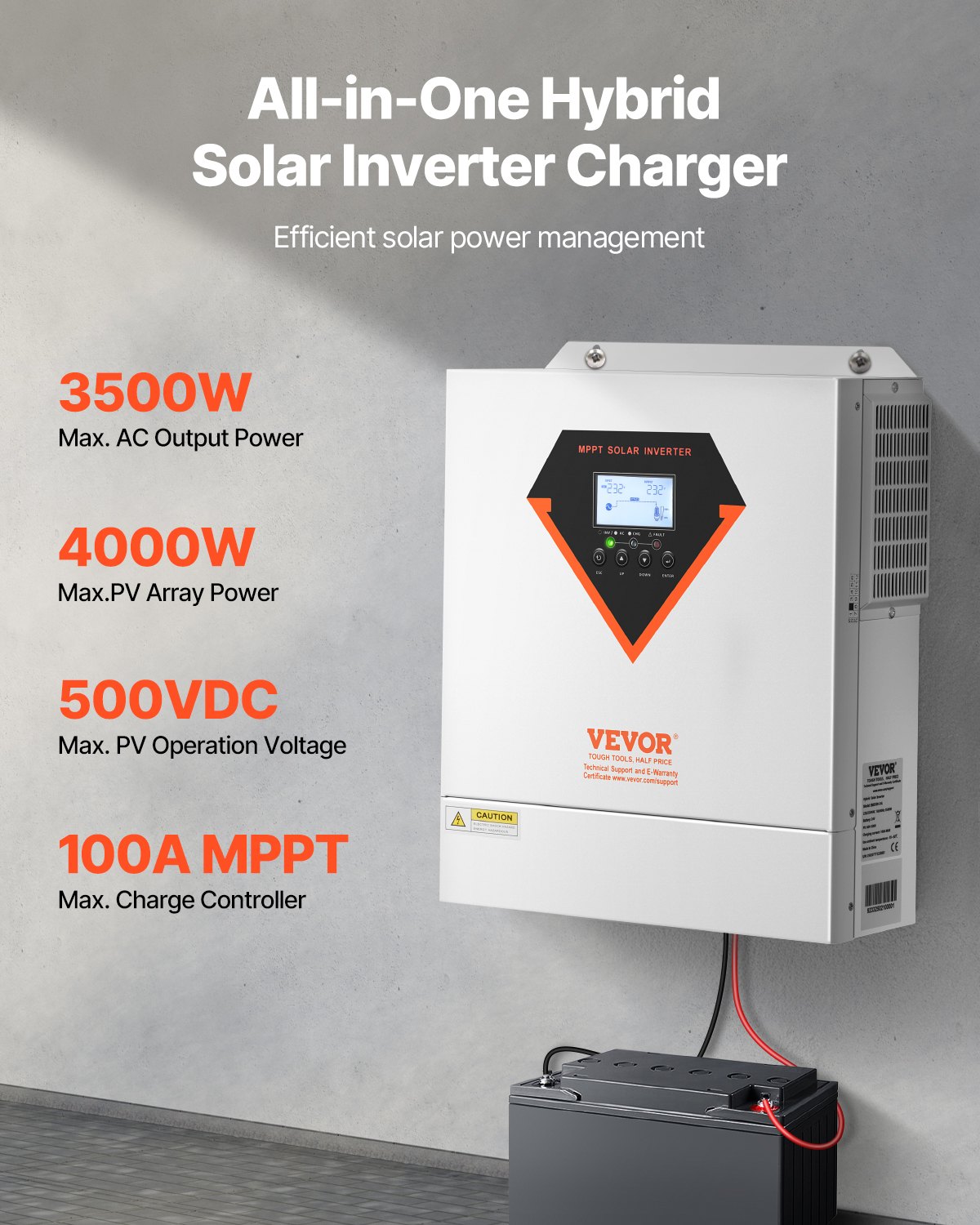

- 2-in-1 Hybrid Solar Inverter: Our 2-in-1 hybrid solar inverter combines an inverter and controller in one efficient unit. With a powerful 3500W pure sine wave output at 220/230V AC, it meets high-energy demands. It is ideal for off-grid solar photovoltaic systems, providing efficient power solutions for various applications

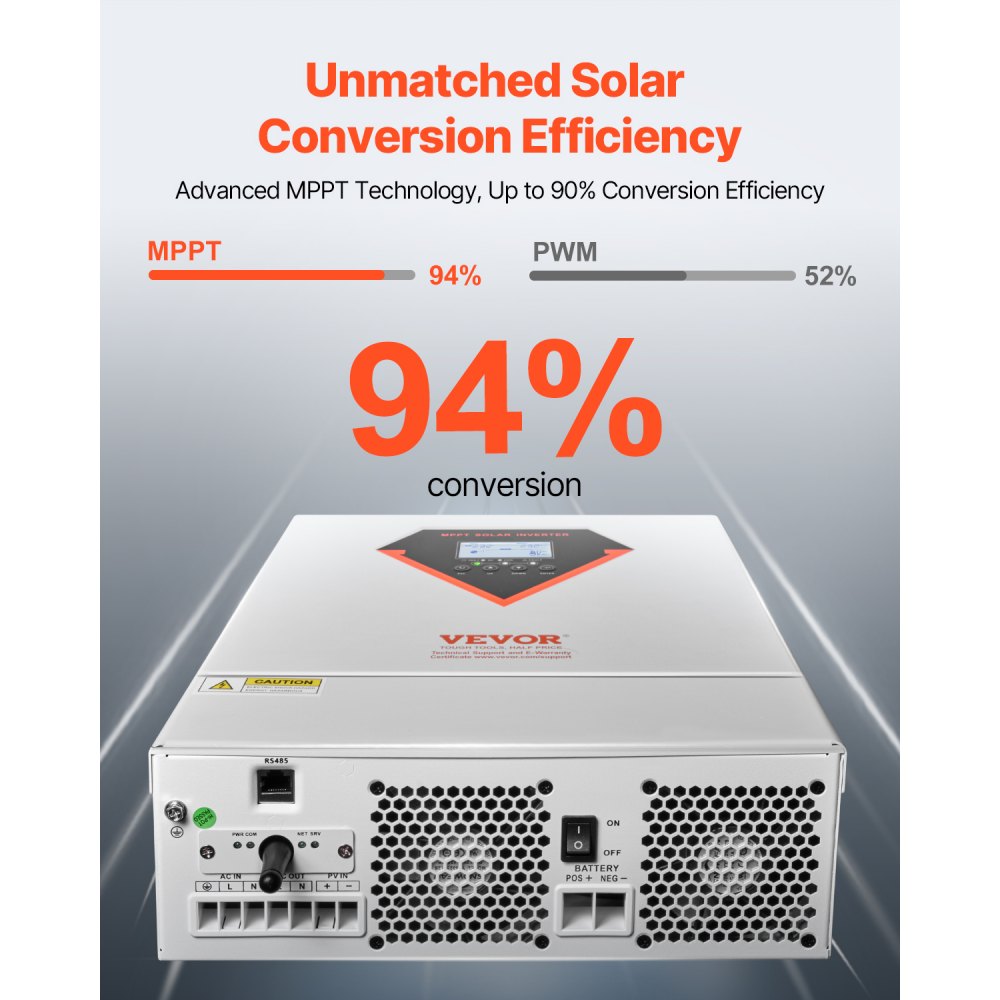

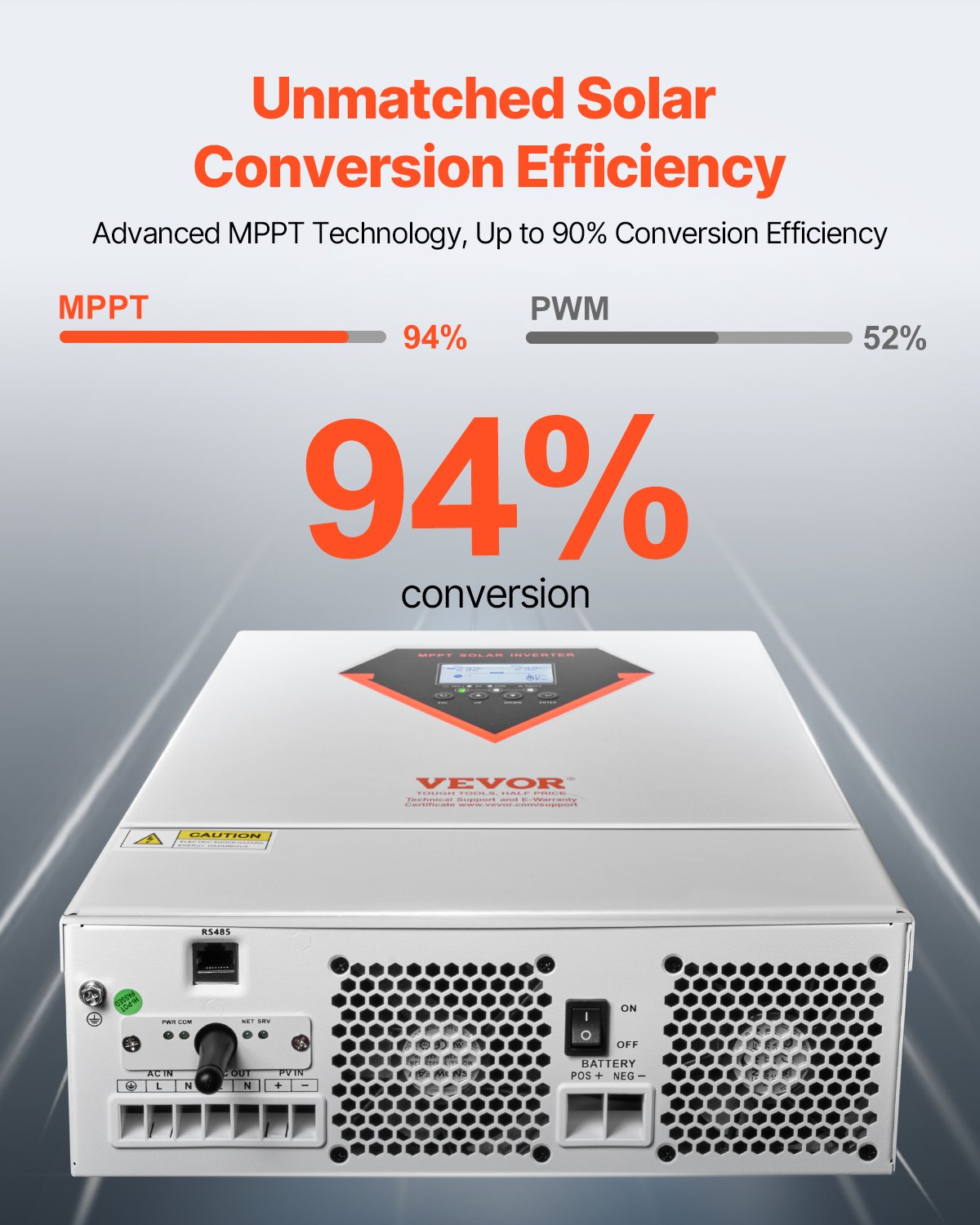

- Efficient MPPT Charging Technology: Equipped with an advanced MPPT solar charge controller, this hybrid solar power inverter supports up to 100A battery charging, boosting solar energy conversion efficiency to 94%. It supports a maximum power of 4000W and a voltage range from 60V to 500V DC, making it highly compatible with a wide range of solar systems

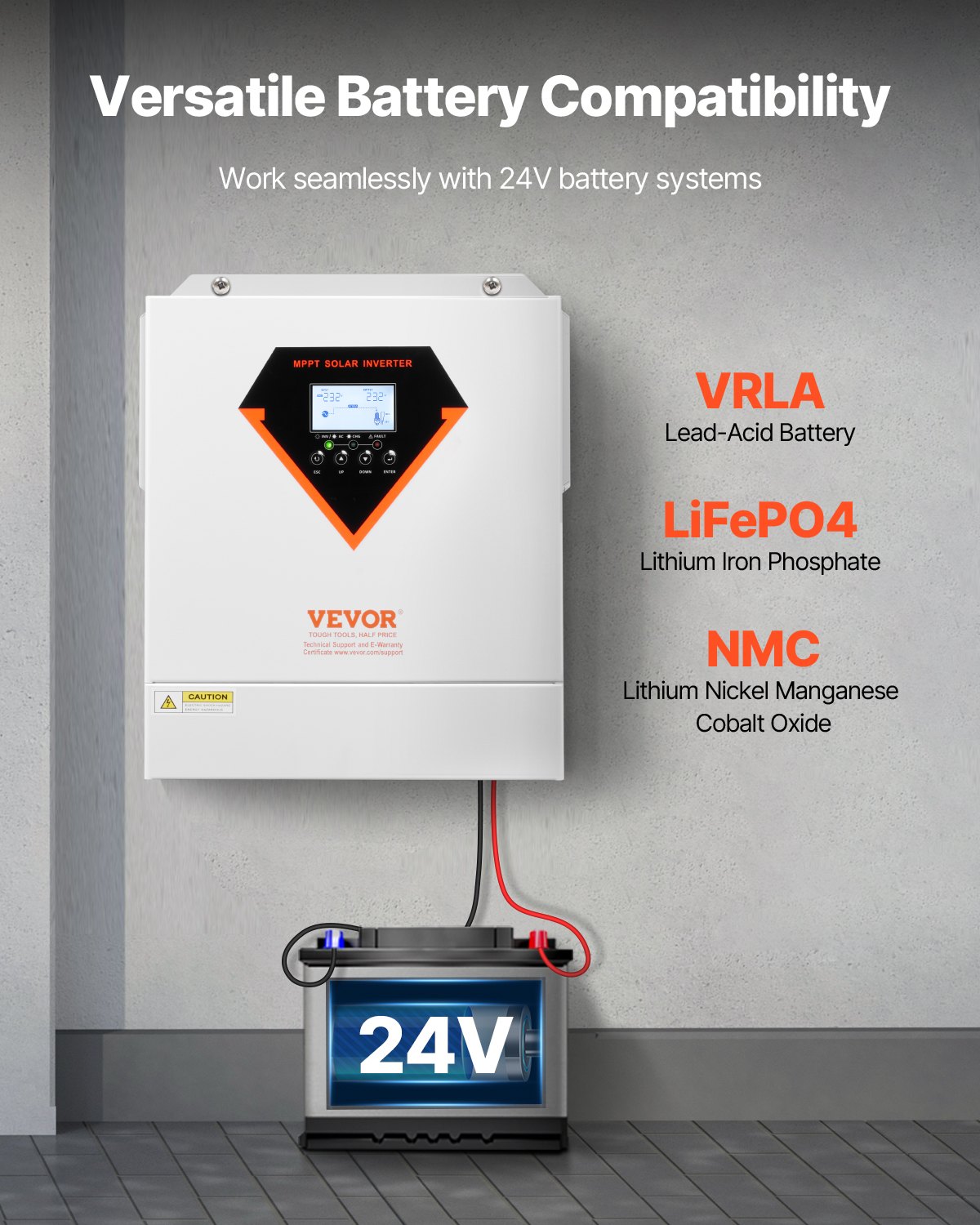

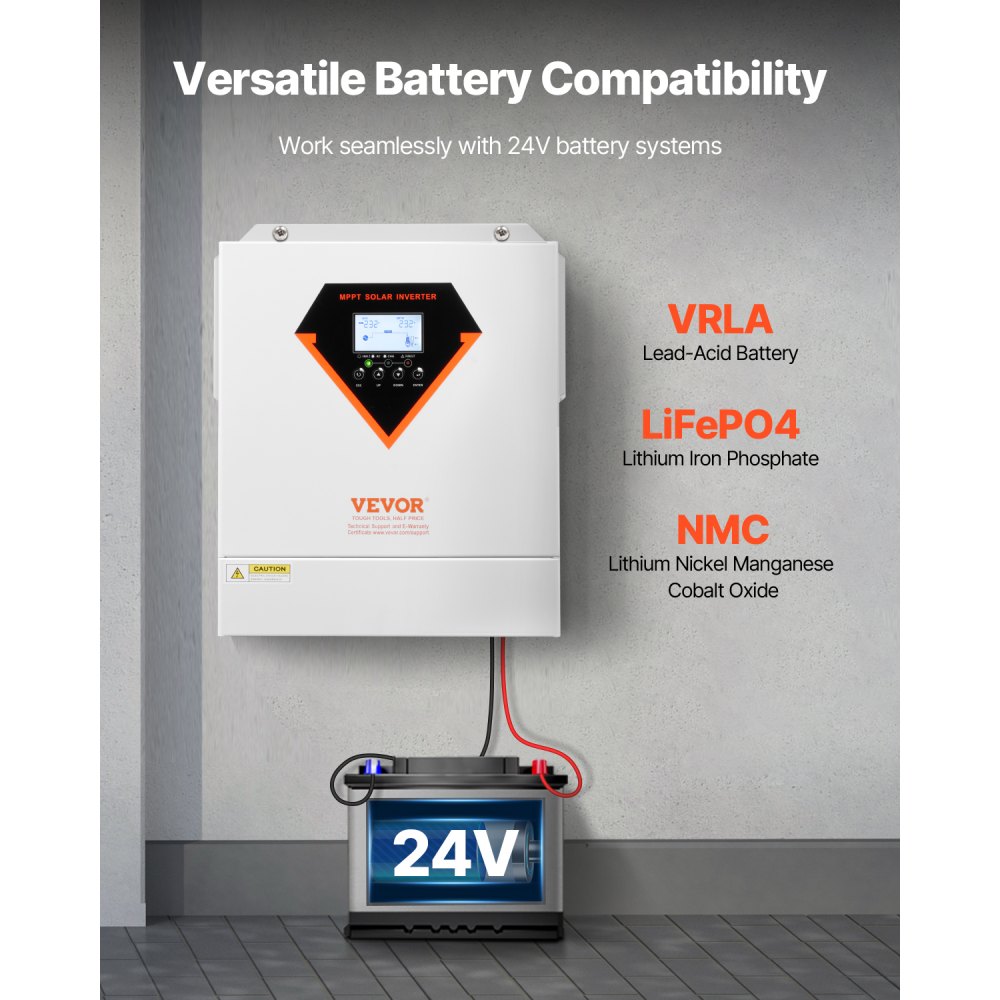

- Compatible with Various Battery Types: Designed for 24V battery systems, our hybrid inverter charger supports a range of battery types, including lithium, lead-acid, and custom batteries. Specially optimized for lithium battery systems, it has an activation function to enhance battery performance

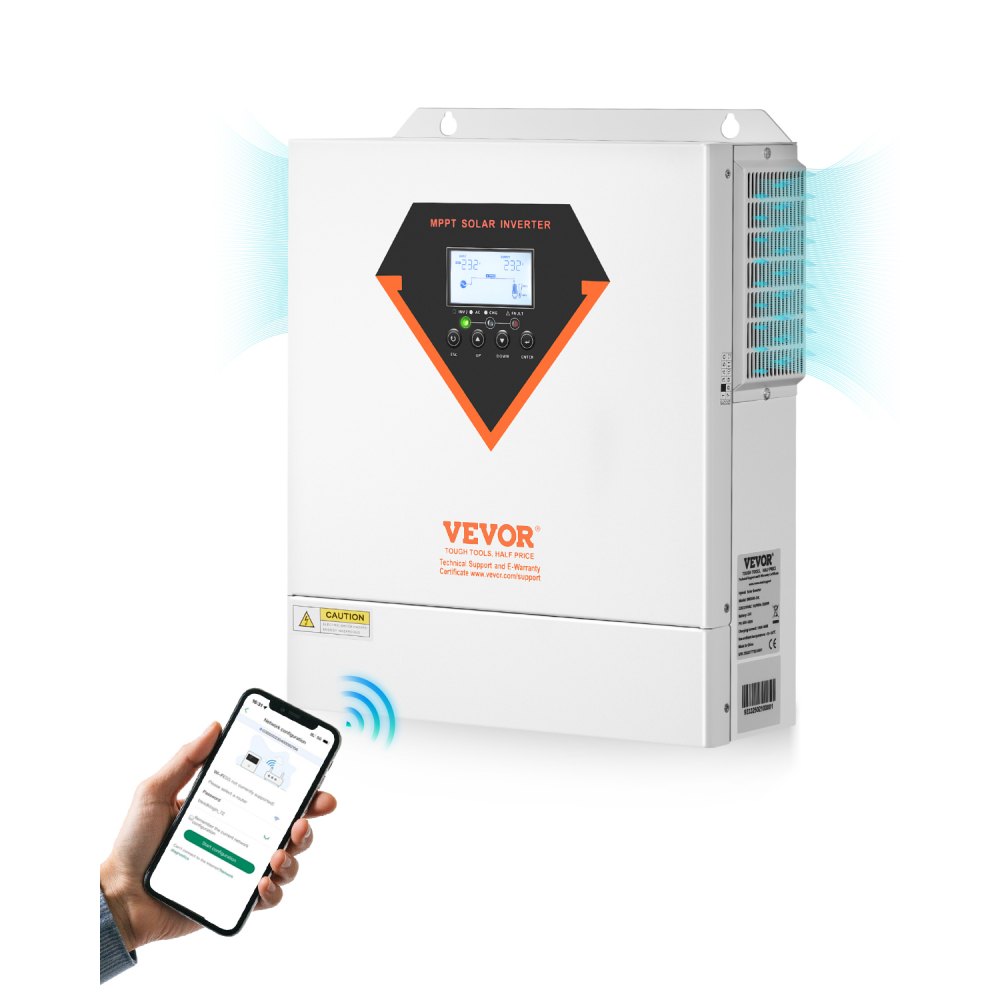

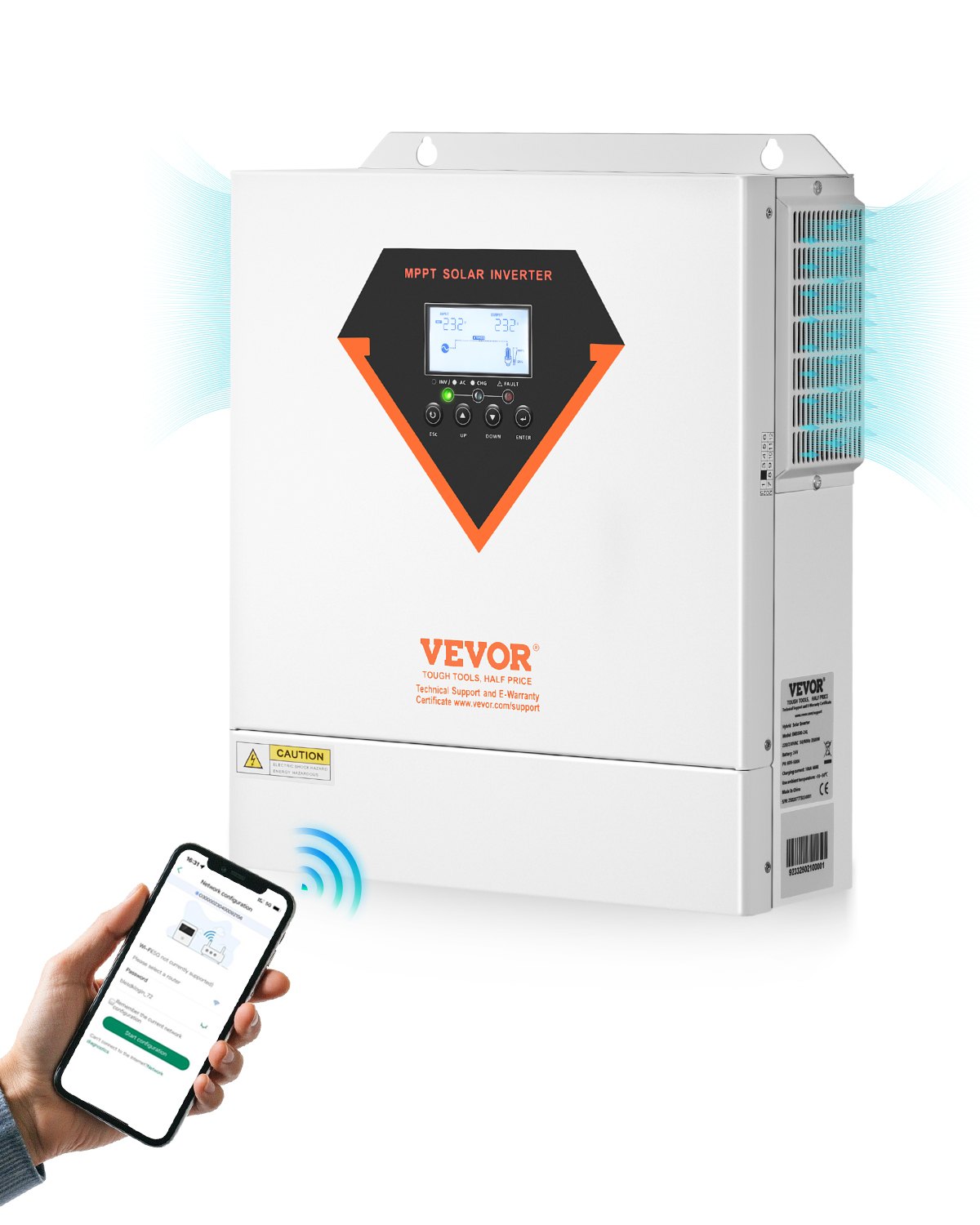

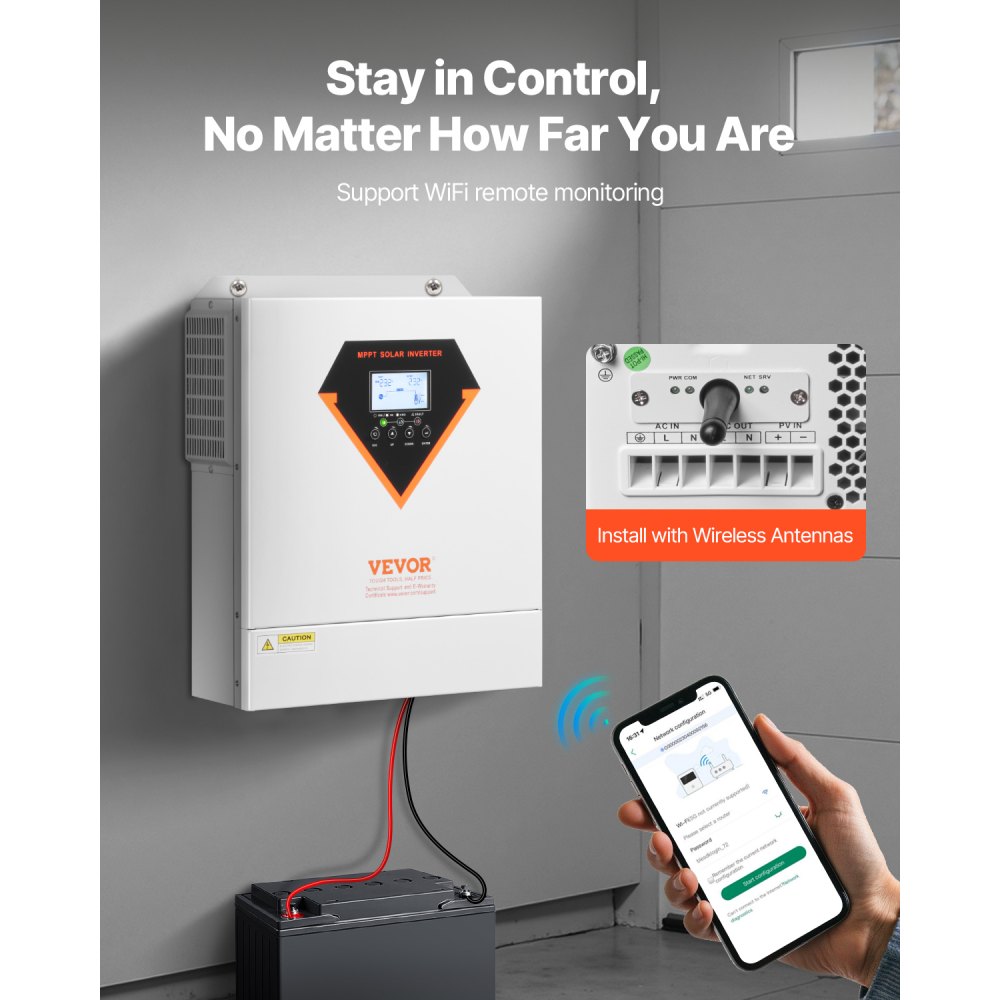

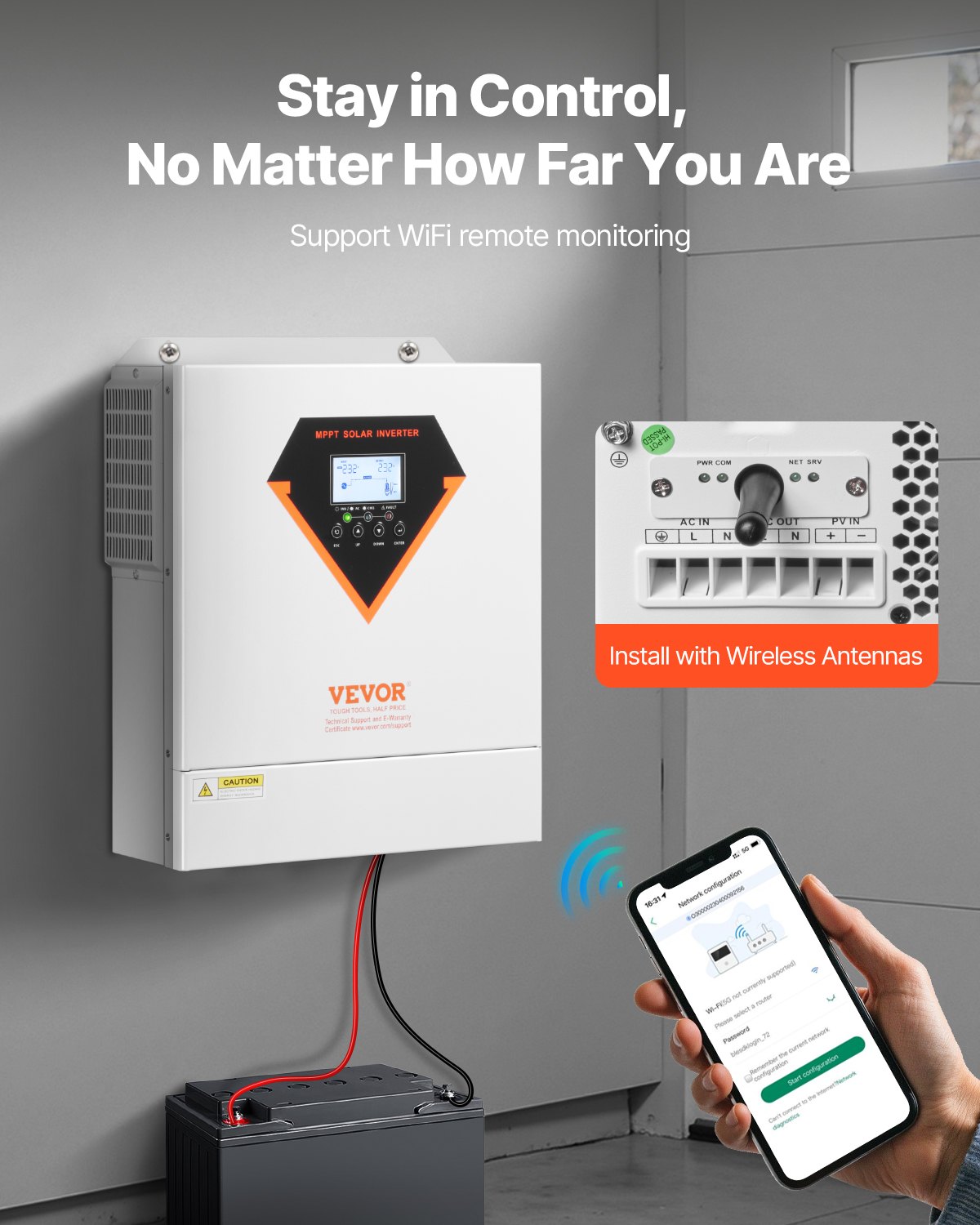

- Smart Monitoring, Stay In Control: With a built-in WiFi module, this solar power inverter allows for remote monitoring via WiFi, bringing excellent connection stability so you can track your system's status anytime, anywhere. Additionally, you can easily adjust different charging modes (Solar Only, Mains Only, or Solar & Mains hybrid charging) and output modes (UTL, SOL, SBU, and SUB) using the on-device buttons. Fit for powering most devices in your home or office

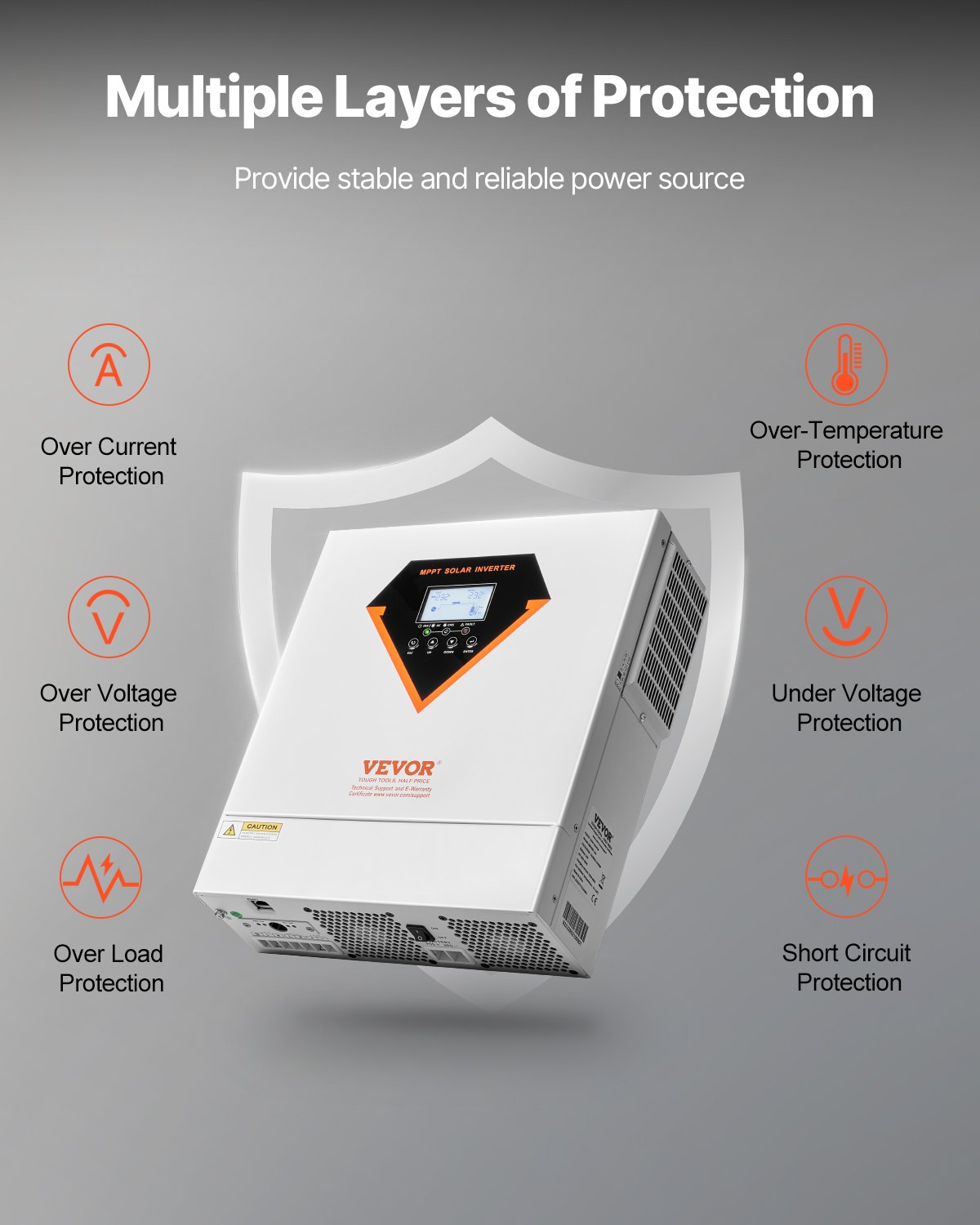

- Comprehensive Protection Features: Your system's security is our priority. This off grid hybrid solar inverter features multiple protection, including over-temperature, over current, over voltage, under voltage, short circuit, and overload protection, giving peace of mind to your circuit and power source
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 4 reviews
Reviews 4.8
All reviews are from verified purchases
See all 4 reviews
About this item

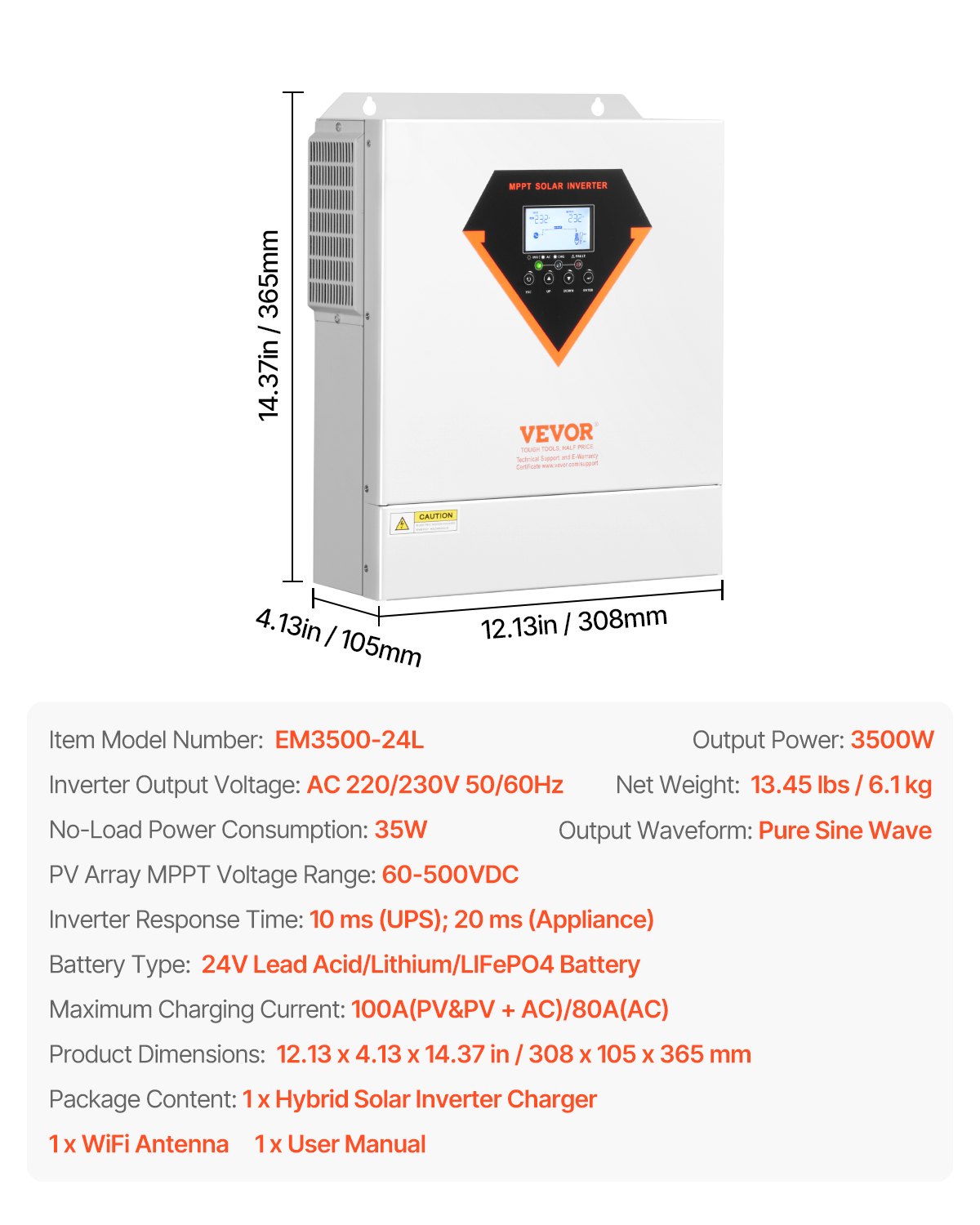

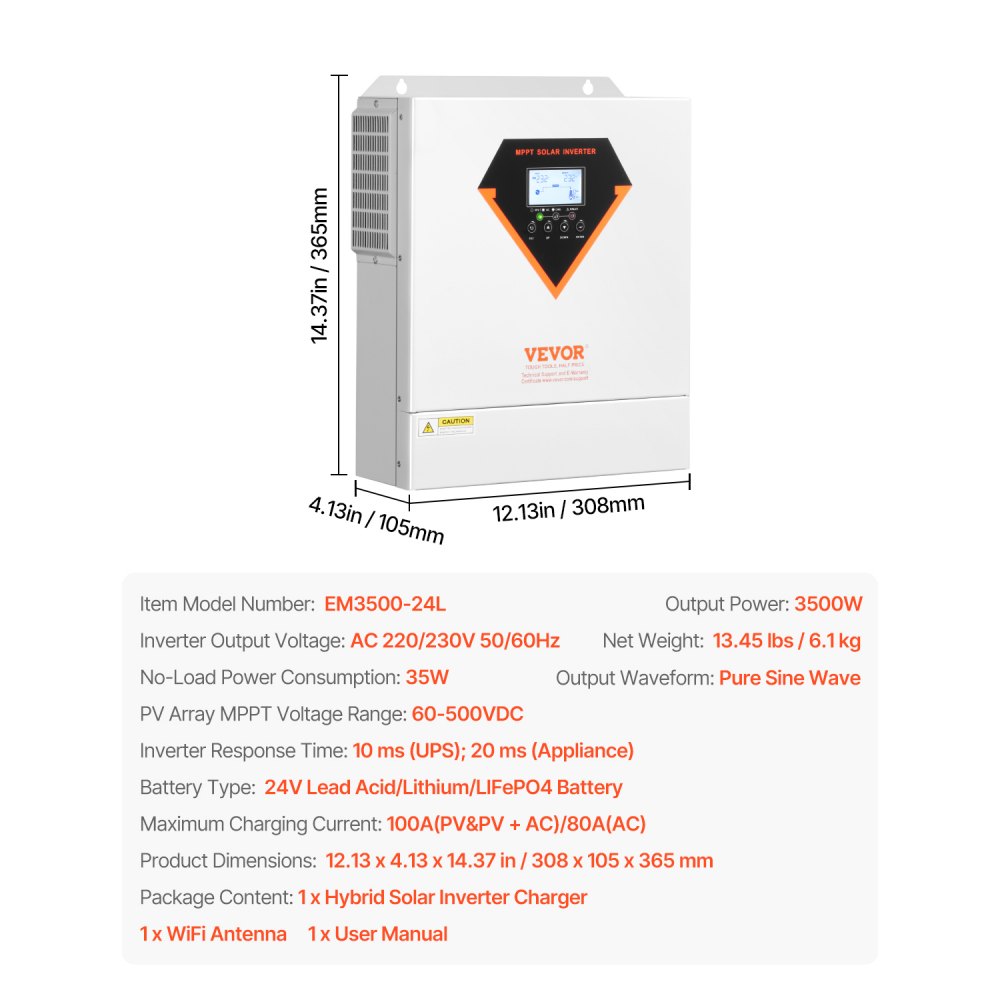

Product specification
- Item Model Number
- EM3500-24L
- Inverter Output Voltage
- AC 220/230V 50/60Hz
- Inverter Response Time
- 10 ms (UPS); 20 ms (Appliance)
- Output Waveform
- Pure Sine Wave
- Battery Type
- 24V Lead Acid/Lithium/LIFePO4 Battery
- Output Power
- 3500W
- Maximum Charging Current
- 100A (PV & PV + AC) / 80A (AC)
- PV Array MPPT Voltage Range
- 60-500VDC
- No-Load Power Consumption
- 35W
- Product Dimensions
- 14.37 x 12.13 x 4.13 in / 365 x 308 x 105 mm
- Net Weight
- 13.45 lbs / 6.1 kg
Description

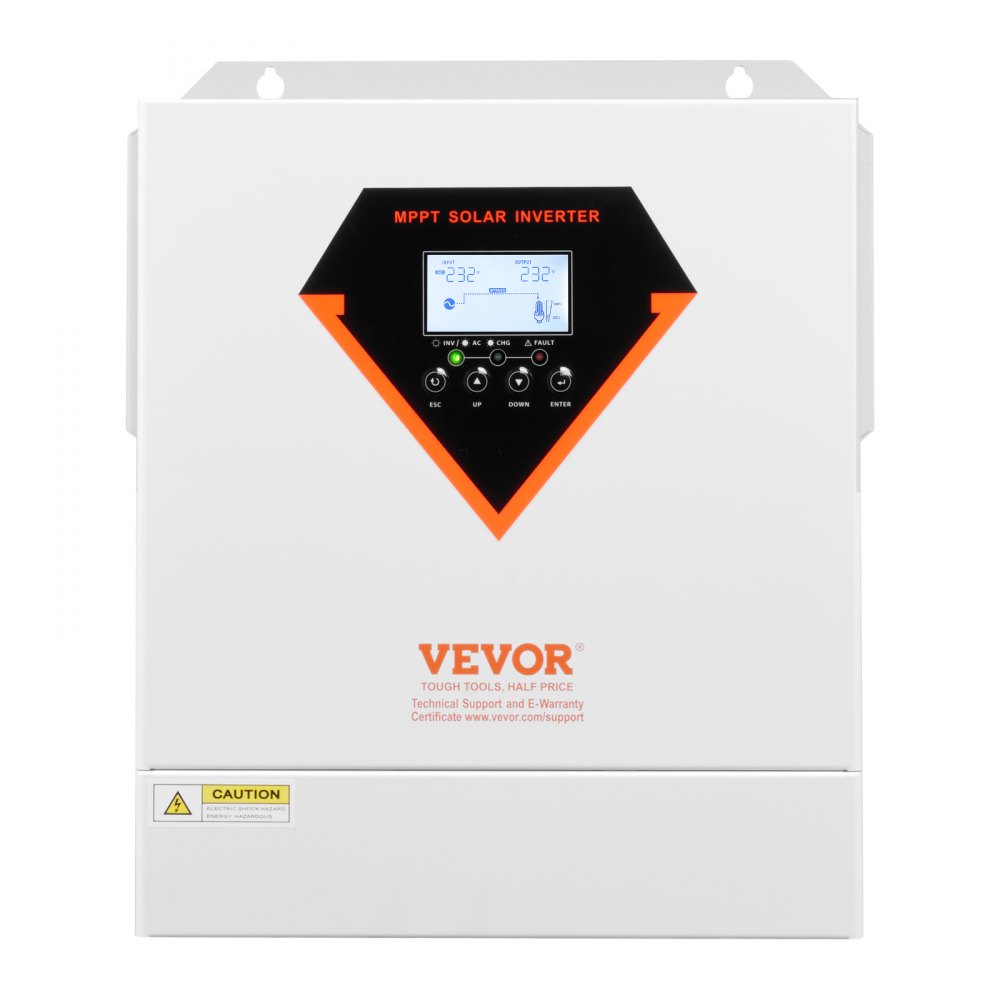

3500W Hybrid Solar Inverter
Our 2-in-1 hybrid solar inverter controller delivers a 3500W pure sine wave output and boasts an impressive 7000VA peak performance. Advanced MPPT technology achieves up to 94% conversion efficiency. Compatible with lithium, lead-acid, and LiFePO4 batteries, it has lithium activation function.
Q: Does this hybrid solar inverter support parallel operation?
A: No, it does not support parallel operation.
Q: Are there any installation location requirements?
A: It is not waterproof, so it should be installed in a well-ventilated indoor area or a sheltered location away from rain.
Q: Can I monitor the solar power generation via my phone?
A: Yes, it comes with a built-in WiFi chip and APP support, allowing you to monitor the system's power generation and energy storage status anytime, anywhere.
A: No, it does not support parallel operation.
Q: Are there any installation location requirements?
A: It is not waterproof, so it should be installed in a well-ventilated indoor area or a sheltered location away from rain.
Q: Can I monitor the solar power generation via my phone?
A: Yes, it comes with a built-in WiFi chip and APP support, allowing you to monitor the system's power generation and energy storage status anytime, anywhere.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (2)
Are these also suitable for 12V solar panels and batteries?
It needs to be connected to a 24V battery. If you have two 12V batteries, you can also connect them in series to form a 24V battery.
By vevor
Helpful
(
0
)
Hi - can this be installed downstream from panel solar controllers?
This can be installed downstream from panel solar controllers.
By vevor
Helpful
(
0
)
