VEVOR Magnetic Drill 1450W 12500N Portable Mag Drill Press 850RPM VEVOR Magnetic Drill 1450W 12500N Portable Mag Drill Press 850RPM VEVOR Magnetic Drill 1450W 12500N Portable Mag Drill Press 850RPM VEVOR Magnetic Drill 1450W 12500N Portable Mag Drill Press 850RPM VEVOR Magnetic Drill 1450W 12500N Portable Mag Drill Press 850RPM VEVOR Magnetic Drill 1450W 12500N Portable Mag Drill Press 850RPM VEVOR Magnetic Drill 1450W 12500N Portable Mag Drill Press 850RPM
CLZTJJT1140MMA10VV3

VEVOR Magnetic Drill 1450W 12500N Portable Mag Drill Press 850RPM

MUST BUY
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

40 mm

  • 50 mm
  • 40 mm

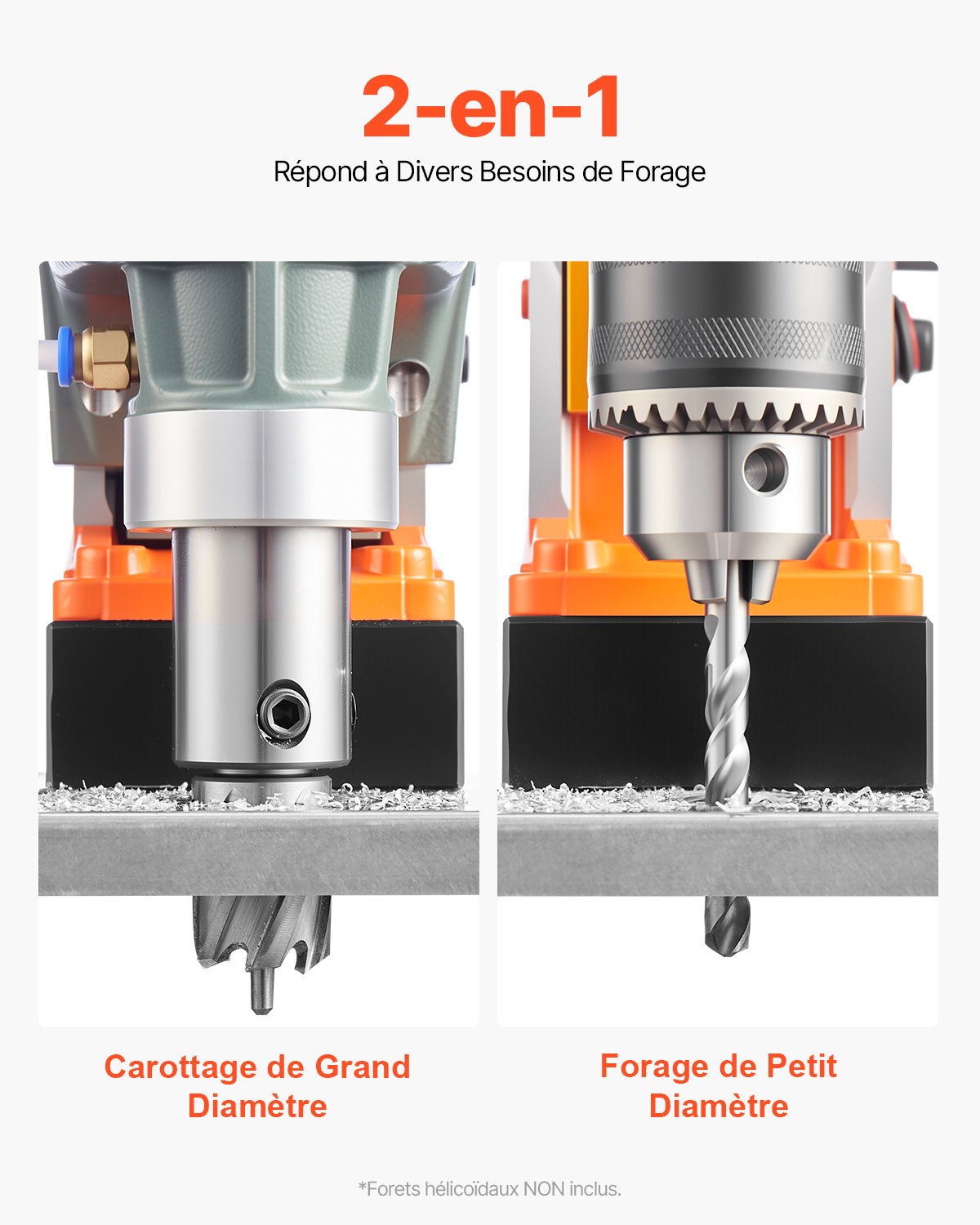

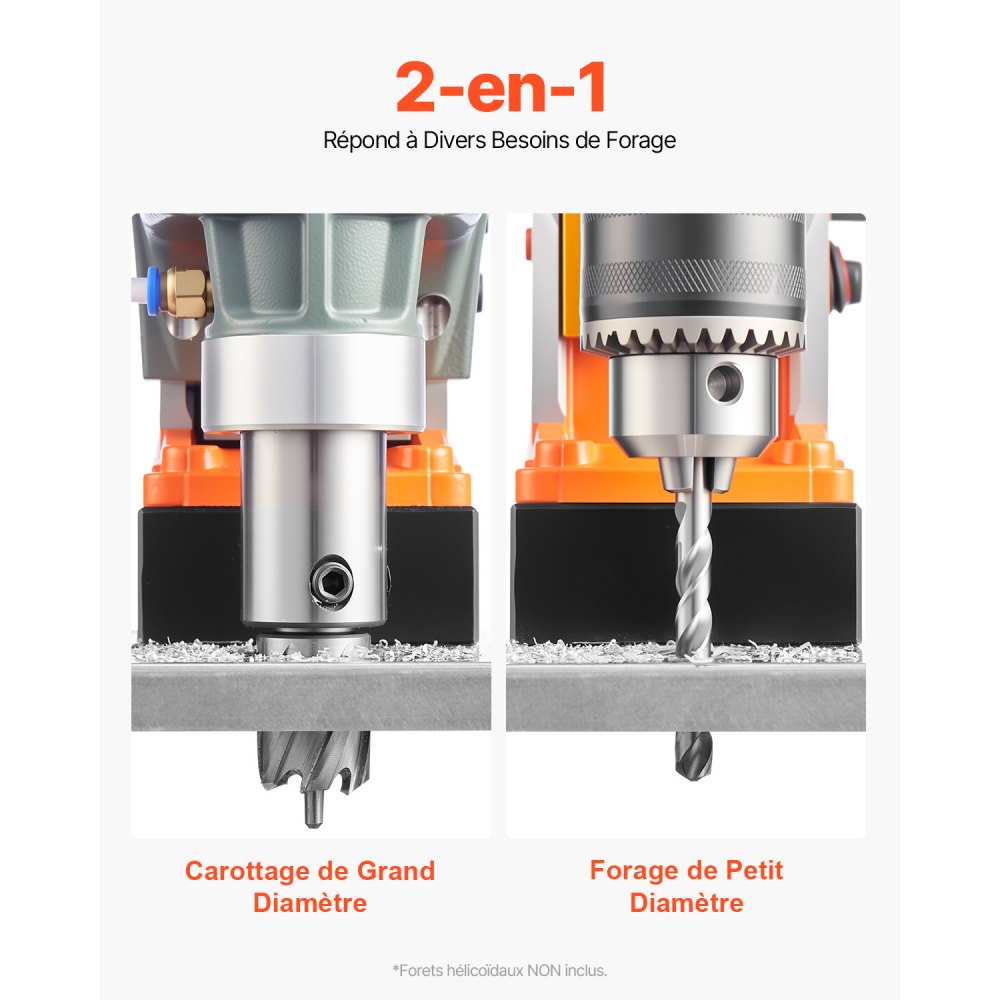

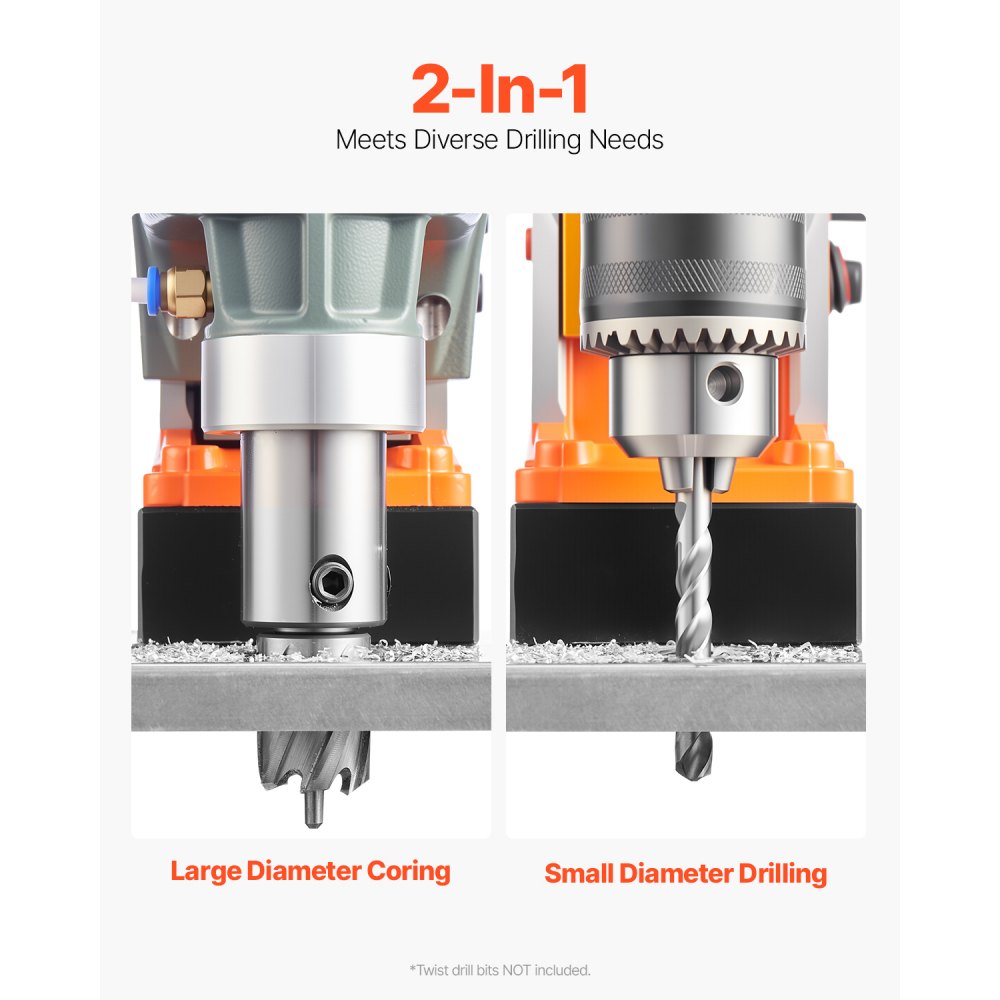

Twist Drill and Core Drill

  • Twist drill and hollow drill can be tapped and quickly disassembled
  • Twist drill and hollow drill can be tapped
  • Twist Drill and Core Drill

About this item

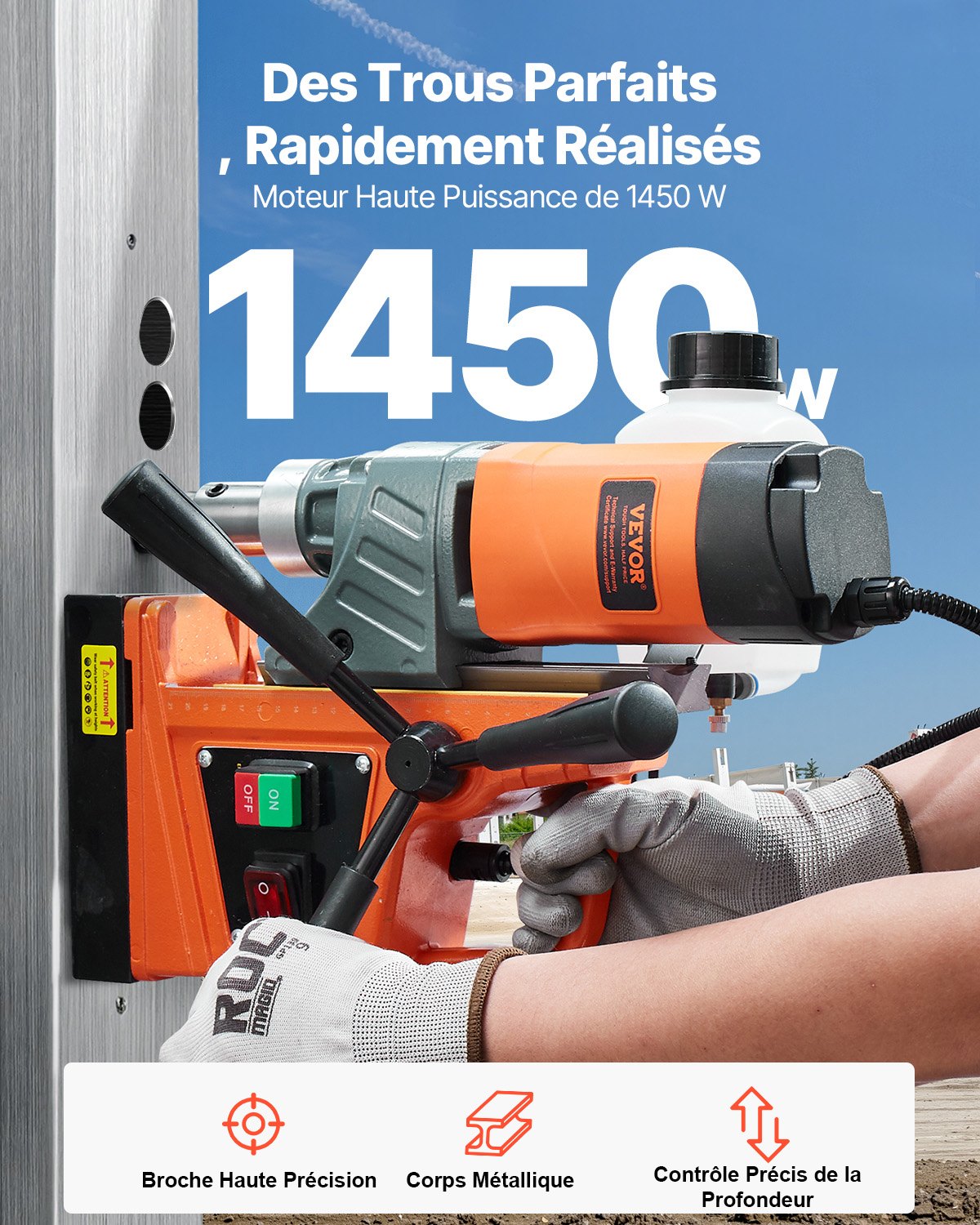

  • Top-level Magnet: Get ready for unstoppable power! Our electric magnetic drill generates exceptionally powerful driving force with its 1450W copper motor. It is capable of drilling into the toughest material at 850 RPM. Max. Boring Diameter (Coring Drill): 40mm; Max. Coring Depth: 50mm.

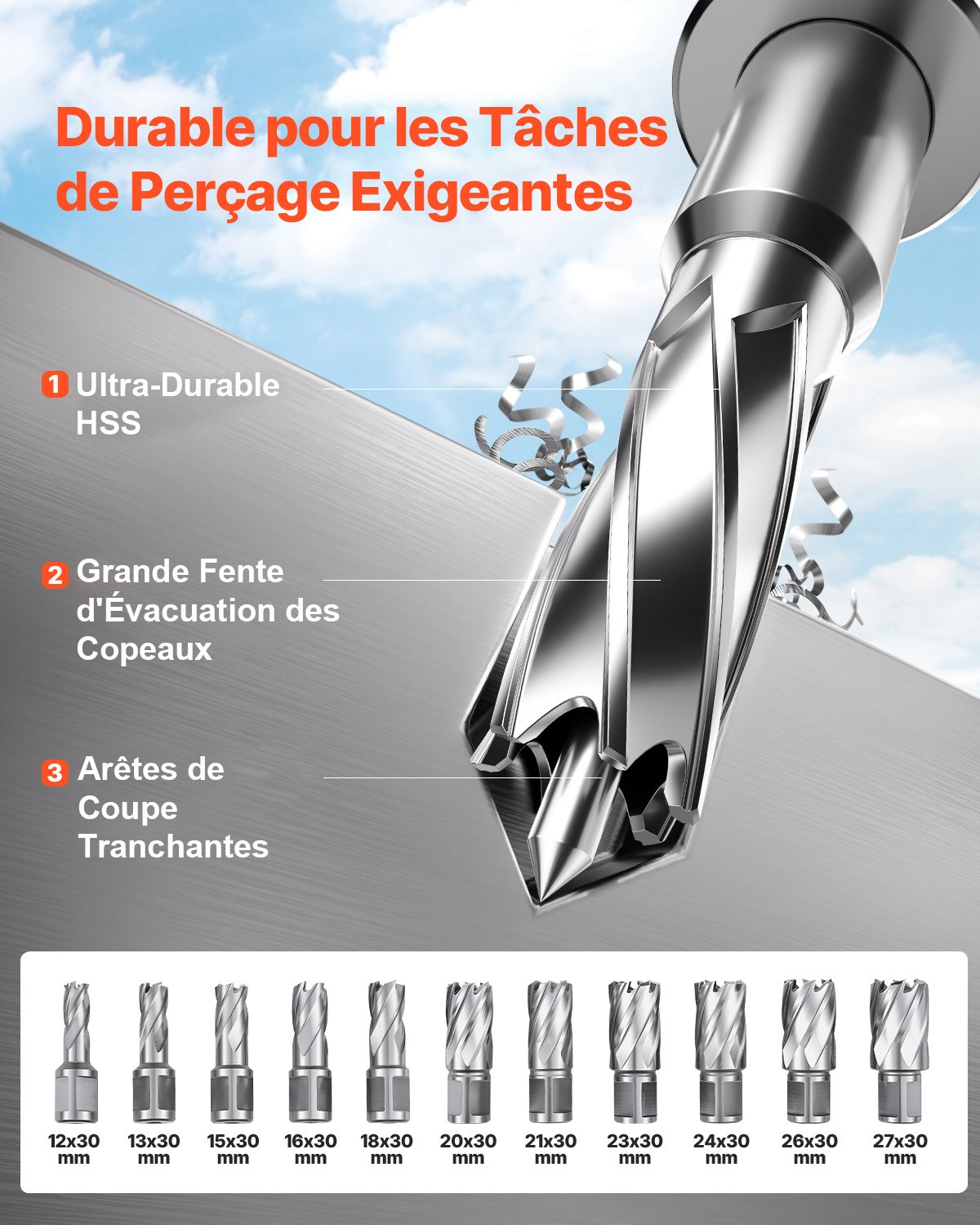

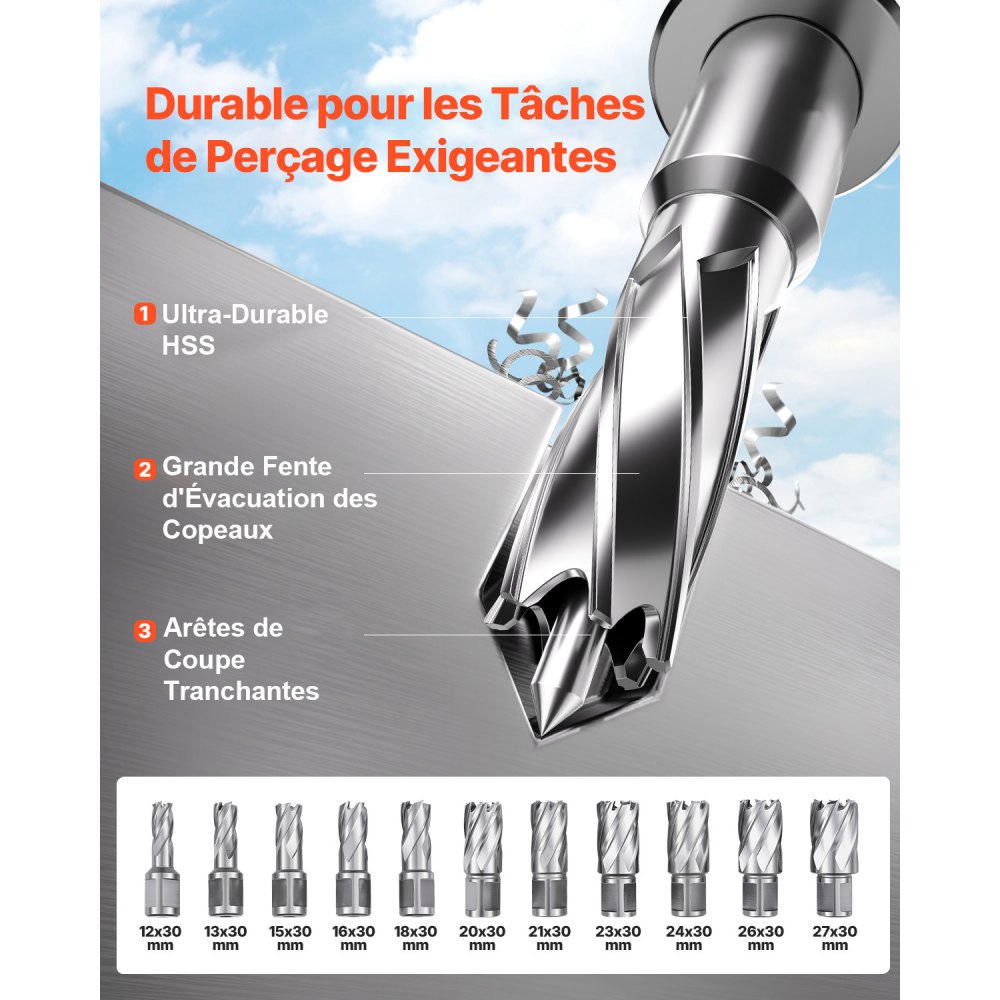

  • Understand the Power: 12500N of robust force is created by the electromagnetic thickened base, featuring pure iron anchors the mag drill press solidly works at any angle stably during the drilling process. Equipped 11pcs drill bits can meet your various boring needs for a wide range of hole diameters.
  • Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling. Besides, the titanium magnesium alloy guide rail has anti-corrosion and wear resistance characteristics, significantly improving the device's service life.
  • User-friendly Design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort.
  • Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Magnetic Drill 1450W 12500N Portable Mag Drill Press 850RPM
40 mm Twist Drill and Core Drill

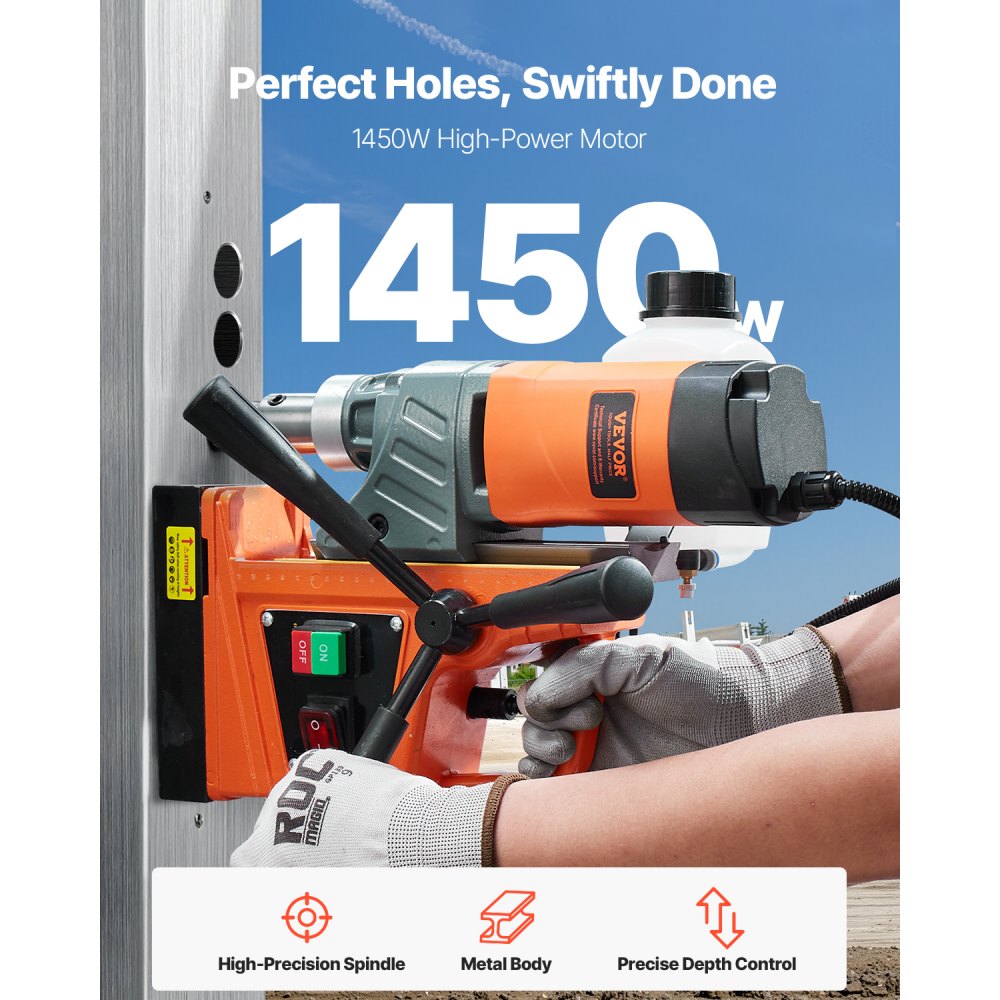

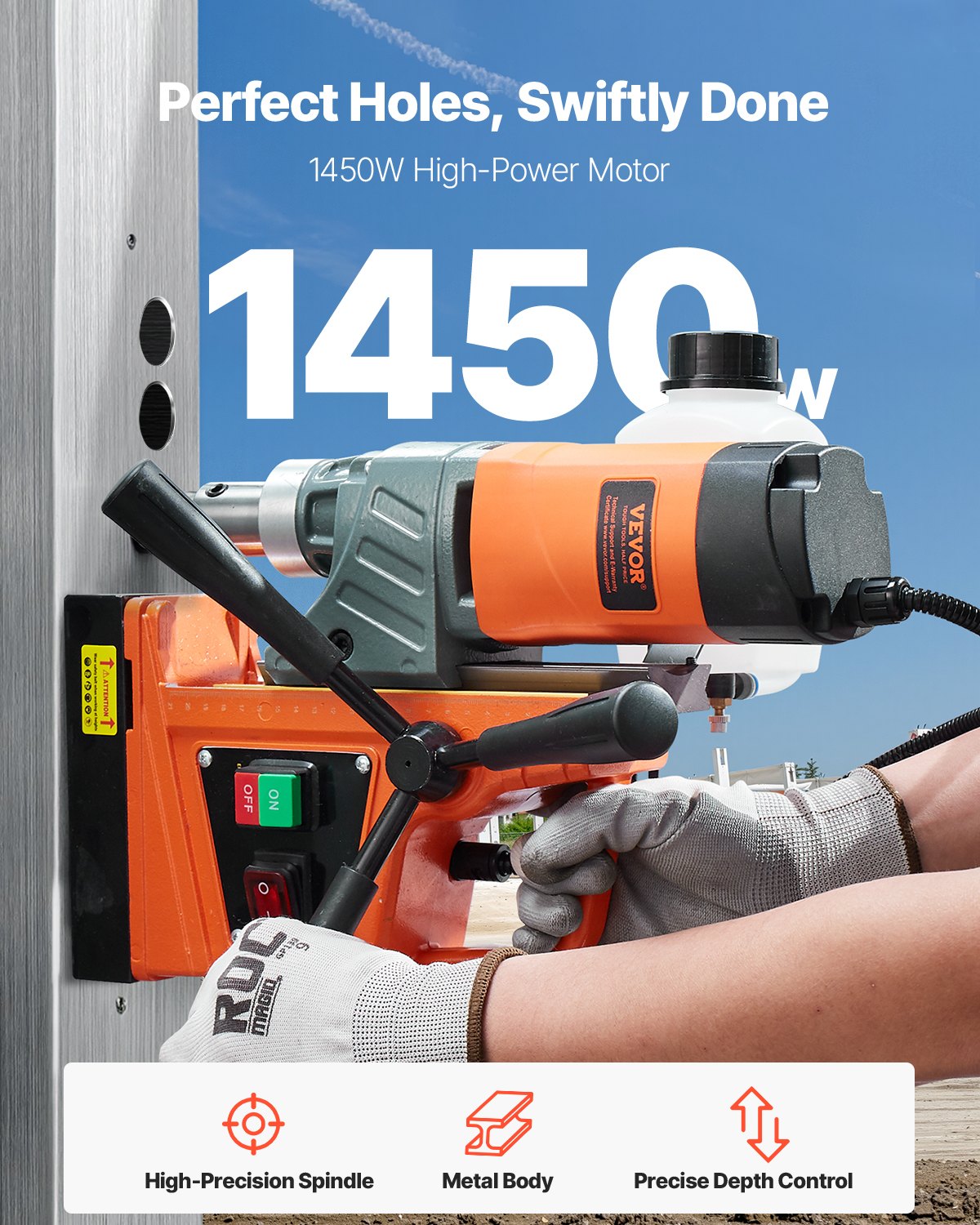

Bores With Unstoppable Power
VEVOR magnetic drill press with 1450w power, 12500n adhesion, and 11 accessories. industrial grade.VEVOR magnetic drill press with 1450w power, 12500n adhesion, and 11 accessories. industrial grade.
Our electric drill press can generate a power force and perform more efficiently thanks to its powerful motor. With a 12500N holding force, our mag drill can anchor itself on any steel and iron surface tightly to accurately position and drill holes without burr.
  • auto power off feature for VEVOR magnetic drill ensures safety during high transient power situations.
  • VEVOR magnetic drill with titanium magnesium alloy for high drilling accuracy and durability.
  • auto power off feature for VEVOR magnetic drill ensures safety during high transient power situations.
  • VEVOR magnetic drill with titanium magnesium alloy for high drilling accuracy and durability.
  • VEVOR magnetic drill with honeycomb packaging ensuring machine protection against shipping damage.
  • VEVOR magnetic drill with adjustable head, extension handle, non-slip rubber, and shock absorption.
  • VEVOR magnetic drill with honeycomb packaging ensuring machine protection against shipping damage.
  • VEVOR magnetic drill with adjustable head, extension handle, non-slip rubber, and shock absorption.

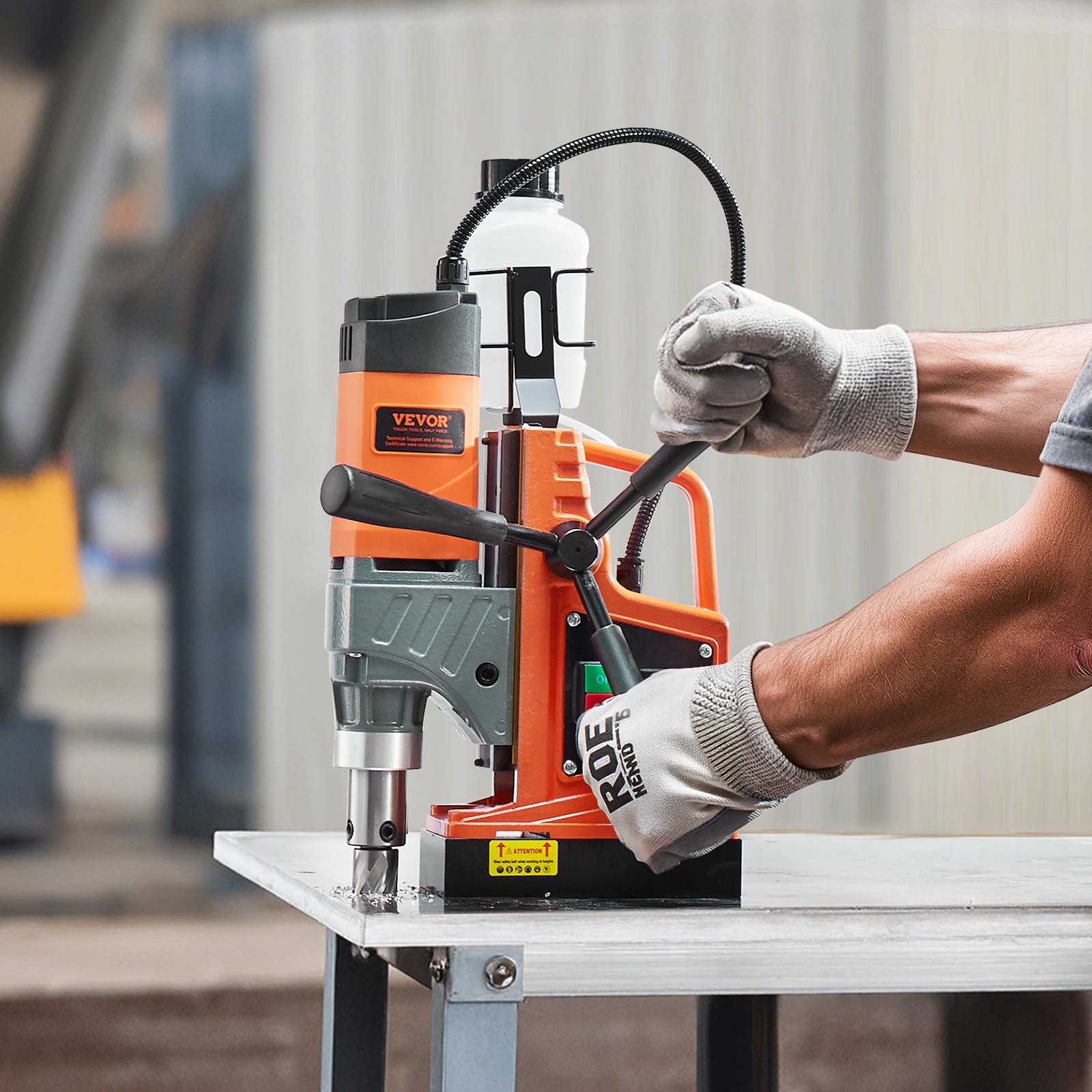

  • VEVOR magnetic drill in a workshop; right, a brick wall framework under construction.
  • industrial steel fabrication with stacked metal bars and a busy workshop; railway construction with tunnel tracks. VEVOR magnetic drill
  • VEVOR magnetic drill in a workshop; right, a brick wall framework under construction.
  • industrial steel fabrication with stacked metal bars and a busy workshop; railway construction with tunnel tracks. VEVOR magnetic drill
Key Features

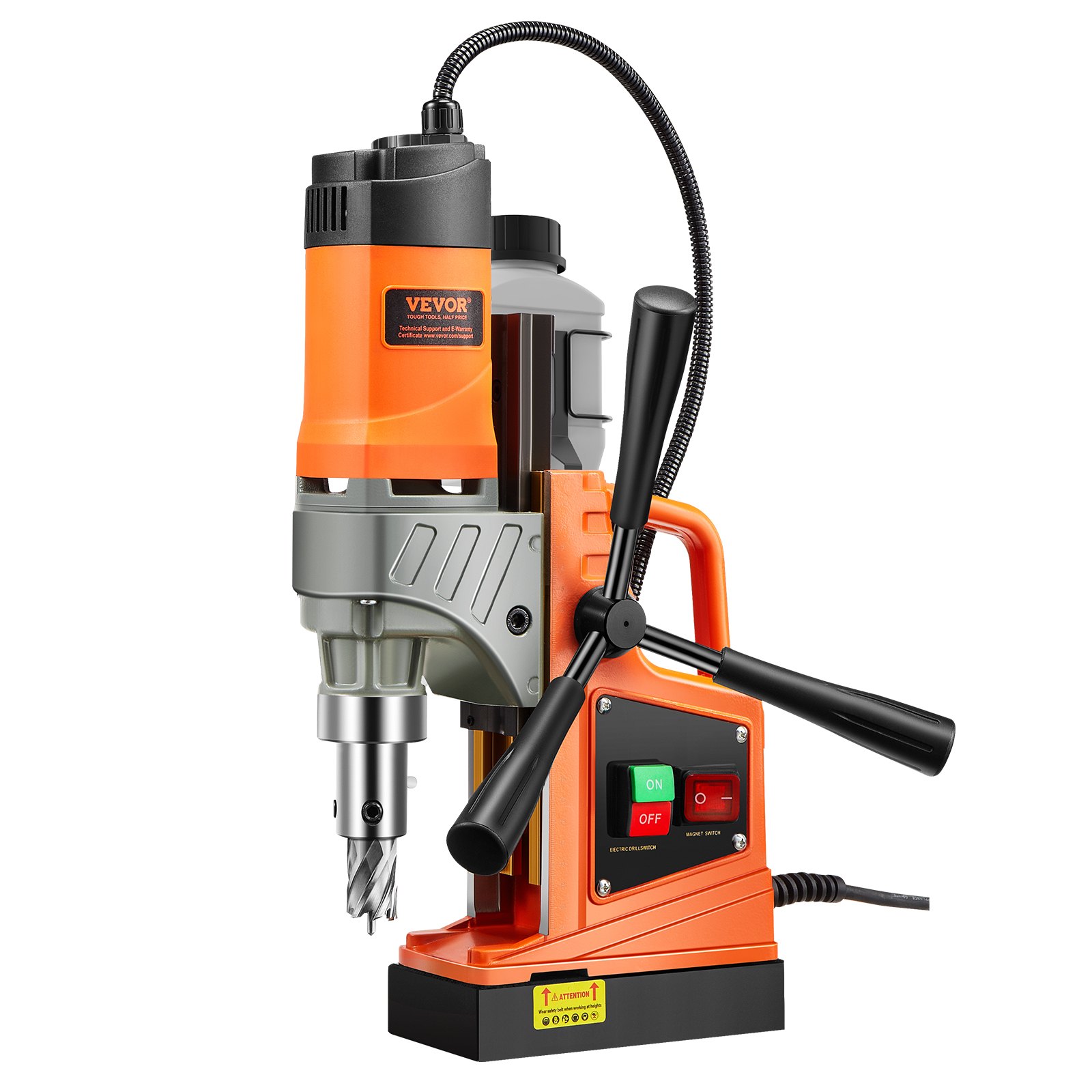

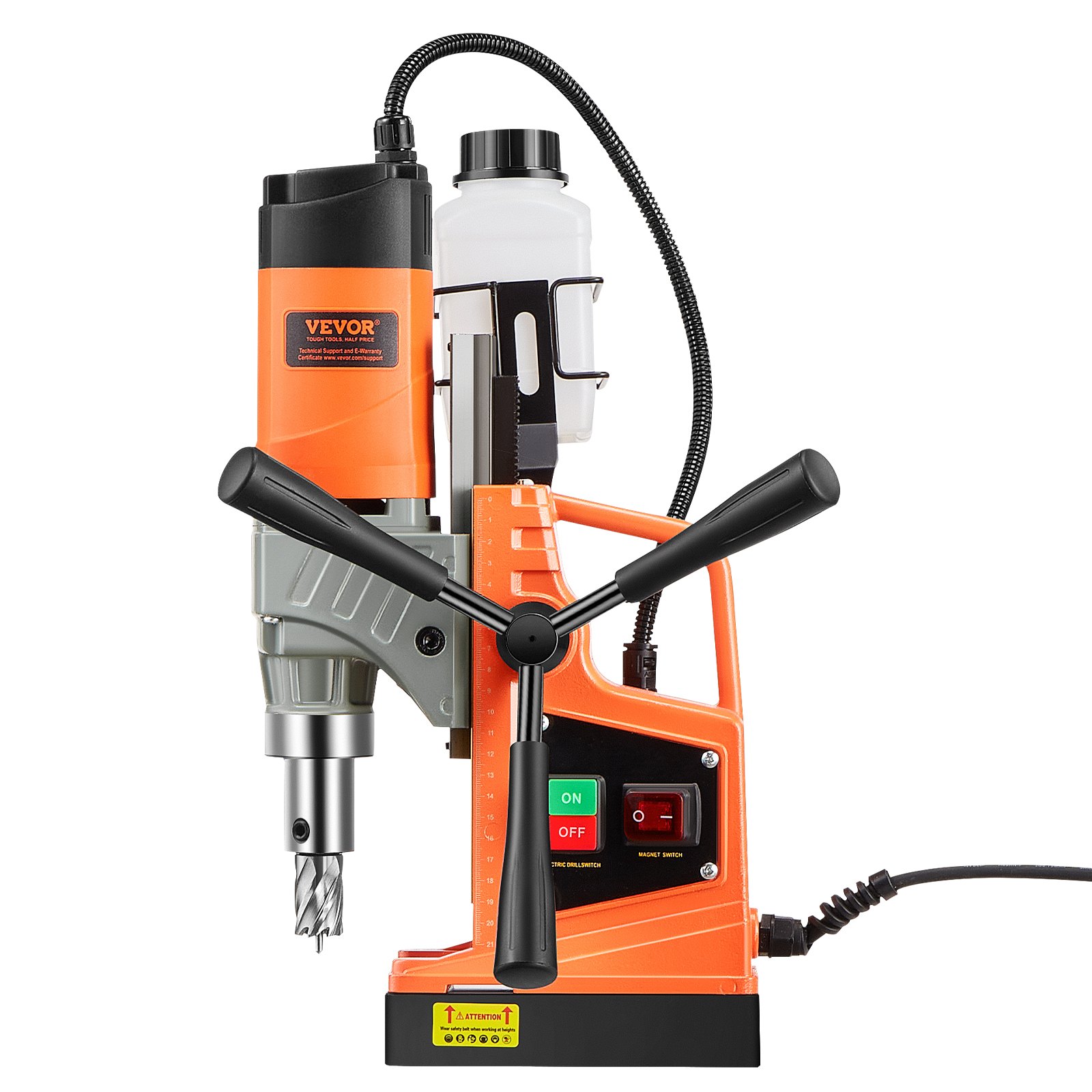

VEVOR magnetic drill with dual handles, on/off buttons, and coolant system. bright orange and gray design.

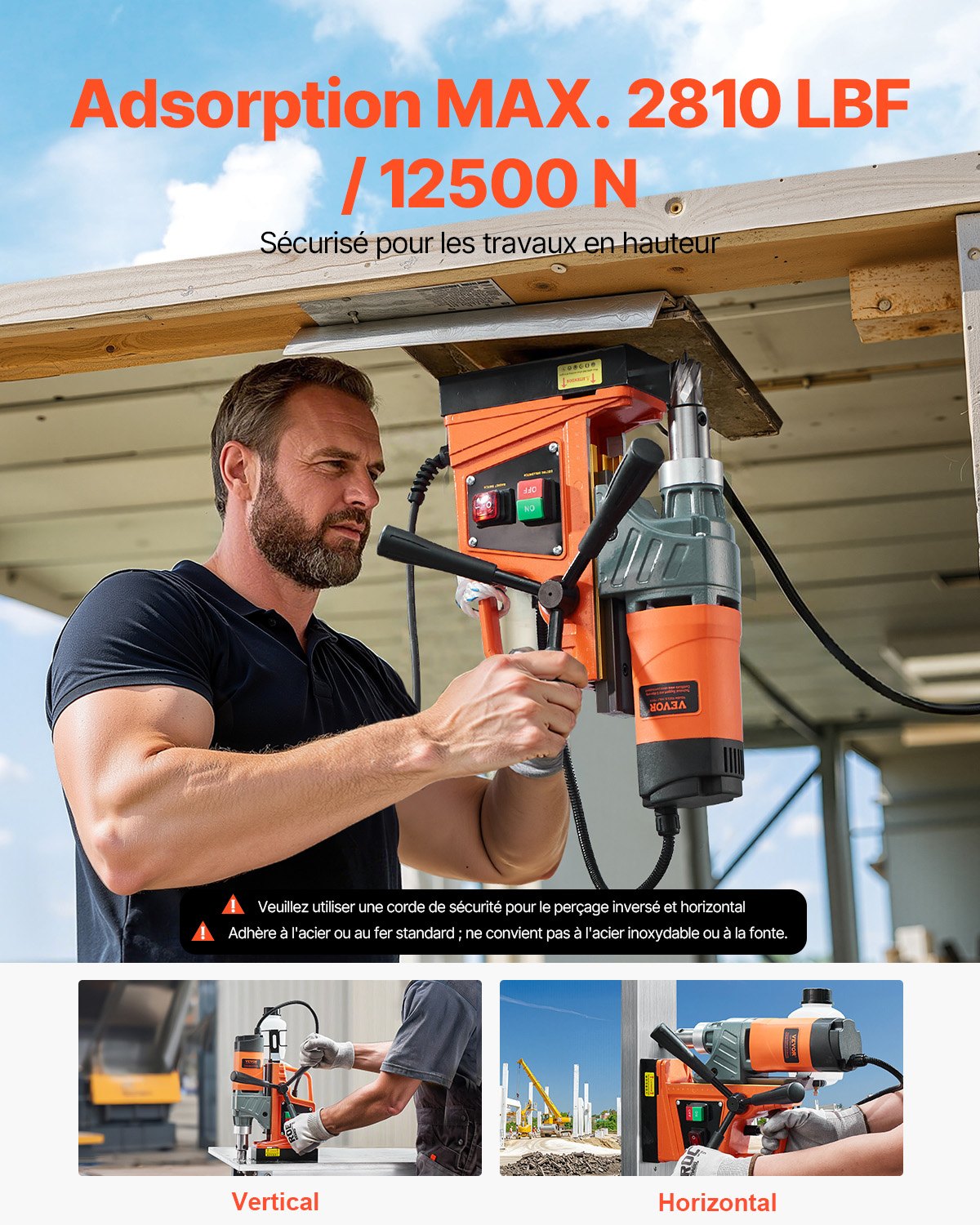

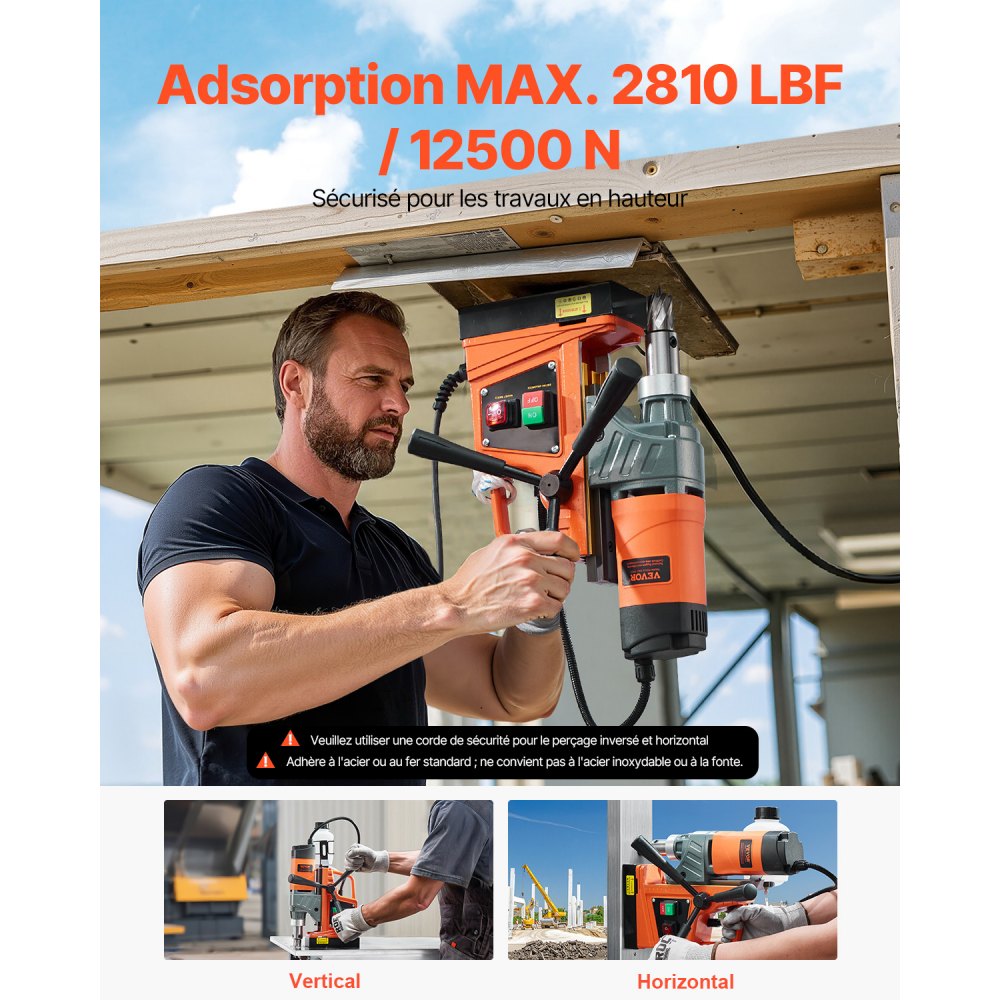

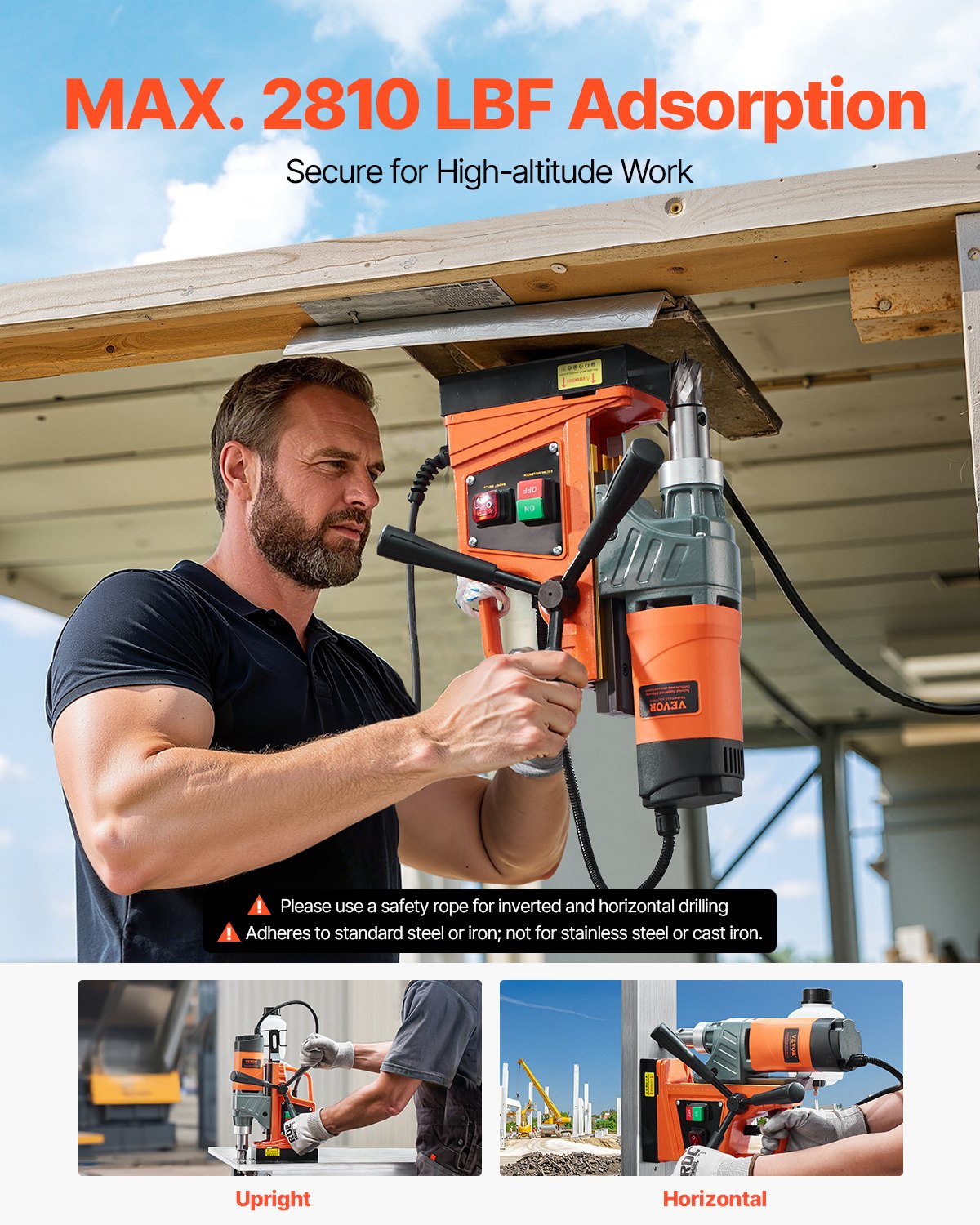

12500N Magnetic Force
The powerful two-stage magnet can generate 12500 N of holding force, ensuring the drill press machine will not move in the work. Thanks to its Electromagnet base, our magnetic drill press anchor itself securely during use through its solid iron bottom.

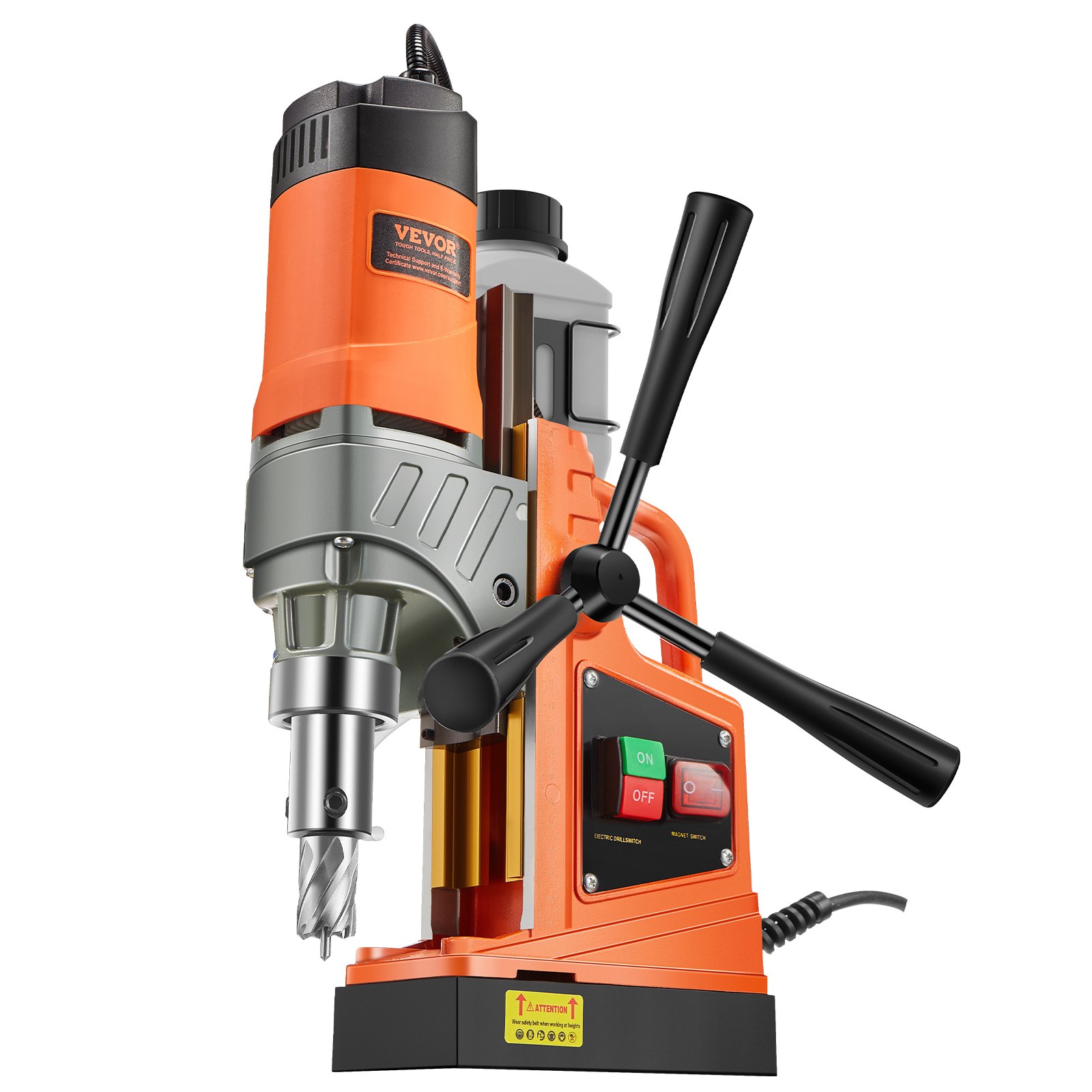

VEVOR magnetic drill with orange body, attached coolant container, and dual side handles.
Excellent Performance
Designed for precise and demanding coring, this mag base drill features 1450 watts of motor power. Max. Coring Diameter: 1.57 in / 40 mm; Max. Travel Distance: 8.66 in / 220 mm.

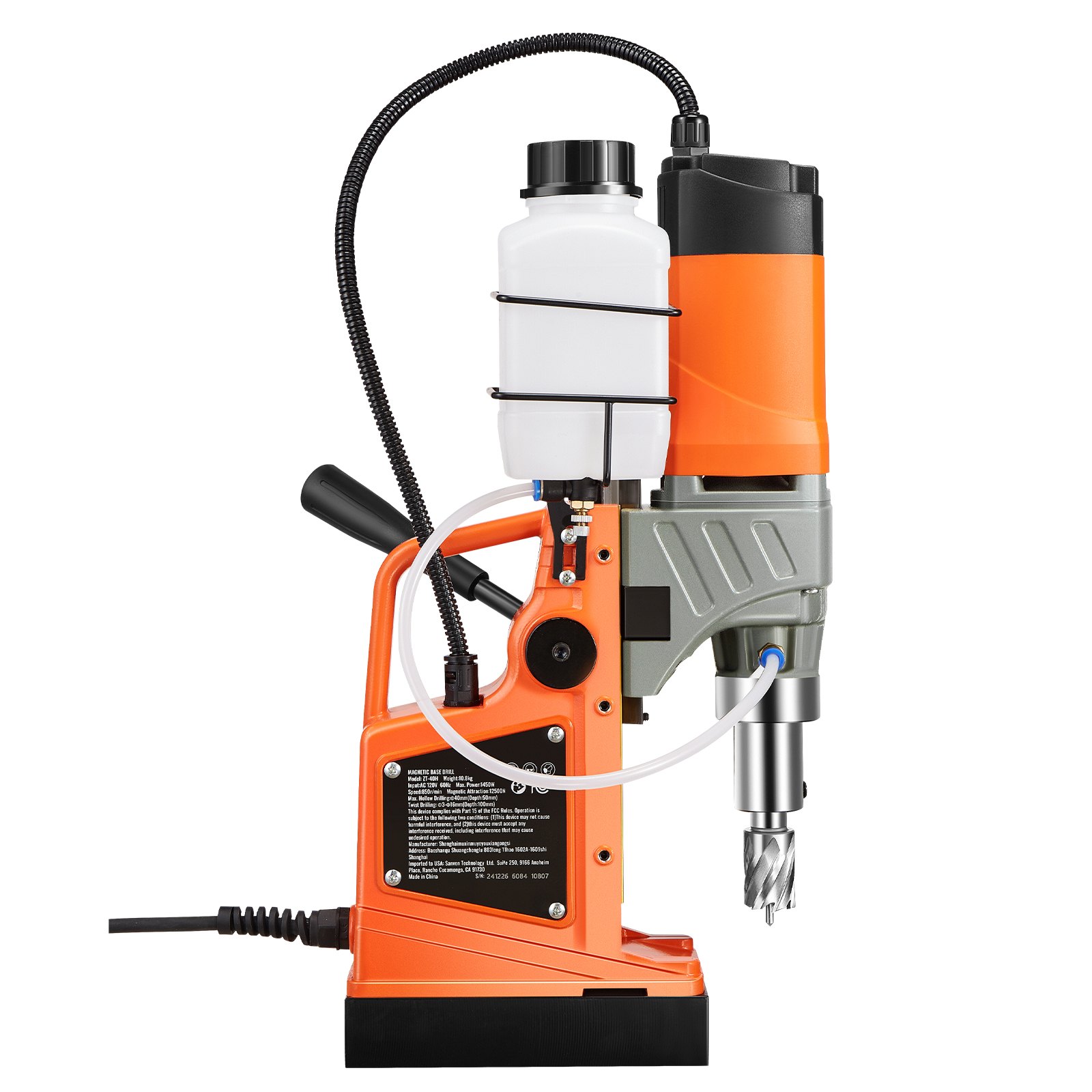

orange VEVOR magnetic drill with water tank and flexible power cable.

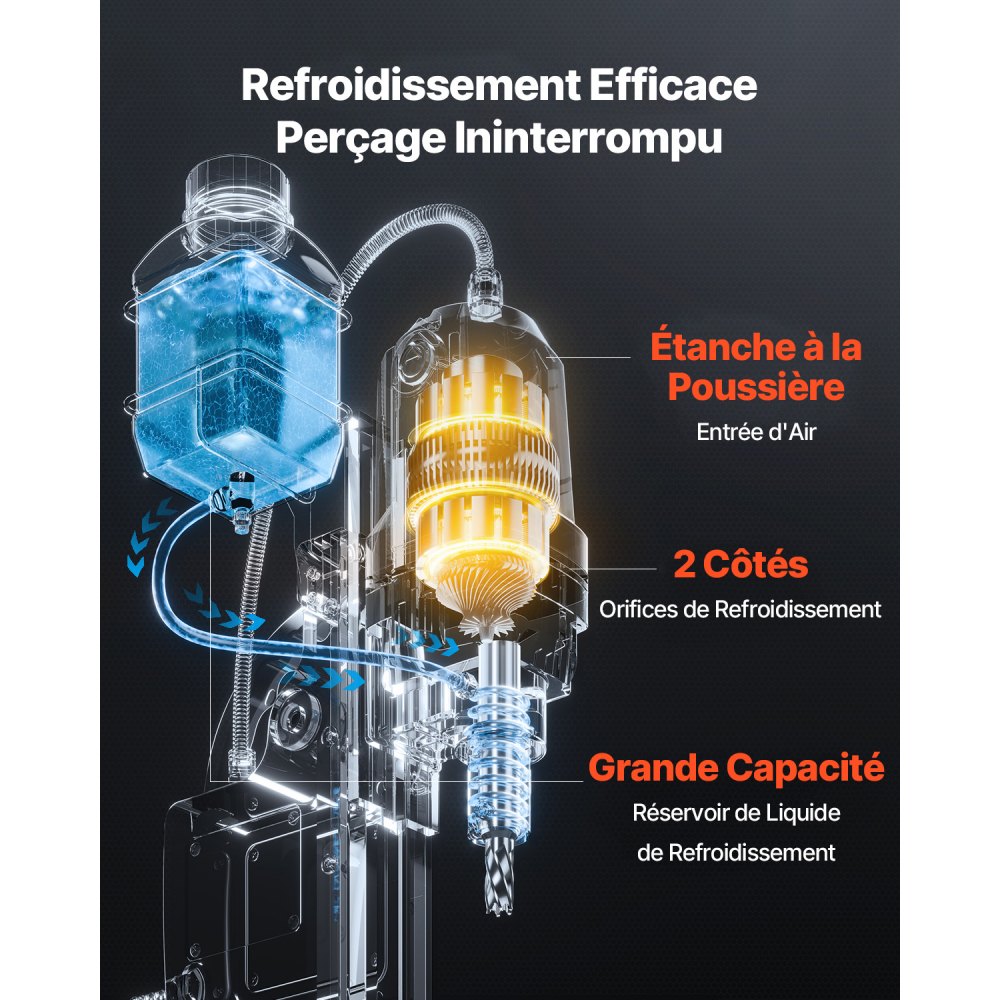

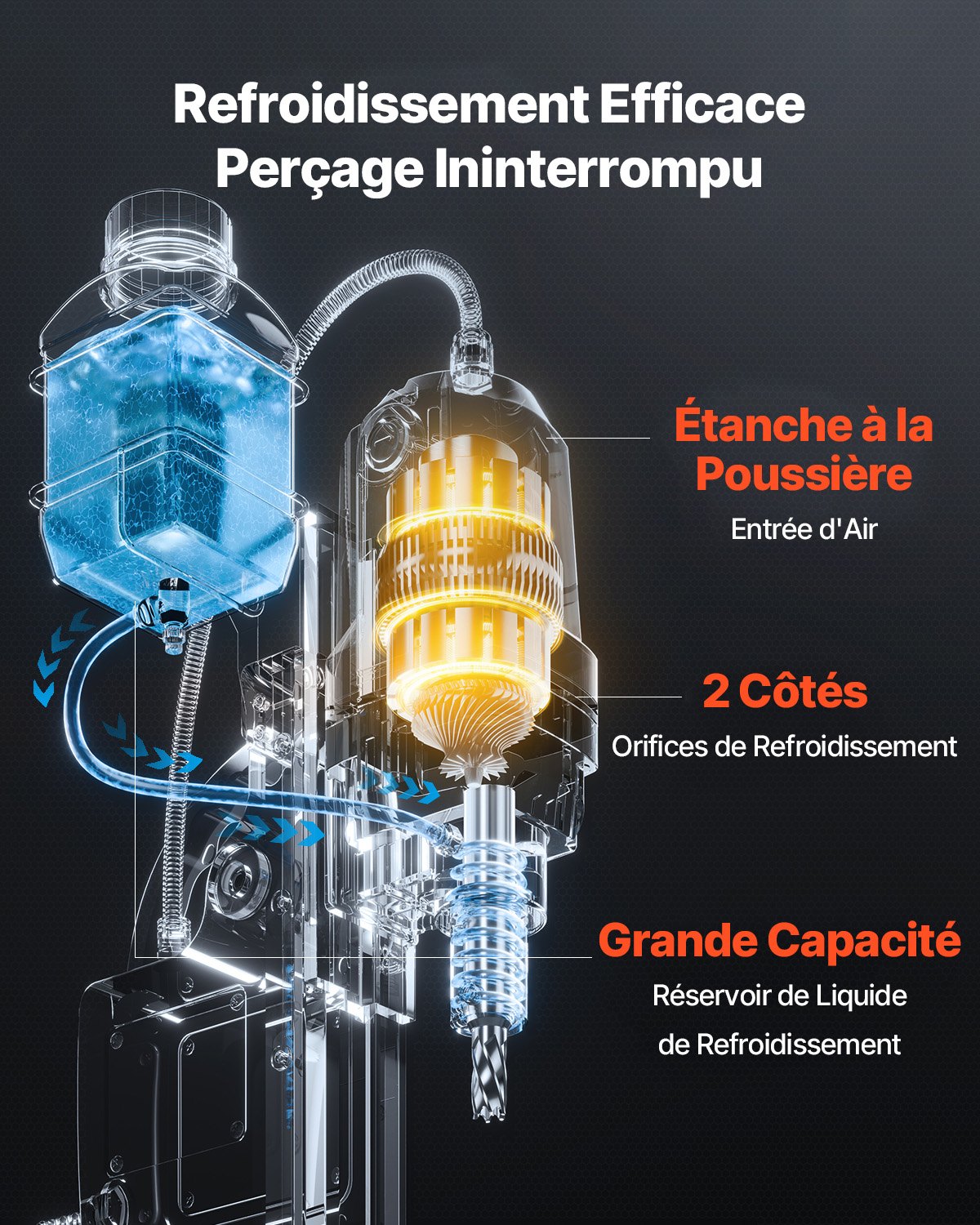

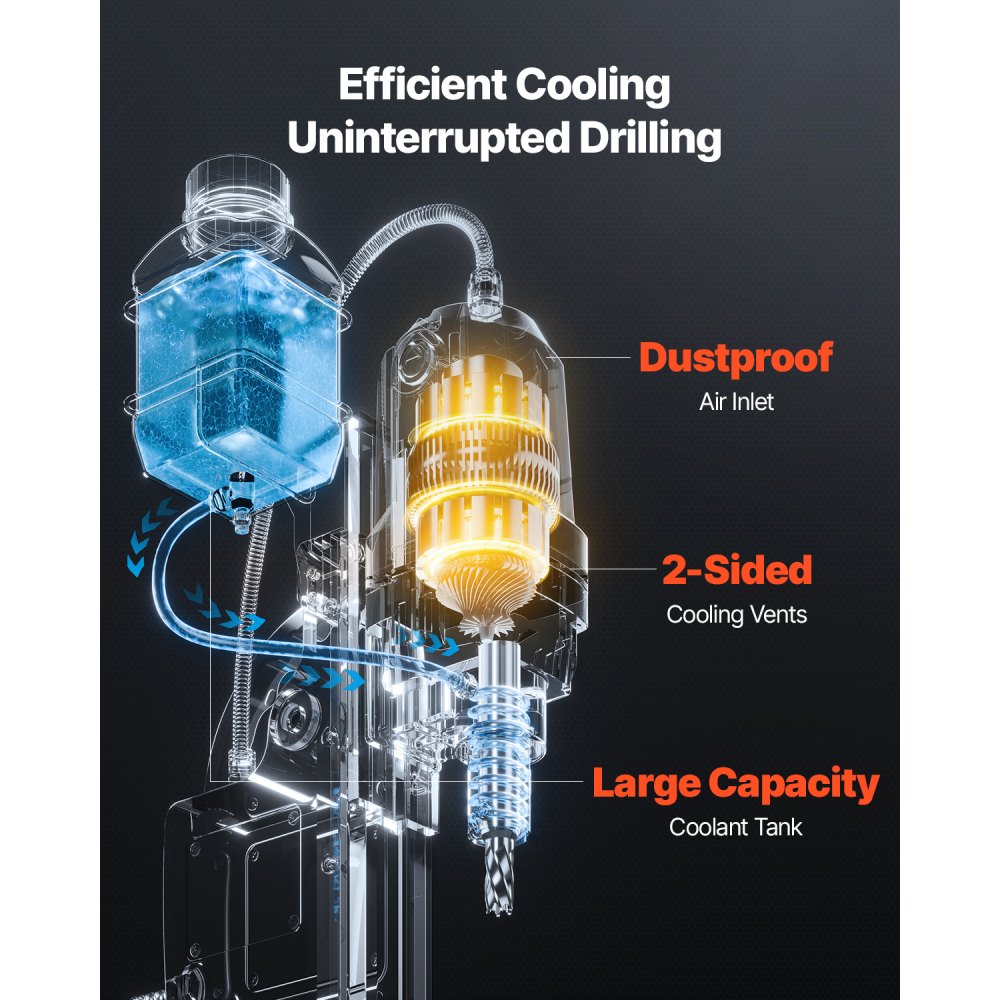

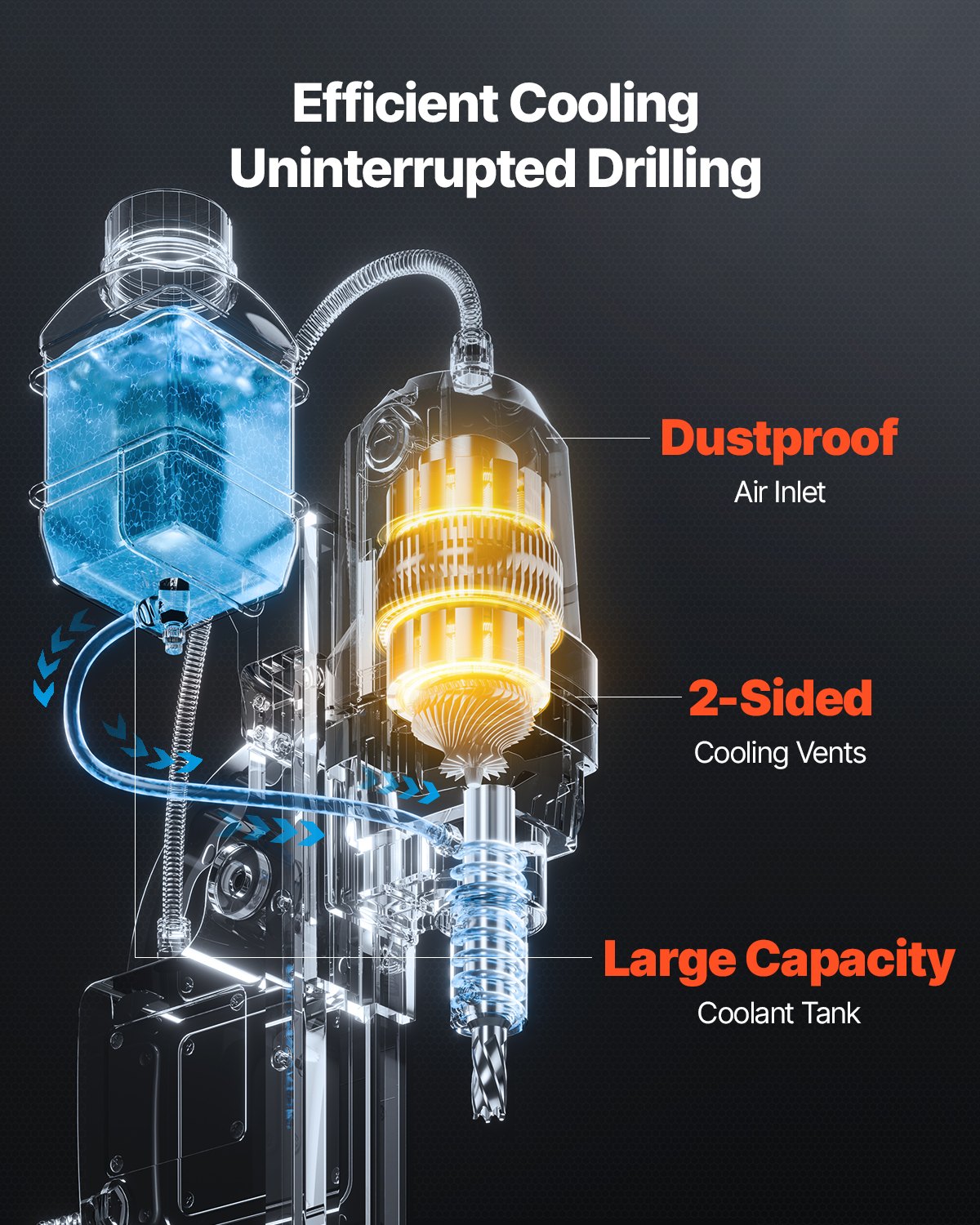

Efficient Cooling System
The portable drill press features a detachable, integrated coolant system that will help significantly increase the life expectancy of your drill bits as well as your cutters. What's more, dustproof air inlets and exhaust air holes for temperature reduction.

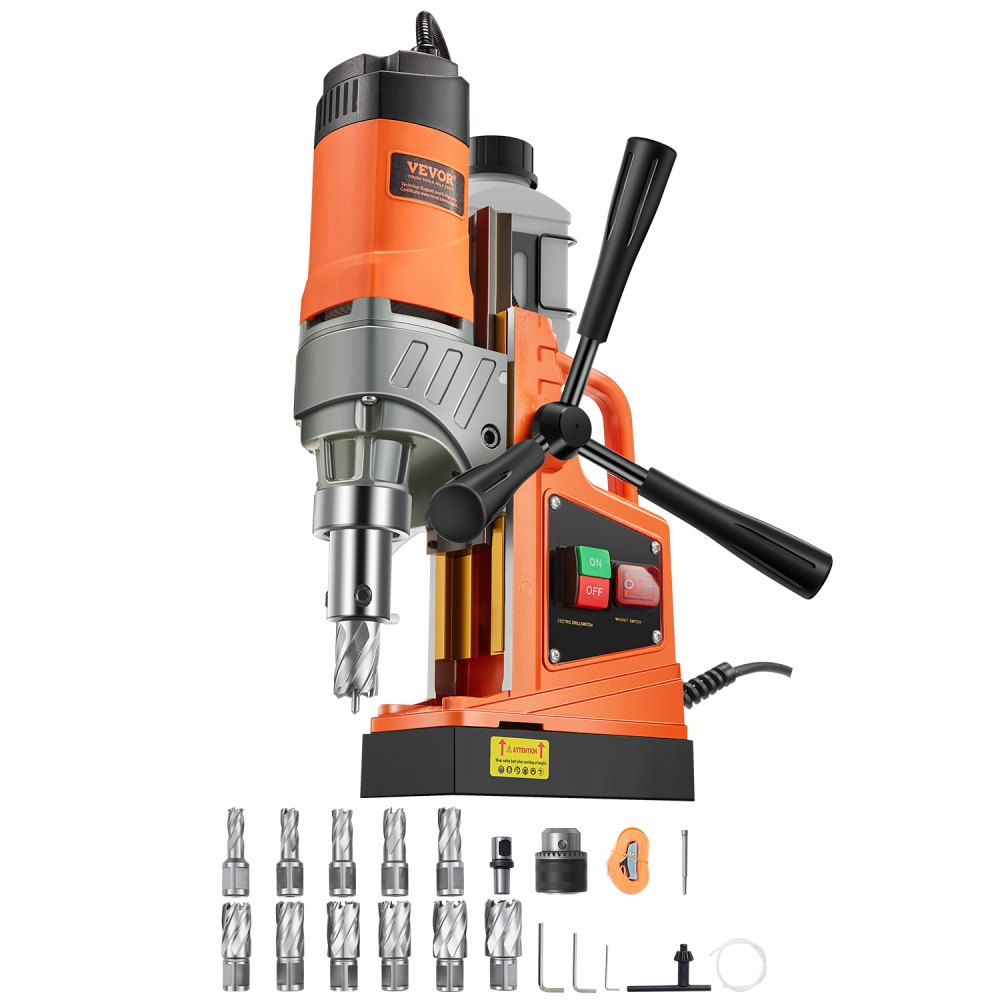

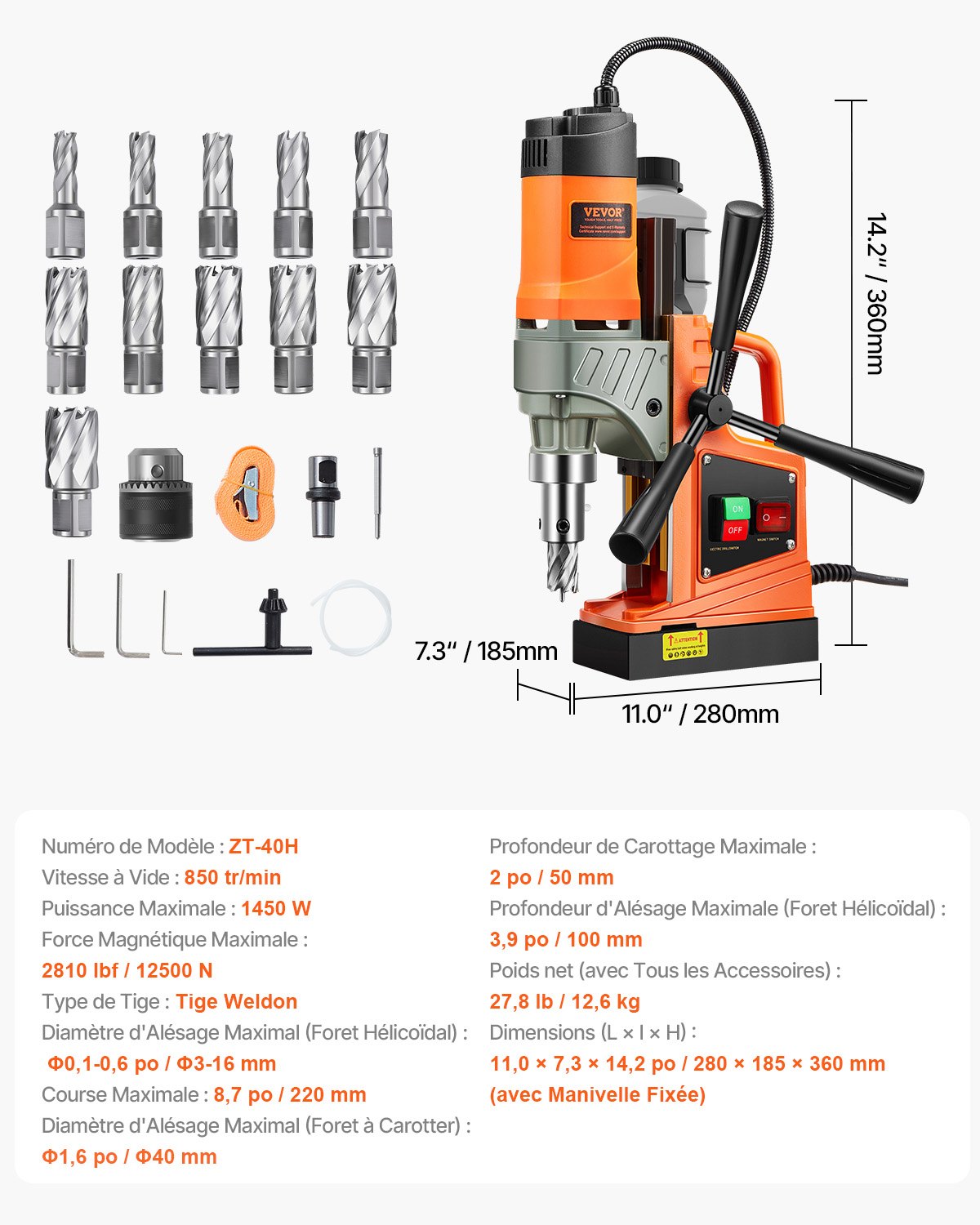

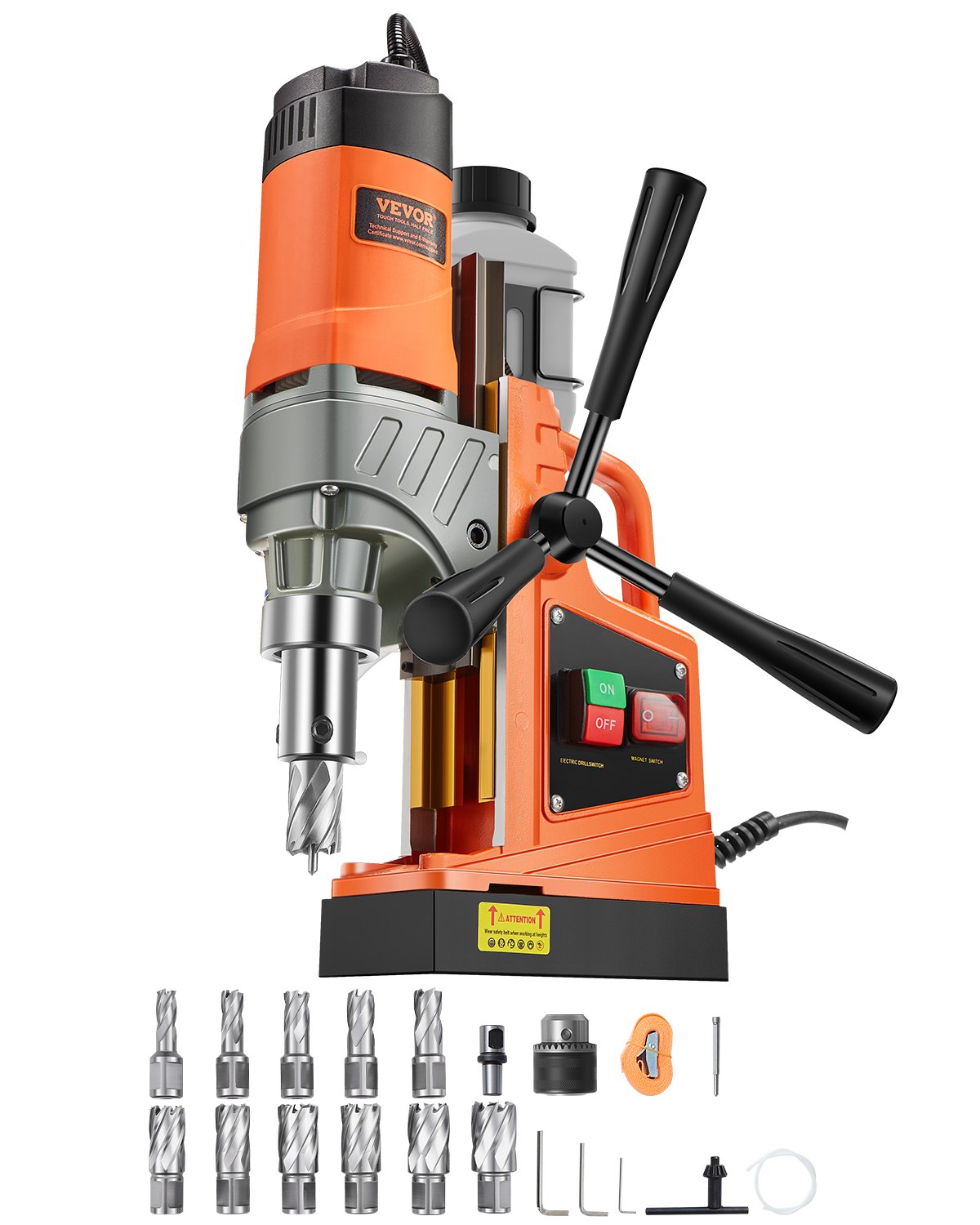

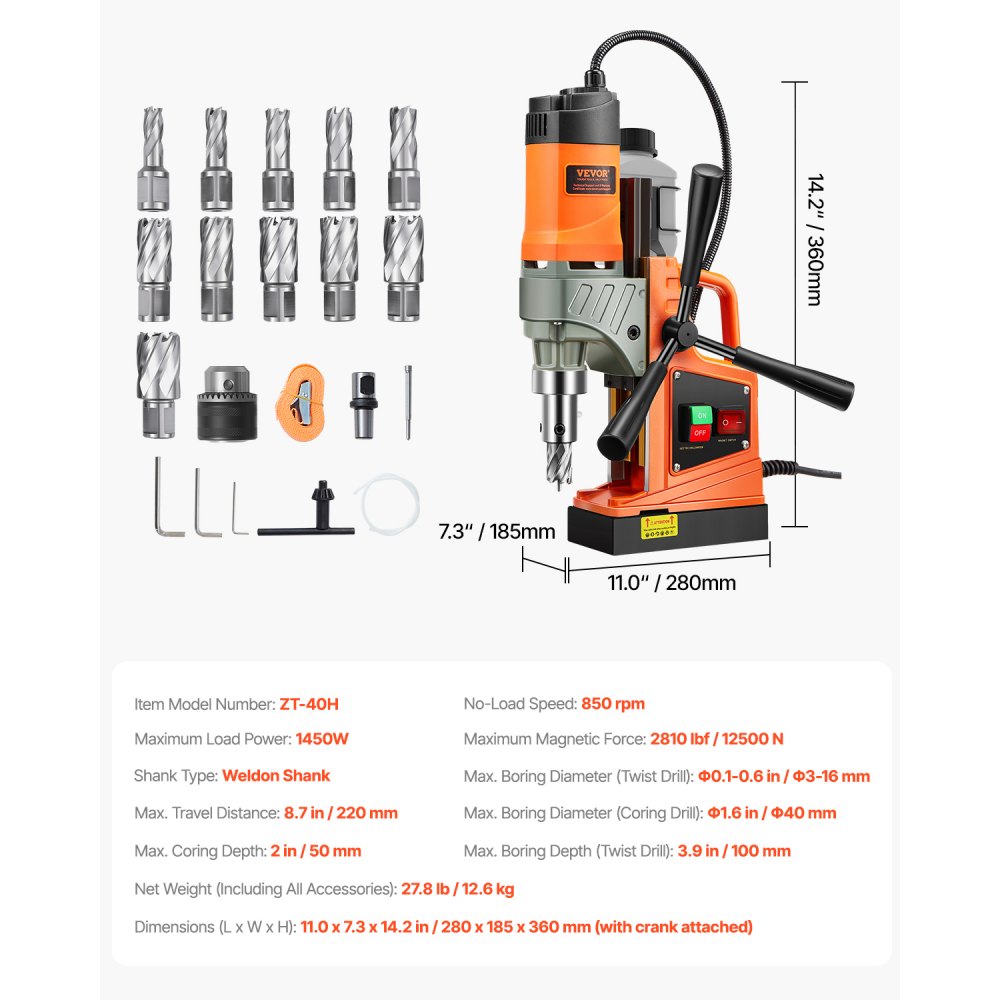

VEVOR magnetic drill with measurements, drill specifications, adapters, and accessories displayed.VEVOR magnetic drill with measurements, drill specifications, adapters, and accessories displayed.

Specification

Max. Boring Diameter(Coring Drill)
1.57 in / 40 mm
Max. Boring Depth
2 in / 50 mm
Max. Boring Diameter(Twist Drill)
0.63 in /16 mm
Max. Boring Depth (Twist Drill)
3.9 in / 100 mm
Max. Travel Distance
8.66 in / 220 mm
Magnetic Force
12500 N
Stepless Speed
850 rpm
Manual
Download Link
Questions and Answers
4 Questions
What does the bit functions all mean? Do you have to choose one?
Hello, the current sku is a fixed-speed model, and the other two products are adjustable-speed products, and the blade handles suitable for the three products are different.
By vevor
hi what is the throat depth..the distant from base to drill bit centre
Maximum core drilling diameter: Φ40mm; Maximum core drilling depth: 50mm; Twist drilling range: Φ3-Φ16mm; Maximum twist drilling depth: 100mm; Maximum stroke: 220mm; Rotation direction: unidirectional; No-load speed: 850r/min. These are the basic parameters of the machine.
By vevor

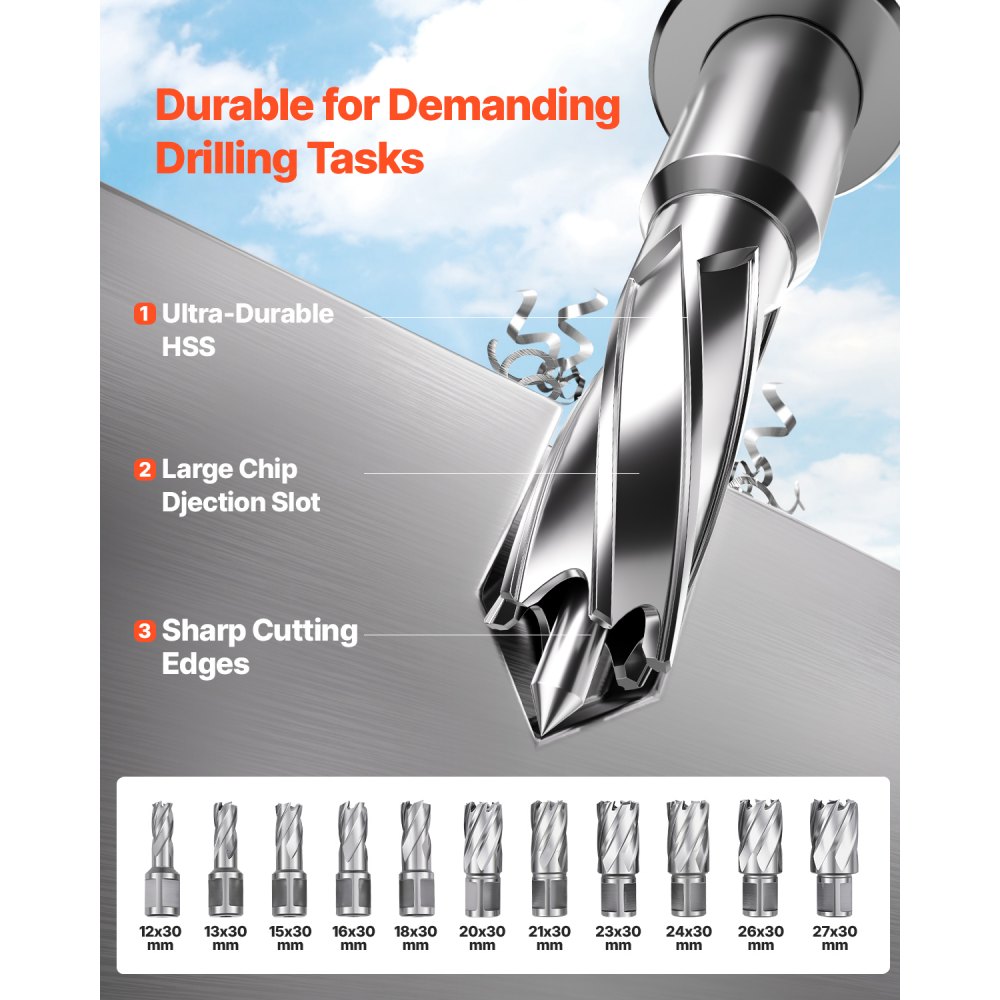

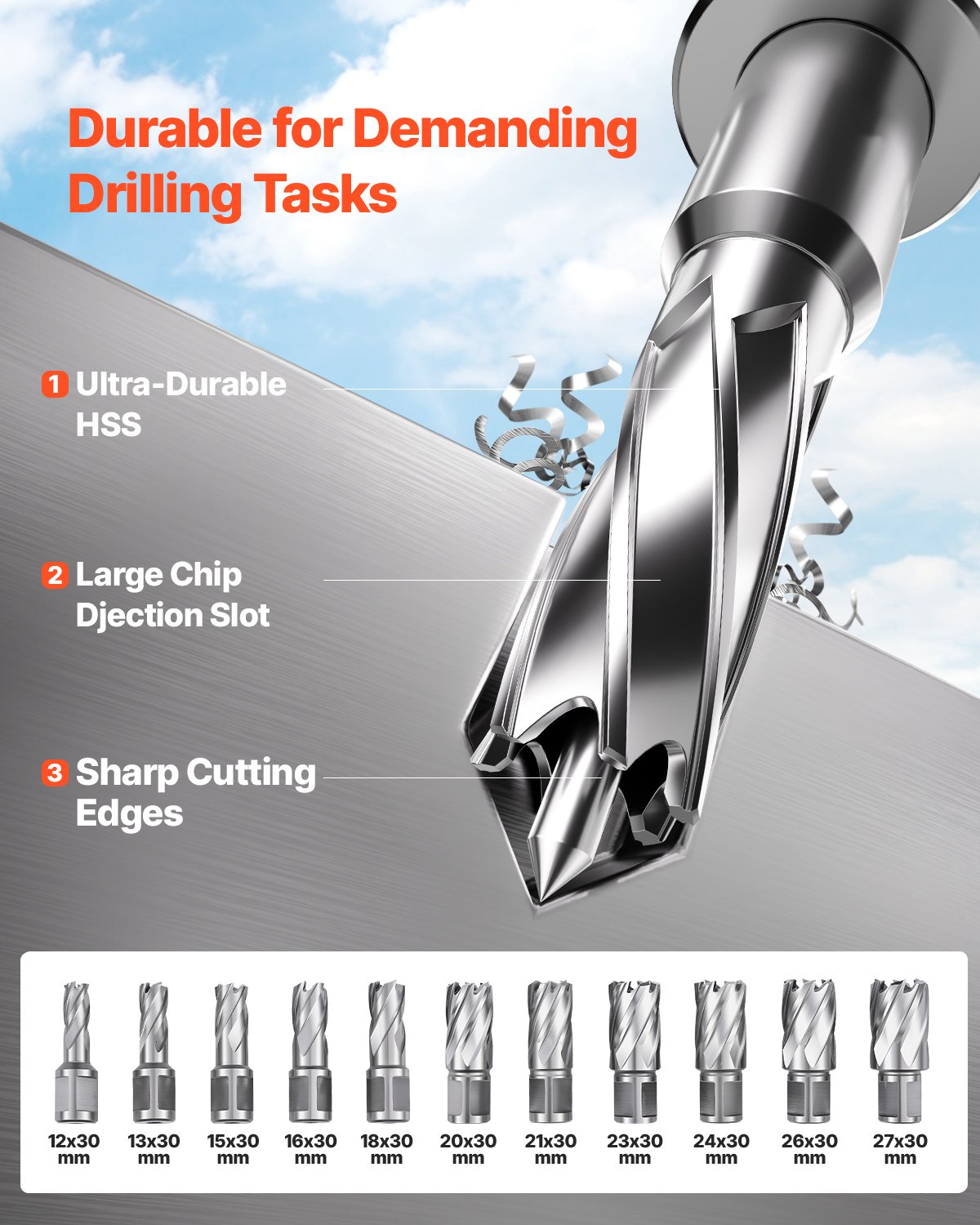

Hi. What size drill bits are supplied with this product?
40mm hollow drill
By vevor
is it 240 volt with australian plug
This is 220V with Australian plug
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
251 Review(s)
Clear filters
Gerald Stanley Gerald Stanley
Great drill
I bought this to drill holes in the chassis of my off road truck to mount brackets. 1/4” thick steel and it had no problem making a perfect hole. I highly recommend this drill. Use your common sense when operating this equipment and you have no issues. Some reviewers very critical of the lack of an interlock but if you take your time and look at what you’re doing it’s not a problem. Great purchase and very useful tool.
Vinito Vinito
Mr.
I just received this drill today, so I can't speak to longevity. That said, if longevity was a huge priority on this I would expect to pay $1,600 or more and this suits my budget MUCH better. I will say that the drill is VERY solid construction (much better than expected) and yet operation is still very smooth. I've several times used a very popular brand seen on YT all the time and that one has excessive wiggle and rocking on the vertical track, but this Vevor one has none of that. Very nice. The weldon socket fits the tools very well, i.e. not loose - this one is very concentric in that regard. Both boring tools and even the drill chuck ran very true and I could not detect any runout at all by naked eye, so is much better than most tools of this type that I've used. Whether that's luck or something else, I'm very happy about this. The electronic speed controller takes a second or so to catch up with itself if you push it enough to slow it down (not what you'd normally do), but that's typical of electronic controllers and I prefer this type to primitive "get what you set" variable speed. Speed range is VERY useful (pretty much slows to zero) and reversing will come in handy. All the switches and knobs feel smooth and solid. There IS a magnet/motor interlock!! Thus you can't start the motor if you forget to switch on the magnet first. Also, if you accidentally switch off the magnet while the motor is spinning, it switches the motor off automatically. Important safety feature! Surprised NONE of the online info on the drill notes this fact. The drill is GOOD, but this item's listing on their website needs help. The features are very nice. The only thing I wish it had was a quill lock since gravity keeps wanting to lower it constantly making it awkward for changing tools and such. It's not terrible, just a bit annoying. Mine did NOT come with the "quick change" tool collar as the pictures show, but I'm actually glad about that because the typical set screw arrangement this one came with is simple and reliable. I don't change tools on mag drills often enough to need quick change anyway. So technically a dropped feature, but for me that was kind of a relief since I was skeptical of the reliability of a quick-change collar thing. One less thing to go wrong. Another feature that is never mentioned is the positioning of the drill body along the vertical slide is quick and easily accessible. None of that disassembling stuff some mag drills have. Loosen a hex socket screw on the side, slip it up or down, and snug it back down. I like this. Long story short, I really like this drill so far. Drilled a few 1/2" holes today for something I'm building and really it worked great. Operation is very smooth, has plenty adequate power (both magnet and motor) and a pleasure to use. I like it! Photo shows the 1/2" jobber length drill chucked in the thing. Does this with about 3/4" to spare. Awesome.
Dean Long Dean Long
Lead Fabricator and Mechanic
This drill is a great deal, drills very well and has an extremely strong magnet. I have used it to drill through 1in plate down to 11ga. I have even drilled holes with it upside down, great product
jim jim
Owner
Great product. I would definitely recommend but don't forget the extra bits! The Mag Drill Press cut through 1/4 steel plate with ease.
George George
Awesome
Worth every dollar on site. Drills through steel beams with ease, easy to set up. All you need to grab is some good cutting oil and youre on your way. Great product, definitely does the job
rotorway1954 rotorway1954
MD40
Used my MD40 For 3 weeks now drilled over a 100 holes the smallest 12mm largest 38 mm this is one of the best perches I have ever made the cutters supplied cut very neat accurate holes it’s a great product
bj200360 bj200360
better than my drill
Makes life more easier out on site and in the work shop
highland-machinery-sales highland-machinery-sales
good
Jim Francis Jim Francis
Extreme Drilling
Why have I not gotten this drill earlier in my life? Used my new drill immediately with the best results possible. Easy to use, awesome results.
Mark Perkins Mark Perkins
Good value for money
Priced right, can buy several of these that does the same job as the dearer brands
