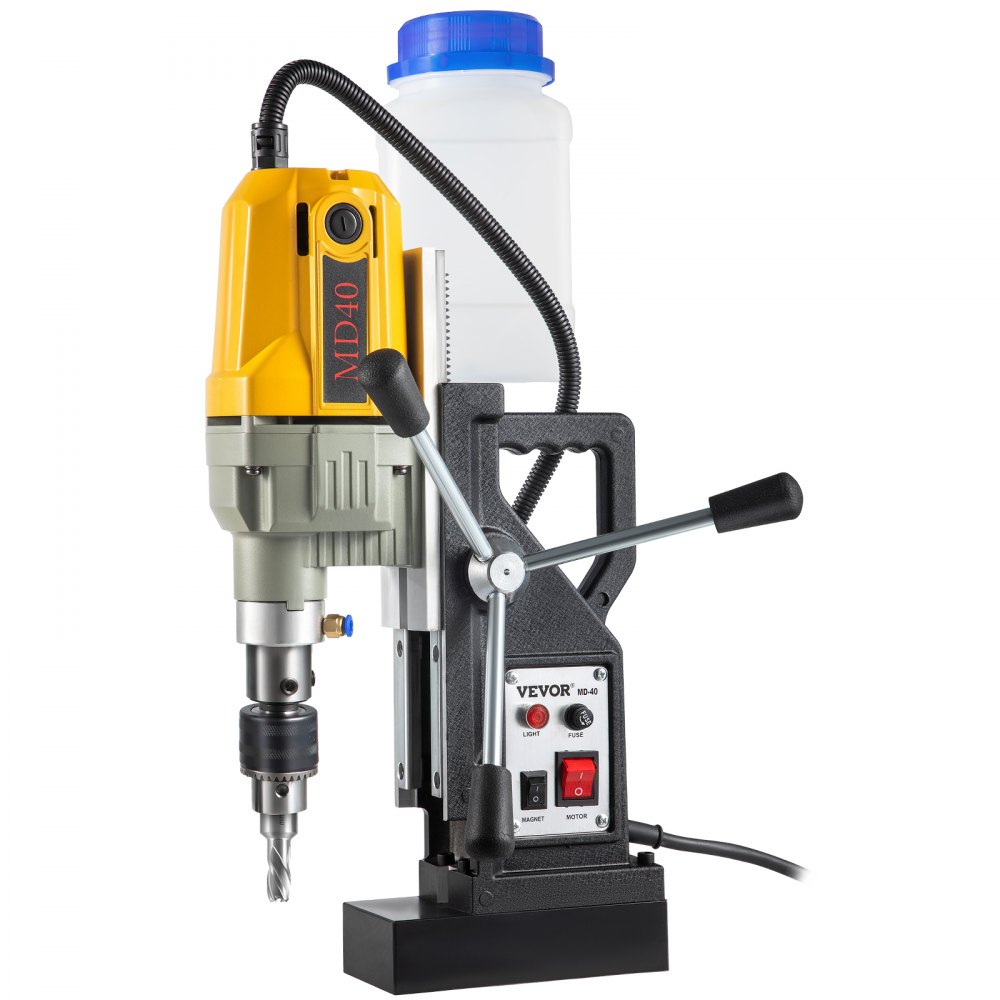

VEVOR Magnetic Drill, 1100W 1.57" Boring Diameter, 2697lbf/12000N Portable Electric Mag Drill Press with 7 Bits, 580 RPM Max Speed Drilling Machine for any Surface and Home Improvement VEVOR Magnetic Drill, 1100W 1.57" Boring Diameter, 2697lbf/12000N Portable Electric Mag Drill Press with 7 Bits, 580 RPM Max Speed Drilling Machine for any Surface and Home Improvement VEVOR Magnetic Drill, 1100W 1.57" Boring Diameter, 2697lbf/12000N Portable Electric Mag Drill Press with 7 Bits, 580 RPM Max Speed Drilling Machine for any Surface and Home Improvement VEVOR Magnetic Drill, 1100W 1.57" Boring Diameter, 2697lbf/12000N Portable Electric Mag Drill Press with 7 Bits, 580 RPM Max Speed Drilling Machine for any Surface and Home Improvement VEVOR Magnetic Drill, 1100W 1.57" Boring Diameter, 2697lbf/12000N Portable Electric Mag Drill Press with 7 Bits, 580 RPM Max Speed Drilling Machine for any Surface and Home Improvement VEVOR Magnetic Drill, 1100W 1.57" Boring Diameter, 2697lbf/12000N Portable Electric Mag Drill Press with 7 Bits, 580 RPM Max Speed Drilling Machine for any Surface and Home Improvement VEVOR Magnetic Drill, 1100W 1.57" Boring Diameter, 2697lbf/12000N Portable Electric Mag Drill Press with 7 Bits, 580 RPM Max Speed Drilling Machine for any Surface and Home Improvement
JBLJC6PCS220VYTT5V3

VEVOR Magnetic Drill, 1100W 1.57" Boring Diameter, 2697lbf/12000N Portable Electric Mag Drill Press with 7 Bits, 580 RPM Max Speed Drilling Machine for any Surface and Home Improvement

Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive AU $5.00 off for your first three orders on the App.
Download Now
Exclusive AU $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • Superior Performance: This 1100W heavy-duty mag drill bores at 580 RPM up to a maximum 2" depth and a maximum 1.6" across. With its 10A powerful motor, the magnetic drill press drills through industry quality steel with ease.
  • Premium Coring & Twist Bits: The mag press is best used with the included drill bits, allowing you to create holes in most common sizes. 6 Coring bits: Φ0.47"/12 mm, Φ0.63"/16 mm, Φ0.71"/18 mm, Φ0.79"/20 mm, Φ0.94"/24 mm, Φ1"/26 mm. Twist Bits: Φ0.4"/10 mm.
  • 12,000 N Magnetic Force: The electromagnetic base is made of almost pure iron, which is sturdy and durable. It has a powerful magnetic force up to 2697lbf/12000N, allowing you to accurately position the machine for precision drilling.
  • Cooling System & User-friendly Designs: The ergonomic handle provides a comfortable grip during transport. These 3 extended crank handles ensure laborsaving operation. Coolant tank is used for fast heat dissipation. Clear panel for easy read and operation.
  • Wide Applications: This versatile magnetic drill allows you to bore into almost any surface you can think of. It is ideal for ship & bridge building, industrial and steel fabrication, windmill & power-plant construction, railway manufacture, equipment installation, and many other fields.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Magnetic Drill, 1100W 1.57" Boring Diameter, 2697lbf/12000N Portable Electric Mag Drill Press with 7 Bits, 580 RPM Max Speed Drilling Machine for any Surface and Home Improvement

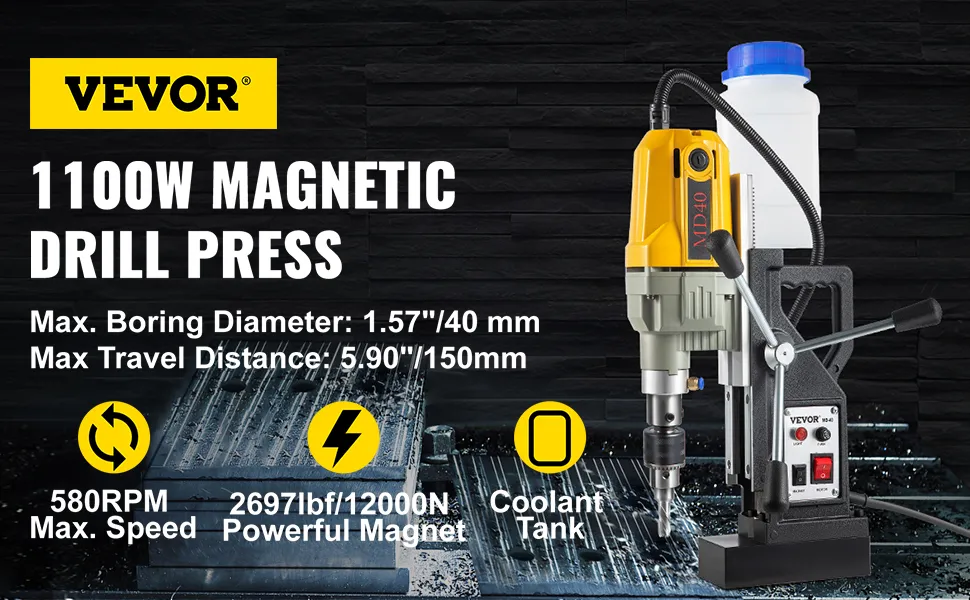

Electric Magnetic Drill Press
580RPM & 1100W & 4.92" Travel Distance
  • Our portable drill press is best used with the included precision drill bits. It is capable of drilling into your toughest materials, producing a 1.57" diameter bore up to 2.17" deep. Thanks to its 1100W copper motor, this line boring machine generates enormous power without sacrificing long-lasting stable performance. The spacious coolant tank protects your drill press lift from overheating and further extends its service life. Its solid magnetic adhesion is 12000 N, which provides it with the necessary capabilities to perform multidirectional operations. Take power into your own hands, and use our drill to break through any material. Accuracy and precision can all be yours.
  • Superior Performance
  • Premium Coring & Twist Bits
  • 12,000 N Magnetic Force
  • Cooling System & User-friendly Designs
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

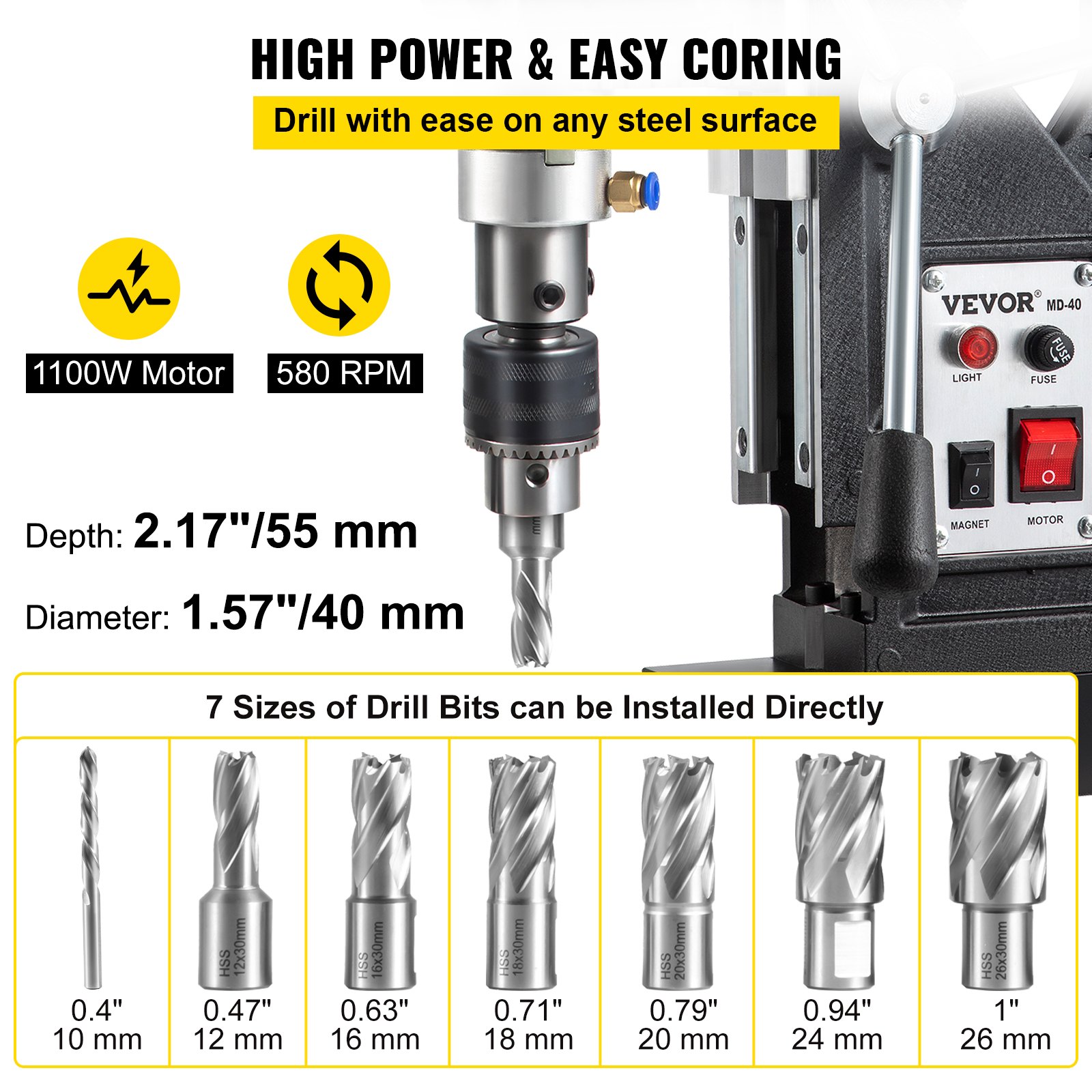

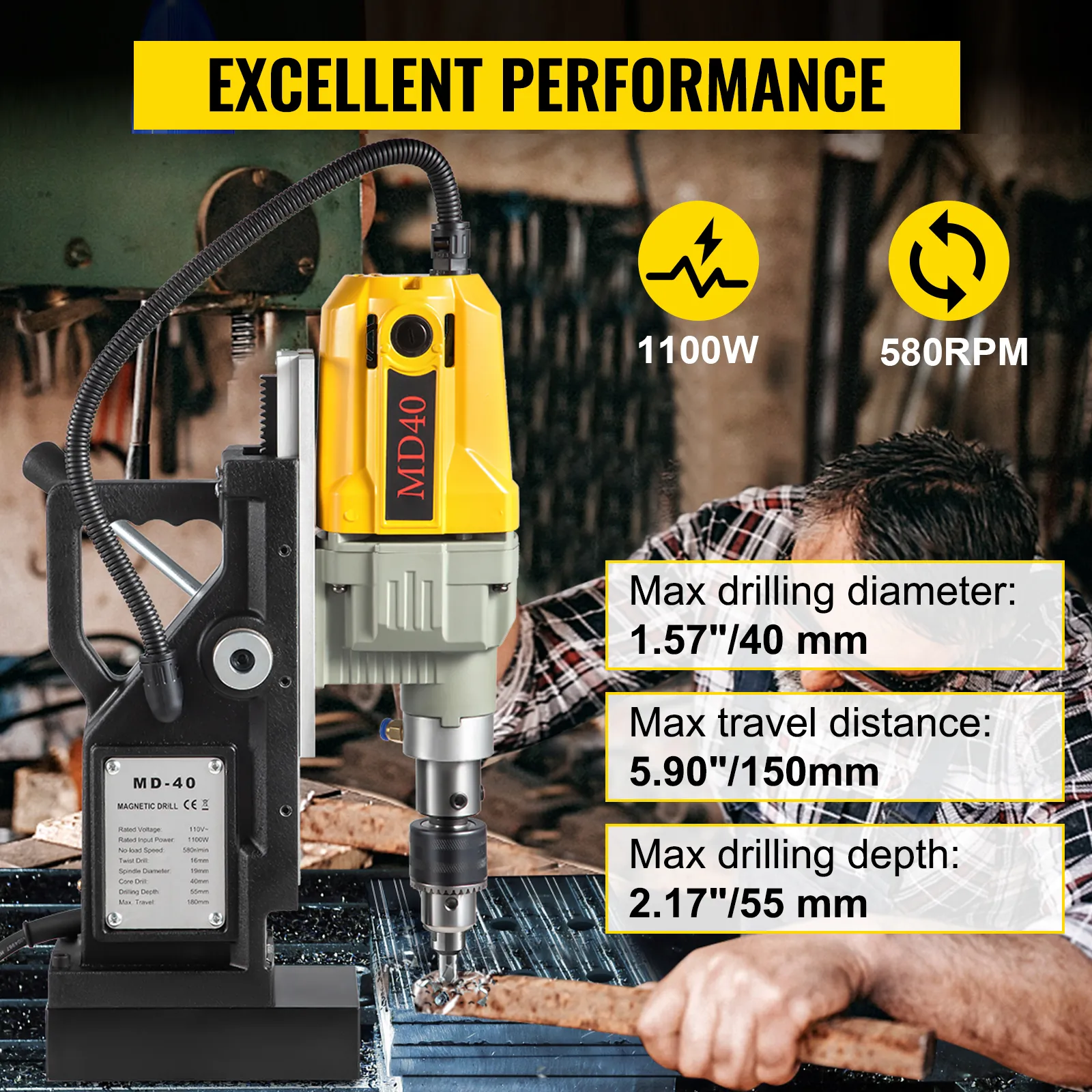

Excellent Performance
Designed for precise and demanding coring, this mag base drill features 1100 watts of motor power. Max. Coring Diameter: 1.57"/40 mm; Max. Travel Distance: 4.92"/125 mm.

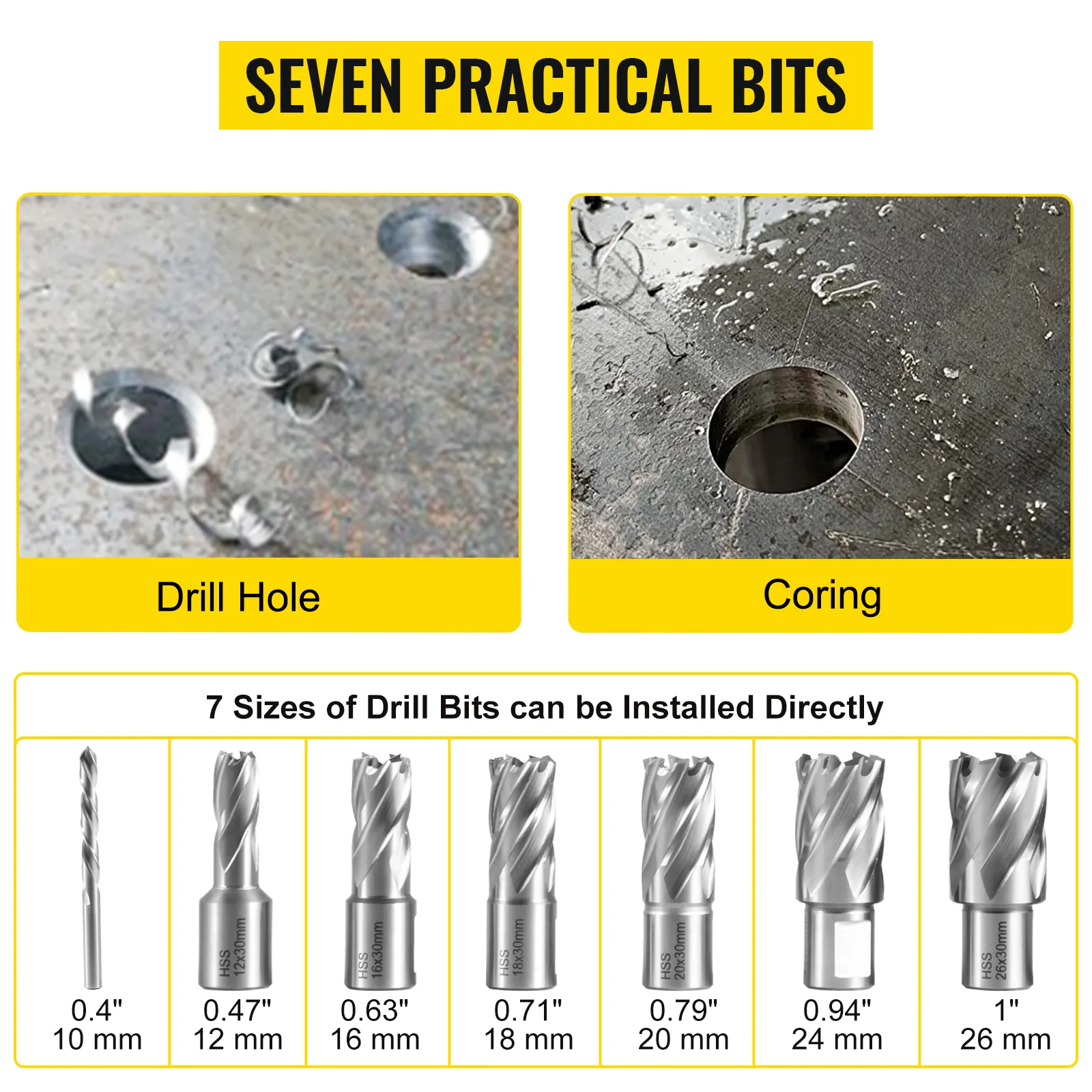

Seven Practical Bits
Ideal for you to handle work-pieces of any size, ensuring your magnetic power drill drills faster with the included core drill bits than with the regular bits.

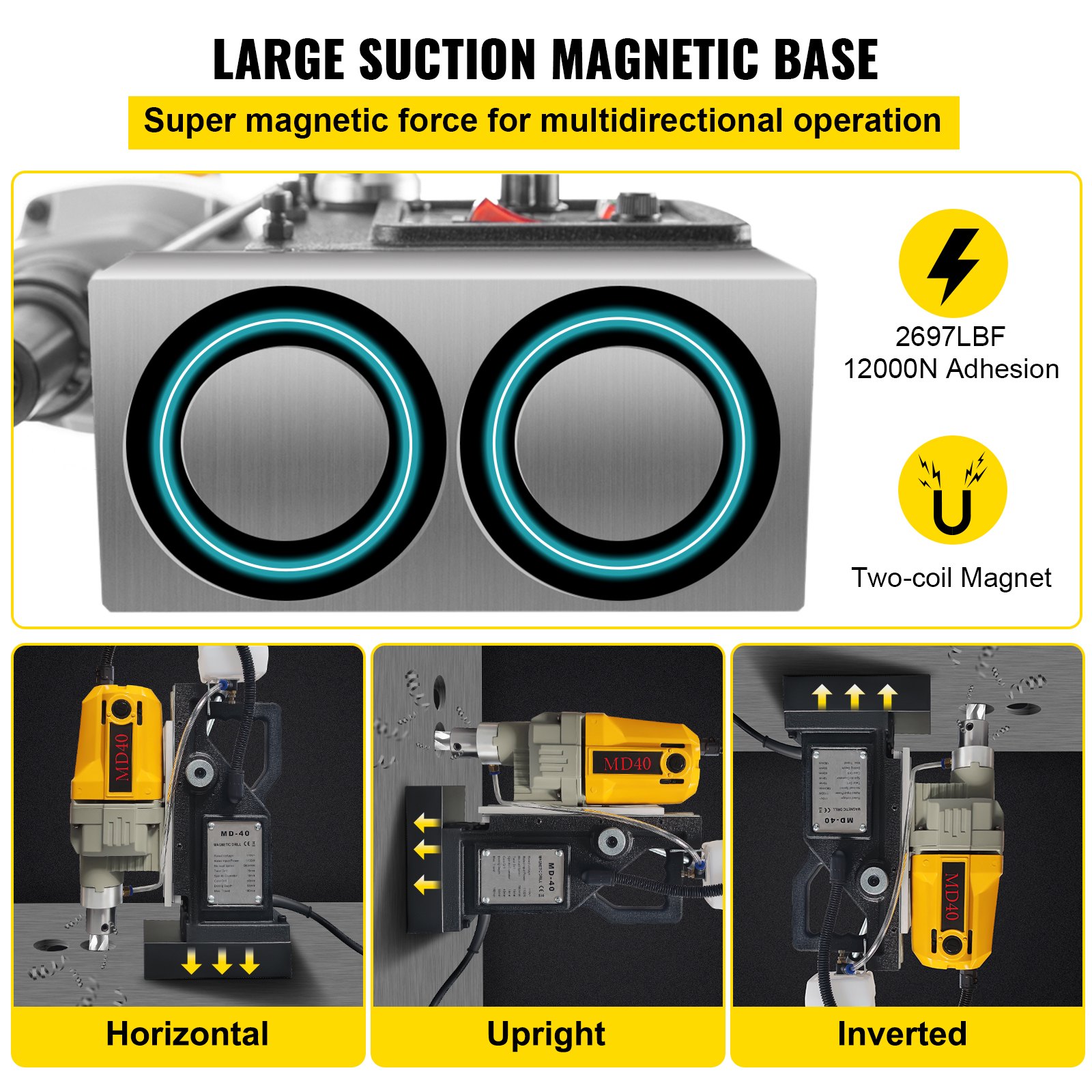

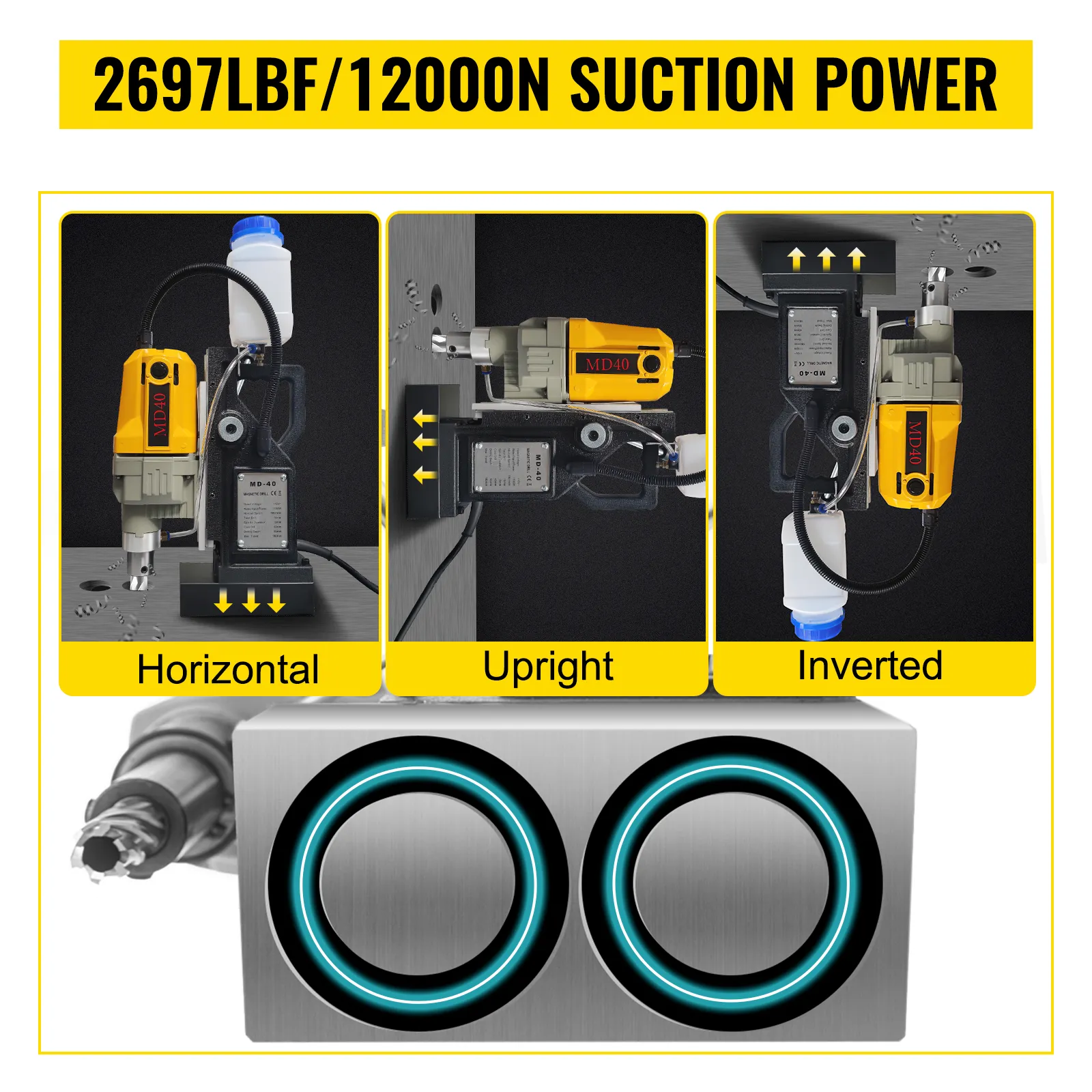

2697lbf/12000N Suction Power
The nearly pure iron base anchors the mag drill press solidly during work as a powerful electromagnet with a 2697 pounds' force (12,000 N), preventing movement during the drilling process.

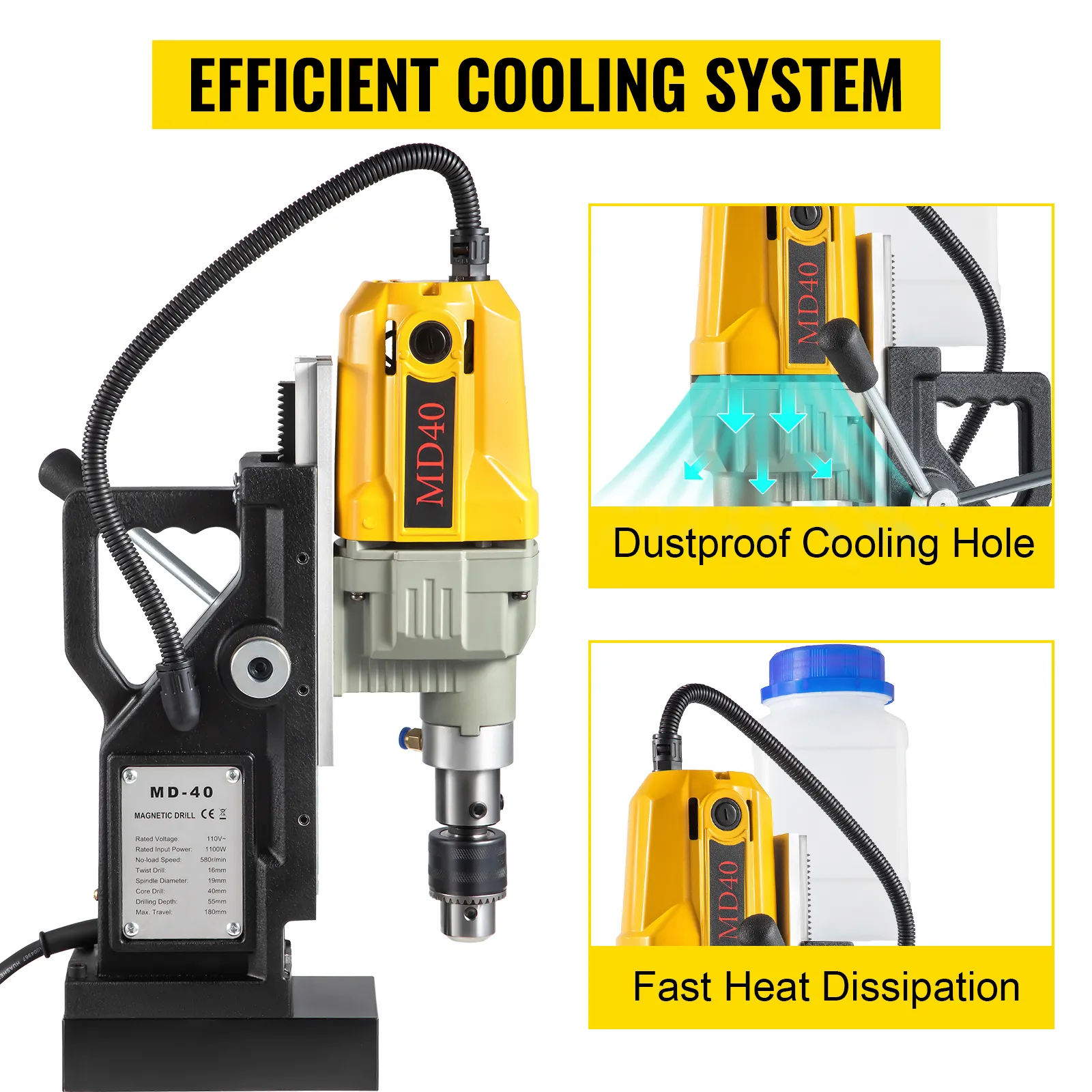

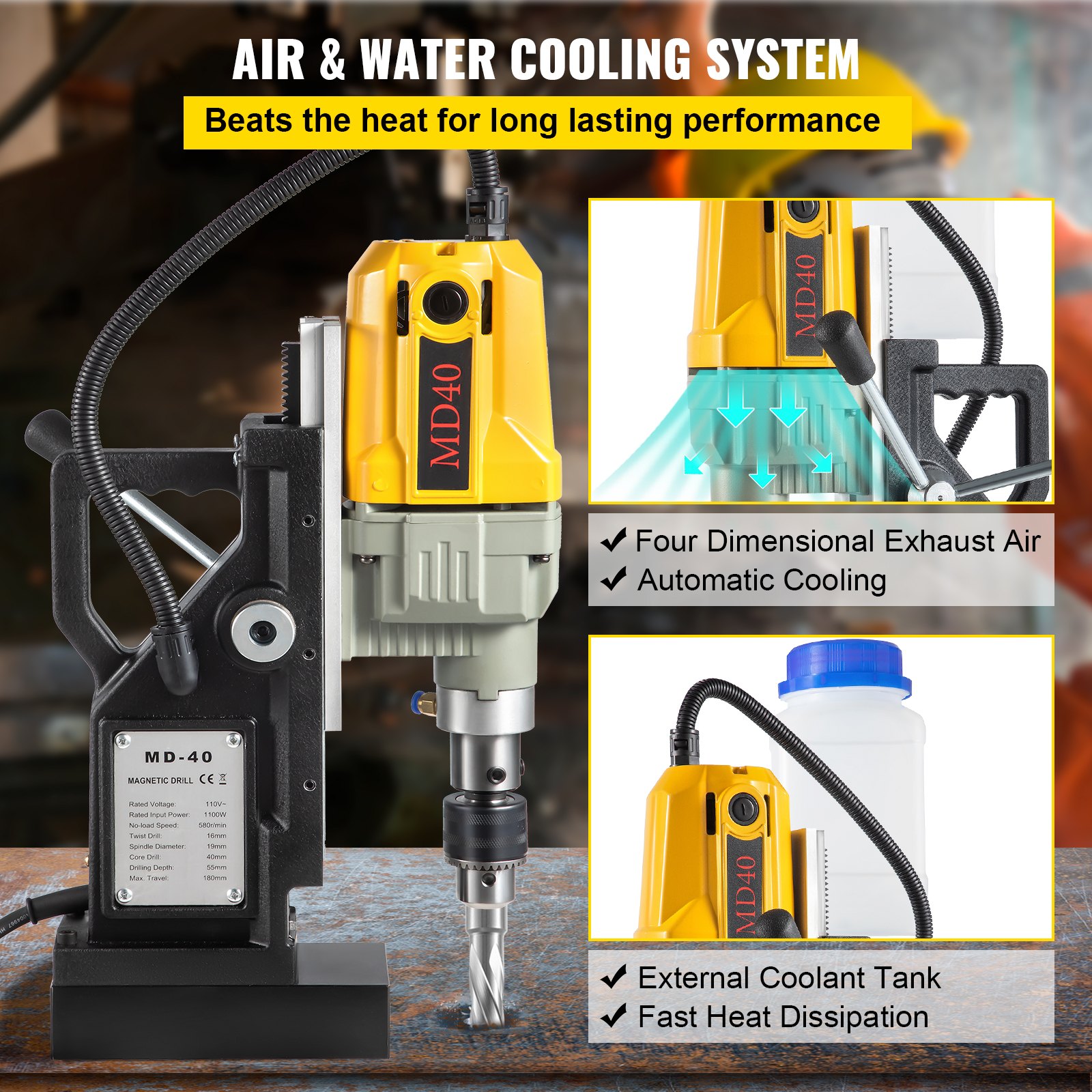

Efficient Cooling System
The portable drill press features a detachable, integrated coolant system that will help significantly increase the life expectancy of your drill bits as well as your cutters. What's more, dustproof air inlets and exhaust air holes for temperature reduction.

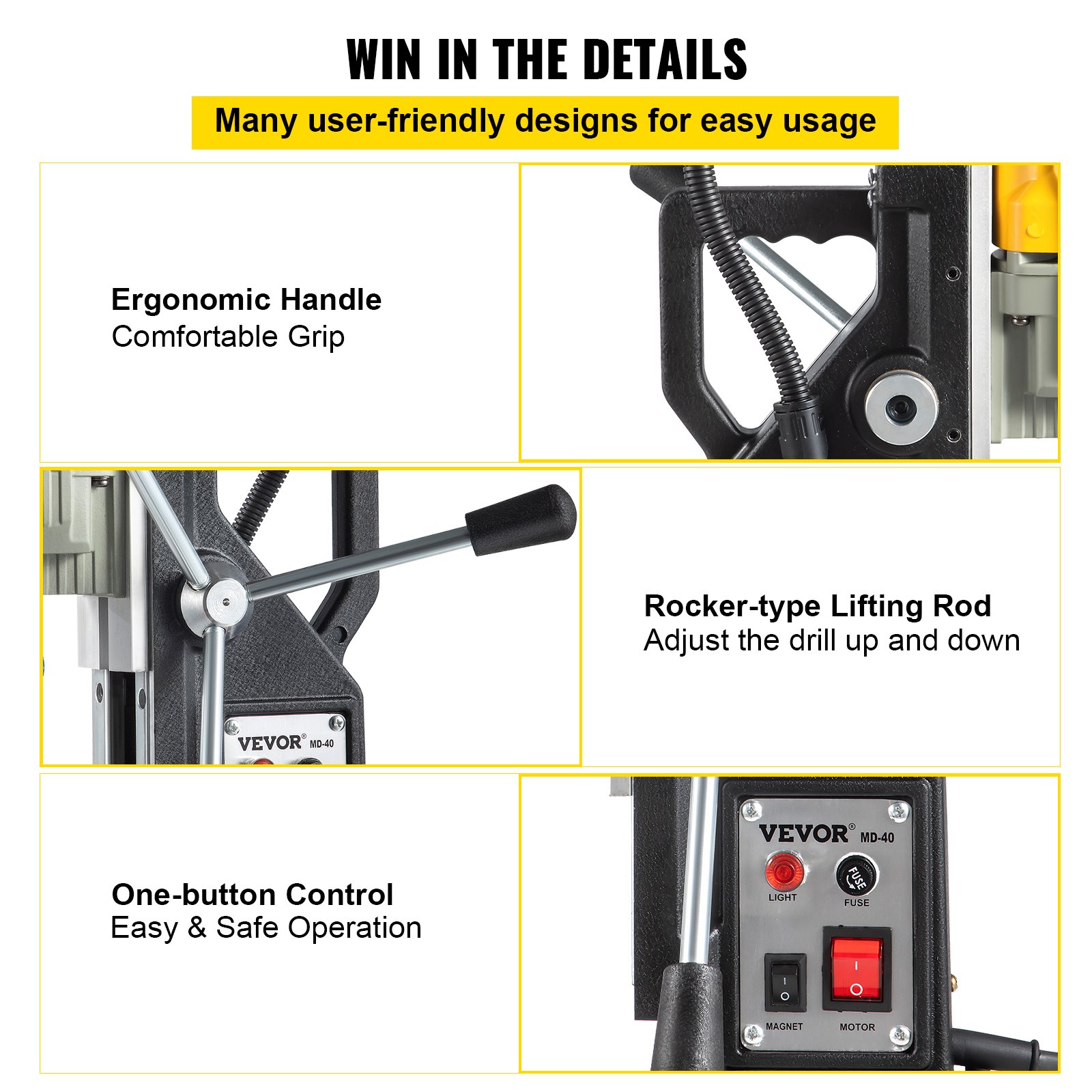

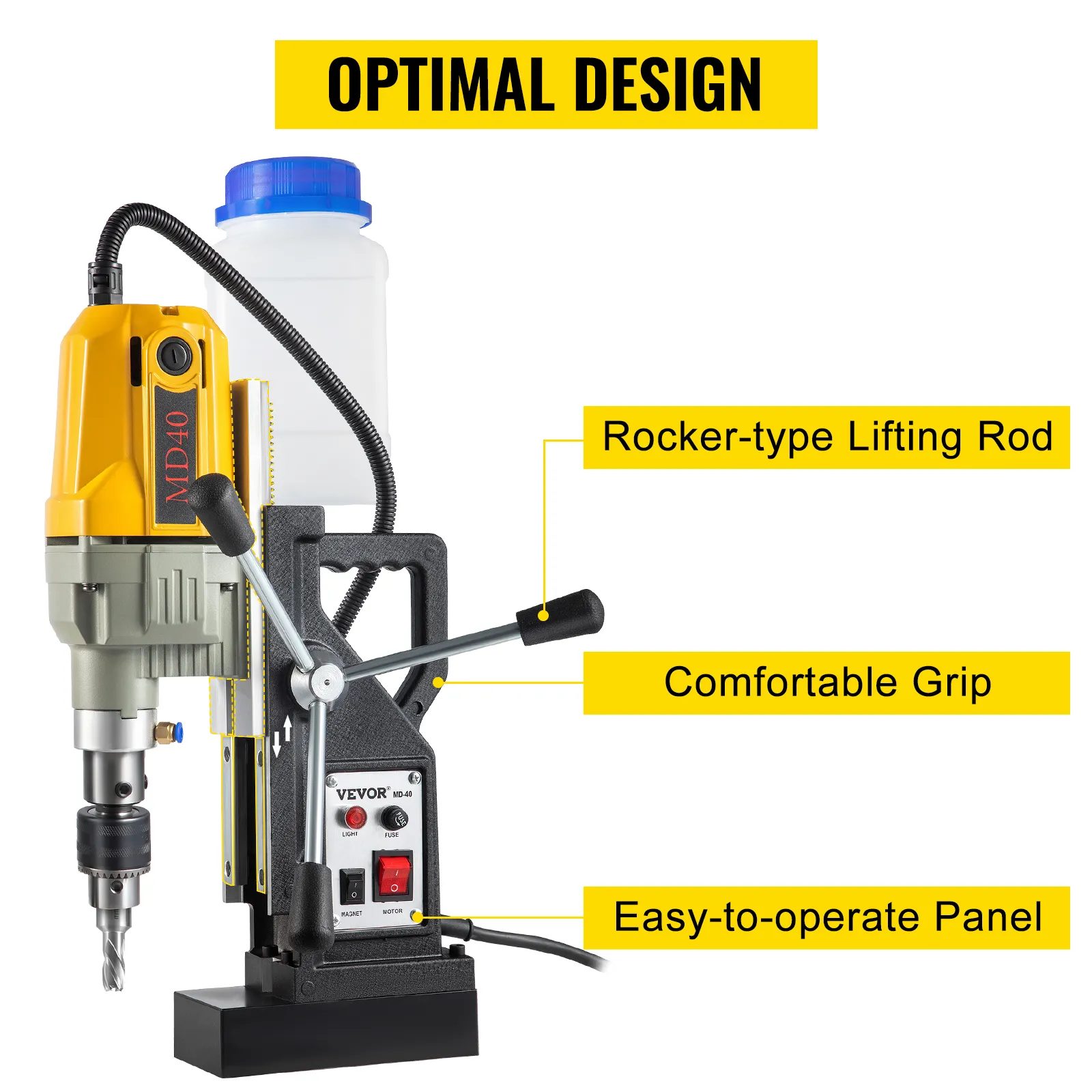

Optimal Design
Three extended crank rods allow you to adjust the drill up and down with minimum effort. Ergonomically handles for easy carrying. Besides, a simple control panel allows easy operation.
Versatile Usage
Our magnetic base drill is used in steel structures, shipbuilding, bridge construction, wind power generation, drilling, electric power construction, and many other fields.
Specifications
  • Model: VV-MD-AU7
  • Power: 1100W, 50/60Hz, 220V, 5A
  • Max. Boring Diameter(Coring Drill): 1.57"/40 mm
  • Max. Boring Diameter(Twist Drill): 0.63"/16 mm
  • Max. Travel Distance: 4.92"/125 mm
  • Max. Rotate Speed: 580 rpm
  • Magnetic Force: 2697lbf/12000N
  • Magnetic Base Size: 6.54" x 3.15" x 1.97"/166 x 80 x 50 mm
  • Max. Boring Depth: 2.17"/55 mm

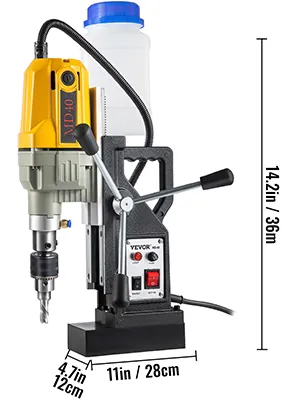

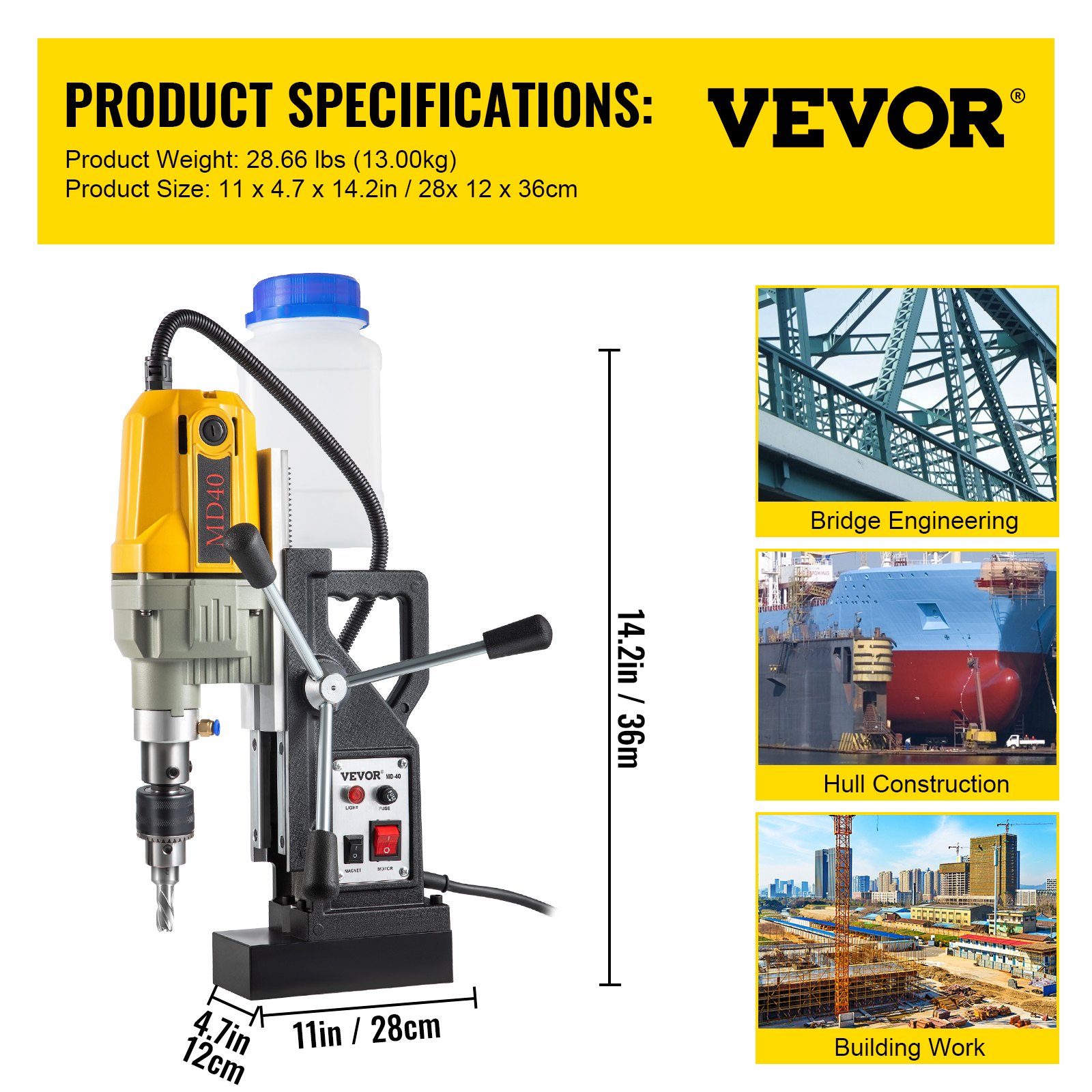

  • Product Size: 14.2" x 11" x 4.7"/36 x 28 x 12 cm
  • Product Weight: 24.25lb/11kg

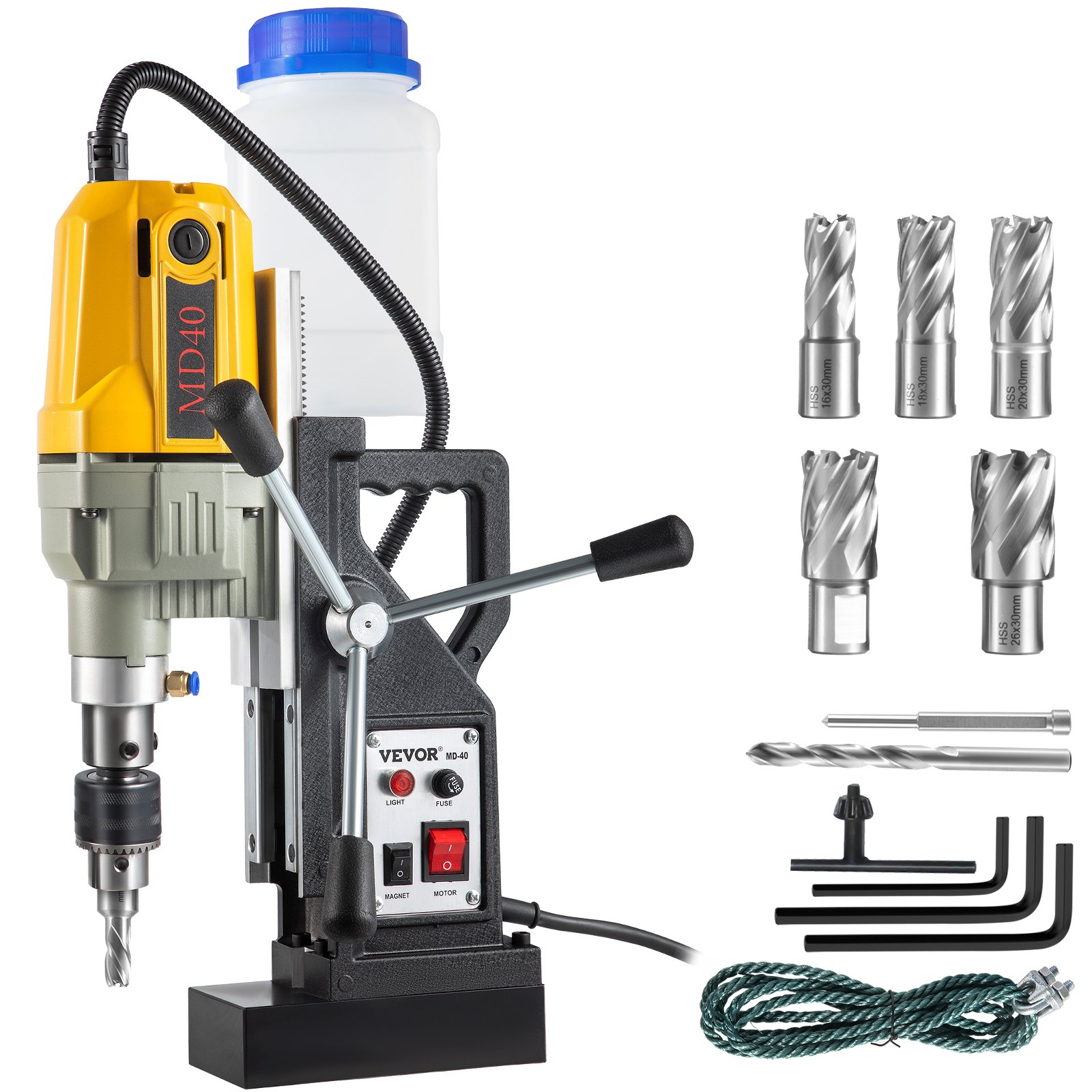

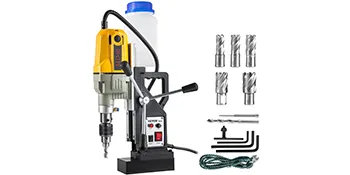

Package Content

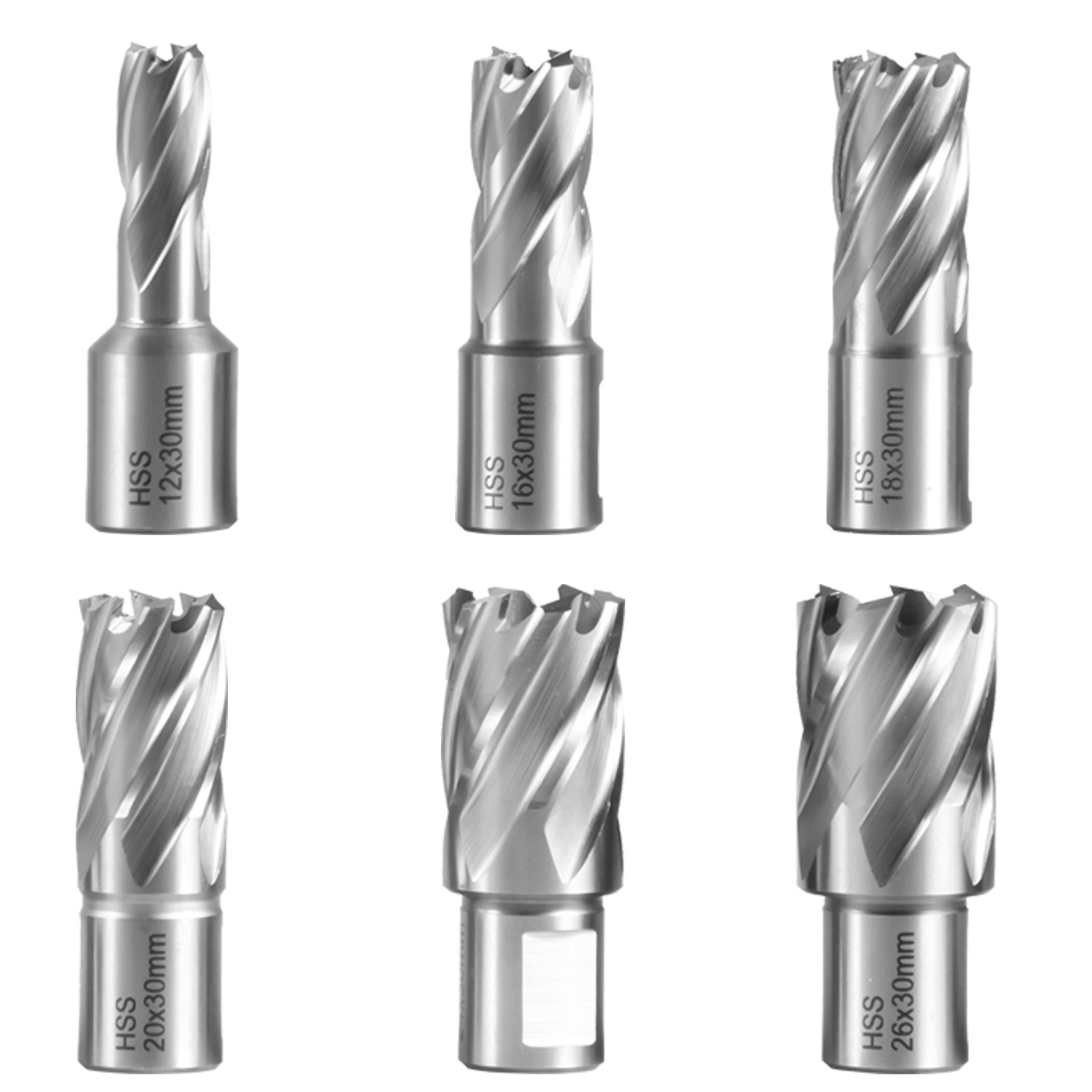

  • 6 x Coring Bits (Φ0.47"/12 mm, Φ0.63"/16 mm, Φ0.71"/18 mm, Φ0.79"/20 mm, Φ0.94"/24 mm, Φ1"/26 mm)
  • 1 x Twist Drill (Φ0.4"/10 mm)
  • 1 x Coolant Tank
  • 1 x Drill Chuck
  • 1 x Thimble (0.25"x 4"/6.34 x 102 mm)
  • 1 x Rope
  • 1 x Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Electric Magnetic Drill Press
580RPM & 1100W & 4.92" Travel Distance
  • Our portable drill press is best used with the included precision drill bits. It is capable of drilling into your toughest materials, producing a 1.57" diameter bore up to 2.17" deep. Thanks to its 1100W copper motor, this line boring machine generates enormous power without sacrificing long-lasting stable performance. The spacious coolant tank protects your drill press lift from overheating and further extends its service life. Its solid magnetic adhesion is 12000 N, which provides it with the necessary capabilities to perform multidirectional operations. Take power into your own hands, and use our drill to break through any material. Accuracy and precision can all be yours.
  • Superior Performance
  • Premium Coring & Twist Bits
  • 12,000 N Magnetic Force
  • Cooling System & User-friendly Designs
Excellent Performance
Designed for precise and demanding coring, this mag base drill features 1100 watts of motor power. Max. Coring Diameter: 1.57"/40 mm; Max. Travel Distance: 4.92"/125 mm.
Seven Practical Bits
Ideal for you to handle work-pieces of any size, ensuring your magnetic power drill drills faster with the included core drill bits than with the regular bits.
2697lbf/12000N Suction Power
The nearly pure iron base anchors the mag drill press solidly during work as a powerful electromagnet with a 2697 pounds' force (12,000 N), preventing movement during the drilling process.
Efficient Cooling System
The portable drill press features a detachable, integrated coolant system that will help significantly increase the life expectancy of your drill bits as well as your cutters. What's more, dustproof air inlets and exhaust air holes for temperature reduction.
Optimal Design
Three extended crank rods allow you to adjust the drill up and down with minimum effort. Ergonomically handles for easy carrying. Besides, a simple control panel allows easy operation.
Versatile Usage
Our magnetic base drill is used in steel structures, shipbuilding, bridge construction, wind power generation, drilling, electric power construction, and many other fields.
Package Content
  • 6 x Coring Bits (Φ0.47"/12 mm, Φ0.63"/16 mm, Φ0.71"/18 mm, Φ0.79"/20 mm, Φ0.94"/24 mm, Φ1"/26 mm)
  • 1 x Twist Drill (Φ0.4"/10 mm)
  • 1 x Coolant Tank
  • 1 x Drill Chuck
  • 1 x Thimble (0.25"x 4"/6.34 x 102 mm)
  • 1 x Rope
  • 1 x Manual
Specifications
  • Model: VV-MD-AU7
  • Power: 1100W, 50/60Hz, 220V, 5A
  • Max. Boring Diameter(Coring Drill): 1.57"/40 mm
  • Max. Boring Diameter(Twist Drill): 0.63"/16 mm
  • Max. Travel Distance: 4.92"/125 mm
  • Max. Rotate Speed: 580 rpm
  • Magnetic Force: 2697lbf/12000N
  • Magnetic Base Size: 6.54" x 3.15" x 1.97"/166 x 80 x 50 mm
  • Max. Boring Depth: 2.17"/55 mm
  • Product Size: 14.2" x 11" x 4.7"/36 x 28 x 12 cm
  • Product Weight: 24.25lb/11kg

Specification

Model
VV-MD-AU7
Power
1100W, 50/60Hz, 220V, 5A
Max. Boring Diameter(Coring Drill)
1.57"/40 mm
Max. Boring Diameter(Twist Drill)
0.63"/16 mm
Max. Travel Distance
4.92"/125 mm
Max. Rotate Speed
580 rpm
Magnetic Force
2697lbf/12000N
Magnetic Base Size
6.54" x 3.15" x 1.97"/166 x 80 x 50 mm
Max. Boring Depth
2.17"/55 mm
Product Size
14.2" x 11" x 4.7"/36 x 28 x 12 cm
Product Weight
24.25lb/11kg
Questions and Answers
1 Questions
Hi Can you use the Vevor 1100 Magnetic drill press on a timber work bench as a drill presss, I intend to mainly use in our work shop Cheers Ed
As long as it is a steel plate, it can be adsorbed.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
251 Review(s)
Clear filters
Gerald Stanley Gerald Stanley
Great drill
I bought this to drill holes in the chassis of my off road truck to mount brackets. 1/4” thick steel and it had no problem making a perfect hole. I highly recommend this drill. Use your common sense when operating this equipment and you have no issues. Some reviewers very critical of the lack of an interlock but if you take your time and look at what you’re doing it’s not a problem. Great purchase and very useful tool.
Vinito Vinito
Mr.
I just received this drill today, so I can't speak to longevity. That said, if longevity was a huge priority on this I would expect to pay $1,600 or more and this suits my budget MUCH better. I will say that the drill is VERY solid construction (much better than expected) and yet operation is still very smooth. I've several times used a very popular brand seen on YT all the time and that one has excessive wiggle and rocking on the vertical track, but this Vevor one has none of that. Very nice. The weldon socket fits the tools very well, i.e. not loose - this one is very concentric in that regard. Both boring tools and even the drill chuck ran very true and I could not detect any runout at all by naked eye, so is much better than most tools of this type that I've used. Whether that's luck or something else, I'm very happy about this. The electronic speed controller takes a second or so to catch up with itself if you push it enough to slow it down (not what you'd normally do), but that's typical of electronic controllers and I prefer this type to primitive "get what you set" variable speed. Speed range is VERY useful (pretty much slows to zero) and reversing will come in handy. All the switches and knobs feel smooth and solid. There IS a magnet/motor interlock!! Thus you can't start the motor if you forget to switch on the magnet first. Also, if you accidentally switch off the magnet while the motor is spinning, it switches the motor off automatically. Important safety feature! Surprised NONE of the online info on the drill notes this fact. The drill is GOOD, but this item's listing on their website needs help. The features are very nice. The only thing I wish it had was a quill lock since gravity keeps wanting to lower it constantly making it awkward for changing tools and such. It's not terrible, just a bit annoying. Mine did NOT come with the "quick change" tool collar as the pictures show, but I'm actually glad about that because the typical set screw arrangement this one came with is simple and reliable. I don't change tools on mag drills often enough to need quick change anyway. So technically a dropped feature, but for me that was kind of a relief since I was skeptical of the reliability of a quick-change collar thing. One less thing to go wrong. Another feature that is never mentioned is the positioning of the drill body along the vertical slide is quick and easily accessible. None of that disassembling stuff some mag drills have. Loosen a hex socket screw on the side, slip it up or down, and snug it back down. I like this. Long story short, I really like this drill so far. Drilled a few 1/2" holes today for something I'm building and really it worked great. Operation is very smooth, has plenty adequate power (both magnet and motor) and a pleasure to use. I like it! Photo shows the 1/2" jobber length drill chucked in the thing. Does this with about 3/4" to spare. Awesome.
Dean Long Dean Long
Lead Fabricator and Mechanic
This drill is a great deal, drills very well and has an extremely strong magnet. I have used it to drill through 1in plate down to 11ga. I have even drilled holes with it upside down, great product
jim jim
Owner
Great product. I would definitely recommend but don't forget the extra bits! The Mag Drill Press cut through 1/4 steel plate with ease.
George George
Awesome
Worth every dollar on site. Drills through steel beams with ease, easy to set up. All you need to grab is some good cutting oil and youre on your way. Great product, definitely does the job
rotorway1954 rotorway1954
MD40
Used my MD40 For 3 weeks now drilled over a 100 holes the smallest 12mm largest 38 mm this is one of the best perches I have ever made the cutters supplied cut very neat accurate holes it’s a great product
bj200360 bj200360
better than my drill
Makes life more easier out on site and in the work shop
highland-machinery-sales highland-machinery-sales
good
Jim Francis Jim Francis
Extreme Drilling
Why have I not gotten this drill earlier in my life? Used my new drill immediately with the best results possible. Easy to use, awesome results.
Mark Perkins Mark Perkins
Good value for money
Priced right, can buy several of these that does the same job as the dearer brands
