Features & Details

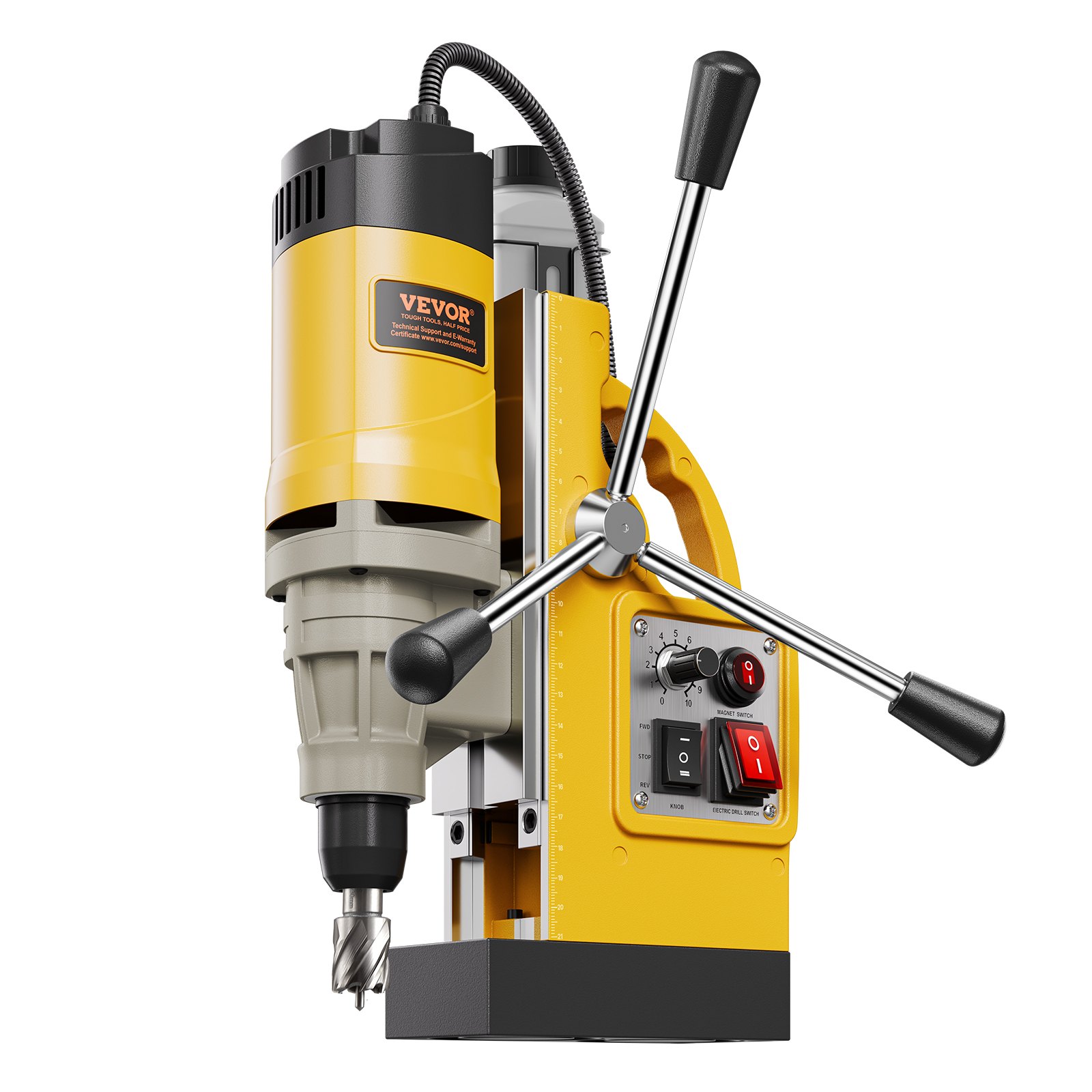

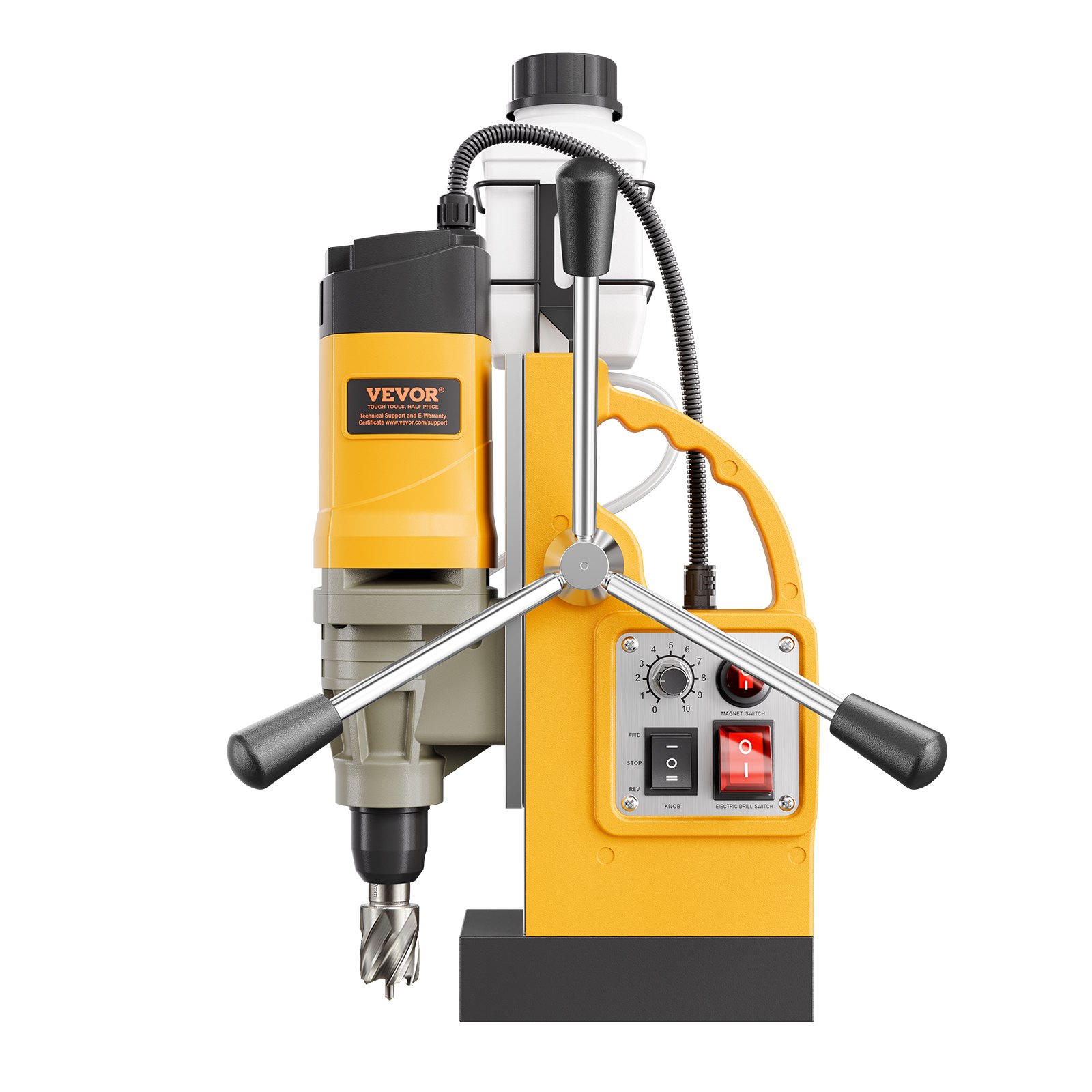

• Top-level Magnet: Get ready for unstoppable power! Our electric mag drill generates exceptionally powerful driving force with its 1400W copper motor. It is capable of drilling into the toughest material at 0-650 RPM. Max. Boring Diameter (Coring Drill): Φ2 in / Φ50 mm; Max. Coring Depth: 2 in / 50 mm

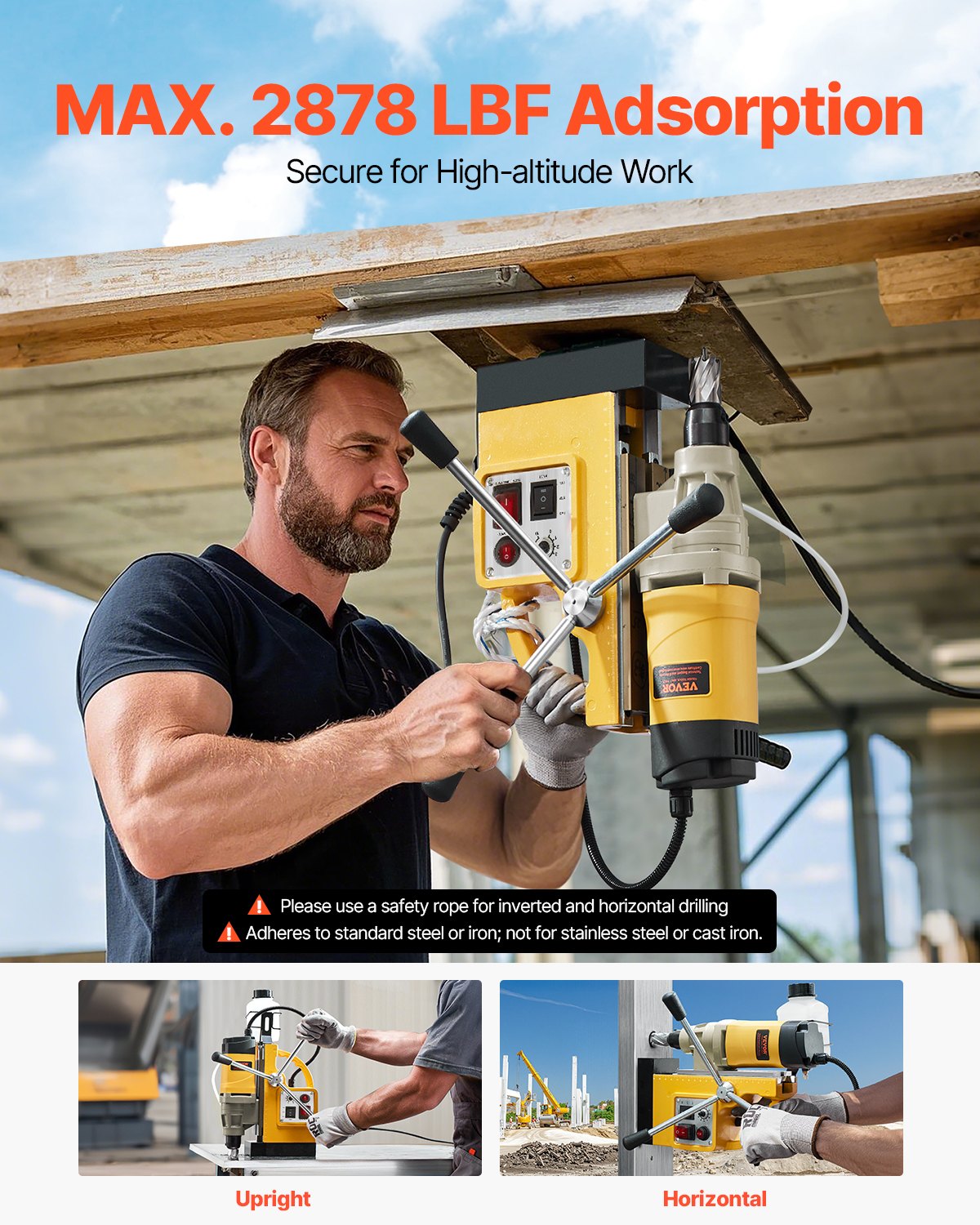

• Understand the Power: 2878 lbf / 12800N of robust force is created by the electromagnetic thickened base, featuring pure iron anchors the mag drill press solidly works at any angle stably during the drilling process. Adjustable 10-speed gears achieve accurate and efficient operation according to different drilling diameter
• Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling Besides, the titanium magnesium alloy guide rail has anti-corrosion and wear resistance characteristics, significantly improving the device's service life
• User-friendly design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort

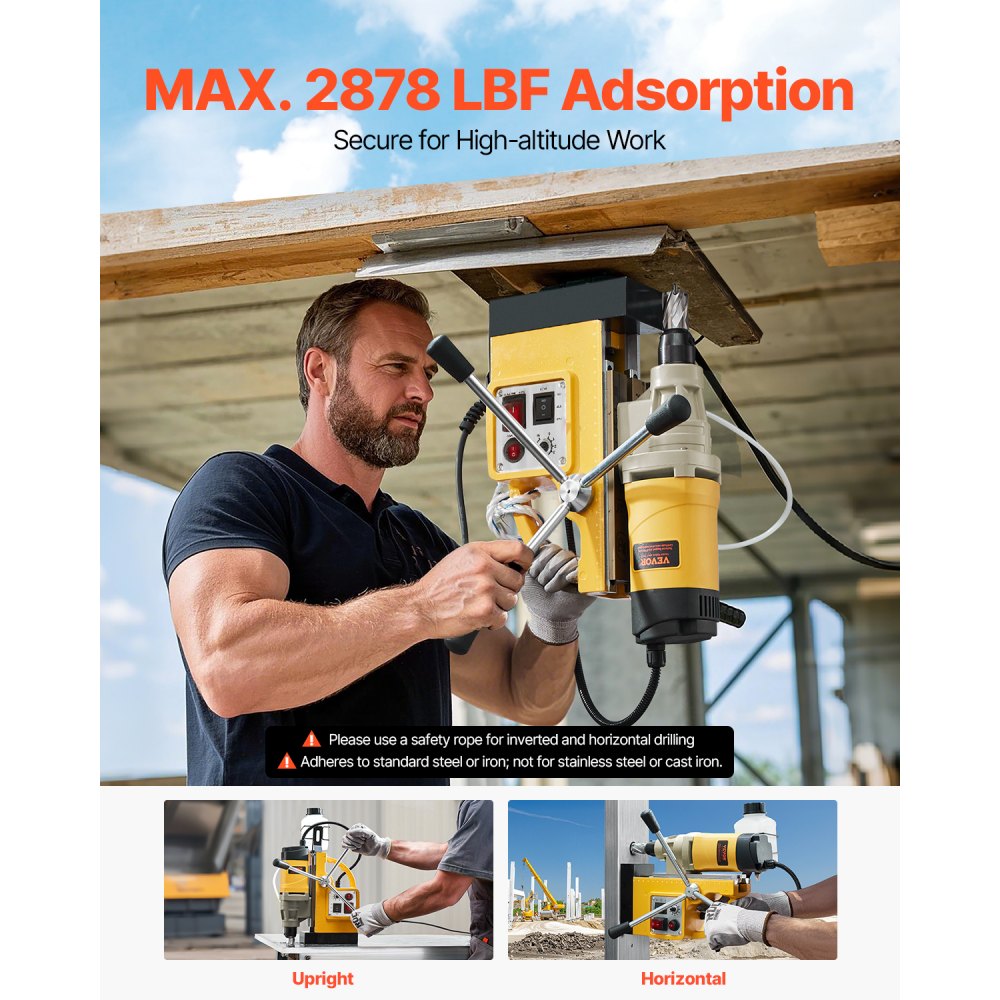

• Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields. Note: Ensure optimal use by adhering to a steel plate thickness of ≥ 0.39 in / 10 mm. Not suitable for stainless steel or cast iron. Please use a safety rope for inverted and horizontal drilling

Frequently Bought Together

Videos for this product

About this item

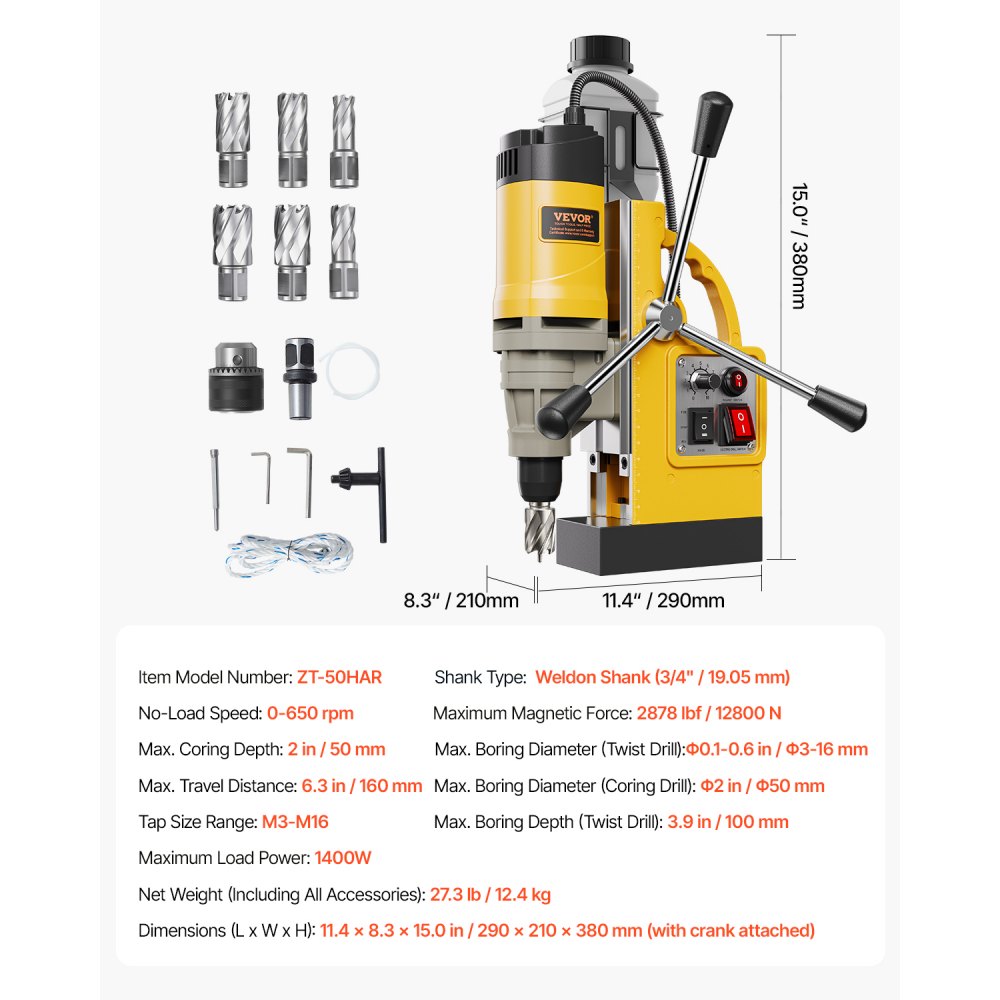

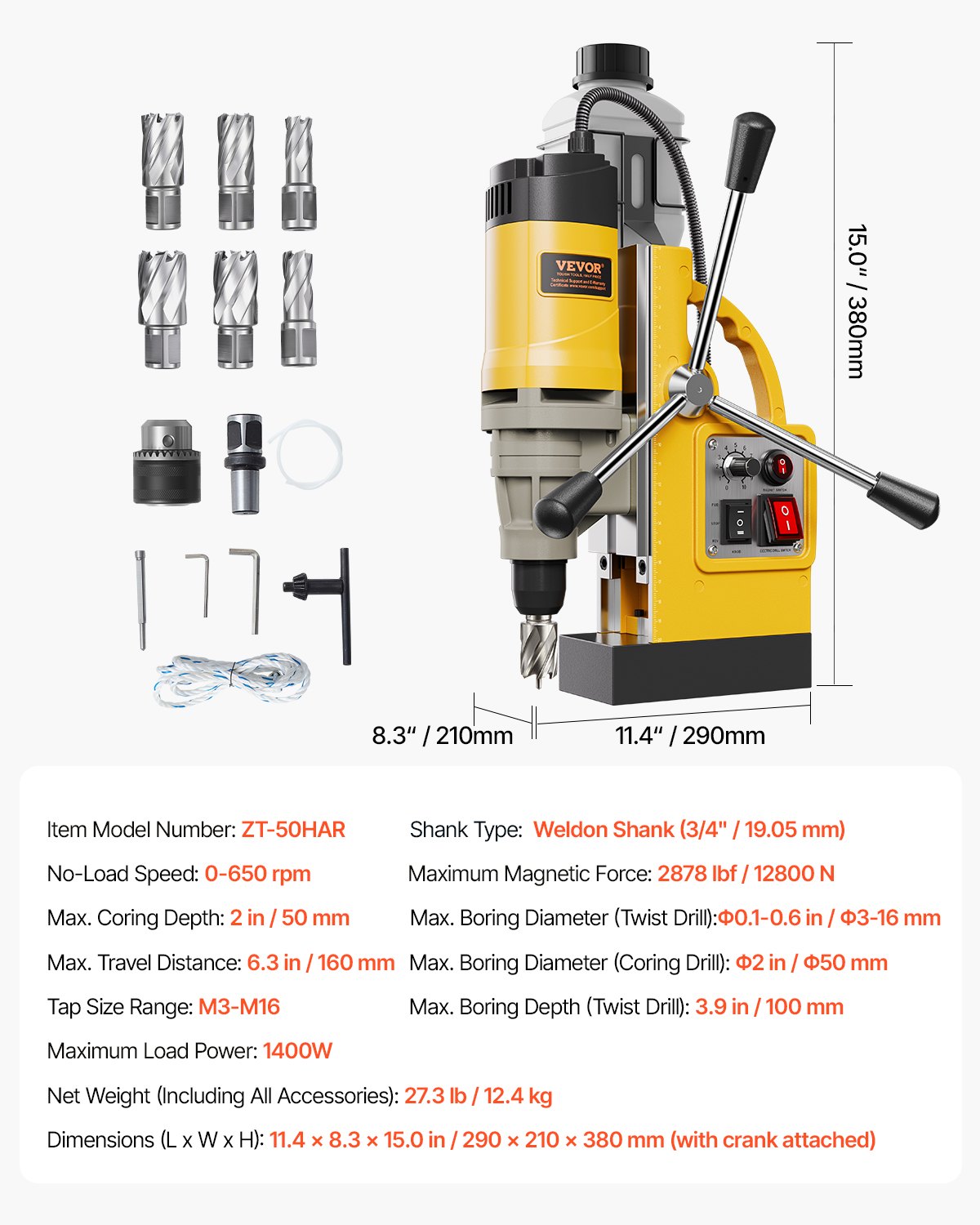

Product specification

Item Model Number

ZT-50HAR

Shank Type

Weldon Shank (3/4" / 19.05 mm)

Maximum Load Power

1450W (US) / 1400W (EU/AU)

Maximum Magnetic Force

2878 lbf / 12800 N

No-Load Speed

0-650 rpm

Max. Boring Diameter (Coring Drill)

Φ2 in / Φ50 mm

Max. Coring Depth

2 in / 50 mm

Max. Boring Diameter (Twist Drill)

Φ0.1-0.6 in / Φ3-16 mm

Max. Boring Depth (Twist Drill)

3.9 in / 100 mm

Tap Size Range

M3-M16

Max. Travel Distance

6.3 in / 160 mm

Net Weight (Including All Accessories)

27.3 lb / 12.4 kg

Description

The Pinnacle of Magnetic Power

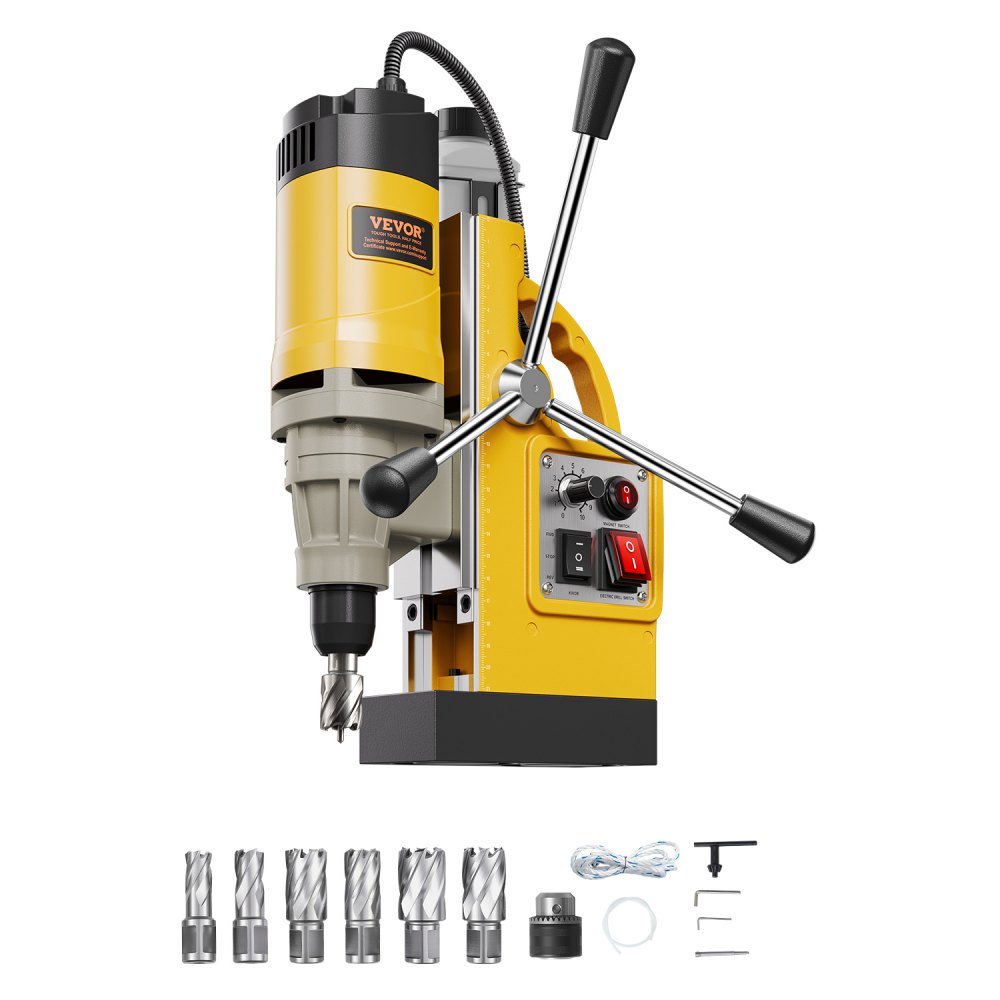

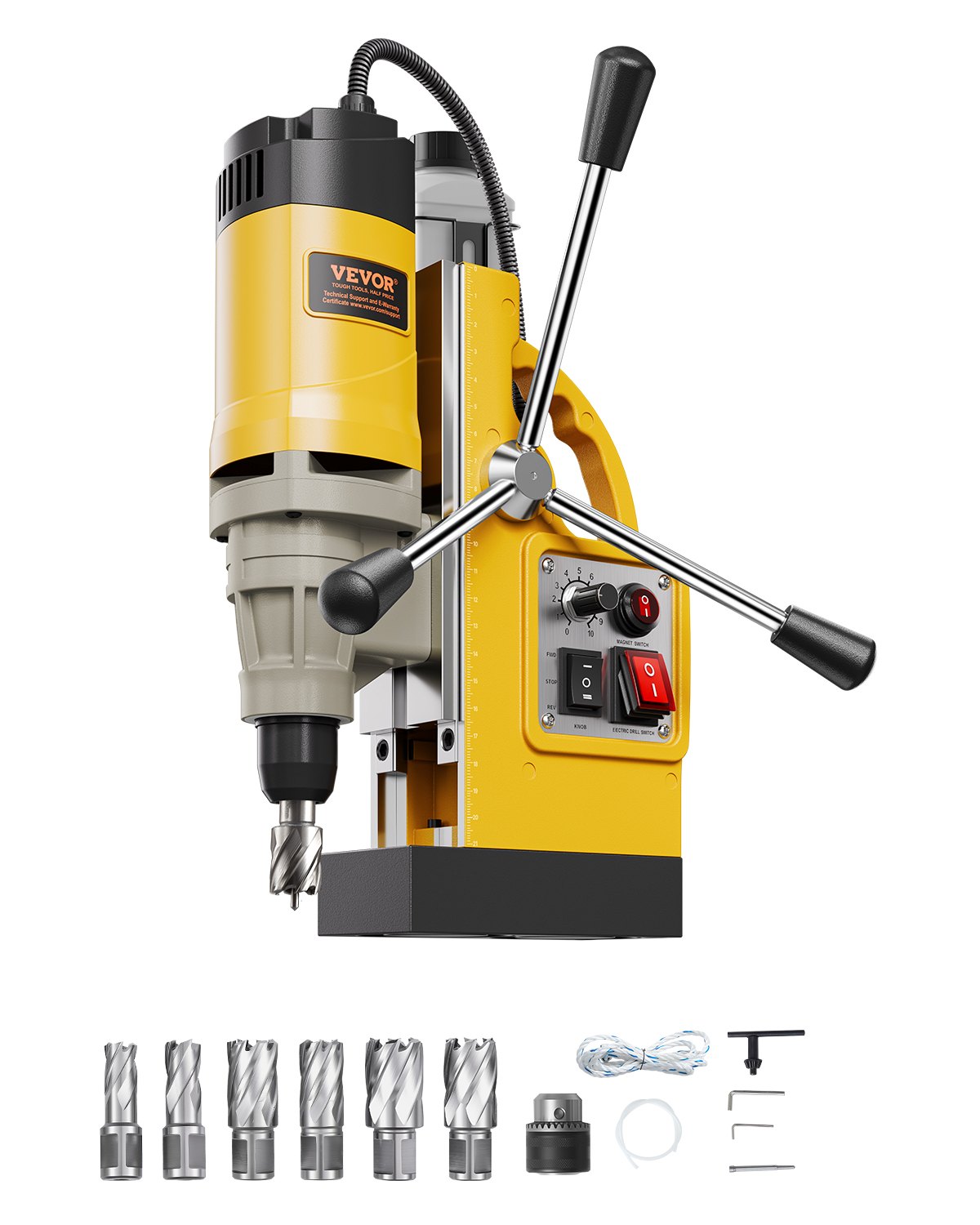

This magnetic drill press securely adheres to steel or iron surfaces, delivering precise, burr-free holes. With 6 drill bits, it handles diverse drilling tasks. Made of premium alloy, it's ideal for home assembly, industrial use, and steelwork.

•
•
•

CoringDrillingTapping

•
•
•

CoringDrillingTapping

•
•
•
•

10-Speed ControlPrecise Depth ControlDurable Guide RailEfficient Cooling System

•
•
•
•

10-Speed ControlPrecise Depth ControlDurable Guide RailEfficient Cooling System

•
•
•

Aerial WorkWall WorkSmall Household Projects

•
•
•

Aerial WorkWall WorkSmall Household Projects

Key Features

Powerful Performance

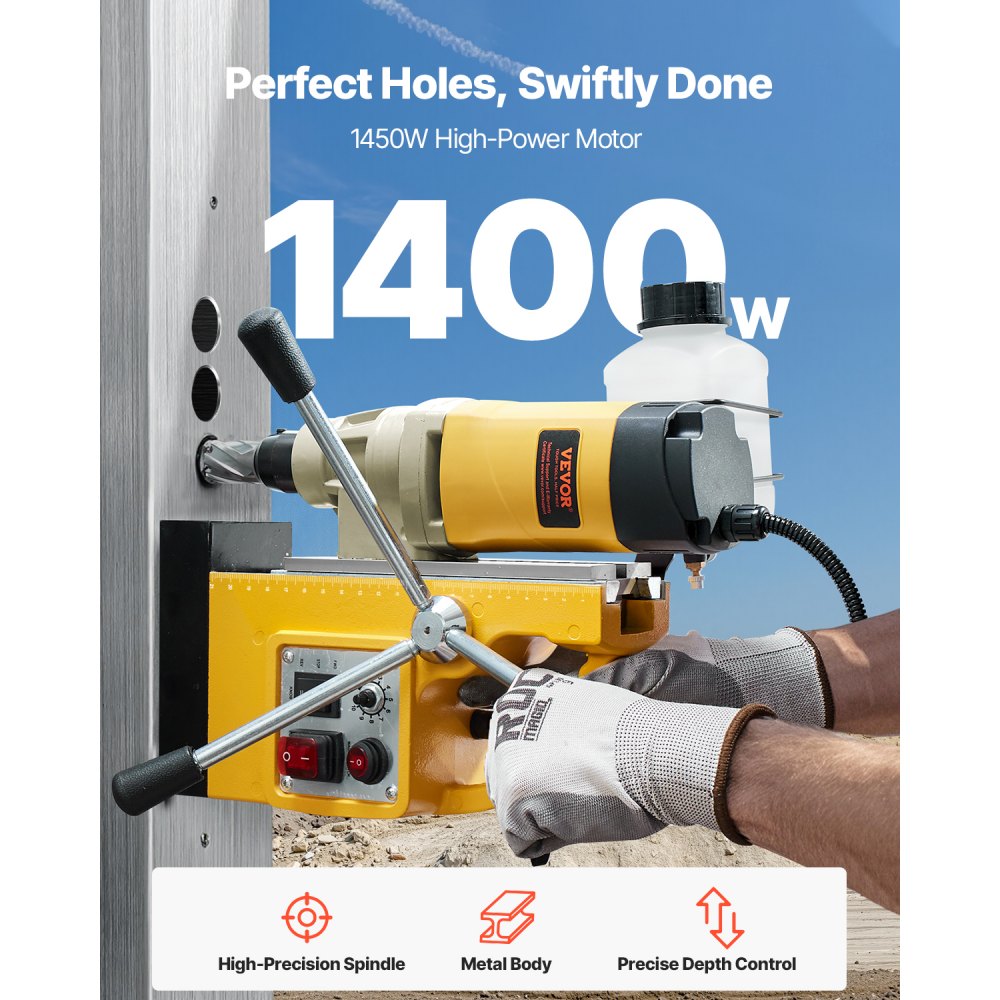

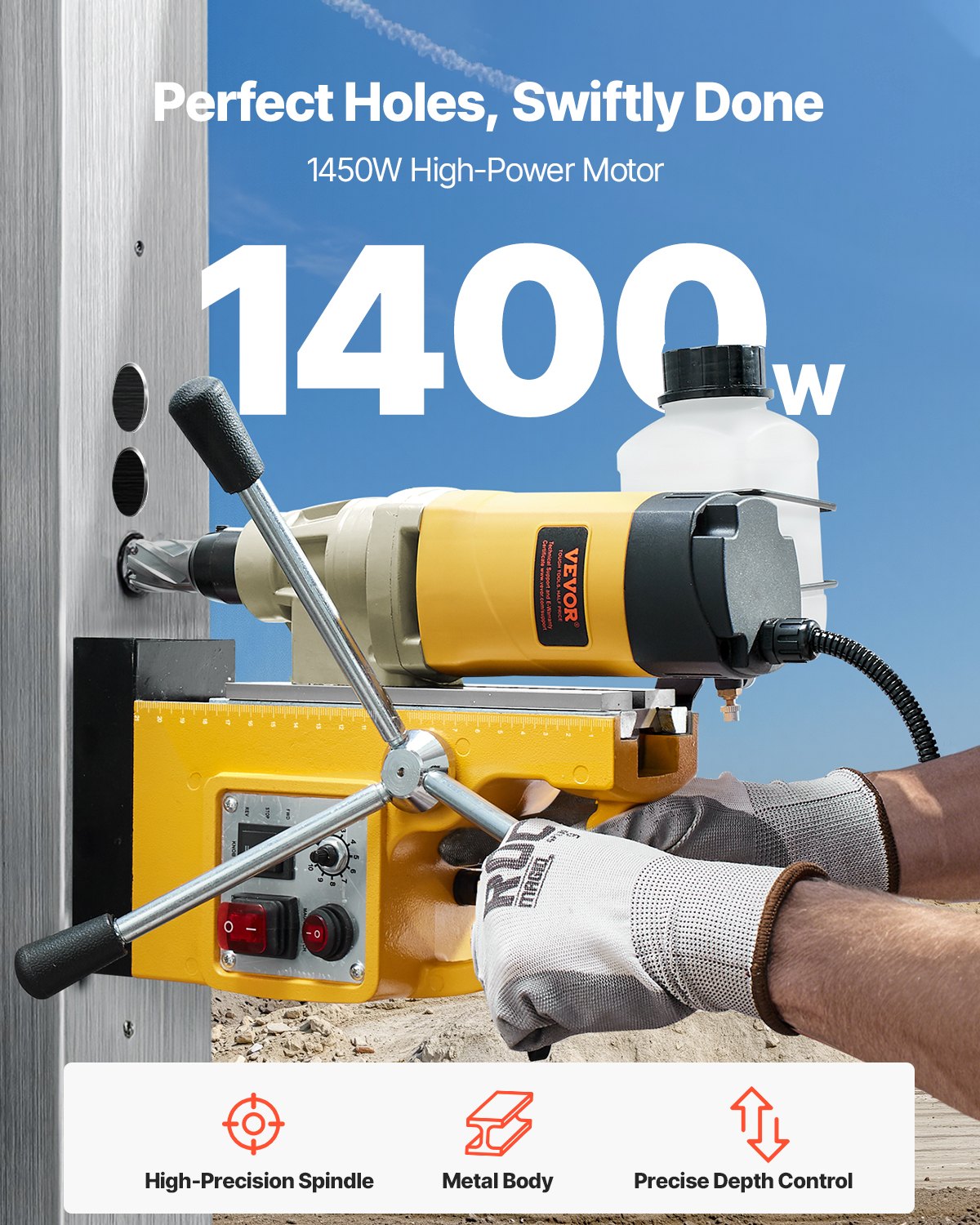

Our mag drill boasts a 1400W motor with a variable speed range of 0-650 RPM, significantly enhancing drilling efficiency, especially for projects that require extensive drilling. It ensures more stable operation, greater precision, and improved comfort during use.

Versatile Drilling Capabilities

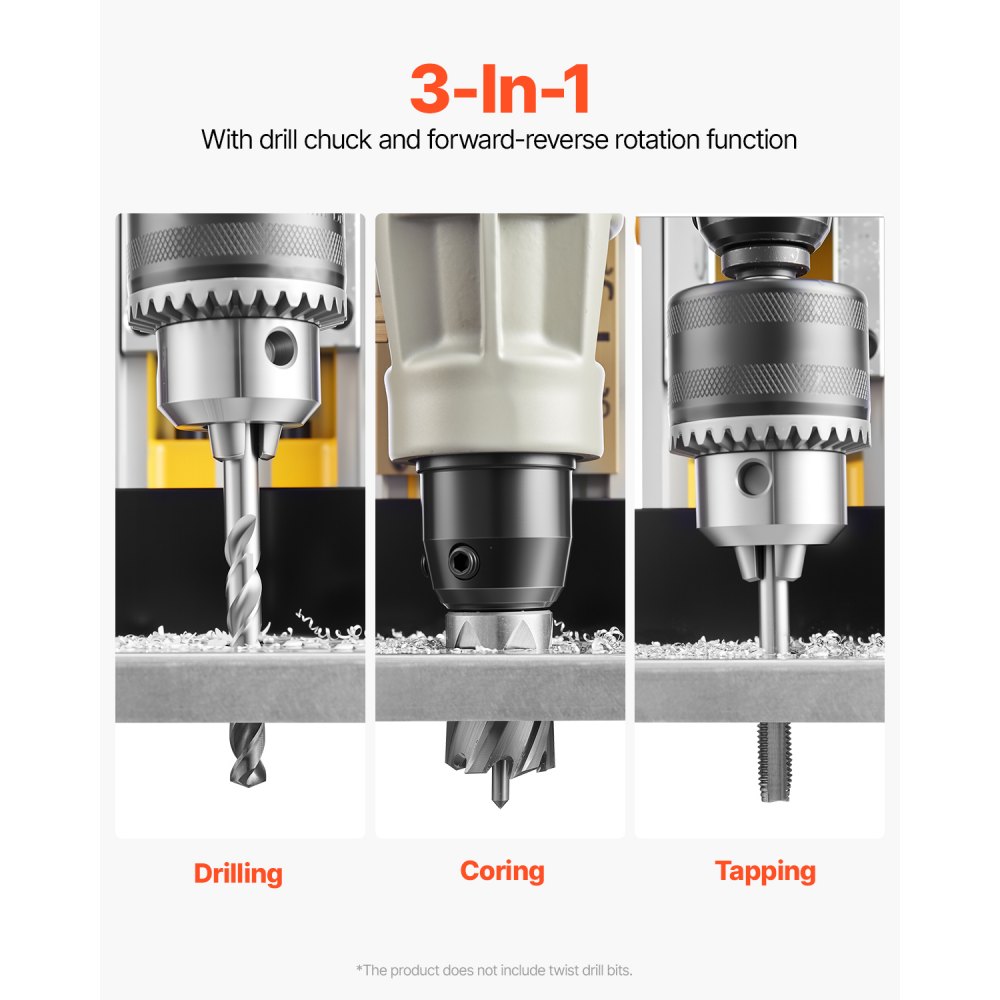

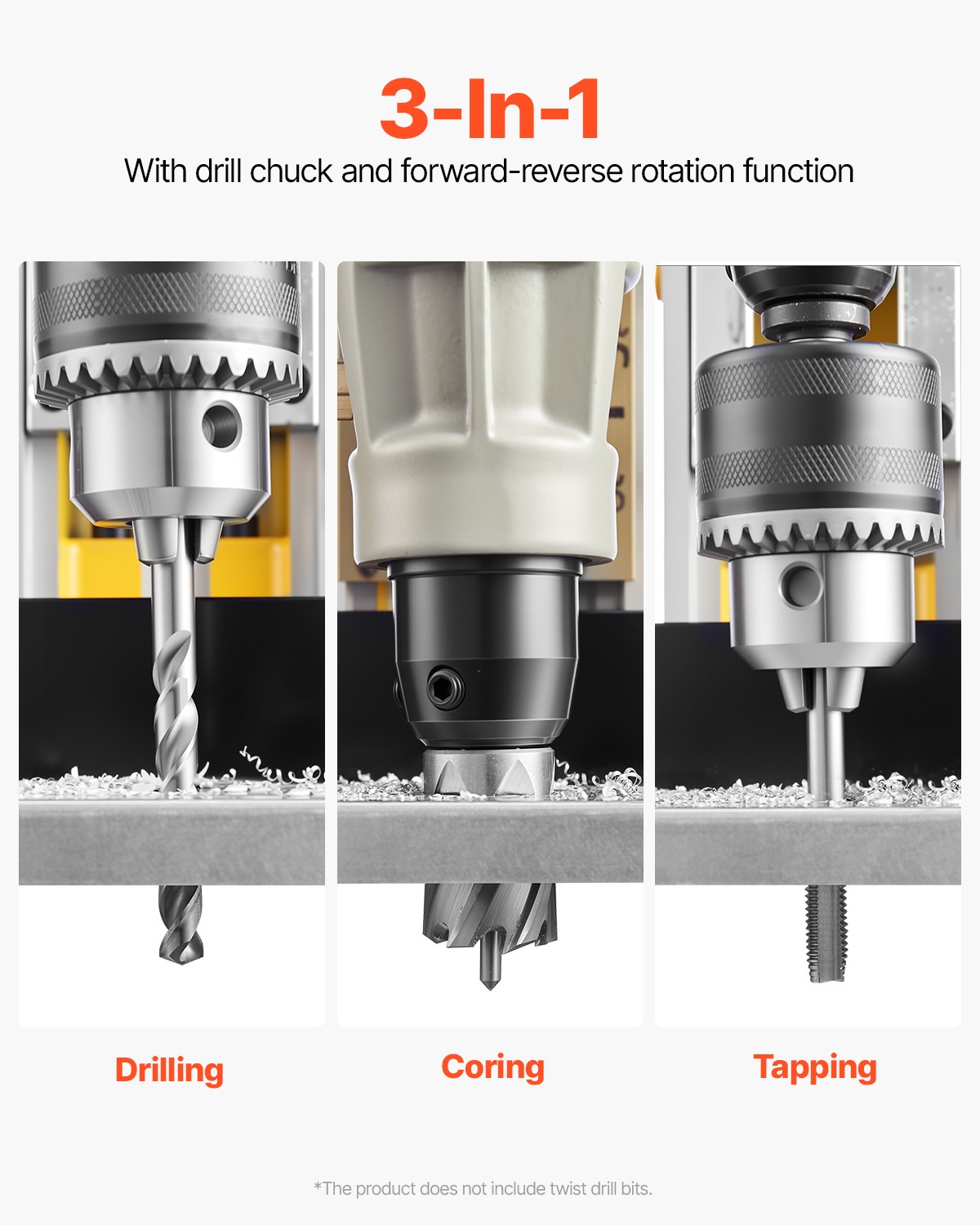

Equipped with multiple coring bits, a professional twist drill chuck, and forward/reverse functions, this magnetic drill press supports annular cutting, drilling, and tapping tasks. From small DIY projects to large-scale industrial applications, all your drilling needs can be met.

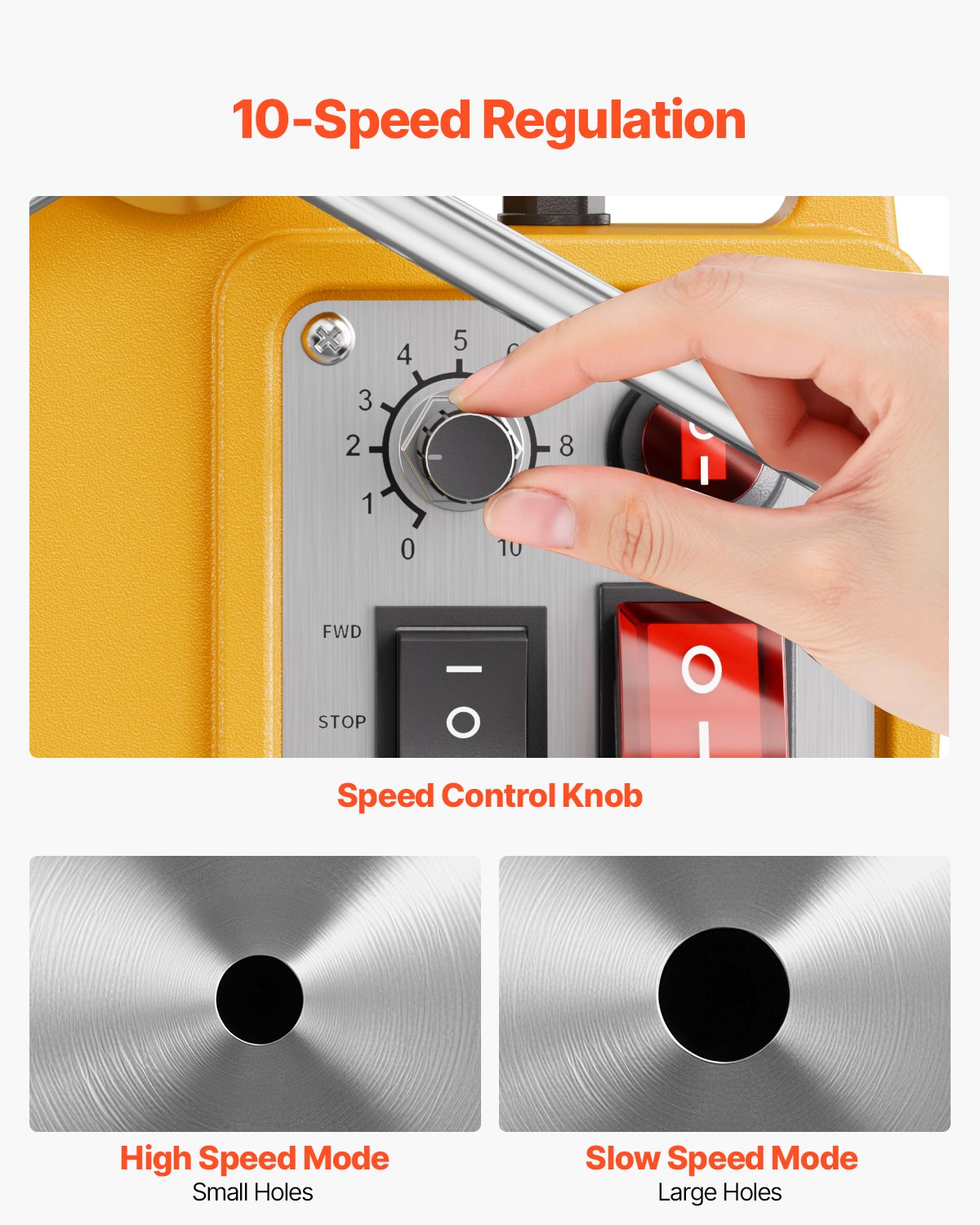

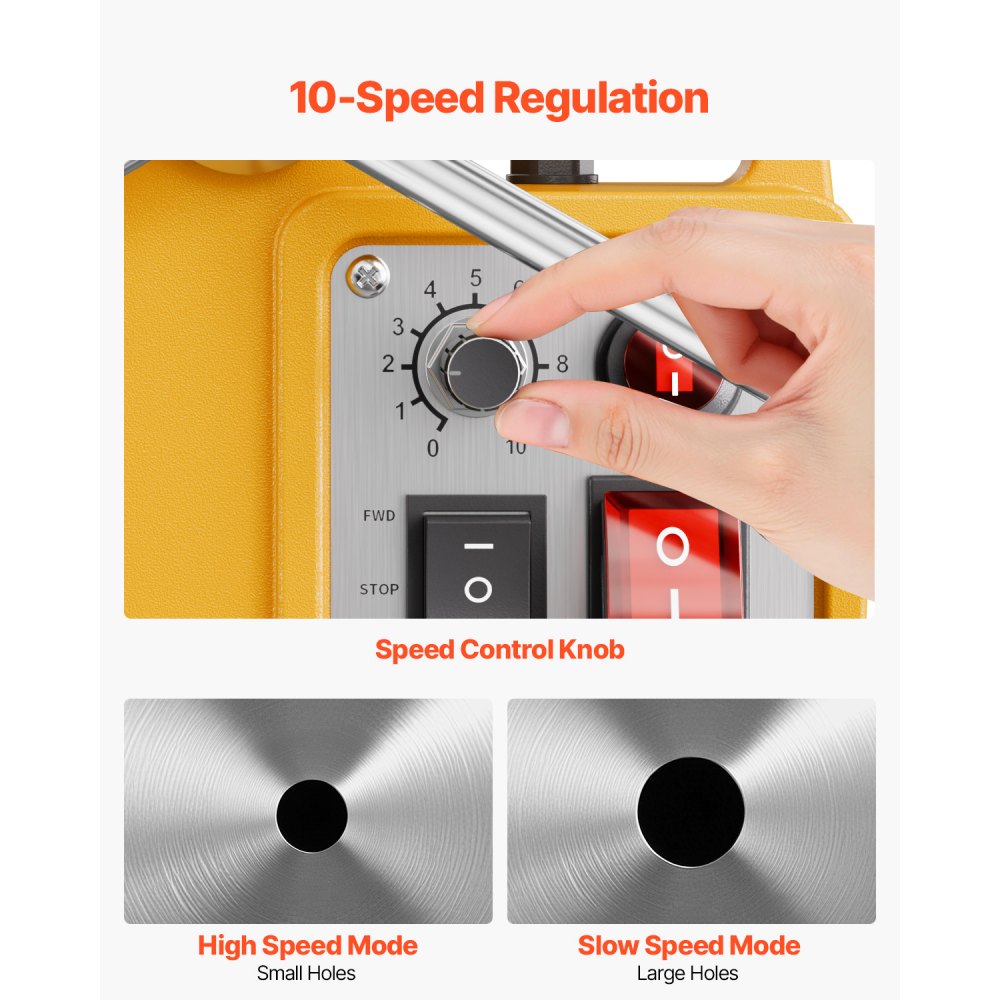

10-Speed Adjustment

Precisely adjust the speed based on the drilling diameter. For smaller holes, switch to a higher speed for efficient drilling and smooth hole walls. For larger holes, reduce the speed to prevent drill bit damage or misalignment caused by excessive speed, greatly improving drilling accuracy.
