VEVOR Hydraulic Steering Kit 90HP Hydraulic Outboard Steering System 7.32m, Marine Boat Steering System, 2.5 MPa Helm Pump, Two-Way Lock Cylinder, 7.32 m High-Strength Hoses, for Single-Engine Use

4.6 20 Reviews
AU $ 507 99
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+. Shop
Get -% off for new user
Get AU $5.00 Off AU $99.00+ Orders on Your First 3 App Orders.
Download Now

Features & Details

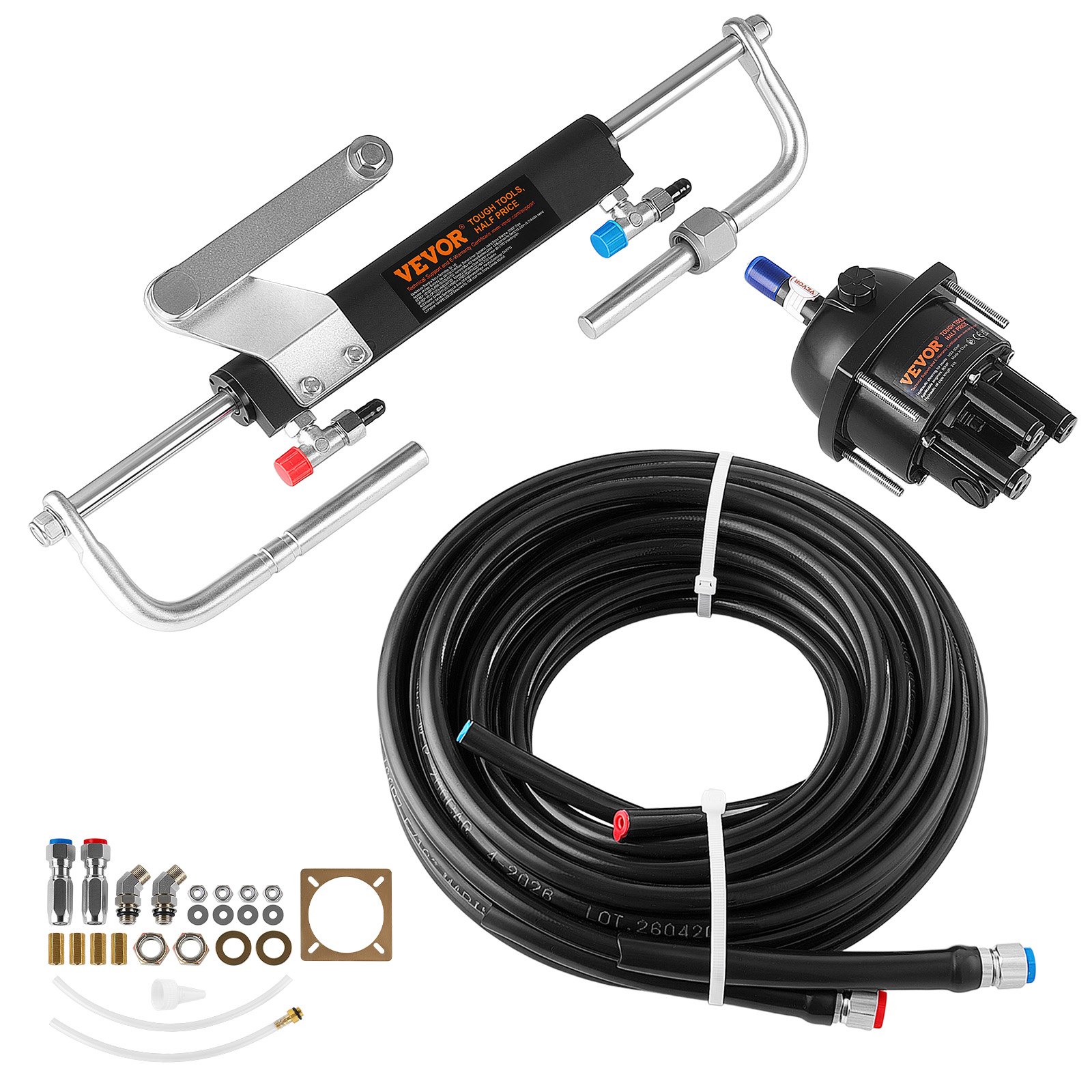

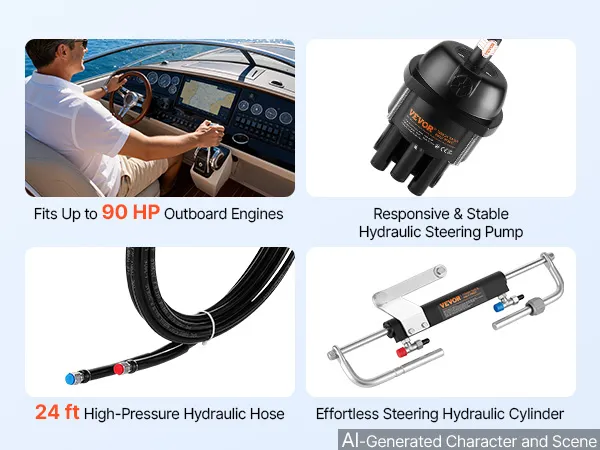

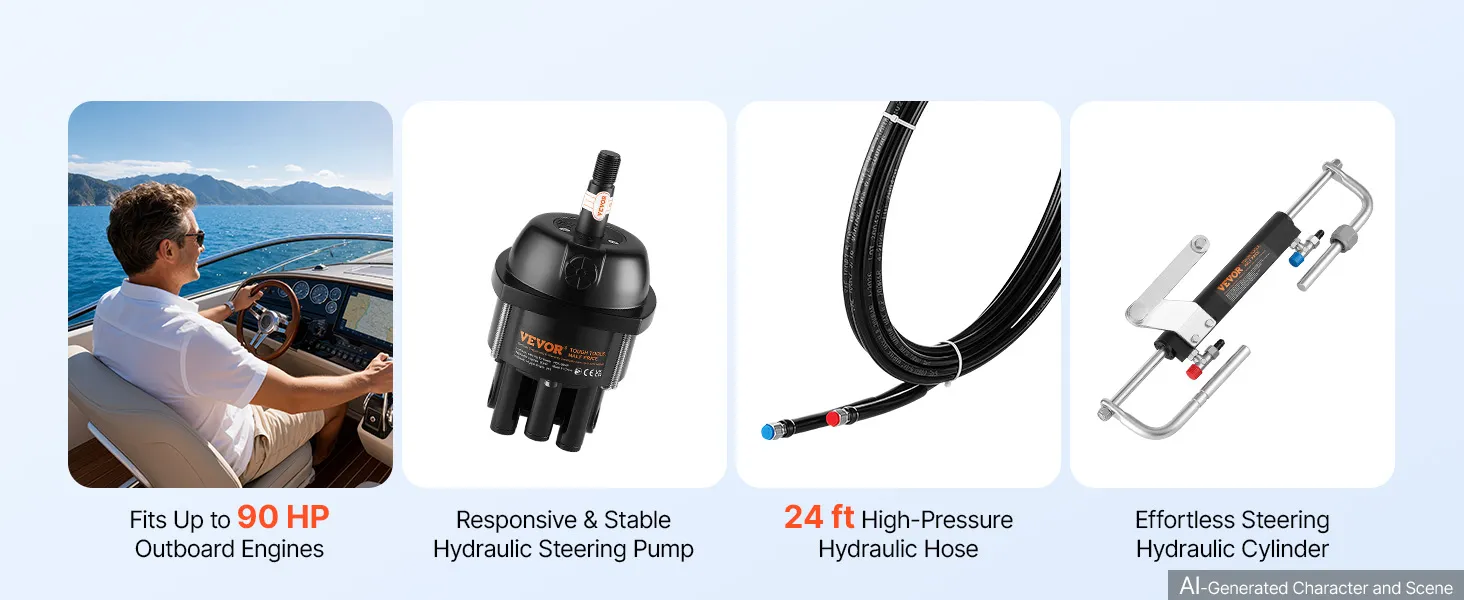

  • 90 HP Hydraulic Steering Kit: Includes 1 hydraulic pump, 1 hydraulic steering cylinder, 2 high-pressure hoses, and complete accessories. This kit is an ideal replacement solution for aging or damaged hydraulic steering systems

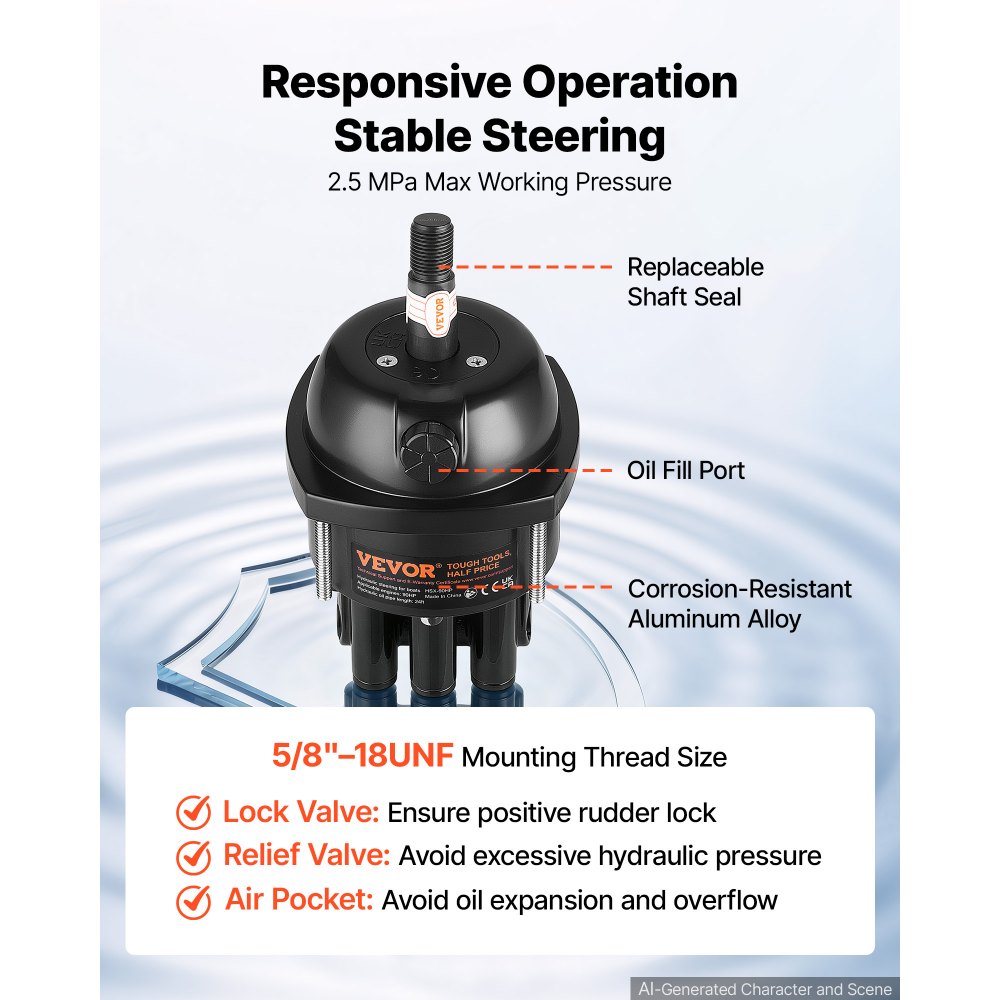

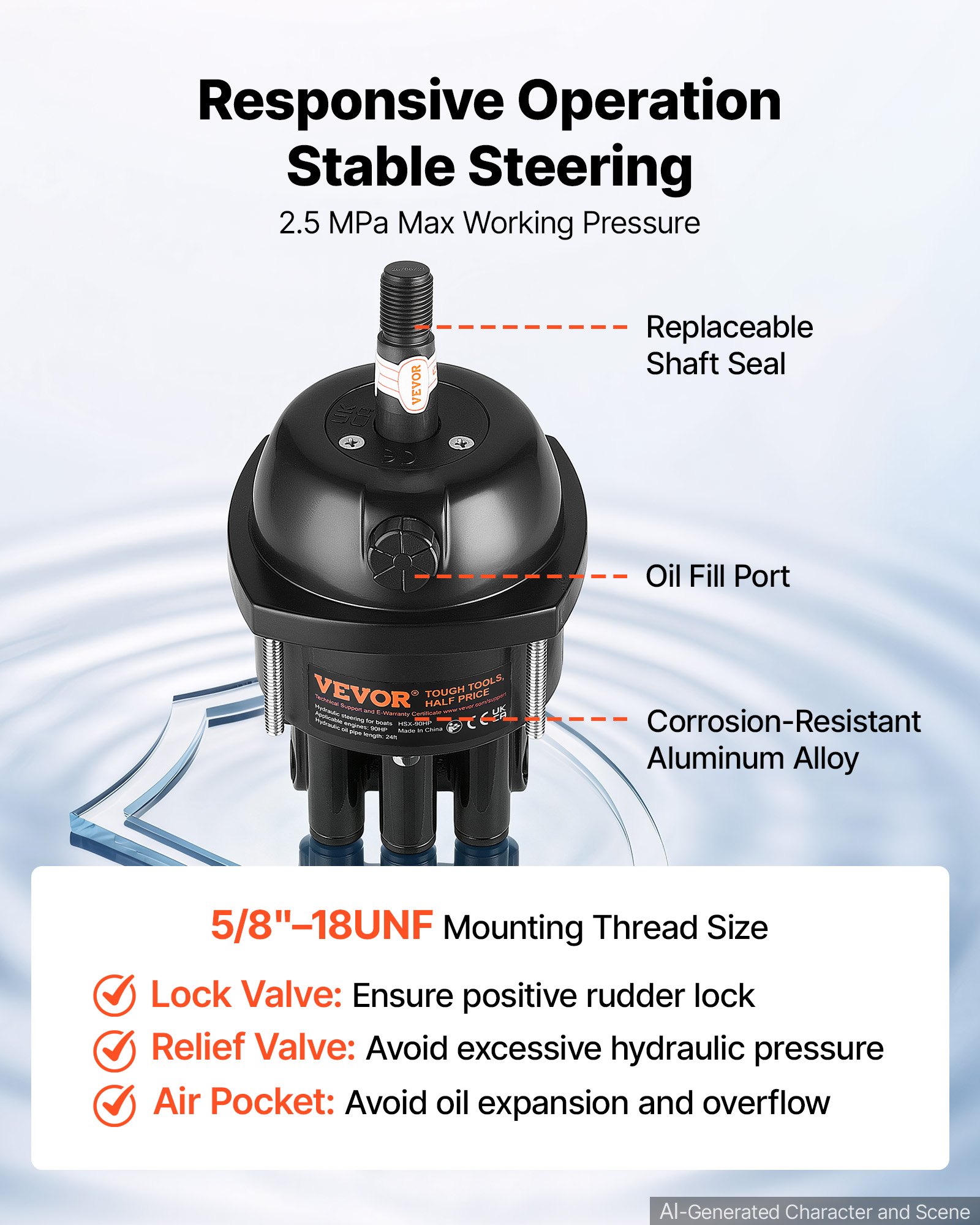

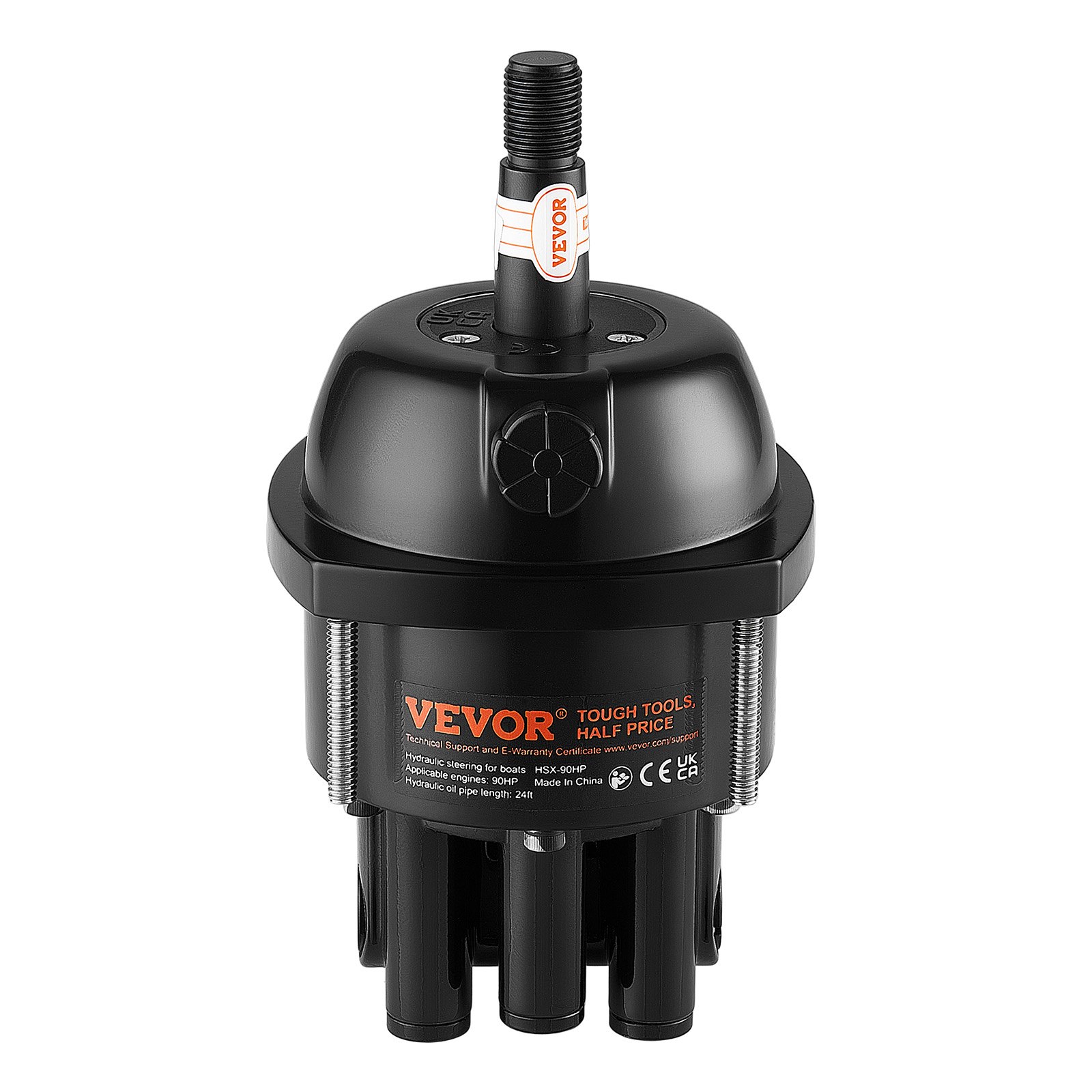

  • Stable Steering Helm Pump: The hydraulic steering helm pump features a stable structure and quick steering response, supporting up to 2.5 MPa maximum pressure. Its high-strength aluminum alloy housing resists seawater salt spray

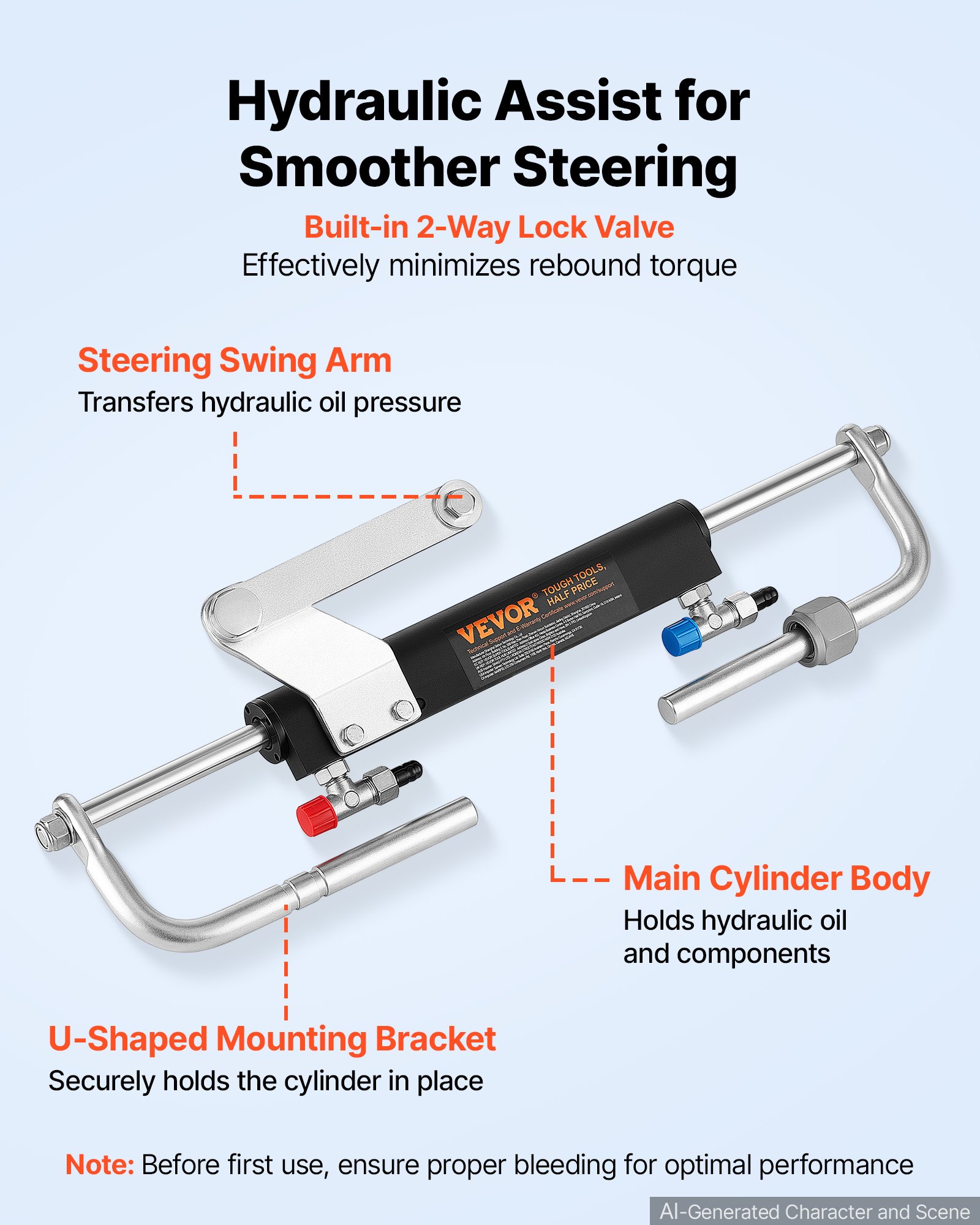

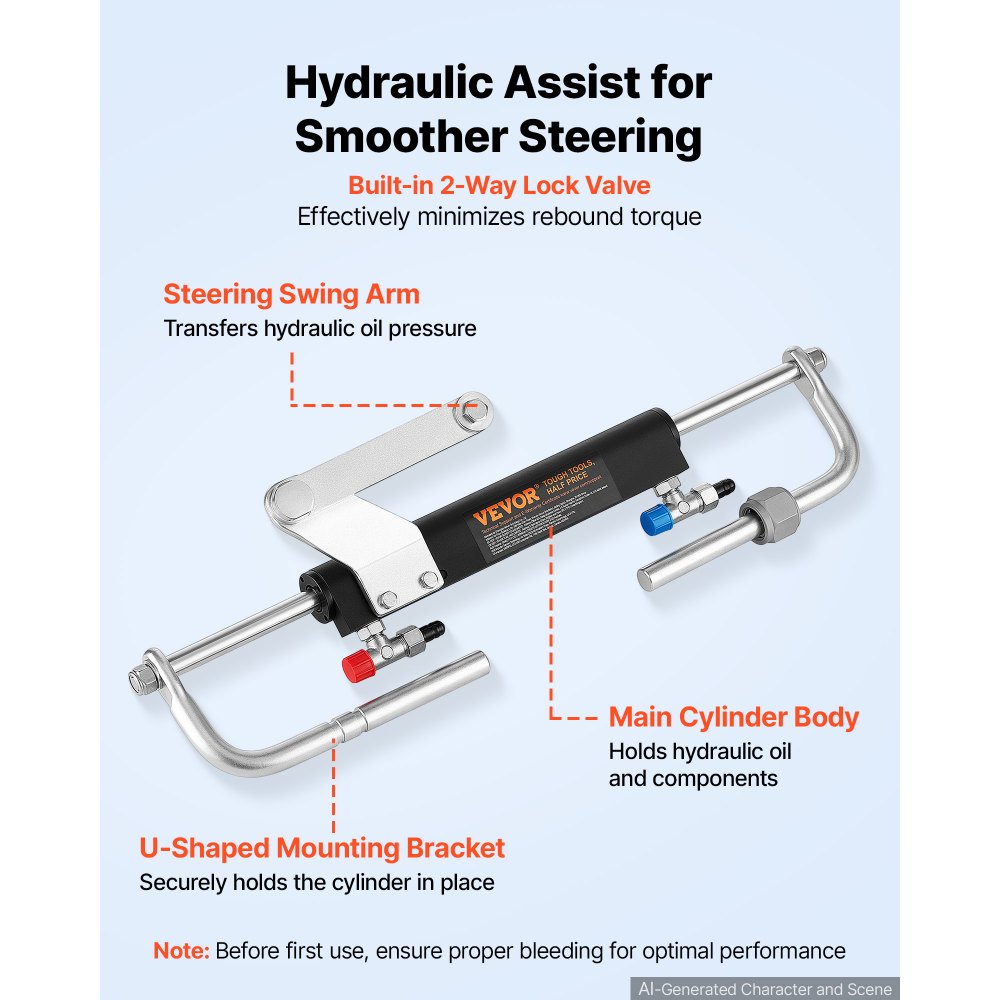

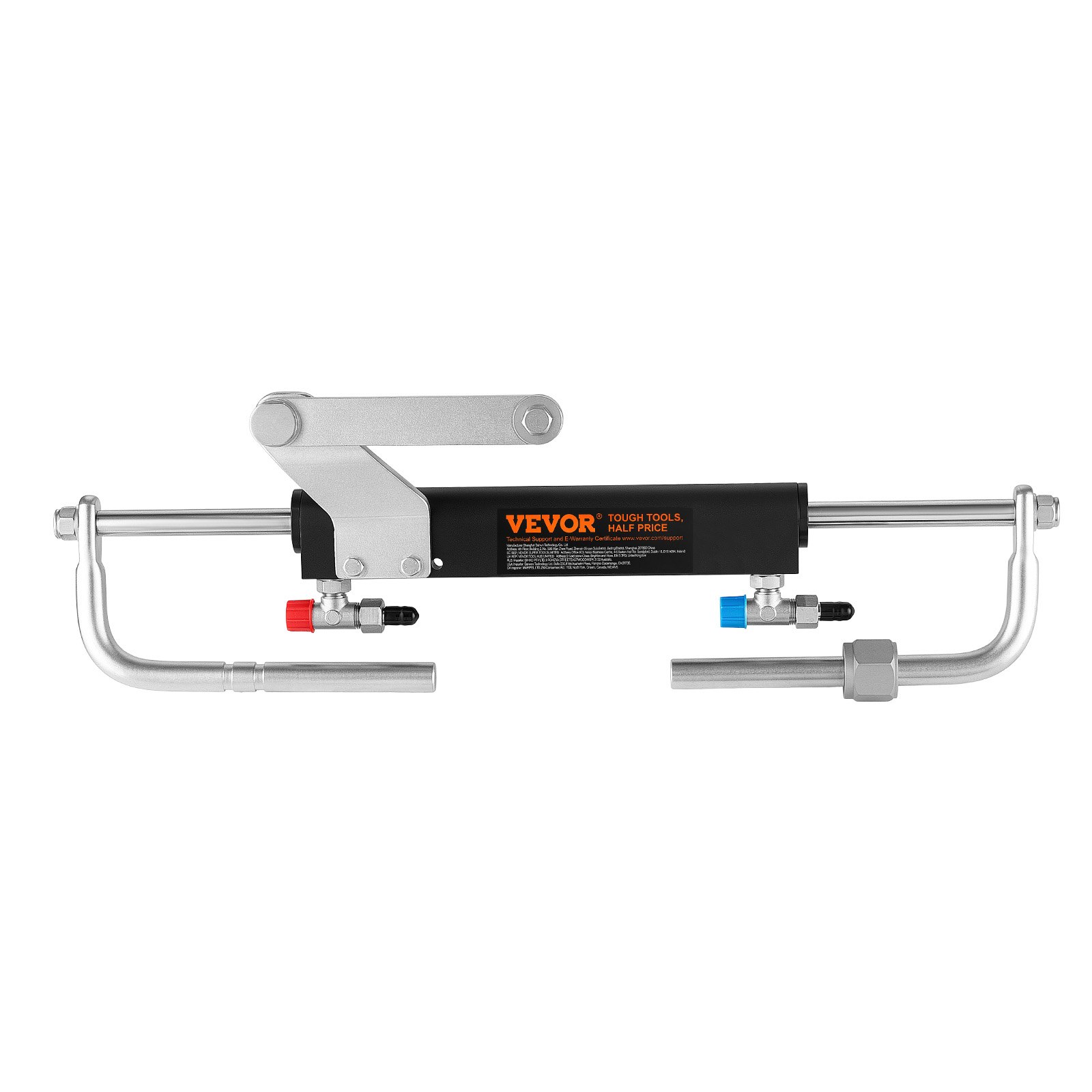

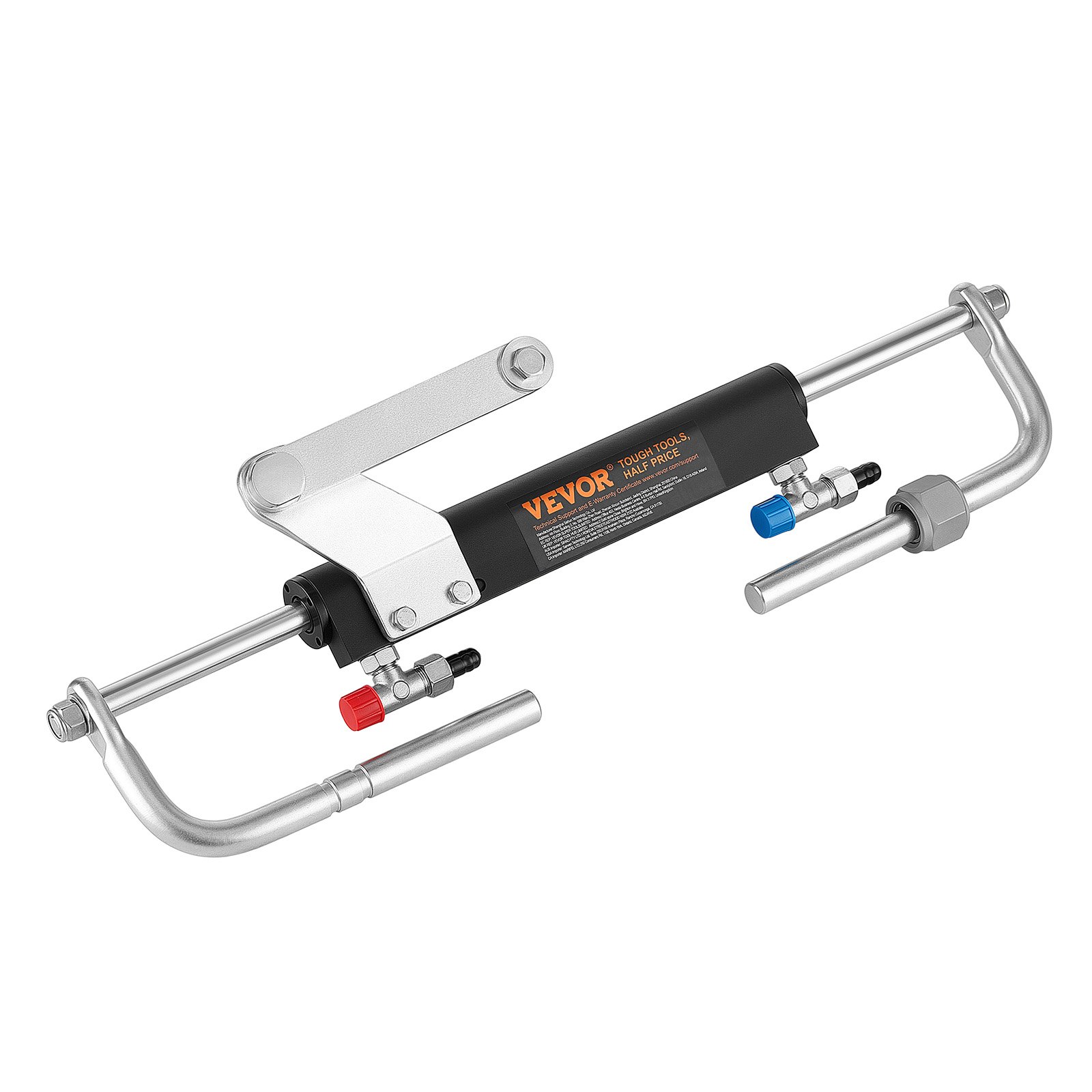

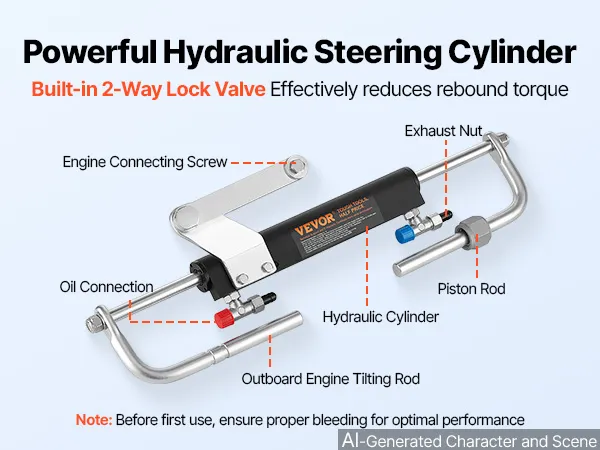

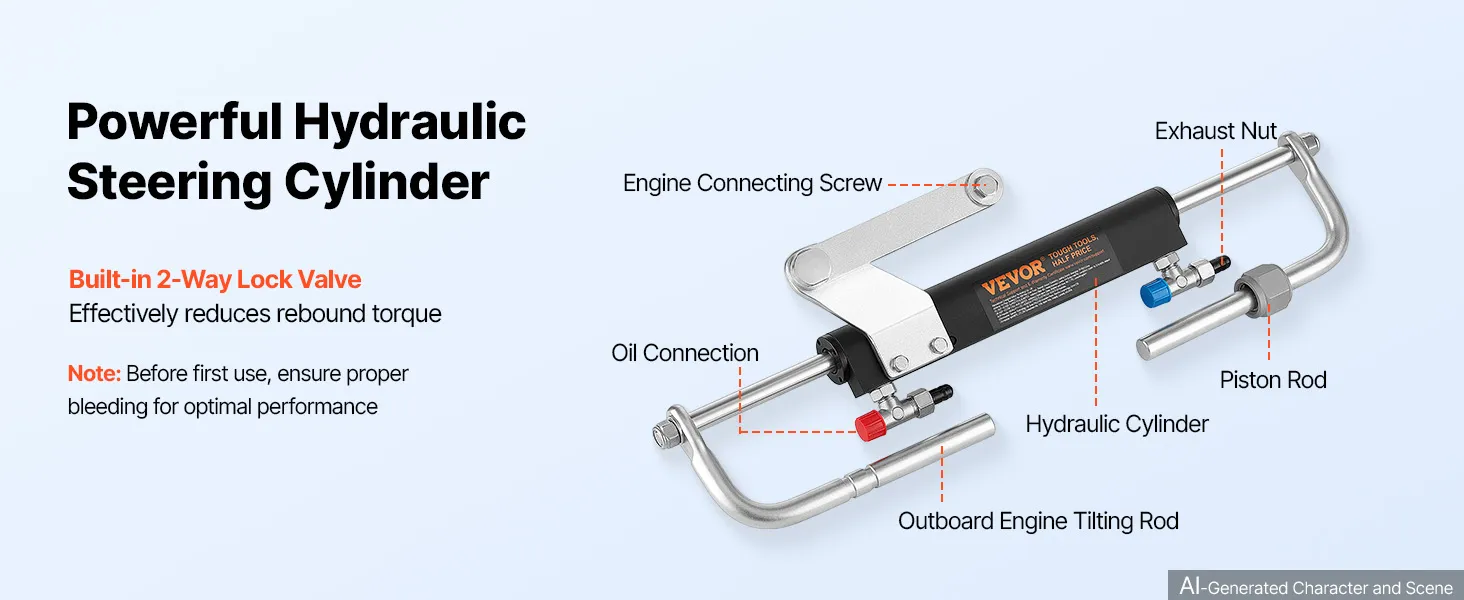

  • Durable Hydraulic Cylinder: Built with a sturdy structure and efficient sealing components, this hydraulic steering cylinder delivers precise control and long-lasting durability. It helps maintain smooth steering performance even in rough marine conditions

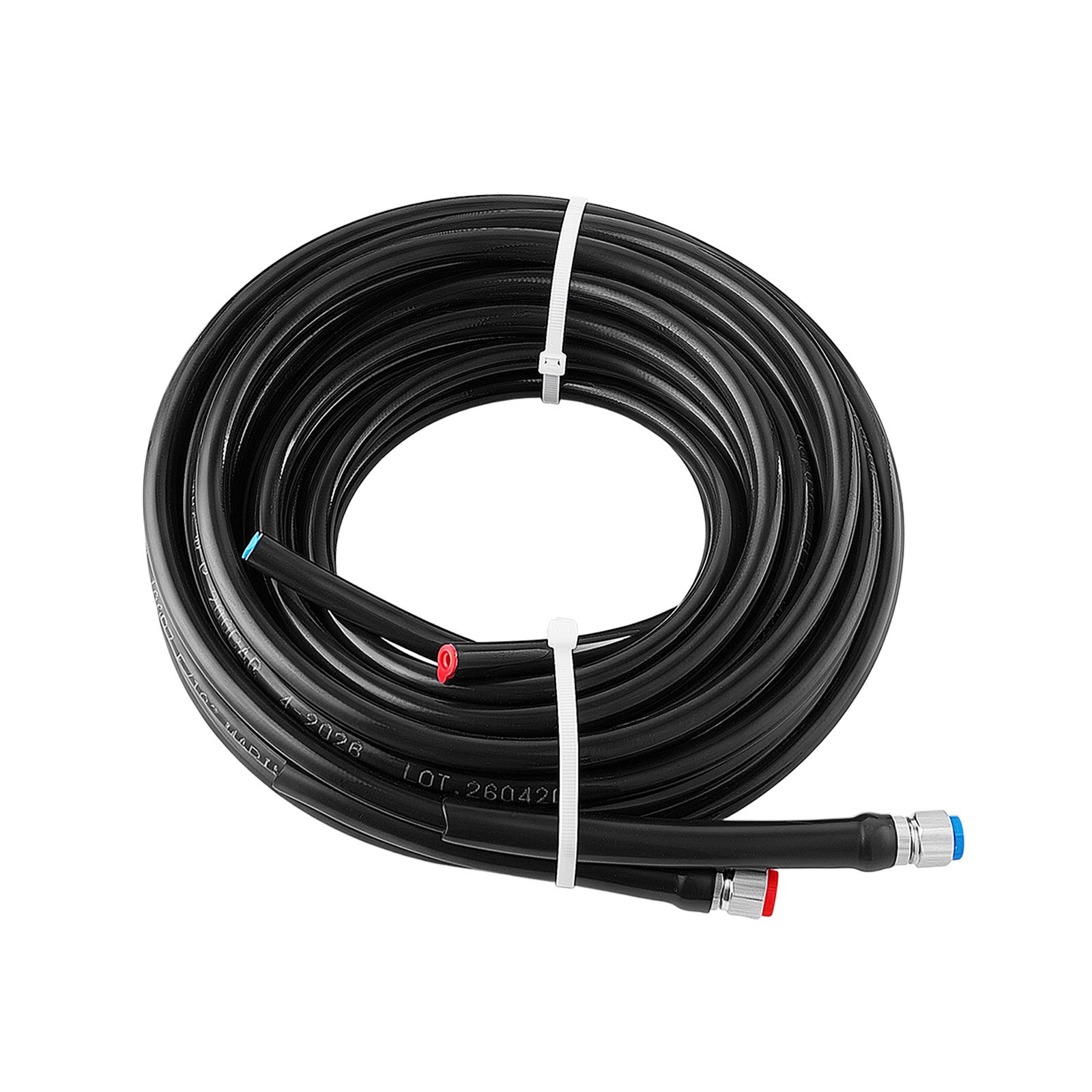

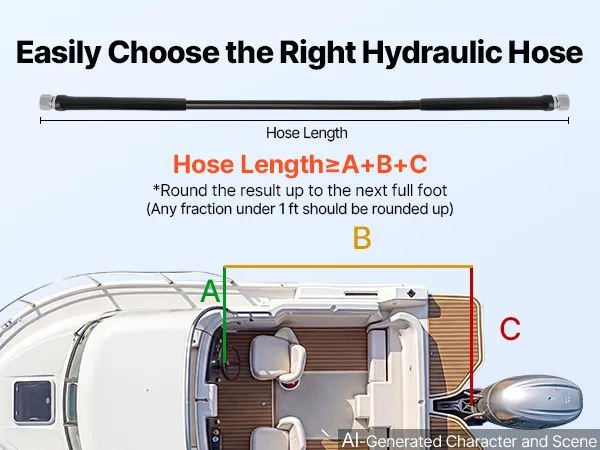

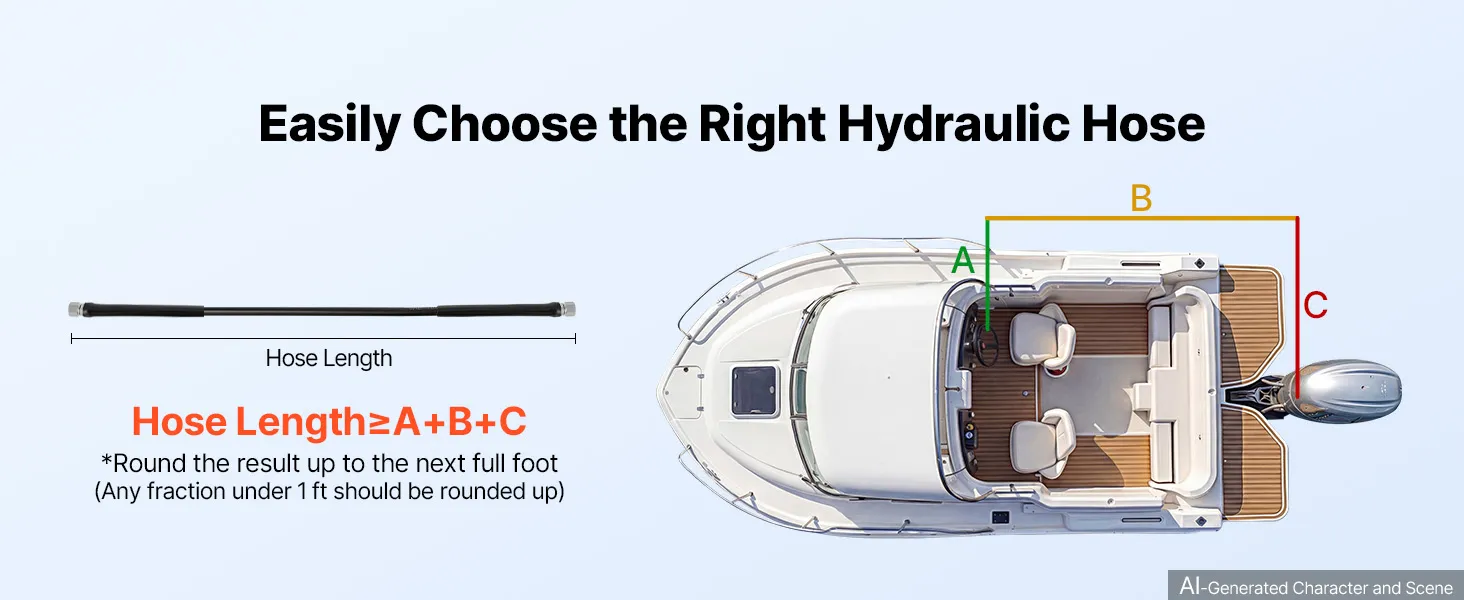

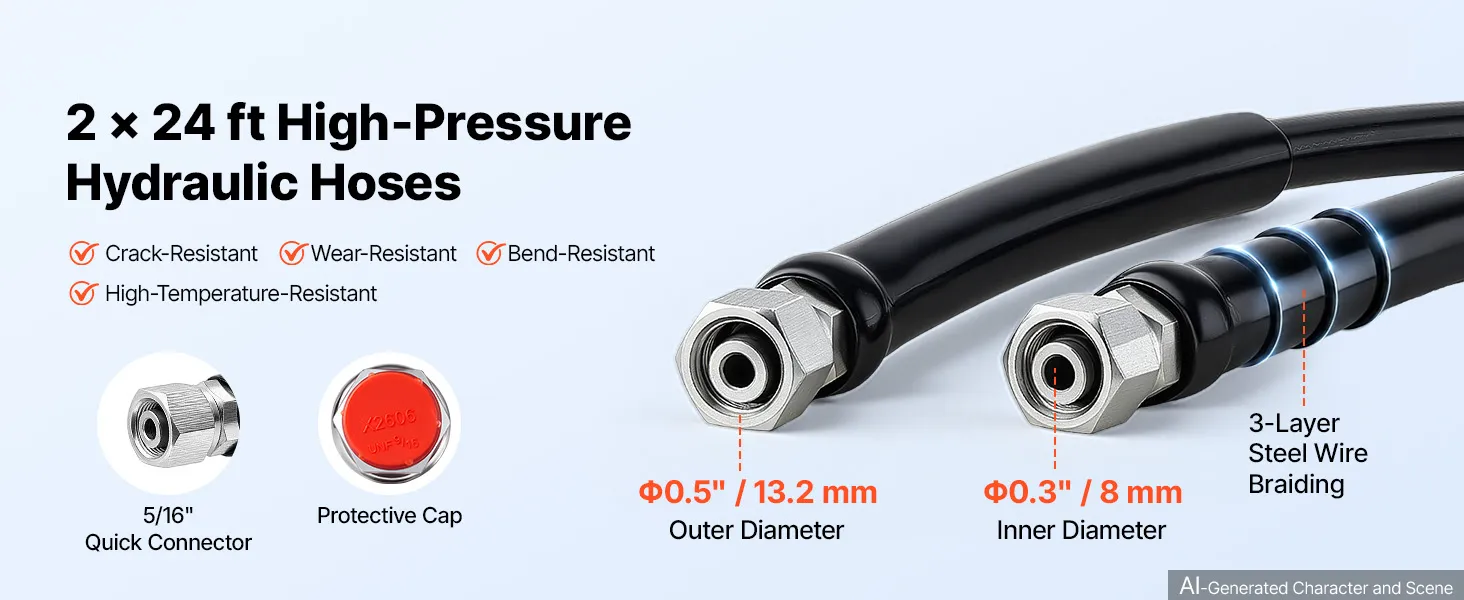

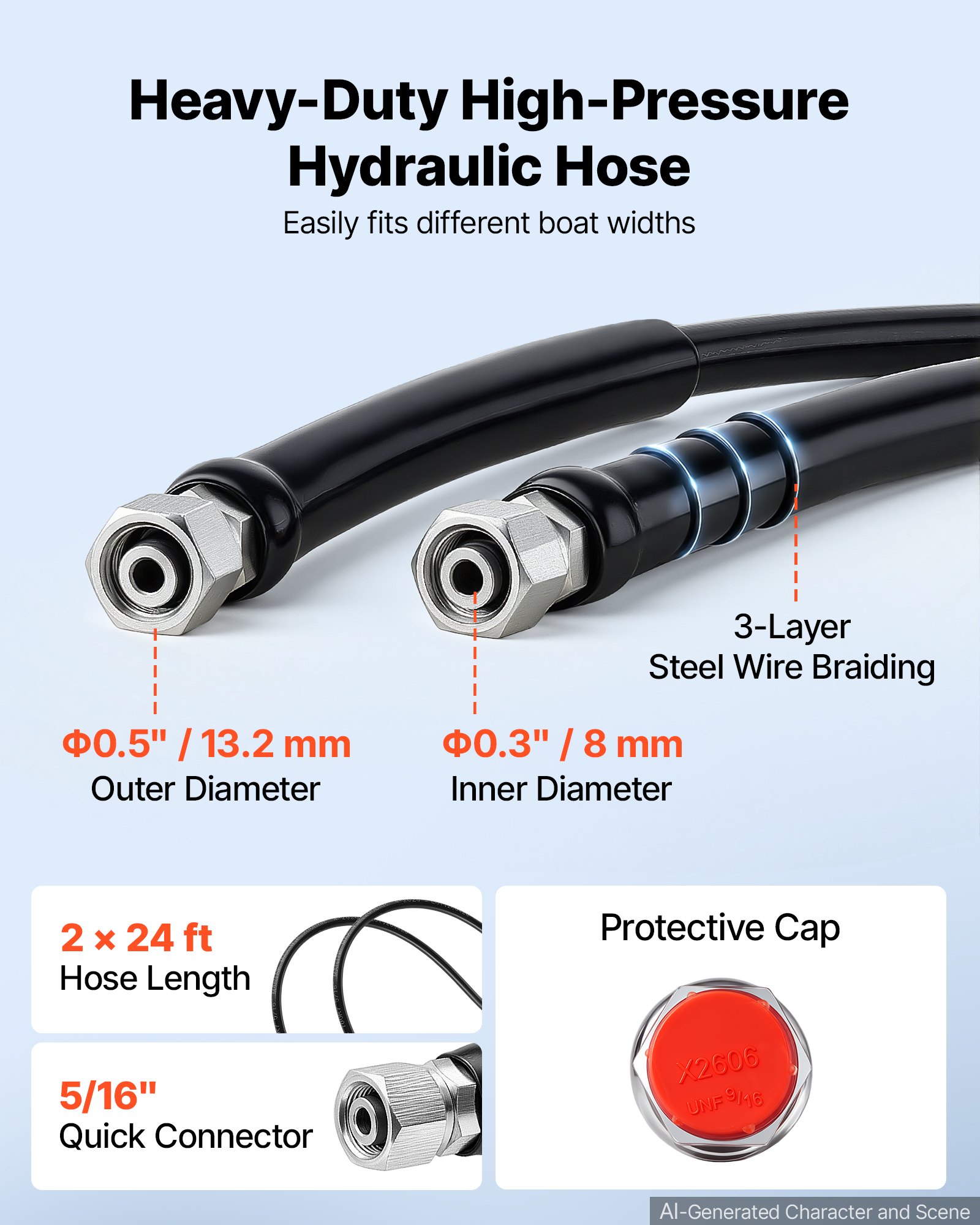

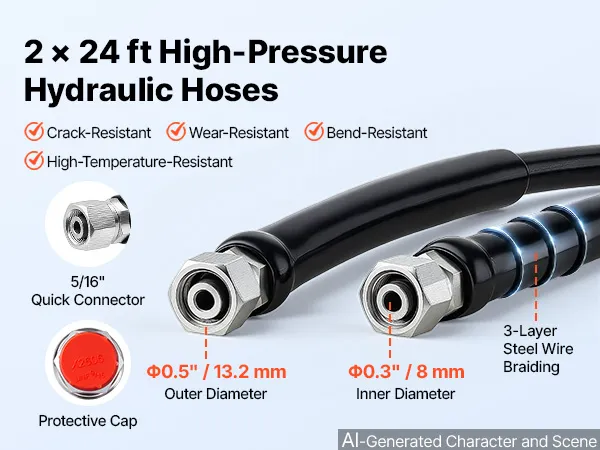

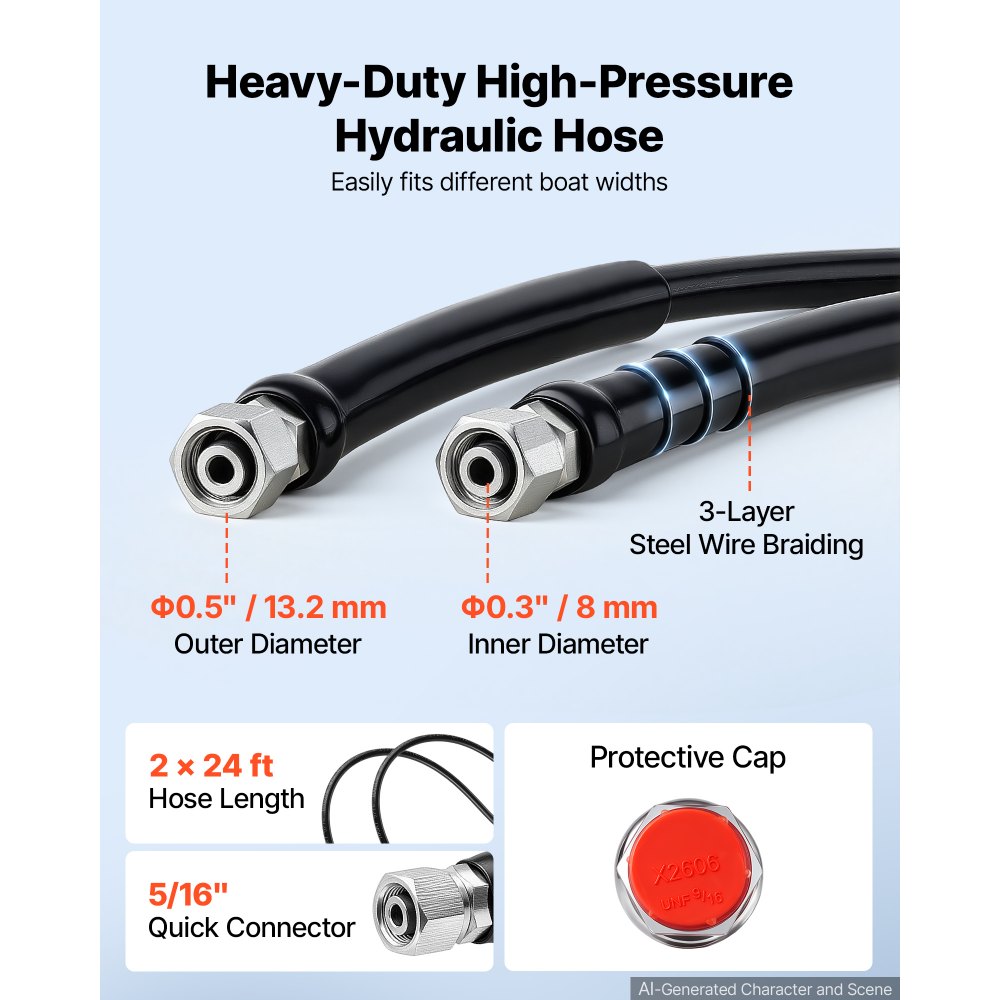

  • 2 x 24FT High-Pressure Hoses: The boat hydraulic steering system includes 2 x 24 ft hoses designed for heavy-duty use with reduced risk of bursting or leakage. 5/16" quick-connect fittings provide flexible installation for various boat models

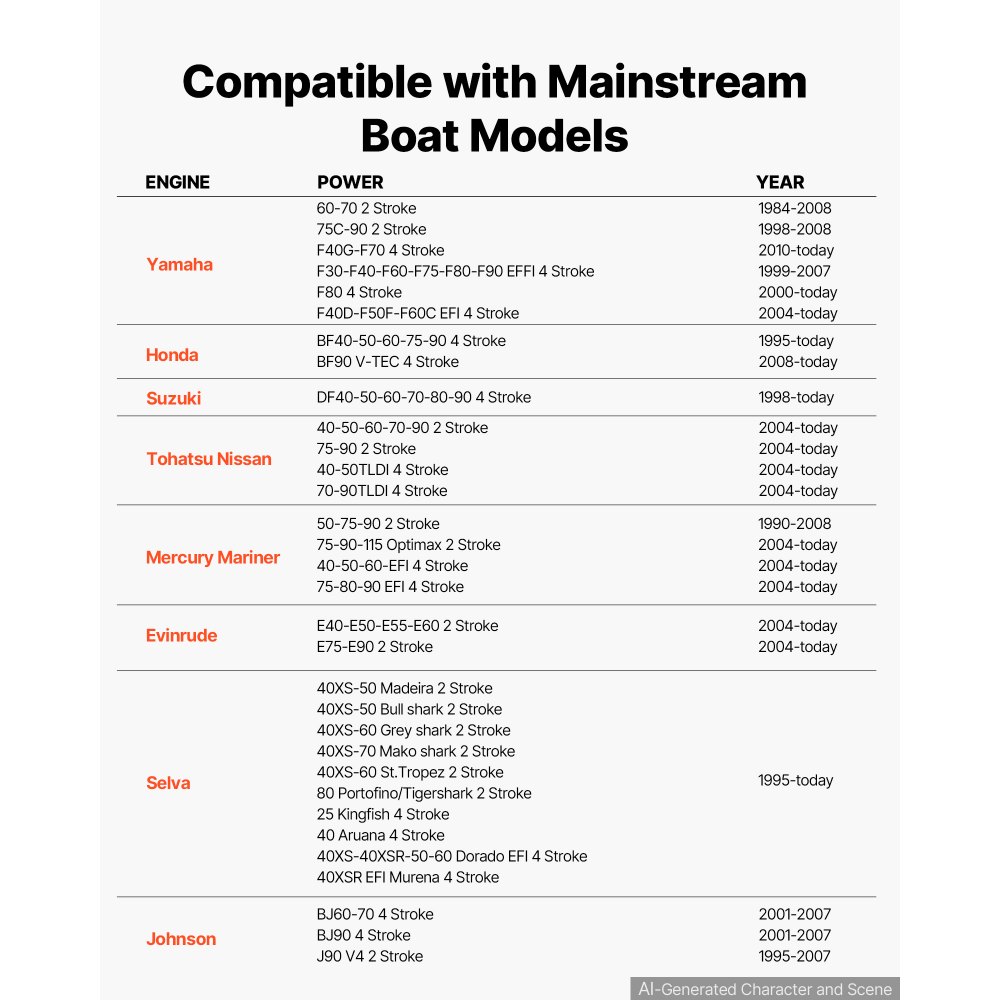

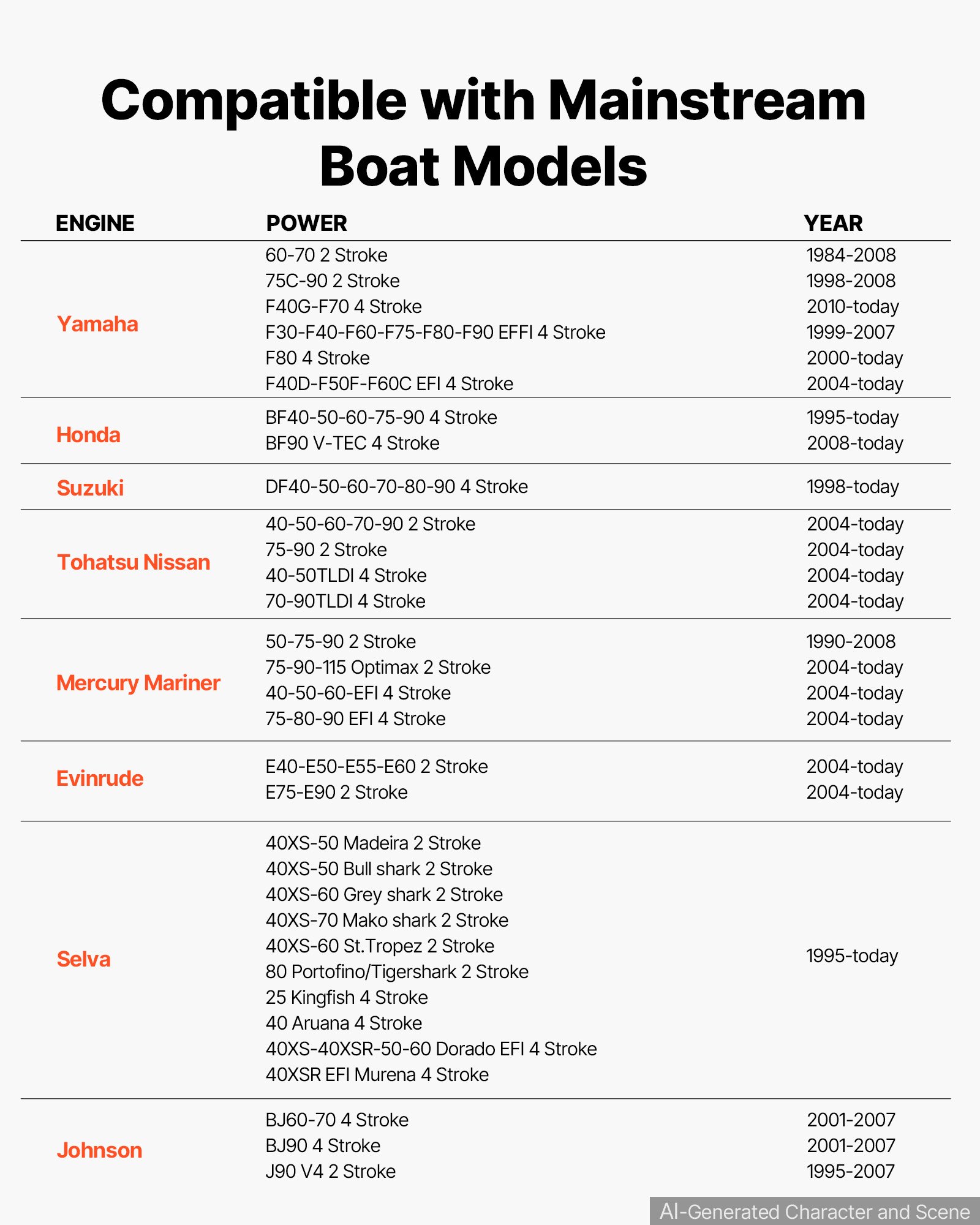

  • Wide Boat Compatibility: Designed for smooth and precise marine control, this hydraulic steering pump kit is compatible with leading outboard brands including Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu, delivering an enhanced boating experience

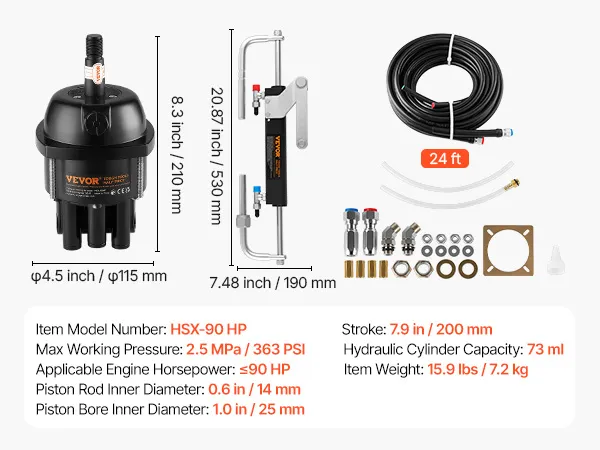

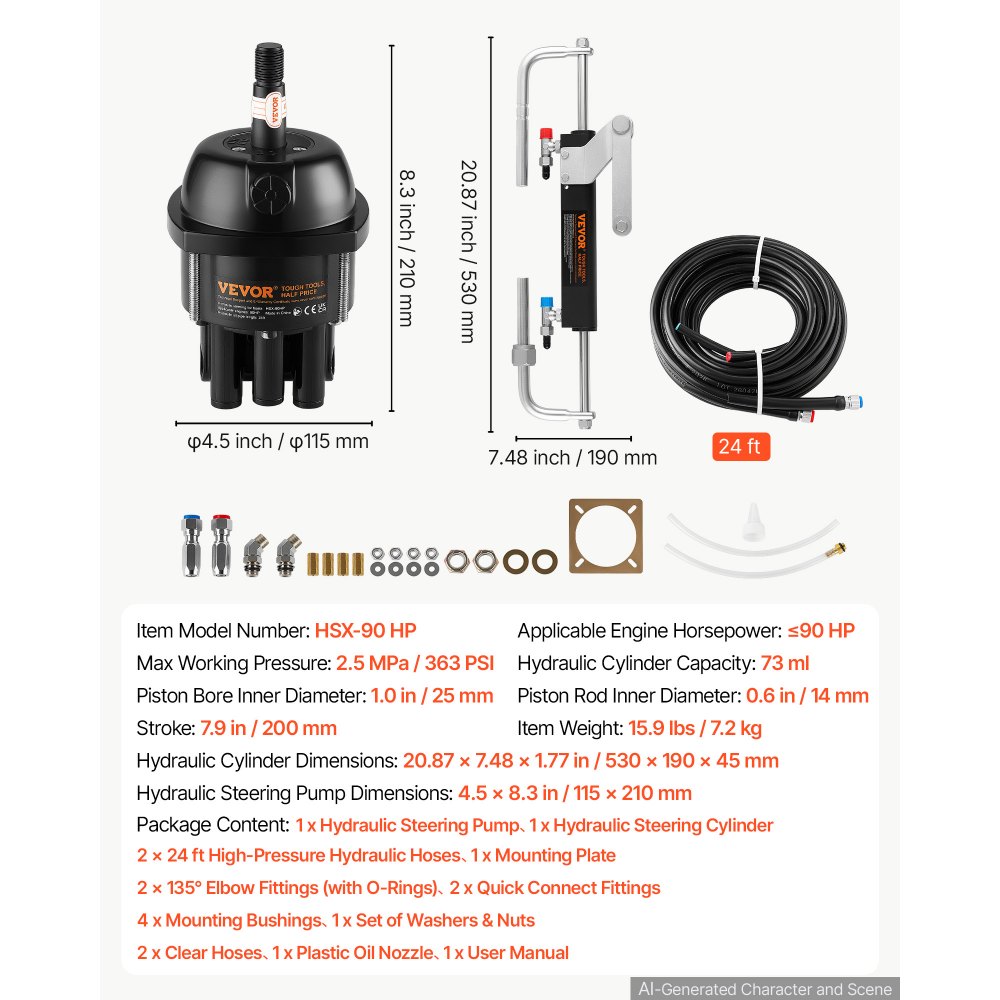

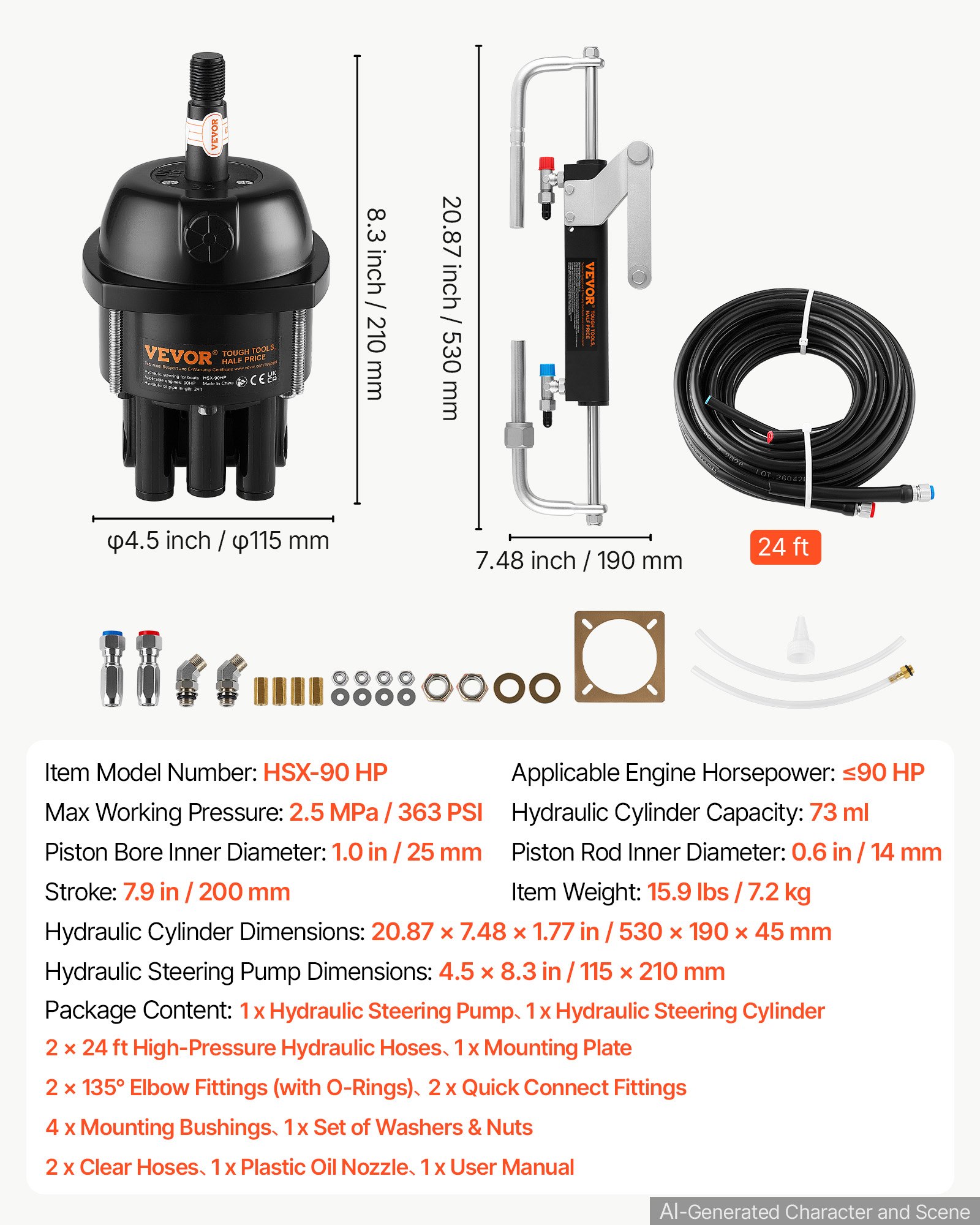

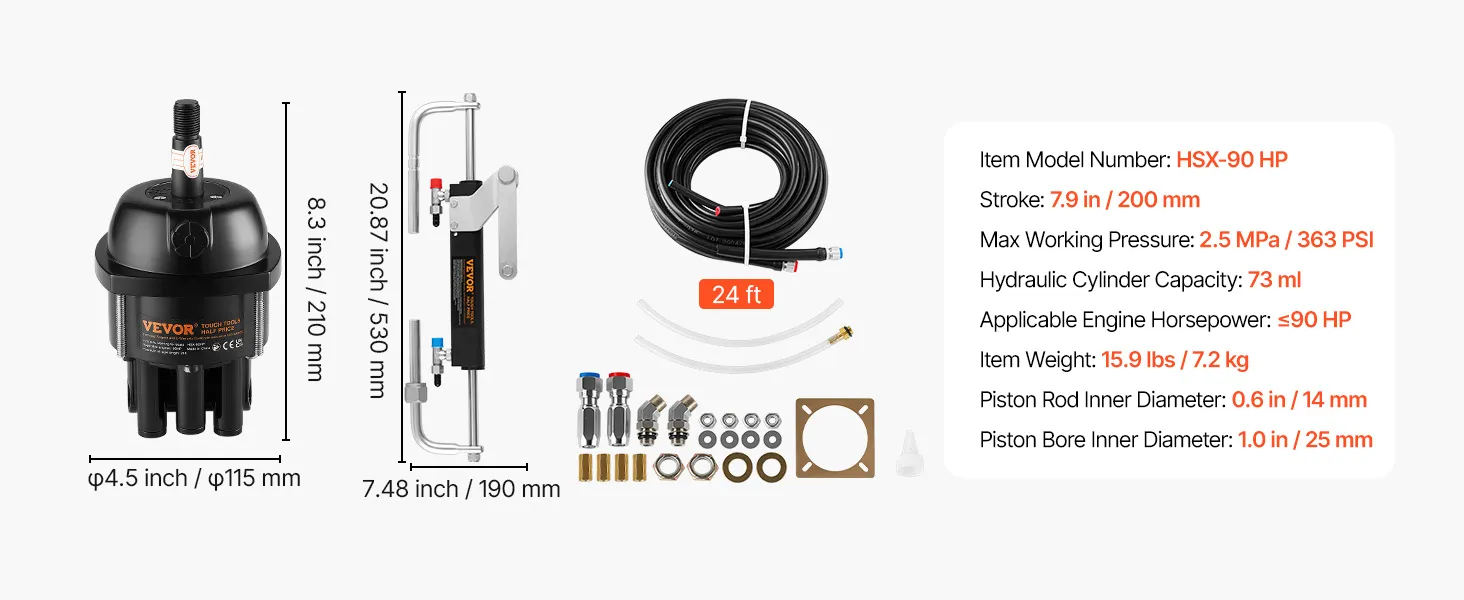

Product specification

  • Item Model Number HSX-90 HP
  • Applicable Engine Horsepower ≤90 HP
  • Max Working Pressure 2.5 MPa / 363 PSI
  • Hydraulic Cylinder Capacity 73 ml
  • Piston Bore Inner Diameter 1.0 in / 25 mm
  • Piston Rod Inner Diameter 0.6 in / 14 mm

Frequently Bought Together

Reviews
About this item
Questions and Answers
Explore

Reviews 4.6
All reviews are from verified purchases
Average rating based on 20 reviews

See all 20 reviews

About this item

Product specification
Item Model Number
HSX-90 HP
Applicable Engine Horsepower
≤90 HP
Max Working Pressure
2.5 MPa / 363 PSI
Hydraulic Cylinder Capacity
73 ml
Piston Bore Inner Diameter
1.0 in / 25 mm
Piston Rod Inner Diameter
0.6 in / 14 mm
Stroke
7.9 in / 200 mm
Description
Pro-level performance without the pro-level cost
Designed for outboard engines up to 90 HP, this hydraulic steering kit includes a hydraulic steering helm pump, hydraulic steering cylinder, two high-pressure hydraulic hoses, and complete hardware. With a 2.5 MPa max working pressure, it is great for replacing worn systems or upgrading your boat.
Key Features

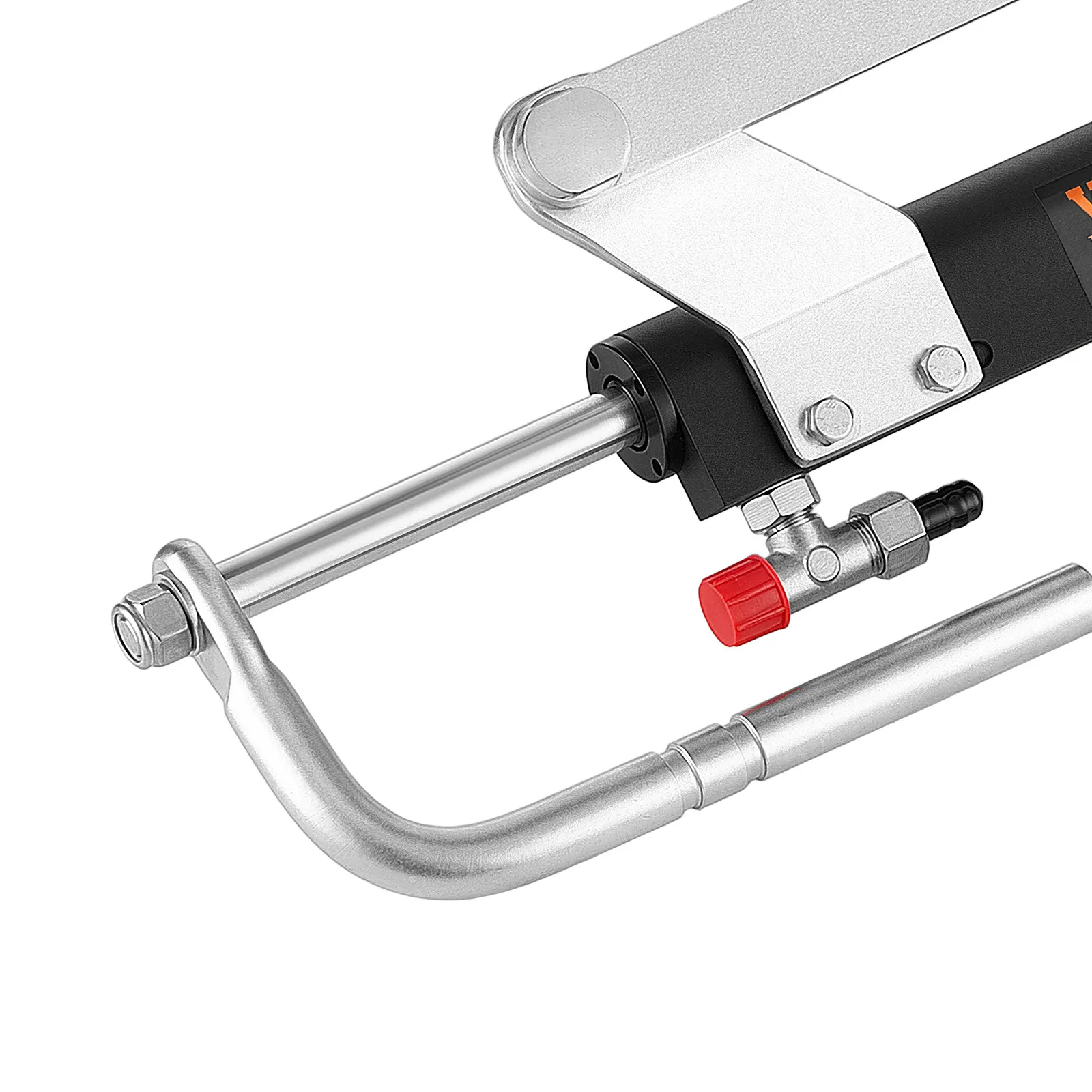

Steel Steering Shaft
Built with a steel shaft, this hydraulic steering kit delivers long-lasting durability and resists seawater corrosion.

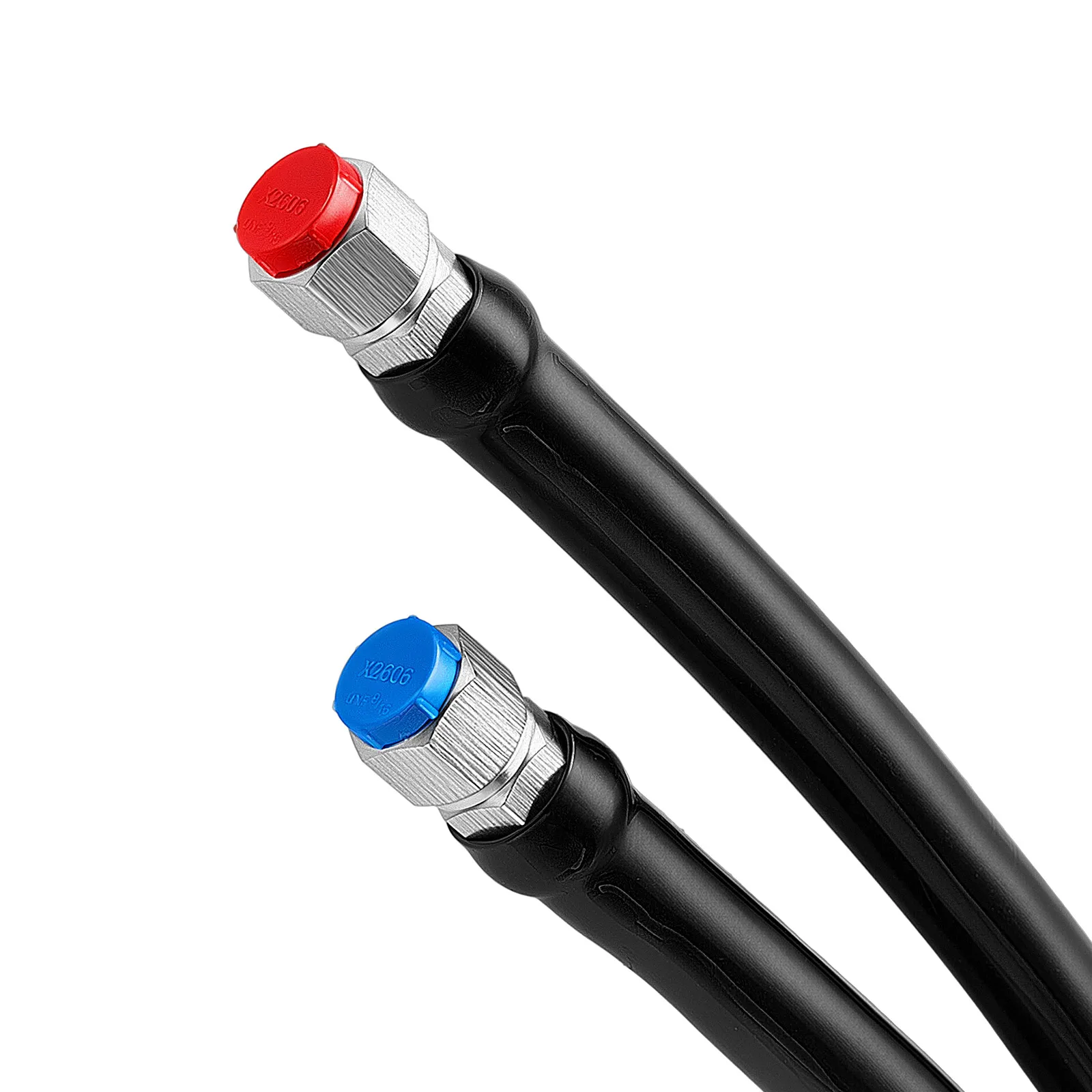

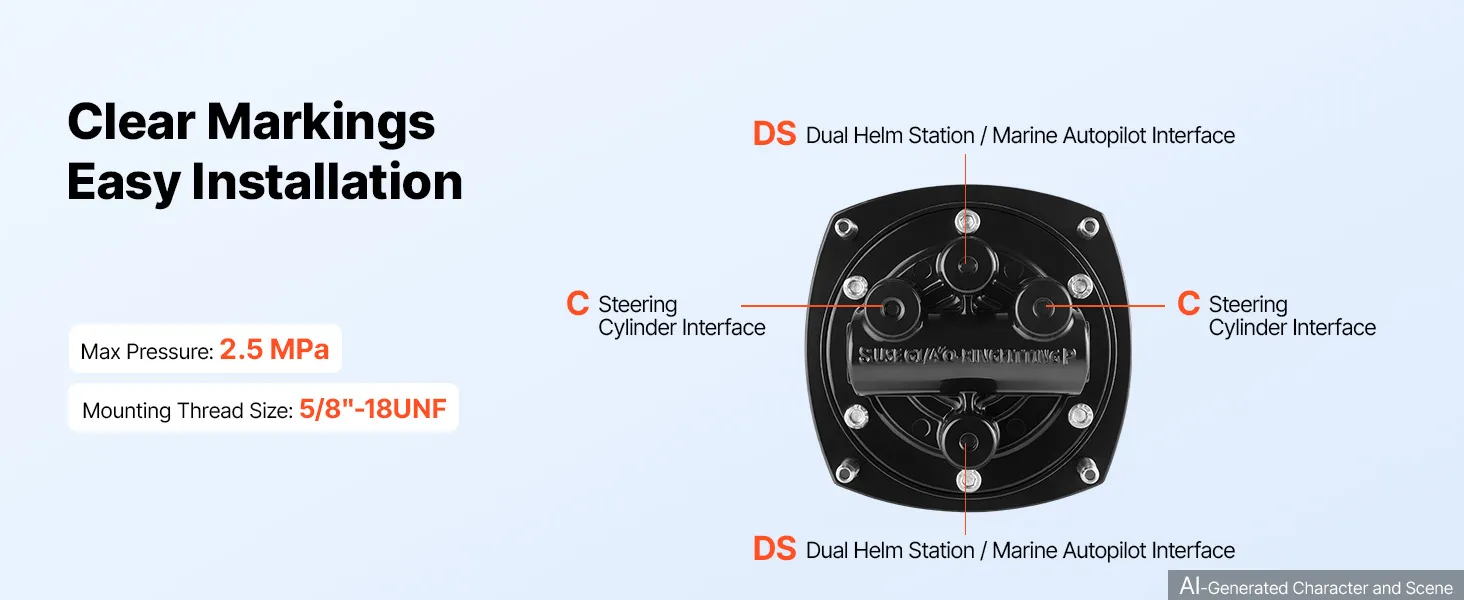

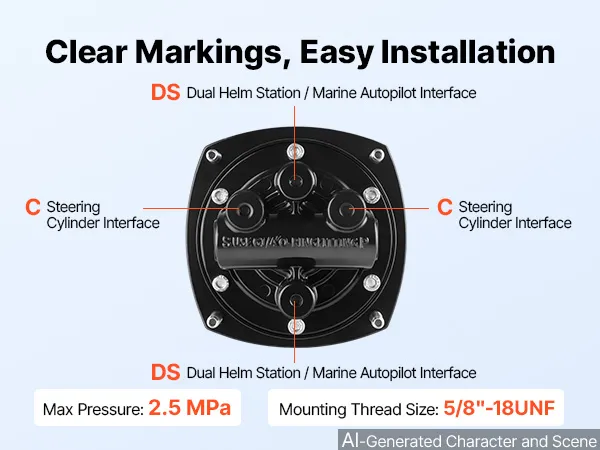

Red & Blue Dual-Color Port Caps
The boat hydraulic steering system features clearly marked red and blue inlet/outlet caps for quick identification.

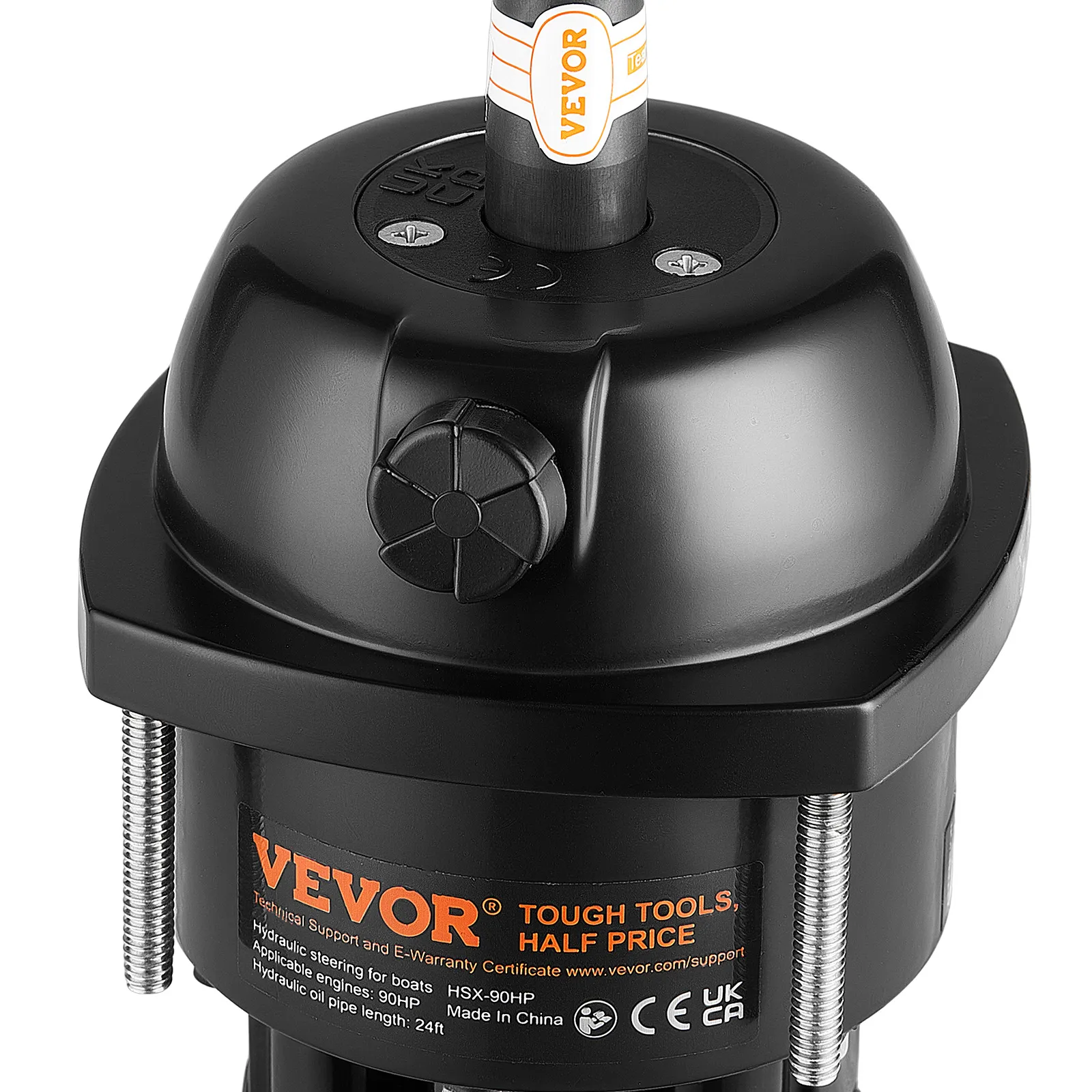

Compact Pump Body
Designed with a compact design, this hydraulic steering helm pump fits easily into tight helm station compartments.
