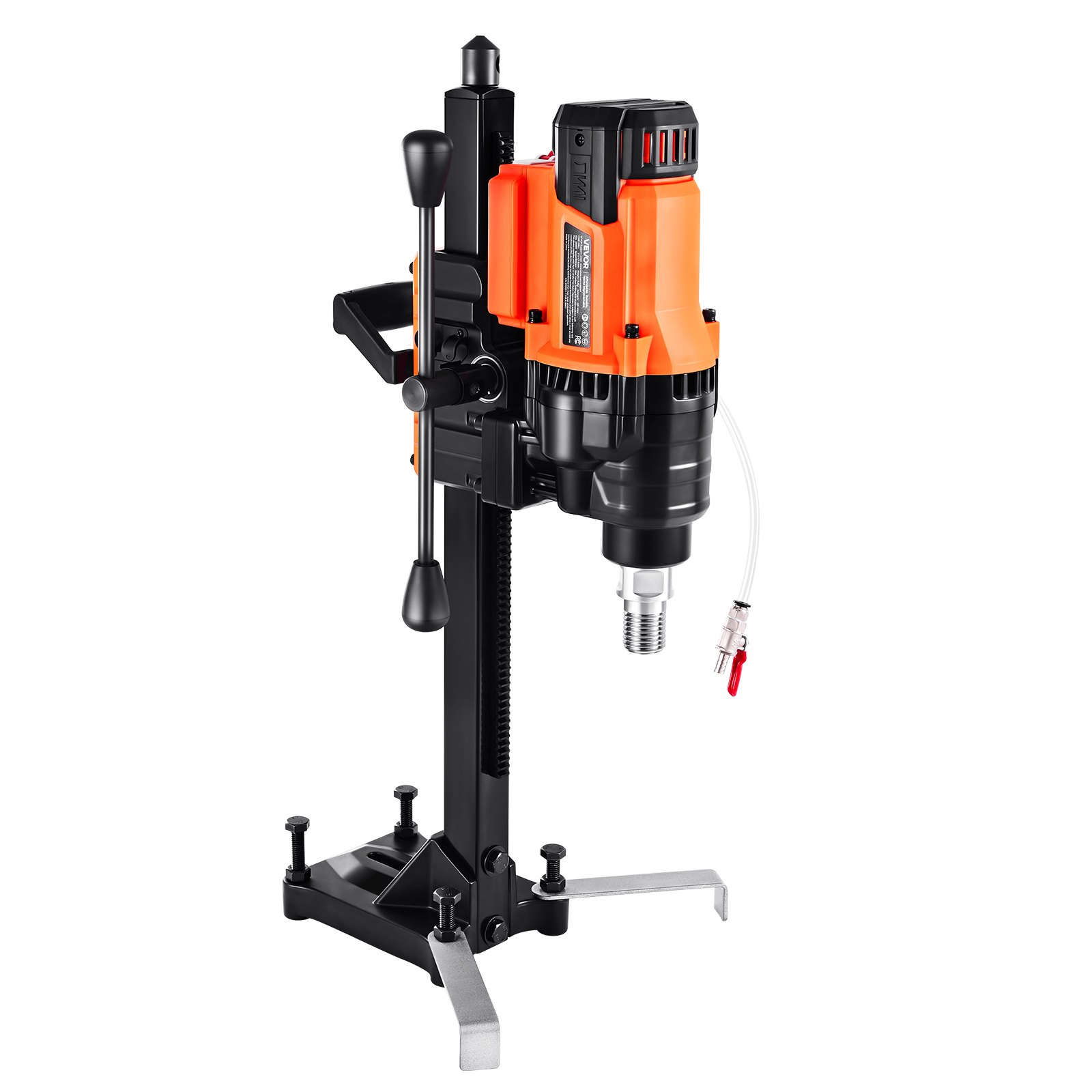

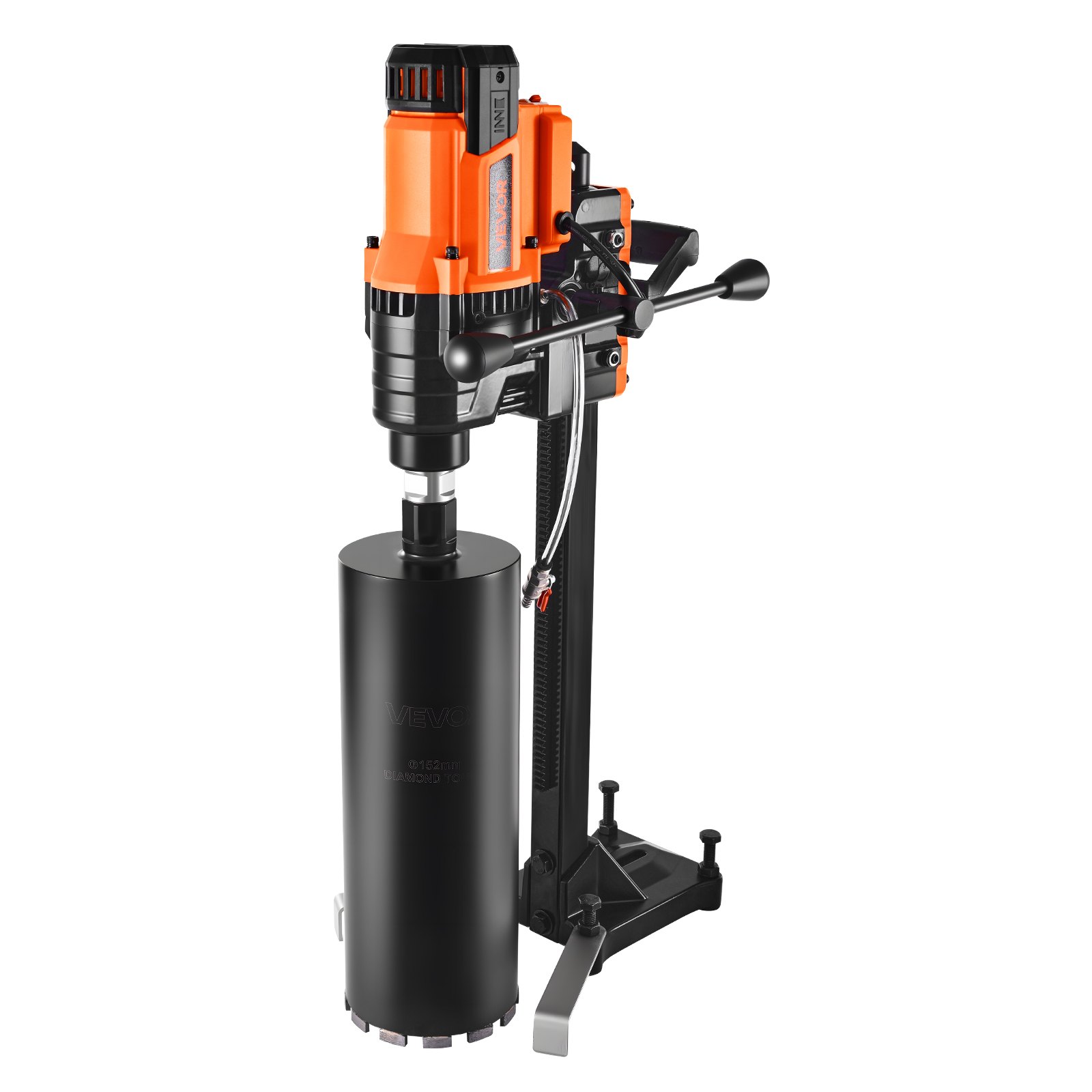

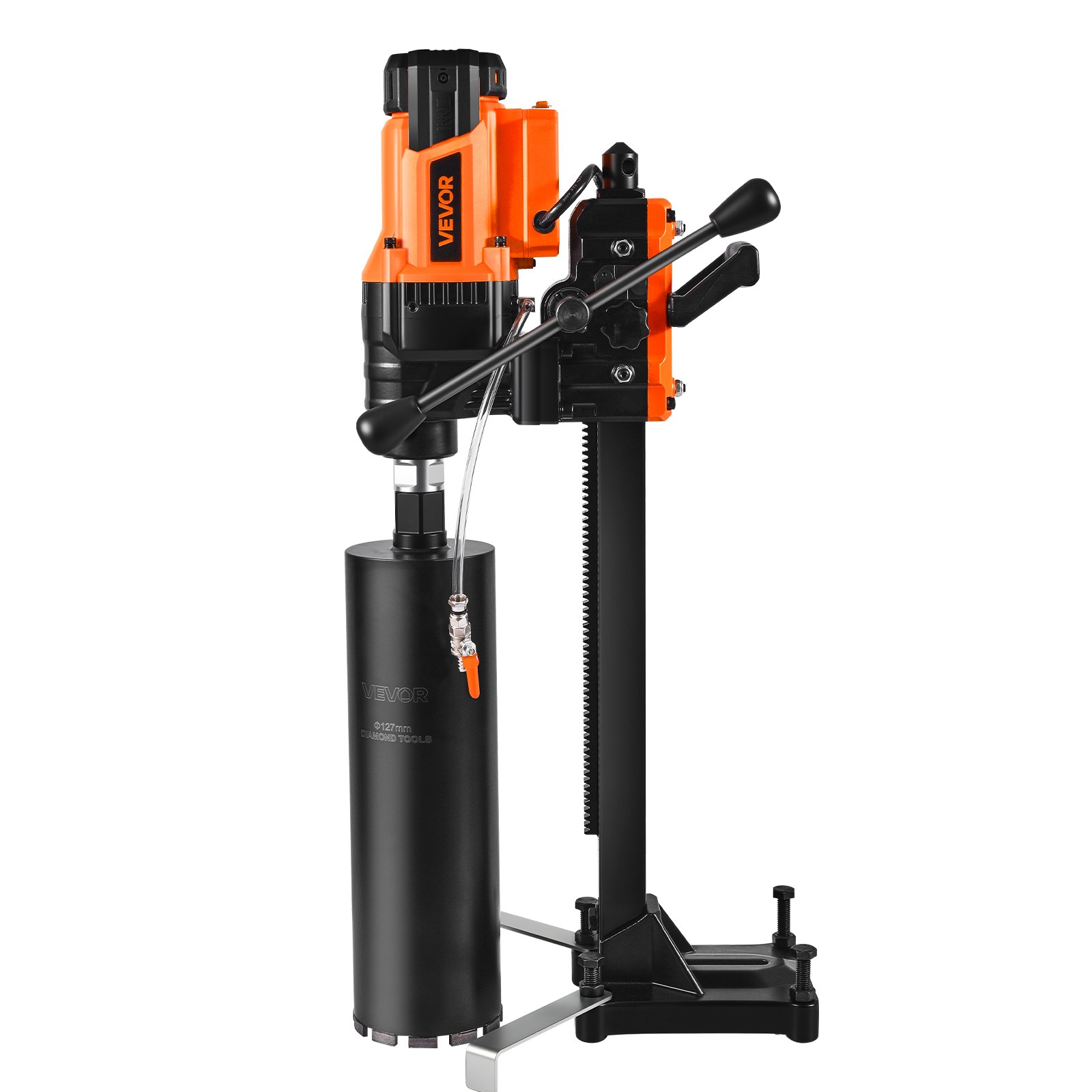

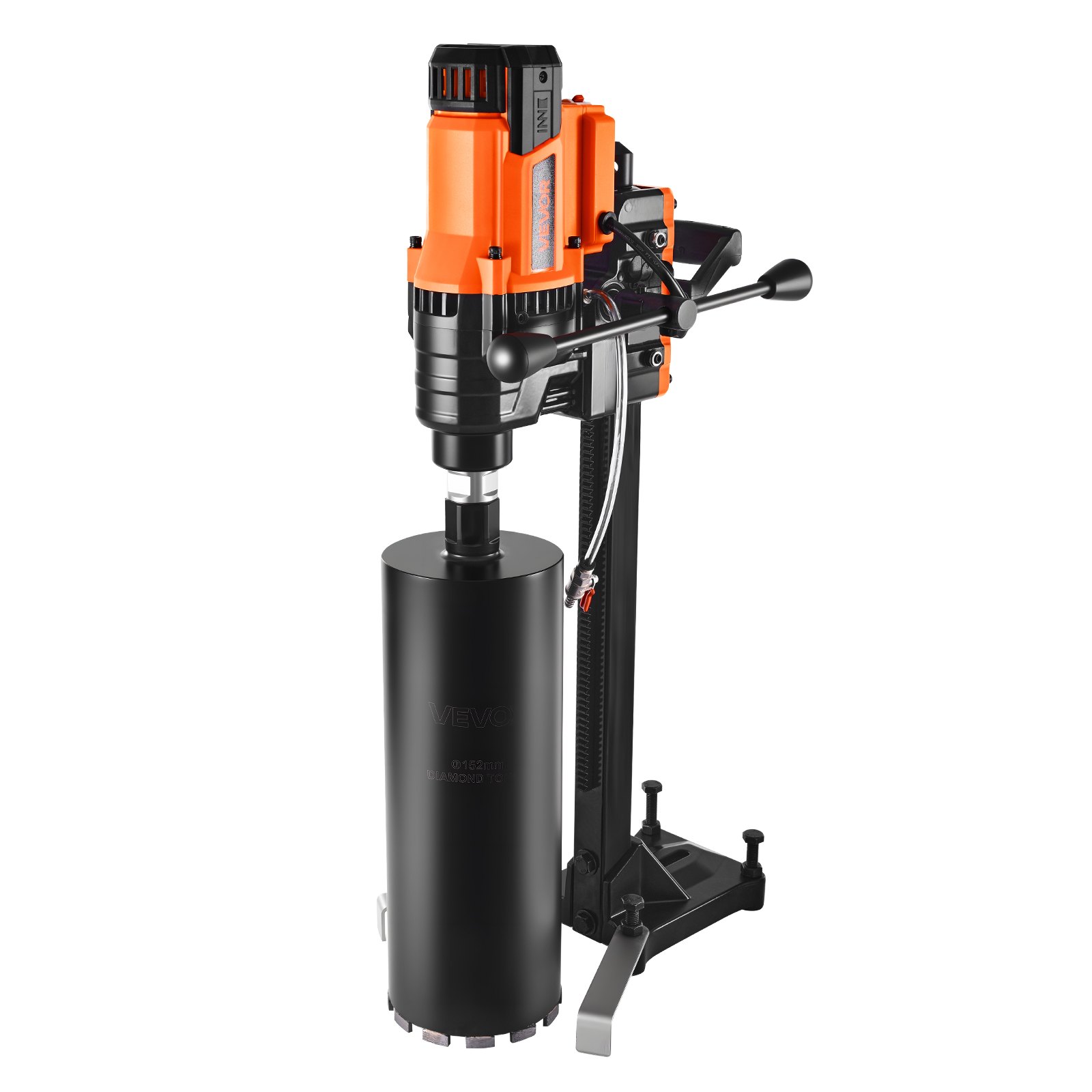

VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
+13
More
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W
VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W VEVOR Diamond Core Drilling Machine, 20-200 mm Drilling Diameter, Stand-Mount Dry and Wet Concrete Core Drill Rig with 8 Drill Bits, 850 RPM Speed, UNC1 1/4-7 Thread, for Concrete Brick Stone, 3000W

Features & Details

  • Powerful & Fast Drilling: This core drill is equipped with a robust 3000W motor and spins at 850 RPM, delivering fast, efficient drilling. It handles holes up to 8 in (200 mm) with a 1/4-7 in threaded output shaft—ideal for heavy-duty tasks

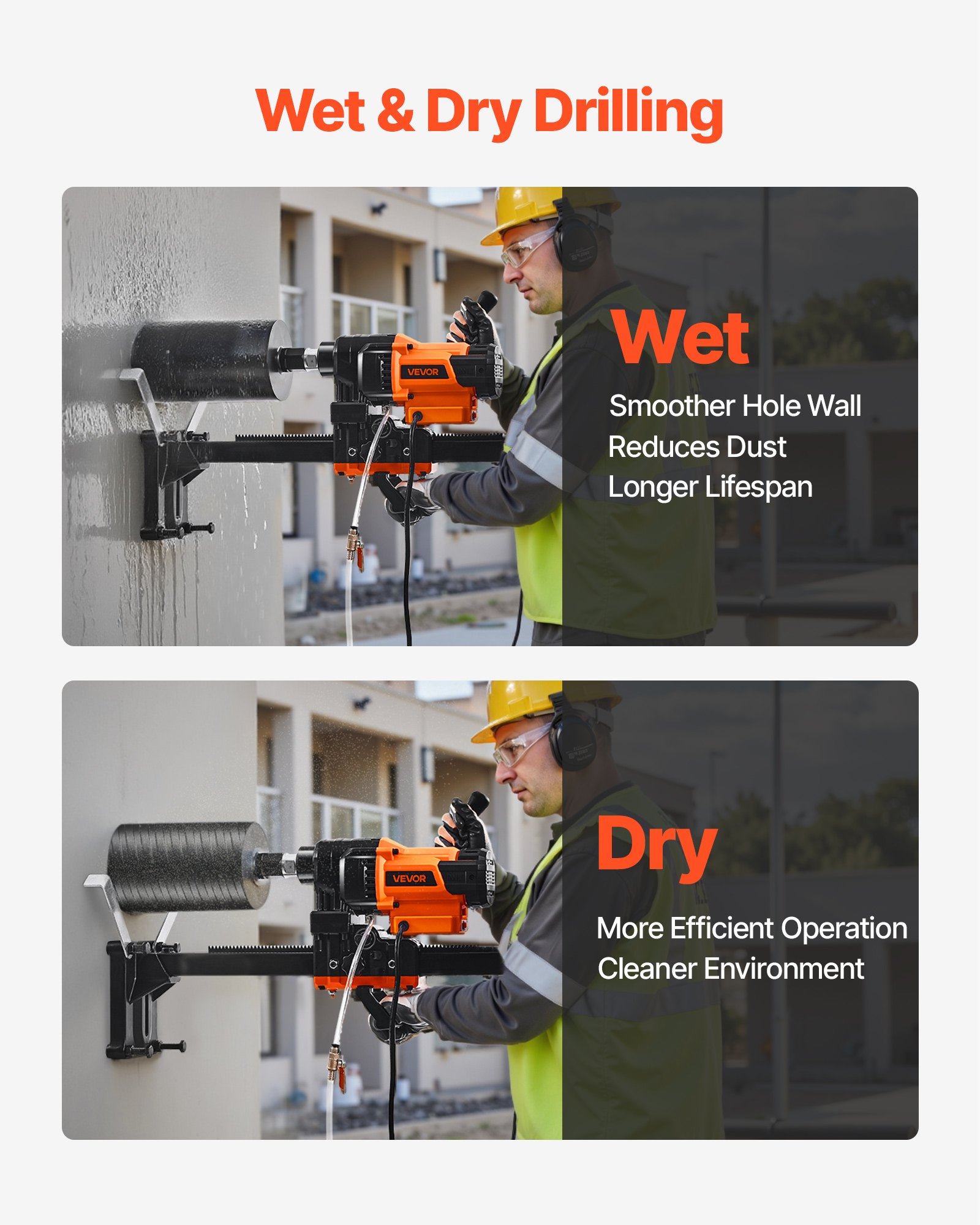

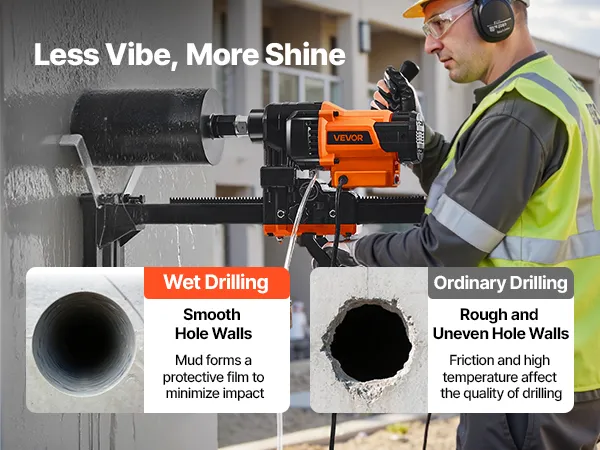

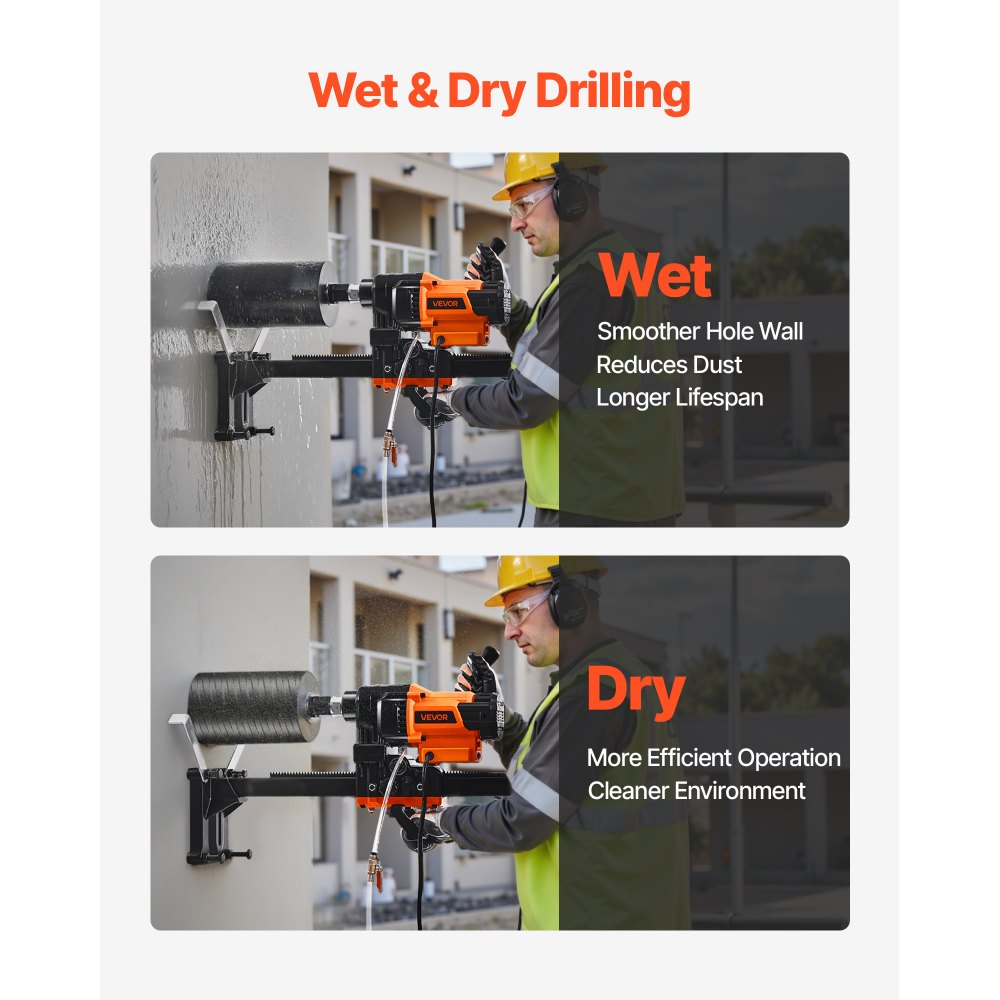

  • Superior Hole Quality: Our diamond core drilling machine features both wet and dry drilling. The wet drilling option flushes out debris and cools the bit with water, reducing dust and improving hole smoothness—great for indoor renovation work

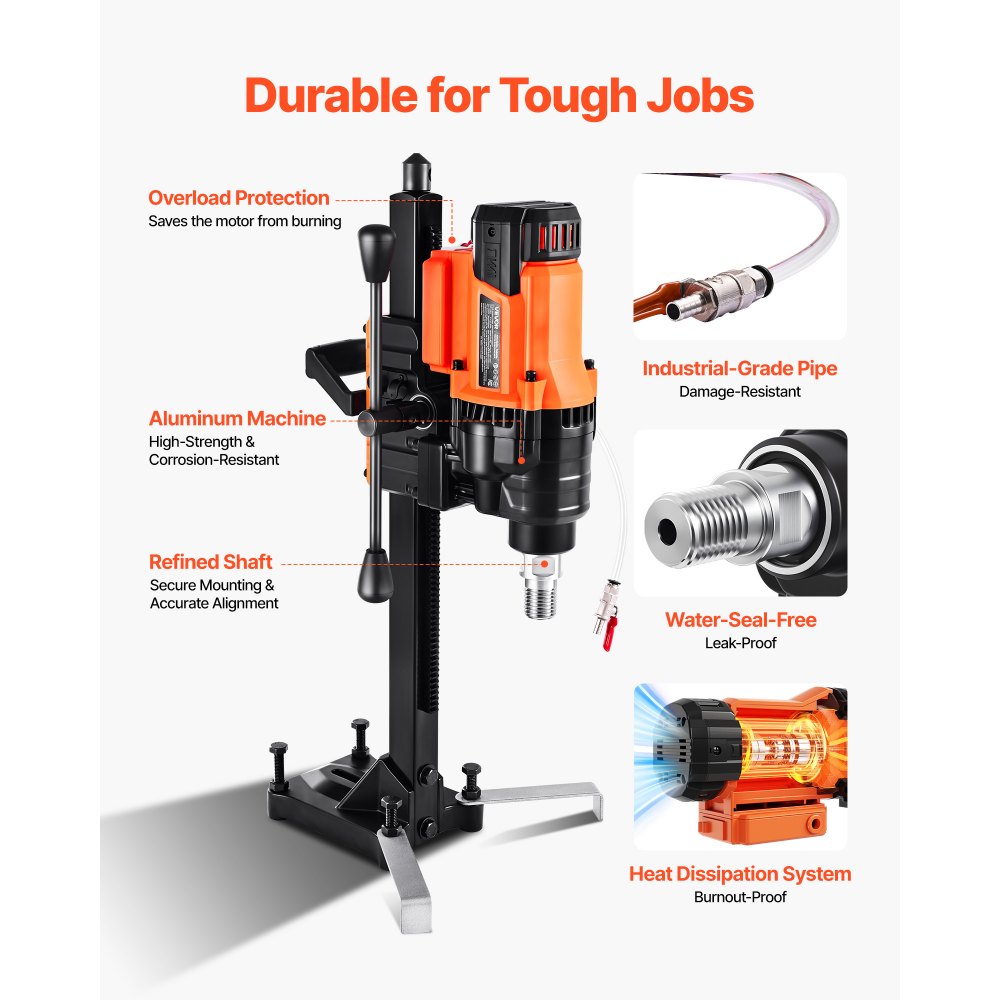

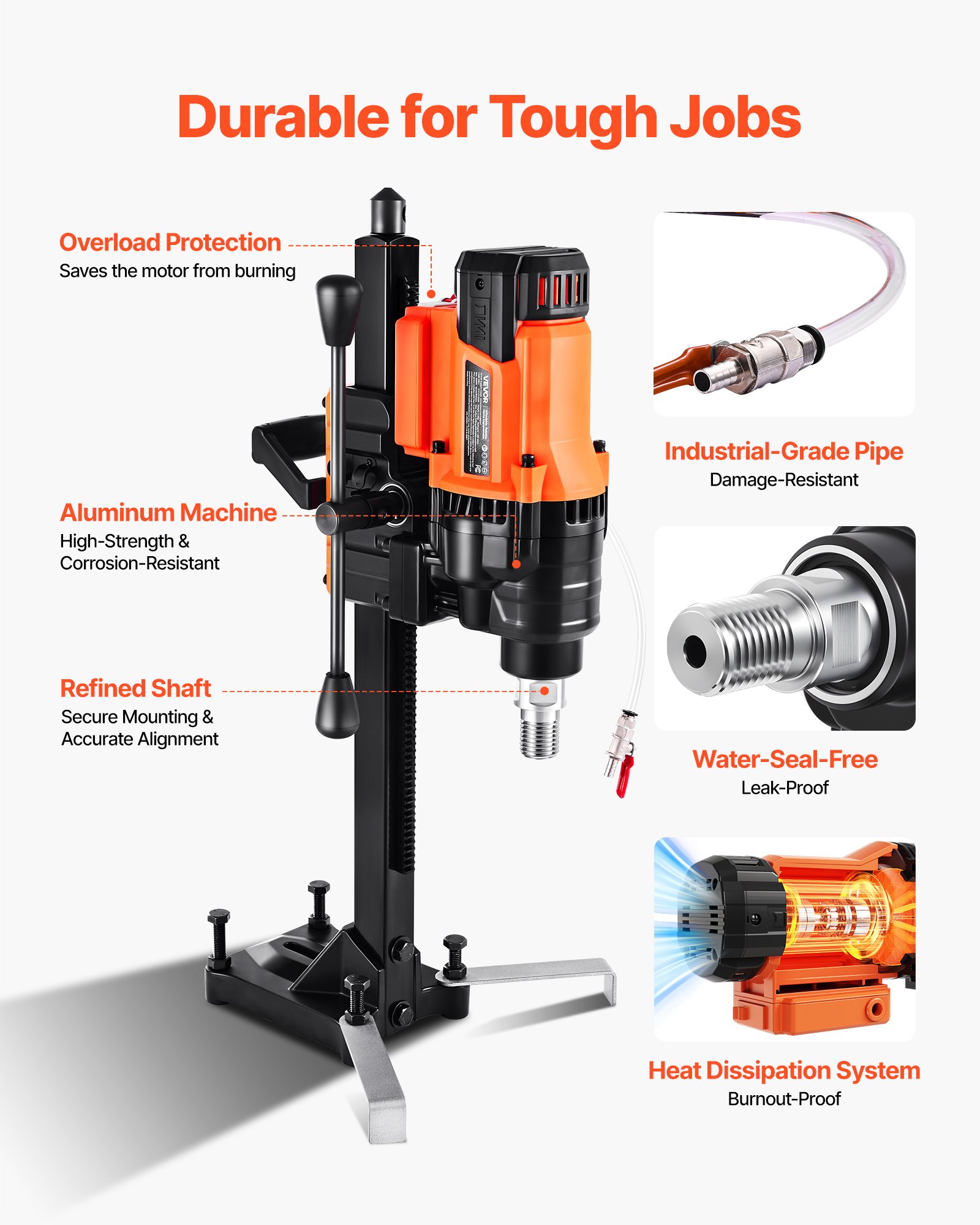

  • Enhanced Security & Stability: The built-in clutch automatically stops the drill when it hits hard resistance to save you and the core drill machine. Plus, the water-seal-free design avoids common water seal failures and keeps your workflow steady

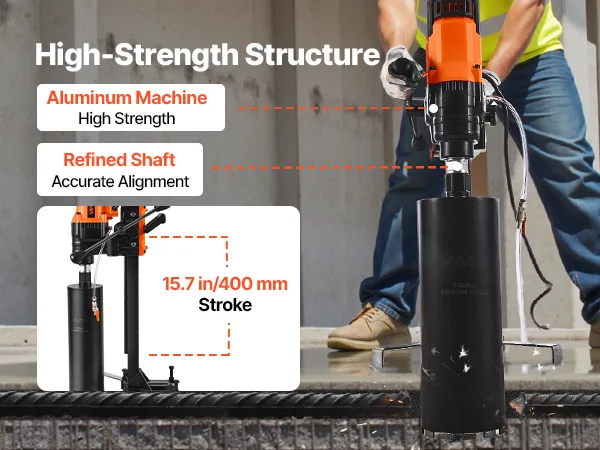

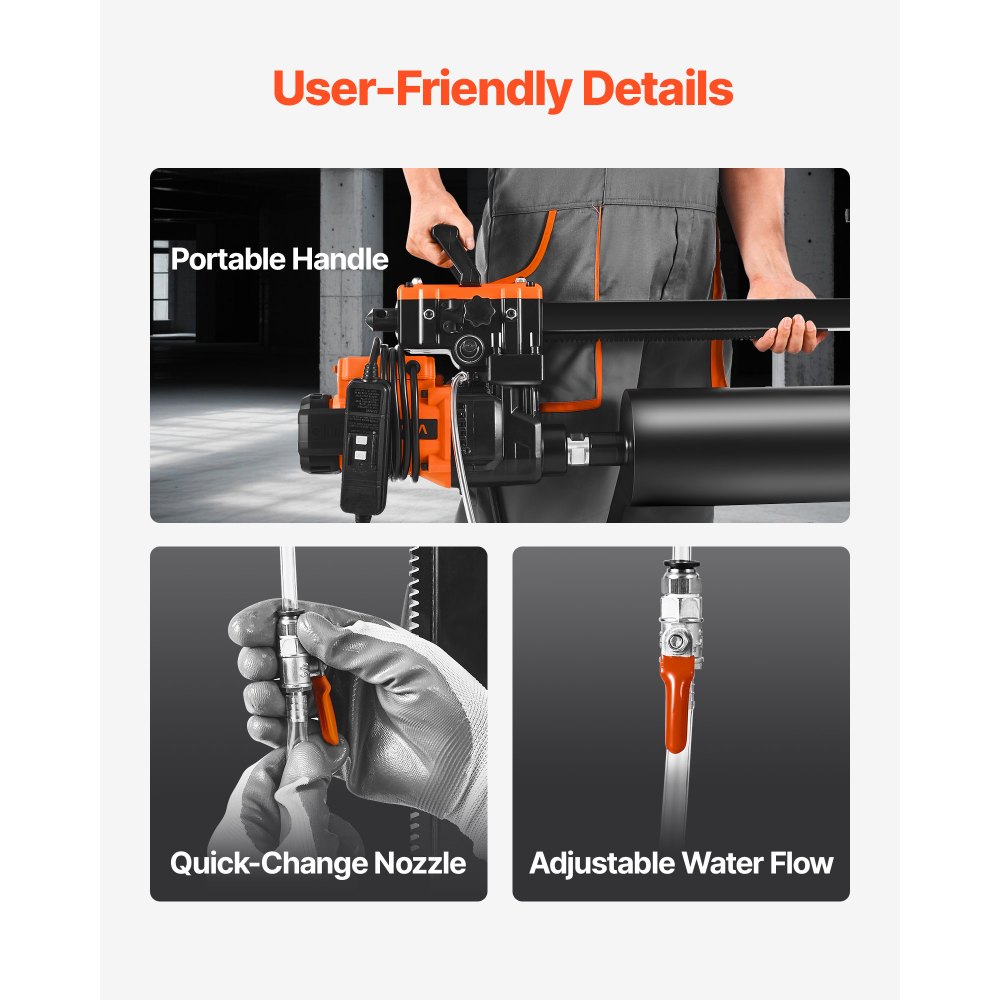

  • Built to Last: Crafted with a lightweight yet tough aluminum body, this core drill rig resists wear and tear while keeping fatigue low. The reinforced PVC water hose is crack-resistant, and the steel output shaft delivers consistent accuracy

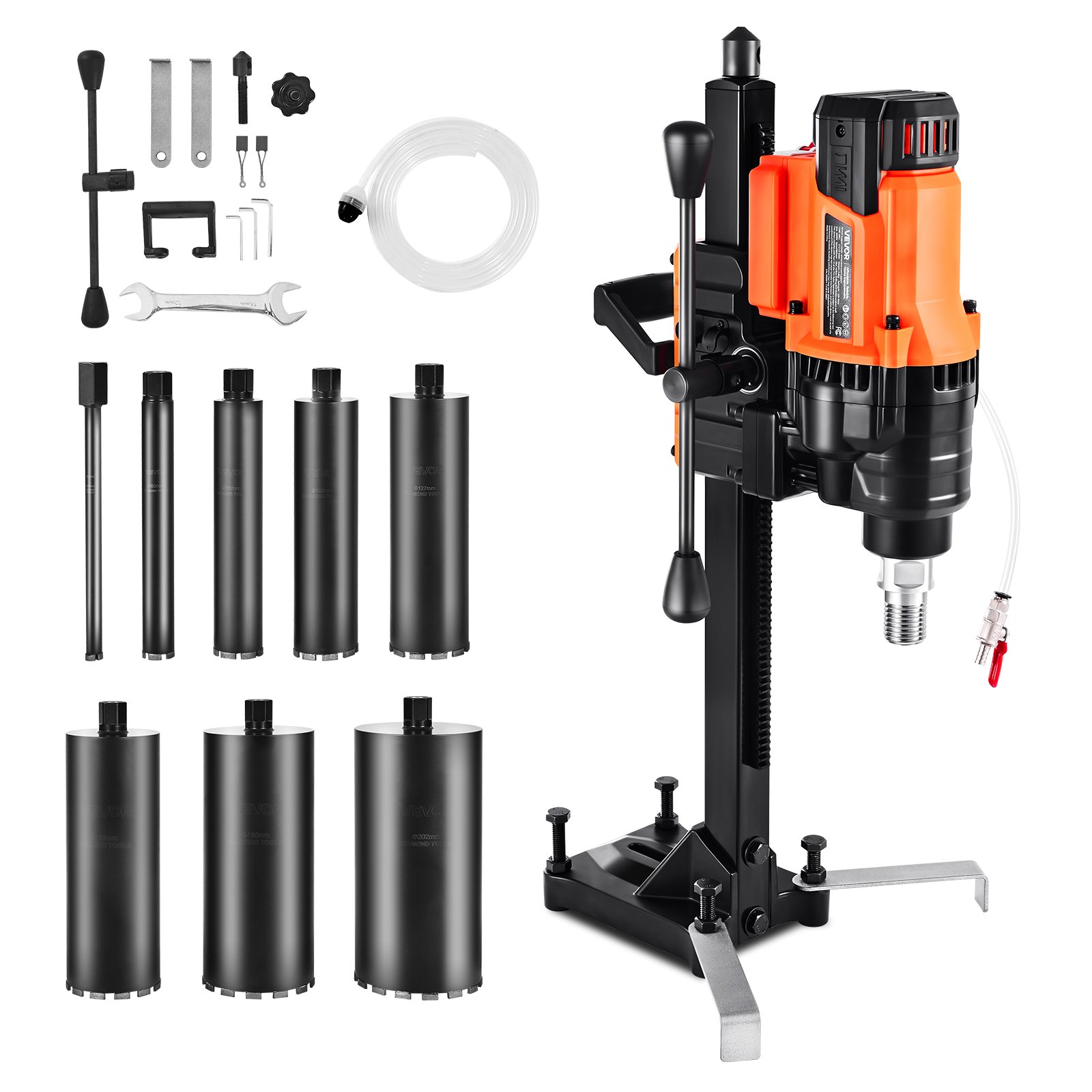

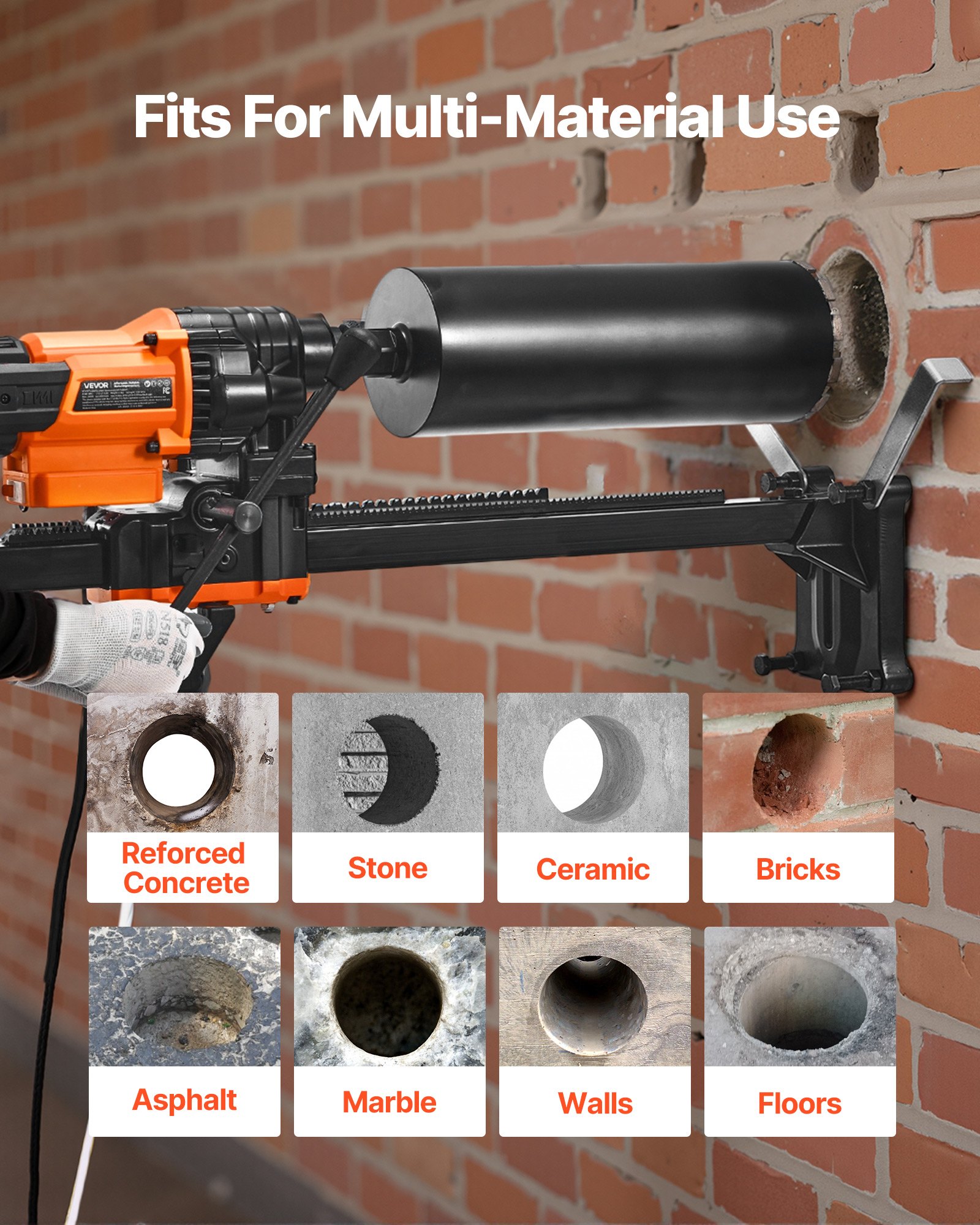

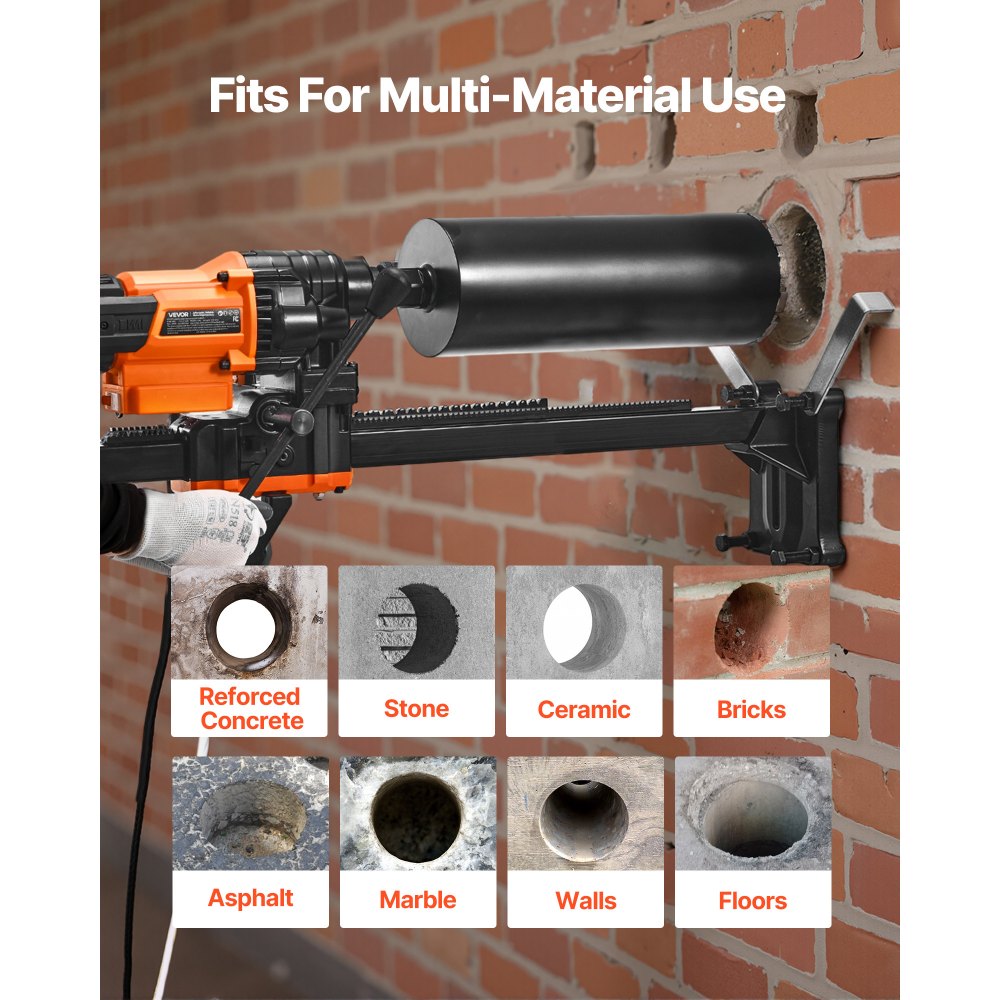

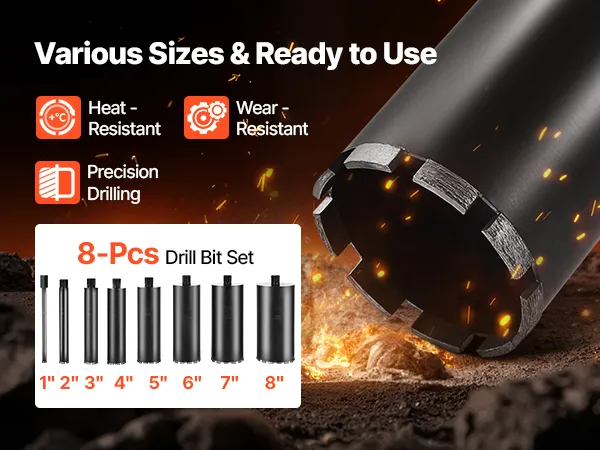

  • Professional Kit: Comes fully loaded. This concrete core drill includes eight premium drill bits (1 in, 2 in, 3 in, 4 in, 5 in, 6 in, 7 in, 8 in) that cut through reinforced concrete, brick, marble, and more. It is ideal for all your drilling needs

Frequently Bought Together

Reviews 4.7
All reviews are from verified purchases
Average rating based on 35 reviews

See all 35 reviews

About this item

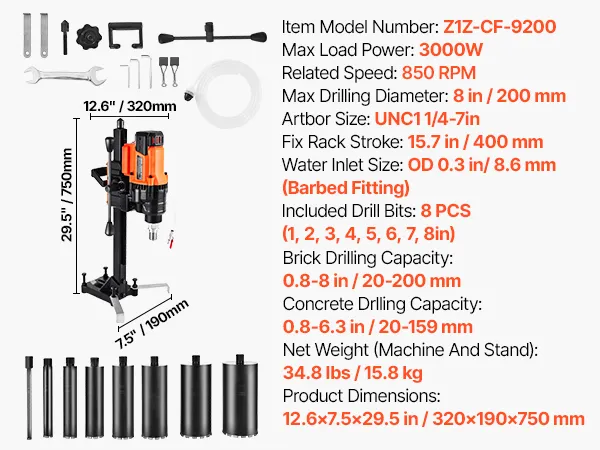

Product specification
Item Model Number
Z1Z-CF-9200
Type
Vertical Stand Type
No-Load Power
1700W
Max Load Power
3000W
No-Load Speed
850 RPM Fixed Speed
Stroke
15.7 in/400 mm
Max Drill Bit Diameter
Φ7.9 in/200 mm
Output Shaft Size
UNC1 1/4-7 External Thread
Water Inlet Size
Barbed Fitting, OD 0.3 in/8.6 mm
Included Drill Bits
8 Pieces
Brick Drilling Capacity
0.8-8 in/20-200 mm
Concrete Drilling Capacity
0.8-6.3 in/20-159 mm
Net Weight (Machine Only)
34.8 lbs/15.8 kg (With Stand)
Net Weight (Including Accessories)
97.9 lbs/44.4 kg
Product Dimensions (L x W x H)
12.6 x 7.5 x 29.5 in/320 x 190 x 750 mm
Description
Core Drill Power You Can Trust – Drill Deeper, Faster, Smarter
This core drill packs a punch with its 3000W motor, delivering up to 850 RPM for fast and efficient drilling. With a max drilling diameter of 8 in (200 mm), it's ready to handle large-scale jobs with ease.
Key Features

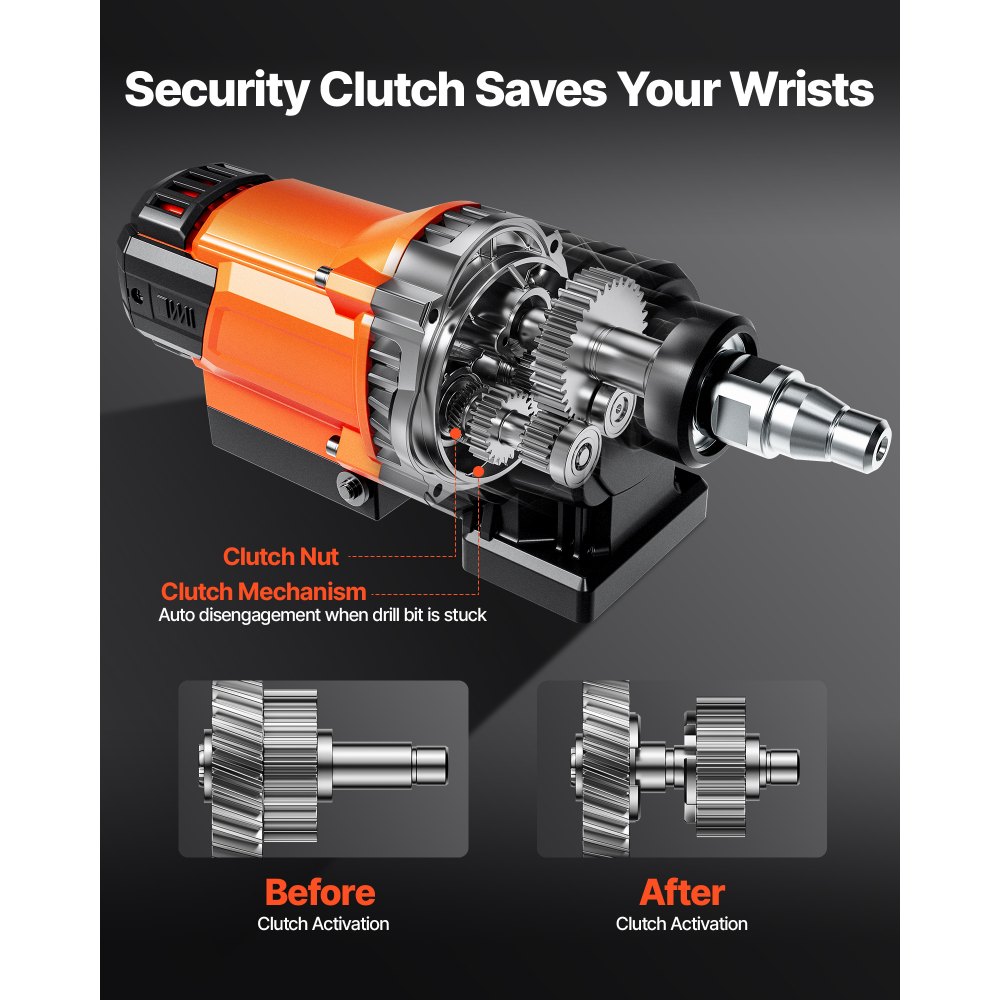

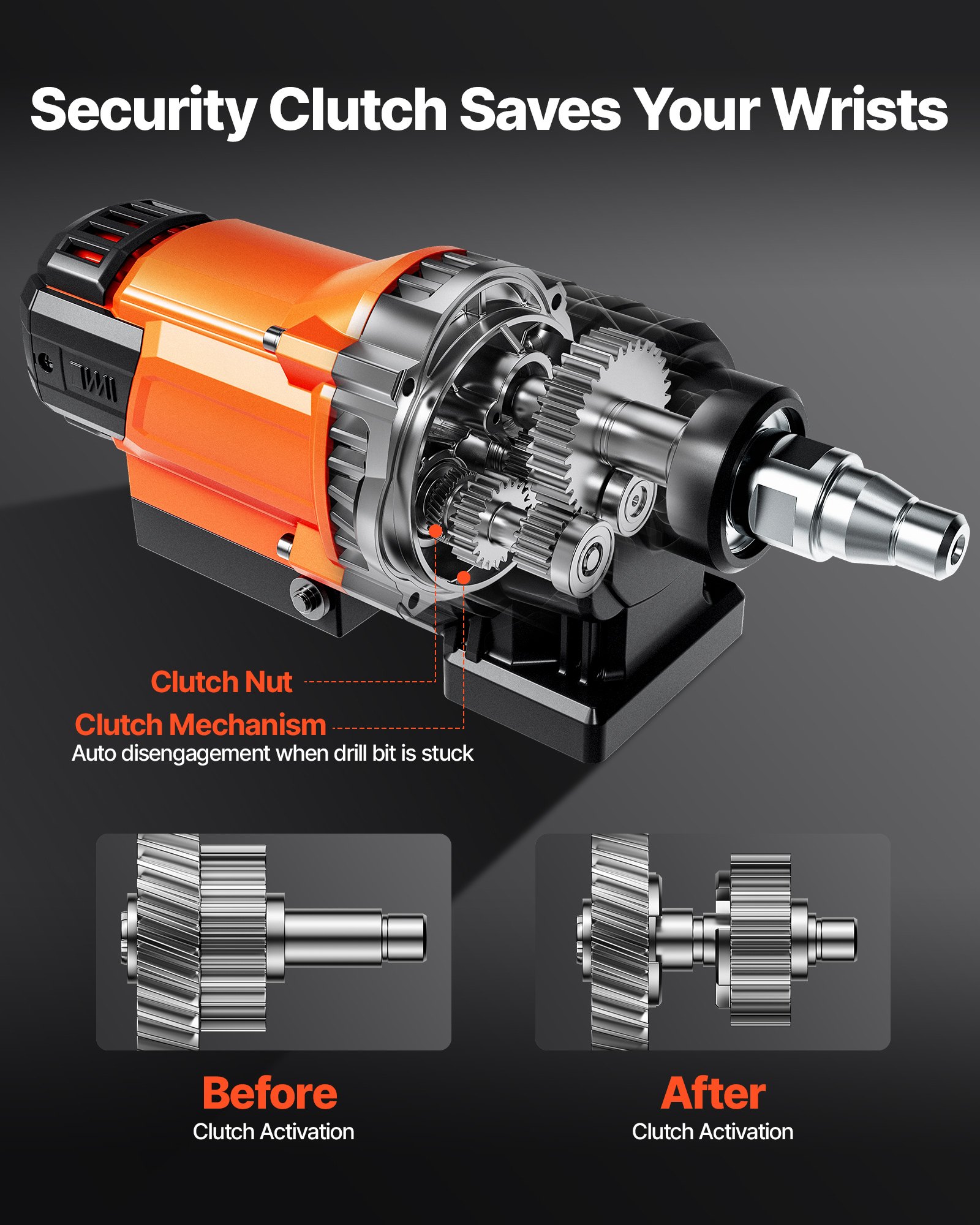

Security Clutch
Stay protected while you work. The core drill's built-in security clutch disengages automatically when the bit jams, reducing kickback and helping avoid wrist injuries.
Overload Protection Device
Work with confidence. The diamond core drilling machine automatically shuts off when overloaded to avoid motor burnout, keeping your equipment safe and long-lasting.
Efficient Heat Dissipation
An internal cooling fan keeps things running smoothly—even during extended, high-powered use. Your core drill machine stays cool, and your workflow stays uninterrupted.
