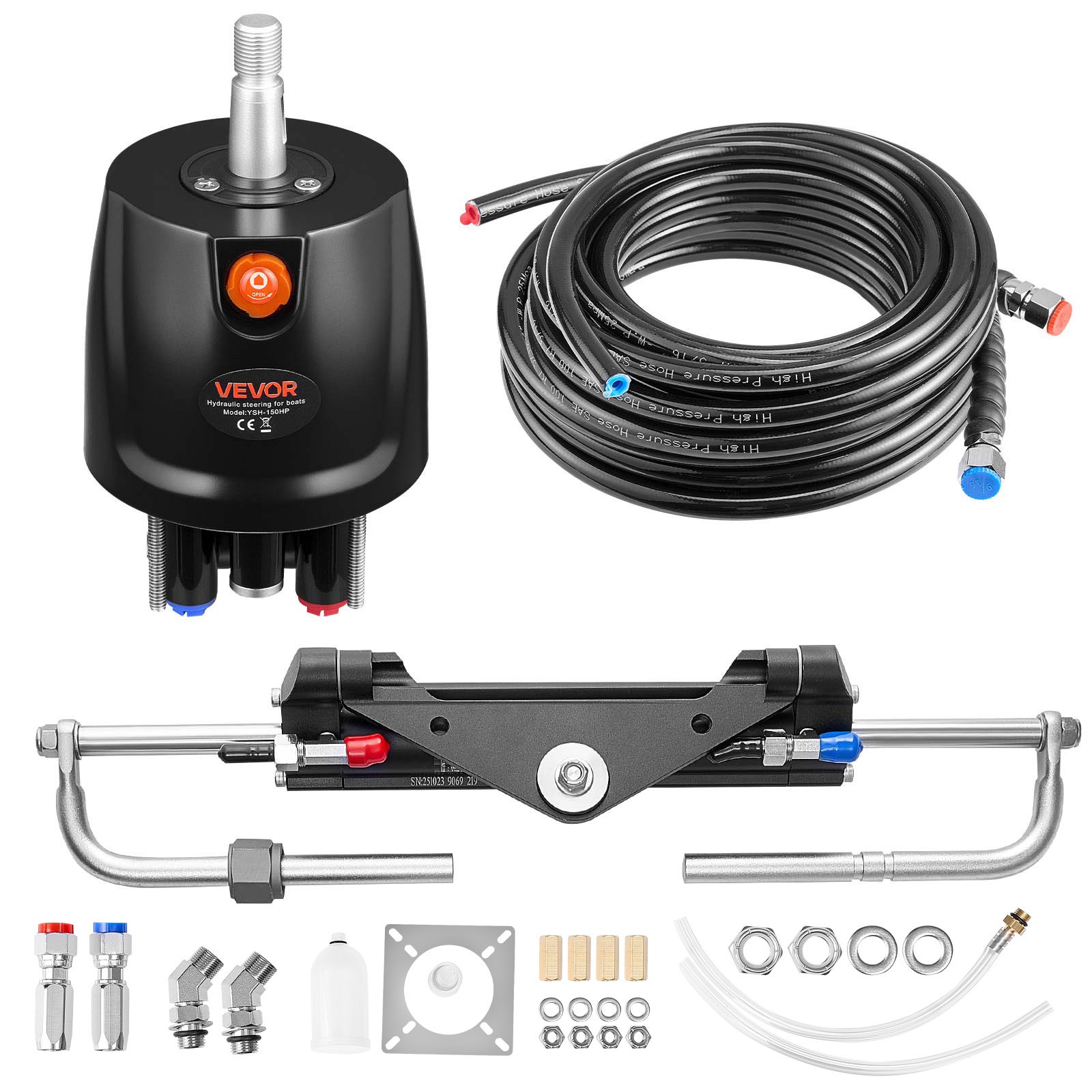

VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
+12
More
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use
VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use

VEVOR Hydraulic Steering Kit, 150 HP, Marine Boat Hydraulic Steering System, with 6.9 MPa/1000 psi Helm Pump, Two-Way Lock Cylinder, and 7.32m High-Strength Hoses, for Single Station Single-Engine Use

0 0 Reviews
AU $ 565 90
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+. Shop
Get -% off for new user
Get AU $5.00 Off AU $99.00+ Orders on Your First 3 App Orders.
Download Now

Features & Details

  • Handle Up to 150 HP Engines: This hydraulic steering kit delivers steady, efficient steering performance for outboards up to 150 HP, providing a 5.5 turns lock-to-lock for precise and responsive handling on every trip

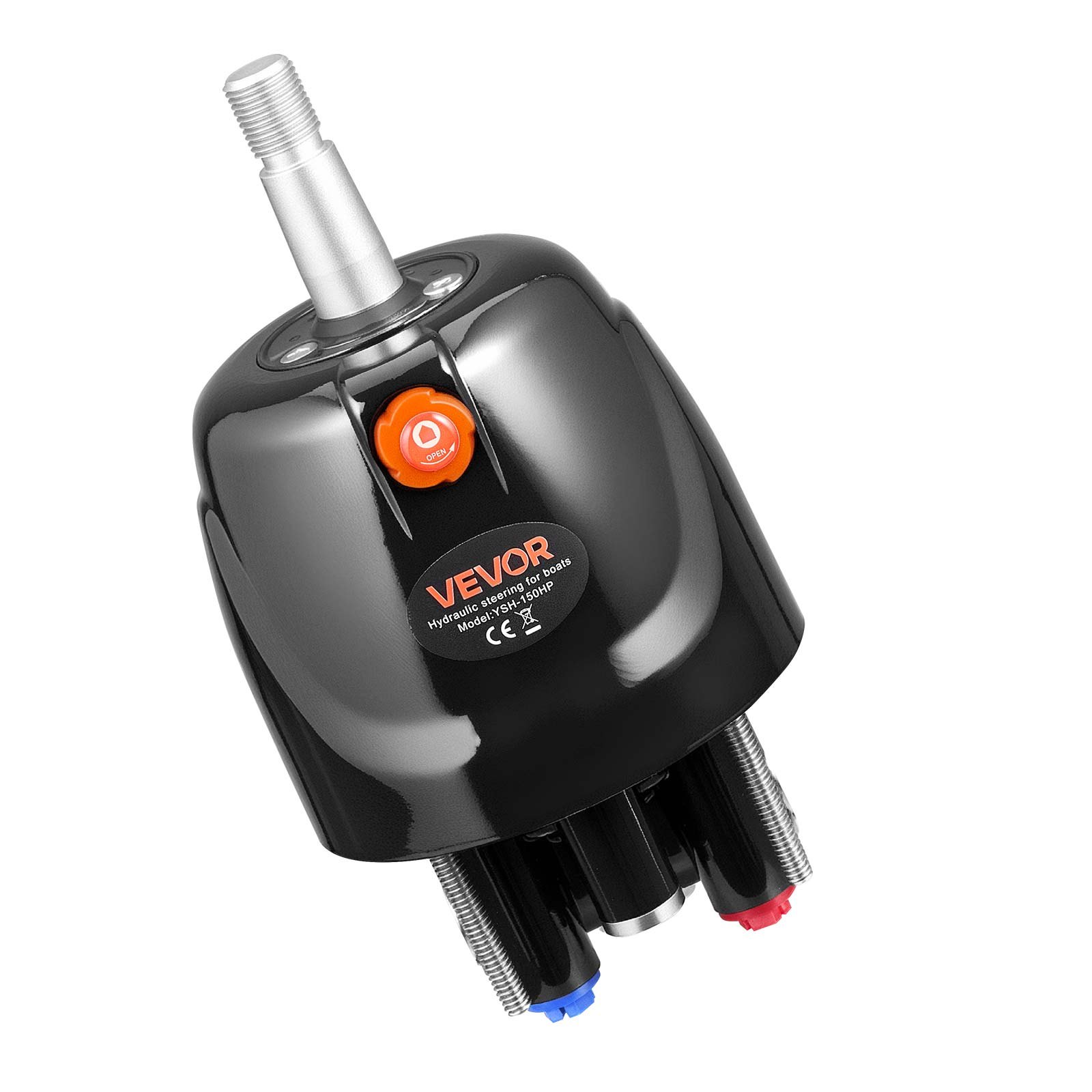

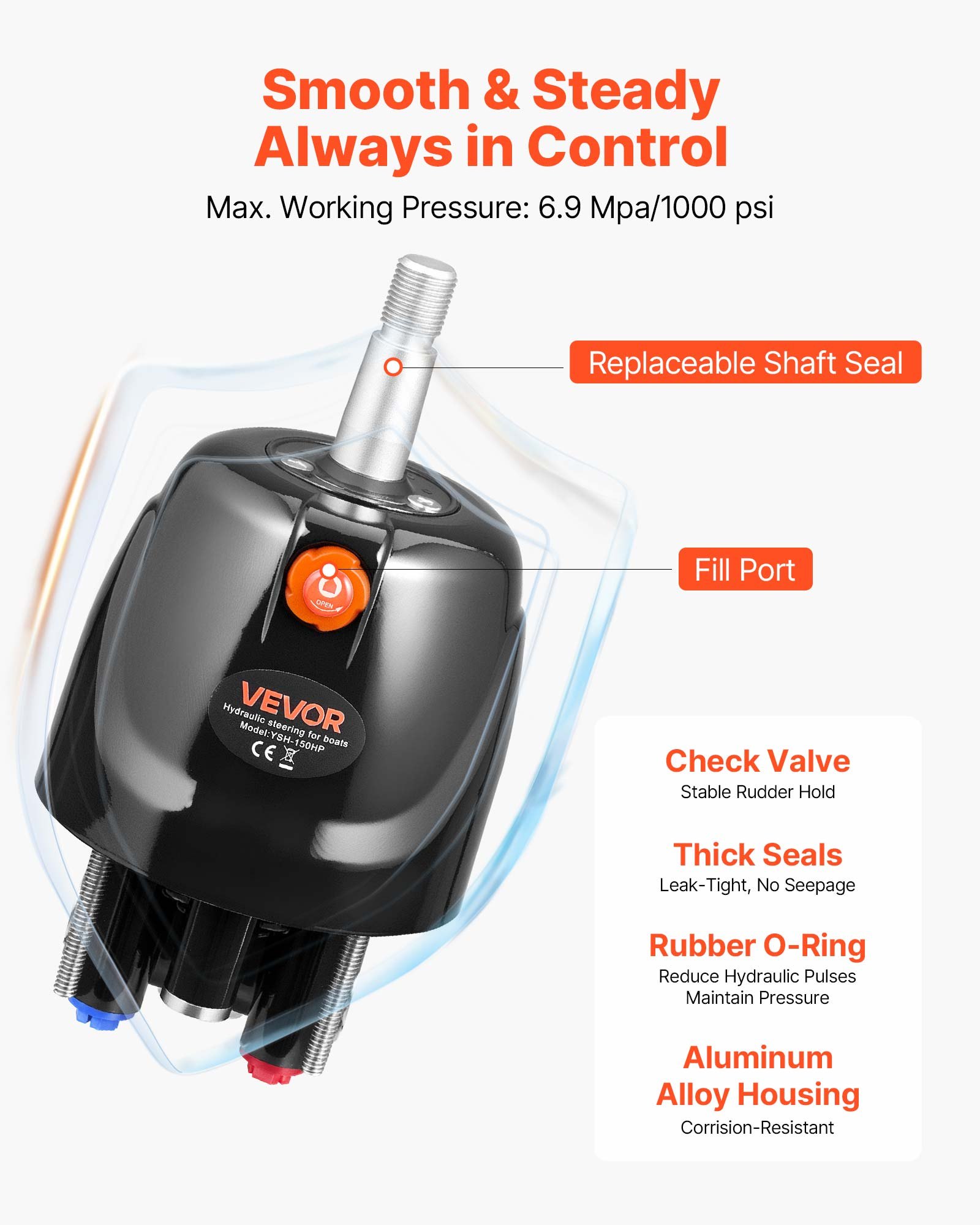

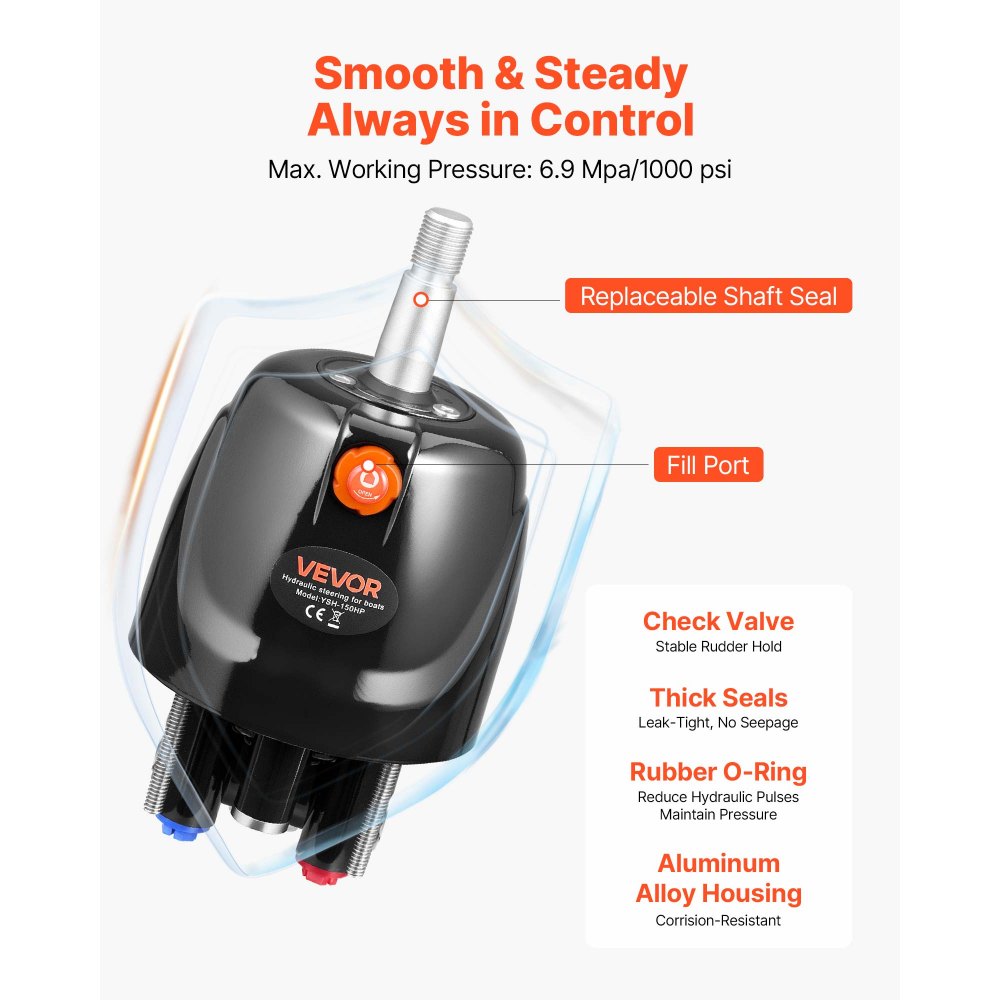

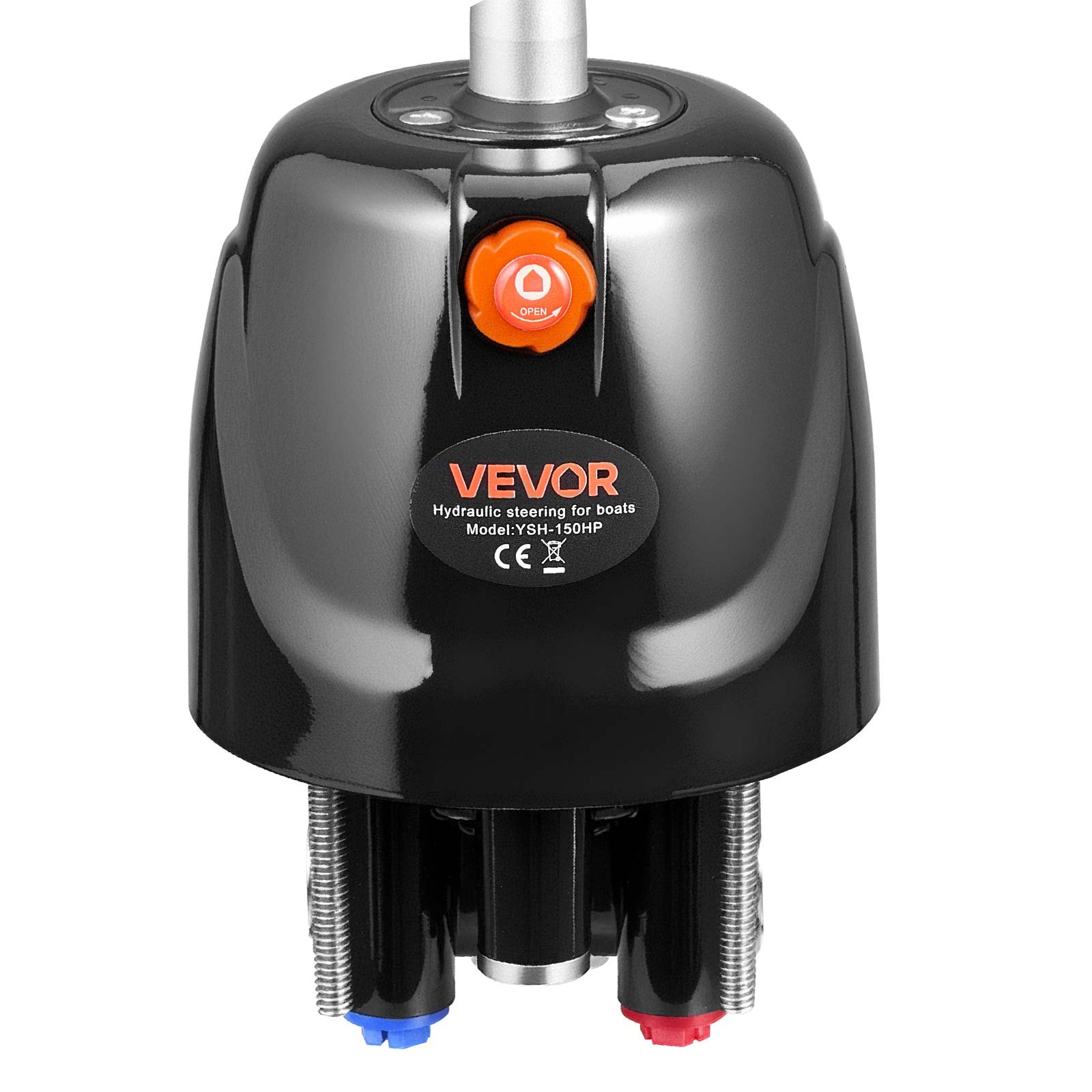

  • Durable & Reliable Helm Pump: Built to handle 6.9 MPa/1000 psi, this marine hydraulic steering kit features a check valve, fill port, stainless steel ORB fittings, and a replaceable shaft seal. The aluminum alloy housing ensures long-term use

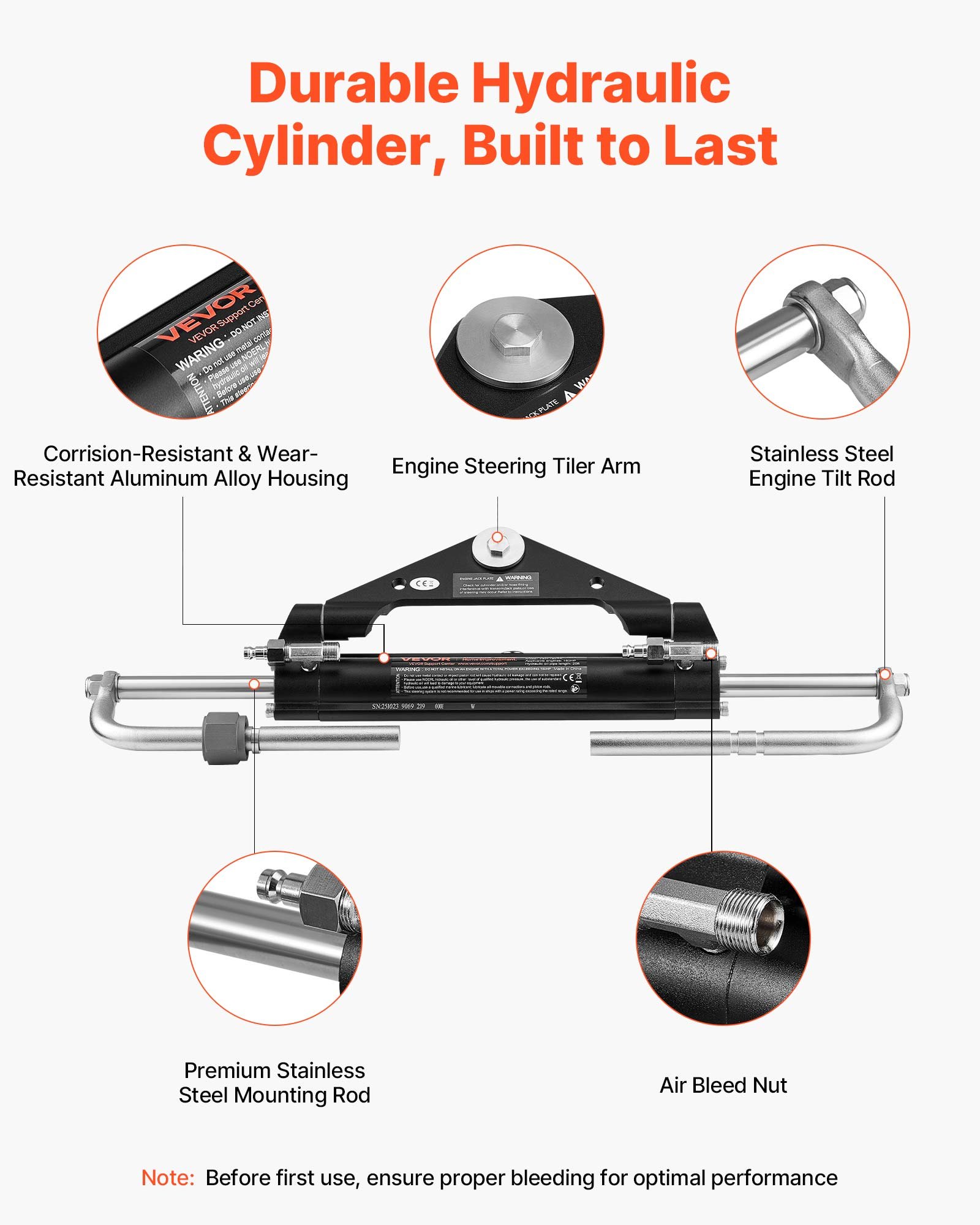

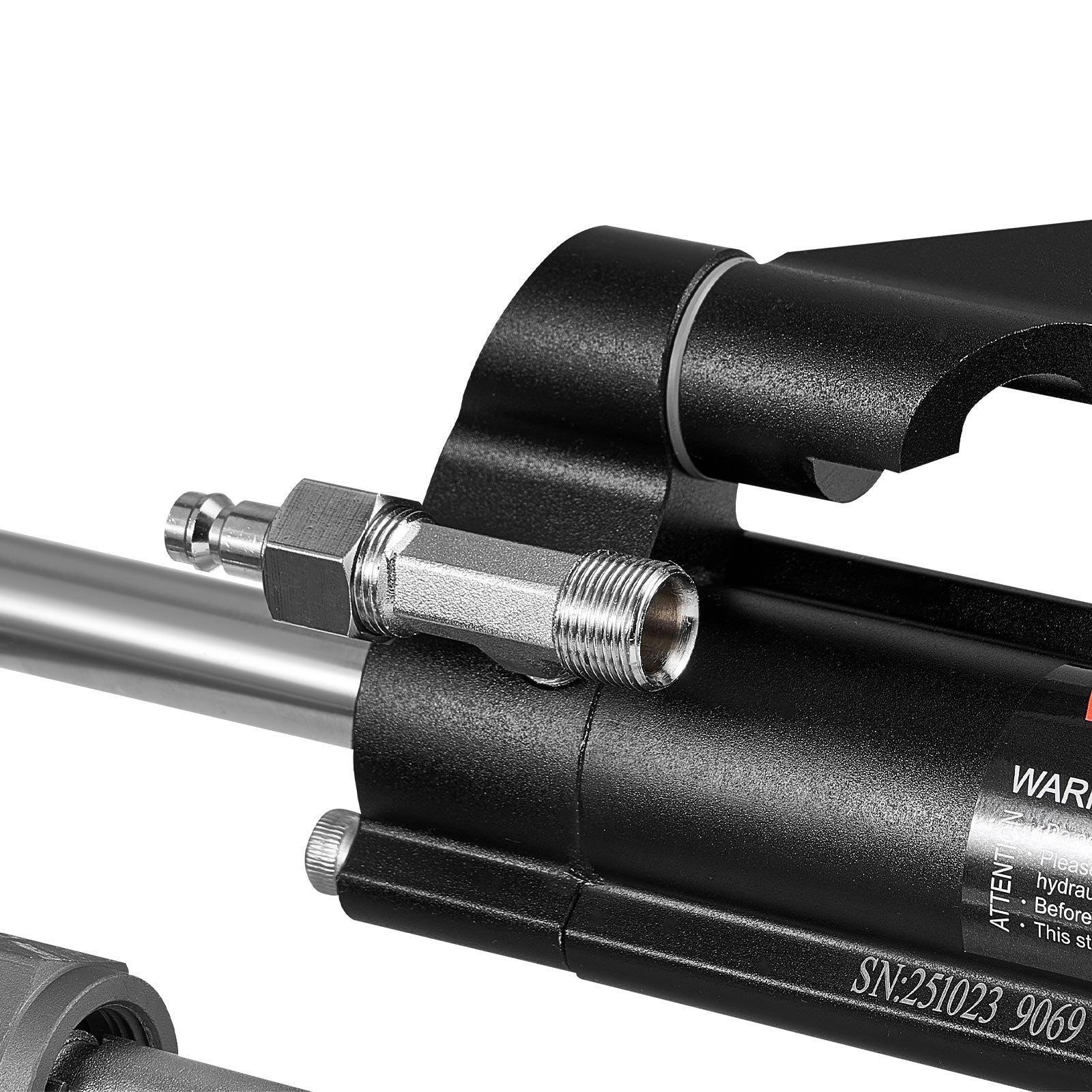

  • Compact Hydraulic Cylinder: The boat hydraulic steering system includes a space-saving cylinder that fits a variety of boat types. Its reinforced sealing structure ensures smooth steering performance and durability even in rough marine conditions

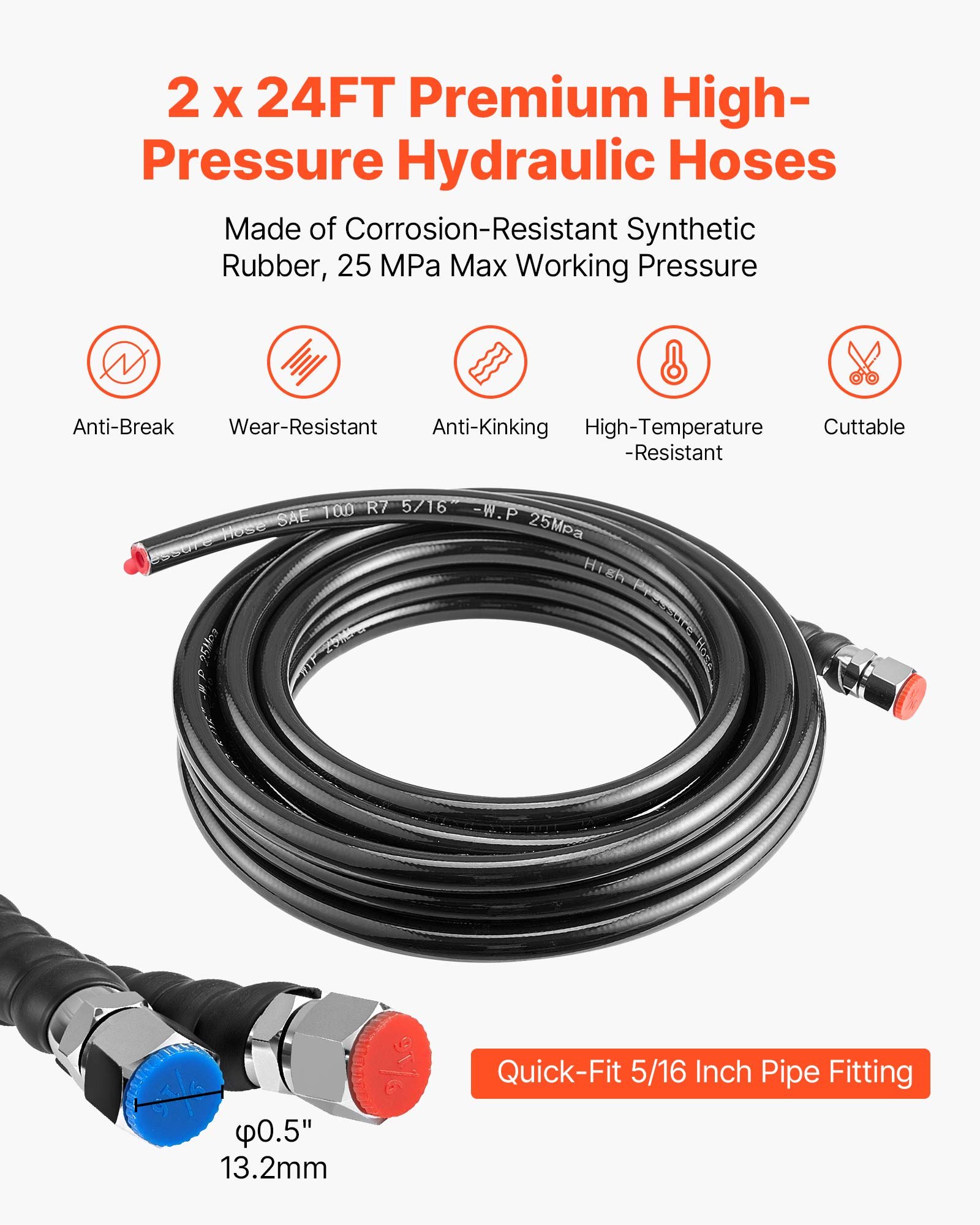

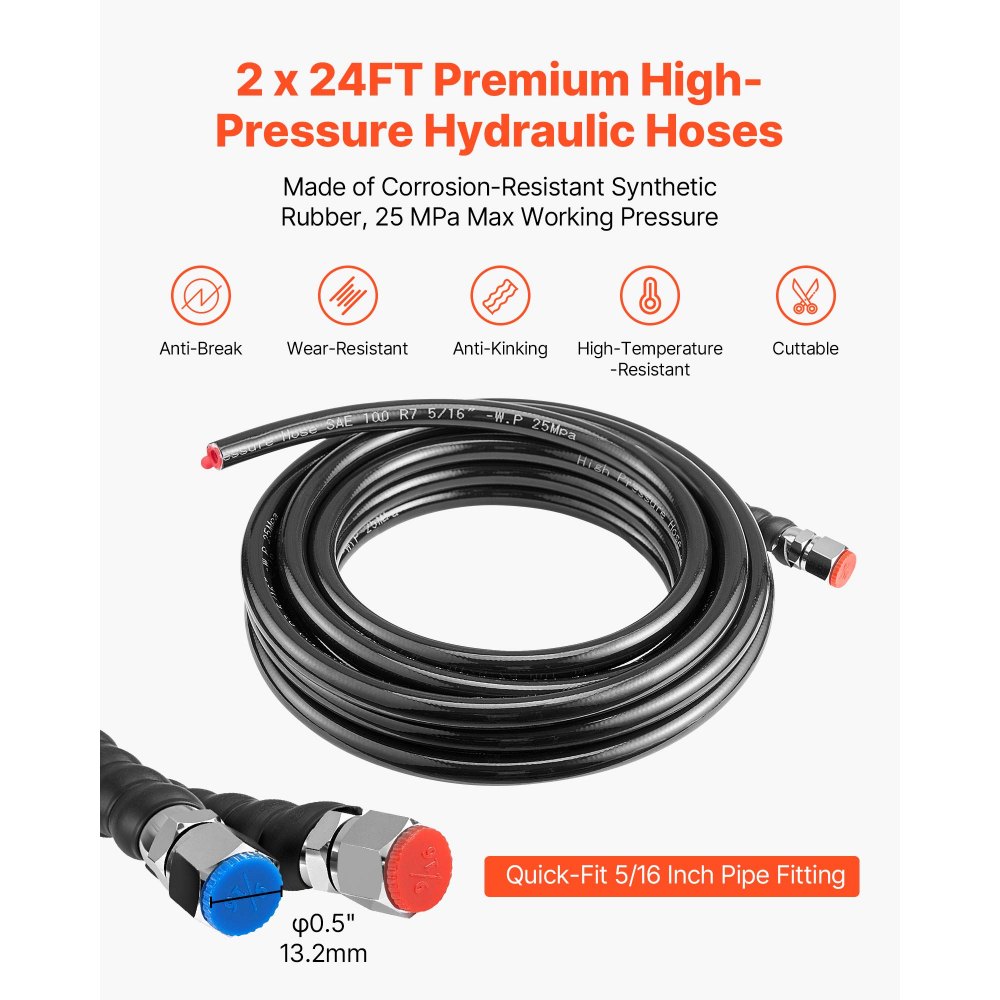

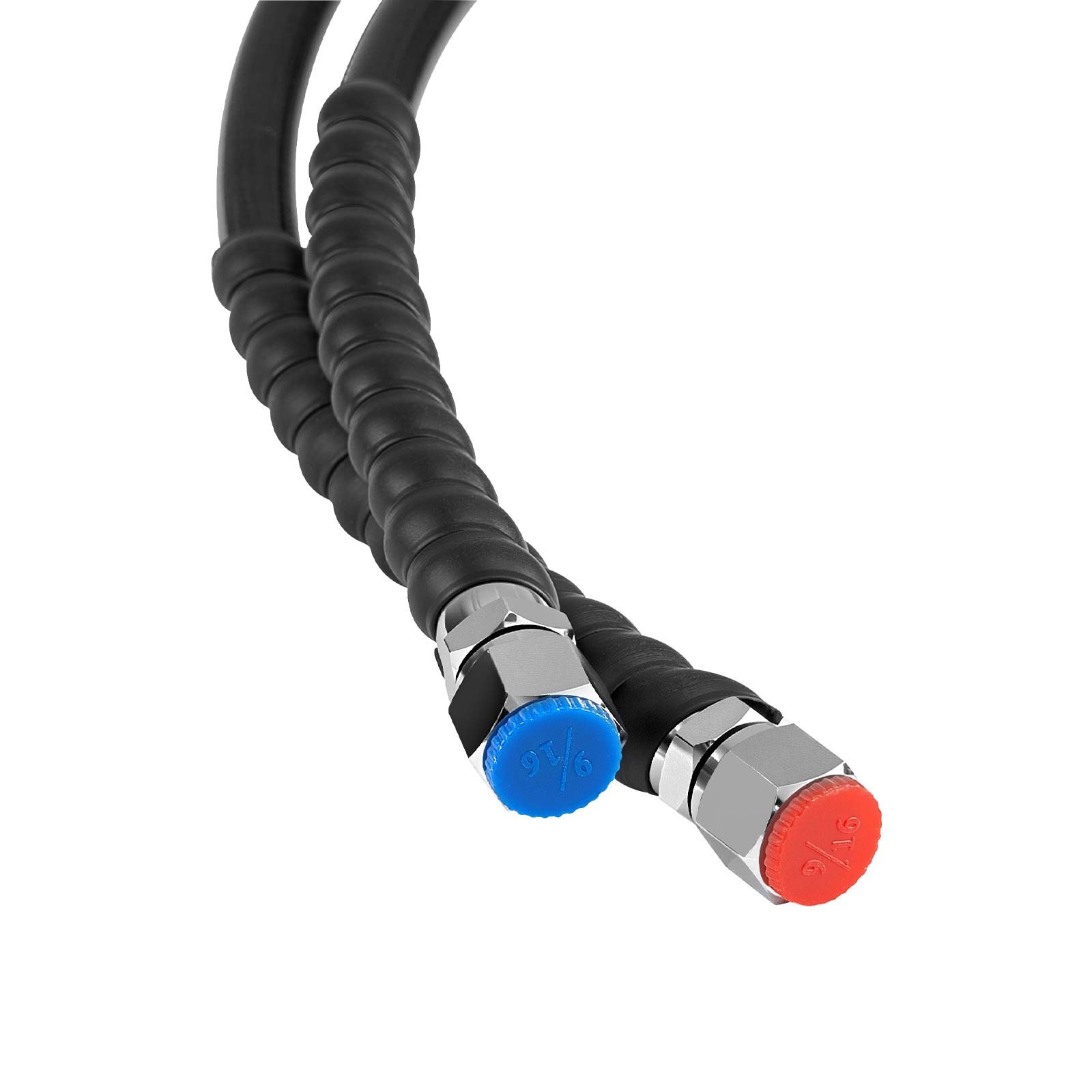

  • 2 x 24FT High-Strength Hoses: With a max working pressure of 25MPa, these premium hoses resist bursting, kinking, and leaking under heavy load. Equipped with a quick-fit 5/16-inch fitting, allowing for flexible, fast installation across various boats
  • Wide Boat Compatibility: This hydraulic steering helm pump kit works with cruisers, center consoles, speedboats, and offshore fishing boats, making it a versatile choice for a wide range of outboard setups

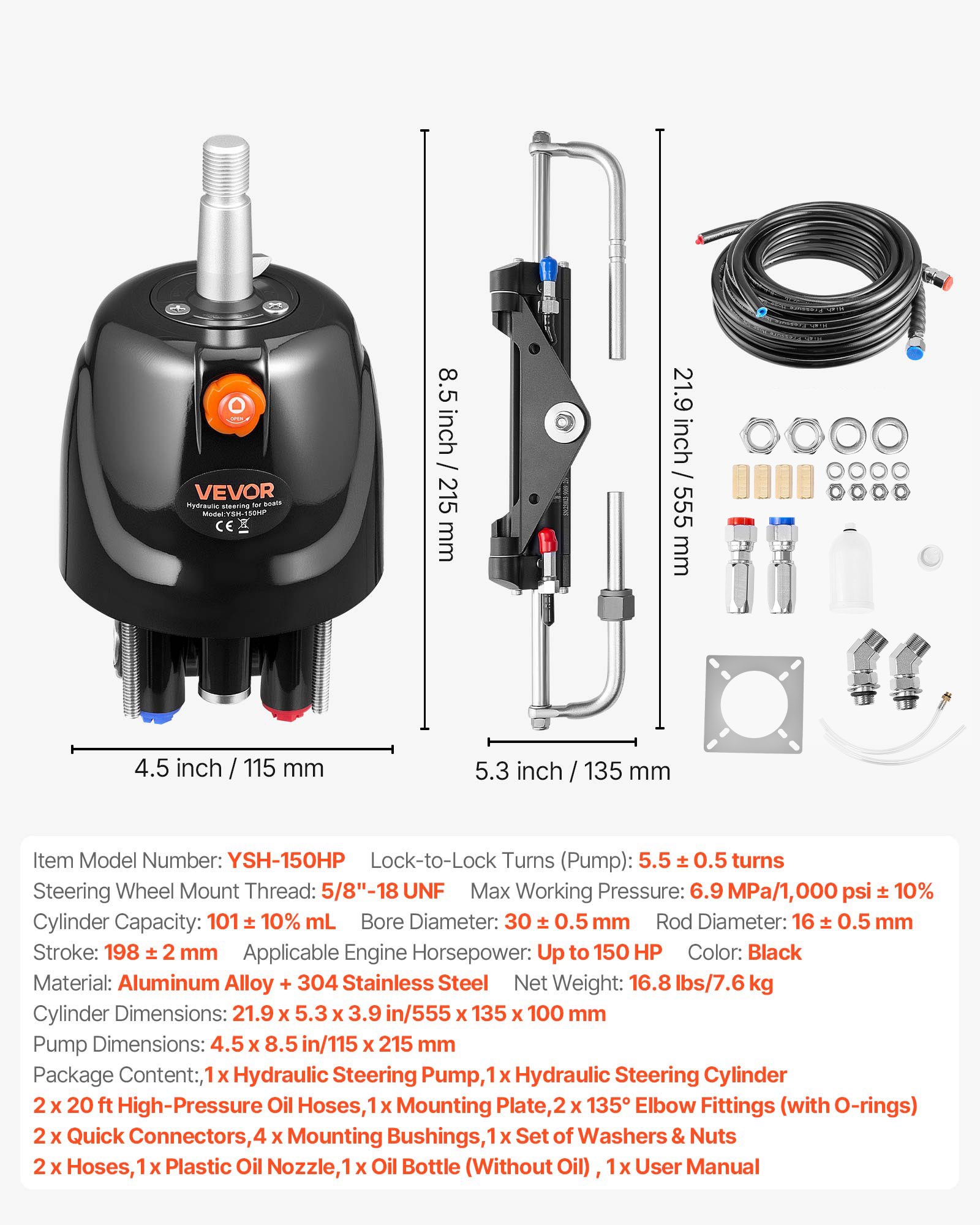

Product specification

  • Item Model Number YSH-150HP
  • Lock-to-Lock Turns (Pump) 5.5 ± 0.5 turns
  • Steering Wheel Mount Thread 5/8"-18 UNF
  • Max Working Pressure 6.9 MPa/1,000 psi ± 10%
  • Cylinder Capacity 101 ± 10% mL
  • Bore Diameter 30 ± 0.5 mm

Frequently Bought Together

Reviews
About this item
Questions and Answers
Explore

Reviews 0.0
All reviews are from verified purchases
Average rating based on 0 reviews

See all 0 reviews

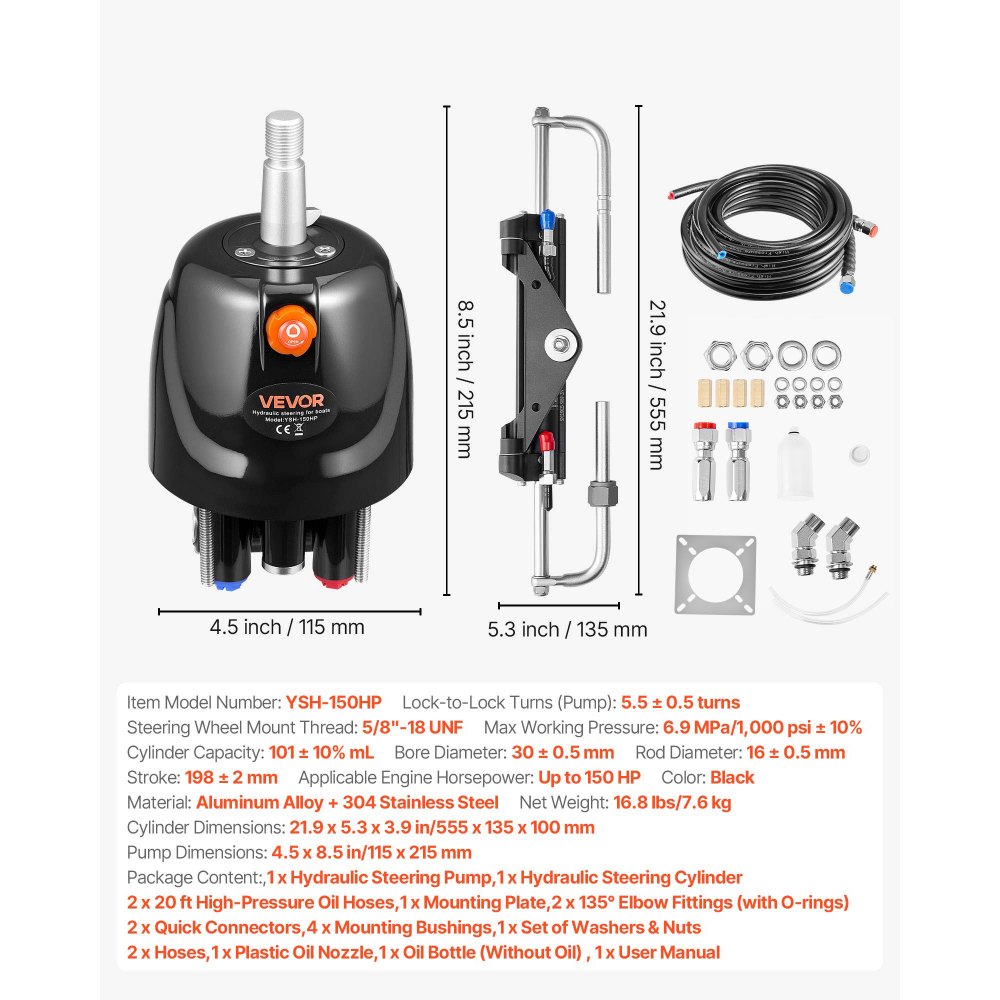

About this item

Product specification
Item Model Number
YSH-150HP
Lock-to-Lock Turns (Pump)
5.5 ± 0.5 turns
Steering Wheel Mount Thread
5/8"-18 UNF
Max Working Pressure
6.9 MPa/1,000 psi ± 10%
Cylinder Capacity
101 ± 10% mL
Bore Diameter
30 ± 0.5 mm
Rod Diameter
16 ± 0.5 mm
Stroke
198 ± 2 mm
Applicable Engine Horsepower
Up to 150 HP
Color
Black
Material
Aluminum Alloy + 304 Stainless Steel
Description
150 HP Hydraulic Outboard Steering Kit
Experience smooth, precise, and reliable steering control for cruisers, center consoles, and fishing boats. Designed with a high-pressure helm pump, a compact hydraulic cylinder, and two corrosion-resistant high-strength hoses, it provides long-lasting performance in tough marine environments.
Q: Is this pump compatible with my 150 HP outboard engine?
A: Yes. It is specifically designed for outboards up to 150 HP, delivering smooth, reliable steering performance.

Q: Is there a risk of hydraulic oil leakage?
A: No. The quality seals ensure leak-free operation and support hydraulic oils rated ISO VG 15–32.

Q: Can I install it myself easily?
A: Yes. It comes with a complete kit and simple step-by-step instructions.

Q: How do I know if this hydraulic steering kit fits my outboard model?
A: We provide detailed compatibility images on the product page. Simply compare your outboard model with the chart shown to confirm the correct match before purchasing.

Q: How to solve the abnormal reactions of the system in practical operation?
A: Please refer to the bleed method in the user manual, completely bleeding the air out before restarting.
Product guides and documents
User manual-en (PDF) Review

Questions and Answers (2)

2 Questions
Ask a Question
Will this fit a mercury 115hp 4 stroke salt water series ?
Answer This Question
Yes, this product fits a Mercury 115HP 4-stroke saltwater series outboard If this answer does not resolve your current issue, please contact us again for assistance.
By vevor
Helpful ( 0 )
Would it fit a johnson v4 120hp, 1985 model
Answer This Question
Not directly compatible Possible with adapters and modification, but not guaranteed Best option: a kit specifically rated for older Johnson/Evinrude V4 engines
By vevor
Helpful ( 0 )
