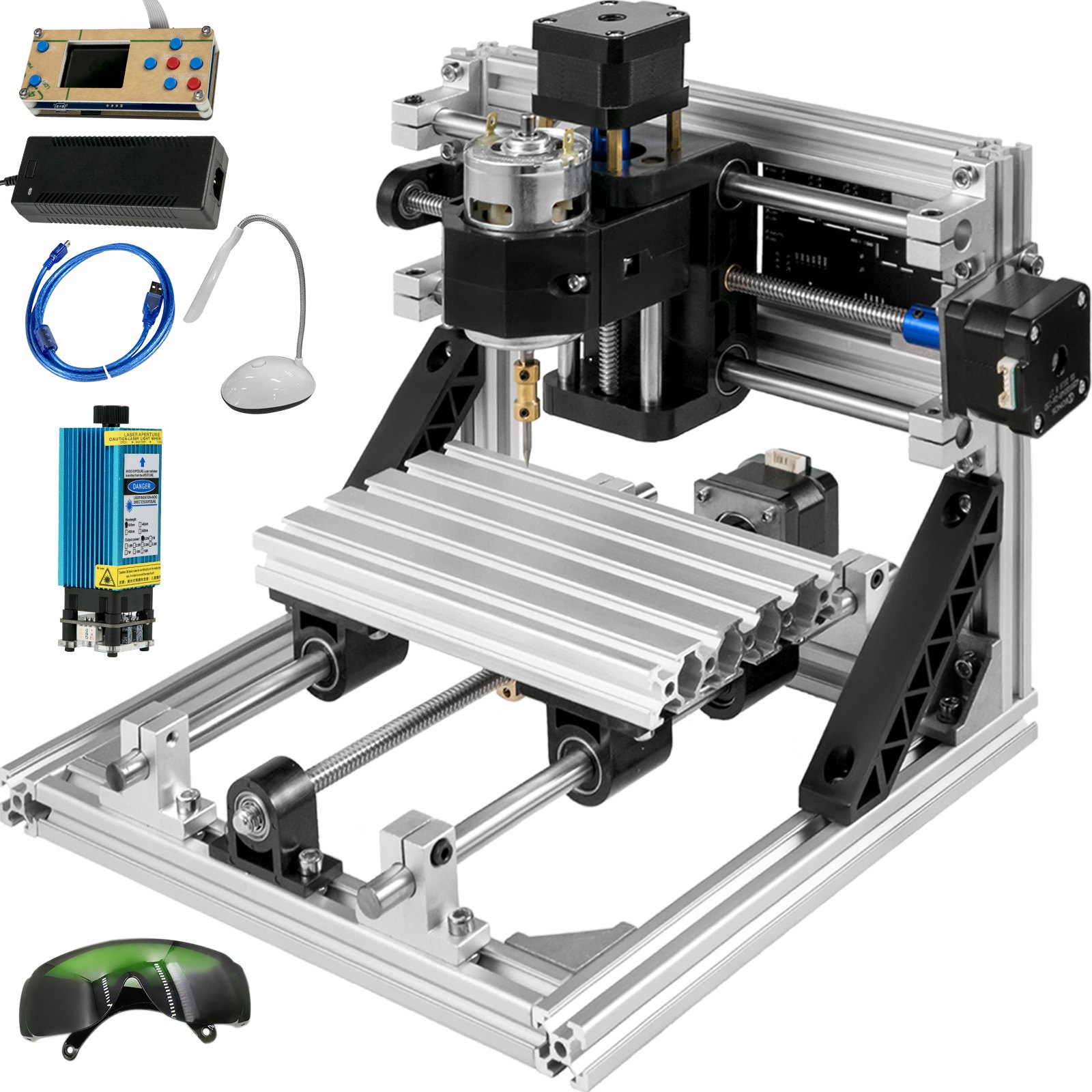

1610 CNC Router Kit + 500mw Laser Engraver With Offline Controller For Wood DIY
4.7 74 Reviews
AU $ 269 99
Each when you buy 0+.
Shop
Get -% off for new user
Get AU $5.00 Off AU $99.00+ Orders on Your First 3 App Orders.
Download Now

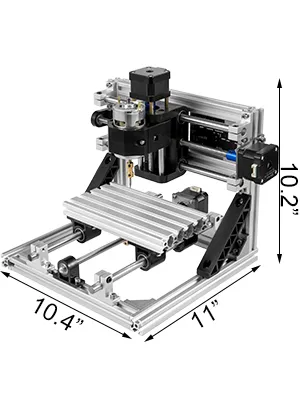

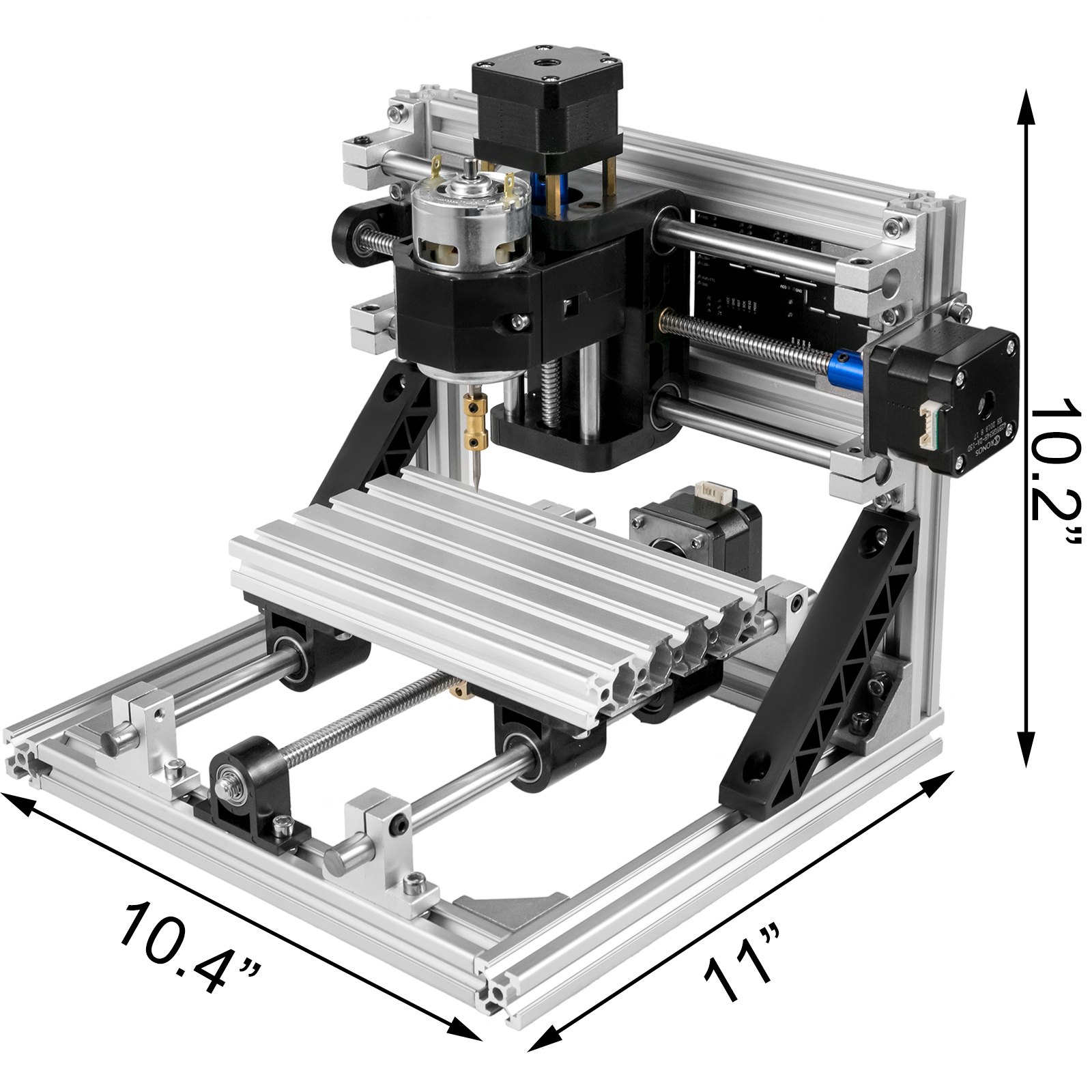

- 【PREMIUM QUALITY】- With the external dimension of 26x24x22cm (10.2"x9.4"x8.7"), frames and fixed parts are made of 2020 aluminum profiles & black injection molding material. Working Travel: 16(X)x10(Y)x4(Z)cm (6.3"x3.9"x1.6").
- 【EASE OF USE】- According to the instructions, the machine is easy to assemble. Supports windows XP SP3, win7, win8, win10, (32/64) and Linux system.
- 【CONVENIENT CONTROL】- Simply connect to computers via USB port and controlled by GRBL. An offline controller is also included for easy remote control without computers.
- 【HIGH PERFORMANCE】- Comes with T8 screw rods driving units, three 42 stepper motors, and a 775 (12-36V)24V spindle motor with rotational speed of 10000r/min. An extra 500mw laser engraver is included, with wavelength of 405nm, providing much more efficient engraving.
- 【VERSATILE USE】- Used to engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, etc.
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
4.7 Out of 5
How customer reviews and ratings work?
Details
How customer reviews and ratings work?
Customer Reviews, including Product Star Ratings help customers to learn more about the product and decide whether it is the right product for them.
Our overall rating is not a simple average. We prioritize authentic, trustworthy reviews and filter out duplicates or invalid content before calculating the final score. This helps ensure the rating truly reflects real customer experiences.
Review this product
Share your thoughts with other customers
Top Reviews
Translate all reviews to English
tore357@gmail.com Ottimo
Ottimo
0 people found this helpful
Translate review to English
Richard Overton Great Intro to Home CNC Routing and Machining.
Mini CNC Router machine. Great for Engraving Woodwork and Plastics. Even Aluminium sheet. Comes with small kit engraving bits. and tools. and Basic software on usb flash drive to get started. Easy to assemble in half hour on my kitchen table. note is powered via a 240v power brick , plug into your wall outlet..
Can be connected to a home PC. with more advanced softwares and control. to design engravings.
whole Unit takes very little bench / table space. Great!
Unit when working thru material. does produce .waste,dust and chips. So keep your own vacuum handy, for clean up.
only immediate . addition i feel this unit needs is a dedicated Stop. Button Switch. for additional Safety. Thinking i may have to wire in a Aftermarket Switch and connect it to the Controller unit. . Perfect!
Ive Enjouyed using this Vevor CNC Router.. Very Pleased I Own One.. Thank You!
9 people found this helpful
Aaron Buller Mr
Great product and service
0 people found this helpful
EvrUC Excelente máquina a un precio muy competitivo.
El producto se ha recibido 100% OK. Muy bien embalado, por agencia de transportes y en poco menos de una semana (compra 22/03/2022 recibido 28/03/2022) enviada desde Alemania a España. Las calidades se corresponde a la publicidad. Es una máquina, que dentro de su espacio de trabajo (300mm x 180mm) está extraordinariamente bien. Los materiles son de muy buena calidad, y viene muy completa con todo lo necesario para su montaje (incluidas las herramientas) y puesta en marcha además con un manual impreso a color (en inglés) con todo lujo de detalles, que hace muy fácil su ensamblado. En apenas un par de horas (yo soy muy meticuloso a la hora de montar) la máquina estaba montada y en uso. Trae un mando offline muy práctico que, además, tiene conexión WiFi (2,4Ghz) al teléfono o tablet para controlar la máquina desde estos terminales con aplicación nativa en la misma placa offline. Realmente estoy muy contento con la máquina y la recomiendo totalmente, así como al vendedor. Cinco estrellas son pocas!!
4 people found this helpful
Translate review to English
About this item
Description

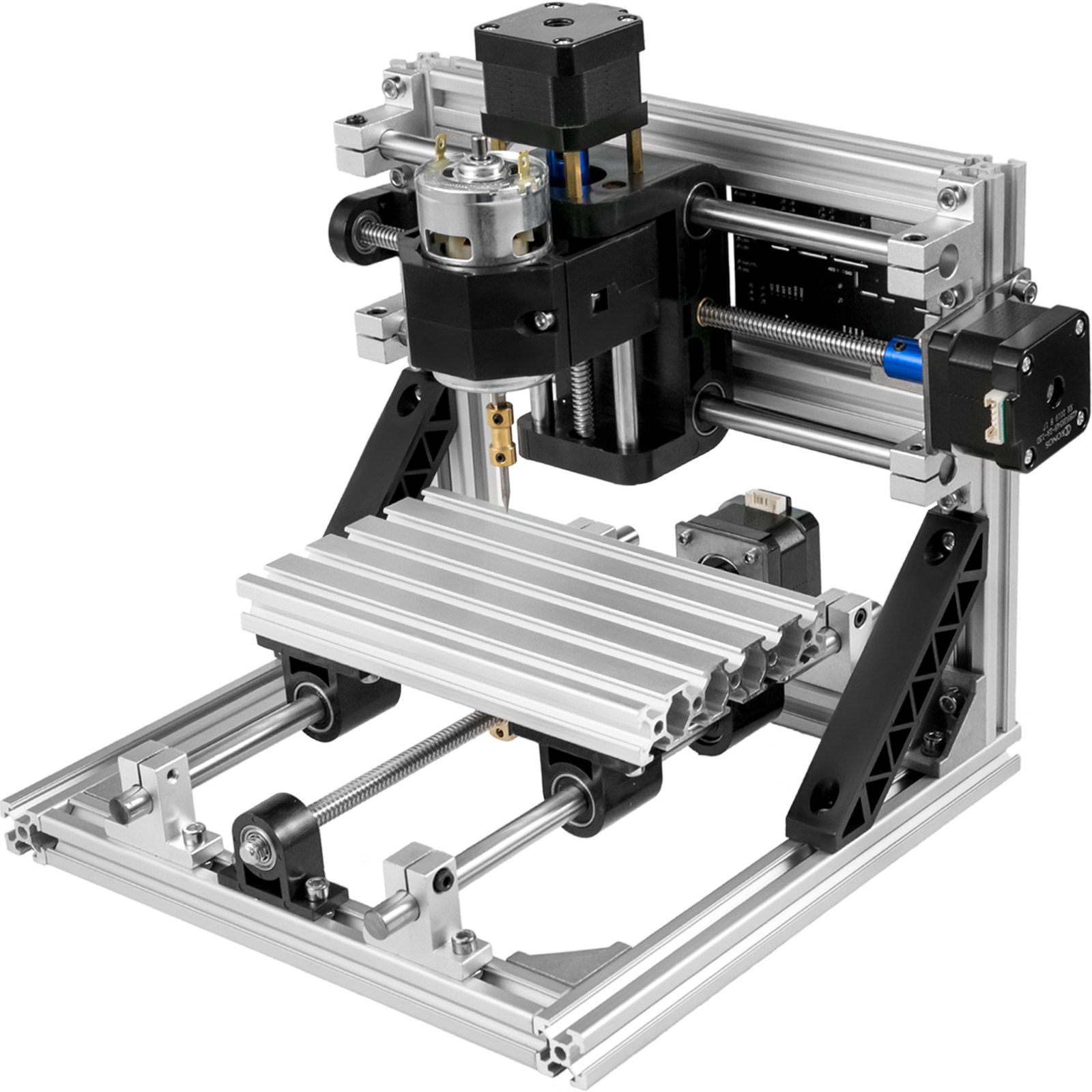

CNC 1610 Engraving Machine
This CNC engraving machine with effective working travel of 6.3"(X)x3.9"(Y)x1.6"(Z), is made of aluminum profiles and black injection molding materials. It features USB port, GRBL control board, and an offline controller, able to be controlled easily with/without computers. An extra 500mw laser engraver is included for more powerful engraving. It can be used to engrave all types of plastics, soft aluminum, woods, PVCs, etc., which is an excellent affordable self-learning engraving tool!
- Premium Quality
- Ease Of Use
- Convenient Control
- High Performance
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

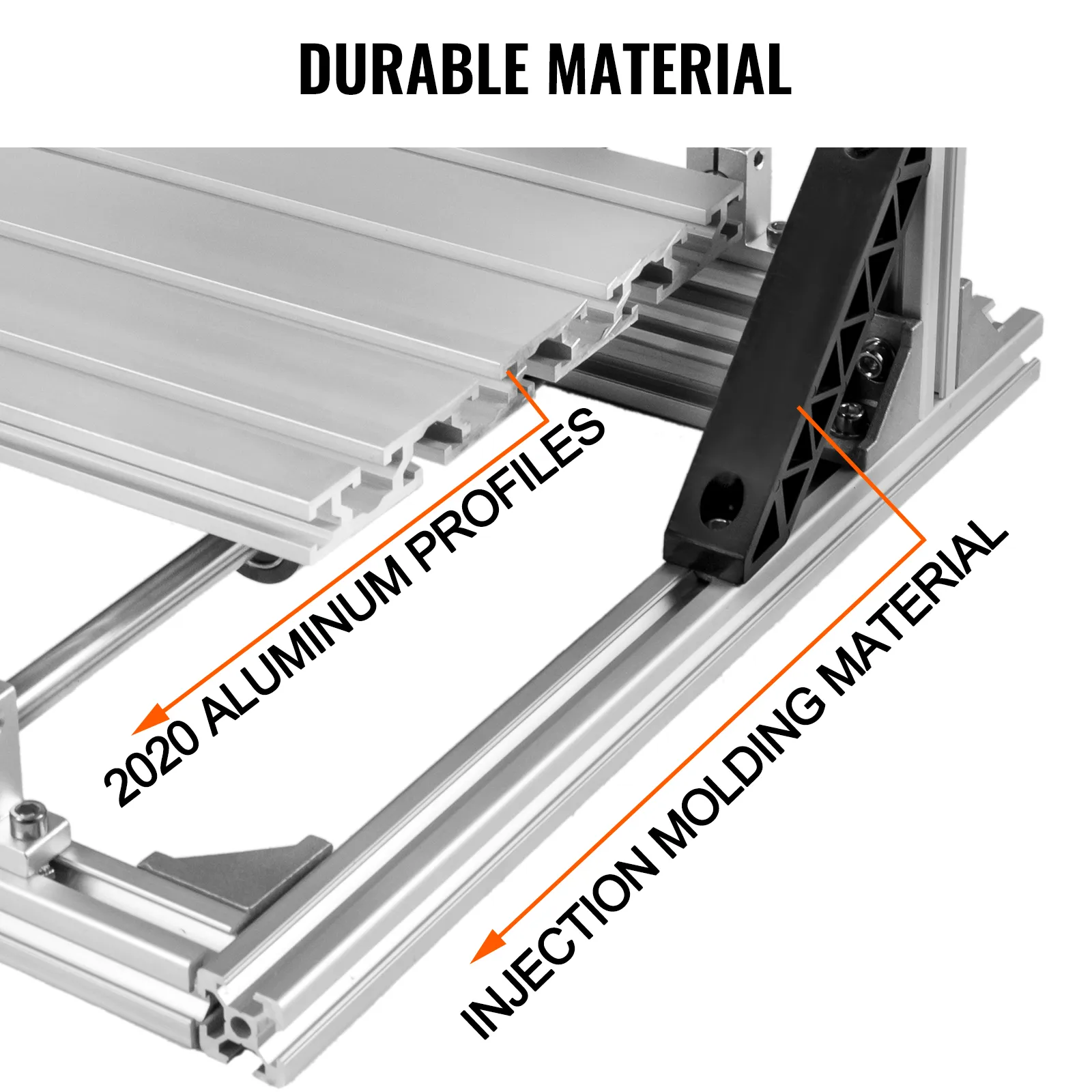

Durable Material
Made of 2020 aluminum profiles and black injection molding material, which is of good appearance, high precision and durability.

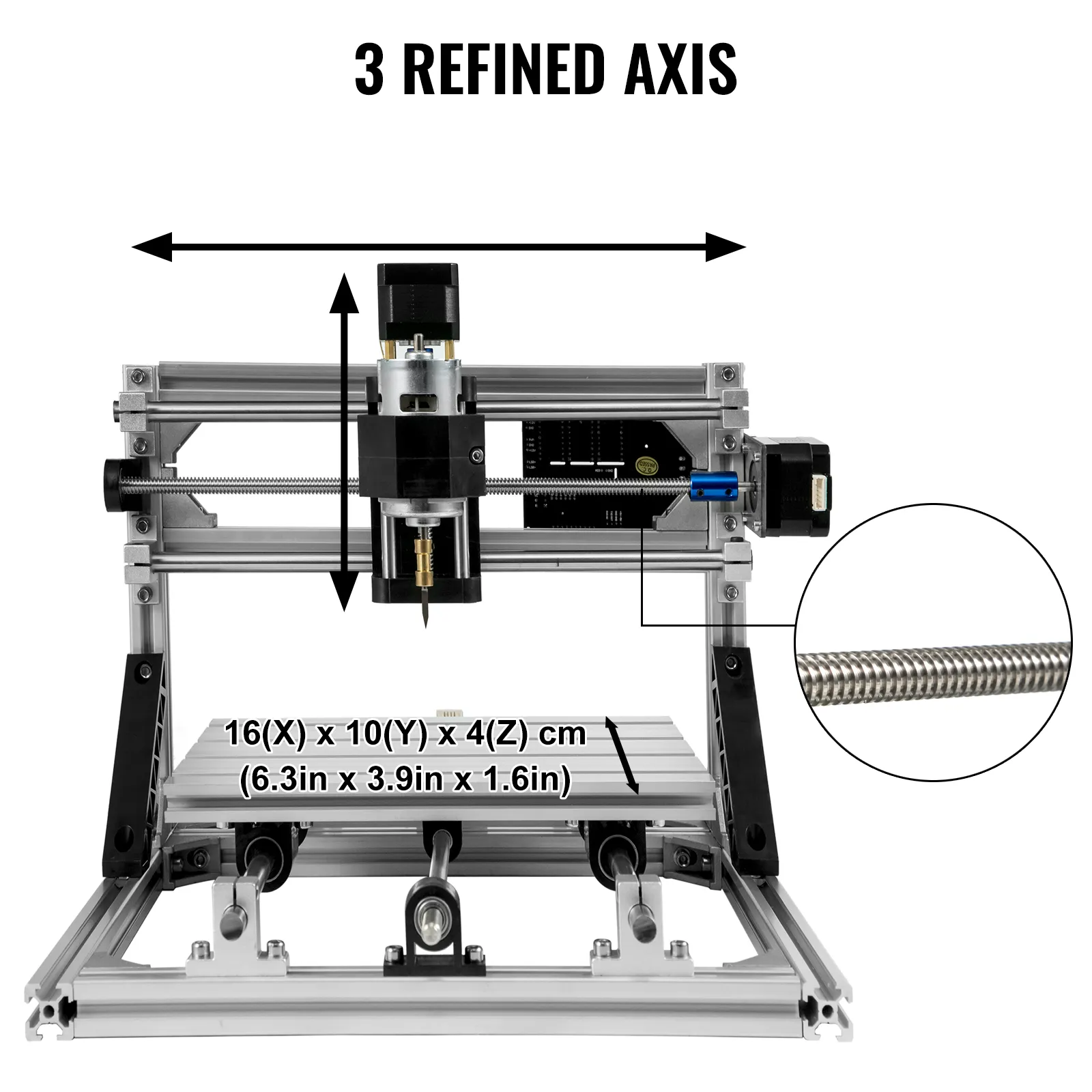

3 Refined Axis
3 axis is able to realize plane engraving, with effective working travel of 16(X)x10(Y)x4(Z)cm (6.3"x3.9"x1.6"). The driving units consists of T8 stainless steel screw rods.

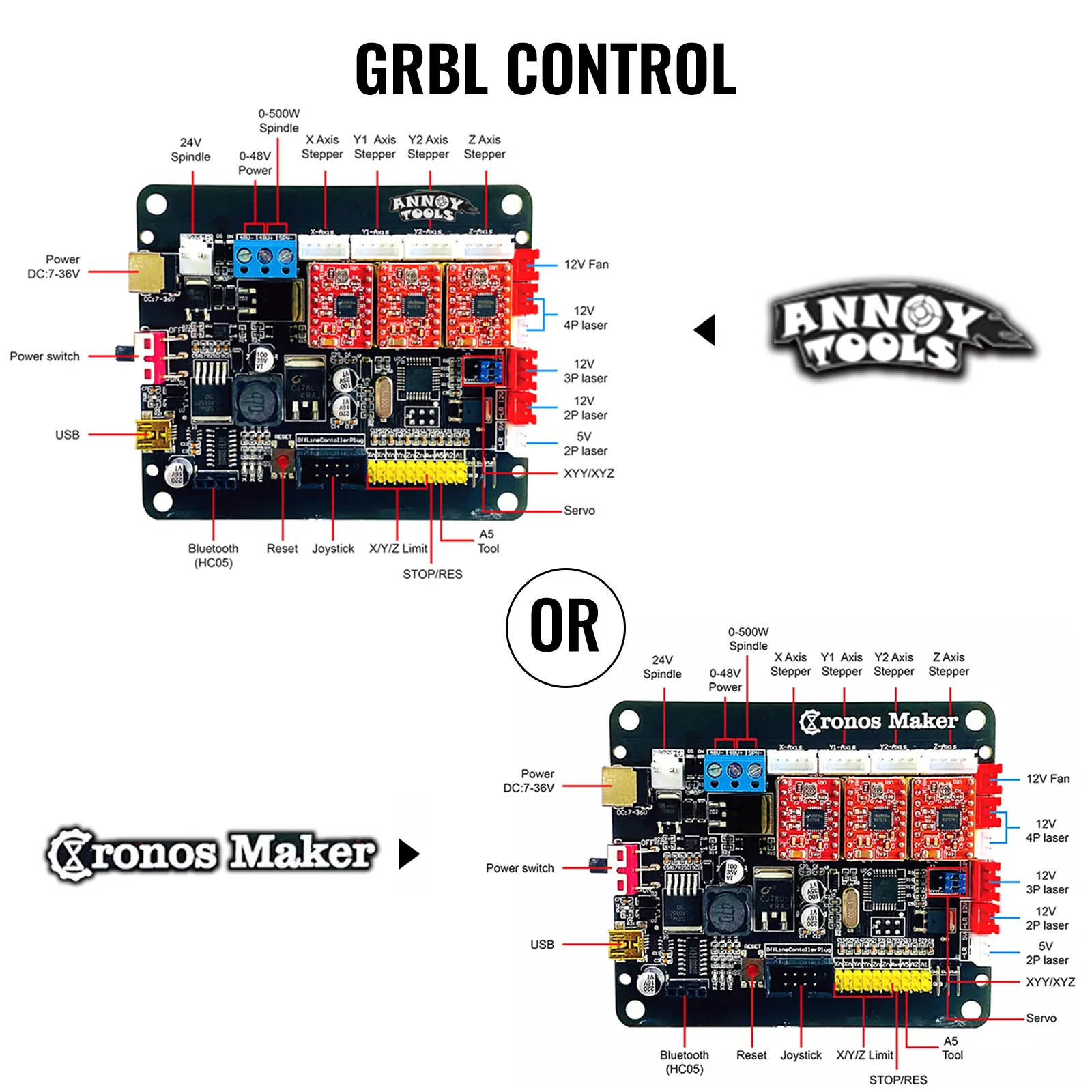

GRBL Control Board
Can be connected to a computer via a USB interface. Able to output 2P/3P, and support PWM, TTL functions, which can achieve greater practicality. These two kinds of control panels are delivered at random, but does not affect the performance.

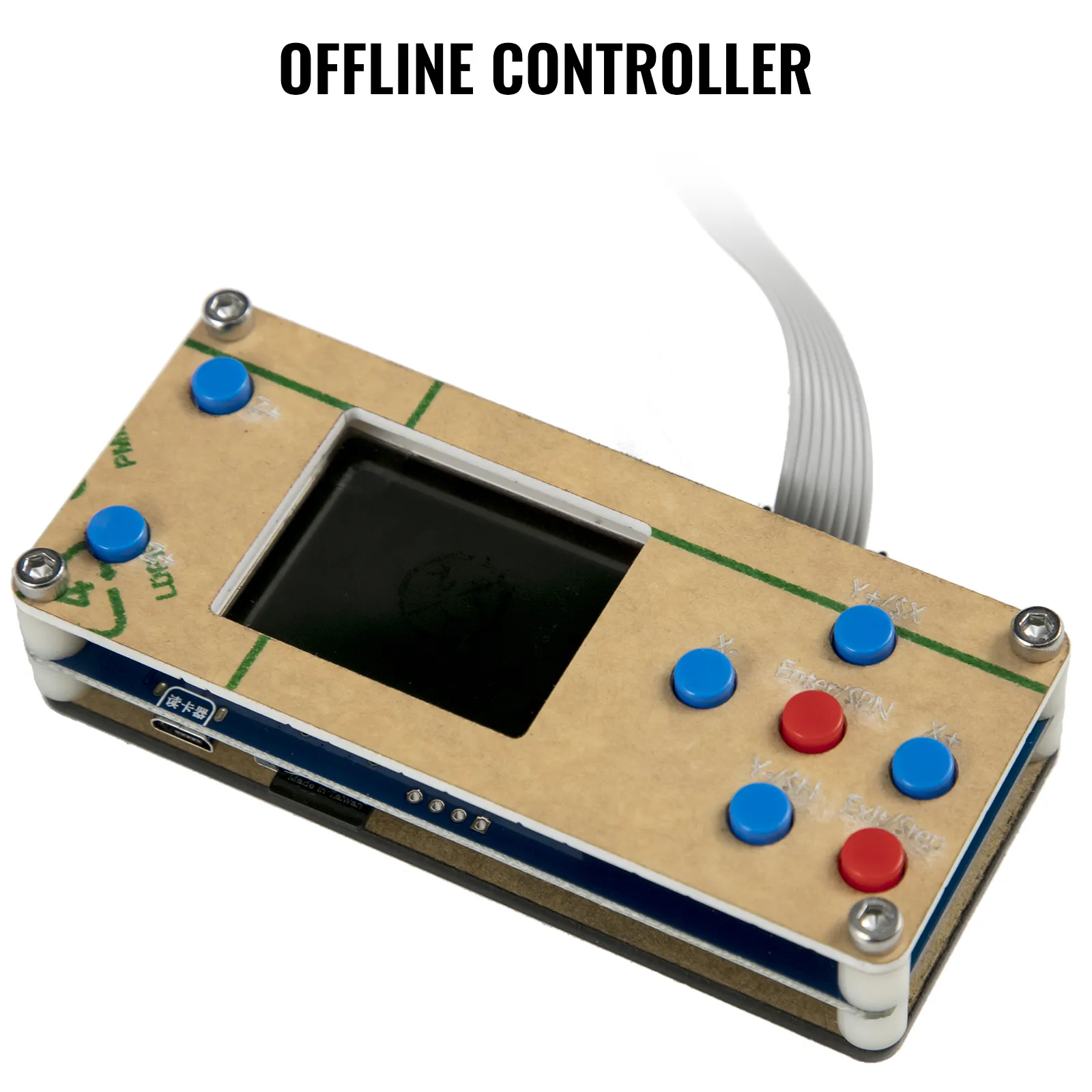

Offline Controller
A multifunctional offline controller is configured to remotely control the engraver without connecting to a computer.

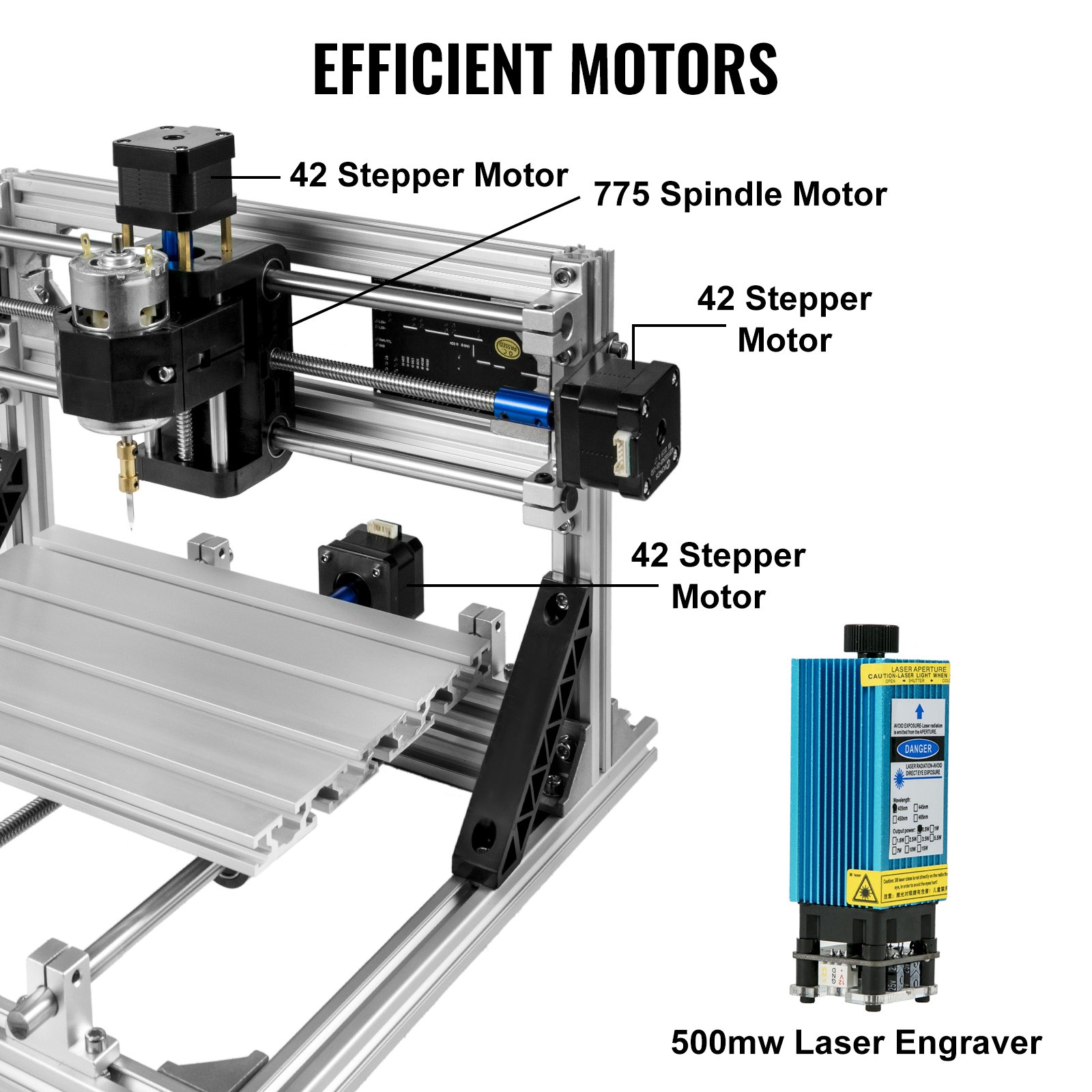

Efficient Motors
Three 42 stepper motors are included on each of three axis for easy movement. The 775 (12-36V)24V spindle motor on Z axis is able to reach the speed of 10000r/min. An extra 500mw laser engraver is included.
Wide Application
Capable of engraving all types of plastics, soft aluminum, woods, acrylics, PVCs, and a wide range of other soft materials.
Specifications
- Effective Working Travel: 16(X)x10(Y)x4(Z)cm (6.3"x3.9"x1.6")
- Driving Units: T8 Stainless Steel Screws
- Spindle Speed: 10000 rpm/min
- Input Power: DC 24V
- Positional Accuracy: 0.08-0.1mm (0.003"-0.004")
- Gross Weight: 14.1 lbs (6.4 kg)

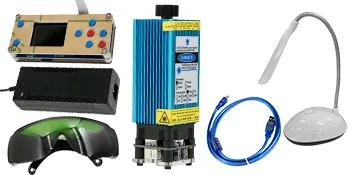

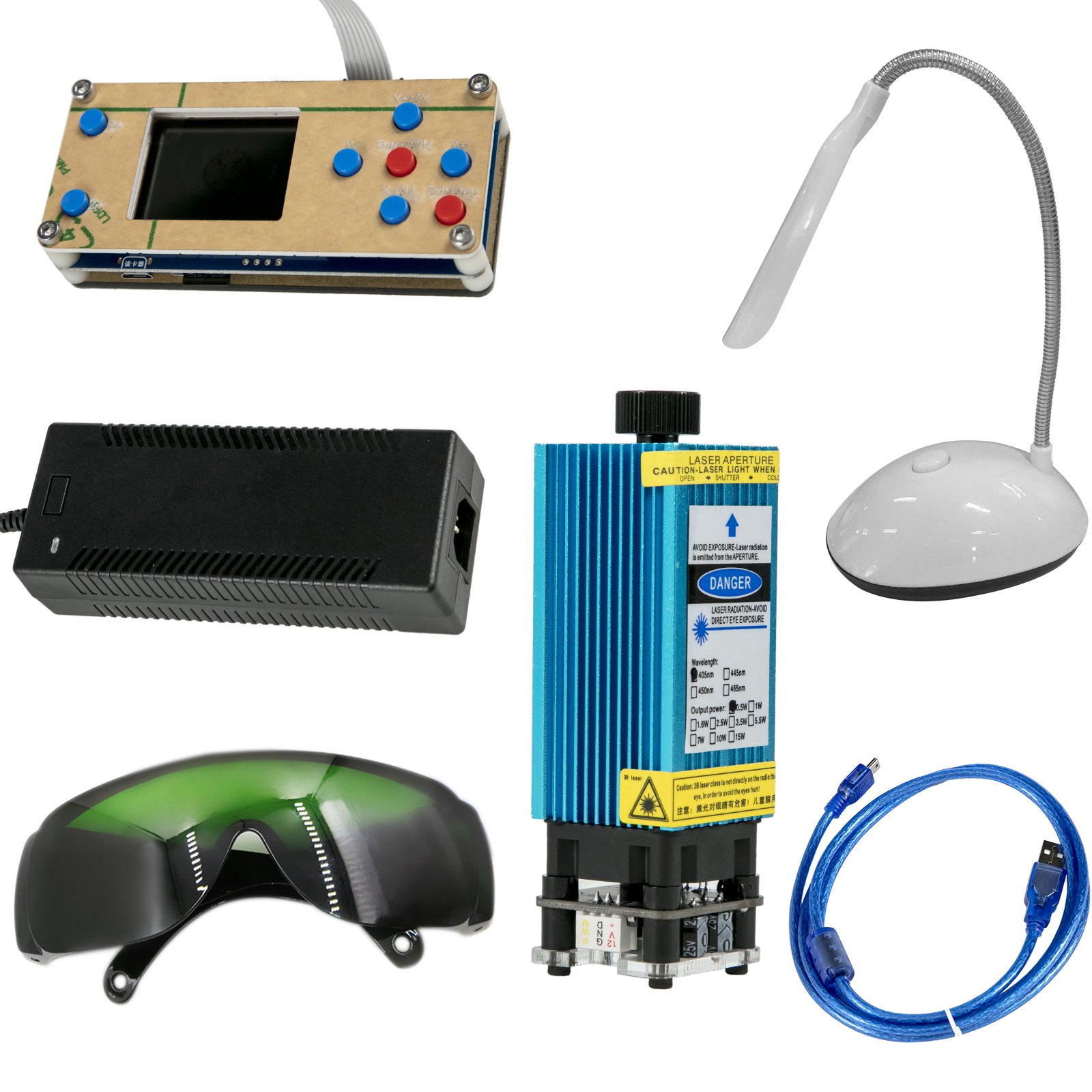

Package Content
- 1 x CNC 1610 Router Kit
- 1 x 500mw Laser Engraver
- 1 x Offline Controller
- 1 x USB Drive
- 1 x Table Lamp
- 1 x Eye Protector
- 1 x Set of Tools
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
CNC 1610 Engraving Machine
This CNC engraving machine with effective working travel of 6.3"(X)x3.9"(Y)x1.6"(Z), is made of aluminum profiles and black injection molding materials. It features USB port, GRBL control board, and an offline controller, able to be controlled easily with/without computers. An extra 500mw laser engraver is included for more powerful engraving. It can be used to engrave all types of plastics, soft aluminum, woods, PVCs, etc., which is an excellent affordable self-learning engraving tool!
- Premium Quality
- Ease Of Use
- Convenient Control
- High Performance
Durable Material
Made of 2020 aluminum profiles and black injection molding material, which is of good appearance, high precision and durability.
3 Refined Axis
3 axis is able to realize plane engraving, with effective working travel of 16(X)x10(Y)x4(Z)cm (6.3"x3.9"x1.6"). The driving units consists of T8 stainless steel screw rods.
GRBL Control Board
Can be connected to a computer via a USB interface. Able to output 2P/3P, and support PWM, TTL functions, which can achieve greater practicality. These two kinds of control panels are delivered at random, but does not affect the performance.
Offline Controller
A multifunctional offline controller is configured to remotely control the engraver without connecting to a computer.
Efficient Motors
Three 42 stepper motors are included on each of three axis for easy movement. The 775 (12-36V)24V spindle motor on Z axis is able to reach the speed of 10000r/min. An extra 500mw laser engraver is included.
Wide Application
Capable of engraving all types of plastics, soft aluminum, woods, acrylics, PVCs, and a wide range of other soft materials.
Package Content
- 1 x CNC 1610 Router Kit
- 1 x 500mw Laser Engraver
- 1 x Offline Controller
- 1 x USB Drive
- 1 x Table Lamp
- 1 x Eye Protector
- 1 x Set of Tools
Specifications
- Effective Working Travel: 16(X)x10(Y)x4(Z)cm (6.3"x3.9"x1.6")
- Driving Units: T8 Stainless Steel Screws
- Spindle Speed: 10000 rpm/min
- Input Power: DC 24V
- Positional Accuracy: 0.08-0.1mm (0.003"-0.004")
- Gross Weight: 14.1 lbs (6.4 kg)
