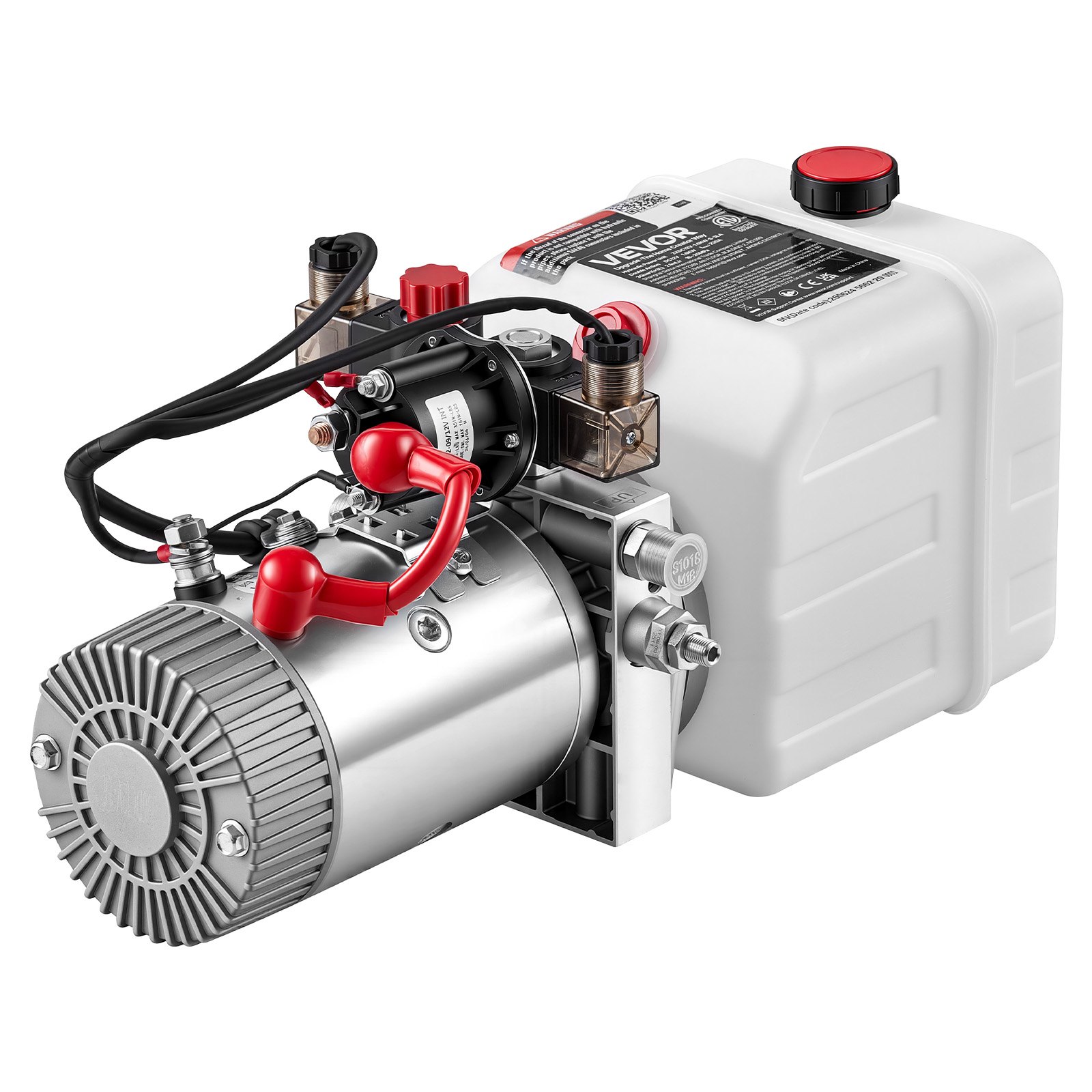

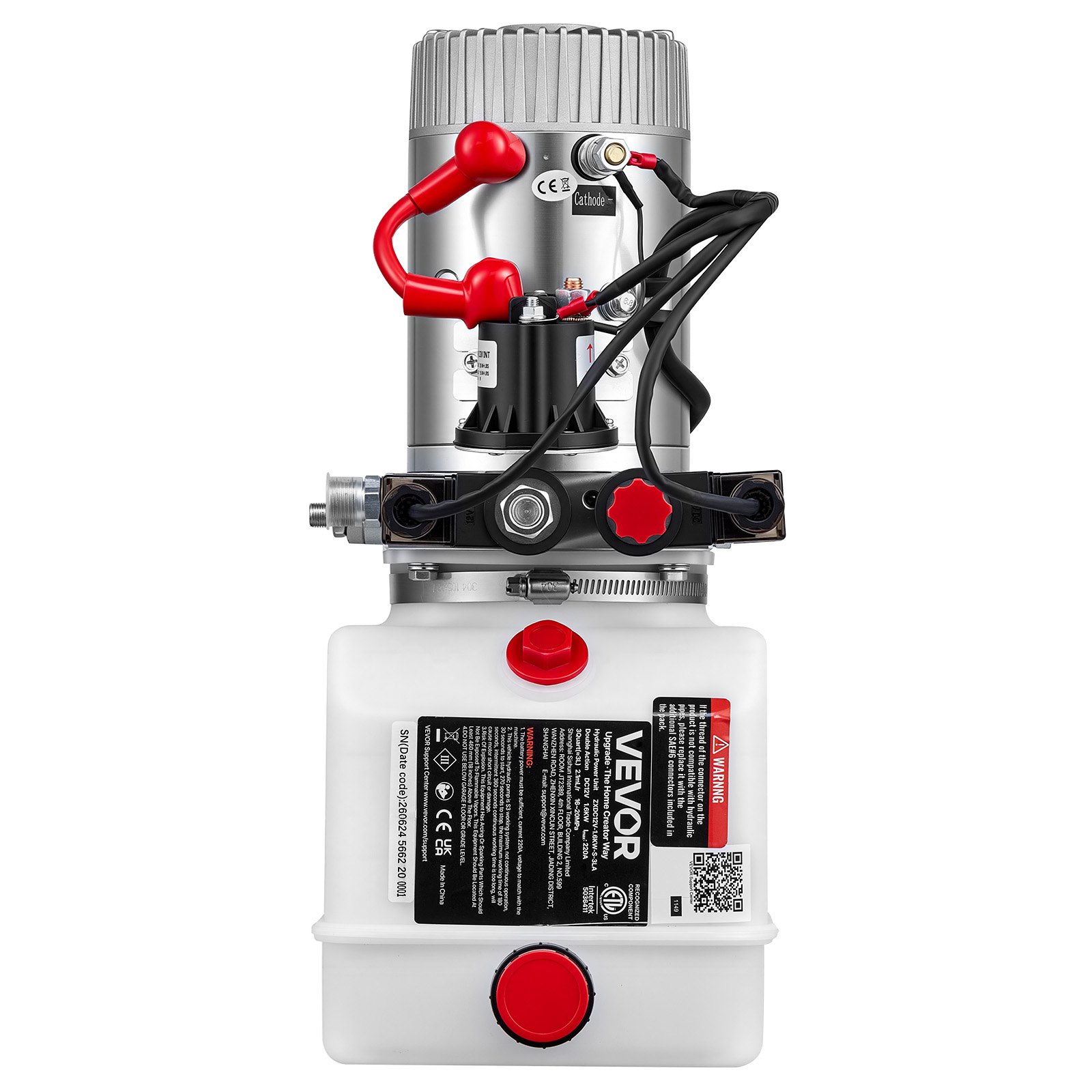

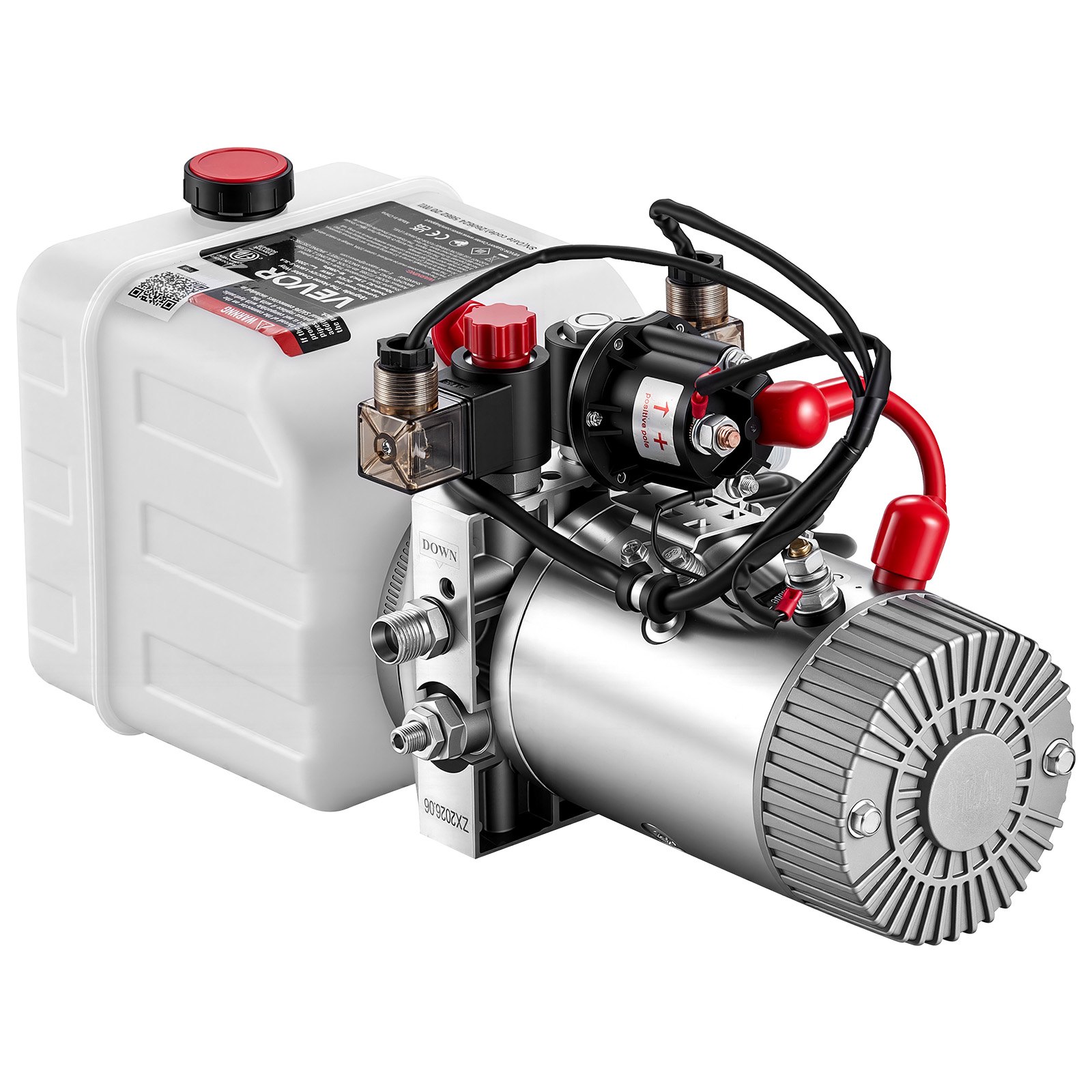

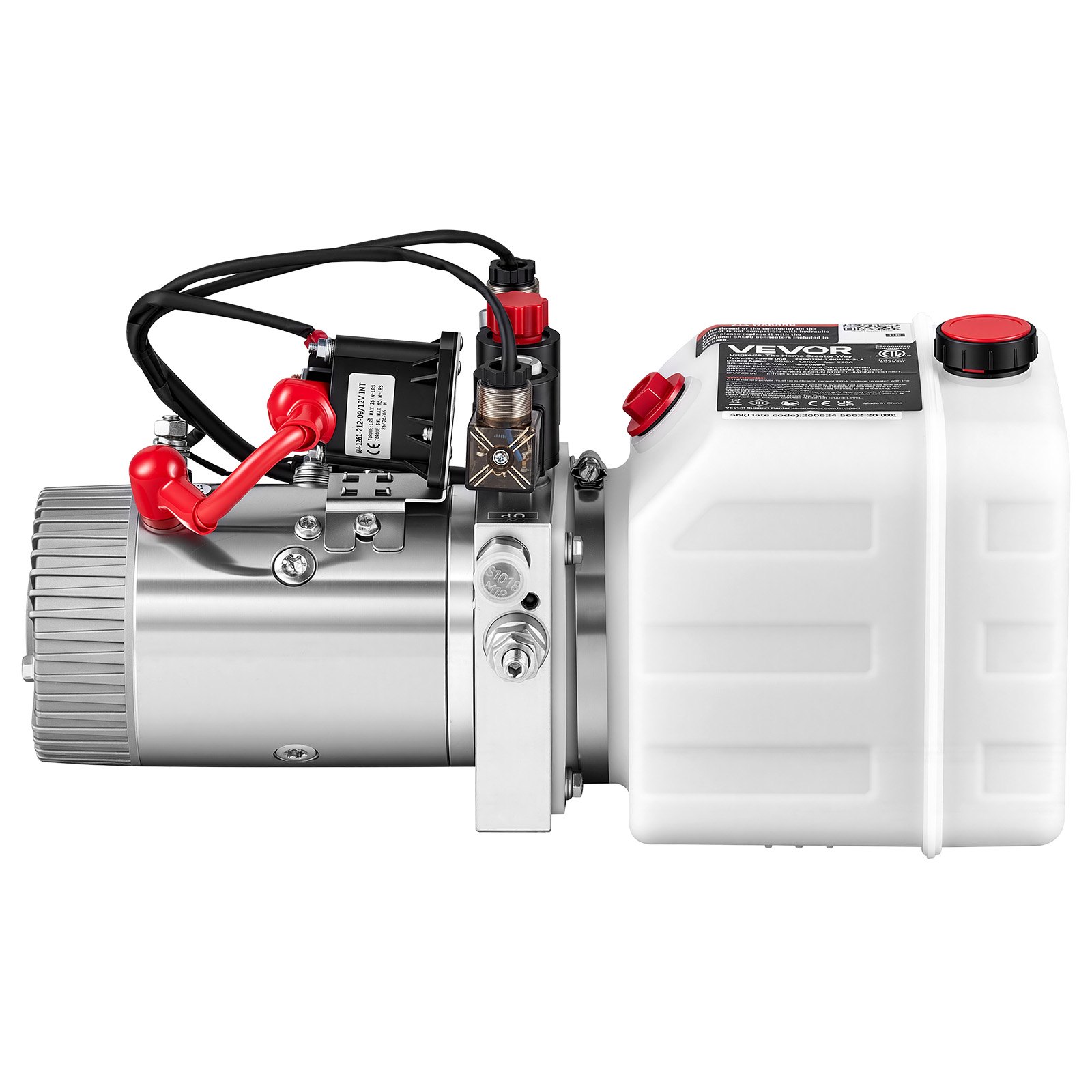

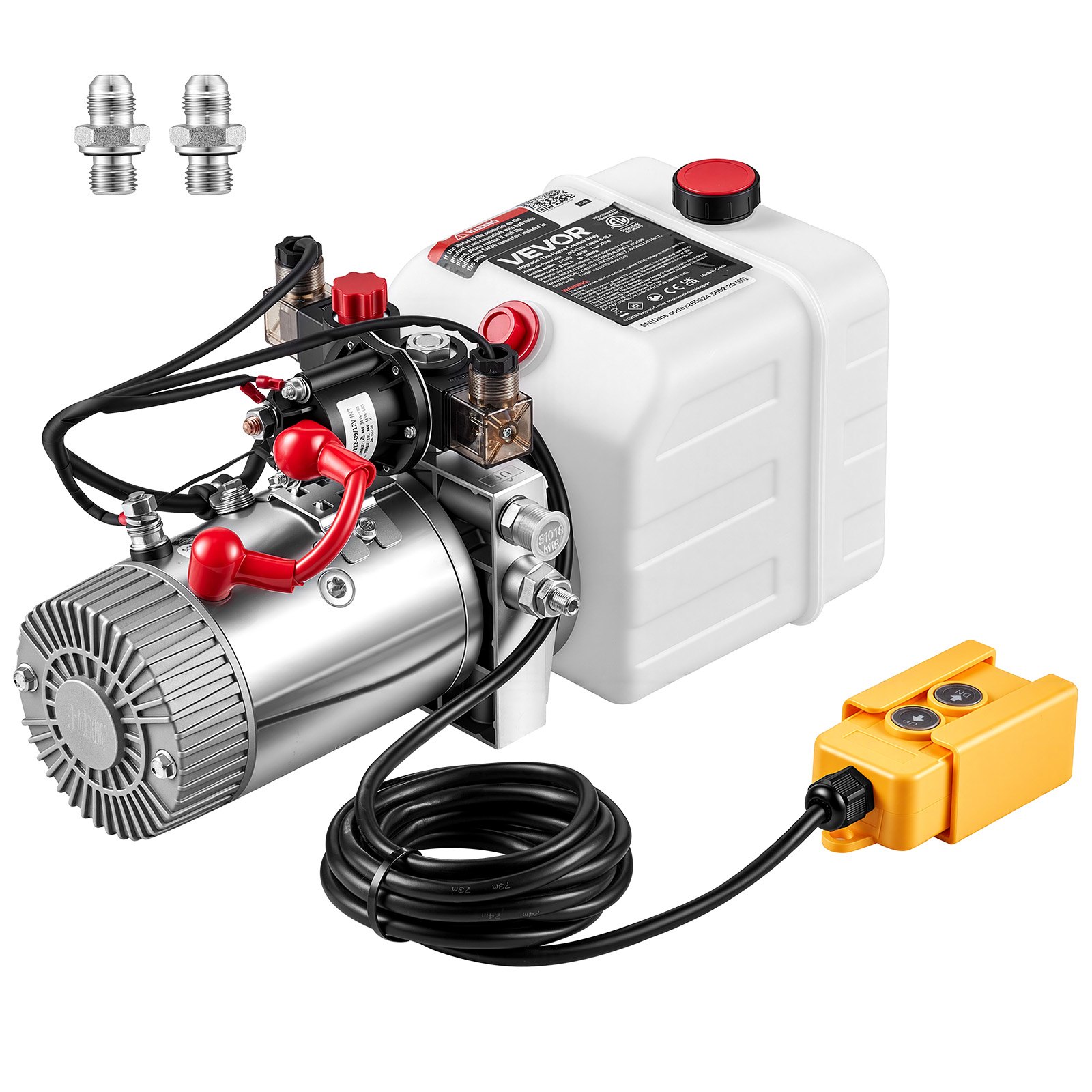

VEVOR 3L Hydraulic Pump, Double Acting Dump Trailer Pump, 22Mpa Max Relief Pressure & 3.4L/min Flow Rate, DC 12V 1.6KW Hydraulic Power Unit for Dump Trailer Car Lifting (Horizontal Installation)
New
4.7 3 Reviews
AU $ 271 99
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get AU $5.00 Off AU $99.00+ Orders on Your First 3 App Orders.
Download Now
Features & Details
- Powerful Performance: This 12V DC 1.6 kW hydraulic pump delivers a 3.4L/min flow rate and 16–20 MPa working pressure, with a maximum relief pressure of 22Mpa. 3L reservoir provides steady hydraulic power for demanding lifting applications

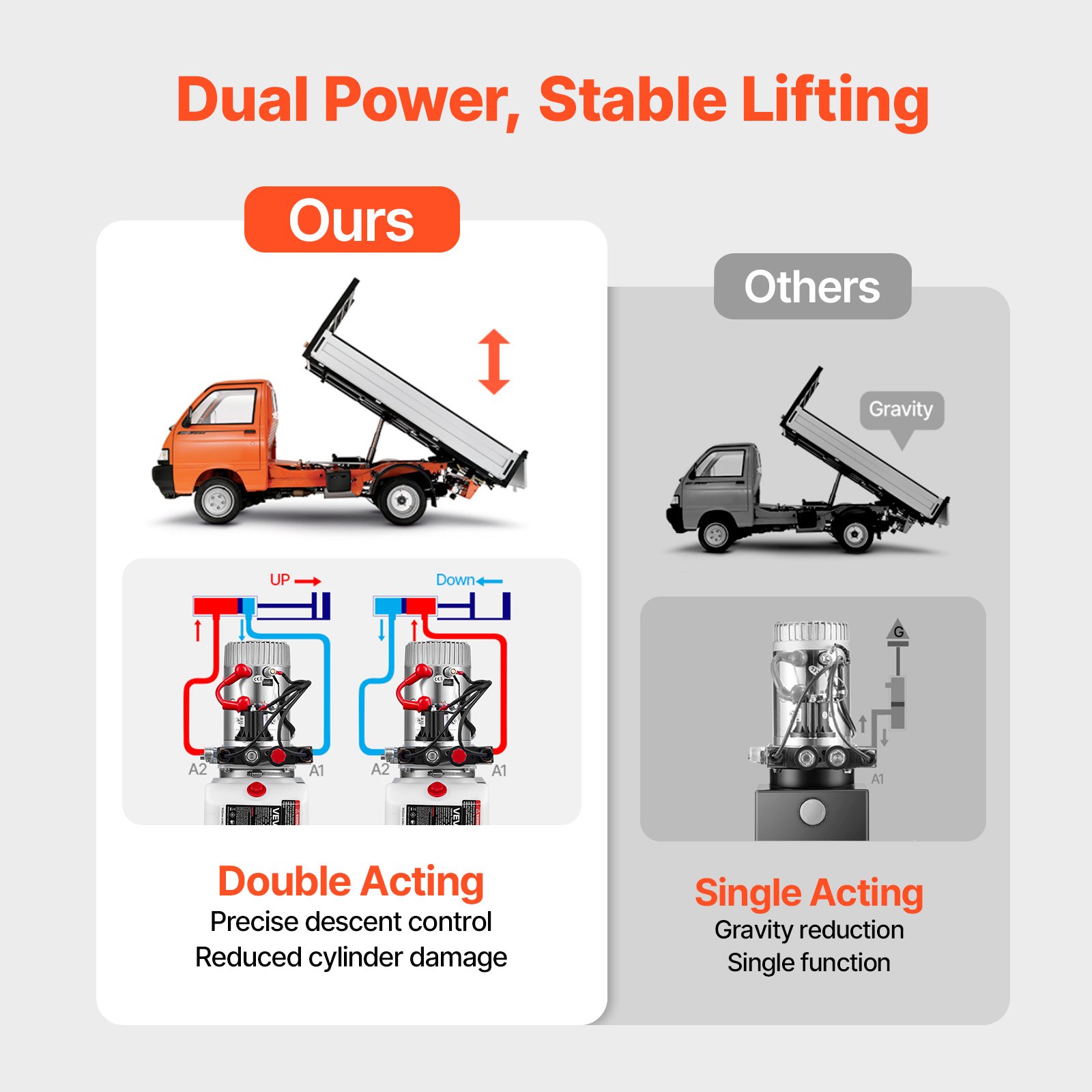

- Double-Acting Control: This hydraulic power unit powers both lifting and lowering through a double-acting hydraulic system, providing smooth, precise control in both directions

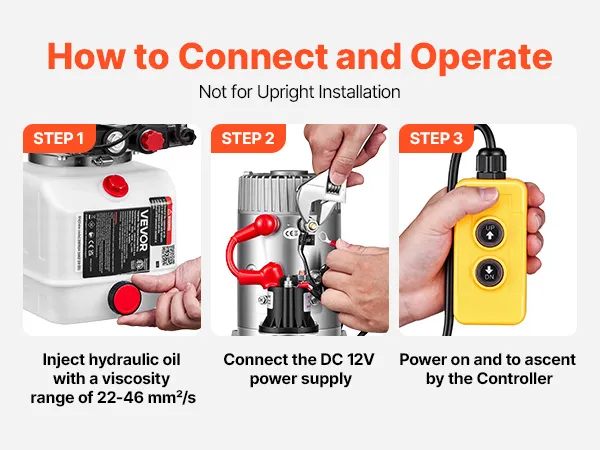

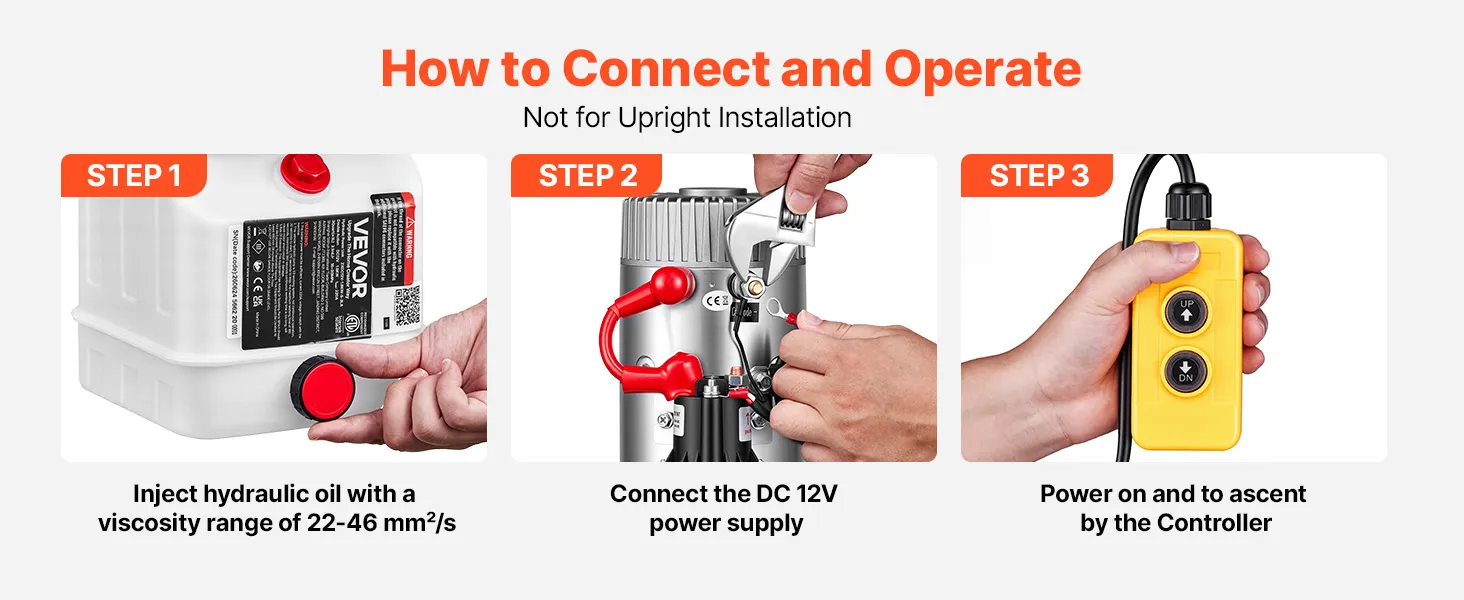

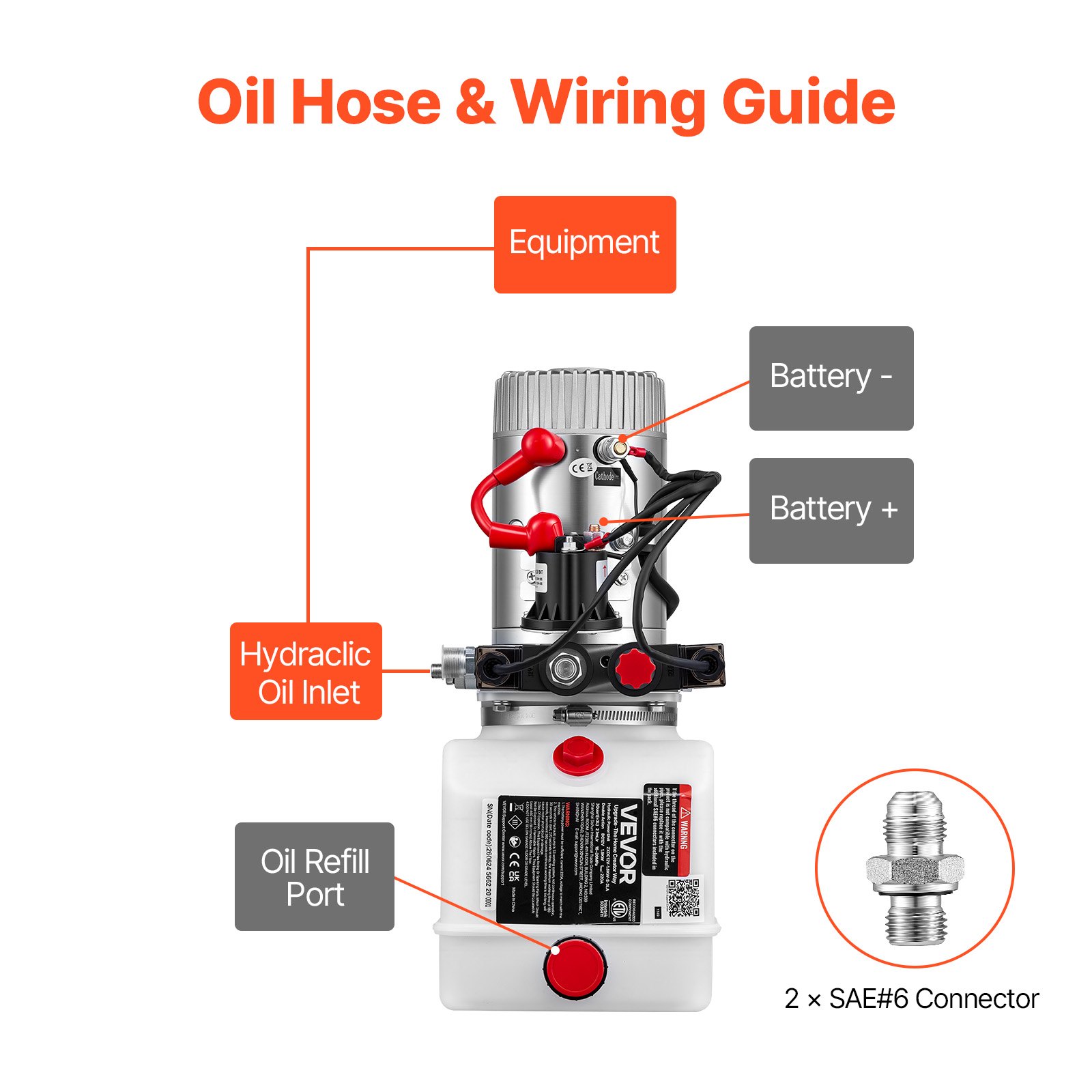

- Easy Installation & Use: This dump trailer pump comes pre-assembled for quick setup. Simply add hydraulic oil, connect the power cables and hoses, power it on, and use the handheld controller for convenient and easy control
- Durable & Reliable: This dump trailer hydraulic pump features a tightly sealed structure that helps minimize oil leakage. Durable plastic reservoir provides reliable performance for long-term use

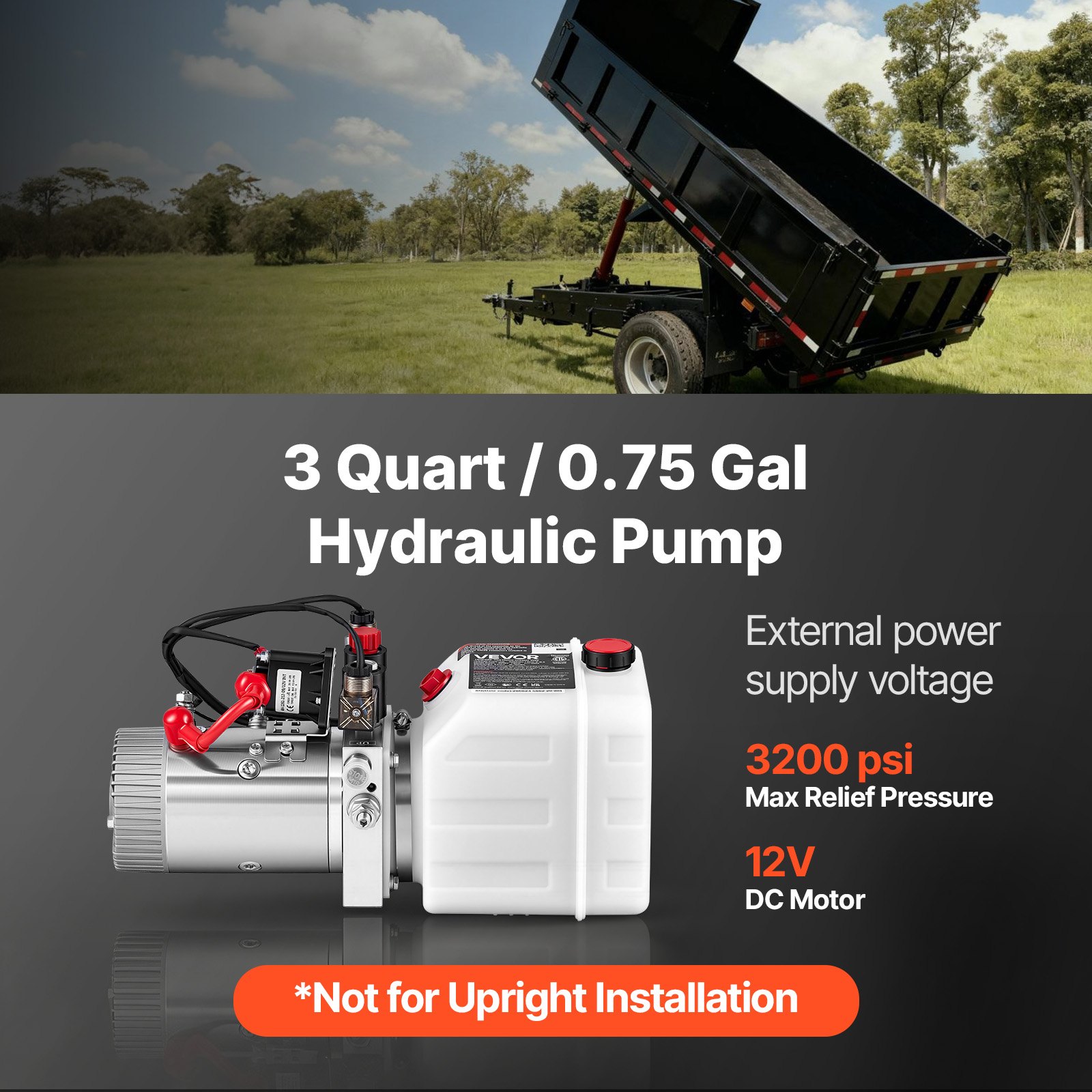

- Multi-Application: This electric hydraulic pump powers dump trailers, liftgates, scissor lifts, lift tables, small presses, and bucket conveyors, providing reliable lifting power for shops and jobsites. (Designed for horizontal installation only, not for vertical mounting)

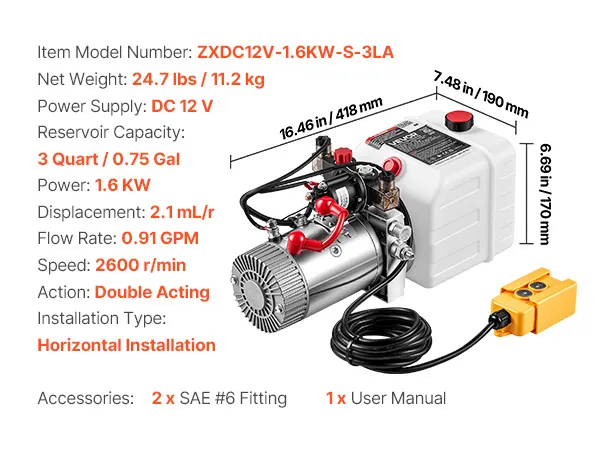

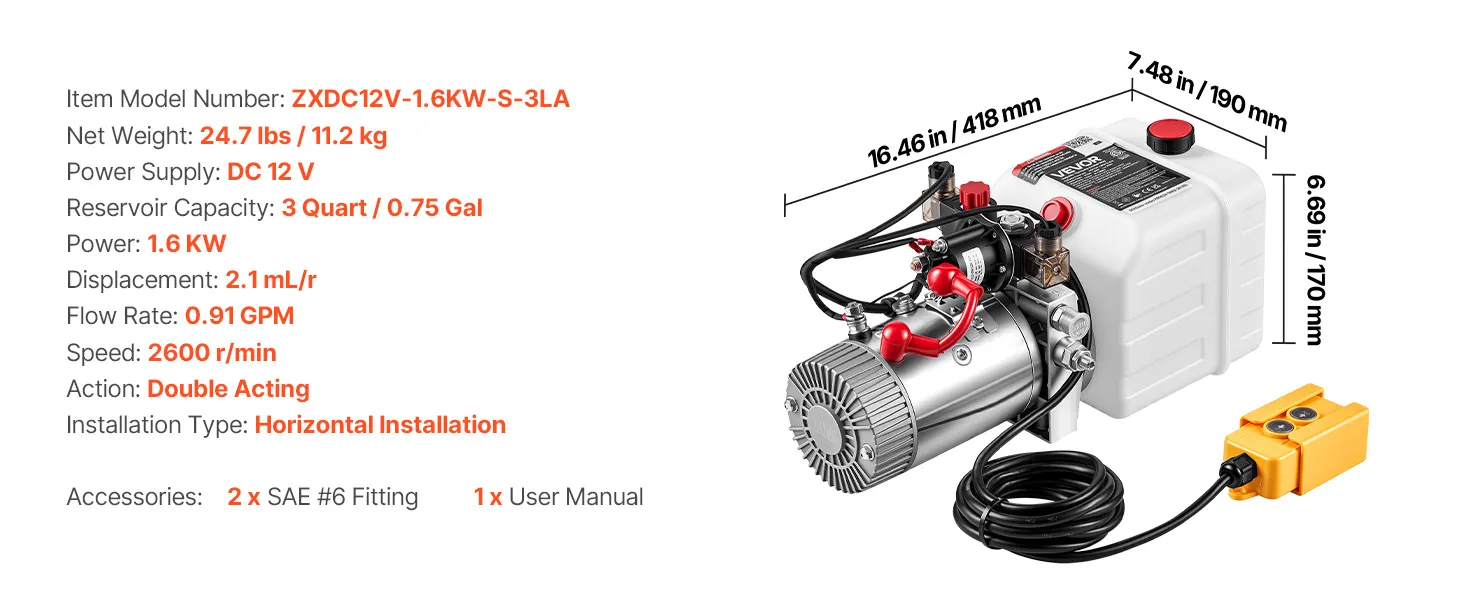

Product specification
- Item Model Number ZXDC12V-1.6KW-S-3LA
- Voltage DC12V
- Function Double Acting
- Reservoir Capacity 3 Quart
- Power 1.6 kW
- Flow Rate 0.91 GPM(3.4 L/min)
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Write a Review
Top Reviews
About this item
Product specification

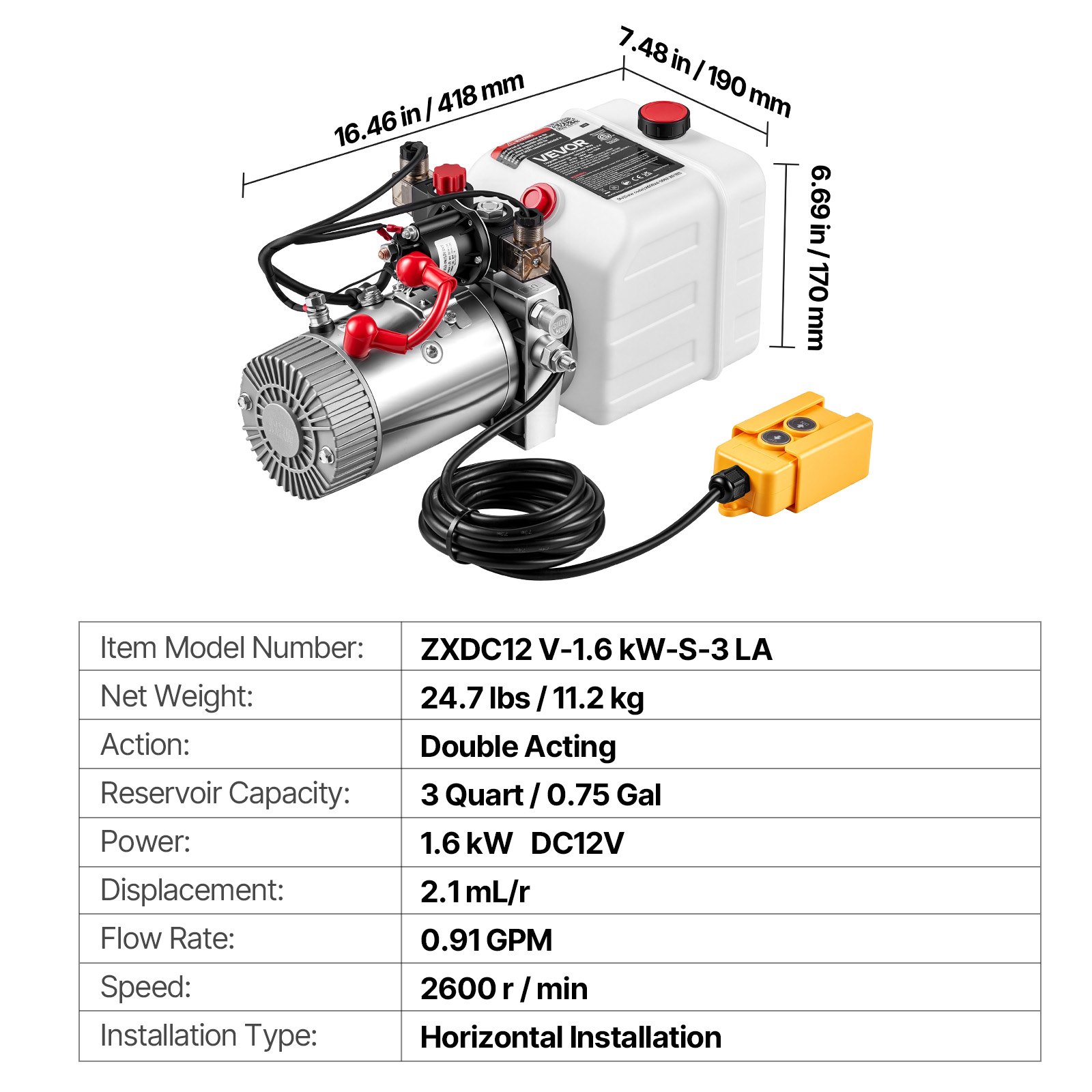

- Item Model Number
- ZXDC12V-1.6KW-S-3LA
- Voltage
- DC12V
- Function
- Double Acting
- Reservoir Capacity
- 3 Quart
- Power
- 1.6 kW
- Flow Rate
- 0.91 GPM(3.4 L/min)
- Speed
- 2600 r/min
- Maximum Relief Pressure
- 3200 PSI / 22 MPa
- Net Weight
- 24.7 lbs/11.2 kg (Include all accessories)
- Product Dimensions
- 16.5 x 7.5 x 8.3 in/418 x 190 x 210 mm
Description
Pro-level performance without the pro-level cost

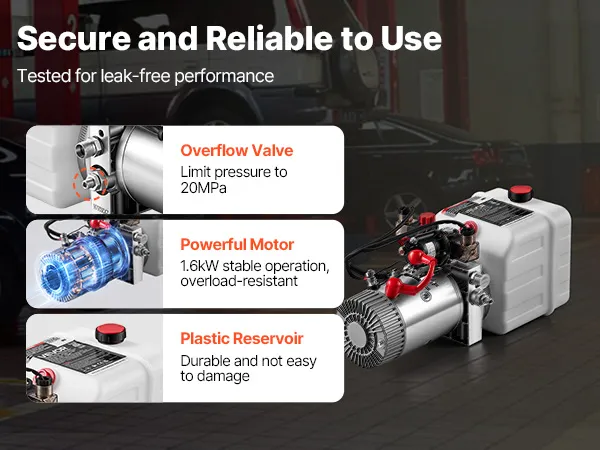

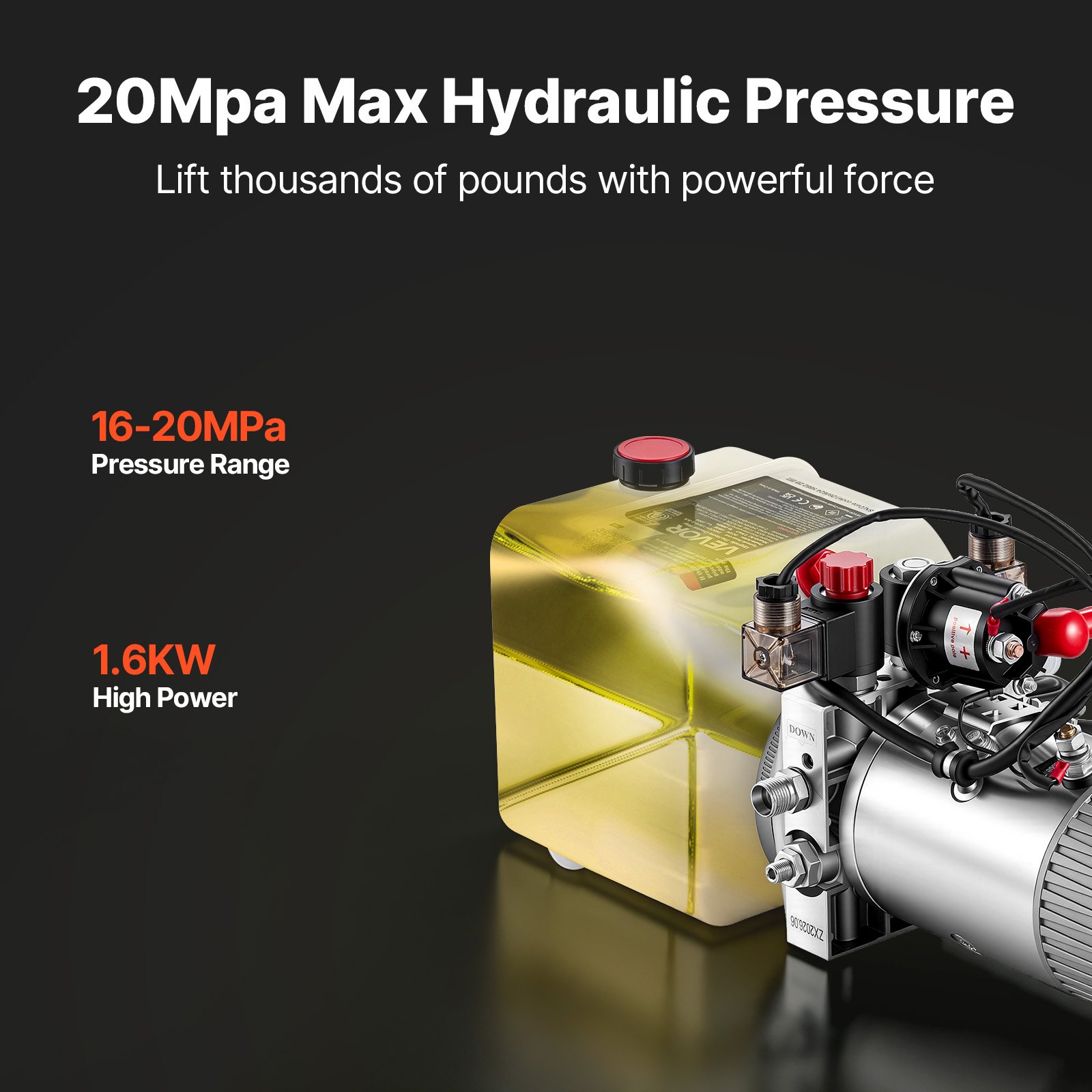

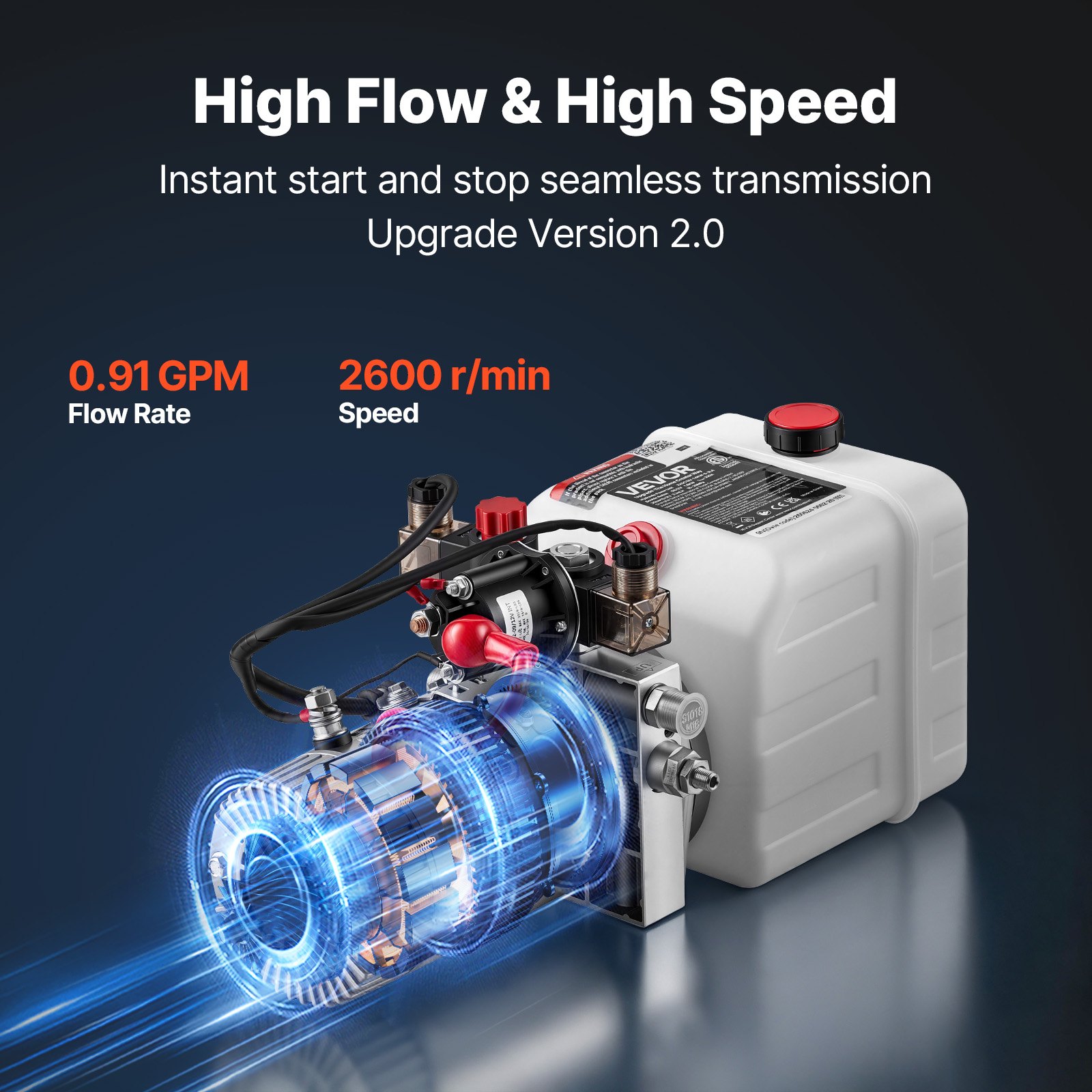

This double-acting hydraulic power unit uses a 1.6 kW motor running at 2600 RPM to deliver 16–20 MPa working pressure and up to 22 MPa relief pressure.
Featuring a double-acting hydraulic system, this hydraulic pump delivers powered lifting and lowering for smooth, accurate movement.
This hydraulic pump features a durable plastic reservoir that resists corrosion and delivers long-lasting performance for reliable hydraulic operation.
For optimal motor stability, this hydraulic pump power unit should be used intermittently - 30 seconds of work, 270 seconds off - to maintain efficient performance and reliable operation.

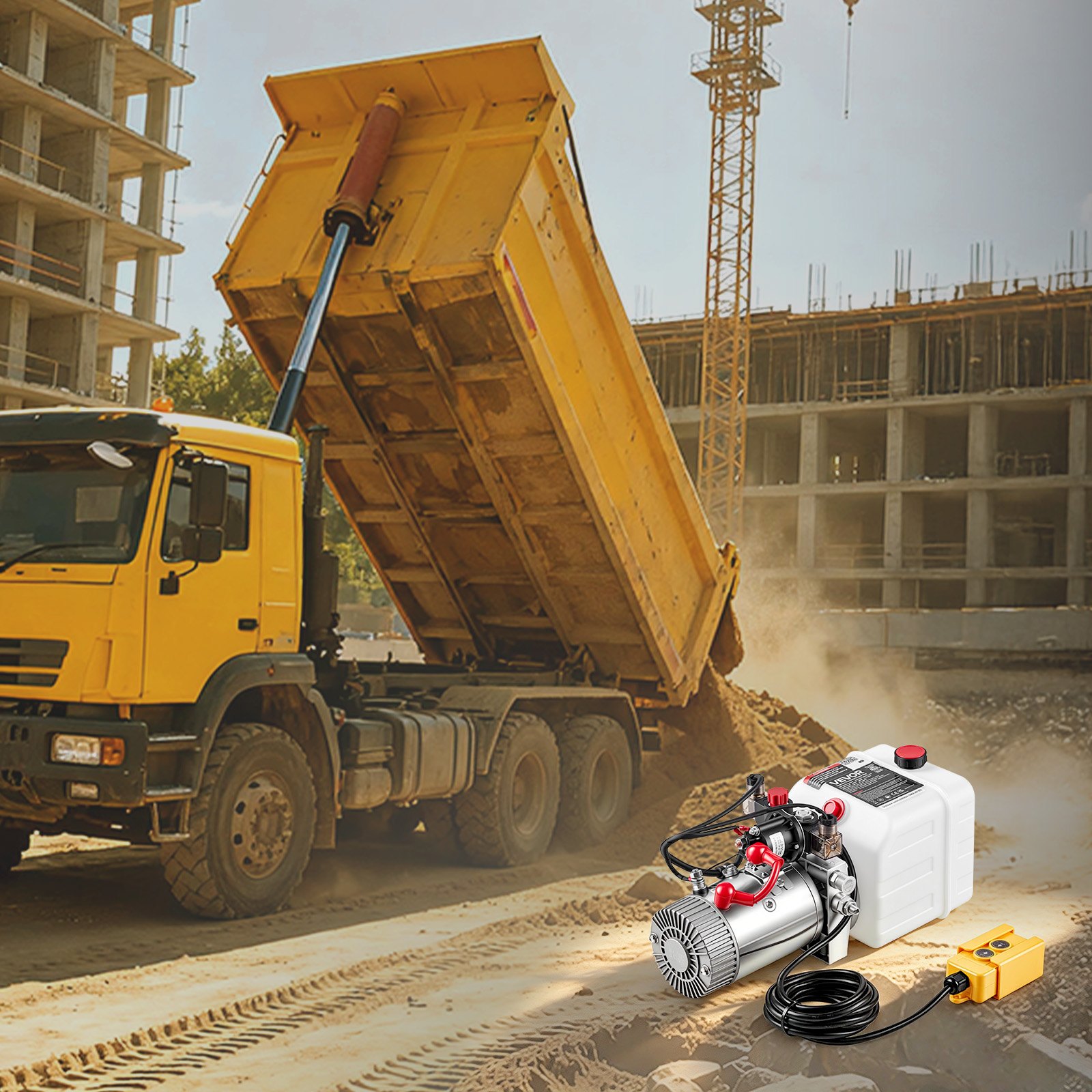

This dump trailer hydraulic pump supports dump trailers, stackers, scissor lifts, lift tables, material handling gear, and more compatible lifting platforms for versatile shop use.
