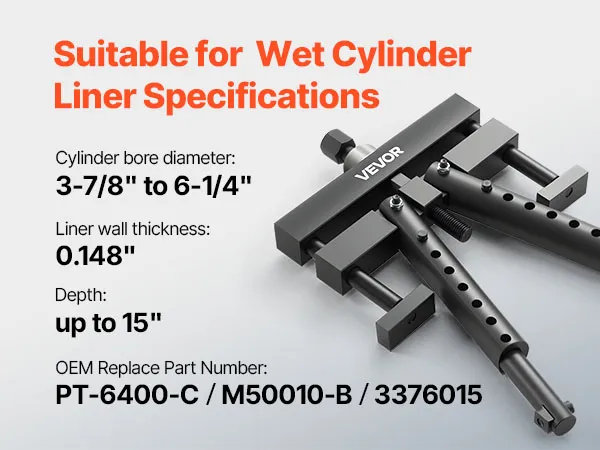

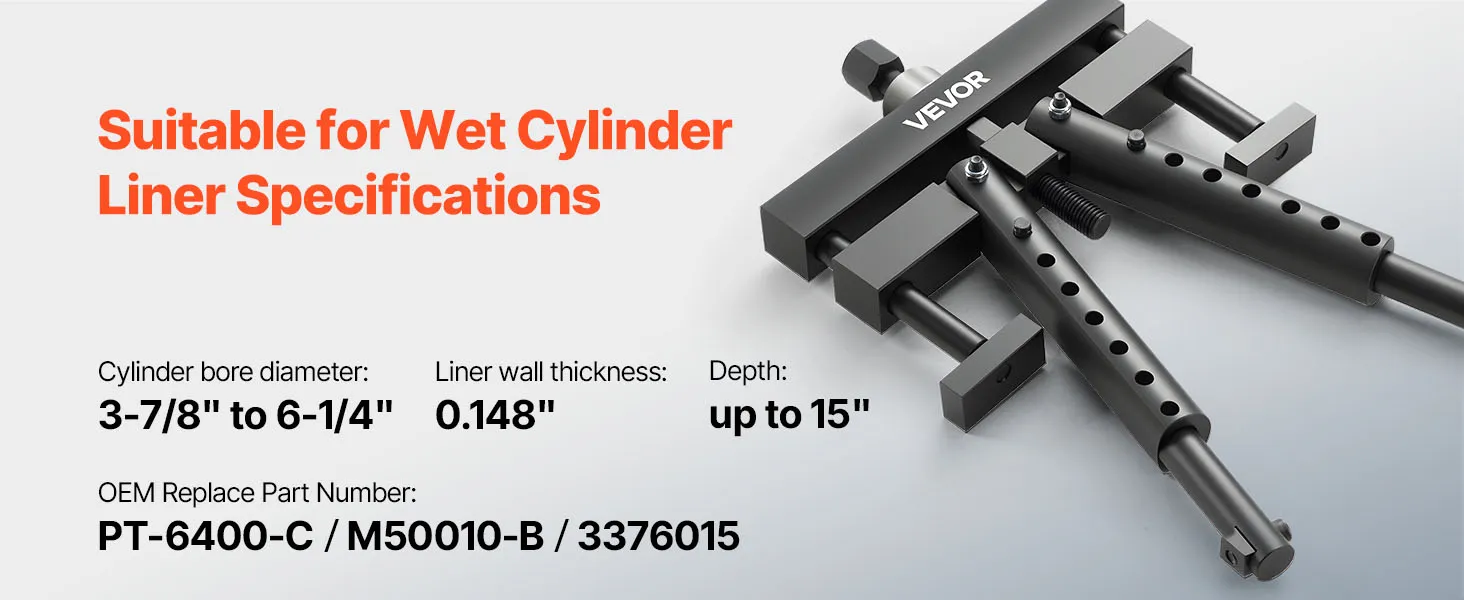

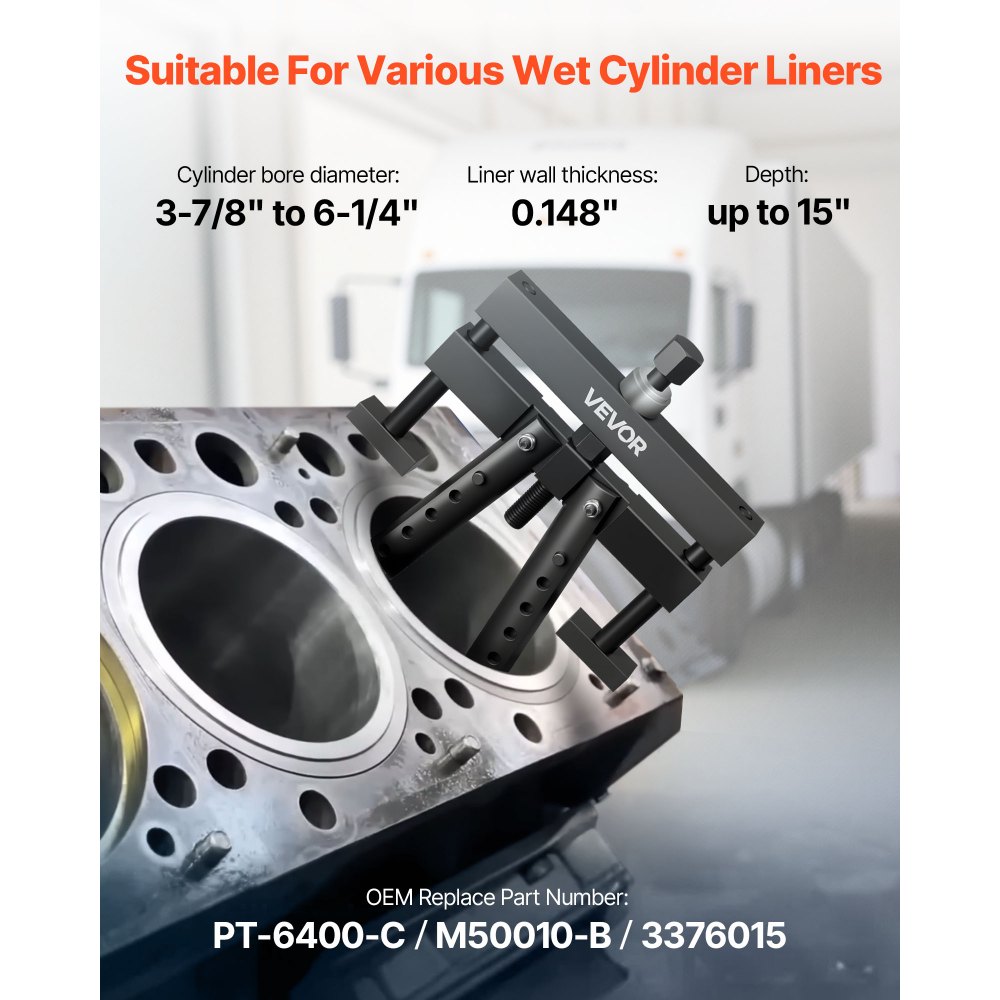

Fits Liner Sizes: This cylinder liner puller works with wet cylinder liners from 3-7/8 inches to 6-1/4 inches in diameter, up to 15 inches deep, with a minimum wall thickness of 0.148 inches
Engine Compatibility: The wet liner puller is compatible with Mack, Cummins, Volvo, Detroit, International, and multiple models of Cat engines, including 3176, 3196, 3300 Series, 4300 Series, 3500 Series, C10, C12, C15, C16, and more
Direct Replacement: Our universal liner puller replaces OEM part numbers: PT-6400-C, M50010-B, and 3376015

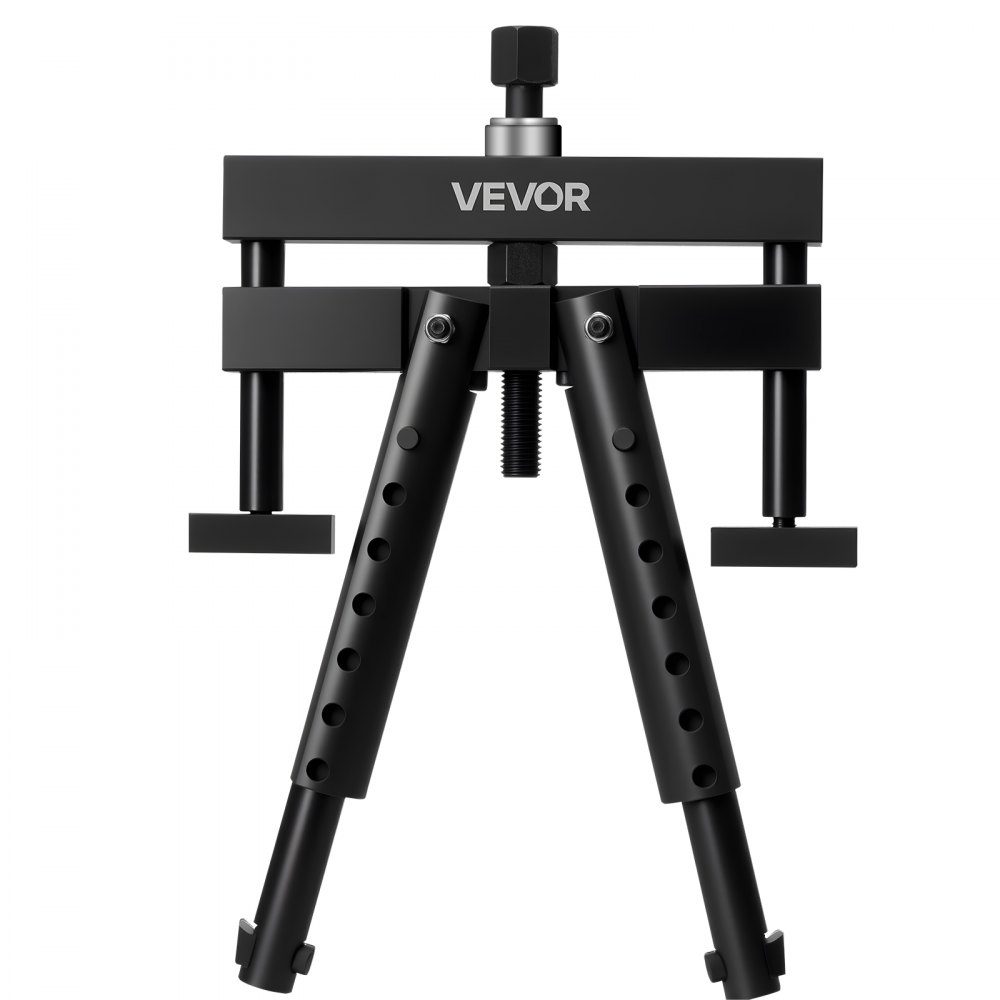

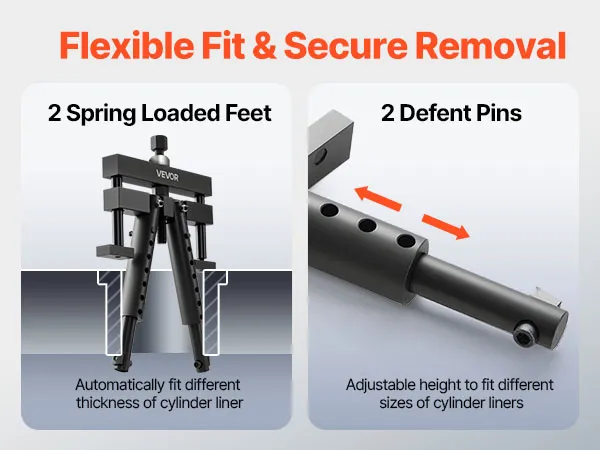

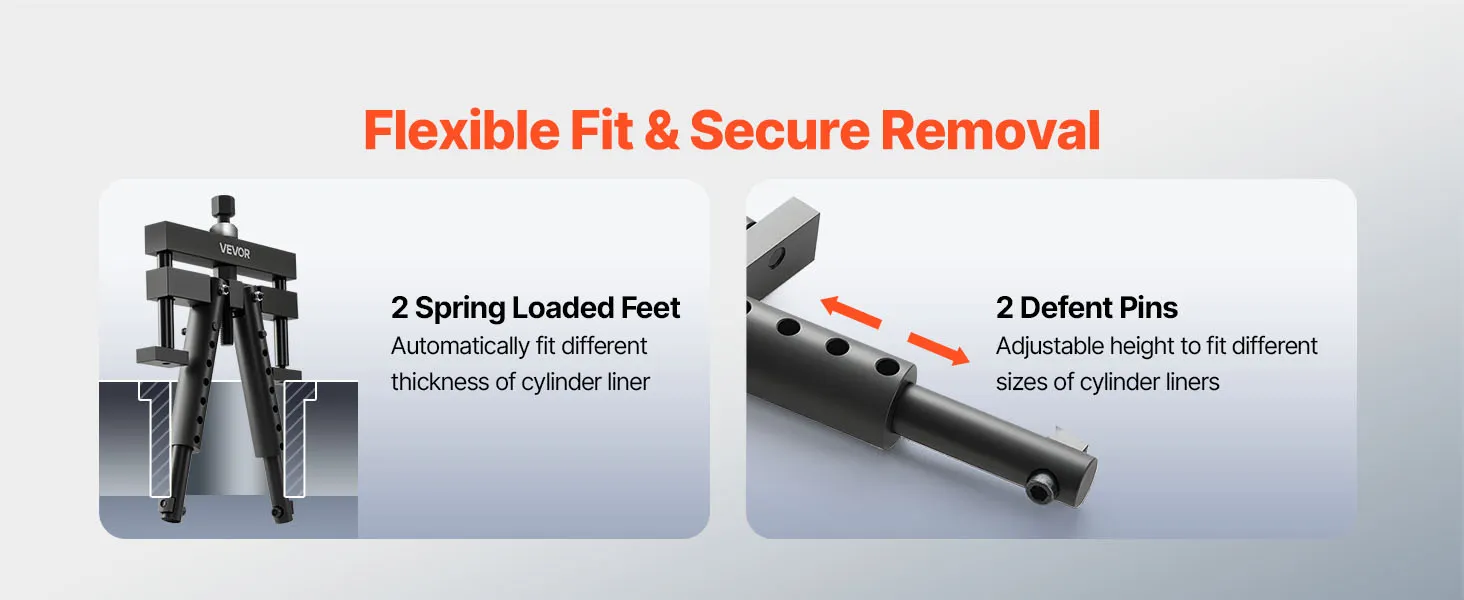

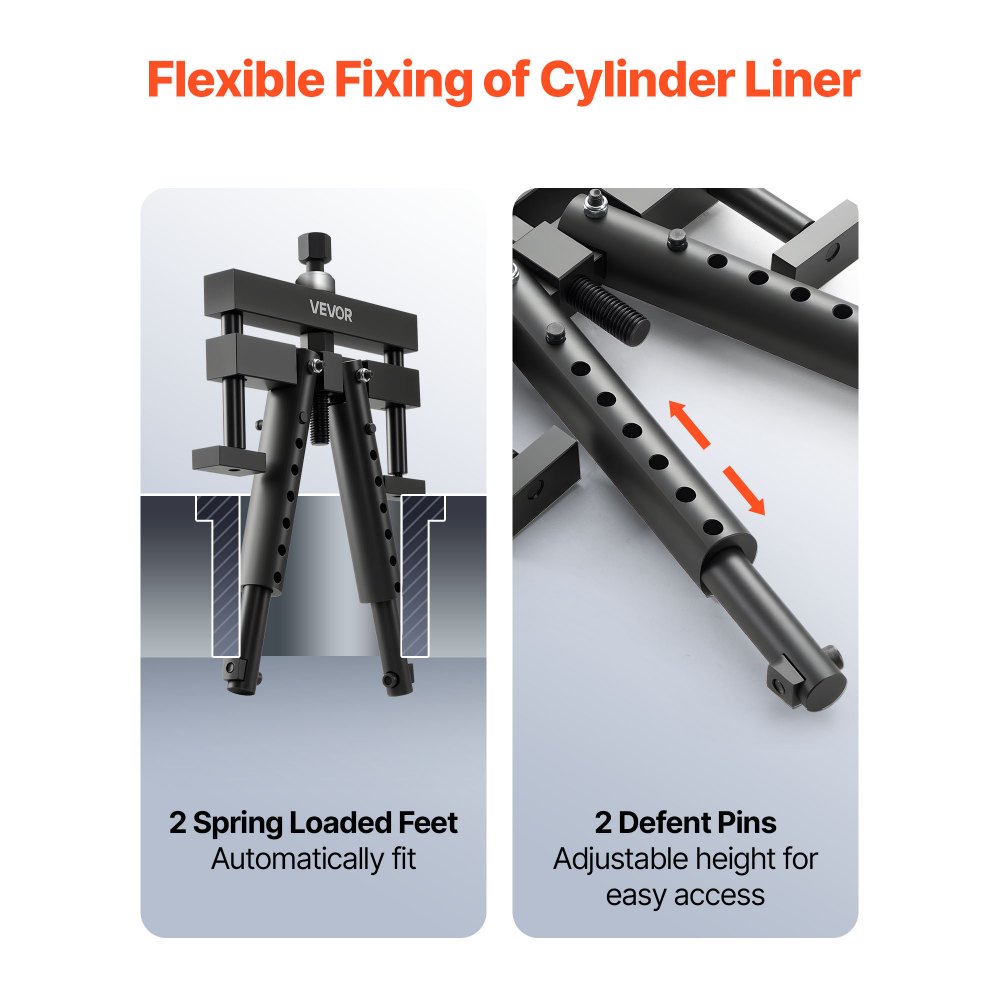

Flexible Removal: The liner puller includes two spring-loaded support legs that adapt to liner thickness and hold the liner securely in place. Two adjustable defent pins allow reaching into different liner depths. Note: Lubricate the screw before use

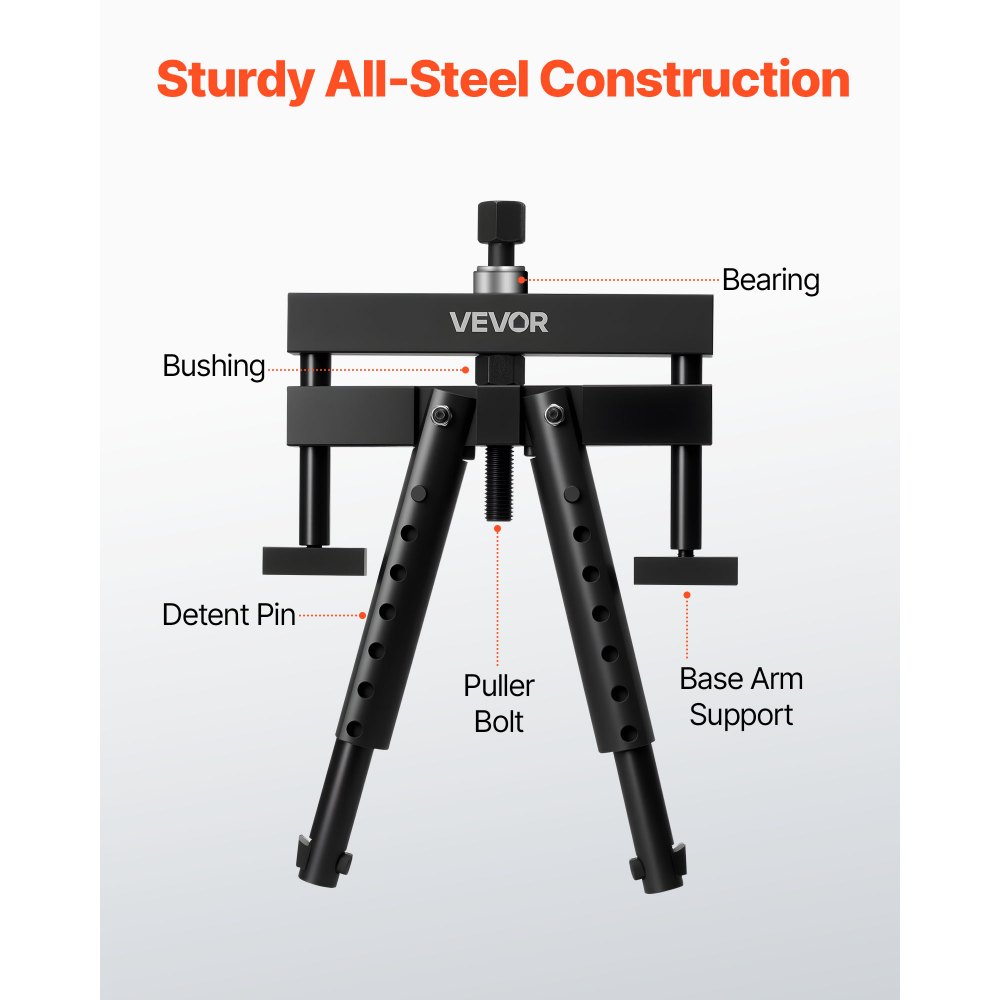

Built to Last: The engine liner puller is crafted from premium steel for outstanding durability. It withstands tough jobs and long-term use without breaking—solving the common problem of tool failure in high-pressure repairs
As others have said the bearing falls apart. Also the pipe that comes with it is very thin wall so it collapsed. I used 1/2” black pipe I had laying around and cut it to length. I needed this puller for a Perkins P3 that was out of a Ford tractor. I already knew that the plate wasn’t the correct size, but I wasn’t about to spend 150$ on just a plate so I took the small one that came with this kit and very carefully ground it down to size. I ended up using a 3” pipe and air hammer to help it along. They need to just not include the thin pipe and include a better bearing.
See Less
See More
tim
Reviewed on Dec 30,2024
I was skeptical of this puller, because of the price. But it worked flawlessly pulling sleeves from a diesel engine, I would definitely recommend this product.
See Less
See More
John Sanders
Reviewed on Dec 07,2024
The tool worked great after grinding a square head on the adjusting screw. I was able to put a wrench on the top to keep it from spinning while I was trying to tighten.
See Less
See More
thomas
Reviewed on Dec 04,2024
With the knuckle in the main pull rod. I was able to do everything from the top of the motor. Sweat very nice.
See Less
See More
ELRH
Reviewed on Aug 29,2024
Producto de excelente calidad, es tal cual como se presenta en la imagen, cumple con su función, empaque y tiempo de entrega es excelente
See Less
See More
Wayne Pritchard
Reviewed on Jul 09,2024
Great tool works fine.................................................................................
See Less
See More
Joseph
Reviewed on May 02,2024
Bearing are cheap and will fail but it pulled my farmall m sleeves out only issue washad to break sleeves as the were longer than the tool was high. I pulled sleeves until max height of tool the just broke sleeves with hammer and kept pulling.
See Less
See More
Greg B.
Reviewed on Apr 02,2024
Worked perfectly on the sleeves I was pulling. Lube the provided bearing and go to work
See Less
See More
Anthony Bain
Reviewed on Mar 31,2024
I used this to pull the sleeves on a JD350 dozer engine, same as a perkins 3.152. It accomplished the task, but i had to use a hammer to hit the tightening handle. when trying to turn the handle by hand the shaft would just turn from the force required.
See Less
See More
Ian
Reviewed on Feb 02,2024
The puller works well and suits many jobs
See Less
See More
See all 12 reviews
About this item

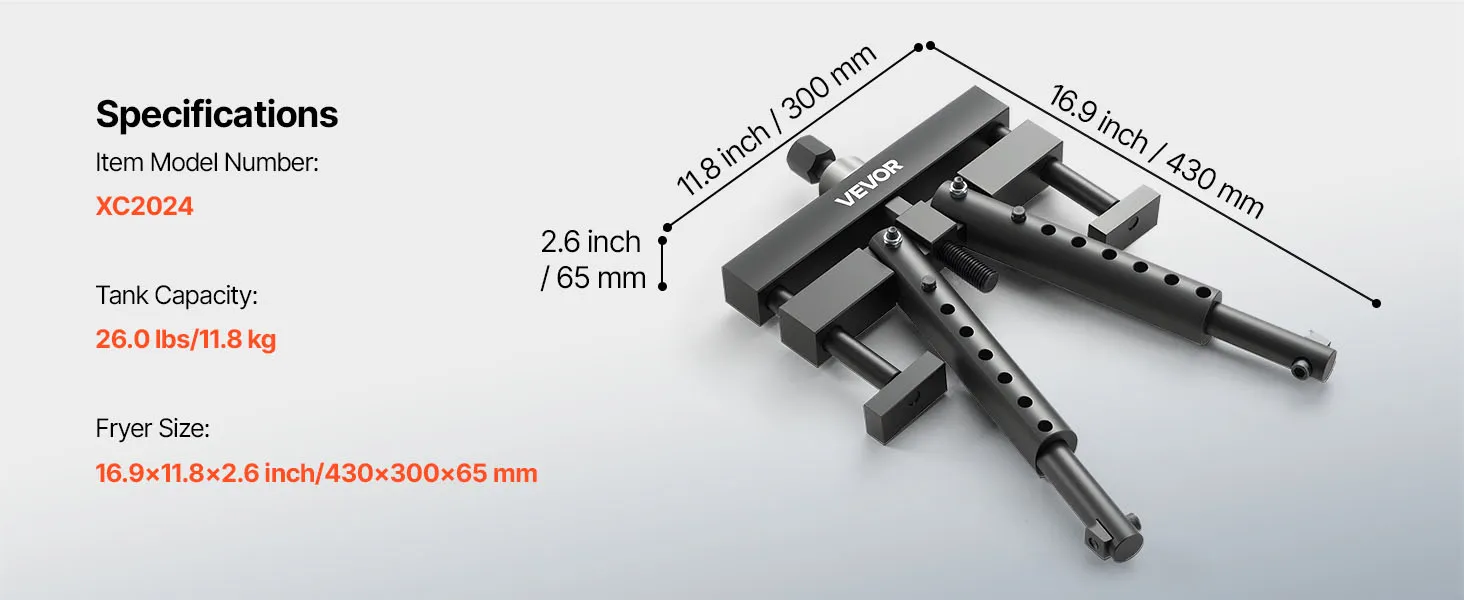

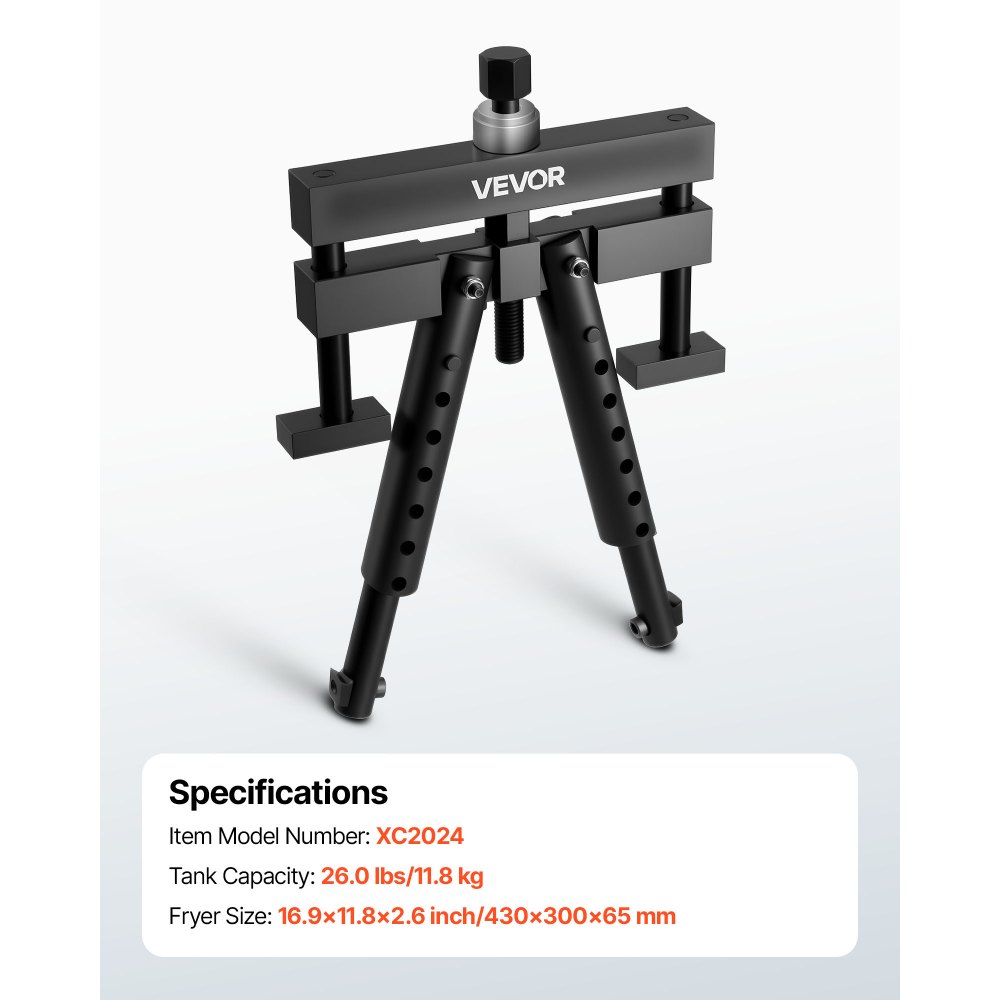

Product specification
Item Model Number
XC2024
Product Weight
26.0 lbs/11.8 kg

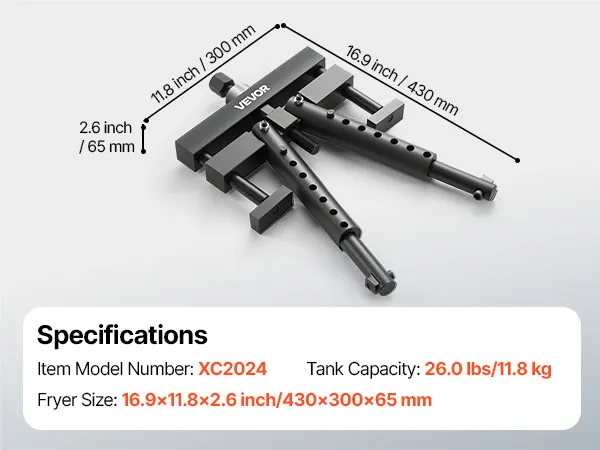

Product Dimensions
16.9 x 11.8 x 2.6 in/430 x 300 x 65 mm
Description

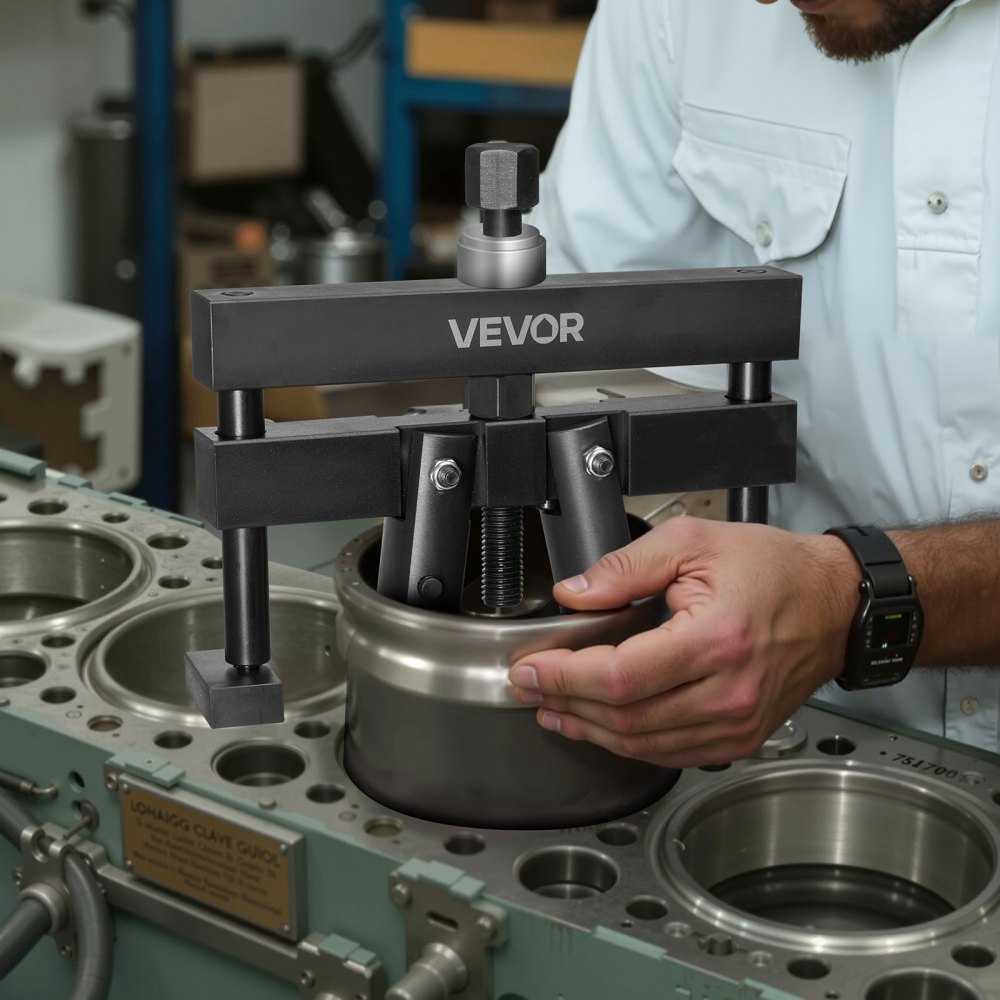

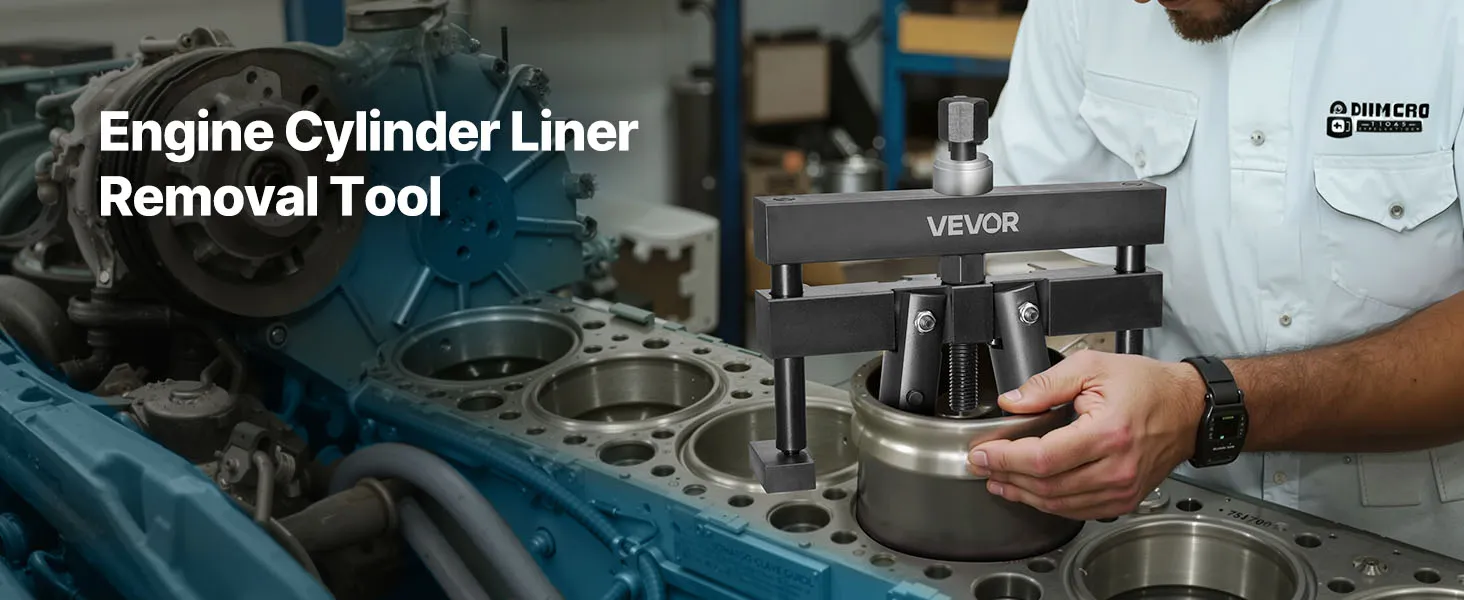

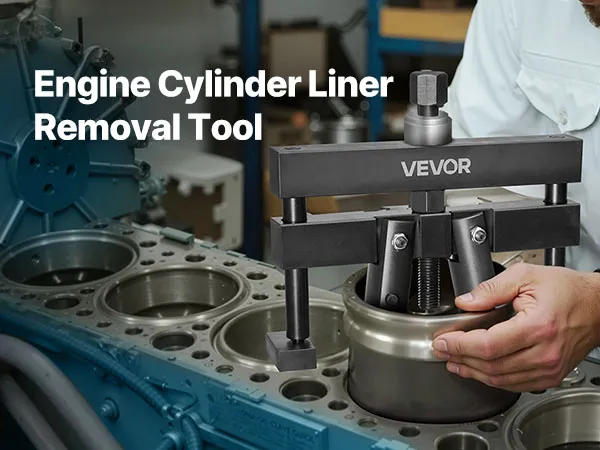

Effortless Cylinder Liner Removal
Our cylinder liner puller is ideal for heavy-duty trucks and construction engines. The spring-loaded and adjustable legs safely grip liners of various sizes—no damage to the engine block. It is made from high-strength steel for long-lasting durability. Note: Lubricate the screw before use.
This universal liner puller is engineered to match OEM specs with outstanding durability—built for high-performance applications.
Versatile fit for a range of wet cylinder liners. The liner puller is ideal for heavy trucks and machinery engines—no more guessing about compatibility.
Adjustable and replaceable support legs of our wet liner puller ensure a secure grip and controlled removal—no risk to the engine housing.

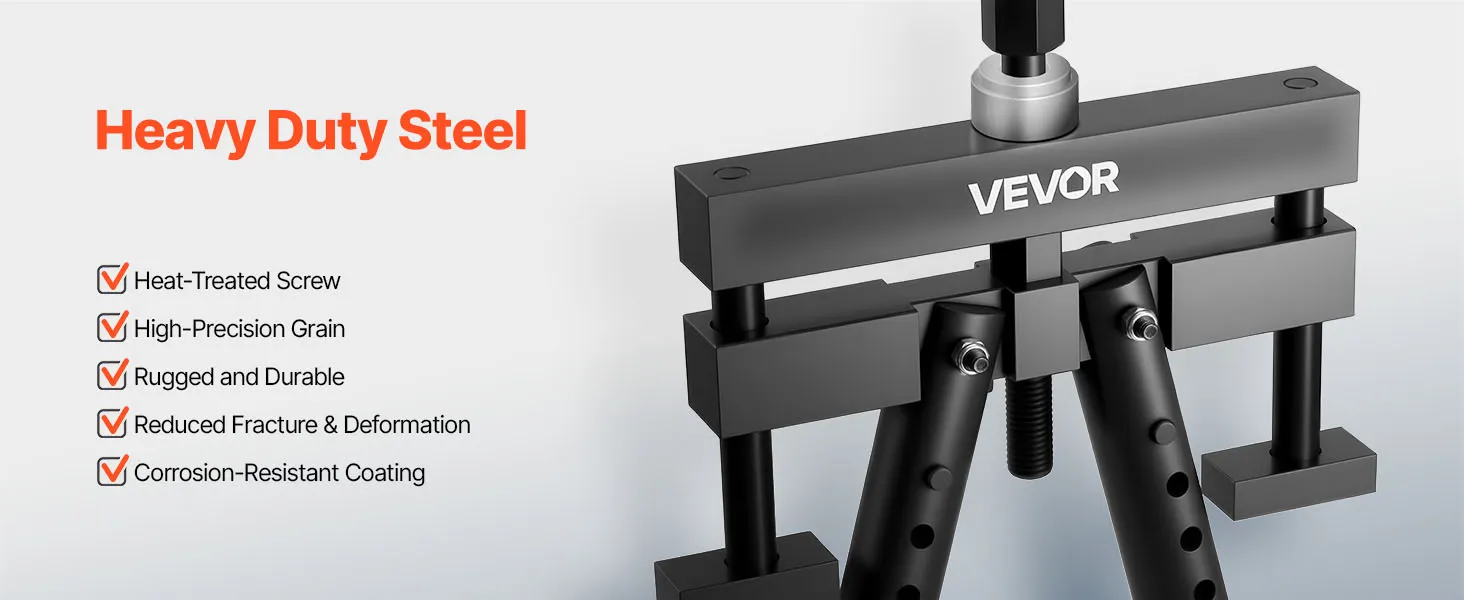

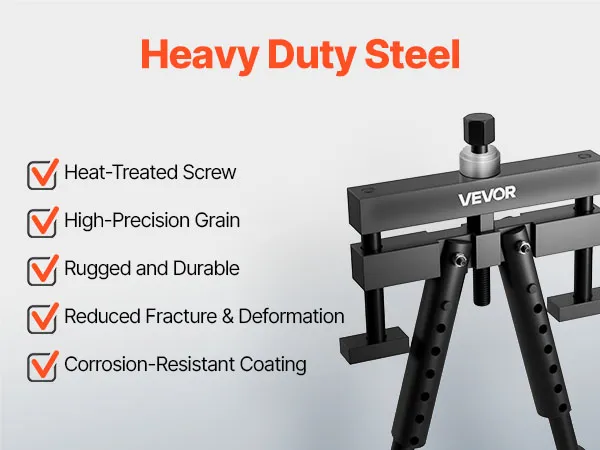

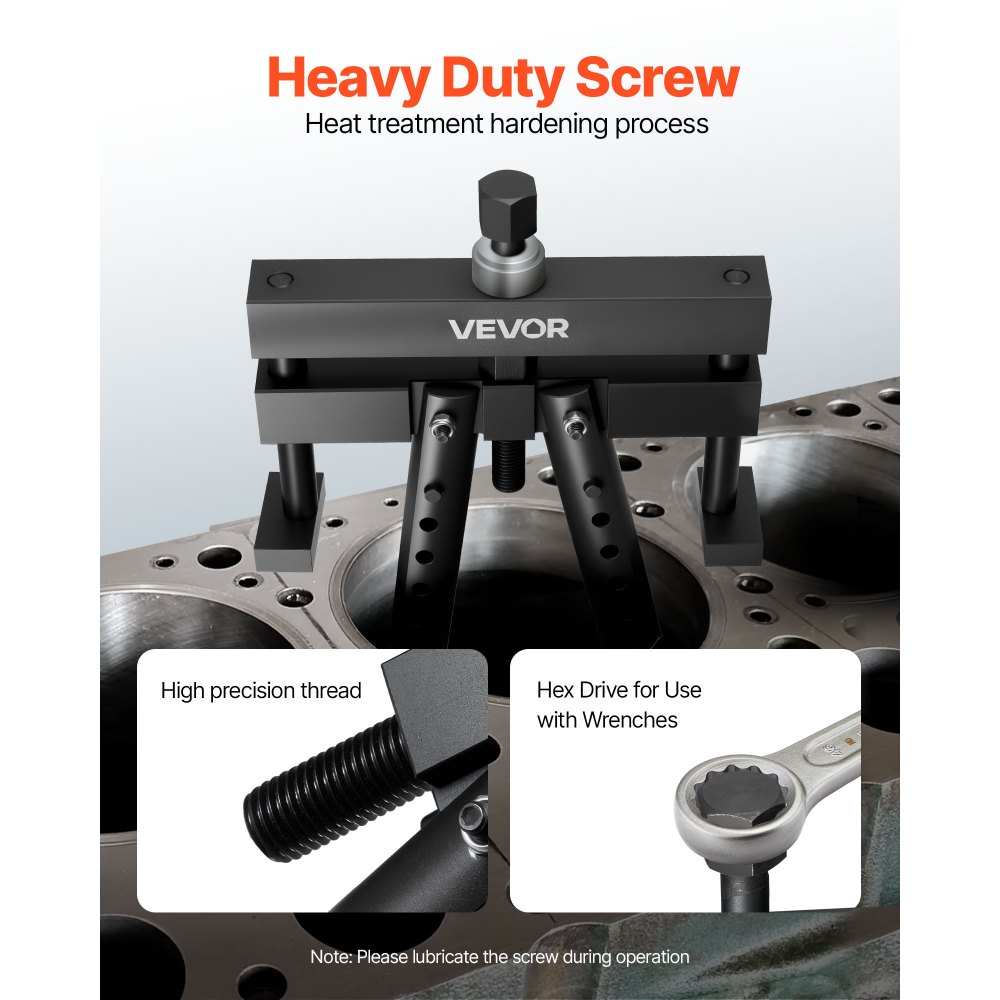

The engine liner puller's screw is heat-treated for extra strength, while all parts are crafted from premium steel for long-term durability and resistance to wear.
Questions and Answers
(0)
Typical questions asked about products: Is the product durable? ...

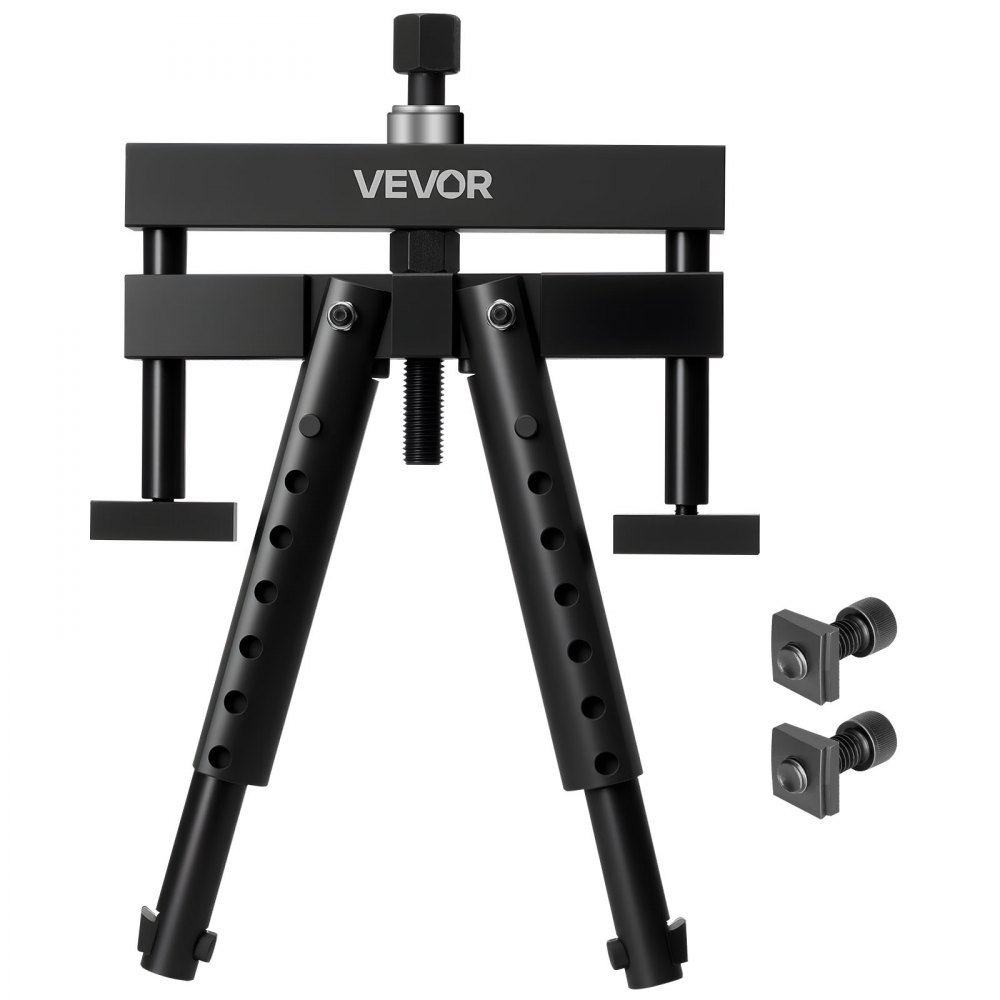

VEVOR Universal Cylinder Liner Puller Assembly, Used for Mack Cummins Cat on Wet Liner from 98.43 mm to 158.75 mm Bore, Diesel Engine Cylinder Liner Removal Tool, Replace PT-6400-C, M50010-B, 3376015
