Features & Details

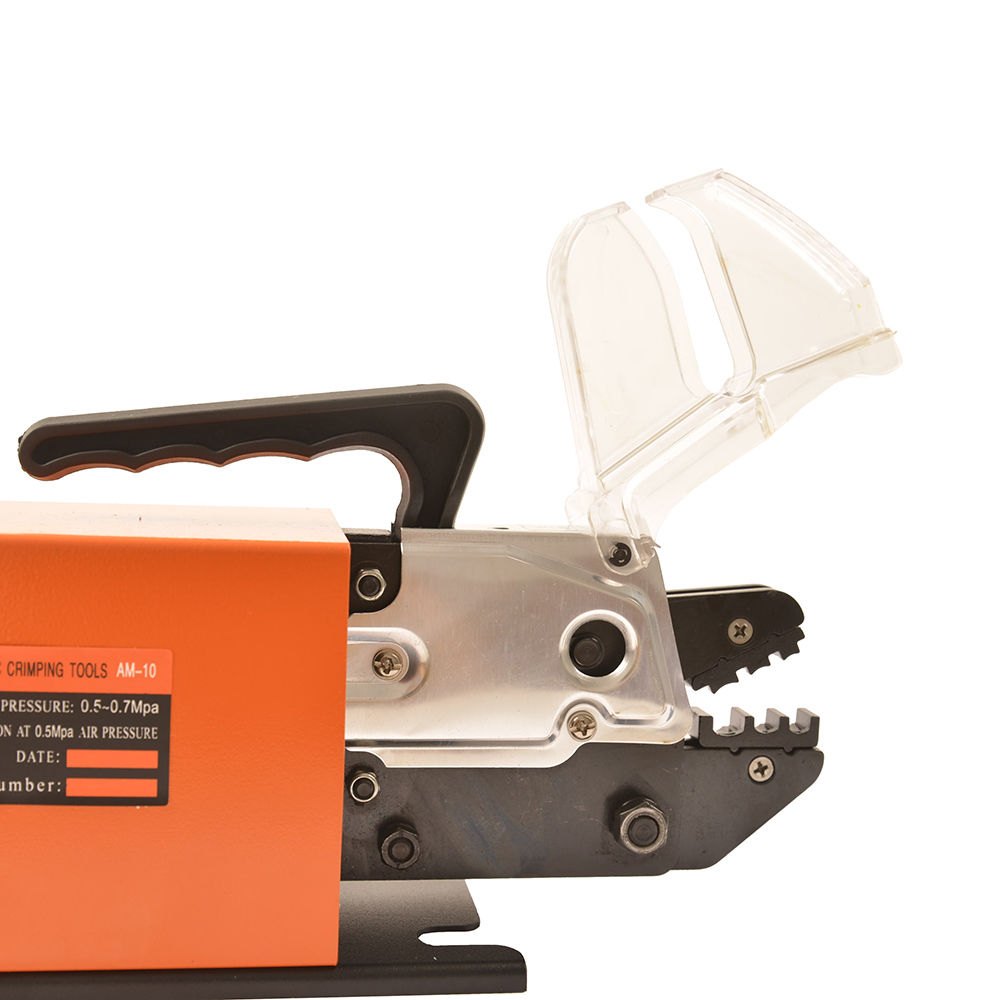

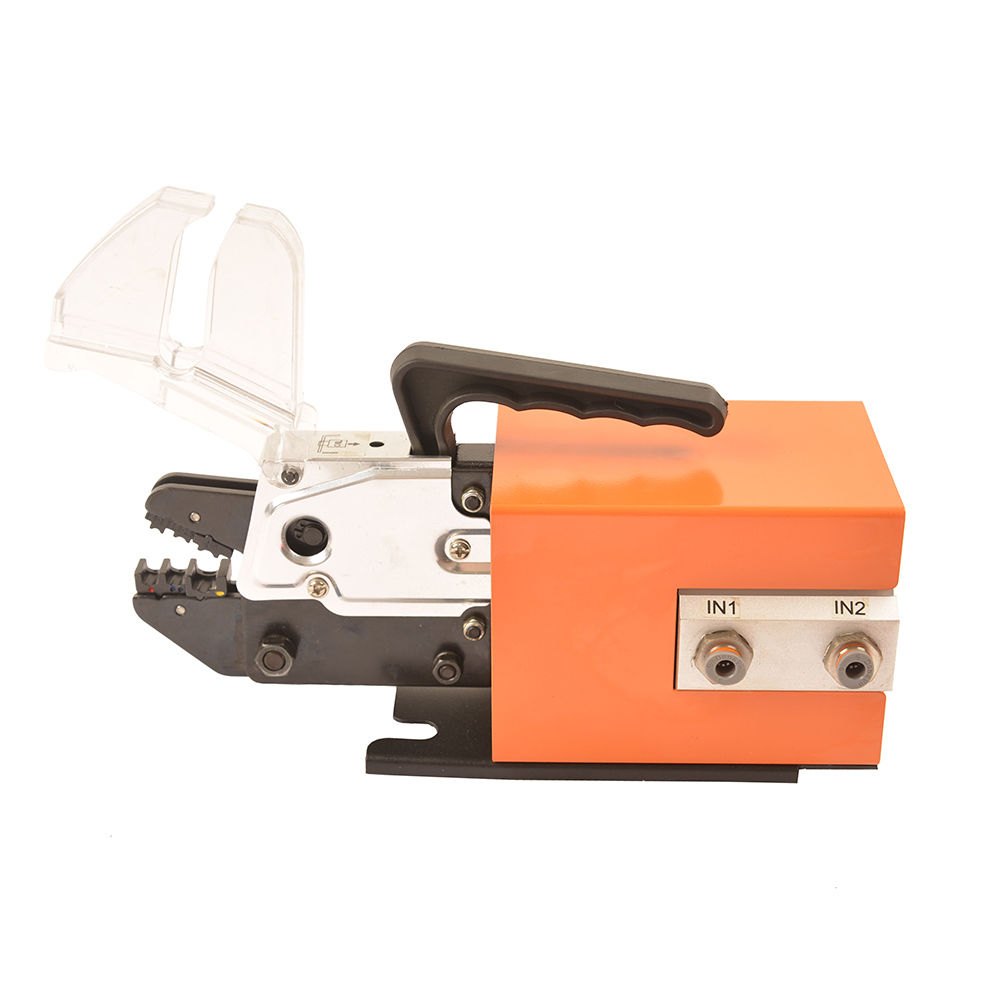

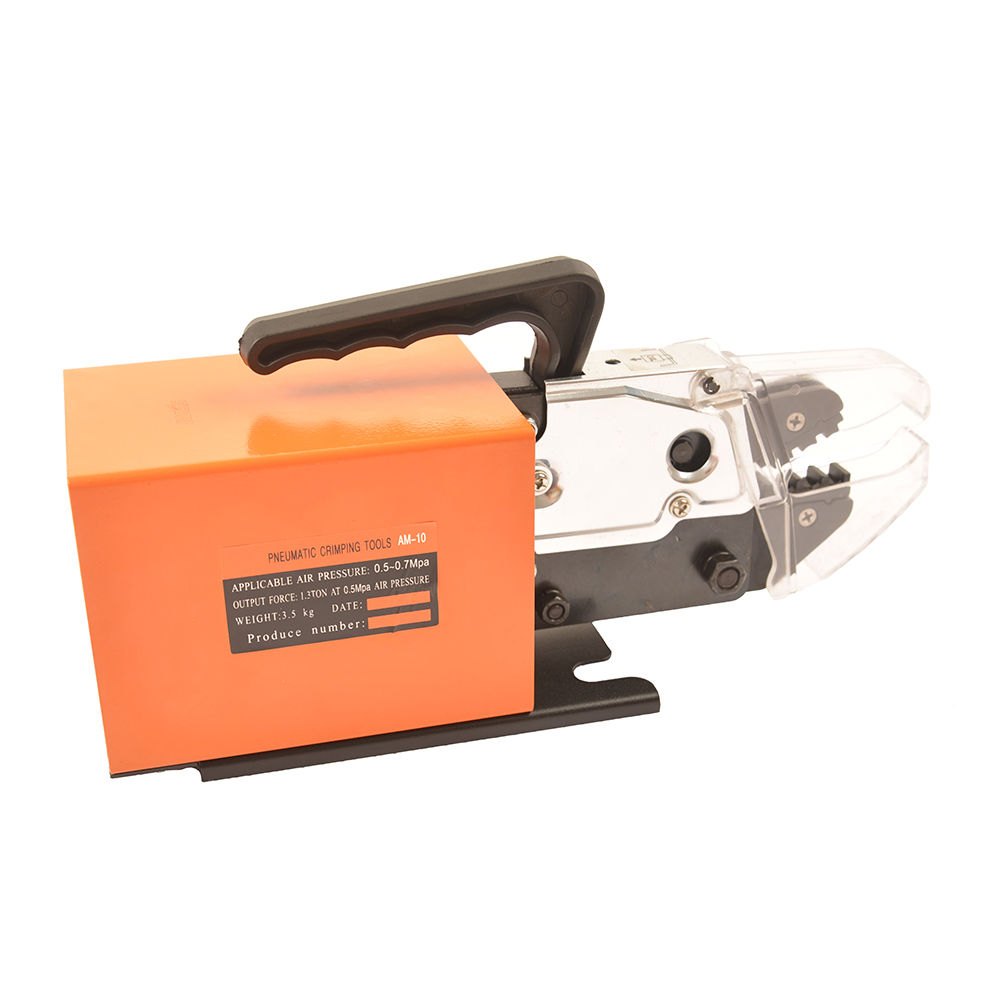

- 【DURABLE MATERIAL】 - The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T, Air Pressure Flow: 0.5-0.7 Mpa.
- 【HIGH EFFICIENT】 - This AM-10 pneumatic crimping tool is driven by a dual-action standard cylinder to achieve high efficiency and quality in both crimping force and speed. It has a precision die jaws, capable of precision crimping work to meet the needs of modern industry.
- 【COMFORTABLE OPERATION】 - Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes.
- 【EASY TO USE】 - After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain.

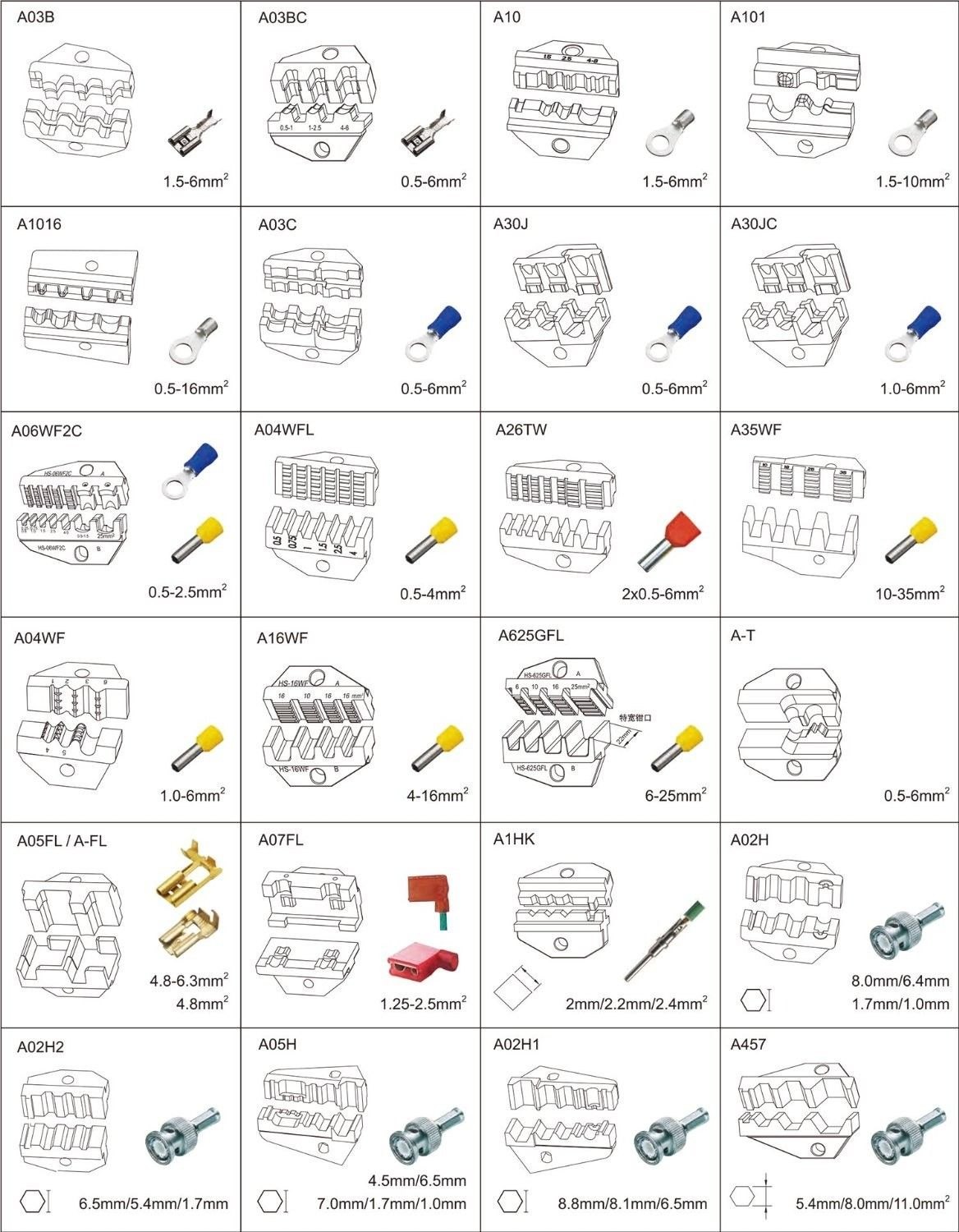

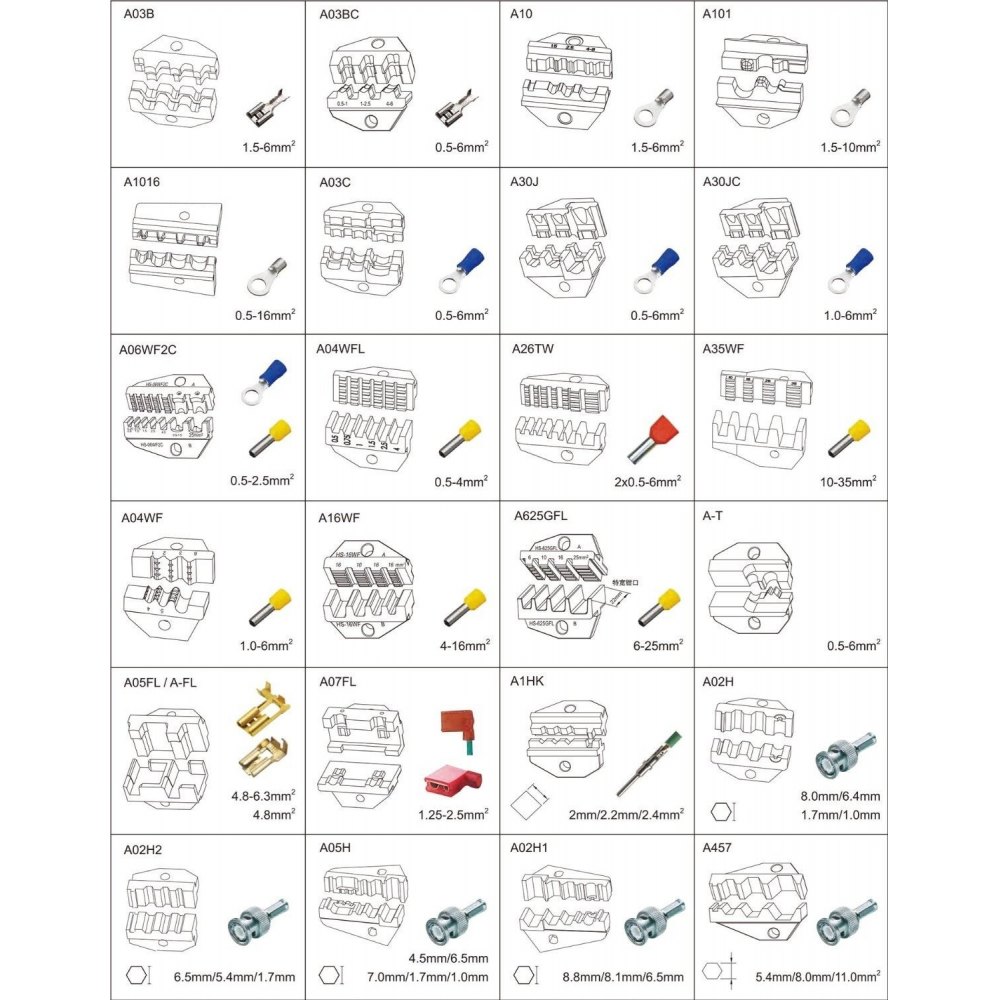

- 【WIDE APPLICATIONS】 - The pneumatic crimping tool is suitable for crimping Ordinary Terminal ≤10 mm², Insulated Terminal ≤6 mm². Also, we provide you with 5 sets of dies for free!(A30J, A35WF, A06WF2C, A03BC, A10)
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 5.0
All reviews are from verified purchases
See all 2 reviews
About this item
Product specification
- Model
- AM-10
- Material
- Tool steel
- Weight
- 6.8 kg (15 lbs)
- Output Force
- 1.3 T
- Air Pressure
- 0.5-0.7 Mpa
- Ring Terminal
- ≤ 25 mm²
- Ordinary Terminal
- ≤ 10 mm²
- Insulated Terminal
- ≤ 6 mm²
- External Dimension
- 41 x 35 x 25 cm (17 x 14 x 10 inch)
Description
Features & Details
- 【DURABLE MATERIAL】 - The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T, Air Pressure Flow: 0.5-0.7 Mpa.
- 【HIGH EFFICIENT】 - This AM-10 pneumatic crimping tool is driven by a dual-action standard cylinder to achieve high efficiency and quality in both crimping force and speed. It has a precision die jaws, capable of precision crimping work to meet the needs of modern industry.
- 【COMFORTABLE OPERATION】 - Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes.
- 【EASY TO USE】 - After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain.
- 【WIDE APPLICATIONS】 - The pneumatic crimping tool is suitable for crimping Ordinary Terminal ≤10 mm², Insulated Terminal ≤6 mm². Also, we provide you with 5 sets of dies for free!(A30J, A35WF, A06WF2C, A03BC, A10)
- Fit for crimping many kinds of terminals
- Driven by dual-action normal cylinder
- High efficiency and quality in crimping force and speed
- 5 sets of dies for free(1 X A30J,1 X A35WF,1 X A06WF2C,1 X A03BC,1 X A10)
- Able to process terminals with large sizes
ThisAM-10 pneumatic crimping tool is driven by dual-action normal cylinder to achieve high efficiency and quality in both crimping force and speed. The pneumatic crimper is suitable for many kinds of terminals. Also we provide you with 5 sets of dies for free!(1 X A30J,1 X A35WF,1 X A06WF2C,1 X A03BC,1 X A10)
*Air compressor not included.
About Usage
- First, put the terminal about to be crimped in corresponding position of clamp.
- Secondly, put stripped insulated conductor into the terminal, push foot air valve and loose after crimping.
- Then cut off gas supply. Dismount fix bolts on the clamp with L shaped spanner for safety.
- Replace a desired clamp if necessary, screw the bolt tightly once more.
- Please align the clamps well as they are used in pair.
- After assembly, press foot-operated gas valve slowly to make the machine work at a rather low speed to check mounted die set.
Notes
- Pleaselubricate all mechanical moving joints before start to operate, this will increase machine service life significantly.
- When processing a terminal with large size, please guarantee enough gas supply and air pressure.
- Do not use or store machine set in surroundings with too high or too low temperature, or high humidity.
- Keep the machine clean and dry before you store it. Adding dust caps at gas inlet and outlet can be a great choice.
- Working Pneumatic Pressure: 0.4-1 Mpa
- Ring Terminal: ≤25 mm²
- Crimping Force: 13.5 KN
- Ordinary Terminal: ≤10 mm²
- Insulated Terminal: ≤6 mm²
- Flow in Equipment: Compressed air
- Gross Weight: 15 lb (6.7 kg)
- Package Dimensions (L x W x H): 17 x 14 x 10 inch (41 x 35 x 25 cm)
- 1 X Pneumatic Crimping Tool with 1 Die Set

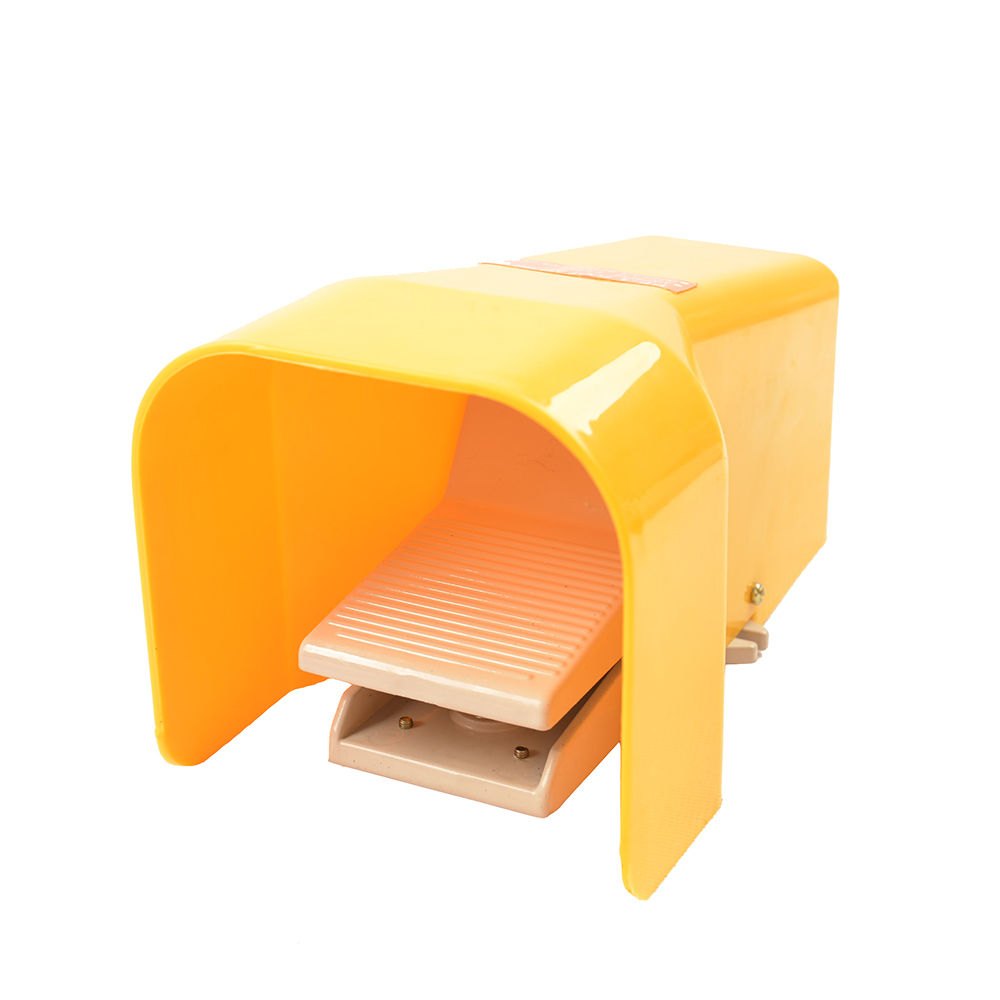

- 1 X Foot Air Valve
- 2 X Air Pipes
- 5 X Die Sets for Free(1 X A30J,1 X A35WF,1 X A06WF2C,1 X A03BC,1 X A10)
Specifications
- Model: AM-10
- Material: Tool steel
- Weight: 6.8 kg (15 lbs)
- Output Force: 1.3 T
- Air Pressure: 0.5-0.7 Mpa
- Ring Terminal: ≤ 25 mm²
- Ordinary Terminal: ≤ 10 mm²
- Insulated Terminal: ≤ 6 mm²
- External Dimension: 41 x 35 x 25 cm (17 x 14 x 10 inch)
Package Content

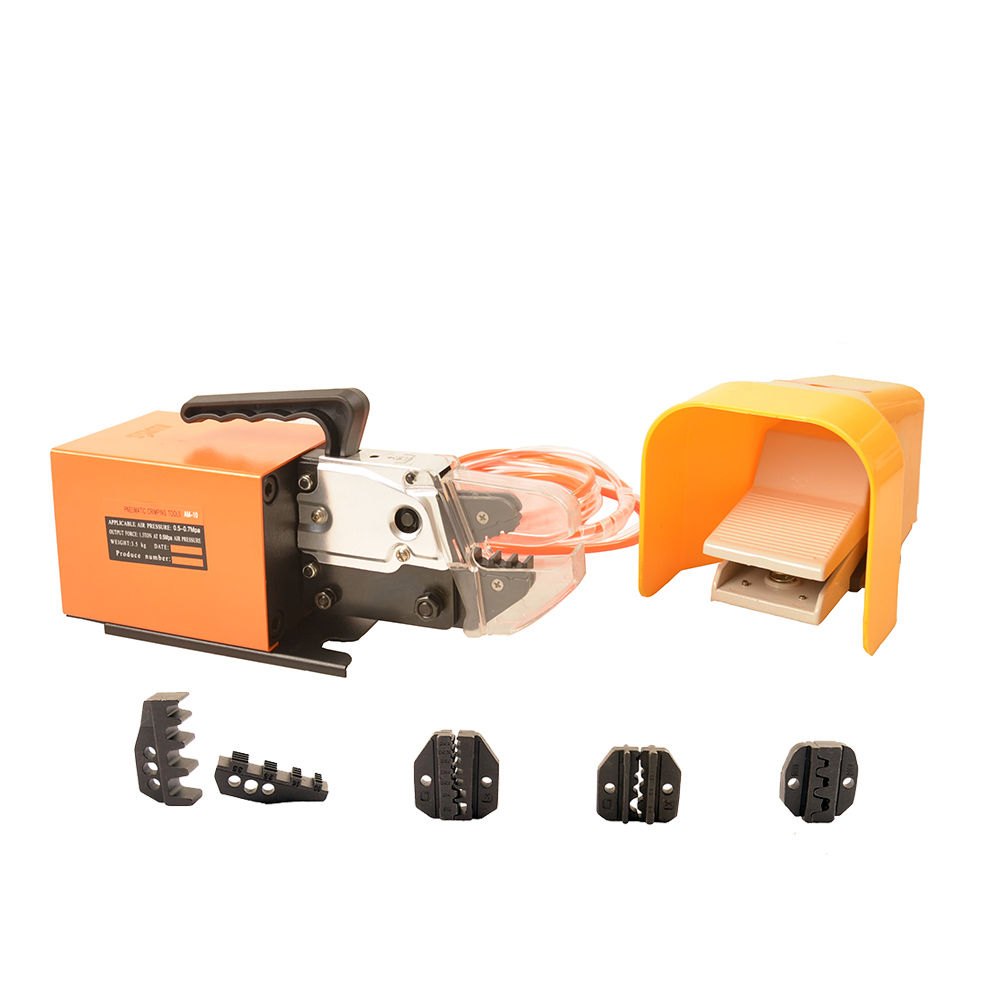

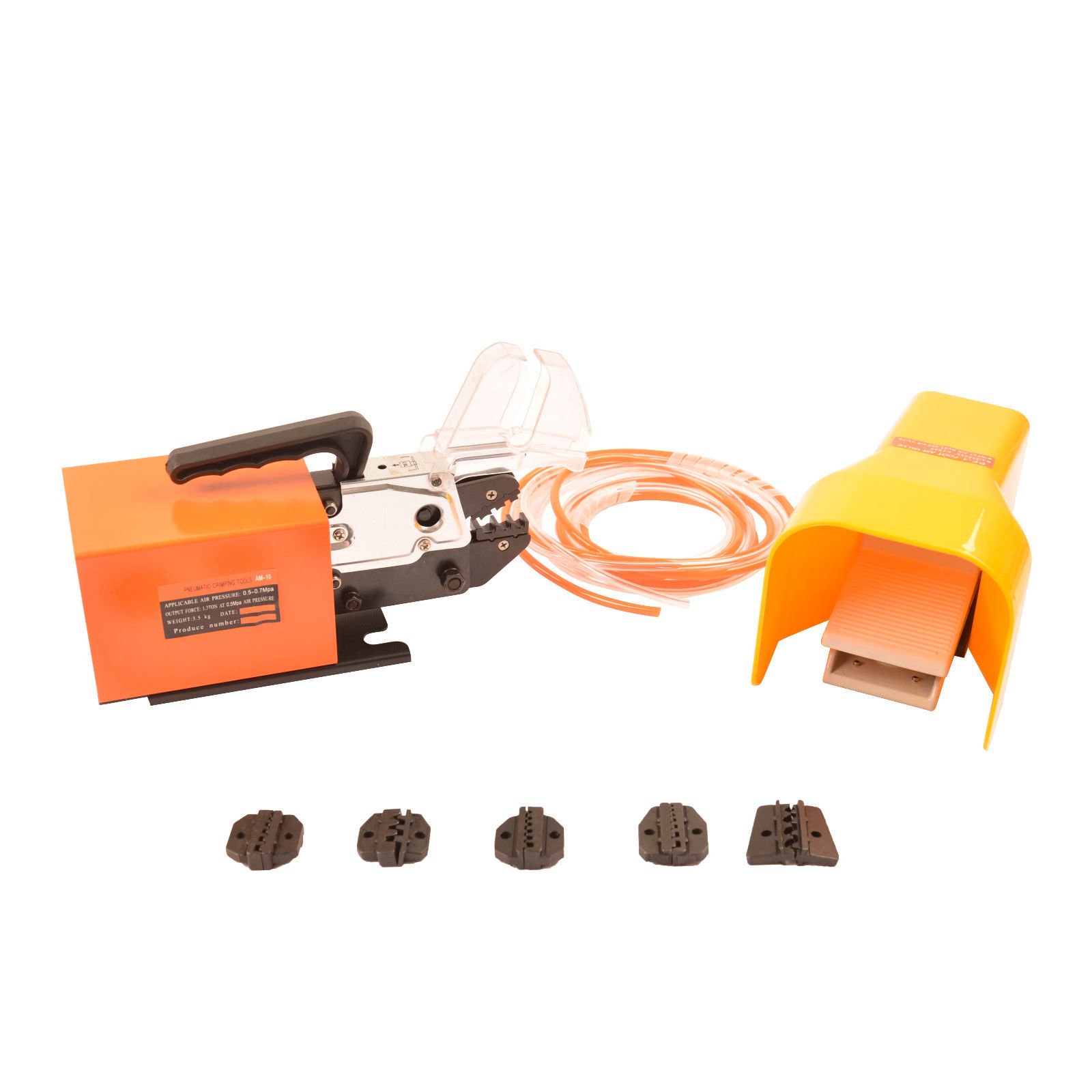

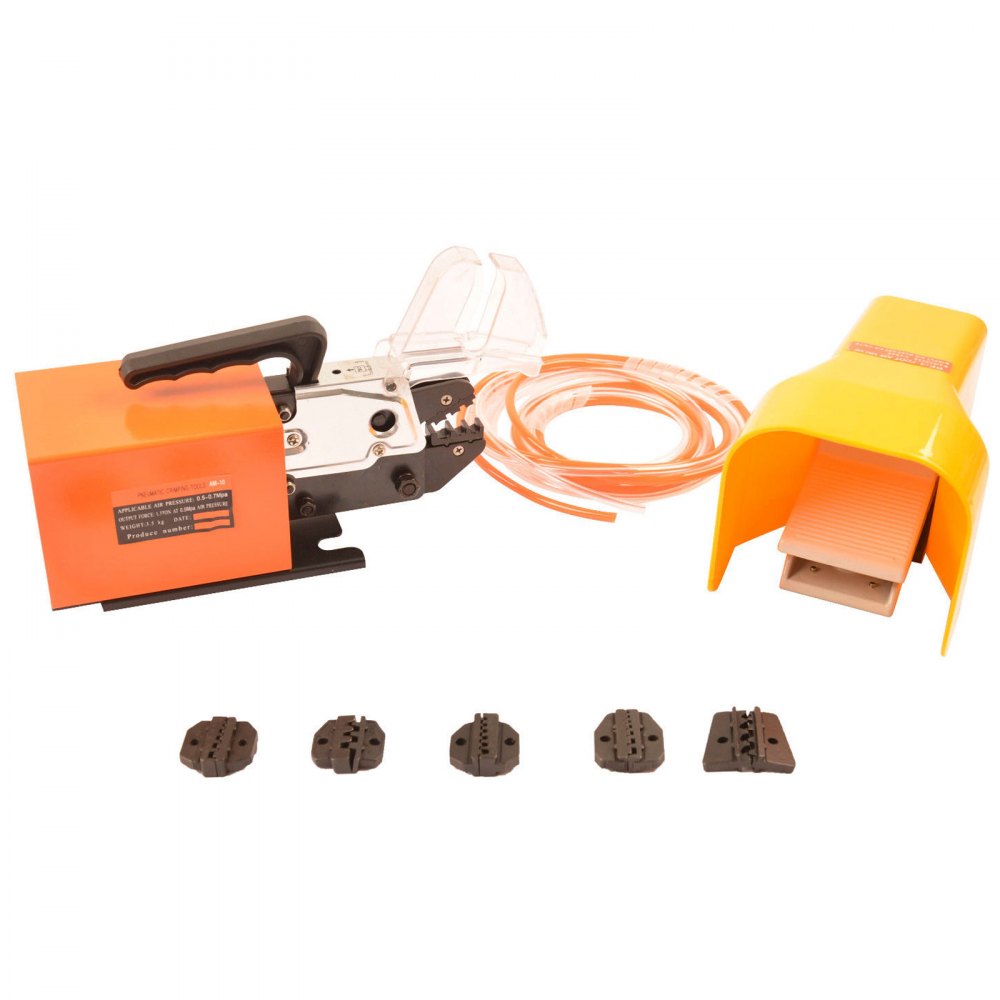

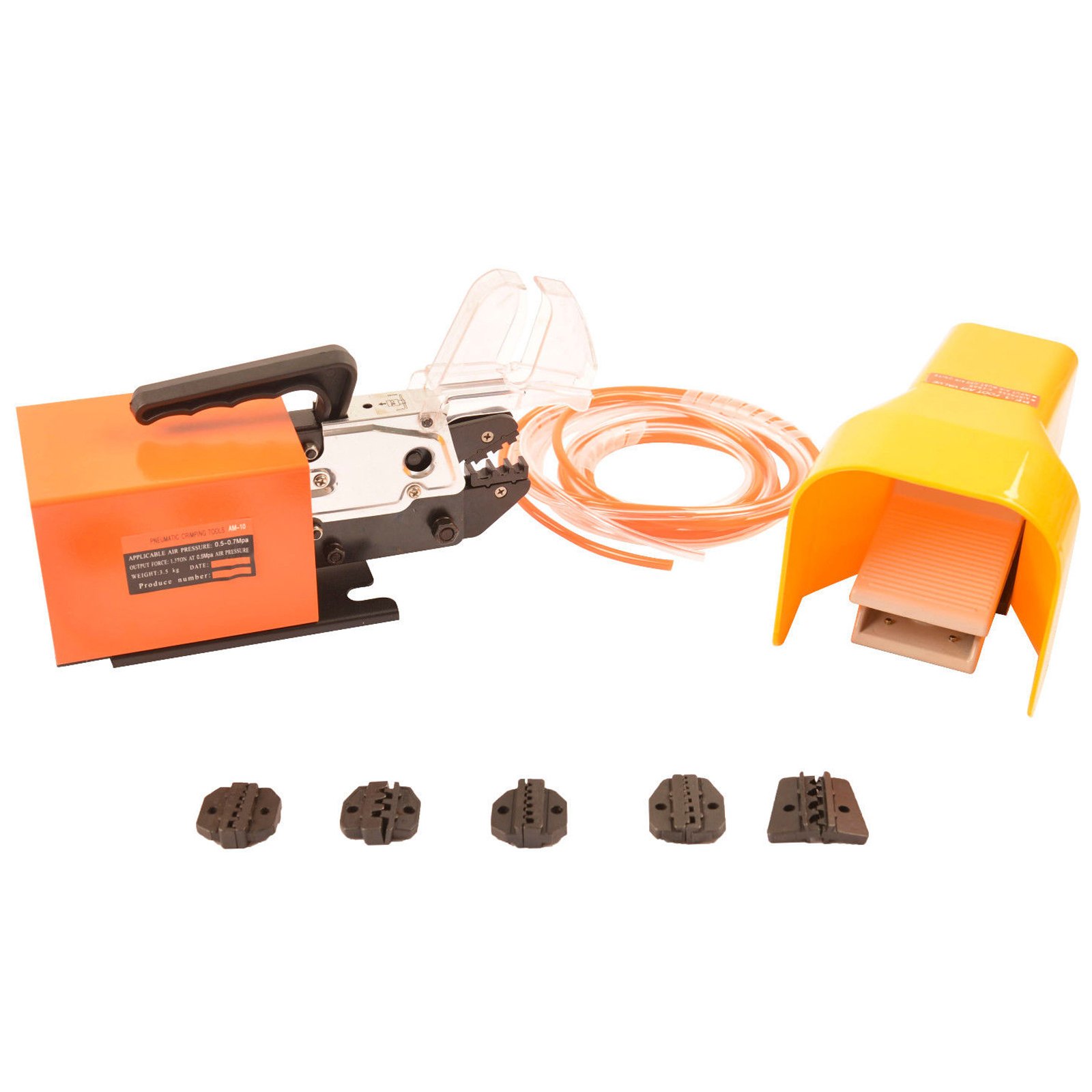

- 1 x AM-10 Pneumatic Crimping Tool
- 1 x Foot Air Valve
- 2 x Air Pipes
- 5 x Die Sets(1 x A30J, 1 x A35WF, 1 x A06WF2C, 1 x A03BC, 1 x A10)
Features & Details
- 【DURABLE MATERIAL】 - The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T, Air Pressure Flow: 0.5-0.7 Mpa.
- 【HIGH EFFICIENT】 - This AM-10 pneumatic crimping tool is driven by a dual-action standard cylinder to achieve high efficiency and quality in both crimping force and speed. It has a precision die jaws, capable of precision crimping work to meet the needs of modern industry.
- 【COMFORTABLE OPERATION】 - Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes.
- 【EASY TO USE】 - After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain.
- 【WIDE APPLICATIONS】 - The pneumatic crimping tool is suitable for crimping Ordinary Terminal ≤10 mm², Insulated Terminal ≤6 mm². Also, we provide you with 5 sets of dies for free!(A30J, A35WF, A06WF2C, A03BC, A10)
- Fit for crimping many kinds of terminals
- Driven by dual-action normal cylinder
- High efficiency and quality in crimping force and speed
- 5 sets of dies for free(1 X A30J,1 X A35WF,1 X A06WF2C,1 X A03BC,1 X A10)
- Able to process terminals with large sizes
ThisAM-10 pneumatic crimping tool is driven by dual-action normal cylinder to achieve high efficiency and quality in both crimping force and speed. The pneumatic crimper is suitable for many kinds of terminals. Also we provide you with 5 sets of dies for free!(1 X A30J,1 X A35WF,1 X A06WF2C,1 X A03BC,1 X A10)
*Air compressor not included.
About Usage
- First, put the terminal about to be crimped in corresponding position of clamp.
- Secondly, put stripped insulated conductor into the terminal, push foot air valve and loose after crimping.
- Then cut off gas supply. Dismount fix bolts on the clamp with L shaped spanner for safety.
- Replace a desired clamp if necessary, screw the bolt tightly once more.
- Please align the clamps well as they are used in pair.
- After assembly, press foot-operated gas valve slowly to make the machine work at a rather low speed to check mounted die set.
Notes
- Pleaselubricate all mechanical moving joints before start to operate, this will increase machine service life significantly.
- When processing a terminal with large size, please guarantee enough gas supply and air pressure.
- Do not use or store machine set in surroundings with too high or too low temperature, or high humidity.
- Keep the machine clean and dry before you store it. Adding dust caps at gas inlet and outlet can be a great choice.
- Working Pneumatic Pressure: 0.4-1 Mpa
- Ring Terminal: ≤25 mm²
- Crimping Force: 13.5 KN
- Ordinary Terminal: ≤10 mm²
- Insulated Terminal: ≤6 mm²
- Flow in Equipment: Compressed air
- Gross Weight: 15 lb (6.7 kg)
- Package Dimensions (L x W x H): 17 x 14 x 10 inch (41 x 35 x 25 cm)
- 1 X Pneumatic Crimping Tool with 1 Die Set
- 1 X Foot Air Valve
- 2 X Air Pipes
- 5 X Die Sets for Free(1 X A30J,1 X A35WF,1 X A06WF2C,1 X A03BC,1 X A10)
Specifications
- Model: AM-10
- Material: Tool steel
- Weight: 6.8 kg (15 lbs)
- Output Force: 1.3 T
- Air Pressure: 0.5-0.7 Mpa
- Ring Terminal: ≤ 25 mm²
- Ordinary Terminal: ≤ 10 mm²
- Insulated Terminal: ≤ 6 mm²
- External Dimension: 41 x 35 x 25 cm (17 x 14 x 10 inch)
Package Content
- 1 x AM-10 Pneumatic Crimping Tool
- 1 x Foot Air Valve
- 2 x Air Pipes
- 5 x Die Sets(1 x A30J, 1 x A35WF, 1 x A06WF2C, 1 x A03BC, 1 x A10)
