Features & Details
- 【ALUMINUM BODY】- Sturdy frame by using high-quality aluminum is to extend working life. 2400W strong power for high working efficiency. The rated current of solar charger is 50A. Silver & black in color.
- 【LED INDICATORS】- The indicators are included: AC/INV, CHG & FAULT. AC/INV & CHG in green without flashing means that, output is powered by utility in Line mode, and battery is fully charged. FAULT in green without flashing refers to fault occurring in the inverter.
- 【STRONG LCD DISPLAY】- More details can be observed accurately: Input Source Information, Configuration Program and Fault Information, Out Information, Output Information and Battery Information.
- 【KEY INFORMATION】- Rated Power: 3000VA/2400W, Operating Temperature Range: 0-55, Rated Current: 50A, System Voltage: 24VDC, Max. Solar Voltage(VOC): 80VDC. Cold start function.
- 【HEAT DISSIPATION HOLES】- Multi-holes design protects the inverter from over temperature during long time working. They are on four sides for releasing heat evenly to improve using life and reduce damage.
Frequently Bought Together
Reviews 4.7
All reviews are from verified purchases
Average rating based on 7 reviews
Reviews 4.7
All reviews are from verified purchases
See all 7 reviews
About this item
Product specification
- Color
- Silver & Black
- Operating Temperature Range
- 0-55℃
- Solar Control Mode
- PWM
- AC Output
- 230VAC/50HZ, 13A, 1￠
- Inverter Mode
- Rated Power
- 3000VA/2400W
- DC Input
- 24VDC, 100A
- AC Charger Mode
- Input
- 230VAC/50HZ, 17.7A, 1￠
- DC Output
- 27VDC, 30A/20A
- Solar Charger Mode
- Rated Current
- 50A
- System Voltage
- 24VDC
- Max. Solar Voltage
- 80VDC
Description

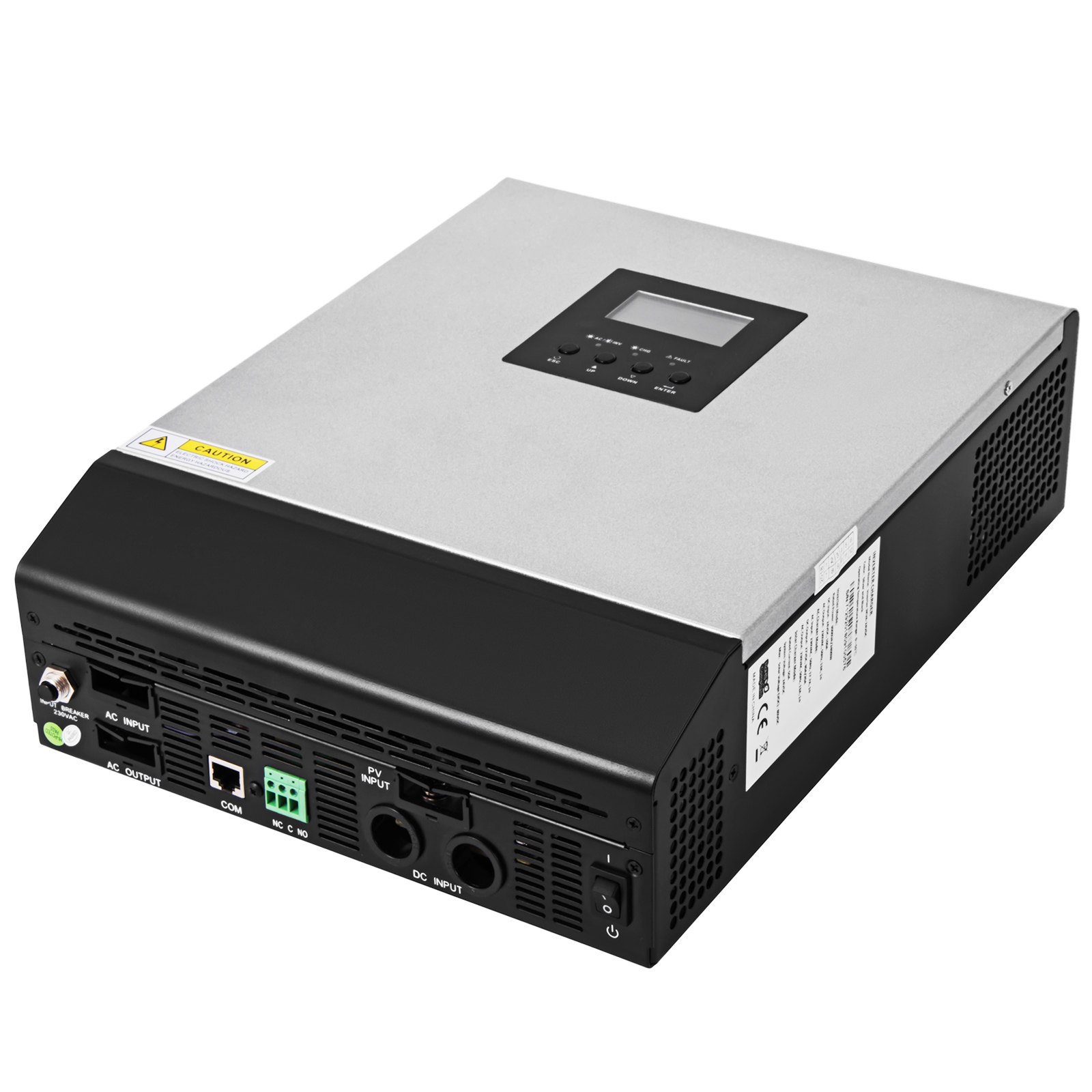

3KVA 24V Solar Inverter
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
- Please note: Professional maintenance personnel dismantle the inverter/charger only. This inverter/charger can only be used singly. Place it in the clean conditions, and install it in well ventilated places. Please install appropriate external fuses/breakers. Make sure switching off all connections with PV array and the fuse/breakers close to battery before inverter/charger installation and adjustment.
- Alluminum Body
- LED Indicators
- Strong LCD Dispaly
- Key Information
- Heat Dissipation Holes
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

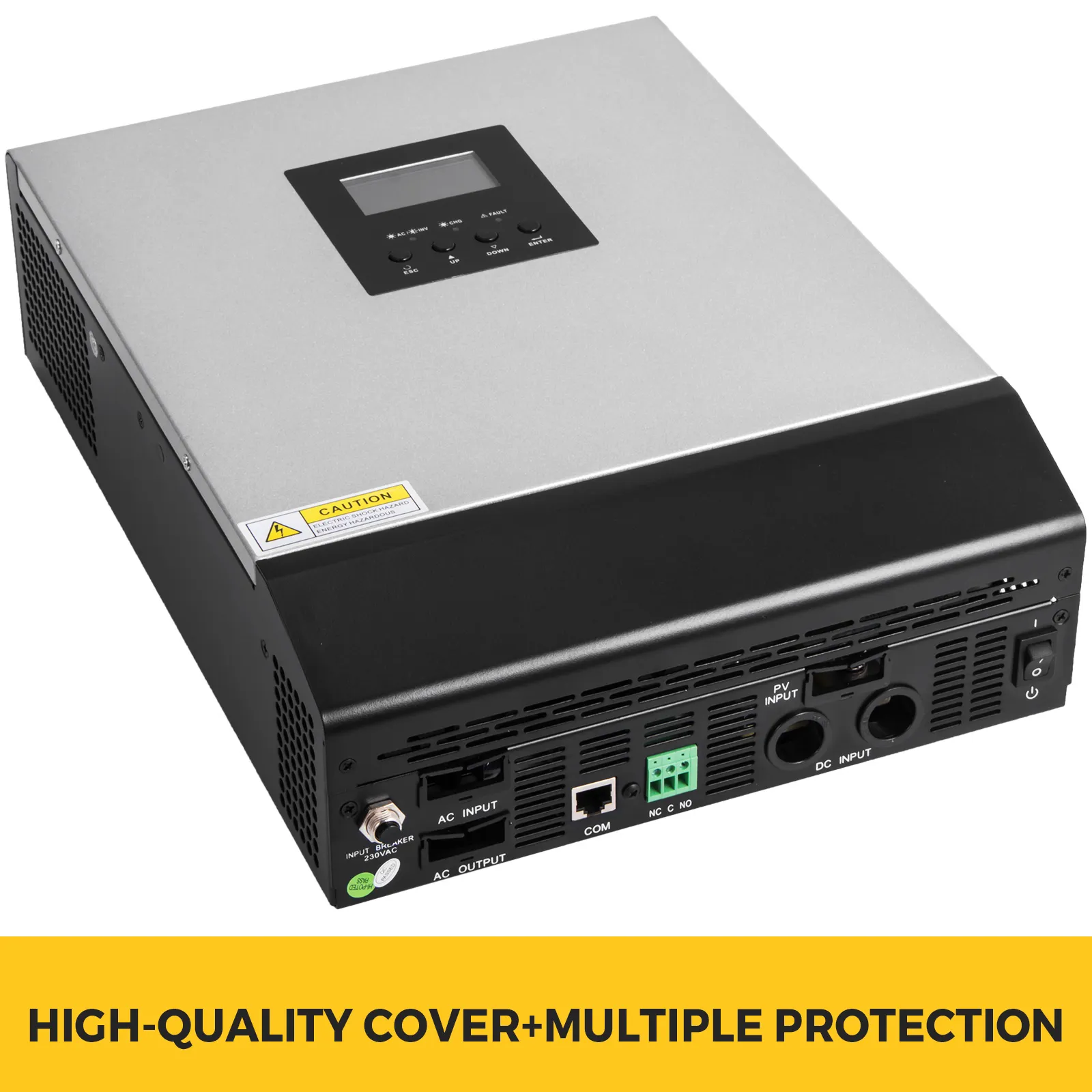

High-quality Cover+Multiple Protection
Superior aluminum cover applied, easy to clean and no damage. Its professional design offers overload/Over temperature/short circuit protection. Solar control mode is PWM.

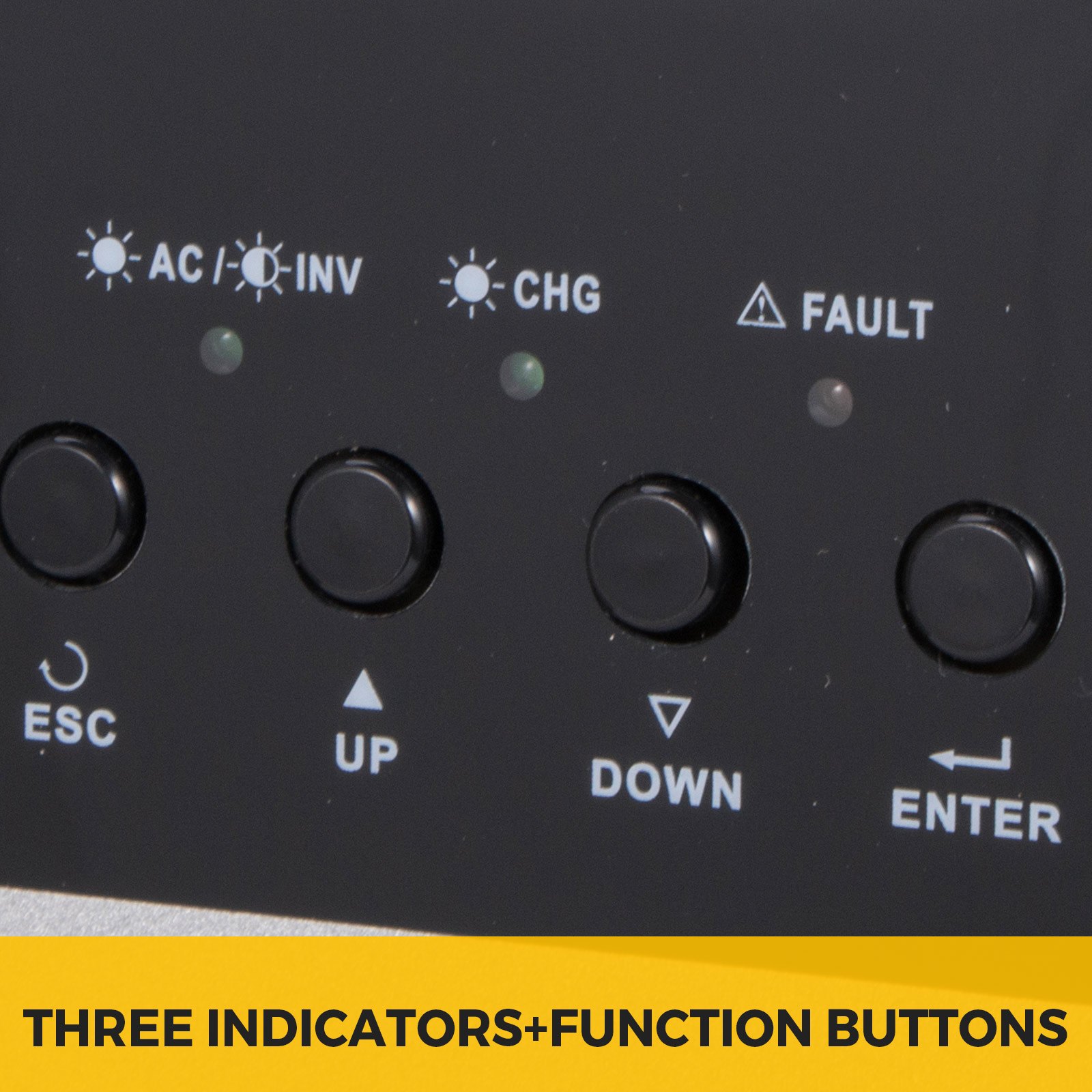

Three Indicators+Function Buttons
Configurable input voltage range for home appliances and personal computers, configurable battery charging current based on applications and configurable AC/Solar Charger priority can be set via LED indicators and 4 function keys.

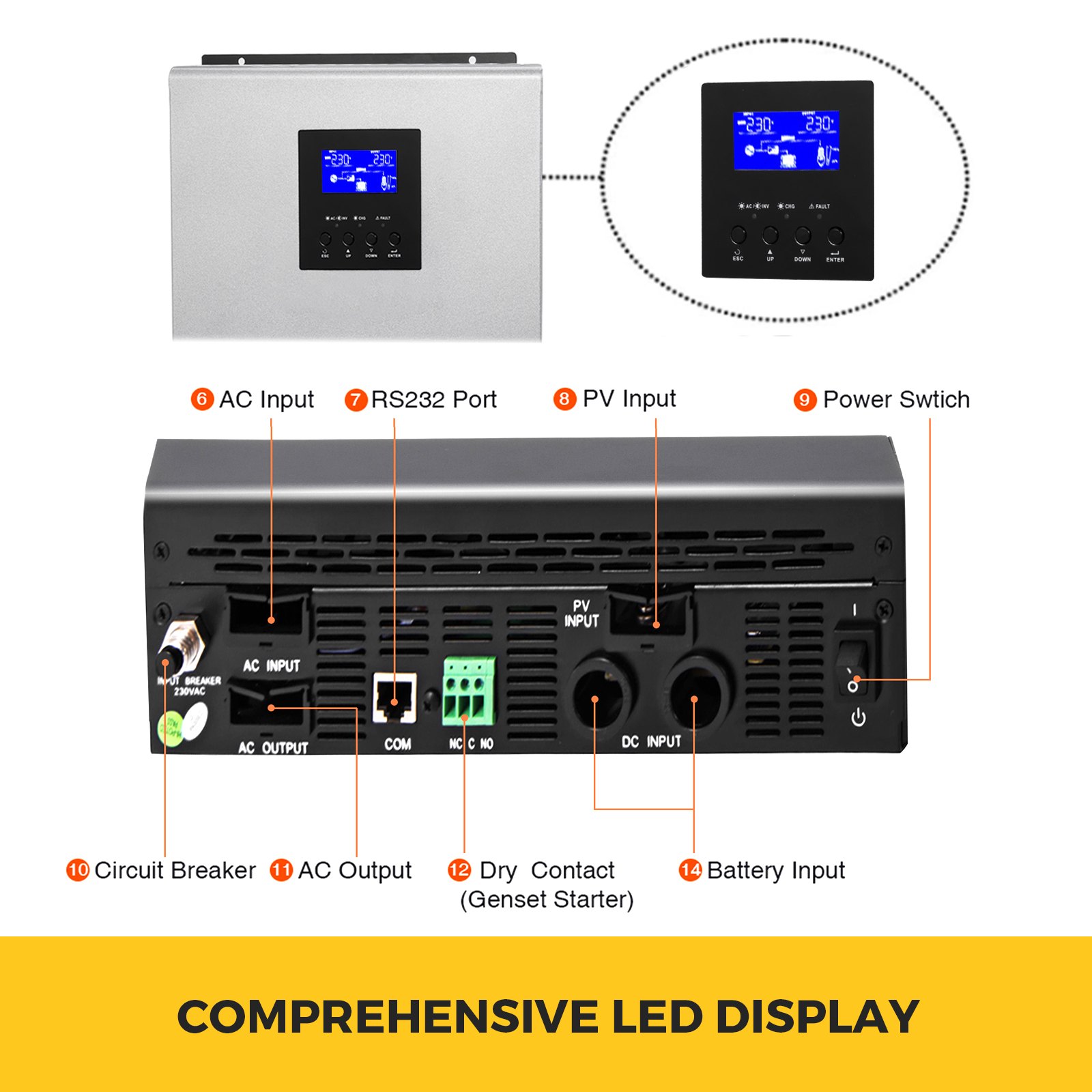

Comprehensive LCD Display
1.LCD display,2.Status indicator,3.Charging indicator,4.Fault indicator,5.Function buttons,6.Power on/off switch,7.AC input,8.AC output,9.PV input,10.Battery input,11.Circuit Breaker,12.RS232 communication port,13.Parallel communication cable (only for parallel model),14.Current sharing cable (only for parallel model),15.Dry Contact (Only PS series with Dry Contact, MPS series without Dry Contact).

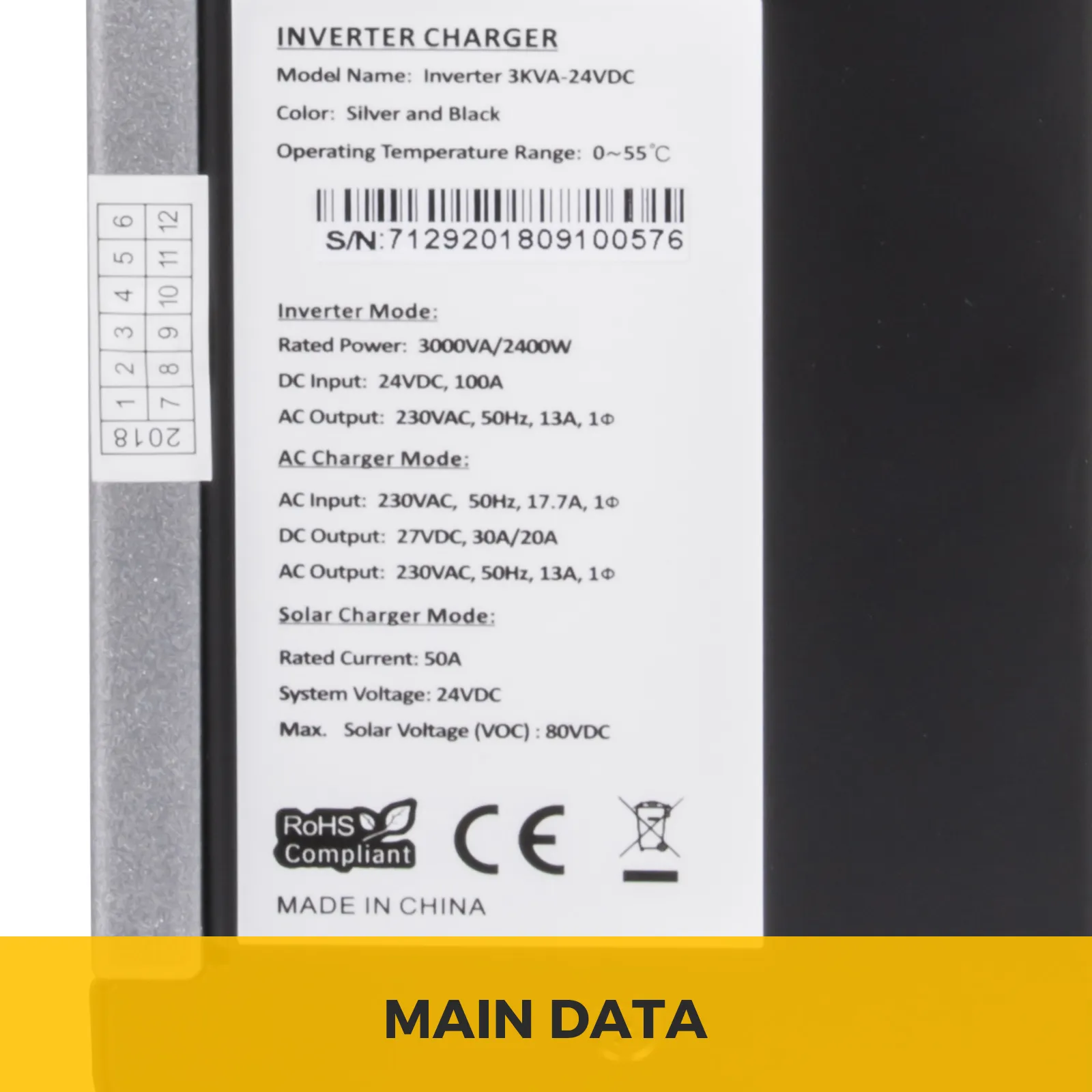

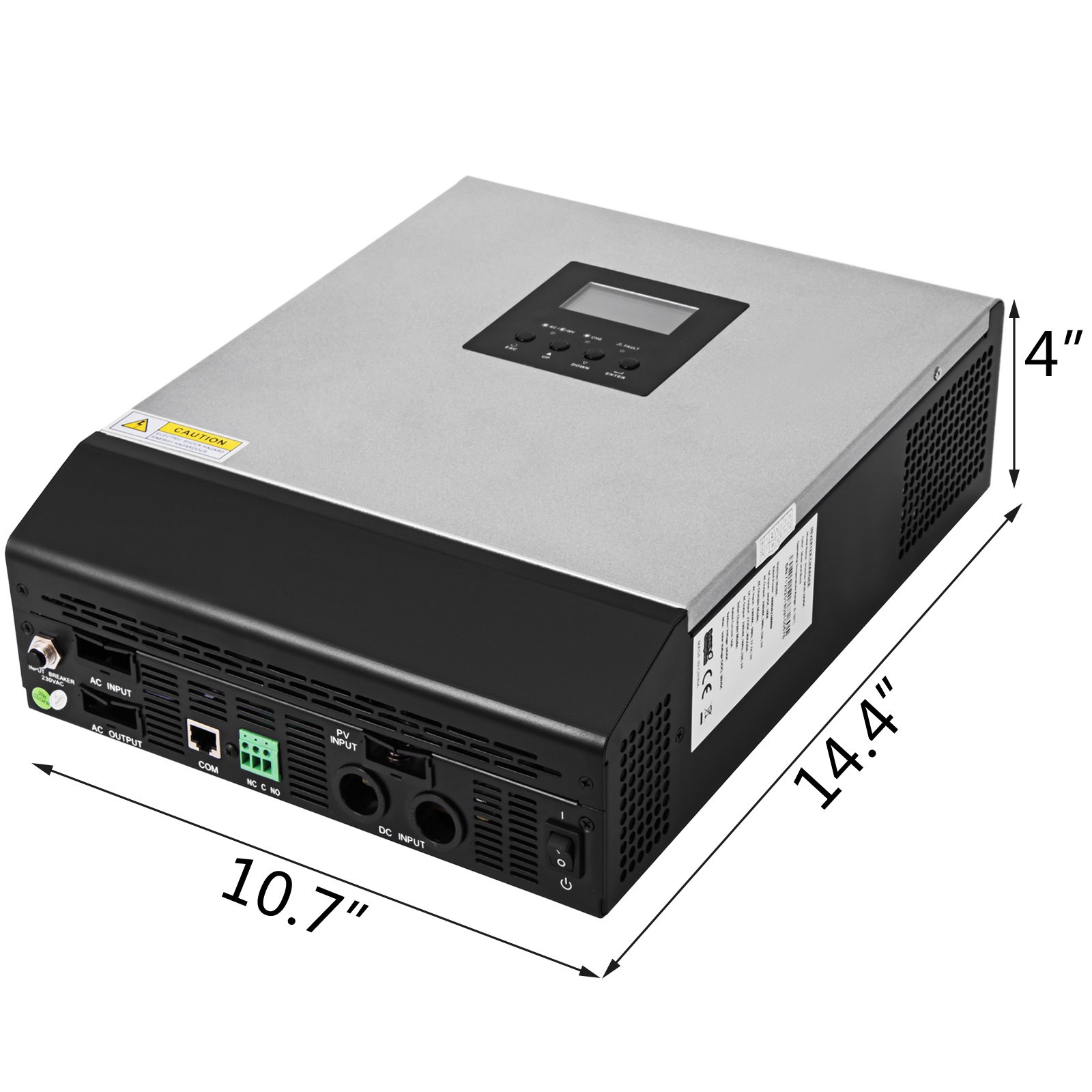

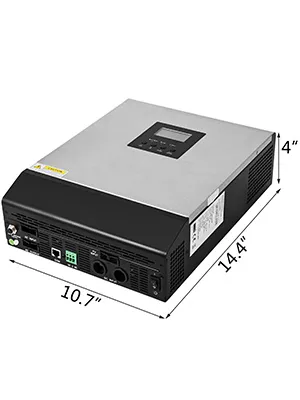

Main Data
Rated Power: 3000VA/2400W, Operating Temperature Range: 0-55℃, Rated Current: 50A, System Voltage: 24VDC, Max. Solar Voltage(VOC): 80VDC. Small size for effortless to move.

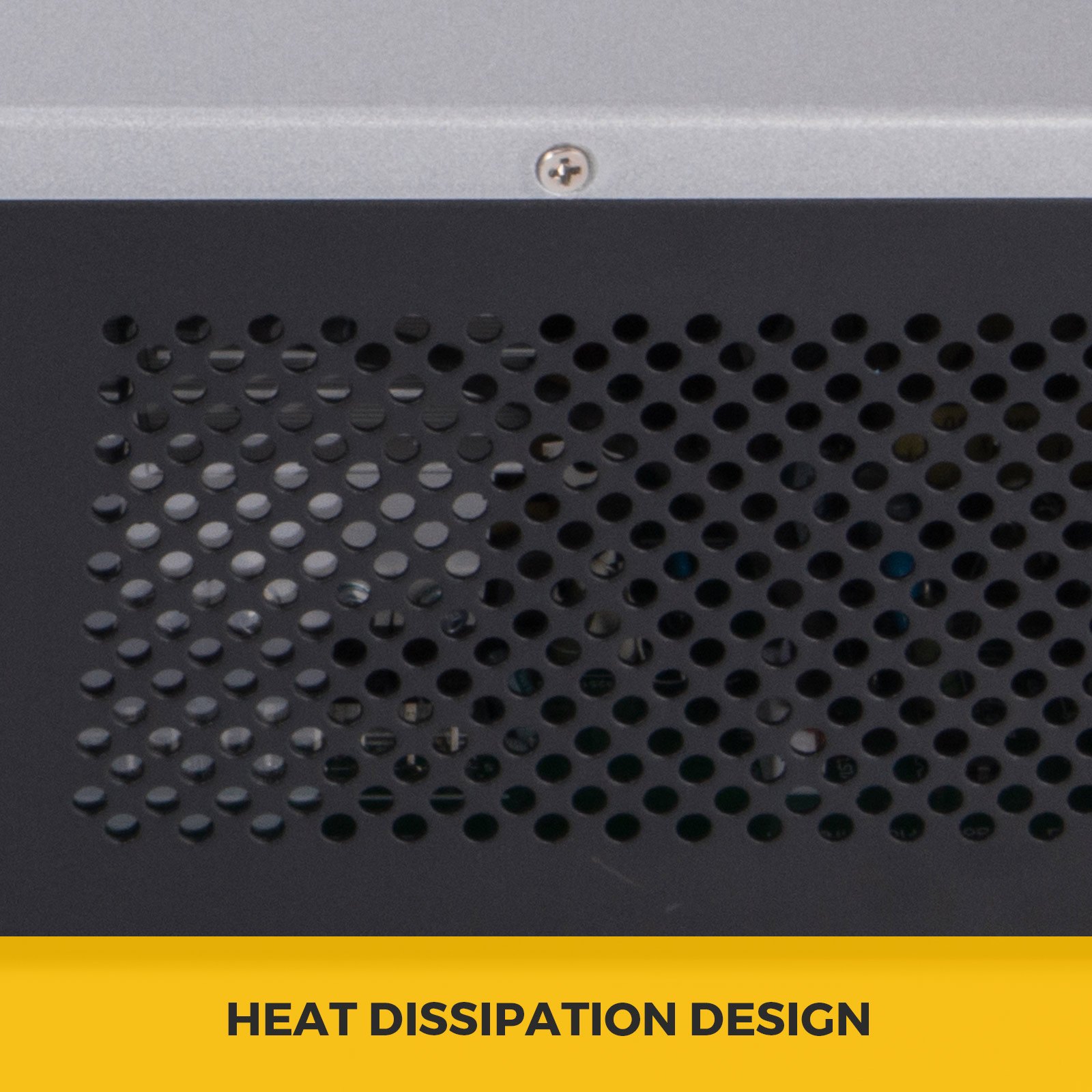

Heat Dissipation Design
Many small holes is in four sides for quick heat dissipation, keeping continues duty and long using life. Aluminum material works same way. Smart battery charger design for optimized battery performance.

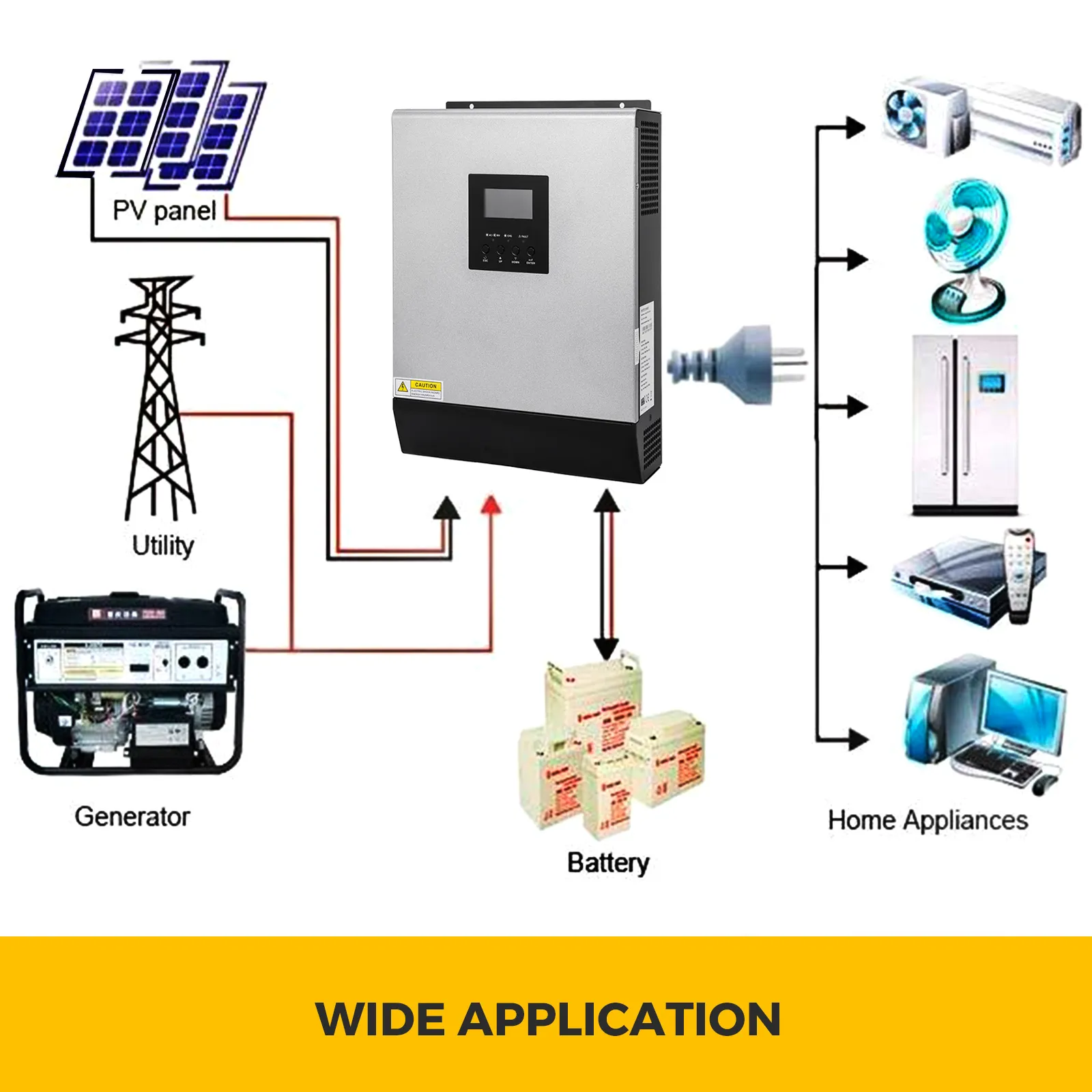

Wide Application
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
Specifications
- Color: Silver & Black
- Operating Temperature Range: 0-55℃
- Solar Control Mode: PWM
- AC Output: 230VAC/50HZ, 13A, 1￠
- Inverter Mode
- Rated Power: 3000VA/2400W
- DC Input: 24VDC, 100A
- AC Charger Mode
- Input: 230VAC/50HZ, 17.7A, 1￠
- DC Output: 27VDC, 30A/20A
- Solar Charger Mode
- Rated Current: 50A
- System Voltage: 24VDC
- Max. Solar Voltage: 80VDC

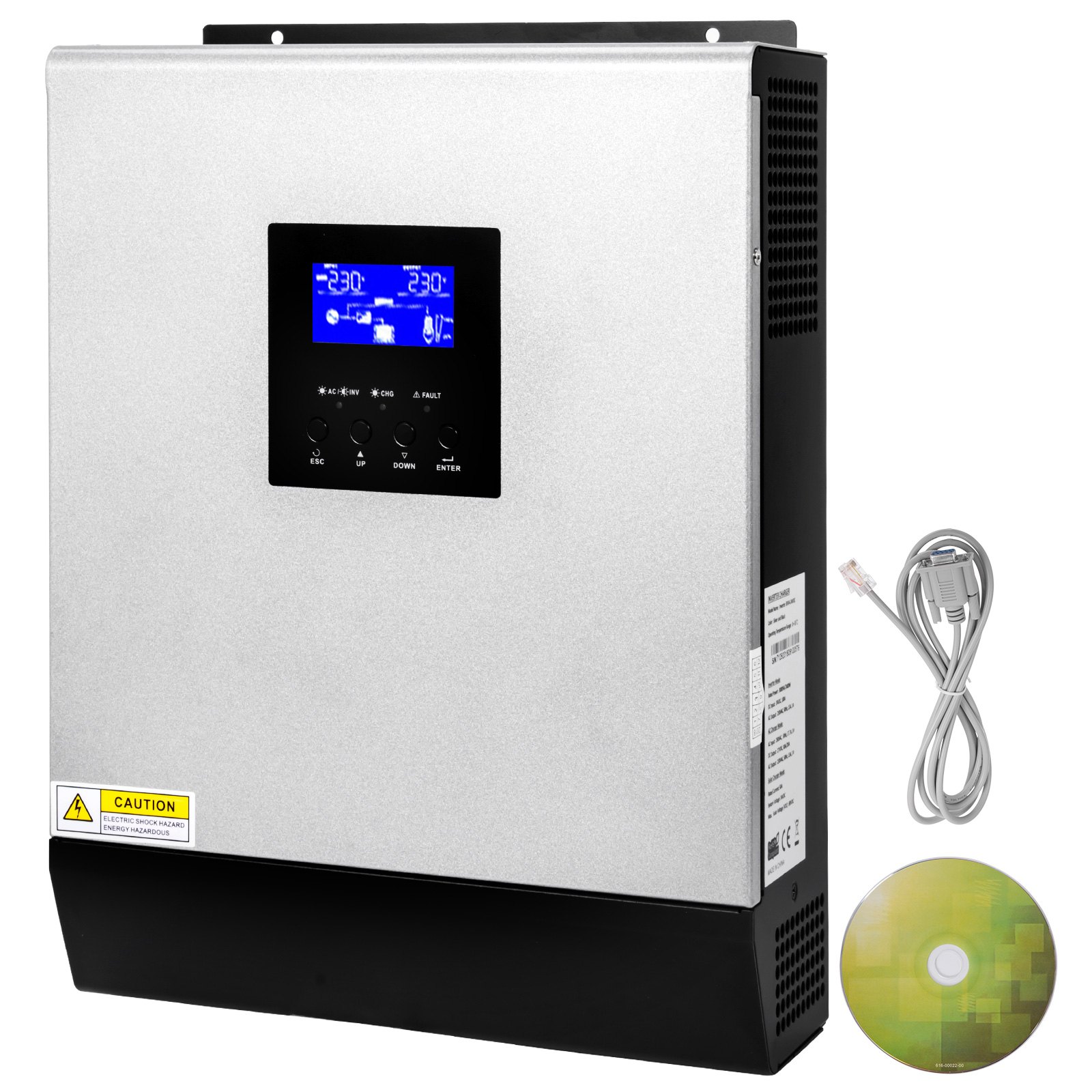

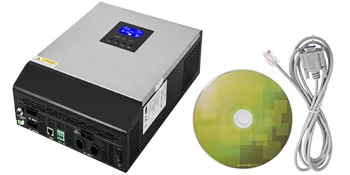

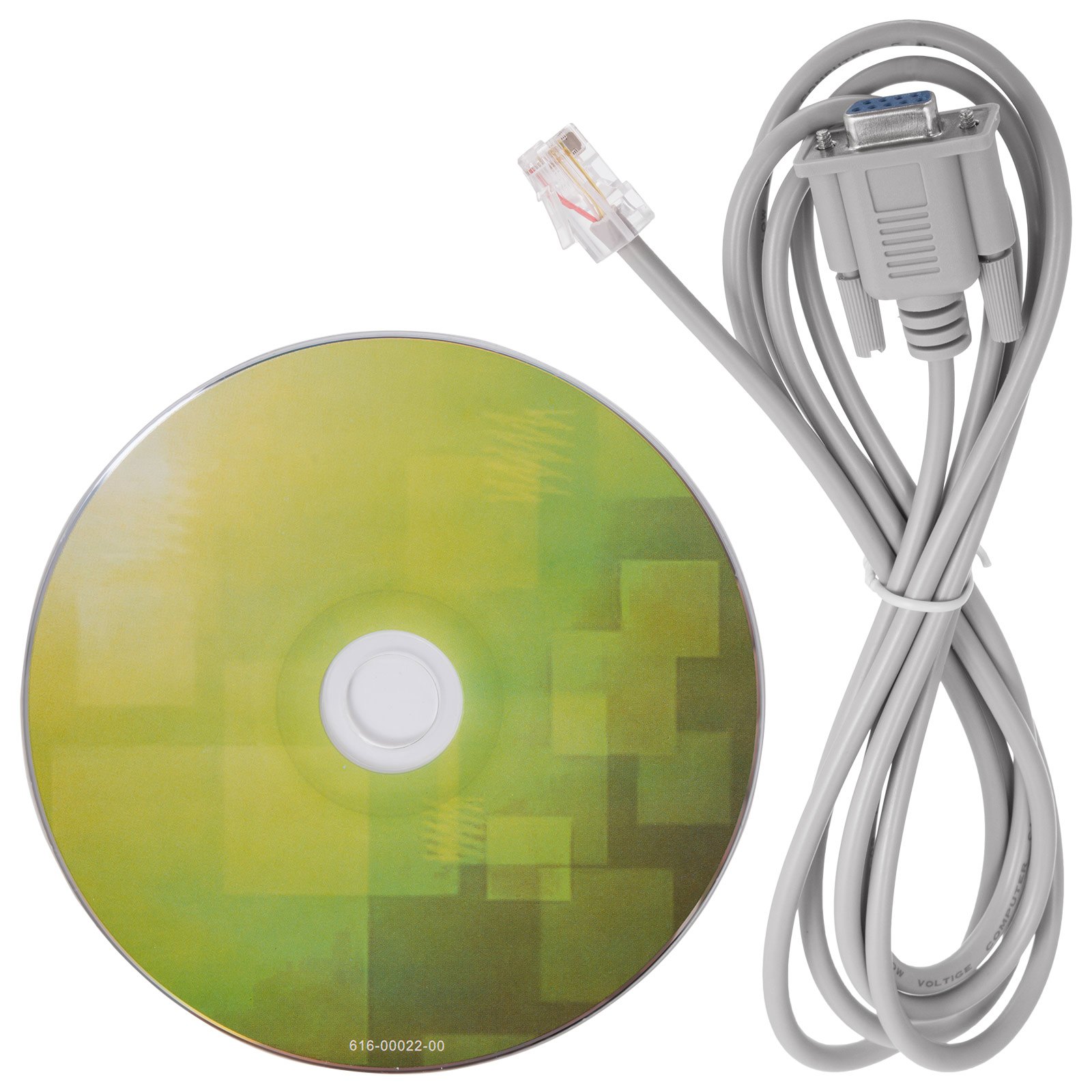

Package Content
- 1 x Solar Inverter
- 1 x Communication Adapter
- 1 x Disc
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
3KVA 24V Solar Inverter
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
- Please note: Professional maintenance personnel dismantle the inverter/charger only. This inverter/charger can only be used singly. Place it in the clean conditions, and install it in well ventilated places. Please install appropriate external fuses/breakers. Make sure switching off all connections with PV array and the fuse/breakers close to battery before inverter/charger installation and adjustment.
- Alluminum Body
- LED Indicators
- Strong LCD Dispaly
- Key Information
- Heat Dissipation Holes
High-quality Cover+Multiple Protection
Superior aluminum cover applied, easy to clean and no damage. Its professional design offers overload/Over temperature/short circuit protection. Solar control mode is PWM.
Three Indicators+Function Buttons
Configurable input voltage range for home appliances and personal computers, configurable battery charging current based on applications and configurable AC/Solar Charger priority can be set via LED indicators and 4 function keys.
Comprehensive LCD Display
1.LCD display,2.Status indicator,3.Charging indicator,4.Fault indicator,5.Function buttons,6.Power on/off switch,7.AC input,8.AC output,9.PV input,10.Battery input,11.Circuit Breaker,12.RS232 communication port,13.Parallel communication cable (only for parallel model),14.Current sharing cable (only for parallel model),15.Dry Contact (Only PS series with Dry Contact, MPS series without Dry Contact).
Main Data
Rated Power: 3000VA/2400W, Operating Temperature Range: 0-55℃, Rated Current: 50A, System Voltage: 24VDC, Max. Solar Voltage(VOC): 80VDC. Small size for effortless to move.
Heat Dissipation Design
Many small holes is in four sides for quick heat dissipation, keeping continues duty and long using life. Aluminum material works same way. Smart battery charger design for optimized battery performance.
Wide Application
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
Package Content
- 1 x Solar Inverter
- 1 x Communication Adapter
- 1 x Disc
Specifications
- Color: Silver & Black
- Operating Temperature Range: 0-55℃
- Solar Control Mode: PWM
- AC Output: 230VAC/50HZ, 13A, 1￠
- Inverter Mode
- Rated Power: 3000VA/2400W
- DC Input: 24VDC, 100A
- AC Charger Mode
- Input: 230VAC/50HZ, 17.7A, 1￠
- DC Output: 27VDC, 30A/20A
- Solar Charger Mode
- Rated Current: 50A
- System Voltage: 24VDC
- Max. Solar Voltage: 80VDC
