Features & Details
- 【HIGH EFFICIENCY】-An Ultra-efficient MPPT controller algorithm can maximize the amount of current going into the battery from the PV module; MPPT efficiency can reach 99.5% or above, and peak conversion efficiency is up to 98%.
- 【MULTIPLE PROTECTION PROPERTIES】-Powerful electronic protection against reverse polarity, overcharging, over-discharging, overloading, battery-shedding, short-circuiting, and reverse current is here for its safe operation.
- 【AUTOMATIC RECOGNITION】-Capable of automatically detecting 12V/24V/36V/48V DC system voltages, this crucial system component can also handle various battery options such as GEL and Lithium.
- 【RS485 & WIFI COMMUNICATION】-RS485-USB cable is provided and it has the function of external WIFI communication (not provided) ; Support pc & app monitoring, users can monitor and adjust their solar system straight from their phones.
- 【LCD TOUCH SCREEN】-LCD-Display with high-definition provides PV input &DC load output information, battery information, charging dynamic &working states display, date & fault code display. A finger-touch interface is super convenient for users to operate freely. Ideal for solar off-grid system of telecommunication base station, household system, street lighting system, field monitoring system, etc.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 11 reviews
Reviews 4.8
All reviews are from verified purchases
See all 11 reviews
About this item
Product specification
- Model
- MPPT-40A
- Material
- Tempered Glass Surface
- Color
- Black
- MPPT Efficiency
- ≥99.5%
- Standbypower
- 0.5W~1.2W
- Rated Charge Current
- 40A
- Rated Load Current
- 30A
- Load Control Mode
- On, Off, PV voltage control, Dual-time control, PV + Time control
- Low Voltage Protection
- The default protection point is 10.5V, and it is restored to 11V (can be set)
- Systemvoltage
- 12V/24V/36V/48V auto work
- Display
- High-Definition LCD Segment Code Backlight Display
- Communication
- Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring
- Charge Method
- 3 stages
- Setup Method
- PC software / Mobile APP / controller display
- Protections
- Input over / low voltage, output over / low voltage, reverse connection, over temperature, short circuit, battery shedding etc.
- Max.PV input voltage(VOC)
- DC150V
- Start charge voltage point
- Battery voltage+3V
- Low input voltage protection point
- Battery voltage+2V
- 12V System
- 520W
- 24V System
- 1040W
- 36V System
- 1560W
- 48V System
- 2080W
- Dry contact access voltage
- 5V ~ 12V
- Operating Ambient Temperature
- -20℃~+50℃
- Storage Temperature
- -40℃~+75℃
- Recommended breaker
- ≥63A
- Noise
- ≤10dB
- Altitude
- 0~3000 m
- Temperature compensation
- -3mV/℃/2V(default)
Description

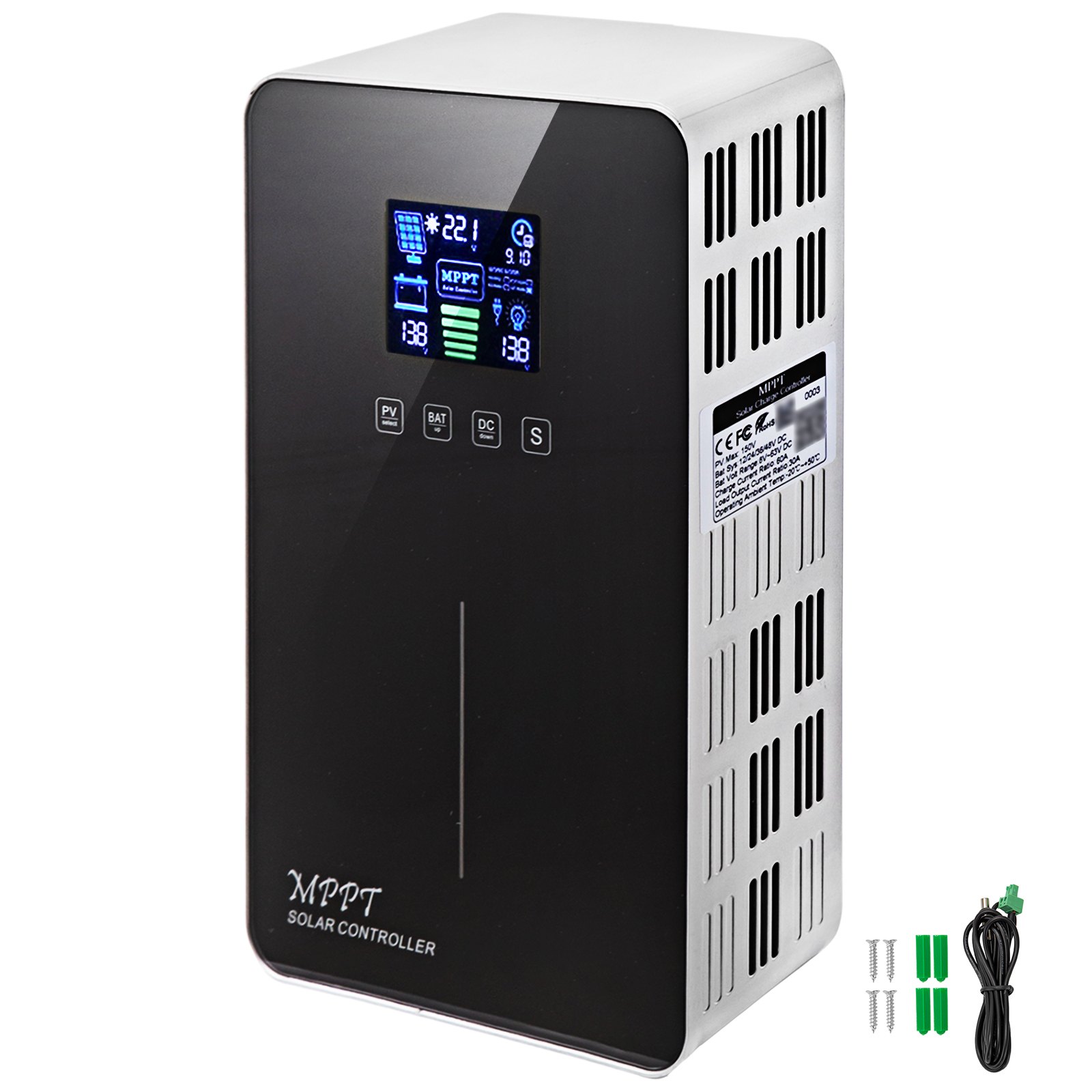

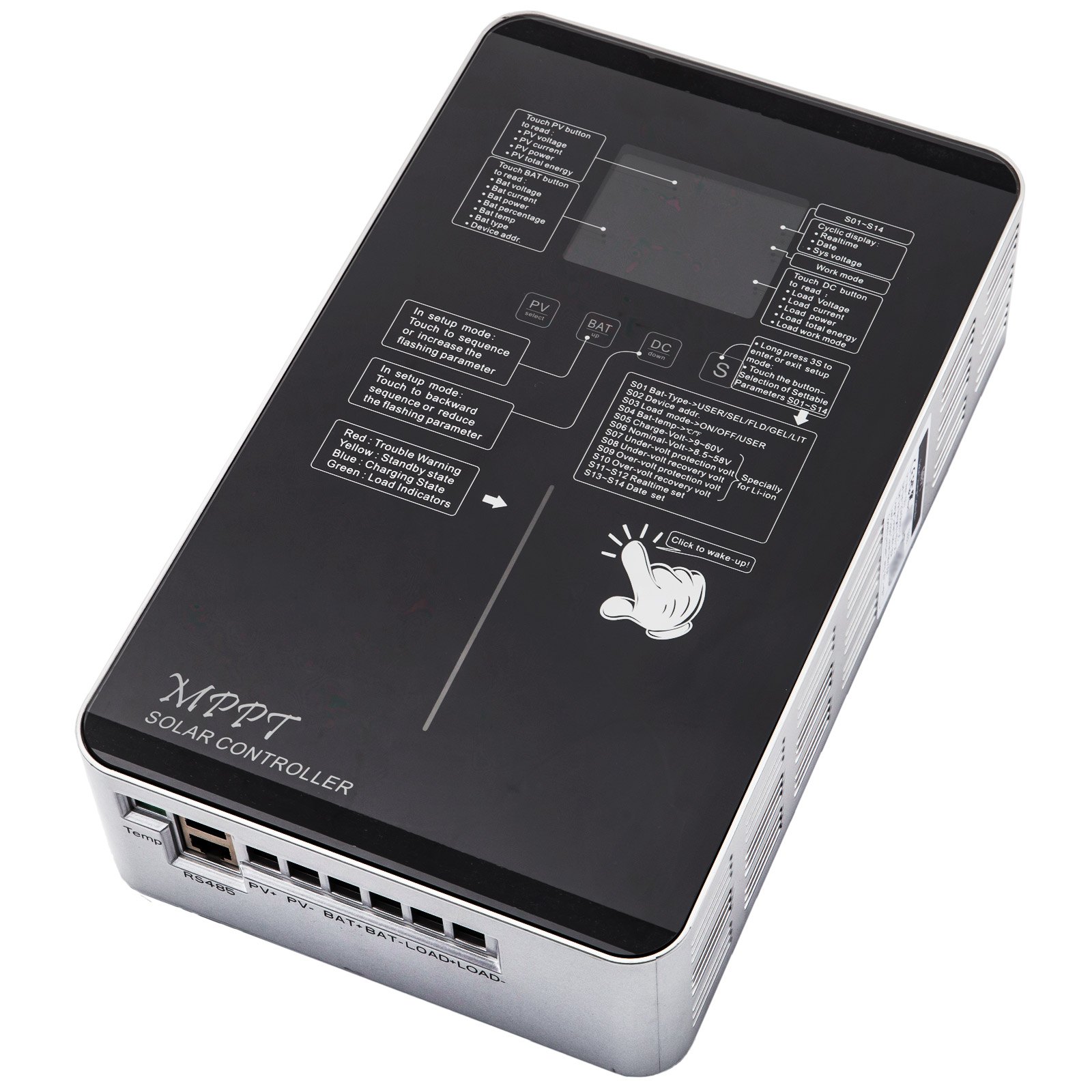

40A Solar Charge Controller
This MPPT Solar charge Controller will maximize the production output of your Solar system, thus higher MPPT efficiency (≥99.5%）can be achieved. Touch screen design for your easier operation and RS485 & WI-Fi communication support PC/ App Monitoring. It is super ideal and practical for household Solar system, street light system, Solar power system, etc.
- Friendly Note: WIFI box is not included in the package.
- High Efficiency
- Multiple Protection Properties
- Automatic Recognition
- RS485 & WIFI Communication
- LCD Touch Screen
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

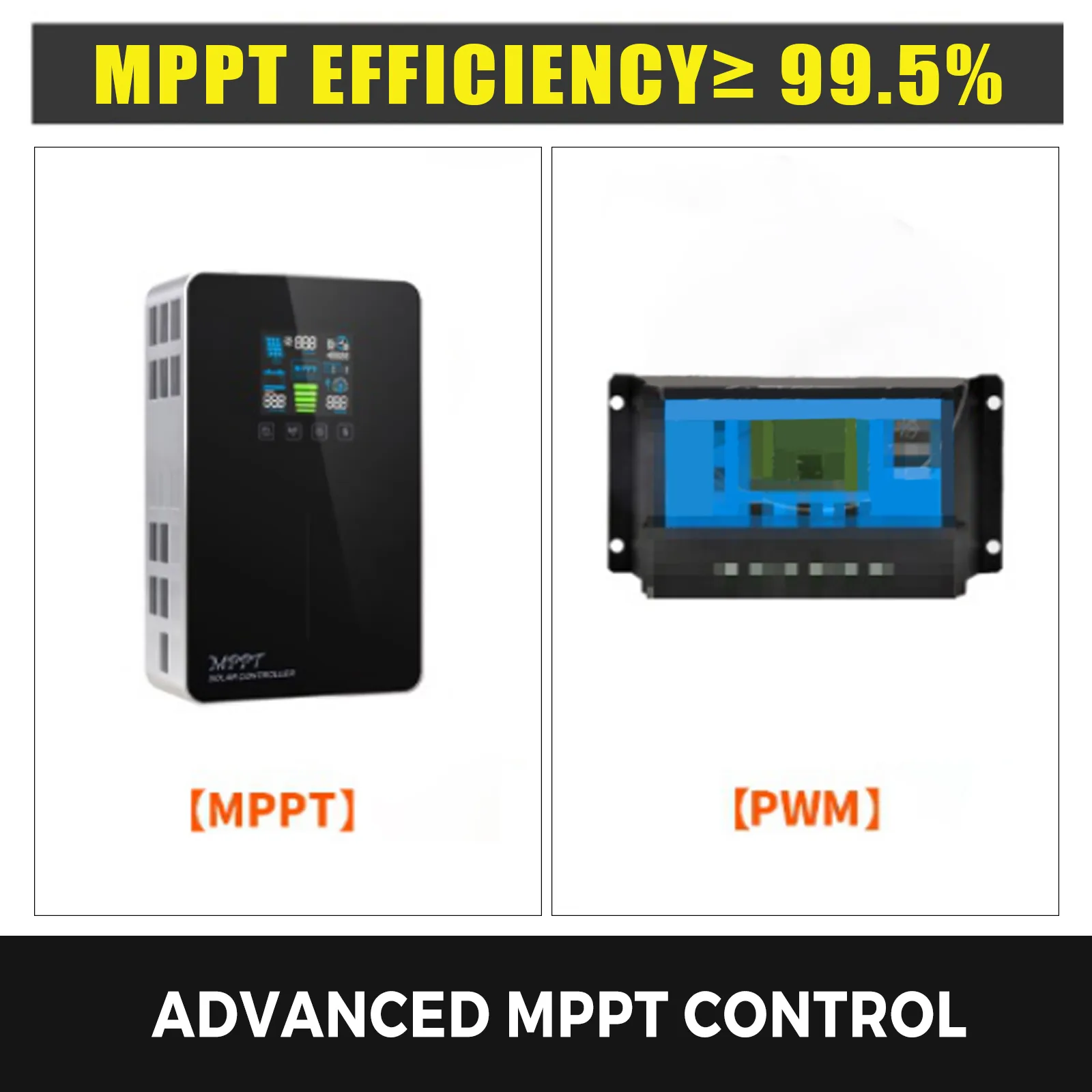

Advanced MPPT Control
MPPT efficiency is no less than 99.5%, significantly improving the utilization of Solar Panel.

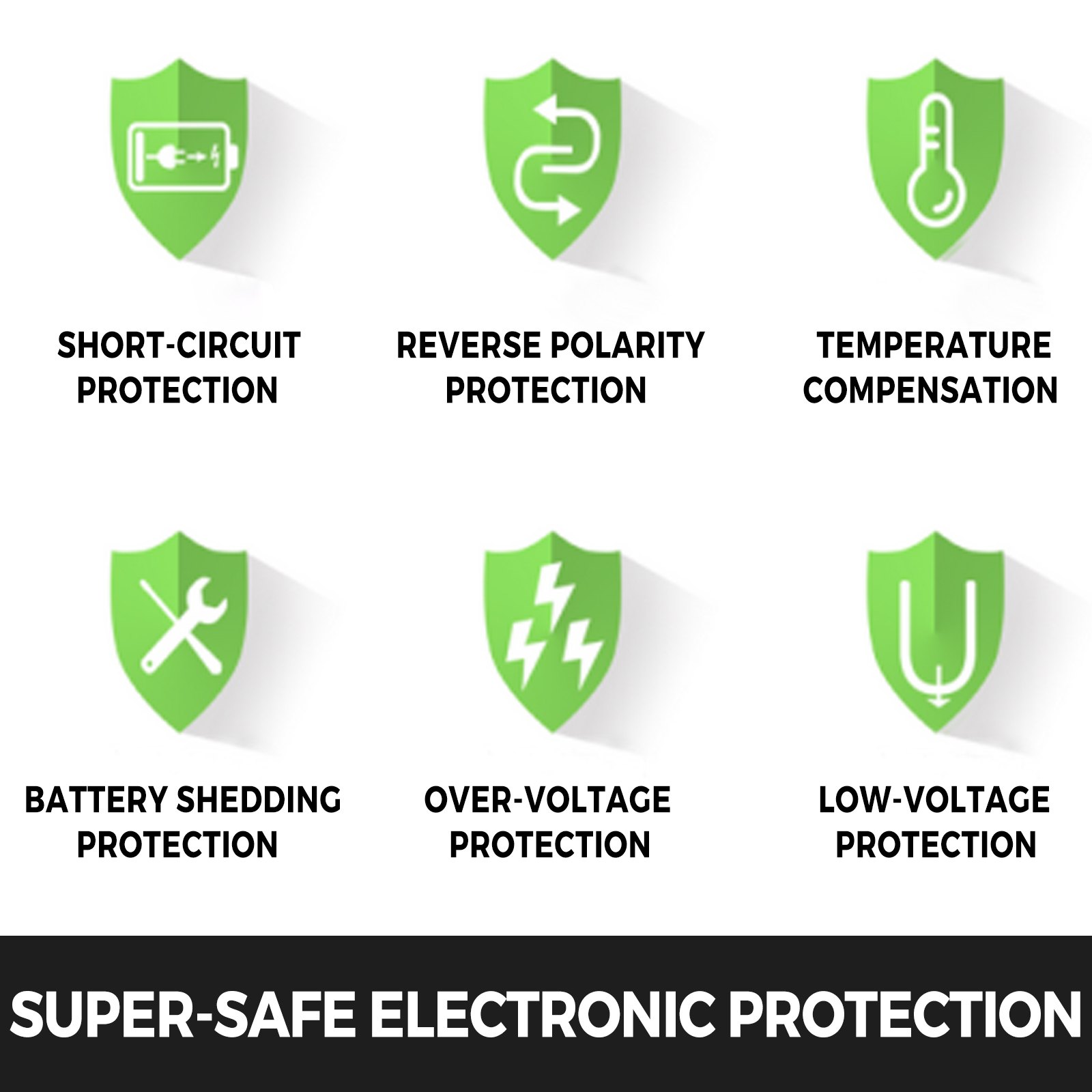

Super-Safe Electronic Protection
Over/low voltage protection, temperature protection, reverse connection protection, short-circuit protection for its safe and stable running.

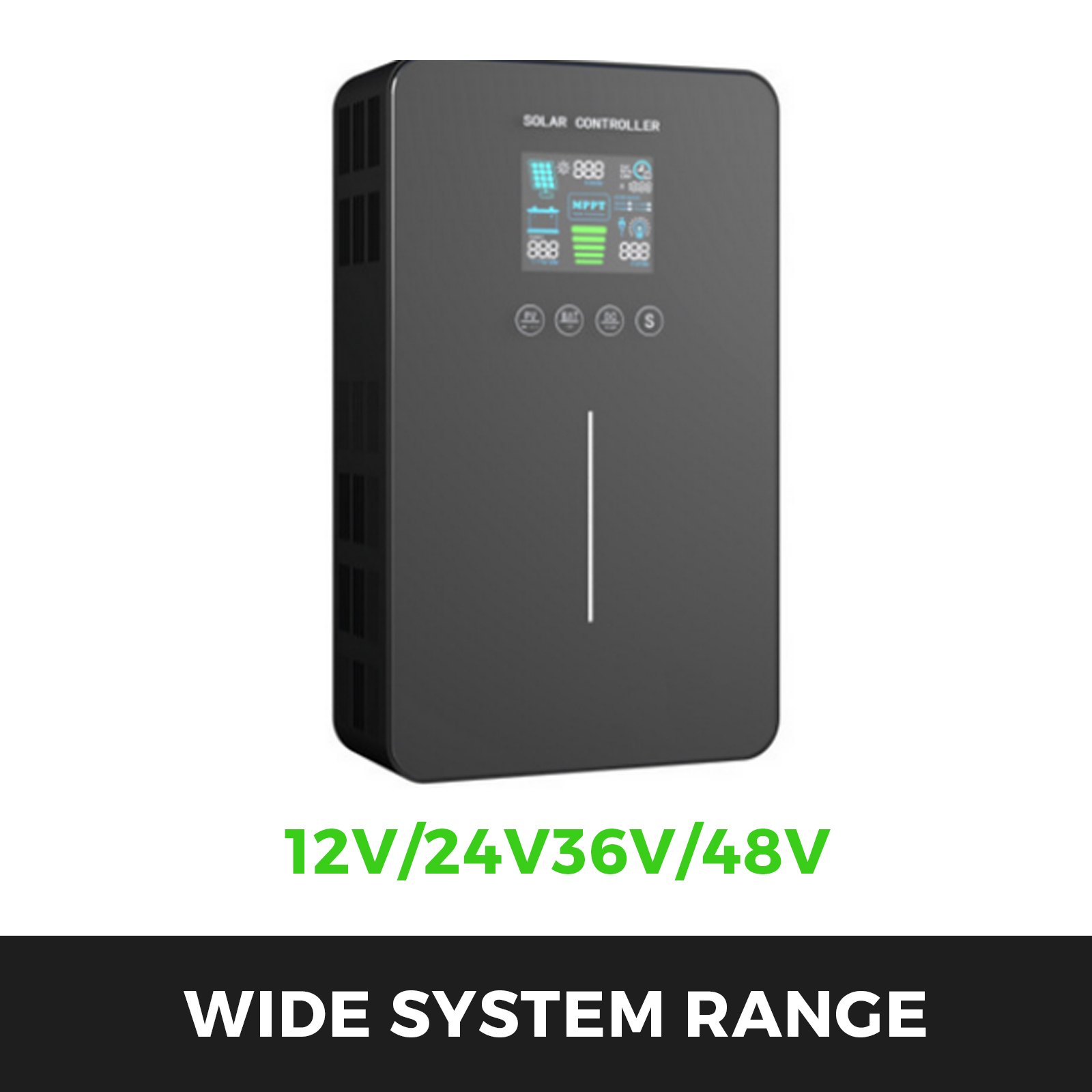

Wide System Range
Auto-recognition of battery system (Voltage): 12V/24V/36V/48V

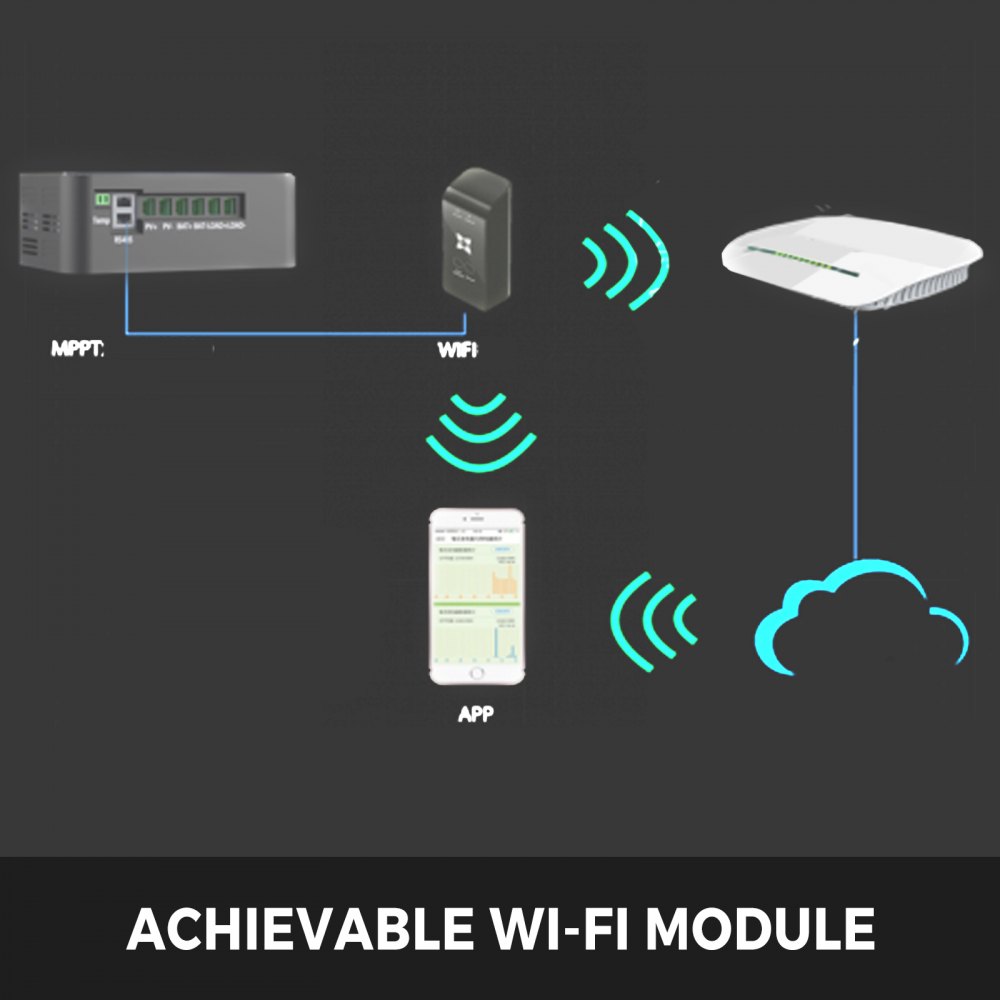

Achievable WI-Fi Module
RS485 PORTS support PC software monitoring; Support WI-FI module for APP cloud monitoring.

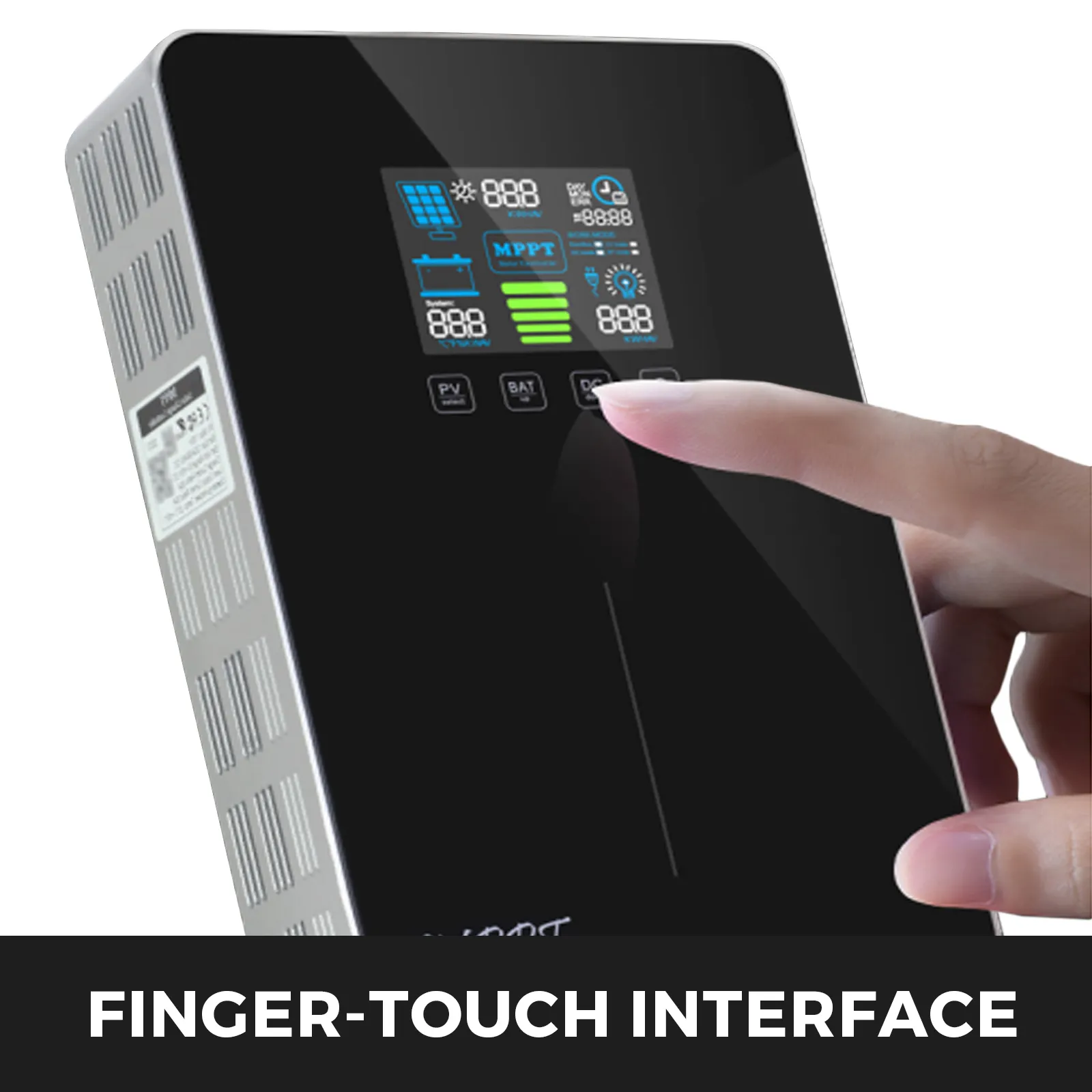

Finger-Touch Interface
Touch screen design for your easy operation, tempered glass surface to extend its operating life.

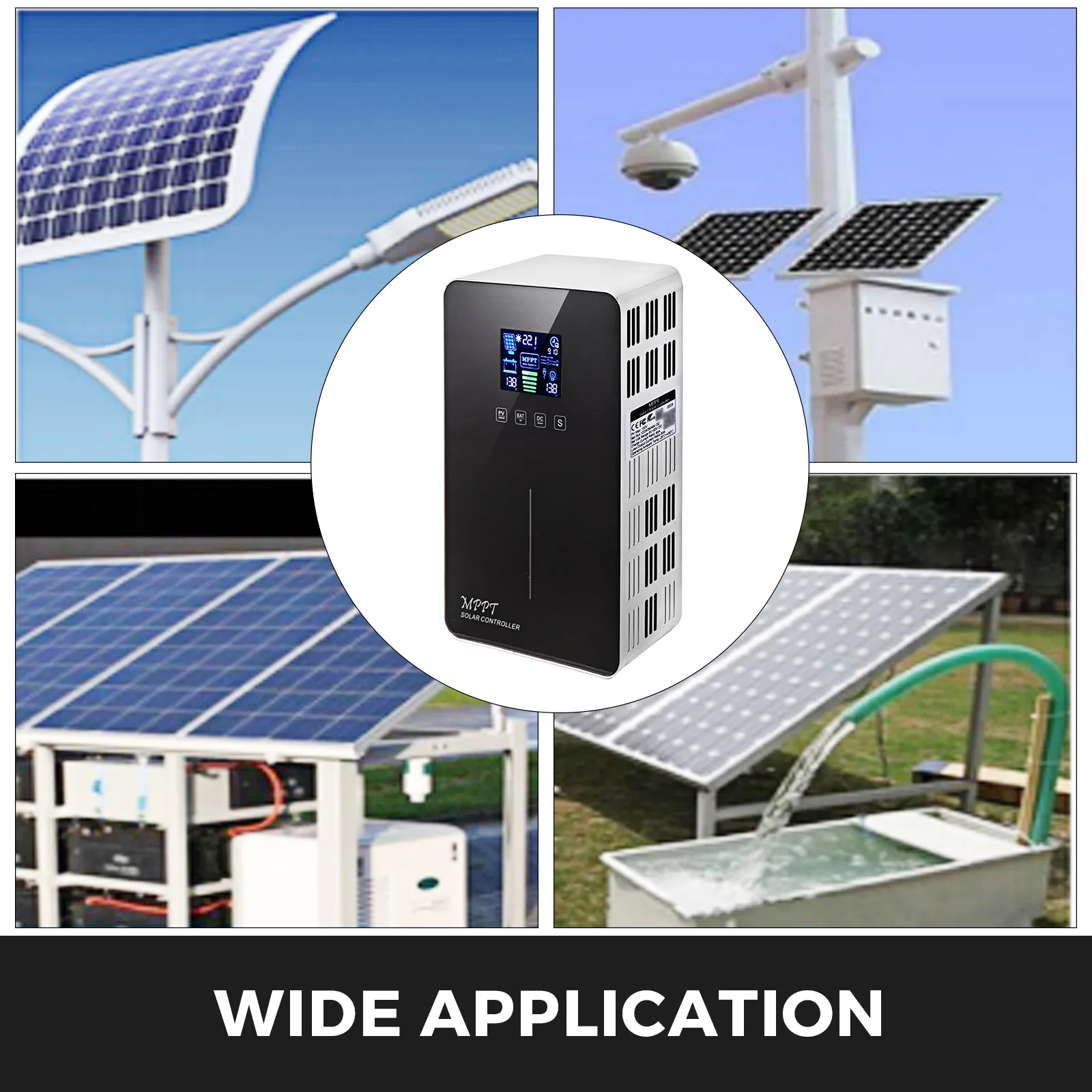

Wide Application
Perfect for Solar power system, Solar streetlamp, Solar Billboards, Solar water pump, etc.
Specifications
- Model:MPPT-40A
- Material: Tempered Glass Surface
- Color: Black
- MPPT Efficiency: ≥99.5%
- Standbypower：0.5W~1.2W
- Rated Charge Current: 40A
- Rated Load Current: 30A
- Load Control Mode: On, Off, PV voltage control, Dual-time control, PV + Time control
- Low Voltage Protection: The default protection point is 10.5V, and it is restored to 11V (can be set)
- Systemvoltage：12V/24V/36V/48V auto work
- Display:High-Definition LCD Segment Code Backlight Display
- Communication:Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring
- Charge Method ：3 stages: CC (Constant current), CV (Constant voltage), CF (Floating charge)
- Setup Method: PC software / Mobile APP / controller display
- Protections:Input over / low voltage, output over / low voltage, reverse connection, over temperature, short circuit, battery shedding etc.
- Max.PV input voltage(VOC)：DC150V
- Start charge voltage point: Battery voltage+3V
- Low input voltage protection point: Battery voltage+2V
- 12V System: 520W
- 24V System: 1040W
- 36V System: 1560W
- 48V System: 2080W
- Dry contact access voltage:5V ~ 12V
- Operating Ambient Temperature：-20℃~+50℃
- Storage Temperature：-40℃~+75℃
- Recommended breaker：≥63A
- Noise: ≤10dB
- Altitude：0~3000 m
- Temperature compensation：-3mV/℃/2V(default)

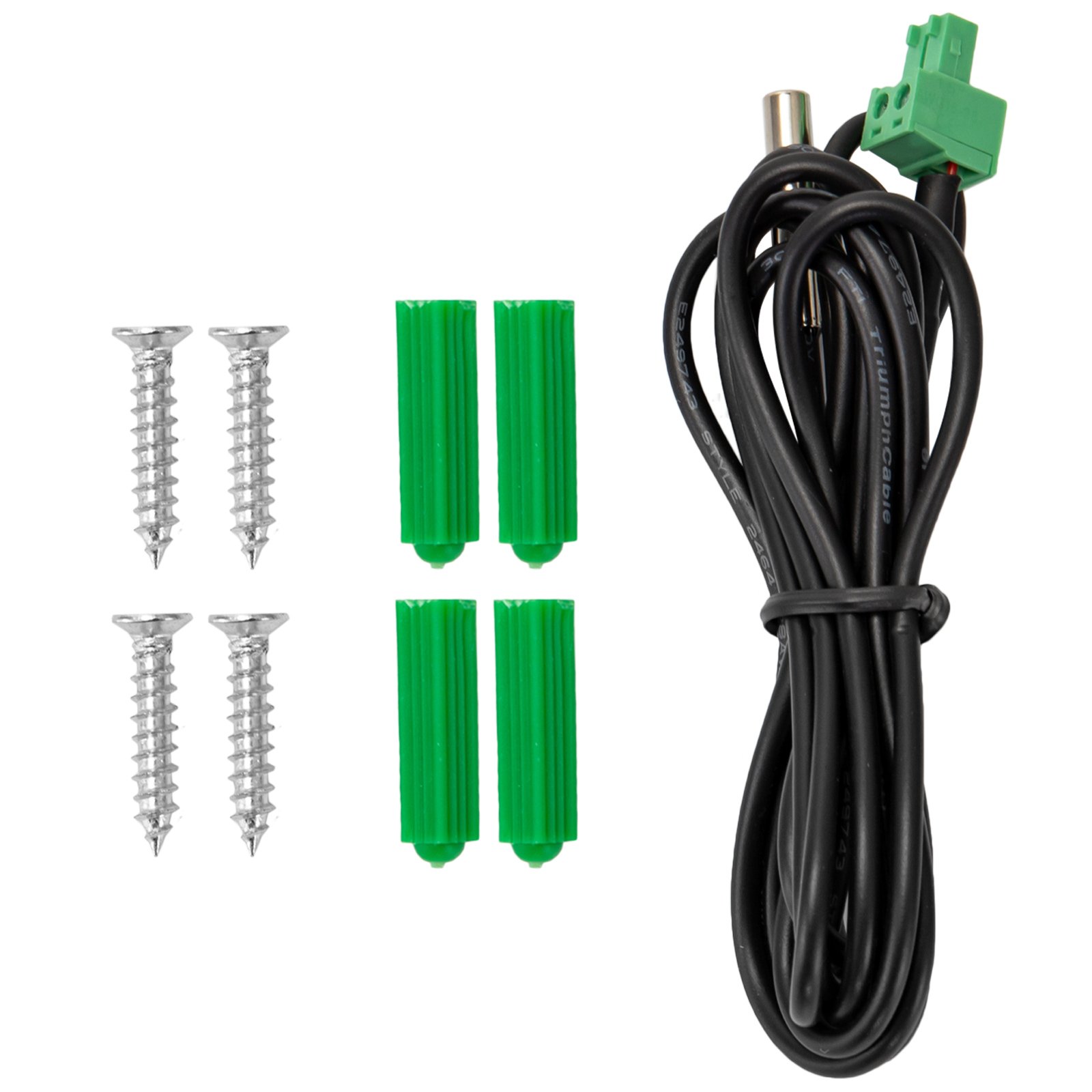

Package Content
- 1 x MPPT Solar Charge Controller

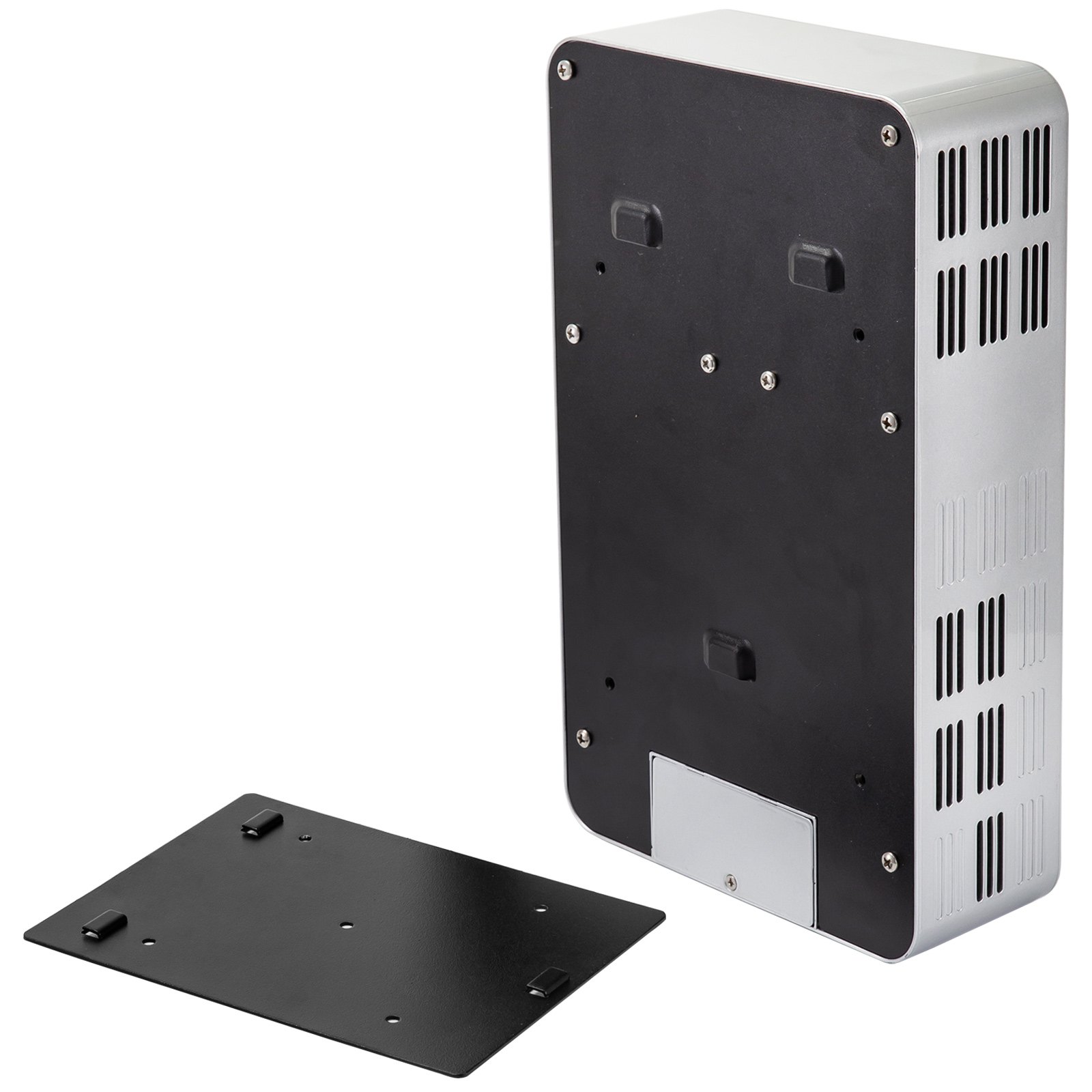

- 1 x Mounting Backboard
- 1 x Temperature Sensing Cable
- 4 x M4 Screws (for mounting backboard)
- 4 x Plastic Expansion Particles
- 1 x User Manual
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
40A Solar Charge Controller
This MPPT Solar charge Controller will maximize the production output of your Solar system, thus higher MPPT efficiency (≥99.5%）can be achieved. Touch screen design for your easier operation and RS485 & WI-Fi communication support PC/ App Monitoring. It is super ideal and practical for household Solar system, street light system, Solar power system, etc.
- Friendly Note: WIFI box is not included in the package.
- High Efficiency
- Multiple Protection Properties
- Automatic Recognition
- RS485 & WIFI Communication
- LCD Touch Screen
Advanced MPPT Control
MPPT efficiency is no less than 99.5%, significantly improving the utilization of Solar Panel.
Super-Safe Electronic Protection
Over/low voltage protection, temperature protection, reverse connection protection, short-circuit protection for its safe and stable running.
Wide System Range
Auto-recognition of battery system (Voltage): 12V/24V/36V/48V

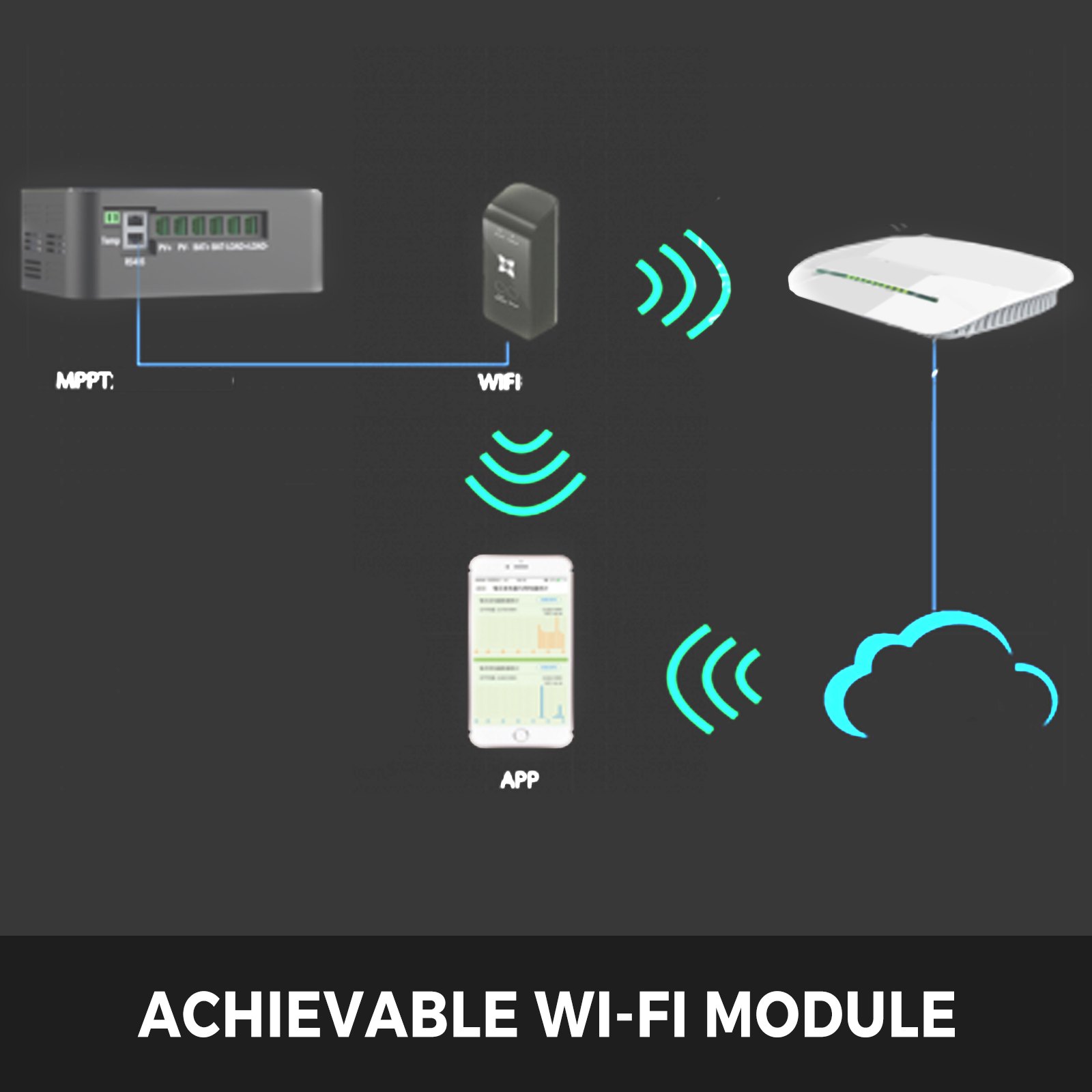

Achievable WI-Fi Module
RS485 PORTS support PC software monitoring; Support WI-FI module for APP cloud monitoring.
Finger-Touch Interface
Touch screen design for your easy operation, tempered glass surface to extend its operating life.
Wide Application
Perfect for Solar power system, Solar streetlamp, Solar Billboards, Solar water pump, etc.
Package Content
- 1 x MPPT Solar Charge Controller
- 1 x Mounting Backboard
- 1 x Temperature Sensing Cable
- 4 x M4 Screws (for mounting backboard)
- 4 x Plastic Expansion Particles
- 1 x User Manual
Specifications
- Model:MPPT-40A
- Material: Tempered Glass Surface
- Color: Black
- MPPT Efficiency: ≥99.5%
- Standbypower：0.5W~1.2W
- Rated Charge Current: 40A
- Rated Load Current: 30A
- Load Control Mode: On, Off, PV voltage control, Dual-time control, PV + Time control
- Low Voltage Protection: The default protection point is 10.5V, and it is restored to 11V (can be set)
- Systemvoltage：12V/24V/36V/48V auto work
- Display:High-Definition LCD Segment Code Backlight Display
- Communication:Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring
- Charge Method ：3 stages: CC (Constant current), CV (Constant voltage), CF (Floating charge)
- Setup Method: PC software / Mobile APP / controller display
- Protections:Input over / low voltage, output over / low voltage, reverse connection, over temperature, short circuit, battery shedding etc.
- Max.PV input voltage(VOC)：DC150V
- Start charge voltage point: Battery voltage+3V
- Low input voltage protection point: Battery voltage+2V
- 12V System: 520W
- 24V System: 1040W
- 36V System: 1560W
- 48V System: 2080W
- Dry contact access voltage:5V ~ 12V
- Operating Ambient Temperature：-20℃~+50℃
- Storage Temperature：-40℃~+75℃
- Recommended breaker：≥63A
- Noise: ≤10dB
- Altitude：0~3000 m
- Temperature compensation：-3mV/℃/2V(default)
