Features & Details
- 【HIGH EFFICIENCY】- Advanced MPPT Control algorithm can minimize the power point loss rate and loss time, and its tracing efficiency is no less than 99.5%, and conversion is no less than 98%.
- 【HIGH-DEFINITION LCD SCREEN】- This solar charge controller features a high-definition LCD screen, so you can see the status of charging clearly.
- 【INTELLEGENT MONITORING】- This solar panel controller allows multiple monitoring ways: WIFI/GPRS, mobile app remote control, and computer monitoring, which all make it super convenient for you to monitor it anytime & anywhere.
- 【MULTIPLE SAFETY PROTECTIONS】- This solar panel charge controller applies multiple intelligent security protections to ensure the controller to be fully protected in the process of use.
- 【TEMPERATURE SENSOR INCLUDED】- We offer you a high-quality temperature sensor free of cost. It is flexible-resistance and can have better thermal conductivity. Length of cable: 3 meters.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 11 reviews
Reviews 4.8
All reviews are from verified purchases
See all 11 reviews
About this item
Product specification
- Nominal System Voltage
- 12/24V DC or Auto
- Battery Input Voltage Range
- 8V-68V
- Battery Type
- Lead-acid Battery
- Battery Fuse
- 80A/58V
- Rated Charge Current
- 30A
- Rated charge Power
- 390W/12V 780W/24V
- Max. PV Open Circuit Voltage
- 100V②/92V③
- MPP Voltage Range
- Battery voltage +2V) ～72V
- Full Load Efficiency
- 97%
- Temperature Compensate Coefficient④
- －3mV/°C/2V(Default)
- Self-Consumption
- ≤12mA
- Grounding
- Common Negative Grounding
- Working Temperature
- -25 °C ～+50 °C(100% input and output)
- LCD backlight time
- 60S (Default)
- Storage Temperature Range
- -20 °C ～+75 °C
- Relative Humidity Range
- ≤95%. N.C.
- Enclosure
- IP30
- Pollution Degree
- PD2
- Dimension
- 228 mm x 164 mm x 55 mm
- Mounting Dimension
- 70 mm x164 mm
- Mounting Hole Size
- φ5 mm
- ① When a lead-acid battery is used, the controller hasn’t the low-temperature protection ② At minimum operating environment temperature ③ At 25 °C environment temperature ④ When a lithium-ion battery is used, the system voltage can’t be identified automatically
Description

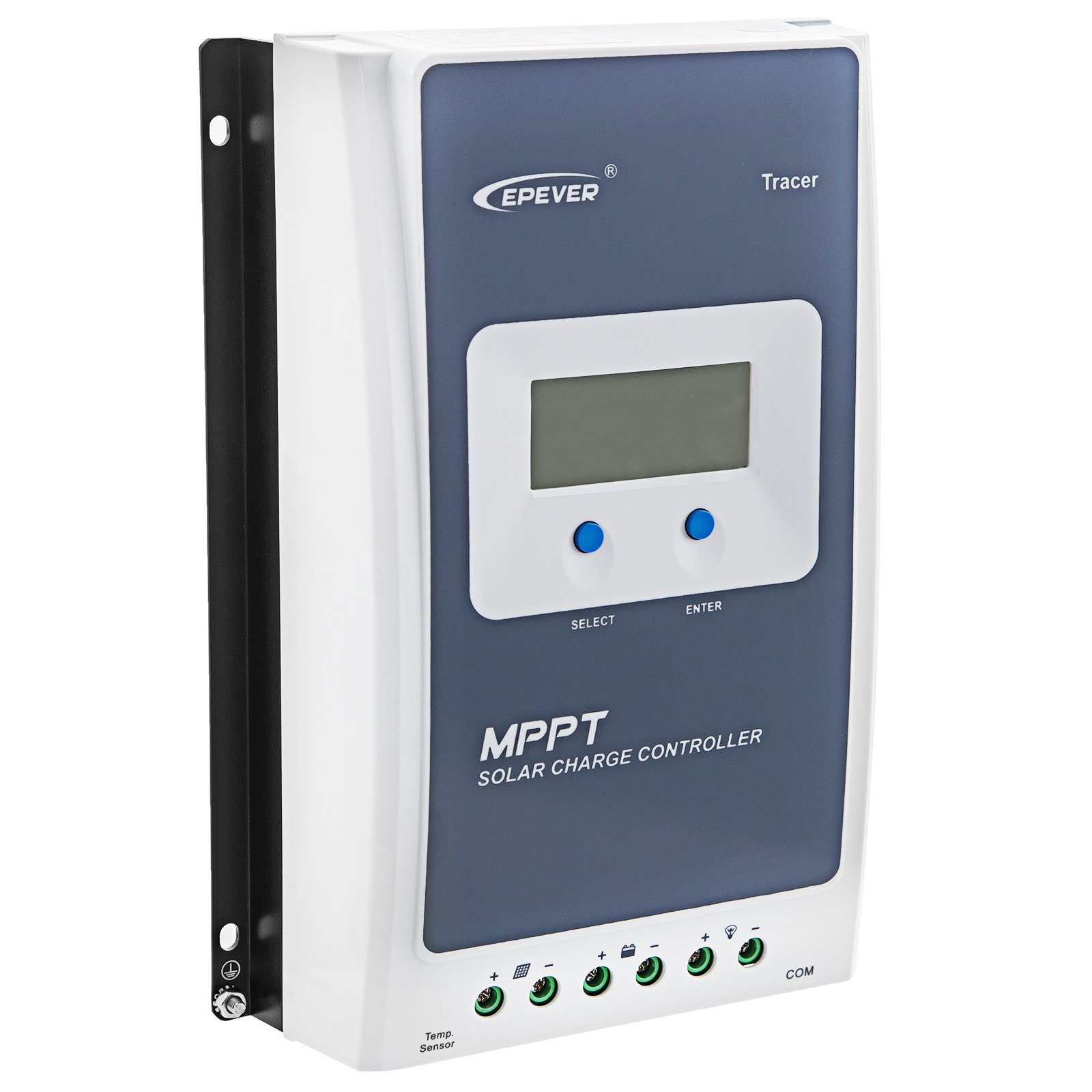

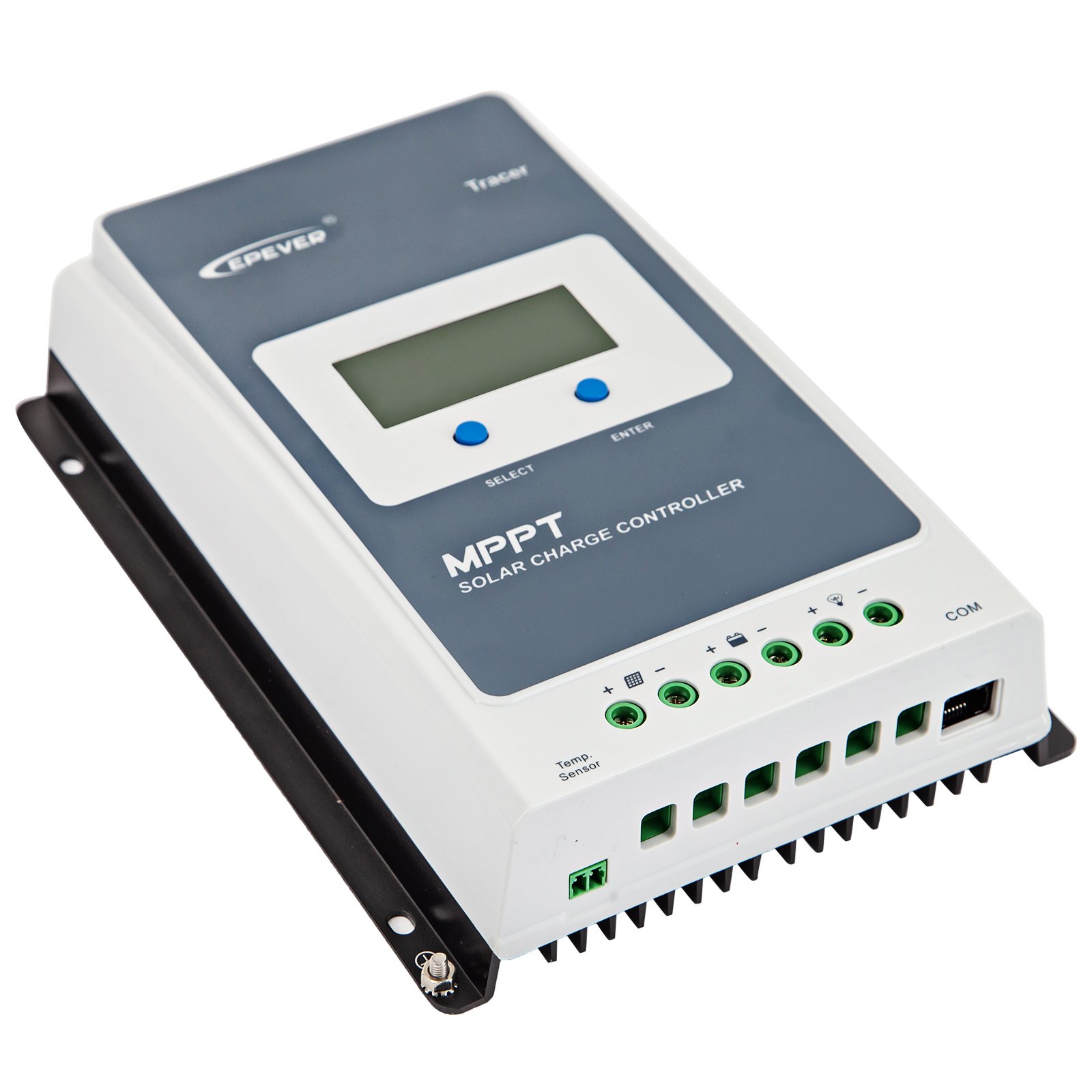

30 Amp Solar Charge Controllers
Our brand-new MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%, conversion≥98%, so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
- High Efficiency
- High-Definition LCD Display
- Intelligent Monitoring
- Temperature Sensor Included
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

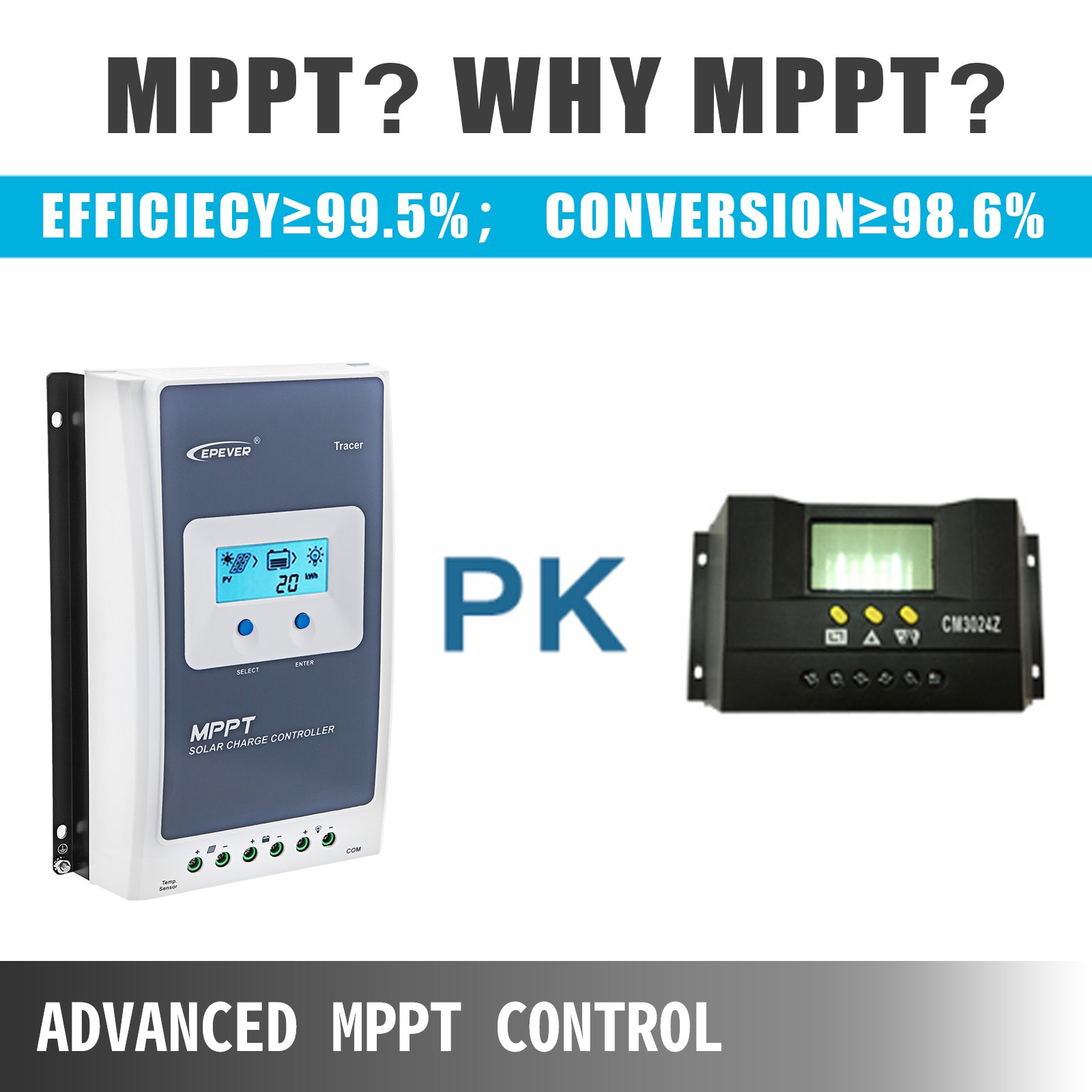

Advanced MPPT Control
It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.3%.

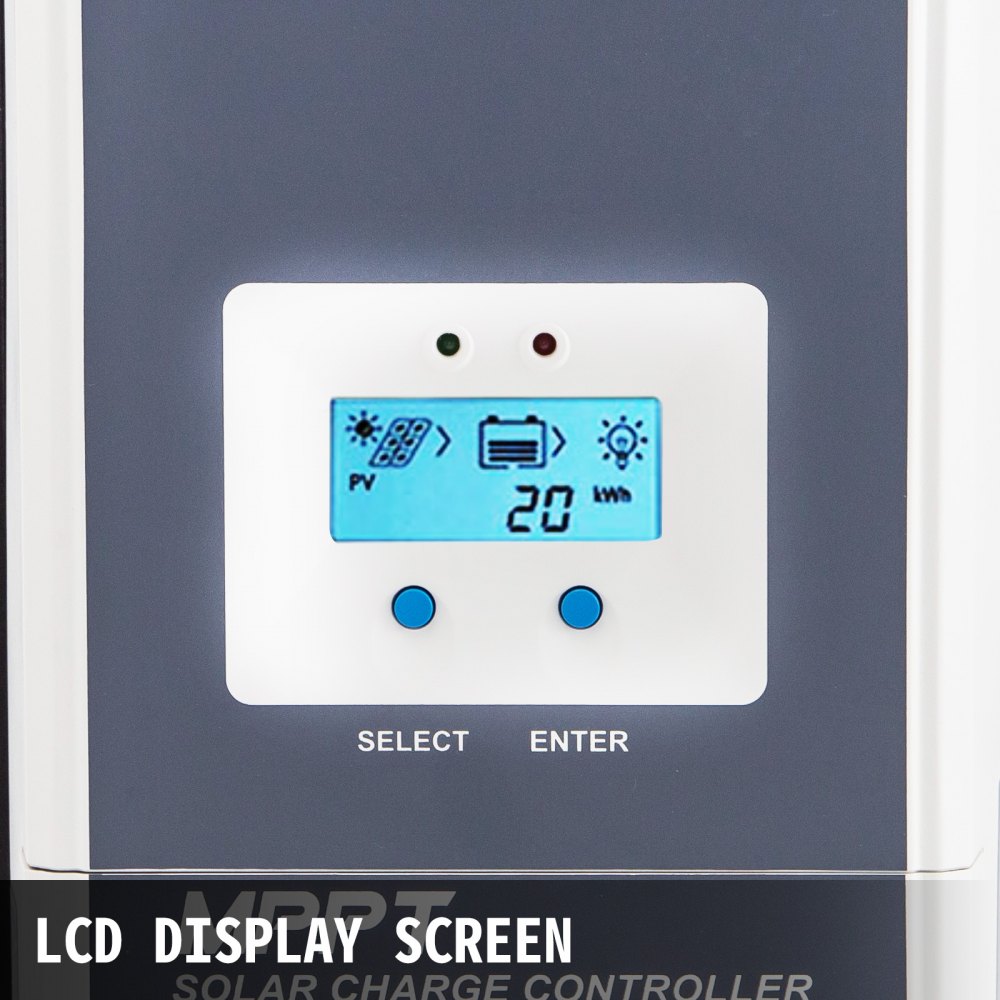

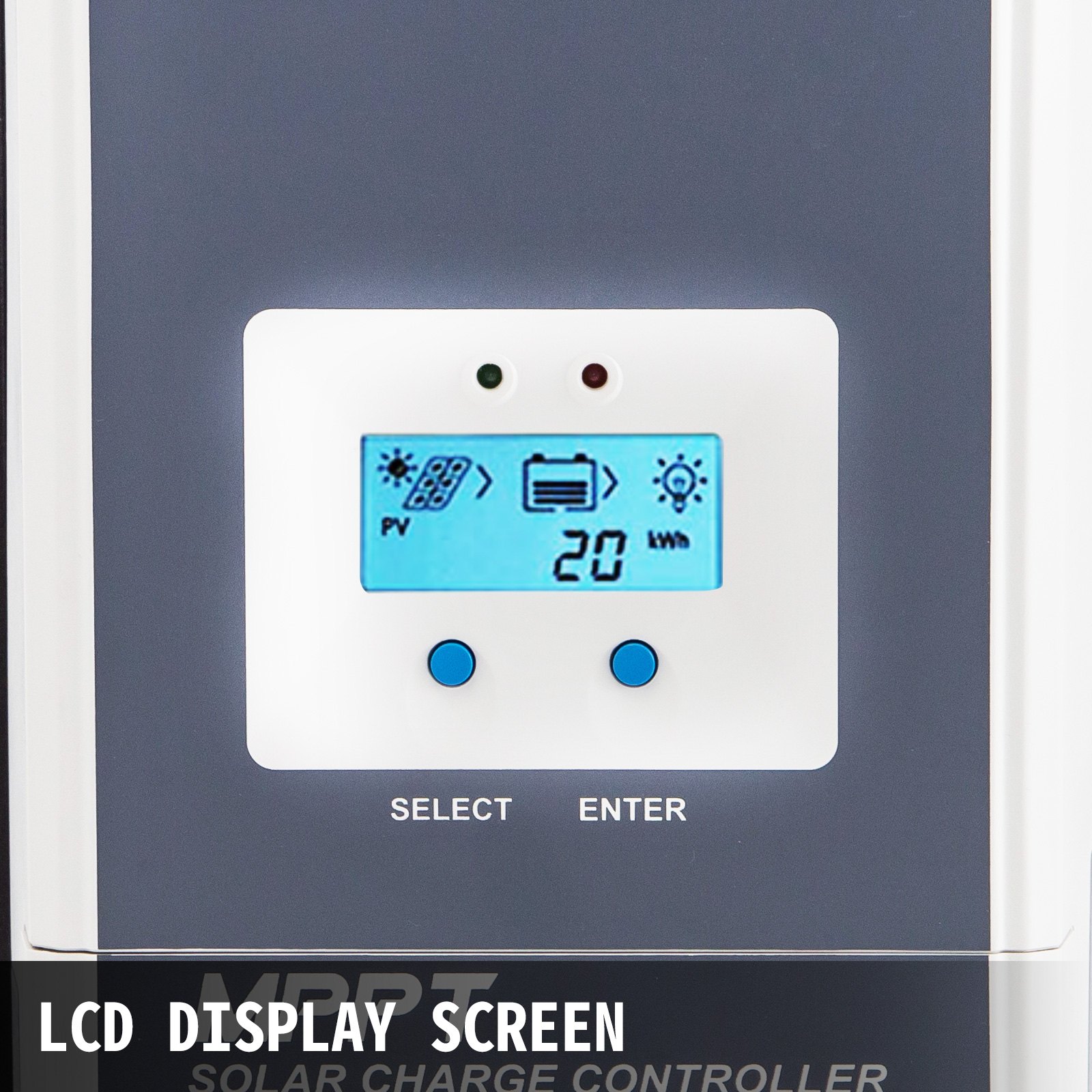

LCD Display Screen
The backlit LCD screen shows the status of charging clearly.

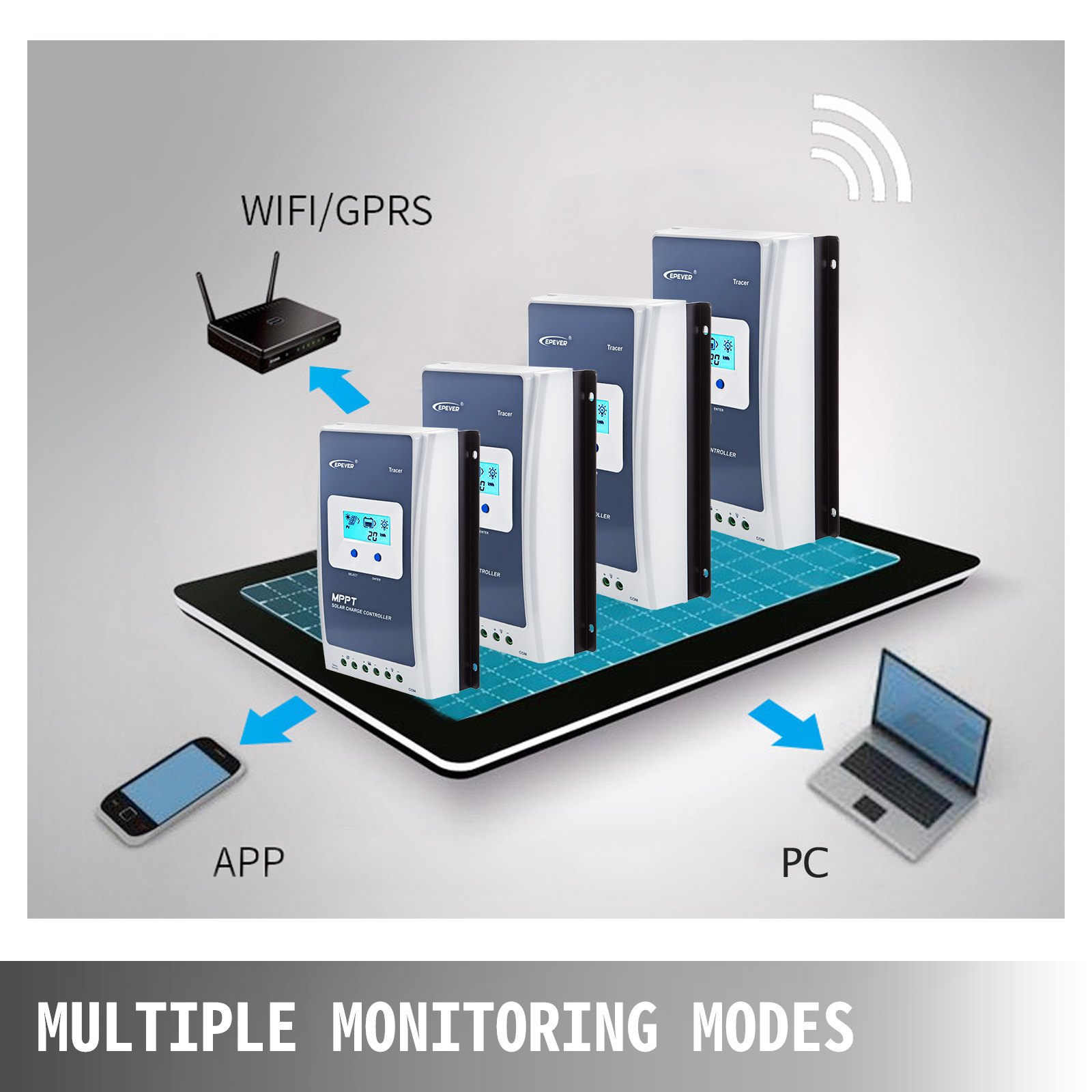

Multiple Monitoring Modes
It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.

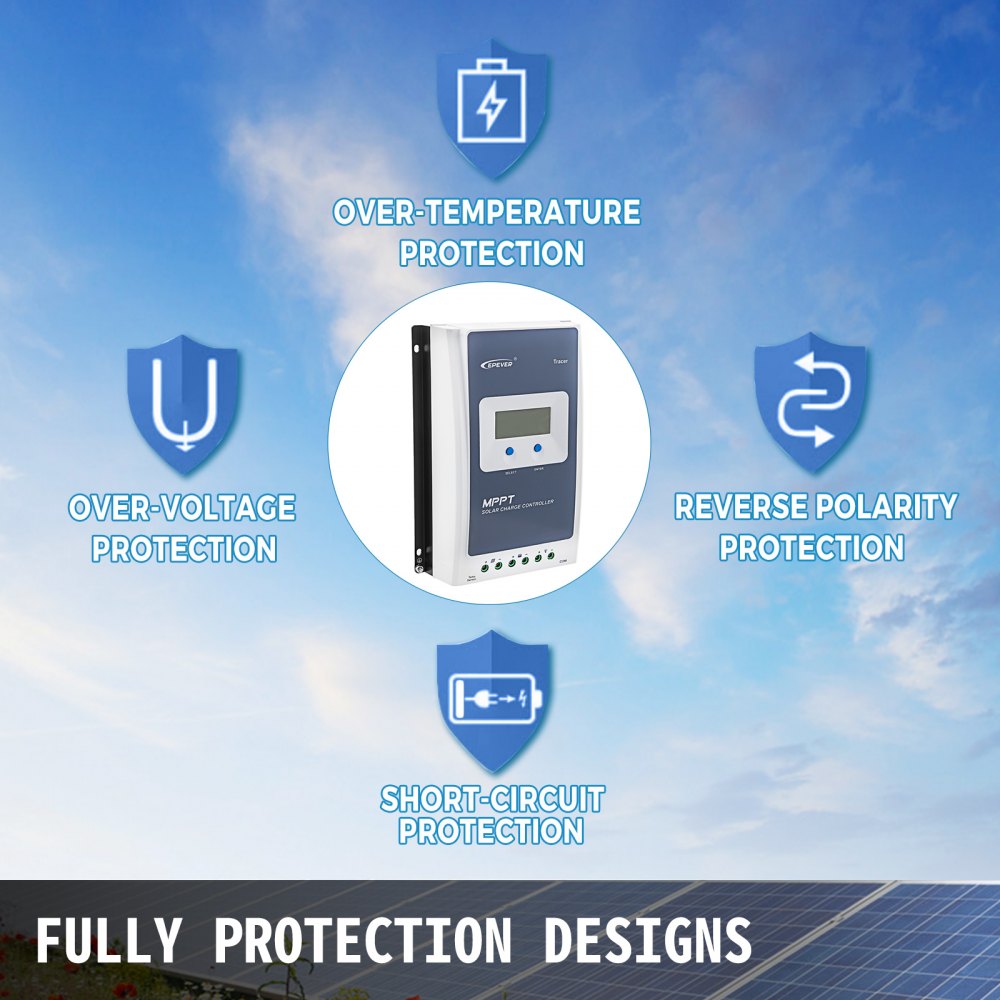

Fully Protection Designs
There are some main protection measures for the solar controller: short-circuit protection, PV reverse polarity protection, over-load protection, over-charge protection, over-temperature protection, etc.

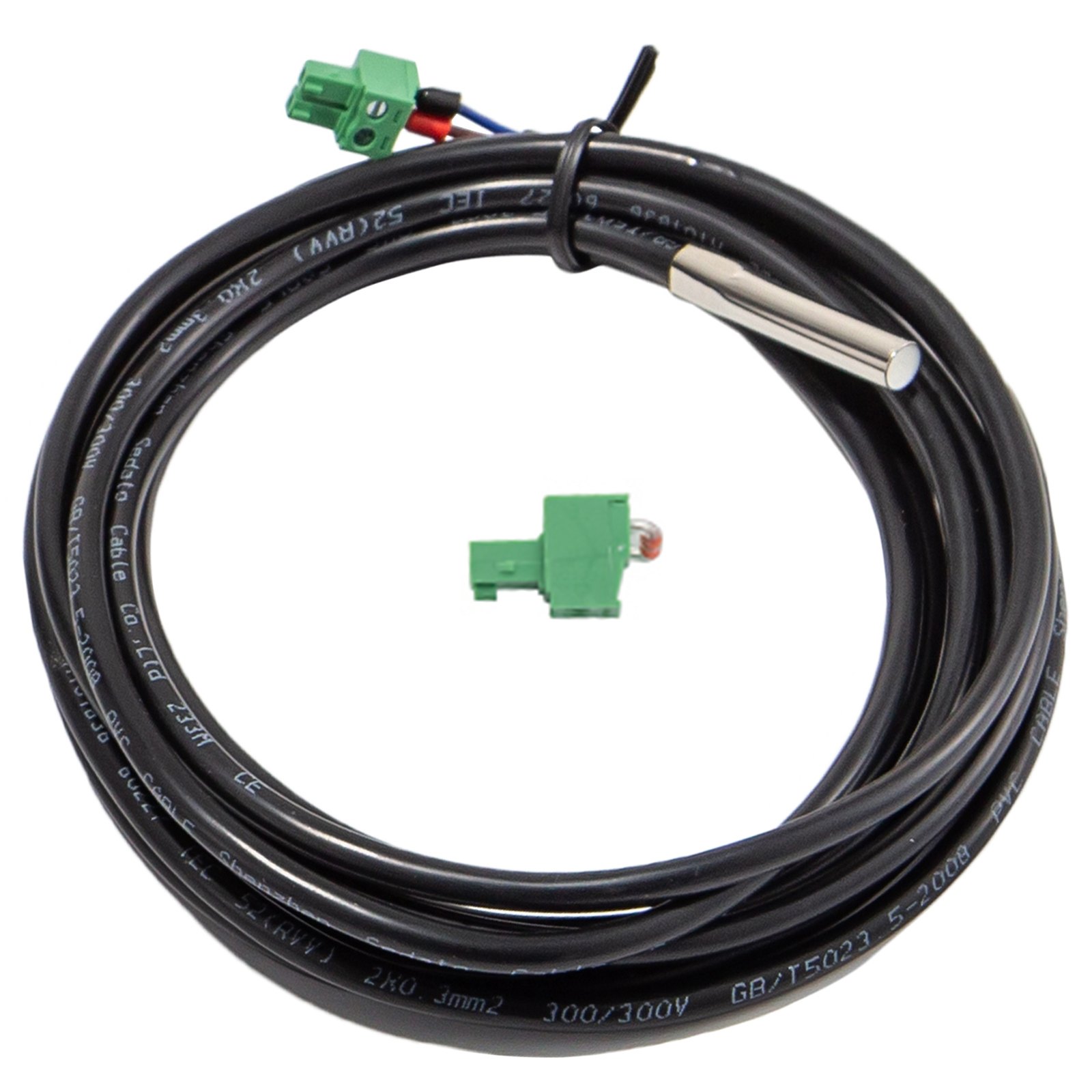

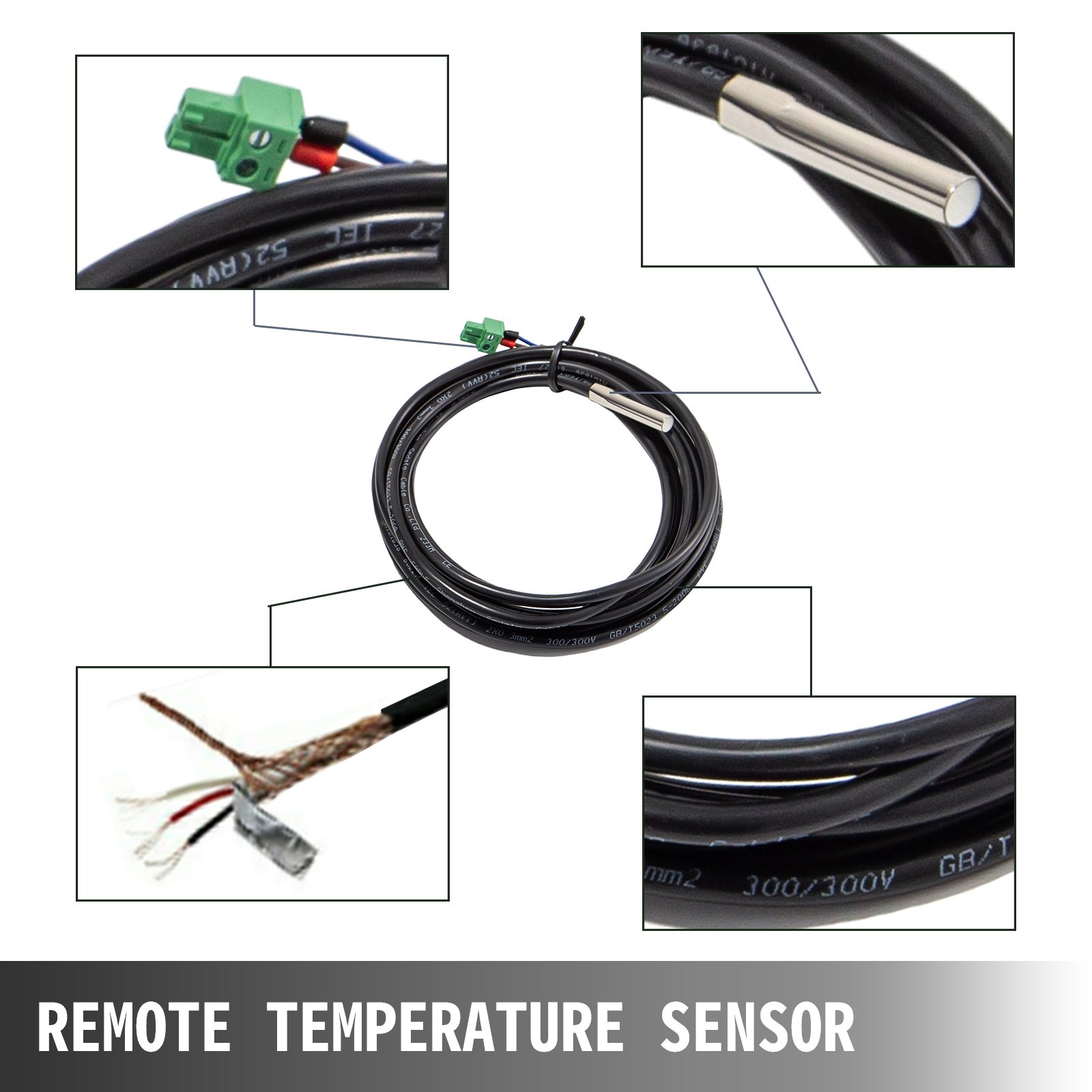

Remote Temperature Sensor
A temperature sensor here for you to charge safely and quickly.

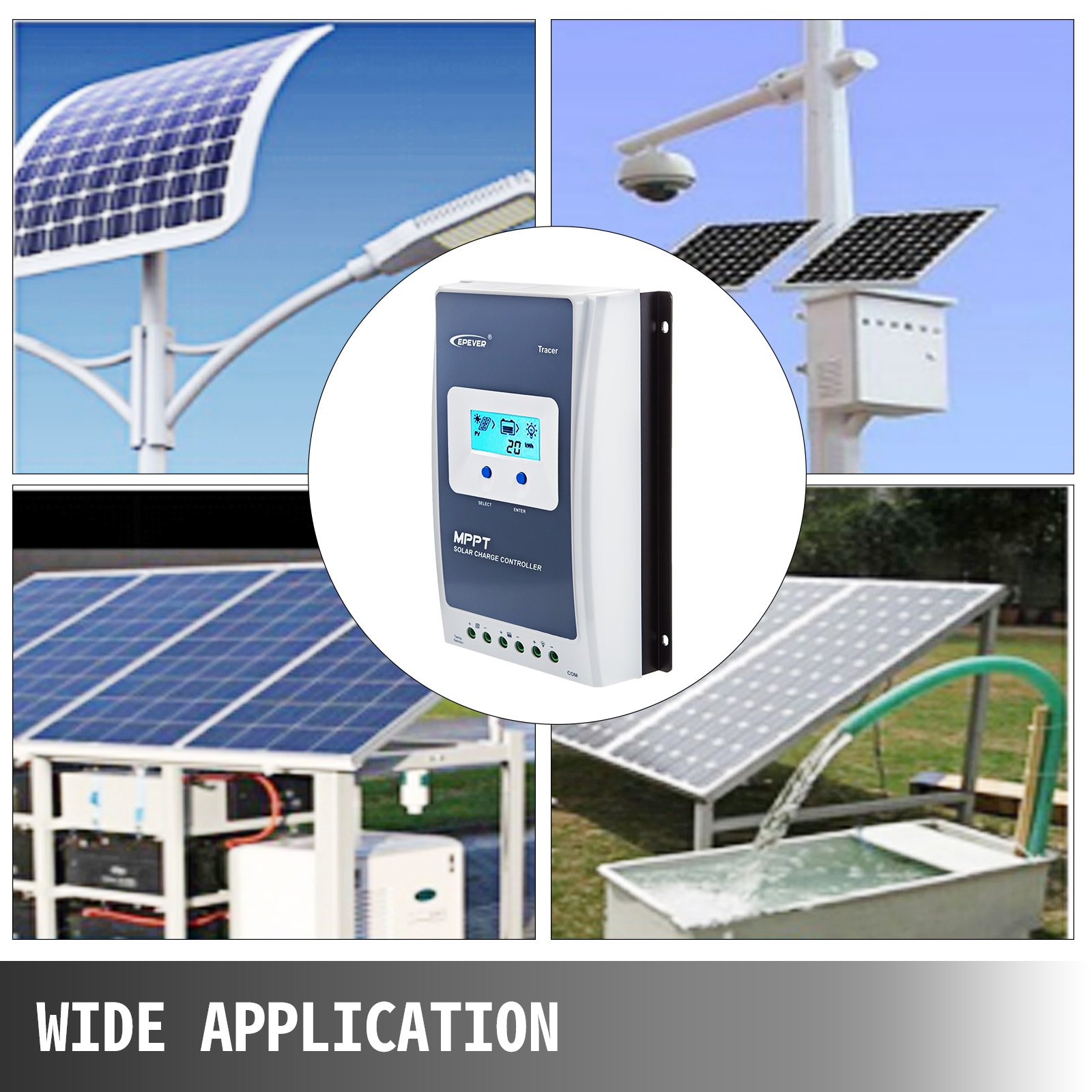

Wide Application
It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
Specifications
- Nominal System Voltage: 12/24V DC or Auto
- Battery Input Voltage Range: 8V-68V
- Battery Type: Lead-acid Battery :Sealed (Default)/Gel/Flooded/User Lithium Battery : Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ User
- Battery Fuse: 80A/58V
- Rated Charge Current: 30A
- Rated charge Power: 390W/12V 780W/24V
- Max. PV Open Circuit Voltage: 100V②/92V③
- MPP Voltage Range: Battery voltage +2V) ～72V
- Full Load Efficiency：97%
- Temperature Compensate Coefficient④:－3mV/°C/2V(Default)
- Self-Consumption: ≤12mA
- Grounding: Common Negative Grounding
- Working Temperature: -25 °C ～+50 °C(100% input and output)
- LCD backlight time: 60S (Default)
- Storage Temperature Range:-20 °C ～+75 °C
- Relative Humidity Range: ≤95%. N.C.
- Enclosure: IP30
- Pollution Degree: PD2

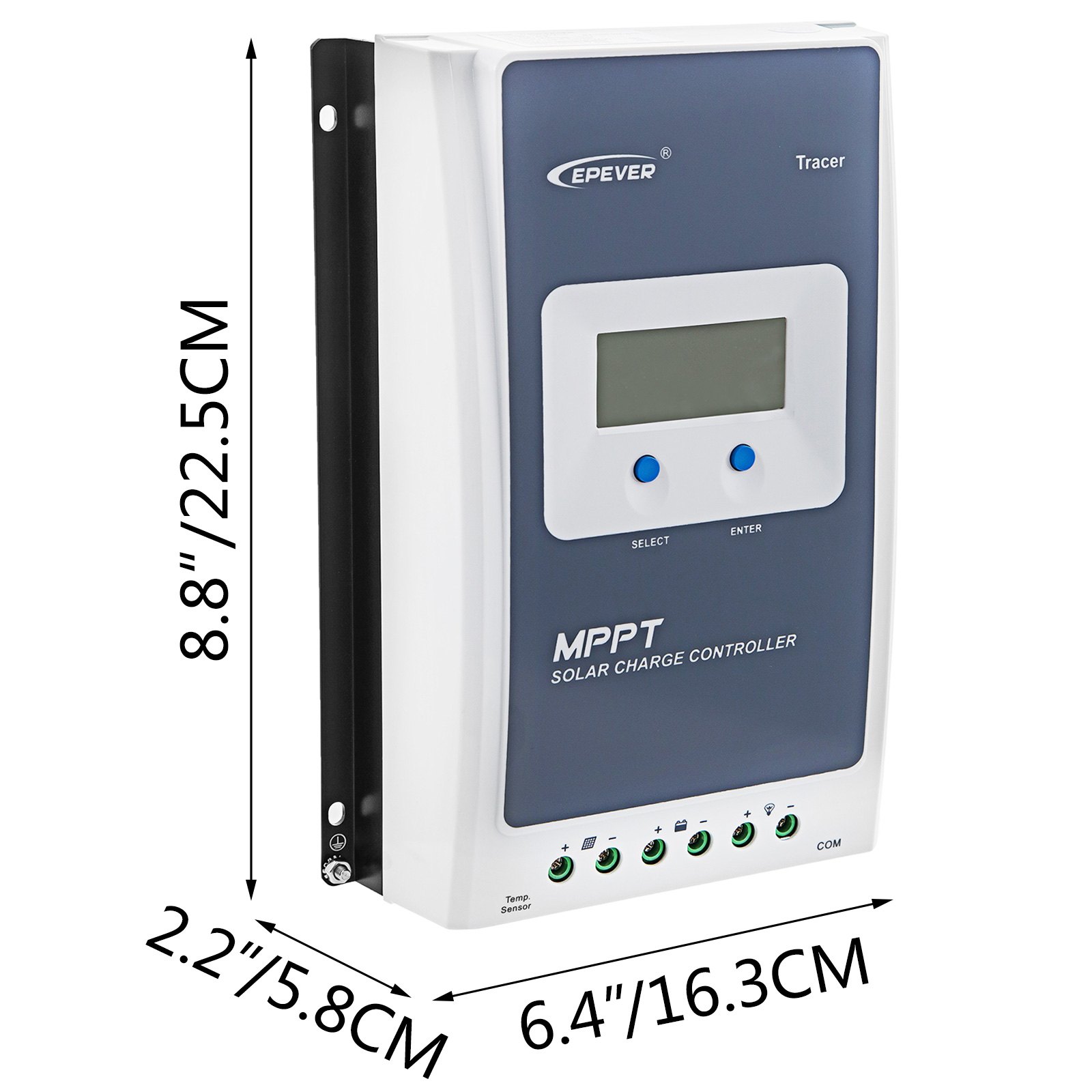

- Dimension: 228 mm x 164 mm x 55 mm
- Mounting Dimension: 70 mm x164 mm
- Mounting Hole Size: φ5 mm
- ① When a lead-acid battery is used, the controller hasn’t the low-temperature protection ② At minimum operating environment temperature ③ At 25 °C environment temperature ④ When a lithium-ion battery is used, the system voltage can’t be identified automatically

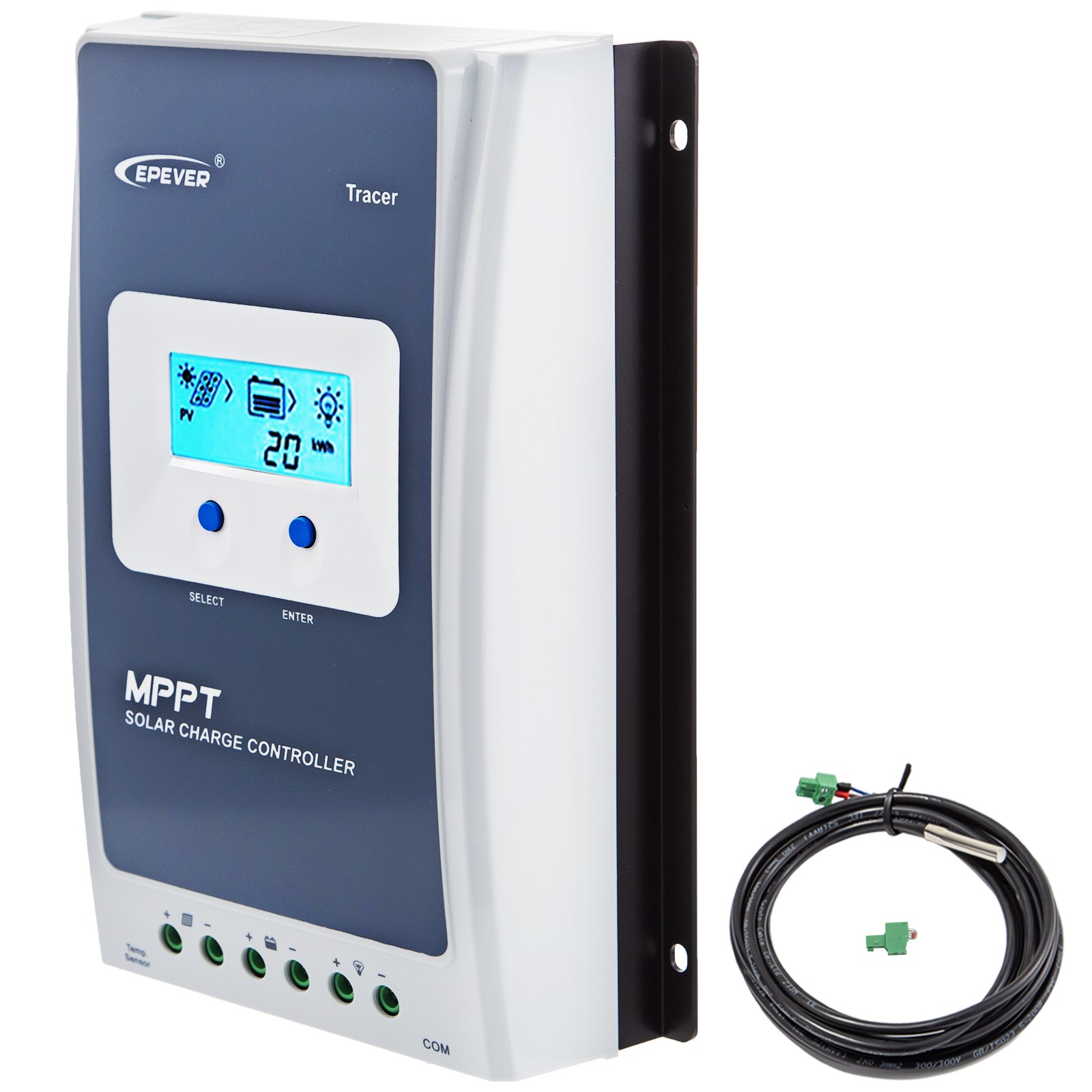

Package Content
- 1 X Solar Charge Controller
- 1 X Temperature Sensor
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
30 Amp Solar Charge Controllers
Our brand-new MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%, conversion≥98%, so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
- High Efficiency
- High-Definition LCD Display
- Intelligent Monitoring
- Temperature Sensor Included
Advanced MPPT Control
It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.3%.
LCD Display Screen
The backlit LCD screen shows the status of charging clearly.
Multiple Monitoring Modes
It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.
Fully Protection Designs
There are some main protection measures for the solar controller: short-circuit protection, PV reverse polarity protection, over-load protection, over-charge protection, over-temperature protection, etc.
Remote Temperature Sensor
A temperature sensor here for you to charge safely and quickly.
Wide Application
It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
Package Content
- 1 X Solar Charge Controller
- 1 X Temperature Sensor
Specifications
- Nominal System Voltage: 12/24V DC or Auto
- Battery Input Voltage Range: 8V-68V
- Battery Type: Lead-acid Battery :Sealed (Default)/Gel/Flooded/User Lithium Battery : Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ User
- Battery Fuse: 80A/58V
- Rated Charge Current: 30A
- Rated charge Power: 390W/12V 780W/24V
- Max. PV Open Circuit Voltage: 100V②/92V③
- MPP Voltage Range: Battery voltage +2V) ～72V
- Full Load Efficiency：97%
- Temperature Compensate Coefficient④:－3mV/°C/2V(Default)
- Self-Consumption: ≤12mA
- Grounding: Common Negative Grounding
- Working Temperature: -25 °C ～+50 °C(100% input and output)
- LCD backlight time: 60S (Default)
- Storage Temperature Range:-20 °C ～+75 °C
- Relative Humidity Range: ≤95%. N.C.
- Enclosure: IP30
- Pollution Degree: PD2
- Dimension: 228 mm x 164 mm x 55 mm
- Mounting Dimension: 70 mm x164 mm
- Mounting Hole Size: φ5 mm
- ① When a lead-acid battery is used, the controller hasn’t the low-temperature protection ② At minimum operating environment temperature ③ At 25 °C environment temperature ④ When a lithium-ion battery is used, the system voltage can’t be identified automatically
