Features & Details
- 【 HIGH EFFICIENCY 】-Advanced MPPT Control algorithm can minimize the power point loss rate and loss time, and its tracing efficiency is no less than 99.5%, and conversion is no less than 98.5%.
- 【 HIGH-DEFINITION LCD SCREEN 】-This solar charge controller features a high-definition LCD screen, so you can see the status of charging clearly.
- 【 INTELLIGENT MONITORING 】-This solar panel controller allows multiple monitoring ways: WI-FI/GPRS, mobile app remote control and computer monitoring, which all make it super convenient for you to monitor it anytime & anywhere.
- 【 COOLING FAN DESIGN 】-The charge controllers for solar panels come with a rear-mounted cooling fan, cooling down quickly, which can extend the machine's operating life to a large extent.
- 【 TEMPERATURE SENSOR INCLUDED 】-We offer you a high-quality temperature sensor free of cost, it is flexible-resistance and can have better thermal conductivity. Length of cable: 3 meters.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 11 reviews
Reviews 4.8
All reviews are from verified purchases
See all 11 reviews
About this item
Product specification
- Nominal System Voltage
- 12/24/36/48 V DC or Auto
- Battery Input Voltage Range
- 8V～68V
- Battery Type
- Lithium Battery
- Battery Fuse
- 150A/58V
- Rated Charge Current
- 80A
- Rated charge Power
- 1000W/12V 2000W/24V 3000W/36V 4000W/48V
- Max. PV Open Circuit Voltage
- 200V① 180V②
- MPP Voltage Range
- Battery Voltage +2V) ～108V③
- Tracking Efficiency
- ≥99.5%
- Max. Conversion Efficiency
- 98.5%
- Full Load Efficiency
- 97.5%
- Temperature Compensate Coefficient
- －3mV/°C/2V(Default)
- Self-Consumption
- 98mA/12V;60mA/24V;50mA/36V;46mA/48V
- Grounding
- Common Negative Grounding
- Relay
- Rated Value
- RS485 Interface
- RS485(RJ45)
- LCD backlight time
- Default
- Ambient Temperature Range
- -25 °C ～+60 °C(above 45 °C)
- LCD Temperature Range
- -20 °C ～+70 °C
- Storage Temperature Range
- -30 °C ～+85 °C
- Relative Humidity Range
- 5% to 95% ( N.C.）
- Enclosure
- IP20
- Pollution Degree；PD2
- Dimension
- 394×240×134 mm
- Mounting Dimension
- 300 mm x 228 mm
- Mounting Hole Size
- φ7 mm
- ① At minimum operating environment temperature
- ② At 25 °C environment temperature
- ③ The maximum PV open circuit voltage must never exceed 138V or 180V at 25 °C environment temperature
Description

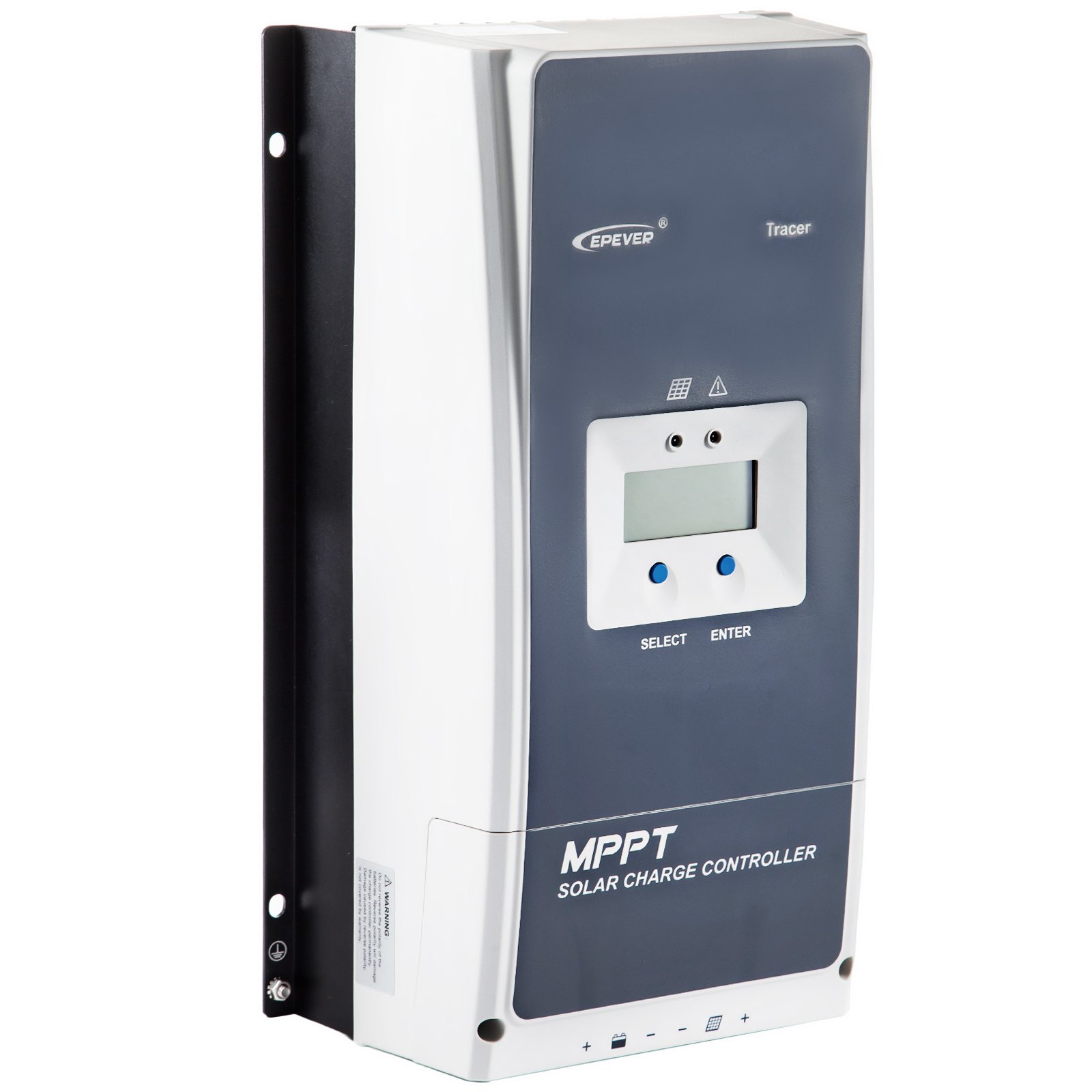

80 Amp Solar Charge Controller
Our brand-new MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%, conversion≥98.6%, so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
- High Efficiency
- High-Definition LCD Display
- Intelligent Monitoring
- Cooling Fan Design
- Temperature Sensor Included
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

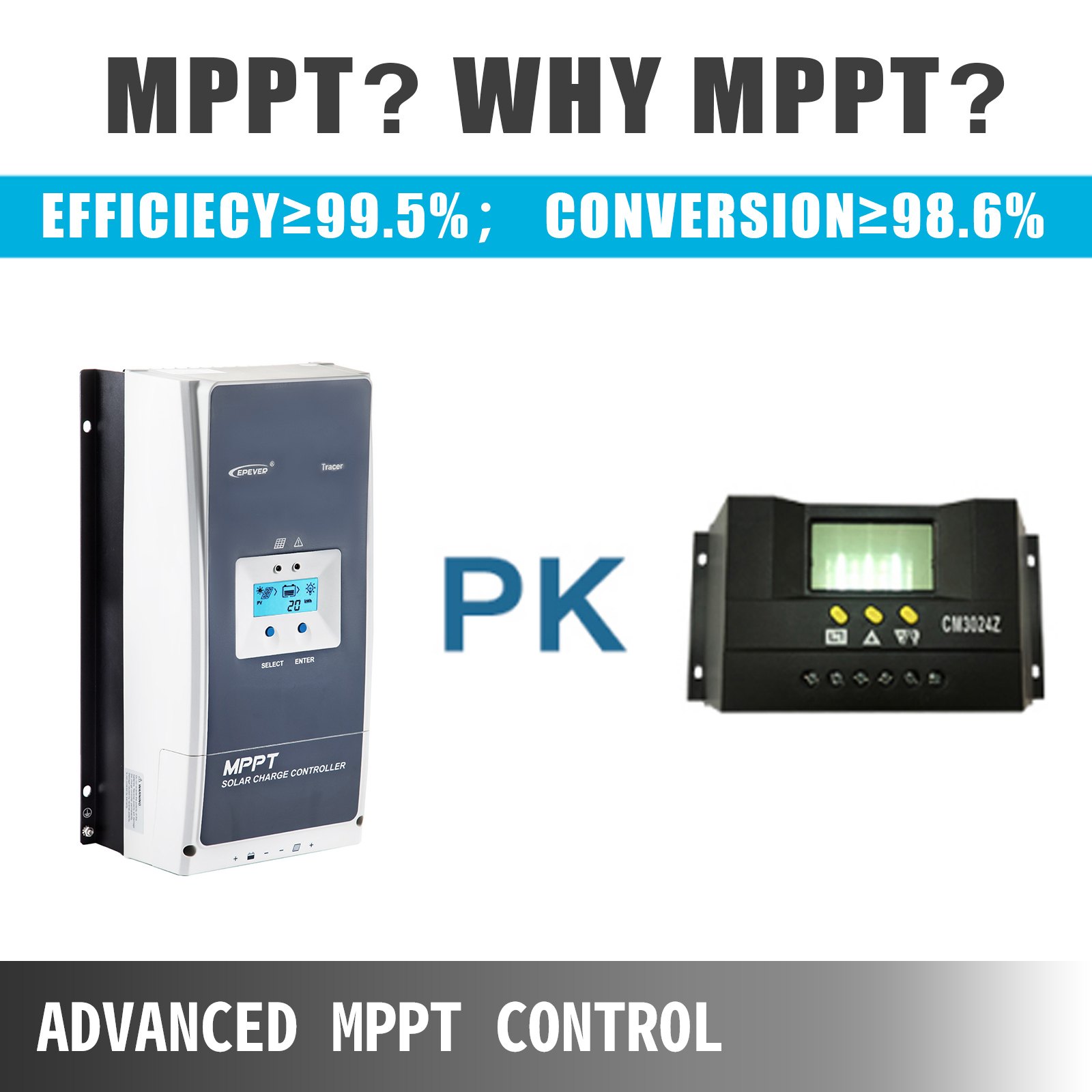

Advanced MPPT Control
It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.5%.

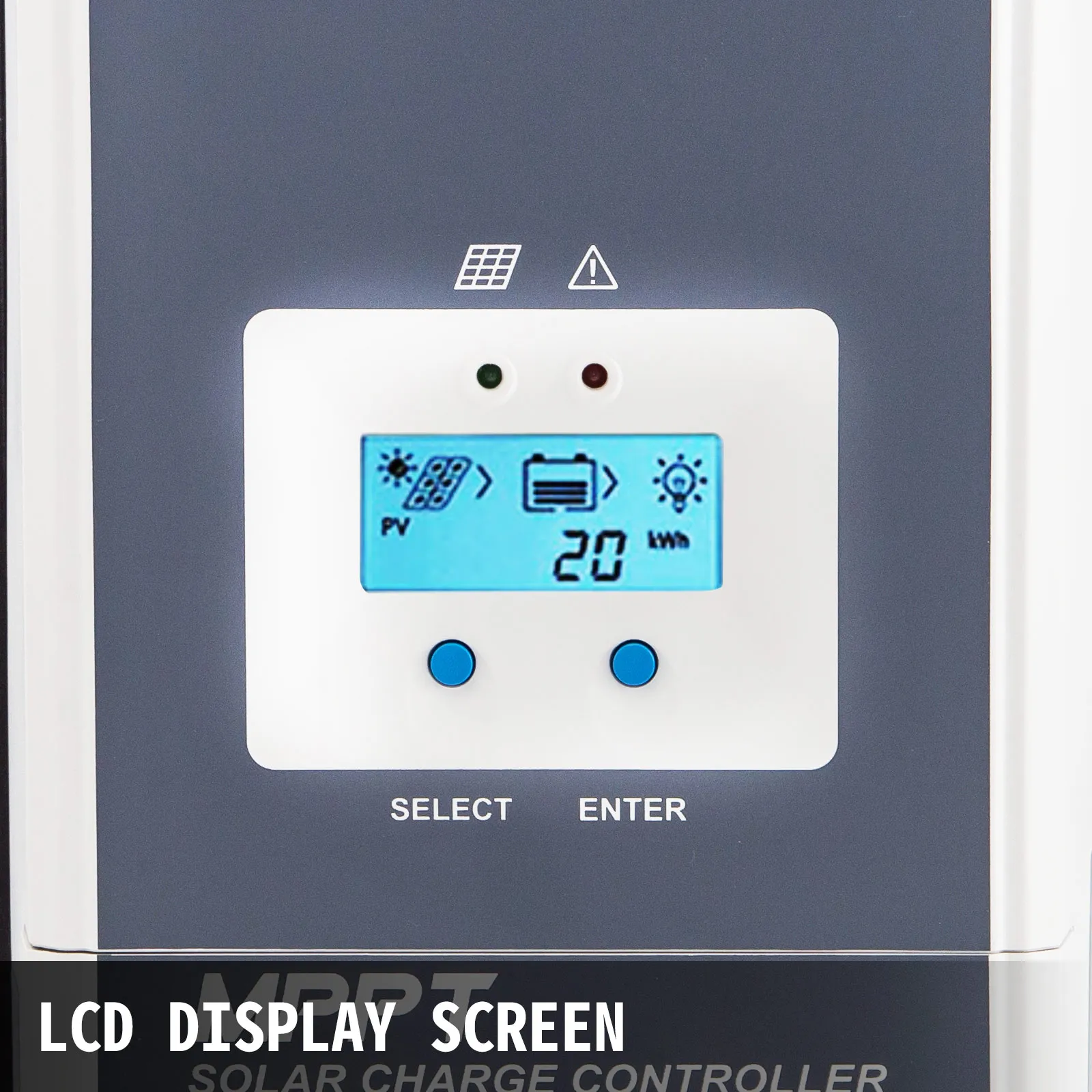

LCD Display Screen
The backlit LCD screen shows the status of charging clearly.

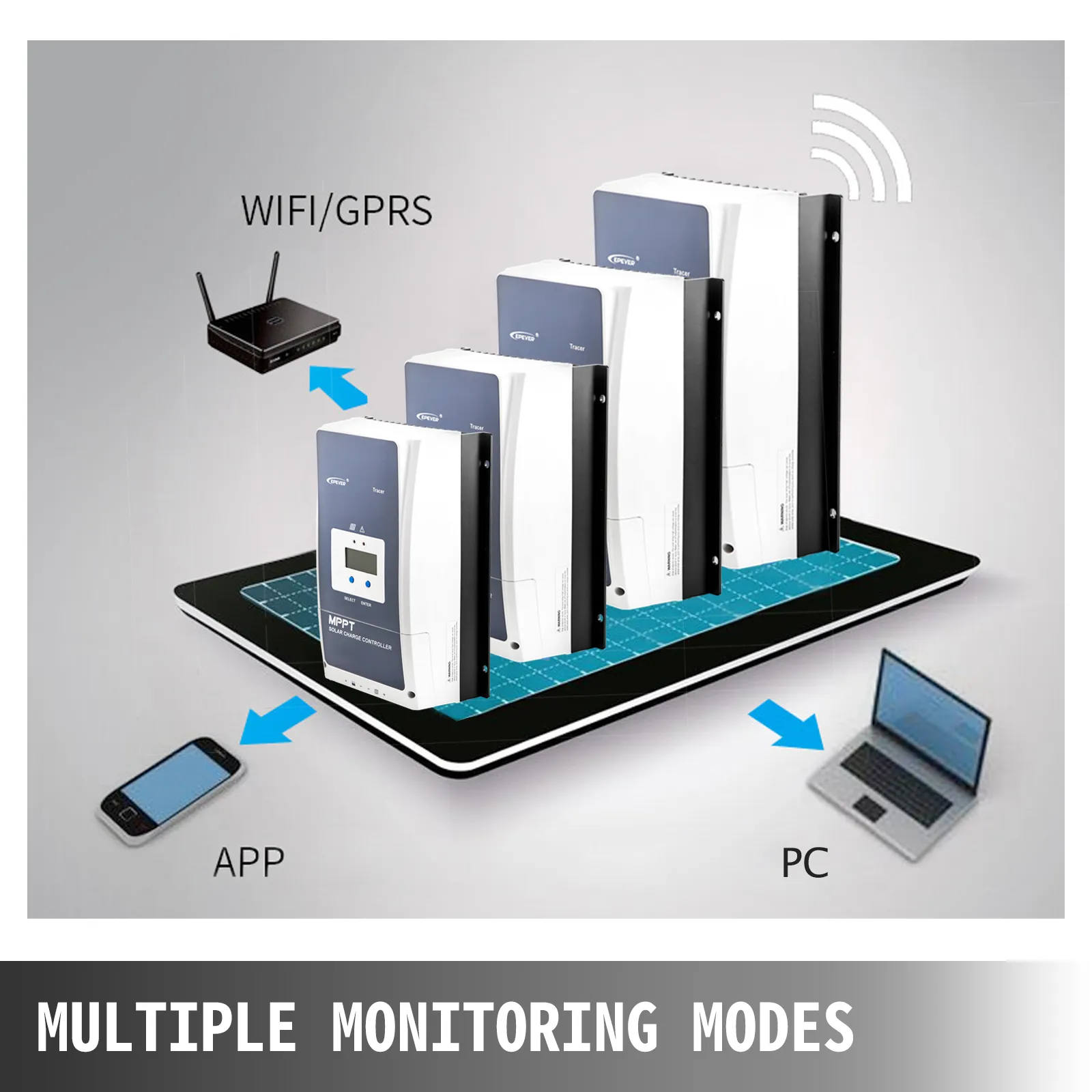

Multiple Monitoring Modes
It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.

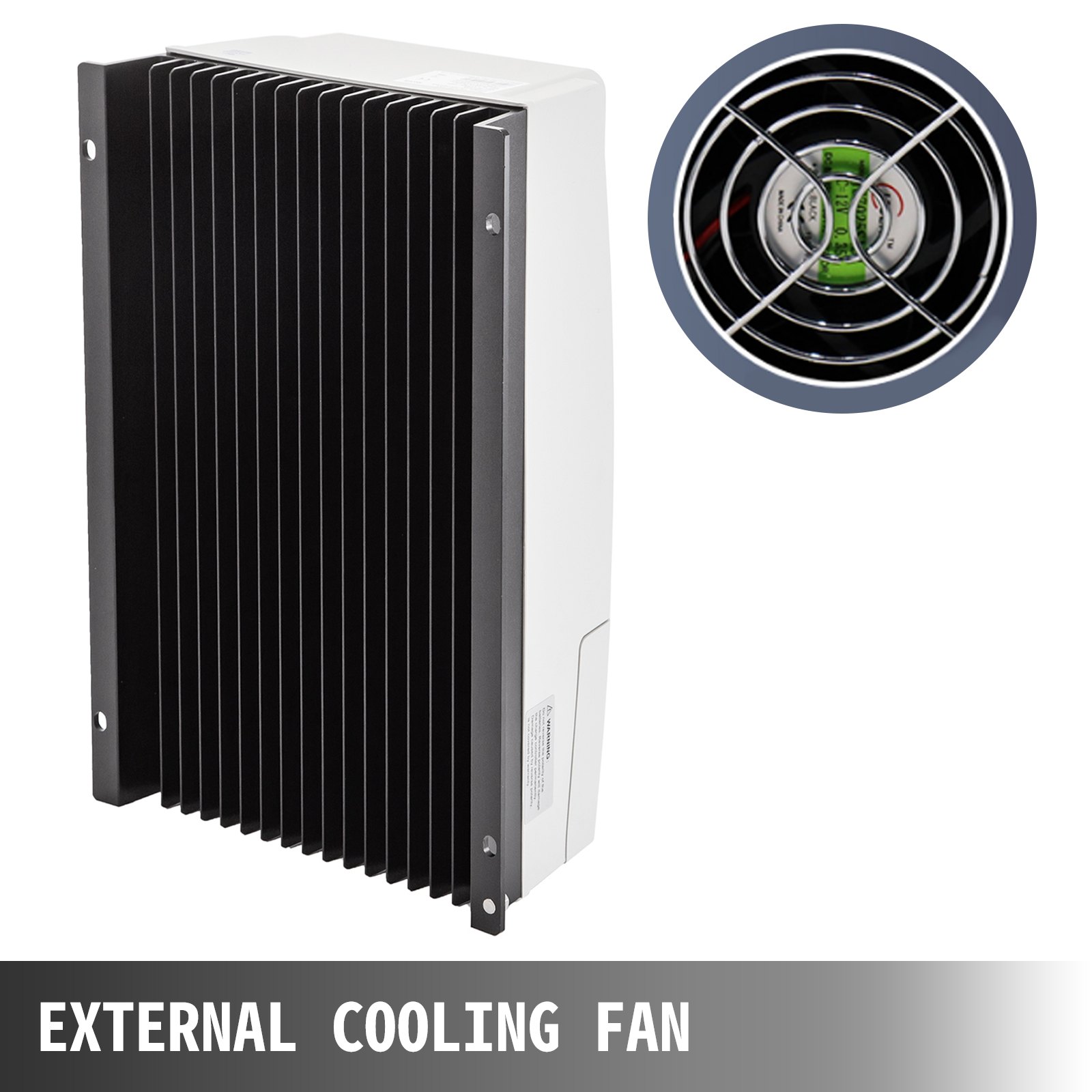

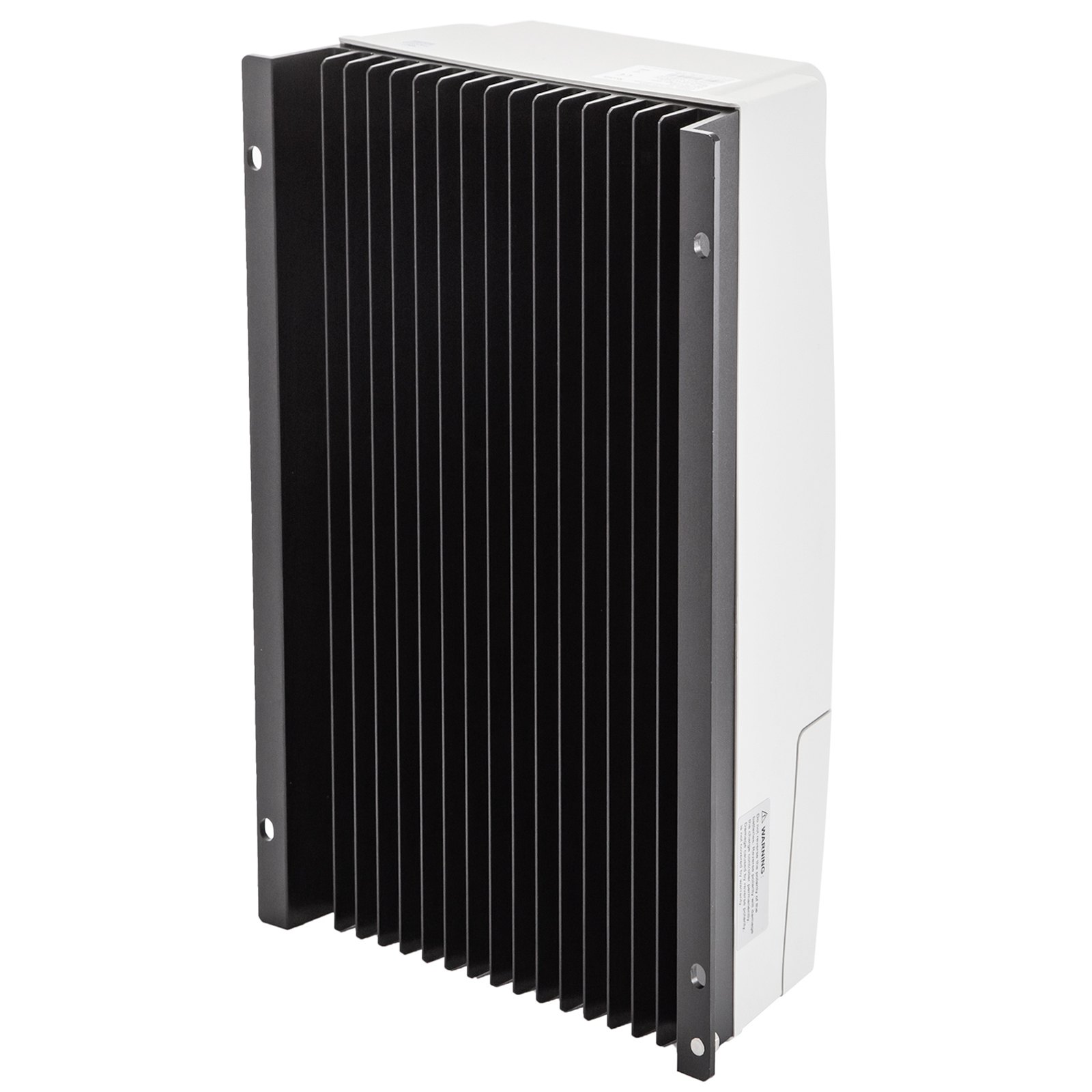

External Cooling Fan
The rear-mounted cooling fan can radiate quickly, which can help to lengthen the machine's service life.

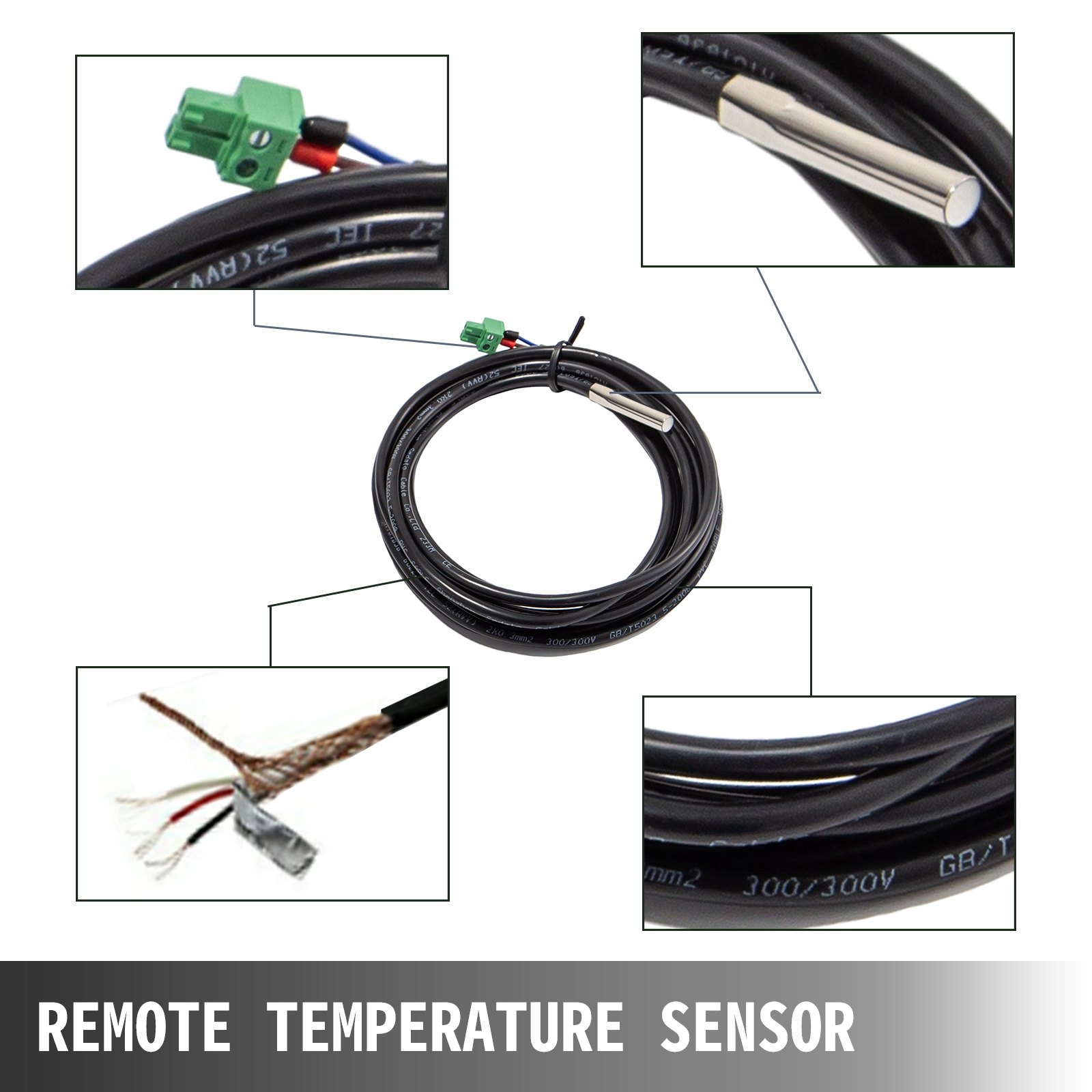

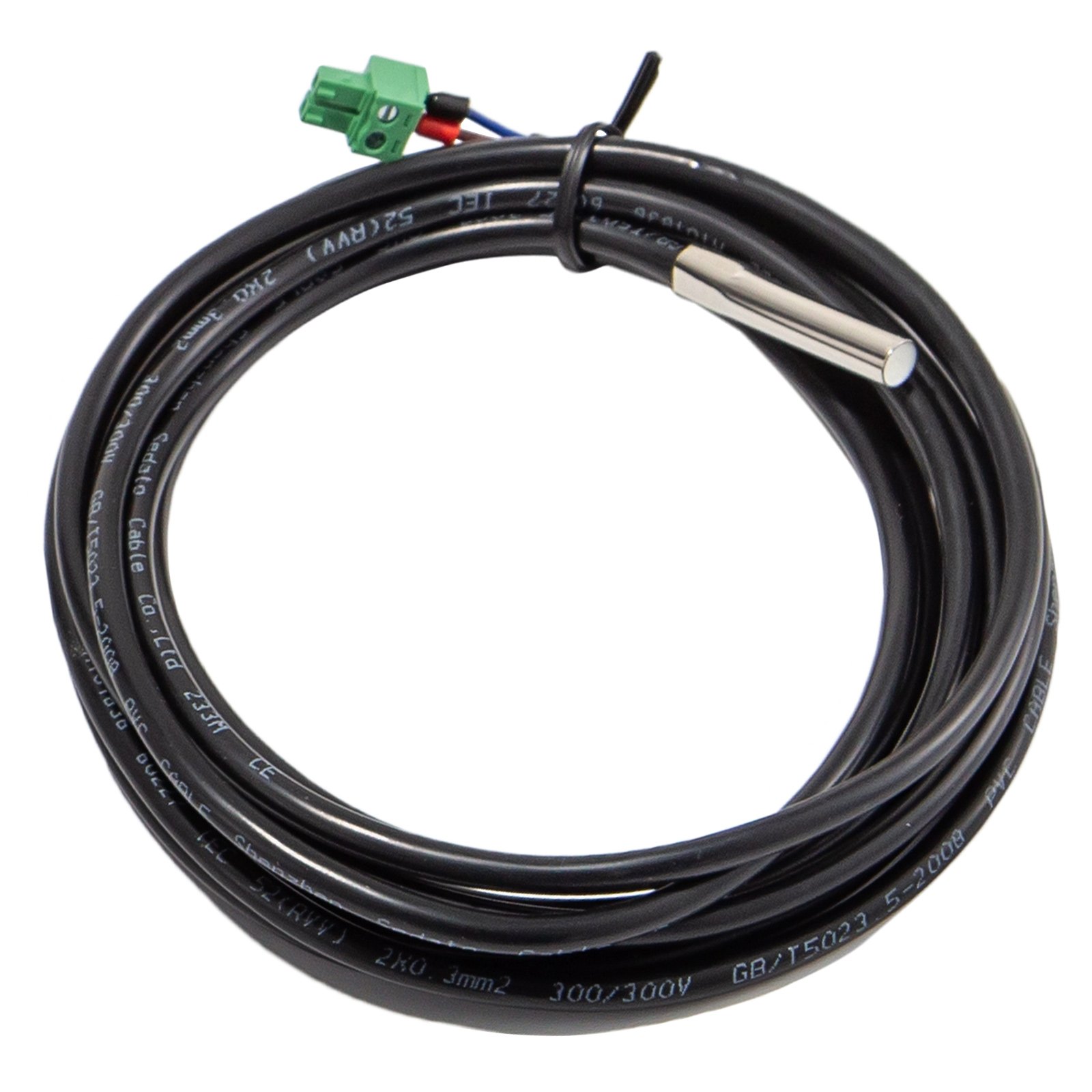

Remote Temperature Sensor
A temperature sensor here for you to charge safely and quickly.
Wide Application
It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
Specifications
- Nominal System Voltage：12/24/36/48 V DC or Auto
- Battery Input Voltage Range: 8V～68V
- Battery Type: Lithium Battery : Lithium Battery :LiFePO4/ Li(Ni Co Mn)O2/ User
- Battery Fuse: 150A/58V
- Rated Charge Current: 80A
- Rated charge Power: 1000W/12V 2000W/24V 3000W/36V 4000W/48V
- Max. PV Open Circuit Voltage: 200V① 180V②
- MPP Voltage Range: Battery Voltage +2V) ～108V③
- Tracking Efficiency: ≥99.5%
- Max. Conversion Efficiency: 98.5%
- Full Load Efficiency：97.5%
- Temperature Compensate Coefficient：－3mV/°C/2V(Default)
- Self-Consumption：98mA/12V;60mA/24V;50mA/36V;46mA/48V
- Grounding: Common Negative Grounding
- Relay: Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
- RS485 Interface: RS485(RJ45)
- LCD backlight time: Default:60S,Range:0～999S(0S:the backlight is ON all the time)
- Ambient Temperature Range:-25 °C ～+60 °C(above 45 °C)
- LCD Temperature Range: -20 °C ～+70 °C
- Storage Temperature Range:-30 °C ～+85 °C
- Relative Humidity Range: 5% to 95% ( N.C.）
- Enclosure: IP20
- Pollution Degree；PD2

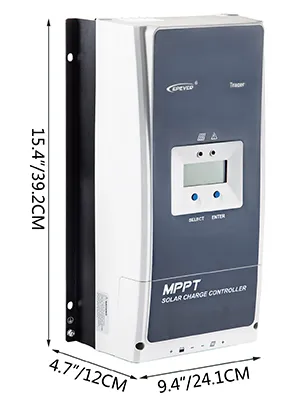

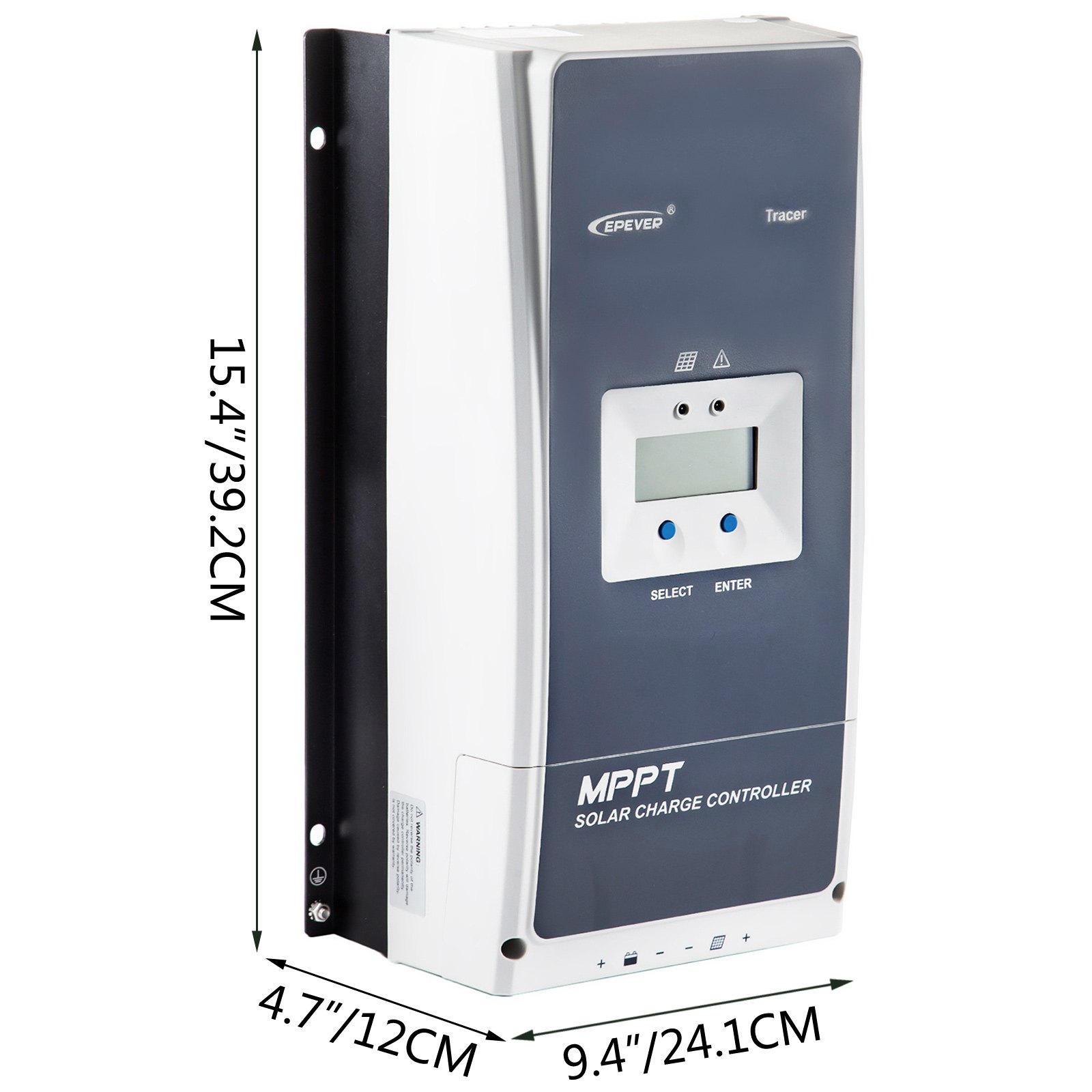

- Dimension: 394×240×134 mm
- Mounting Dimension: 300 mm x 228 mm
- Mounting Hole Size: φ7 mm
- ① At minimum operating environment temperature
- ② At 25 °C environment temperature
- ③ The maximum PV open circuit voltage must never exceed 138V or 180V at 25 °C environment temperature

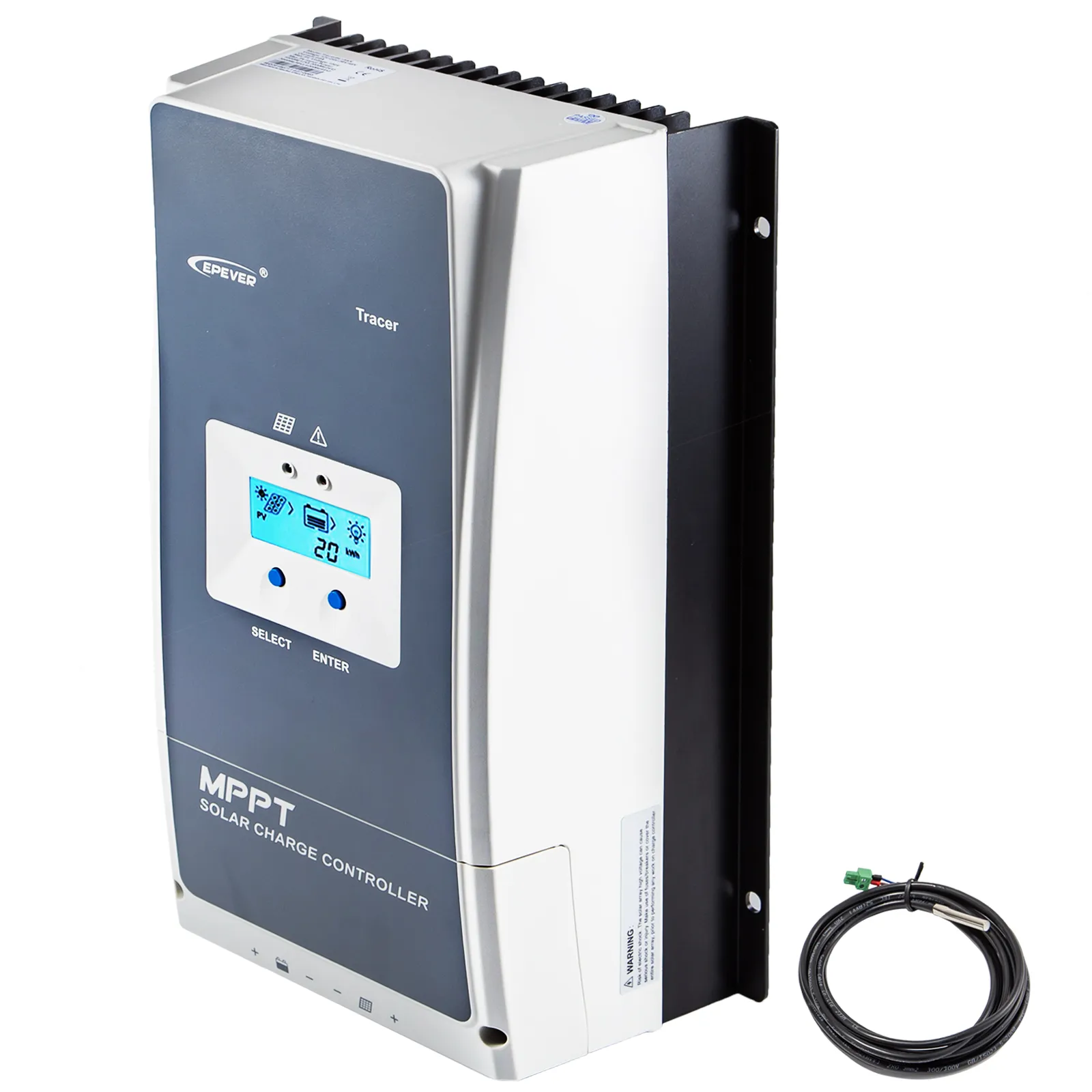

Package Content
- 1 X Solar Charge Controller
- 1 X Temperature Sensor
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
80 Amp Solar Charge Controller
Our brand-new MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%, conversion≥98.6%, so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
- High Efficiency
- High-Definition LCD Display
- Intelligent Monitoring
- Cooling Fan Design
- Temperature Sensor Included
Advanced MPPT Control
It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.5%.
LCD Display Screen
The backlit LCD screen shows the status of charging clearly.
Multiple Monitoring Modes
It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.
External Cooling Fan
The rear-mounted cooling fan can radiate quickly, which can help to lengthen the machine's service life.
Remote Temperature Sensor
A temperature sensor here for you to charge safely and quickly.
Wide Application
It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
Package Content
- 1 X Solar Charge Controller
- 1 X Temperature Sensor
Specifications
- Nominal System Voltage：12/24/36/48 V DC or Auto
- Battery Input Voltage Range: 8V～68V
- Battery Type: Lithium Battery : Lithium Battery :LiFePO4/ Li(Ni Co Mn)O2/ User
- Battery Fuse: 150A/58V
- Rated Charge Current: 80A
- Rated charge Power: 1000W/12V 2000W/24V 3000W/36V 4000W/48V
- Max. PV Open Circuit Voltage: 200V① 180V②
- MPP Voltage Range: Battery Voltage +2V) ～108V③
- Tracking Efficiency: ≥99.5%
- Max. Conversion Efficiency: 98.5%
- Full Load Efficiency：97.5%
- Temperature Compensate Coefficient：－3mV/°C/2V(Default)
- Self-Consumption：98mA/12V;60mA/24V;50mA/36V;46mA/48V
- Grounding: Common Negative Grounding
- Relay: Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
- RS485 Interface: RS485(RJ45)
- LCD backlight time: Default:60S,Range:0～999S(0S:the backlight is ON all the time)
- Ambient Temperature Range:-25 °C ～+60 °C(above 45 °C)
- LCD Temperature Range: -20 °C ～+70 °C
- Storage Temperature Range:-30 °C ～+85 °C
- Relative Humidity Range: 5% to 95% ( N.C.）
- Enclosure: IP20
- Pollution Degree；PD2
- Dimension: 394×240×134 mm
- Mounting Dimension: 300 mm x 228 mm
- Mounting Hole Size: φ7 mm
- ① At minimum operating environment temperature
- ② At 25 °C environment temperature
- ③ The maximum PV open circuit voltage must never exceed 138V or 180V at 25 °C environment temperature
