Features & Details
- 【HIGH EFFICIENCY】- The solar charger controller has the function of Maximum Power Point Tracking. Its efficiency is not less than 99.5% and conversion efficiency up to 98%. It can detect the solar panel's voltage and current in real-time and keep tracking the maximum power point to charge the battery with the maximum power.
- 【AUTOMATIC RECOGNITION】- The charge controller can automatically identify 12V/24V/36V/48V systems. The full PV input voltage of DC 150V makes it suitable for more PV modules, which is convenient for users to use in different modes.
- 【LCD DISPLAY SCREEN】- The solar charge regulator features a high-definition LCD function, can view the equipment operating data and working status, and support the setting of related parameters, such as system type, PV voltage, charge voltage, charge current, charge power, temperature and so on.
- 【INTELLIGENT & PROTECTIVE】- The solar controller adopts a built-in intelligent temperature-controlled cooling fan, which effectively reduces the operating temperature; it adds various protection functions such as low-voltage input protection, over-voltage input protection, and over-charging source protection.
- 【MULTIPLE APPLICATION】- The solar regulator can be widely used in homes, schools, transportation, streets, communication fields, petroleum, marine, meteorological fields, and other solar off-grid power supply systems, such as traffic lights, broadcasting/communication power systems, garden lights, etc.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 11 reviews
Reviews 4.8
All reviews are from verified purchases
See all 11 reviews
About this item
Product specification
- Color
- Red + black
- Controller type
- MPPT (maximum power point tracking)
- MPPT efficiency
- ≥ 99.5 %
- System type
- DC12V/24V/36V/48V (automatic recognition)
- System Voltage and Rated Power
- 12V system
- DC9V-DC15V, 780W
- 24V system
- DC18V-DC30V, 1560W
- 36V system
- DC32V-DC40V, 2340W
- 48V system
- DC42V-DC60V, 3120W
- Max. PV input voltage
- 150V
- Start the charge voltage point
- 5V higher than the current battery voltage
- Low input voltage protection point
- 3V higher than the current battery voltage
- Over voltage protection point
- 150V
- High voltage recovery point
- 145V
- Charge method
- 3 stages (constant current(MPPT), constant voltage, floating charge)
- Battery types optional(Default Gel battery)
- Flooded, Sealed lead acid, Gel battery (Other types of the batteries also can be defined)
- Constant voltage
- Please check the charge voltage according to the battery type form.
- Floating voltage
- Please check the charge voltage according to the battery type form.
- Rated charge current
- 60A
- Temperature factor
- ± 0.02 % ℃
- Temperature compensation
- -3mV/℃/2V (default)
- Output ripples(peak)
- 200 mV
- Output voltage stability precision
- ≤ ± 1.5 %
- Output voltage
- Base on battery voltage
- Low voltage output protection point
- Default 10.5V; Recovery 11V; It can be adjustable.
- Load rated current
- 60A
- LCD display
- System type, PV voltage, Charge voltage, Charge Current, Charge power, temperature, etc.
Description
60A MPPT Solar Charge Controller LCD Display
The listing is about 60A solar charge controller, features with LCD, 12V/24V/36V/48V system optional, max 150V DC PV input voltage, RS485 communication, high efficient MPPT controller algorithm, can meet your different needs.
- High Efficiency
- Automatic Recognition
- LCD Display Screen
- Intelligent & Protective
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

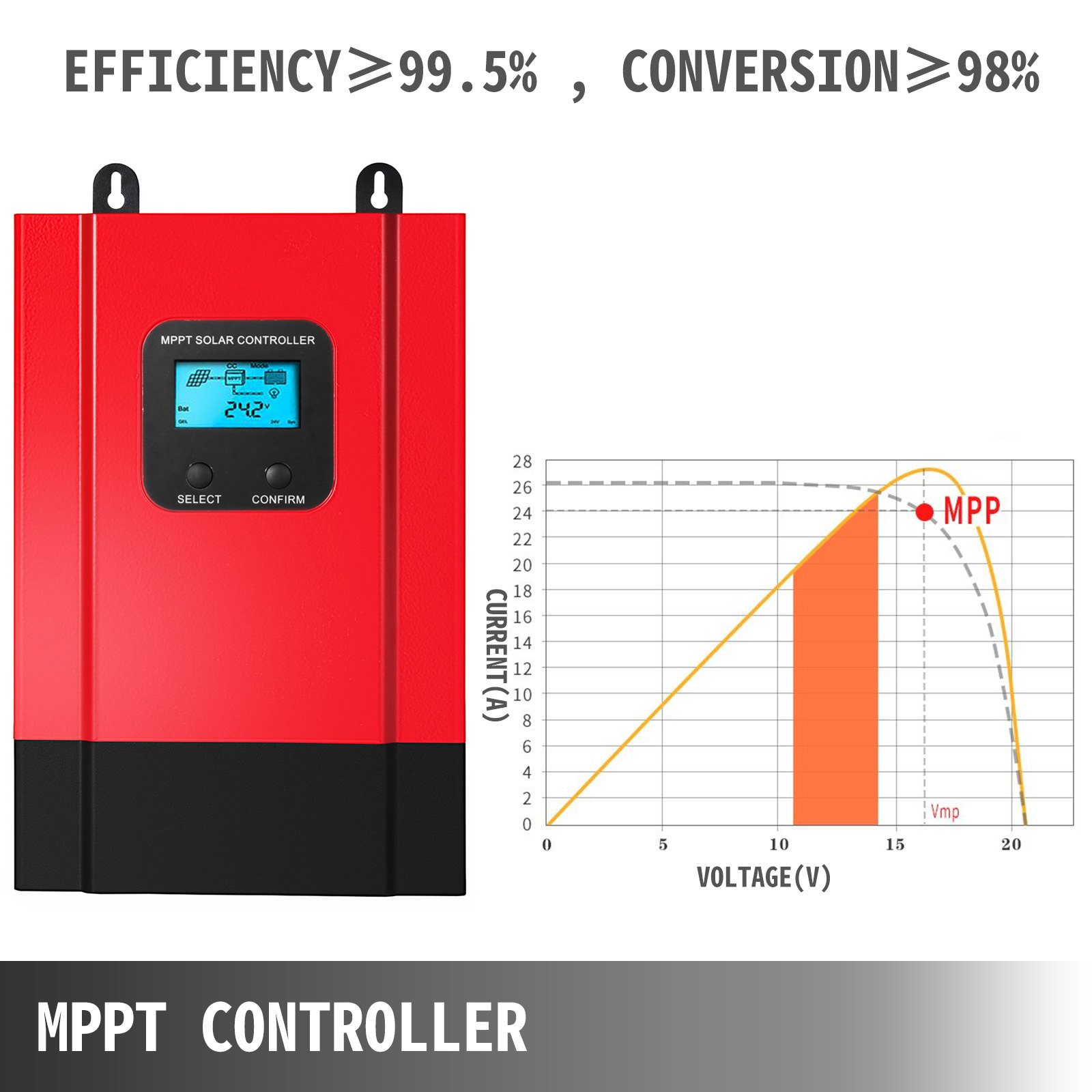

MPPT Controller
Efficient MPPT controller algorithm, MPPT efficiency is not less than 99.5%, the conversion efficiency of the whole machine is as high as 98%.

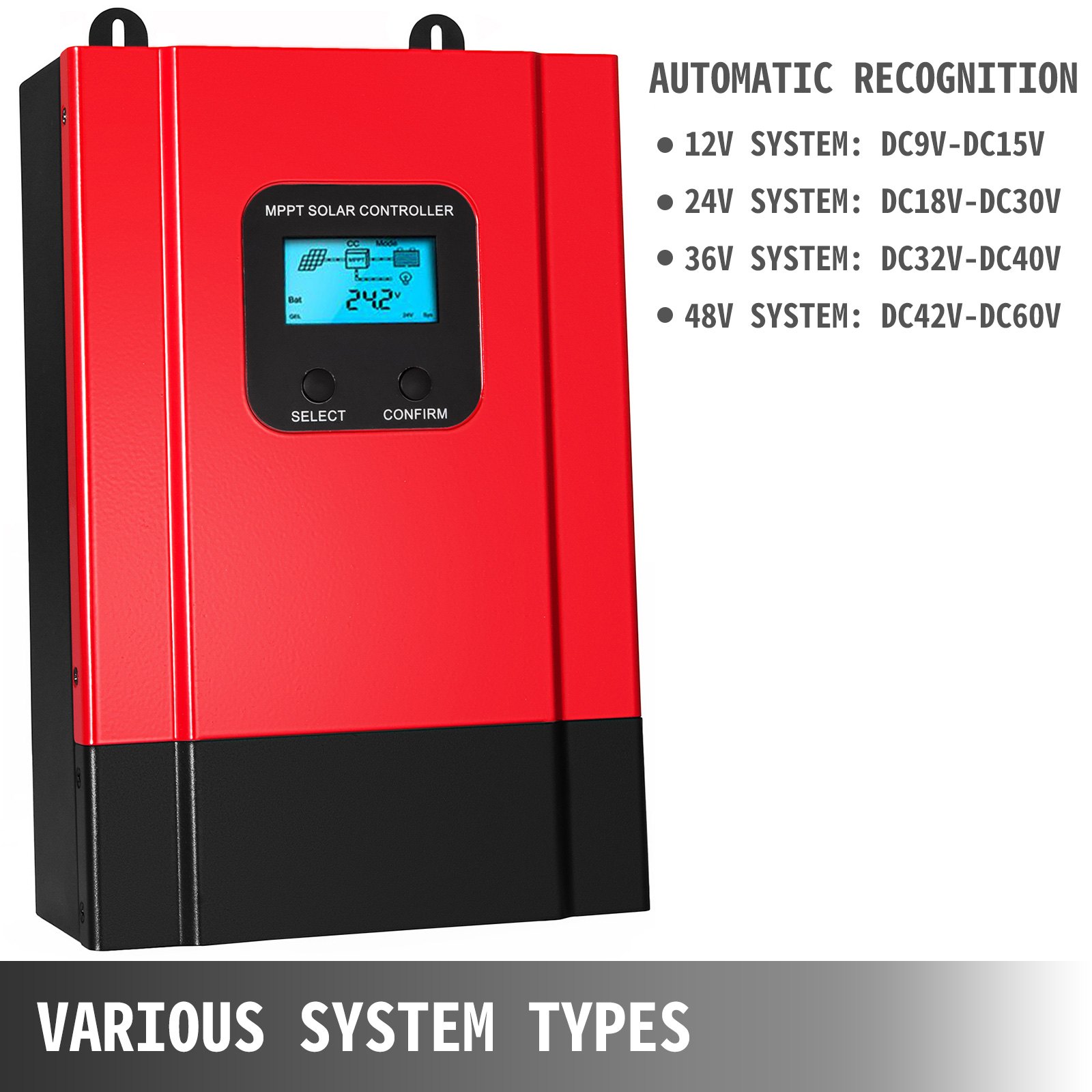

Various System Types
The solar charge regulator can automatically identify 12V/24V/36V/48V systems, 12V system: DC9V-DC15V; 24V system: DC18V-DC30V; 36V system: DC32V-DC40V; 48V system: DC42V-DC60V.

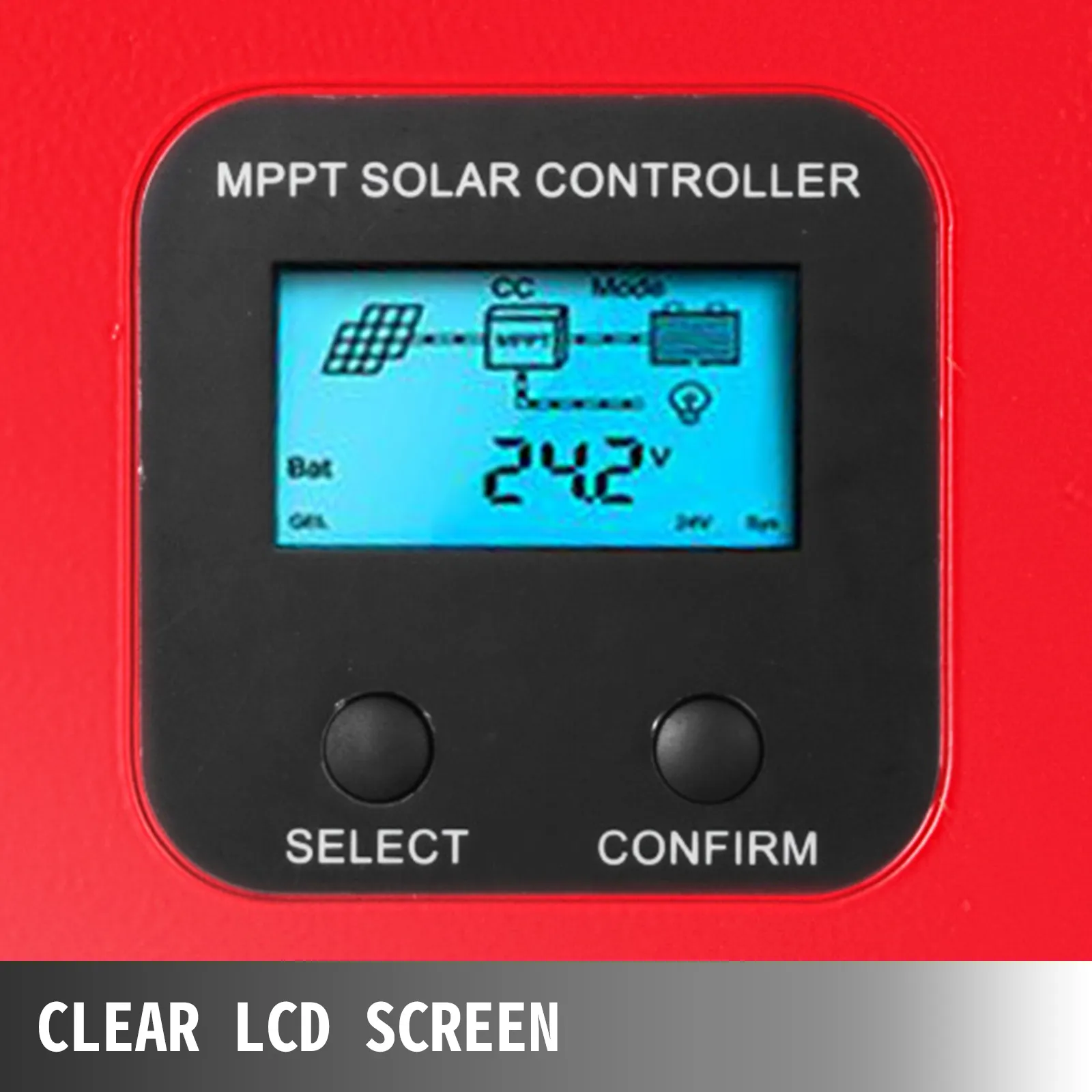

Clear LCD Screen
With a bright LCD Screen, users can view equipment operating data and working status, such as PV voltage, charge current, charge power, etc.

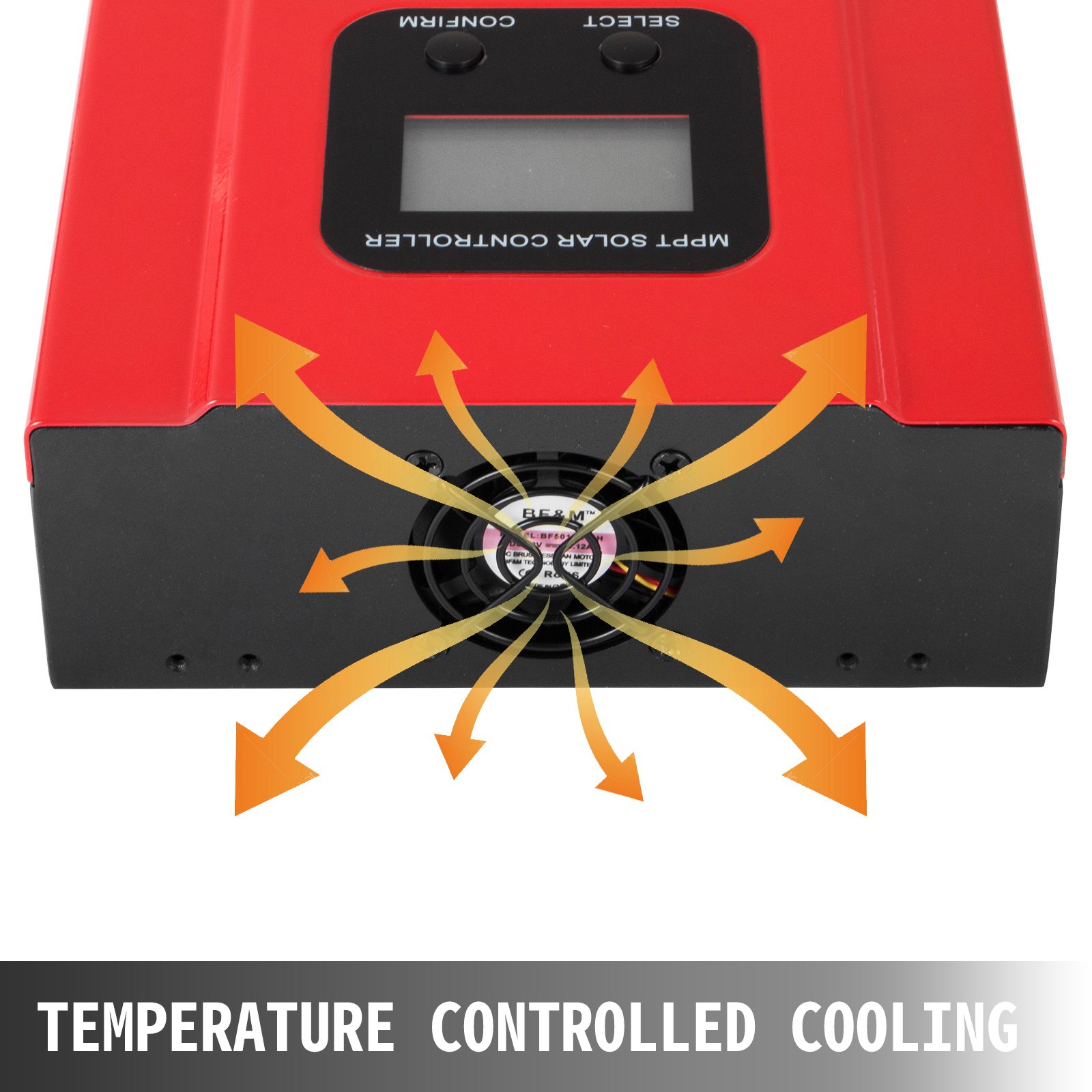

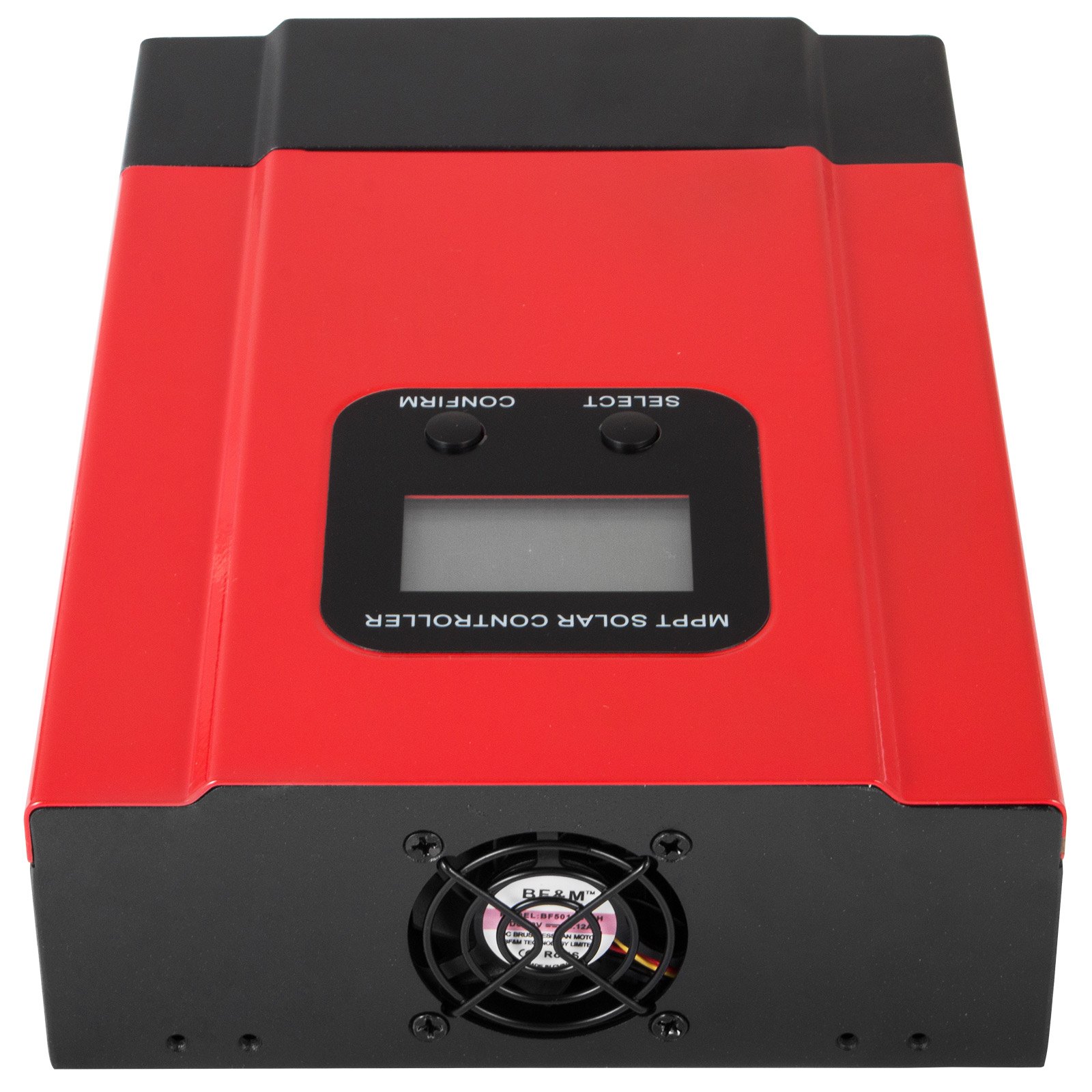

Temperature Controlled Cooling Fan
Built-in intelligent temperature-controlled cooling fan effectively reduces the operating heat and increases the machine's service life.

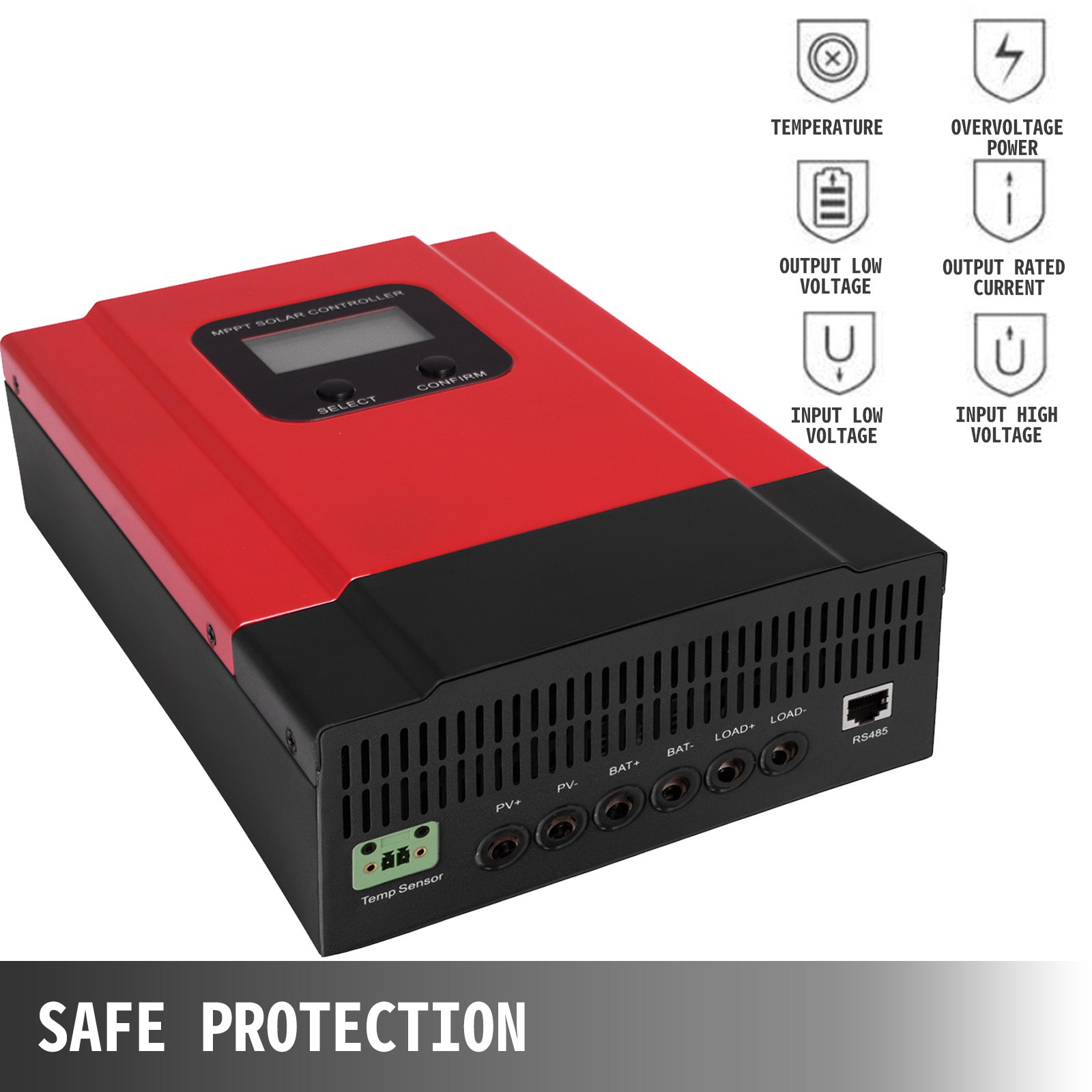

Safe Protection
Add various protection functions such as low voltage input protection, over-voltage input protection, overcharge power protection, low voltage output protection, rated output current protection, temperature protection, PV and battery reverse connection protection.
Wide Application
Suitable for transportation, communication fields, petroleum, marine, meteorological fields, home lighting power supplies, such as traffic/railway signal lights, marine testing equipment, etc.
Specifications
- Color: Red + black
- Controller type: MPPT (maximum power point tracking)
- MPPT efficiency: ≥ 99.5 %
- System type: DC12V/24V/36V/48V (automatic recognition)
- System Voltage and Rated Power
- 12V system: DC9V-DC15V, 780W
- 24V system: DC18V-DC30V, 1560W
- 36V system: DC32V-DC40V, 2340W
- 48V system: DC42V-DC60V, 3120W
- Max. PV input voltage: 150V
- Start the charge voltage point: 5V higher than the current battery voltage
- Low input voltage protection point: 3V higher than the current battery voltage
- Over voltage protection point: 150V
- High voltage recovery point: 145V
- Charge method: 3 stages (constant current(MPPT), constant voltage, floating charge)
- Battery types optional(Default Gel battery): Flooded, Sealed lead acid, Gel battery (Other types of the batteries also can be defined)
- Constant voltage: Please check the charge voltage according to the battery type form.
- Floating voltage: Please check the charge voltage according to the battery type form.
- Rated charge current: 60A
- Temperature factor: ± 0.02 % ℃
- Temperature compensation: -3mV/℃/2V (default)
- Output ripples(peak): 200 mV
- Output voltage stability precision: ≤ ± 1.5 %
- Output voltage: Base on battery voltage
- Low voltage output protection point: Default 10.5V; Recovery 11V; It can be adjustable.
- Load rated current: 60A
- LCD display: System type, PV voltage, Charge voltage, Charge Current, Charge power, temperature, etc.

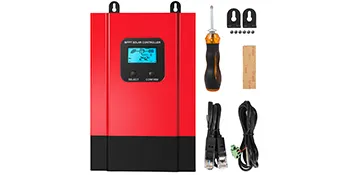

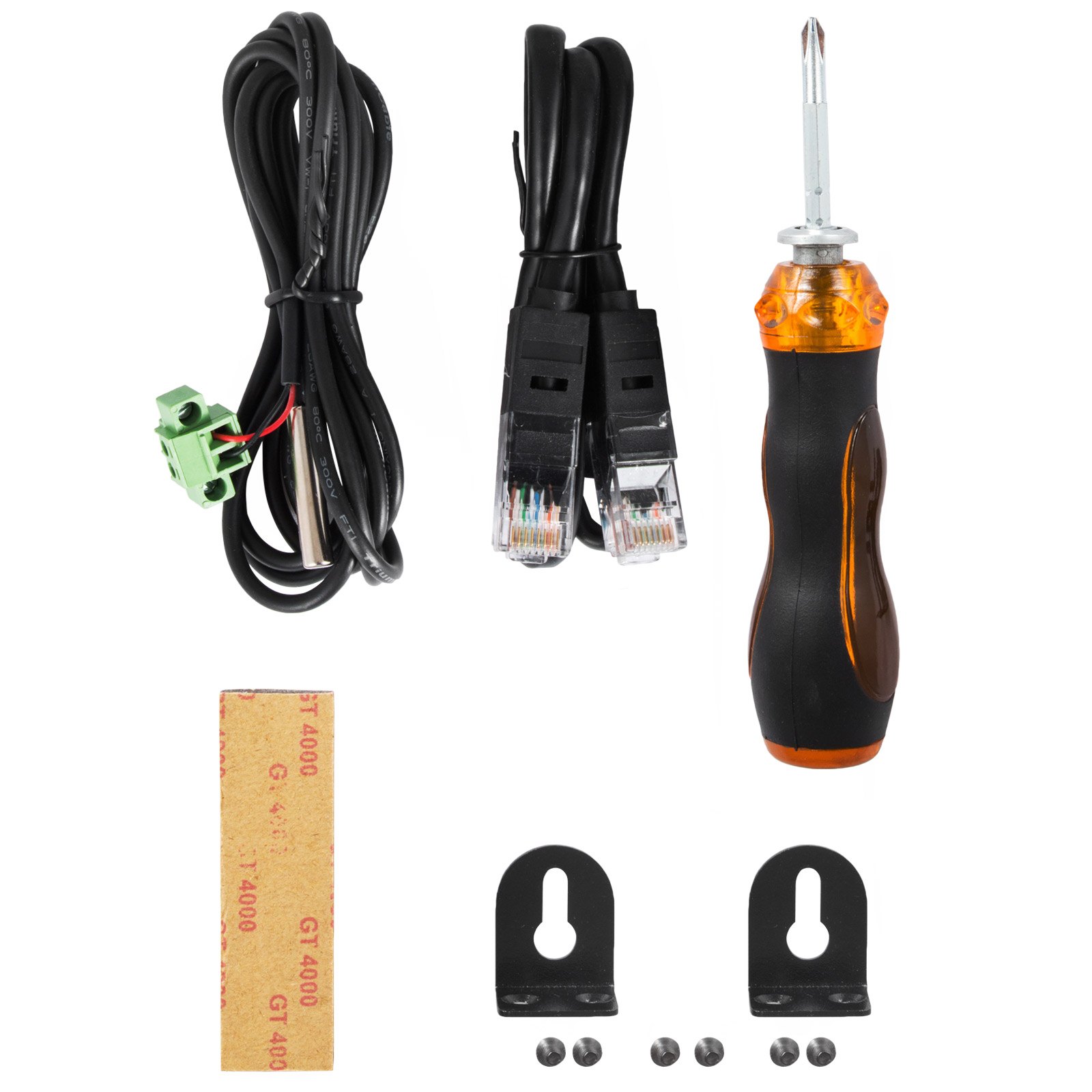

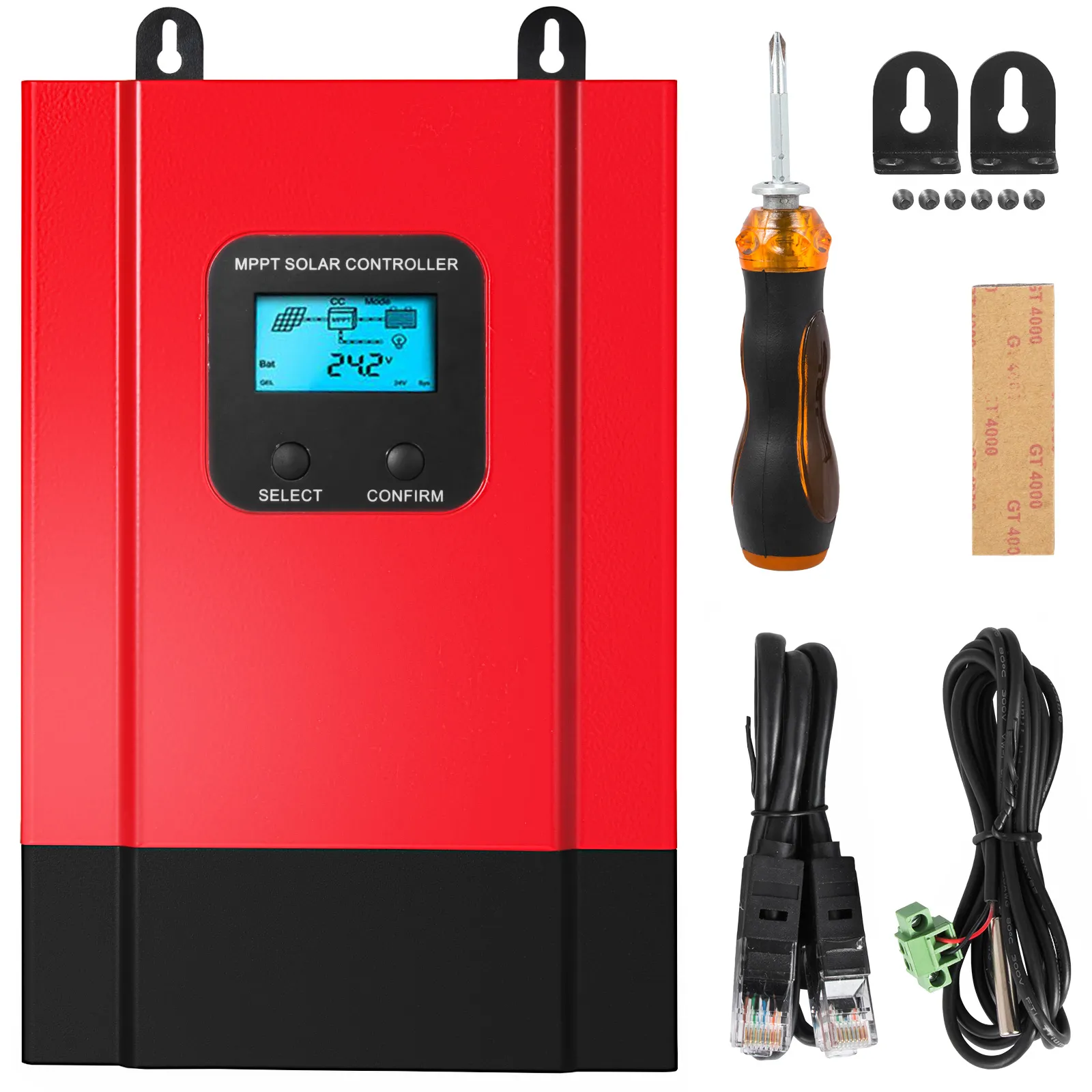

Package Content
- 1 x MPPT Solar Charge Controller
- 1 x Temperature Sensing Wire
- 1 x Screwdriver
- 2 x Hang Brackets
- 1 x Set of Installation Screws
- 1 x Product Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
60A MPPT Solar Charge Controller LCD Display
The listing is about 60A solar charge controller, features with LCD, 12V/24V/36V/48V system optional, max 150V DC PV input voltage, RS485 communication, high efficient MPPT controller algorithm, can meet your different needs.
- High Efficiency
- Automatic Recognition
- LCD Display Screen
- Intelligent & Protective
MPPT Controller
Efficient MPPT controller algorithm, MPPT efficiency is not less than 99.5%, the conversion efficiency of the whole machine is as high as 98%.
Various System Types
The solar charge regulator can automatically identify 12V/24V/36V/48V systems, 12V system: DC9V-DC15V; 24V system: DC18V-DC30V; 36V system: DC32V-DC40V; 48V system: DC42V-DC60V.
Clear LCD Screen
With a bright LCD Screen, users can view equipment operating data and working status, such as PV voltage, charge current, charge power, etc.
Temperature Controlled Cooling Fan
Built-in intelligent temperature-controlled cooling fan effectively reduces the operating heat and increases the machine's service life.
Safe Protection
Add various protection functions such as low voltage input protection, over-voltage input protection, overcharge power protection, low voltage output protection, rated output current protection, temperature protection, PV and battery reverse connection protection.
Wide Application
Suitable for transportation, communication fields, petroleum, marine, meteorological fields, home lighting power supplies, such as traffic/railway signal lights, marine testing equipment, etc.
Package Content
- 1 x MPPT Solar Charge Controller
- 1 x Temperature Sensing Wire
- 1 x Screwdriver
- 2 x Hang Brackets
- 1 x Set of Installation Screws
- 1 x Product Manual
Specifications
- Color: Red + black
- Controller type: MPPT (maximum power point tracking)
- MPPT efficiency: ≥ 99.5 %
- System type: DC12V/24V/36V/48V (automatic recognition)
- System Voltage and Rated Power
- 12V system: DC9V-DC15V, 780W
- 24V system: DC18V-DC30V, 1560W
- 36V system: DC32V-DC40V, 2340W
- 48V system: DC42V-DC60V, 3120W
- Max. PV input voltage: 150V
- Start the charge voltage point: 5V higher than the current battery voltage
- Low input voltage protection point: 3V higher than the current battery voltage
- Over voltage protection point: 150V
- High voltage recovery point: 145V
- Charge method: 3 stages (constant current(MPPT), constant voltage, floating charge)
- Battery types optional(Default Gel battery): Flooded, Sealed lead acid, Gel battery (Other types of the batteries also can be defined)
- Constant voltage: Please check the charge voltage according to the battery type form.
- Floating voltage: Please check the charge voltage according to the battery type form.
- Rated charge current: 60A
- Temperature factor: ± 0.02 % ℃
- Temperature compensation: -3mV/℃/2V (default)
- Output ripples(peak): 200 mV
- Output voltage stability precision: ≤ ± 1.5 %
- Output voltage: Base on battery voltage
- Low voltage output protection point: Default 10.5V; Recovery 11V; It can be adjustable.
- Load rated current: 60A
- LCD display: System type, PV voltage, Charge voltage, Charge Current, Charge power, temperature, etc.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (13)
I have 5 30V panels and 4 12V deep cycle batteries and a 12V inverter.
Can I connect the batteries in parallel and series (for 24V output from batteries) and then connect the 12 V inverter onto the load of the charge controller?
The inverter cannot be connected to the load port of the charge controller.
By vevor
Helpful
(
2
)
Do you make a bigger unit than 60amp solor charger.
No, we don't make a bigger unit than 60amp solor charger.
By vevor
Helpful
(
1
)
What are the settings needed for a 12v LiFepO4 battery? I have the app and cable. I just need the correct settings.
Thank you
You need to set the working voltage and charging voltage on the app. The specific parameter value depends on your own battery.
By vevor
Helpful
(
1
)
Hi
I have 4 x 300watt 19 volt panels that I will connect in series on a 24v battery bank will this charge controller be adequate?
Kind regards
Phil
Yes.
By vevor
Helpful
(
1
)
how down;oad the app
Please download the program settings via mobile phone or computer.
By vevor
Helpful
(
0
)
