Features & Details
- Sturdy Aluminium Construction: The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splash guard provides max. protection.
- Infinitely Variable Speeds: Spindle speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slide ways are obtained by raw material, heat hardening and grinding. Emergency stop button included.
- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Back splash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.0004" / 0.01 mm.
- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
- Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
Frequently Bought Together
Reviews 4.7
All reviews are from verified purchases
Average rating based on 14 reviews
Reviews 4.7
All reviews are from verified purchases
See all 14 reviews
About this item
Product specification
- Power of Motor
- 550W DC Single Phase
- Spindle Speed
- 0 - 2250 RPM
- Swing Over Bed
- 7.09" / 180 mm
- Swing Over Cross Slide
- 4.3" / 110 mm
- Chuck Diameter
- 3.94" / 100 mm
- Centers Distance
- 13.78" / 350 mm
- Spindle Bore
- 0.79" / 20 mm
- Spindle Taper
- MT3
- Tailstock Taper
- MT2
- Cross Slide Travel
- 2.53" / 65 mm
- Top Slide Travel
- 1.36" / 35 mm
- Spindle Accuracy
- 0.0004" / 0.01 mm
- Inch Thread
- 12 - 52 T.P.I
- Metric Thread
- 0.5 - 2.5 mm
- Net Weight
- 102.7 lbs / 46.6 kg

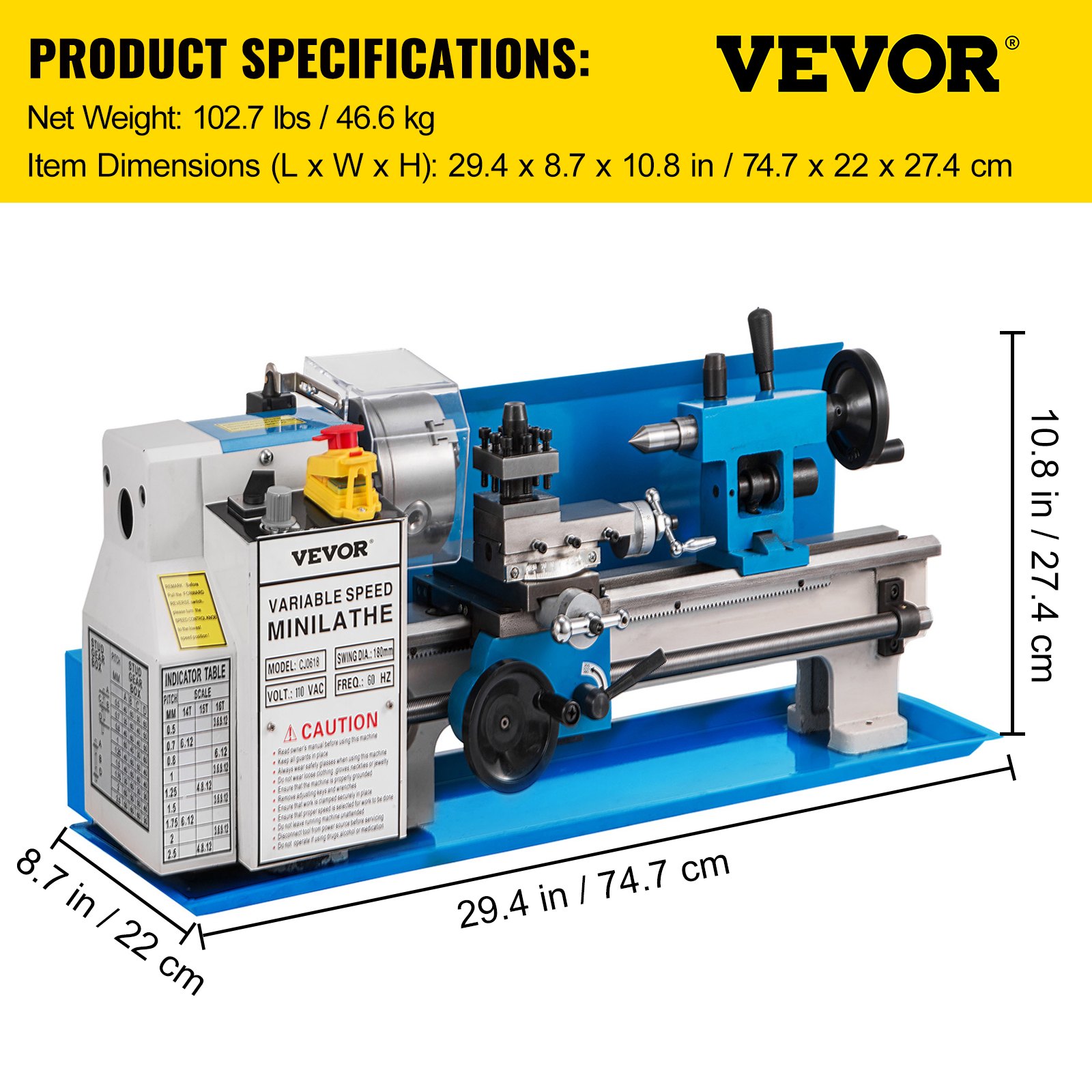

- Item Dimensions (L x W x H)
- 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm
Description

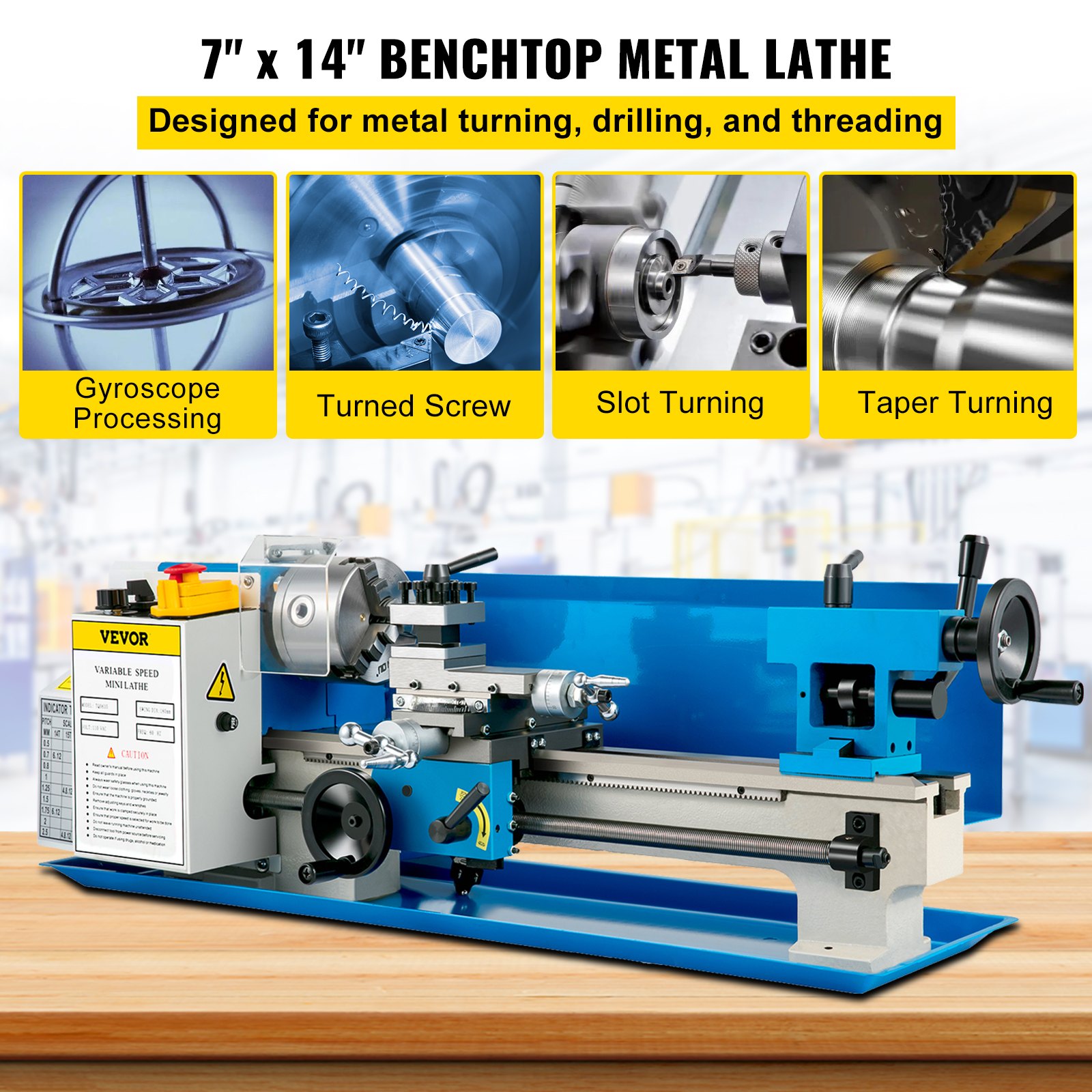

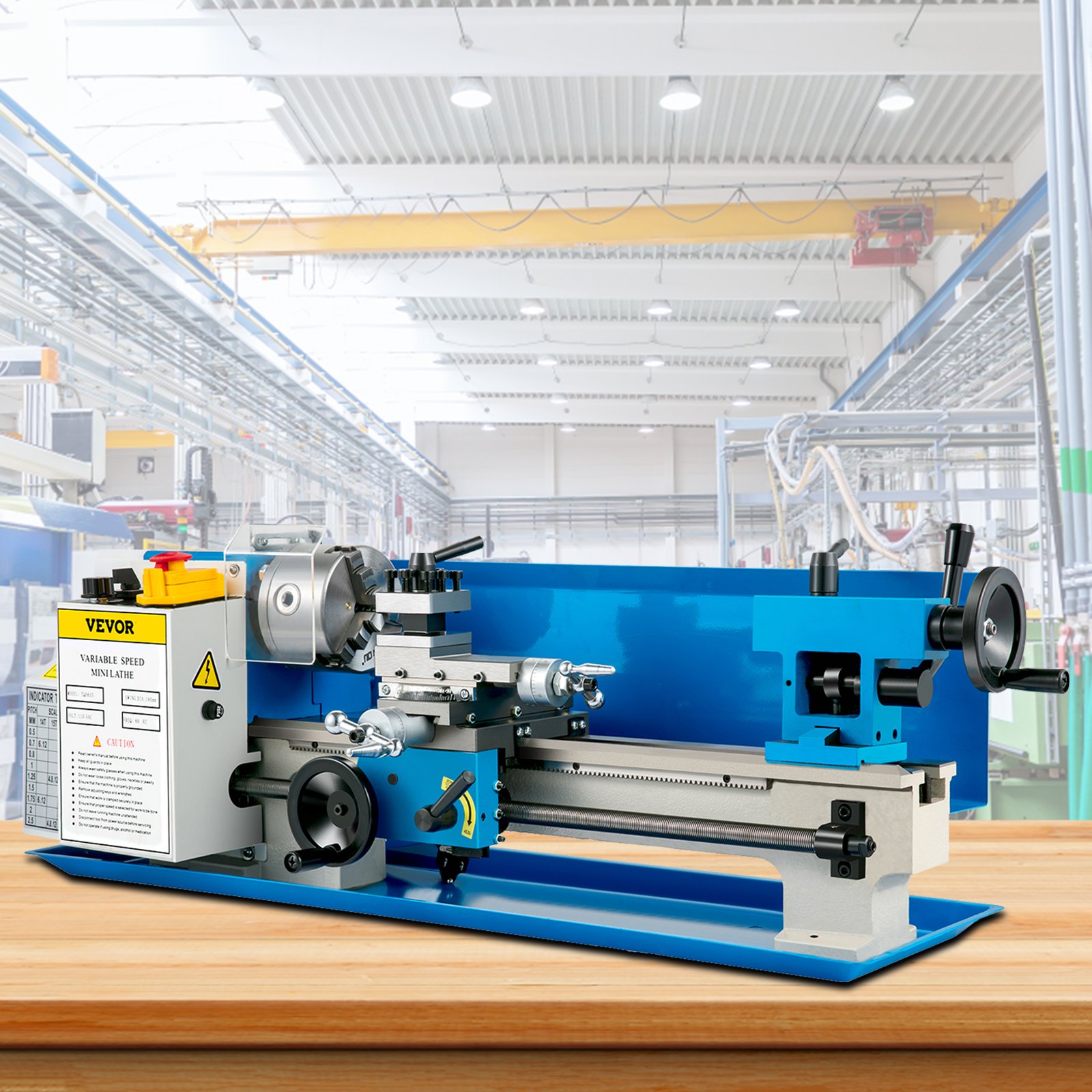

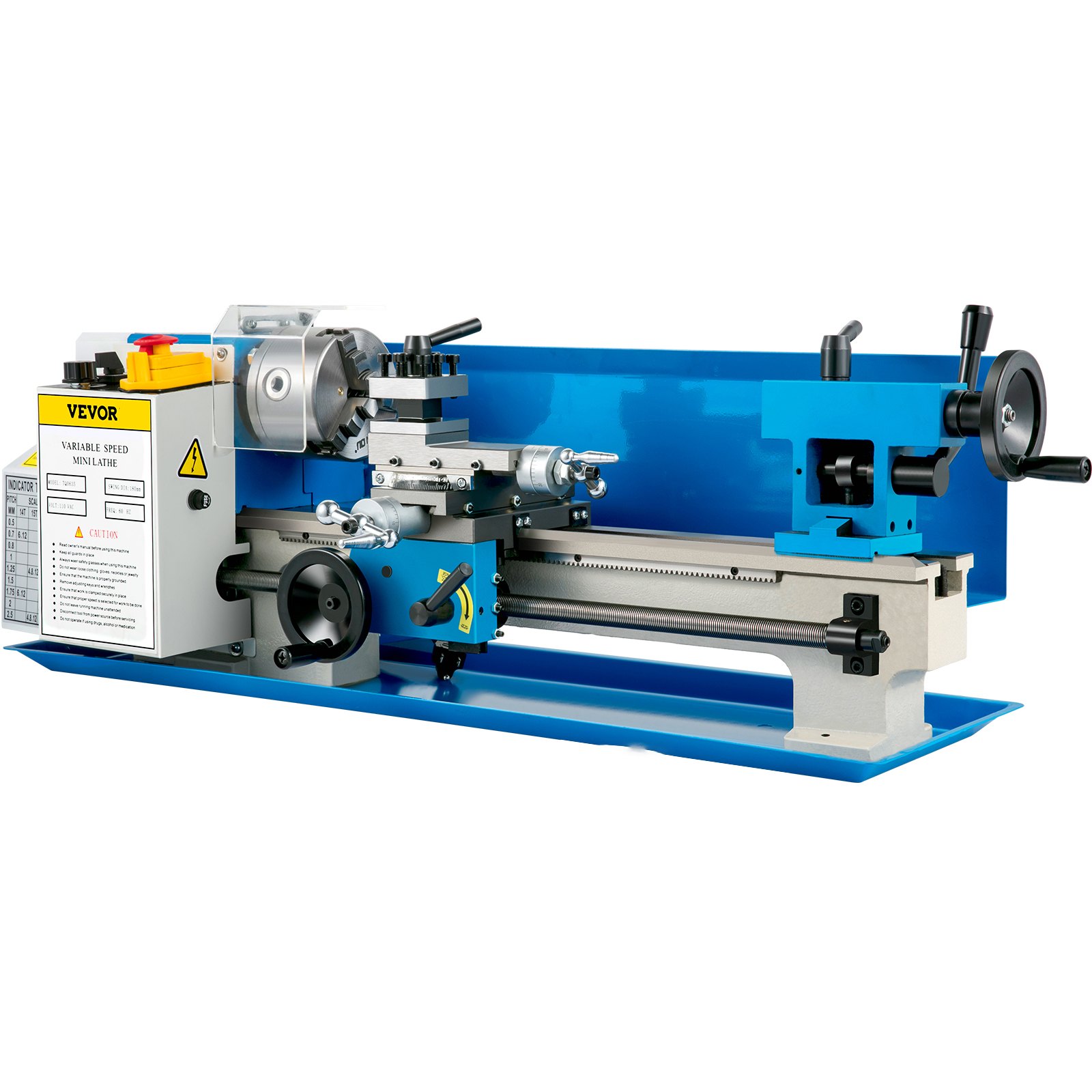

7" x 14" Metal Lathe
550W Forceful Motor & Variable Speed & Sturdy Nylon Gears
The precision mini benchtop lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500 RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
- Sturdy Aluminium Construction
- Infinitely Variable Speeds
- Accurate 3-jaw Chuck
- Professional Compound Rest
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

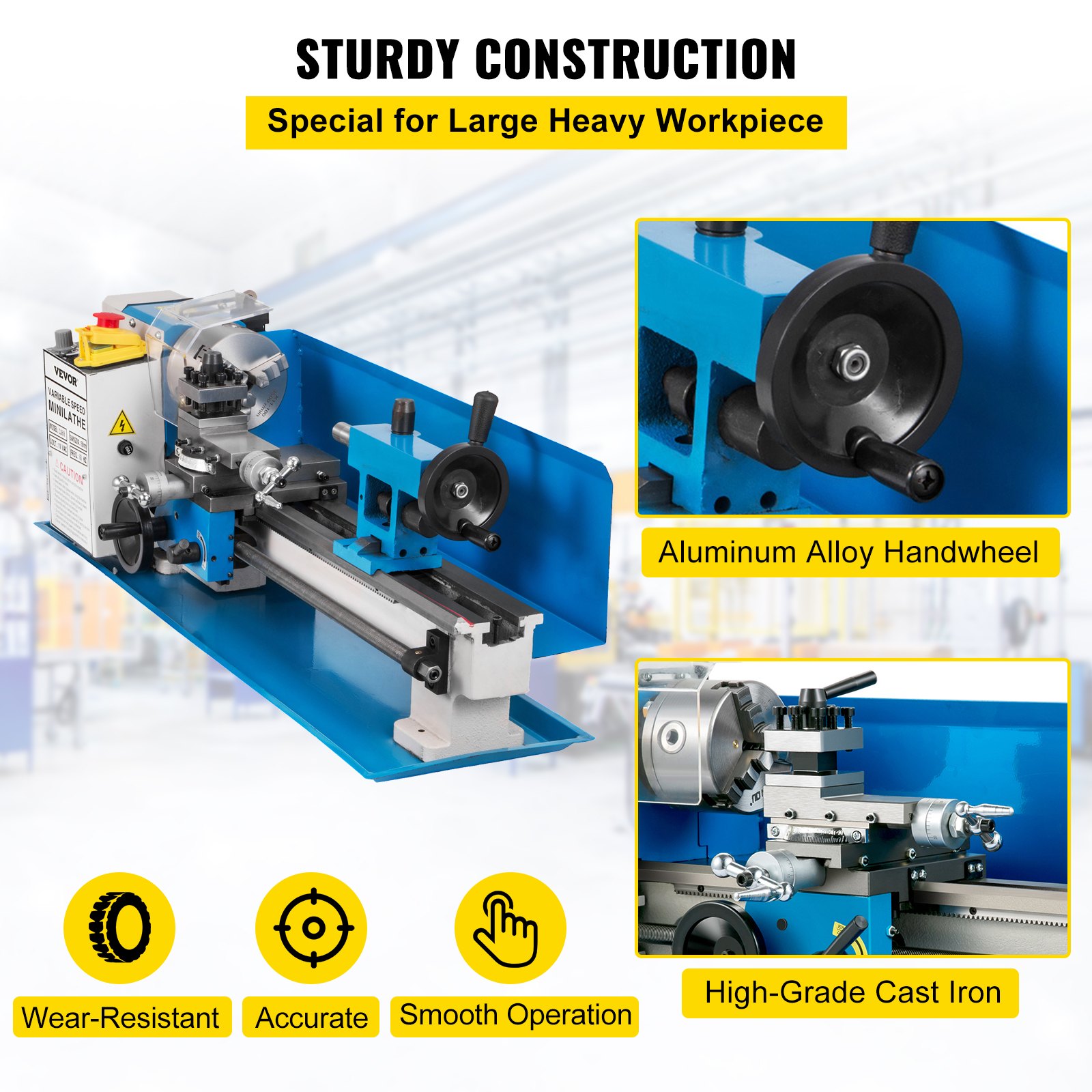

Heavy & Sturdy Machine
This lathe features an MT#2 taper and all the adjustment capability you need to work securely and accurately. It has a swing over bed of 7.09" / 180 mm and a swing over cross slide of 14" / 350 mm, so you can handle large projects.

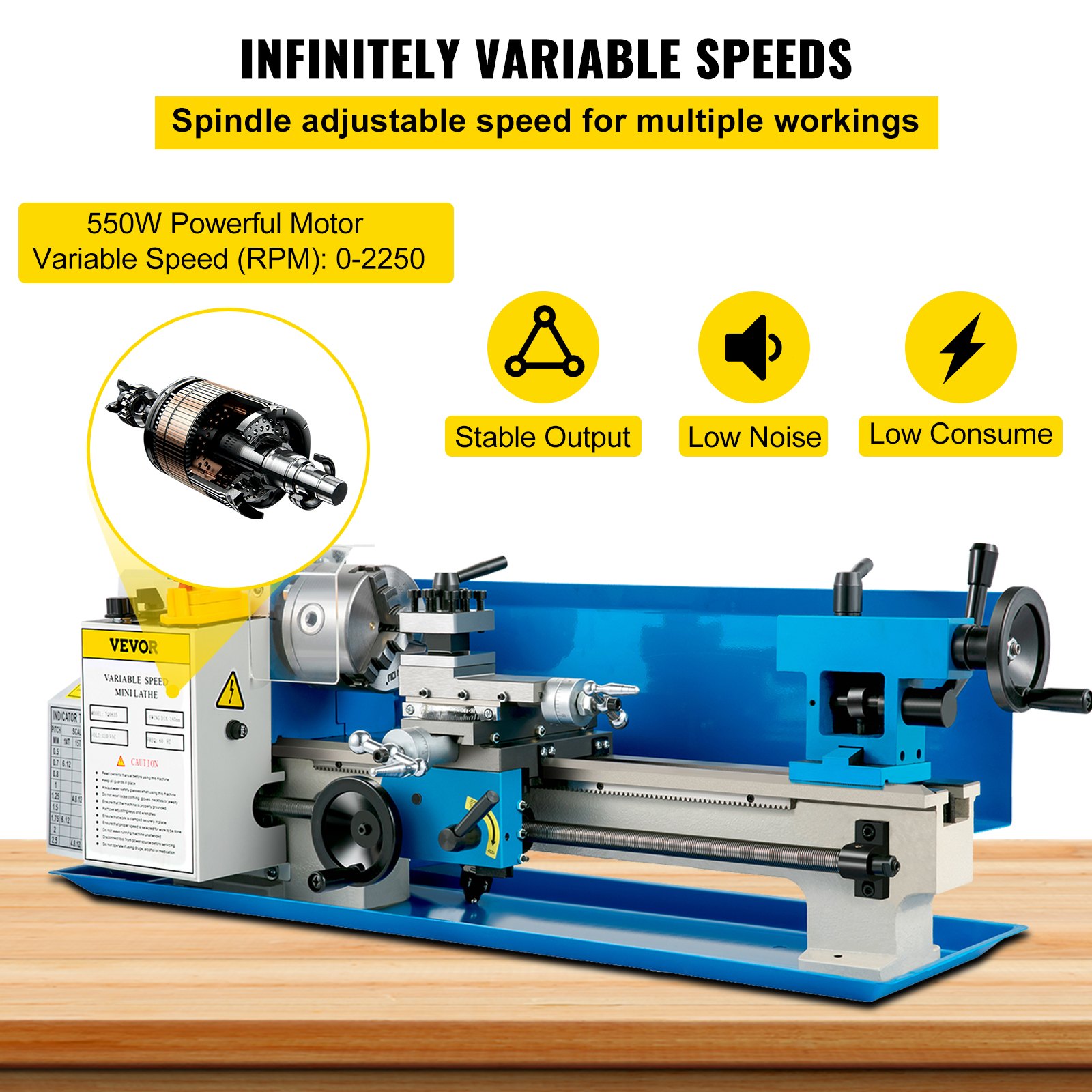

Infinitely Variable Speeds
Variable speed from 0-2250 RPM. The feed speed can be adjusted according to the requirements of different workpieces. This metal lathe includes a large through-hole shaft to avoid inconvenience while working long pieces.

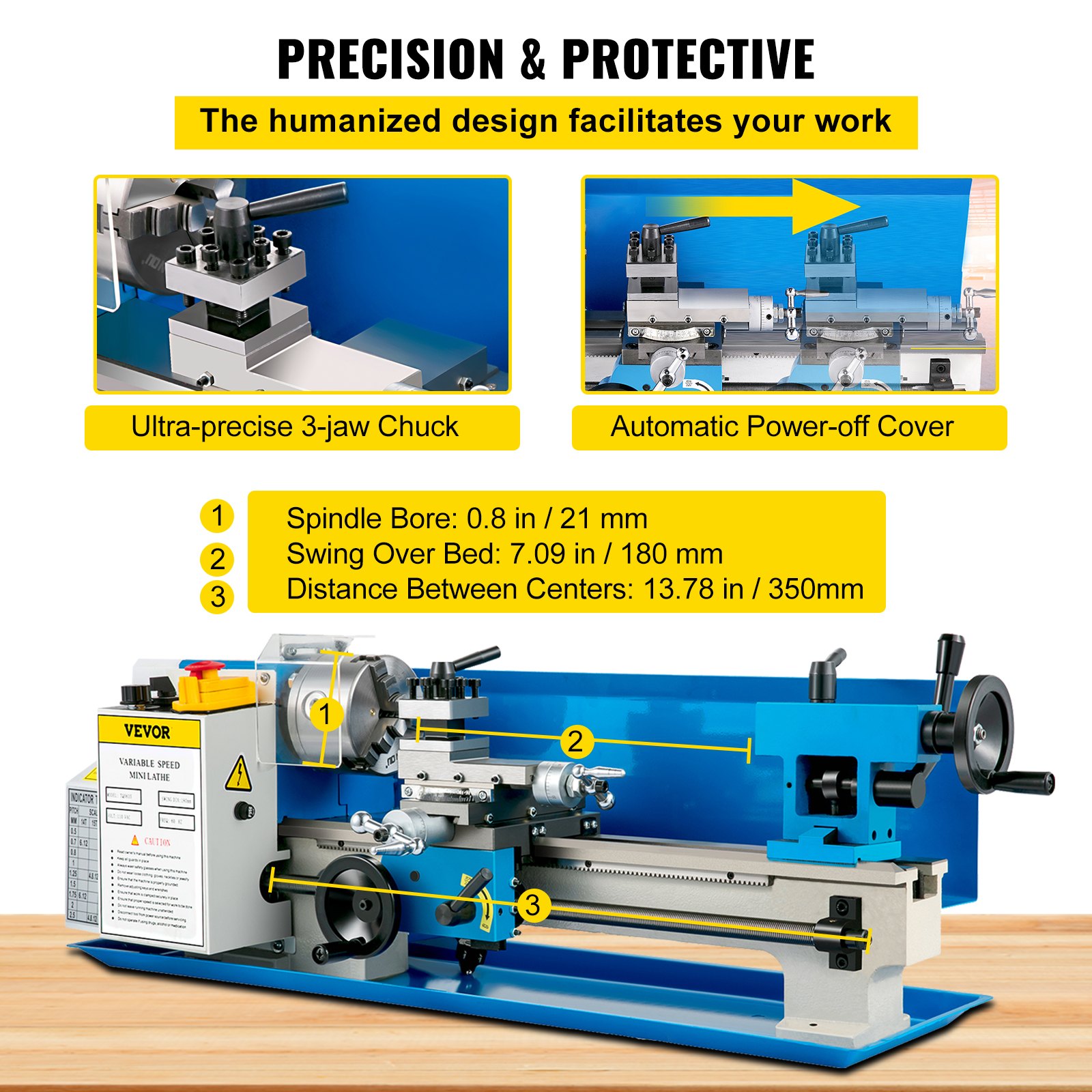

High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.01mm.

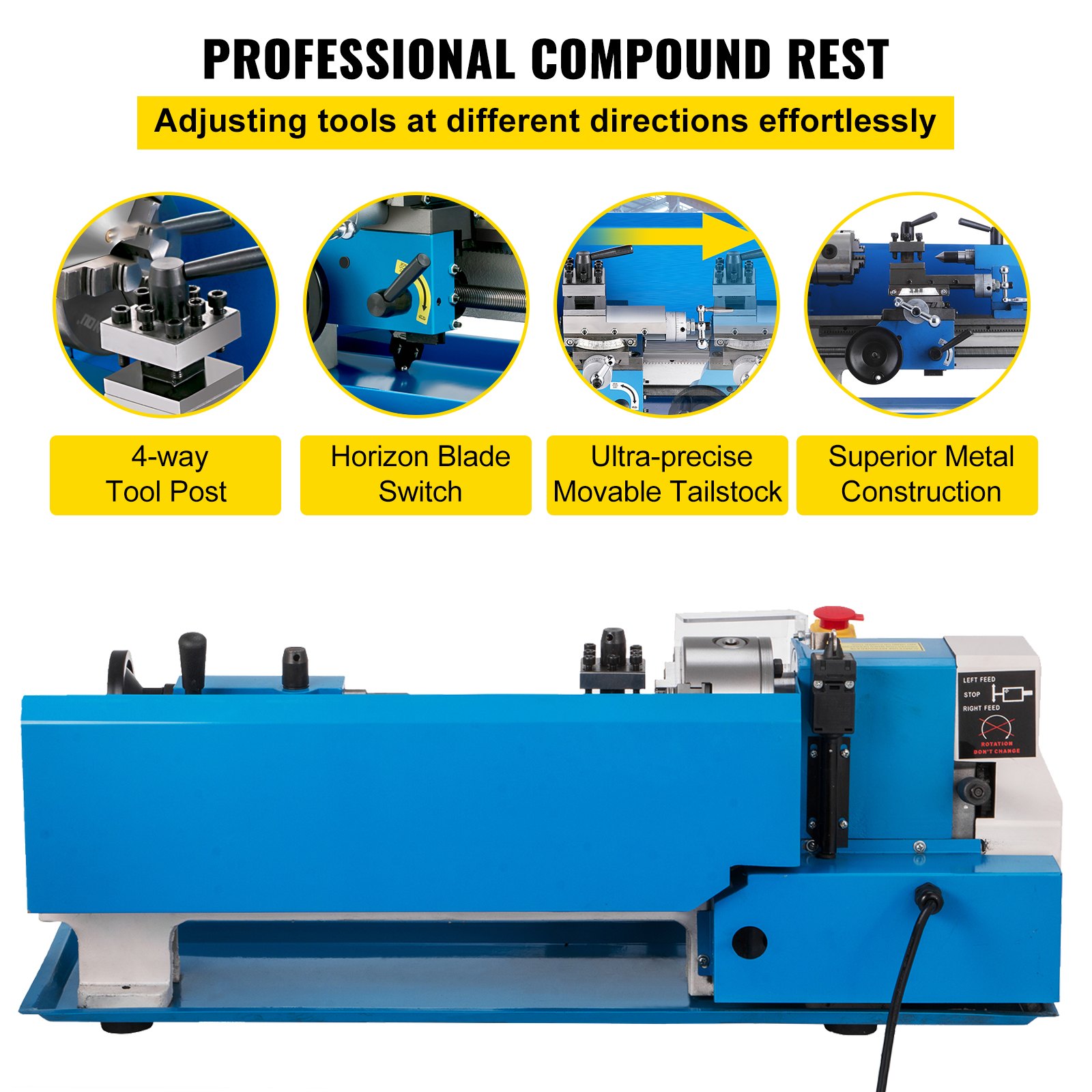

Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
Professional Cross Slide
The lathe is esigned with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm.
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
Specifications
- Power of Motor: 550W DC Single Phase
- Spindle Speed: 0 - 2250 RPM
- Swing Over Bed: 7.09" / 180 mm
- Swing Over Cross Slide: 4.3" / 110 mm
- Chuck Diameter: 3.94" / 100 mm
- Centers Distance: 13.78" / 350 mm
- Spindle Bore: 0.79" / 20 mm
- Spindle Taper: MT3
- Tailstock Taper: MT2
- Cross Slide Travel: 2.53" / 65 mm
- Top Slide Travel: 1.36" / 35 mm
- Spindle Accuracy: 0.0004" / 0.01 mm
- Inch Thread: 12 - 52 T.P.I
- Metric Thread: 0.5 - 2.5 mm
- Net Weight: 102.7 lbs / 46.6 kg
- Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm

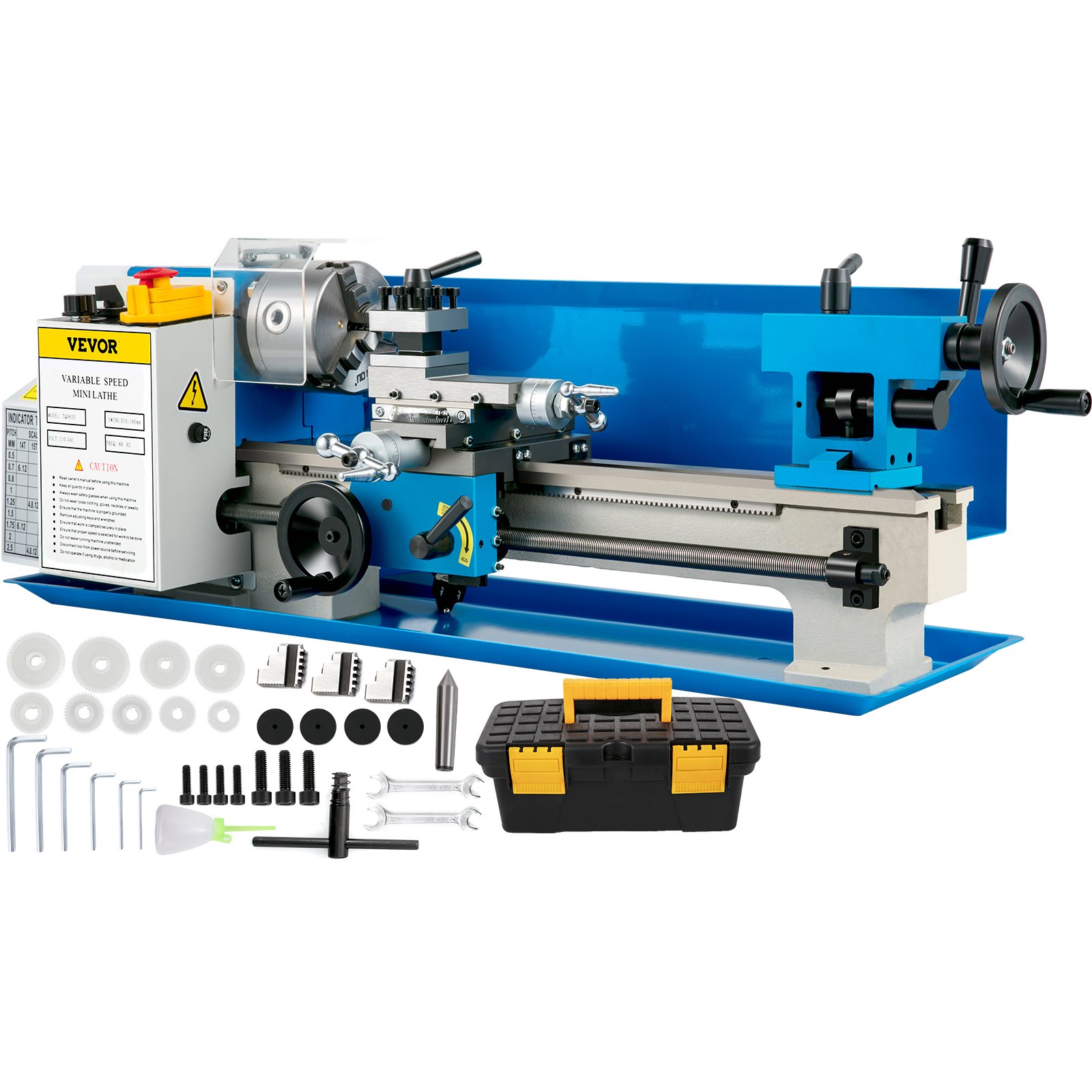

Package Content
- 1 x Mini Metal Lathe
- 3 x Chuck Jaws
- 1 x Lathe Center
- 1 x Chuck Wrench
- 2 x Wrench
- 1 x Oil Can
- 5 x Hex Wrenches
- 9 x Plastic Nylon Gears
- 2 x Handle
- 4 x Rubber Feet
- 4 x Screws
- 1 x Tool Box
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
7" x 14" Metal Lathe
550W Forceful Motor & Variable Speed & Sturdy Nylon Gears
The precision mini benchtop lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500 RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
- Sturdy Aluminium Construction
- Infinitely Variable Speeds
- Accurate 3-jaw Chuck
- Professional Compound Rest
Heavy & Sturdy Machine
This lathe features an MT#2 taper and all the adjustment capability you need to work securely and accurately. It has a swing over bed of 7.09" / 180 mm and a swing over cross slide of 14" / 350 mm, so you can handle large projects.
Infinitely Variable Speeds
Variable speed from 0-2250 RPM. The feed speed can be adjusted according to the requirements of different workpieces. This metal lathe includes a large through-hole shaft to avoid inconvenience while working long pieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.01mm.
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
Professional Cross Slide
The lathe is esigned with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm.
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
Package Content
- 1 x Mini Metal Lathe
- 3 x Chuck Jaws
- 1 x Lathe Center
- 1 x Chuck Wrench
- 2 x Wrench
- 1 x Oil Can
- 5 x Hex Wrenches
- 9 x Plastic Nylon Gears
- 2 x Handle
- 4 x Rubber Feet
- 4 x Screws
- 1 x Tool Box
Specifications
- Power of Motor: 550W DC Single Phase
- Spindle Speed: 0 - 2250 RPM
- Swing Over Bed: 7.09" / 180 mm
- Swing Over Cross Slide: 4.3" / 110 mm
- Chuck Diameter: 3.94" / 100 mm
- Centers Distance: 13.78" / 350 mm
- Spindle Bore: 0.79" / 20 mm
- Spindle Taper: MT3
- Tailstock Taper: MT2
- Cross Slide Travel: 2.53" / 65 mm
- Top Slide Travel: 1.36" / 35 mm
- Spindle Accuracy: 0.0004" / 0.01 mm
- Inch Thread: 12 - 52 T.P.I
- Metric Thread: 0.5 - 2.5 mm
- Net Weight: 102.7 lbs / 46.6 kg
- Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (16)
I’d like to replace pool cue shaft tips using this machine.
Usually the shaft size is like this, tip side diameter is 12mm and the other side is 22mm and the length is 690-710mm.
Is this machine suitable for me? And, to hold on tight, can I add three jaw chuck on the other side?
Thanks!
This needs to be accessed through the through hole, because the diameter of the other side is 22mm and cannot fit in.
By vevor
Helpful
(
3
)
What size cutting tools are to be used with the 7" x 14" mini lathe?
10x10mm
By vevor
Helpful
(
3
)
You’ve mentioned both 10x10 and 12x12 tools fit, how is this possible?
It is generally recommended to use a 12x12mm turning tool.
By vevor
Helpful
(
2
)
Can the 6" chuck be put on this machine?
No, this machine cannot accommodate 6-inch chucks.
By vevor
Helpful
(
2
)
can it machine hard steel
Yes, but it is recommended to equip the machine with better-quality turning tools and feed less material each time.
By vevor
Helpful
(
2
)
