VEVOR Digital Readout, 152.4 mm & 304.8 mm & 609.6 mm, Linear Scale 3 Axis DRO Display Kit with L-Shaped Brackets Z-Shaped Brackets Thickened Plates Screws Button Cells

+5
More

SZGZCTZ5WM6YL2FL2V3

VEVOR Digital Readout, 152.4 mm & 304.8 mm & 609.6 mm, Linear Scale 3 Axis DRO Display Kit with L-Shaped Brackets Z-Shaped Brackets Thickened Plates Screws Button Cells

Name: VEVOR Digital Readout, 152.4 mm & 304.8 mm & 609.6 mm, Linear Scale 3 Axis DRO Display Kit with L-Shaped Brackets Z-Shaped Brackets Thickened Plates Screws Button Cells
Brand: VEVOR
SKU: SZGZCTZ5WM6YL2FL2V3
Price: 145.99 AUD
Availability: InStock
Rating: 4.8 (13 reviews)

See All Customer Reviews

13 Reviews

AU $145.99

145.99

Price including GSTSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

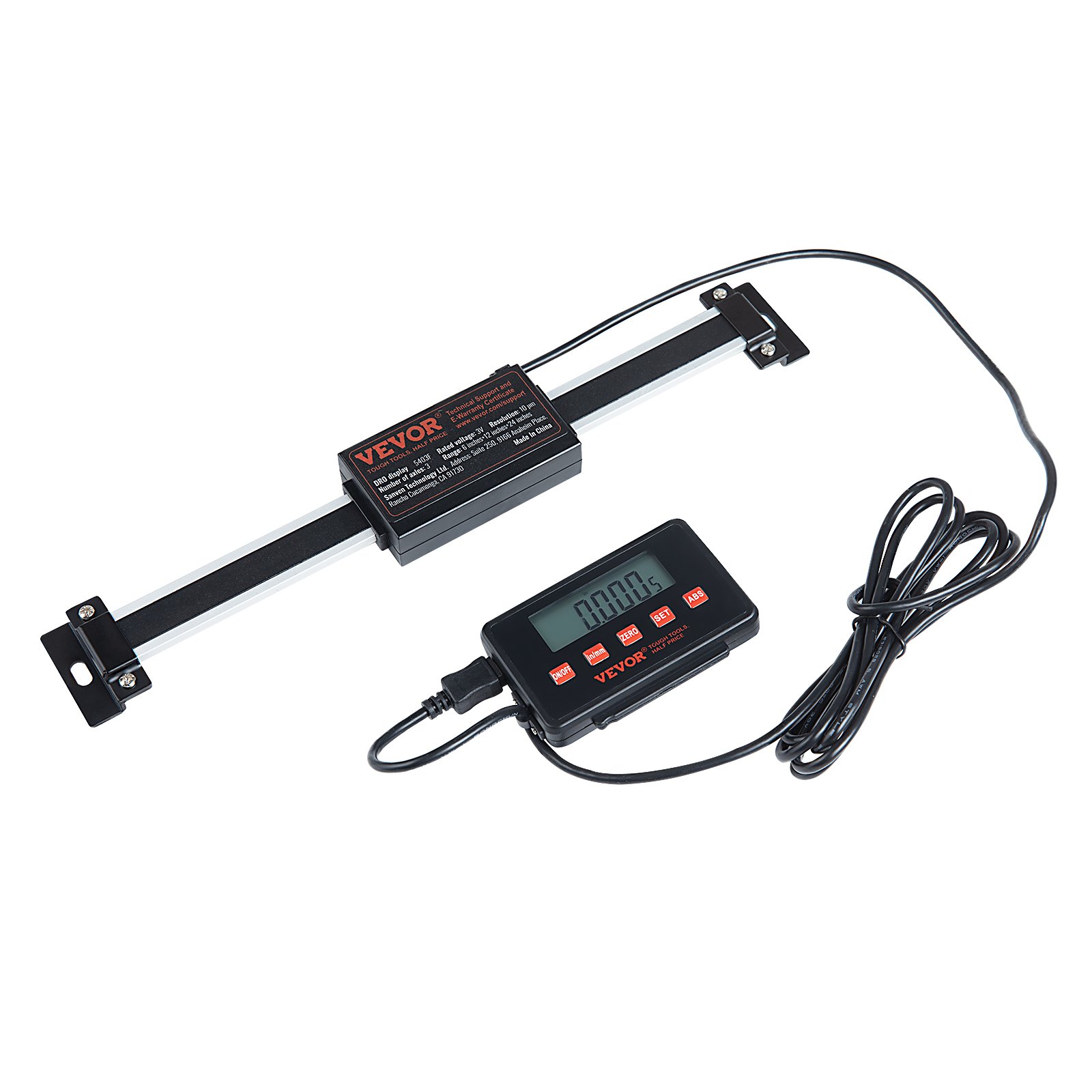

6'' + 12'' + 24'' Travel Length: Experience versatility with our 3-axis linear scale set, offering three travel lengths: 6 in (150 mm), 12 in (300 mm), and 24 in (600 mm). Adapt to your specific needs on the X-axis (length), Y-axis (height), and Z-axis (width), enabling seamless measurements of three-dimensional workpieces such as wood, stone, and metal. Craftsmanship without limits.
Multifunctional Crystal-Clear Display: Our high-definition display screen, built with a top-notch chip, effortlessly displays decimals and fractions. It enables switching from inch to millimeter, setting display to zero, switching between relative zero and normal measuring, and making resolution adjustments. Under the inch measuring system, press this button to set fractional readings between 1/32'', 1/64'', and 1/128''. Precision made easy, down to the finest detail.

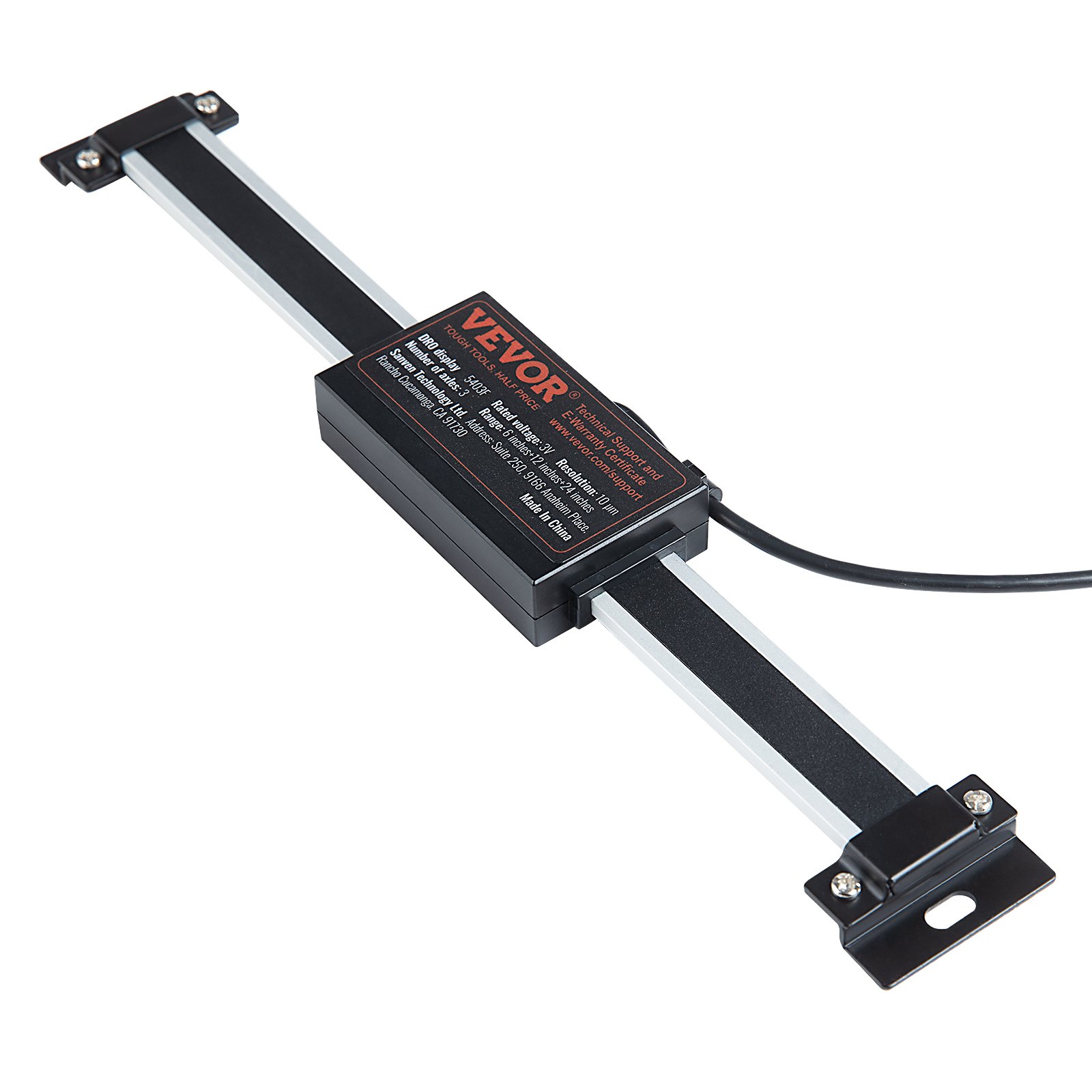

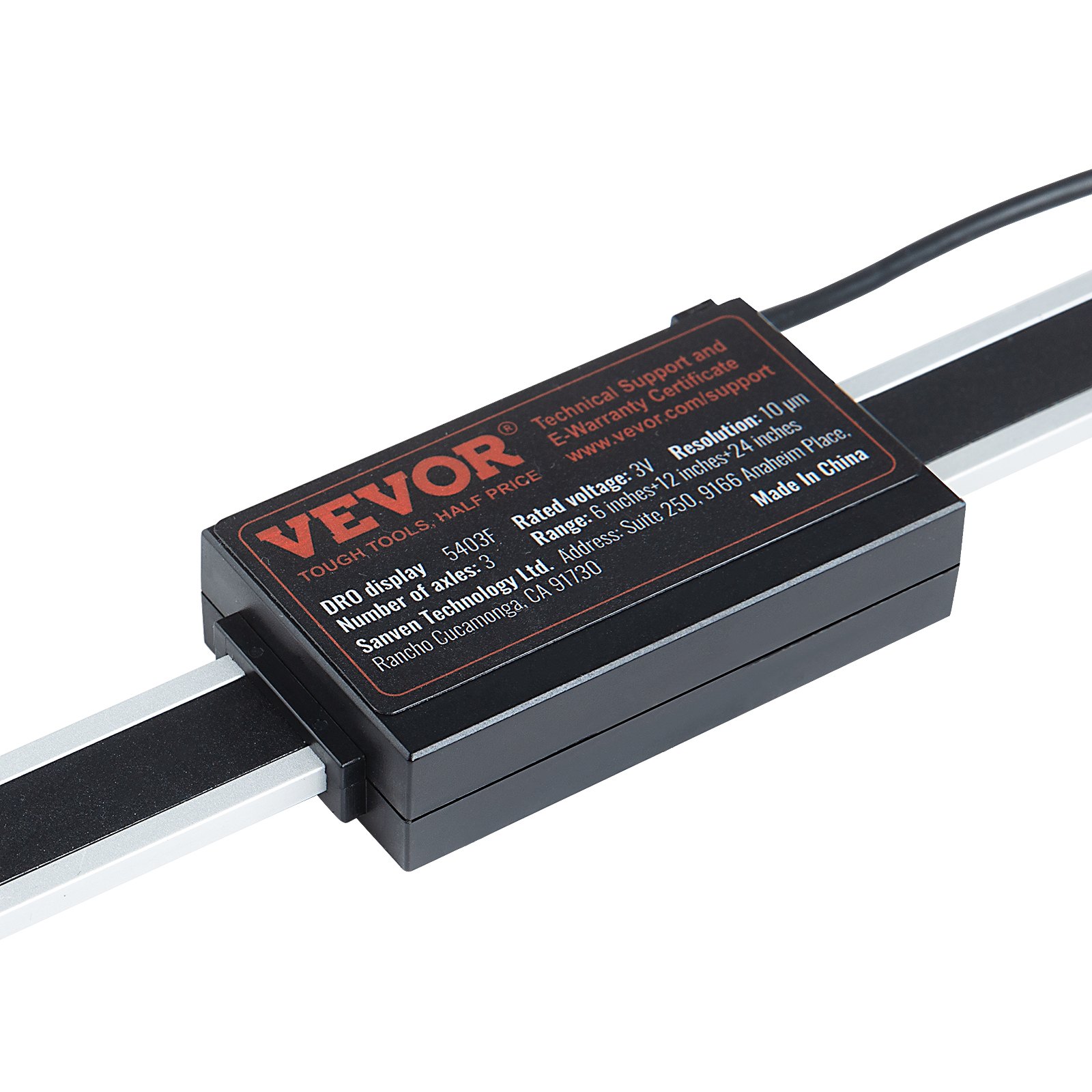

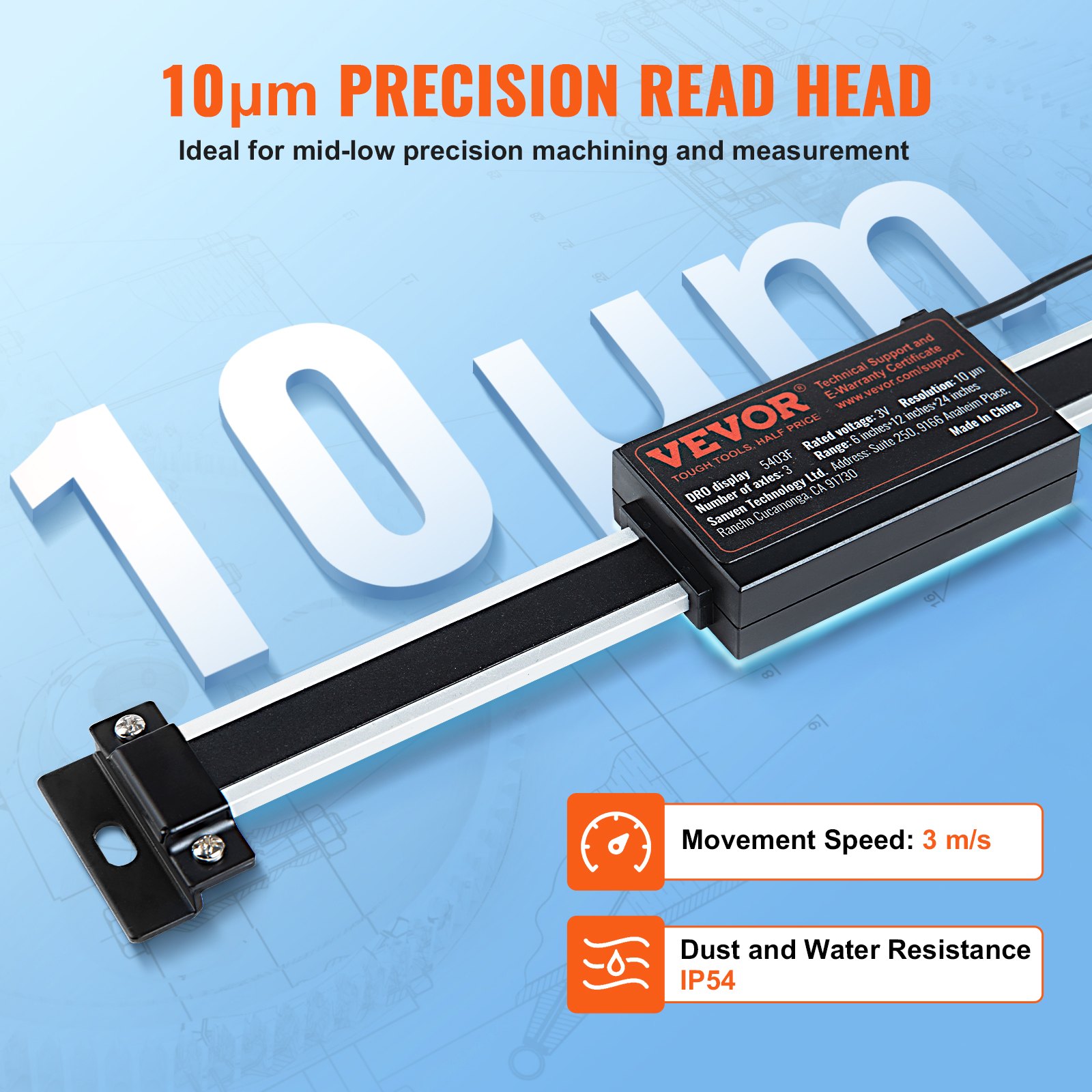

10μm Precision Read Head: Our fully enclosed linear scale set boasts 10μm resolution for minimal length measurement error, even the longest 24-inch (600 mm) linear scale having only 0.006'' (0.15 mm) of error, making it perfect for low to moderate precision machining and measurements. It features a 3 m/s movement speed without overspeed error and a corrosion-resistant dust cover to achieve an IP54 dust and waterproof rating.

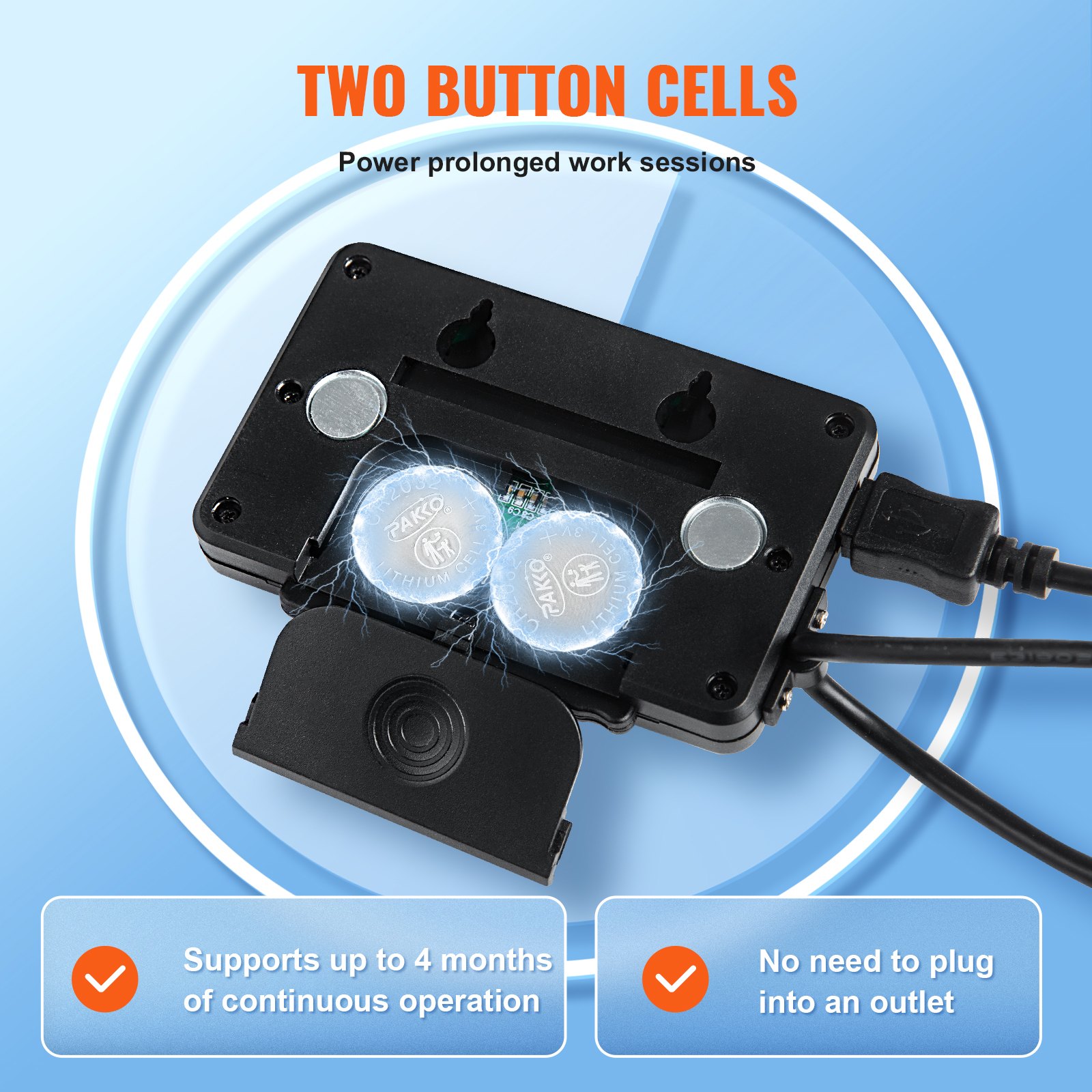

3V Long-Lasting Button Cells: Our linear scale set's display screen is powered by two 3V button cells discreetly placed on the back. No need for additional power sources. Enjoy up to 4 months of continuous operation, and when it's time for replacement, it's a hassle-free endeavor. Power your precision with ease.

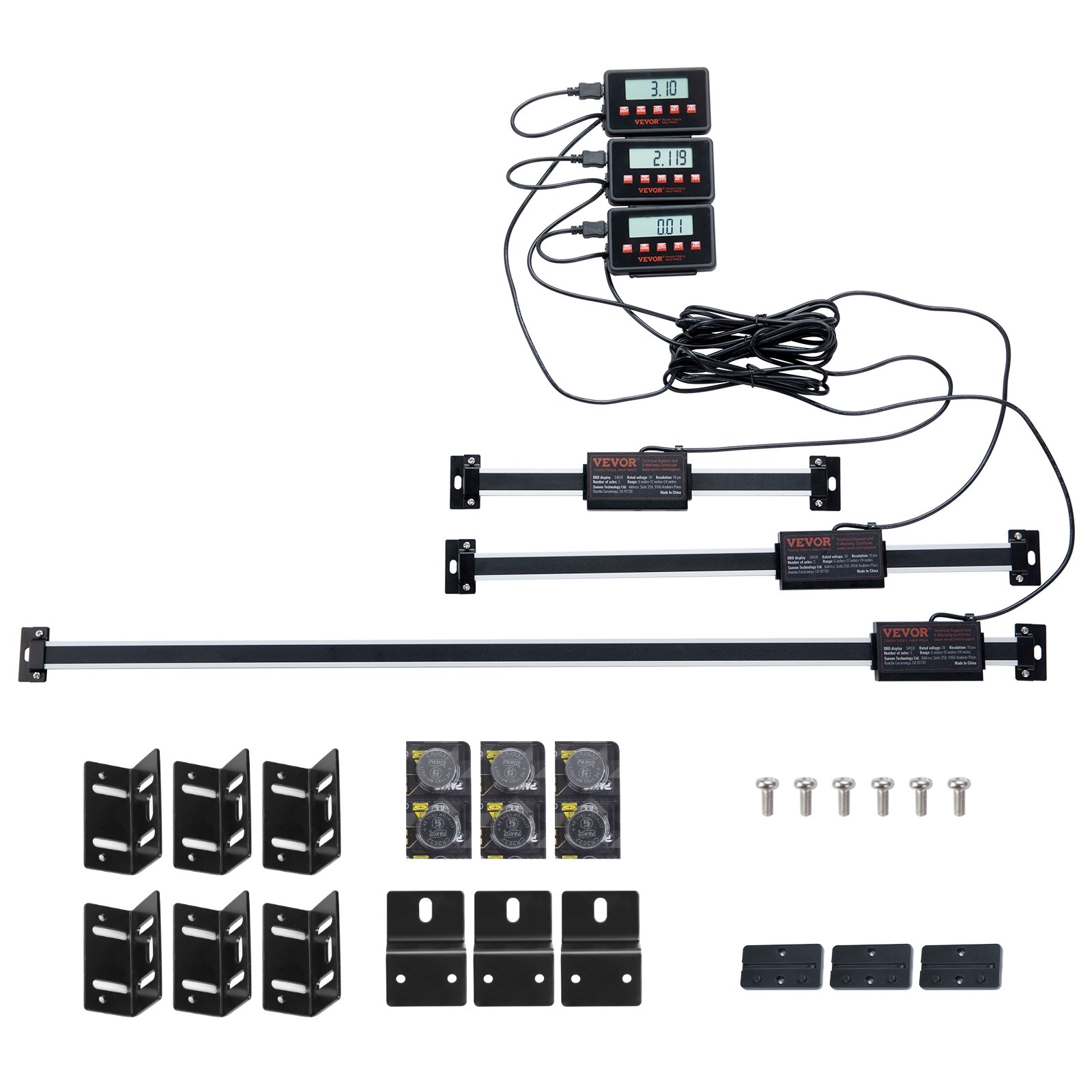

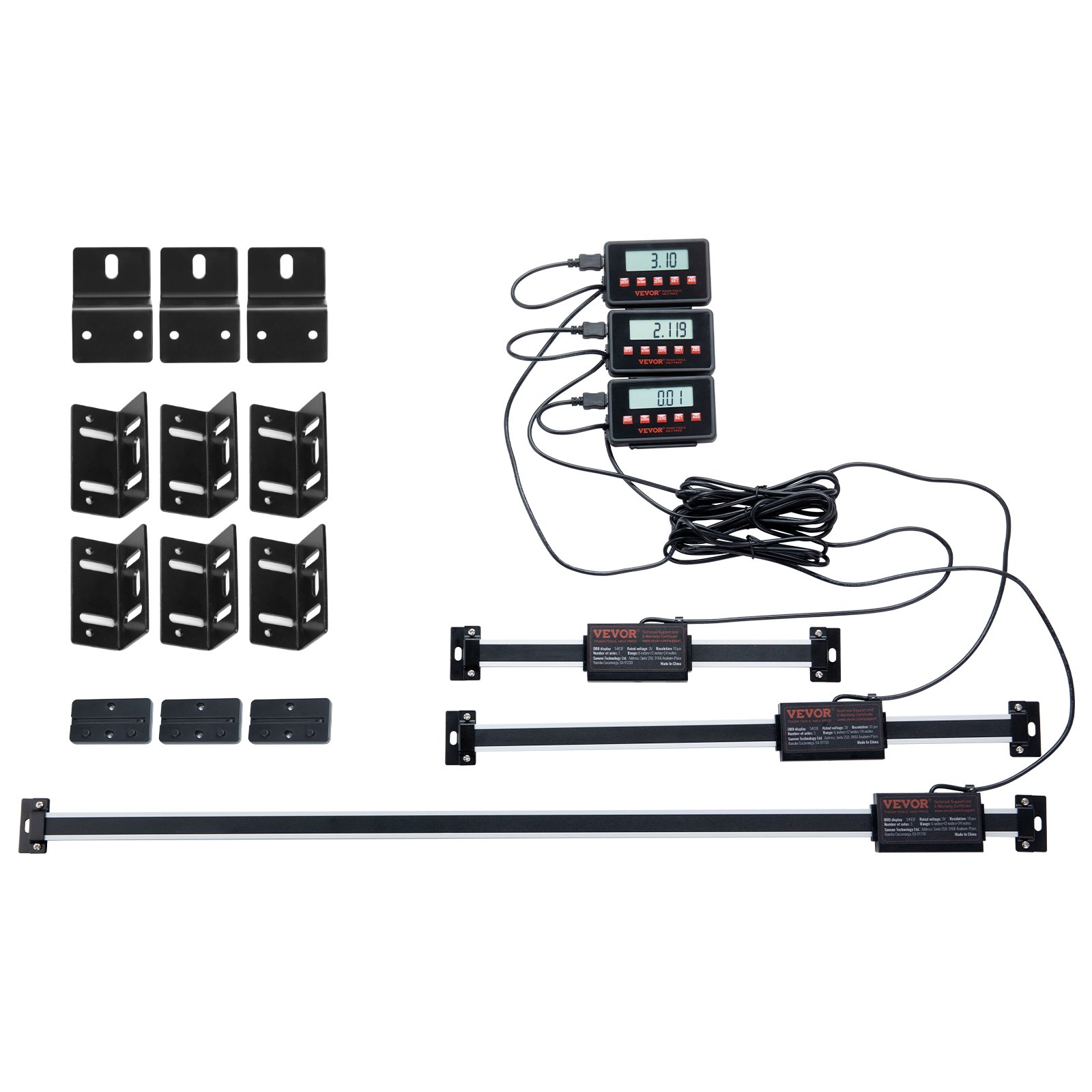

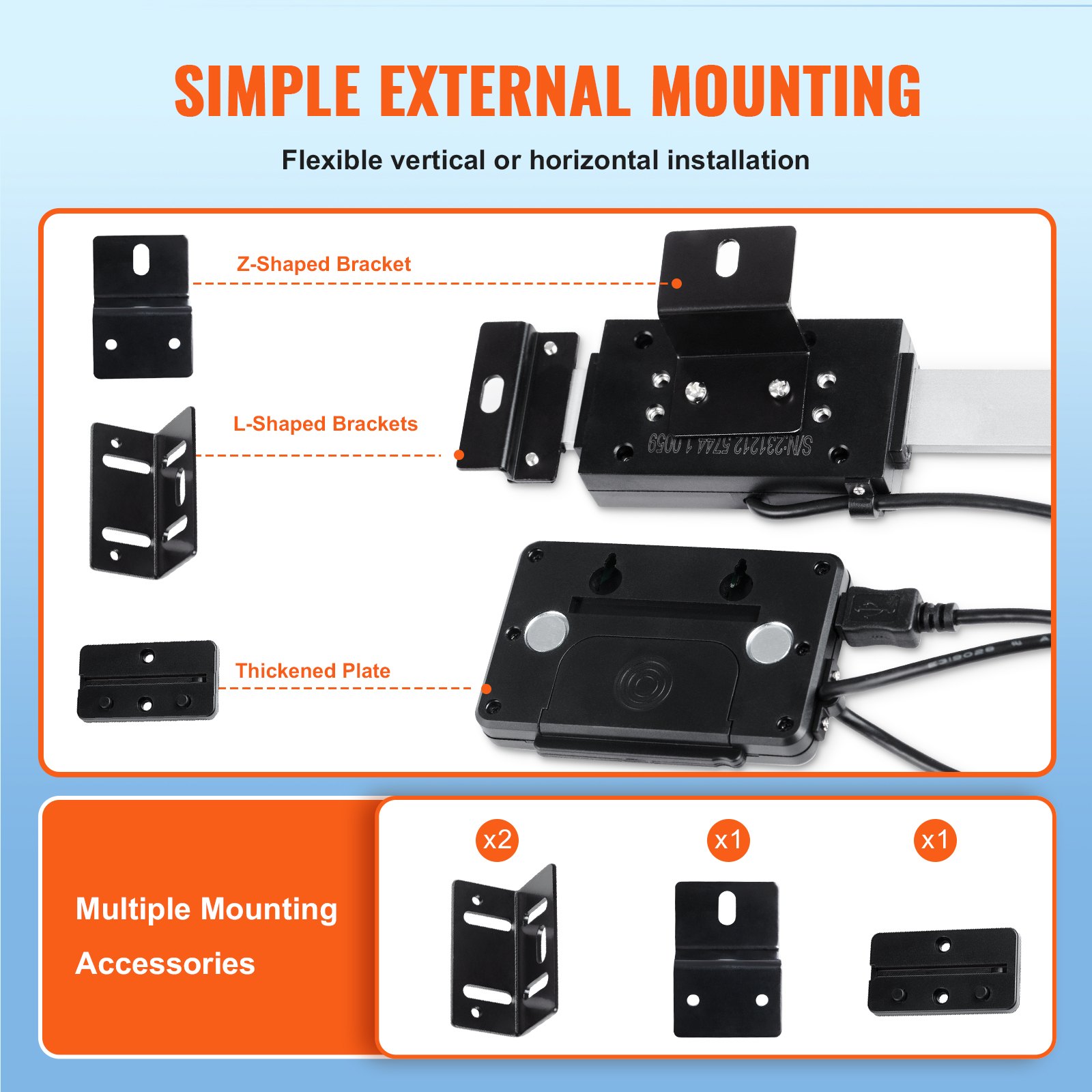

Installation Made Easy: There are mounting holes on the back of the read head, and we provide 2 L-shaped brackets, 1 Z-shaped bracket, and 1 thickened plate for each linear scale. Totaling 12 installation accessories, allowing for vertical or horizontal installation, it perfectly complements a variety of machine tools, including cutting and drilling machines. Plus, the display screen's backside is equipped with dual magnets for a secure attachment to iron surfaces.

See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Digital Readout, 152.4 mm & 304.8 mm & 609.6 mm, Linear Scale 3 Axis DRO Display Kit with L-Shaped Brackets Z-Shaped Brackets Thickened Plates Screws Button Cells

Only 1 Left, order soon

Description Specification Questions and Answers Reviews

3-Axis Linear Scale Set

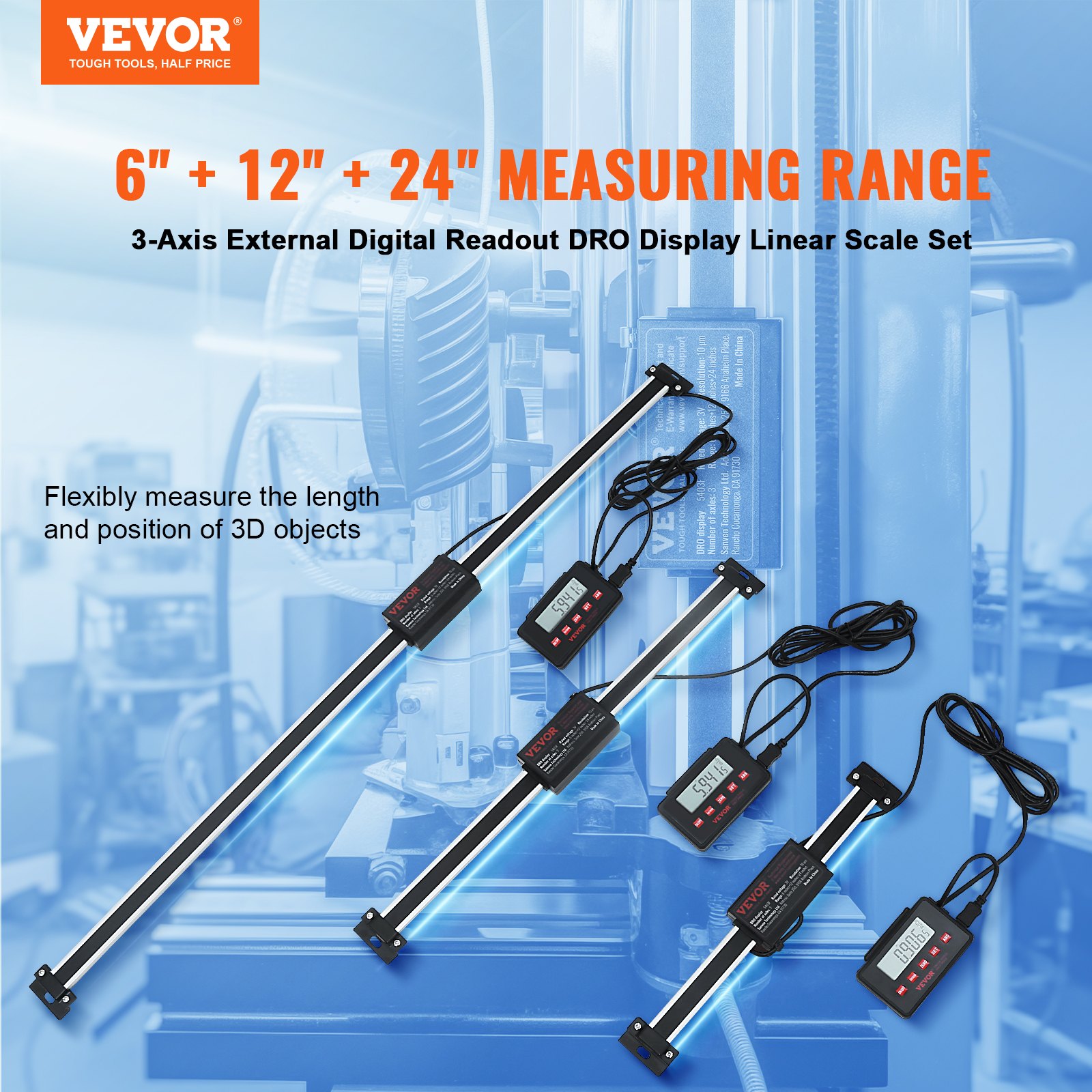

Our 3-axis linear scale set delivers full-dimensional measurements of complex workpieces with 10μm resolution. It features a rapid-response display for instant, accurate data and 3 travel lengths of 6 in/150 mm, 12 in/300 mm, and 24 in/600 mm. Precision unleashed in 3d machining.

We offer 3 travel lengths: 6 in (150 mm), 12 in (300 mm), and 24 in (600 mm). If you need simple to moderate precision measurements on your machine tools, this linear scale kit is tailor-made for you.

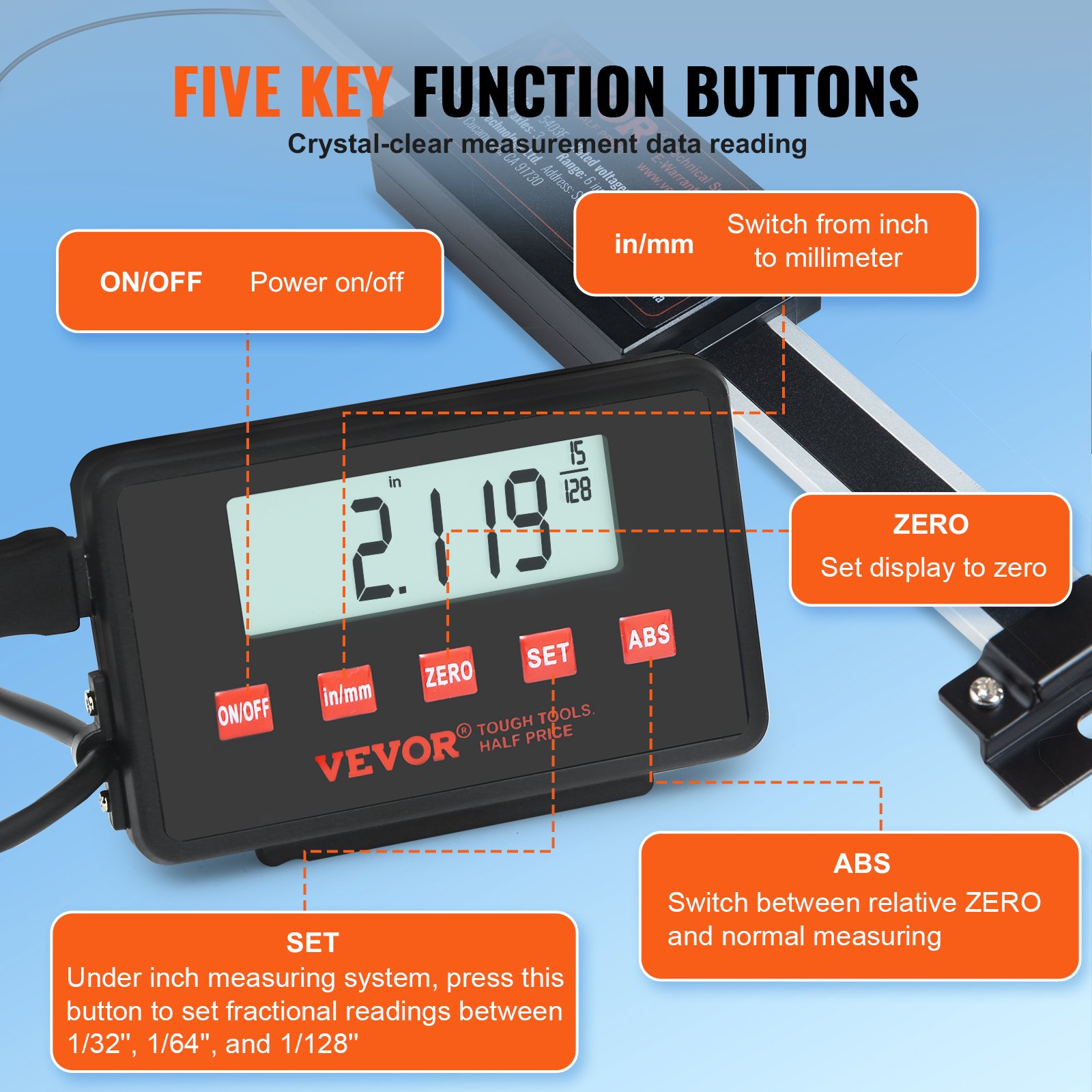

Our compact display unit boasts 5 essential function keys, enabling swift inch-to-millimeter switching, precision adjustments, relative ZERO and normal measuring. Experience the ultimate convenience in readings.

Our linear scale set is built for precision measurement. With 10μm resolution, lightning-fast responsiveness, and a dustproof, waterproof design to fend off environmental interference, your data appears promptly on the display screen.

Powered by 2 easy-to-replace 3V button batteries, our linear scale set ensures a compact, lightweight display screen. Equipped with magnets on the back for easy attachment to any machine tool surface, it's mobility at its finest.

Specification

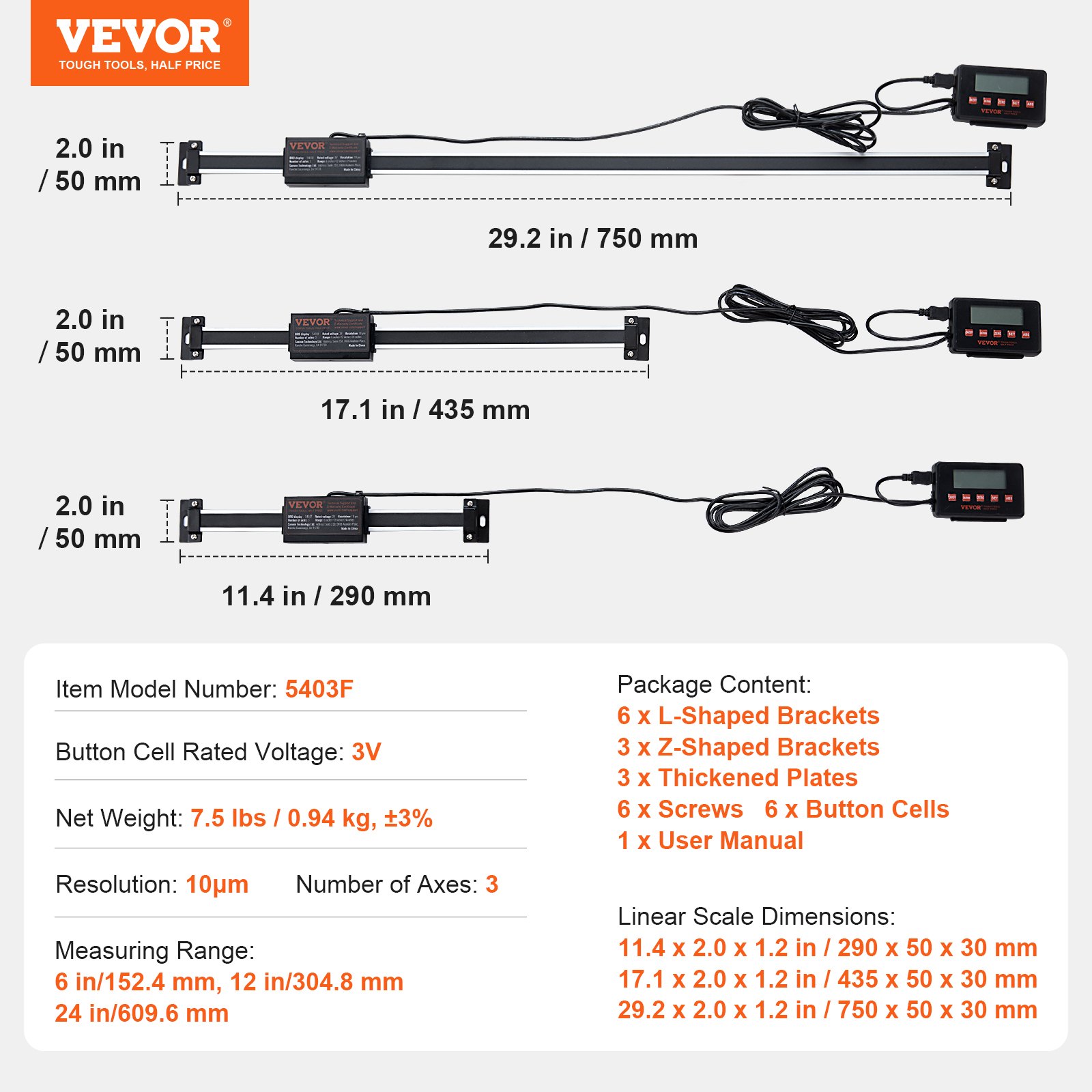

Item Model Number: 5403F

Button Cell Rated Voltage: 3V

Resolution: 10μm

Number of Axes: 3

Measuring Range: 6 in / 152.4 mm, 12 in / 304.8 mm, 24 in / 609.6 mm

Net Weight: 7.5 lbs / 0.94 kg, ±3%

Linear Scale Dimensions: 11.4 x 2.0 x 1.2 in / 290 x 50 x 30 mm;17.1 x 2.0 x 1.2 in 435 x 50 x 30 mm; 29.2 x 2.0 x 1.2 in / 750 x 50 x 30 mm

Questions and Answers

Typical questions asked about products: Is the product durable? ...

Ask the First Question

Customer Reviews

4.8 Out of 5

Based on 13 reviews

Ratings by Features

Price 4.9
Quality 4.7
Features 4.7
Easy to Use 4.8
See More See Less

13 Review(s)

Clear filters

Derrick

Fabricator

This was used to replace a DRO that no longer worked on my mill and it was easy to adapt to mine. Just drilled and tapped new holes in the casting using and indicator to keep each scale straight to its axis.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Bob

Home Hobbyist

Good price and works really great. Takes a little time for instillation but it turned out really well. The only thing they need to let you know is that you don't need to order the scale sizes that they offer as a package. They have a lot of different scales sizes you can order separately that would fit your particular machine without cutting scales to fit. That would have saved me from cutting scales to size. Need some sales representation to talk to before ordering. But mine turned out well and works great.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Jon

Owner

Very quick delivery, quality looks good. Happy with purchase. Have not had the time to install as of yet, but look forward to using it. Positive transaction.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Ranged

Good DRO, Great Price

A great price on a DRO kit that includes 3 scales. Saved money by getting this kit for my PM-30'ish mill, and cutting the scales to fit, Actually, I only needed to cut the X-axes scale (cut down from the 750mm scale). Installation instructions leave a lot to be desired, but the operators manual for the DRO is very detailed. All the mounting hardware is included, but not very versatile. I ended up 3D printing brackets and spacers for a "better" fit on the scales. Build quality... no complaints. Display is large and clear, buttons are easy to read and use. Comes with a clear cover for the DRO. Powered from 110v outlet. Seems accurate for what I use it for (hobbyist). Although it could be much more accurate than what I am capable of measuring. On cutting scales, there seems to be two different methods out there. One where you take one end off the scale and cut the extrusion, glass and all. The other where you disassemble the scale, remove the glass and cut it separate. I used the latter method and had no problems. Although I did break a tap on one of the ridiculously small end cap screws. If I did it again, I would probably just epoxy the endcap back in place.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Wonka

Good scales for the money

Purchased 170mm, 320mm and 520mm scales. Accurate enough for the typical hobbyist. Nicely extruded cover for the scales to protect from fluids, bet the included mounting hardware is nothing special.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Non Stop Horizon

Excellent value for the money.

As a home hobby machiinist with a serious addiction to making chips fly I inpressed so far. With reolution to .0002 it has been surprisingly accurate. I rely on it quite a bit now, less and less stoping every pass for precision parts to stop and measure, abd no more counting handwheel turns. When buying it comes with some generic mounting hatdware but its not all that great and remember you are a home machinist make the brackets and enjoy the time in the shop. My mill sees about 30 hours of use weekly so far this dro has been durableAlso remember when mounting the linear scales they are optical glass rods. Free travel with no binding or loading along with true travel and mounting parralel to the axis is very important. Replacement optical glass scales are on averge $200 per scale. This DRO with 3 linear scales is a great value.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful

Non Stop Horizon

Excellent value for the money.

As a home hobby machiinist with a serious addiction to making chips fly I’m inpressed so far. With reolution to .0002 it has been surprisingly accurate. I rely on it quite a bit now, less and less stoping every pass for precision parts to stop and measure, abd no more counting handwheel turns. When buying it comes with some generic mounting hatdware but its not all that great and remember you are a home machinist make the brackets and enjoy the time in the shop. My mill sees about 30 hours of use weekly so far this dro has been durableAlso remember when mounting the linear scales they are optical glass rods. Free travel with no binding or loading along with true travel and mounting parralel to the axis is very important. Replacement optical glass scales are on averge $200 per scale. This DRO with 3 linear scales is a great value.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Non Stop Horizon

A little fussy to set up, but works great

Installed in an afternoon. Most of the supplied hardware was of no use, but a few bucks at the hardware store and I was off to the races.As others have mentioned, the manual is almost useless. If you have some understanding of what a dro does, then it is good enough to fill in the blanks.Some of the buttons are abbreviated in an odd way (e.g. CTR for calculator), but it's not that big of a hurdle. Just remember that English is not this things first language.I had to set the resolution of the scales to 0.2 so they would read correctly. Out of the box it was showing 5 inches of travel per inch. That was a frightening 10 minutes, but everything checks out fine now.I haven't played with all the functions yet, but so far everything works great.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Joe Smith

Very impressed with this DRO

It is everything they say it is. No instructions for installation but if you are a machinist then it's no different than any other installation. The scales are glass so as always, be careful to not drop or just slap them on. You must make sure they are true and indicated to the axis. I personally like the owner's manual. It was just English and I didn't have to thumb through 5 other languages. So far the DRO works fabulously.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Non Stop Horizon

Great addition to my Milling machine.

A lot more accurate than the dials and you can come back to the same spot with very high accuracy.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
