VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
+12
More
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))
VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22")) VEVOR 1 Axis Lathe Linear Scale 550mm with Accuracy 0.0002" Optical Length Precision Linear Scale Aluminum Body for Mill Milling Lathe Machine with Accessories (550mm(22"))

Features & Details

  • 【HIGH PERFORMANCE】- Our grating and precision ruler series have passed strict quality inspection. Meet the standard of accuracy and stiffness good straightness and precise measurement. Travel Length: 550mm, Accuracy: ±0.005 mm, Resolution: 5μm. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
  • 【DURABLE ALUMINUM BODY】- Aluminum profile scale body, and head with zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
  • 【DOUBLE SEAL & SIGNAL CABLE】- The Linear Scale Encoder features a double layer lip seal to give extra protection from contamination, high abrasive resistance. 3m signal cable applies multilayer shielded wire steel and metal shell protection.
  • 【STABLE SLIDE PART】- Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. With an additional T-slot (Not including in the package), the back groove could be used for installation when the contact surface is too short, or could be addition support when using long linear scale.
  • 【CONVENIENT & PRACTICAL】- A rigid metal extrusion with slotted end blocks for simple adjustable mounting. Several mounting points for through hole or easy attachment to brackets and additional mounting hardware.

Frequently Bought Together

Reviews 4.8
All reviews are from verified purchases
Average rating based on 18 reviews

Matt
Reviewed on Oct 09,2025
Great product and great price. Just the right length and thickness for the cross slide on my 250 size lathe. Also came with a serial to serial adapter of you need to extend the length of your cable to the DRO.
See Less
See More
Jason
Reviewed on Sep 07,2025
Works great
See Less
See More
Jason
Reviewed on Sep 07,2025
Great product
See Less
See More
John
Reviewed on Aug 23,2025
Fantastic easy fit
See Less
See More
Pete
Reviewed on Jul 13,2025
I use these scales on my RF30, the build quality and accurate seem excellent. all metal construction and cable protection, and they even include inline DB9 serial converters to convert the logic output depending on the protocol your DRO talks
See Less
See More
Martin Falls
Reviewed on Apr 12,2025
Mounting this equipment onto a Pinnacle Verticle milling machine took some time as only the rear of the table was a plumb & flat surface. Took a bit of imagination to work out heavy duty covers to stop heavy objects from damaging the dust covers, scales and read heads. Now to become familiar with the various functions : )
See Less
See More
Alan Lobley
Reviewed on Dec 26,2024
These digital readouts are very easy to set up and use , I have now bought several of these and never had any problems with them
See Less
See More
Steve
Reviewed on Sep 04,2024
Not really suited to the y axis on my mill due to mounting constraints. I have it fitted and use it but a rotary encoder really should be used
See Less
See More
AussieDave63
Reviewed on Sep 01,2024
This is a very easy to use DRO. It’s just a pity all the mounting brackets for the readout don’t fit and for some reason all these budget DRO’s always come with the wrong size scale mounting bolts. Apart from the hardware issues, these DRO’s are good value for money.
See Less
See More
Digital readout
Reviewed on May 26,2024
Great quality product and would definitely purchase again. Just be sure to check the dimension of the the scale readers for their actual length, not their measuring length. Its a bit confusing in the description.
See Less
See More
See all 18 reviews

About this item

Product specification
Voltage
5V DC
Current
50mA
Travel Length
550mm
Grating Pitch
0.02mm (50LP/min)
Resolution
5μm (0.005mm) 0.0002"
Accuracy
±0.005 mm or 0.0002" (at 20 deg C)
Response Speed
60m/min or 40inch/sec
Cable Length
3m
Sealing
Double seal
IP Class
53

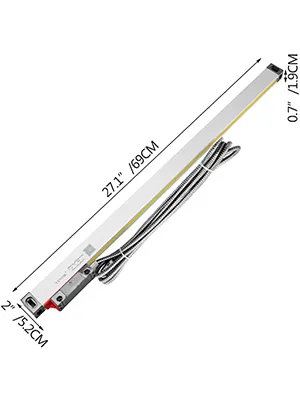

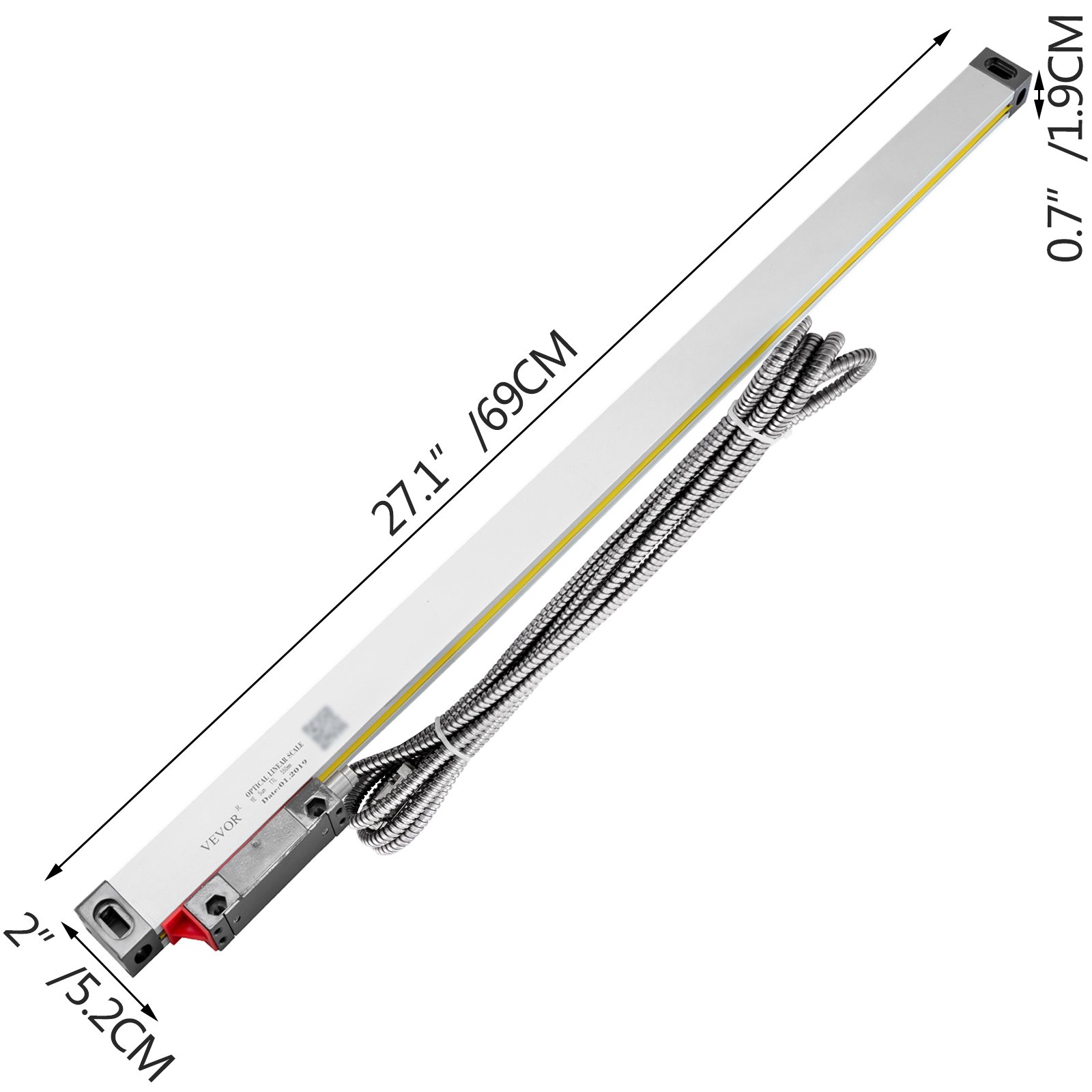

Product Dimention(LxWxH)
69 x 2 x 5cm (27.17" x 0.79" x 1.97")
Description

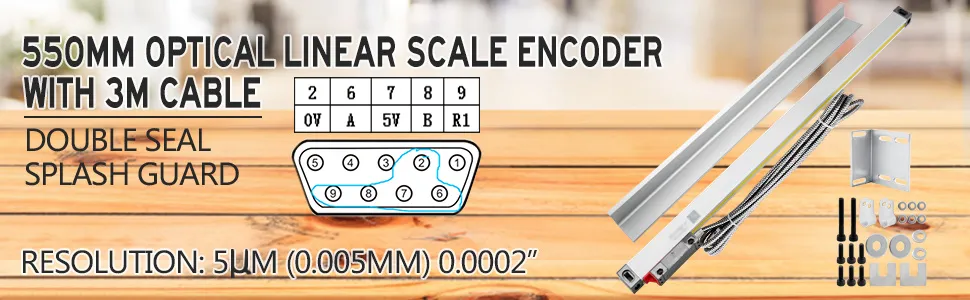

550MM Linear Scale Encoder With 3M Cable
Here we offer you 550mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal & Signal Cable
  • Stable Slide Part
  • Convenient & Practical
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

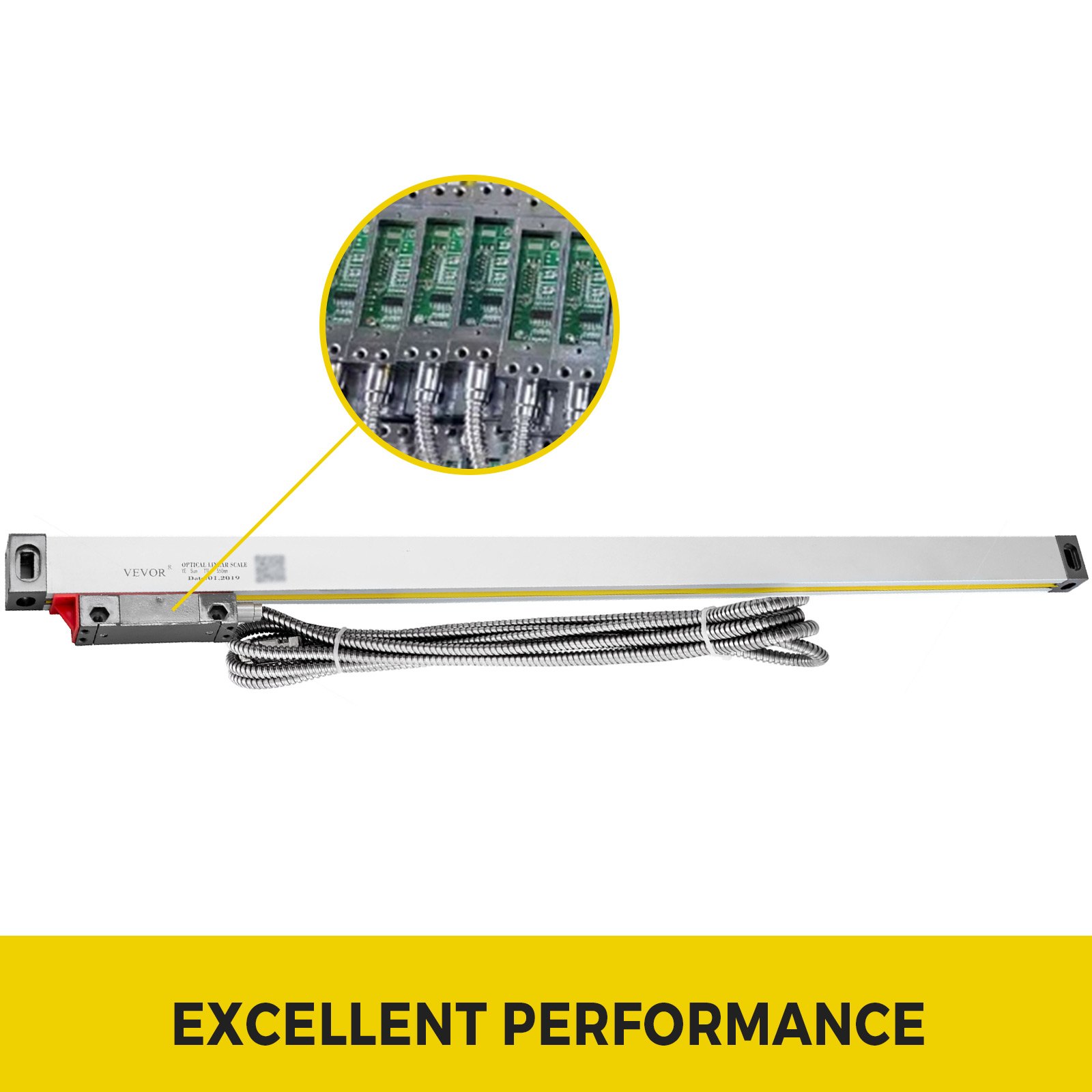

Excellent Performance
The Linear scale applies intelligent chip with travel length 0-550mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. 100% brand new and high quality. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.

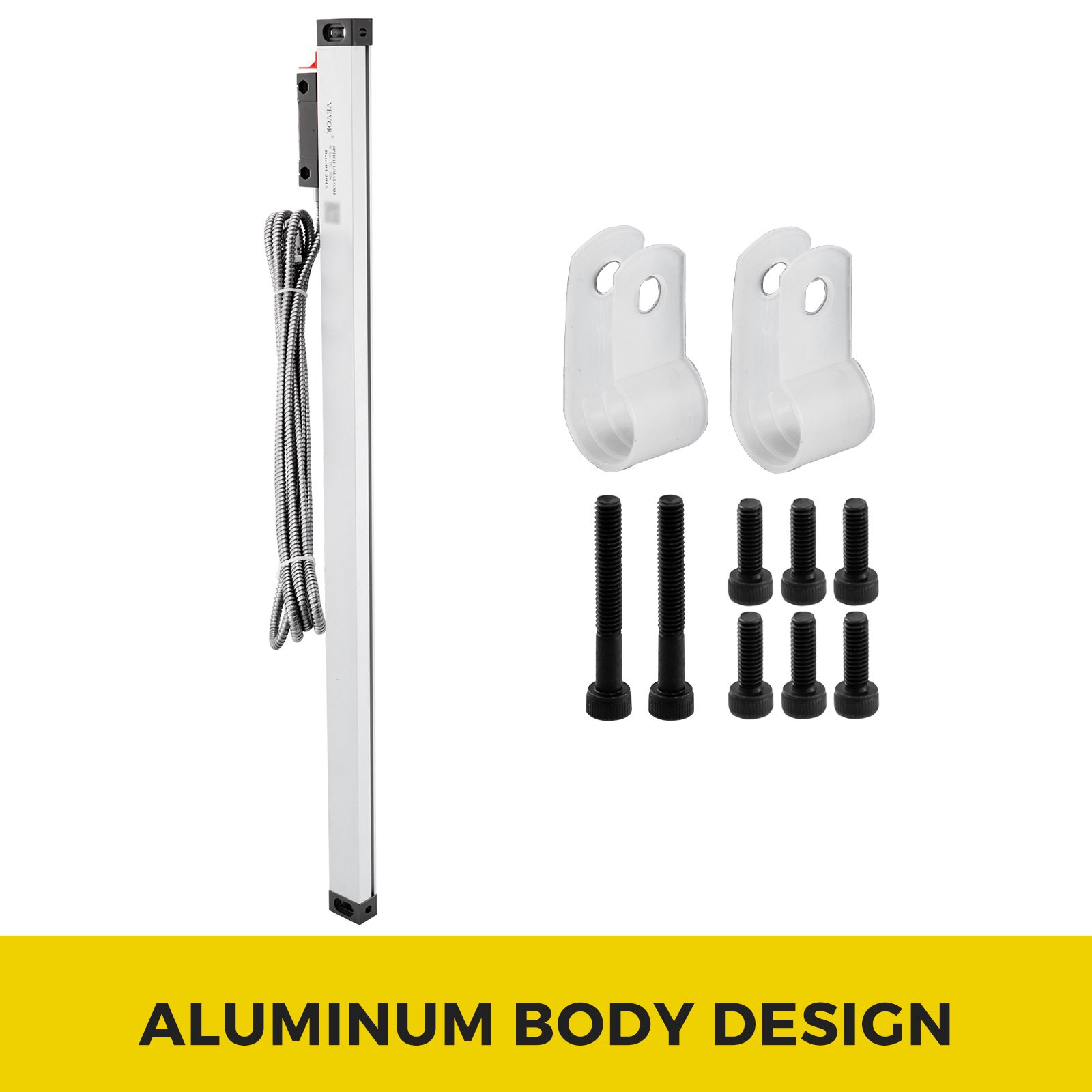

Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.

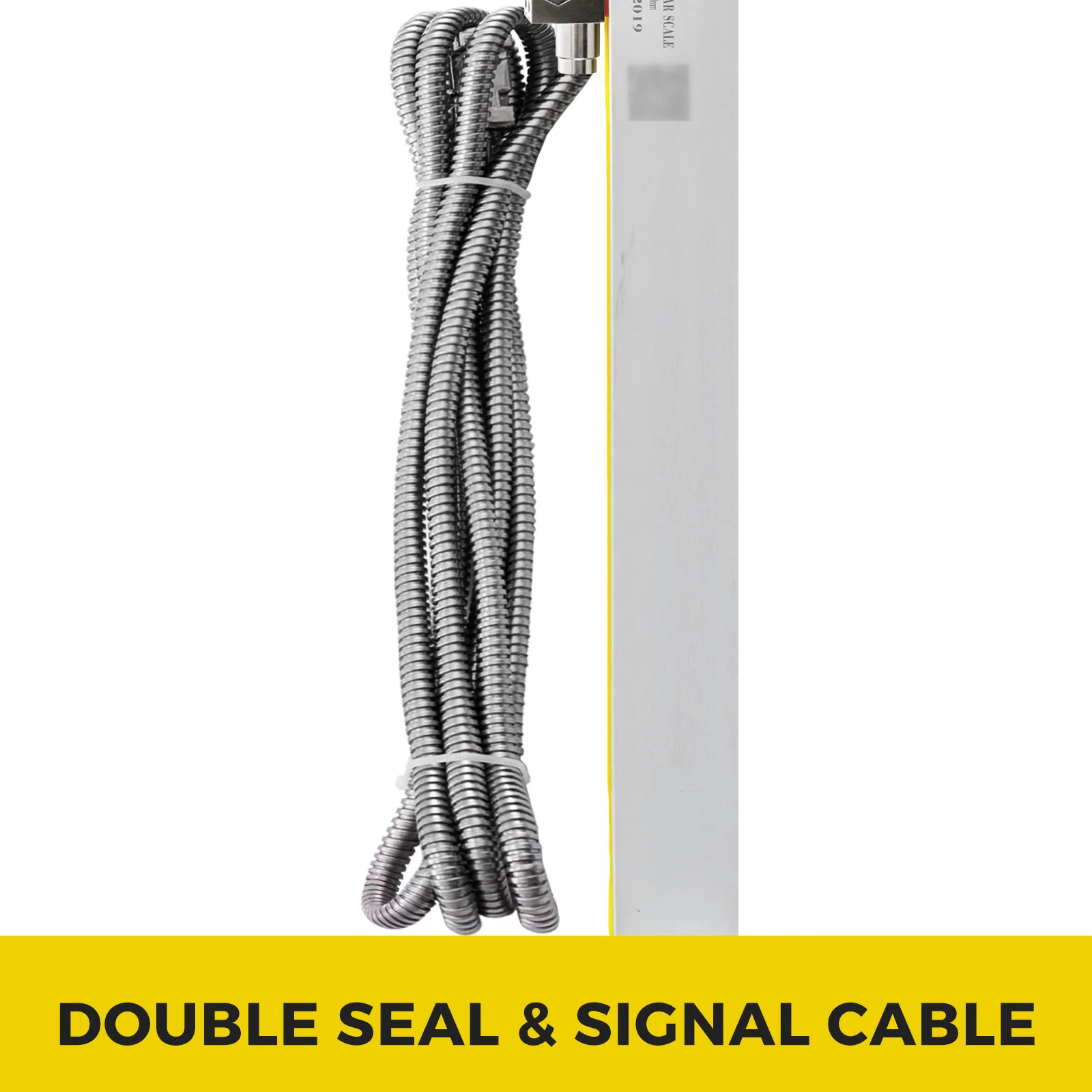

Double Seal & Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.

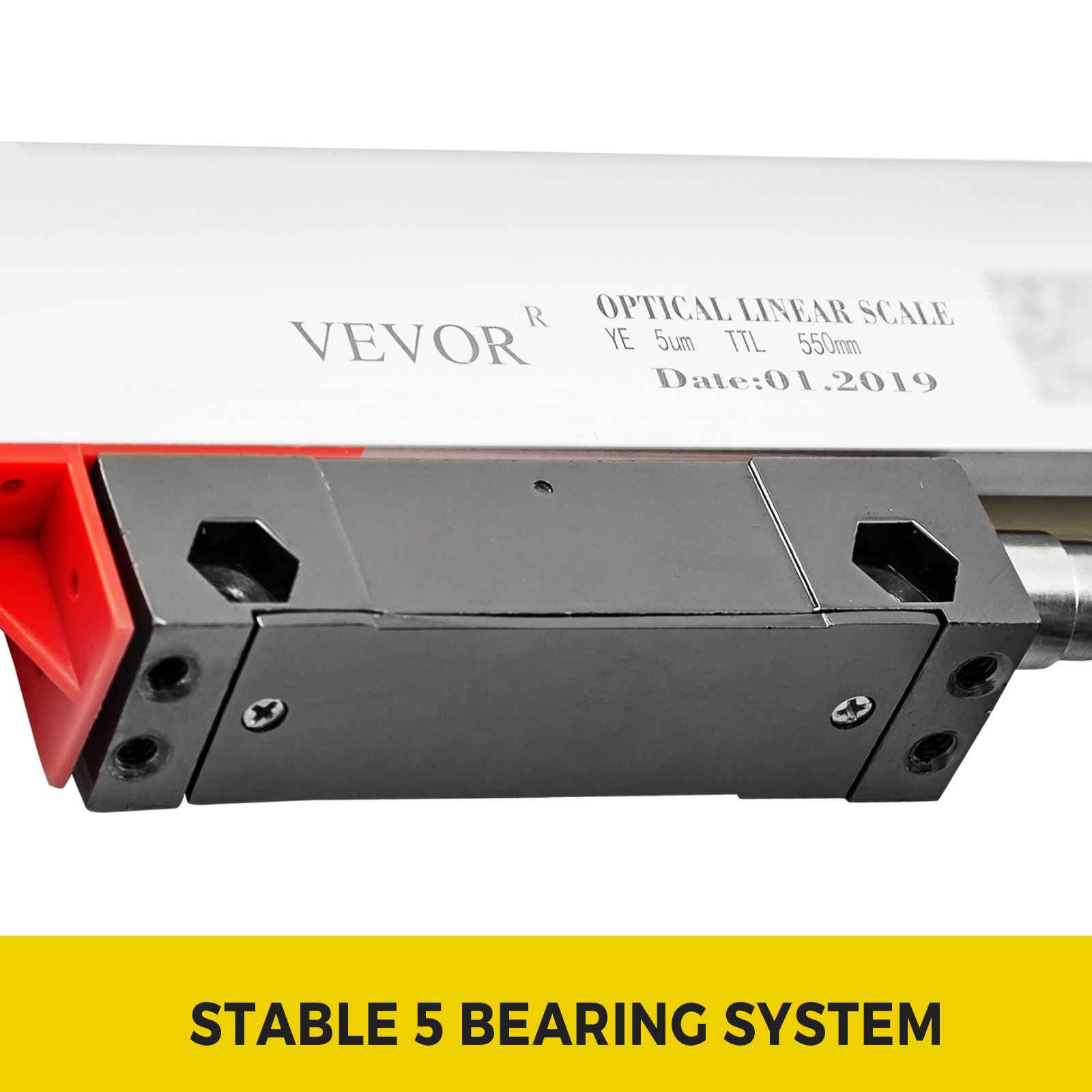

Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.

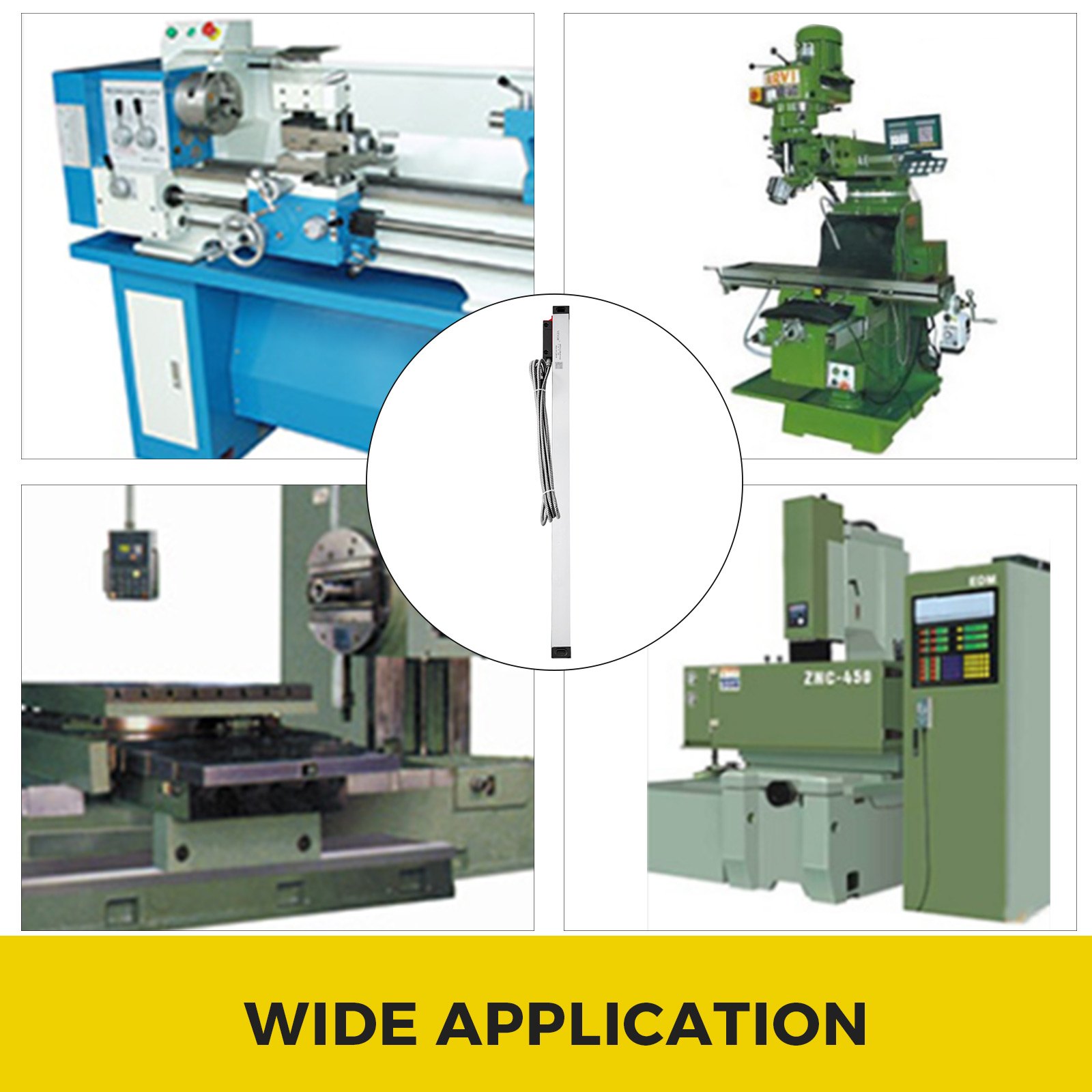

Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 550mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53
  • Product Dimention(LxWxH): 69 x 2 x 5cm (27.17" x 0.79" x 1.97")

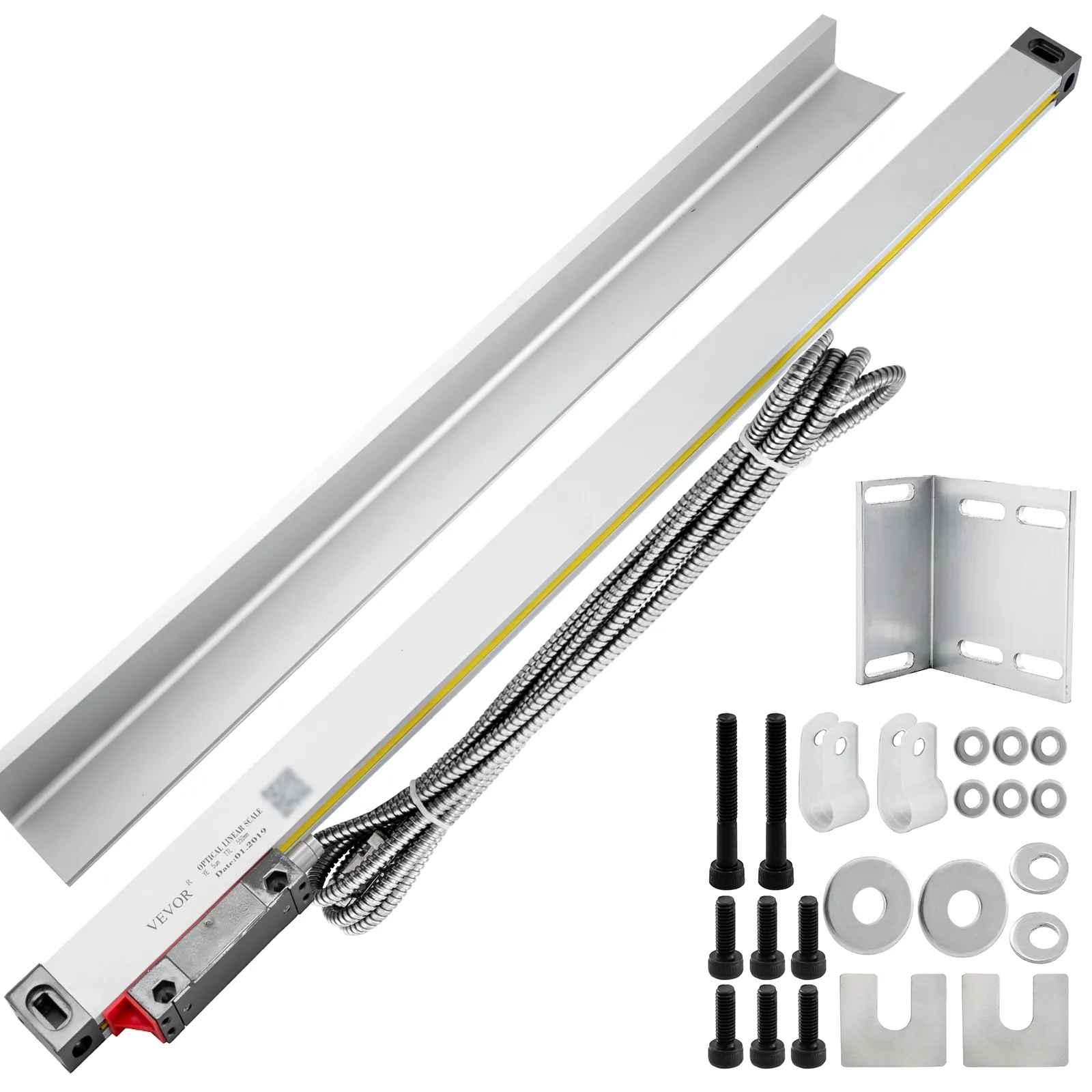

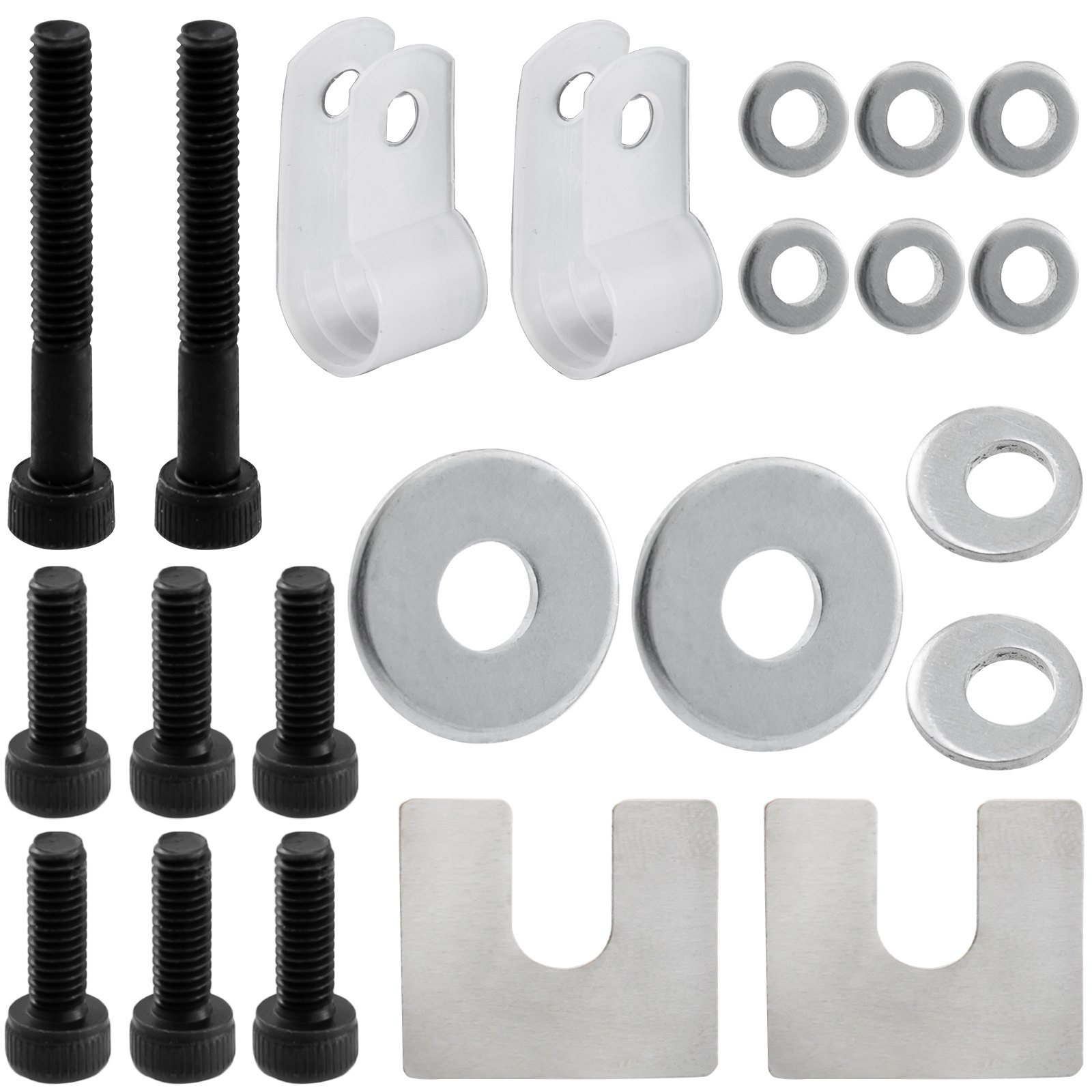

Package Content
  • 1 x Linear Scale Encoder
  • 1 x Set of Accessory
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
550MM Linear Scale Encoder With 3M Cable
Here we offer you 550mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal & Signal Cable
  • Stable Slide Part
  • Convenient & Practical
Excellent Performance
The Linear scale applies intelligent chip with travel length 0-550mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. 100% brand new and high quality. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
Double Seal & Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.
Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.
Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
Package Content
  • 1 x Linear Scale Encoder
  • 1 x Set of Accessory
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 550mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53
  • Product Dimention(LxWxH): 69 x 2 x 5cm (27.17" x 0.79" x 1.97")
Product guides and documents
User manual-en (PDF) Review

Questions and Answers (2)

2 Questions
Ask a Question
Can the scale be shortened
Answer This Question
No, the scale can't be shortened.
By vevor
Helpful ( 0 )
Do these rails come in longer lengths I need a span of 3m
Answer This Question
The cable length of this product is 3m, no longer.
By vevor
Helpful ( 0 )
GSC550MMDC0000001V0
