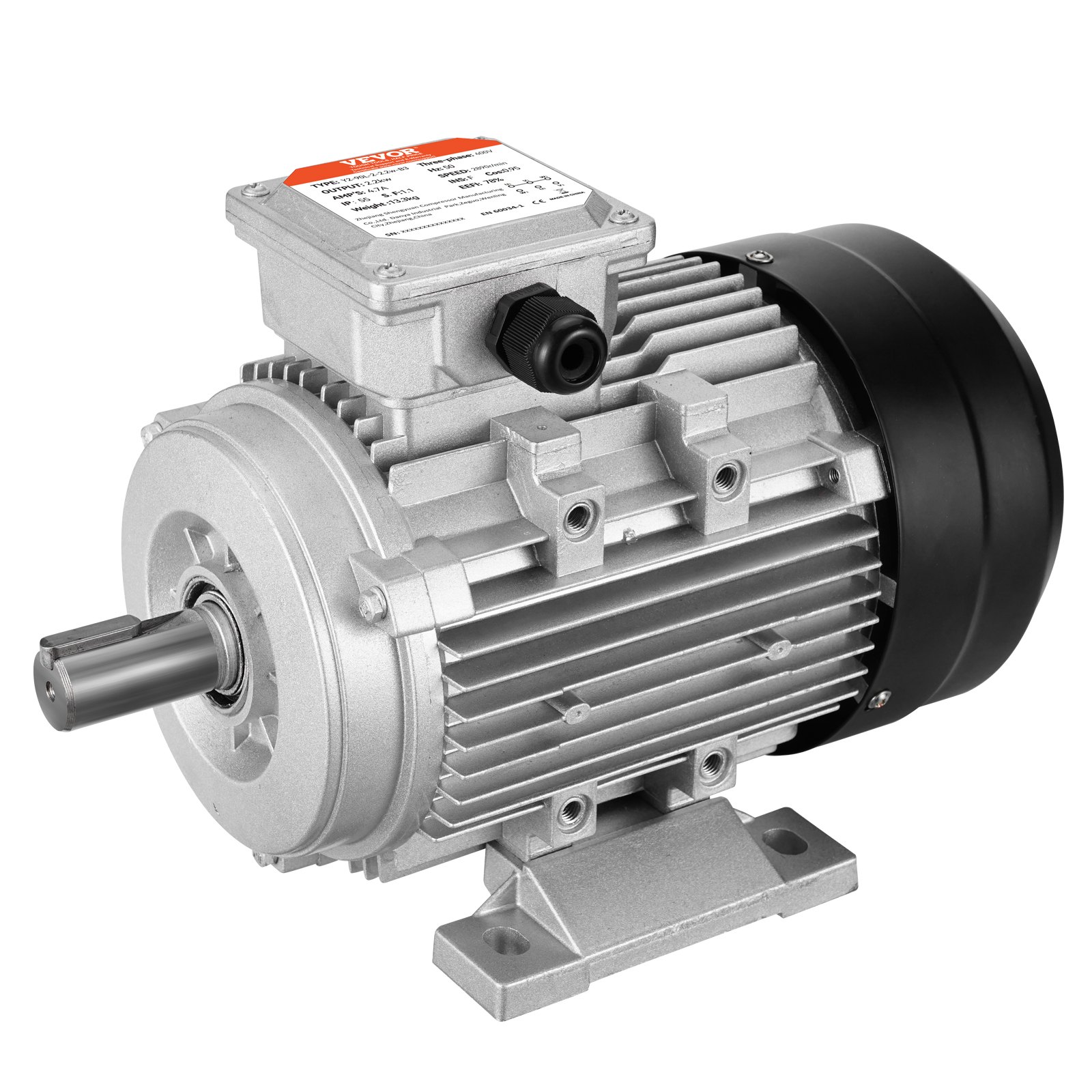

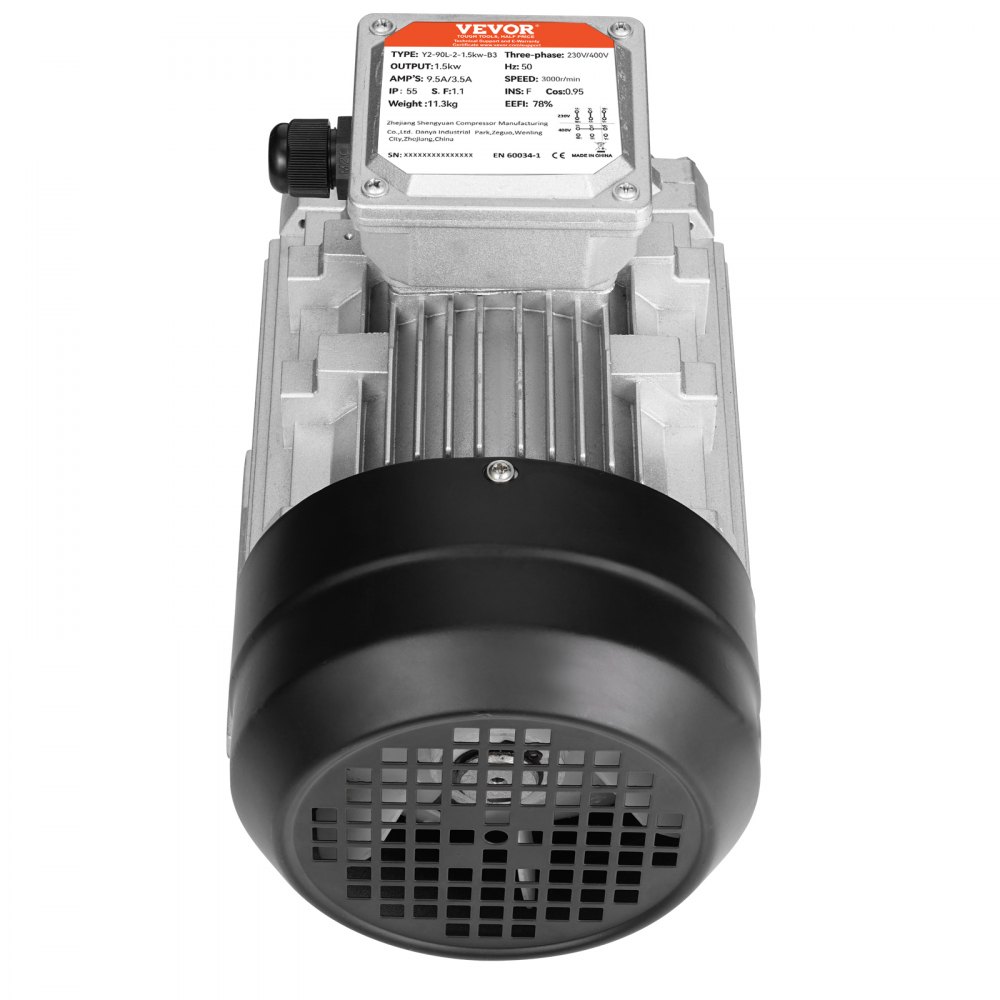

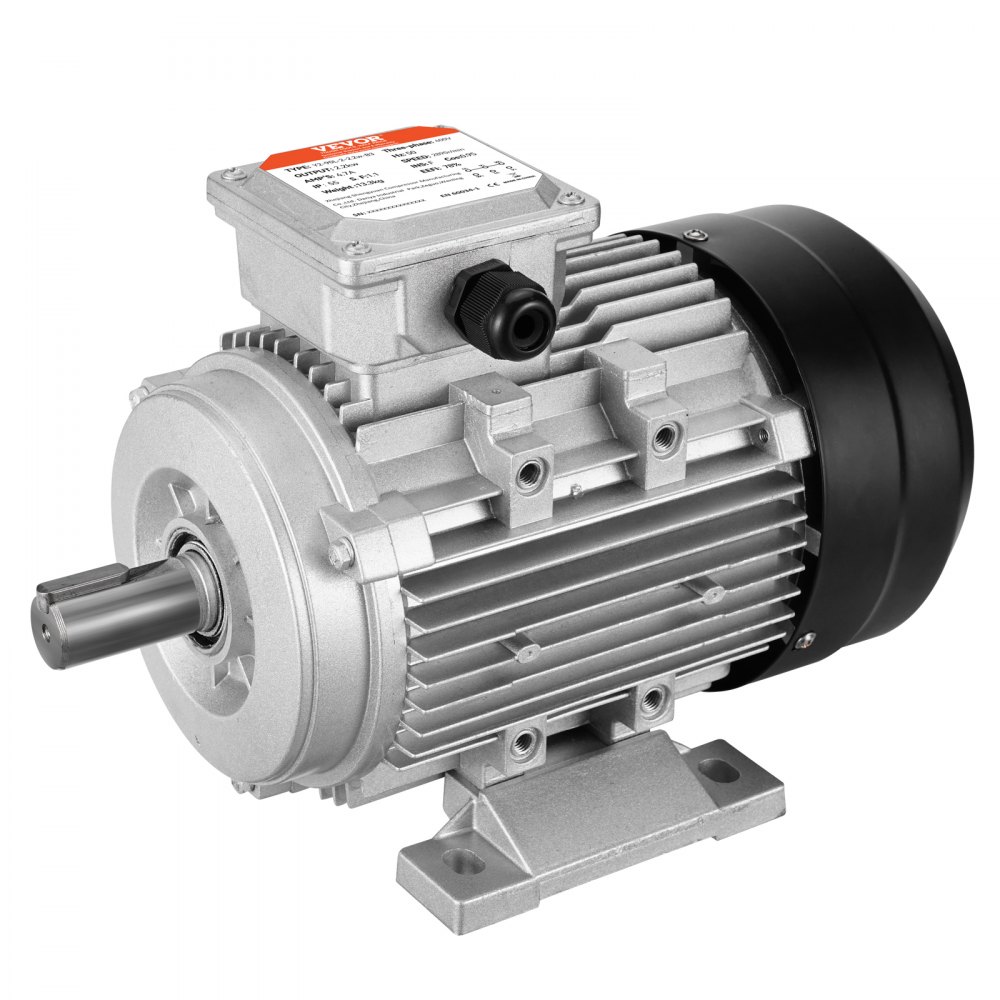

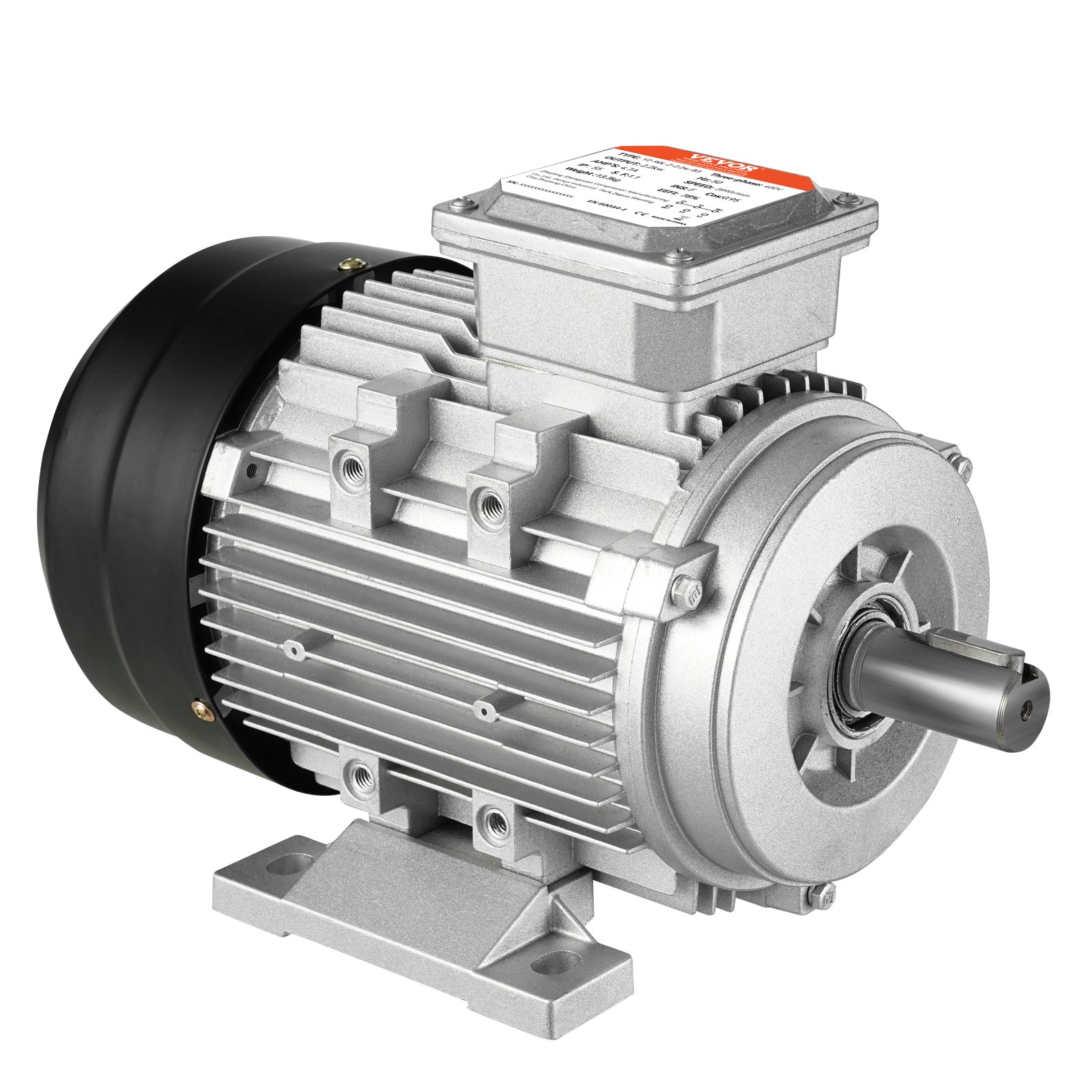

VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
+12
More
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 1.5KW Electric Motor 3000 rpm, AC 230V/400V 9.5A/3.5A, 90L, B3 Frame, Air Compressor Motor 3-Phase, 24mm Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment

Features & Details

  • Powerful Performance: 1.5KW, 3-Phase, Full Load Current: 9.5A/3.5A, AC 230V/400V 50Hz, 3000 RPM High Speed, SF: 1.1.
  • Sturdy Frame Type: 90L, B3 Frame, 24mm Keyed Shaft, Shaft length: 50mm, Keyway size: 8mm.
  • Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.
  • Durable and Safe: This air compressor motor features a heavy-duty rolled steel shell that resists rust and corrosion, ensuring a longer service life and reliable performance.
  • Wide Range of Applications: VEVOR general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment. It's perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs.

Frequently Bought Together

Reviews 4.8
All reviews are from verified purchases
Average rating based on 23 reviews

See all 23 reviews

About this item

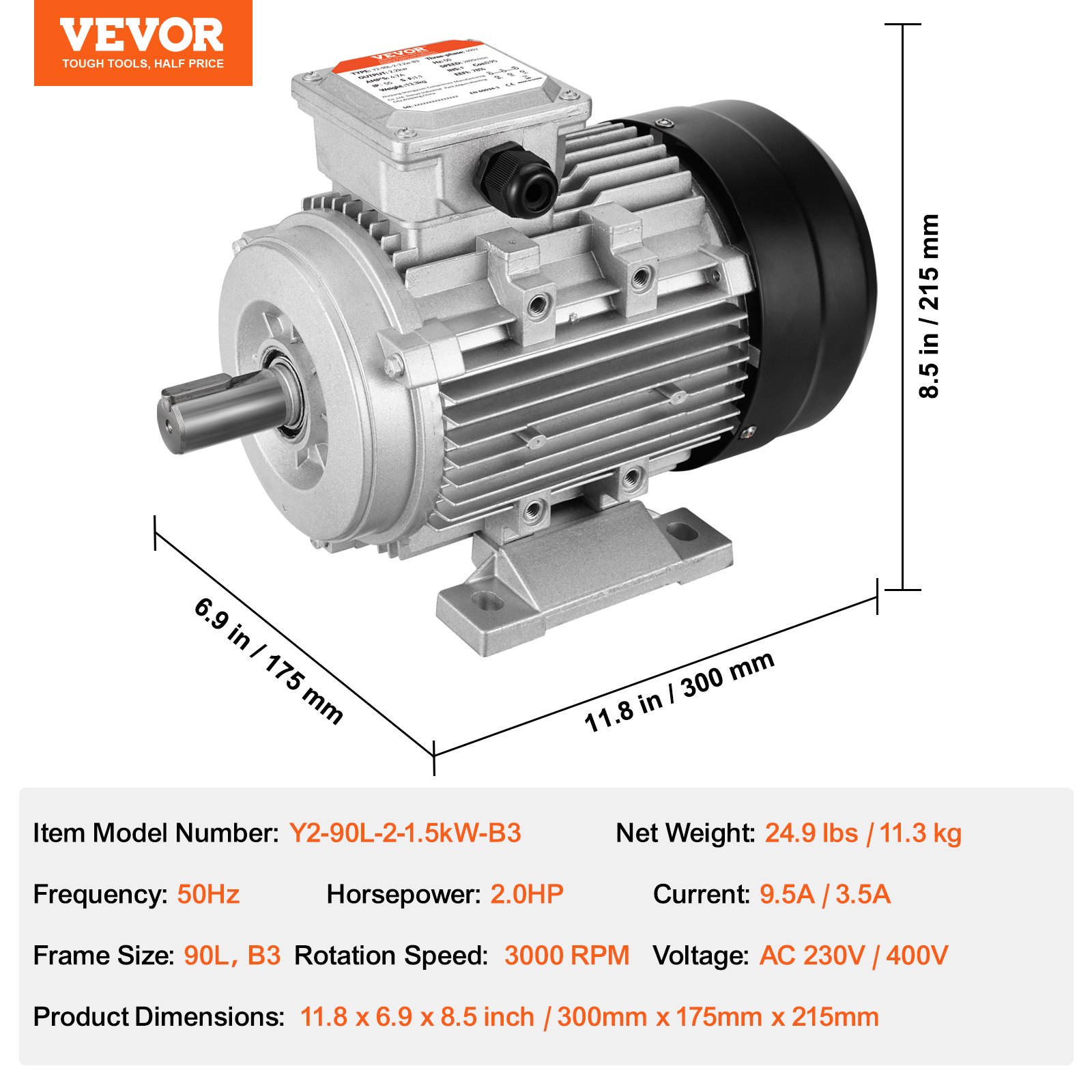

Product specification
Item Model Number
Y2-90L-2-1.5kW-B3
Voltage
AC 230V/400V 3-Phase
Frequency
50Hz
Power
1.5 KW / 2 HP
Current
9.5A/3.5A
Frame Size
90L, B3
Rotation Speed
3000 RPM
Net Weight
24.9 lbs / 11.3 kg
Product Dimensions
11.8 x 6.9 x 8.5 in / 300 x 175 x 215 mm
Description
Power Up Fast: Revive Your Machine Now

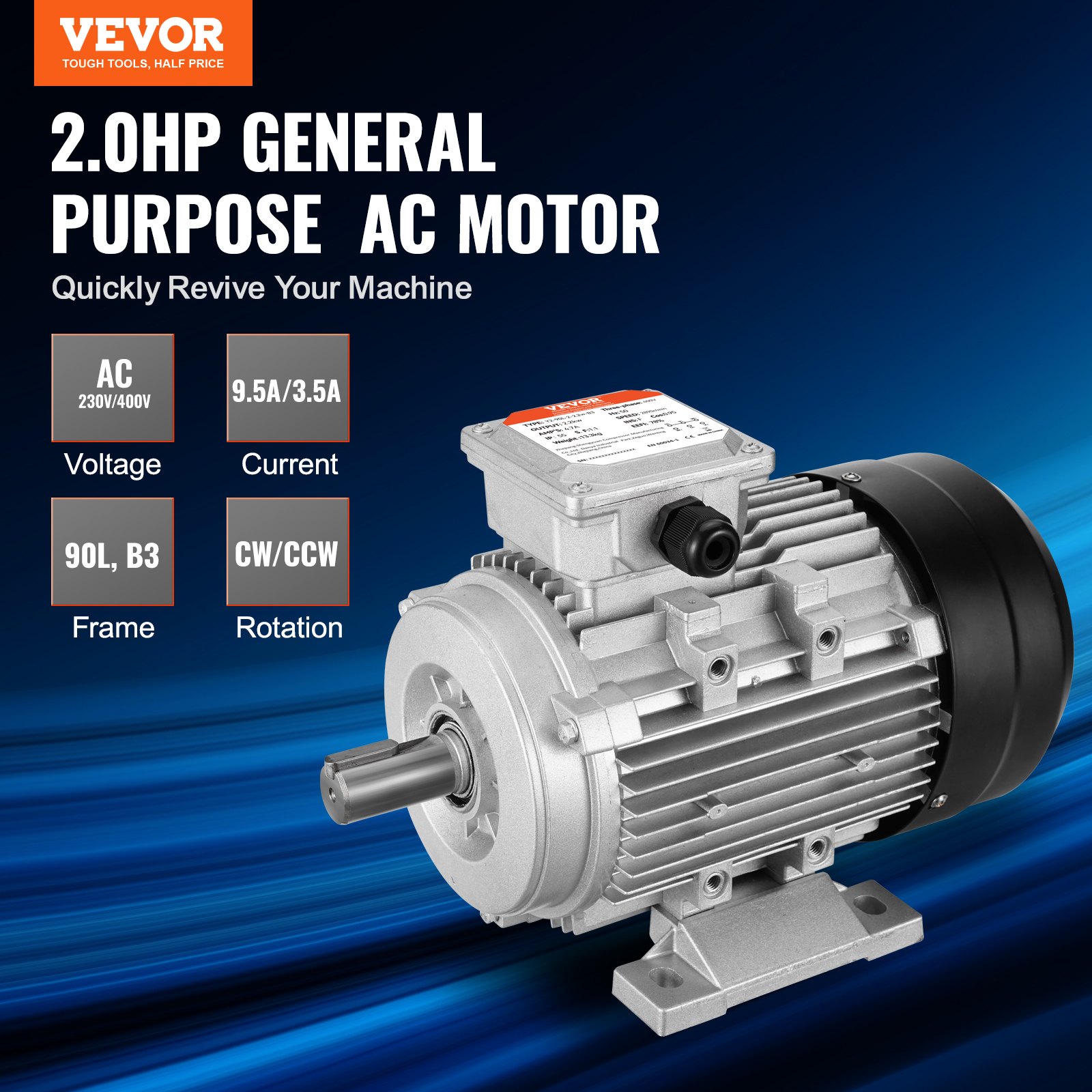

Inject powerful performance into your equipment with the VEVOR 1.5KW 3-phase electric motor. Operating at AC230/400V voltage with 9.5A/3.5A current, it features 3000 RPM high speed, 90L, B3 frame, 50mm shaft length, 24mm keyed shaft, and CW/CCW dual rotation direction.

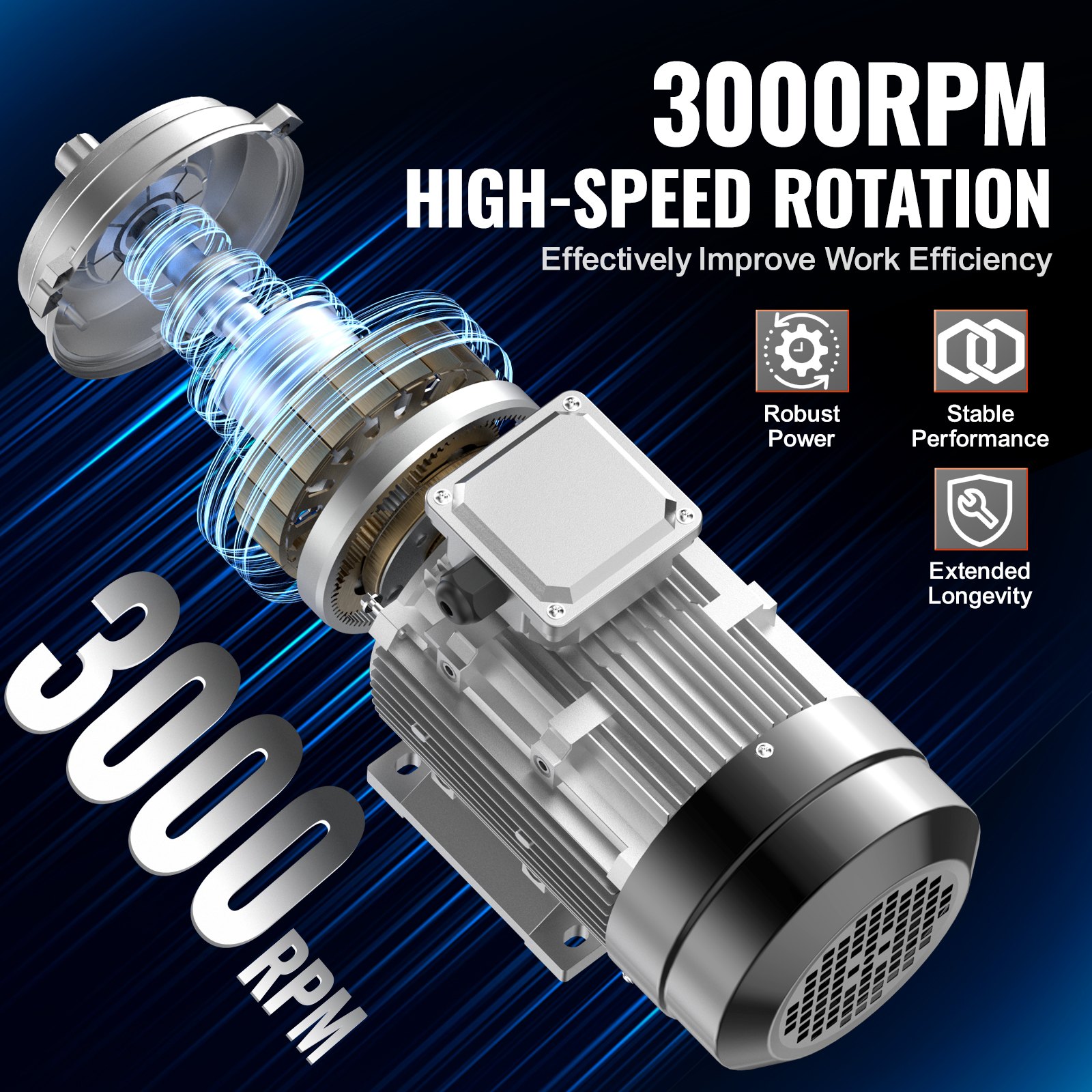

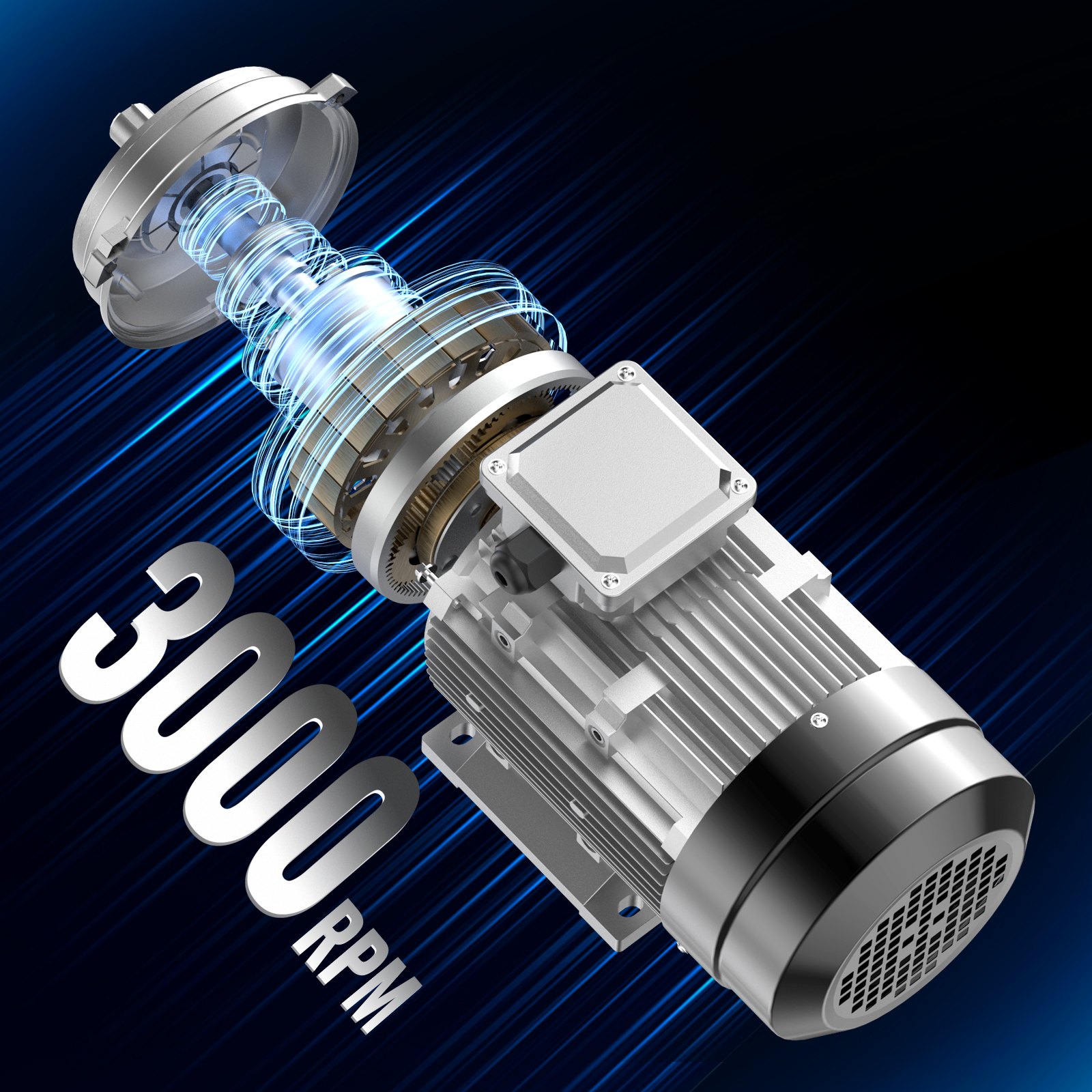

VEVOR 1.5KW electric motor boasts a high speed of 3000RPM, delivering powerful performance across various applications. Its robust power output ensures efficient operation, making it ideal for agricultural machinery and industrial equipment while saving energy and boosting productivity.

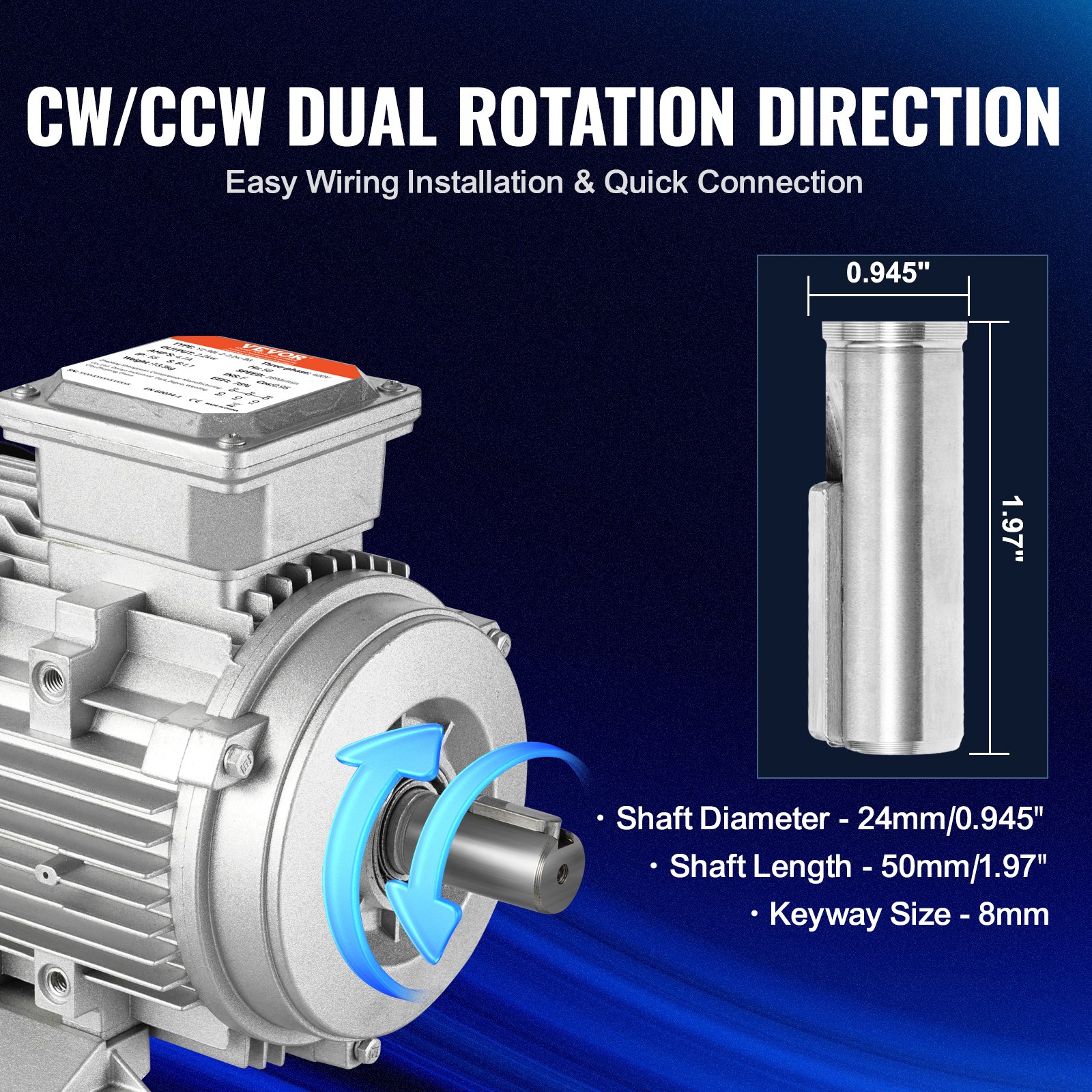

Featuring CW/CCW dual rotation direction, this air compressor motor is easy to install and user-friendly. With 24mm shaft diameter, 50mm shaft length, and 8mm keyway, it easily connects to diverse equipment, offering great versatility for different applications.

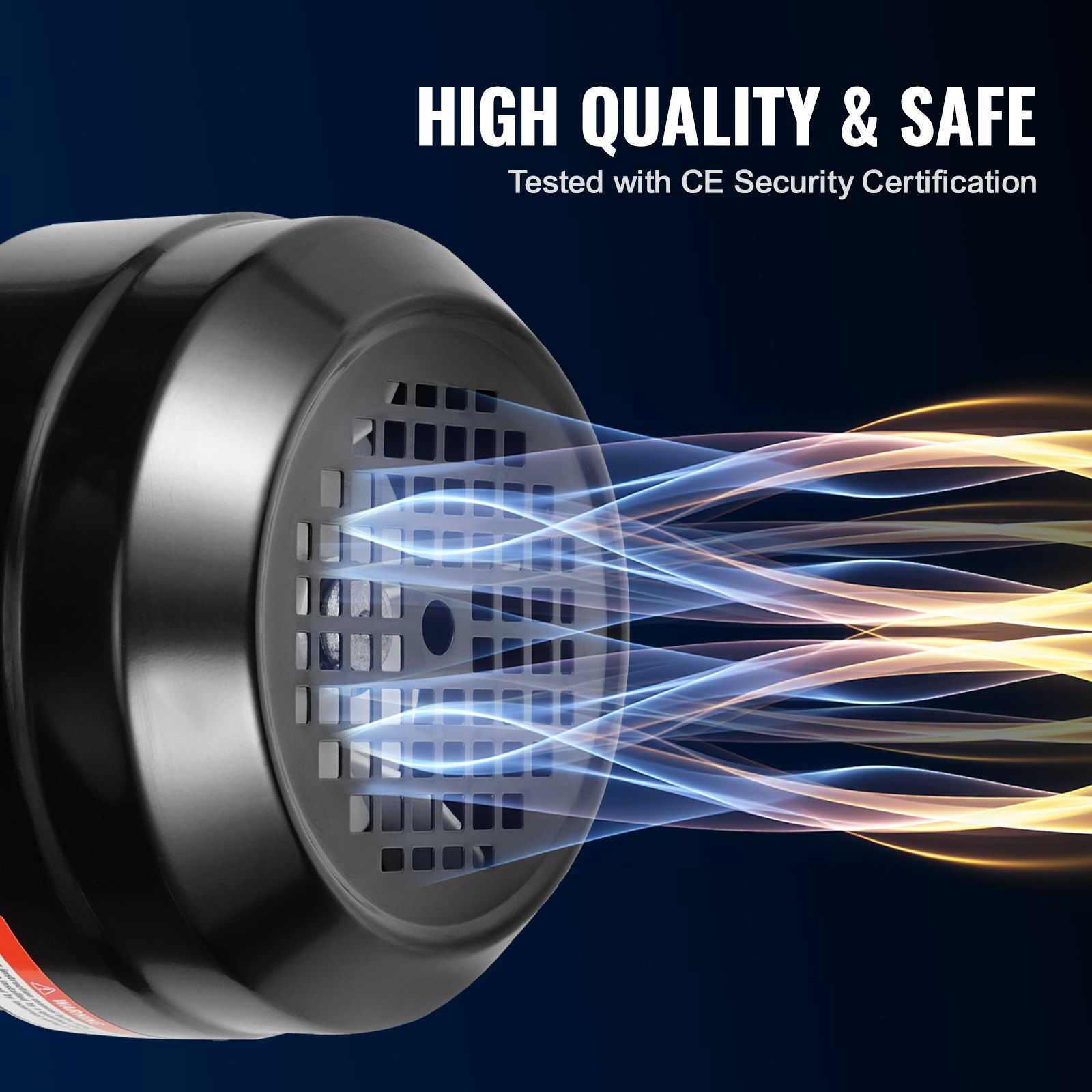

Constructed with a heavy-duty rolled steel shell, the general purpose motor is resistant to rust and corrosion, ensuring long-lasting durability.
Our general purpose AC motor is perfect for a wide range of applications, including water pumps, sprayers, harvesters, and grinders. Whether for agricultural or industrial use, this motor meets your needs and supports your projects with dependable performance.
Product guides and documents
User manual-en (PDF) Review

Questions and Answers (4)

4 Questions
Ask a Question
Will this motor run on a standard Australian 240volt/10 amp powerpoint
Answer This Question
This motor will run on a standard Australian 240volt/10 amp power point.
By vevor
Helpful ( 0 )
as shipped what is wiring configuration? delta or star?
Answer This Question
When leaving the factory, it is 460V star connection.
By vevor
Helpful ( 0 )
will this motor take VFD?
Answer This Question
No. This is not a permanent magnet inverter motor, it's a normal AC asynchronous motor.
By vevor
Helpful ( 0 )
Is this a 4 post motor? Do you have any suitable motor?
Answer This Question
No, it is a two-stage motor.
By vevor
Helpful ( 0 )
