Features & Details

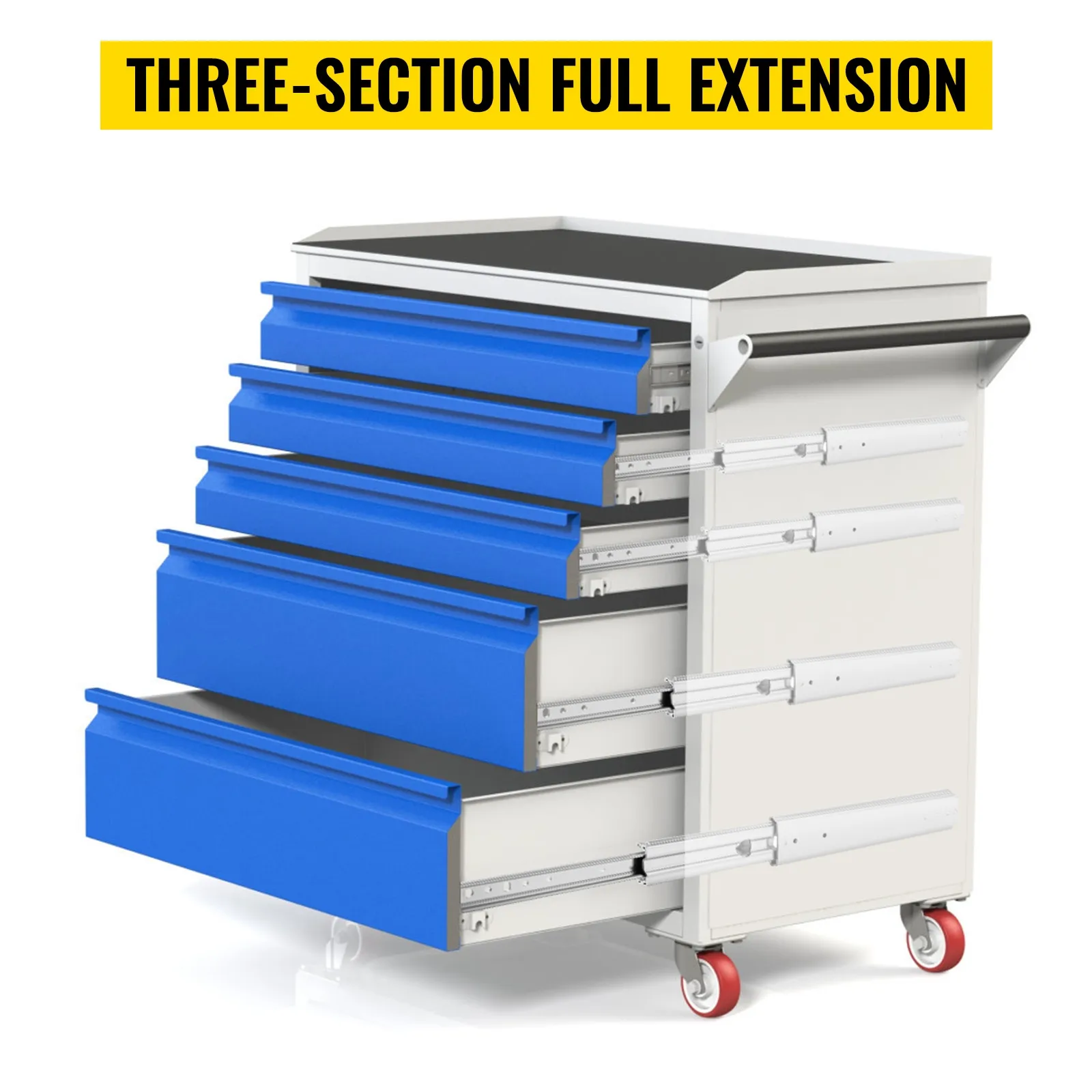

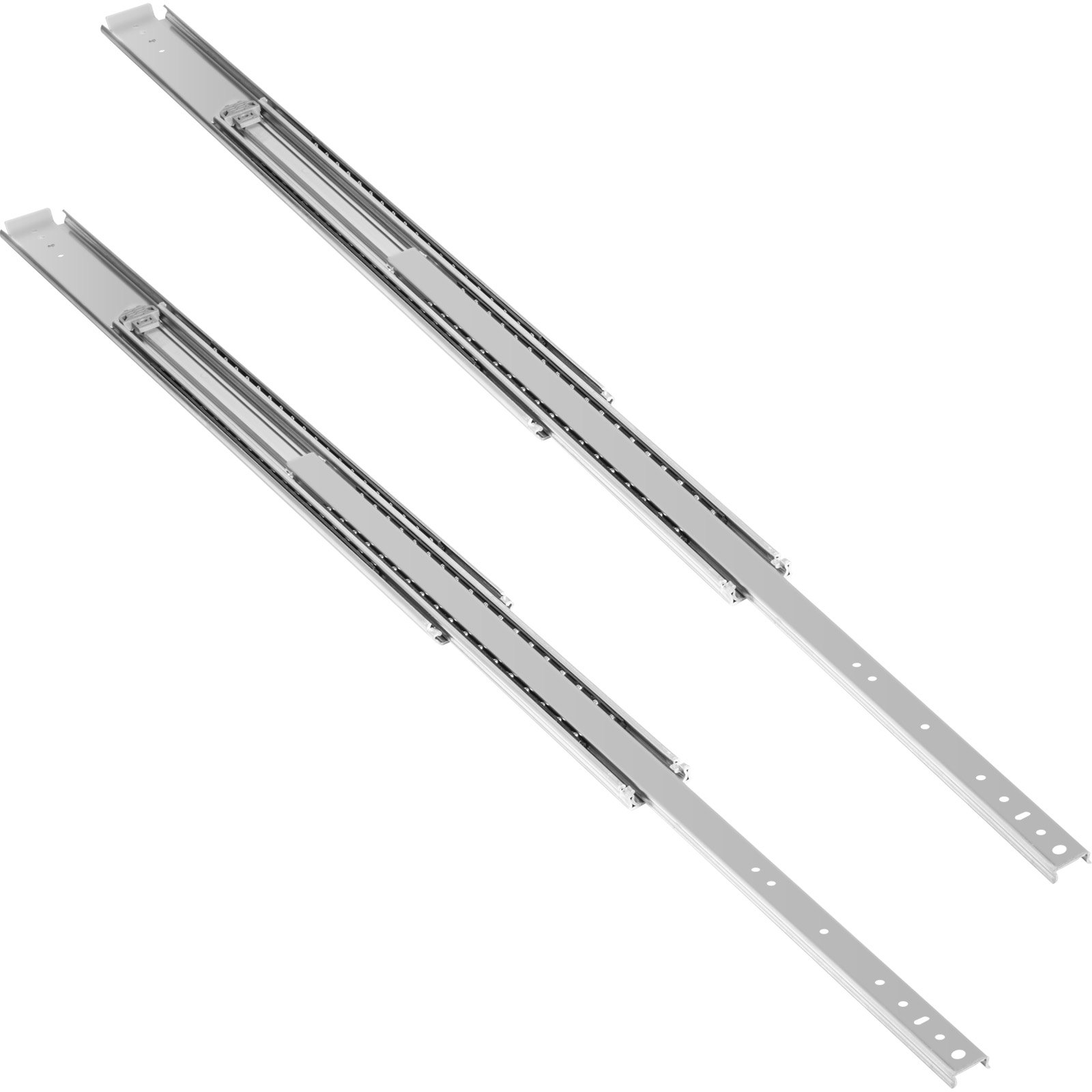

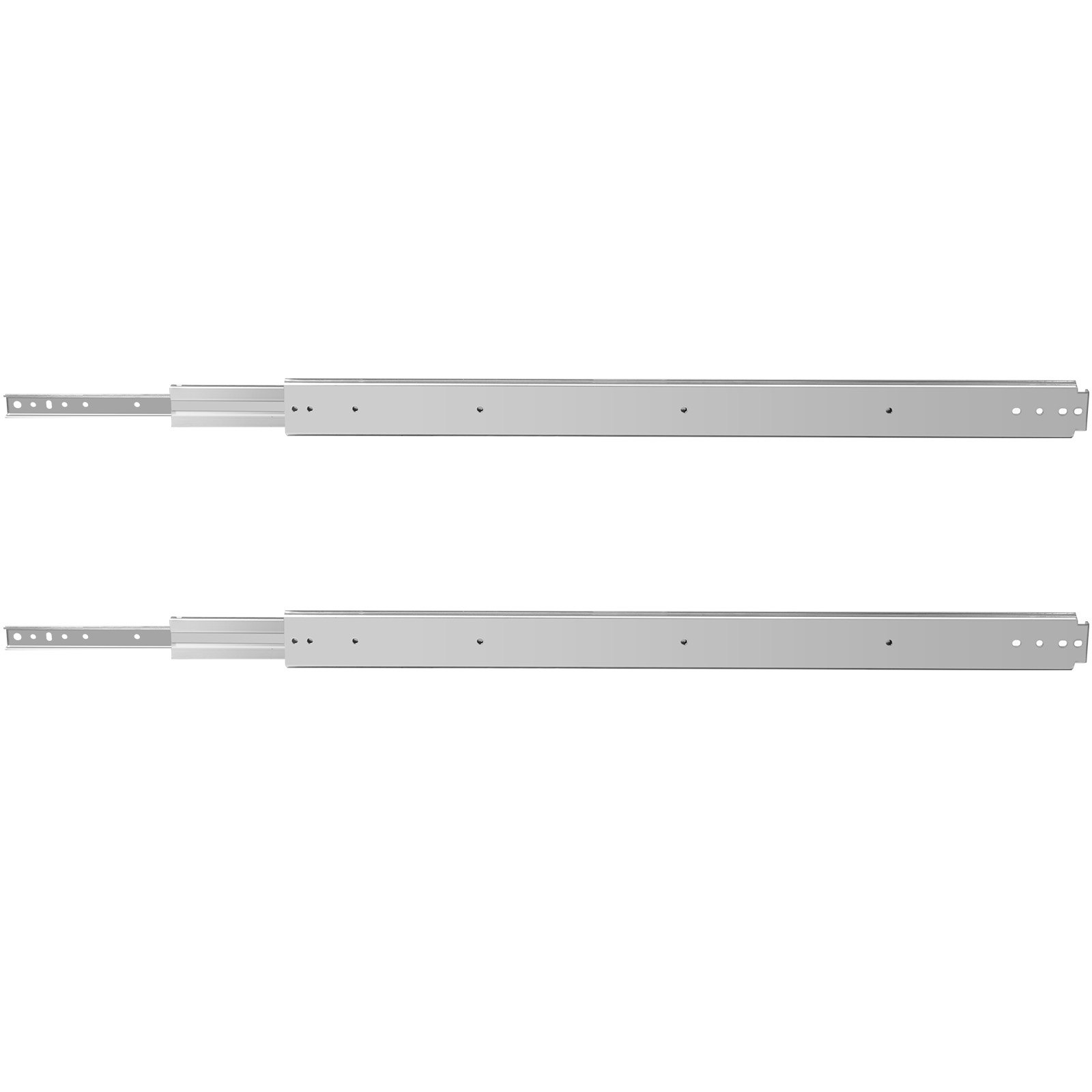

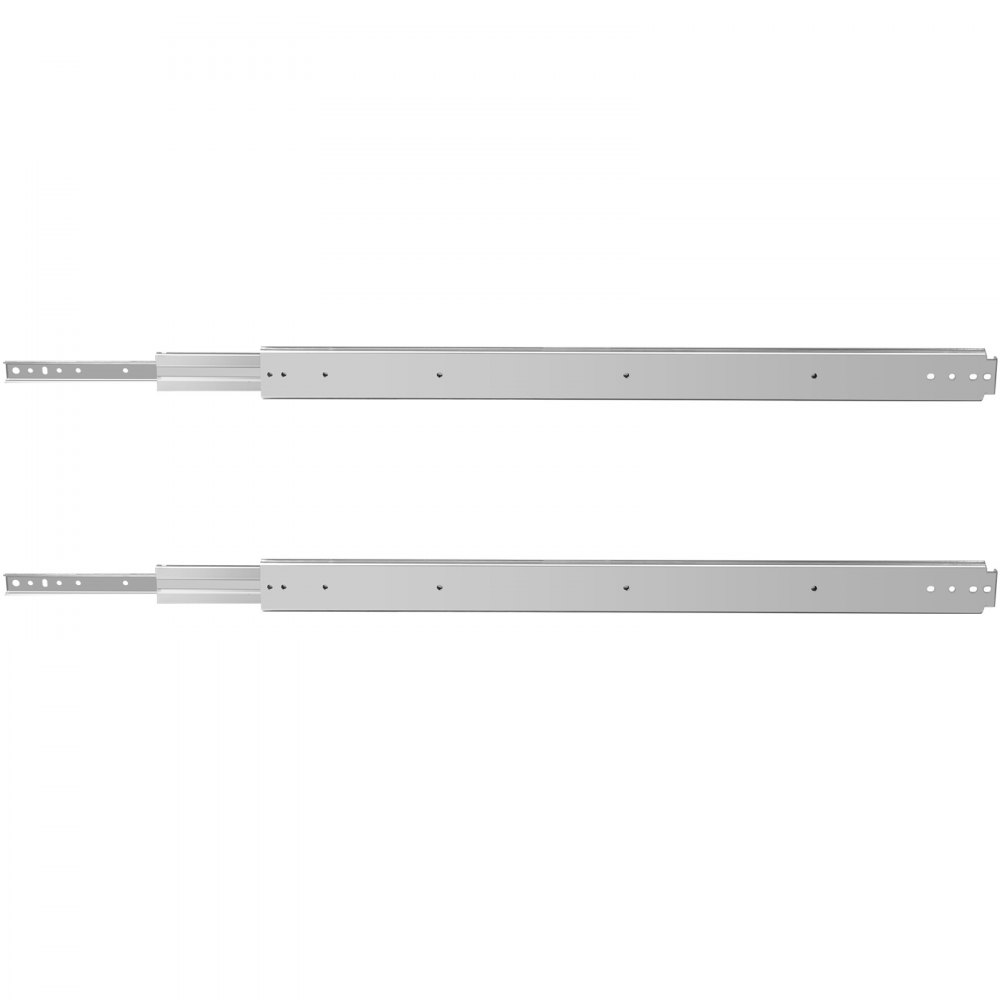

• Three-Section Slides: 1 pair of 52"/ 132.08 cm in length, 3"/ 7.6 cm in width, 0.75"/ 1.9 cm in thickness. The fold and full extension drawer slides consist of three sections and can be fully pulled out to utilize the drawer's space (Actual size 52", extended size 104"/ 264.16 cm). And the slide drawers are also designed to ensure your drawers smoothly pushing and pulling.
• Steel & 500 lbs Bearing: The heavy-duty drawer slides are constructed with thick cold rolled steel (CRS) plates for a strong bearing capacity of 500 lbs. Therefore, they are tough enough to bear the heavy wooden or iron things you need. In addition, zinc is plated on the surface to stay rust-proof, abrasion-proof for long-term service.

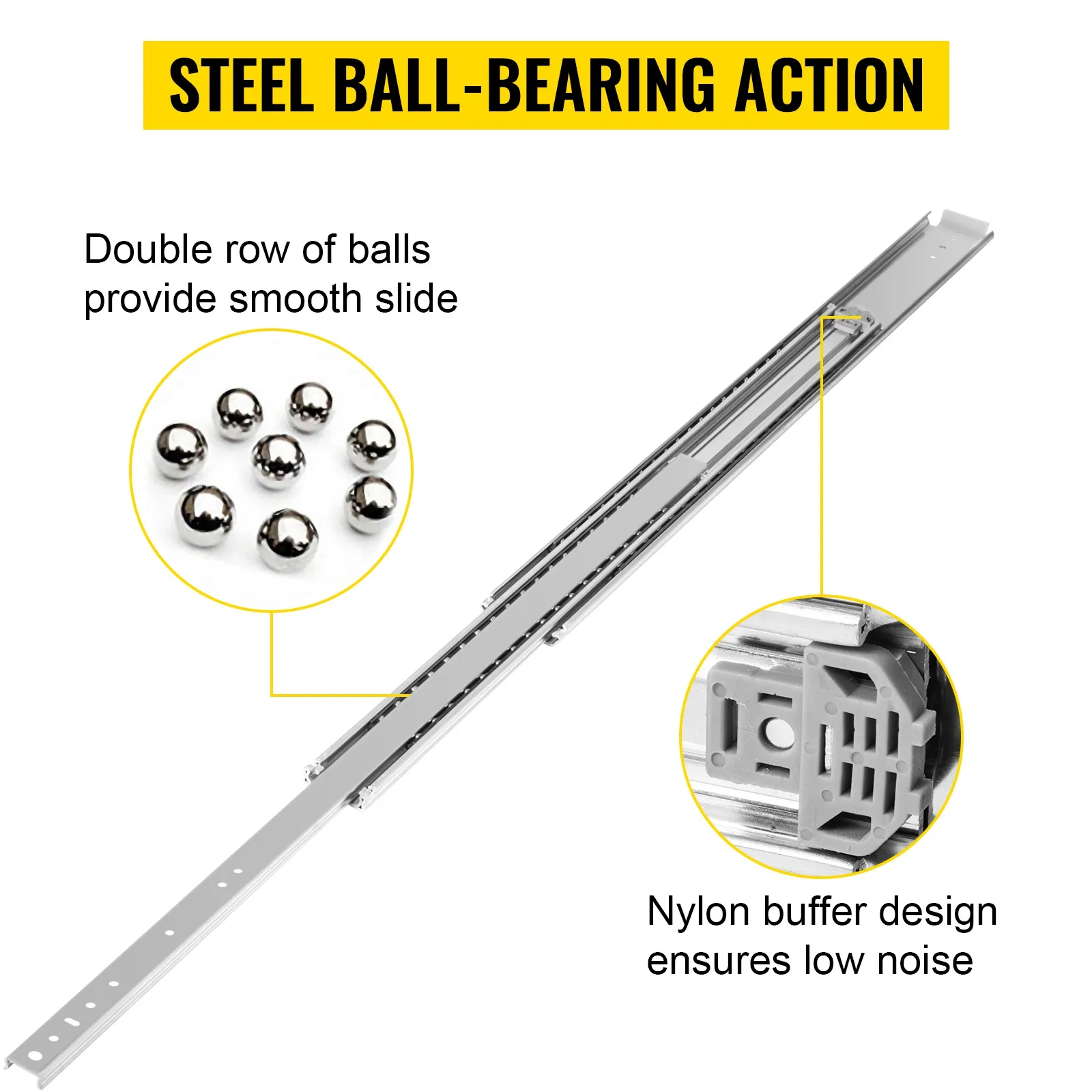

• Smooth & Quite to Slide: Drawer hardware slides are equipped with ball-bearing action to create a quiet environment for your family and work. The row of balls on the two sides of sliding and the nylon buffer design on the second section, which aim to make less noise and friction at closing and open the drawer.
• Choose the Right Size: How to choose the right size of slides for your drawer? Install distance (each side): 0.76"/19.5 mm. Please measure the length of the drawer without the frame board at first. The length of slides should be less than or equal to drawer depth minus 4 mm.
• Installation & Usage: The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All included screws and bolts are easy and quick to install. They are mainly used for industrial, commercial equipment, factory machines, office, vehicle, etc.

Frequently Bought Together

Videos for this product

About this item

Product specification

Model

VV-CTDG-500B WS 52YC

Color

Sliver

Material

Cold Rolled Steel

Finish

Zinc Plated

Load Capacity

500 lbs/ 225 kg

Fully Pull-Out Length

104"/ 264.16 cm

Fold Product Size

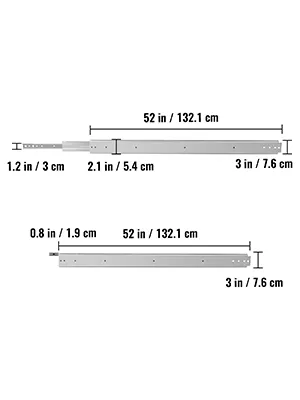

52 x 3 x 0.75"/ 132.08 x 7.6 x 1.9 cm

Inner Size

52 x 1.2"/ 132.08 x 3 cm (L x W)

Middle Size

52 x 2.1"/ 132.08 x 5.4 cm (L x W)

Outer Size

52 x 3"/ 132.08 x 7.6 cm (L x W)

Description

Full Extension Slide Drawers

The cold-rolled steel drawer slides are capable of high hardness with excellent stability and durability. In addition, you will be benefited from the ultra-secure, well-suited, and low-noise device with a detailed guide and handy screws. The universal places include cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.

• Three-Section Slides
• Steel & 500 lbs Bearing
• Smooth & Quite to Slide
• Choose the Right Size

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

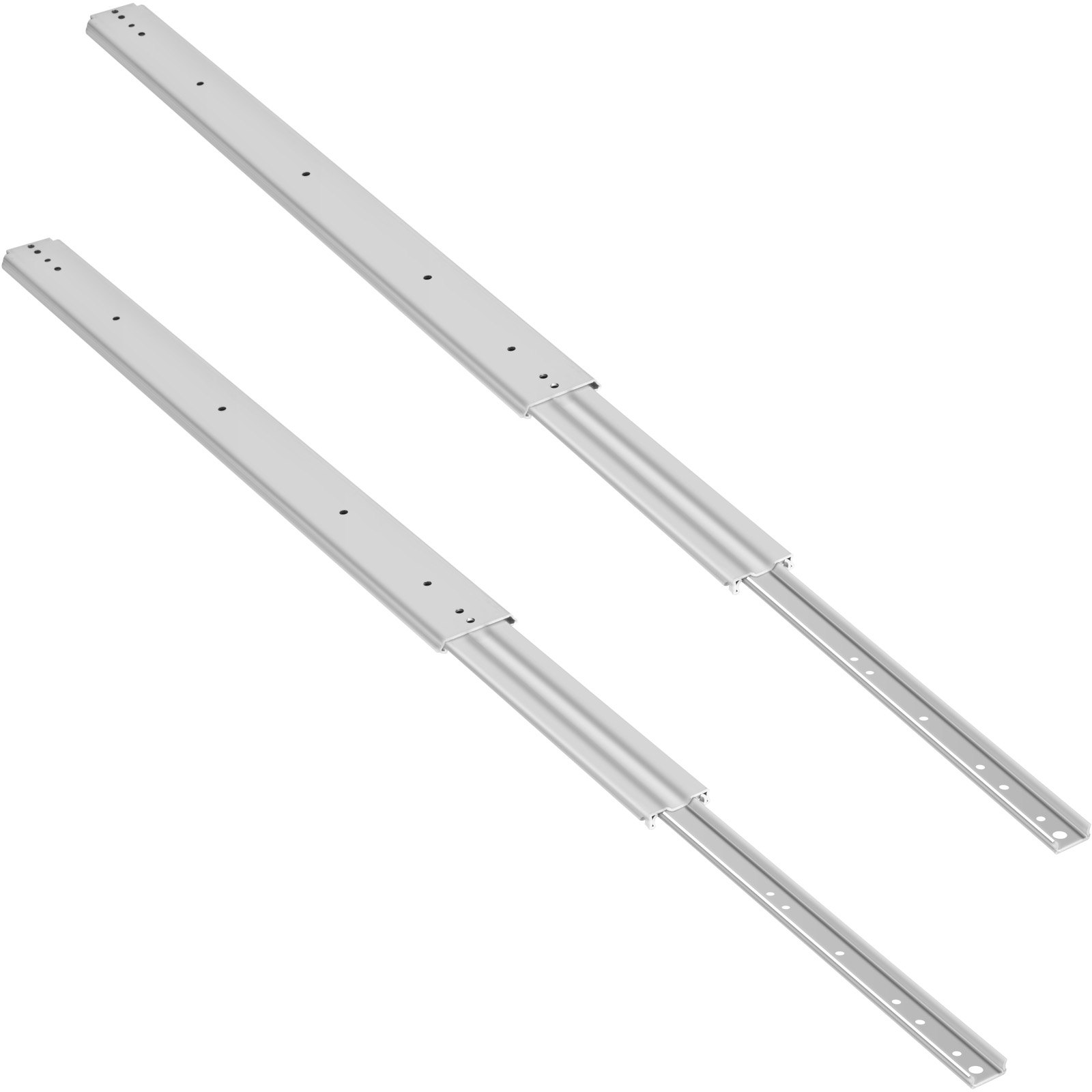

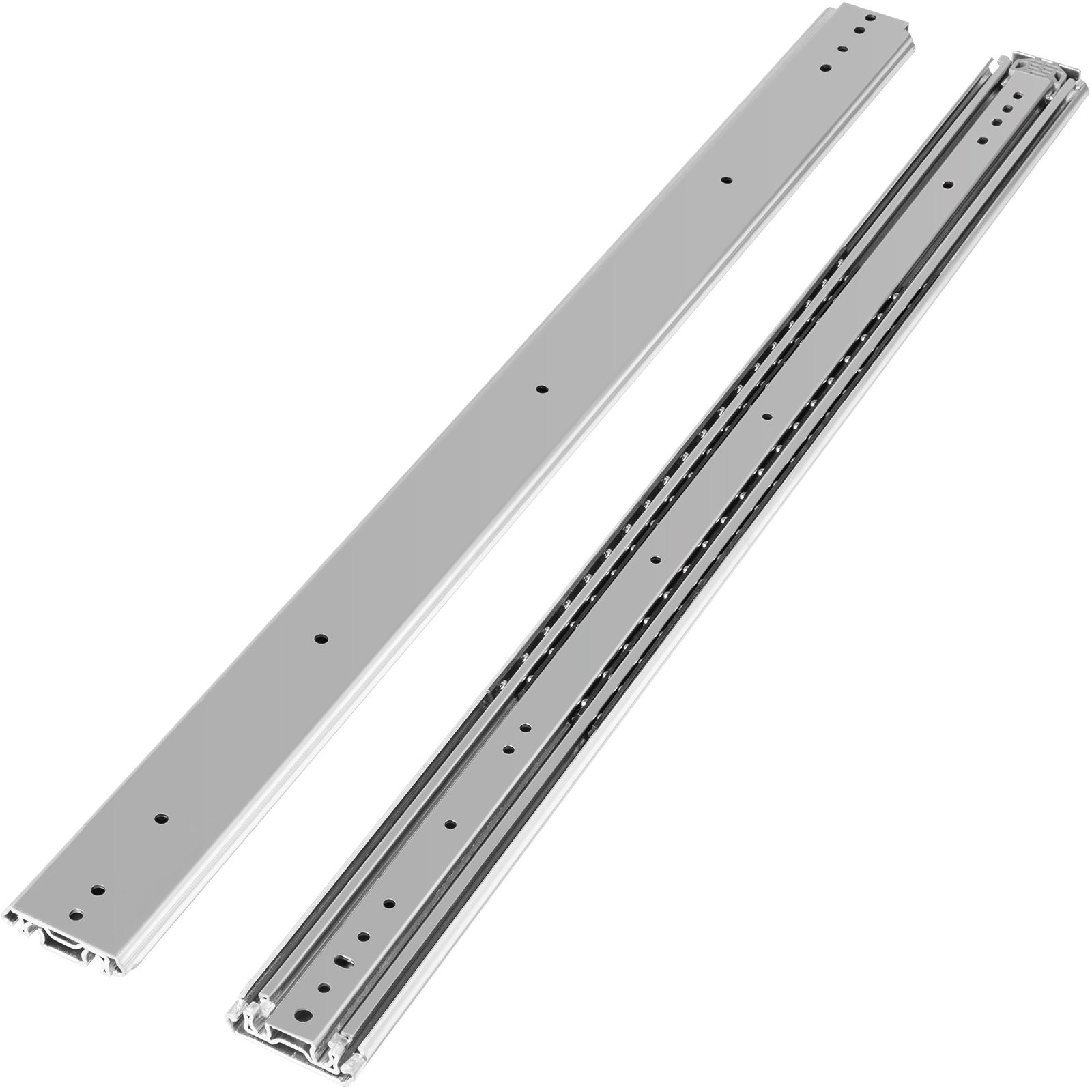

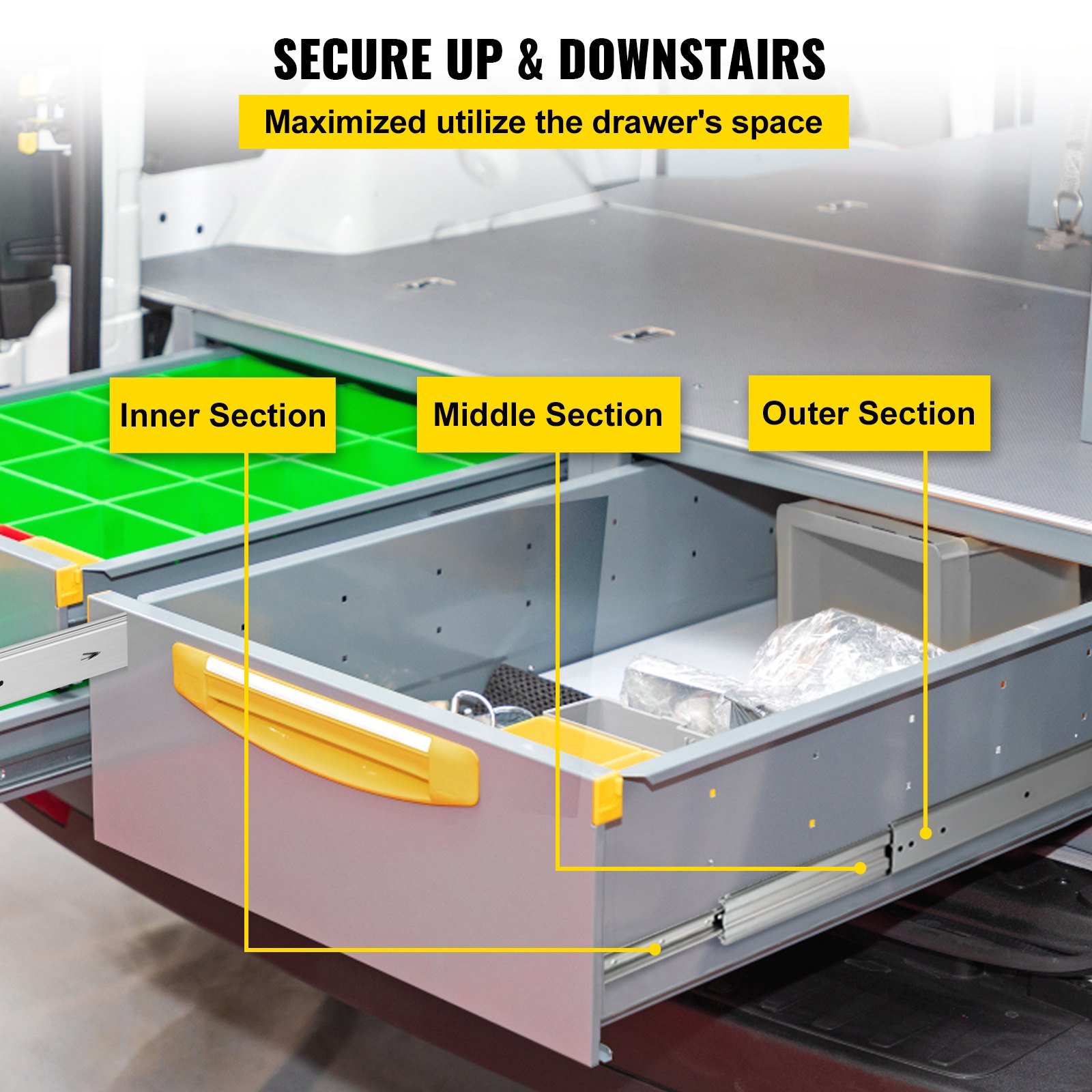

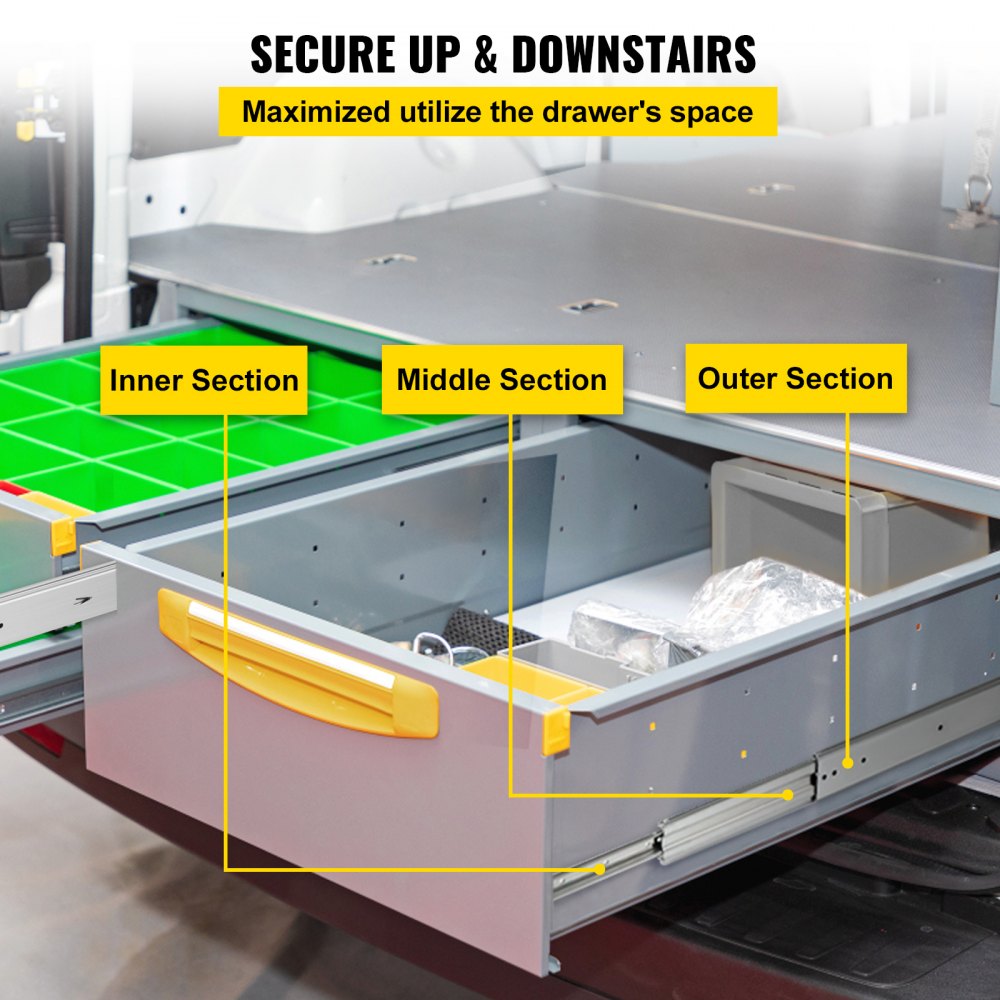

3-Fold Slide Drawers

Firstly, the drawers pull out the middle channels; the outer channel continues, and the inner channel lasts. The three-section slide drawers designs are for smooth slides.

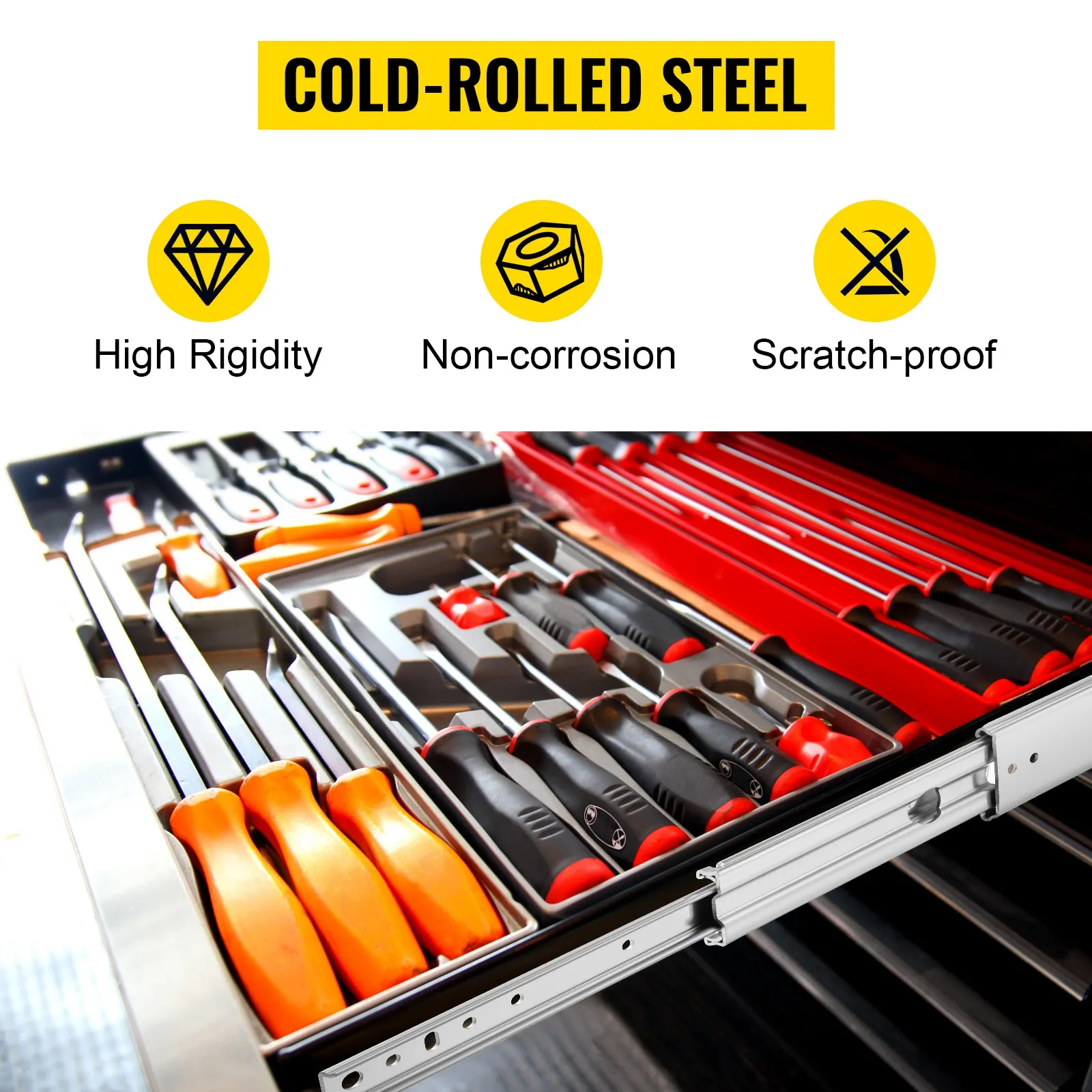

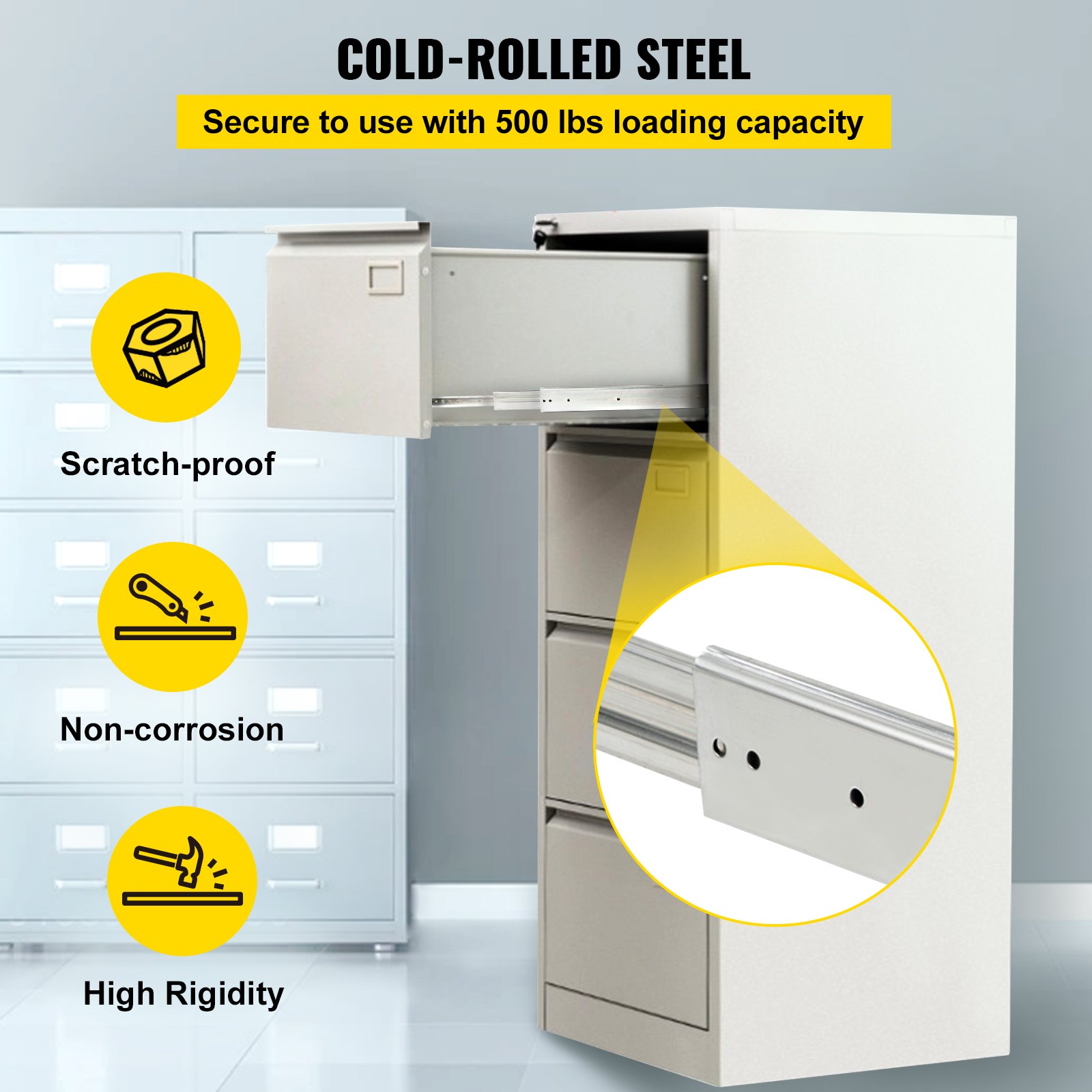

Cold Rolled Steel

Made from high-grade cold-rolled steel that is zinc plated can effectively keep the drawer glides and slides scratch-proof, abrasion-proof, and away from corrosion and rust.

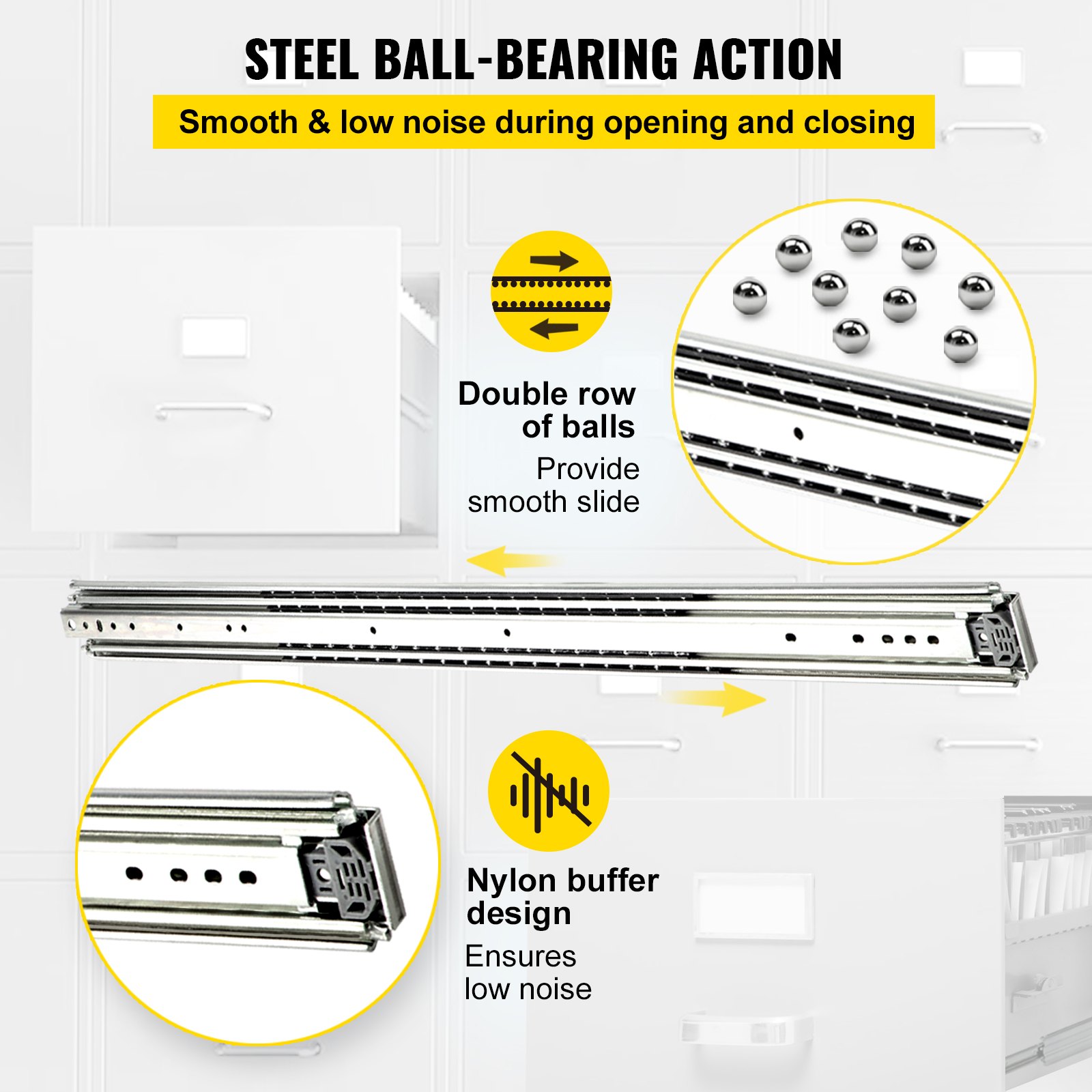

Low Noise Design Details

Nylon buffer can reduce the direct contact between the outer and the inner channel. In addition, the embedded steel balls make the smooth sliding and quiet.

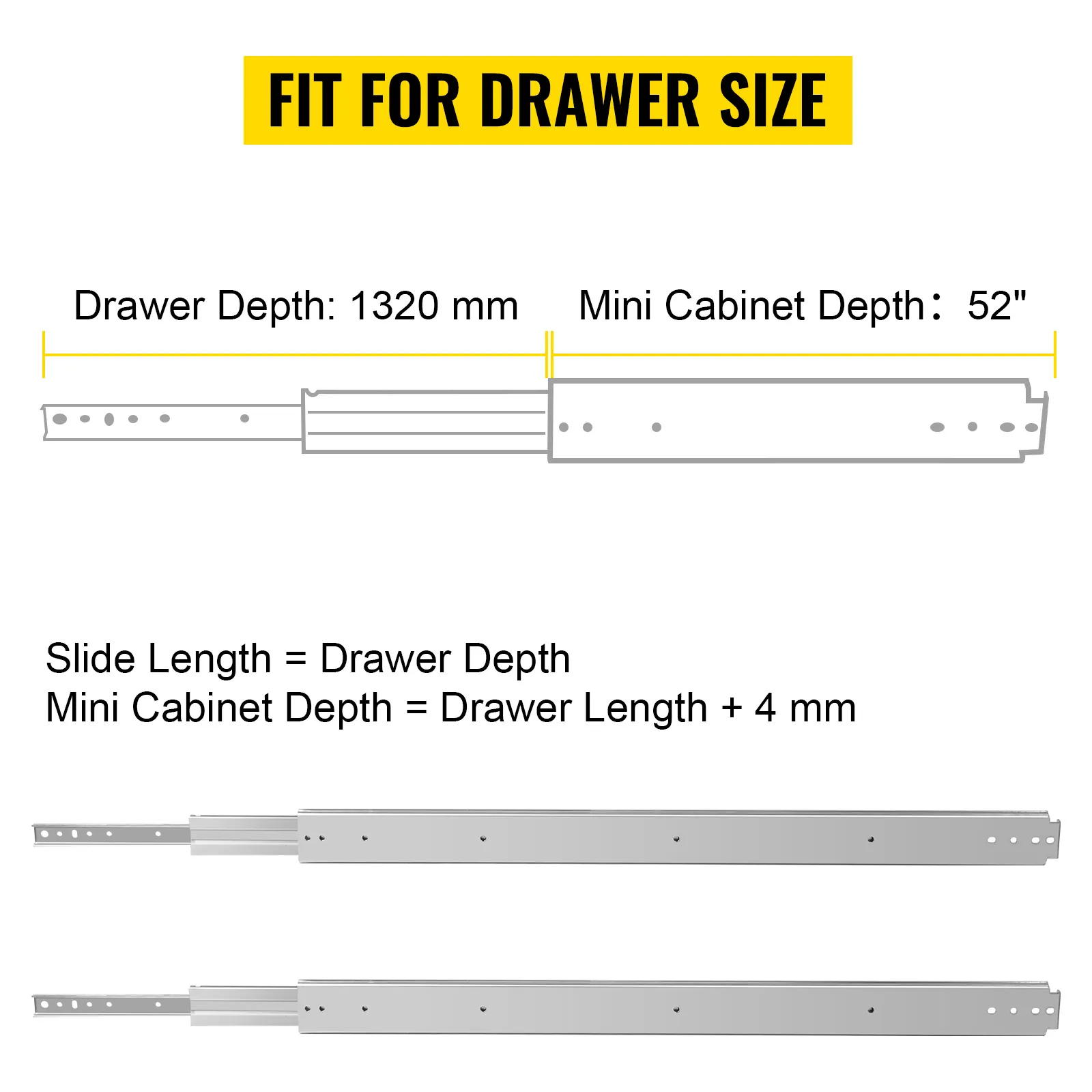

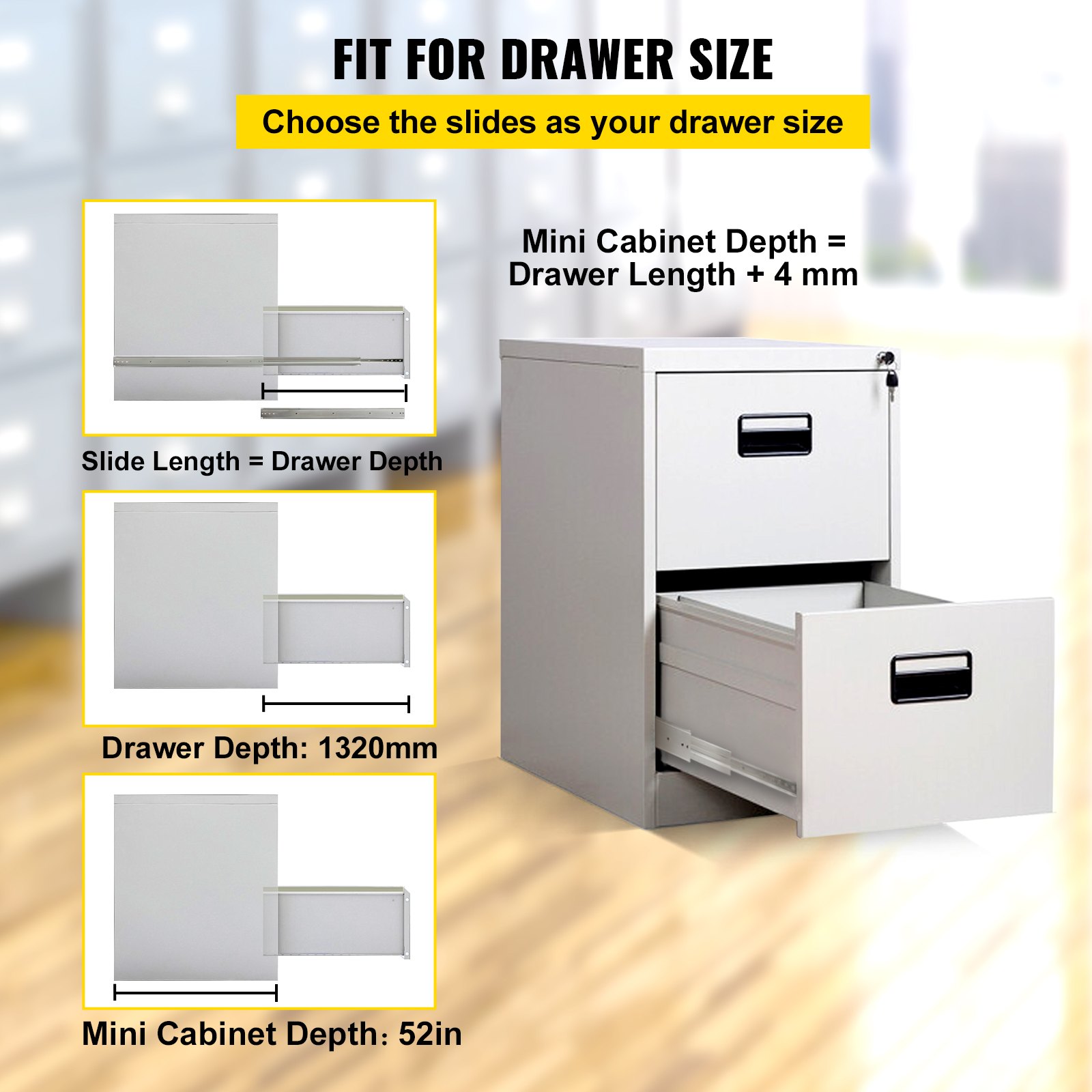

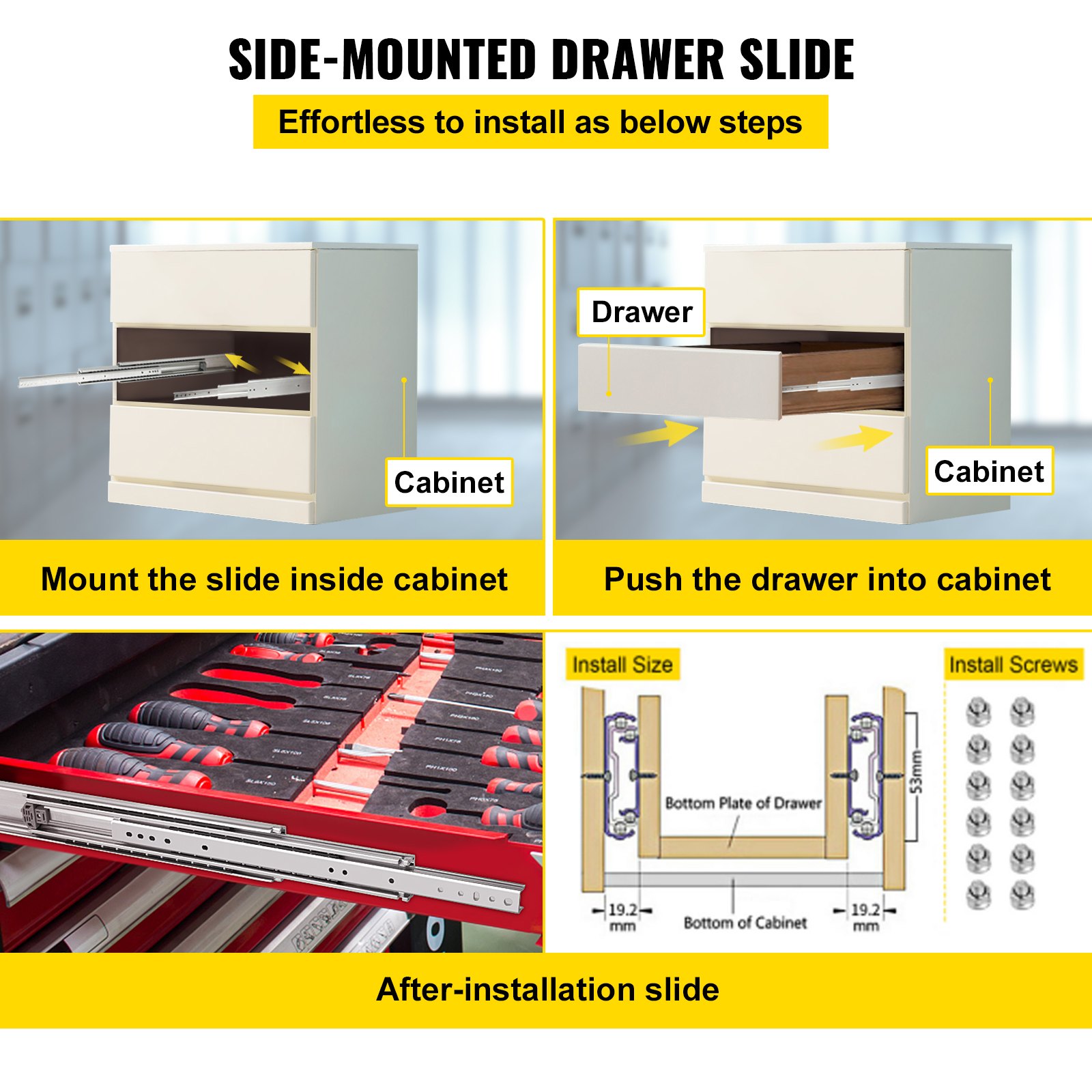

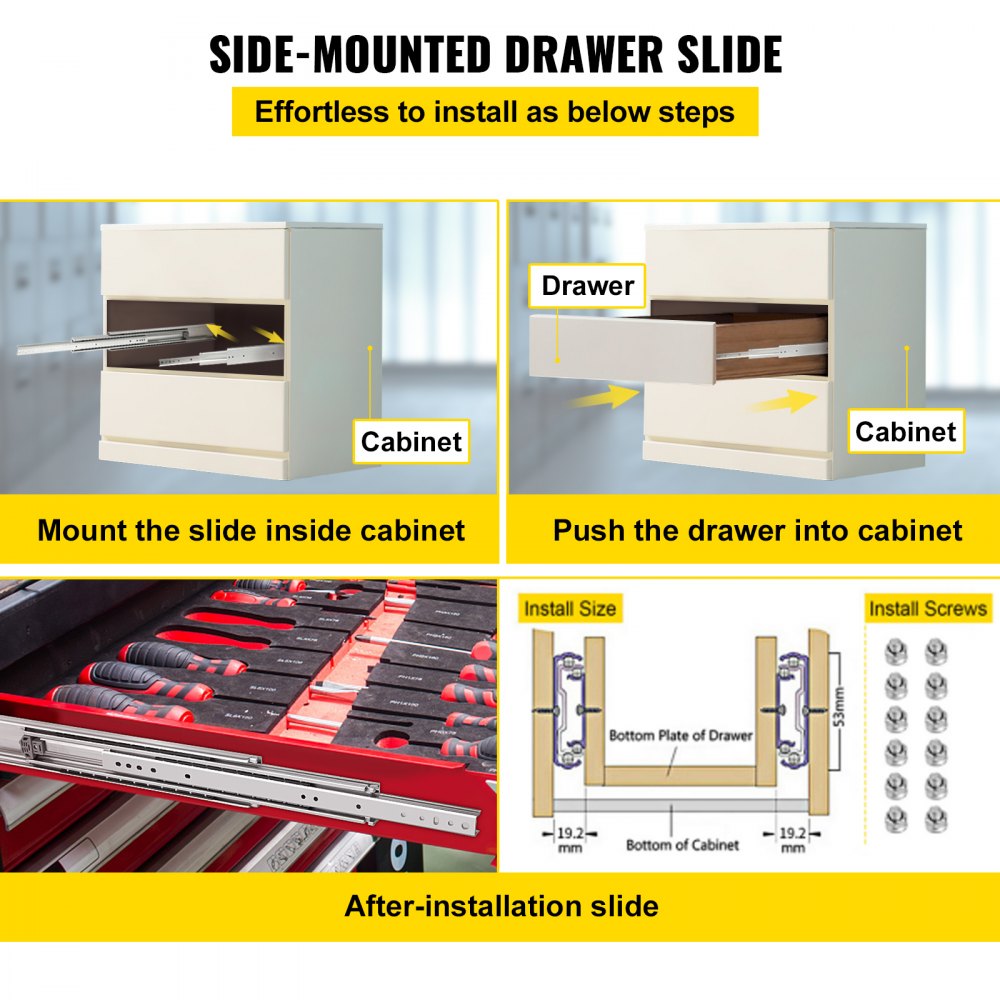

Fit for Size

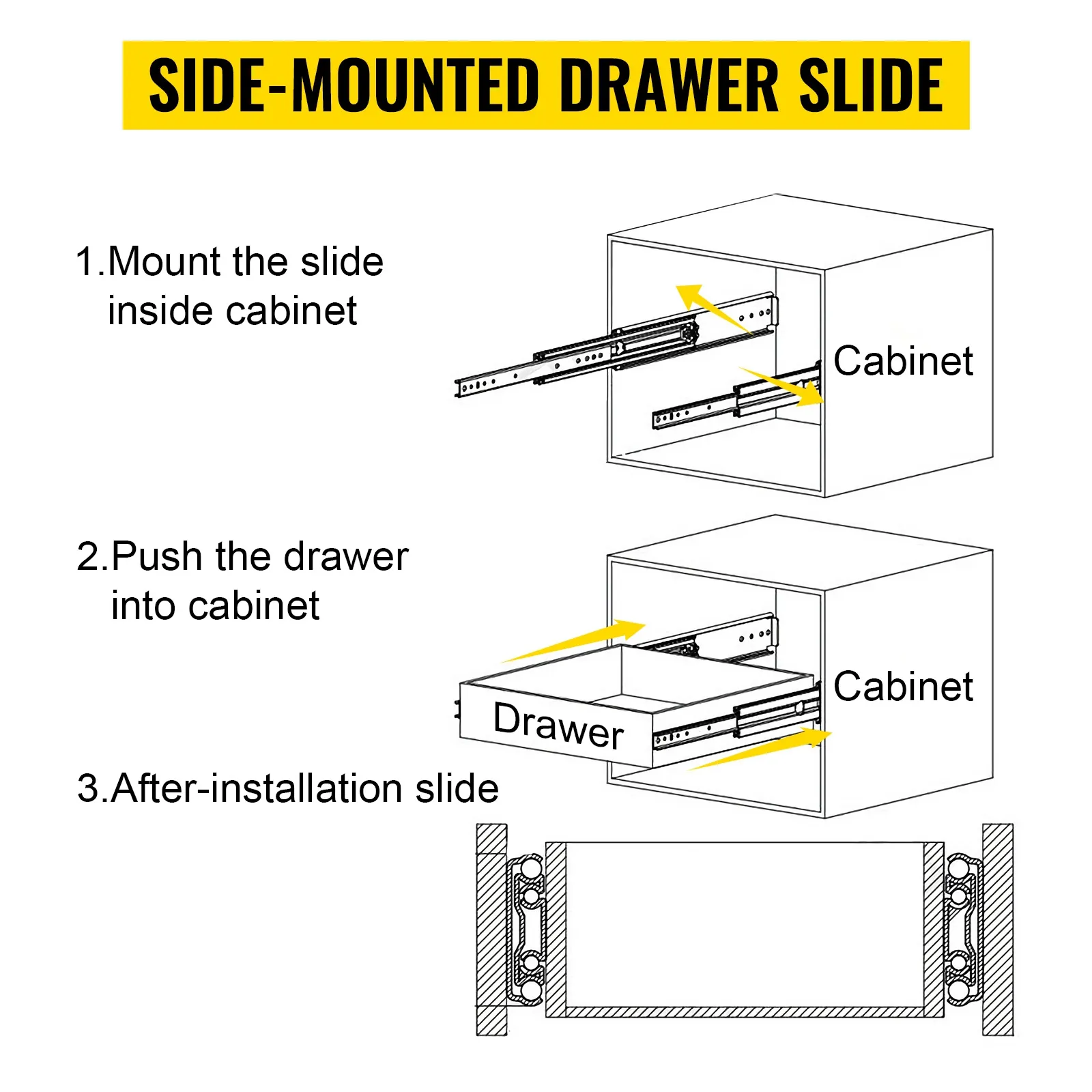

Slide length can be equal to drawer depth, and the minimized cabinet depth can be drawer length plus 4 mm. Please note that the side-mounted slide rails on both sides should be parallel.

Easy & Quick Assemble

It would be better to tighten the bolt between the side and the drawer from outside to inside. Then, the drawer and cabinet from inside to outside.

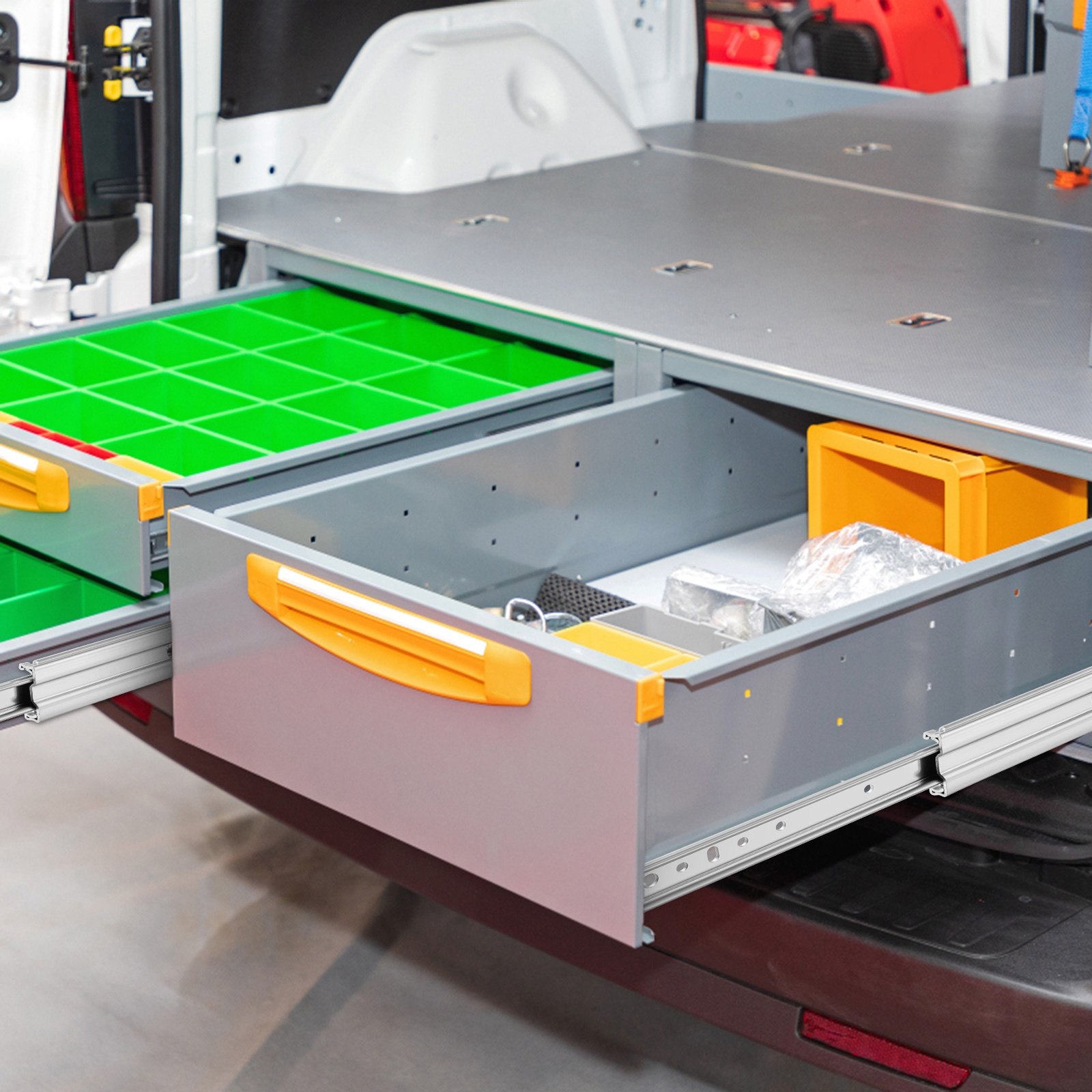

Wide Application

The wood center mount drawer slides are suitable for the following places, such as industrial drawers, modified car drawers, office cabinets, tool rooms, etc.

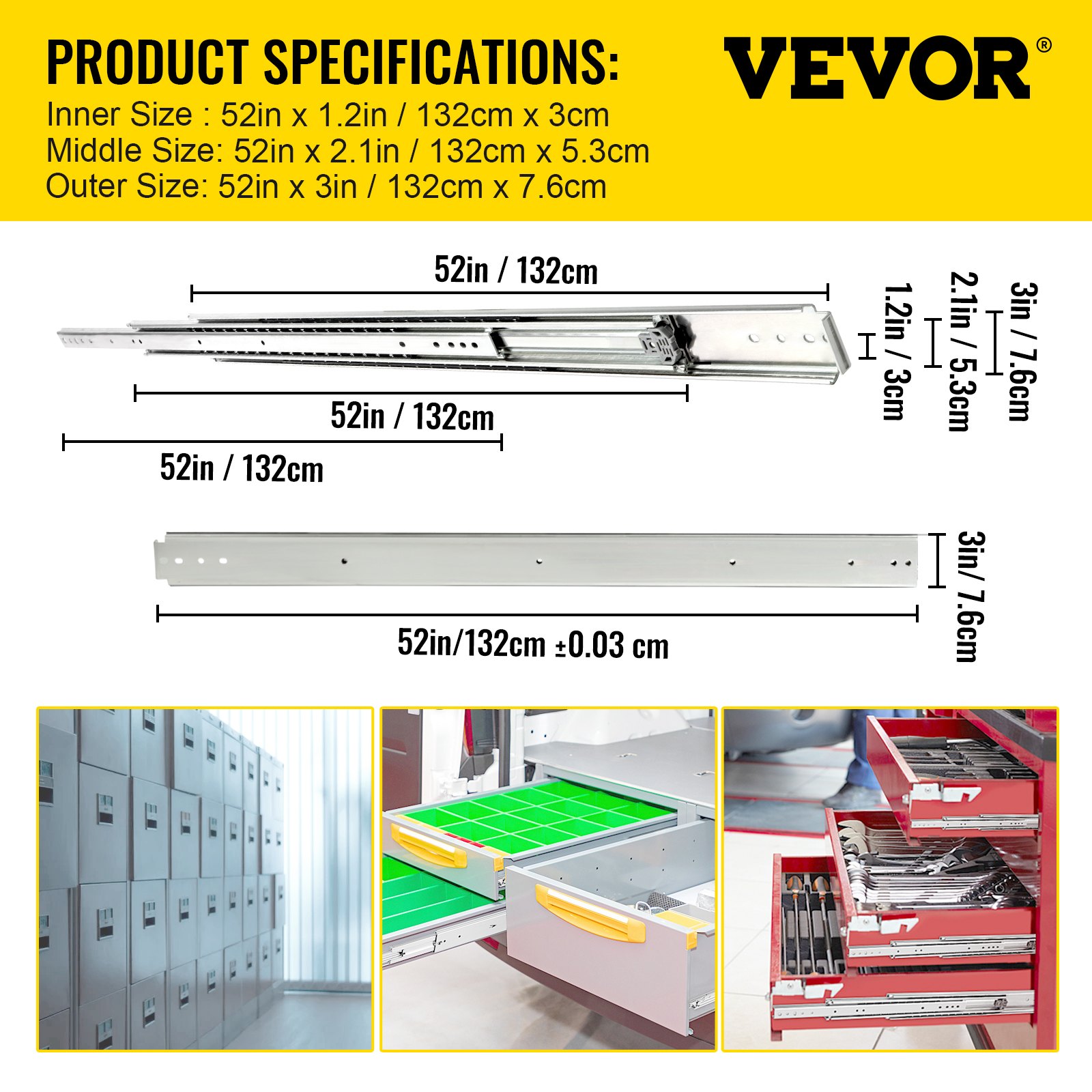

Specifications

• Model: VV-CTDG-500B WS 52YC
• Color: Sliver
• Material: Cold Rolled Steel
• Finish: Zinc Plated
• Load Capacity: 500 lbs/ 225 kg
• Fully Pull-Out Length: 104"/ 264.16 cm
• Fold Product Size: 52 x 3 x 0.75"/ 132.08 x 7.6 x 1.9 cm
• Inner Size: 52 x 1.2"/ 132.08 x 3 cm (L x W)
• Middle Size: 52 x 2.1"/ 132.08 x 5.4 cm (L x W)
• Outer Size: 52 x 3"/ 132.08 x 7.6 cm (L x W)

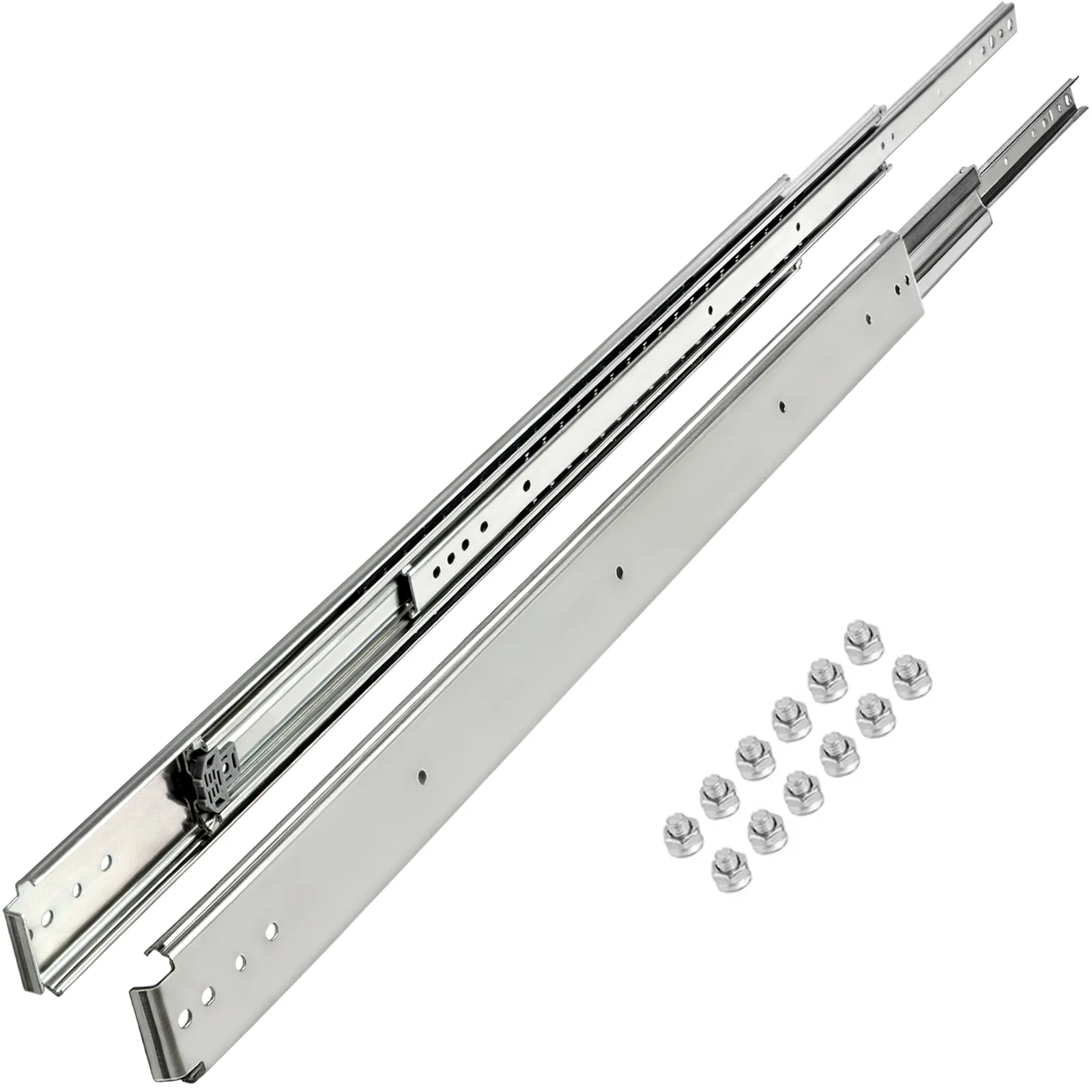

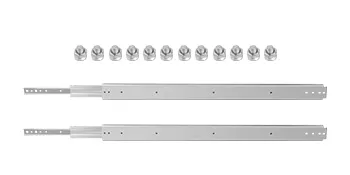

Package Content

• 2 x Drawer Slides
• 12 x M6 Screws
• 12 x M6 Screw Nuts

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

Full Extension Slide Drawers

The cold-rolled steel drawer slides are capable of high hardness with excellent stability and durability. In addition, you will be benefited from the ultra-secure, well-suited, and low-noise device with a detailed guide and handy screws. The universal places include cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.

• Three-Section Slides
• Steel & 500 lbs Bearing
• Smooth & Quite to Slide
• Choose the Right Size

3-Fold Slide Drawers

Firstly, the drawers pull out the middle channels; the outer channel continues, and the inner channel lasts. The three-section slide drawers designs are for smooth slides.

Cold Rolled Steel

Made from high-grade cold-rolled steel that is zinc plated can effectively keep the drawer glides and slides scratch-proof, abrasion-proof, and away from corrosion and rust.

Low Noise Design Details

Nylon buffer can reduce the direct contact between the outer and the inner channel. In addition, the embedded steel balls make the smooth sliding and quiet.

Fit for Size

Slide length can be equal to drawer depth, and the minimized cabinet depth can be drawer length plus 4 mm. Please note that the side-mounted slide rails on both sides should be parallel.

Easy & Quick Assemble

It would be better to tighten the bolt between the side and the drawer from outside to inside. Then, the drawer and cabinet from inside to outside.

Wide Application

The wood center mount drawer slides are suitable for the following places, such as industrial drawers, modified car drawers, office cabinets, tool rooms, etc.

Package Content

• 2 x Drawer Slides
• 12 x M6 Screws
• 12 x M6 Screw Nuts

Specifications

• Model: VV-CTDG-500B WS 52YC
• Color: Sliver
• Material: Cold Rolled Steel
• Finish: Zinc Plated
• Load Capacity: 500 lbs/ 225 kg
• Fully Pull-Out Length: 104"/ 264.16 cm
• Fold Product Size: 52 x 3 x 0.75"/ 132.08 x 7.6 x 1.9 cm
• Inner Size: 52 x 1.2"/ 132.08 x 3 cm (L x W)
• Middle Size: 52 x 2.1"/ 132.08 x 5.4 cm (L x W)
• Outer Size: 52 x 3"/ 132.08 x 7.6 cm (L x W)
