Features & Details
- 【FULL CLOSED-LOOP CONTROL】- Stepping closed-loop circuit system, no loss of movement synchronization. Motor runs smoothly, vibrates mildly, and improves acceleration deceleration dynamic performance.
- 【PROTECTIVE FUNCTION】- Stepper motor driver supports over current protection, over voltage protection. DC Resistance(±10% ): 0.9Ω. Insulation Class B.
- 【MAIN PARAMETERS】- Motor has torque 3N.m, continuous current 4.2A, shaft 8mm. Shaft Length: 2cm(0.79"), Shaft Width: 0.8cm(0.31"). Voltage: 24-60VDC, DC Resistance(±10% ): 0.9Ω. Encoder Resolution: 1000 Line, Motor Size: 12 x 6 x 7cm(4.72" x 2.36" x 2.76").
- 【HIGH SPEED RESPONSE】- Applied new control technology and vector control technology to prevent out-of-control and ensure product accuracy. Especially for short-distance, short-time, fast start-stop and zero-speed stable stop.
- 【VARIOUS APPLICATION】- Durable material frame for long life using with desktop CNC routers, small CNC mills, laser cutters/engravers, dental mills, electronic assembly &inspection equipments, labeling equipments...
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 5.0
All reviews are from verified purchases
See all 2 reviews
About this item
Product specification
- Voltage
- 24-60VDC
- Step Angle
- 1.8
- DC Resistance(±10% )
- 0.9Ω
- Phase Inductance(±20%)
- 3.8mH
- Insulation Resistance
- 100MOhm(500VDC)
- Insulation Class B
- Encoder Resolution
- 1000 Line
- Weight
- 2.0Kg
Description

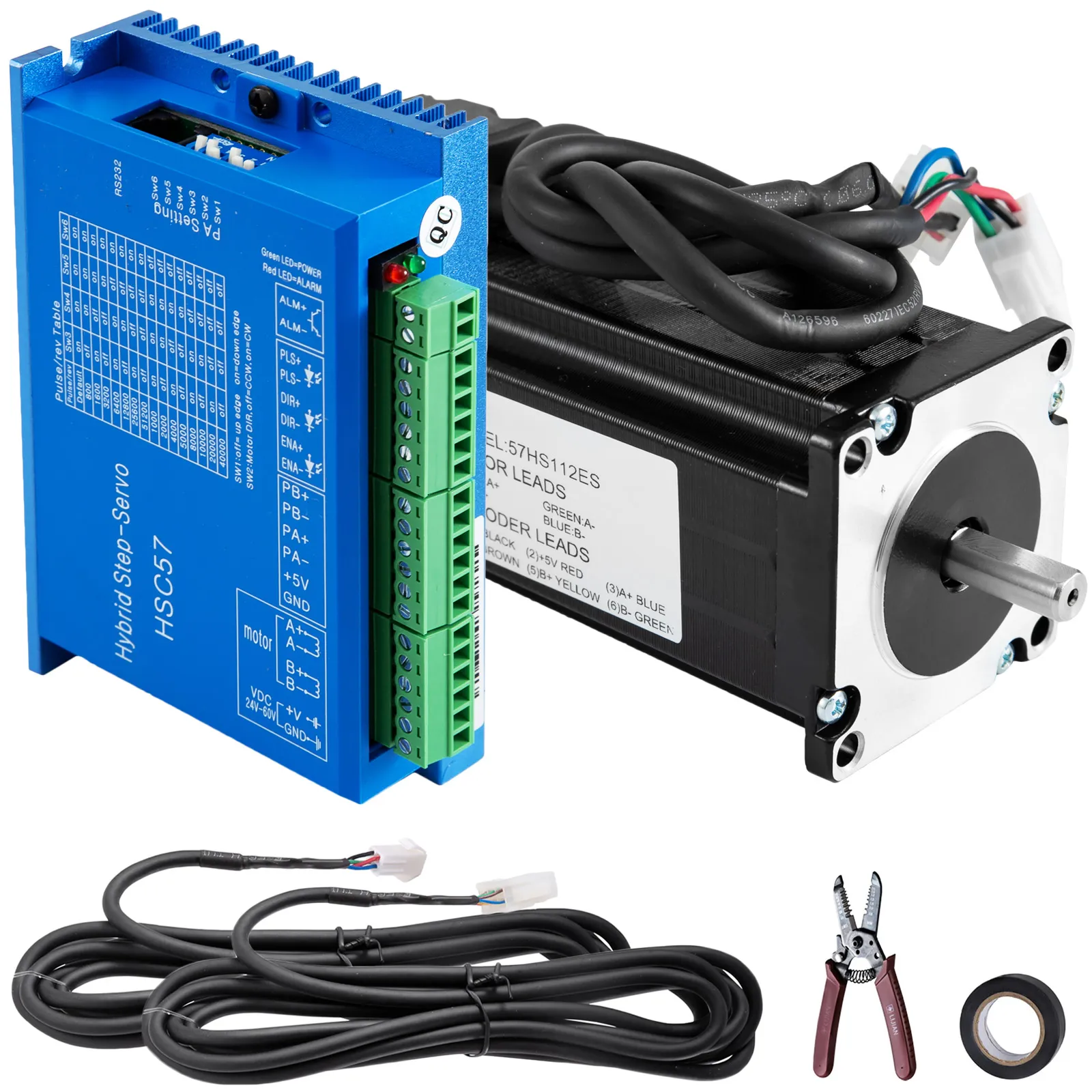

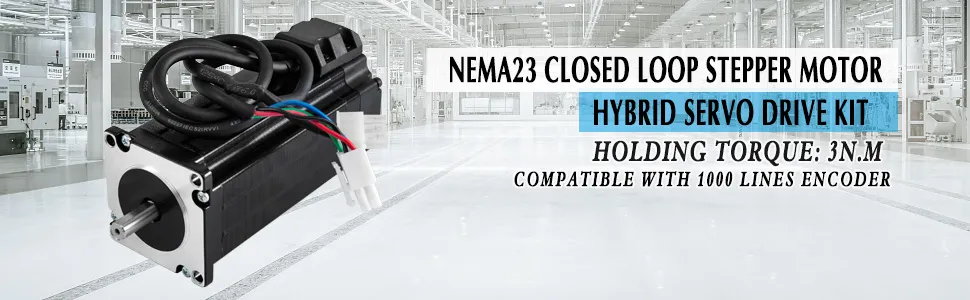

Nema23 3N.m Closed Loop Stepper Motor Hybrid Servo Drive Kit
This two-phase hybrid stepper motor servo driver adopts new control technology and closed-loop control technology, preventing loss of movement synchronization and ensures accuracy. Load-based current control technology can effectively reduce temperature rise of motor and prolong motor service life. Built-in position and alarm output signal is convenient for PC monitoring and controlling. Position out-of-tolerance alarm function ensures machining equipment safe operation.
- Full Closed-loop Control
- Protective Function
- Main Parameters
- High Speed Response
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

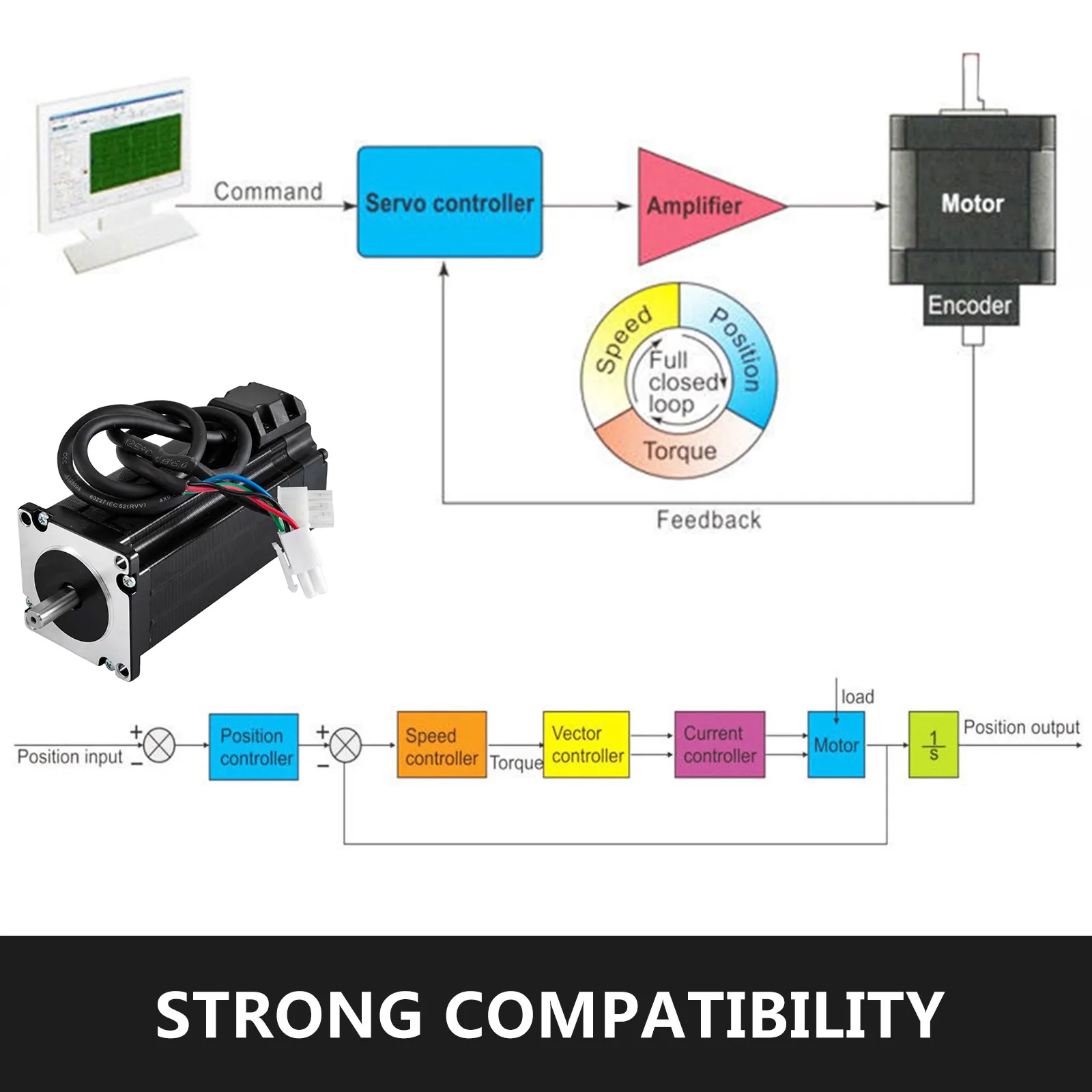

Strong Compatibility
Full closed loop control, compatible with 1000 lines encoder. No adjustment in general application. Without losing step, high accuracy in position, close to 100% of the torque output.

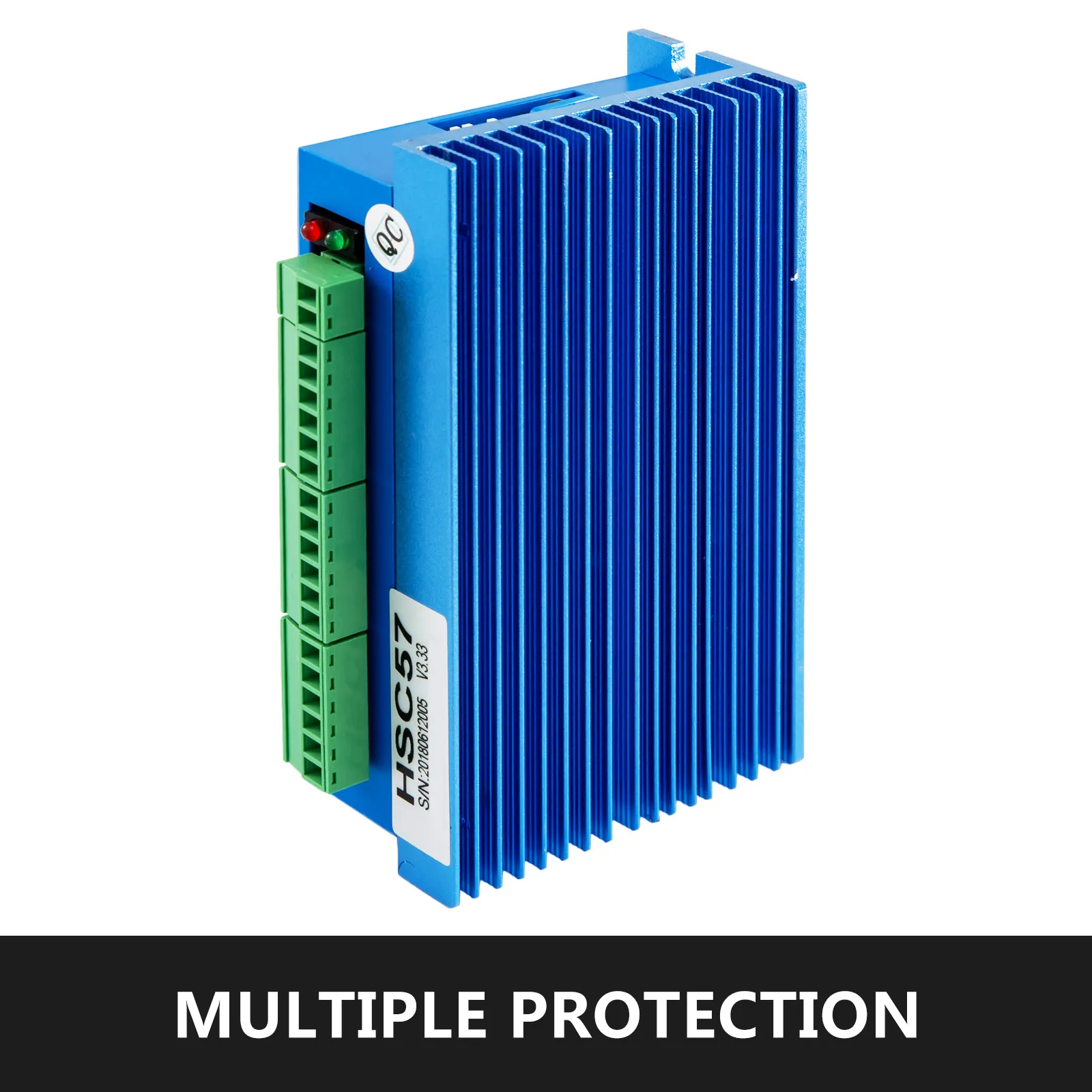

Multiple Protection
Protective function covers over voltage, over current, tracking error and over-proof. Insulation Class: B.

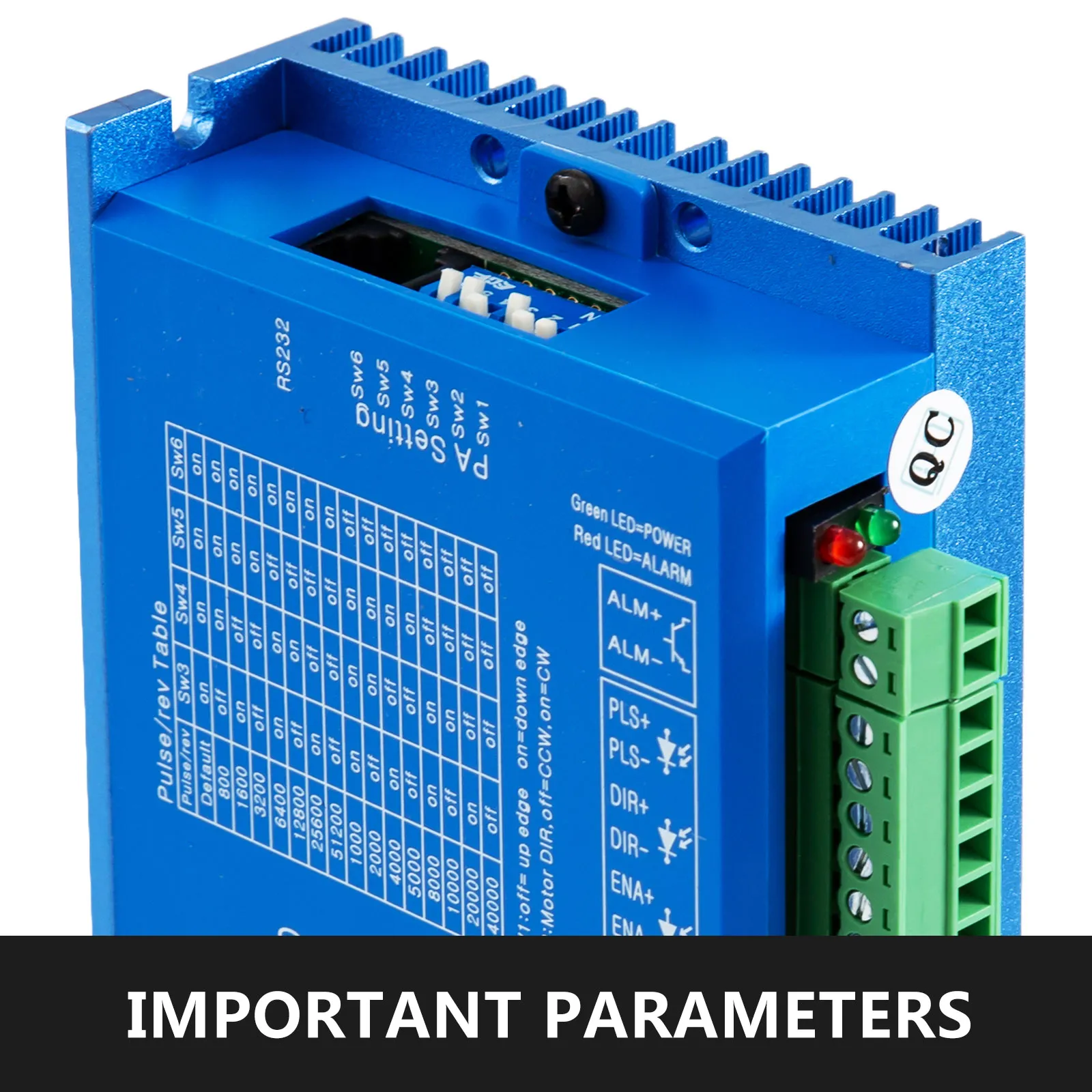

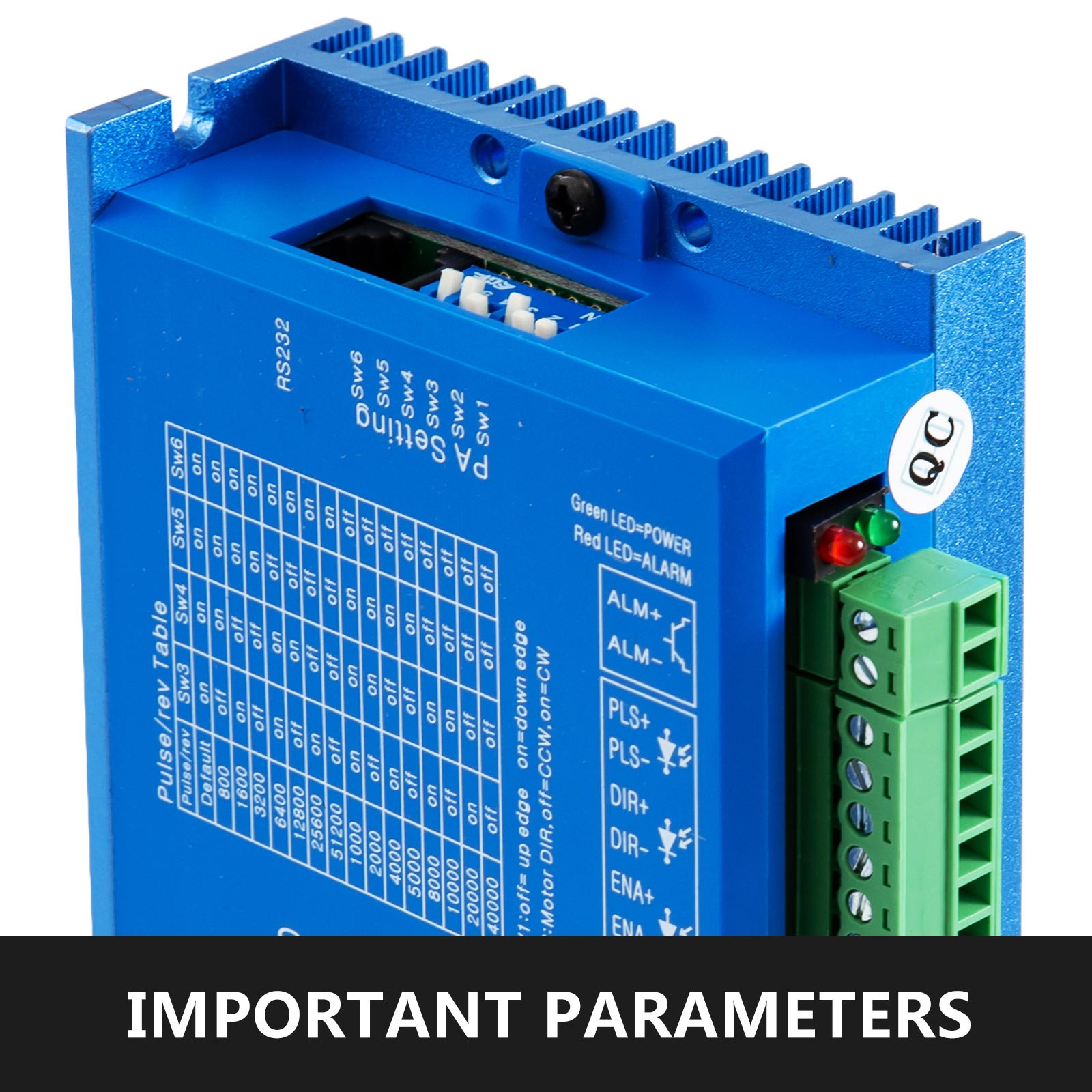

Important Parameters

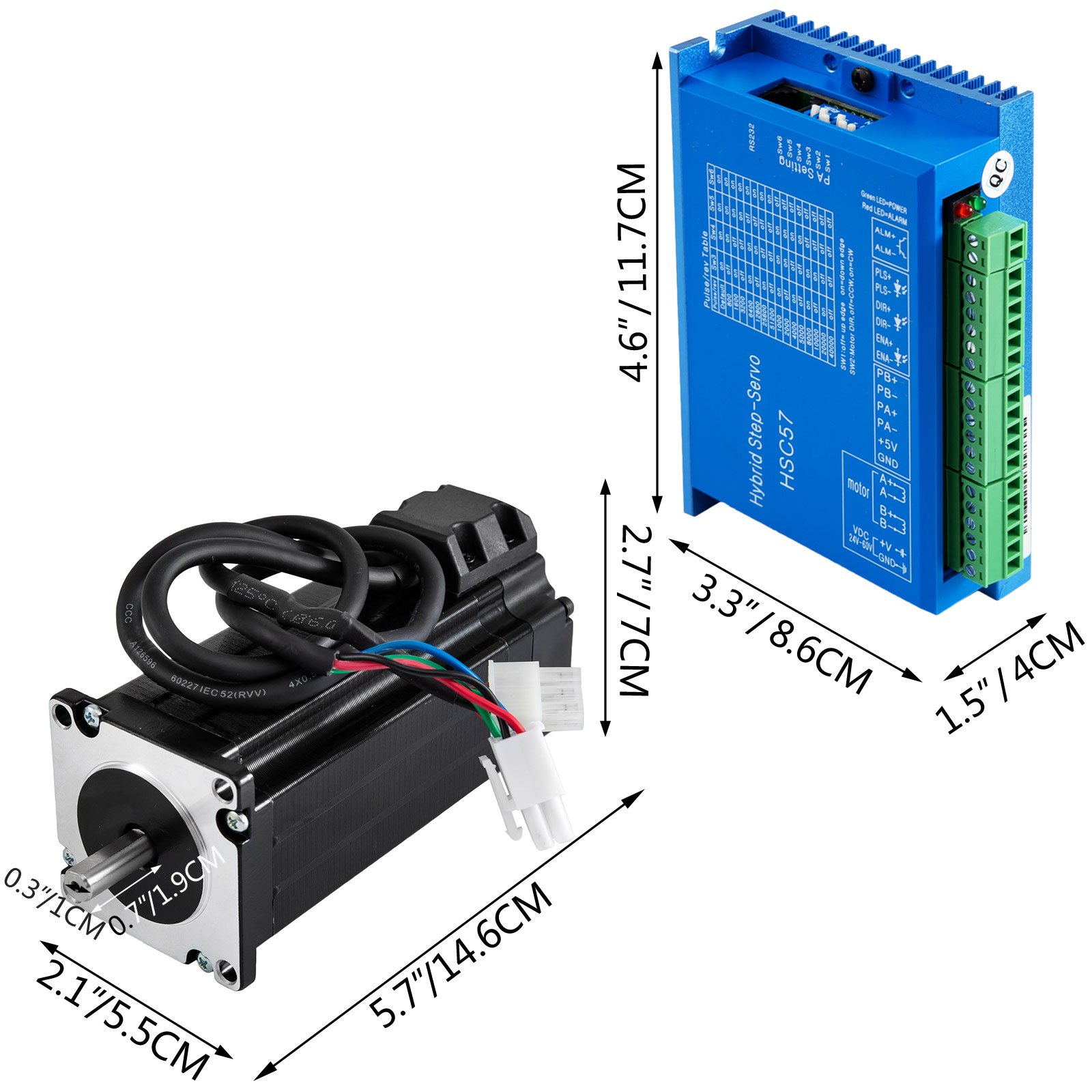

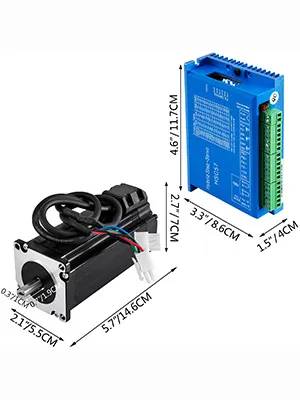

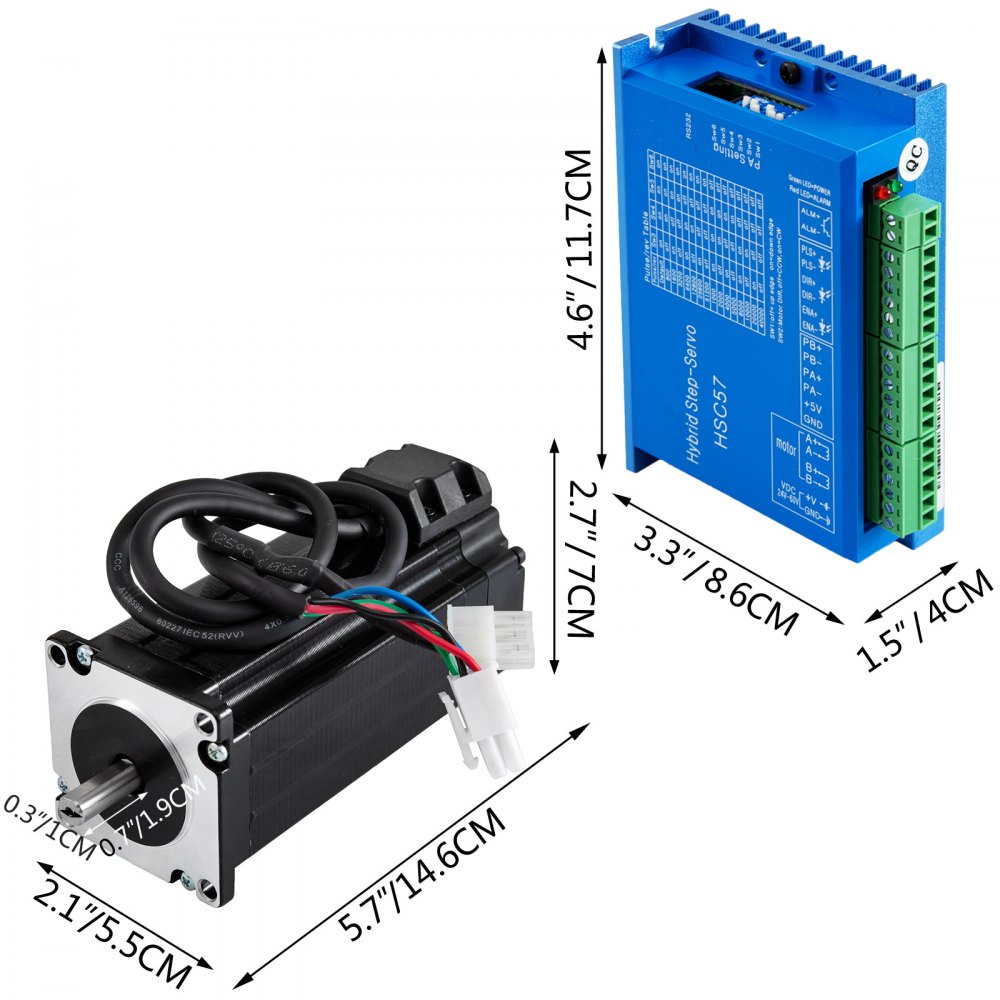

Working with continuous voltage: 24-60VDC, motor has torque 3.0N.m, continuous current 4.2A. Shaft Length: 2cm(0.79"), Shaft Width: 0.8cm(0.31").

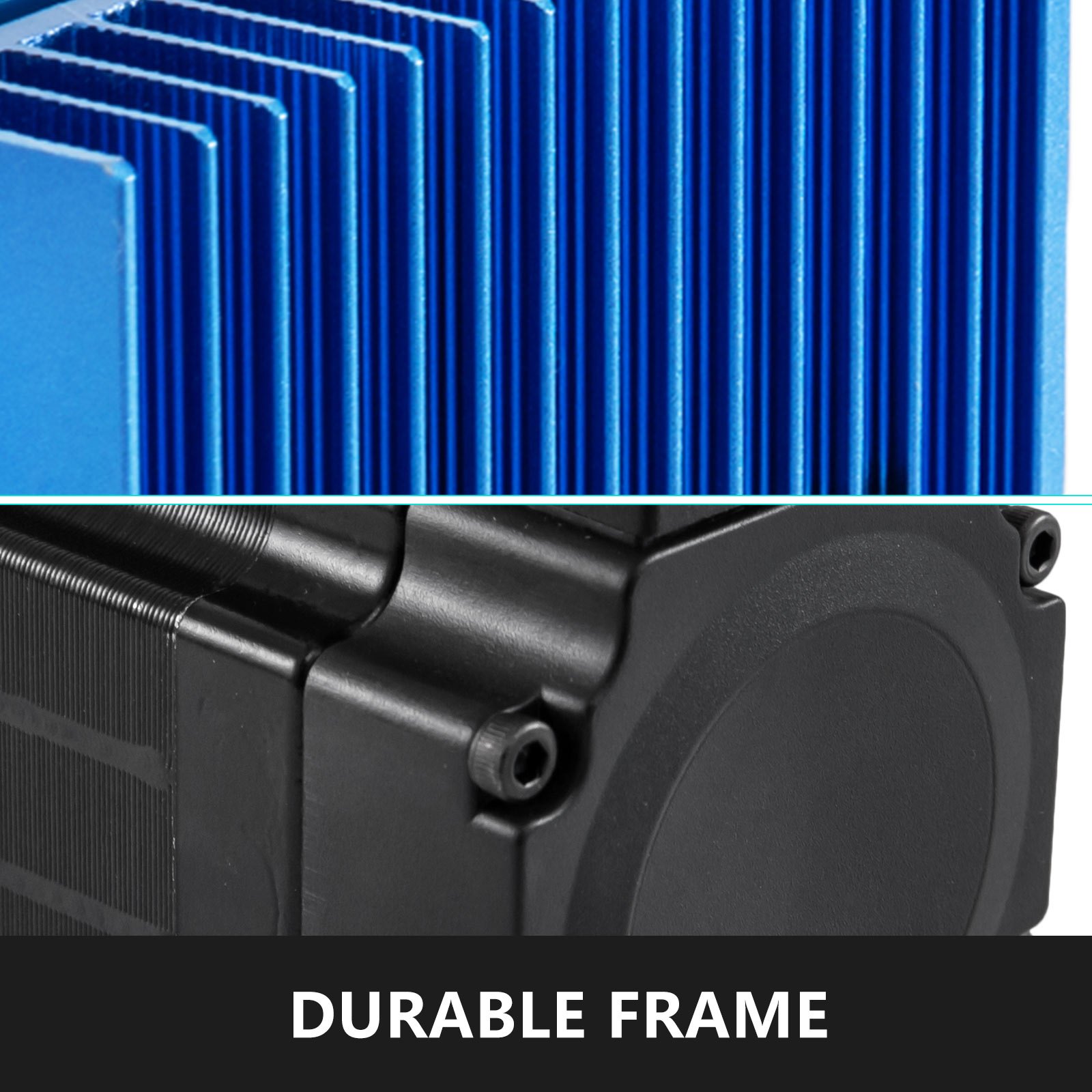

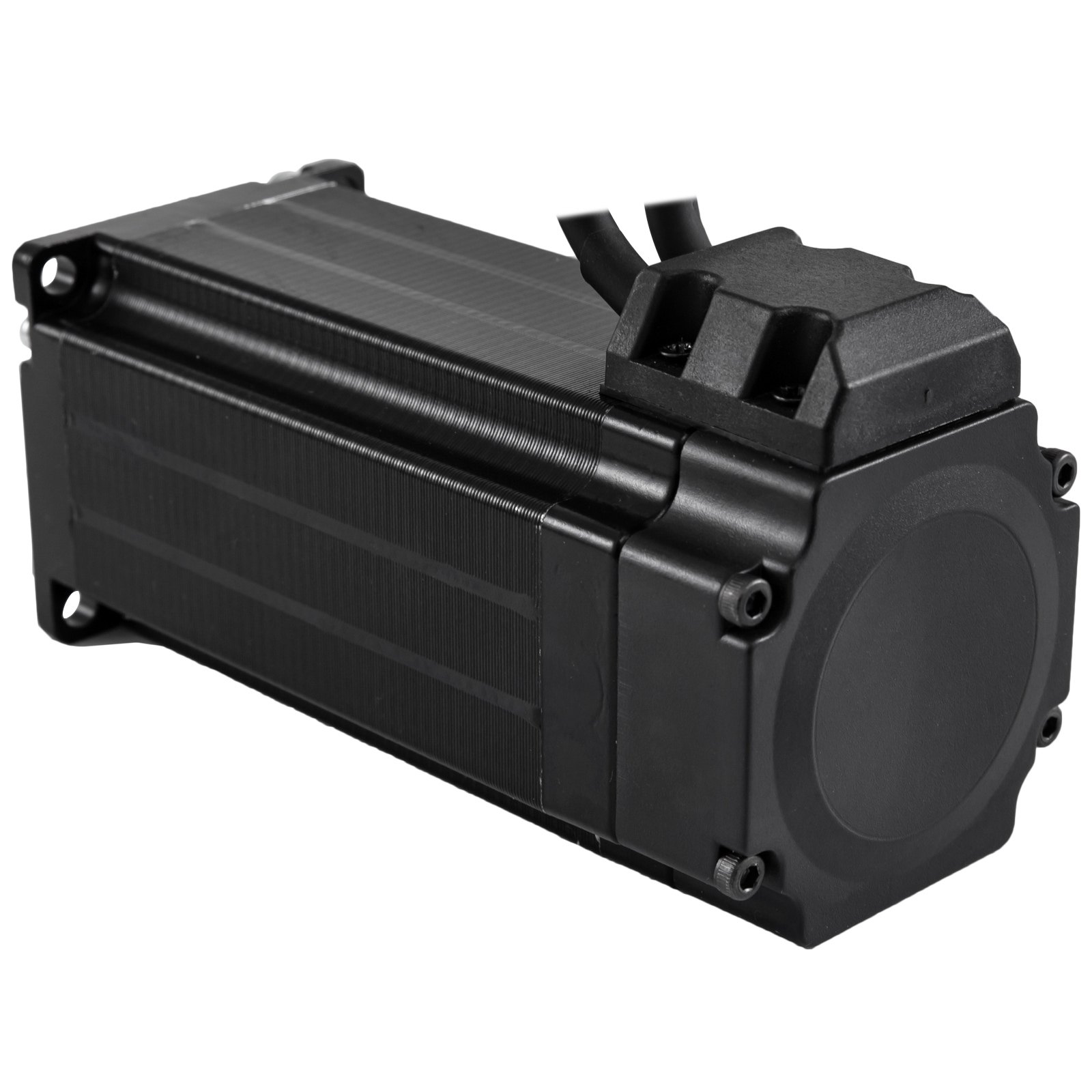

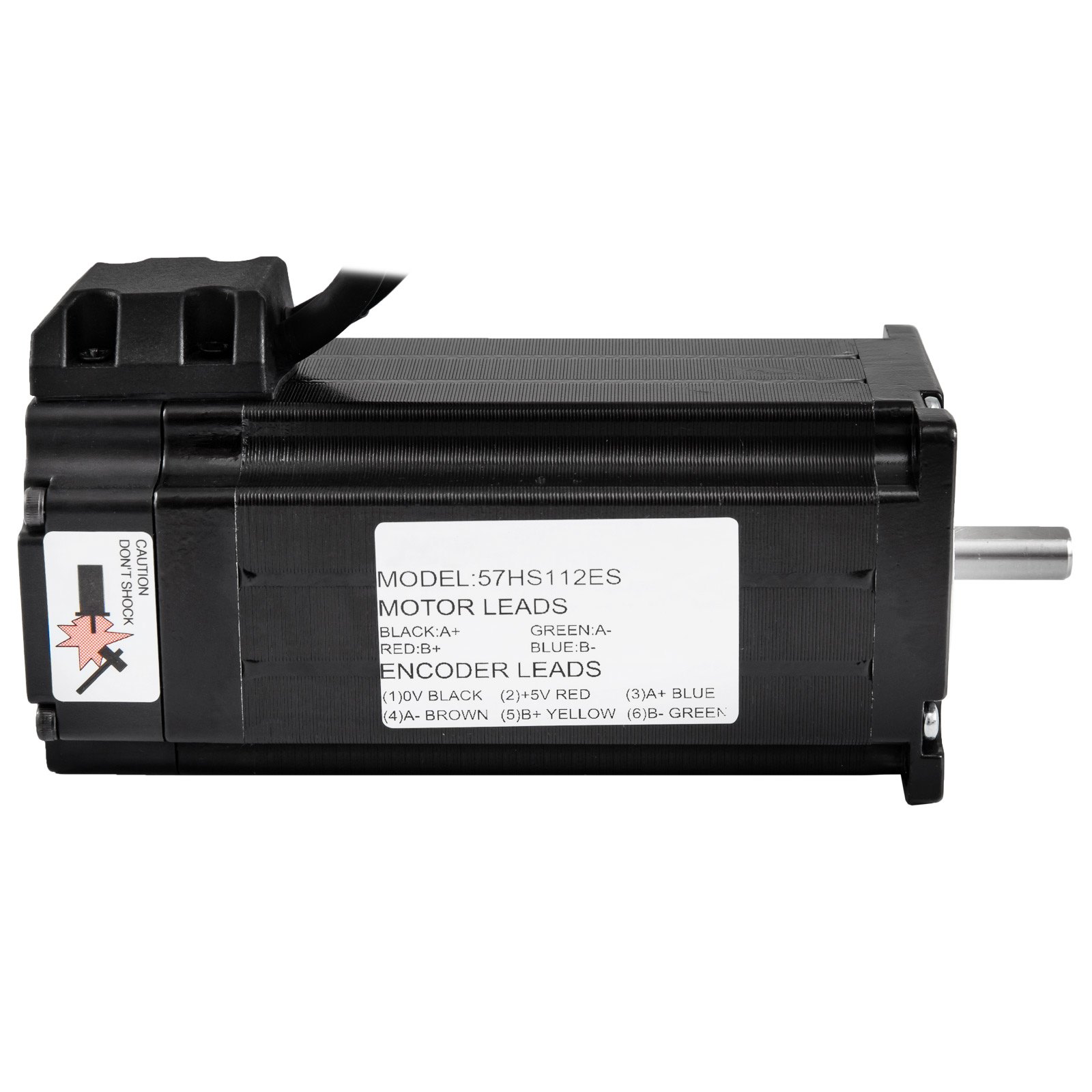

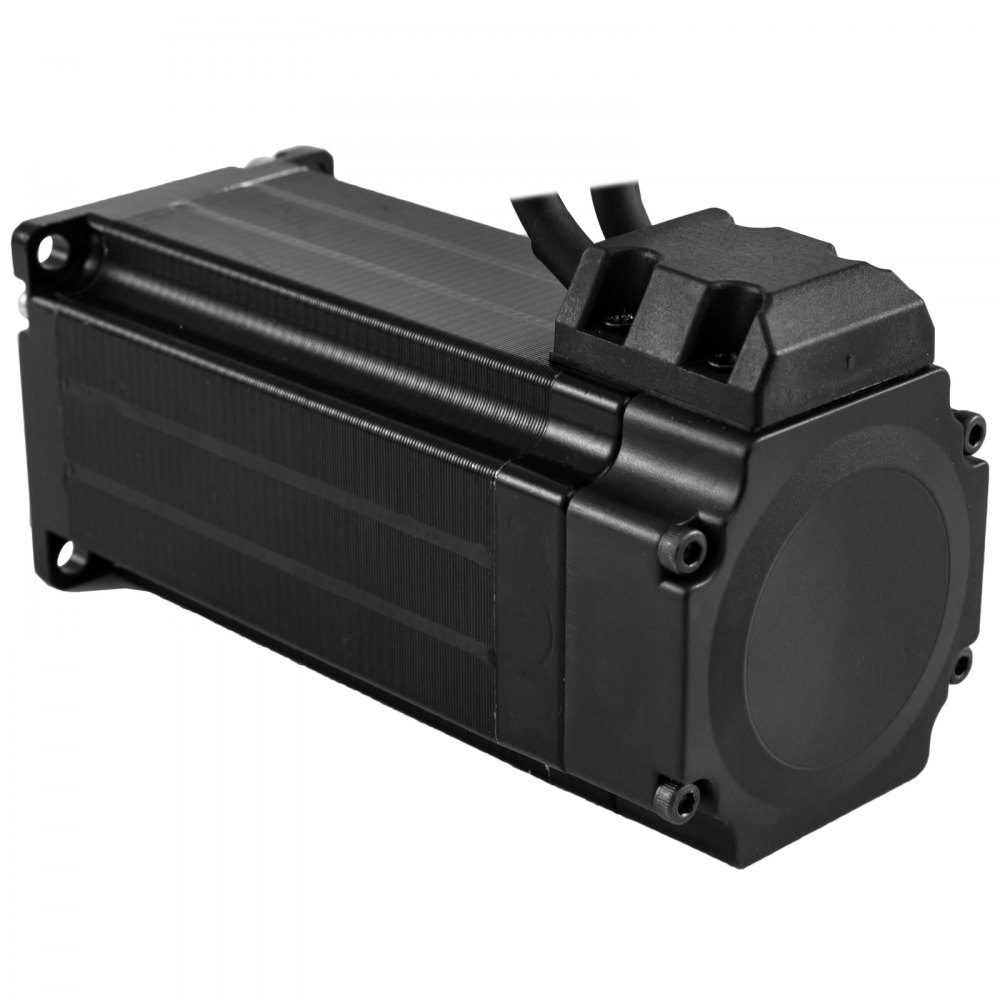

Durable Frame
Black motor body + blue driver cover are made of silicon steel sheet and aluminum alloy, durable and long lasting.

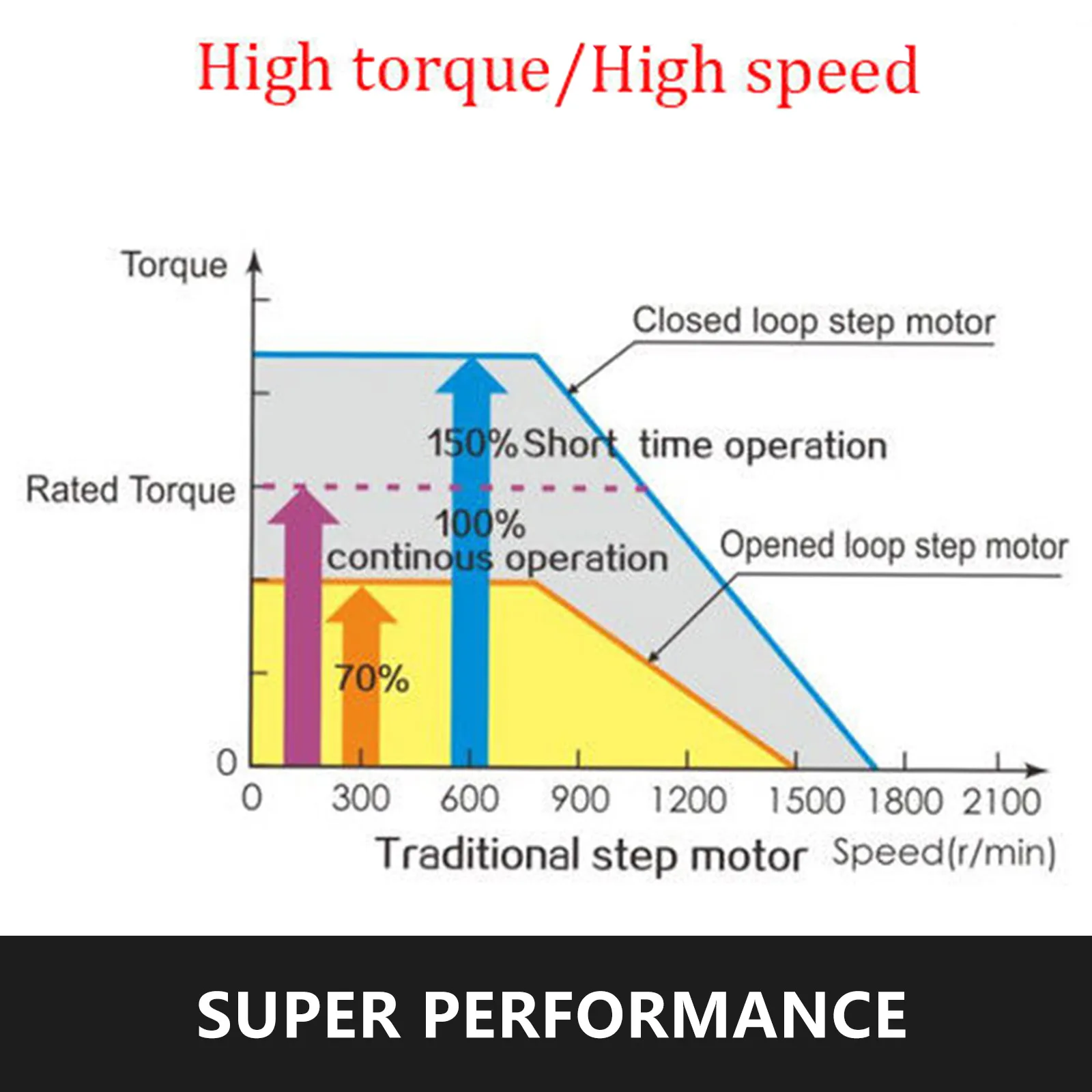

Super Performance
Fit for all kinds of machinery load conditions (including low rigidity belt wheel and pulley) without adjusting the gain parameters. Suitable for condition of short-distance quickly start/stop and zero-speed stop stable.

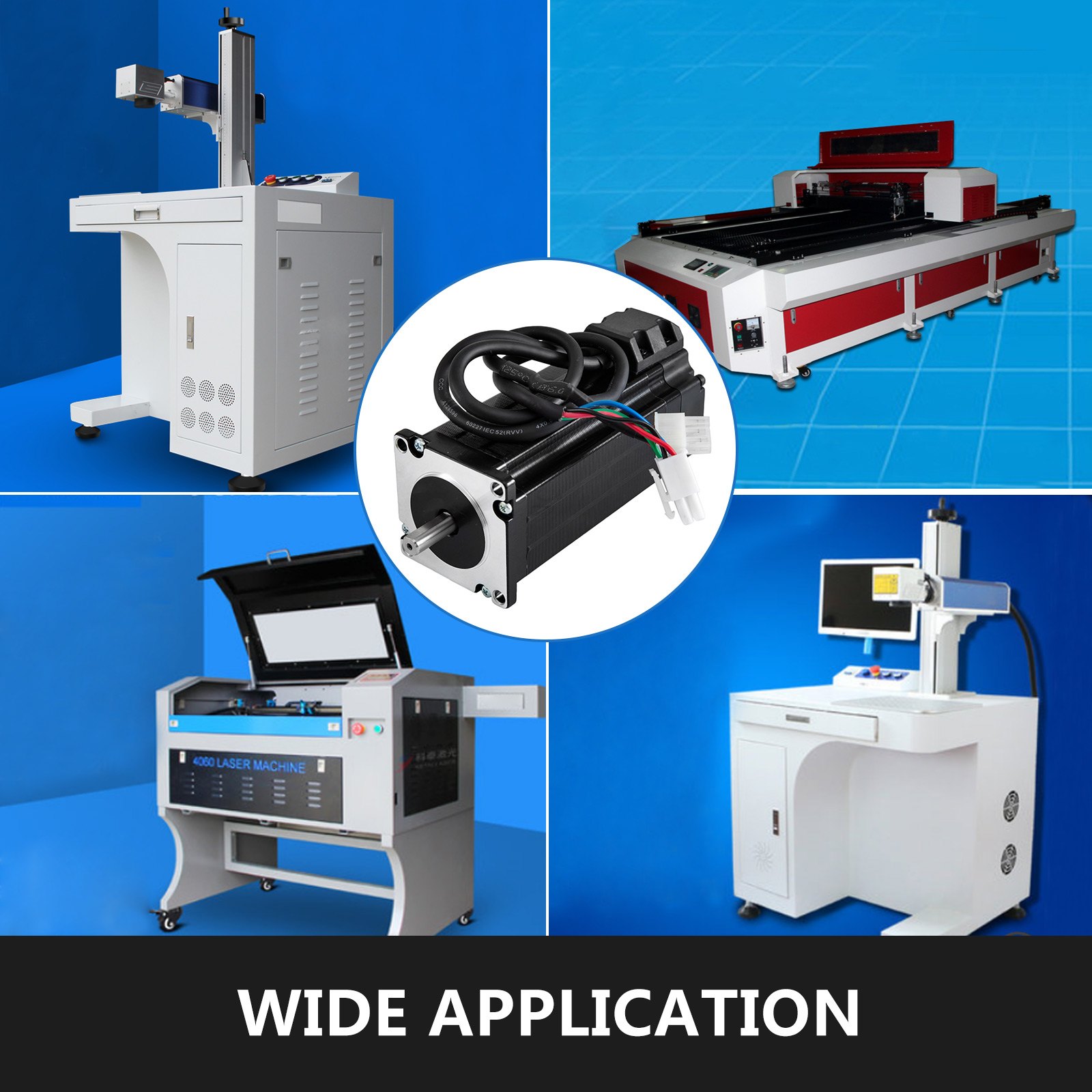

Wide Application
Widely used in engraving machines, laser machines, CNC machine tools, medical equipment, electronic processing equipment, automatic production lines, lithium production equipment, textile machinery, clothing and other automation equipment.
Specifications
- Voltage: 24-60VDC
- Step Angle: 1.8
- DC Resistance(±10% ): 0.9Ω
- Phase Inductance(±20%): 3.8mH
- Insulation Resistance: 100MOhm(500VDC)
- Insulation Class B
- Encoder Resolution: 1000 Line
- Weight: 2.0Kg

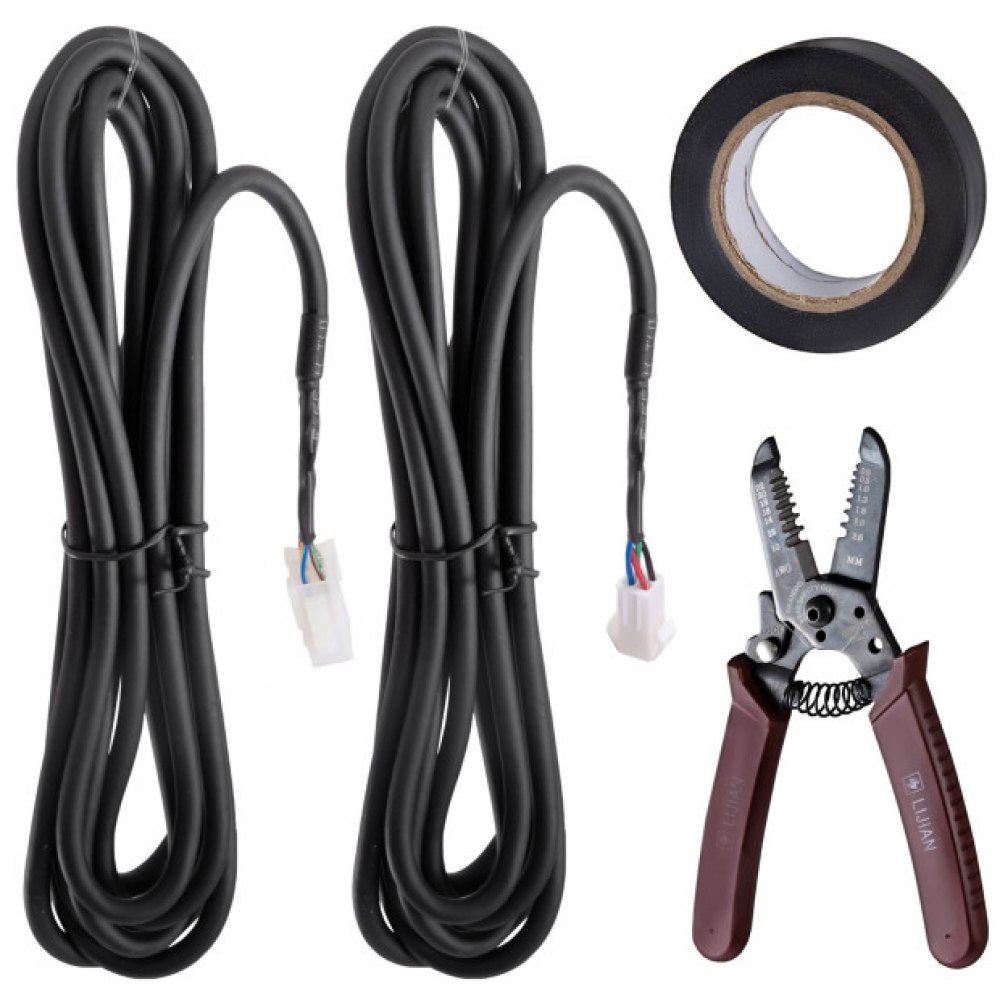

Package Content
- 1 x Hybrid Closed-loop Stepper Motor
- 1 x Stepper Driver
- 1 x Encoder Cable
- 1 x Power Cable
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Nema23 3N.m Closed Loop Stepper Motor Hybrid Servo Drive Kit
This two-phase hybrid stepper motor servo driver adopts new control technology and closed-loop control technology, preventing loss of movement synchronization and ensures accuracy. Load-based current control technology can effectively reduce temperature rise of motor and prolong motor service life. Built-in position and alarm output signal is convenient for PC monitoring and controlling. Position out-of-tolerance alarm function ensures machining equipment safe operation.
- Full Closed-loop Control
- Protective Function
- Main Parameters
- High Speed Response
Strong Compatibility
Full closed loop control, compatible with 1000 lines encoder. No adjustment in general application. Without losing step, high accuracy in position, close to 100% of the torque output.
Multiple Protection
Protective function covers over voltage, over current, tracking error and over-proof. Insulation Class: B.
Important Parameters
Working with continuous voltage: 24-60VDC, motor has torque 3.0N.m, continuous current 4.2A. Shaft Length: 2cm(0.79"), Shaft Width: 0.8cm(0.31").
Durable Frame
Black motor body + blue driver cover are made of silicon steel sheet and aluminum alloy, durable and long lasting.
Super Performance
Fit for all kinds of machinery load conditions (including low rigidity belt wheel and pulley) without adjusting the gain parameters. Suitable for condition of short-distance quickly start/stop and zero-speed stop stable.
Wide Application
Widely used in engraving machines, laser machines, CNC machine tools, medical equipment, electronic processing equipment, automatic production lines, lithium production equipment, textile machinery, clothing and other automation equipment.
Package Content

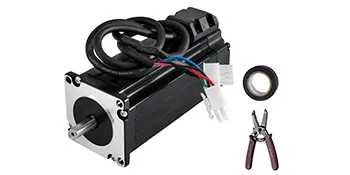

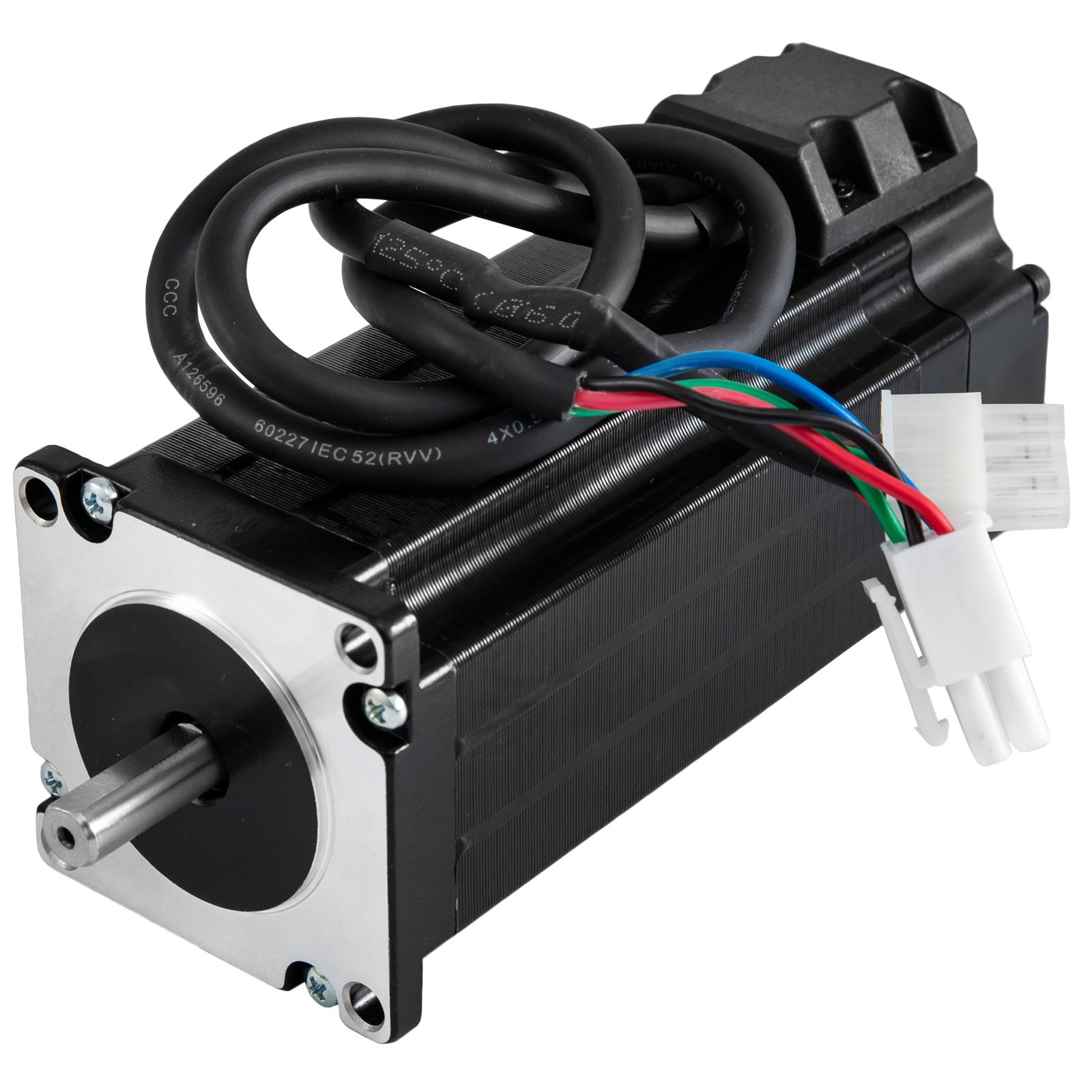

- 1 x Hybrid Closed-loop Stepper Motor
- 1 x Stepper Driver
- 1 x Encoder Cable
- 1 x Power Cable
Specifications
- Voltage: 24-60VDC
- Step Angle: 1.8
- DC Resistance(±10% ): 0.9Ω
- Phase Inductance(±20%): 3.8mH
- Insulation Resistance: 100MOhm(500VDC)
- Insulation Class B
- Encoder Resolution: 1000 Line
- Weight: 2.0Kg
