VEVOR CNC Router Machine 3018 CNC 3018-PRO 3 Axis PCB Milling Machine Wood Router Engraver GRBL Control DIY Engraving CNC Machine with Offline Controller and ER11 and 5mm Extension Rod(300x180x45mm)
4.6 73 Reviews
AU $ 238 90
Each when you buy 0+.
Shop
Get -% off for new user
Get AU $5.00 Off AU $99.00+ Orders on Your First 3 App Orders.
Download Now

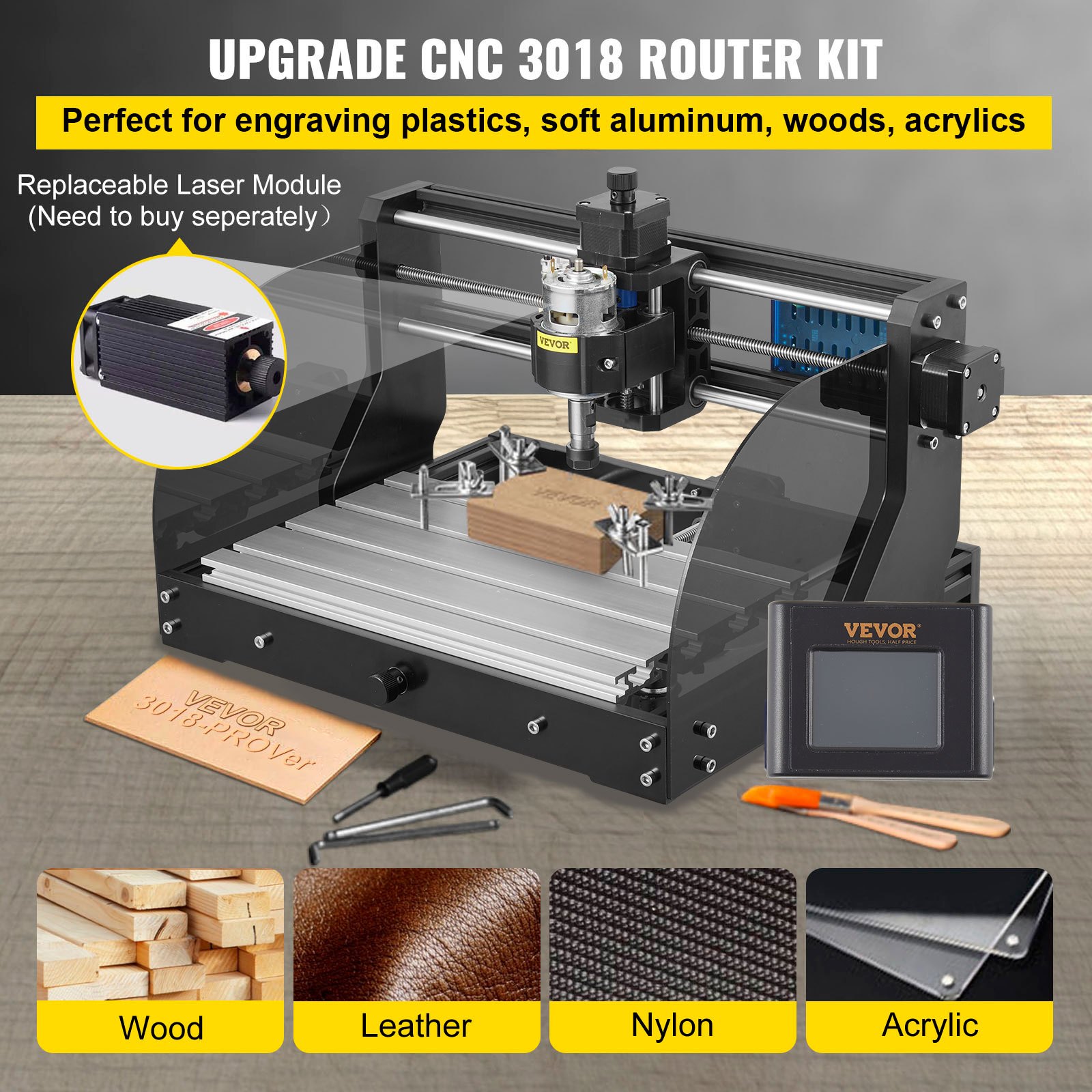

- CNC 3018 Router Machine: CNC 3018 Prover is an upgraded version of 3018 CNC. We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions. You can enjoy the delight of engraving foam, wood, plastic, acrylic, resin, carbon fiber, and many more. This product does not include a laser head and can be purchased by yourself.

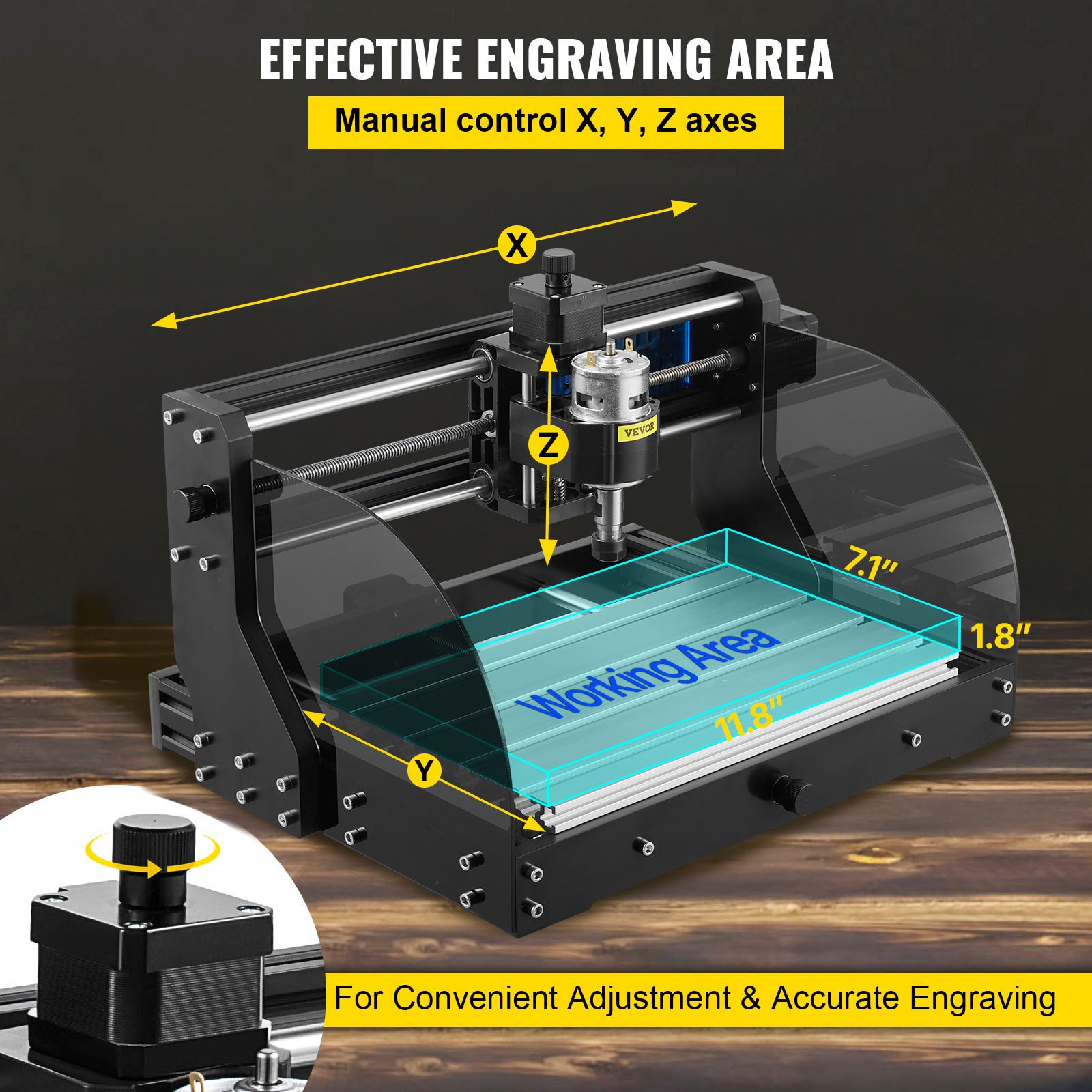

- Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.

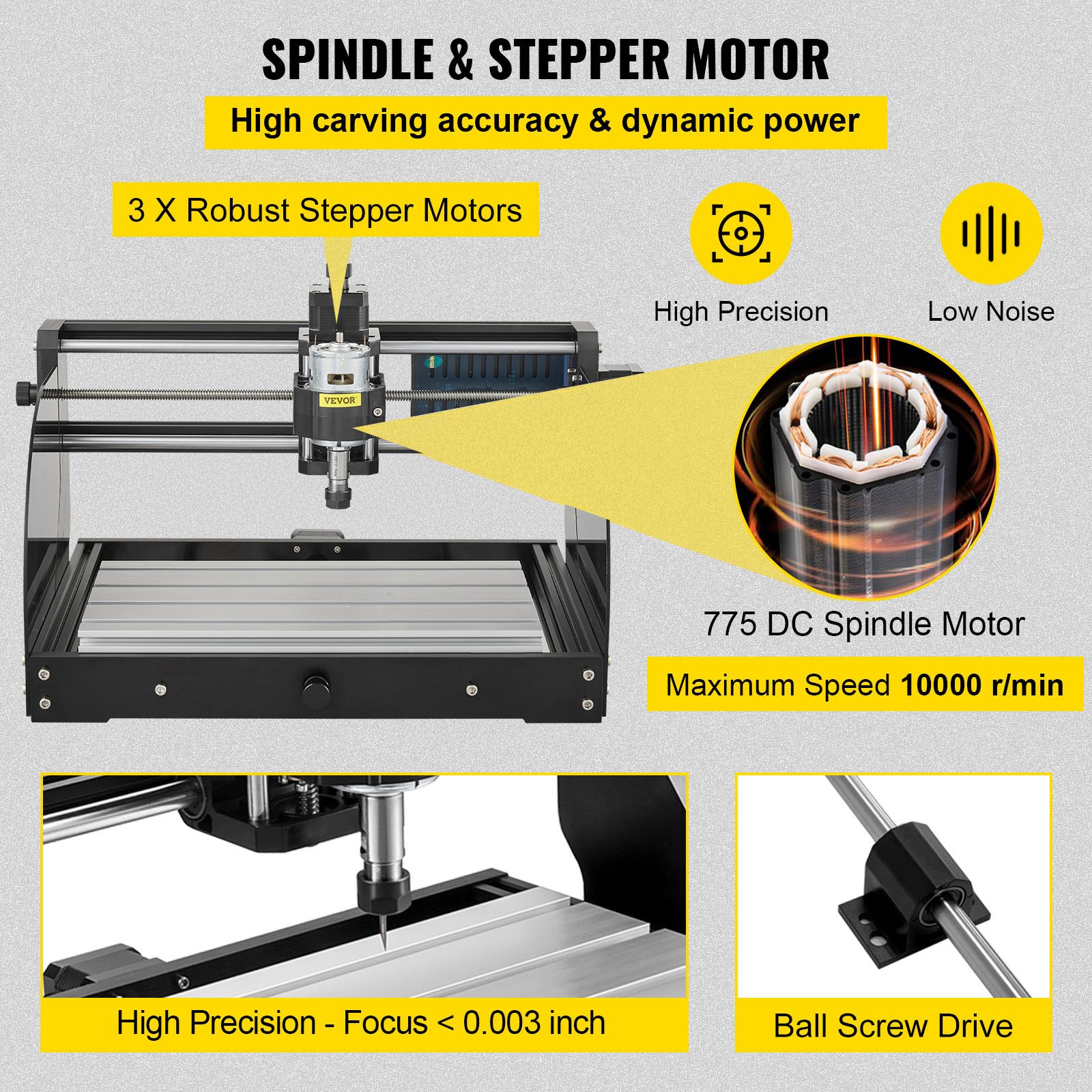

- Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.32 Nm torque) and 775 DC 24V spindle motors with a rotational speed of 10000 r/min. The CNC engraving machine software supports executing standard G-code machining files for tool-based engraving and cutting, such as relief carving and various tool path operations.

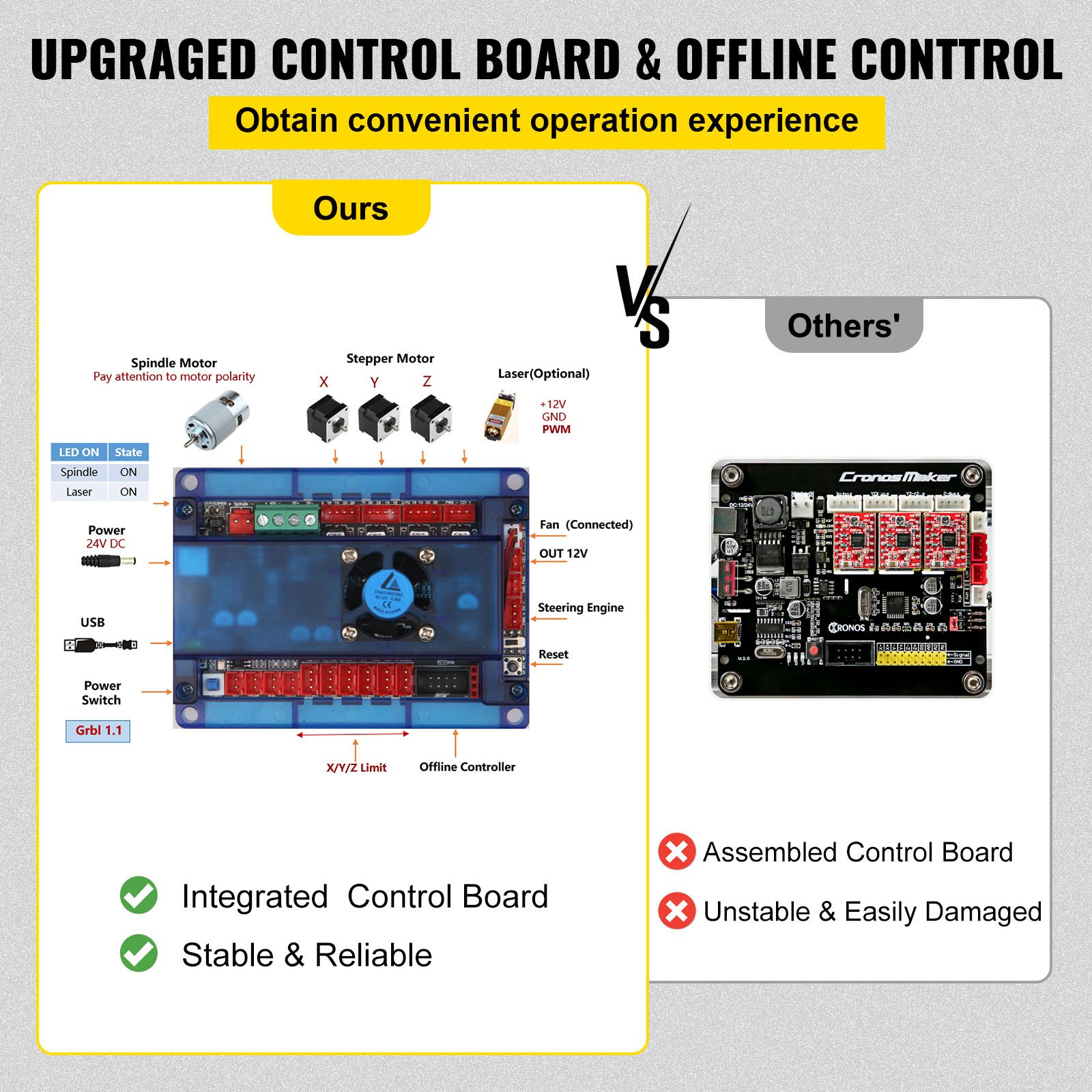

- Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.

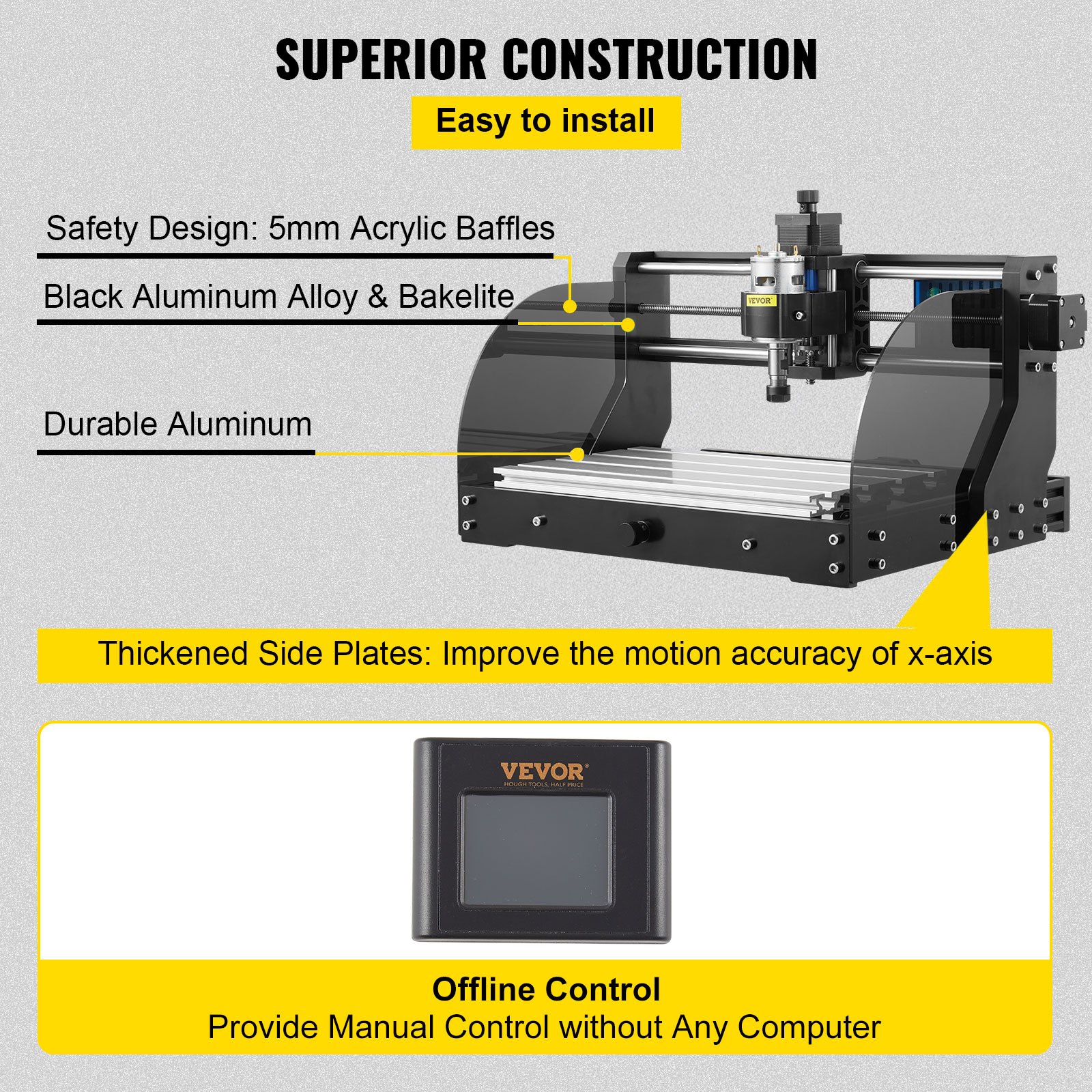

- Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly. Engraving parameter recommendations: Feed rate (F): non-metallic materials 100–300 mm/min, soft metals 20–100 mm/min; single cutting depth: non-metallic materials 0.5–1.0 mm, soft metals 0.1–0.3 mm.
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Top Reviews
About this item
Description
CNC 3018 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories

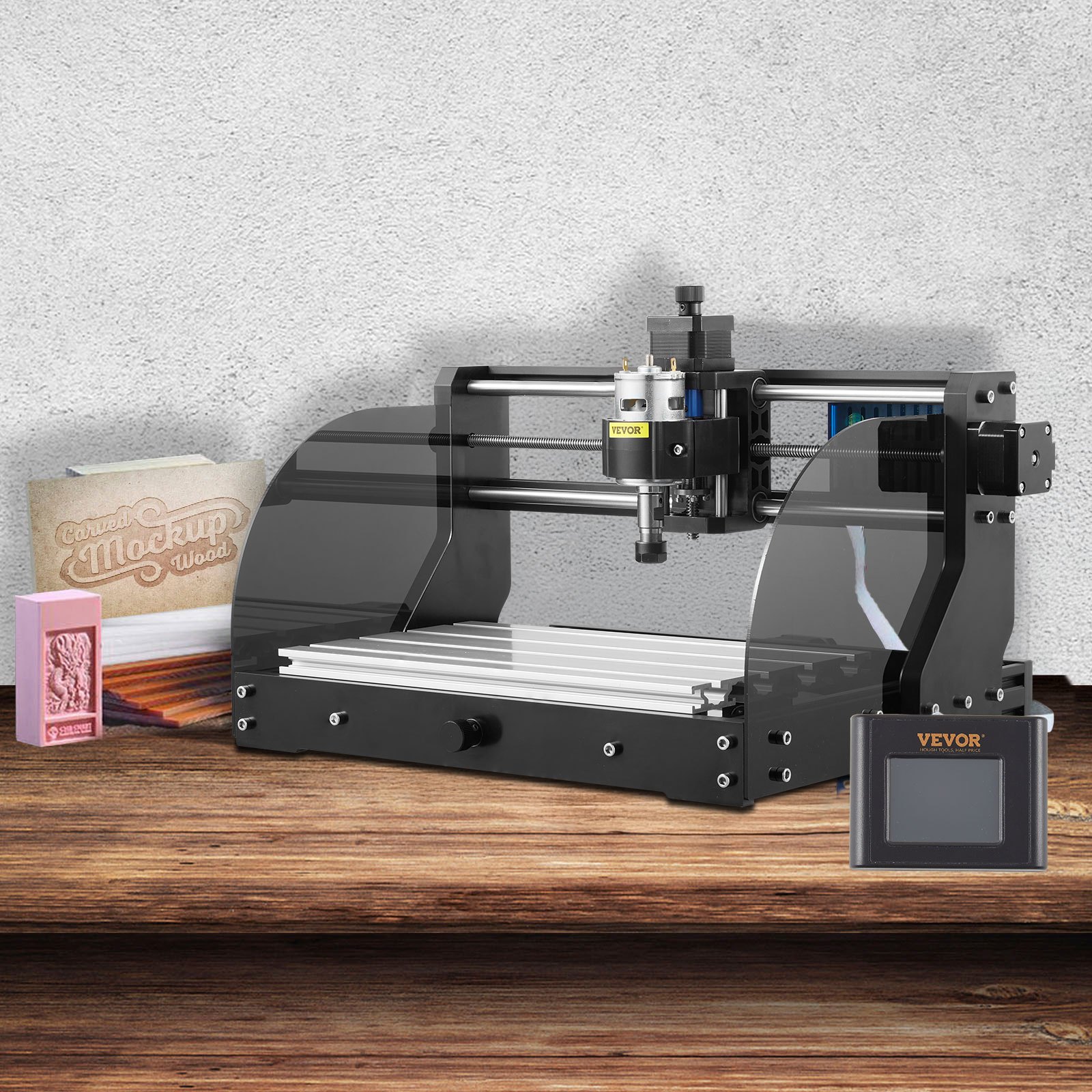

This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave foam, wood, plastic, acrylic, resin, carbon fiber, and etc., which is an excellent affordable self-learning engraving tool.
- Note: The machine does not come with a laser module. If necessary, you can purchase our modules to make the engraving machine more efficient.
- CNC 3018 Router Machine
- Large Working Area
- Excellent Motor
- Upgraded Control Board
- Sturdy Material
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

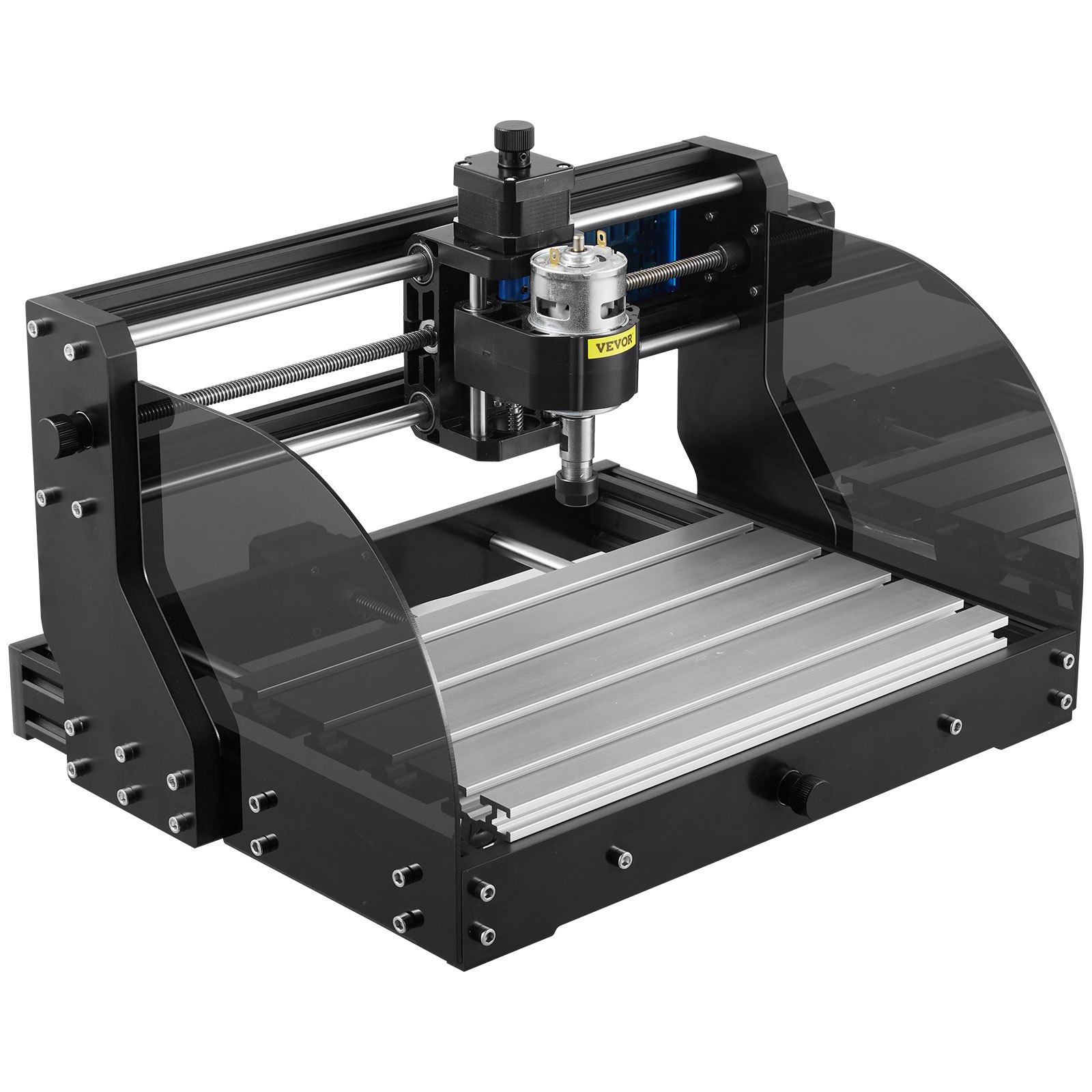

Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.
Powerful Motor
There are three stepper motors on three axes for smooth movement. The 775 DC 24V spindle motor on the Z-axis can reach the speed of 10000r/min.

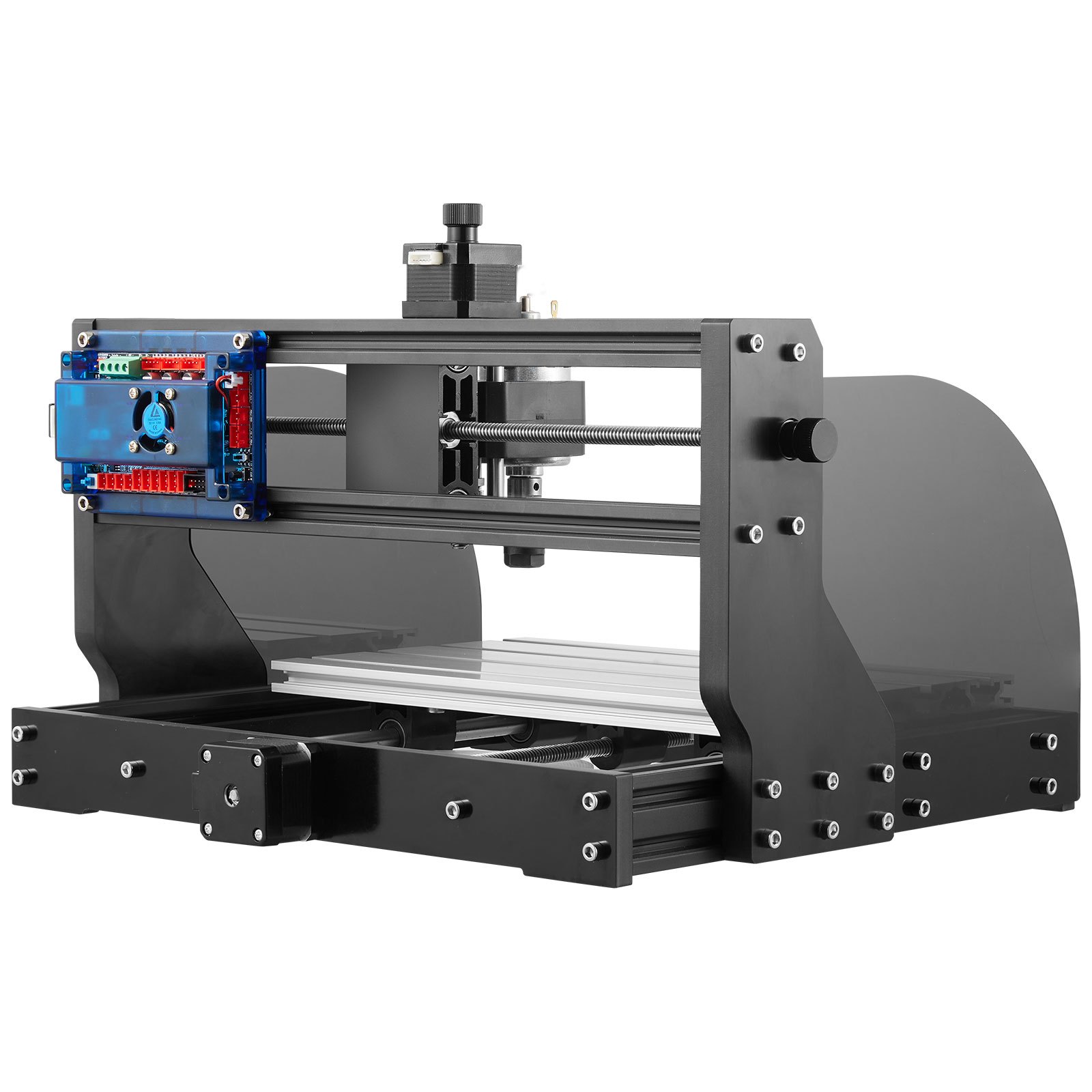

Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
Extraordinary Quality
Constructed with aluminum alloy and Bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability. Two pieces of baffles on both sides help you monitor the engraving process conveniently.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.
Extensive Application
This CNC engraving machine can engrave foam, wood, plastic, acrylic, resin, carbon fiber, and etc.

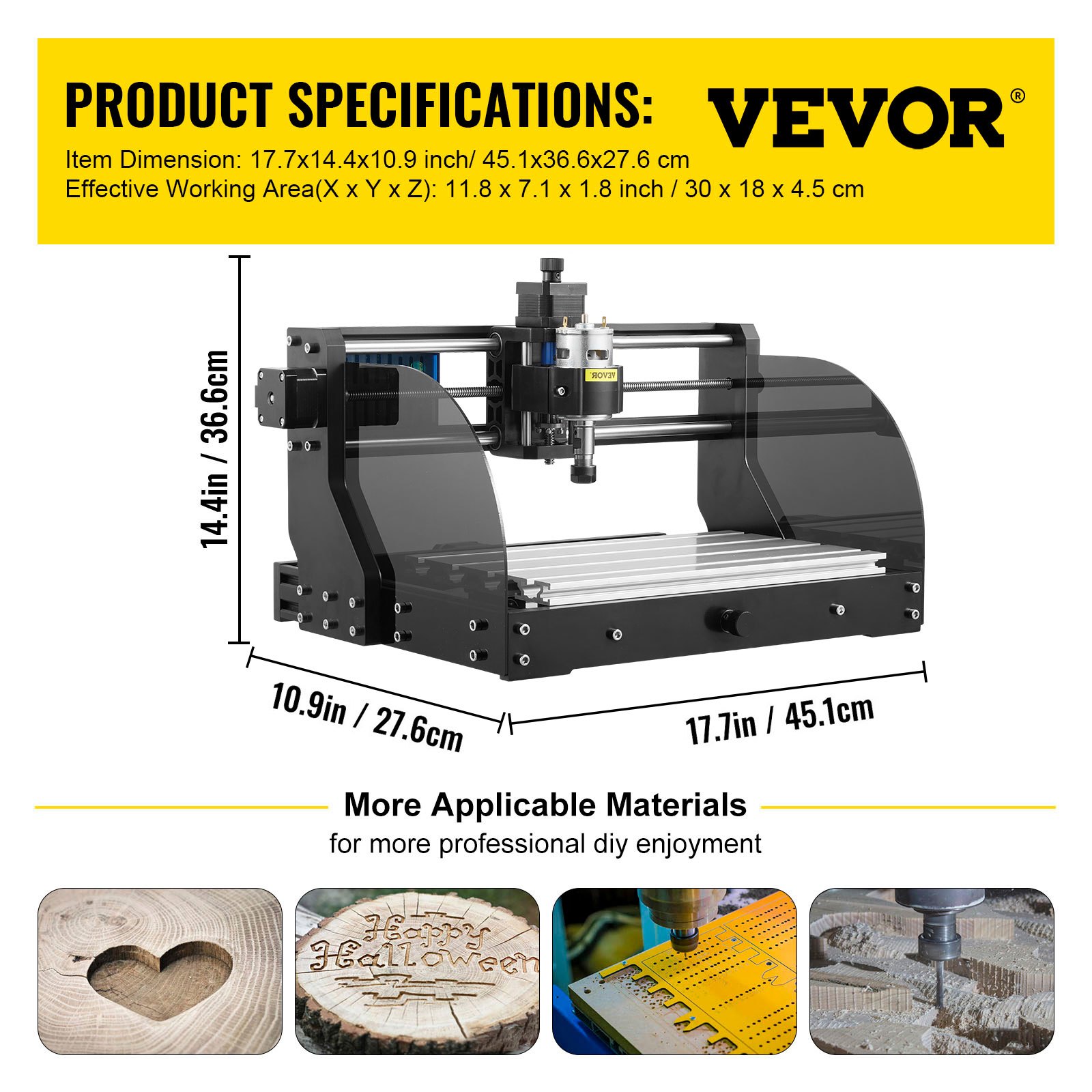

Specifications
- Model: 3018 Prover
- Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm
- Materials: Aluminum Profile & Bakelite
- Input Power: DC 24V 5A
- Driving Units: Stainless Steel Screws
- Spindle Speed: 10000 rpm
- Stepping Motor: 12V; Torque: 0.32 N/m
- Control Software: GRBL Control
- Positioning Accuracy: 0.003 inch / 0.08 mm
- Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm

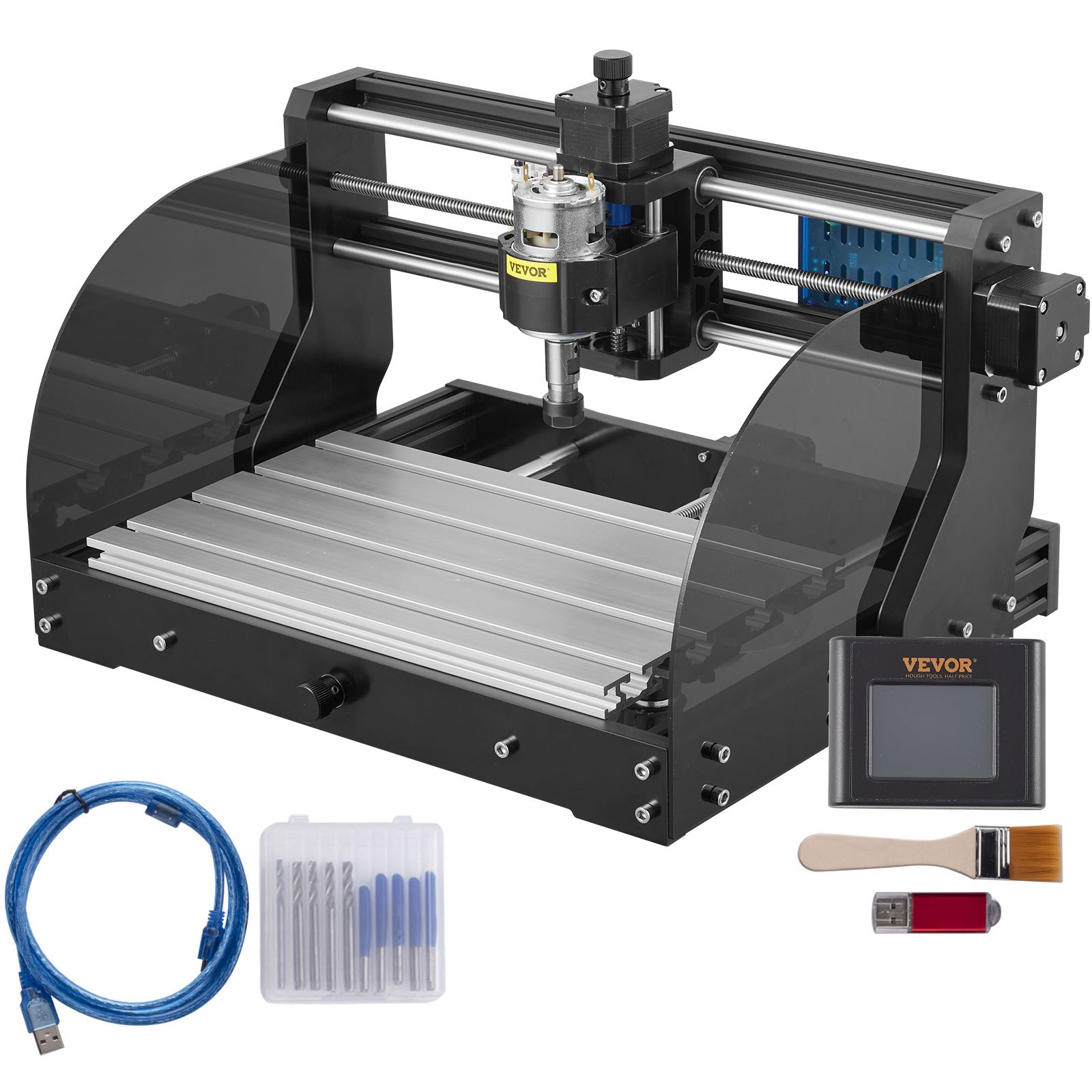

Package Content
- 1 x 3018 CNC Router Kit
- 2 x Safety Baffles
- 1 x Offline Controller
- 1 x U-Disk (Software & Instruction)
- 1 x Set of Milling Cutter
- 1 x Cable
- 1 x Brush
- 1 x Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
CNC 3018 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave foam, wood, plastic, acrylic, resin, carbon fiber, and etc., which is an excellent affordable self-learning engraving tool.
- Note: The machine does not come with a laser module. If necessary, you can purchase our modules to make the engraving machine more efficient.
- CNC 3018 Router Machine
- Large Working Area
- Excellent Motor
- Upgraded Control Board
- Sturdy Material
Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.
Powerful Motor
There are three stepper motors on three axes for smooth movement. The 775 DC 24V spindle motor on the Z-axis can reach the speed of 10000r/min.
Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
Extraordinary Quality
Constructed with aluminum alloy and Bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability. Two pieces of baffles on both sides help you monitor the engraving process conveniently.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.
Extensive Application
This CNC engraving machine can engrave foam, wood, plastic, acrylic, resin, carbon fiber, and etc.
Package Content
- 1 x 3018 CNC Router Kit
- 2 x Safety Baffles
- 1 x Offline Controller
- 1 x U-Disk (Software & Instruction)
- 1 x Set of Milling Cutter
- 1 x Cable
- 1 x Brush
- 1 x Manual
Specifications
- Model: 3018 Prover
- Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm
- Materials: Aluminum Profile & Bakelite
- Input Power: DC 24V 5A
- Driving Units: Stainless Steel Screws
- Spindle Speed: 10000 rpm
- Stepping Motor: 12V; Torque: 0.32 N/m
- Control Software: GRBL Control
- Positioning Accuracy: 0.003 inch / 0.08 mm
- Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm
