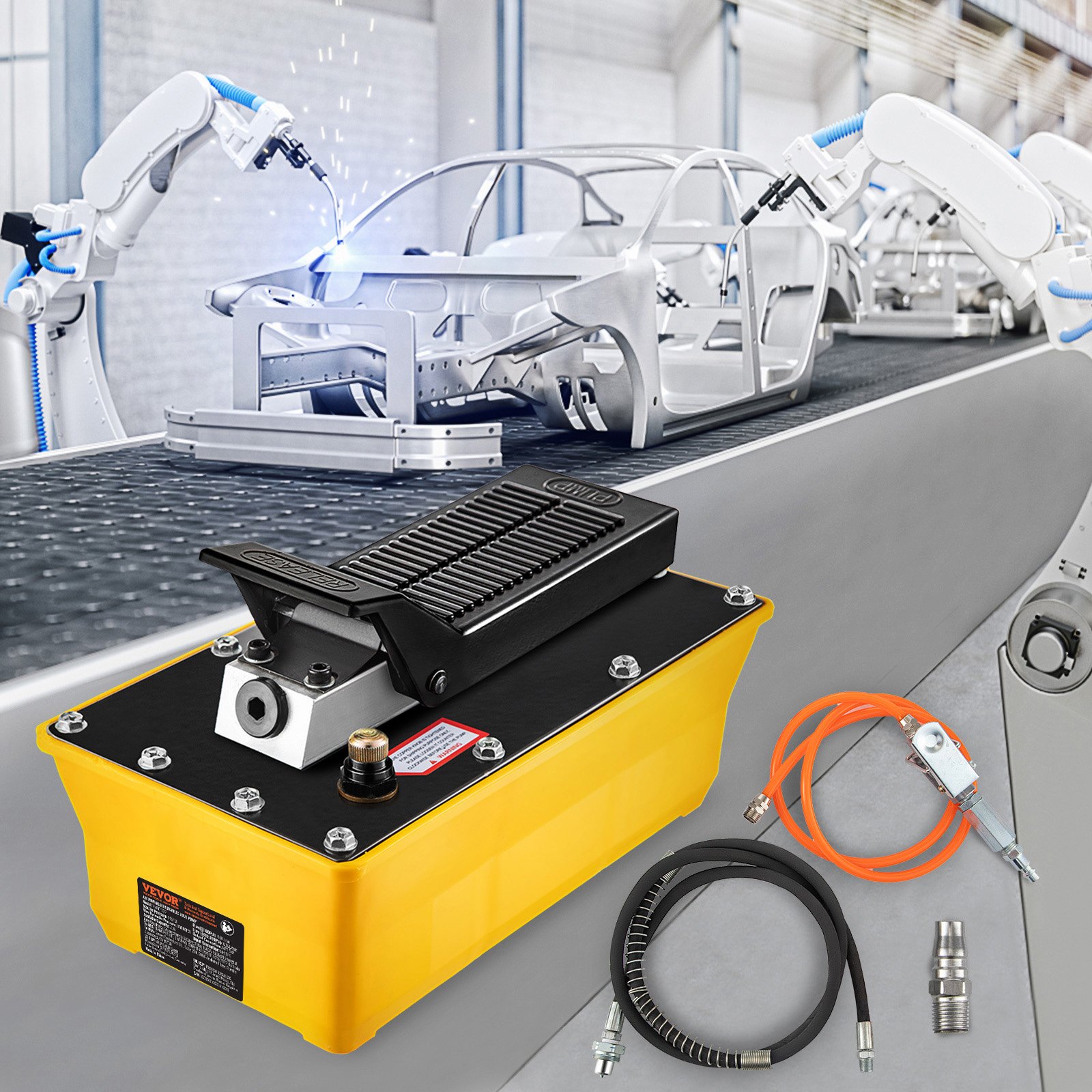

10,000 PSI Air Hydraulic Foot Pump
This air hydraulic foot pump adopts a user-friendly foot-actuated design for easy control and provides hands-free operation for pumping and releasing the load. Compact design for field use on construction sites and maintenance jobs. It is engineered to meet factory standards for performance and security, is the perfect pump for all your auto body shop hydraulic needs.
- Fundamental Parameters
- Foot-Actuated Design
- Sturdy & Compact Construction
- Oil Pipe & Spray Gun Included
- 10,000 PSI For Wide Application

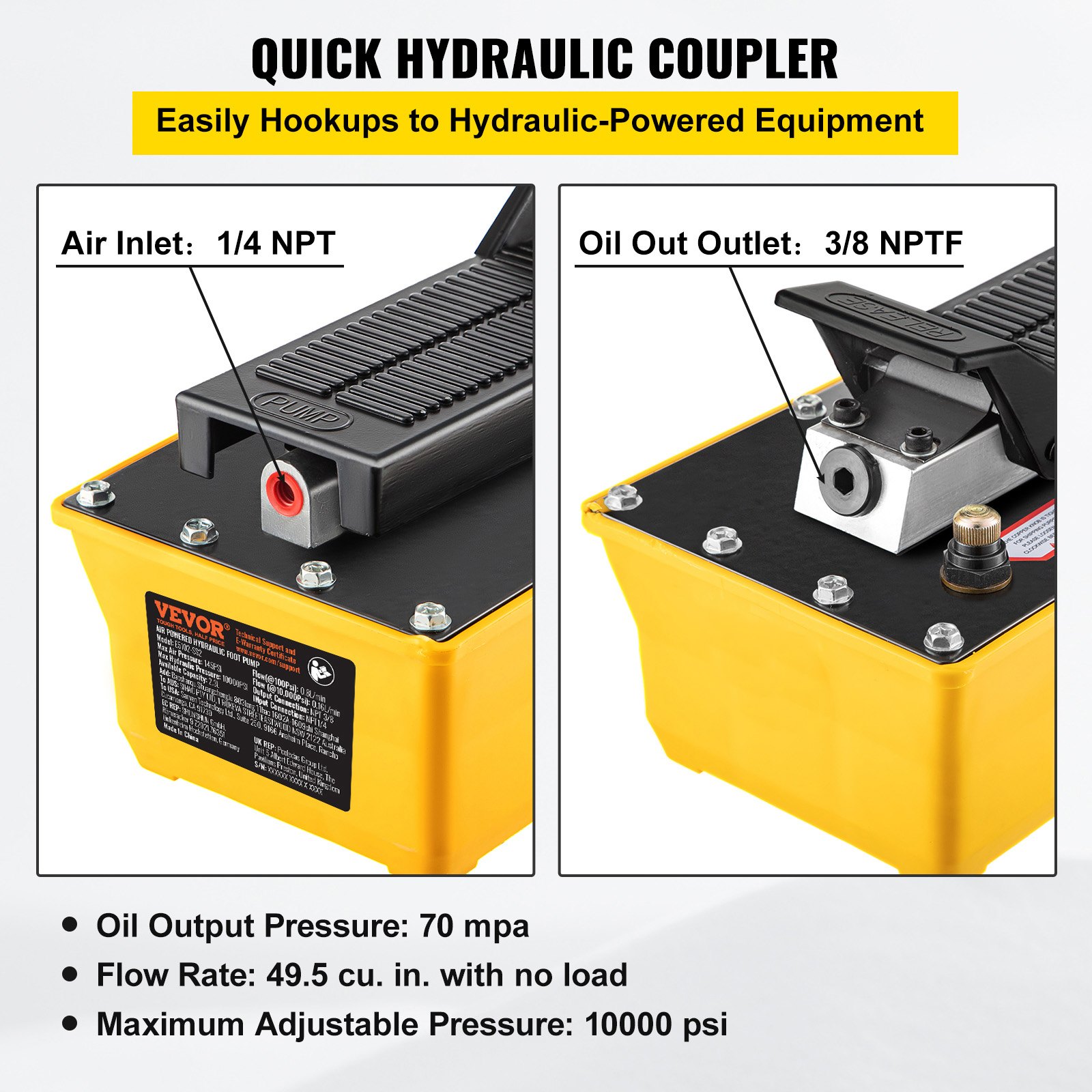

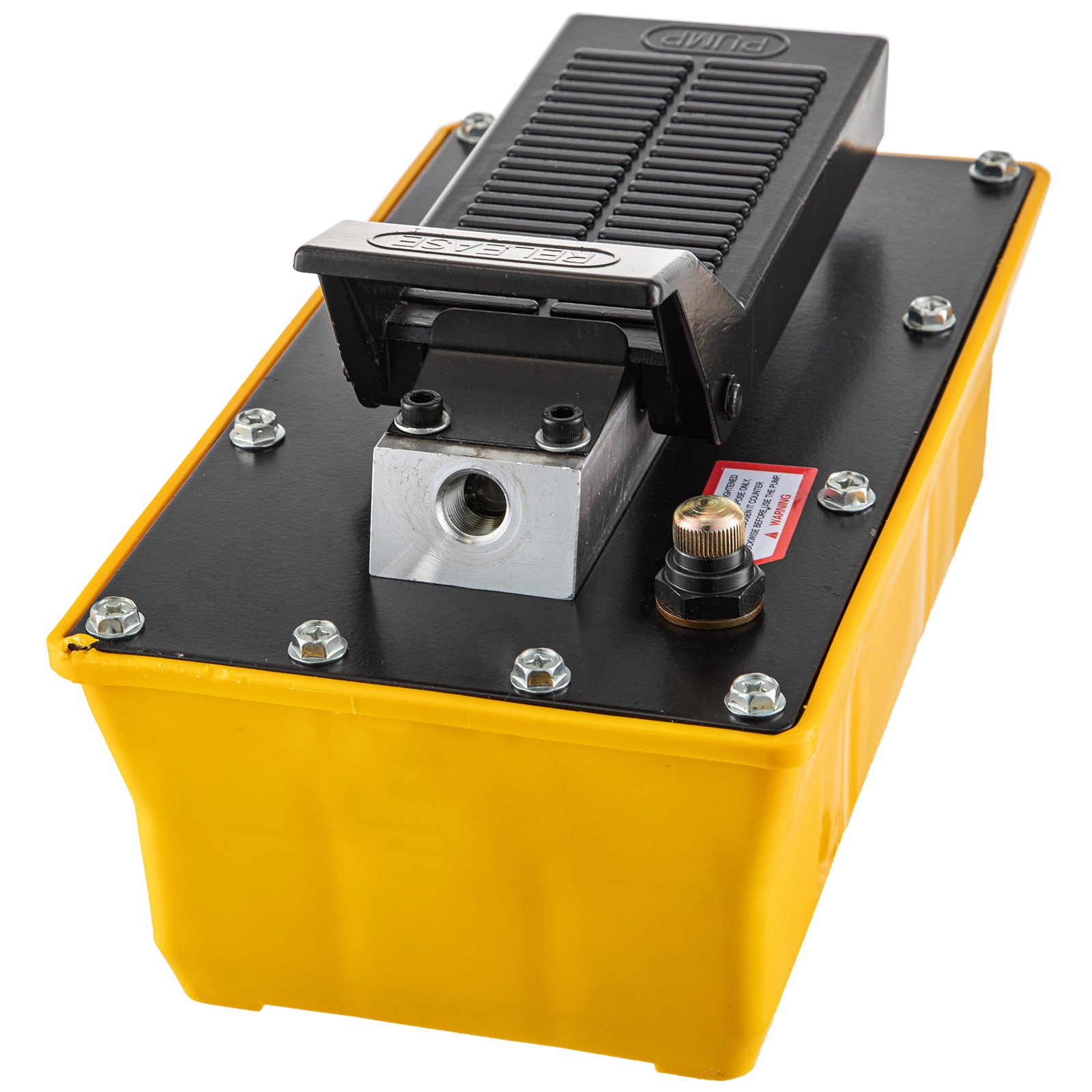

Standard Air Inlet & Oil Outlet
The air hydraulic pump features a 1/4 NPT air inlet and a 3/8 NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port offers convenient hookups to a wide variety of hydraulic-powered equipment.

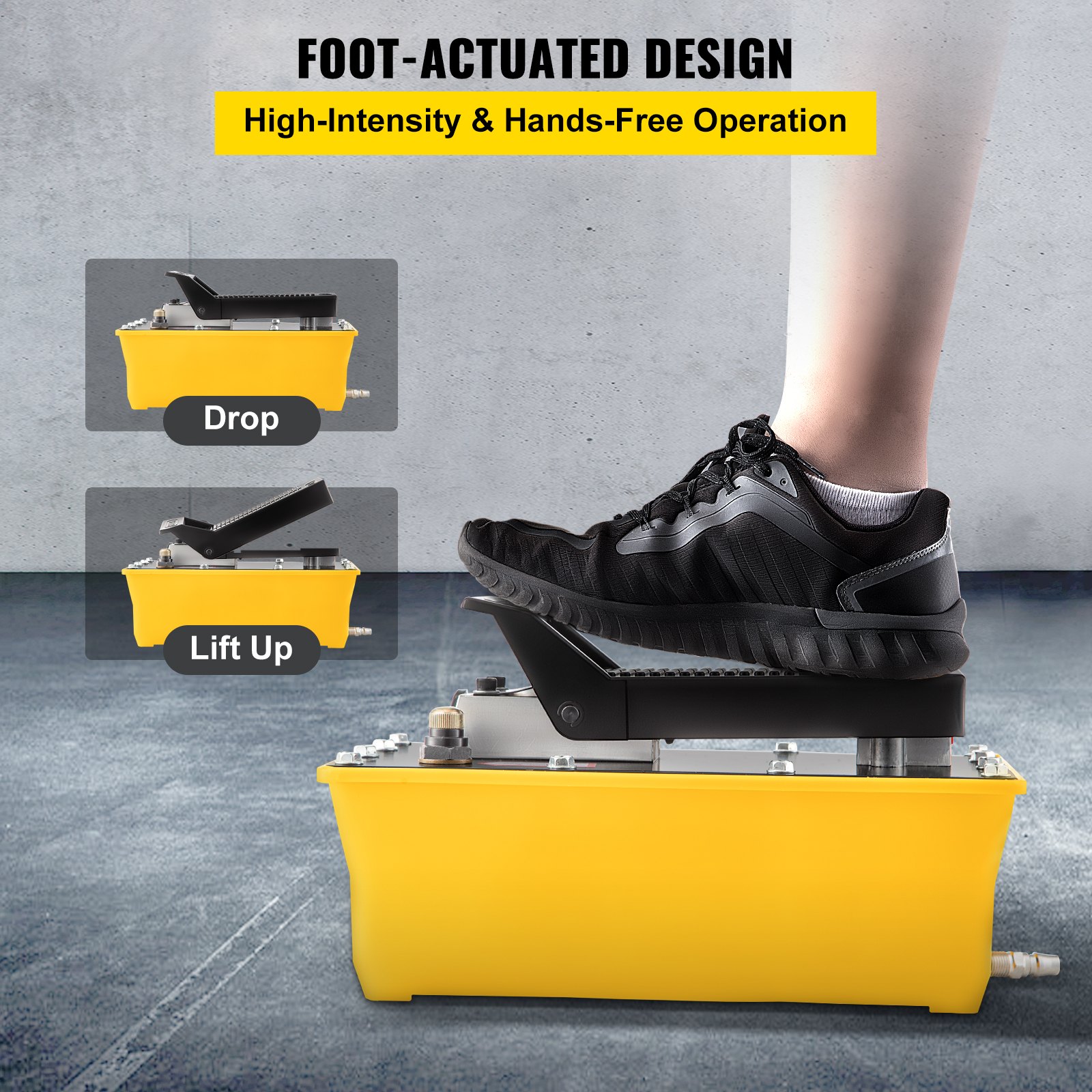

Simple Foot Pedal Control
The foot pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, a convenient foot pedal design allows fine control of the pump while keeping both hands free.

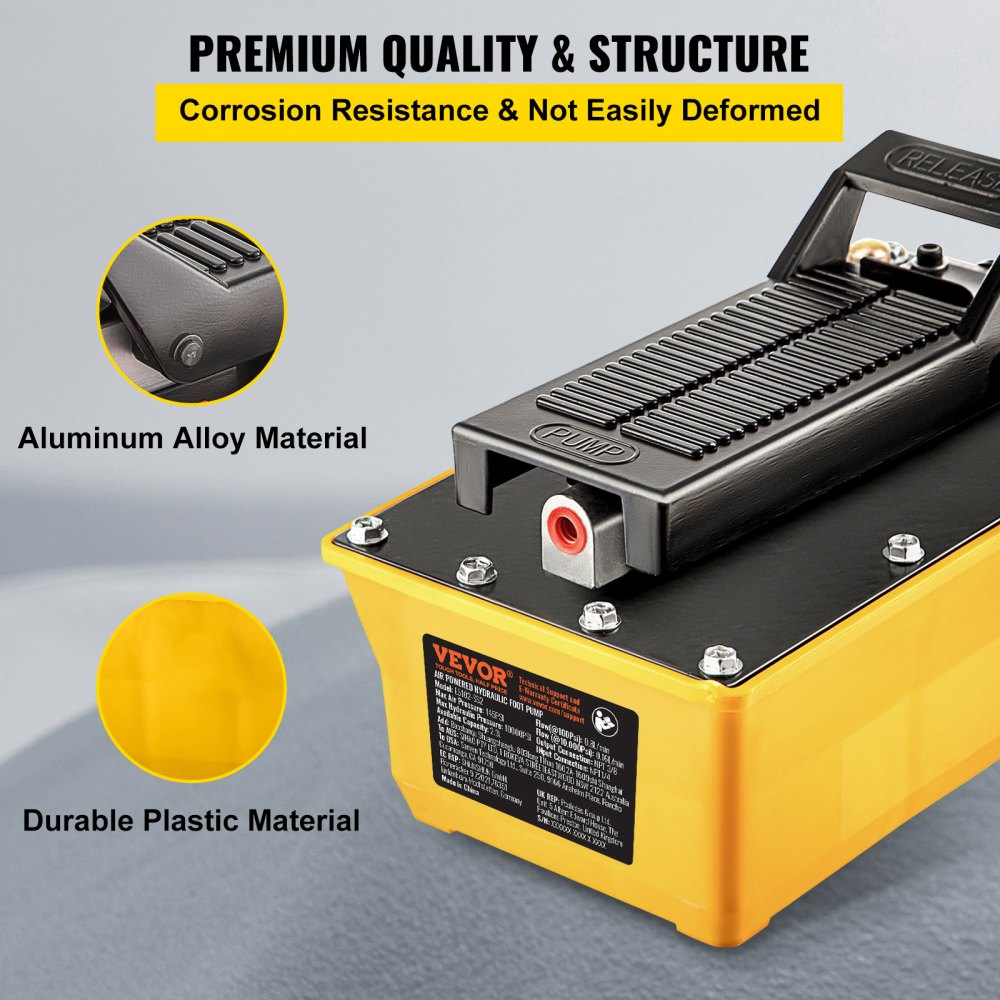

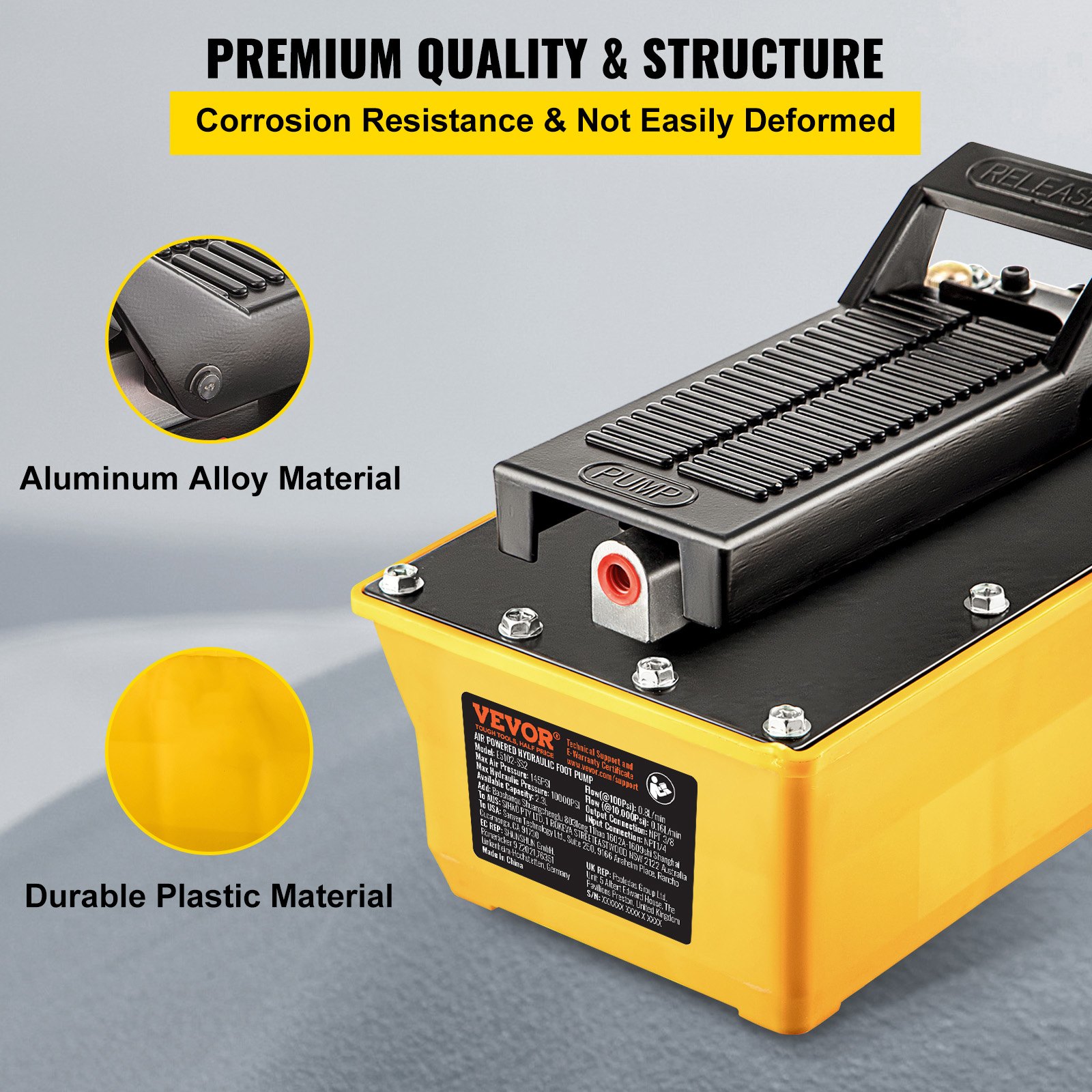

Premium Quality & Structure
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable plastic shell is built to protect the internal structure better and is not easily deformed.

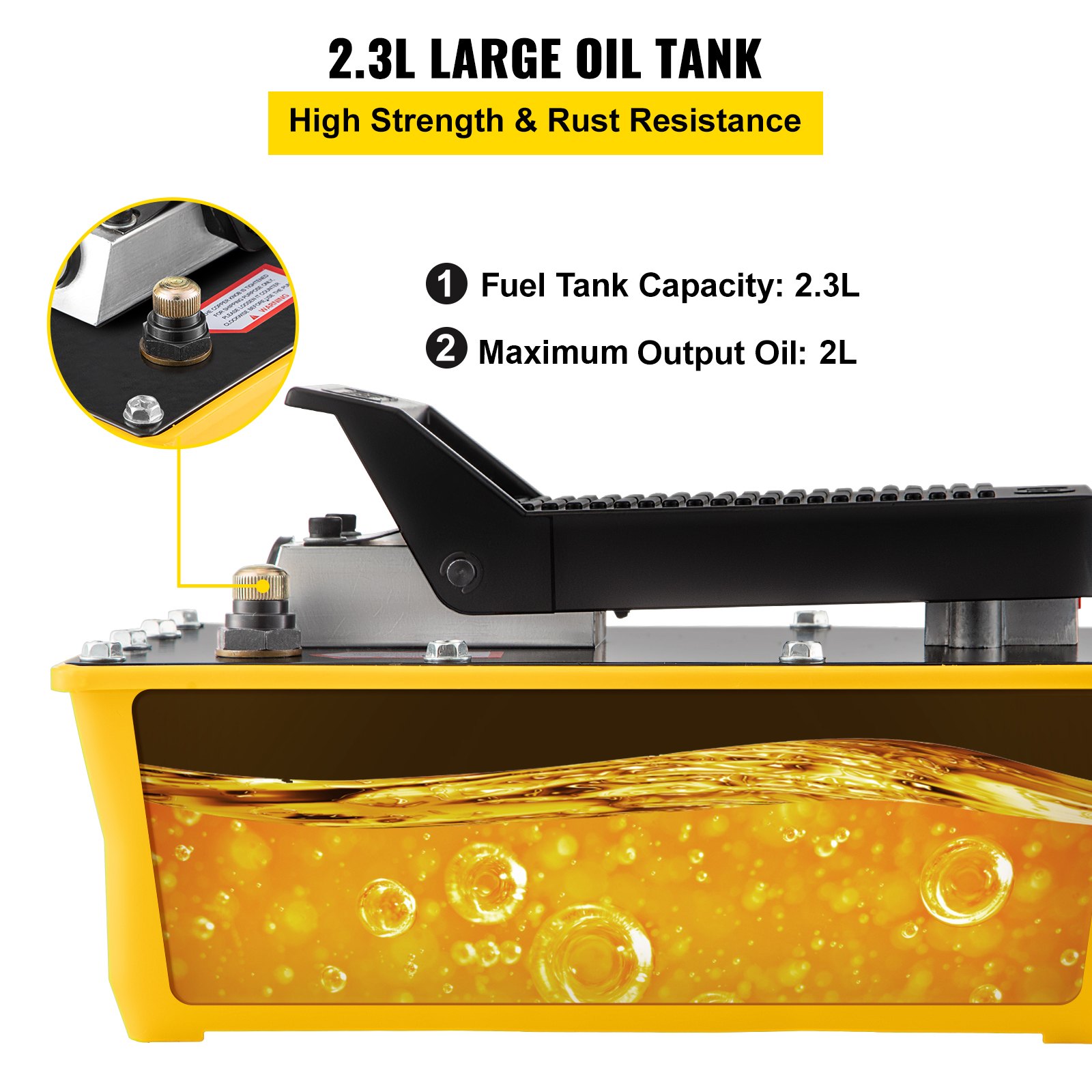

2.3L Large Oil Tank
The hydraulic air foot pump adopts a 2.3L aluminum alloy fuel tank with 2 liters maximum oil production for high performance. Moreover, it is able to ensure you have the supply needed to power a wide range of equipment.
Excellent Pipeline & Spray Gun
This hydraulic pump includes a high-quality oil pipe that resists high pressure and is not easily broken. The spray gun is also included to help users better use foot pumps to operate industrial and construction applications.

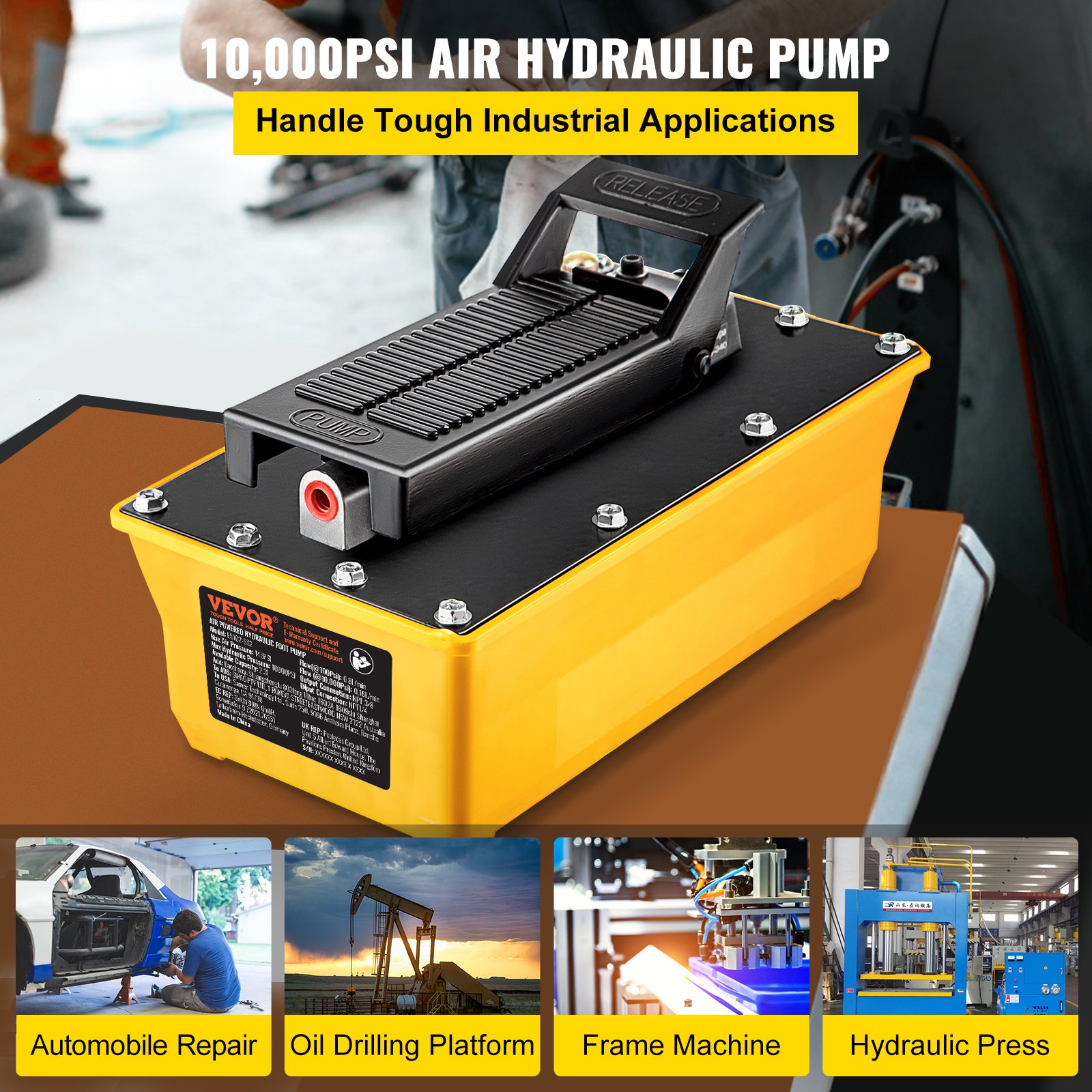

Multiple Application
This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It supplies the reliable power needed to operate your frame machine, frame straightening equipment, hydraulic presses, etc.

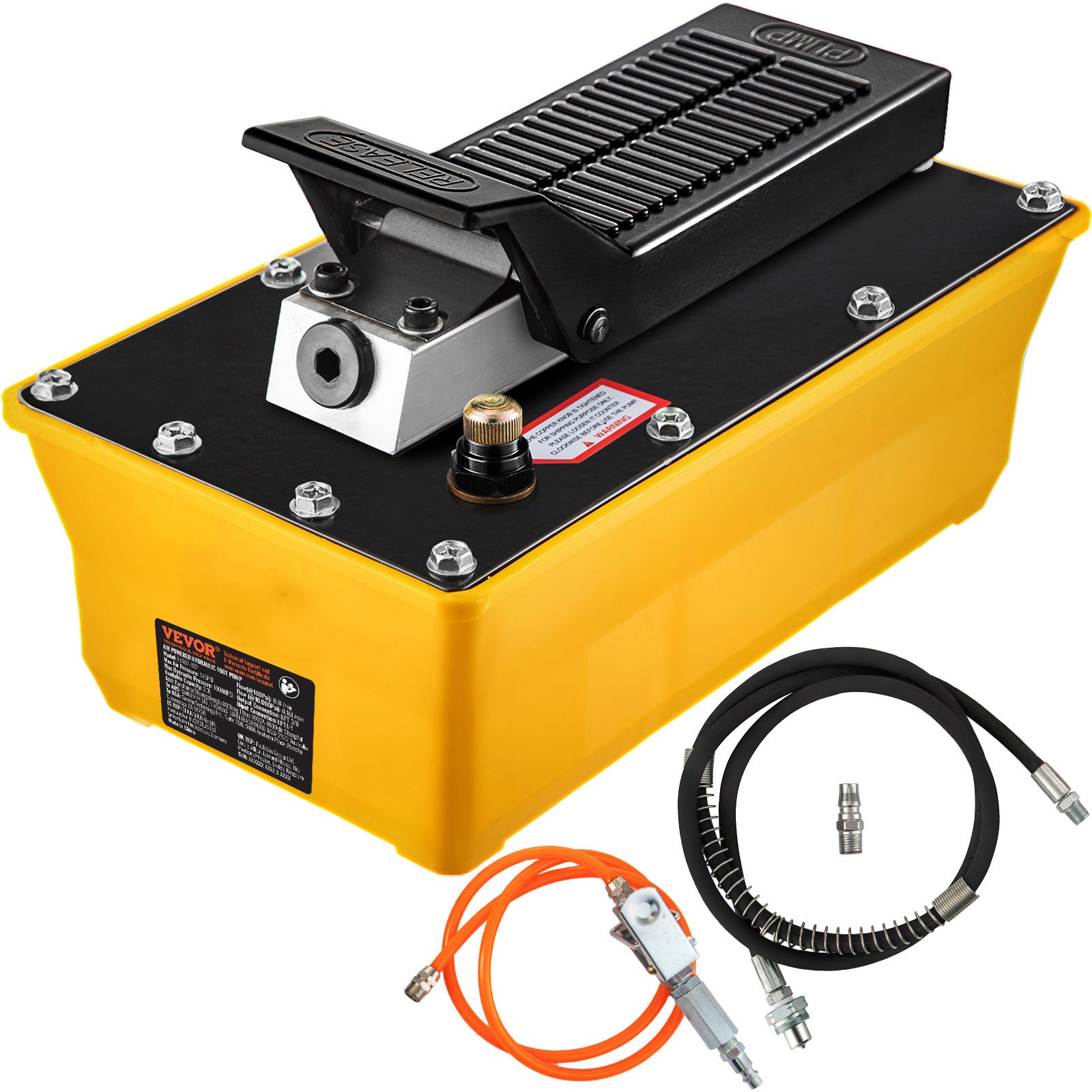

Package Content
- 1 x Air Hydraulic Foot Pump
- 1 x Oil Pipe
- 1 x Spray Gun
Specifications
- Model: NAP001
- Fuel Tank Capacity: 2.3L
- Maximum Adjustable Pressure: 10000 psi, 700 kg/square cm
- Maximum Output Oil: 2L
- Output Oil Hole: 3/8'' NPTF Connection
- Intake: 1/4'' NPT Connection
- Oil Output Pressure: 70mpa
- Flow: 0.75-0.95 liters per minute
- Flow Rate: 49.5 cu. in. with no load, 7.6 cu. in. with load
- Pressure Range: 0.7-1MPa
- Action: Single Acting
- Oil Pipe Length: 200 cm / 6.56 ft
- Spray Gun Length: 100 cm / 3.28 ft

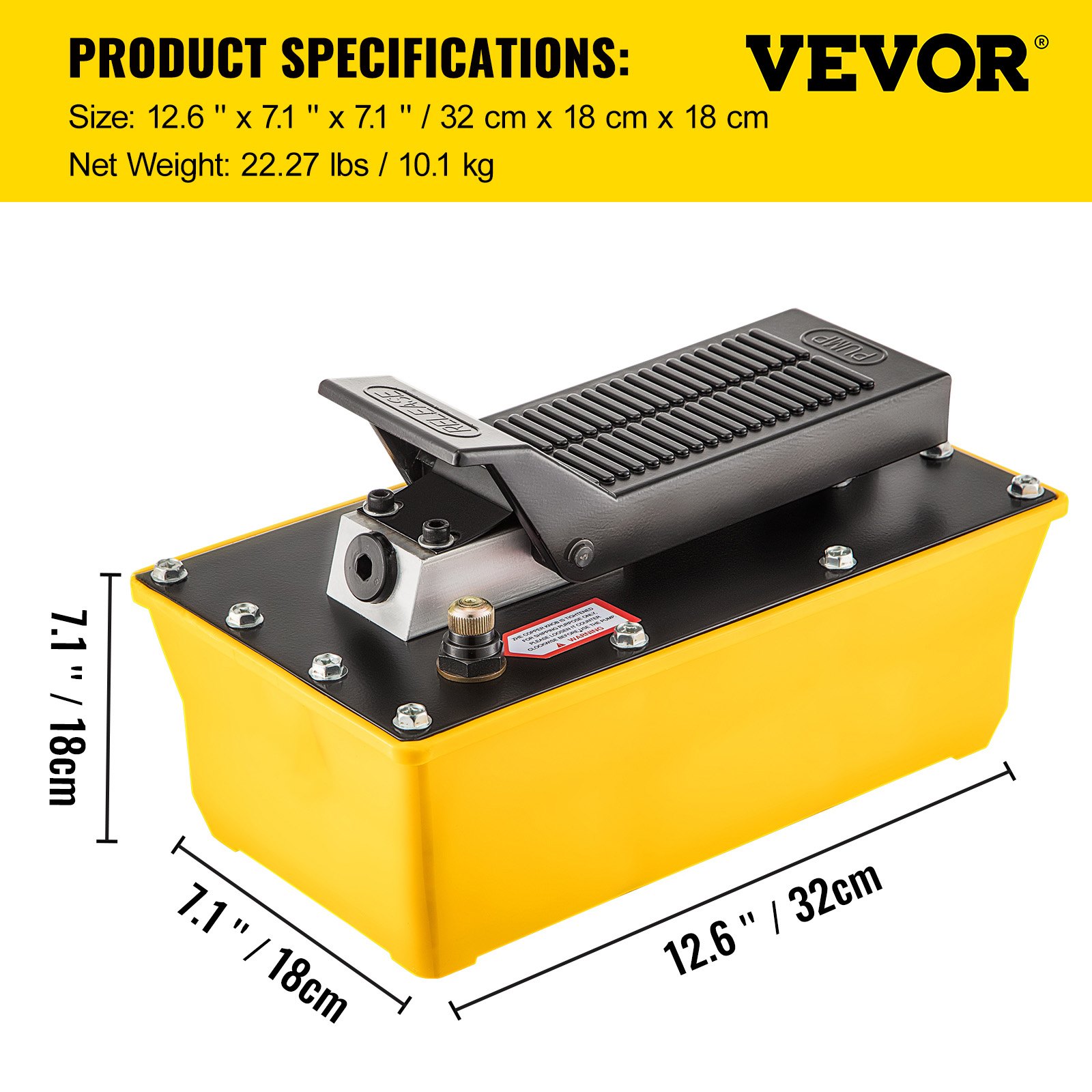

- Item Dimensions(L x W x H): 32 x 18 x 18 cm / 12.6 x 7.1 x 7.1''
- Net Weight: 10.1 kg / 22.27 lbs
