Features & Details
- Fundamental Parameters: This brushless go kart motor is powerful and efficient. Input Voltage: 48V DC, Output Power: 1800W, Rated Current: 33A, Rated Speed: 4500 RPM, Maximum Speed: 5200 RPM, Sprocket: T8F-9T, Maximum Current: 37.5A. Package includes: 1 x Brushless DC Motor, 1 x Controller, 1 x Throttle Pedal, 1 x Wire Harness, 1 x Screw Set, 2 x Wrench, 1 x Some Related Accessories.

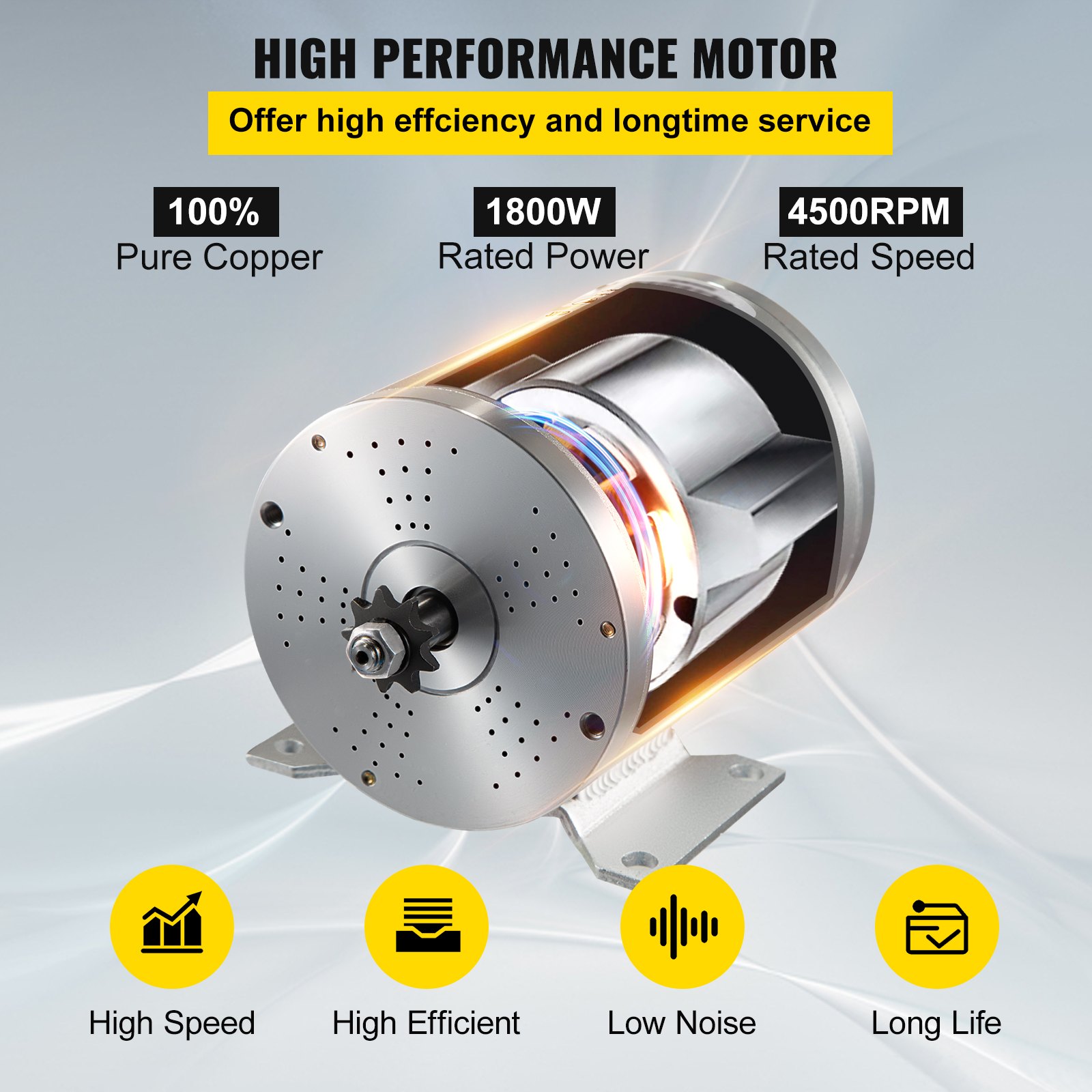

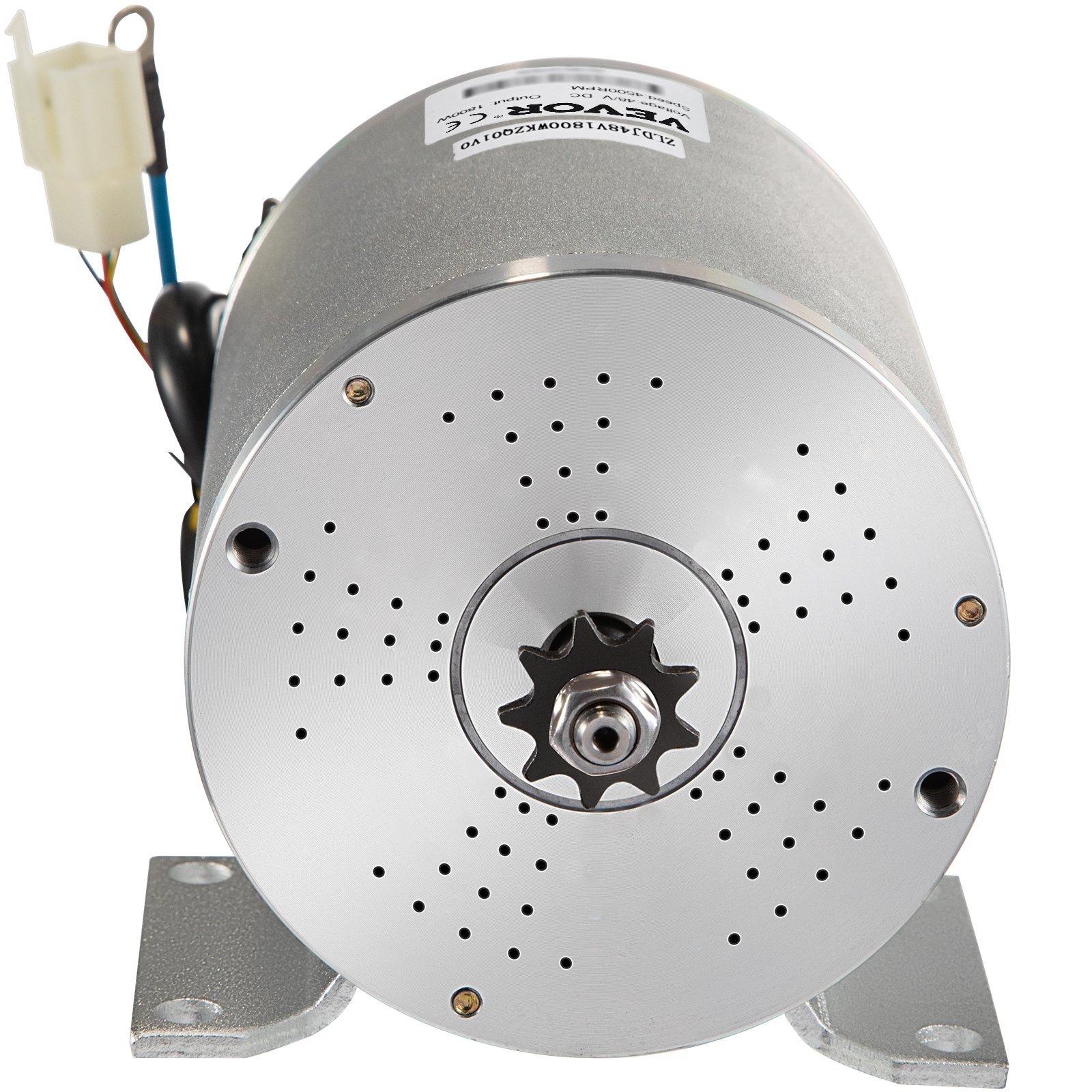

- 1800W Brushless Motor: The dc electric go kart brushless motor adopts a 100% copper core for low noise operation and excellent speed regulating performance. The high-precision rotor features high-tech components, a clean finish for water resistance, and high working efficiency. Get ready to leave the competition in the dust.
- Sturdy Aluminum Construction: The electric brushless dc motor kit features an aluminum alloy shell that resists heat, cold, and deformation, ensuring it will not rust easily. This dc electric motor is a forward and backward rotation motor so that you can switch rotation gears effortlessly.

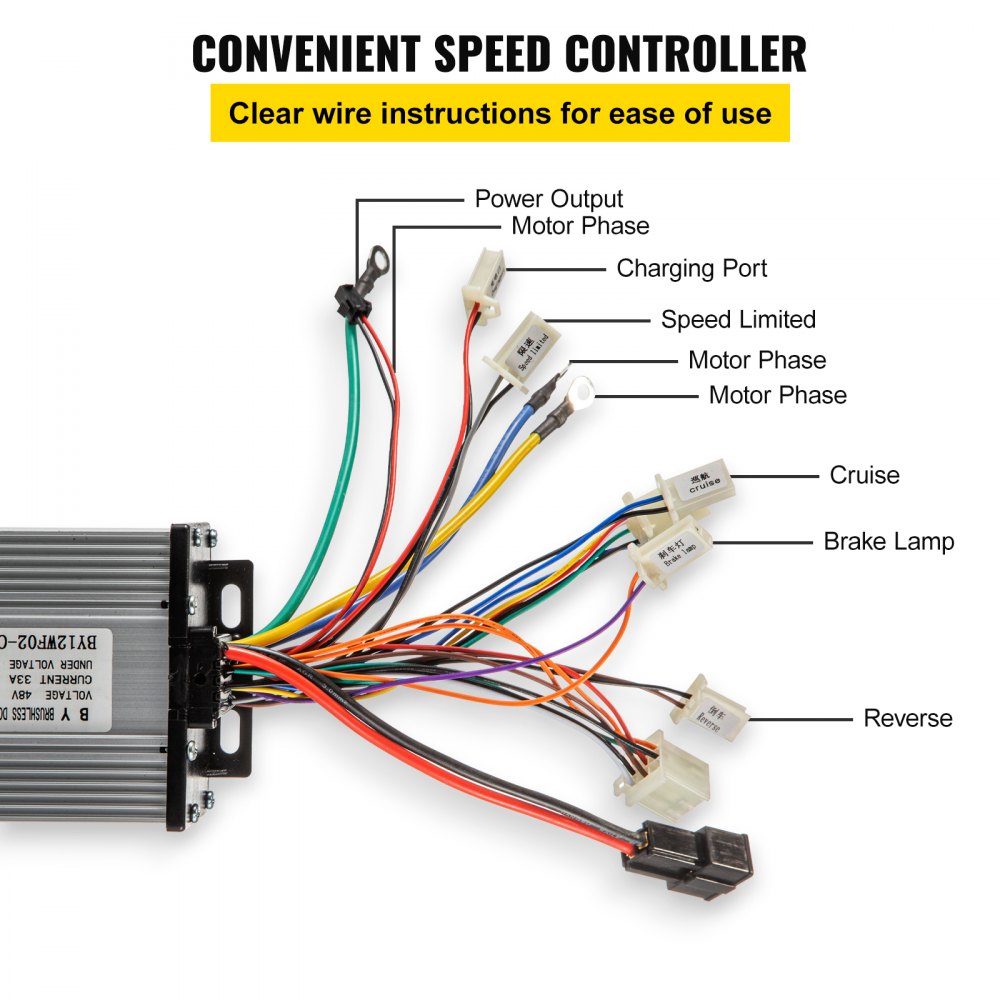

- Speed Controller Included: This dc electric motor brushless comes with a controller to provide speed control at a desirable range, speed adjustment method: Potentiometer. Model: BY12WF02-C, Current: 33A, Phase Degree: 120°, Conversion Efficiency: 90%, Under Voltage Protection Voltage: 41±0.5V.

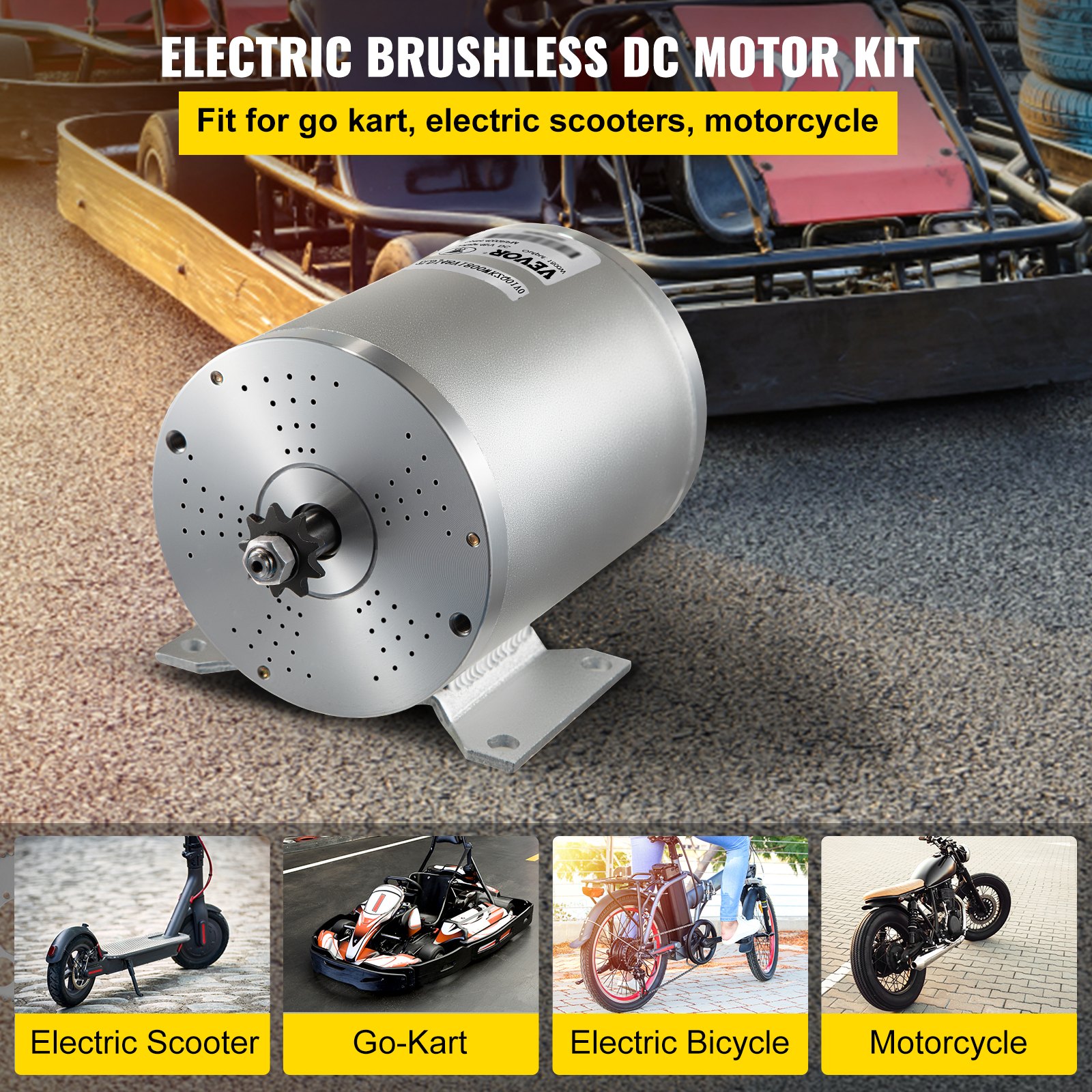

- Multiple Application: The brushless motor outshines the brushed motor due to its high efficiency, power conservation, low noise, long lifespan, and stable operation. It is suitable for go karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini bikes, pocket bikes, etc. Get up to speed with a brushless motor.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 3 reviews
Reviews 5.0
All reviews are from verified purchases
See all 3 reviews
About this item
Product specification
- Motor
- Model
- MY1020D
- Input Voltage
- 48V DC
- Output Power
- 1800W
- Rated Current
- 33A
- Rated Speed
- 4500 RPM
- Maximum Speed
- 5200 RPM
- Sprocket
- T8F-9T
- Horsepower
- 2.4 HP
- Rated Torque
- 4.0 N.m / 566.44 oz.in
- Maximum Current
- 37.5A
- No-load Current
- ≤ 3.5A
- Peak Efficiency
- ≥ 85%
- Working Temperature
- < 120 °C / 248 ℉
- Shaft Length
- 5.28'' / 134 mm
- Net Weight
- 9.26 lbs / 4.2 kg
- Mount Bracket Size
- 2.2 x 4'' / 56 x 102 mm

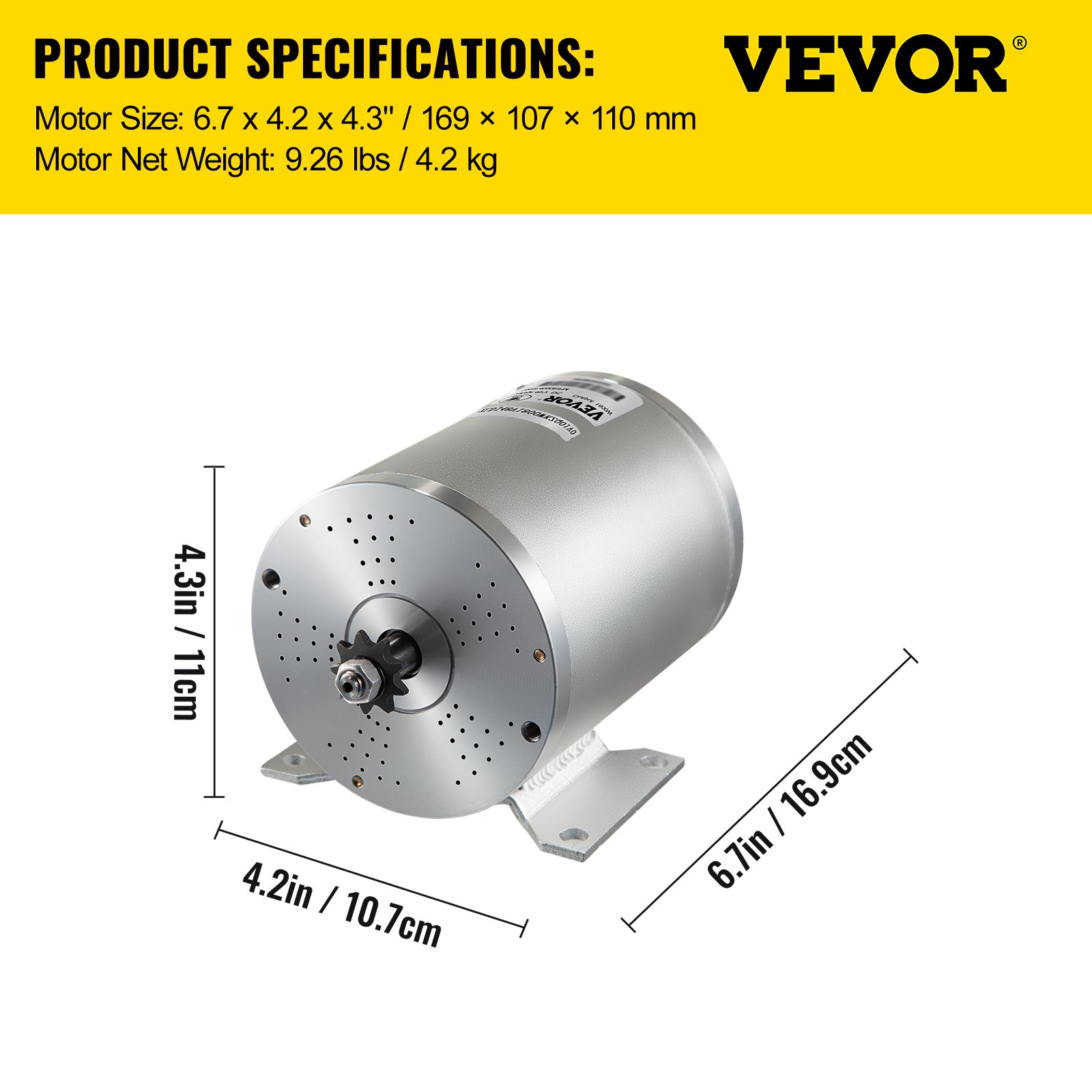

- Dimensions(L x W x H)
- 6.7 x 4.2 x 4.3'' / 169 x 107 x 110 mm
- Controller
- Model
- BY12WF02-C
- Current
- 33A
- Phase Degree
- 120°
- Conversion Efficiency
- 90%
- Under Voltage Protection Voltage
- 41±0.5V
- Speed Regulator (Throttle)
- 1-4.3V
Description

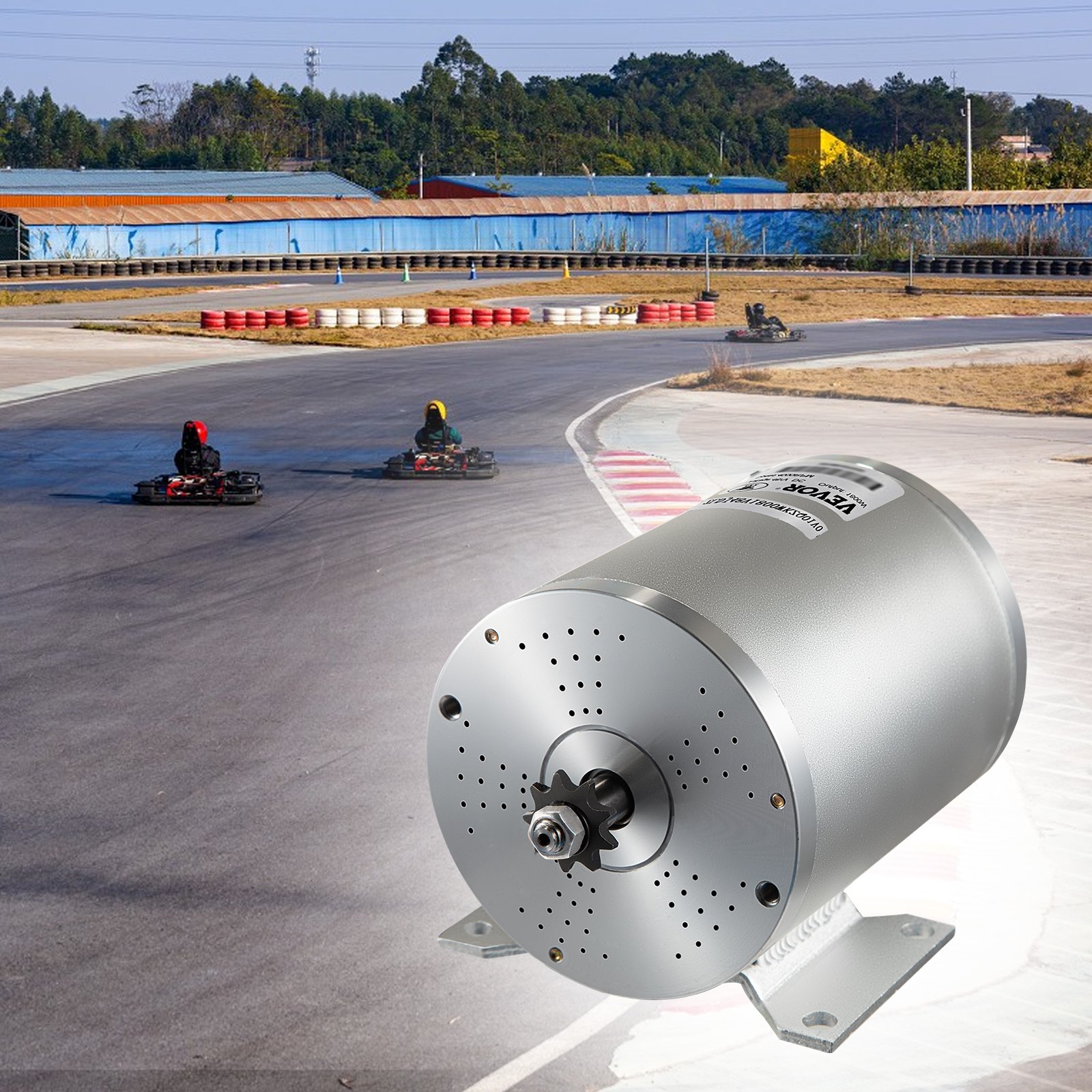

48V 1800W Brushless Motor Go Kart
Our electronic brushless motor comes with a lightweight body yet considerable & stable power output, offering excellent efficiency, controllability, and longevity. It is quite suitable for golf carts and mobility carts, electric car, electric motorcycle, etc.
- High-Power Brushless Motor
- Ultra-fast Rotation Speed
- Dual-Direction Design
- Convenient Speed Control
- Aluminum Housing
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
1800W Brushless Motor
1800W considerable power offering high working efficiency with low electric noise.
4500RPM High Speed
Delivering 4500 rpm high-speed dynamic operation, a small motor with high performance.

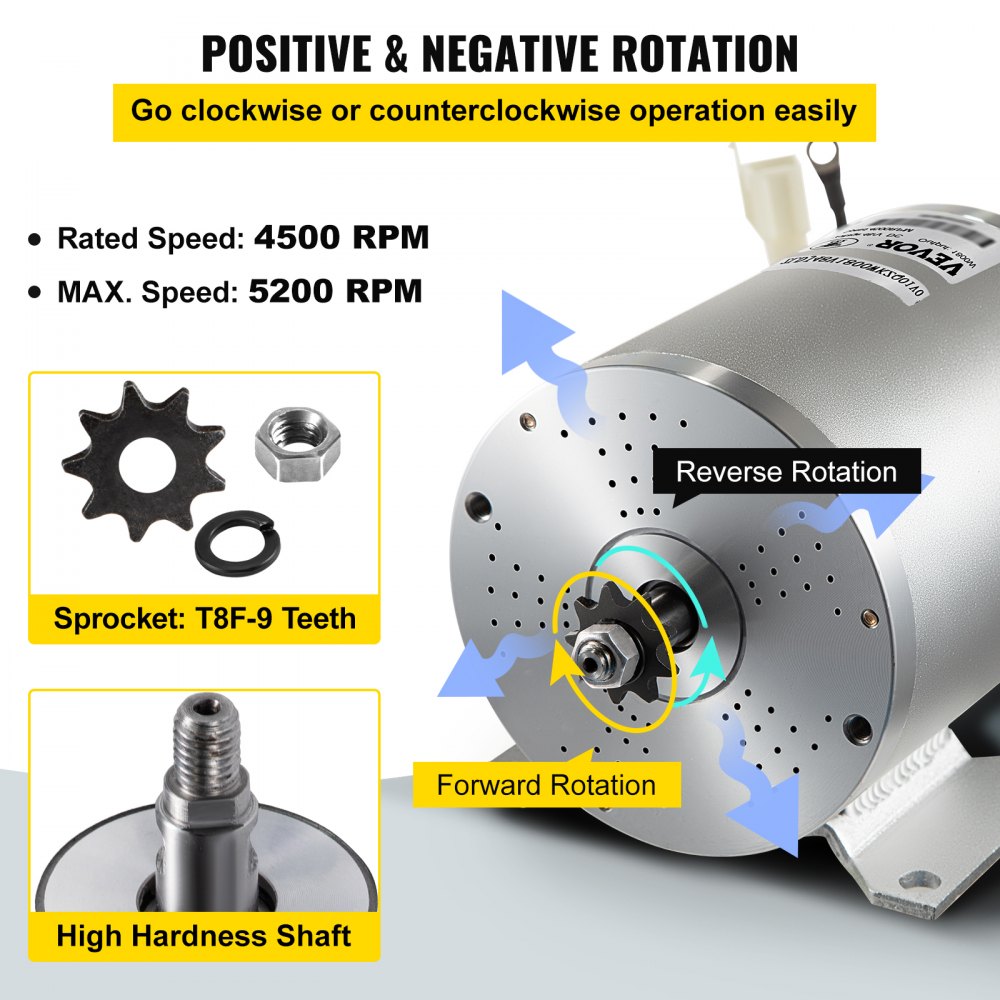

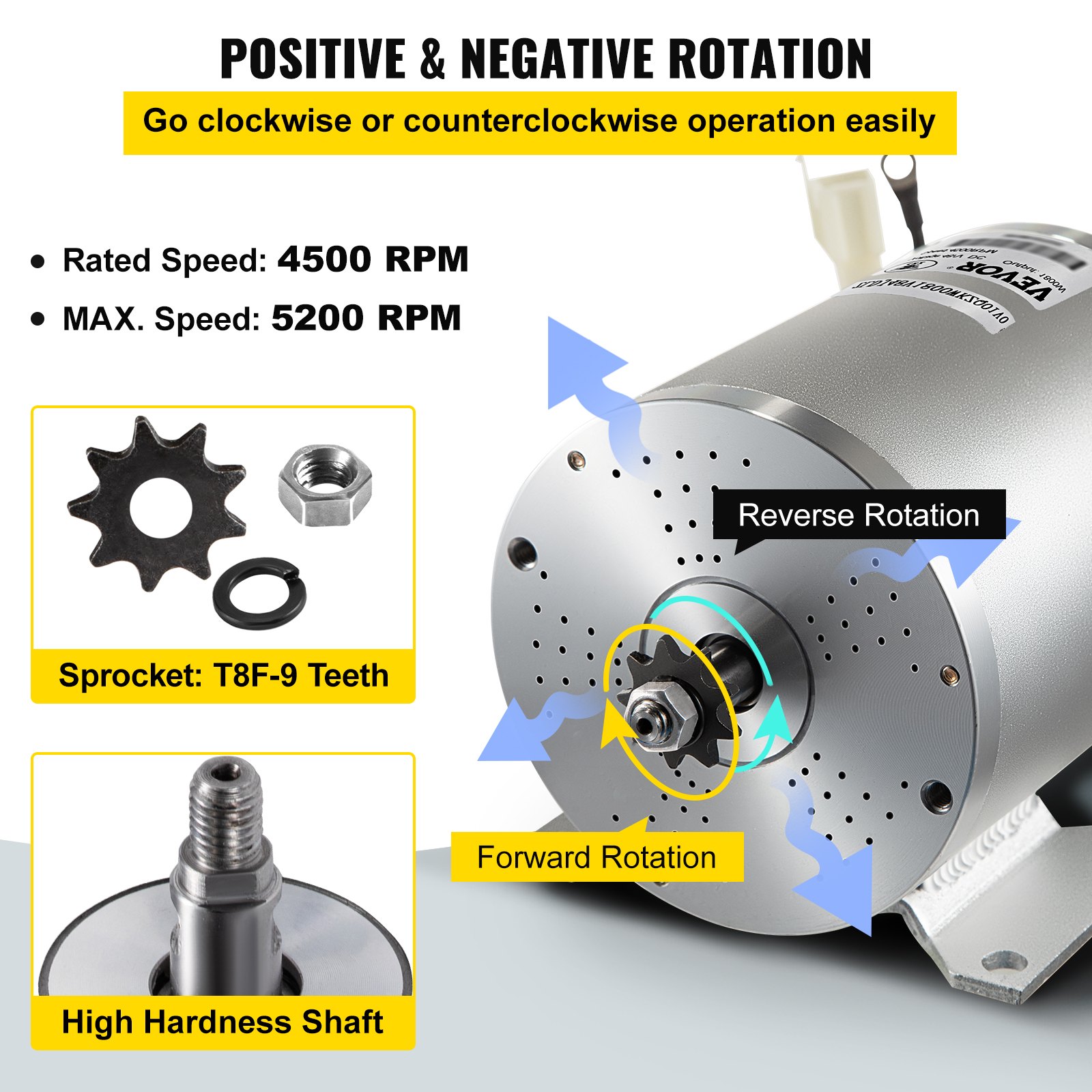

Forward & Reverse Rotation
The motor can run forward or reverse simply by reversing its power wires.
Forward & Reverse Rotation
The motor can run forward or reverse simply by reversing its power wires.
Sturdy & Lightweight
The durable aluminum shell can greatly protect its inner circuit, and it is easy to carry and operate with its lightweight body.
Wide Application
With high performance, ideal for e-scooters, go-karts, e-bikes, etc.
Specifications
- 48V DC Motor
- Type: Brushless DC motor
- Rated voltage: 48V
- Rated current: 33A
- Output: 1800W
- Rated speed: 4500 RPM
- Motor sprocket: T8F-9T
- Speed Controller
- Rated voltage: 48V DC
- Match motor: 48V 1800 W
- Conversion efficiency: 95%
- Under Voltage Protection: 42±0.5V
- Speed regulator (throttle): 1-4 V

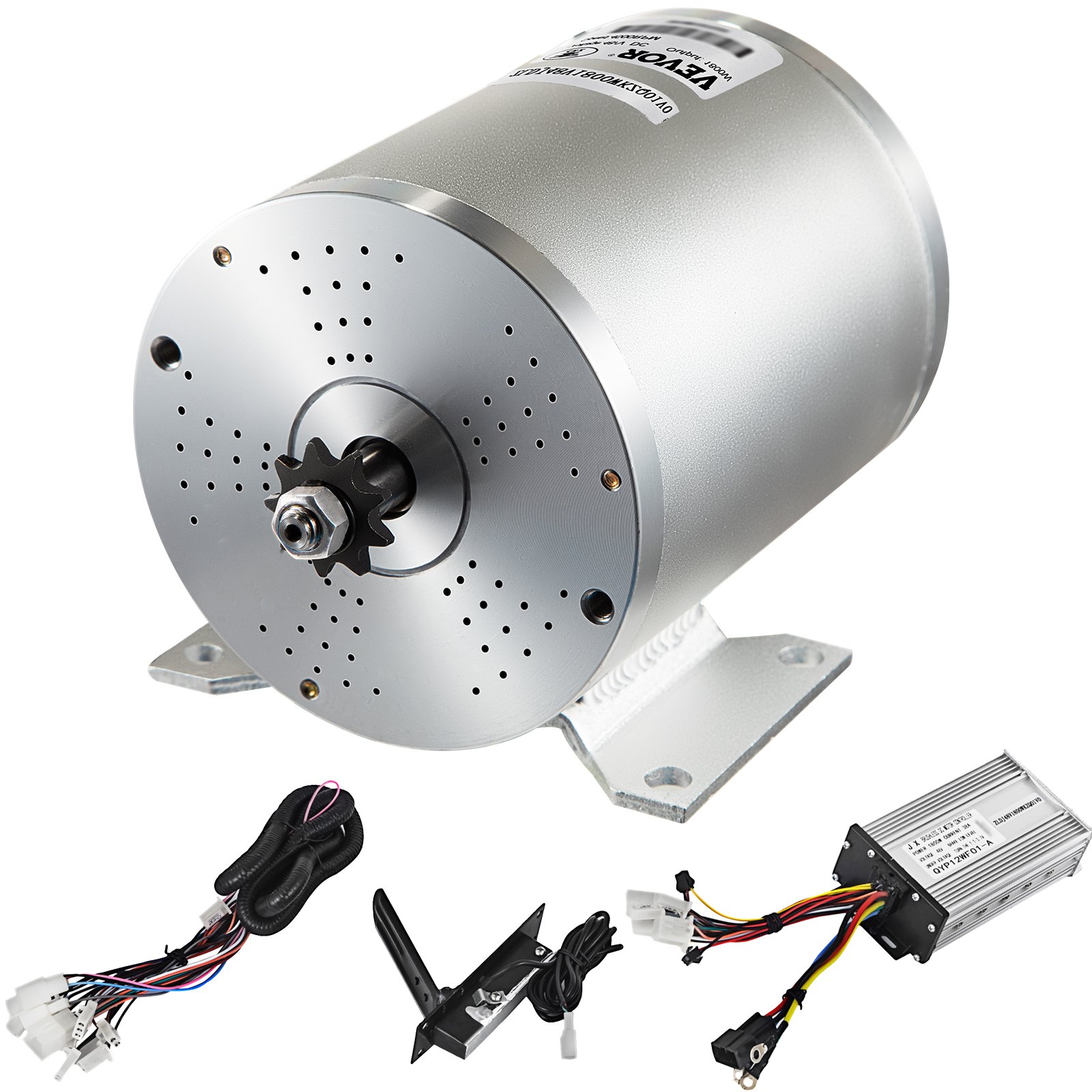

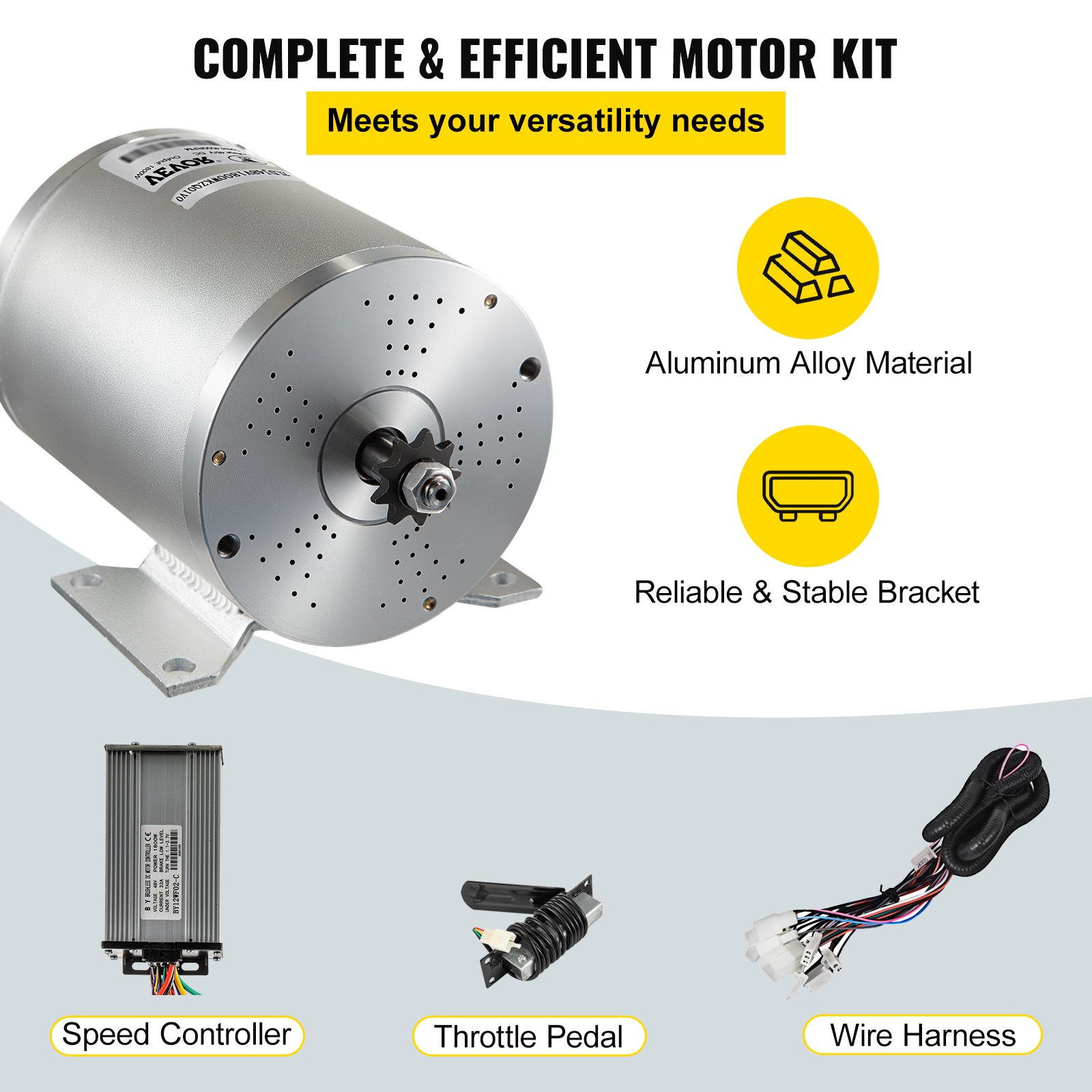

Package Content
- 1 x 48V 1800W DC Motor
- 1 x Controller
- 1 x Throttle Pedal
- 1 x Wire Harness
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
48V 1800W Brushless Motor Go Kart
Our electronic brushless motor comes with a lightweight body yet considerable & stable power output, offering excellent efficiency, controllability, and longevity. It is quite suitable for golf carts and mobility carts, electric car, electric motorcycle, etc.
- High-Power Brushless Motor
- Ultra-fast Rotation Speed
- Dual-Direction Design
- Convenient Speed Control
- Aluminum Housing
1800W Brushless Motor
1800W considerable power offering high working efficiency with low electric noise.
4500RPM High Speed
Delivering 4500 rpm high-speed dynamic operation, a small motor with high performance.
Forward & Reverse Rotation
The motor can run forward or reverse simply by reversing its power wires.
Forward & Reverse Rotation
The motor can run forward or reverse simply by reversing its power wires.
Sturdy & Lightweight
The durable aluminum shell can greatly protect its inner circuit, and it is easy to carry and operate with its lightweight body.
Wide Application
With high performance, ideal for e-scooters, go-karts, e-bikes, etc.
Package Content
- 1 x 48V 1800W DC Motor
- 1 x Controller
- 1 x Throttle Pedal
- 1 x Wire Harness
Specifications
- 48V DC Motor
- Type: Brushless DC motor
- Rated voltage: 48V
- Rated current: 33A
- Output: 1800W
- Rated speed: 4500 RPM
- Motor sprocket: T8F-9T
- Speed Controller
- Rated voltage: 48V DC
- Match motor: 48V 1800 W
- Conversion efficiency: 95%
- Under Voltage Protection: 42±0.5V
- Speed regulator (throttle): 1-4 V
