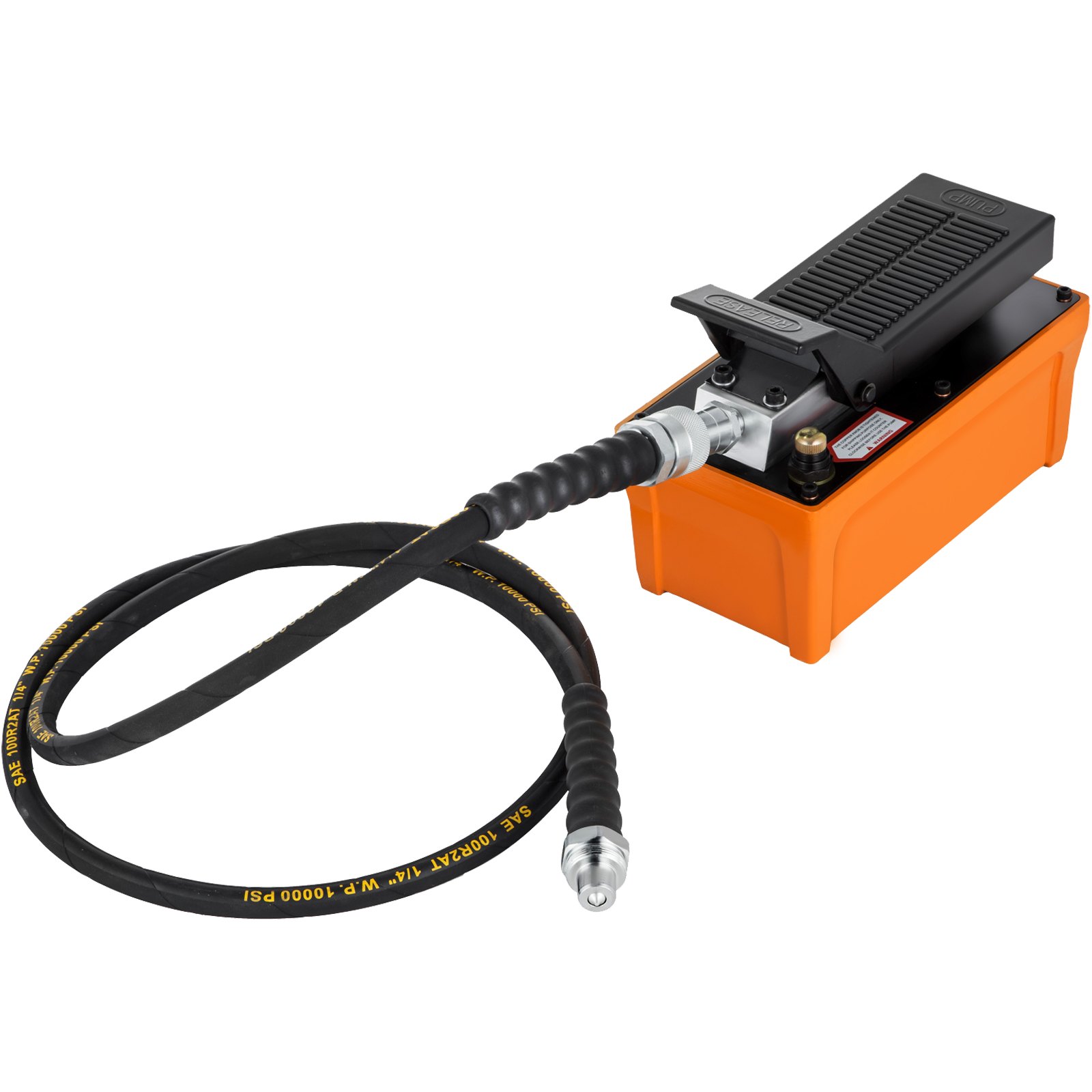

VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil) VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil) VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil) VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil) VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil) VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil) VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
QDJTSYYB000000001V0

VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)

AU $192.99
192.99
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI. Action: Single Acting, Flow Rate: 0.8 liters / 0.21 gallons per minute, Air Connection: 1/4" NPT, Output Oil Hole: 3/8" NPT, Hydraulic Oil Type: HM22/HM32, Oil Capacity: 98 Cubic Inches / 1.6 Liters (1600 cc), Input Air Pressure: 0.7-1MPa, Fuel Tank Capacity: 1.6L ± 0.1L, Maximum Oil Output: 1.3L, Oil Output Pressure: 70MPa.
  • Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, saving the operator's time and effort with strong power and high output pressure. The convenient 2-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.
  • Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality metal shell to handle tough industrial applications. 1.6L oil tank has a larger capacity with 98 cubic inches / 1.6 liters output oil. Built-in internal relief valve protects the hydraulic components regardless of hydraulic pressure.
  • Durable Oil Pipe Included: This hydraulic air pump is equipped with a 1 m /3 ft high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable, no worry about the oil leak.
  • 10,000 PSI for Wide Application: This high-pressure hydraulic air-powered pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. An ideal all-around power source and a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
Only 1 Left, order soon
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
10,000 PSI Air Hydraulic Foot Pump
Foot Pedal Control & 1.6L Oil Tank & 1 m Hydraulic Hose
  • This high-pressure air-powered hydraulic pump is constructed for security, durability, and the delivery of higher oil flow, ideal for delivering compact air over hydraulic. The user-friendly foot-actuated design provides hands-free operation. It is engineered to meet users' standards with high-quality performance and fine metering capabilities for precise control—a perfect pump for all your auto body shop hydraulic needs.
  • Fundamental Parameters
  • Foot-Actuated Design
  • Sturdy & Compact Construction
  • Durable Oil Pipe Included
  • 10,000 PSI for Wide Application
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)

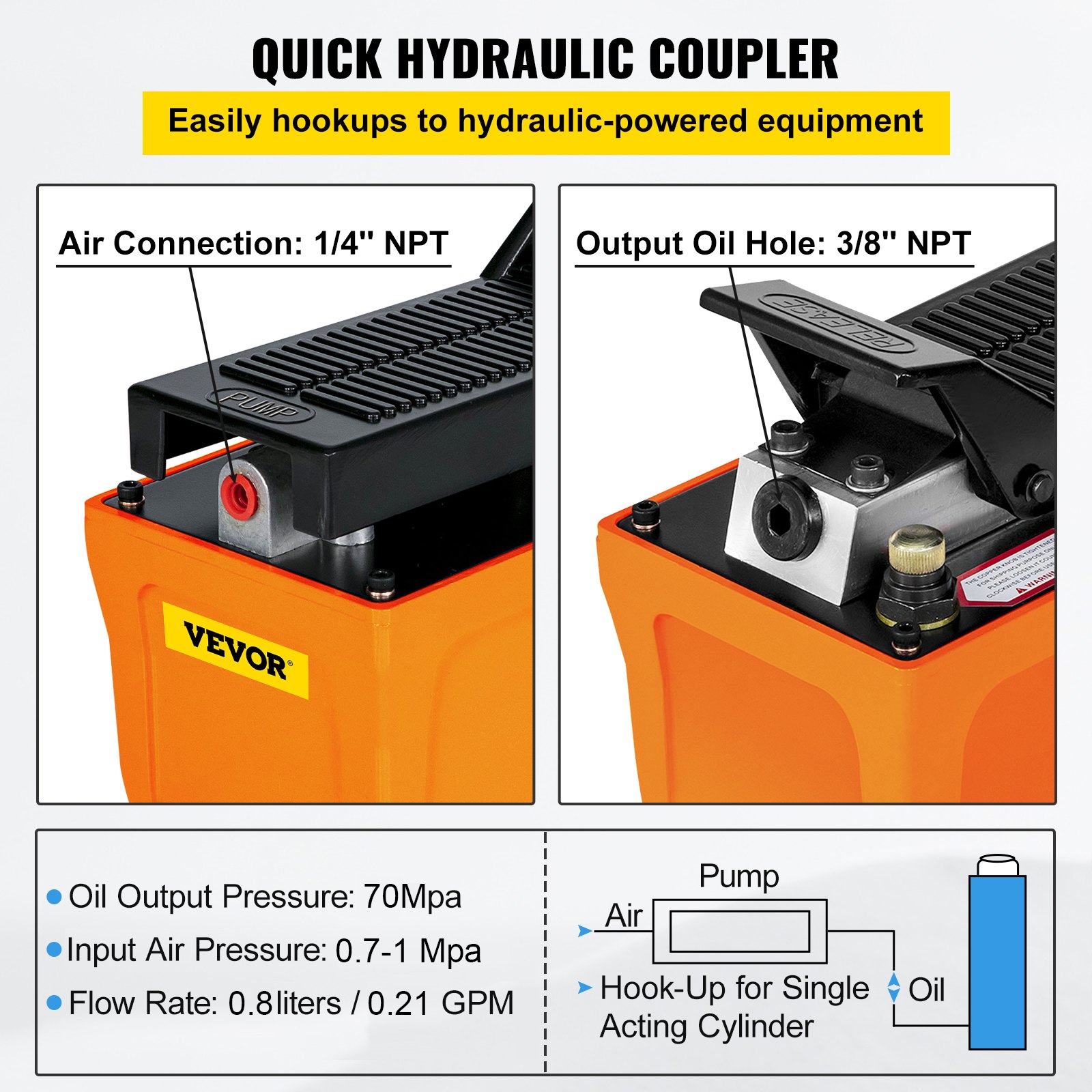

Standard Air Inlet & Oil Outlet
The air hydraulic pump features a 1/4'' NPT air inlet and a 3/8'' NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port conveniently hookups to hydraulic-powered equipment.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)

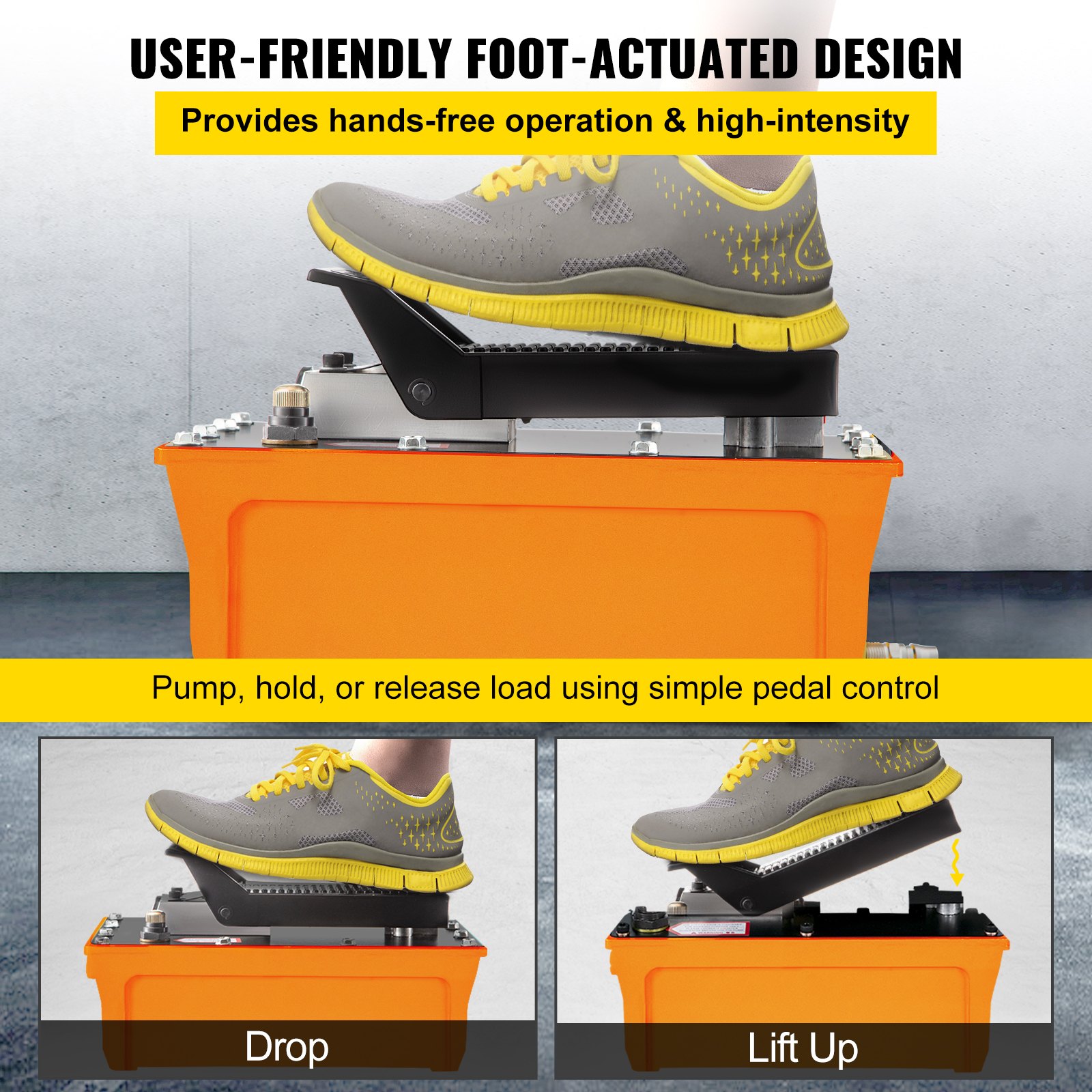

Simple Foot Pedal Control
The high-intensity frame machine pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, it allows fine control of the pump while keeping both hands free.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)

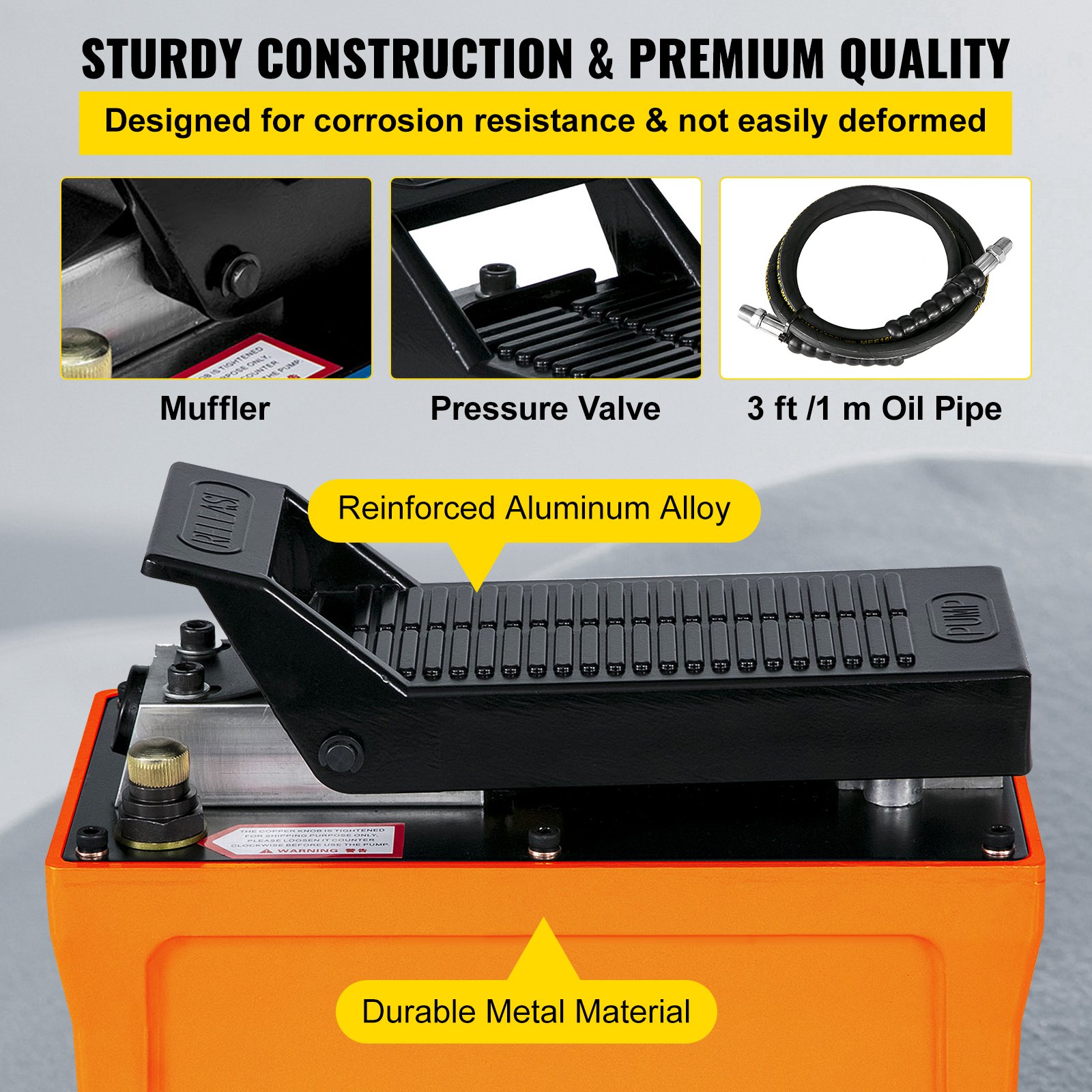

Premium Quality & Structure
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable metal shell protects the internal structure better and is not easily deformed.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)

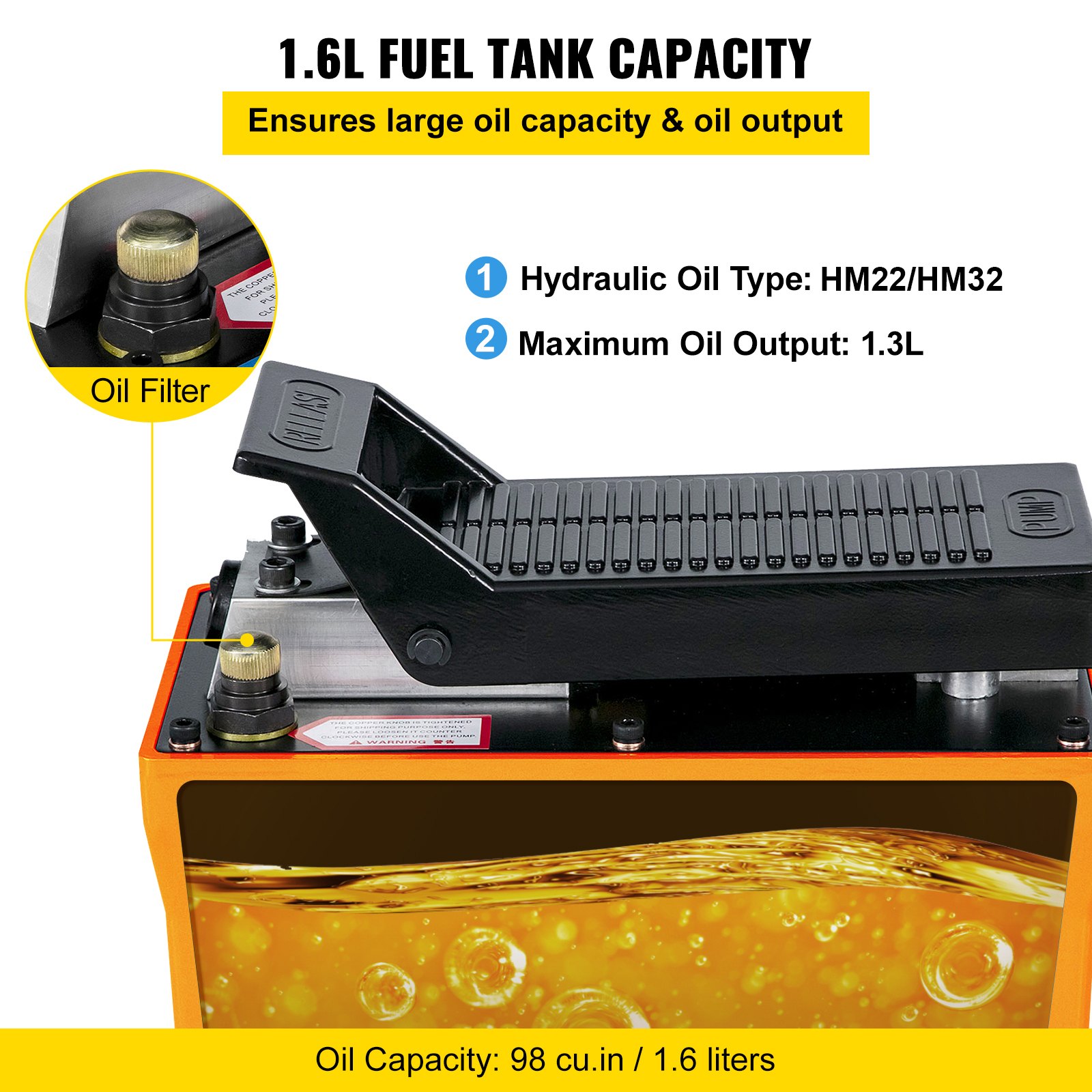

1.6L Large Oil Tank
The hydraulic air foot pump adopts a 1.6L ± 0.1L aluminum alloy fuel tank with 98 cubic inches / 1.6 liters production for high performance. Moreover, it ensures you have the supply needed to power your equipment.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)

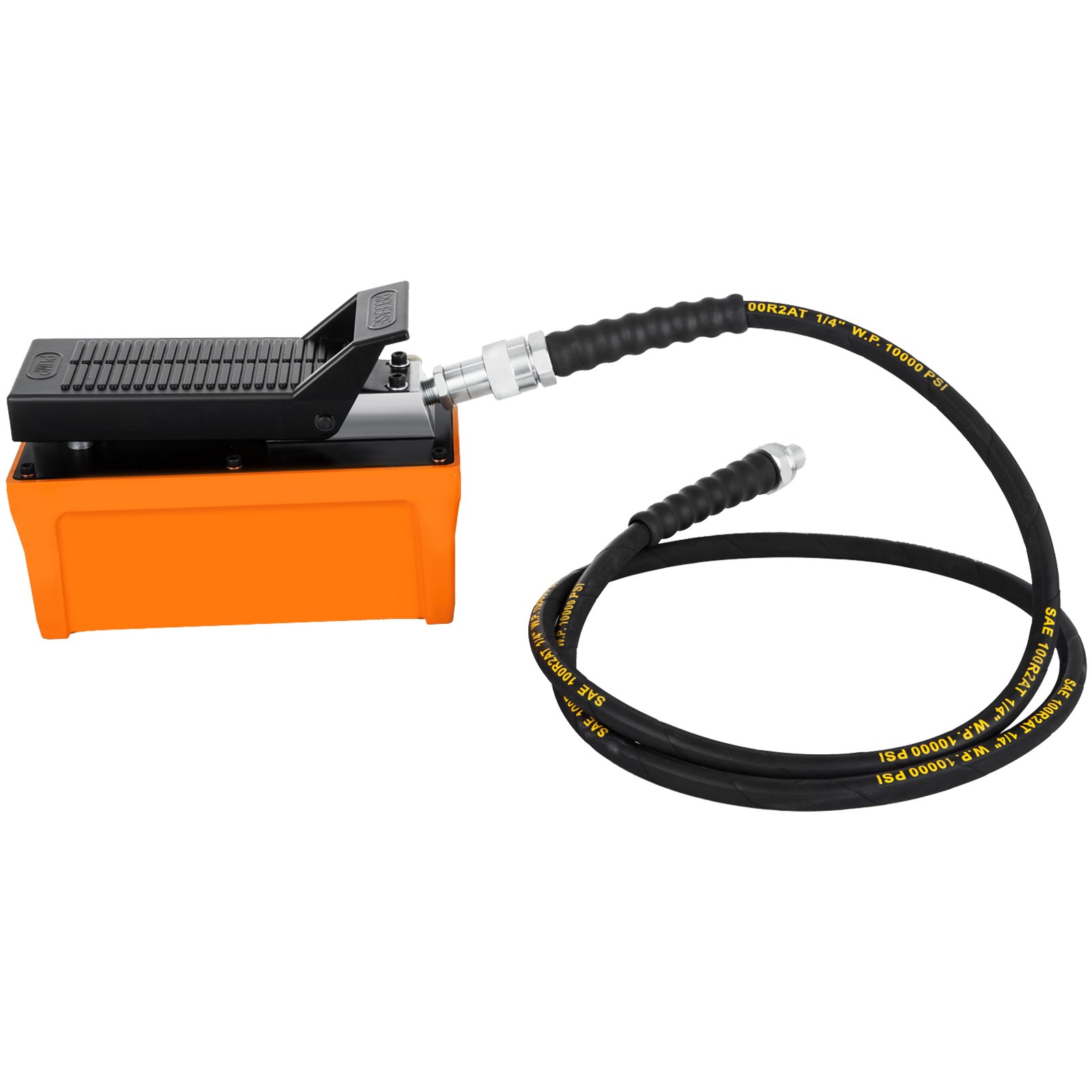

High-Pressure Hydraulic Hose
This hydraulic pump includes a high-quality oil pipe that resists high pressure and is not easily broken. Hydraulic Hose: 1 m /3 ft with 3/8 NPT - Quick hydraulic coupler.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)

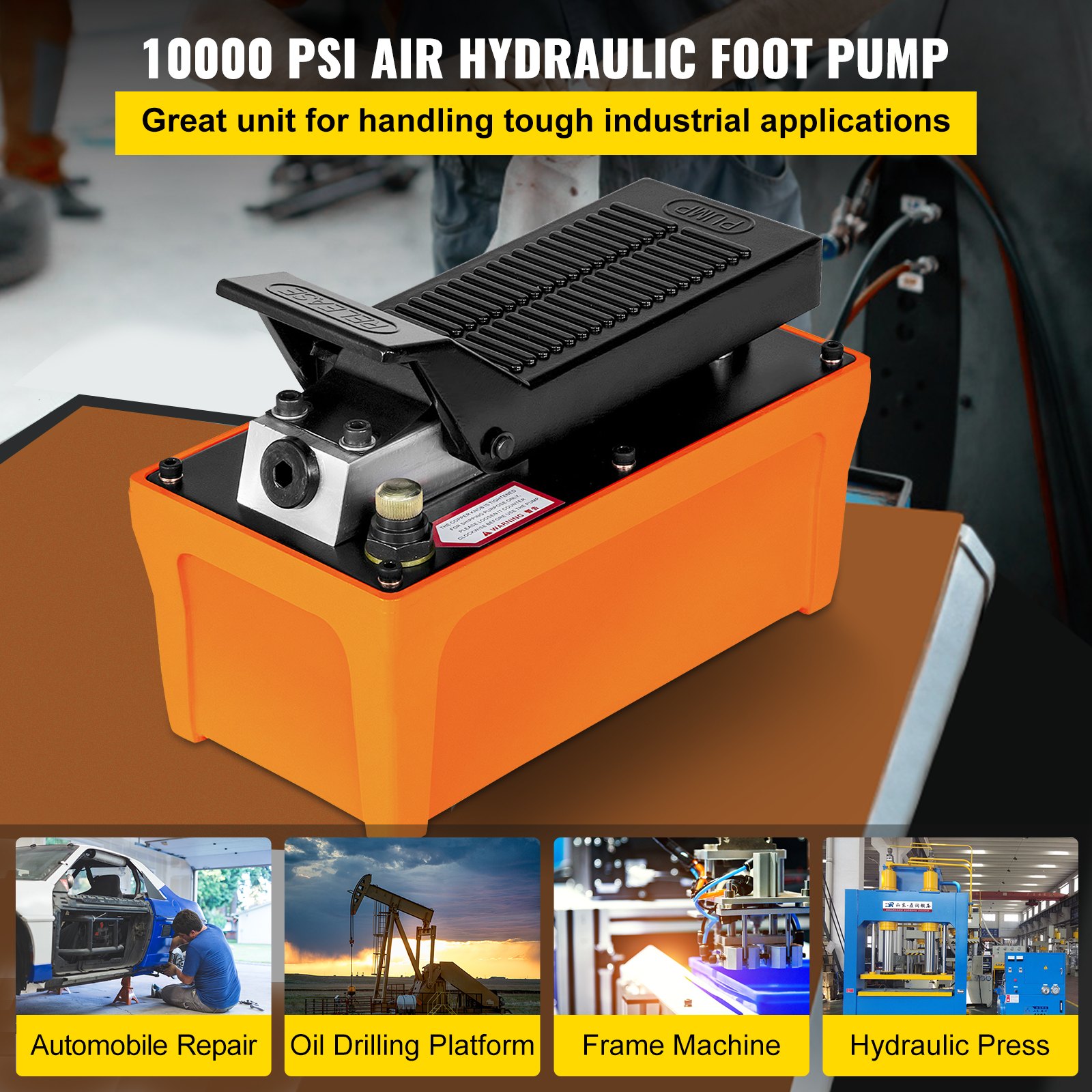

Multiple Application
This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It effectively operates your frame machine, hydraulic presses, etc.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)

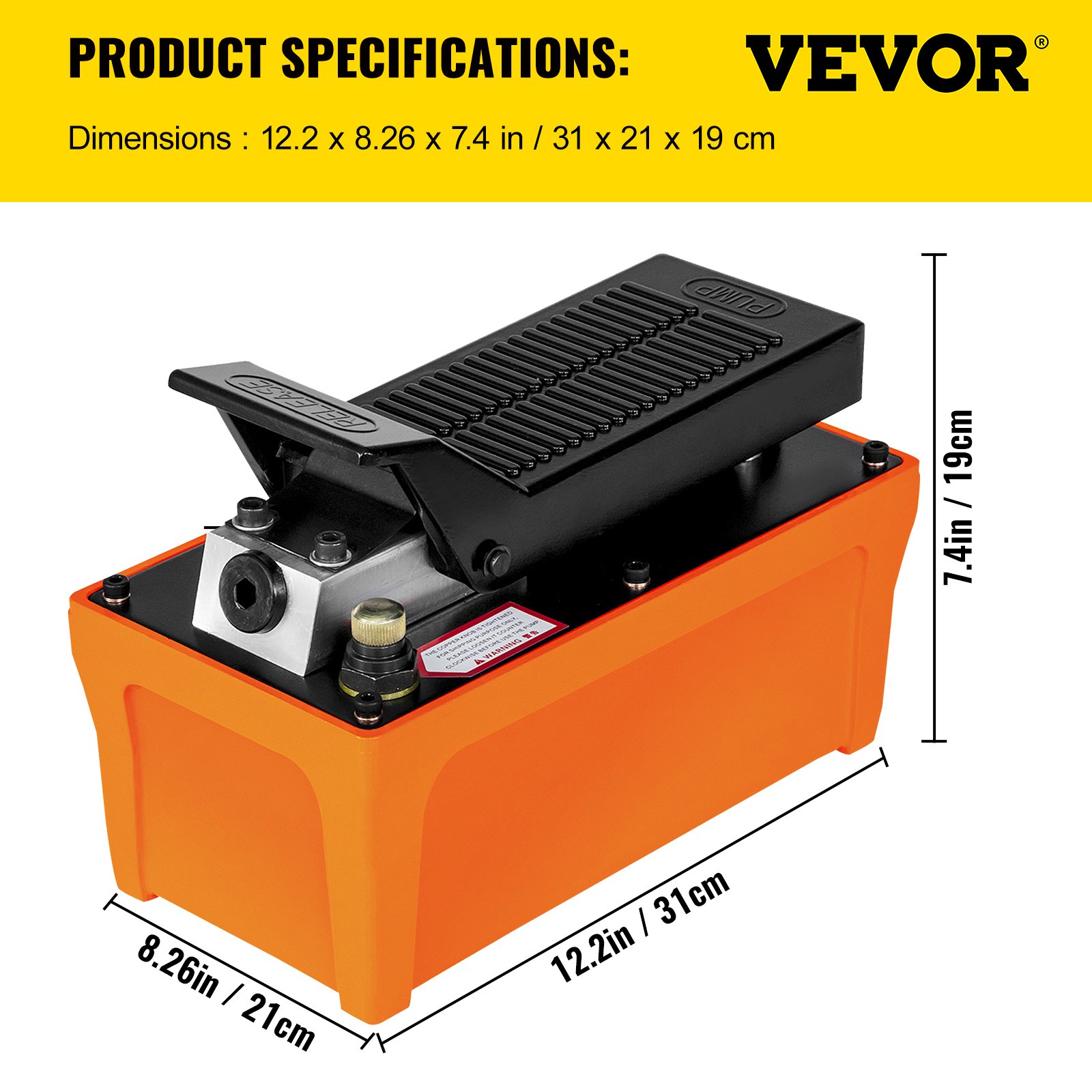

Specifications
  • Type: Air Powered Hydraulic Pump
  • Action: Single Acting
  • Control: Foot pedal pump - Release pressure to return fluid
  • Includes Hydraulic Hose: 1 m / 3 ft with 3/8'' NPT - Quick hydraulic coupler
  • Flow Rate: 0.8 liters / 0.21 gallons per minute
  • Air Connection: 1/4" Female NPT
  • Output Oil Hole: 3/8'' NPT Connection
  • Hydraulic Oil Type: HM22/HM32
  • Oil Capacity: 98 Cubic Inches / 1.6 Liters(1600 cc)
  • Input Air Pressure: 0.7-1MPa
  • Shell Material: Reinforced Aluminum Alloy
  • Fuel Tank Capacity: 1.6L
  • Capacity Tolerance: ± 0.1L
  • Maximum Oil Output: 1.3L
  • Oil Output Pressure: 70MPa
  • Pressure Range: ≥ 0.5
  • Max Output Hydraulic Pressure: 10000 psi, 700 kg/square cm
  • Total Mass: 8.0 kg / 17.64 lbs
  • Overall Dimensions(L x W x H): 265 x 133 x 180 mm / 10.43 x 5.24 x 7.09''
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
Package Content
  • 1 x Air Powered Hydraulic Pump
  • 1 x Set of Related Accessories
  • 1 x Instruction Manual
  • Note: Pump comes without oil.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
10,000 PSI Air Hydraulic Foot Pump
Foot Pedal Control & 1.6L Oil Tank & 1 m Hydraulic Hose
  • This high-pressure air-powered hydraulic pump is constructed for security, durability, and the delivery of higher oil flow, ideal for delivering compact air over hydraulic. The user-friendly foot-actuated design provides hands-free operation. It is engineered to meet users' standards with high-quality performance and fine metering capabilities for precise control—a perfect pump for all your auto body shop hydraulic needs.
  • Fundamental Parameters
  • Foot-Actuated Design
  • Sturdy & Compact Construction
  • Durable Oil Pipe Included
  • 10,000 PSI for Wide Application
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
Standard Air Inlet & Oil Outlet
The air hydraulic pump features a 1/4'' NPT air inlet and a 3/8'' NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port conveniently hookups to hydraulic-powered equipment.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
Simple Foot Pedal Control
The high-intensity frame machine pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, it allows fine control of the pump while keeping both hands free.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
Premium Quality & Structure
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable metal shell protects the internal structure better and is not easily deformed.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
1.6L Large Oil Tank
The hydraulic air foot pump adopts a 1.6L ± 0.1L aluminum alloy fuel tank with 98 cubic inches / 1.6 liters production for high performance. Moreover, it ensures you have the supply needed to power your equipment.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
High-Pressure Hydraulic Hose
This hydraulic pump includes a high-quality oil pipe that resists high pressure and is not easily broken. Hydraulic Hose: 1 m /3 ft with 3/8 NPT - Quick hydraulic coupler.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
Multiple Application
This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It effectively operates your frame machine, hydraulic presses, etc.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
Package Content
  • 1 x Air Powered Hydraulic Pump
  • 1 x Set of Related Accessories
  • 1 x Instruction Manual
  • Note: Pump comes without oil.
VEVOR 10000 PSI Capacity Hydraulic Foot Pump 1/2 Gallon 98 Cubic Air Hydraulic Pump Air Actuated Treadle Hydraulic Pump Aluminum Shell Single Acting Auto Repair Tool (Pump Comes Without Oil)
Specifications
  • Type: Air Powered Hydraulic Pump
  • Action: Single Acting
  • Control: Foot pedal pump - Release pressure to return fluid
  • Includes Hydraulic Hose: 1 m / 3 ft with 3/8'' NPT - Quick hydraulic coupler
  • Flow Rate: 0.8 liters / 0.21 gallons per minute
  • Air Connection: 1/4" Female NPT
  • Output Oil Hole: 3/8'' NPT Connection
  • Hydraulic Oil Type: HM22/HM32
  • Oil Capacity: 98 Cubic Inches / 1.6 Liters(1600 cc)
  • Input Air Pressure: 0.7-1MPa
  • Shell Material: Reinforced Aluminum Alloy
  • Fuel Tank Capacity: 1.6L
  • Capacity Tolerance: ± 0.1L
  • Maximum Oil Output: 1.3L
  • Oil Output Pressure: 70MPa
  • Pressure Range: ≥ 0.5
  • Max Output Hydraulic Pressure: 10000 psi, 700 kg/square cm
  • Total Mass: 8.0 kg / 17.64 lbs
  • Overall Dimensions(L x W x H): 265 x 133 x 180 mm / 10.43 x 5.24 x 7.09''

Specification

Type
Air Powered Hydraulic Pump
Action
Single Acting
Control
Foot pedal pump - Release pressure to return fluid
Includes Hydraulic Hose
1 m / 3 ft with 3/8'' NPT - Quick hydraulic coupler
Flow Rate
0.8 liters / 0.21 gallons per minute
Air Connection
1/4" Female NPT
Output Oil Hole
3/8'' NPT Connection
Hydraulic Oil Type
HM22/HM32
Oil Capacity
98 Cubic Inches / 1.6 Liters(1600 cc)
Input Air Pressure
0.7-1MPa
Shell Material
Reinforced Aluminum Alloy
Fuel Tank Capacity
1.6L
Capacity Tolerance
± 0.1L
Maximum Oil Output
1.3L
Oil Output Pressure
70MPa
Pressure Range
≥ 0.5
Max Output Hydraulic Pressure
10000 psi, 700 kg/square cm
Total Mass
8.0 kg / 17.64 lbs
Overall Dimensions(L x W x H)
265 x 133 x 180 mm / 10.43 x 5.24 x 7.09''
Manual
Download Link
Questions and Answers
1 Questions
hello, i have a motorcycle scissor lift that is hydraulic only , foot pumping at my age is difficult and wondering if this system could be adapted to the ram on the lift? i do have compressed air of 10cfm available. could you supply a circuit diagram of how to plumb it up? thank you chris
The specific operation is shown in the video in the link: https://d2v0huudrf11kh.cloudfront.net/vevor-center-goods/9_1666778918314.mp4
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
26 Review(s)
Clear filters
Mark Mark
Great buy. Pumps fast
Works great. Way better than hand pumping my porta power set. Came with oil in it ready to use. Don't forget to loosen the breather cap/knob before using. I close it when I'm done using it, but you have to make sure you open it before pumping up your cylinders.
Bob Bob
Nice little unit
I deliberated as to buy cheaper ,same brand unit ,but opted for this one because of greater reserve hydraulic oil volume,and had hoses included,hoses were virtually useless ,could have got better for cheaper at princess auto,this one has no mounting holes beneath so had to make box to contain,bounces,would I buy again,yes,having reserve hydraulic capacity means I can adapt to other rams and functions,I caution ,outta box ,needs adapted to purpose,best adaptation for my 20 ton hydraulic press,can and will deliver way more than 20 ton,so fast to get to work surface,have not pushed past 20 ton,but it can go way more! ! .made some hole punches for press,will clean punch with dies ,saving drilling time,up to 5/8 hole in 3/16 plate steel.vevor unit definitely has capacity to exceed potential of a 20 ton press.projects ? Using this unit, pipe bender,tubing bender,log splitter,endless possibilities, wished it had as its smaller version,mounting holes on bottom.longevety?time will tell,only in use perhaps 20 min yet.?
mark mcdonald mark mcdonald
This pump works awsome.
Fast powerful pump. Used with a homebuilt c frame and 30 ton ram to press dump truck double frame sections together
Chris Chris
Mr
Saw this on a youtube video about building your own press. I've got it hooked up to a 20 ton ram and it works great. Has been a great upgrade for my shop press. Was so easy to set up as well. Connect one hose to the ram and the other to the compressor and away you go, brilliant.
Shawn45 Shawn45
Good product
I used it for engine crane. I wish it was designed for straight up right mounting rather then floor mount. But that is how it is and it works great.
Dragan Hanjcl Dragan Hanjcl
as described
Das Produkt richtet sehr gut
Big Wheels Truck Alignmnet Big Wheels Truck Alignmnet
MR
GREAT PRODUCT FOR THE PRICE. I NEEDED SOMETHING CHEAPER THAT THE NAME BRAND PUMPS AS OUR WORKERS ARNT EASY ON THE GEAR BUT THESE ARE CHEAP AND DO WHAT THEY ARE MENT TO DO .
Jax Jax
Mr
We ordered 2 of these to replace our old ($1200.00) one. They were very affordable, came with the right hydraulic fitting, and a Nitto fitting. They work great and are seem to be more rugger than the older expensive unit that failed after 6 months.
Charles Barady Charles Barady
Owner
Exactly as advertised. Works terrific!! High quality / high pressure hydraulic power unit used with my 100 ton ram.
David Mayes David Mayes
Mr
All Good, Very Happy. ##############################################################################################################################################################################################
