CNC 3020 Laser Engraver Machine
This CNC engraver machine with an effective working area of 300 (X) X 200 (Y) X 40 (Z) mm (11.8" X 7.8" X 1.6"), is made of bakelite. It features a USB port, GRBL control board, and an offline controller, able to be controlled easily with/without computers. A mini laser engraver can be used to engrave all types of plastics, soft aluminum, woods, PVCs, etc., which is an excellent affordable self-learning engraving tool!
- Technical Parameter
- Offline Controller & Laser Head
- Powerful Performance
- Easy To Install

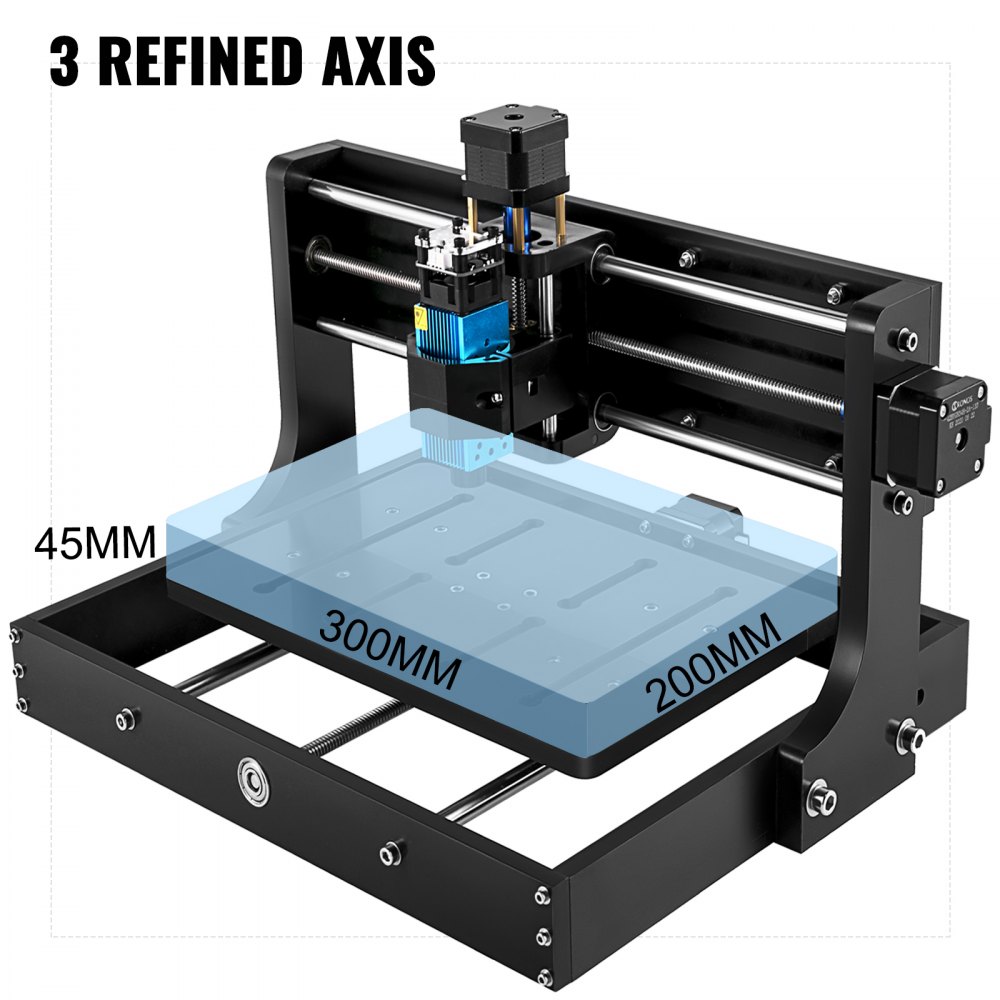

3 Refined Axes
Three axes allow for flat engraving with an effective area of 300 (X) X 200 (Y) X 40 (Z) mm (11.8" X 7.8" X 1.6"), which can accommodate most items.
Offline Controller
The offline controller can realize the remote control of the laser engraver. It is not necessary to connect a computer and download files. You can manually adjust the starting point, open, or close the spindle.

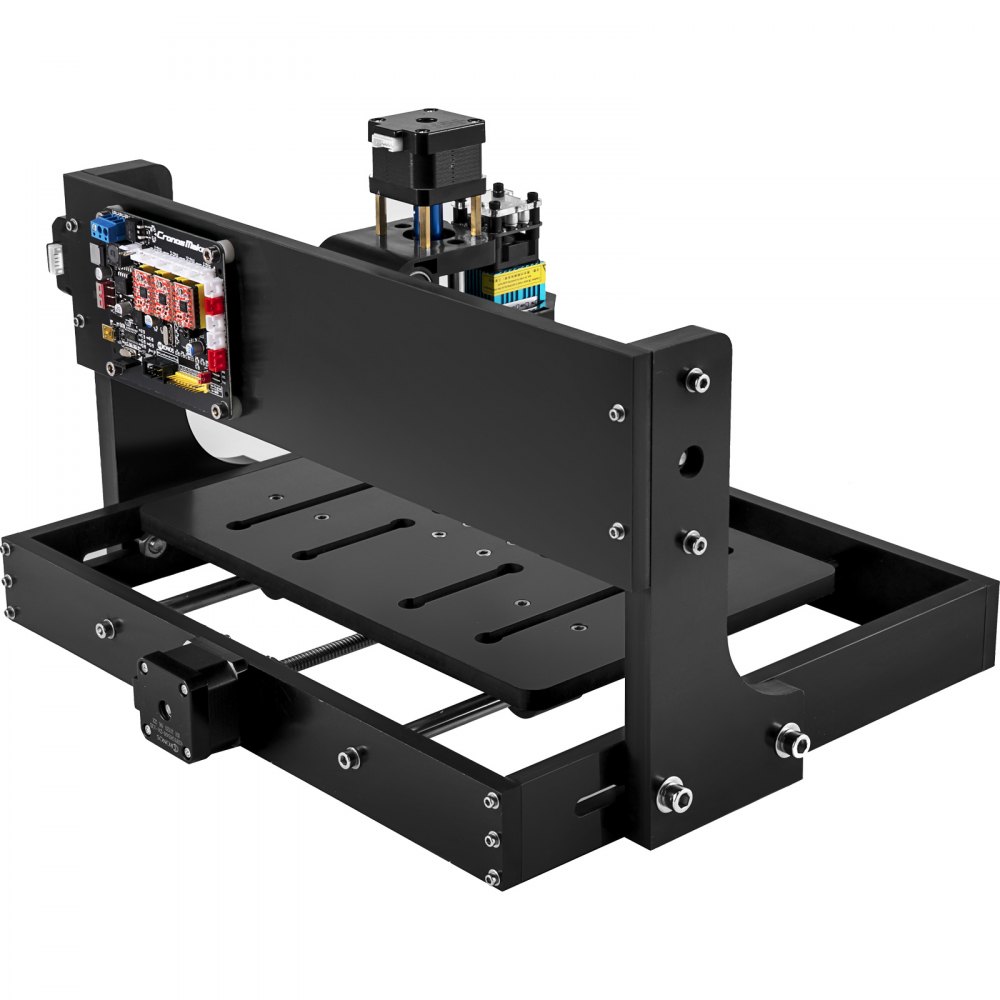

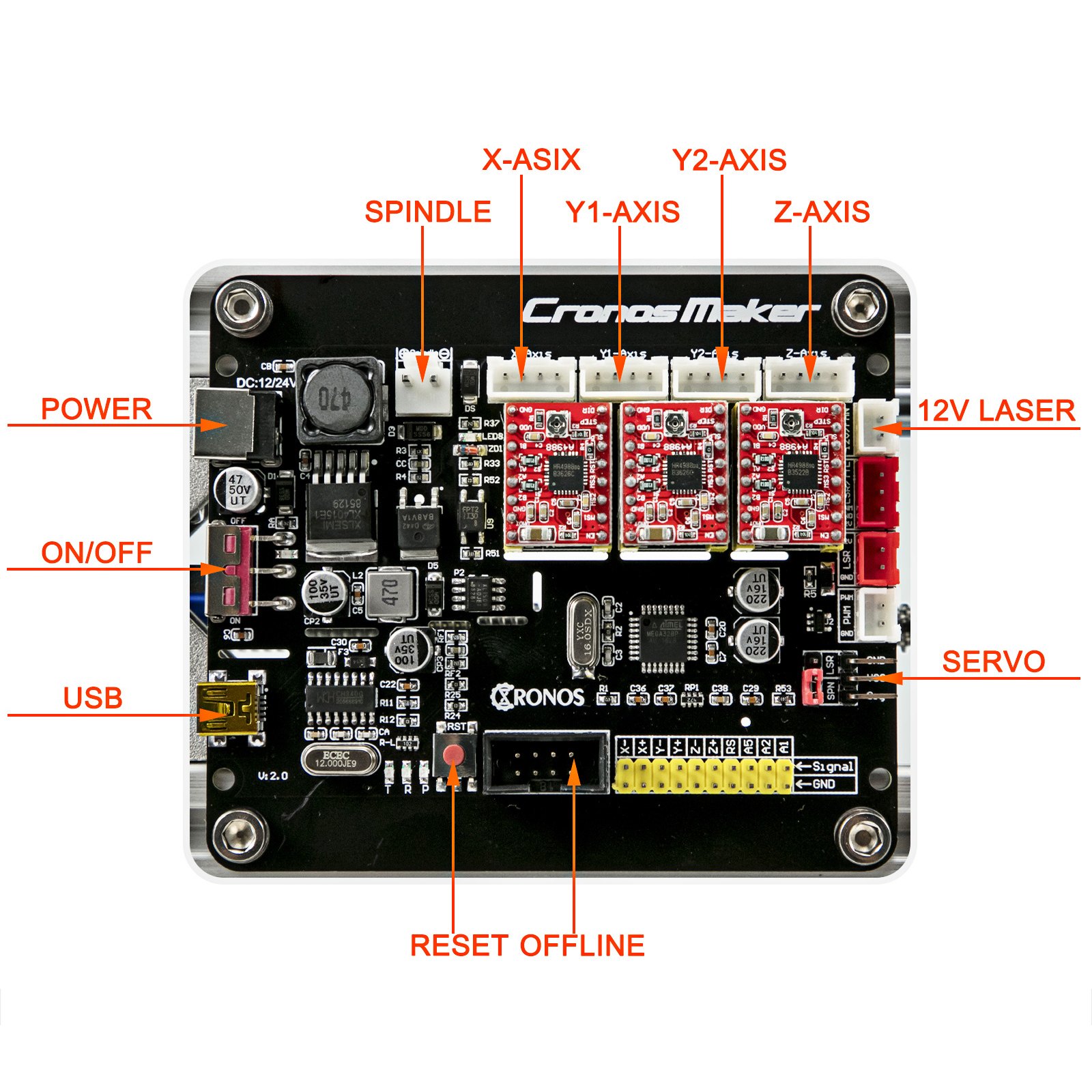

GRBL Control Board
The GRBL control board can directly read the engraving files in the USB. It can output 2P/3P and support PWM and TTL functions, which keeps the CNC engraver run with stable performance. These two kinds of control panels are delivered at random, but does not affect the performance.

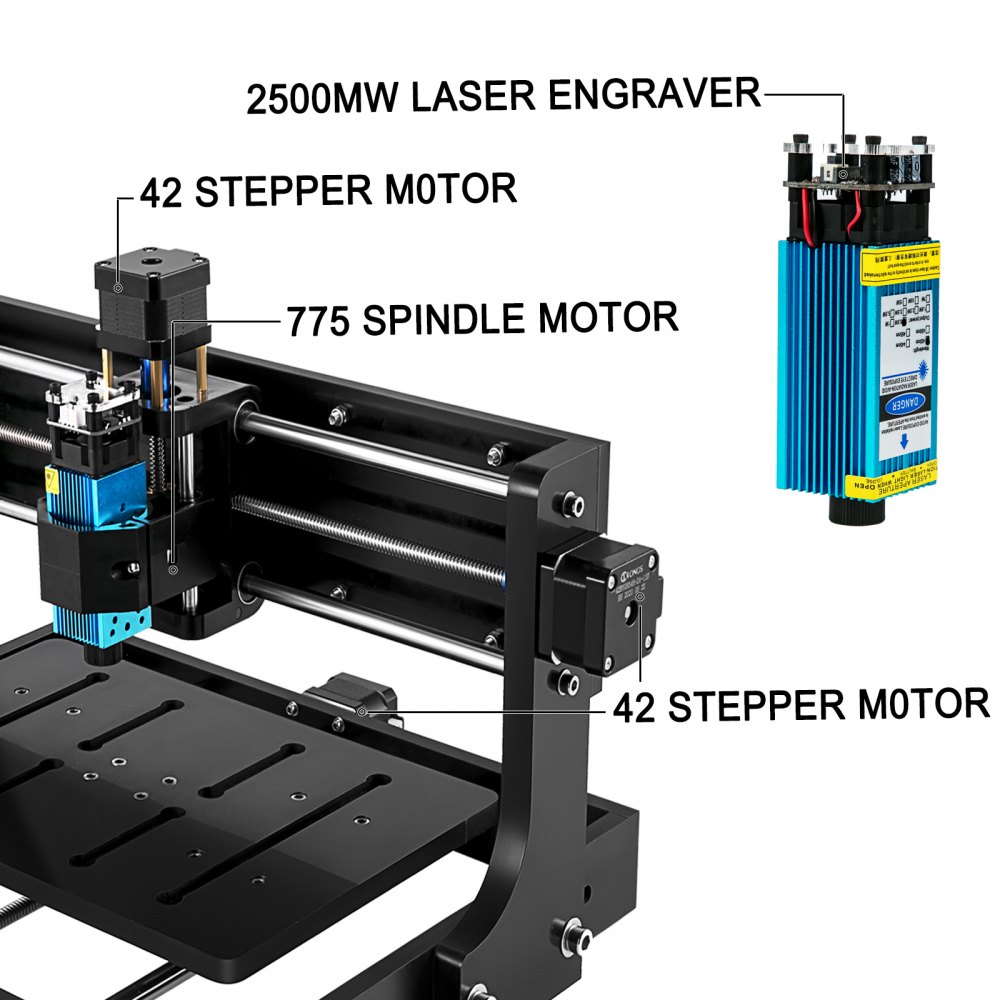

High-efficiency Motors
Each axis contains one 42-stepper motor for smooth motion. The 775 spindle motor on the Z-axis can reach 10,000 r / min speed. An additional 2.5w laser is included, providing much more efficient engraving.

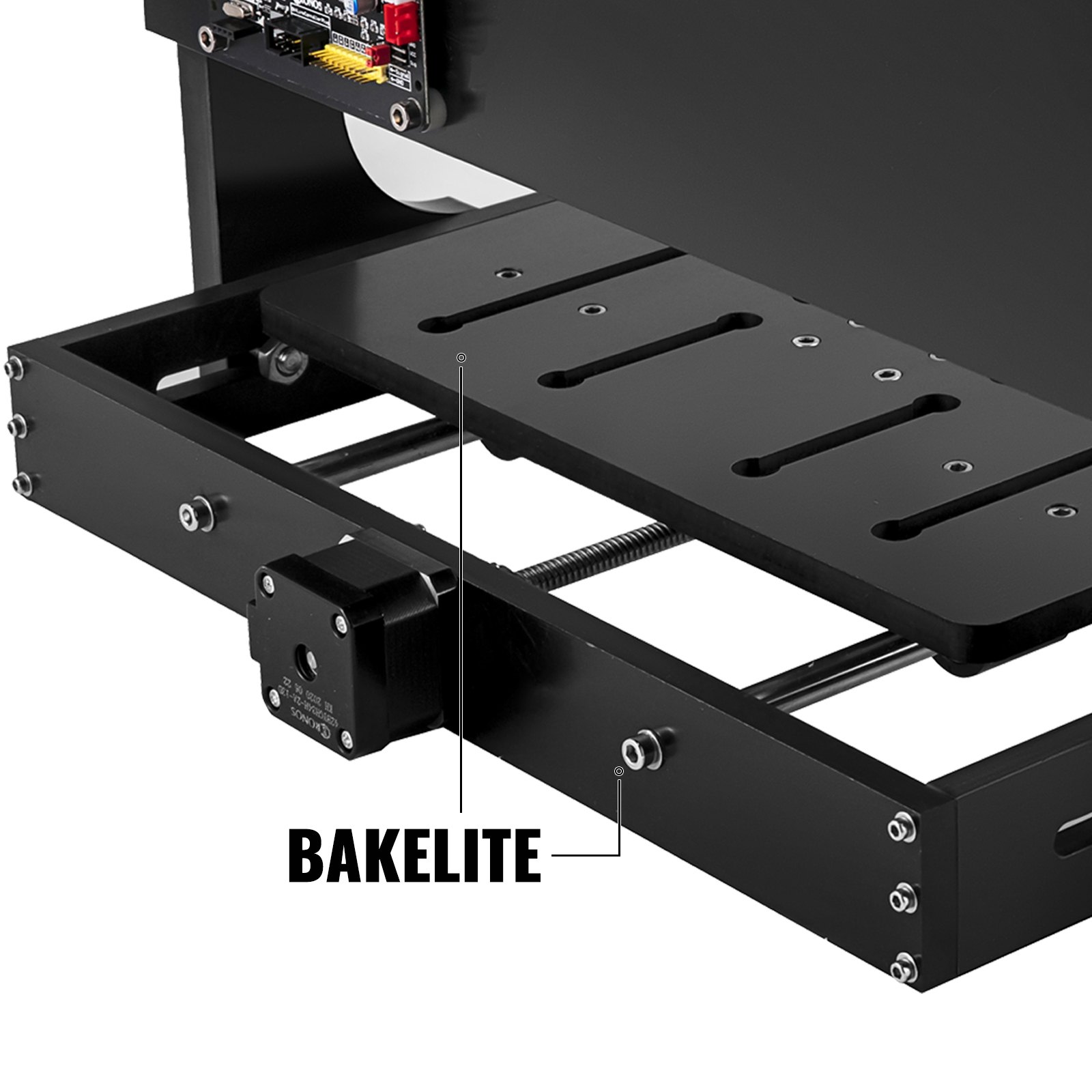

Durable Material
The 3020 CNC kit, made of bakelite, features high precision and durability. Anti-slip bakelite board has good insulation performance, high strength, and hard texture.

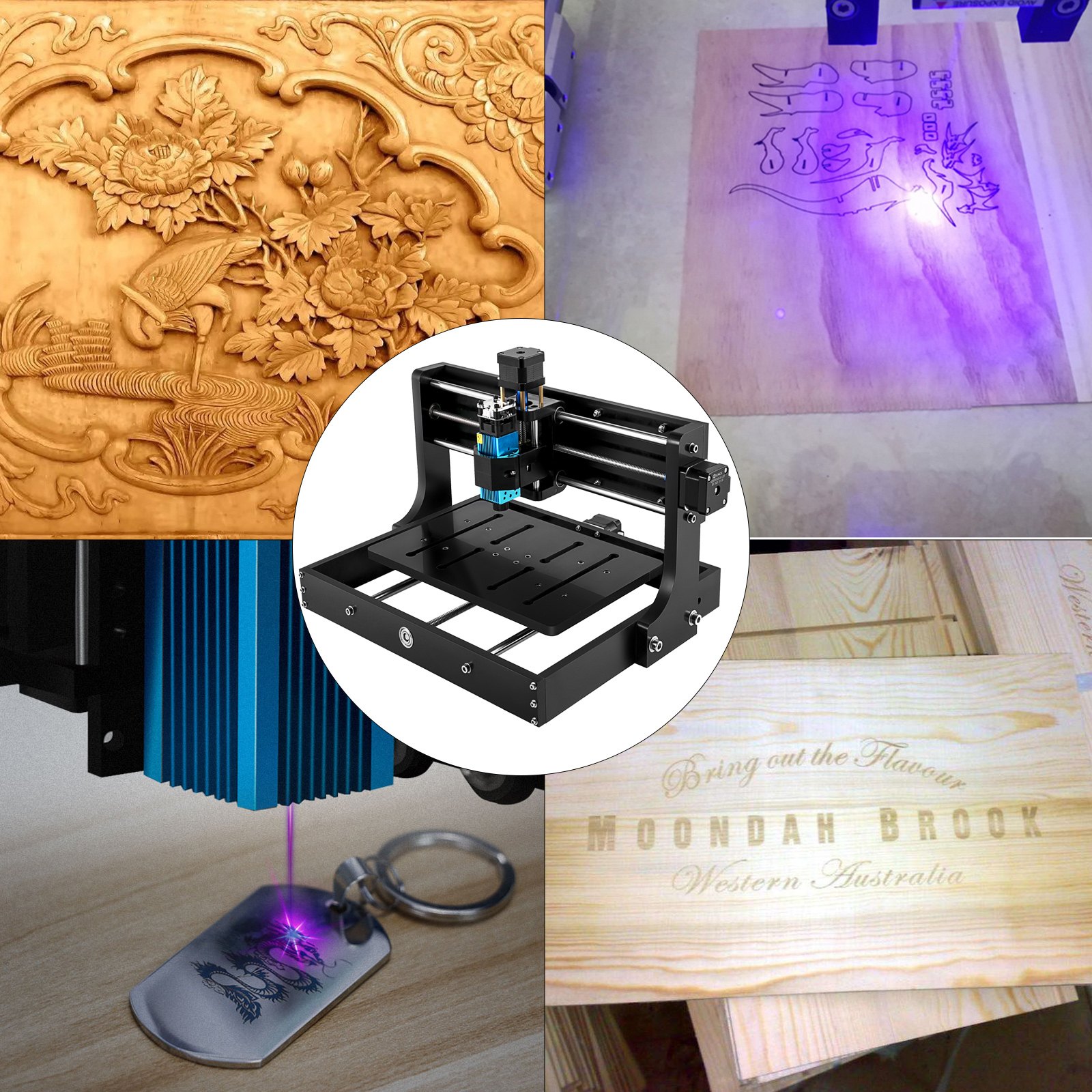

Wide Application
Take advantage of the added stability for milling a wider range of materials such as wood, plastic, acrylic, PCB CCL, soft metal, etc.

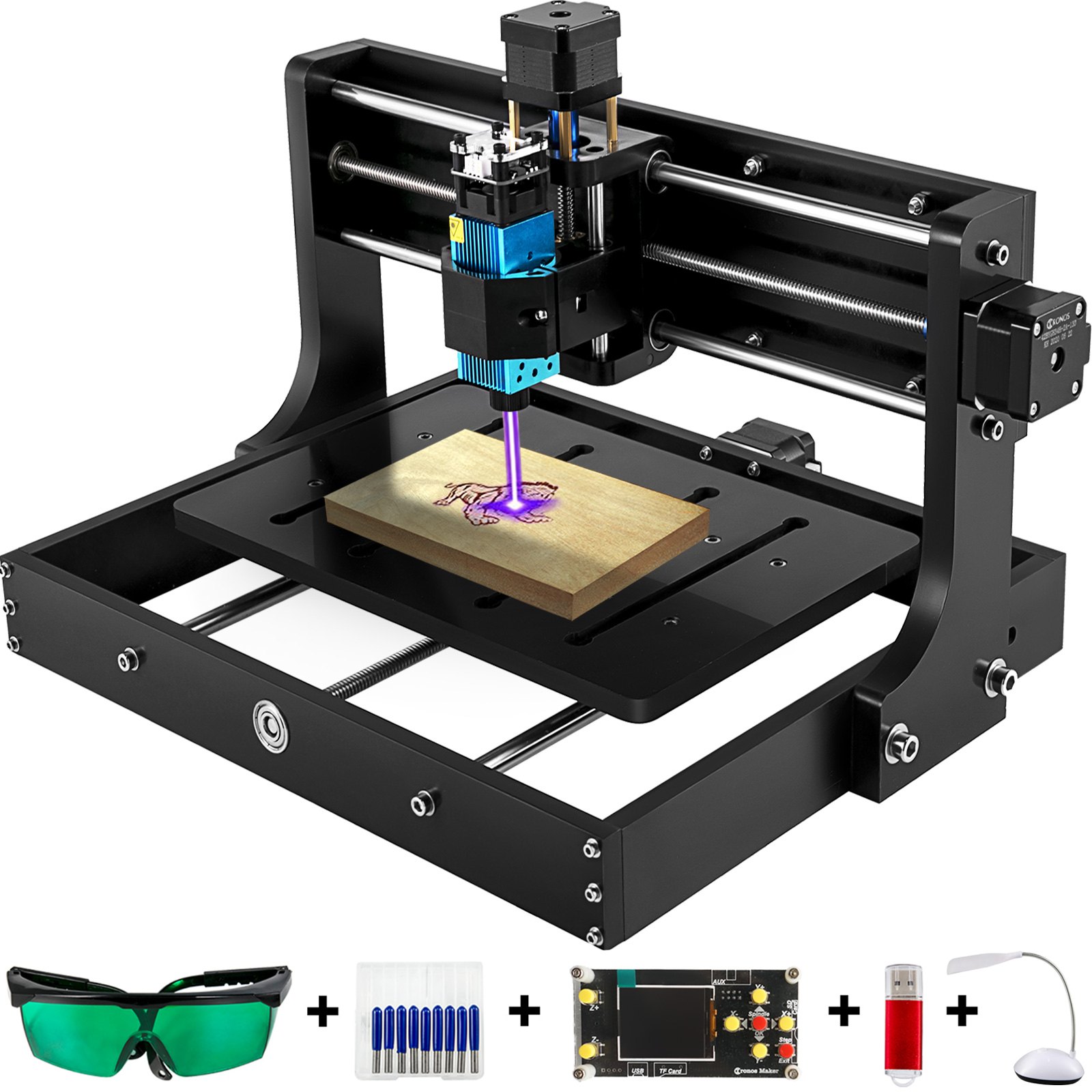

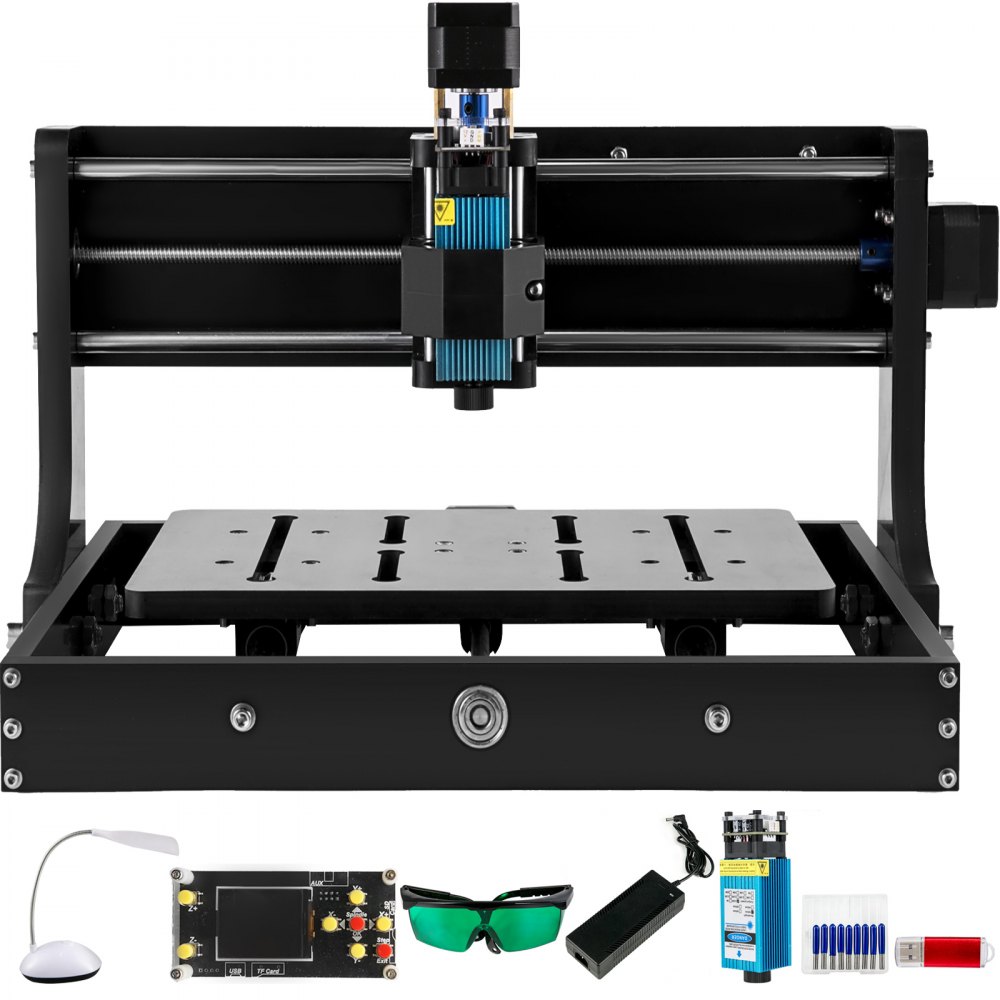

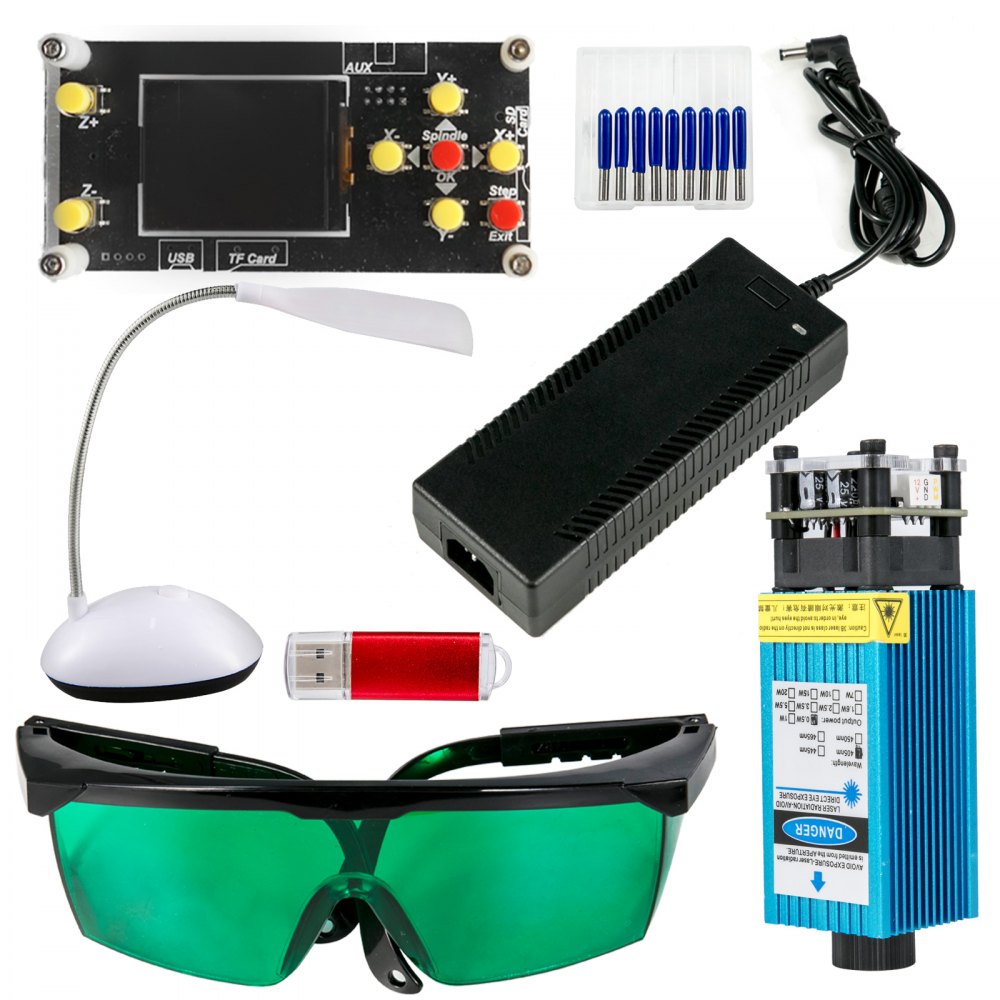

Package Content
- 1 x CNC 3020 Router Kit
- 1 x Offline Controller
- 1 x 2.5W Laser
- 1 x USB Drive
- 1 x Table Lamp
- 1 x Eye Protector
- 1 x Set of Tools
Specifications
- Power: 24V 5A
- Laser Power: 2.5W
- Spindle: 775 spindle motor 24V
- Spindle Speed: 10000 rpm/min
- Effective Carving Area: 300 (X) X 200 (Y) X 40 (Z) mm (11.8" X 7.8" X 1.6")
- Driving Units: T8 Stainless Steel Screws
- Stepping Motor: current: 1.3A, 12V; torque: 0.25 N/m
- Control Software: GRBL control
- Drill Tip: 0.1 mm
- Drill Diameter: 3.175 mm
- Drill Length: 30 mm
- Connection: USB
- Applies to: IOS, Win XP, Win7, Win8, Win10

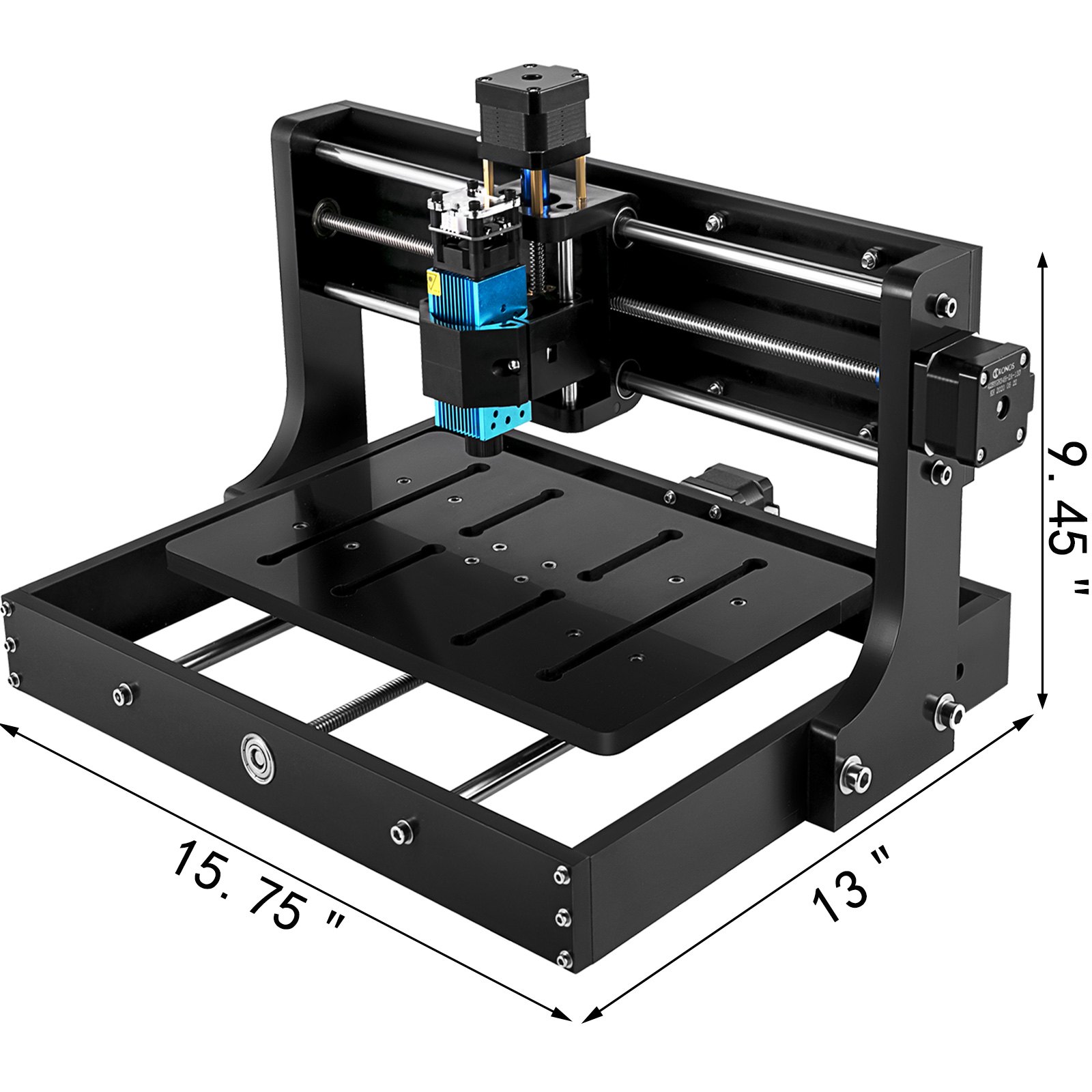

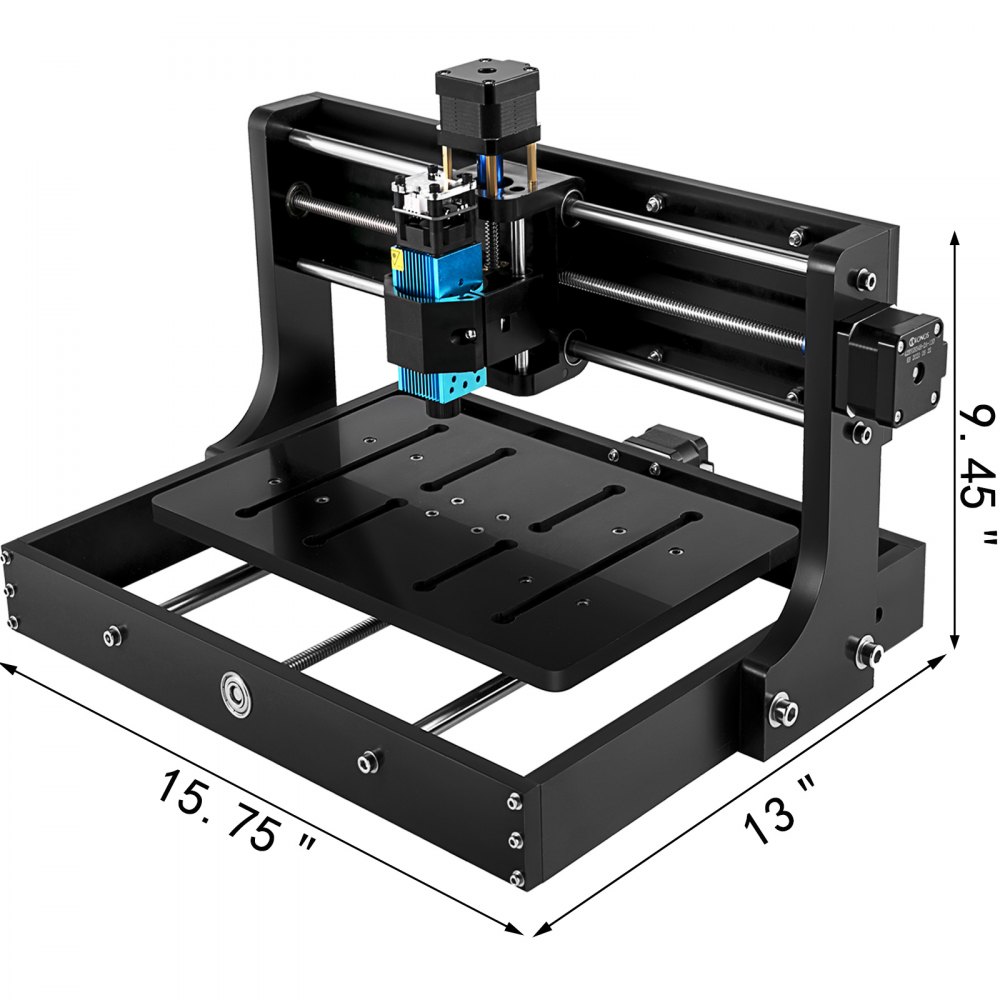

- Product size: 400 x 330 x 240 mm/15.74" x 13" x 9.45"
