Features & Details

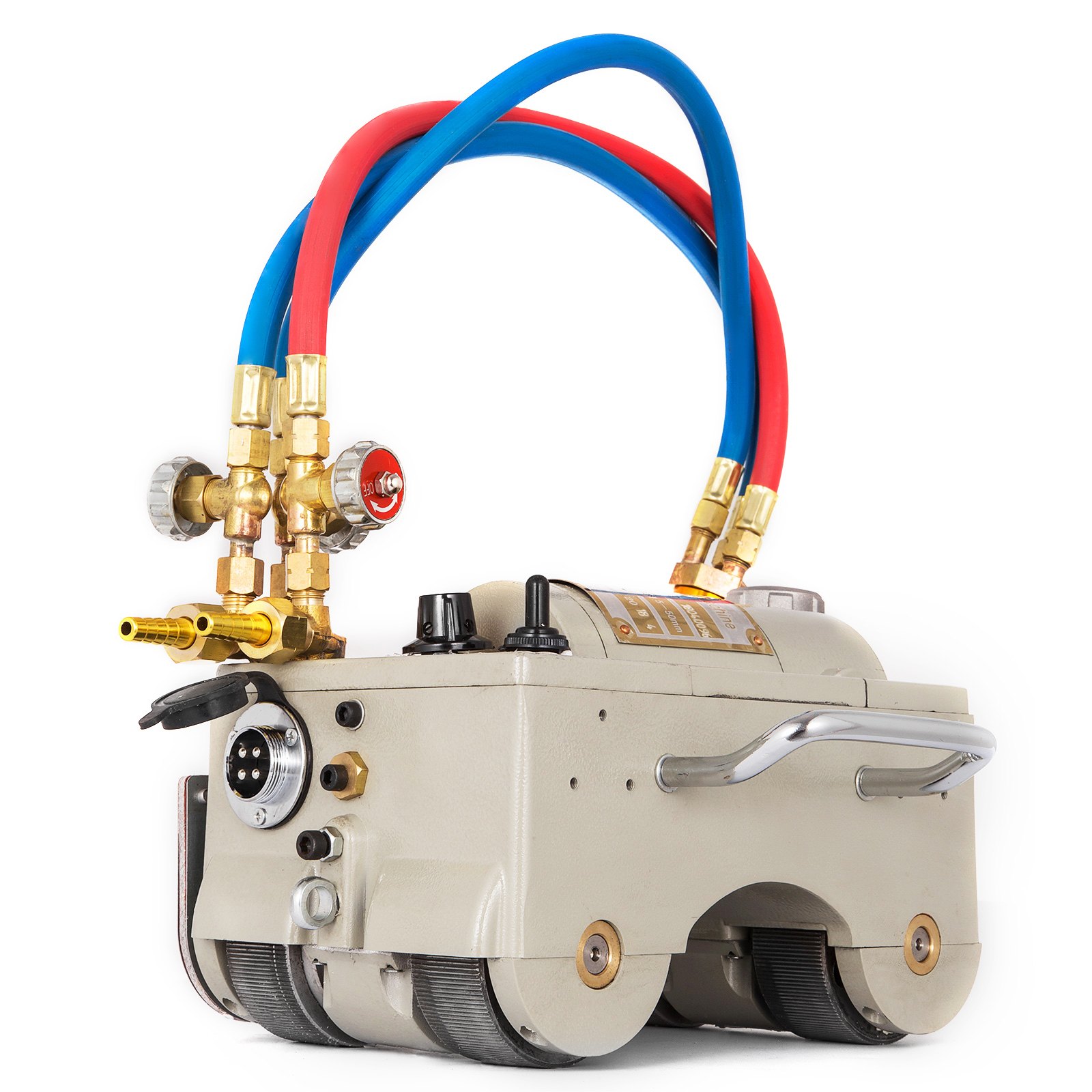

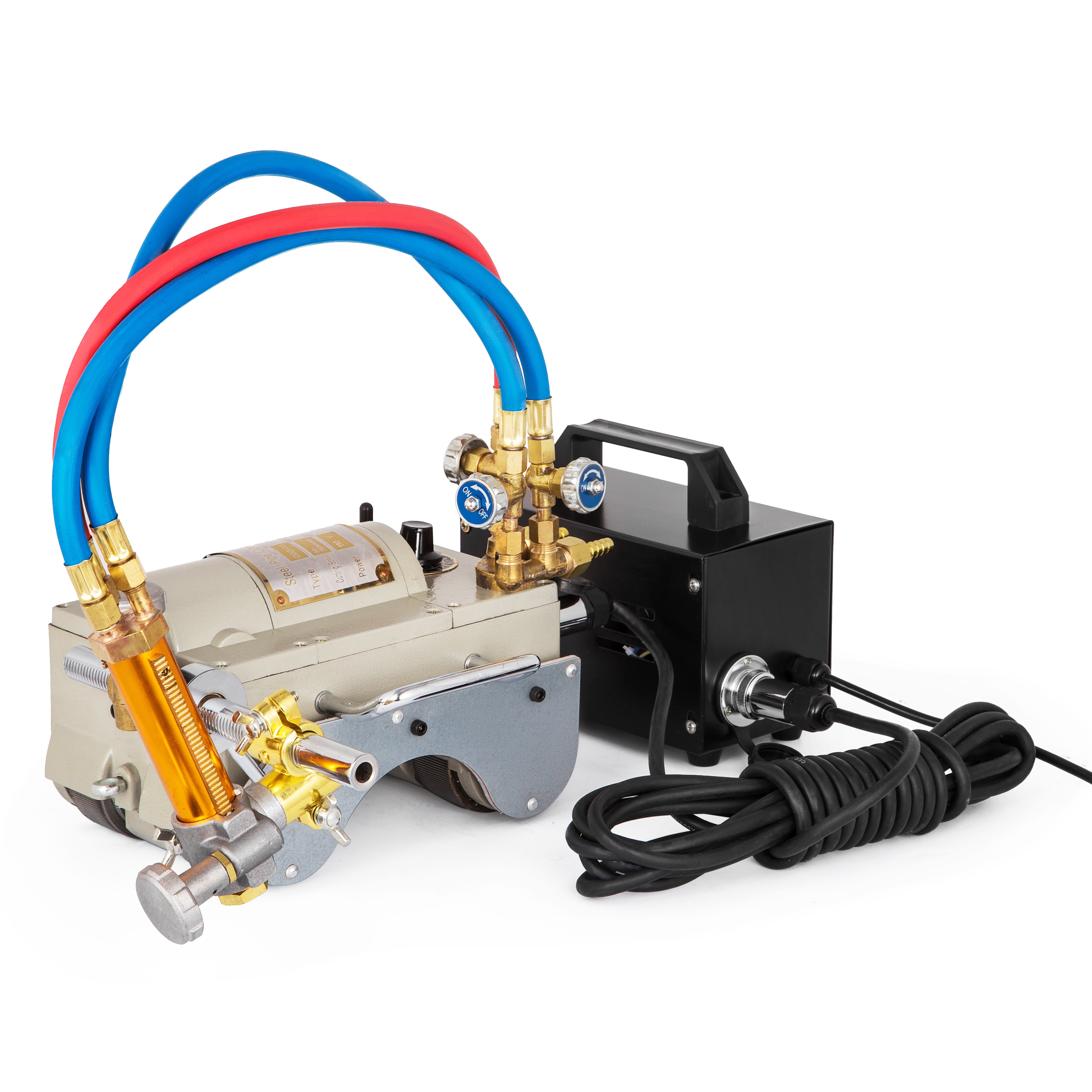

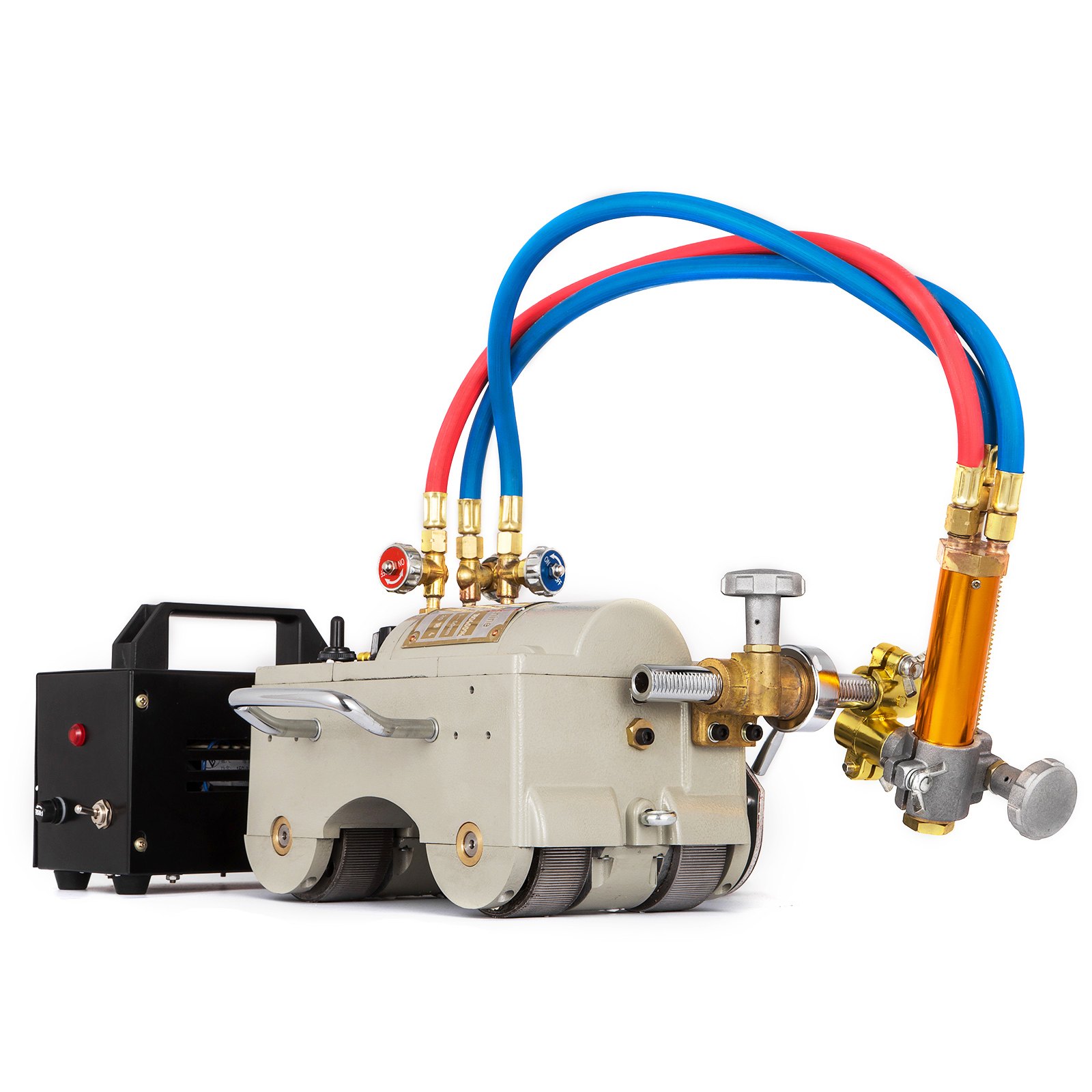

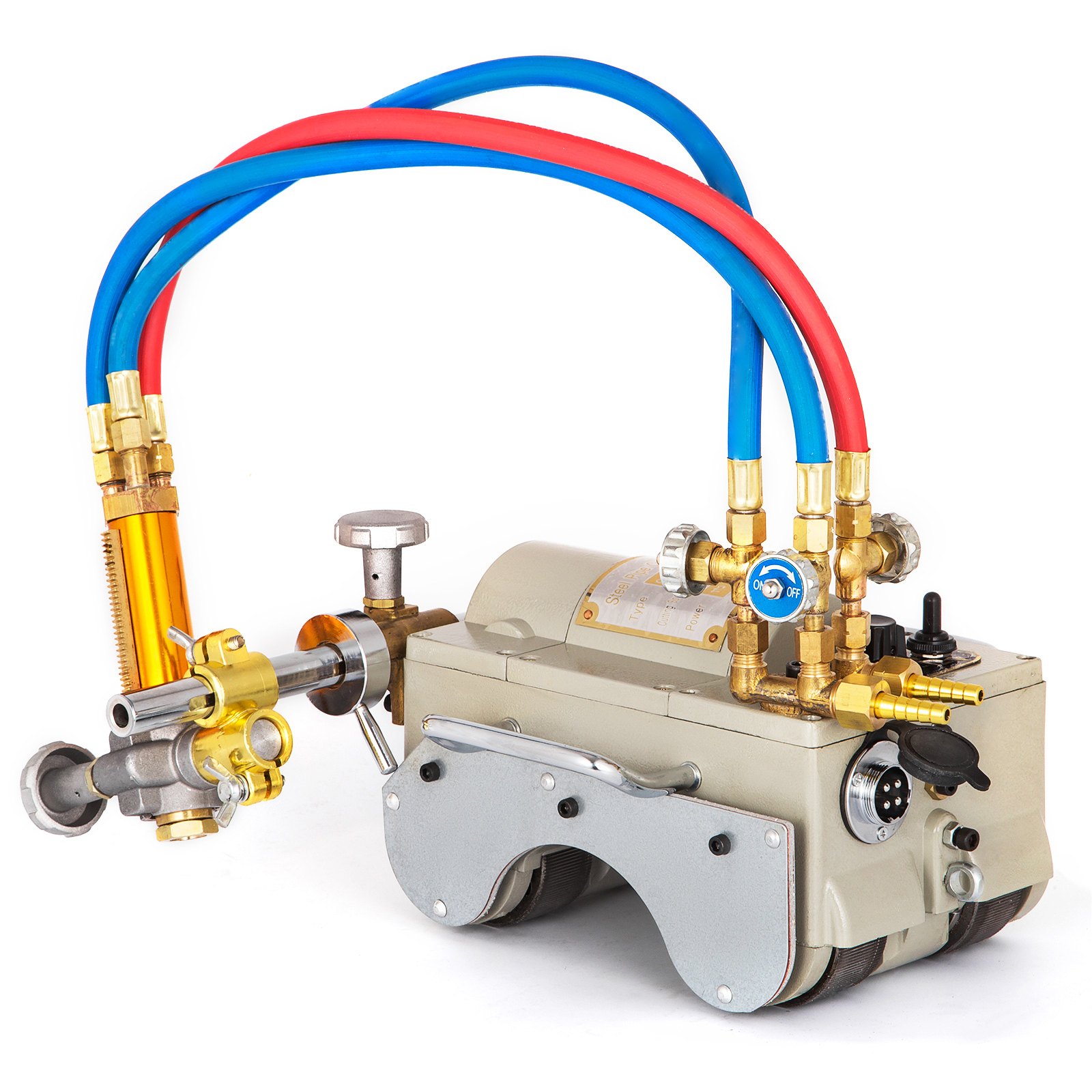

• 【LIGHTWEIGHT CONSTRUCTION】- The magnetic tunnel pipe gas cutting machine has an aluminum alloy main body, lightweight, compact, portable and sturdy, stable, and durable.
• 【LARGE CUTTING RANGE】- This torch beveling gas cutter uses oxygen-acetylene for straight cut or bevel cut(I, Y, V 0-45°angle). The cutting pipe diameter range is 108 mm - 600 mm; cutting thickness reaches 6-50 mm.
• 【STRONG ADSORPTION FORCE】- The pipe beveling machine has four magnetic roller wheels that generate 50 kg strong adsorption force so that it can crawl on pipe smoothly while no deviation will occur.
• 【EASY TO OPERATE】- You can control the pipe cutting machine(moving forward or moving backward) by the reversing switch, and the stop is in the middle position. It supports 0-10 stepless speed adjustment. The torch also can move horizontally, up, down, etc.
• 【WIDE APPLICATION】- This Pipe Beveling Machine is suitable for petroleum, chemical, mechanical, processing, electricity, construction, mining industries, etc. And it does not require electricity, so it is especially suitable for fieldwork without power.

• Aluminum alloy main body, compact and portable.
• Use oxygen-acetylene for circular, parallel, upright and face upward cutting.
• Quick tube cutting speed: 50-750mm/min, cutting thickness: 6-50mm.

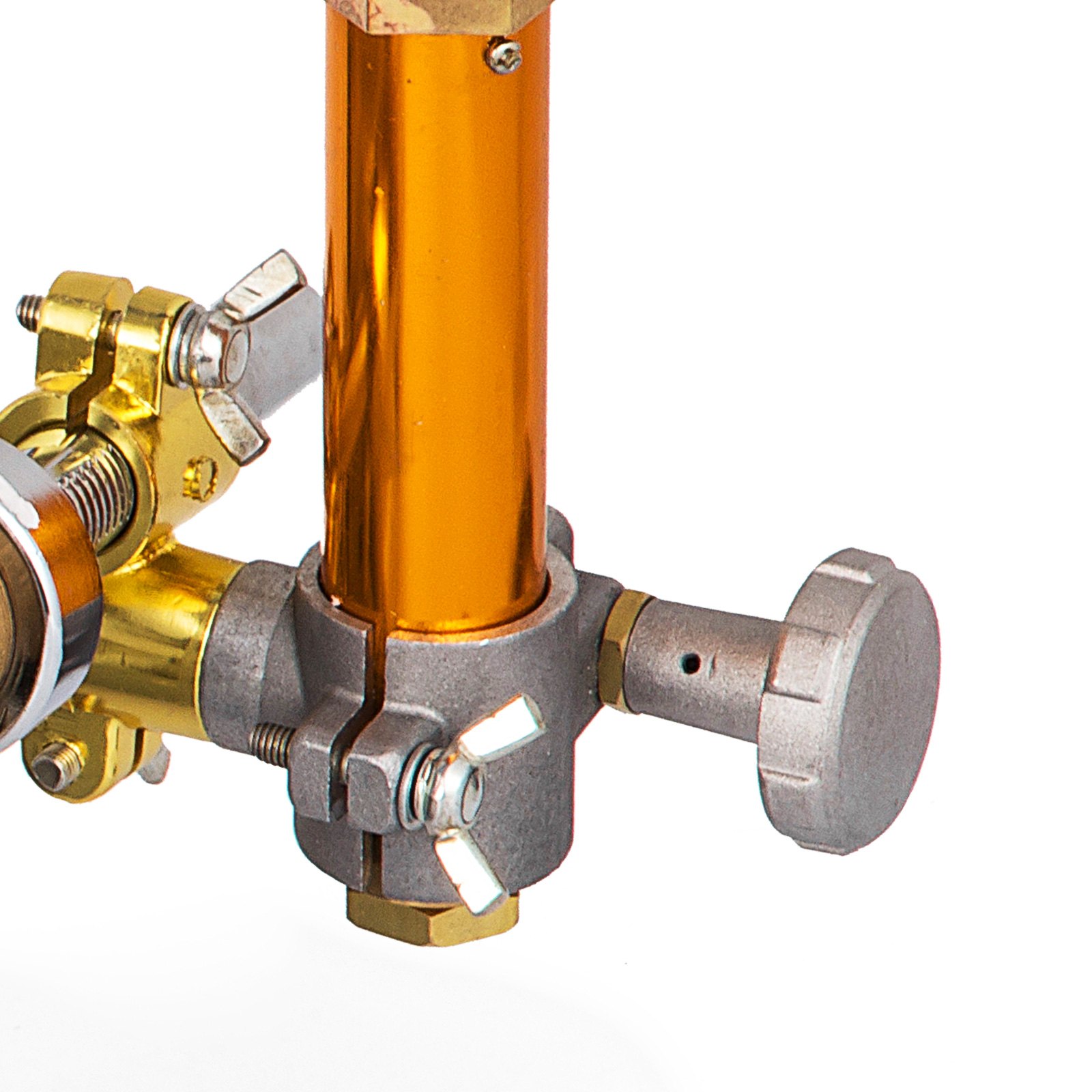

• Torch moves horizontally, up & down with cross feed hand wheel & adjust knob.
• Adjustable 0°-45° beveling angle of torch.

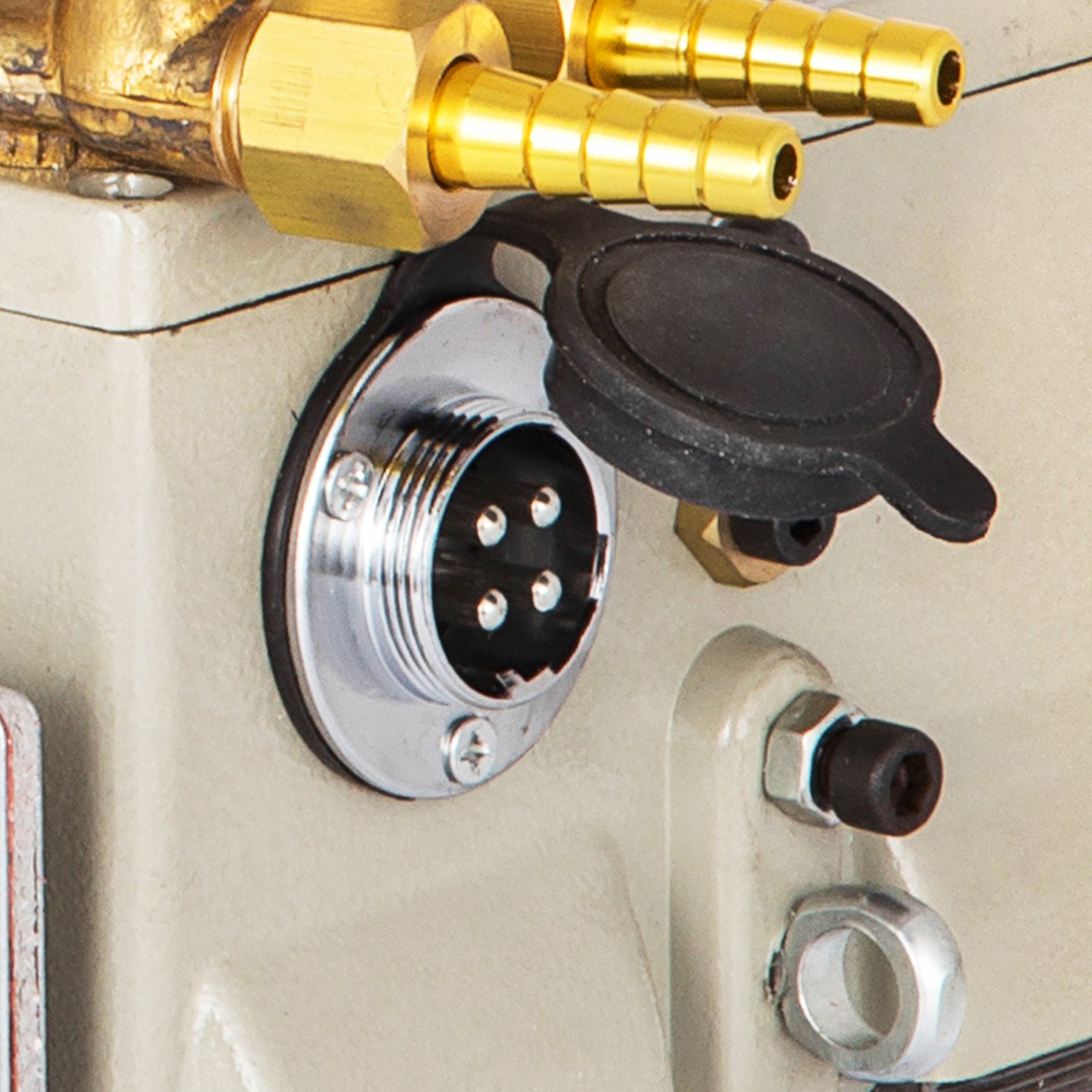

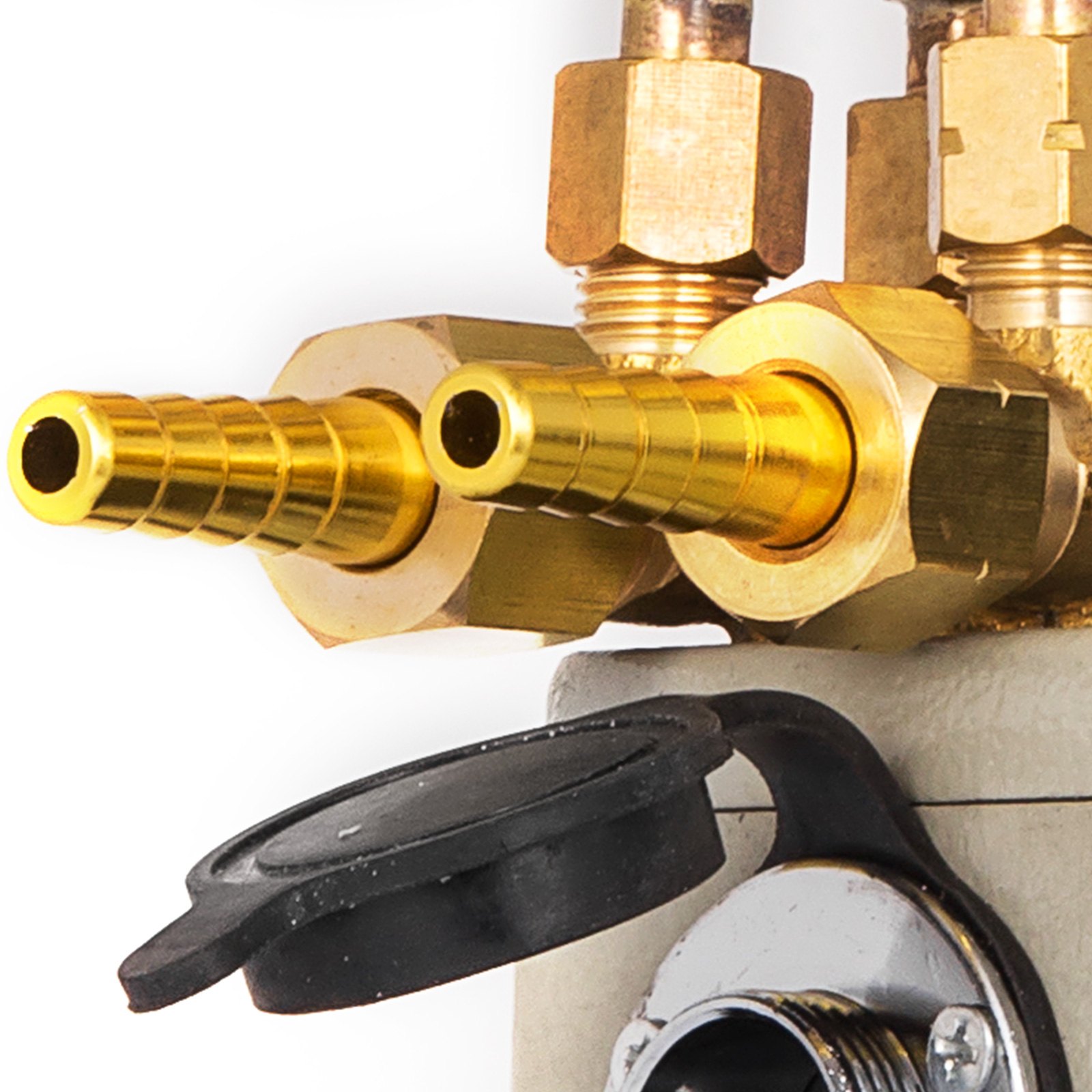

• Efficient gas cutting, with 3 hoses(fuel gas hose, preheating oxygen hose, and cutting oxygen hose) to get connected to gas distributor.
• Powerful 70SZ08 DC servo motor, 6000 rotate/min, support 0-10 stepless speed adjustment with knob.
• Air flow adjustable by two-port valve.
• 2 set of magnetic roller wheels to crawl on pipe smoothly.
• High precision machine, cutting hose range: Ф＞108mm Seamless Hose.
• Have thermal baffle to prevent heat into machine.
• Equip with reversing switch to change the operation direction of machine, stop in the middle position.
• Easy to operate, with detailed instructions on user manual.
• Come with 2-years warranty.

• Input: 220V, 50Hz
• Cutting Speed: 50-750 mm/min
• Cutting Thickness: 6 - 50 mm
• Beveling Angle:  0° - 45°
• Cutting Hose Range: φ ＞108mm (Seamless Steel Pipe)
• Cutting Accuracy: ＜0.5mm / 1M
• Magnetic Roller Wheel: 50kg Adsorption Force
• Impulse of Machine: ＜0.5mm (When move down towards)
• Motor: 70SZ08 Servo Motor, 68W, 6000 r/min
• Product Weight: 14.5kg / 32LB

Specification

• Input:220V, 50Hz
• Cutting Speed: 50-750 mm/min / 2 -29.5 inches / min
• Cutting Thickness: 6-50 mm / 0.24 - 2 inches
• Beveling Angle:  0°-45°
• Cutting Hose Range: φ > 108 mm / 4.25 inches (Seamless Steel Pipe)
• Cutting Accuracy: ＜0.5 mm(0.02 inch)/1M
• Magnetic Roller Wheel: 50 kg / 110lbs Adsorption Force
• The impulse of Machine: ＜0.5 mm(0.02 inch)(When moving down towards)

• Motor: 70SZ08 Servo Motor, 68W, 6000r/min
• Product Weight: 14.5 kg / 32LB

Package Content

• 1 x Main Body
• 1 x Standard Torch Unit Assemblage
• 1 x Connector of Torch
• 1 x Set of Tips(G0 # 1,2,3)
• 1 x Gas-in Connector

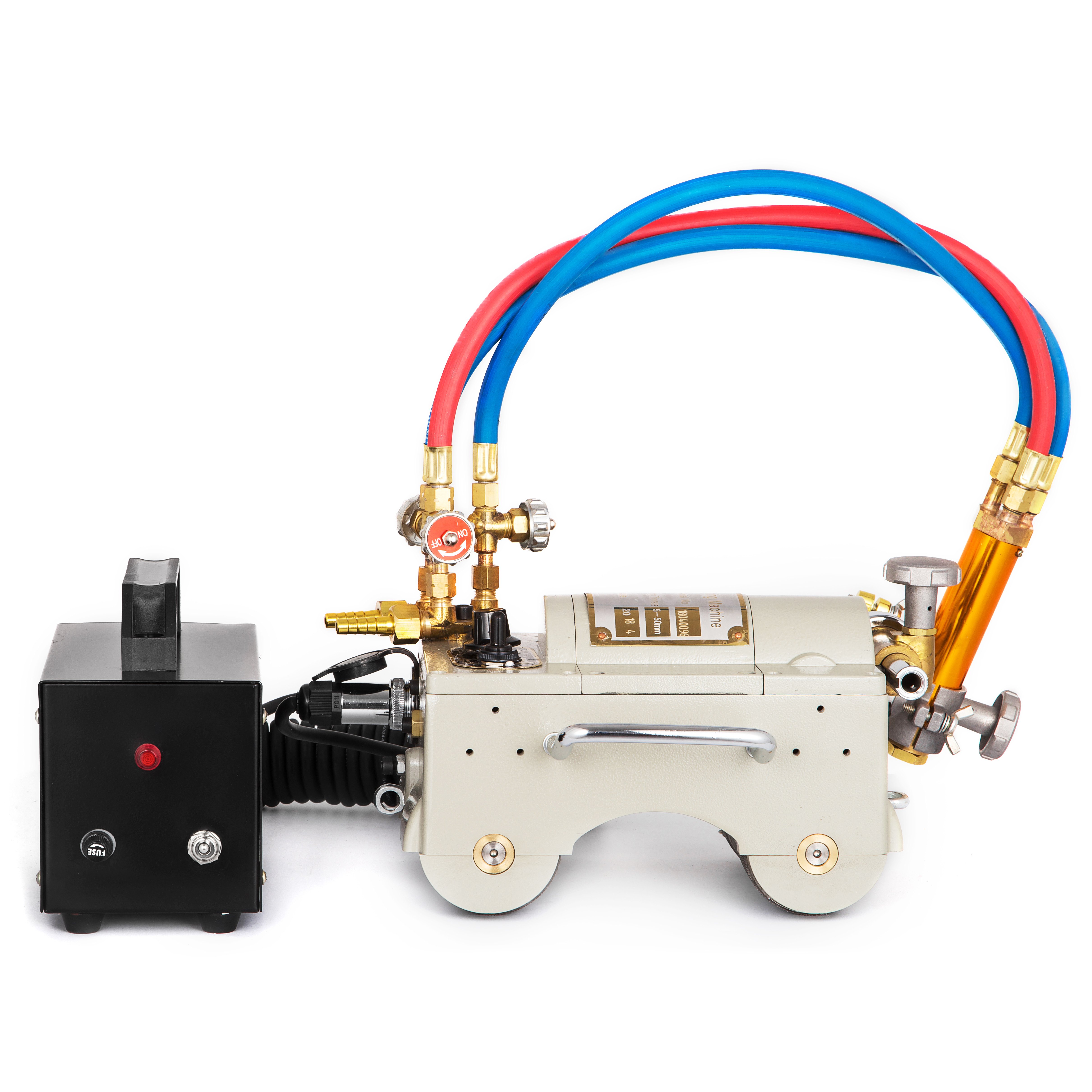

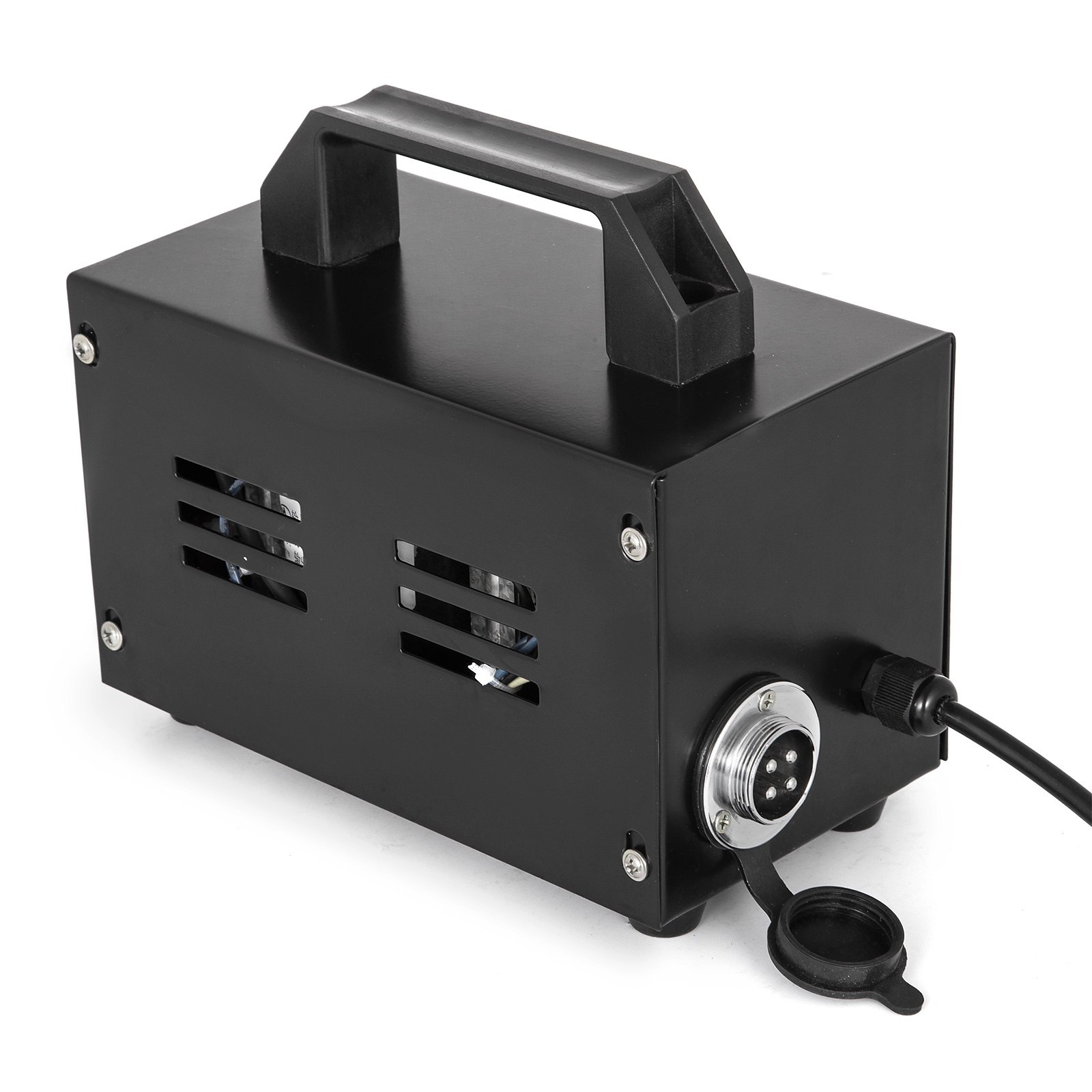

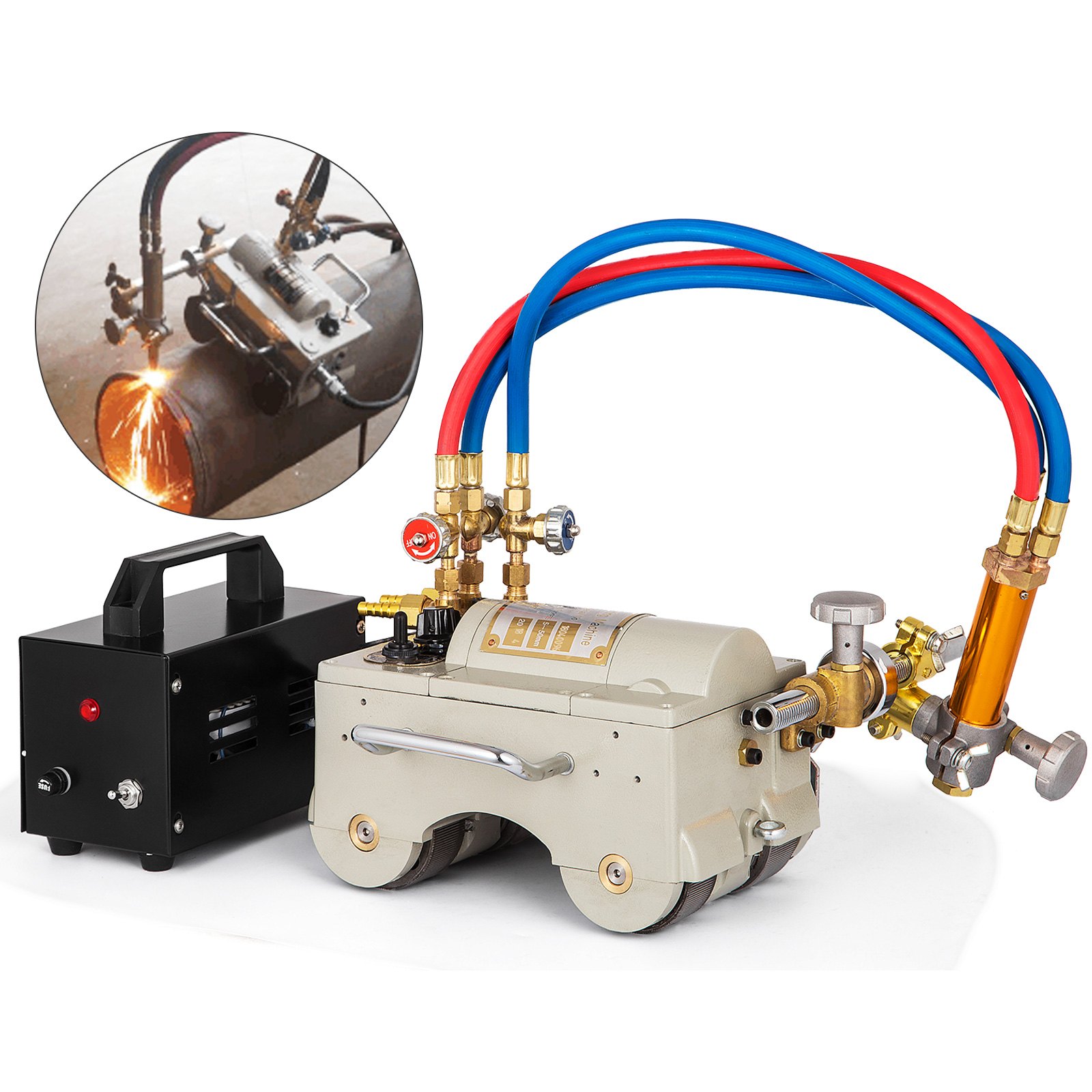

• 1 x Electric Box & Connecting Wire
• 1 x Safety Buckle
• 1 x User Manual
