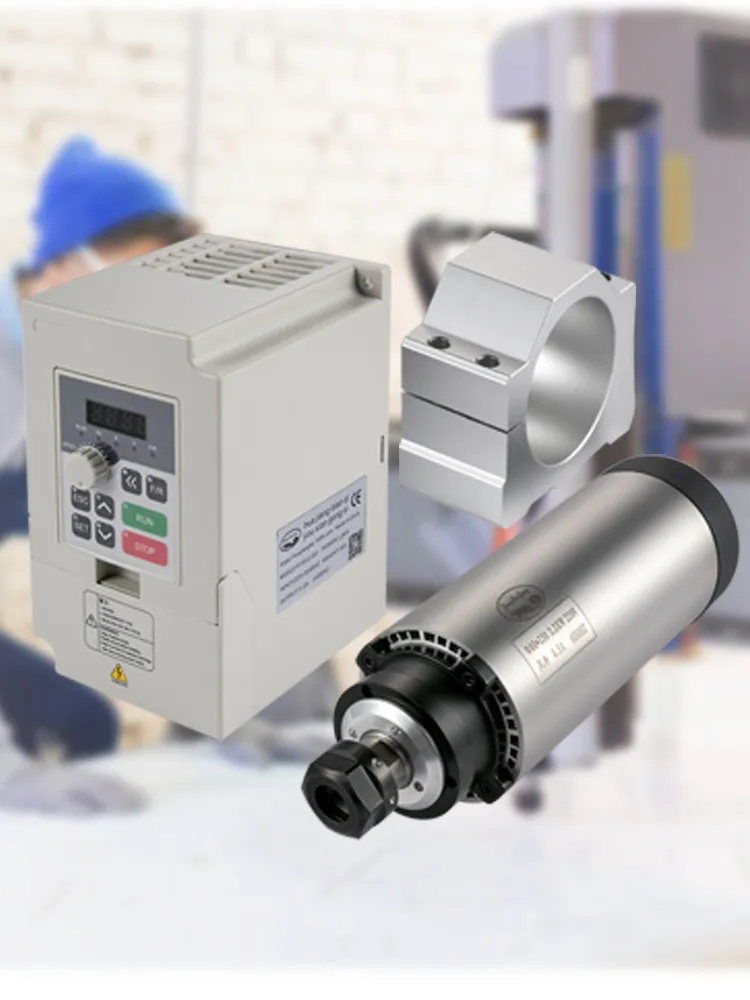

2.2KW CNC Spindle Motor Kits
The CNC spindle motor kit comes with a premium spindle motor, variable frequency drive, and aluminum spindle clamp for high-temperature resistance, low noise & low friction, and high speed. It is widely applicable to the engraving machine for carving materials such as wood, stone, metal, etc.
- Excellent Performance
- Premium Spindle Motor
- Variable Frequency Drive
- Durable Spindle Clamp

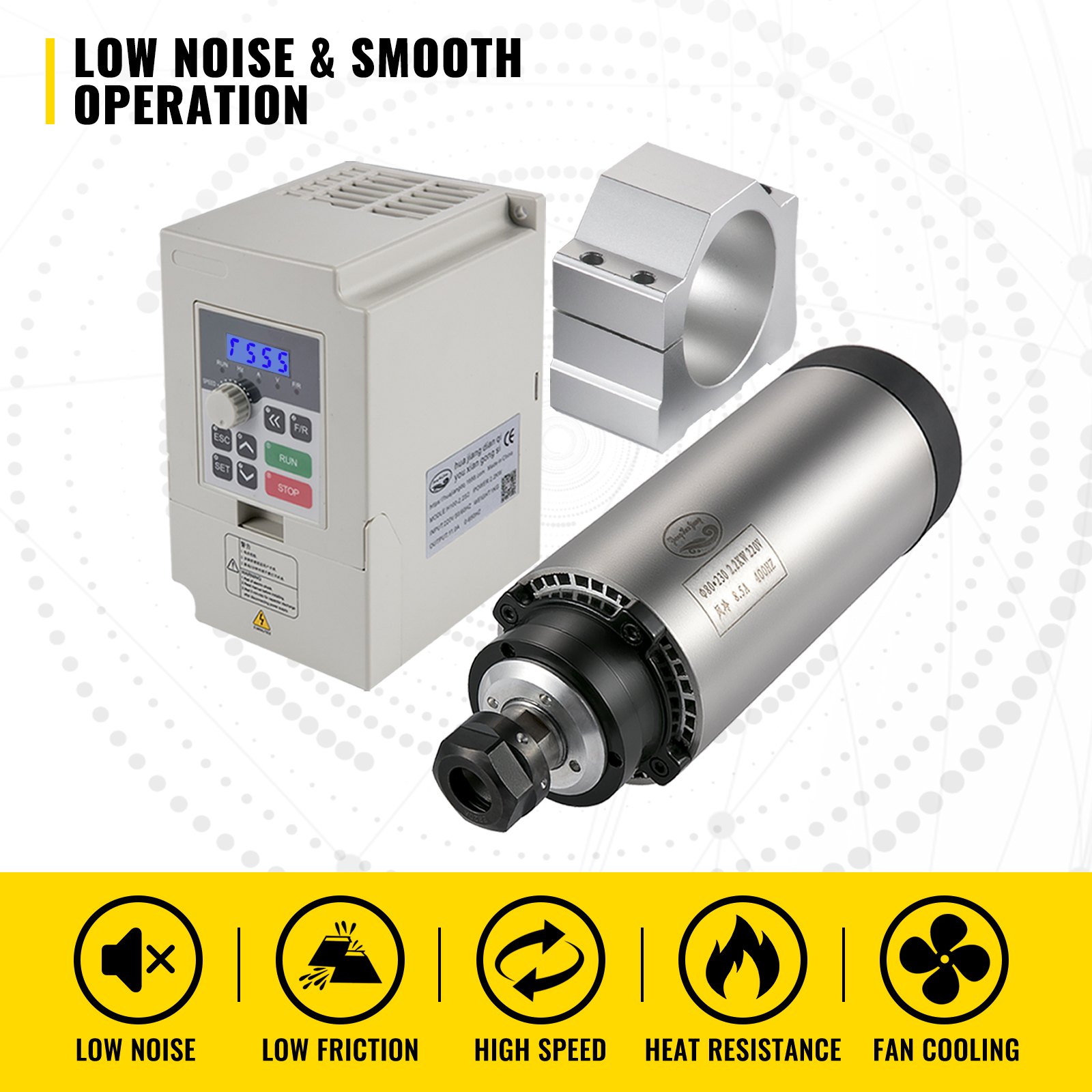

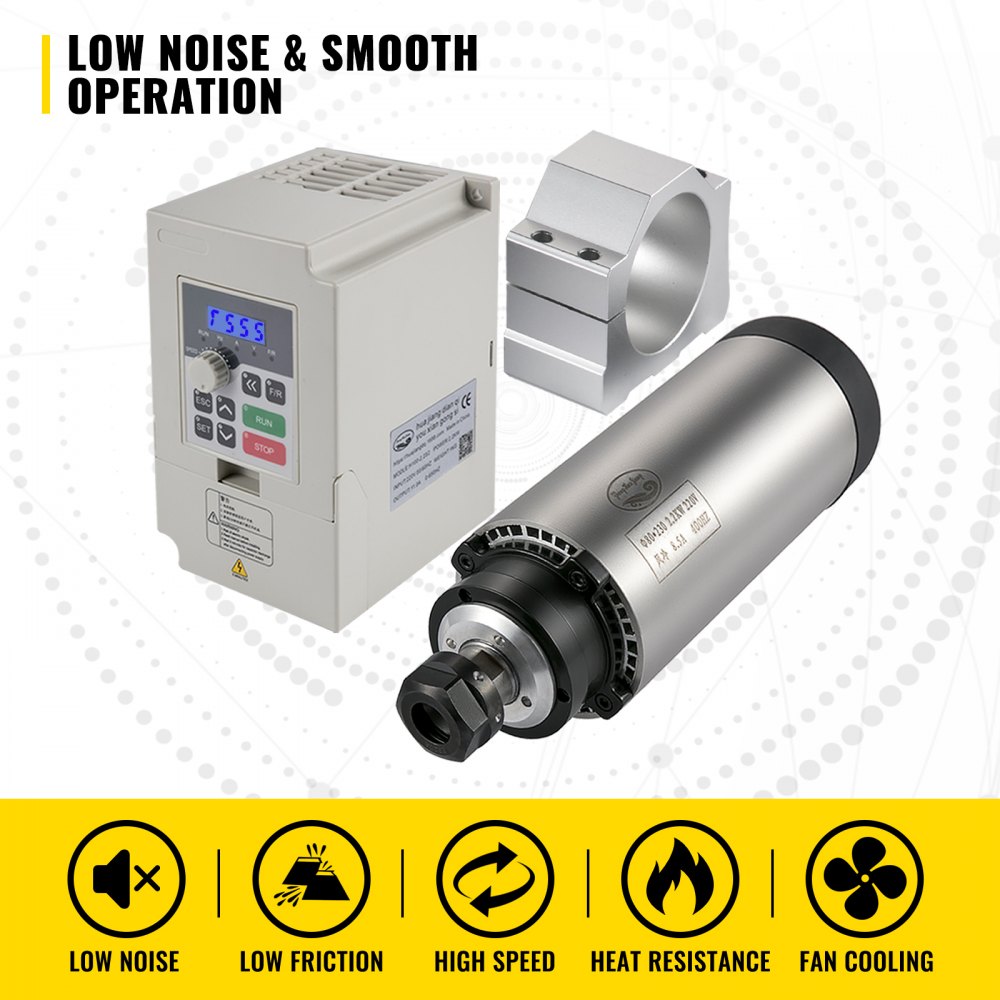

Low Noise & Smooth Operation
The CNC spindle motor kit is characterized by high-temperature resistance, low noise & low friction, and high speed. And with vents and air-cooled fans, the machine has a powerful cooling capacity and low electromagnetic interference.

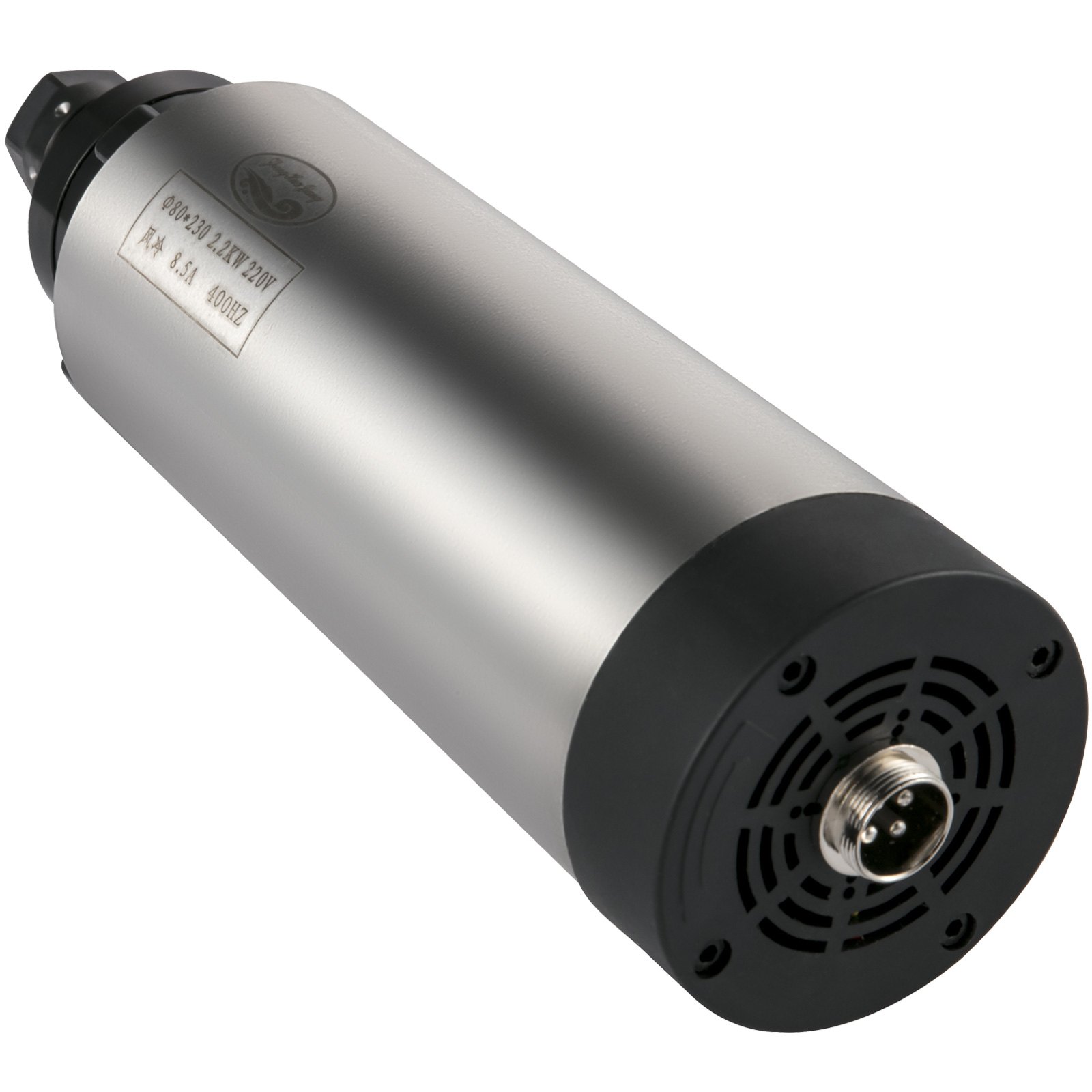

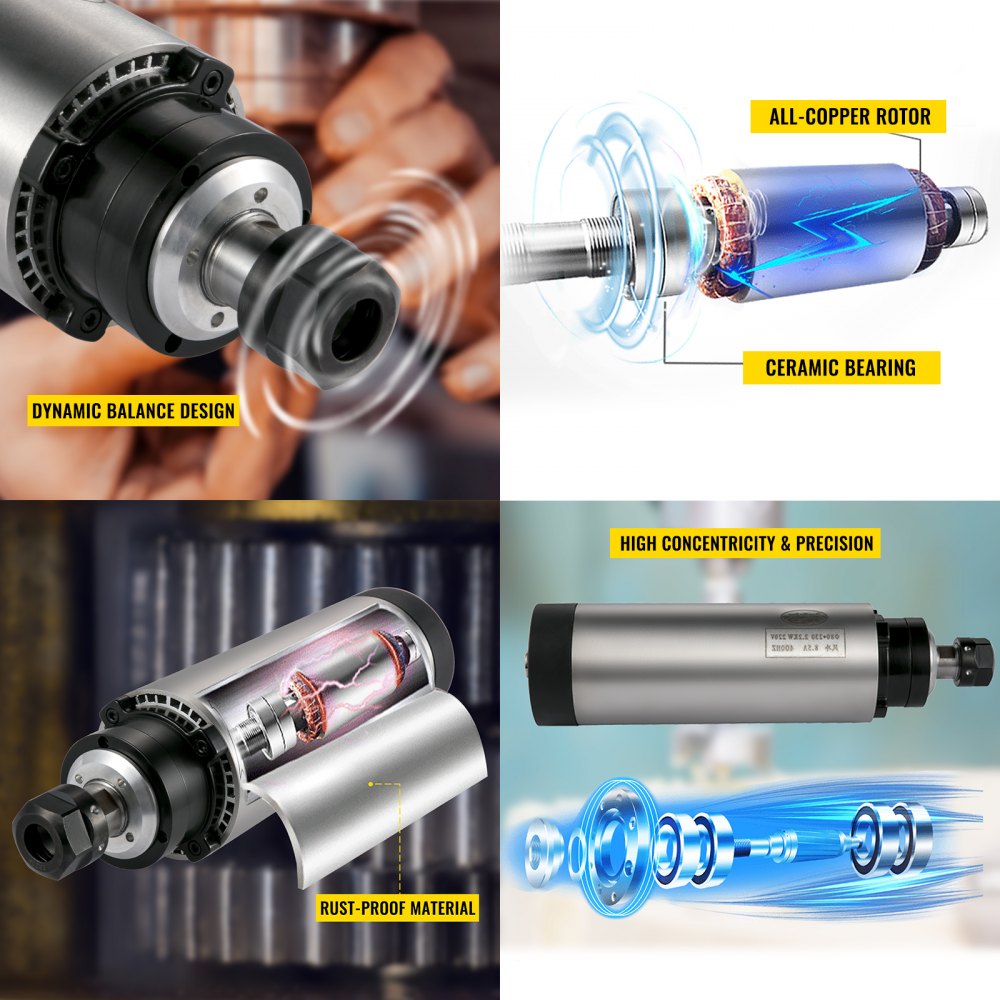

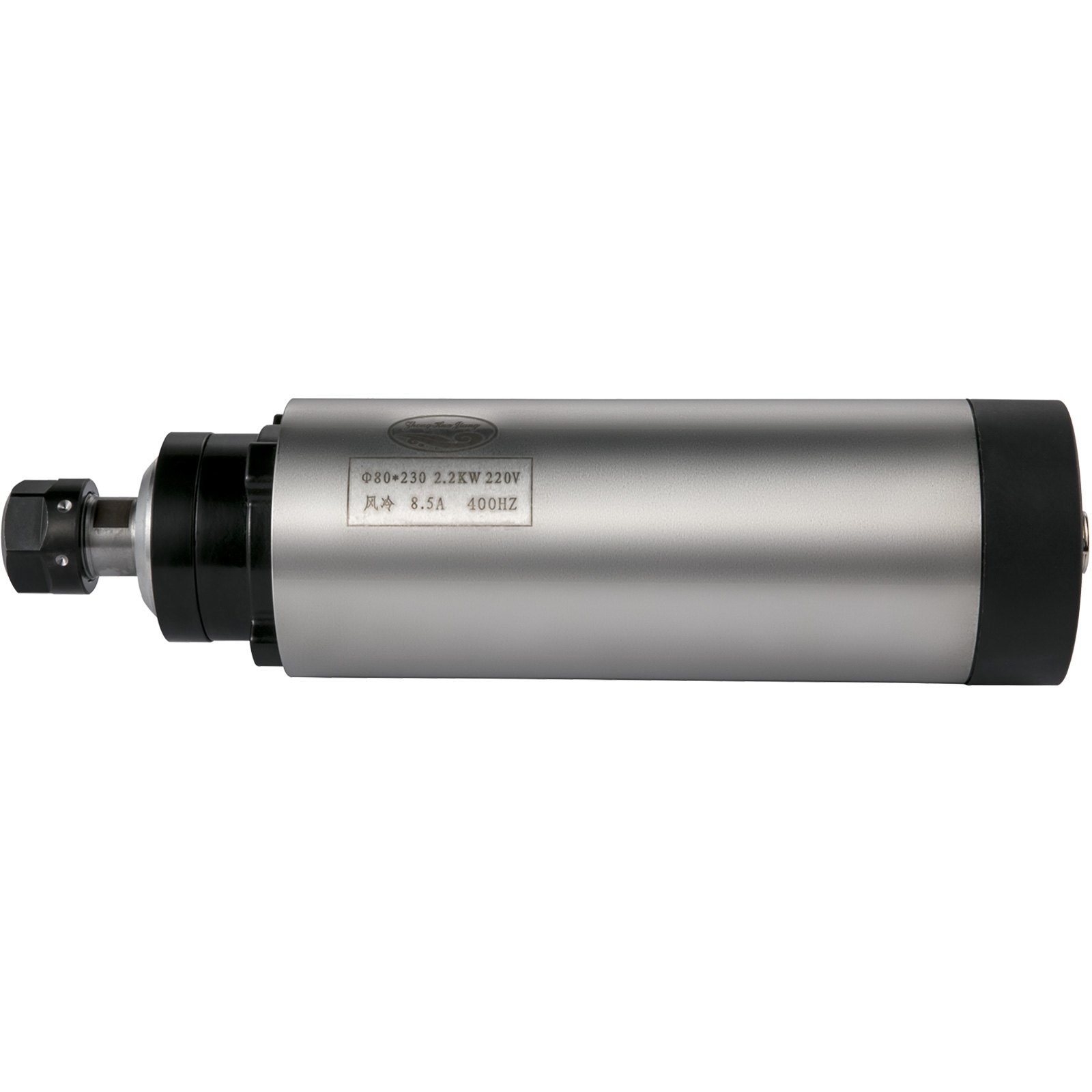

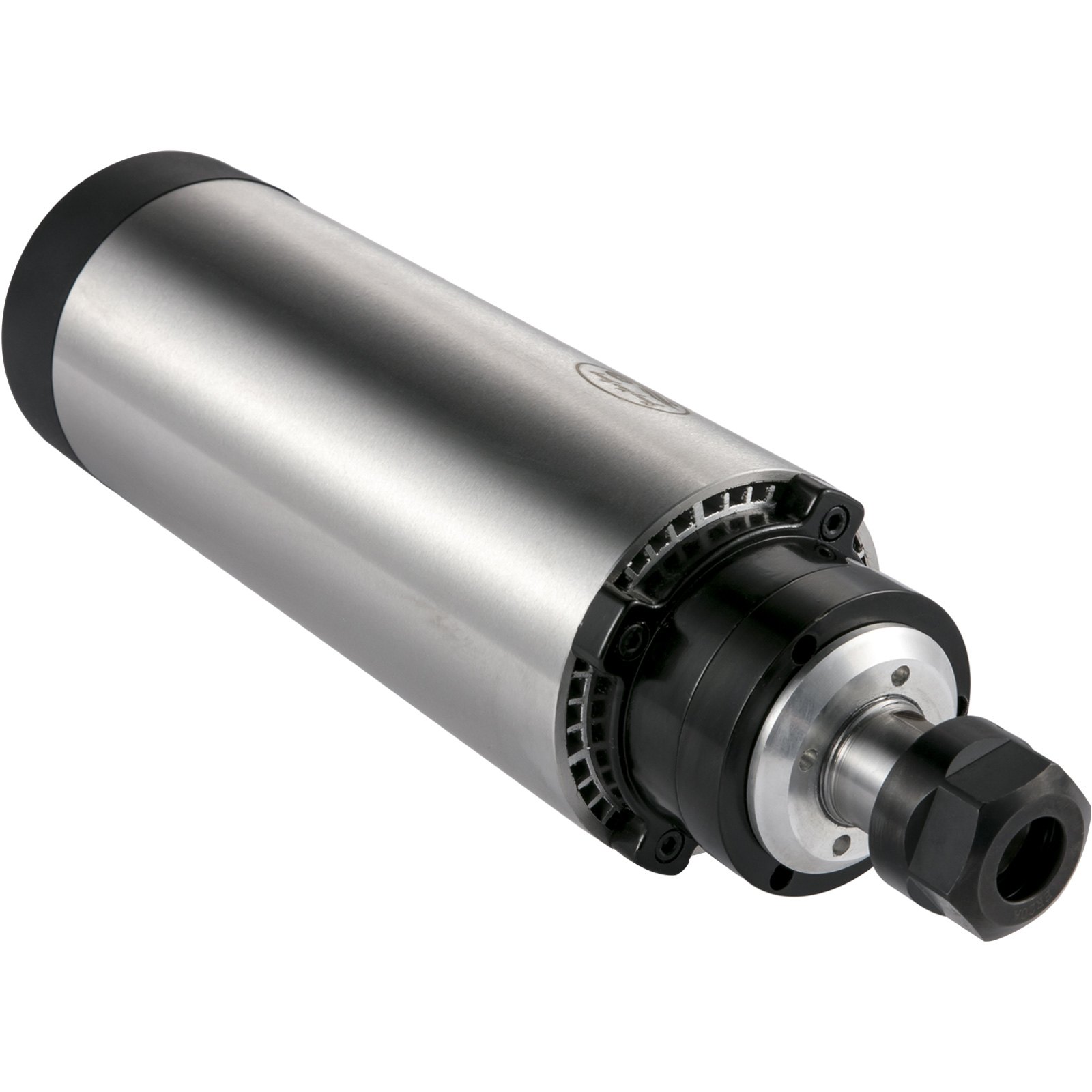

Air Cooled Spindle Motor
Unlike other spindle motors, ours use advanced dynamic balancing technology to achieve noise reduction. Its durable surface, high-speed core, and ceramic ball bearings significantly improve hardness and efficiency to be ideal for the engraving machine.

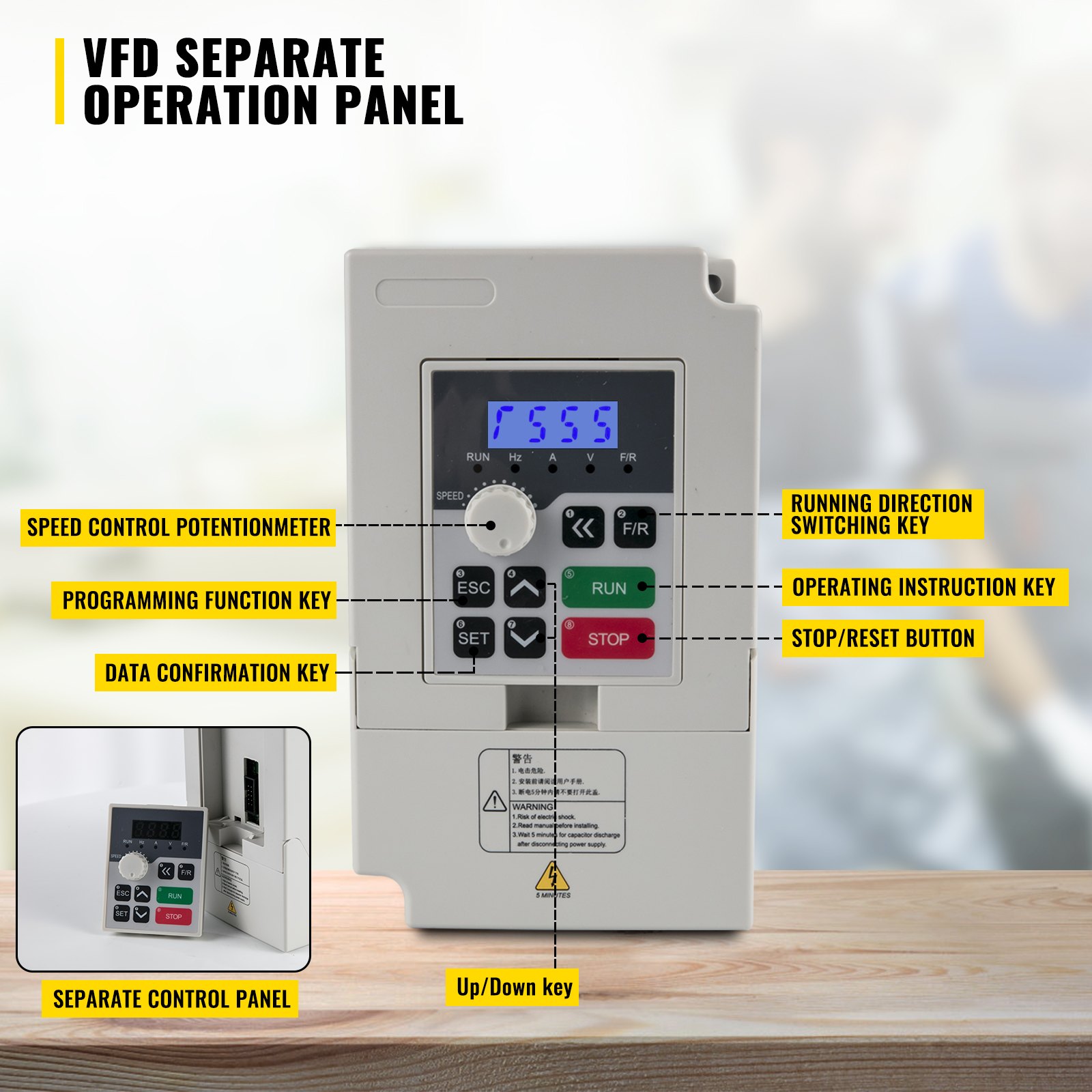

VFD Separate Operation Panel
The variable frequency drive is equipped with full-featured buttons and a detachable panel for quick operation and remote control. Reasonable layout and intuitive digital display increase the convenience of daily use for constant torque loads and variable torque loads.

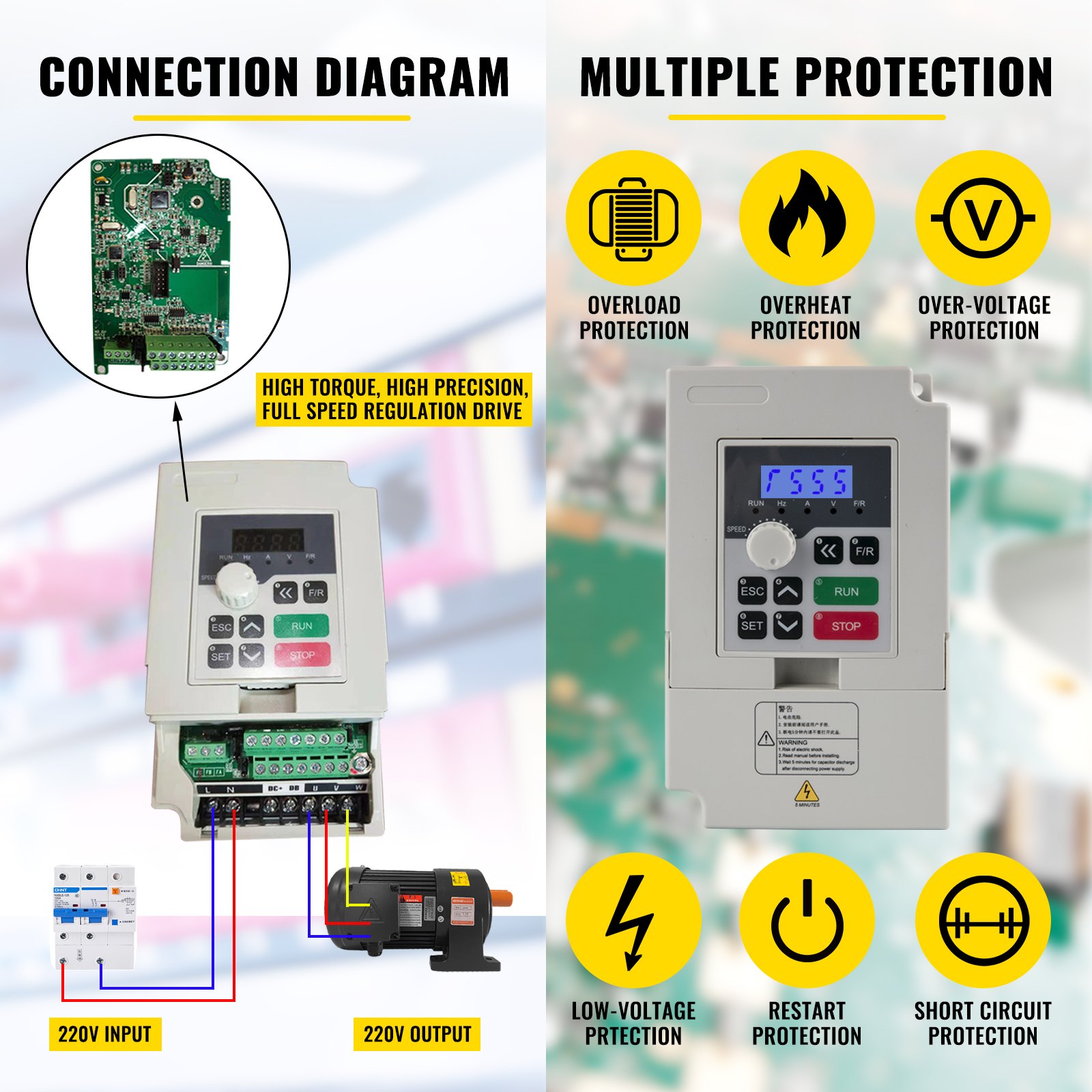

Control Terminals & Multiple Protection
The variable frequency drive is rich in digital and analogy control terminals for versatile control. With 220V single phase input and 220V 3 phase output, the VFD is easy to connect with power and motor. And many protection ways are adopted to ensure stable and reliable operation.

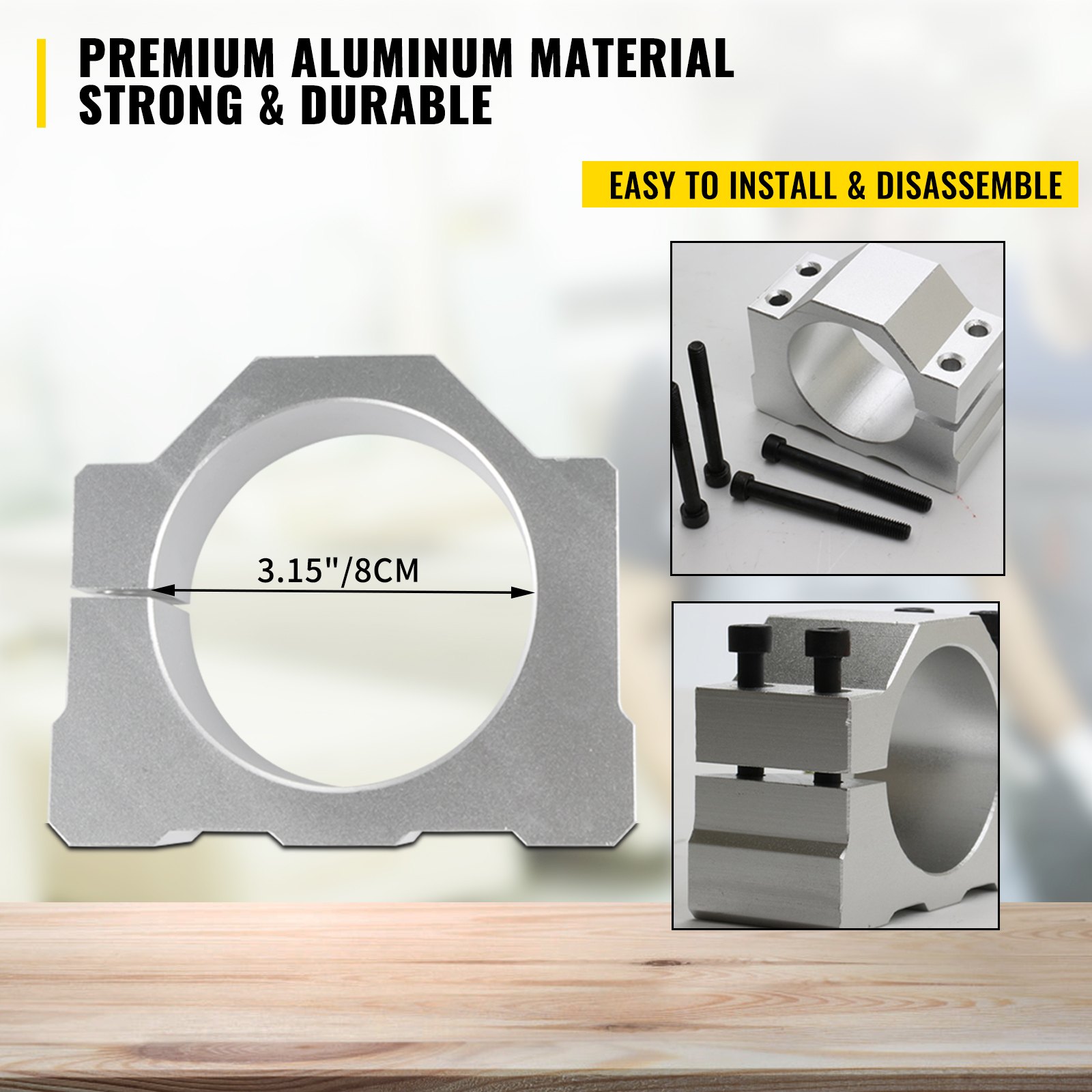

Aluminum Spindle Clamp
The clamp with the finished surface is made of aluminum material, which is lightweight enough for you to install, remove, and use easily. After the fixing frame is aligned, you only need to screw the screws to the four corresponding holes to complete the installation.

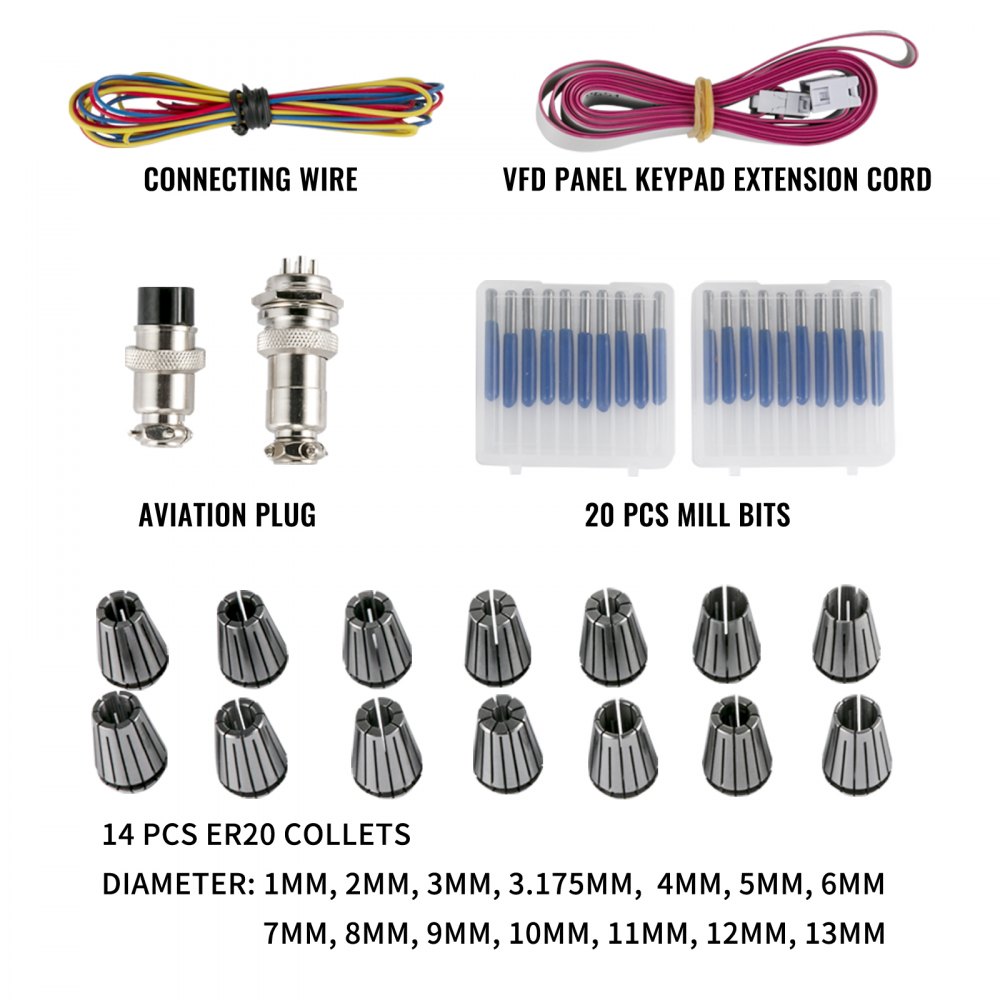

Complete Accessories
For your convenience, we provide you with 14 PCs ER20 collets of different diameters, 20 PCs milling drill bits, aviation plugs, VFD panel keypad extension cord, and connecting wire for use with engraving machines and frequency converters.

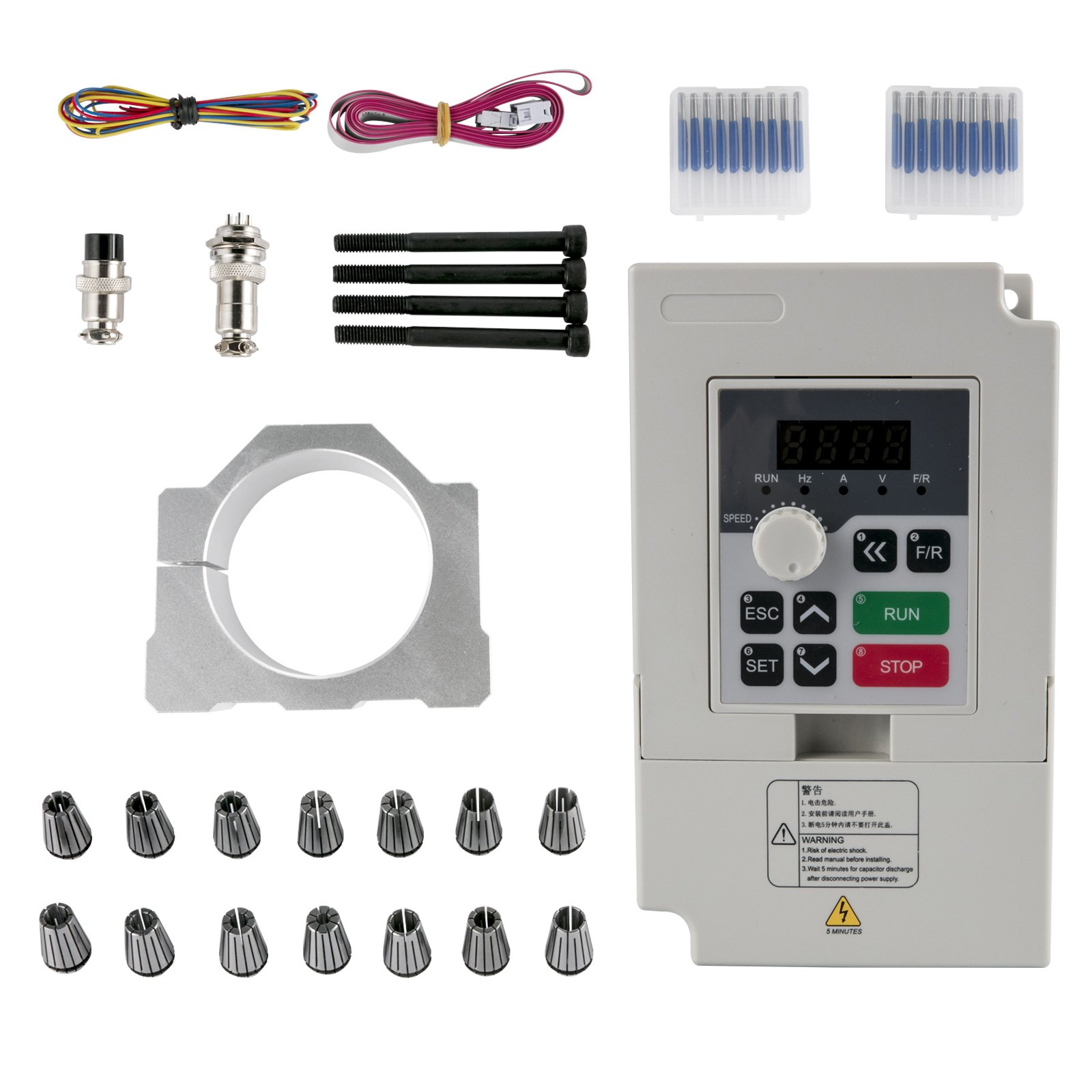

Package Content
- 1 x 2.2KW Air Cooled Spindle Motor
- 1 x 2.2KW Variable Frequency Drive
- 1 x Spindle Clamp
- 14 x ER20 Collets
- 1 x Set of Mill Bits (20 PCs)
- 2 x Aviation Plugs
- 1 x VFD Panel Keypad Extension Cord
- 1 x Connecting Wire
- 1 x Manual
Specifications

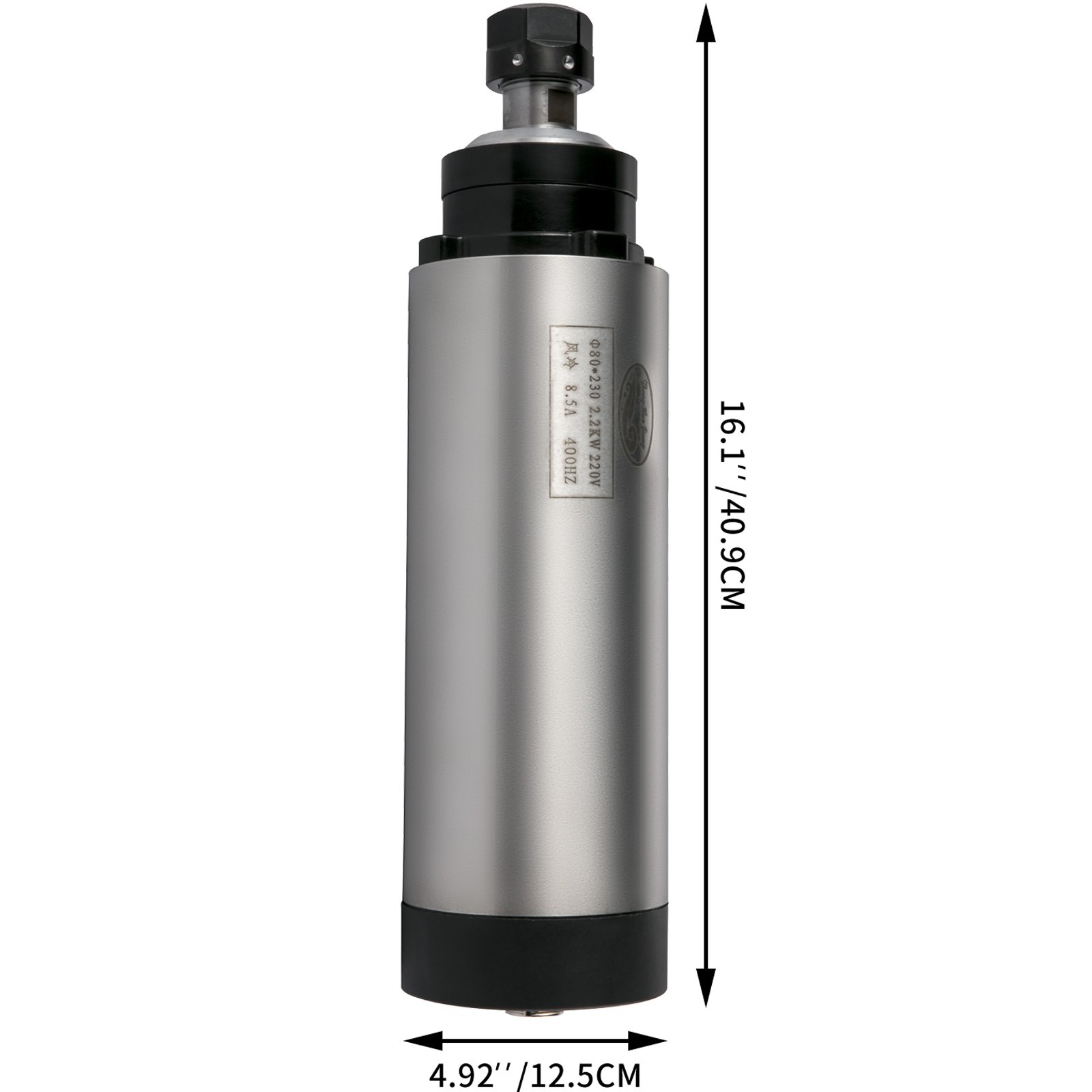

- Spindle Motor
- Power: 2.2KW
- Voltage: 220V
- Frequency: 400 Hz
- Speed: 0-24000 RPM
- Current: 8.5A
- Collet Chuck: ER20
- Cooling: Air-cooled
- Accuracy: 0.002" (0.05 mm)
- Runout Off: 0.002" (0.05 mm)
- Bearings: 6002/7005
- Variable Frequency Drive
- Power: 2.2 KW
- Input Voltage: 220V
- Output Voltage: 220V
- Input Phase: 1 Phase
- Output Phase: 3 Phase
- Input Frequency: 50 Hz
- Output Frequency: 0-400 Hz
- Output Current: 11A
- Package Size: 3.50" x 5.83" x 4.68" (89 x 148 x 119 mm)
- Gross Weight: 2.2 lbs (1 kg)
- Spindle Clamp
- Diameter: 3.15" (80 mm)
- Material: Aluminum
- ER20 Collets
- Diameter: 0.12/0.13/0.16/0.2/0.24/0.3/0.28/0.32/0.35/0.4/0.43/0.47/0.5/0.51-inch (3/3.175/4/5/6/6.35/7/8/9/10/11/12/12.7/13 mm)
- Outer Diameter: 0.83" (21 mm)
- Height: 1.24" (31.5 mm)
