2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable

2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable 2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable 2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable 2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable 2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable 2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable 2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable 2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable 2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable 2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable 2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable 2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable
AU $161.80
161.8
  • · Devices Included As Following

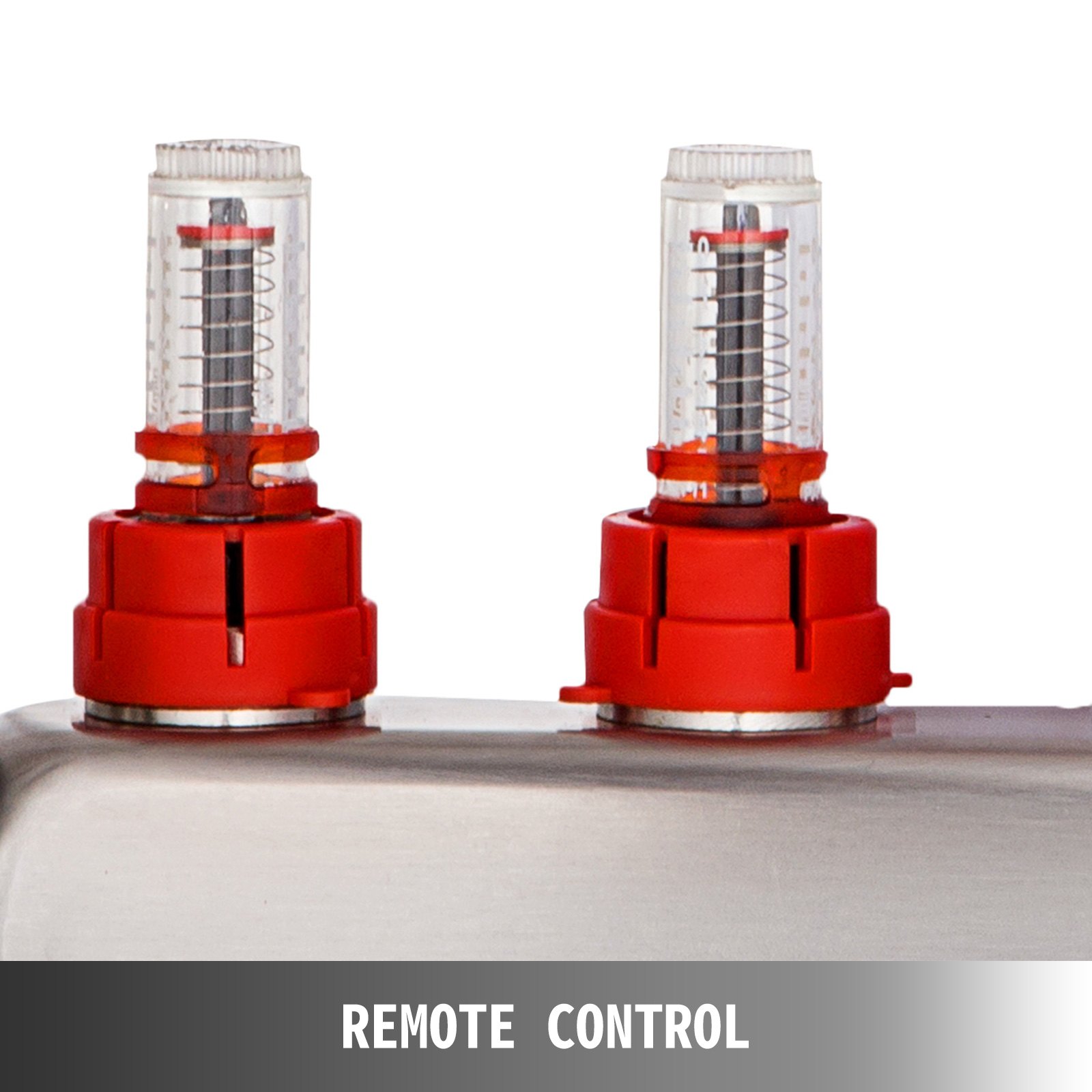

  • · (1) Supply PEX manifold with 2 PEX tubing outlets and 2 adjustable flow meters: Allow to monitor GPM (Gallons Per Minute) water flow through individual manifold branches.
  • · (2) Return PEX manifold with 2 PEX tubing outlets and 2 balancing (flow adjustment) valves: Balancing valves allow for adjustment of water flow for each branch independently and help to properly balance the radiant heating system.
  • · (3) Isolation ball valves with 1" NPT connections: Allow for easy service and pressure testing.
  • · (4) Automatic air vents (air eliminators): Float type air vent is used to automatically purge the air out of the radiant heat system. Air vent caps are included for pressure testing purposes.


Frequently Bought Together

People Who Bought This Item Also Bought

2-Branch PEX Radiant Floor Heating Manifold Set For 1/2" PEX Leak-Proof Durable
unashoppingifytemplatenew

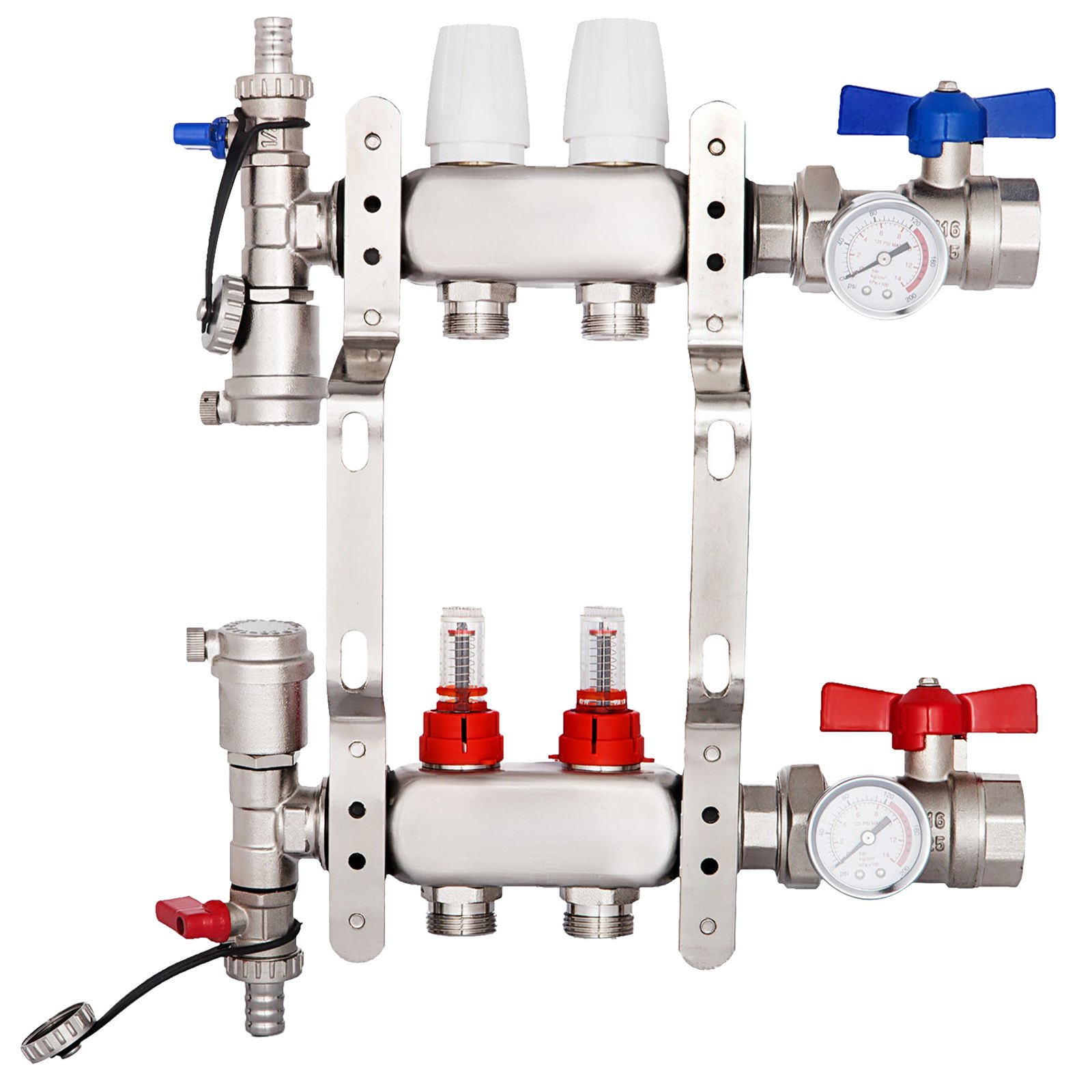

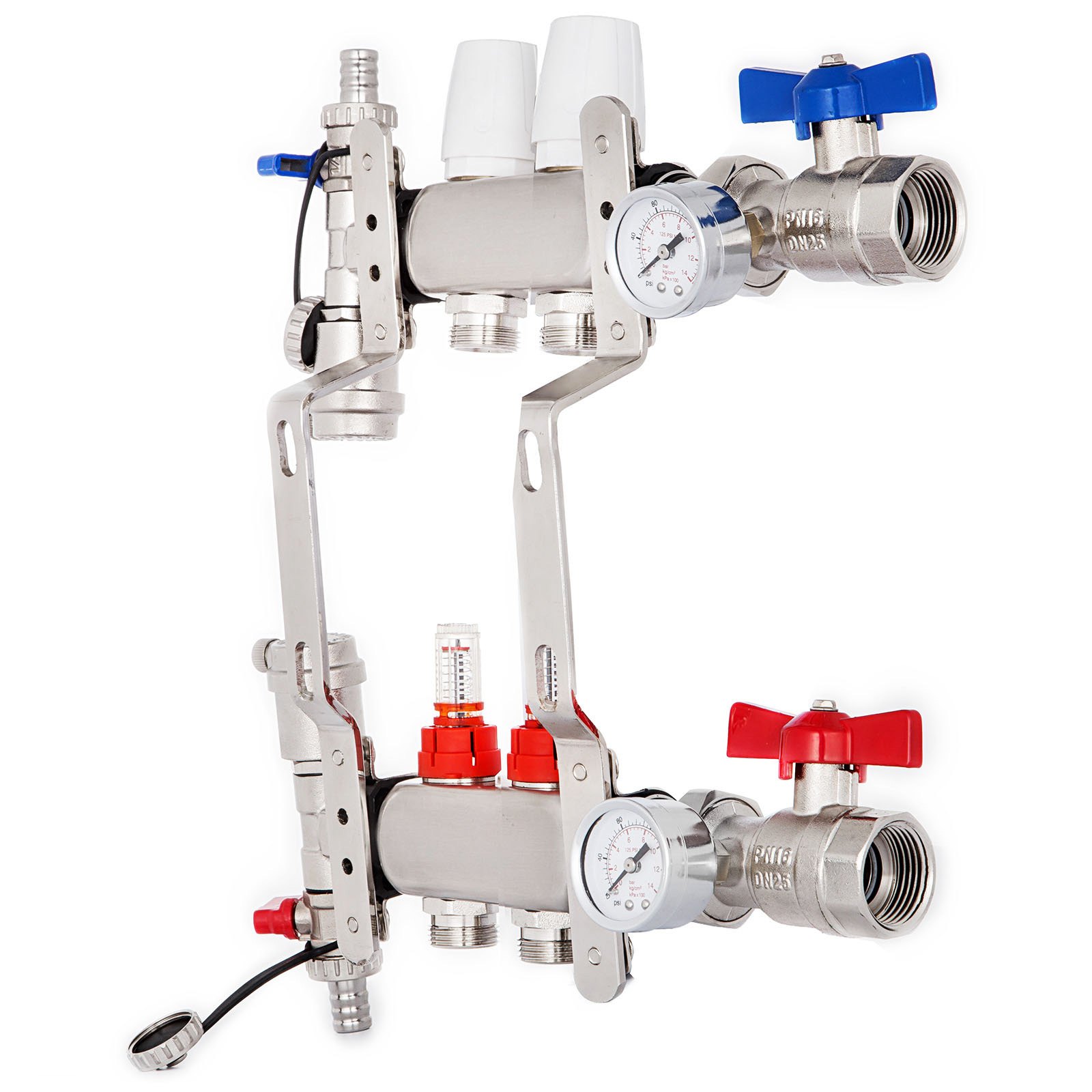

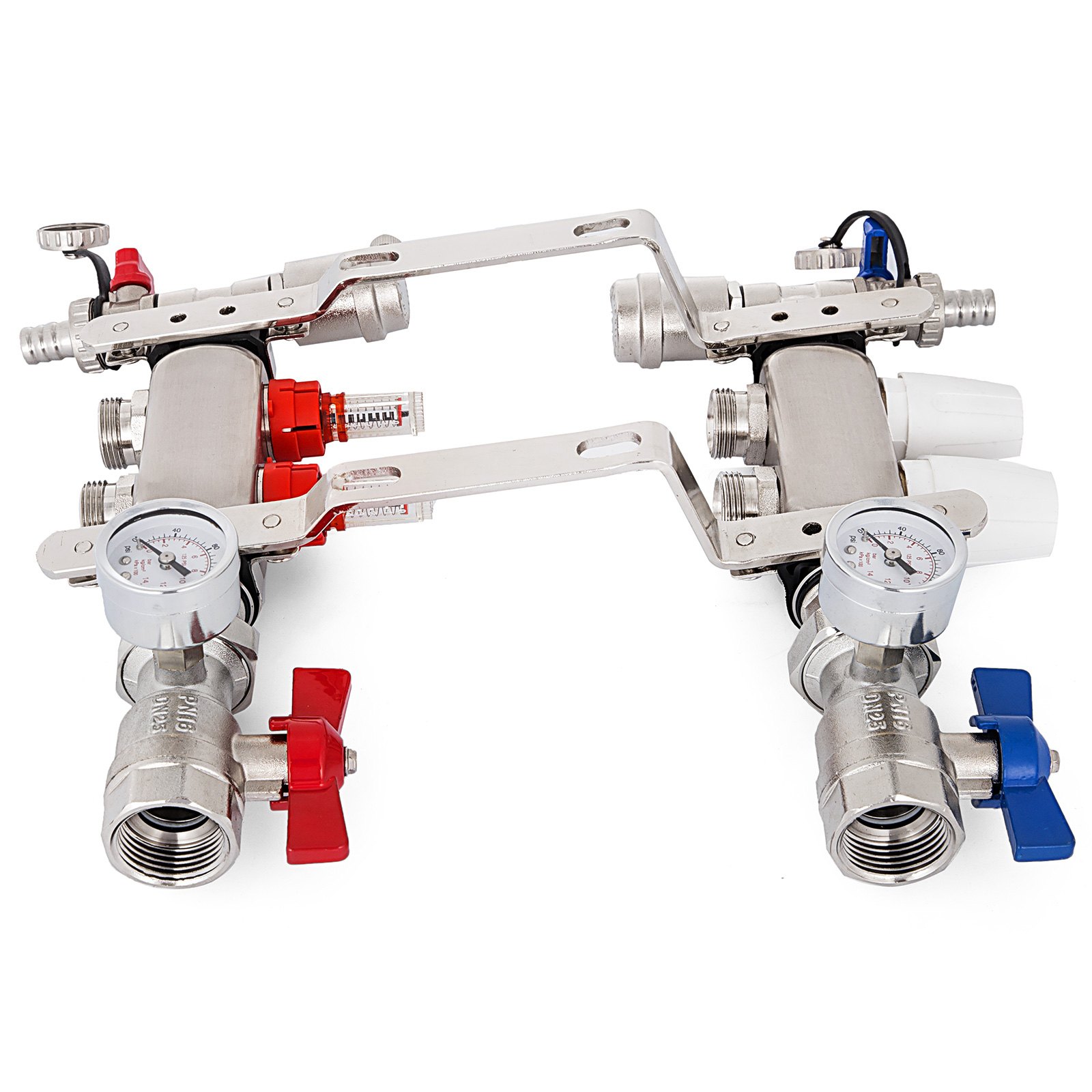

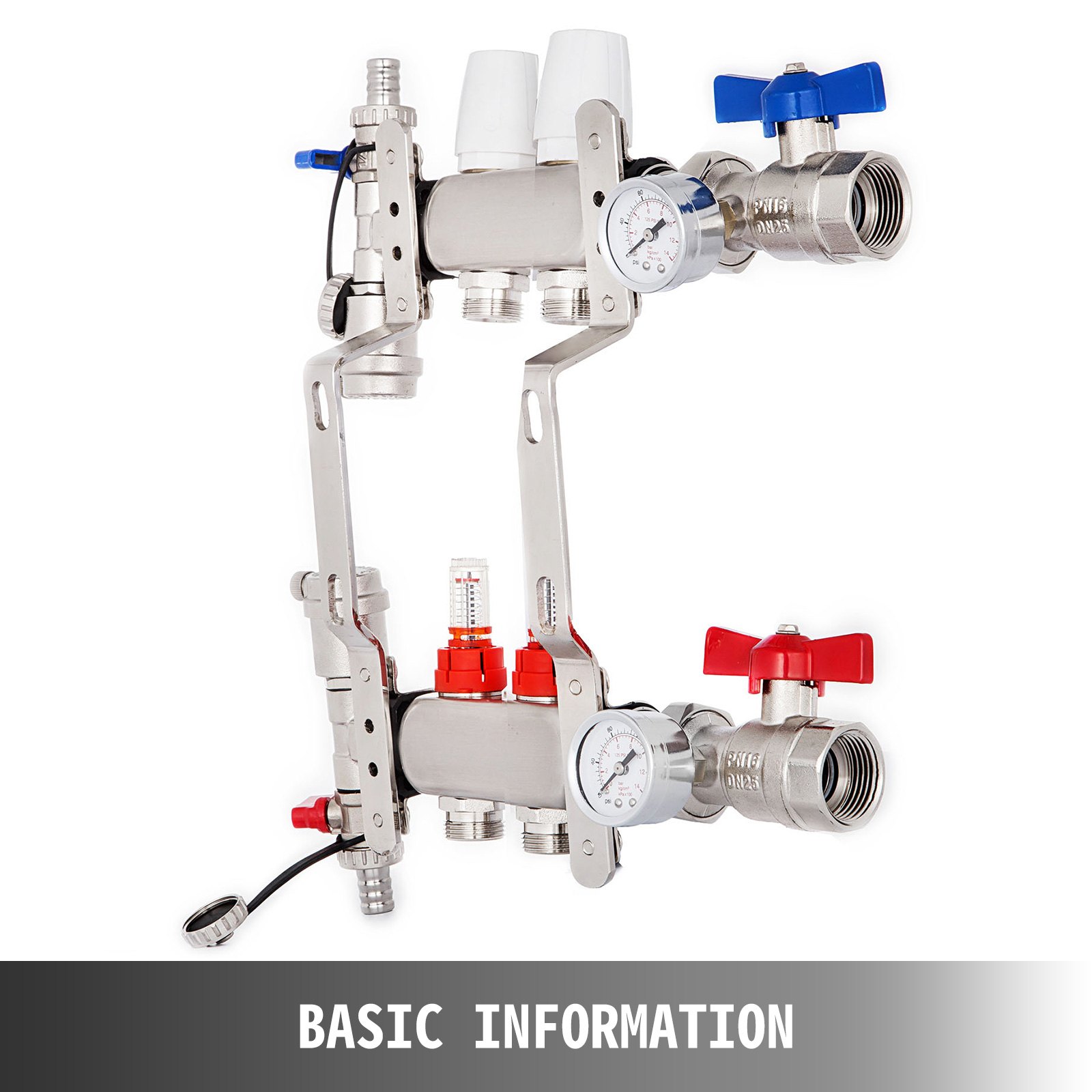

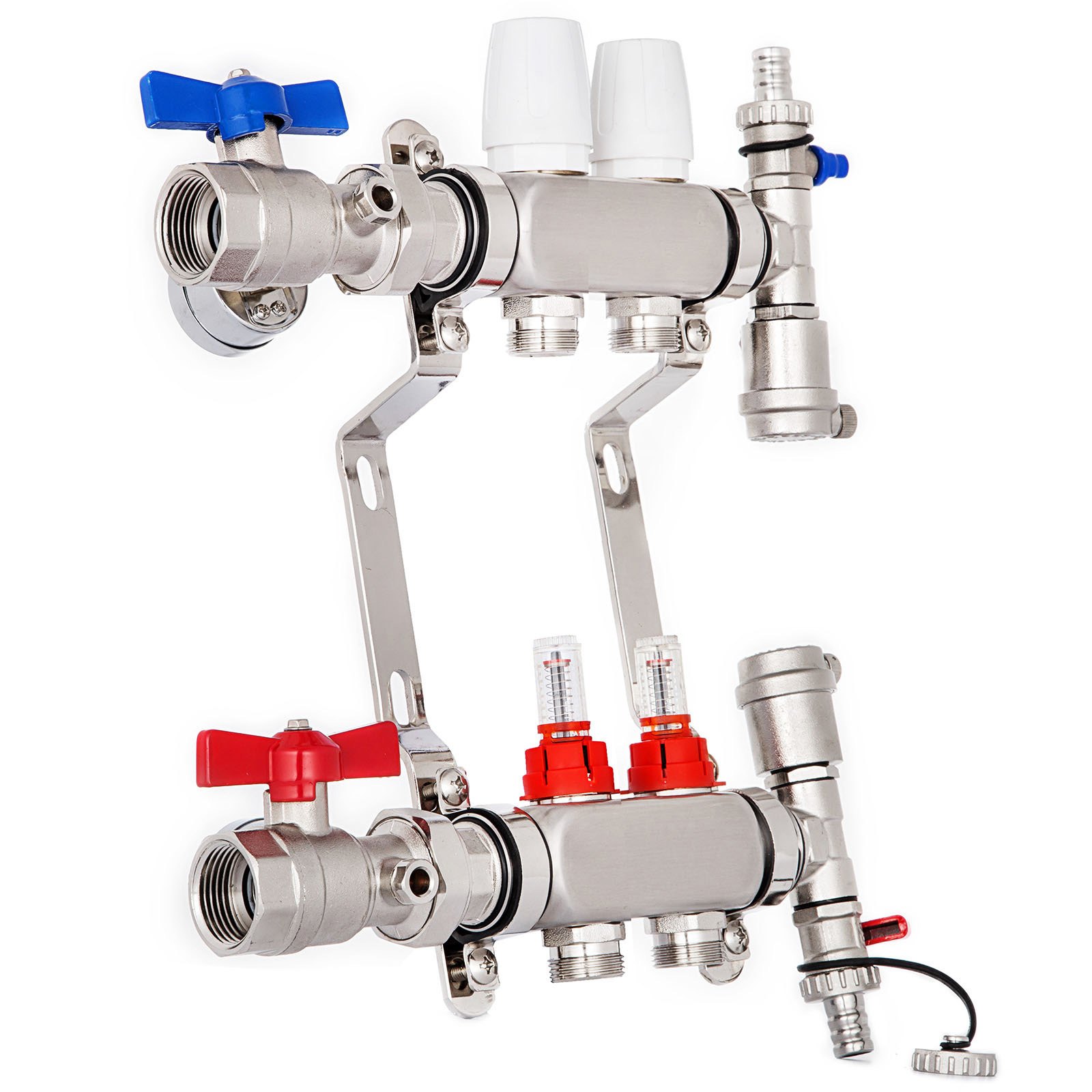

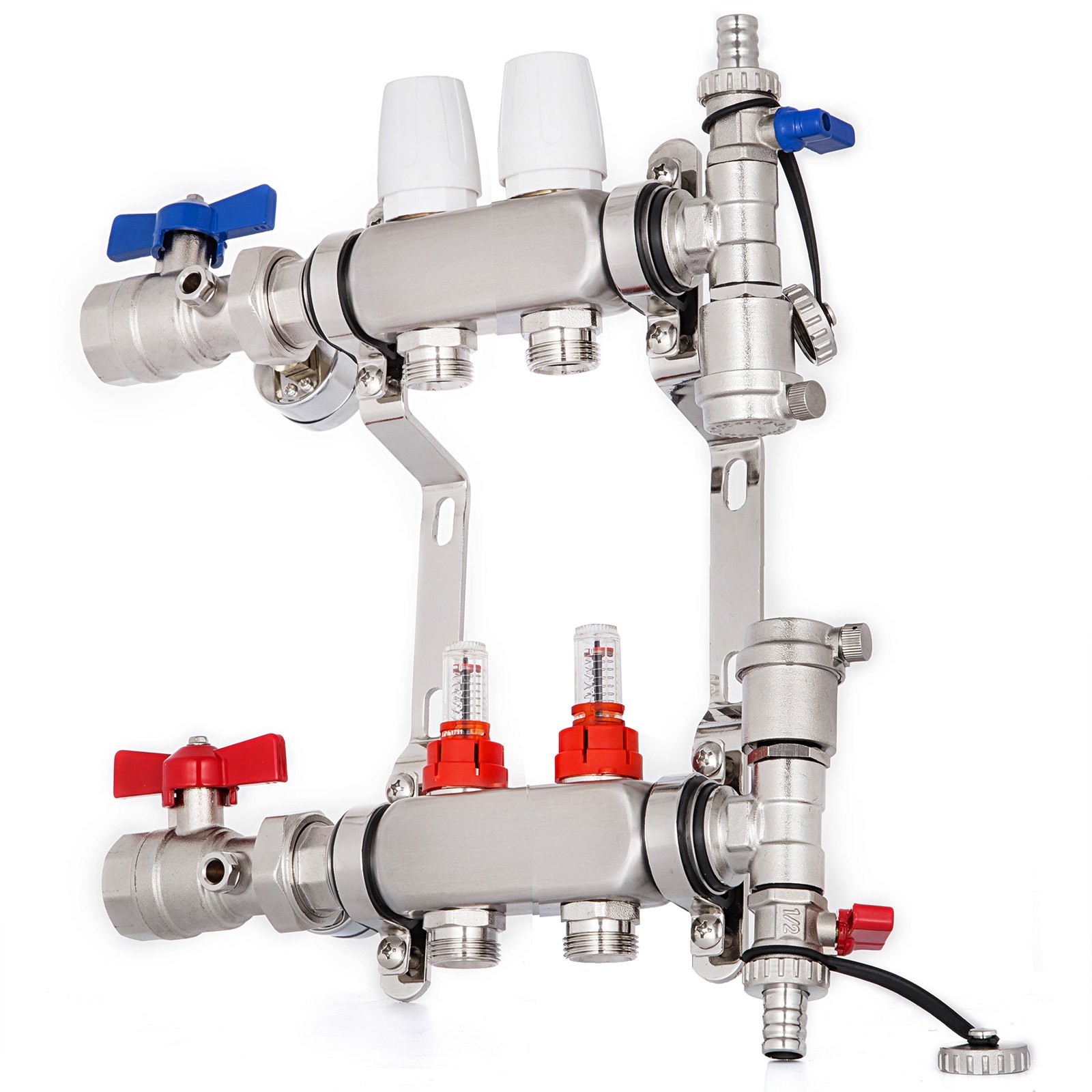

This is a 2 branch 1/2" stainless steel manifold kit for for radiant floor heat systems. Made of stainless steel, it is anti-corrosion and high temperature-resistant. But not suitable for potable water applications.

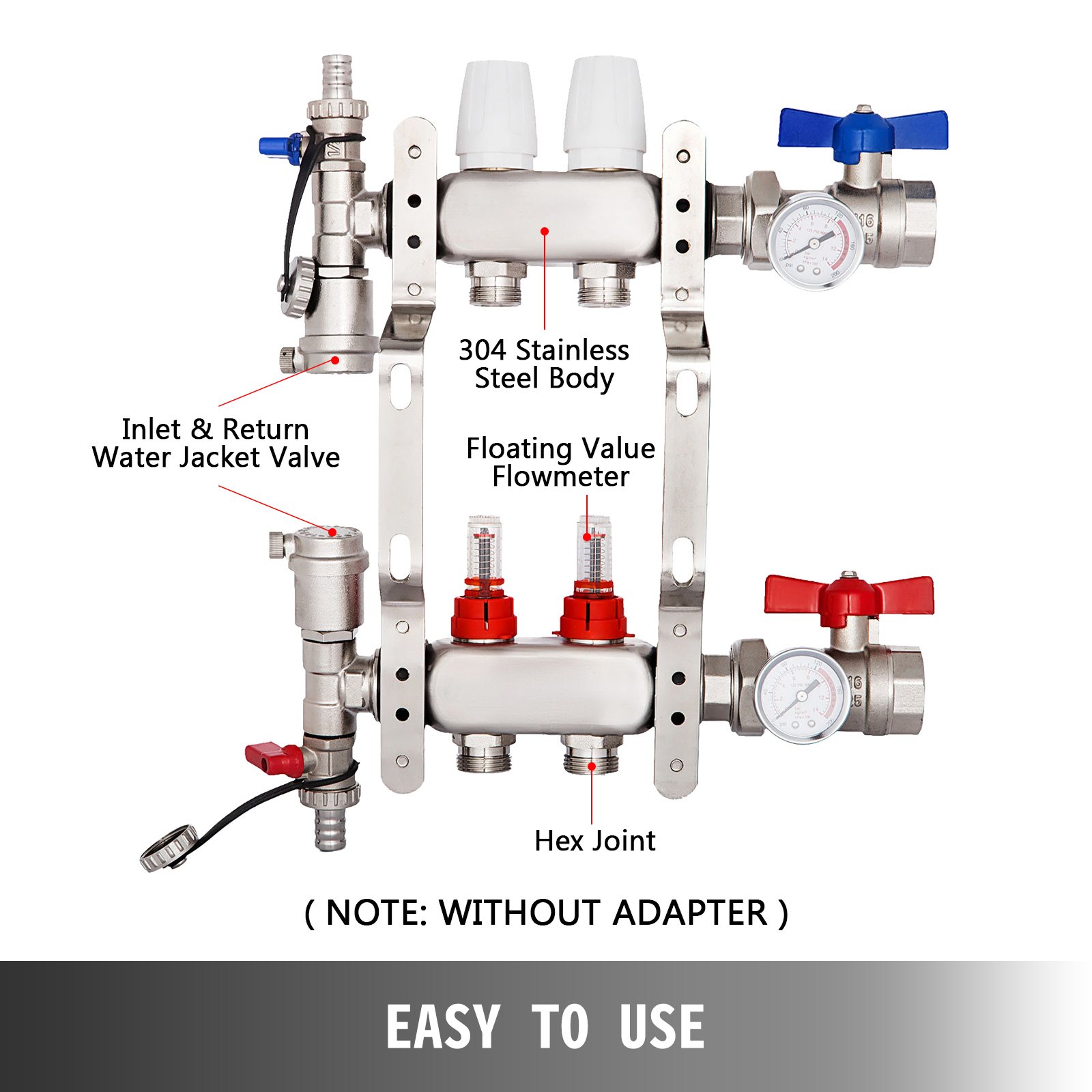

Devices Included As Following:
  • (1) Supply PEX manifold with 2 PEX tubing outlets and 2 adjustable flow meters: Allow to monitor GPM (Gallons Per Minute) water flow through individual manifold branches.

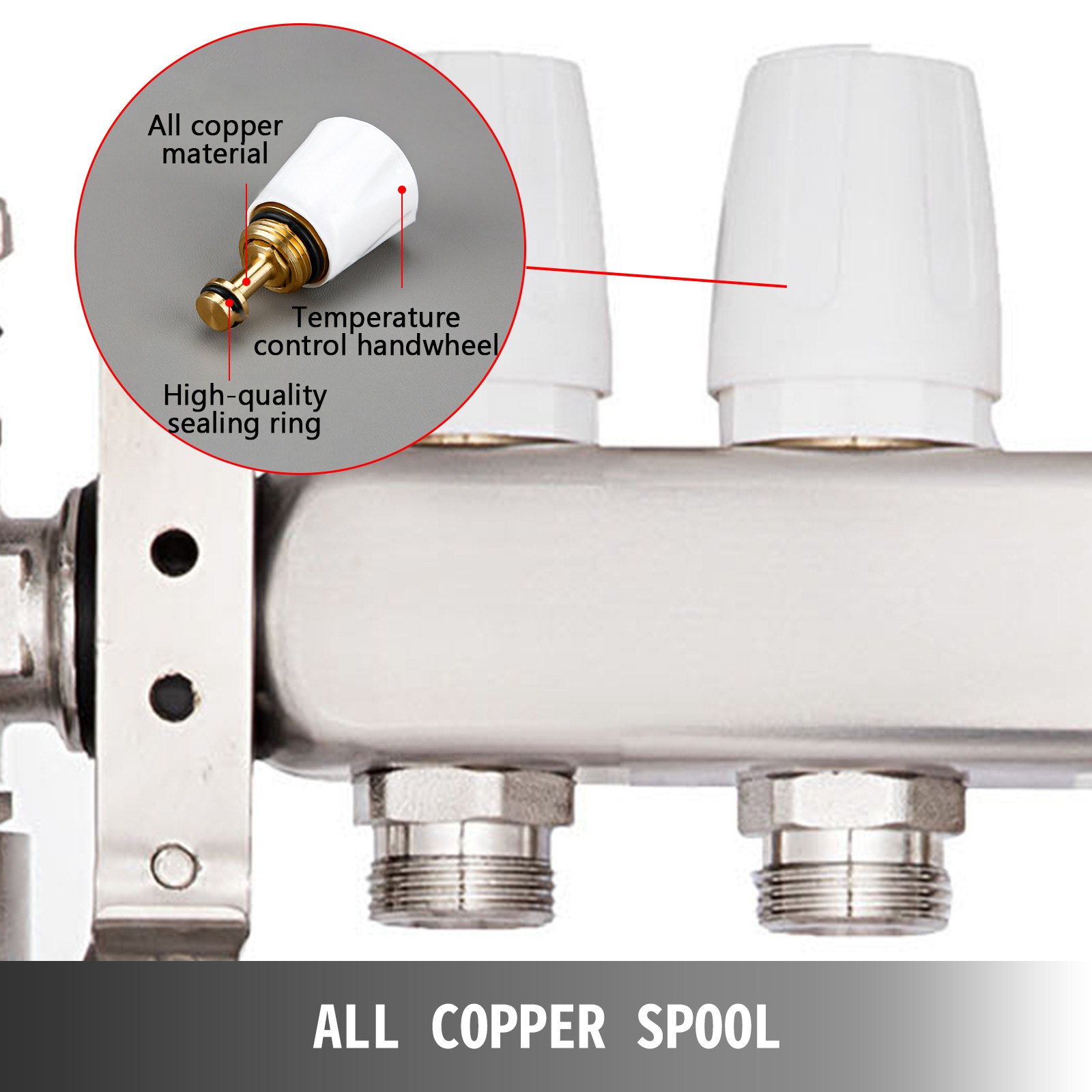

  • (2) Return PEX manifold with 2 PEX tubing outlets and 2 balancing (flow adjustment) valves: Balancing valves allow for adjustment of water flow for each branch independently and help to properly balance the radiant heating system.
  • (3) Isolation ball valves with 1" NPT connections:  Allow for easy service and pressure testing.
  • (4) Automatic air vents (air eliminators): Float type air vent is used to automatically purge the air out of the radiant heat system. Air vent caps are included for pressure testing purposes.
  • (5) Drain valves: Both drain valves feature a 3/4" male garden hose connection for convenient draining/filling of the system. Caps included.
  • (6) Mounting brackets with bolt: Heavy-duty design and custom engineered to offset the manifold from the mounting surface for easy access and installation of PEX tubing.
MOUNTING OPTIONS:
  • Horizontal (as shown on the listing images): Recommended
  • Upside down (with balancing valves and/or flow meters pointing down): Allowed
  • Vertical (with balancing valves and flow meters pointing to the side): Allowed

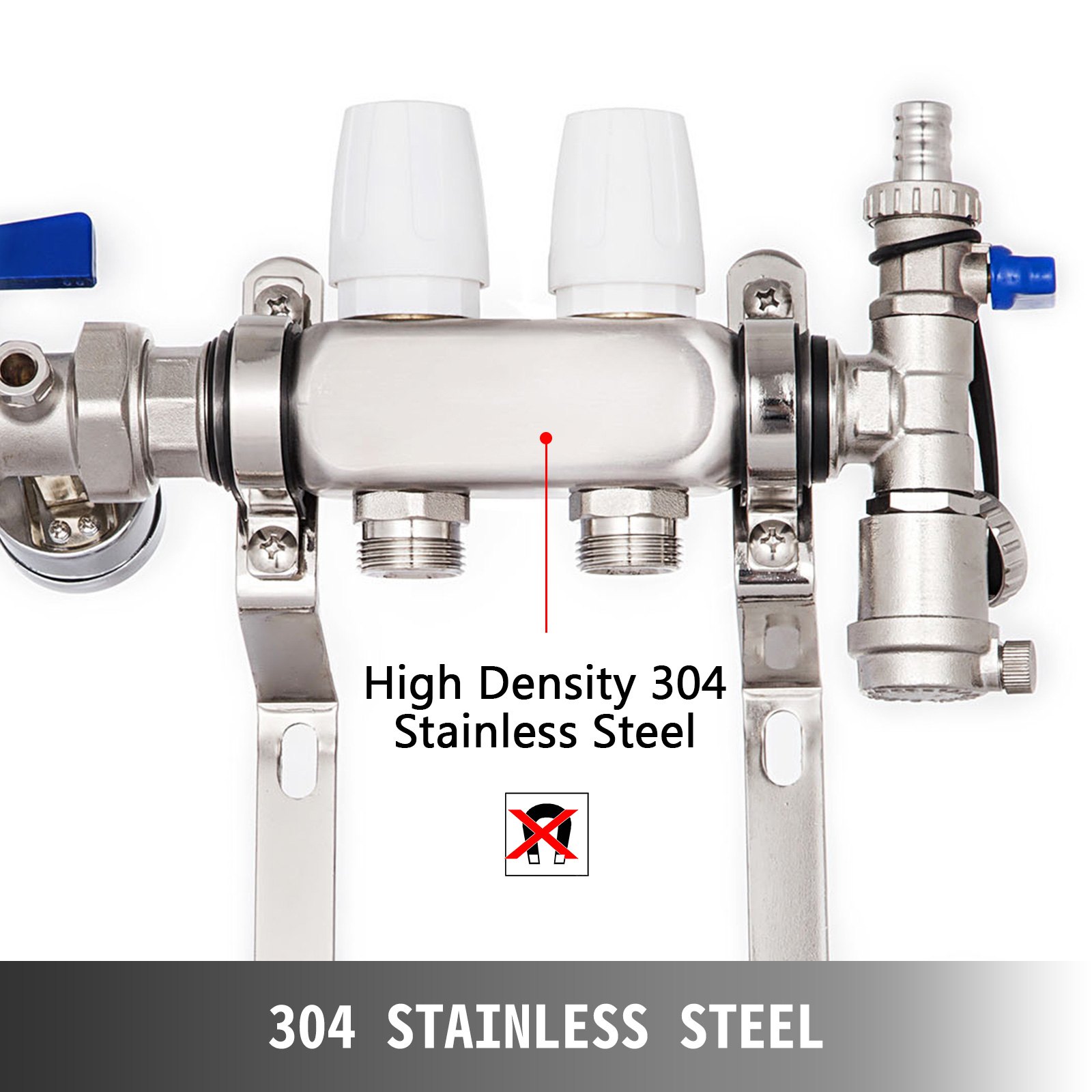

  • Made of stainless steel, durable & corrosion-resistant.
  • Pressure tested and pre-assemble. Simply mount the manifold on brackets and connect valves and PEX tubing.

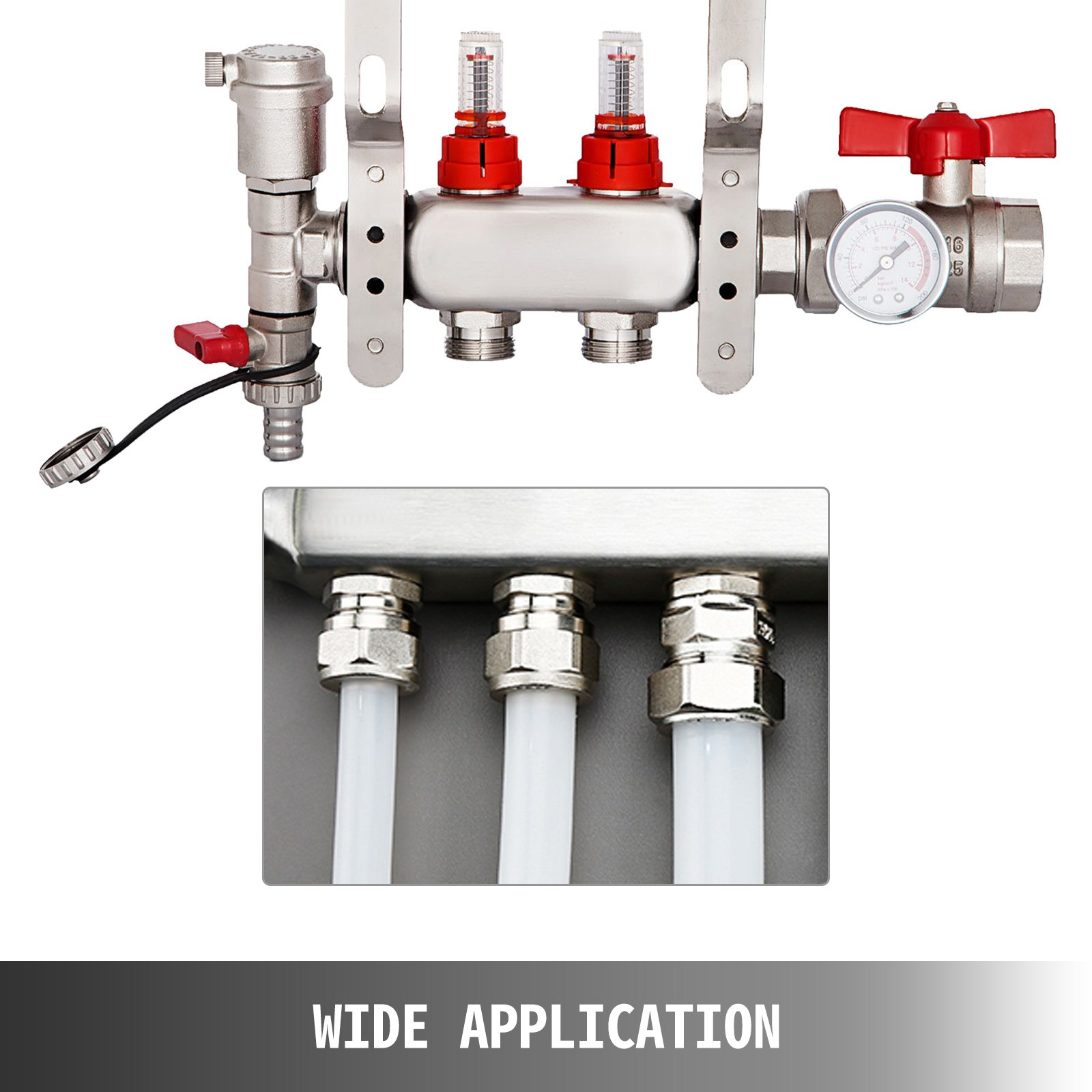

  • No PEX tools required. Use regular pliers or adjustable wrench to connect PEX tubing to the manifold.
  • Max. operating temperature 65°C , max. pressure 1.25Mpa.
  • Comes with flow meters.
  • Come with 2-year warranty.
  • Material: Stainless Steel
  • Temperature Range: 35℃- 65℃(95℉-149℉)
  • No. of PEX outlets: 2 on the Supply PEX manifold + 2 on the Return PEX manifold
  • For use with PEX tubing sizes: 1/2"
  • Manifold trunk size: 1-1/4"
  • Valve inlet connections: 1" NPT
  • Distance between PEX branches (on center): 2"
  • Max. flow per individual branch: 1.4 GPM

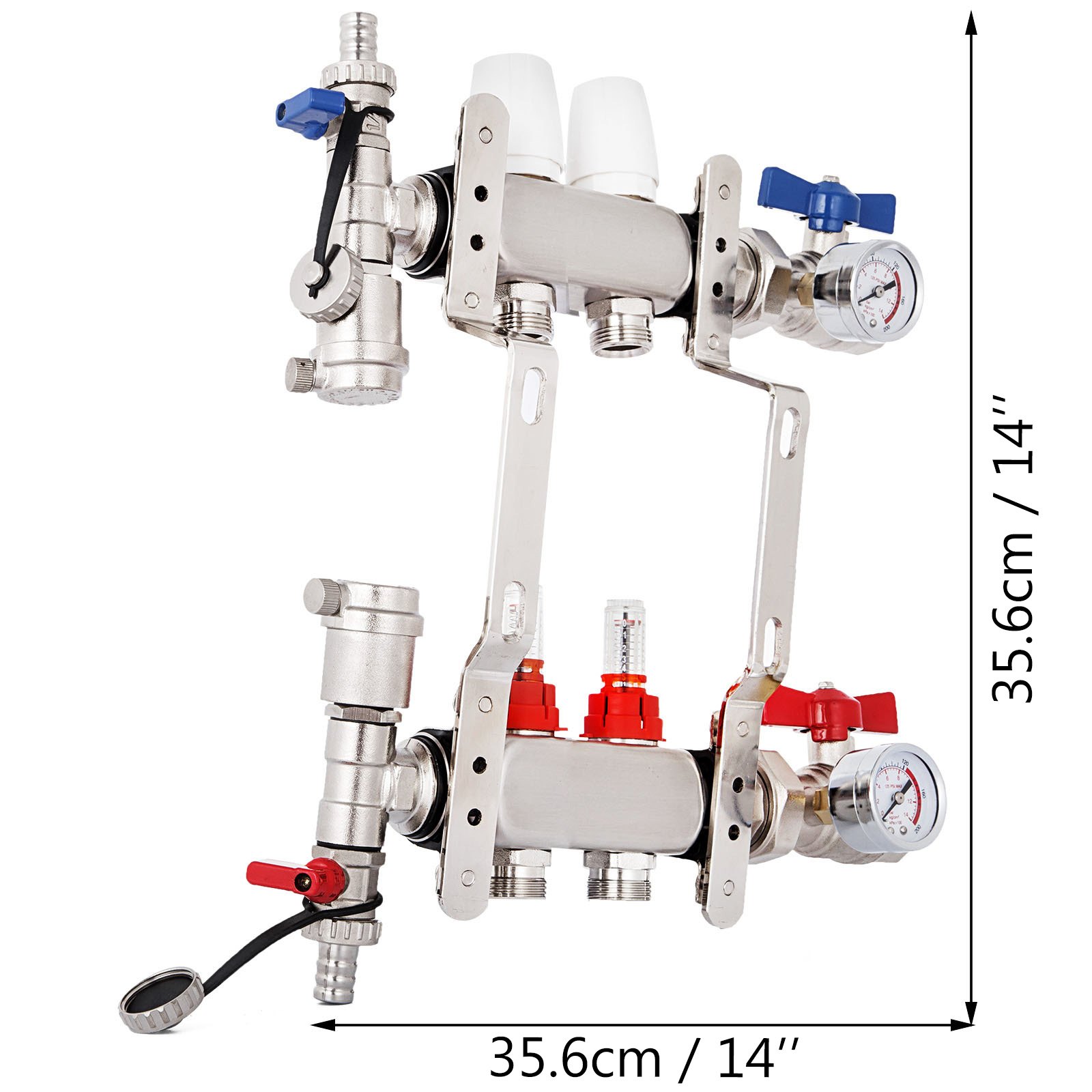

  • Product Size: 14 X 14"
  • 1 X 2-Branch 1/2" Radiant Floor Heating Kit
This is a 2 branch 1/2" stainless steel manifold kit for for radiant floor heat systems. Made of stainless steel, it is anti-corrosion and high temperature-resistant. But not suitable for potable water applications.
Devices Included As Following:
  • (1) Supply PEX manifold with 2 PEX tubing outlets and 2 adjustable flow meters: Allow to monitor GPM (Gallons Per Minute) water flow through individual manifold branches.
  • (2) Return PEX manifold with 2 PEX tubing outlets and 2 balancing (flow adjustment) valves: Balancing valves allow for adjustment of water flow for each branch independently and help to properly balance the radiant heating system.
  • (3) Isolation ball valves with 1" NPT connections:  Allow for easy service and pressure testing.
  • (4) Automatic air vents (air eliminators): Float type air vent is used to automatically purge the air out of the radiant heat system. Air vent caps are included for pressure testing purposes.
  • (5) Drain valves: Both drain valves feature a 3/4" male garden hose connection for convenient draining/filling of the system. Caps included.
  • (6) Mounting brackets with bolt: Heavy-duty design and custom engineered to offset the manifold from the mounting surface for easy access and installation of PEX tubing.
MOUNTING OPTIONS:
  • Horizontal (as shown on the listing images): Recommended
  • Upside down (with balancing valves and/or flow meters pointing down): Allowed
  • Vertical (with balancing valves and flow meters pointing to the side): Allowed
  • Made of stainless steel, durable & corrosion-resistant.
  • Pressure tested and pre-assemble. Simply mount the manifold on brackets and connect valves and PEX tubing.
  • No PEX tools required. Use regular pliers or adjustable wrench to connect PEX tubing to the manifold.
  • Max. operating temperature 65°C , max. pressure 1.25Mpa.
  • Comes with flow meters.
  • Come with 2-year warranty.
  • Material: Stainless Steel
  • Temperature Range: 35℃- 65℃(95℉-149℉)
  • No. of PEX outlets: 2 on the Supply PEX manifold + 2 on the Return PEX manifold
  • For use with PEX tubing sizes: 1/2"
  • Manifold trunk size: 1-1/4"
  • Valve inlet connections: 1" NPT
  • Distance between PEX branches (on center): 2"
  • Max. flow per individual branch: 1.4 GPM
  • Product Size: 14 X 14"
  • 1 X 2-Branch 1/2" Radiant Floor Heating Kit
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

  • 4.8
  • 4.7
  • 4.7
  • 4.7
10 Reviews
Non Stop Horizon Non Stop Horizon
Great quality for money
The quality for the price is great! The valves appear of high quality and the unions make it an easy install. I like that you can mount this multiple ways including the temp and pressure valves can be installed on either side of the valves. Very good overall.**My main issue is only with the fill valves, there is not enough threads on them. When using standard washing machine hose to fill, there wasn't enough threads to make a good seal. Lucky for me, I don't need to fill here as this is the lowest part of my system and I put in proper fill valves higher up with my pumps and everything else. I also did not need to use the included bleed valves as they are low on my system as well.
0
Non Stop Horizon Non Stop Horizon
Good product, check contents
Product worked as advertised. However, it did not come with the PEX compression fittings.
0
Non Stop Horizon Non Stop Horizon
Installed with ease
Great product
0
Ron Ron
Well made.
Well packaged for safe shipping. Very well made product. Took one star off only because there is no documentation of any kind with the unit to explain assembly/install, or what threads will mate to the tubing connections of the manifold. Got it figured out, and it works flawlessly, but would have been simple to include basic documentation and save some time.
0
stefanow stefanow
It comes without compression pex connectores.
Looks and works very well. Installation is easy, but watch to not over tight connections with rubber seals.
0
