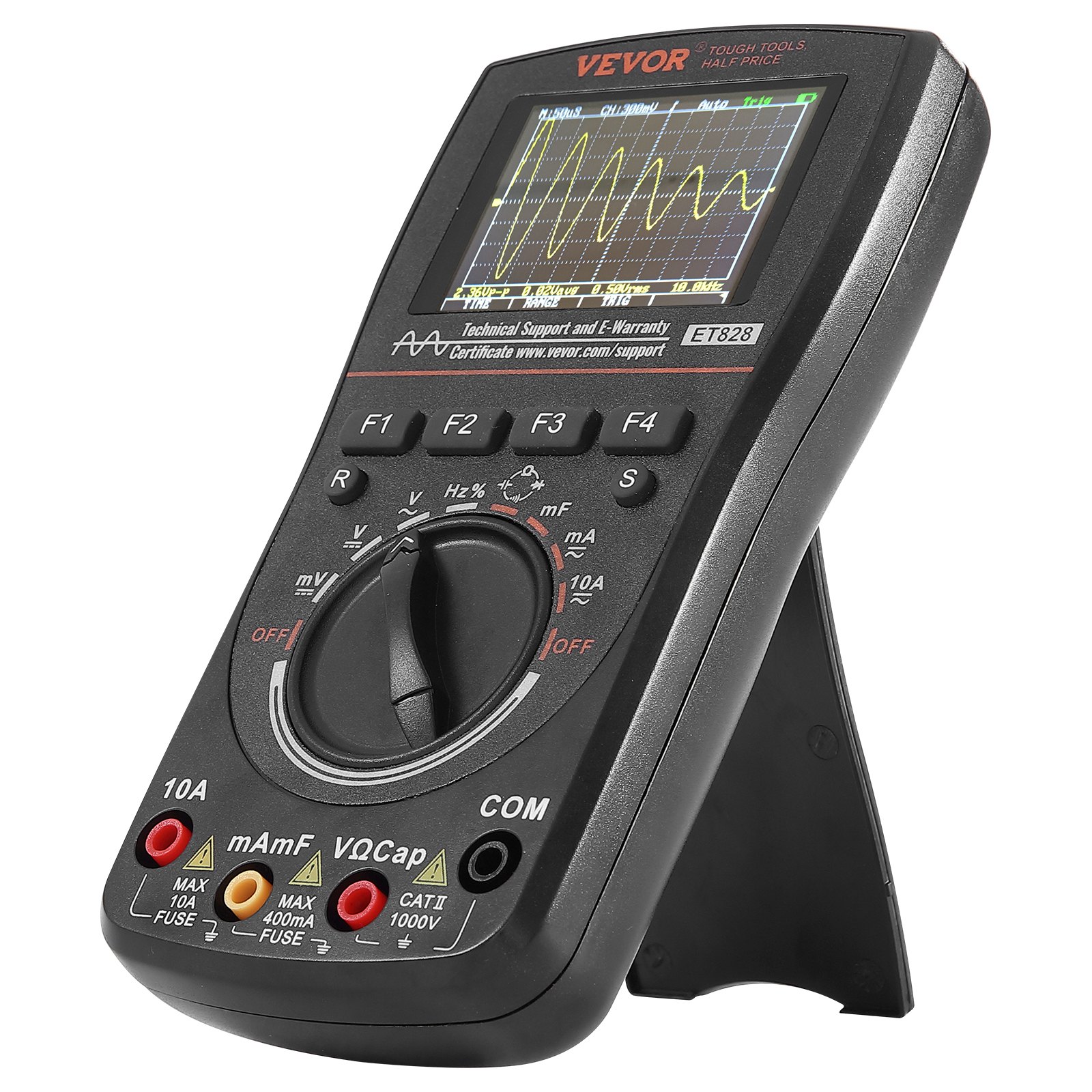

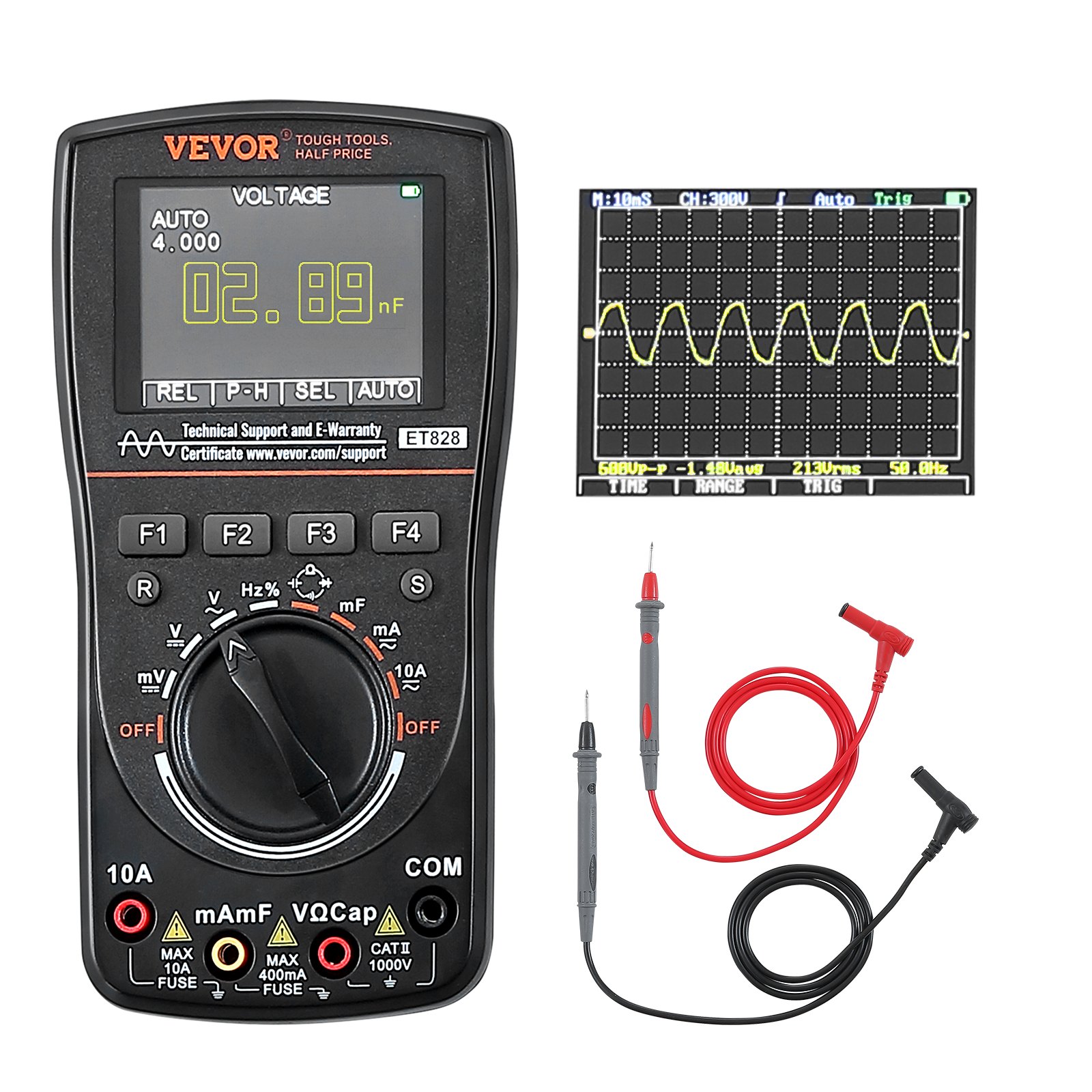

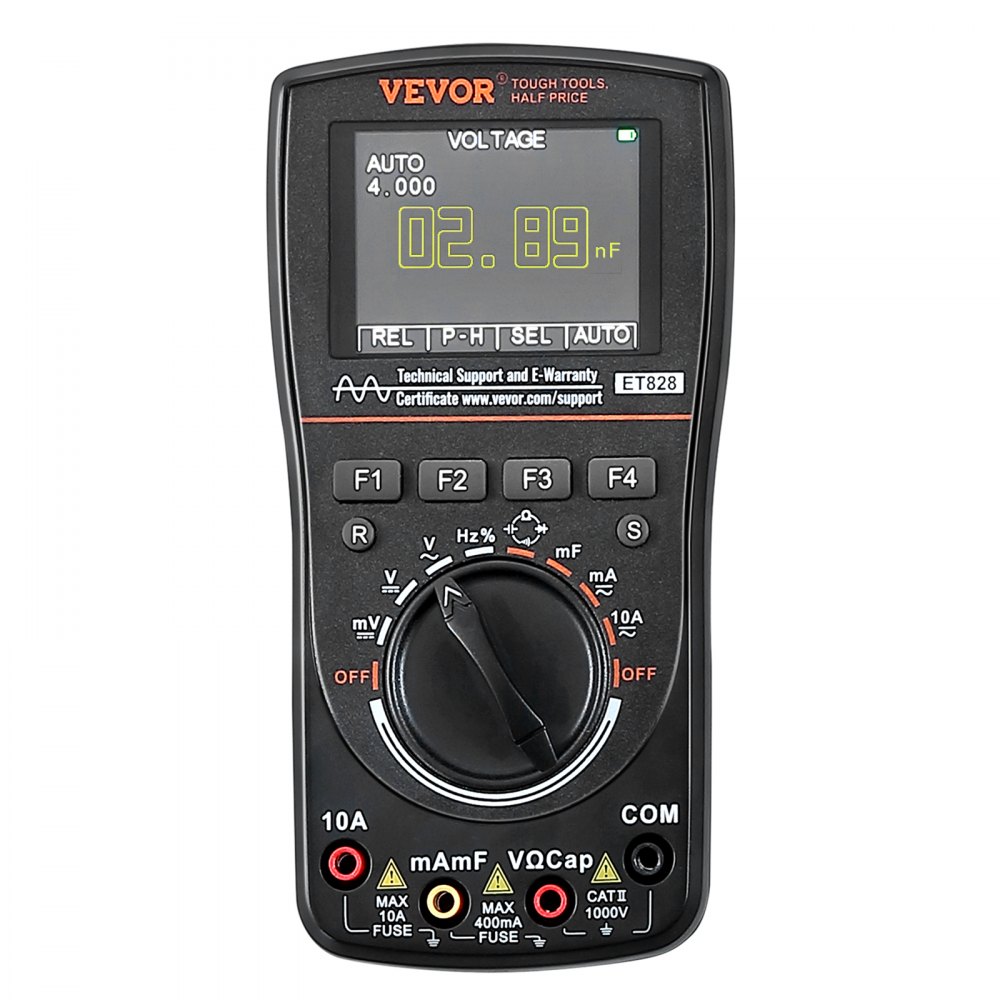

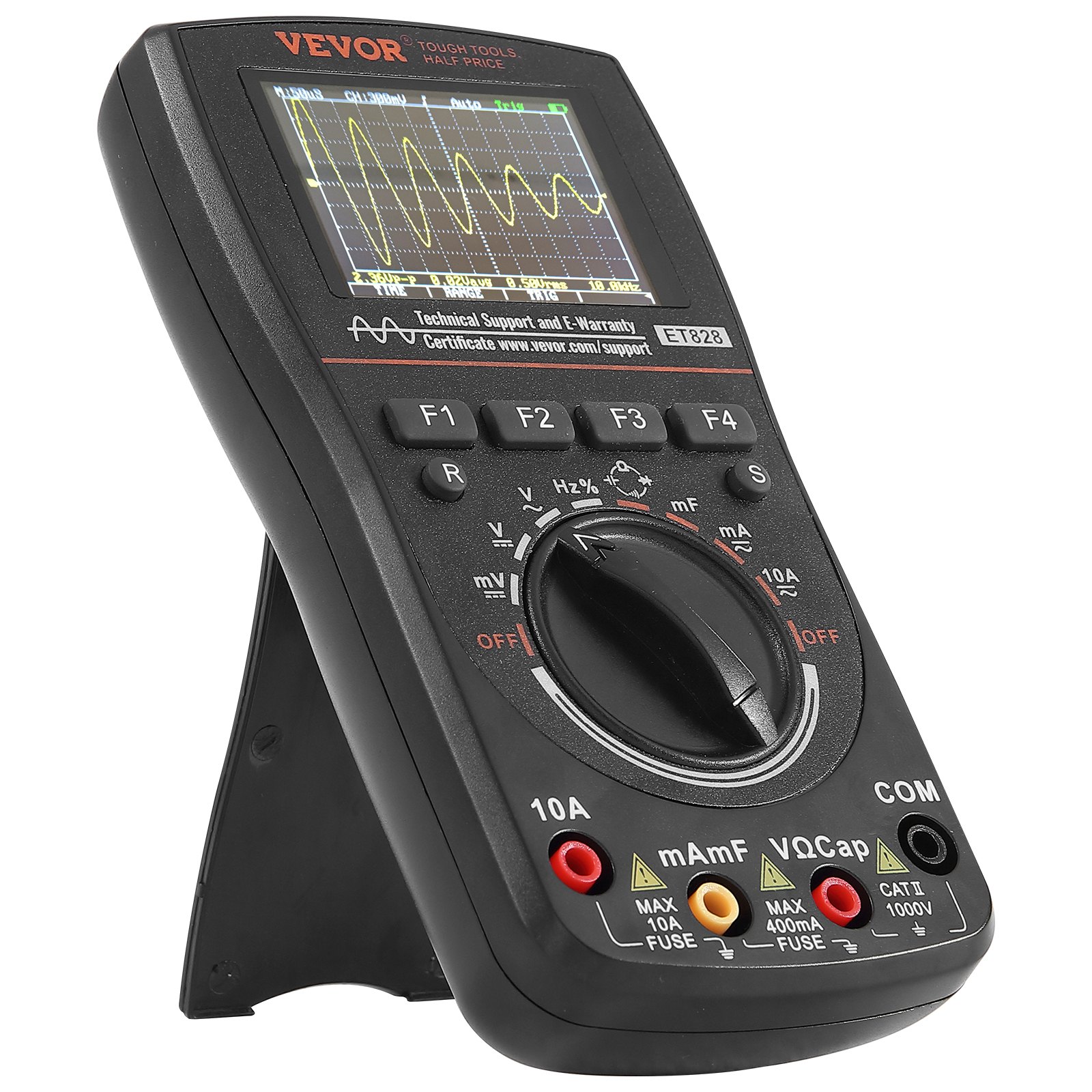

VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing

AU $98.99
98.99
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • Faster Sampling Rate: With a high-speed A/D data acquisition of 2.5Msps, this handheld oscilloscope offers high sampling rates and bandwidths, easily toggling between waveform functions for measurement. Three waveform scanning modes: Auto/Normal/Single enhance work efficiency.
  • Expanded Detection Range: DC voltage range of 0~1000V, AC voltage range of 0750V, DC/AC range of 0~10A, resistance range of 0~40MΩ, capacitance range of 0~100μf, frequency range of 0~5MHz, diode/continuity open circuit voltage of 1.5V, and resistance judgment of 50Ω. Transistor amplification testing meets all testing requirements.
  • Enhanced Precision: Equipped with a dedicated chip and automatic waveform capture function, our digital oscilloscope ensures simple operation. Utilizing software calibration technology and storing calibration coefficients, it offers more accurate measurements. To activate silent mode (disable button beeps), press and hold the "F4" button, then rotate the knob to power on.
  • LED Backlight and Storage/Readout: With an analog broadband range of up to D AC~1MHz, it maintains display and stores/reads up to 10 waveforms and 100 sets of measurement values. Featuring a 240X320 color screen with LED backlighting, it provides clearer visibility, suitable for nighttime work.
  • Overload Protection & Versatility: Built-in 500mA/10A dual protection tubes ensure double protection for the instrument. Choose between automatic shutdown or continuous operation, suitable for home, school, factory, and other workplaces. Distortion detection also ensures safety.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing
Only 1 Left, order soon
Portable Oscilloscope
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing

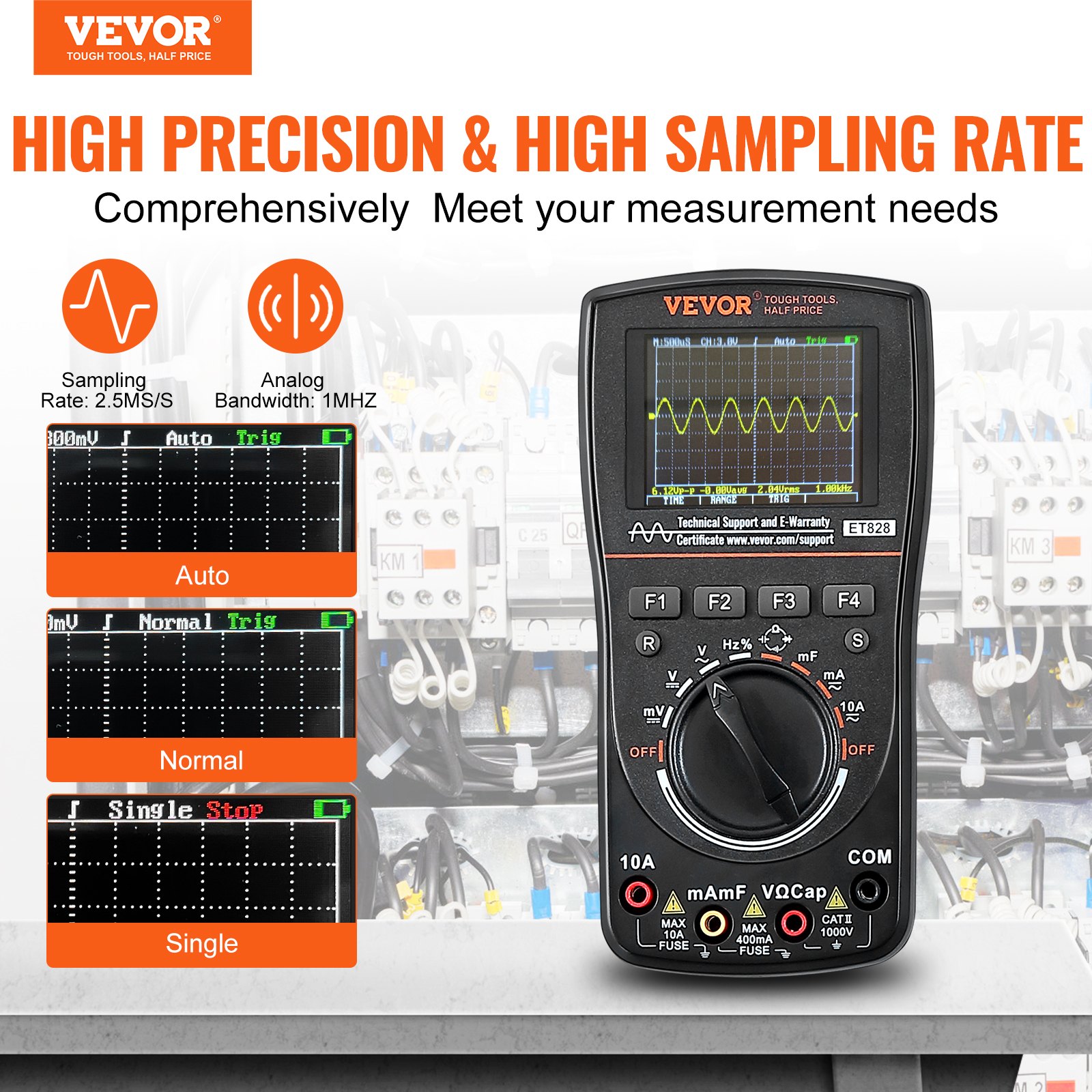

Our handheld oscilloscope boasts a 2.5 MS/S sampling rate and a 1 MHz bandwidth with independent storage and real-time observation functions, enabling you to analyze and troubleshoot circuits more accurately. Choose our oscilloscope multimeter and experience the power of portability!
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing
Our digital oscilloscope comes equipped with an independent storage function, allowing you to effortlessly review and analyze up to 100 sets of data and 10 waveform captures. You can access historical data at your convenience, making data analysis a breeze.
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing

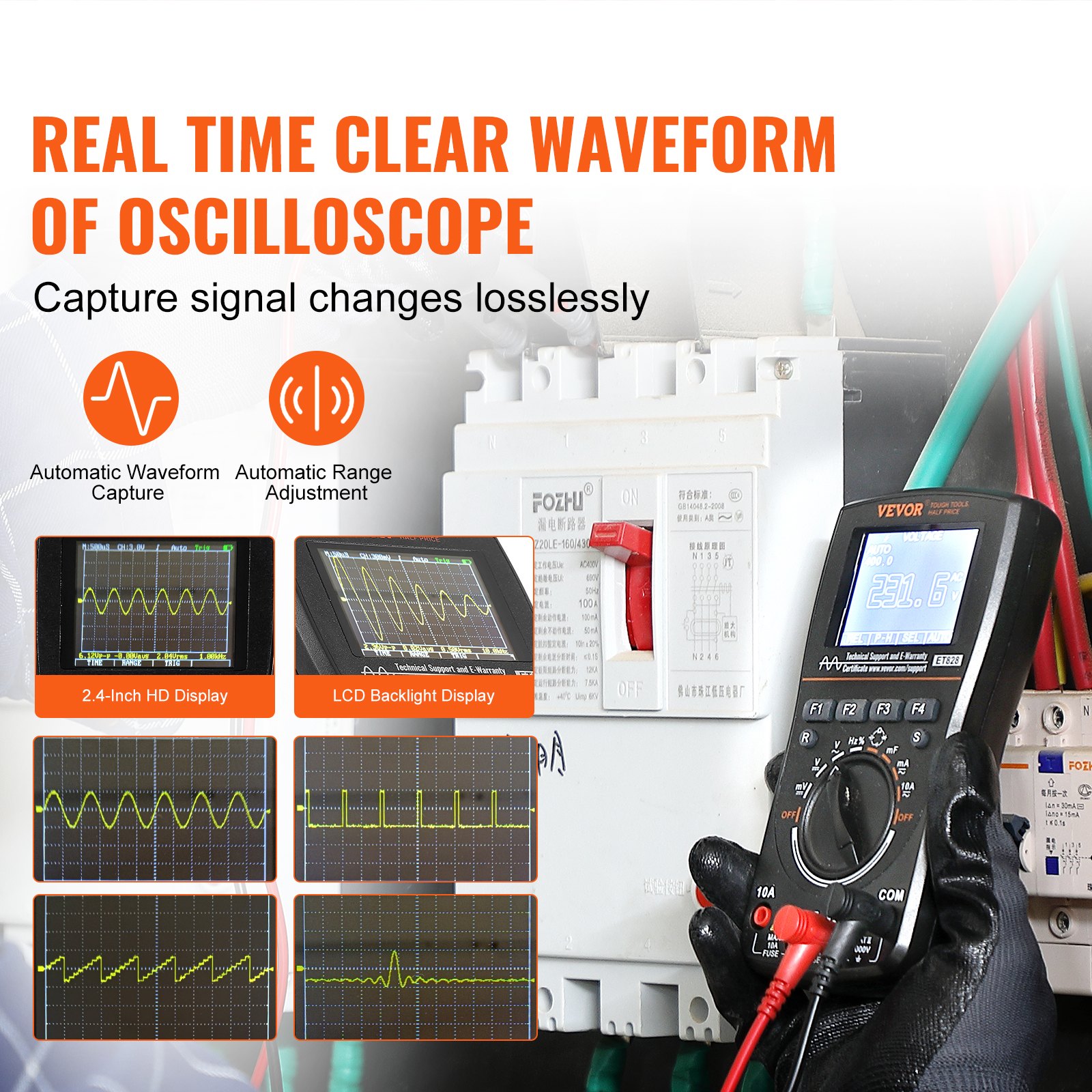

Our oscilloscope excels at providing crystal-clear displays of captured waveforms. Whether it's through automatic waveform capture or auto-ranging functionality, the 2.4-inch color screen offers an intuitive platform for analyzing signal changes.
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing

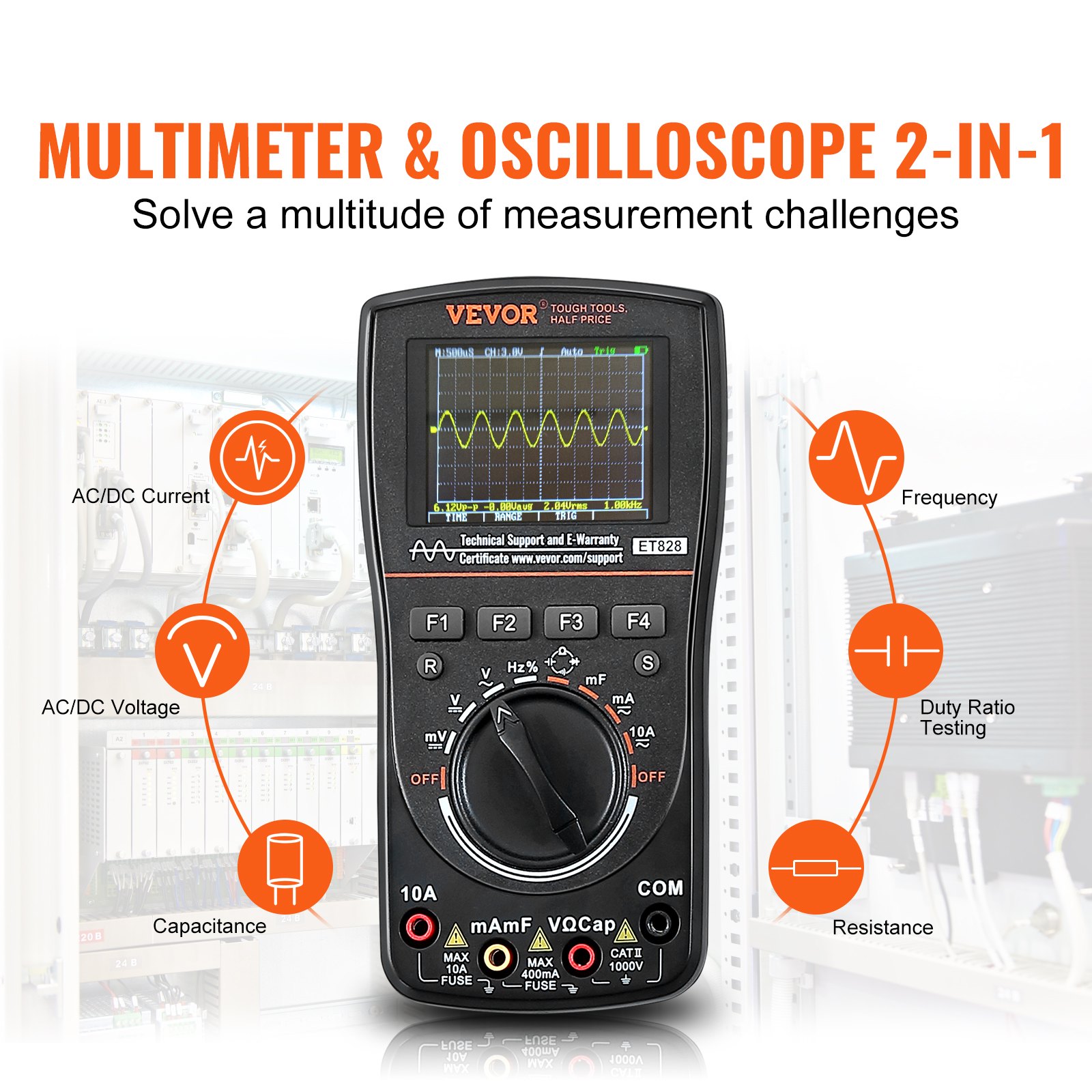

Our oscilloscope is not just an oscilloscope but also integrates versatile multimeter capabilities. With support for AC/DC current, AC/DC voltage, capacitance, frequency, duty cycle testing, and resistance measurements, it serves as an all-in-one tool for a wide range of measurement needs.
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing

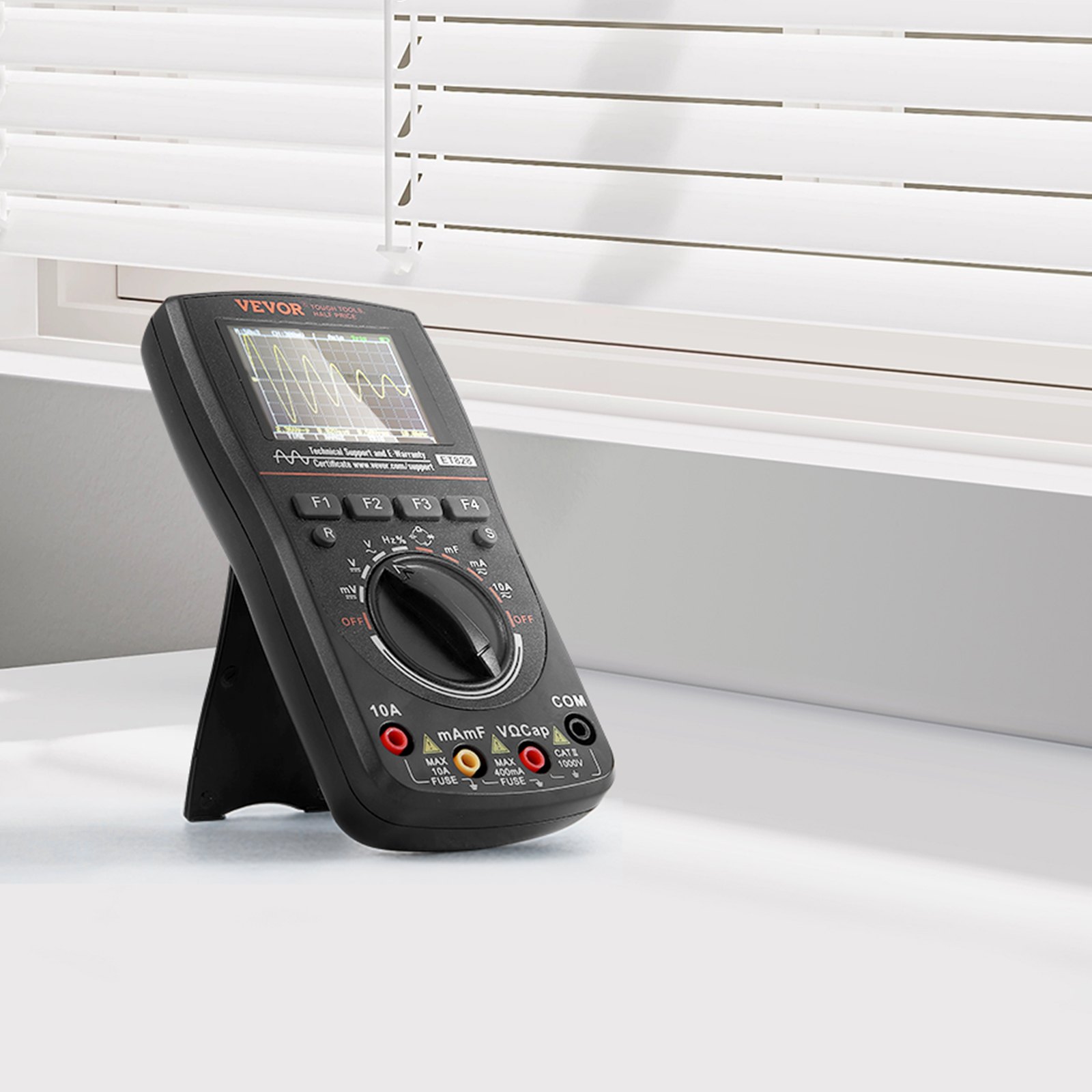

Weighing just 0.292kg and equipped with a convenient storage bag, our handheld oscilloscope multimeter ensures you can carry it with ease, empowering you to conduct efficient measurements and troubleshoot problems anytime, anywhere.
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing
VEVOR 2-in-1 Handheld Digital Oscilloscope, 2.5MS/S Sampling Rate, 1MHZ Bandwidth Portable Oscilloscope Multimeter with LCD Display Storage Bag, for Automotive Repair Electronic Circuit Testing

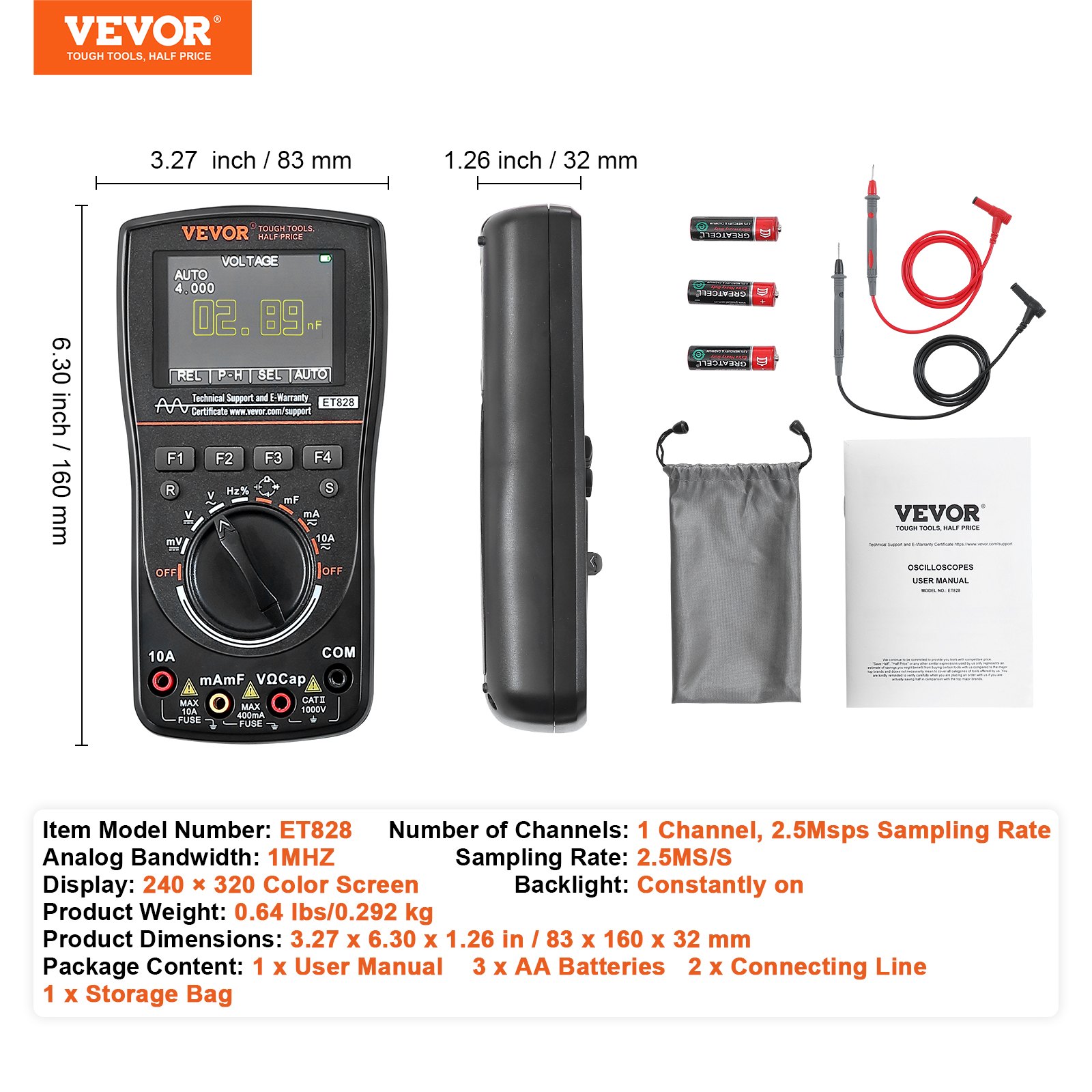

Specification

Item Model Number
ET828
Number of Channels
1 Channel, 2.5Msps Sampling Rate
Analog Bandwidth
1MHZ
Sampling Rate
2.5MS/S
Display
240 x 320 Color Screen
Backlight
Constantly On
DC Voltage
400mV - 1000V
DC Current
40mA - 10A
Resistance
400.0Ω - 40.00MΩ
Frequency
5HZ - 5MHZ
AC Voltage
400mV - 750V
AC Current
40mA - 10A
Capacitance
51.2nF - 100μF, 10mF
Duty Cycle
0.1% - 99.9%
Diode /Continuity Test
<50Ω Judgment Resistance, the buzzer will sound
Product Weight
0.64 lbs / 0.292 kg
Product Dimensions
3.27 x 6.30 x 1.26 in / 83 x 160 x 32 mm
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

26 Review(s)
Clear filters
Psychopuppy Psychopuppy
Multi-featured but fragile
Took it out of the box and immediately started using it in a rewiring job. Really great for the basic functions with its intuitive interface, less so for more advanced features. The color screen is easy to read. Except in oscilloscope mode, where it's difficult to read because of the small lettering and so many menus to go through. The kickstand is handy for keeping it upright while your hands are busy with the leads. The manual is good, and you need to keep it nearby, but definitely suffers translation issues. It would be great if this was rechargeable, instead of going through more batteries.
Pen Name Pen Name
Great multimeter with decent oscilloscope function
This multimeter is great! The screen is bright and easy to read at any angle, it is easy to use, and it offers a ton of features! To start with, the accuracy is spot on! Testing it against my other multimeters, the measurements were within a couple thousandths of a volt, which is more than good enough for most uses. As I mentioned above, the screen is really easy to read in any lighting conditions because of it being self-illuminated, compared to many multimeters with their classic-style LCDs that require external light or have (usually) shamefully-awful backlights. That said, you may pay the price in battery life, but it's hard to say how much of a price that is especially when mine is still using the batteries it came with and they haven't gone down on the battery indicator yet after moderate use. Along with the readability of the screen, it also updates the values on screen quite rapidly, so you can see the values you're measuring nearly-instantaneously, and can easily seesmall orquick fluctuations that may be occurring. One of the features I like that this has, that your average multimeter doesn't, is the memory function where you can save your measurements as you make them and can refer back to them later. It also has the ability to set a reference measurement to compare your current measurements to, which can be helpful when you're working with multiple voltage rails and want to measure the relationship between the two without having to remember the previous measurement and calculate out the difference(s) yourself! The oscilloscope functionality is pretty easy to use and to change the settings for, as well. Even setting the trigger mode and level is simple. Plus, it automatically gives you a few helpful measurements like the Peak to Peak and RMS voltages, along with the detected frequency, immediately on the screen. My only complaint with it is that it seems to only be DC coupled, so if you're looking for any sort of AC waveform/noise on a DC supply, you may n
VEVOR Customer VEVOR Customer
First one I have had with oscilloscope
This works great. I have had others before but this is the first one with an oscilloscope. Great value for the price. Instructions were very good even for a novice. It has everything I needed.
JONNY NEIRA JONNY NEIRA
Good value.
This is a great o-scope for the price. Easy to use, the display is crisp and clear, does basic things I need it to do. I recommend this oscilloscope.
James d neese James d neese
Pleased with it
This guy has so many features that I don’t even know what to do with. I love it so much. Does what it’s supposed to and more.
Gary Ishman Gary Ishman
Recommend!
Affordable price and good quality.
Matthew Marchand Matthew Marchand
Well packaged
The package is in good condition and no parts missing.
Bruce Bruce
function perfect
This device had more abilities and functions than I imagined. It did exactly what I wanted it to do but is capable of so much more. I am still learning all of its functions. A great piece of equipment.
Mae B. Leumas Mae B. Leumas
Everything is as described
Very good product. It works perfectly as I expected. It conforms to the shown performance very well and has reached a perfect state.
Robert Gapen Robert Gapen
High value for the price hands down!
Great little basic oscope for the money. I have been very pleased with the reliability, ease of operation, and low cost.
