Features & Details
- 【HIGH EFFICIENCY】- The solar charger controller has the function of Maximum Power Point Tracking. Its efficiency is not less than 99.5% and conversion efficiency up to 98%. It can detect the solar panel's voltage and current in real-time and keep tracking the maximum power point to charge the battery with the maximum power.
- 【AUTOMATIC RECOGNITION】- The charge controller can automatically identify 12V/24V/36V/48V systems. The full PV input voltage of DC 150V makes it suitable for more PV modules and convenient for users to use in different modes.
- 【LCD DISPLAY SCREEN】- The solar charge regulator features a high-definition LCD function to support the setting of related parameters, such as system type, PV voltage, charge voltage, charge current, charge power, temperature. It supports the expansion of the WIFI module to realize the app cloud monitoring.
- 【INTELLIGENT & PROTECTIVE】- The solar controller adopts a built-in intelligent temperature-controlled cooling fan, which effectively reduces the operating temperature; it adds various protection functions such as low-voltage input protection, over-voltage input protection, and over-charging source protection.
- 【MULTIPLE APPLICATION】- The solar regulator can be widely used in homes, schools, transportation, streets, communication fields, petroleum, marine, meteorological fields, and other solar off-grid power supply systems, such as traffic lights, broadcasting/communication power systems, garden lights, etc.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 11 reviews
Reviews 4.8
All reviews are from verified purchases
See all 11 reviews
About this item
Product specification
- Color
- Red + black
- Controller type
- MPPT (maximum power point tracking)
- MPPT efficiency
- ≥ 99.5 %
- System type
- DC12V/24V/36V/48V (automatic recognition)
- System Voltage and Rated Power
- 12V system
- DC9V-DC15V, 520W
- 24V system
- DC18V-DC30V, 1040W
- 36V system
- DC32V-DC40V, 1560W
- 48V system
- DC42V-DC60V, 2080W
- Max. PV input voltage
- 150V
- Start the charge voltage point
- 5V higher than the current battery voltage
- Low input voltage protection point
- 3V higher than the current battery voltage
- Over voltage protection point
- 150V
- High voltage recovery point
- 145V
- Charge method
- 3 stages (constant current(MPPT), constant voltage, floating charge)
- Battery types optional(Default Gel battery)
- Flooded, Sealed lead acid, Gel battery (Other types of the batteries also can be defined)
- Constant voltage
- Please check the charge voltage according to the battery type form.
- Floating voltage
- Please check the charge voltage according to the battery type form.
- Rated charge current
- 40A
- Temperature factor
- ± 0.02 % ℃
- Temperature compensation
- -3mV/℃/2V (default)
- Output ripples(peak)
- 200 mV
- Output voltage stability precision
- ≤ ± 1.5 %
- Output voltage
- Base on battery voltage
- Low voltage output protection point
- Default 10.5V; Recovery 11V; It can be adjustable.
- Load rated current
- 40A
- LCD display
- System type, PV voltage, Charge voltage, Charge Current, Charge power, temperature, etc.
Description

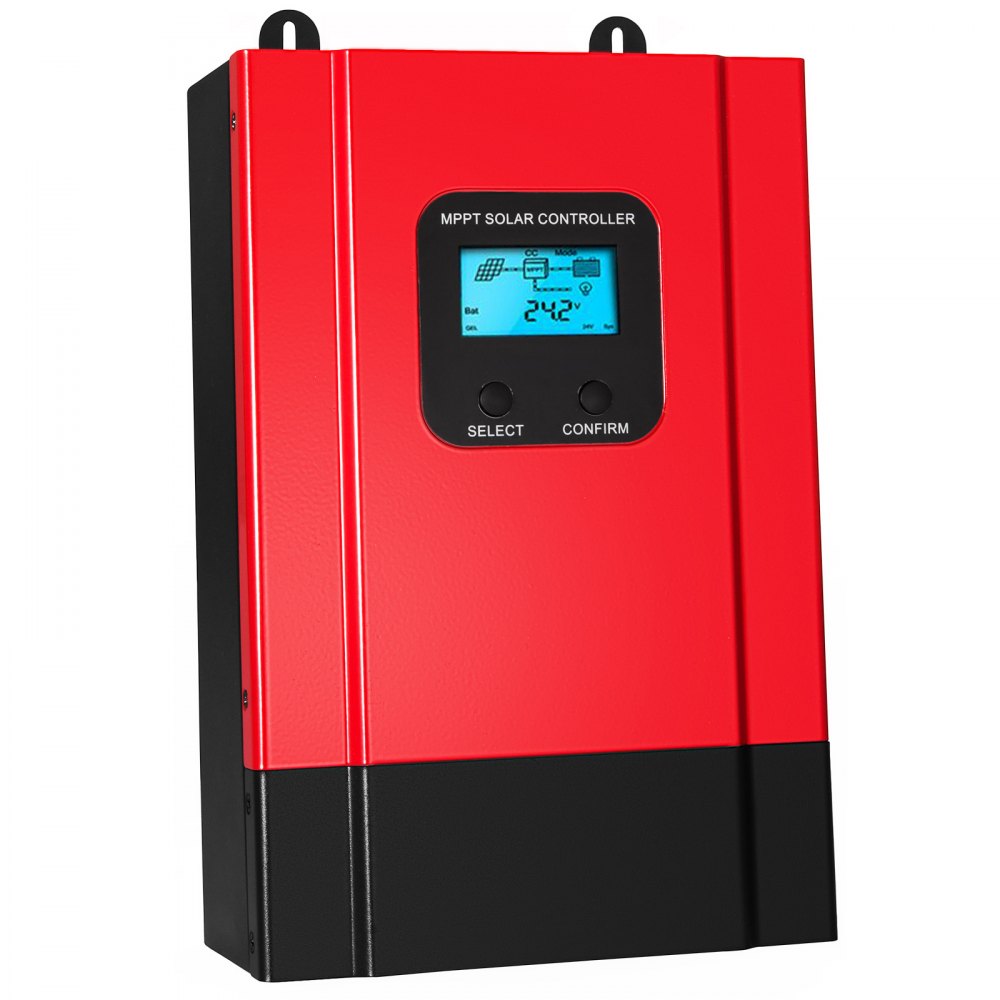

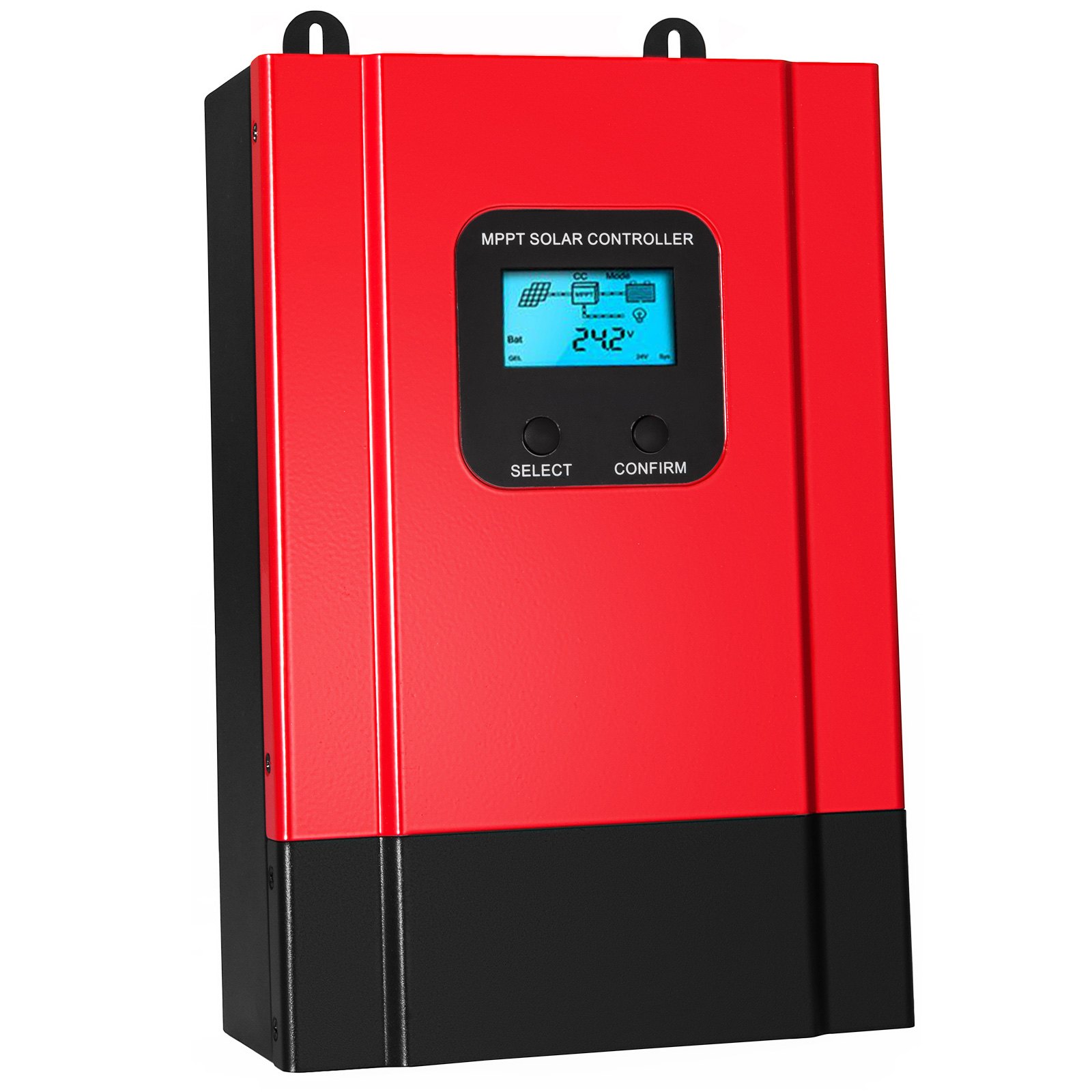

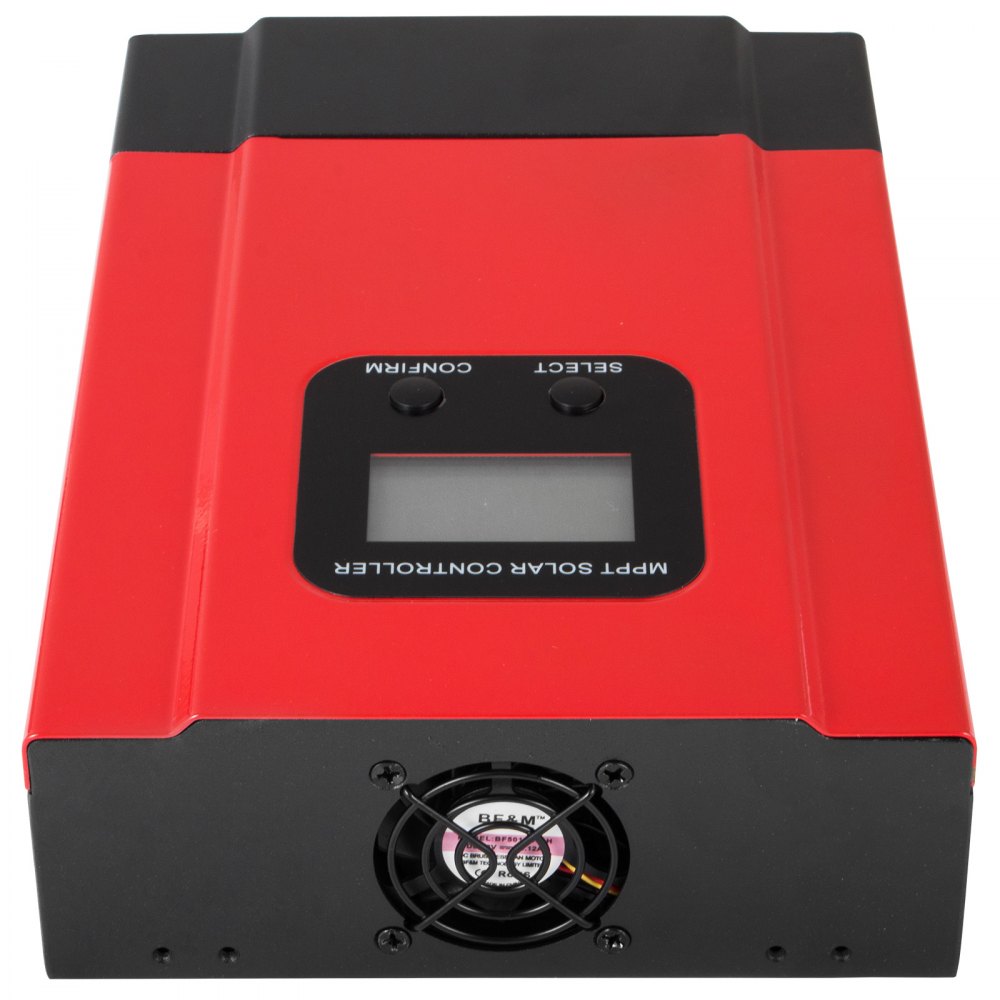

40A MPPT Solar Charge Controller LCD Display
This MPPT charge controller series can offer excellent performance with a high-efficient MPPT algorithm, conversion rate ≥99.5%. This MPPT Solar Charge Controller is equipped with the auto-recognition of battery system (voltage) and various electronic protections. With the high definition LCD segment display and current-limited charging function, it is perfect for the solar off-grid telecommunication base station, street lighting system, field monitoring system, etc.
- High Efficiency
- Automatic Recognition
- LCD Display Screen
- Intelligent & Protective
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

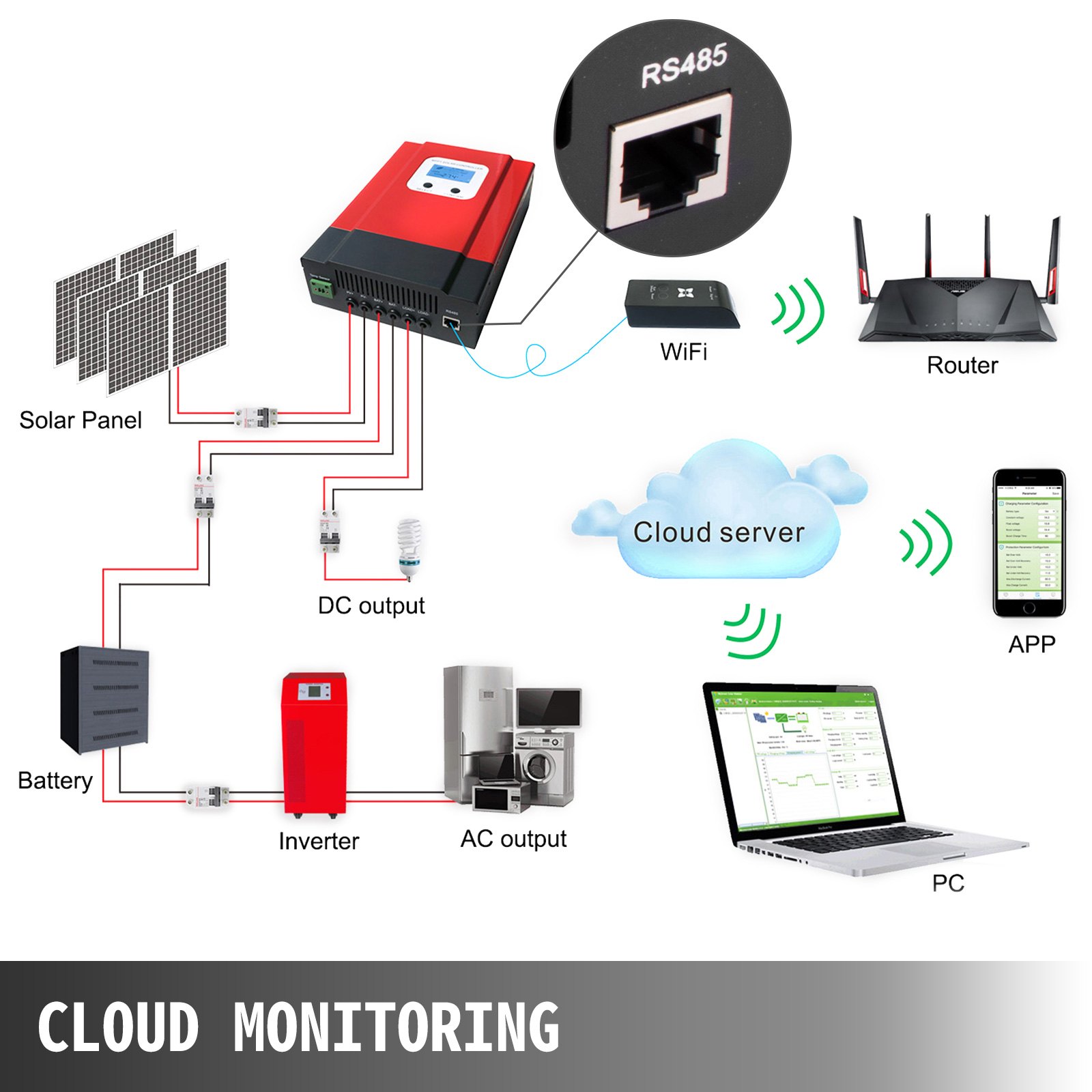

Cloud Monitoring
This solar charger controller supports the expansion of the WIFI module to realize the app cloud monitoring, contains the RS485 communication line, and can provide the communication protocol.

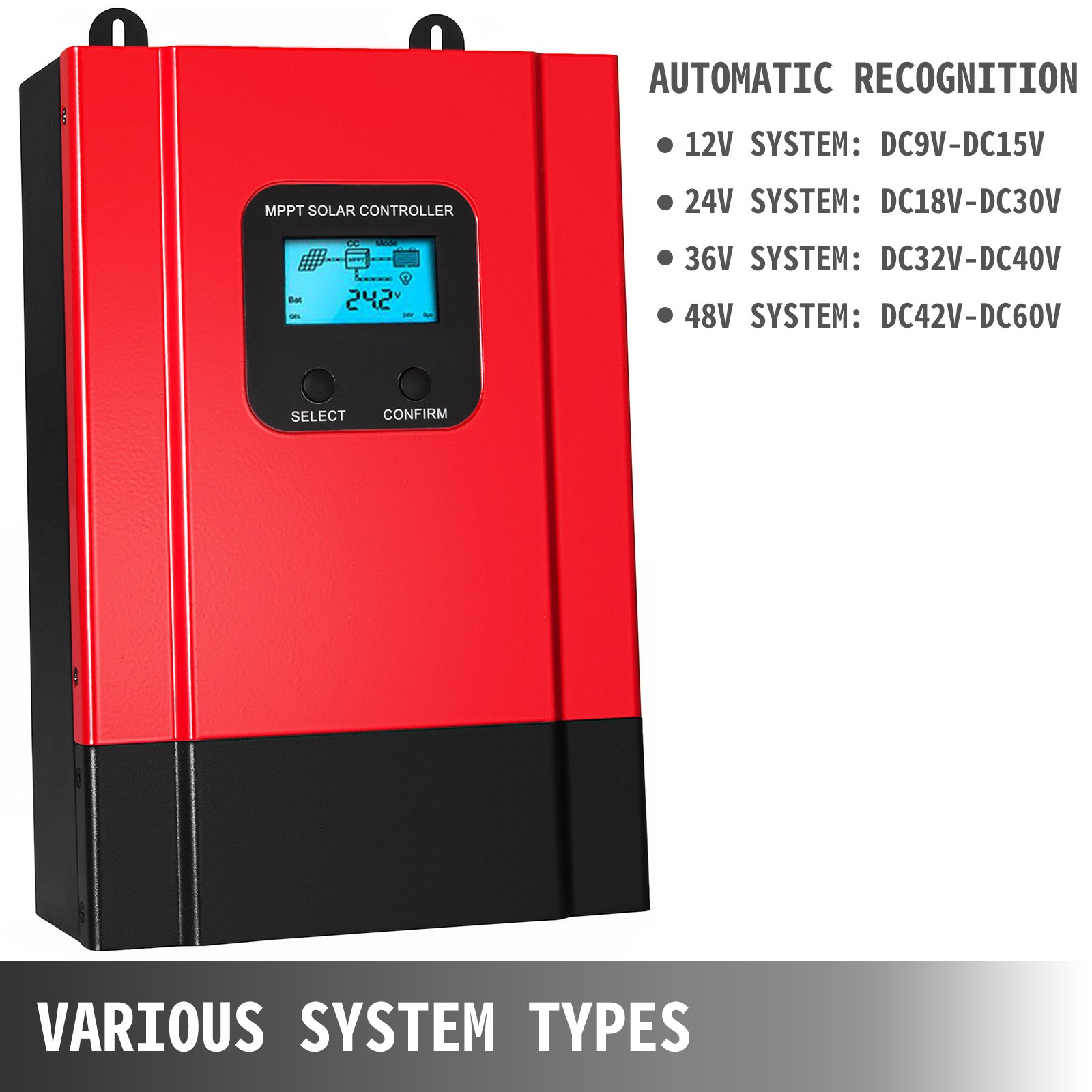

Various System Types
The solar charge regulator can automatically identify 12V/24V/36V/48V systems, 12V system: DC9V-DC15V; 24V system: DC18V-DC30V; 36V system: DC32V-DC40V; 48V system: DC42V-DC60V.

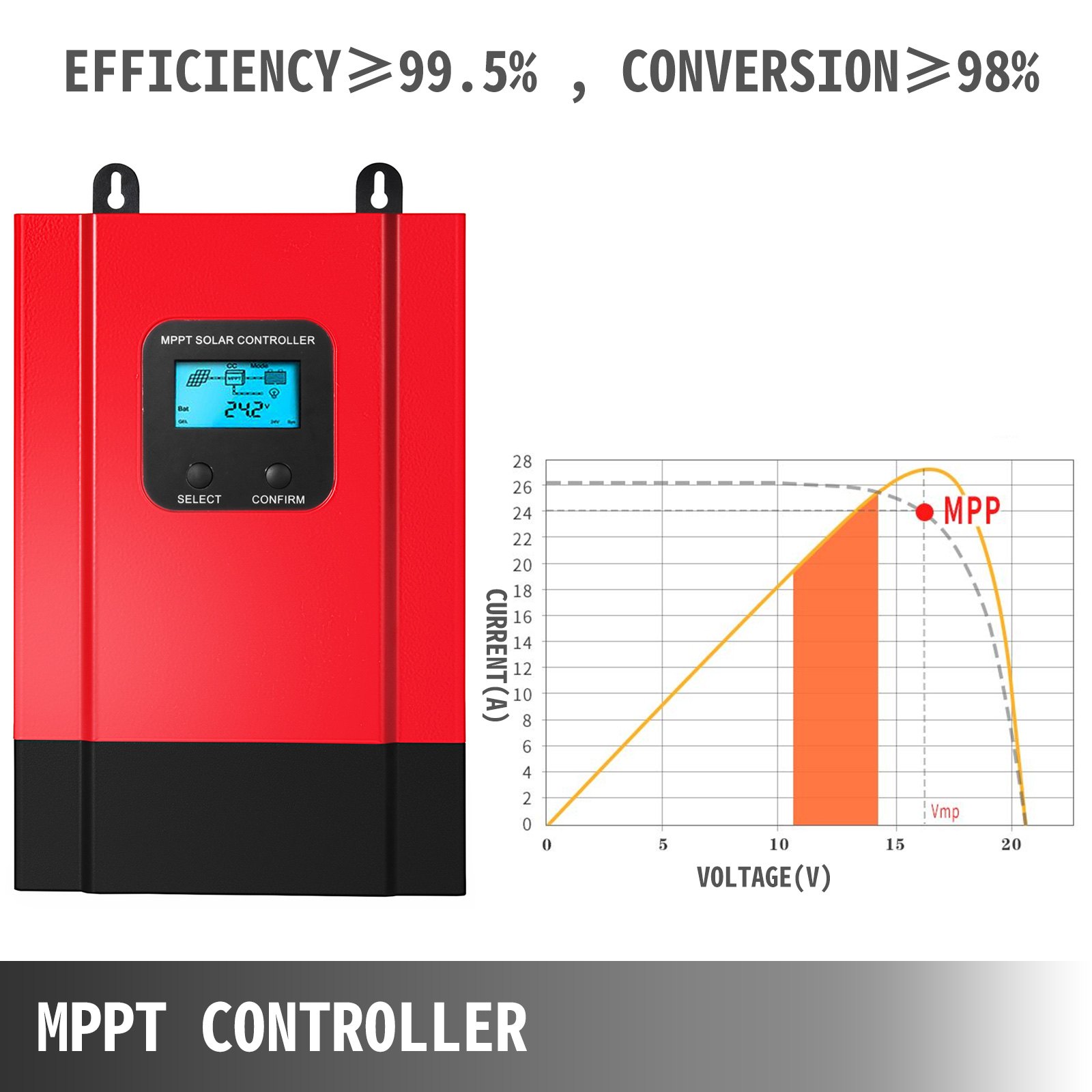

MPPT Controller
Efficient MPPT controller algorithm, MPPT efficiency is not less than 99.5%, the conversion efficiency of the whole machine is as high as 98%.

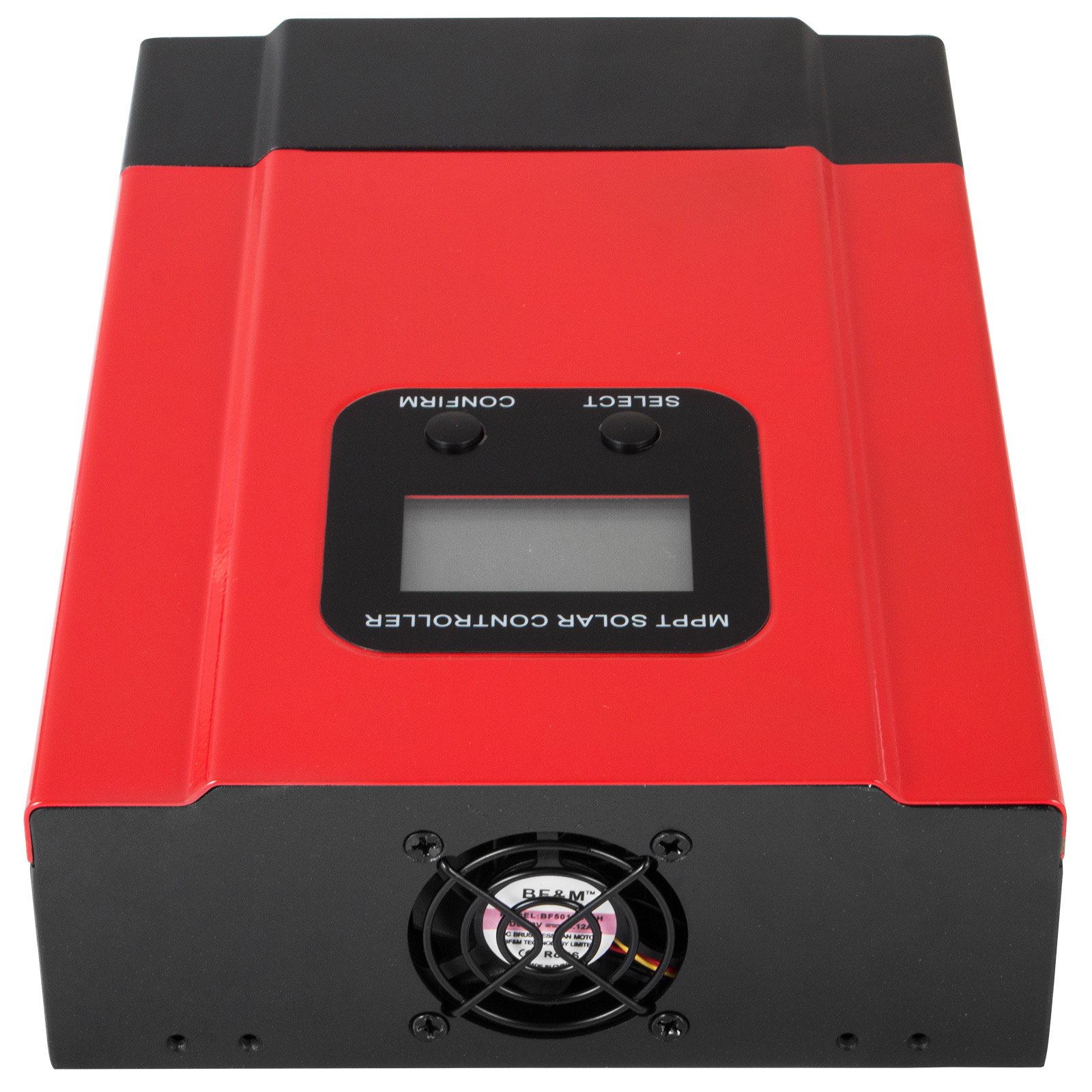

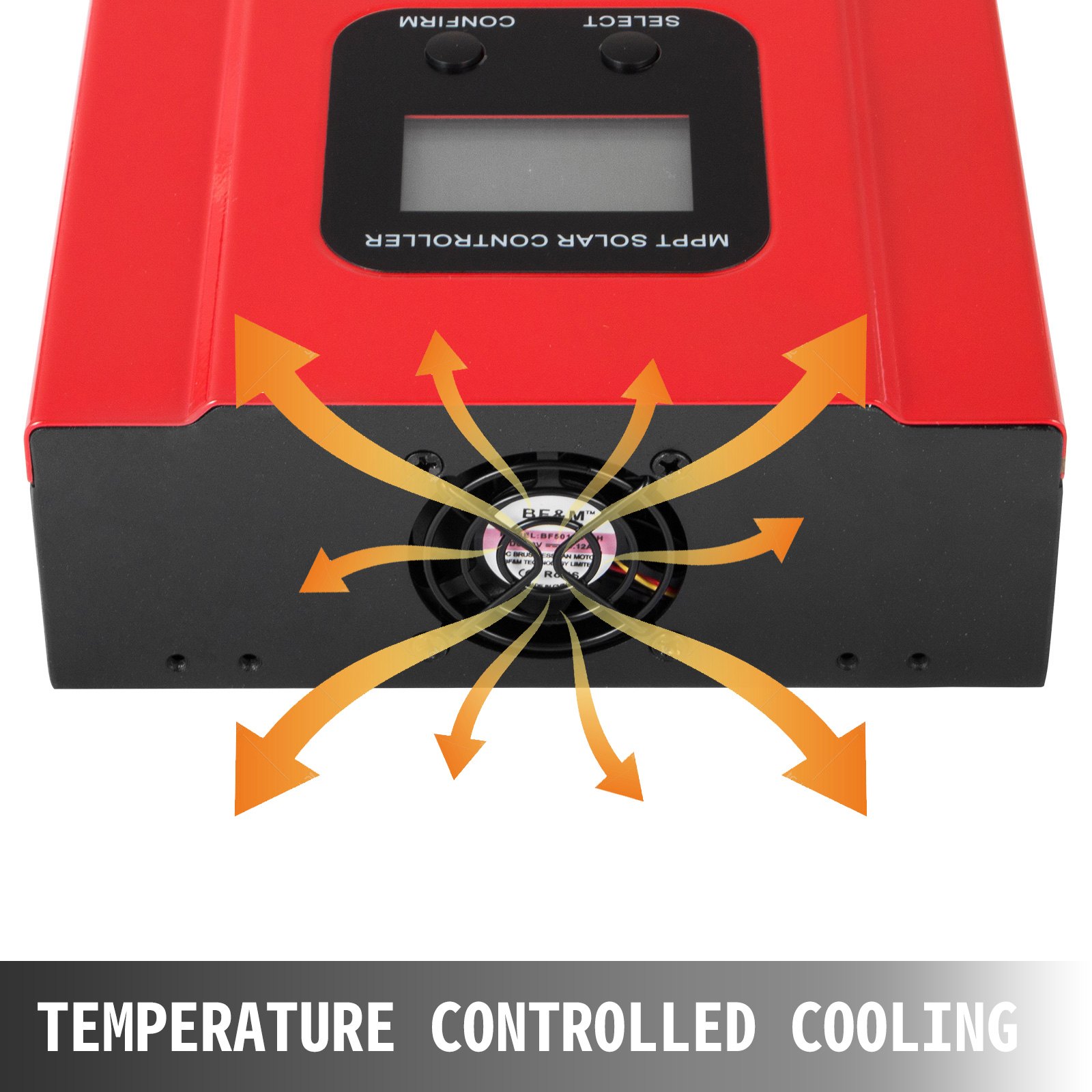

Temperature Controlled Cooling Fan
Built-in intelligent temperature-controlled cooling fan effectively reduces the operating heat and increases the machine's service life.

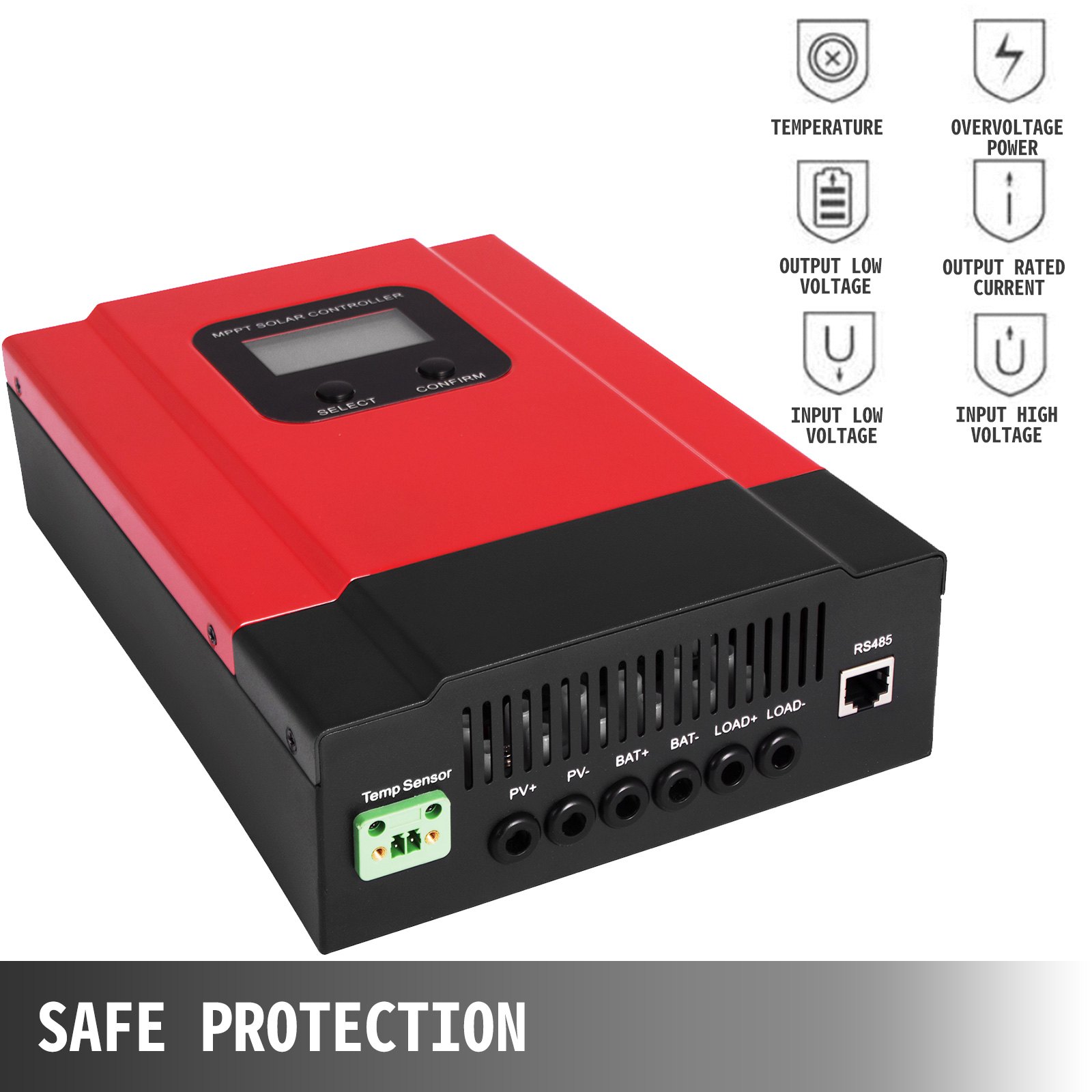

Safe Protection
Add various protection functions such as low voltage input protection, over-voltage input protection, overcharge power protection, low voltage output protection, rated output current protection, temperature protection, PV and battery reverse connection protection.
Wide Application
Suitable for transportation, communication fields, petroleum, marine, meteorological fields, home lighting power supplies, such as traffic/railway signal lights, marine testing equipment, etc.
Specifications
- Color: Red + black
- Controller type: MPPT (maximum power point tracking)
- MPPT efficiency: ≥ 99.5 %
- System type: DC12V/24V/36V/48V (automatic recognition)
- System Voltage and Rated Power
- 12V system: DC9V-DC15V, 520W
- 24V system: DC18V-DC30V, 1040W
- 36V system: DC32V-DC40V, 1560W
- 48V system: DC42V-DC60V, 2080W
- Max. PV input voltage: 150V
- Start the charge voltage point: 5V higher than the current battery voltage
- Low input voltage protection point: 3V higher than the current battery voltage
- Over voltage protection point: 150V
- High voltage recovery point: 145V
- Charge method: 3 stages (constant current(MPPT), constant voltage, floating charge)
- Battery types optional(Default Gel battery): Flooded, Sealed lead acid, Gel battery (Other types of the batteries also can be defined)
- Constant voltage: Please check the charge voltage according to the battery type form.
- Floating voltage: Please check the charge voltage according to the battery type form.
- Rated charge current: 40A
- Temperature factor: ± 0.02 % ℃
- Temperature compensation: -3mV/℃/2V (default)
- Output ripples(peak): 200 mV
- Output voltage stability precision: ≤ ± 1.5 %
- Output voltage: Base on battery voltage
- Low voltage output protection point: Default 10.5V; Recovery 11V; It can be adjustable.
- Load rated current: 40A
- LCD display: System type, PV voltage, Charge voltage, Charge Current, Charge power, temperature, etc.

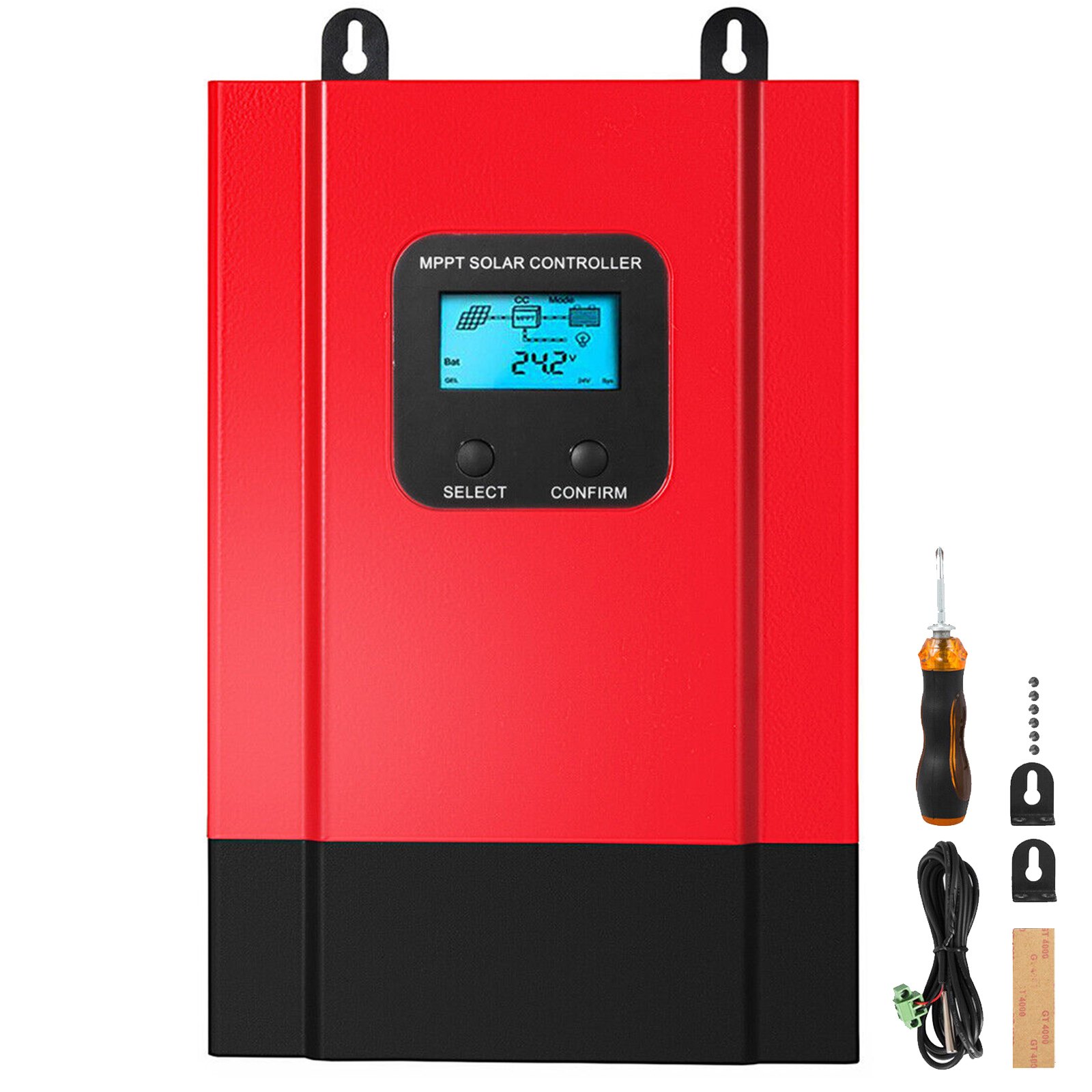

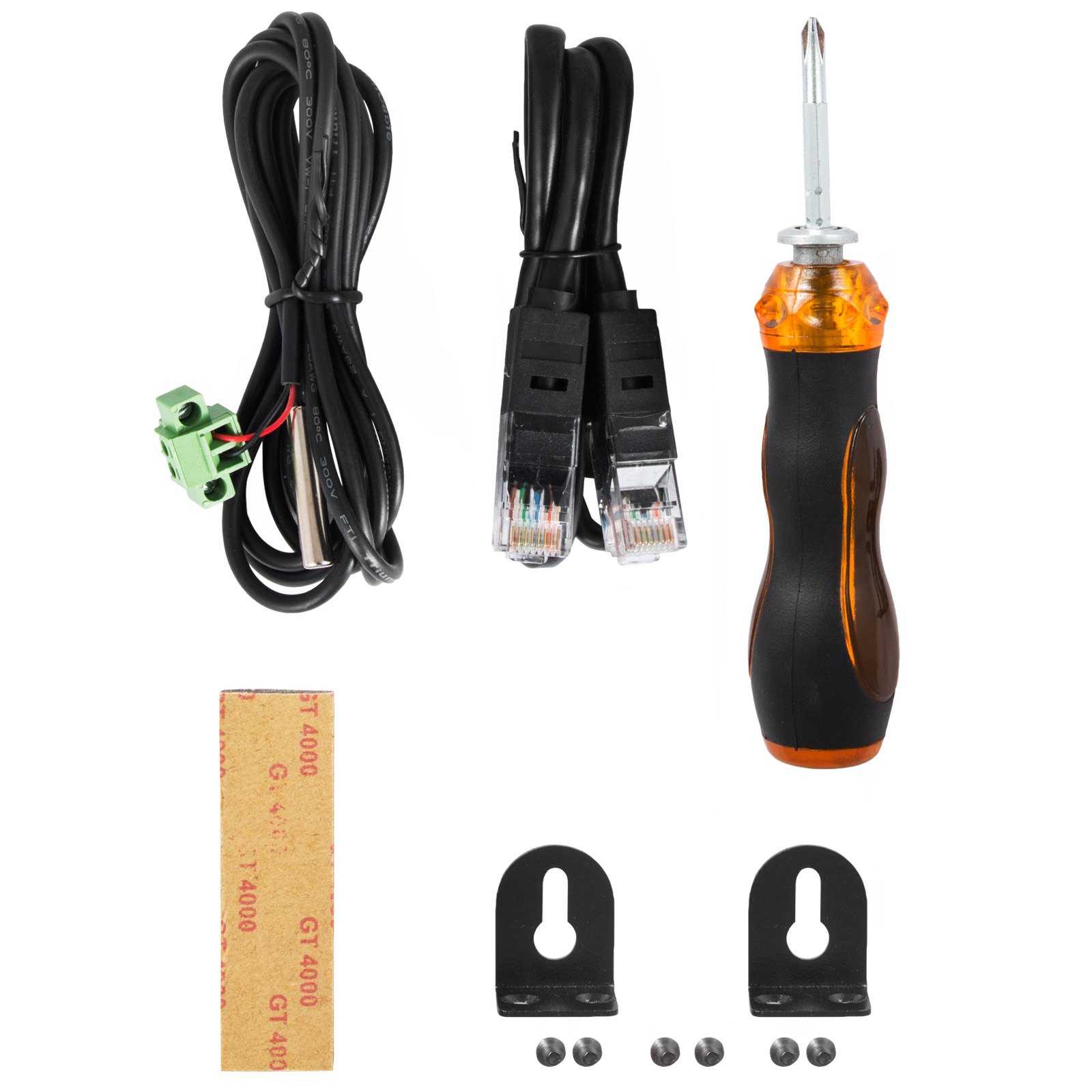

Package Content
- 1 x MPPT Solar Charge Controller
- 1 x Temperature Sensing Wire
- 1 x Screwdriver
- 2 x Hang Brackets
- 1 x Set of Installation Screws
- 1 x Product Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
40A MPPT Solar Charge Controller LCD Display
This MPPT charge controller series can offer excellent performance with a high-efficient MPPT algorithm, conversion rate ≥99.5%. This MPPT Solar Charge Controller is equipped with the auto-recognition of battery system (voltage) and various electronic protections. With the high definition LCD segment display and current-limited charging function, it is perfect for the solar off-grid telecommunication base station, street lighting system, field monitoring system, etc.
- High Efficiency
- Automatic Recognition
- LCD Display Screen
- Intelligent & Protective

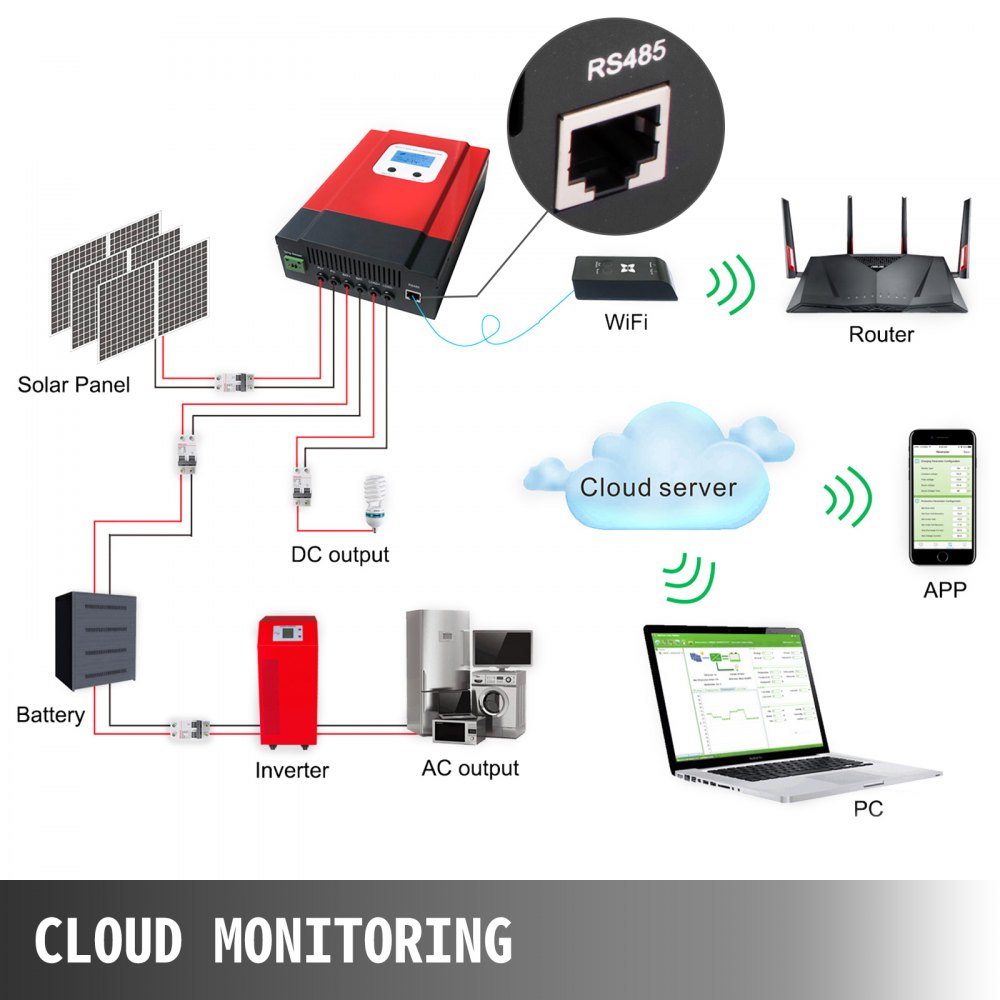

Cloud Monitoring
This solar charger controller supports the expansion of the WIFI module to realize the app cloud monitoring, contains the RS485 communication line, and can provide the communication protocol.
Various System Types
The solar charge regulator can automatically identify 12V/24V/36V/48V systems, 12V system: DC9V-DC15V; 24V system: DC18V-DC30V; 36V system: DC32V-DC40V; 48V system: DC42V-DC60V.
MPPT Controller
Efficient MPPT controller algorithm, MPPT efficiency is not less than 99.5%, the conversion efficiency of the whole machine is as high as 98%.
Temperature Controlled Cooling Fan
Built-in intelligent temperature-controlled cooling fan effectively reduces the operating heat and increases the machine's service life.
Safe Protection
Add various protection functions such as low voltage input protection, over-voltage input protection, overcharge power protection, low voltage output protection, rated output current protection, temperature protection, PV and battery reverse connection protection.
Wide Application
Suitable for transportation, communication fields, petroleum, marine, meteorological fields, home lighting power supplies, such as traffic/railway signal lights, marine testing equipment, etc.
Package Content
- 1 x MPPT Solar Charge Controller
- 1 x Temperature Sensing Wire
- 1 x Screwdriver
- 2 x Hang Brackets
- 1 x Set of Installation Screws
- 1 x Product Manual
Specifications
- Color: Red + black
- Controller type: MPPT (maximum power point tracking)
- MPPT efficiency: ≥ 99.5 %
- System type: DC12V/24V/36V/48V (automatic recognition)
- System Voltage and Rated Power
- 12V system: DC9V-DC15V, 520W
- 24V system: DC18V-DC30V, 1040W
- 36V system: DC32V-DC40V, 1560W
- 48V system: DC42V-DC60V, 2080W
- Max. PV input voltage: 150V
- Start the charge voltage point: 5V higher than the current battery voltage
- Low input voltage protection point: 3V higher than the current battery voltage
- Over voltage protection point: 150V
- High voltage recovery point: 145V
- Charge method: 3 stages (constant current(MPPT), constant voltage, floating charge)
- Battery types optional(Default Gel battery): Flooded, Sealed lead acid, Gel battery (Other types of the batteries also can be defined)
- Constant voltage: Please check the charge voltage according to the battery type form.
- Floating voltage: Please check the charge voltage according to the battery type form.
- Rated charge current: 40A
- Temperature factor: ± 0.02 % ℃
- Temperature compensation: -3mV/℃/2V (default)
- Output ripples(peak): 200 mV
- Output voltage stability precision: ≤ ± 1.5 %
- Output voltage: Base on battery voltage
- Low voltage output protection point: Default 10.5V; Recovery 11V; It can be adjustable.
- Load rated current: 40A
- LCD display: System type, PV voltage, Charge voltage, Charge Current, Charge power, temperature, etc.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (7)
Hi will this controller be compatable with a dual battery system eg recognise the input power from the alternator and solar panel when the vehicle is in motion?
No, the photovoltaic input interface can only be connected to DC power.
By vevor
Helpful
(
1
)
Hi
Can you post a link here for the manual please. I find it much easier to read the manual on my iPad rather than the minuscule bit of paper provided with the charger. Love the charger but hate the manual.
Thanks and Regards
PS - perhaps you can standardise on having the link to the manual below the product description or similiar.
The manual is shown in the document in the link: https://d2v0huudrf11kh.cloudfront.net/vevor-center-goods/solarchargecontrollermanual_1655453120635.pdf
By vevor
Helpful
(
1
)
Have Two 290 Watt 32 Volt Solar Panels ,Can I Use This Regulator To Charge 2 120 A/H Lithium Batteries
It is recommended that you use a 60A controller.
By vevor
Helpful
(
0
)
i want to use this with 48v Li-ion batteries, is it possible to set the charging voltage to my required voltage say 54.6v
It cannot be set because there is no communication module.
By vevor
Helpful
(
0
)
How can you manually set the charging profile for LIFEPO batteries?
There is a ‘user’ setting, which is probably supposed to stand for ‘user defined’ (ie manual), but I cannot see the details of this profile nor how to manually adjust it. Thank you.
This requires communication accessories to be set on the app. The product you purchased does not have communication accessories.
By vevor
Helpful
(
0
)
