Features & Details
- Infinitely Variable Speed: The mini metal lathe is driven by DC motor with Power: 1100W. Variable Speed(Rpm): 50-2250±10%. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spondle rotation. Operate either manually or with the adjustable auto feed rate.
- 750 mm Large Swing Range: The bench top lathe brings a 3-jaw Chuck with Diameter: 4.9"/125 mm. Swing Over Bed: 8.7"/220 mm and Swing Over Cross Slide: 29.5"/750 mm offers more possibilities for large size or/and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8~44 T.P.I.
- Professional Compound Rest: The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest, moving blades freely with feed rod. Heat hardening lead screw.
- Supportive & Protective: Steady rest works as an end support, ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpices. Backsplash guard included.
- Adjustable Tailstock: Taper in Tailstock Spindle: MT2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
Frequently Bought Together
Reviews 4.4
All reviews are from verified purchases
Average rating based on 7 reviews
Reviews 4.4
All reviews are from verified purchases
See all 7 reviews
About this item
Product specification
- Power
- 1100W
- Volt
- 220V 50Hz
- Phase
- Single Phase
- Swing Over Bed
- 8.7" / 220 mm
- Distance Between Centers
- 29.5" / 750 mm
- 3-Jaw Chuck Diameter
- 4.9" / 125 mm
- Hole Through Spindle
- 1.5" / 38 mm
- Spindle Accuracy
- 0.01 mm
- Variable Speed(Rpm)
- 50-2250±10%
- Range of Imperial Threads
- 8-44 T.P.I
- Range of Longitudinal Feed
- 0.5-3 mm
- Gear Material
- Metal
- Item Weight
- 186 lbs / 84 kg

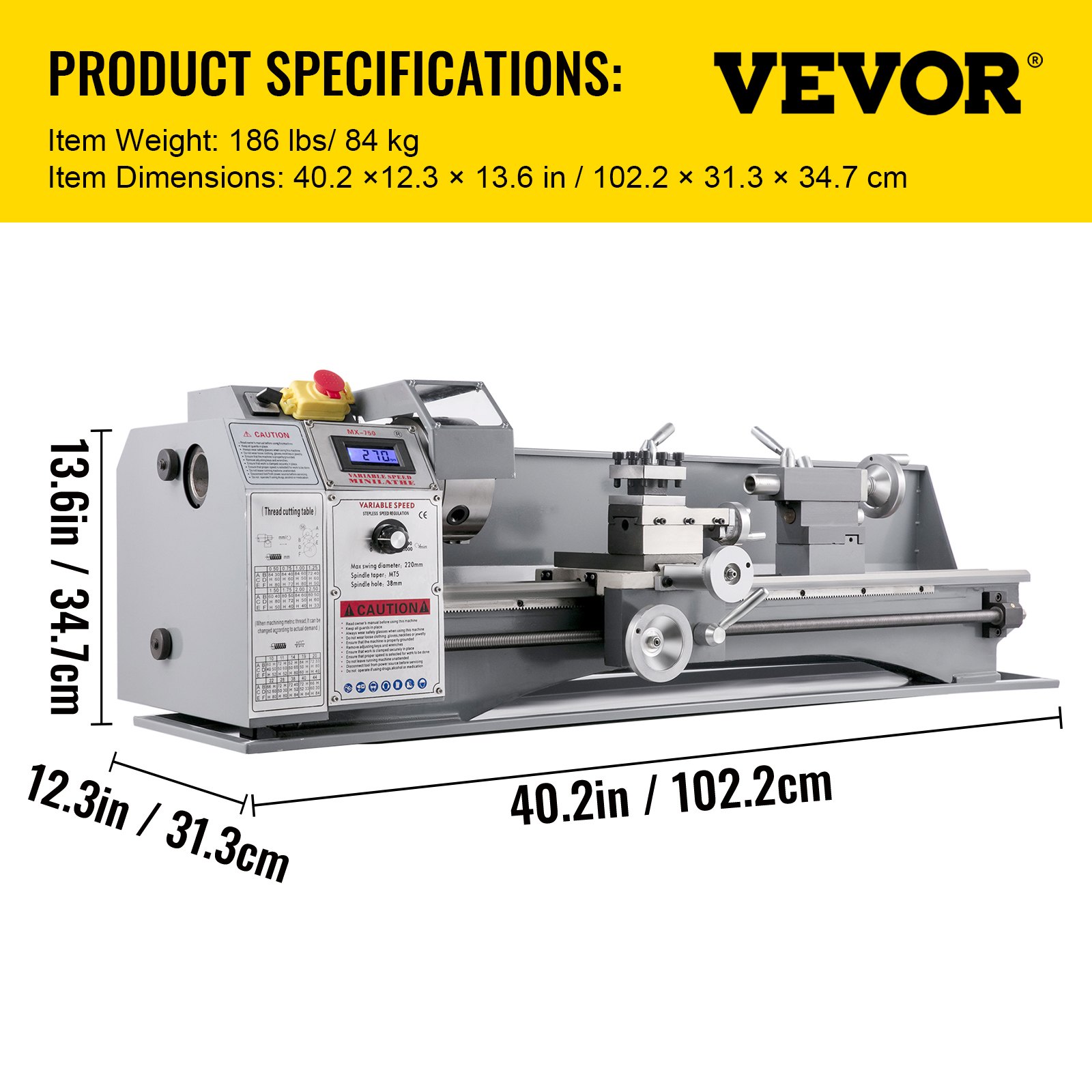

- Item Dimension
- 40.2" × 12.3" × 13.6" / 102.2 × 31.3 × 34.7 cm
Description

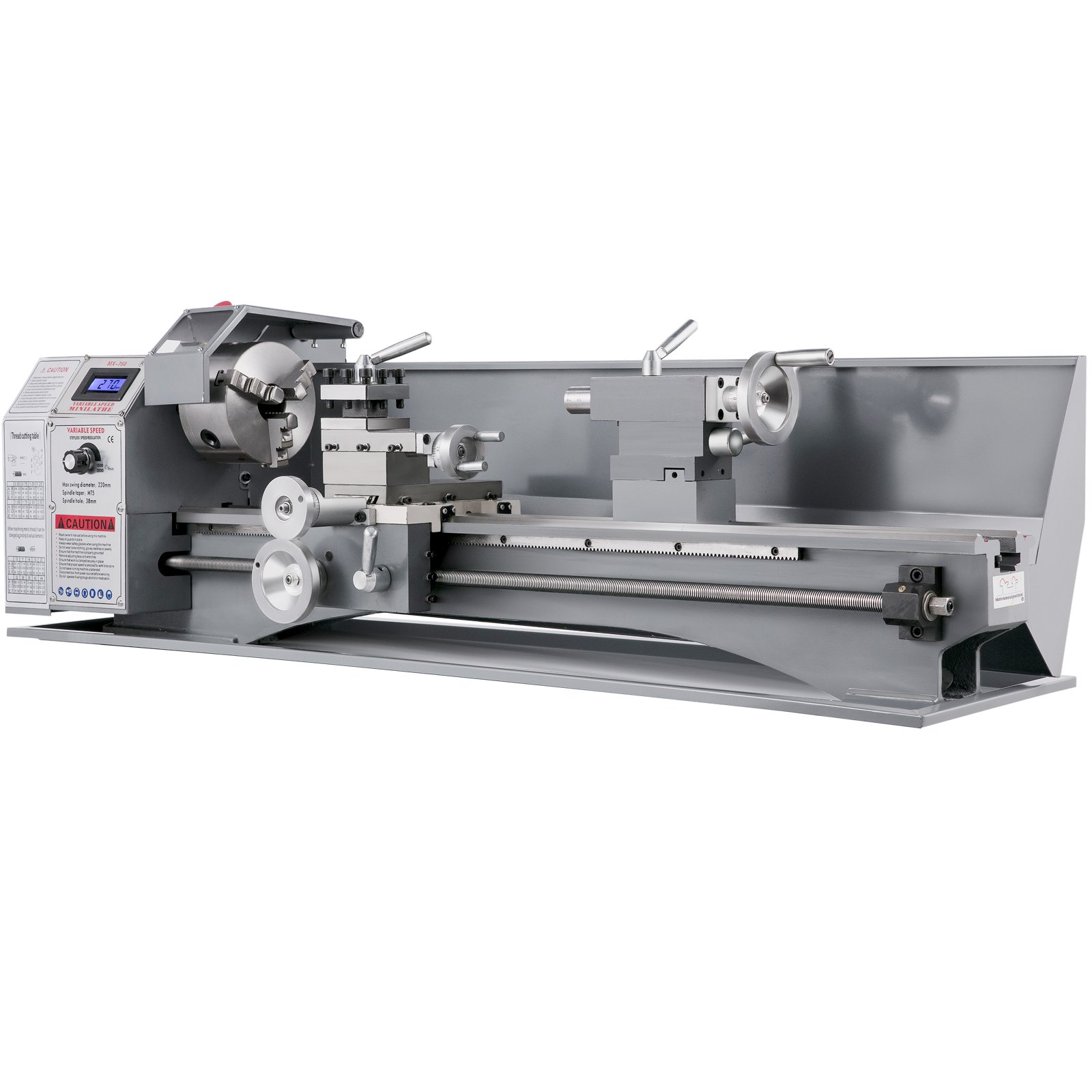

Metal Lathe Mini Lathe 29.5 inch / 750 mm
0.01 mm Spindle Accuracy & Metal Gears & 8-44 T.P.I
- The 220 x 750 mm precision metal mini lathe features 1100W motor, a 3-jaw chuck, a MT5 spindle taper, a MT2 tailstock taper, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 50-2250±10%Rpm spindle speed is continuously adjustable. Steady rest and follow rest for large size or/and heavy workpieces.
- Variable Speed Design
- 750 mm Large Swing Range
- Professional Compound Rest
- Supportive & Protective
- Accurate Tailstock
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

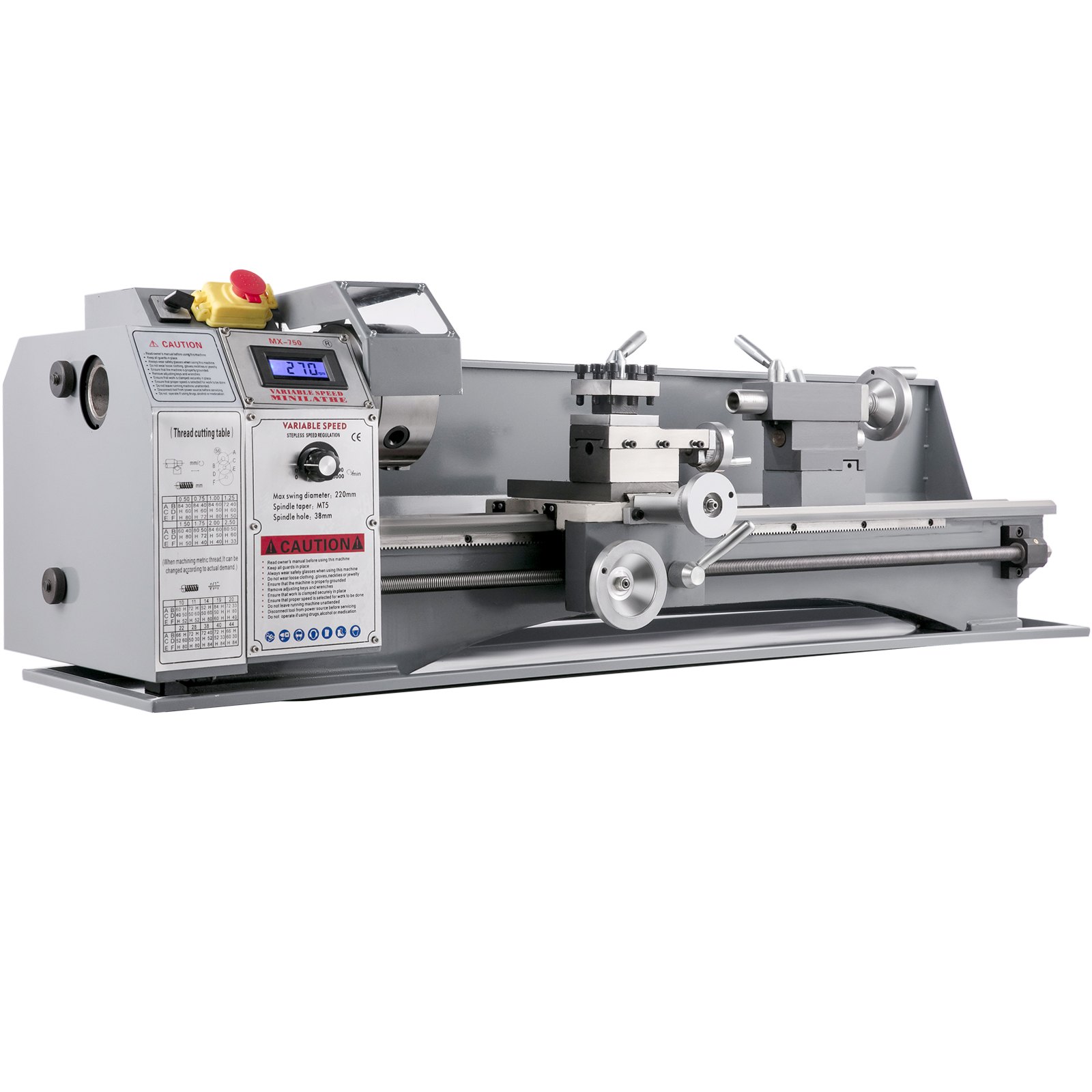

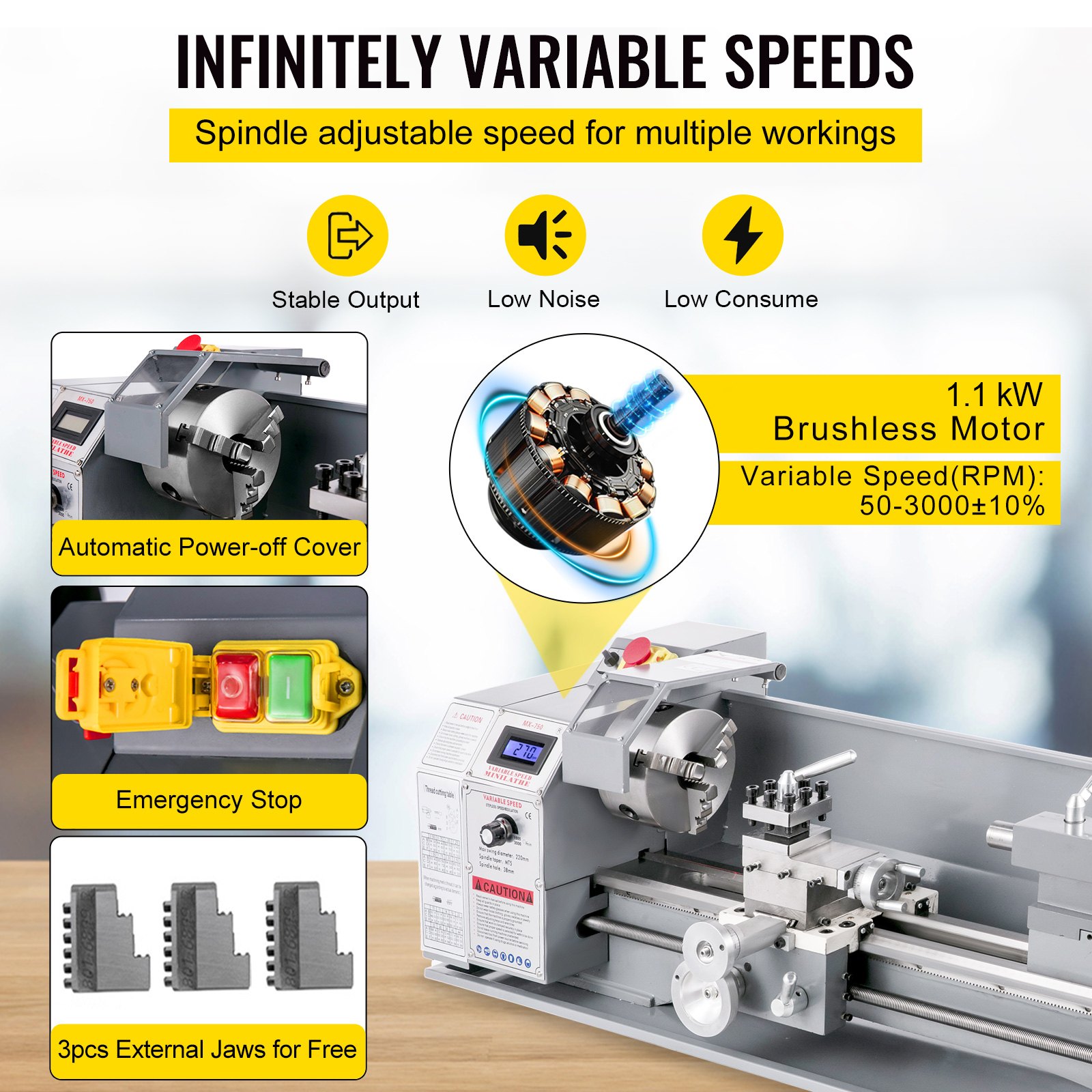

Variable Speed Design
Motor Power: 1100W, Variable Speed(Rpm): 50-2250±10%. Taper in Spindle Nose: MT5.
Large Swing Range
Swing Over Bed: 8.7"/220mm, Swing Over Cross Slide: 29.5"/750mm, 3-Jaw Chuck Diameter: 4.9"/125mm.

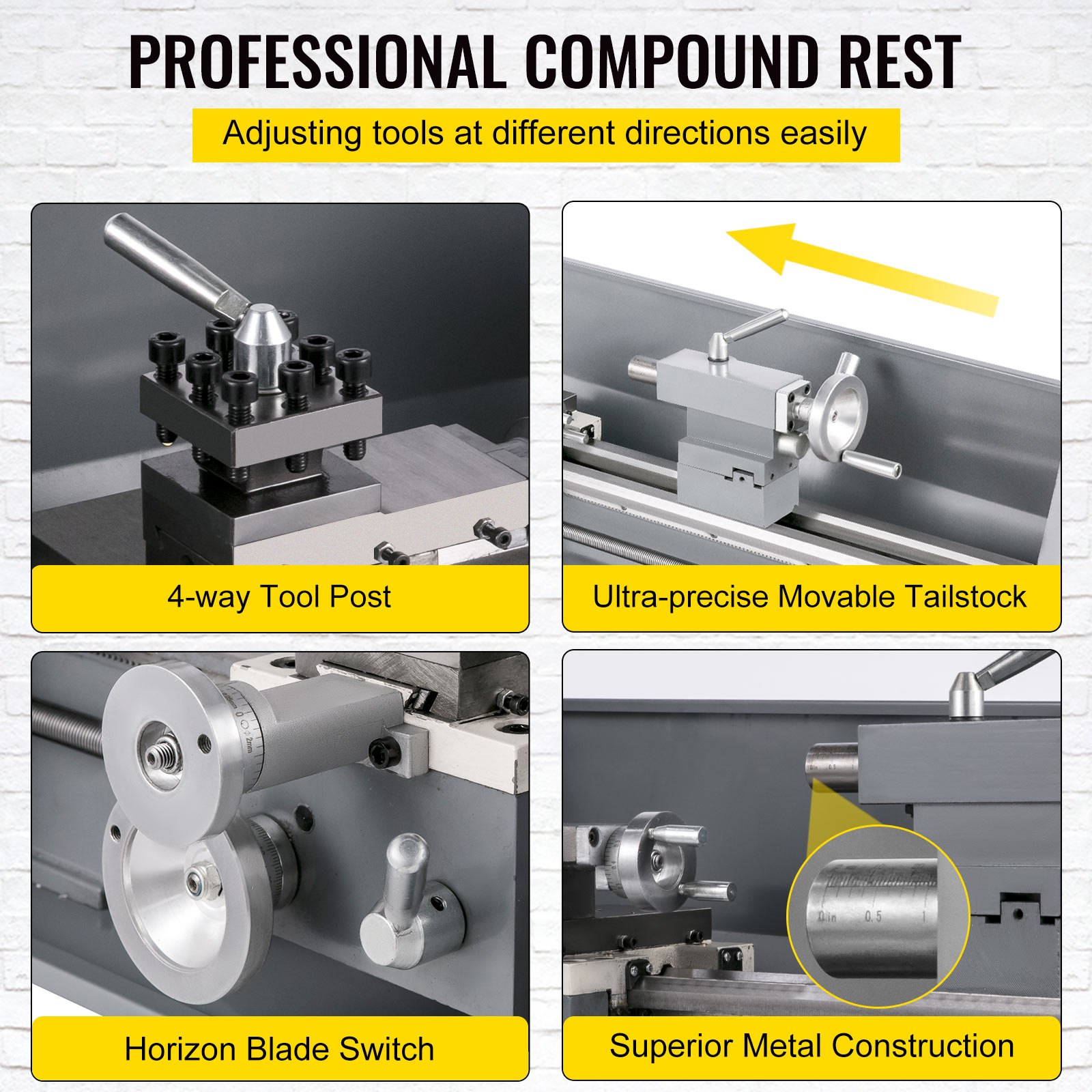

4-way Tool Rest
Offers positions of internal cutting, face cutting and bevel cutting. Heat hardening lead screw.
Supportive & Protective
Steady rest and follow rest for large size pieces. Two backsplash guards.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 8-44 T.P.I reversible lead screw. The v-slideways with distance between center: 29.5" / 750 mmm. A lamp is for accurate operation in a dark environment.

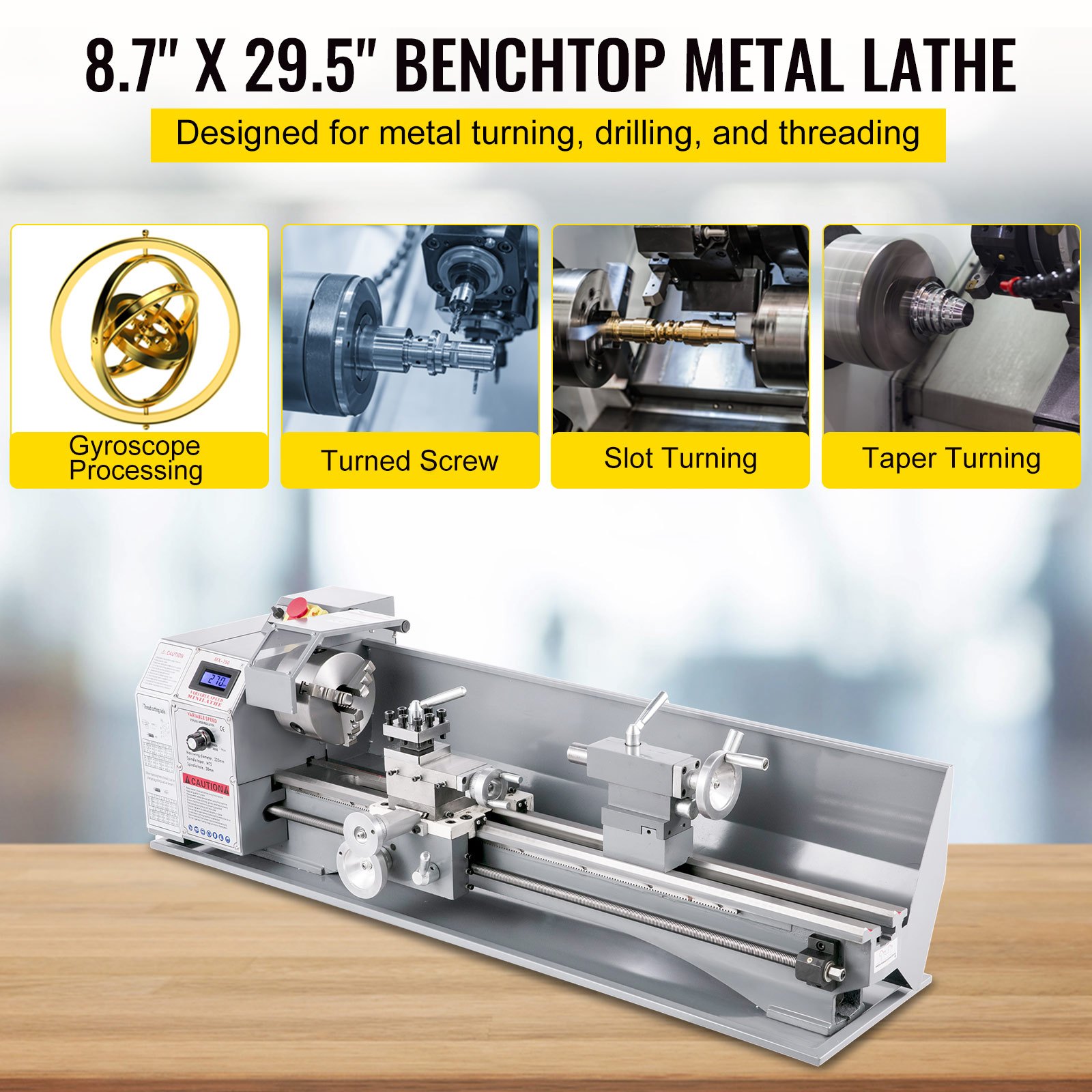

Wide Application
This mini metal lathe is idea for various processing tasks including turning, drilling, threading and cutting. The adjustment dials make your work with exact accuracy and precision.

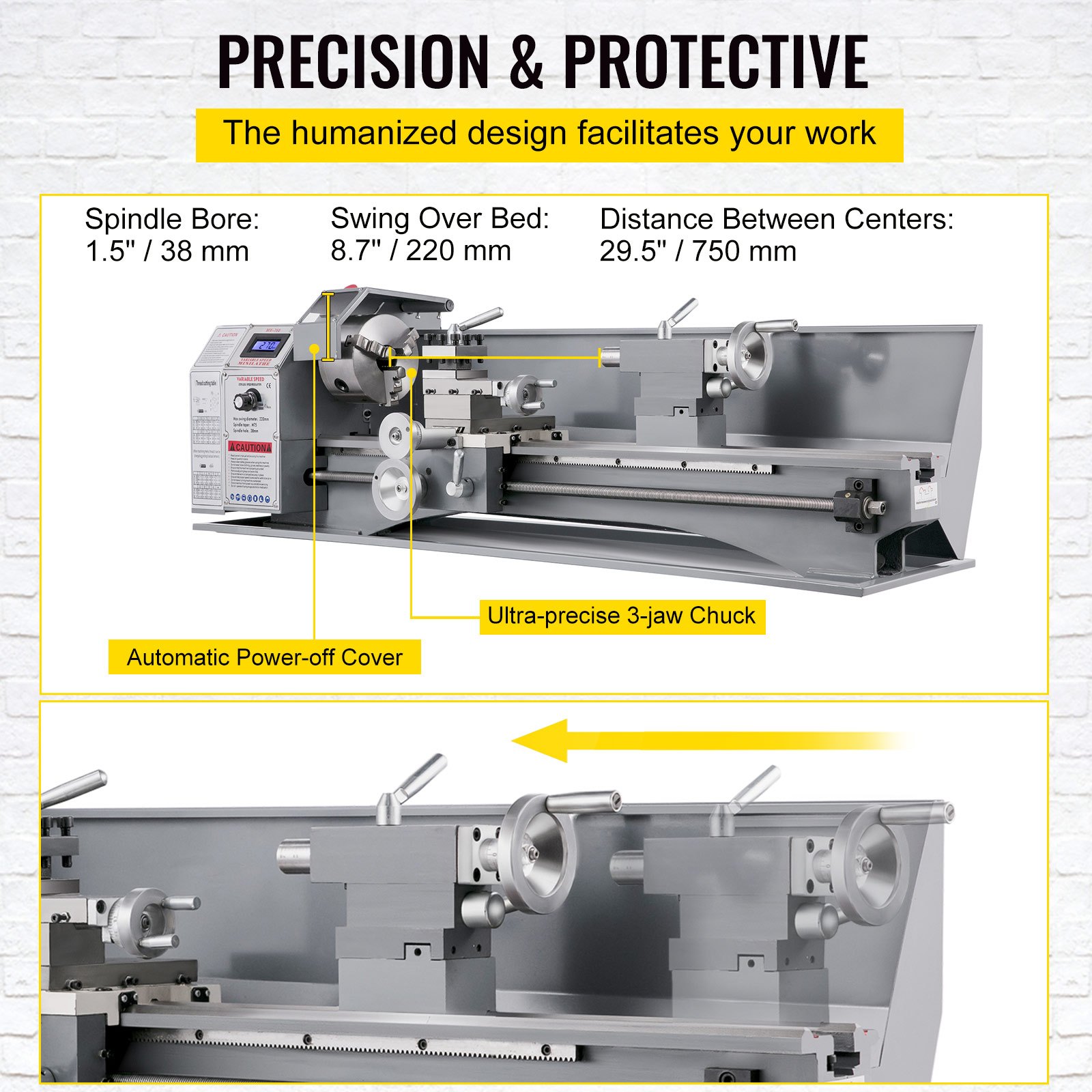

Specifications
- Power: 1100W
- Volt: 220V 50Hz
- Phase: Single Phase
- Swing Over Bed: 8.7" / 220 mm
- Distance Between Centers: 29.5" / 750 mm
- 3-Jaw Chuck Diameter: 4.9" / 125 mm
- Hole Through Spindle: 1.5" / 38 mm
- Spindle Accuracy：0.01 mm
- Variable Speed(Rpm): 50-2250±10%
- Range of Imperial Threads: 8-44 T.P.I
- Range of Longitudinal Feed: 0.5-3 mm
- Gear Material: Metal
- Item Weight:186 lbs / 84 kg
- Item Dimension: 40.2" × 12.3" × 13.6" / 102.2 × 31.3 × 34.7 cm

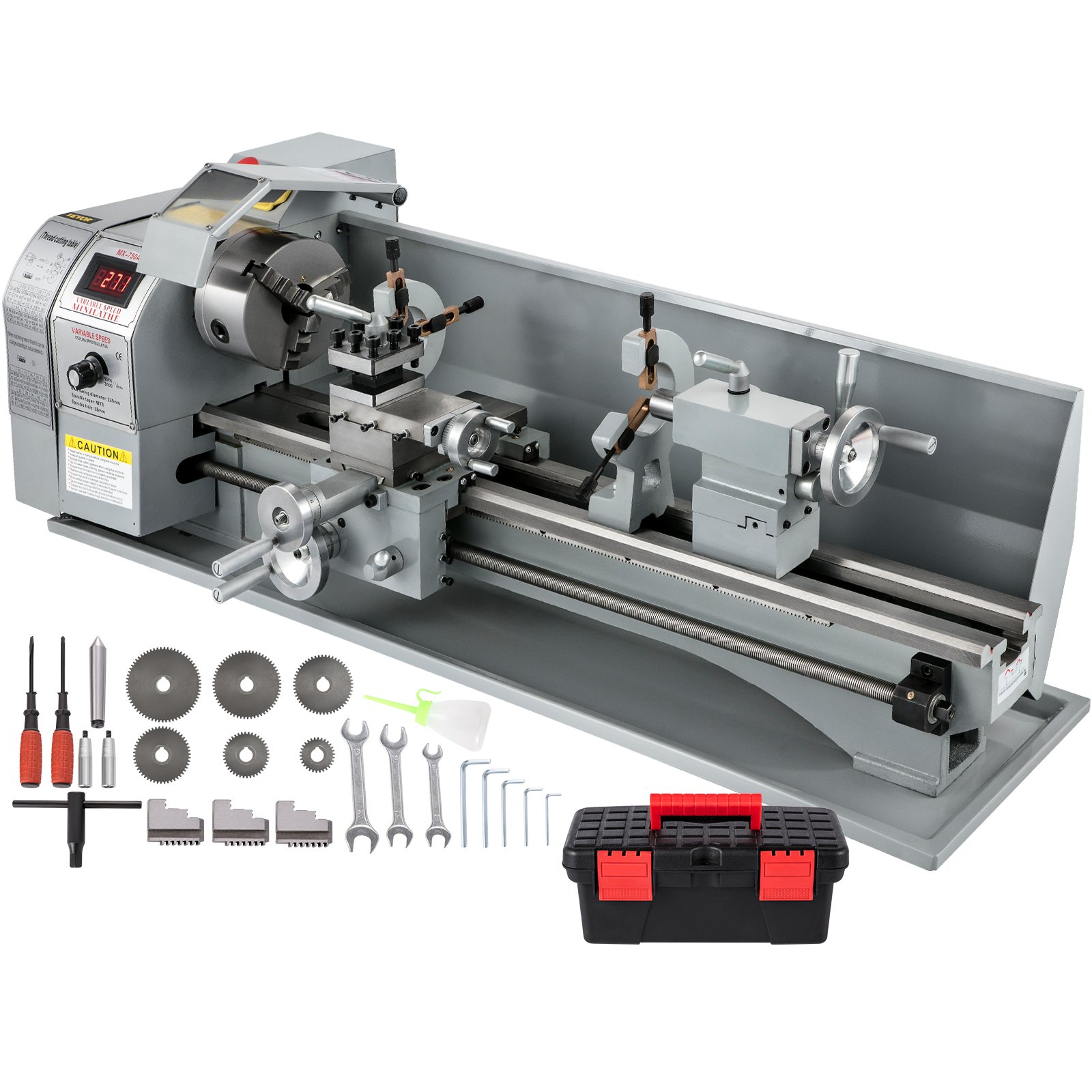

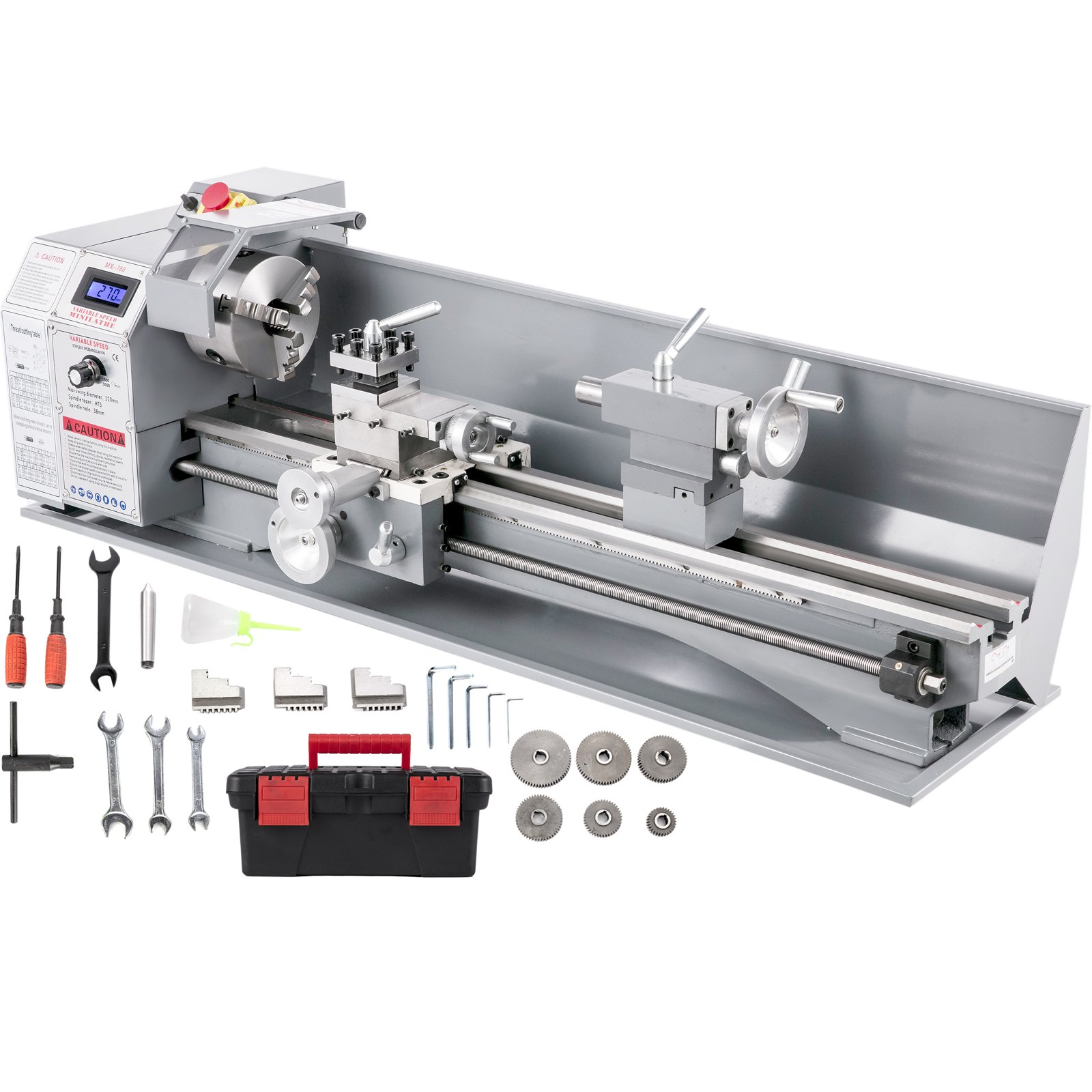

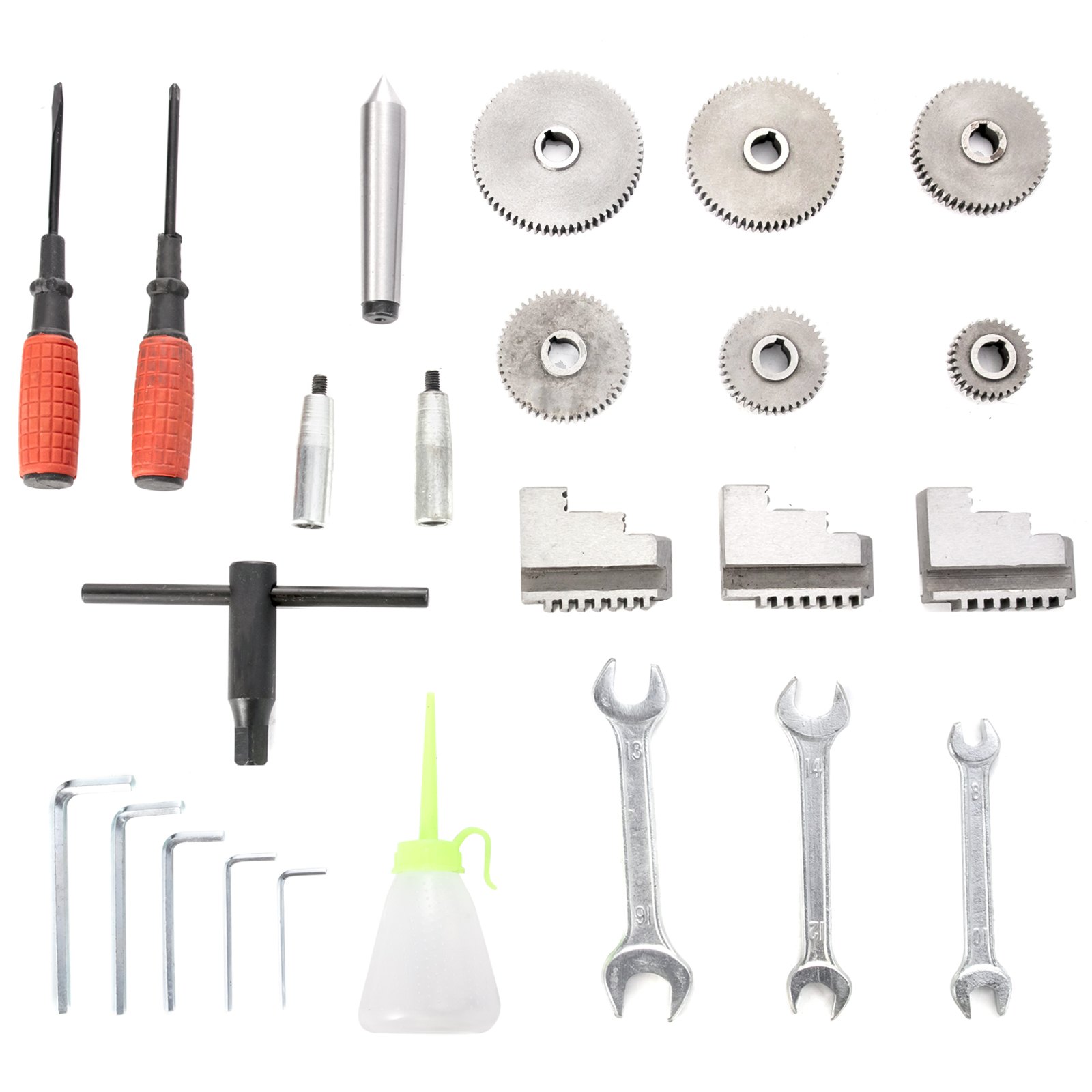

Package Content
- 1 x Metal Lathe
- 1 x Center Rest
- 1 x Dead Center MT2
- 1 x Oil Gun
- 3 x Jaws
- 6 x Metal Gears
- 1 x Instruction Manual
- 2 x Screwdrivers
- 1 x Accessory Kit
- 1 x Chuck Wrench
- 3 x Wrenches
- 3 x Chuck Jaws
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Metal Lathe Mini Lathe 29.5 inch / 750 mm
0.01 mm Spindle Accuracy & Metal Gears & 8-44 T.P.I
- The 220 x 750 mm precision metal mini lathe features 1100W motor, a 3-jaw chuck, a MT5 spindle taper, a MT2 tailstock taper, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 50-2250±10%Rpm spindle speed is continuously adjustable. Steady rest and follow rest for large size or/and heavy workpieces.
- Variable Speed Design
- 750 mm Large Swing Range
- Professional Compound Rest
- Supportive & Protective
- Accurate Tailstock
Variable Speed Design
Motor Power: 1100W, Variable Speed(Rpm): 50-2250±10%. Taper in Spindle Nose: MT5.
Large Swing Range
Swing Over Bed: 8.7"/220mm, Swing Over Cross Slide: 29.5"/750mm, 3-Jaw Chuck Diameter: 4.9"/125mm.
4-way Tool Rest
Offers positions of internal cutting, face cutting and bevel cutting. Heat hardening lead screw.
Supportive & Protective
Steady rest and follow rest for large size pieces. Two backsplash guards.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 8-44 T.P.I reversible lead screw. The v-slideways with distance between center: 29.5" / 750 mmm. A lamp is for accurate operation in a dark environment.
Wide Application
This mini metal lathe is idea for various processing tasks including turning, drilling, threading and cutting. The adjustment dials make your work with exact accuracy and precision.
Package Content
- 1 x Metal Lathe
- 1 x Center Rest
- 1 x Dead Center MT2
- 1 x Oil Gun
- 3 x Jaws
- 6 x Metal Gears
- 1 x Instruction Manual
- 2 x Screwdrivers
- 1 x Accessory Kit
- 1 x Chuck Wrench
- 3 x Wrenches
- 3 x Chuck Jaws
Specifications
- Power: 1100W
- Volt: 220V 50Hz
- Phase: Single Phase
- Swing Over Bed: 8.7" / 220 mm
- Distance Between Centers: 29.5" / 750 mm
- 3-Jaw Chuck Diameter: 4.9" / 125 mm
- Hole Through Spindle: 1.5" / 38 mm
- Spindle Accuracy：0.01 mm
- Variable Speed(Rpm): 50-2250±10%
- Range of Imperial Threads: 8-44 T.P.I
- Range of Longitudinal Feed: 0.5-3 mm
- Gear Material: Metal
- Item Weight:186 lbs / 84 kg
- Item Dimension: 40.2" × 12.3" × 13.6" / 102.2 × 31.3 × 34.7 cm
