7"x12" Mini Metal Lathe Metalworking Woodworking Wood-turning Gears Milling 7"x12" Mini Metal Lathe Metalworking Woodworking Wood-turning Gears Milling 7"x12" Mini Metal Lathe Metalworking Woodworking Wood-turning Gears Milling 7"x12" Mini Metal Lathe Metalworking Woodworking Wood-turning Gears Milling 7"x12" Mini Metal Lathe Metalworking Woodworking Wood-turning Gears Milling 7"x12" Mini Metal Lathe Metalworking Woodworking Wood-turning Gears Milling 7"x12" Mini Metal Lathe Metalworking Woodworking Wood-turning Gears Milling
7X10MNCC000000001V3

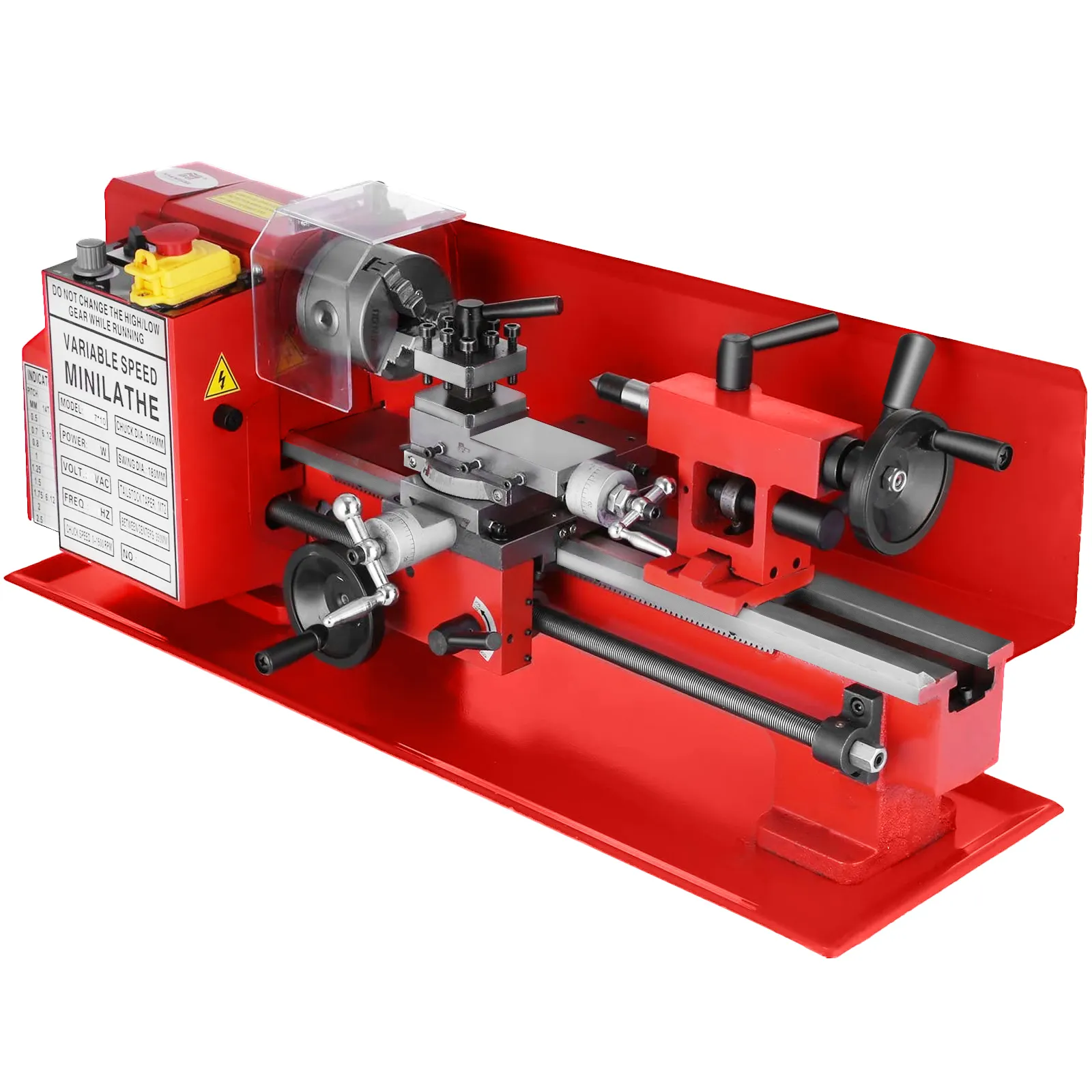

7"x12" Mini Metal Lathe Metalworking Woodworking Wood-turning Gears Milling

AU $752.99
752.99
Price including GSTSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • Sturdy Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splash guard provides maximum protection.
  • Infinitely Variable Speeds: Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slideways are obtained by raw material, heat hardening and grinding. Emergency stop button included.
  • Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.0004 inch / 0.01 mm.
  • Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
  • Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.

Frequently Bought Together

People Who Bought This Item Also Bought

7"x12" Mini Metal Lathe Metalworking Woodworking Wood-turning Gears Milling
Only 1 Left, order soon
7
7
7
Notice: Extra Shipping fee for bulk cargo is influenced by the current global situation and charged by logistics company.Thanks for your understanding!

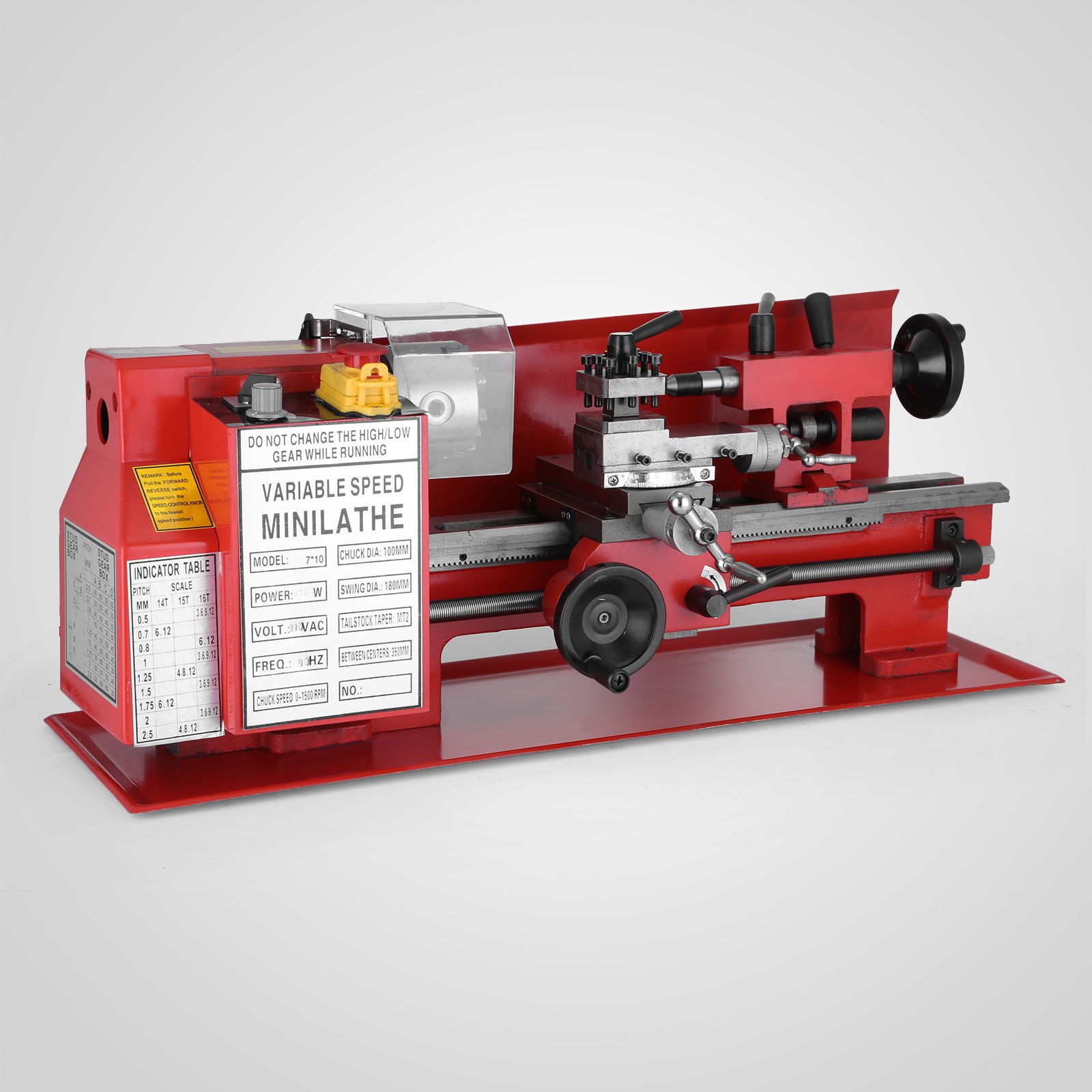

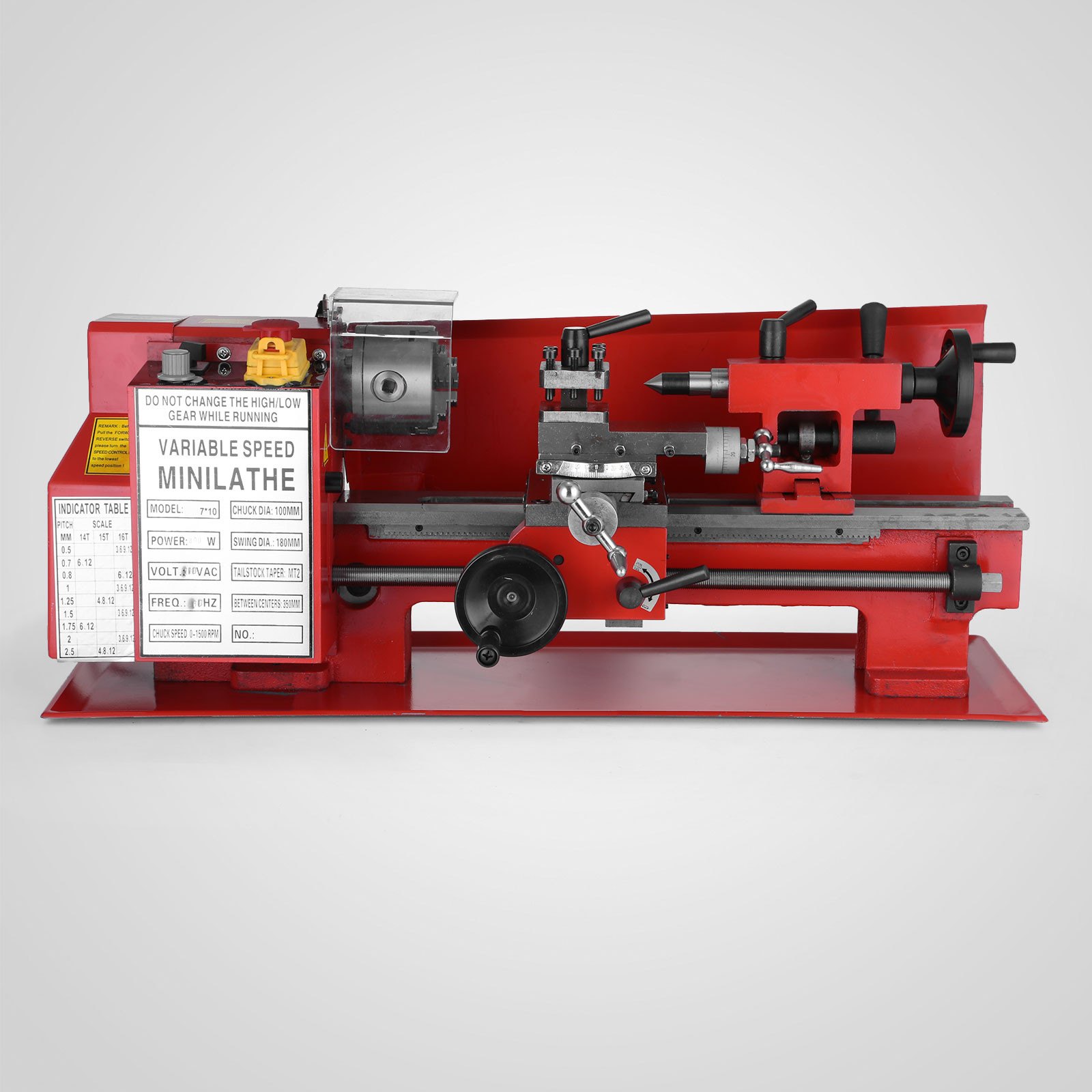

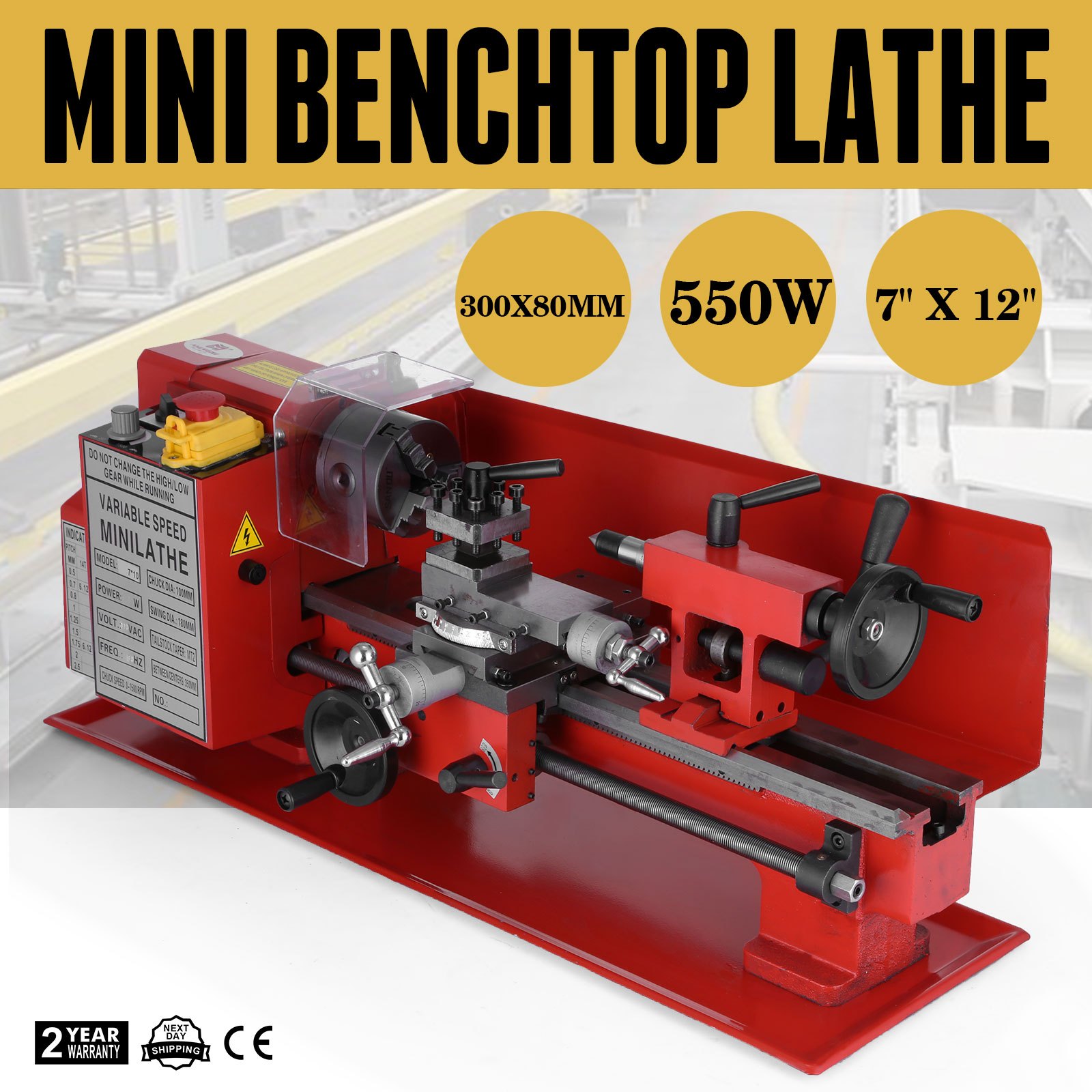

7" x 12" Metal Lathe

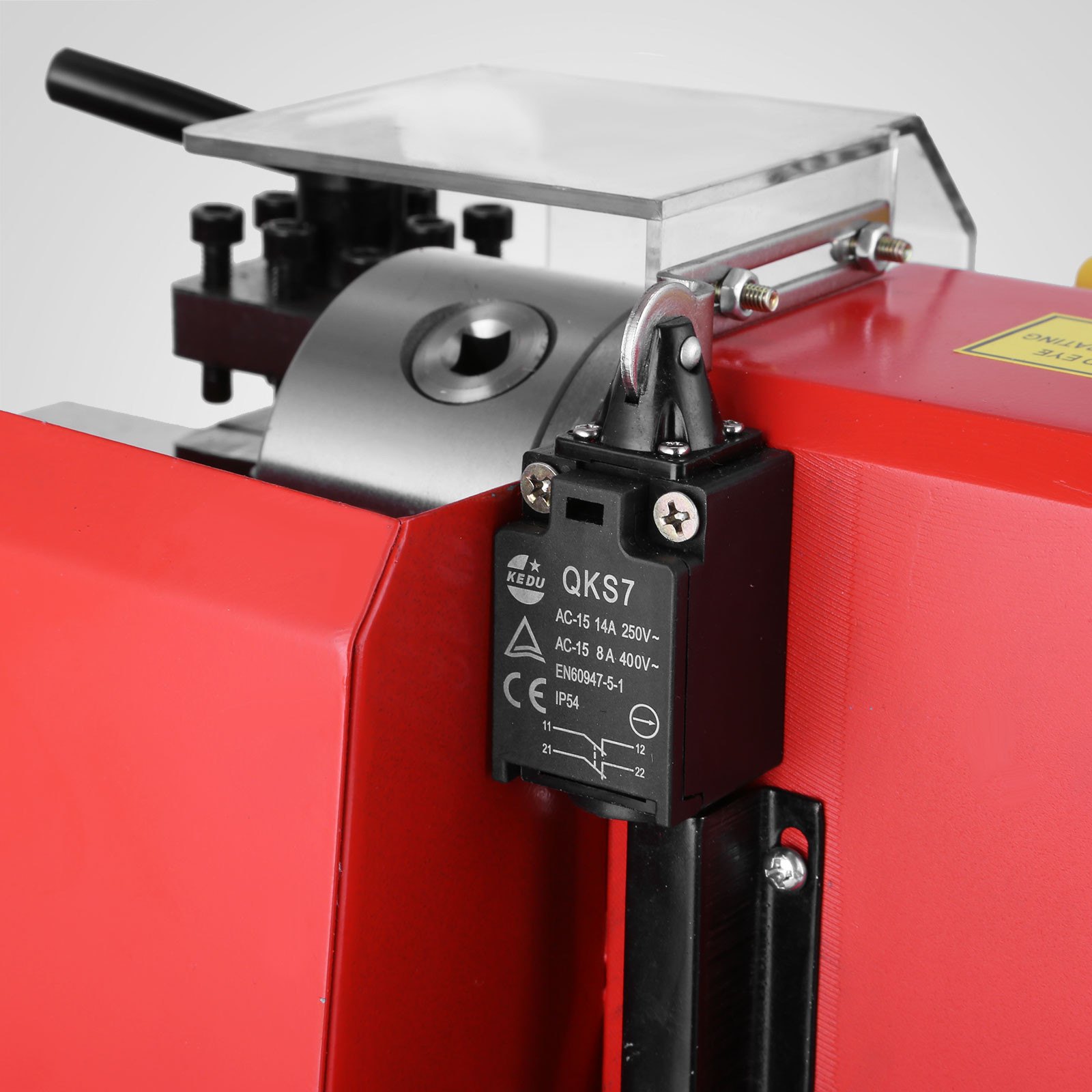

  • Variable Speed & 50-2500 RPM & Emergency Stop
  • The reinforced metal construction provides a sturdy base for a more accurate rotation and the splash guard ensures maximum protection during use. With this lathe you will get a superb workhorse. The 7 x 12 Inch lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, and a 550W motor. 50-2500 RPM continuously adjustable. Compact easy-to-use machine meets powerful precise lathe. It's the excellent addition to your workbench.
  • Sturdy Construction
  • Infinitely Variable Speeds
  • Accurate 3-jaw Chuck
  • Professional Compound Rest

7
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
7
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
7

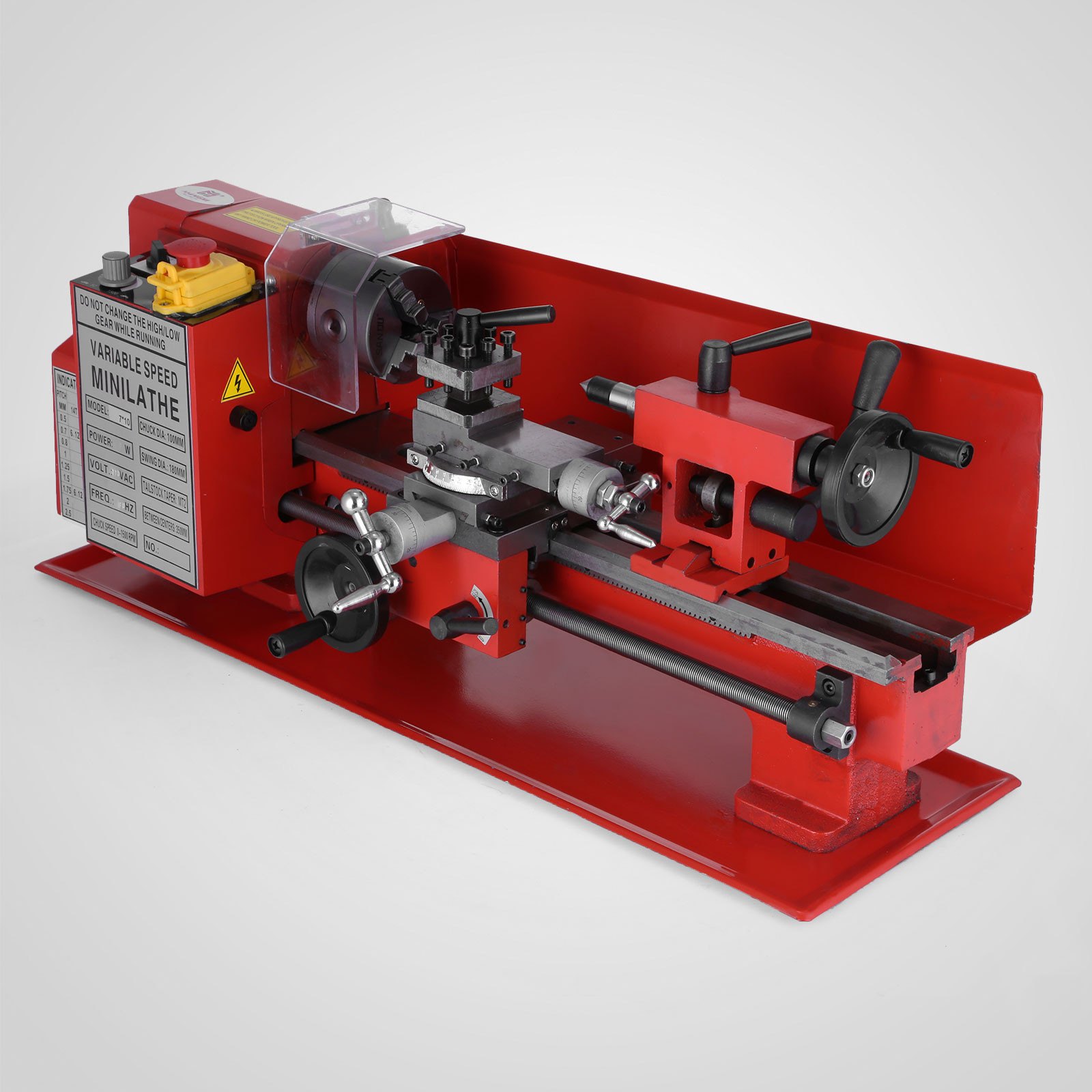

Heavy-Duty Machine
Made of superior iron, which can withstand long years. Feature a 7-inch swing over bed, 11.8 inch distance between centers. The wide through hole allows easy work with long and thin pieces including pins, bushings, axles, and shafts.
7

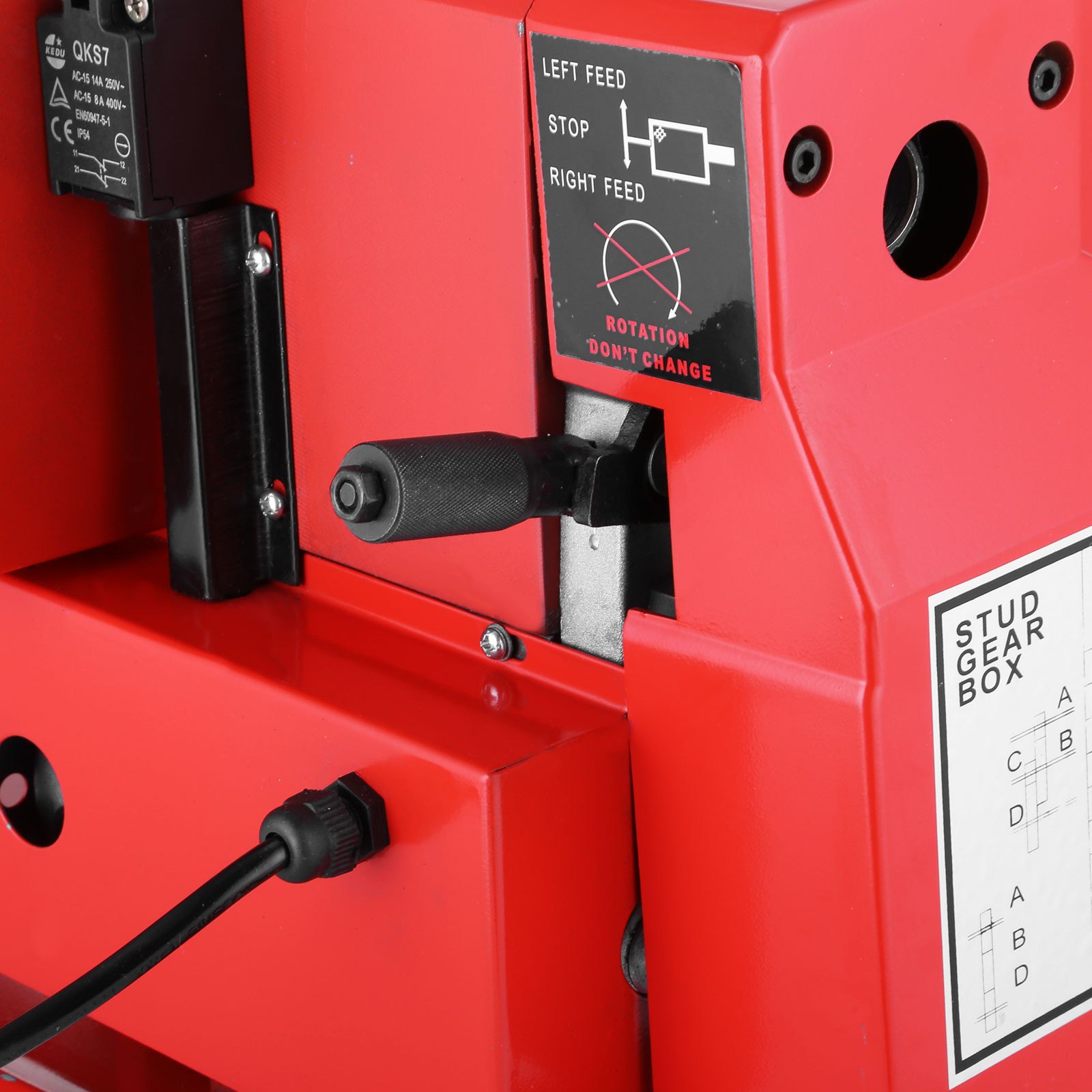

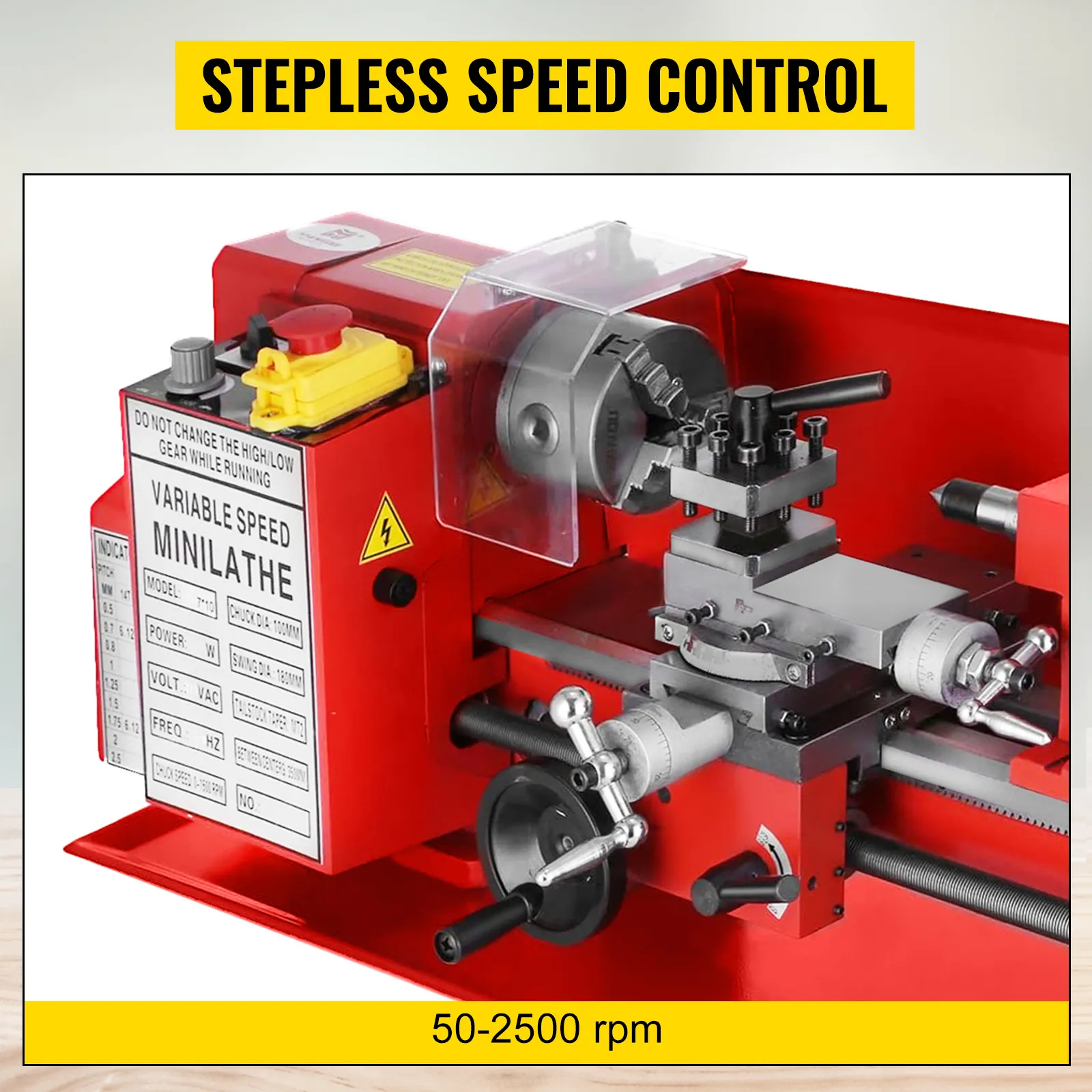

Stepless Speed Control
Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
7

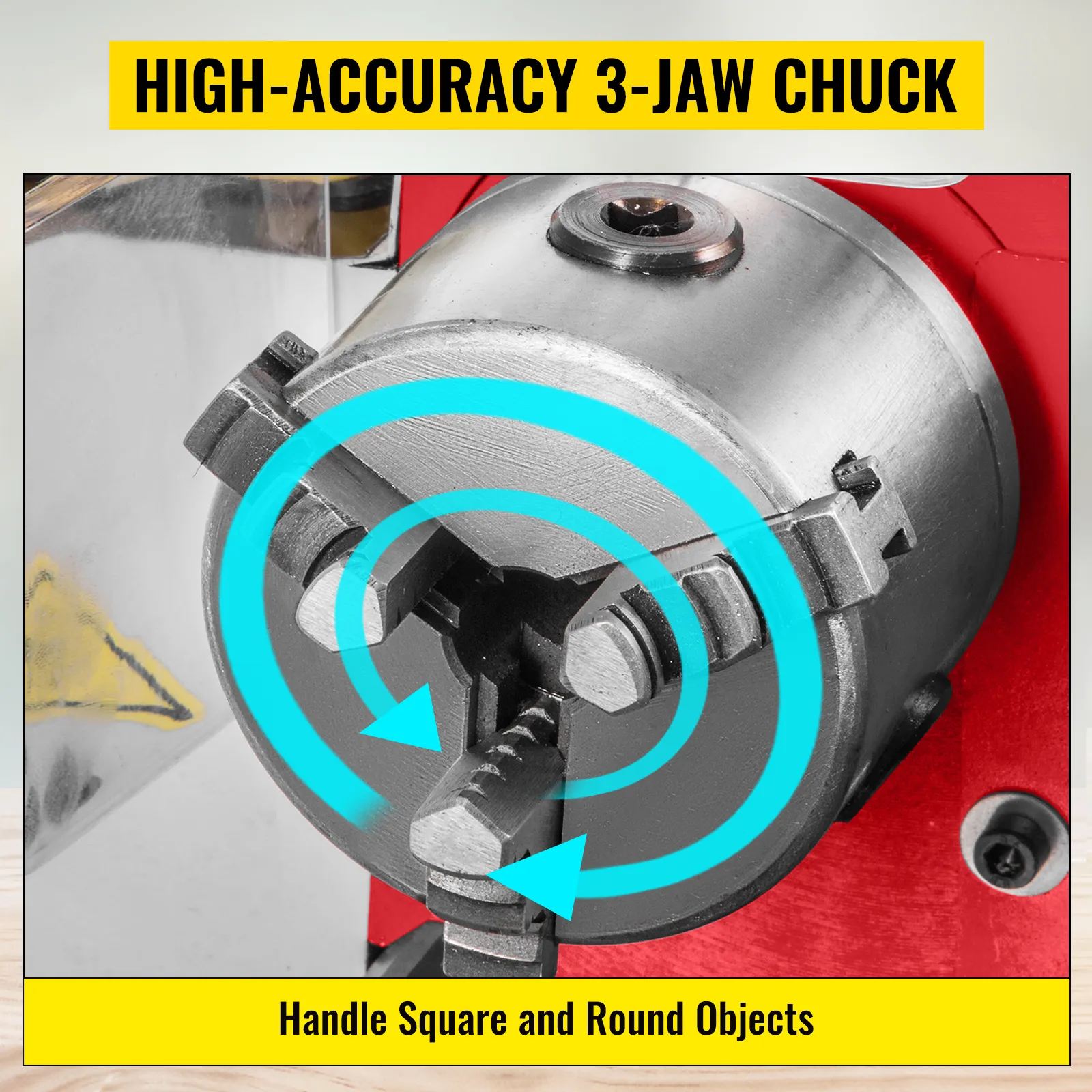

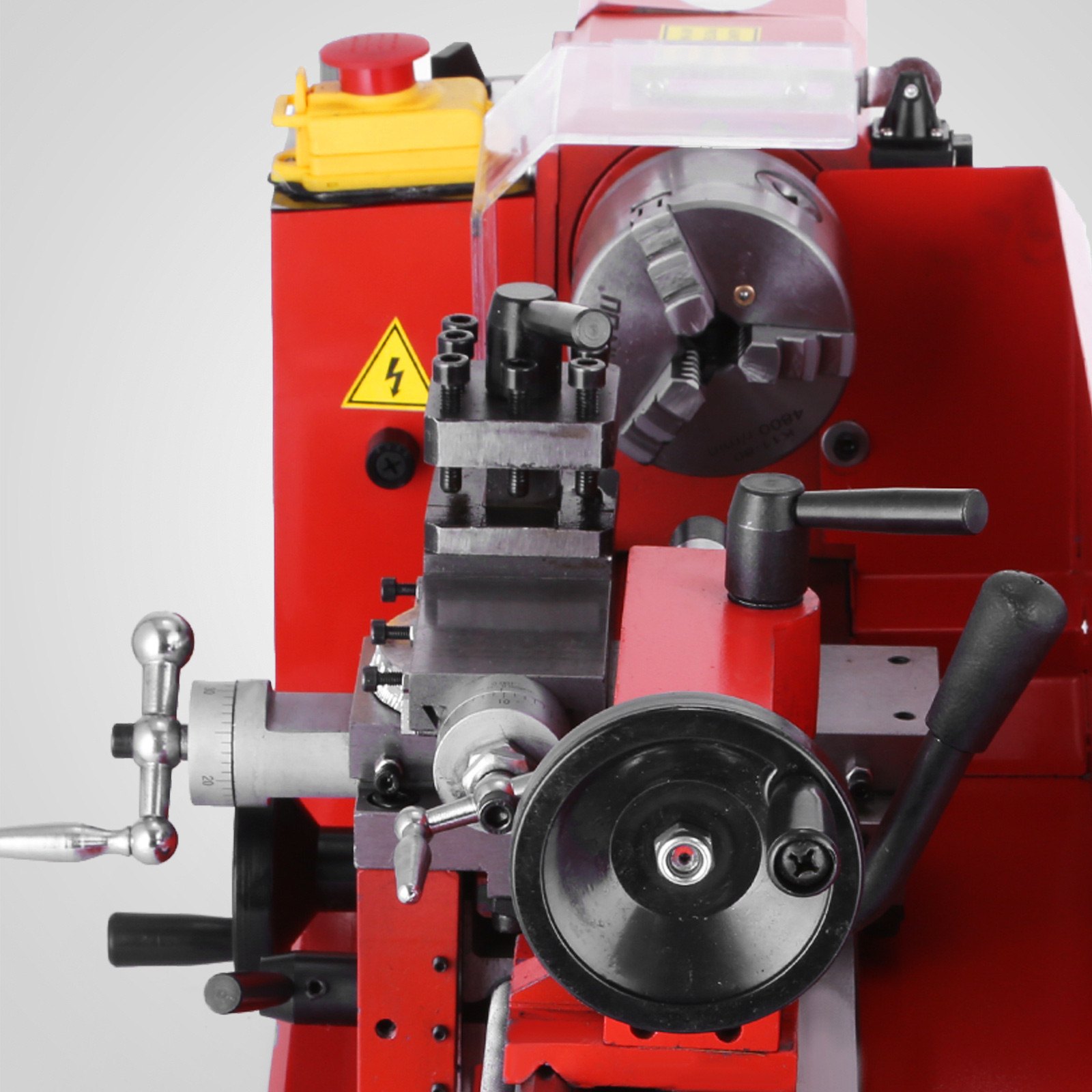

High-Accuracy Chuck
The self-centering 3-jaw chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.0004 inch / 0.01 mm.
7

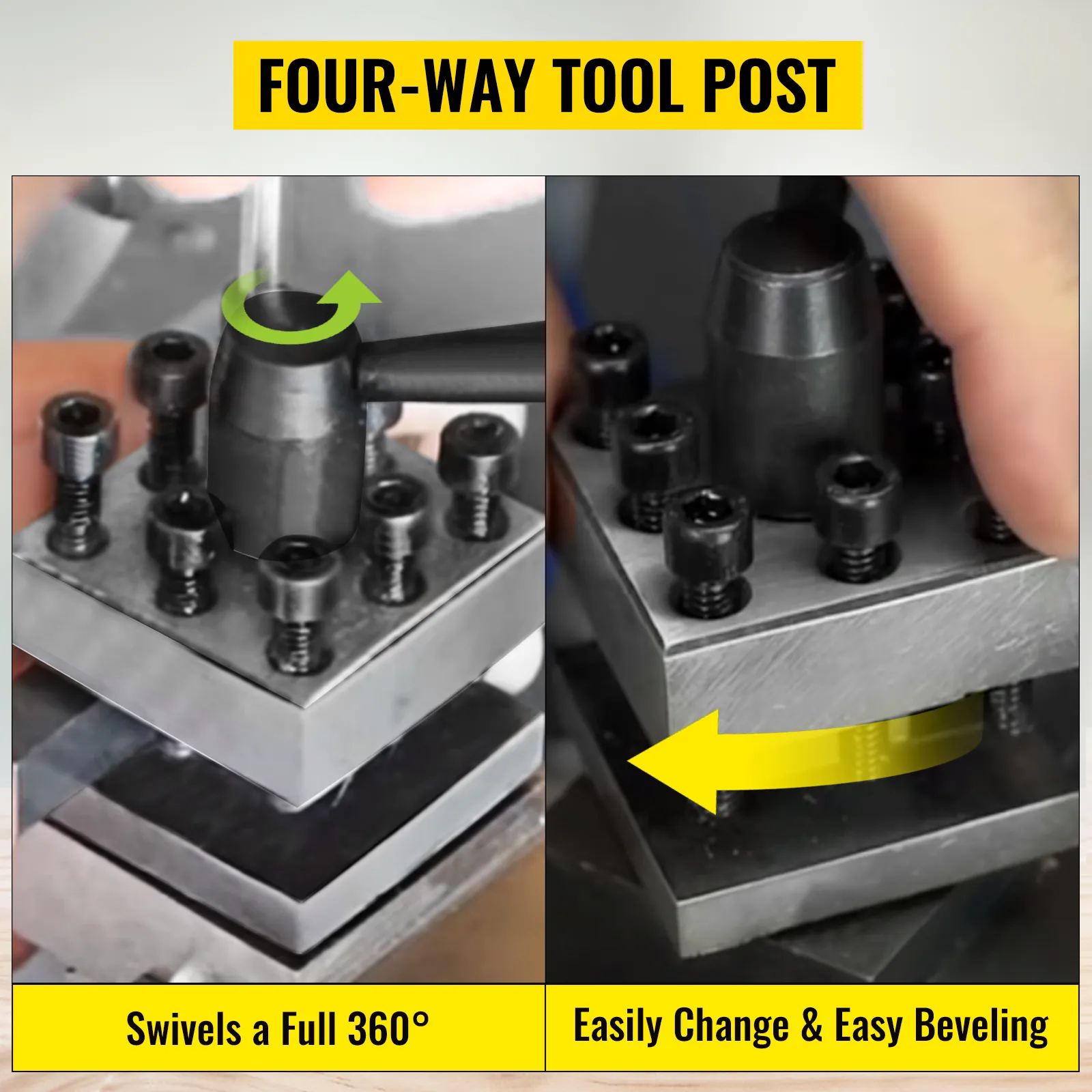

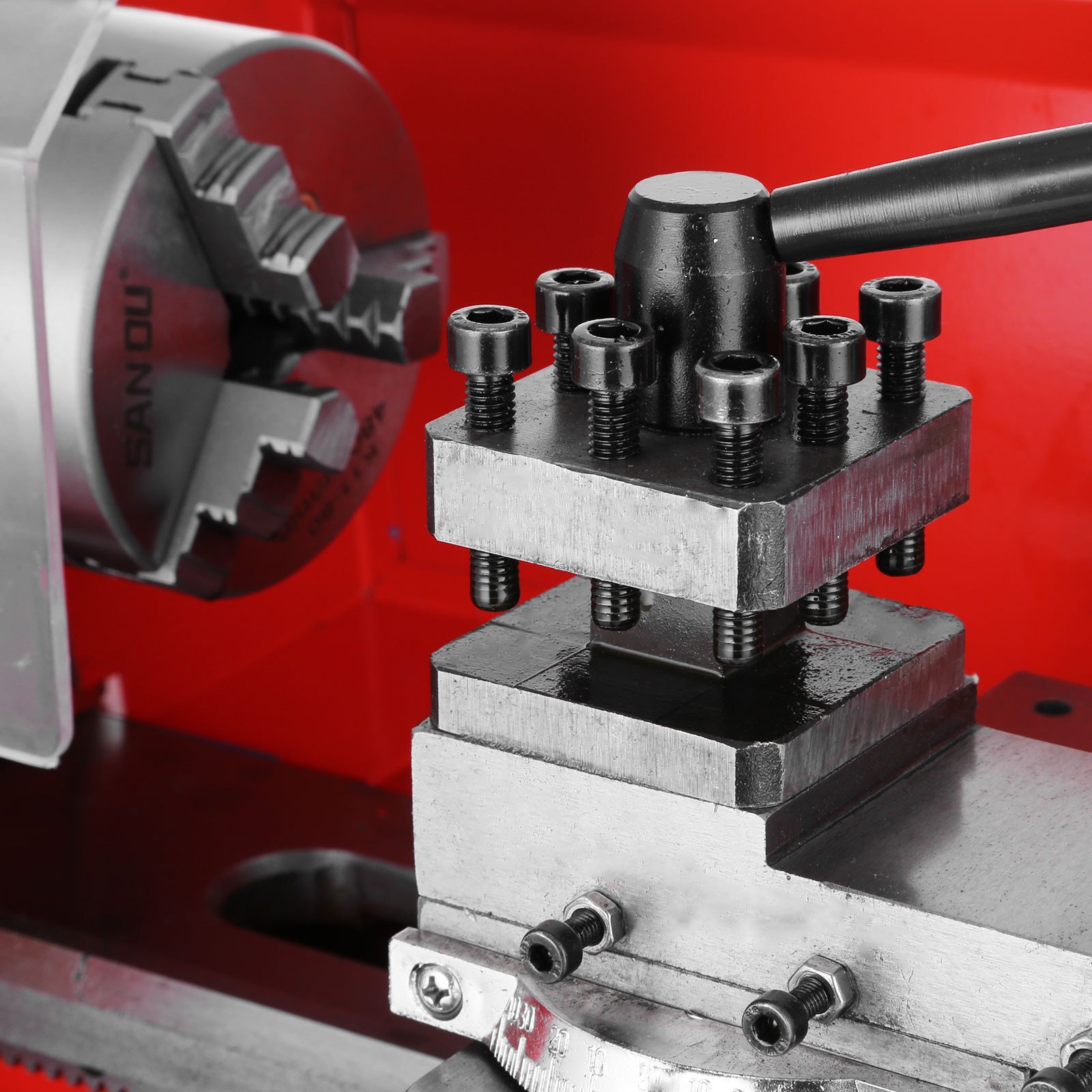

Four-way Tool Post
T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
7

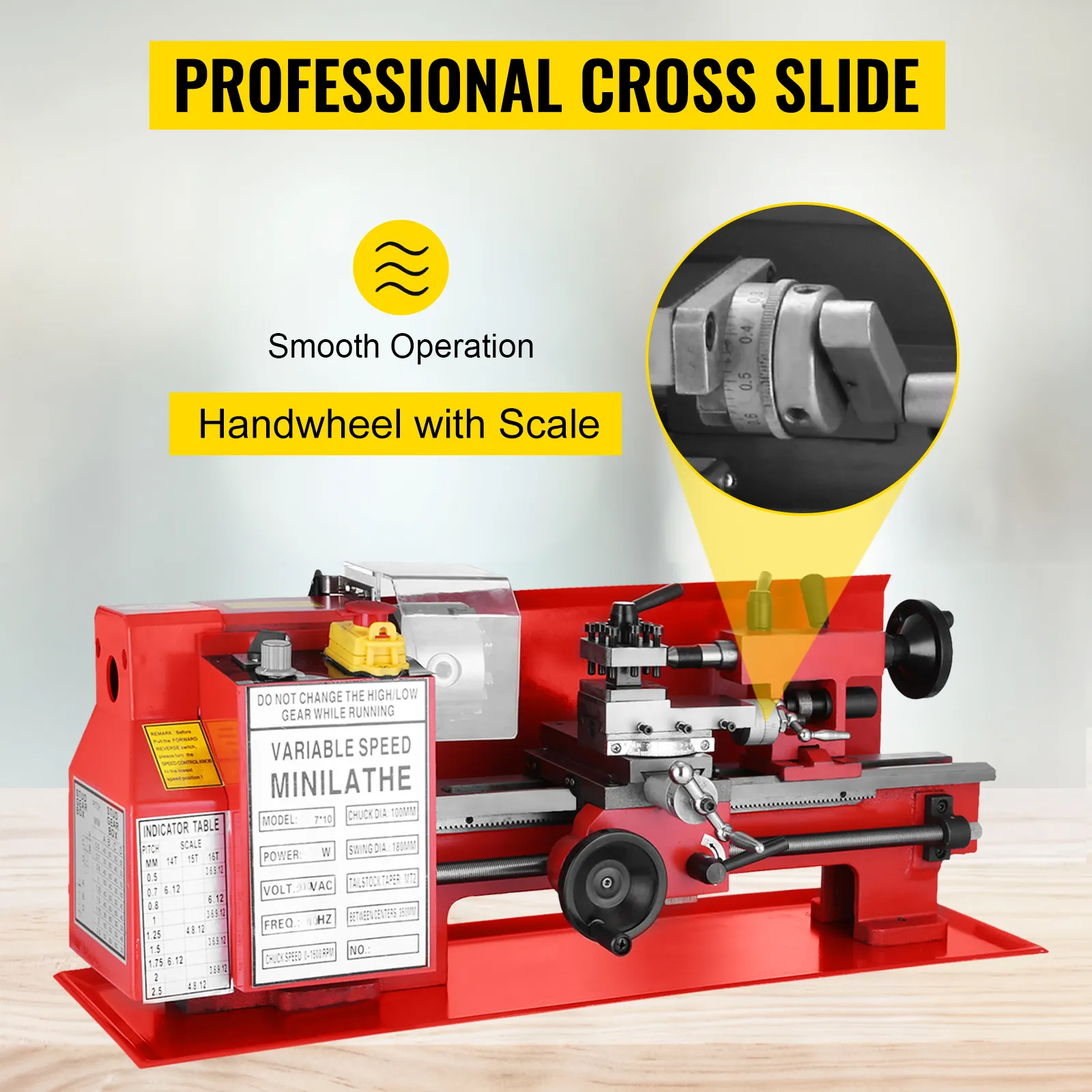

Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 12-52 T.P.I reversible lead screw. The v-slideways with distance between center: 11.81" / 300 mm. A lamp is for accurate operation in dark circumstances.
7

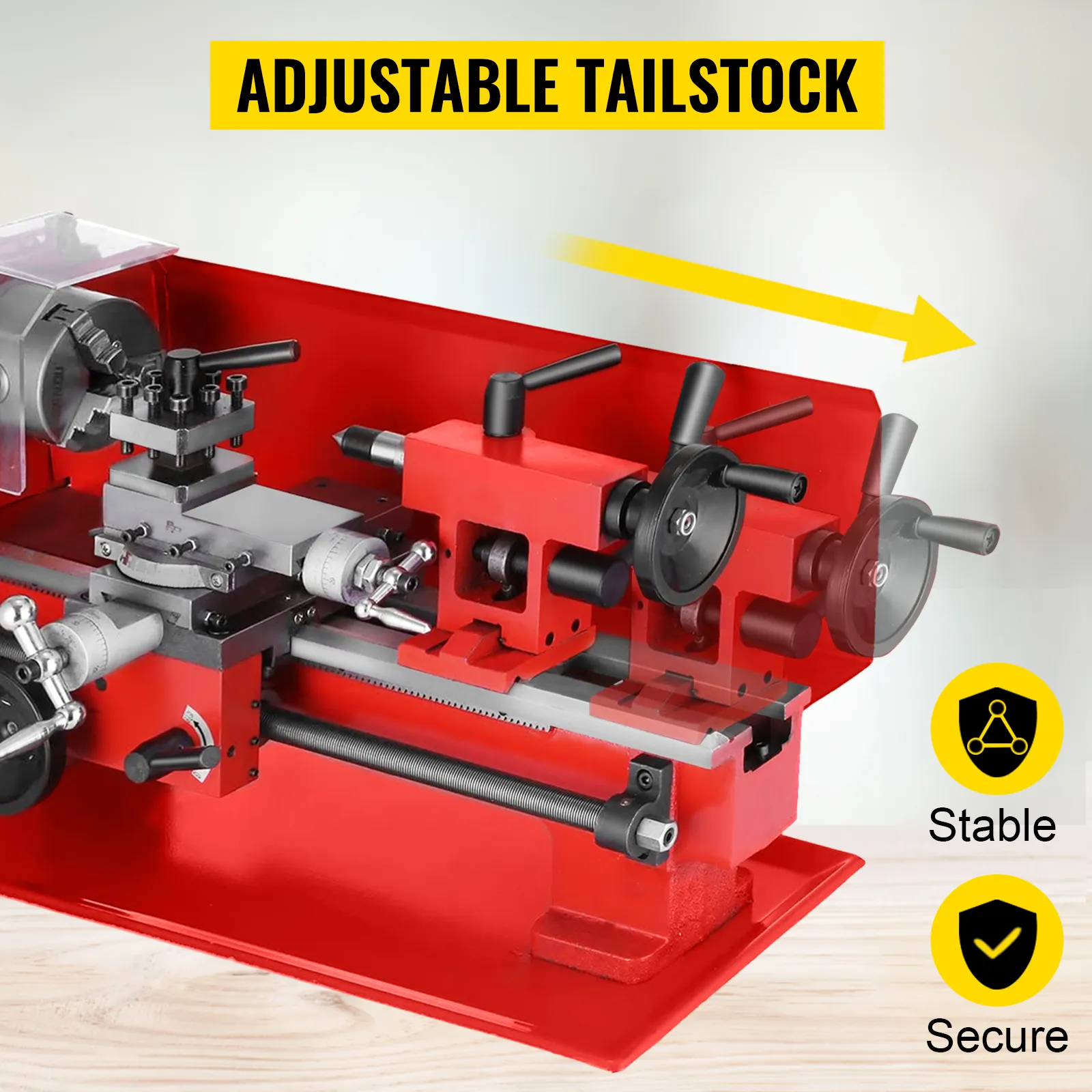

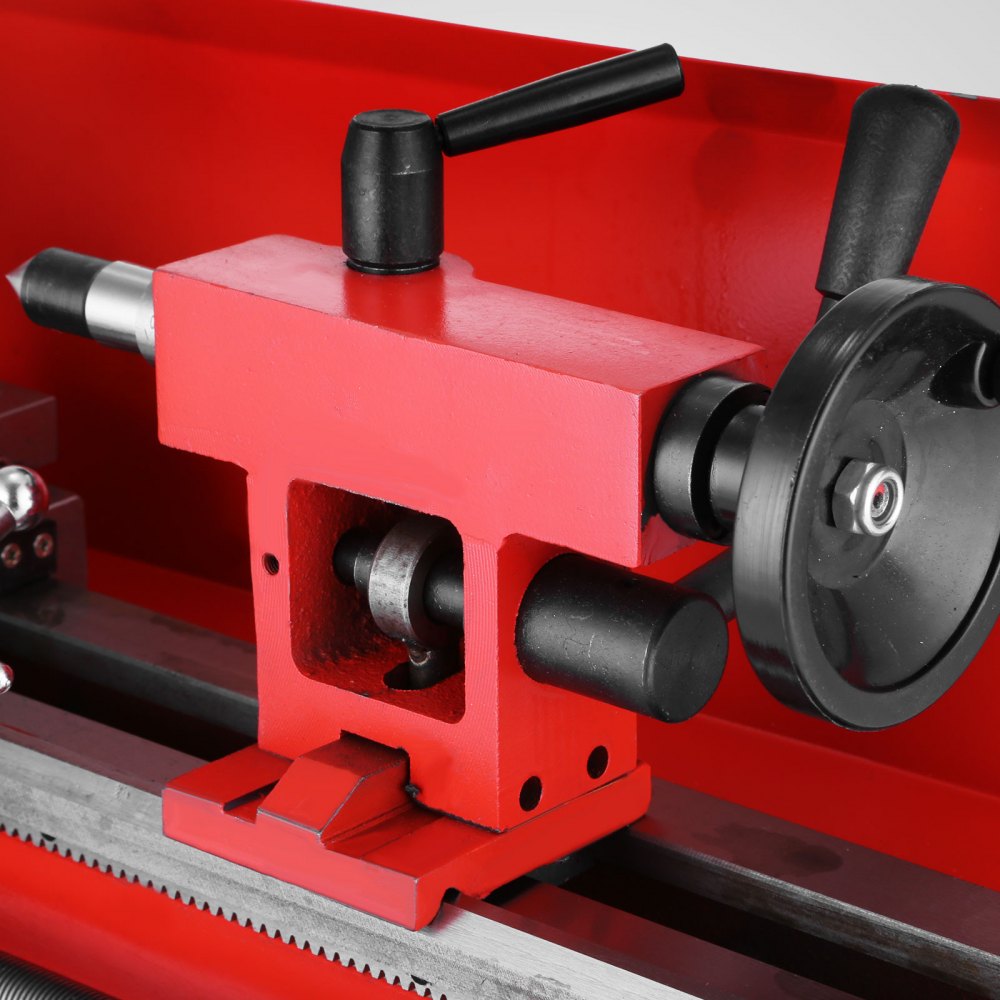

Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
7
Specifications
  • Color: Red
  • Medium: Metal
  • Certification: ETL
  • Voltage: 220 V 50 Hz
  • Motor Power: 550 W
  • Variable Speed Gear: Plastic Nylon
  • Spindle Taper: MT3
  • Tail Stock Taper: MT2
  • Distance between Centers: 12 inch / 300 mm
  • Swing over Bed: 7 inch / 180 mm
  • Chuck Diameter: 3 inch / 80 mm
  • Hole thru Spindle: φ0.83 inch / 21 mm
  • Tailstock Sleeve: φ0.9 inch / 22 mm
  • Cross Slide Travel: 2.56 inch / 65 mm
  • Top Slide Travel: 1.38 inch / 35 mm
  • Range of Metric Threads: 12.7-63.5 mm
  • Range of Imperial Threads: 12-52 T.P.I
  • Spindle Accuracy: 0.0004 inch / 0.01 mm
  • Spindle Speed: 50-2500 RPM
  • Item Weight: 90.4 lbs / 41 kg

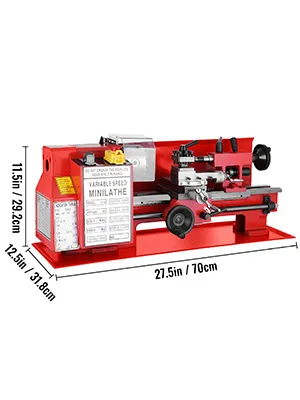

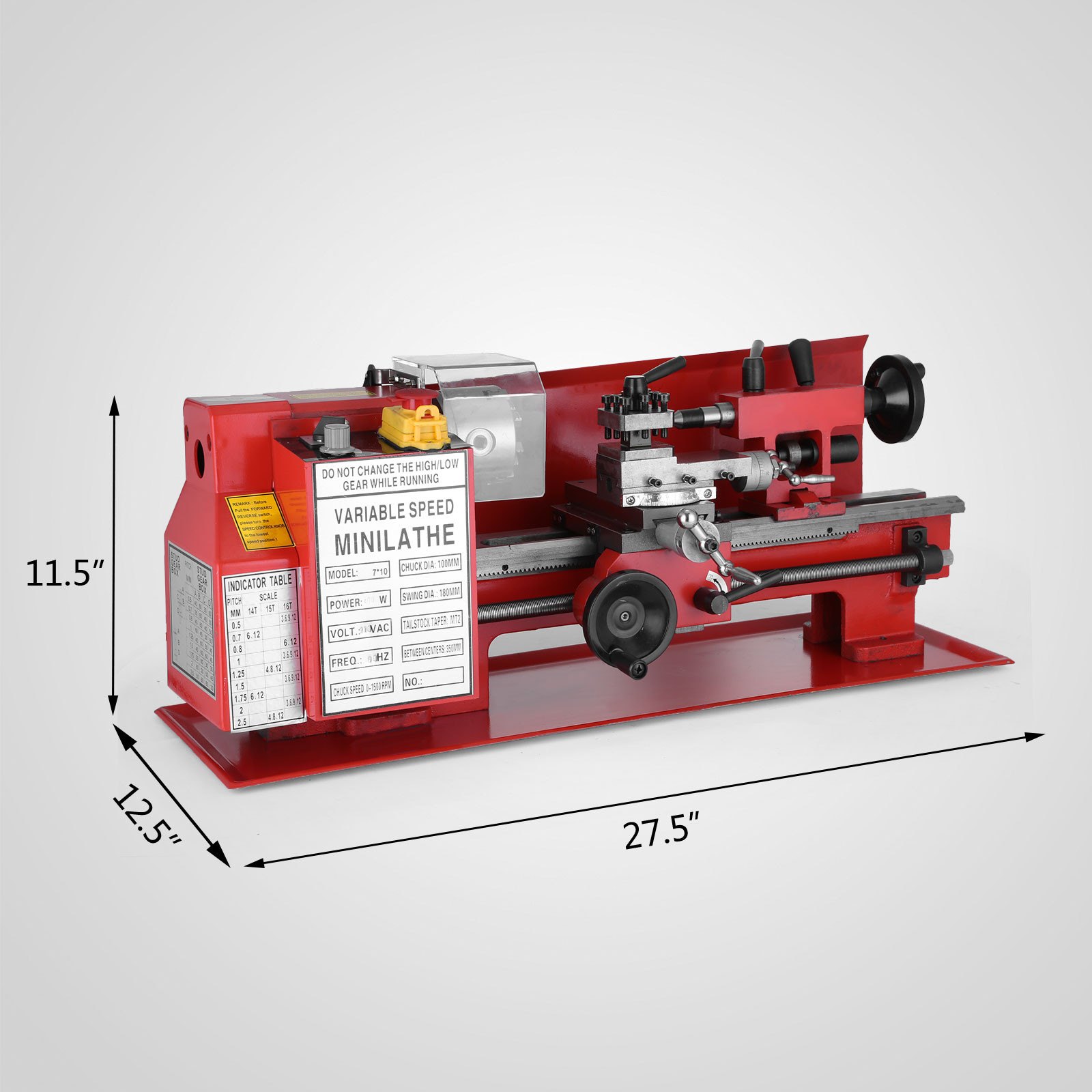

  • Item Dimensions: 27.5 x 12.5 x 11.5 in / 70 x 31.8 x 29.2 cm
7
Package Content
  • 1 x Mini Lathe
  • 1 x MS2 # Fix The Top
  • 1 x Double-Headed Wrench
  • 1 x Oil Can
  • 1 x Set of Nylon Gears
  • 1 x Chuck Claw
  • 1 x Hexagon Bar Wrench
  • 1 x Chuck Wrench
  • 1 x Protecting Mask
  • 4 x Shockproof Foot Cushion
  • 1 x English Manual
7
7

7
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
7
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
7
Notice: Extra Shipping fee for bulk cargo is influenced by the current global situation and charged by logistics company.Thanks for your understanding!
7" x 12" Metal Lathe
  • Variable Speed & 50-2500 RPM & Emergency Stop
  • The reinforced metal construction provides a sturdy base for a more accurate rotation and the splash guard ensures maximum protection during use. With this lathe you will get a superb workhorse. The 7 x 12 Inch lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, and a 550W motor. 50-2500 RPM continuously adjustable. Compact easy-to-use machine meets powerful precise lathe. It's the excellent addition to your workbench.
  • Sturdy Construction
  • Infinitely Variable Speeds
  • Accurate 3-jaw Chuck
  • Professional Compound Rest
7
Heavy-Duty Machine
Made of superior iron, which can withstand long years. Feature a 7-inch swing over bed, 11.8 inch distance between centers. The wide through hole allows easy work with long and thin pieces including pins, bushings, axles, and shafts.
7
Stepless Speed Control
Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
7
High-Accuracy Chuck
The self-centering 3-jaw chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.0004 inch / 0.01 mm.
7
Four-way Tool Post
T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
7
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 12-52 T.P.I reversible lead screw. The v-slideways with distance between center: 11.81" / 300 mm. A lamp is for accurate operation in dark circumstances.
7
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
7
Package Content
  • 1 x Mini Lathe
  • 1 x MS2 # Fix The Top
  • 1 x Double-Headed Wrench
  • 1 x Oil Can
  • 1 x Set of Nylon Gears
  • 1 x Chuck Claw
  • 1 x Hexagon Bar Wrench
  • 1 x Chuck Wrench
  • 1 x Protecting Mask
  • 4 x Shockproof Foot Cushion
  • 1 x English Manual
7
Specifications
  • Color: Red
  • Medium: Metal
  • Certification: ETL
  • Voltage: 220 V 50 Hz
  • Motor Power: 550 W
  • Variable Speed Gear: Plastic Nylon
  • Spindle Taper: MT3
  • Tail Stock Taper: MT2
  • Distance between Centers: 12 inch / 300 mm
  • Swing over Bed: 7 inch / 180 mm
  • Chuck Diameter: 3 inch / 80 mm
  • Hole thru Spindle: φ0.83 inch / 21 mm
  • Tailstock Sleeve: φ0.9 inch / 22 mm
  • Cross Slide Travel: 2.56 inch / 65 mm
  • Top Slide Travel: 1.38 inch / 35 mm
  • Range of Metric Threads: 12.7-63.5 mm
  • Range of Imperial Threads: 12-52 T.P.I
  • Spindle Accuracy: 0.0004 inch / 0.01 mm
  • Spindle Speed: 50-2500 RPM
  • Item Weight: 90.4 lbs / 41 kg
  • Item Dimensions: 27.5 x 12.5 x 11.5 in / 70 x 31.8 x 29.2 cm

Specification

Color
Red
Medium
Metal
Certification
ETL
Voltage
220 V 50 Hz
Motor Power
550 W
Variable Speed Gear
Plastic Nylon
Spindle Taper
MT3
Tail Stock Taper
MT2
Distance between Centers
12 inch / 300 mm
Swing over Bed
7 inch / 180 mm
Chuck Diameter
3 inch / 80 mm
Hole thru Spindle
φ0.83 inch / 21 mm
Tailstock Sleeve
φ0.9 inch / 22 mm
Cross Slide Travel
2.56 inch / 65 mm
Top Slide Travel
1.38 inch / 35 mm
Range of Metric Threads
12.7-63.5 mm
Range of Imperial Threads
12-52 T.P.I
Spindle Accuracy
0.0004 inch / 0.01 mm
Spindle Speed
50-2500 RPM
Item Weight
90.4 lbs / 41 kg
Item Dimensions
27.5 x 12.5 x 11.5 in / 70 x 31.8 x 29.2 cm
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.8
  • See More See Less
90 Review(s)
Clear filters
Bob Bob
Grandpa
For my use it works great. Making some small parts. It was well packaged and worked without too much fuss to set up. Definitely a good buy.
Trelynn Trelynn
obligatory
It's not bad, hobby use without major pretensions
James Gibbs James Gibbs
James
I bought this lathe with a mindset that at is cheap.But boy I was pretty happy with it when it came everything was very nice . Every thing lined up I would tell anyone that wanted one too get it great value for the money
Renn N Sminkey Renn N Sminkey
Tool & Diemaker
This is the third lathe I bought. The first two I bought were from Ebay and they never delivered and I had to wait to get my money back. I did get my money back , but it delayed my projects from getting done for 6 months. I ordered this lathe from Vevor and they promised delivery in 1 week and they lived up to there promise . Do not delay ordering from this company, prices are going up so order now. This lathe is the best product out there . I bought this for pool cue repair and it works just what you would expect a good lathe to work. The quality is great. Well made heavy casting for the bed, great precision .0001 tol. Renn
ET ET
Mr.
The lathe arrived within a few days of purchase and was undamaged. The crate it was shipped in is a work of art and worth keeping. I have spent ~24 hours disassembling, cleaning, inspecting, deburring, honing, oiling, greasing, and reassembling the lathe's mechanical subsystems - tail stock, compound slide, cross slide, carriage, apron, ways, feed screw, rack gear, chuck, and stud gears. I also inspected the motor and electronics. I have posted >150 photos in the Facebook group Home Shop Machinist (https://www.facebook.com/groups/1104020856281121) of my progress - 10/12 (6), 10/23 (19), 10/26 (46), 10/28 (17), 10/31 (35), 11/04 (26), 11/07 (5). This is the second lathe I have owned. I am very pleased with it so far. I am looking for more accessories - MT3 ER32 collet chuck w/collets, MT3 dead center, faceplate and lathe dogs, follower/steady rest, MT2 live center, tooling. I am also planning a few upgrades - way covers and locks and/or stops for the slides. Once I get it mounted to a solid base I will align the tailstock, tool, and chuck. Once aligned I will begin to make parts with it. I look forward to many years of service from it. It is a fine addition to my small home shop.
Shane Shane
Mini metal lathe
Works good , fast shipping , good value for money. Over all I am happy with the product thank you vevor I’ll be buying from use again
donald pierce donald pierce
Very fast shipping , 7 x 14 lathe works perfectly very good bargain. so far very good equipment thank you
Marcus Porter Marcus Porter
compact precision lathe
mechanically very good and accurate. The instructions could be more, ie adjustments
Thomas Garrett Thomas Garrett
Mr.
Nice little machine, was well set up from the factory, I added a few perks as in the quick change toolpost and live center, also steel gear set. I spent a little time checking bolts , gib adjustments, cleaning, aligning center with the chuck. I must admit, everything was fairly close and machine runs quietly.
Sniper Sniper
Gears
Verry well pack works better than expected all measurements are spot on.only problems was gear chart not right. I would have gave a five star rating but like I said the gear chart wrong
