Features & Details
- Sturdy Aluminium Construction: The mini metal lathe bed is made of high grade iron. Equipped with quality gears, this lathe machine is wear-resistant, sturdy, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splash guard provides maximum protection.
- Infinitely Variable Speeds: Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The handness and accuracy of the v-slideways are obtained by raw material, heat hardening and grinding. Emergency stop buttom included.
- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Back splash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.
- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.

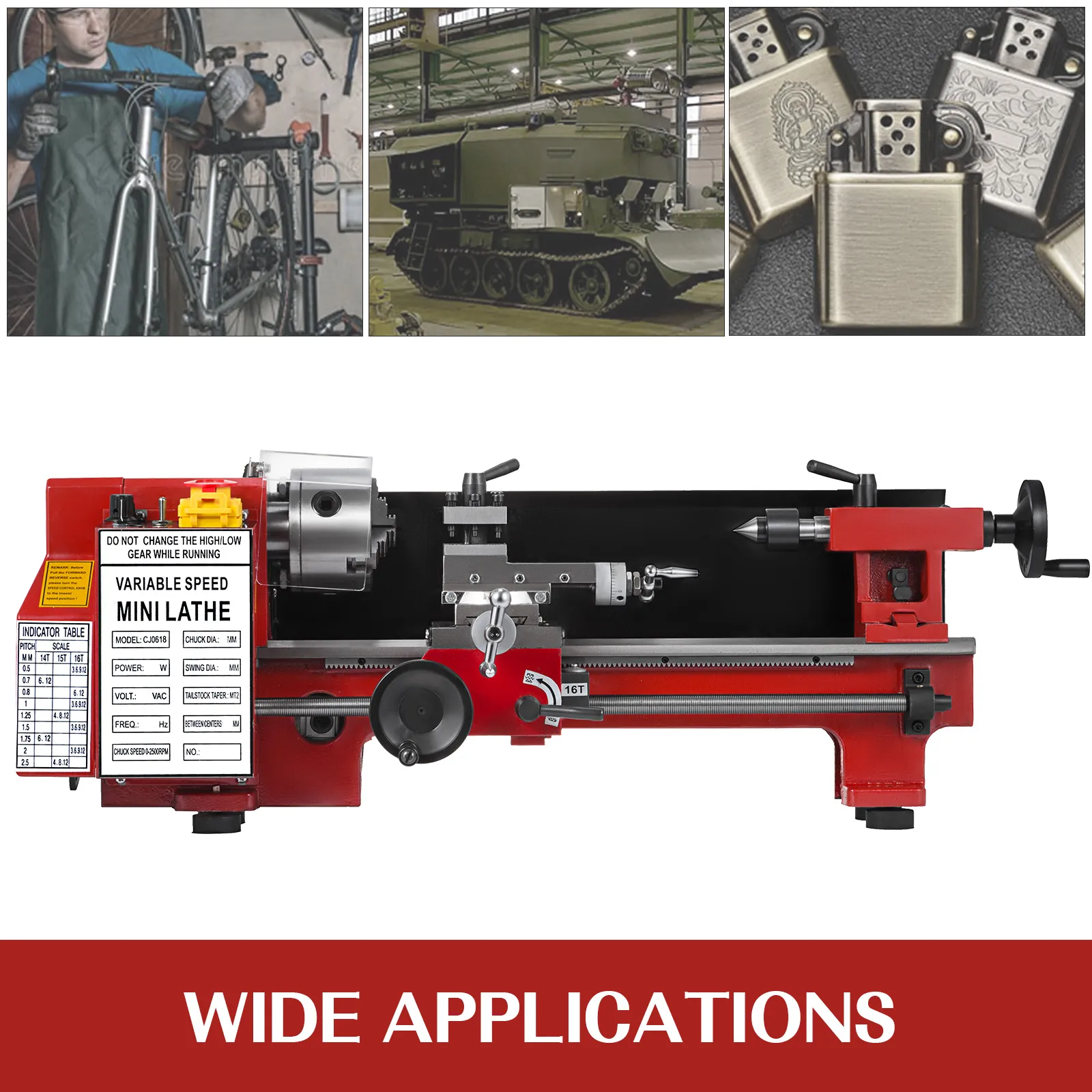

- Extensive Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 1 reviews
Reviews 5.0
All reviews are from verified purchases
See all 1 reviews
About this item
Product specification
- Power of Motor
- 550W DC Single Phase
- Volt
- 220V 50Hz
- Material
- Iron
- Swing Over Bed
- 180 mm / 7"
- Distance Between Centers
- 400 mm / 16"
- Chuck Diameter
- 80 mm / 3.15"
- Spindle Bore
- 20 mm / 0.79"
- Cross Slide Travel
- 65 mm / 2.56"
- Top Slide Travel
- 35 mm / 1.38"
- Net Weight
- 165 lbs / 55.5 kg

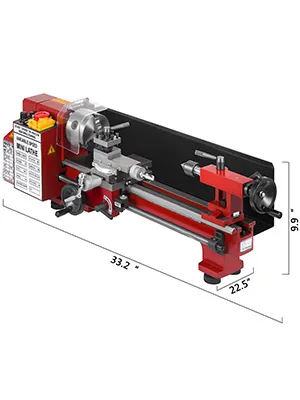

- Item Dimensions (L x W x H)
- 33.2 x 8.8 x 9.9 in / 84 x 22.4 x 25 cm
Description

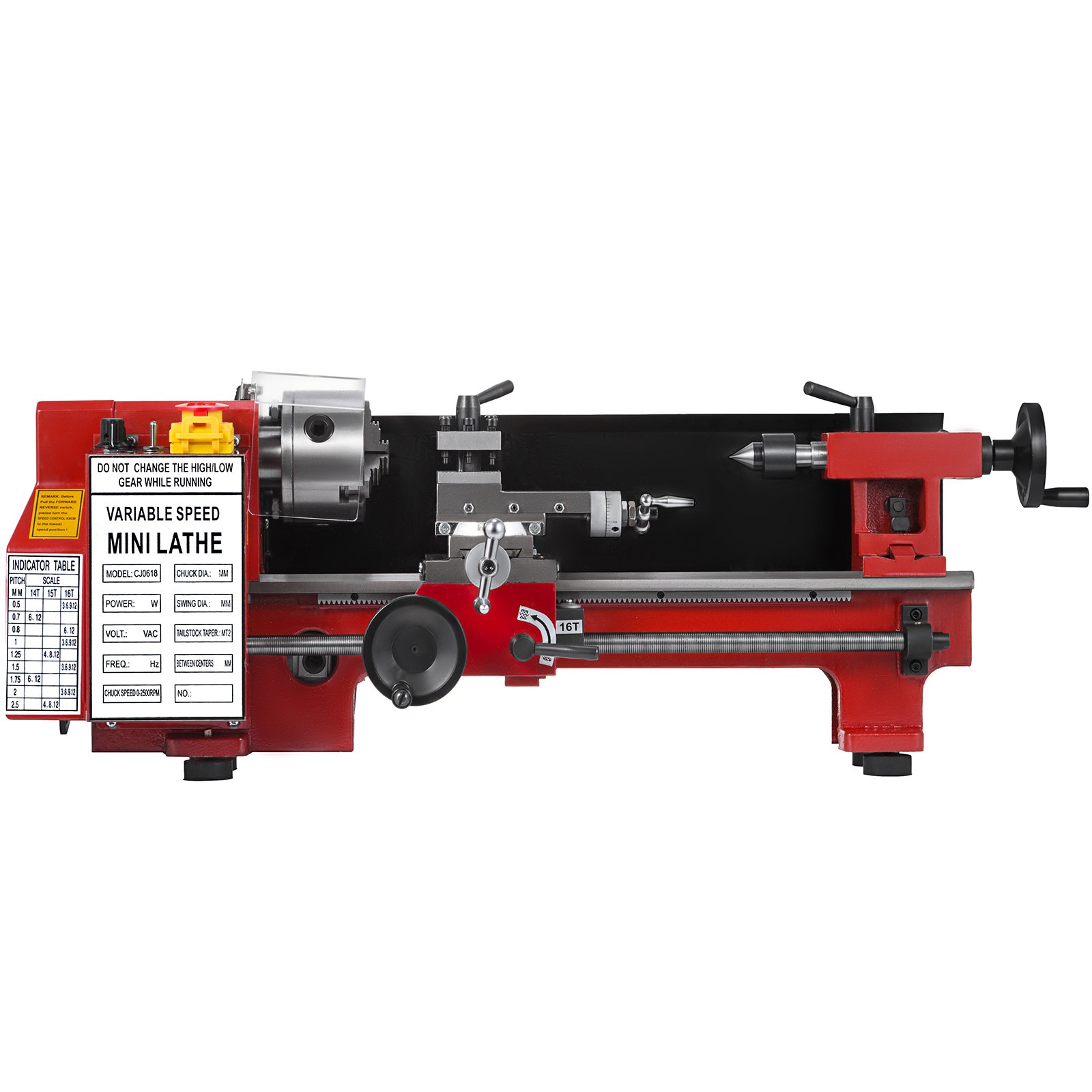

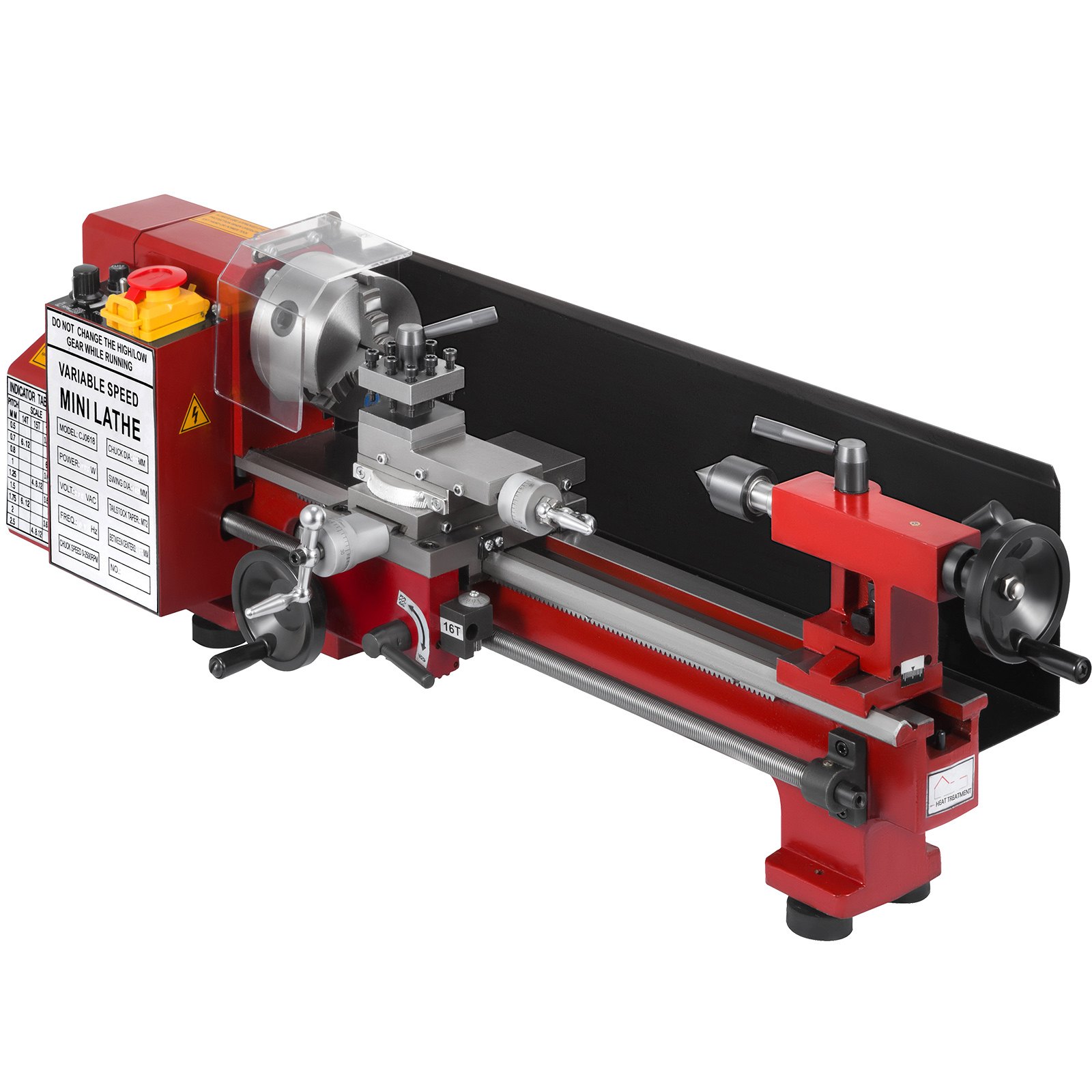

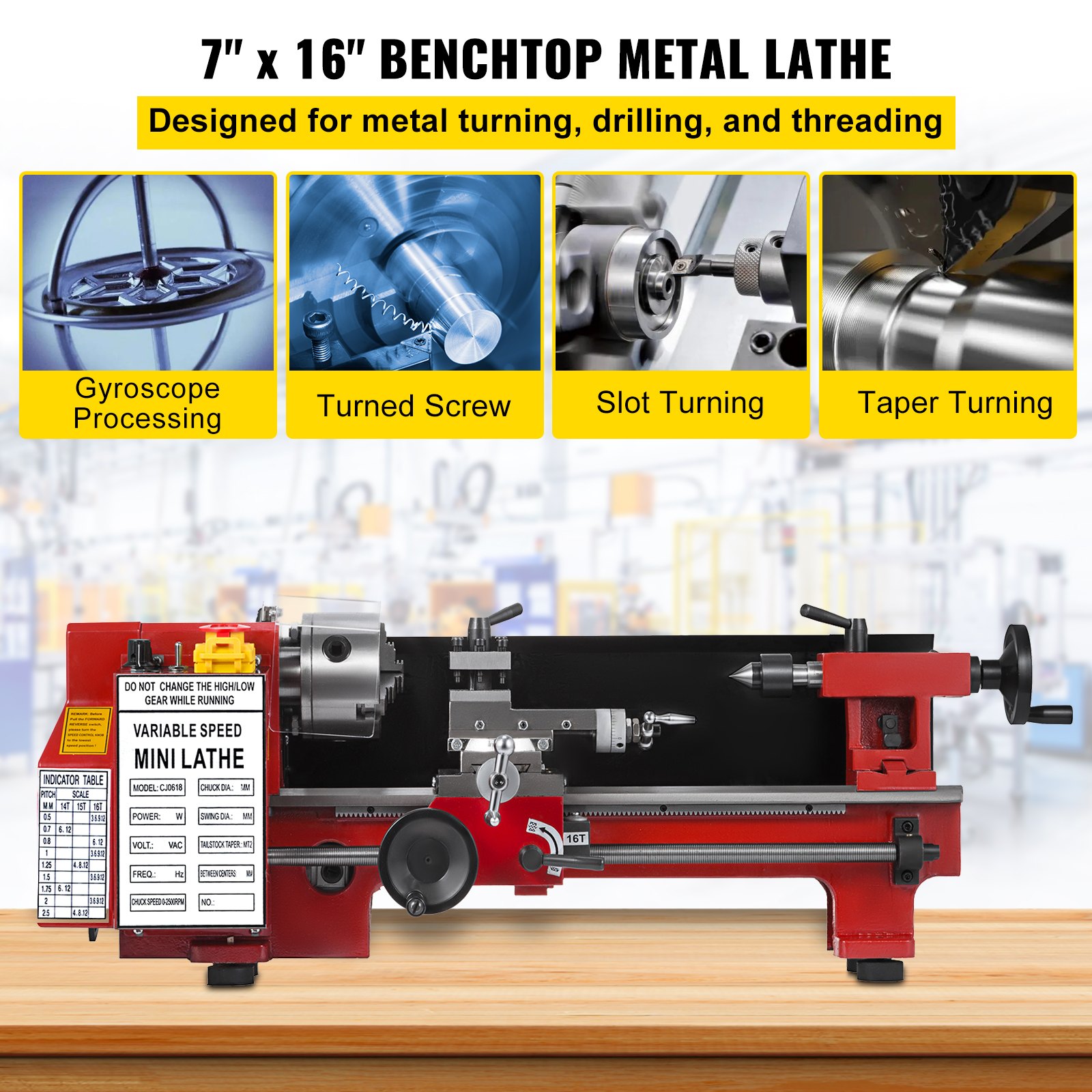

7" x 16" Metal Lathe
550W Powerful Motor & Variable Speed & Quality Gears
- The 7 x 16 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
- Sturdy Aluminium Construction
- Infinitely Variable Speeds
- Accurate 3-jaw Chuck
- Professional Compound Rest
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

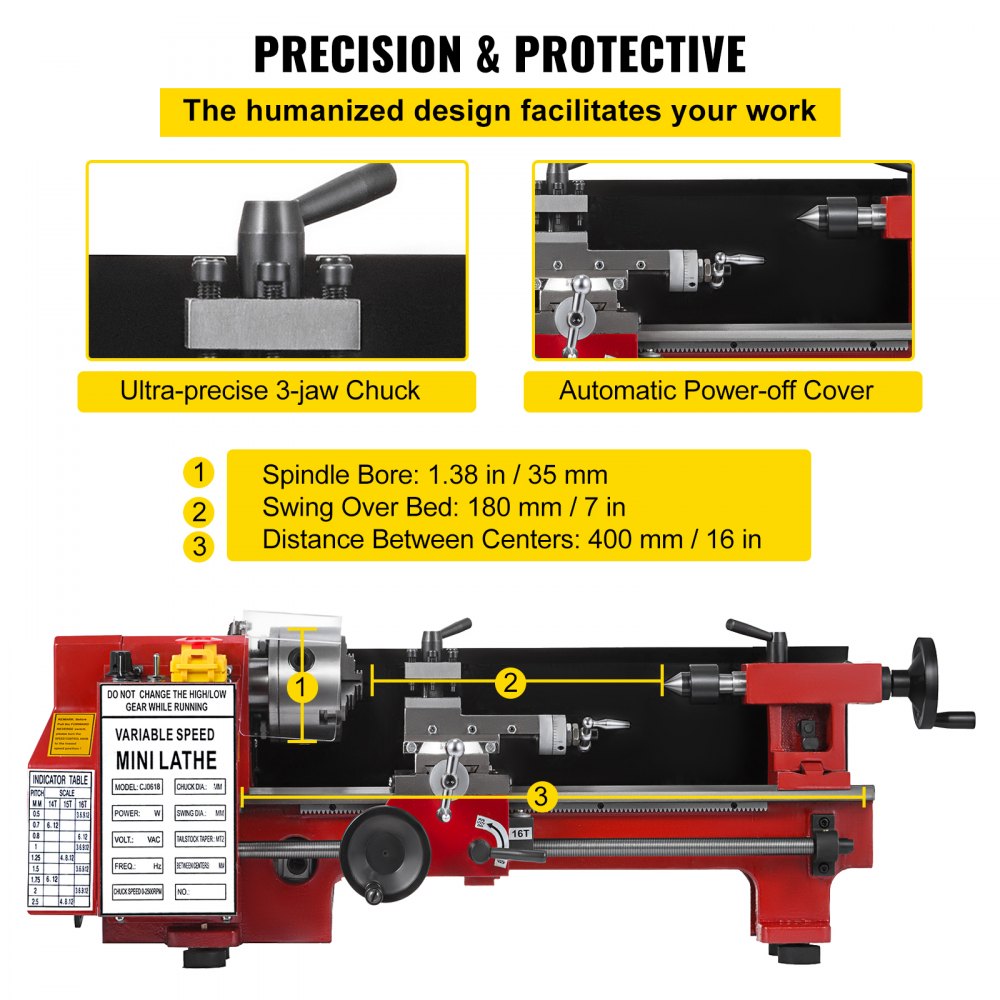

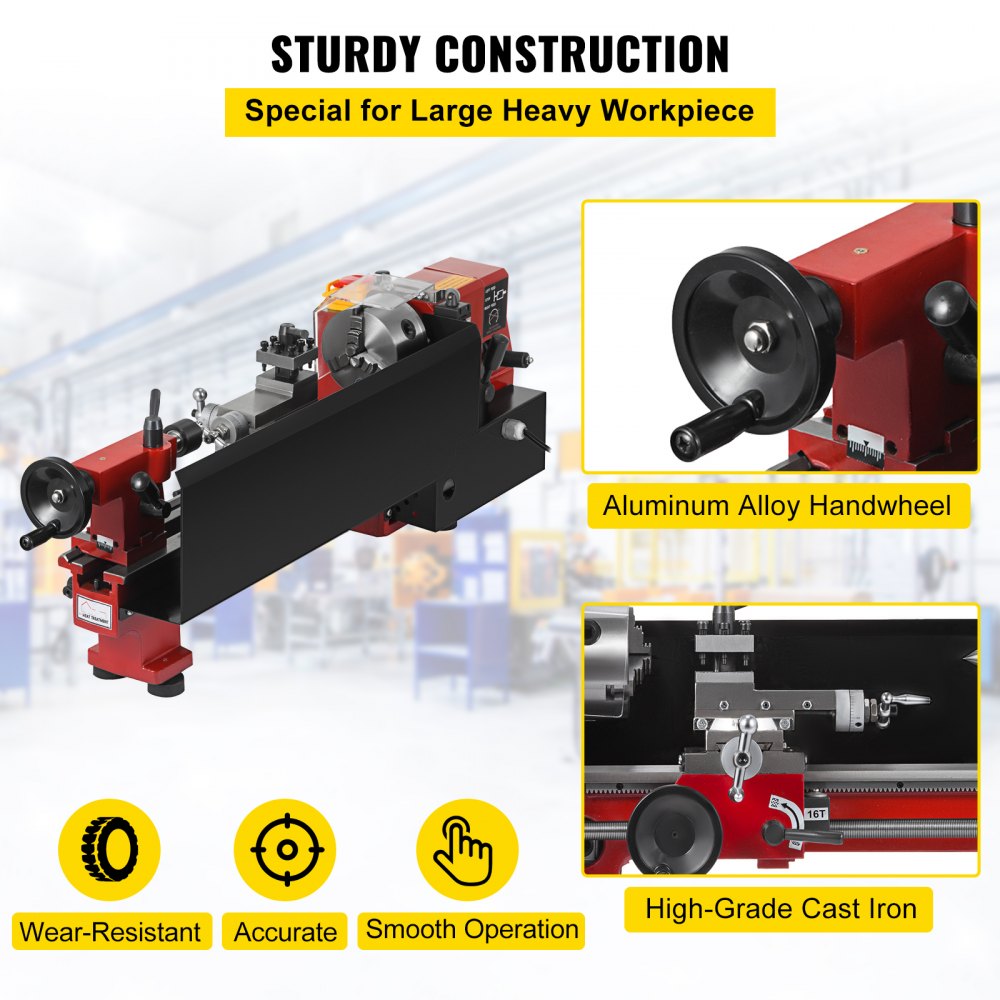

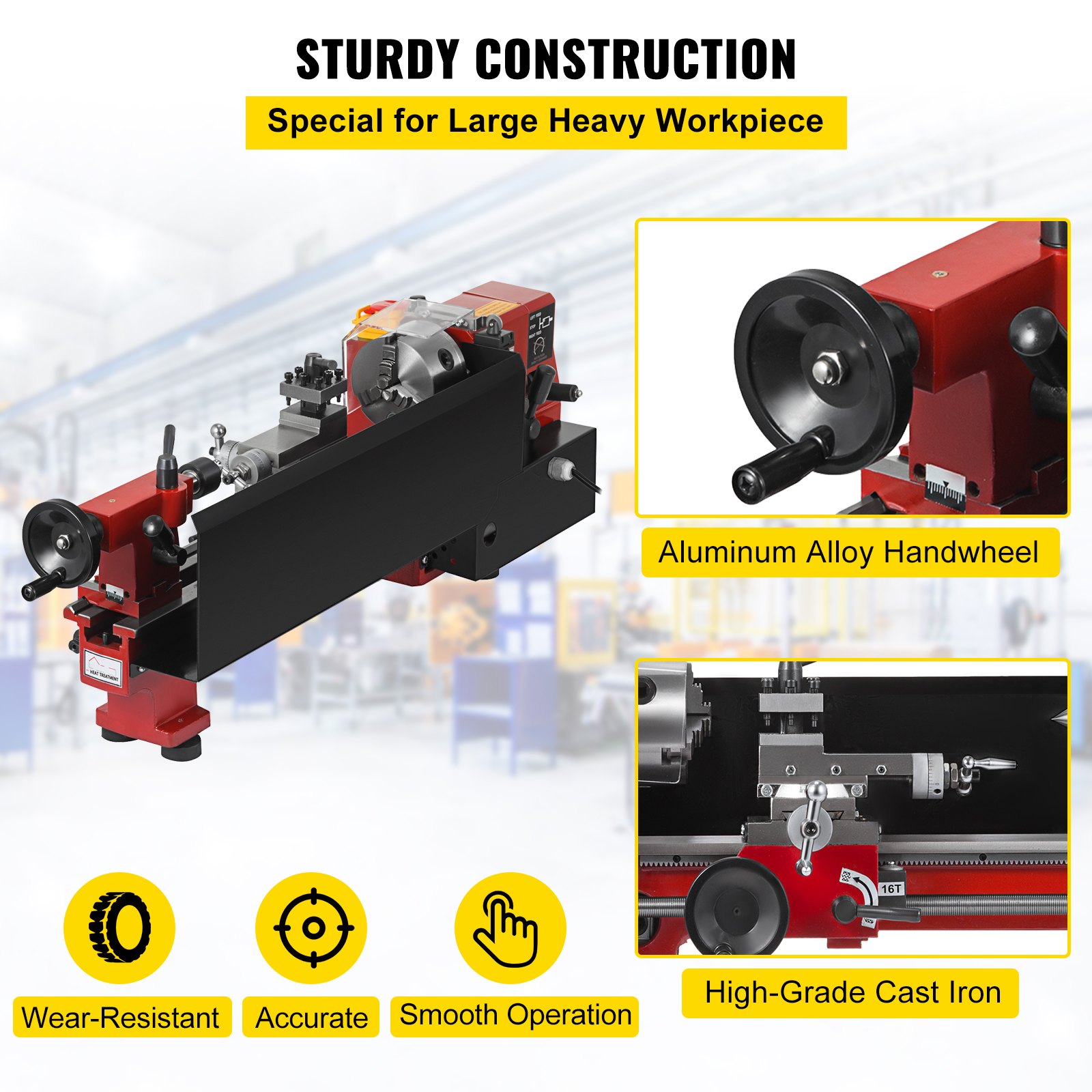

Heavy & Sturdy Machine
Features a 180 mm/ 7 in swing over bed, 400 mm/ 16 in distance between centers, 65 mm cross slide travel, and 20mm spindle bore. Includes a thread range of 12-52 TPI, threading dial indicator and standard and metric handwheel graduations.

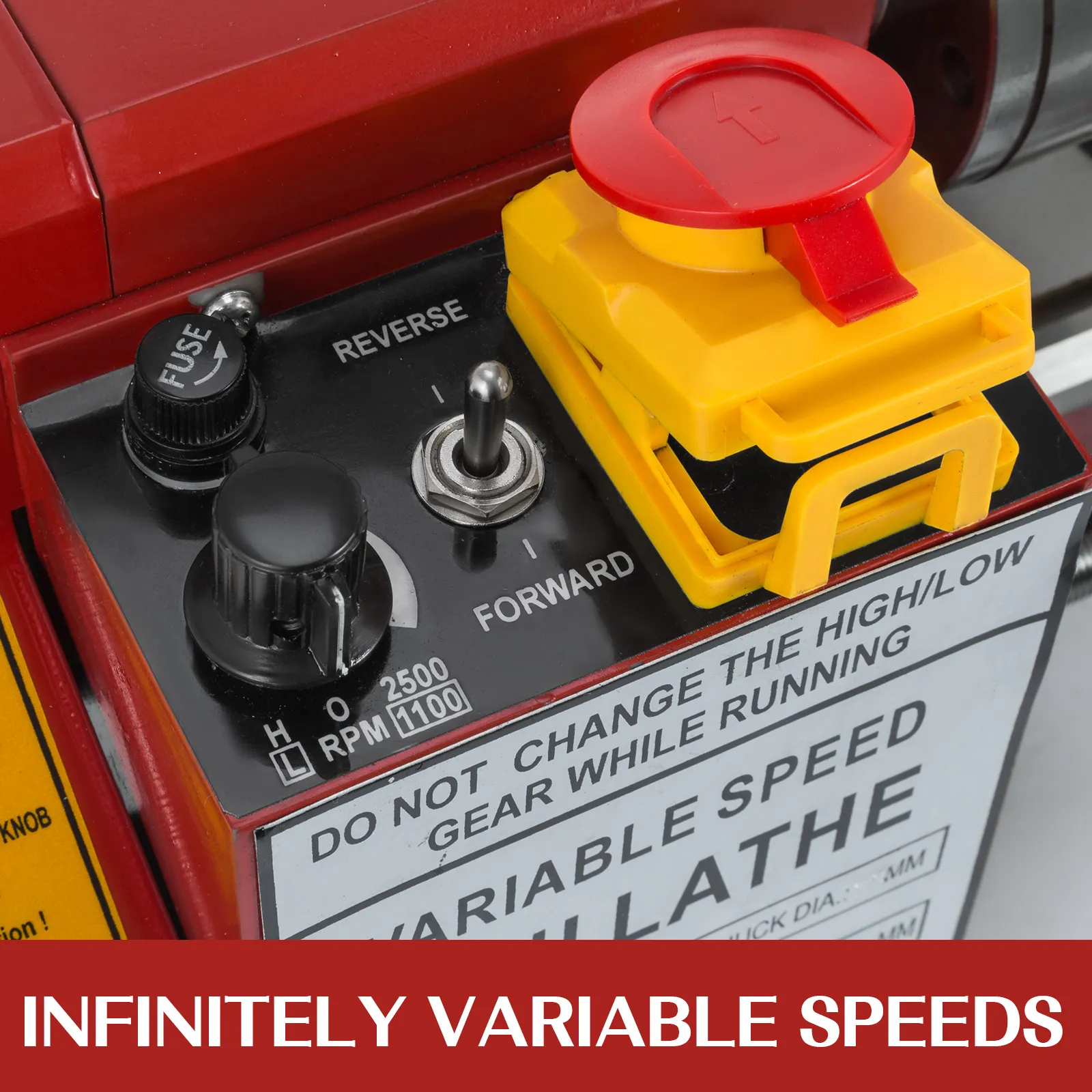

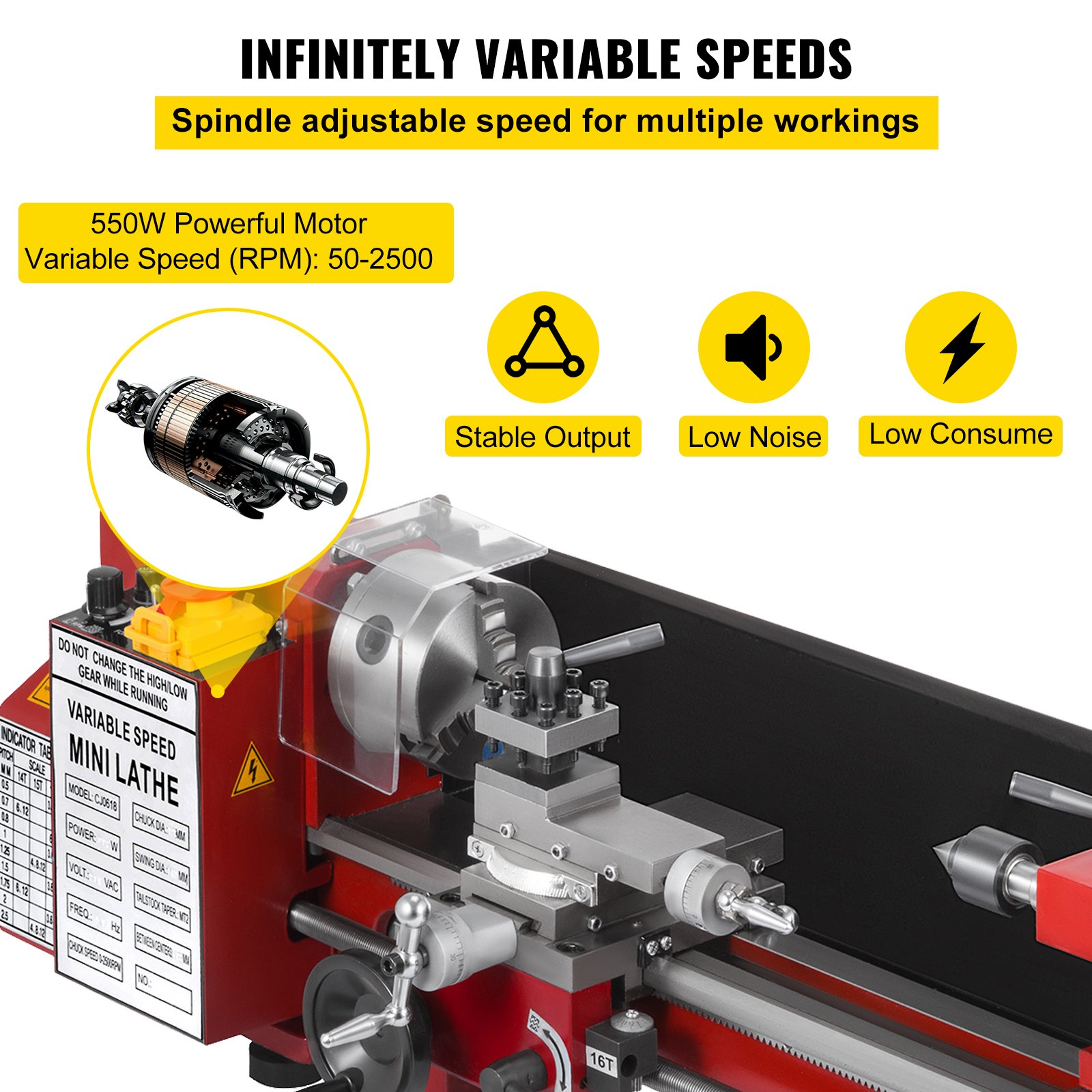

Infinitely Variable Speeds
Variable speed from 50 to 2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.

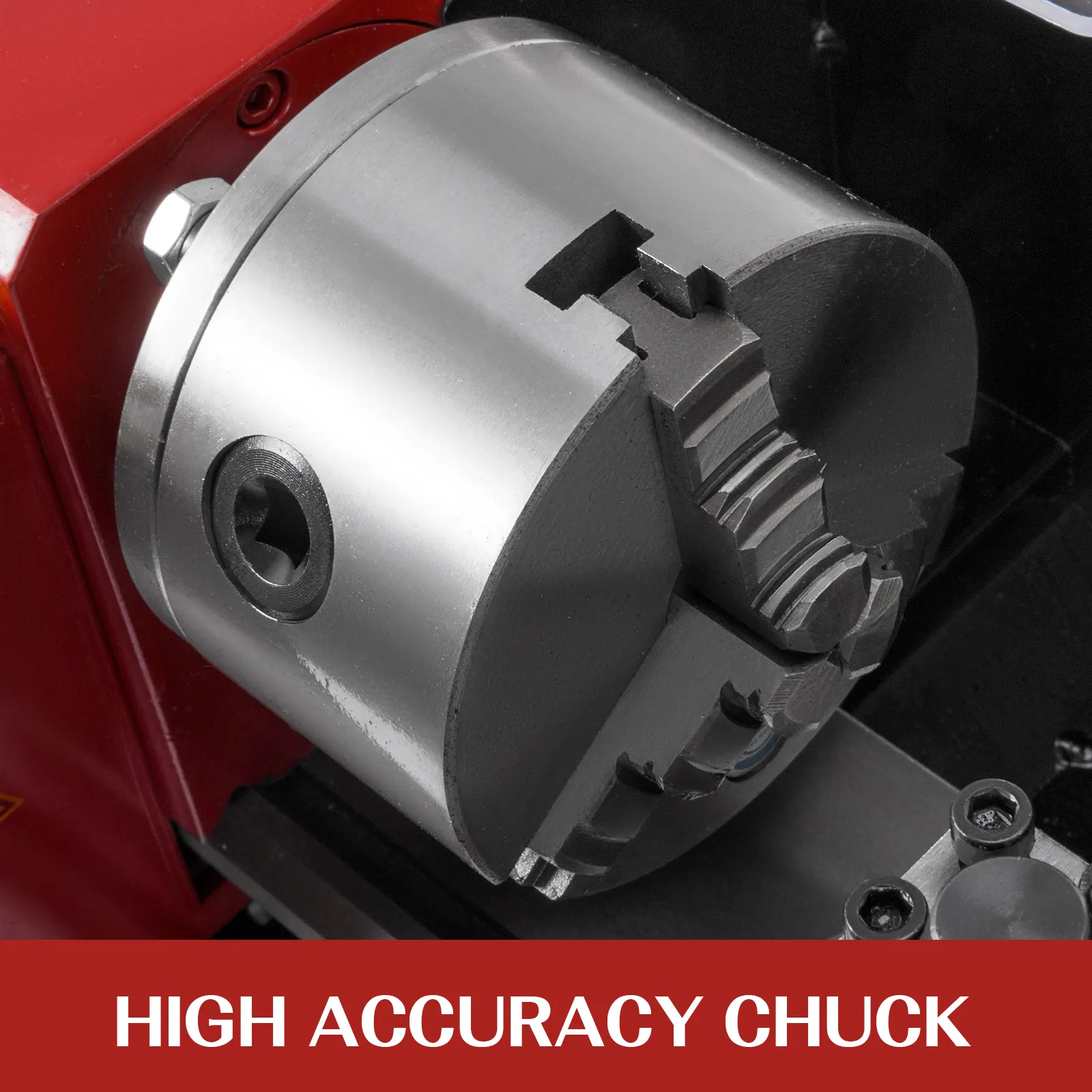

High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.

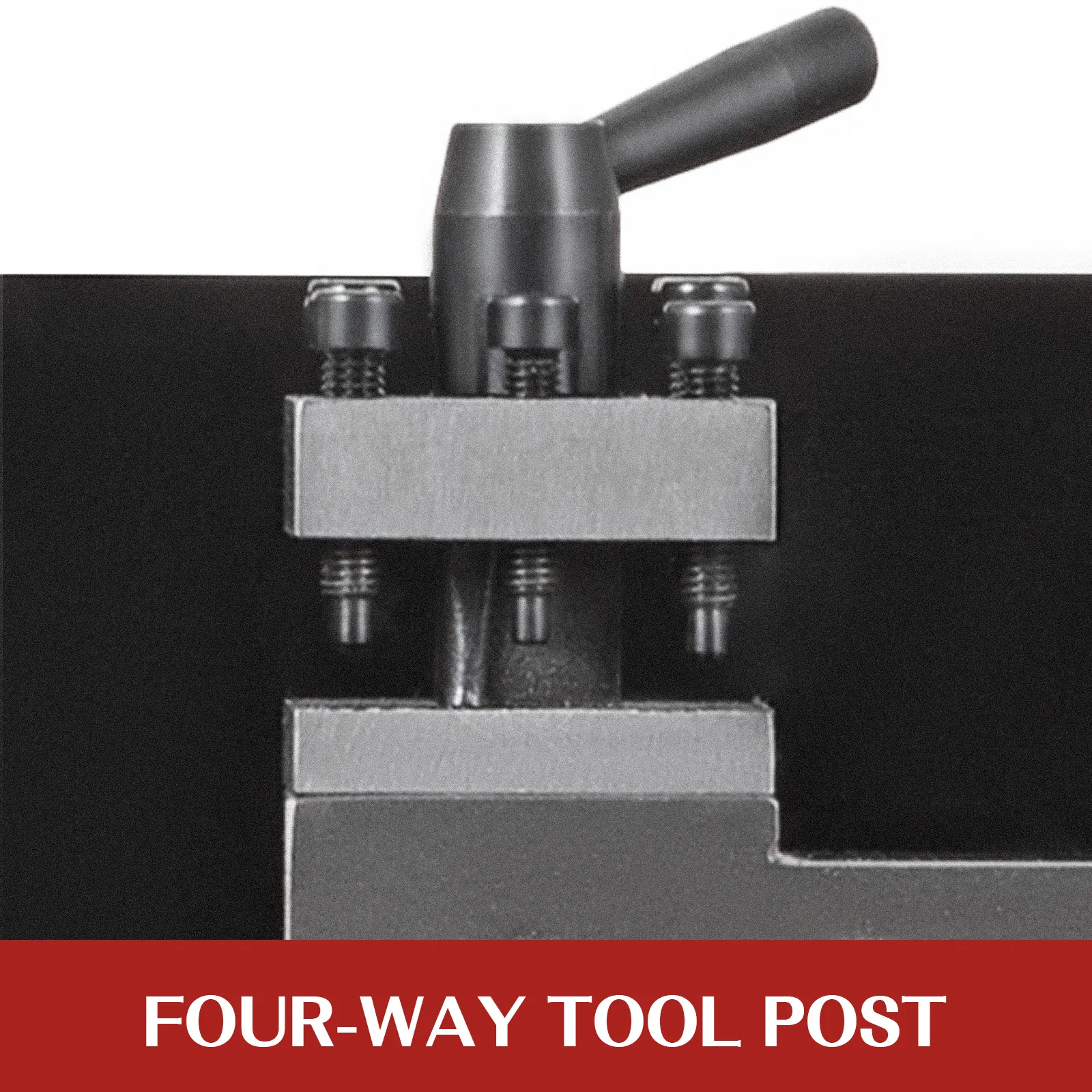

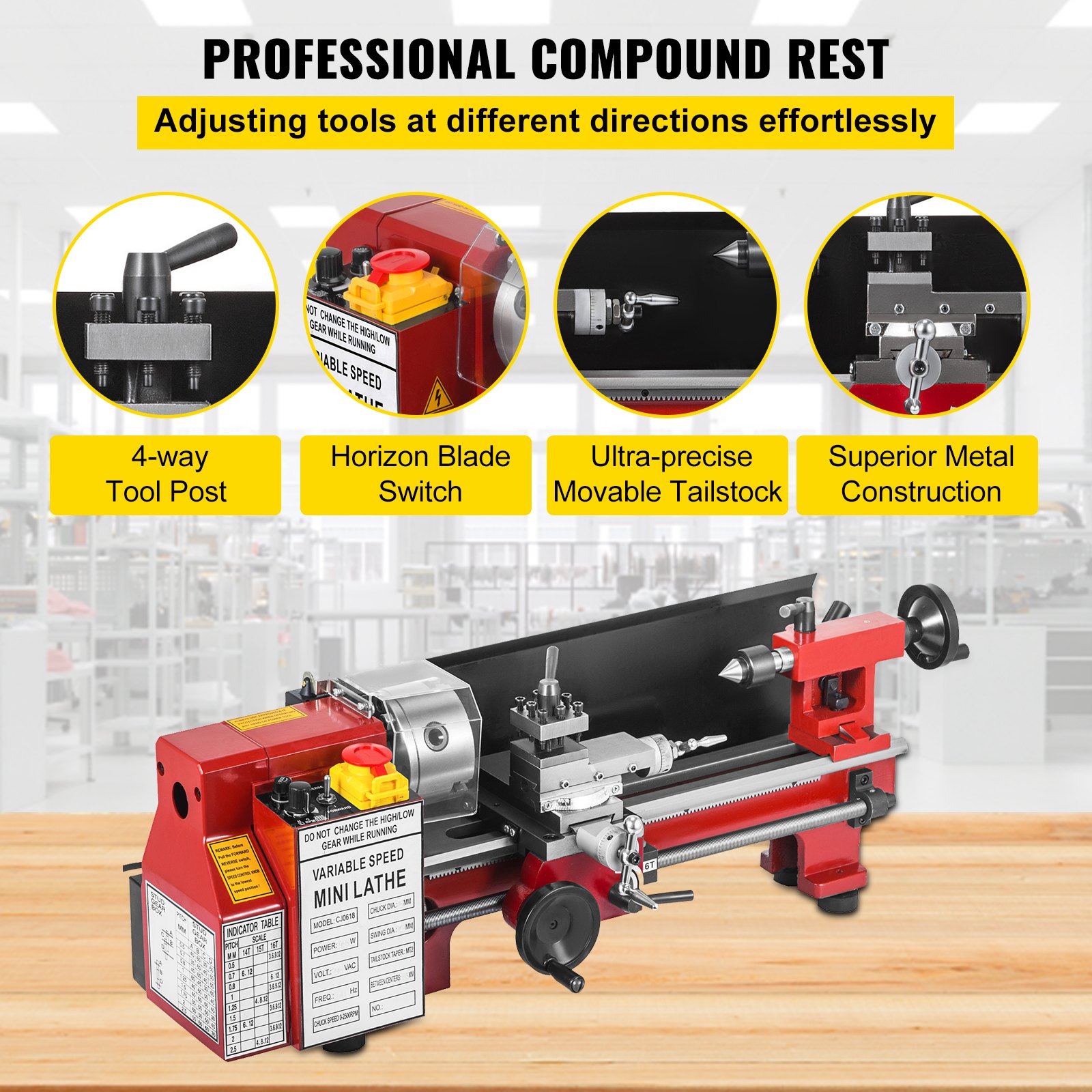

Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.

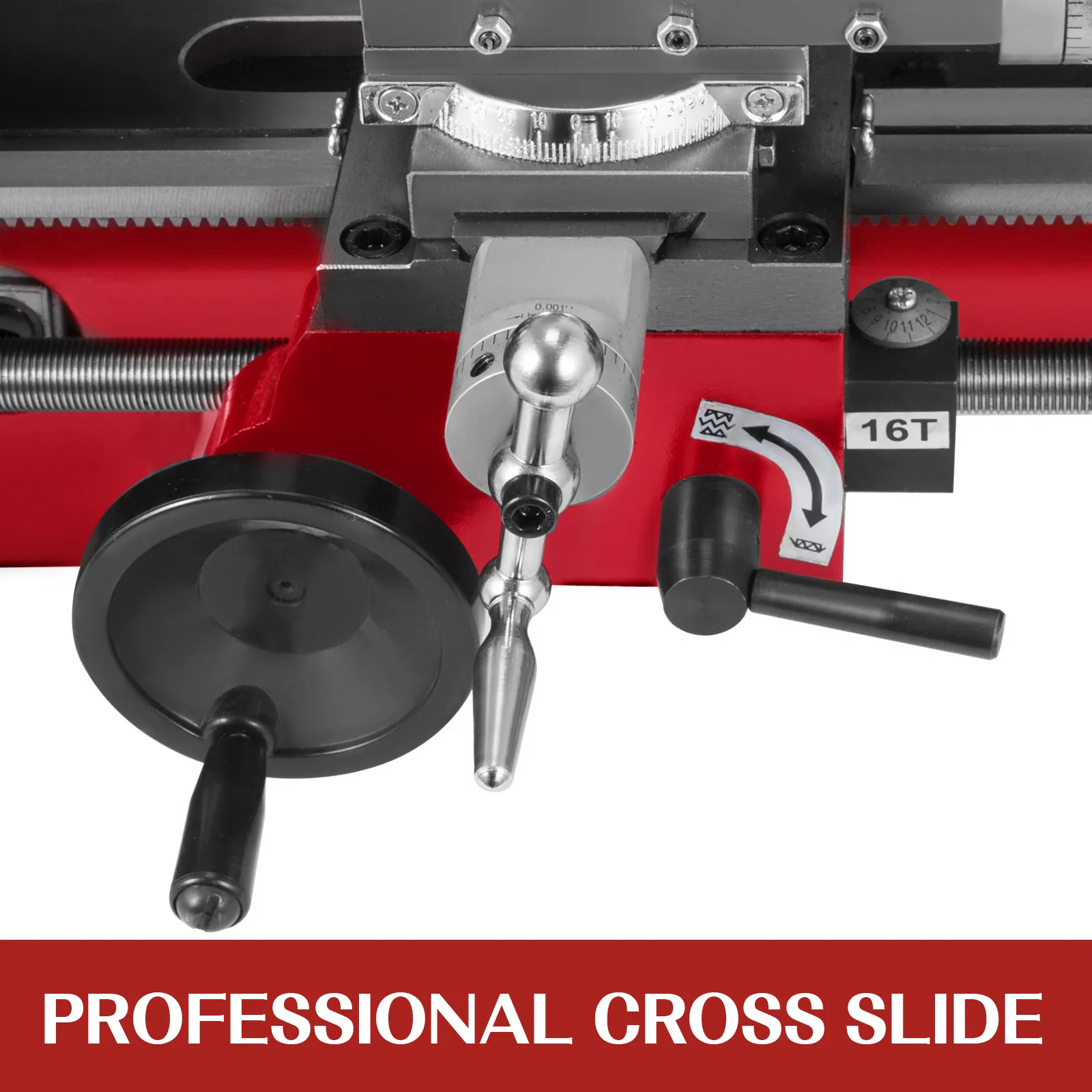

Professional Cross Slide
This bench top metal lathe is designed with abrasive resistance, moving blades optionally with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 400mm / 16", providing large work capacity.
Adjustable MT2 Tailstock
The tailstock is compatible with MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation. All accessories are well-packed.
Specifications
- Power of Motor: 550W DC Single Phase
- Volt: 220V 50Hz
- Material: Iron
- Swing Over Bed: 180 mm / 7"
- Distance Between Centers: 400 mm / 16"
- Chuck Diameter: 80 mm / 3.15"
- Spindle Bore: 20 mm / 0.79"
- Cross Slide Travel: 65 mm / 2.56"
- Top Slide Travel: 35 mm / 1.38"

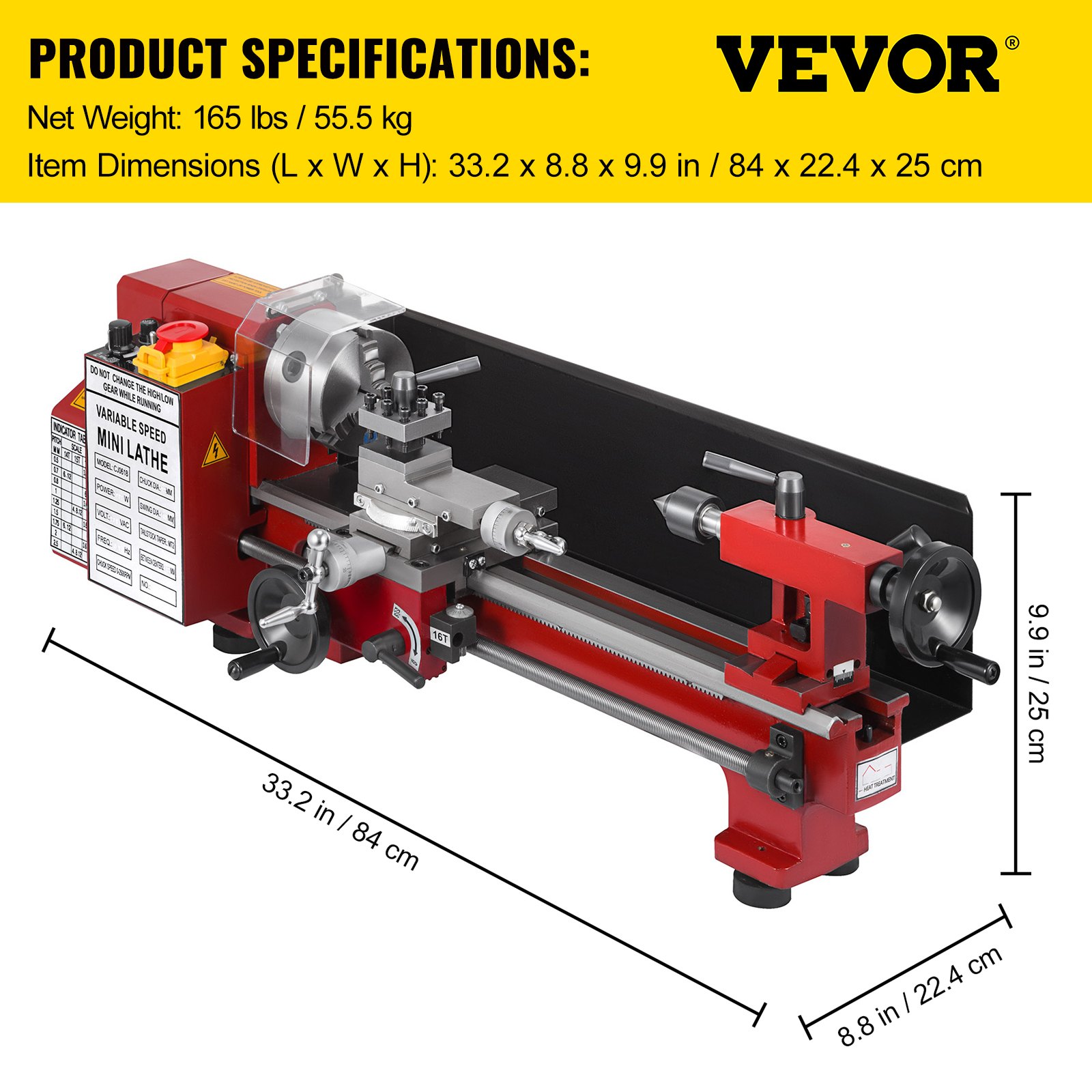

- Net Weight: 165 lbs / 55.5 kg
- Item Dimensions (L x W x H): 33.2 x 8.8 x 9.9 in / 84 x 22.4 x 25 cm

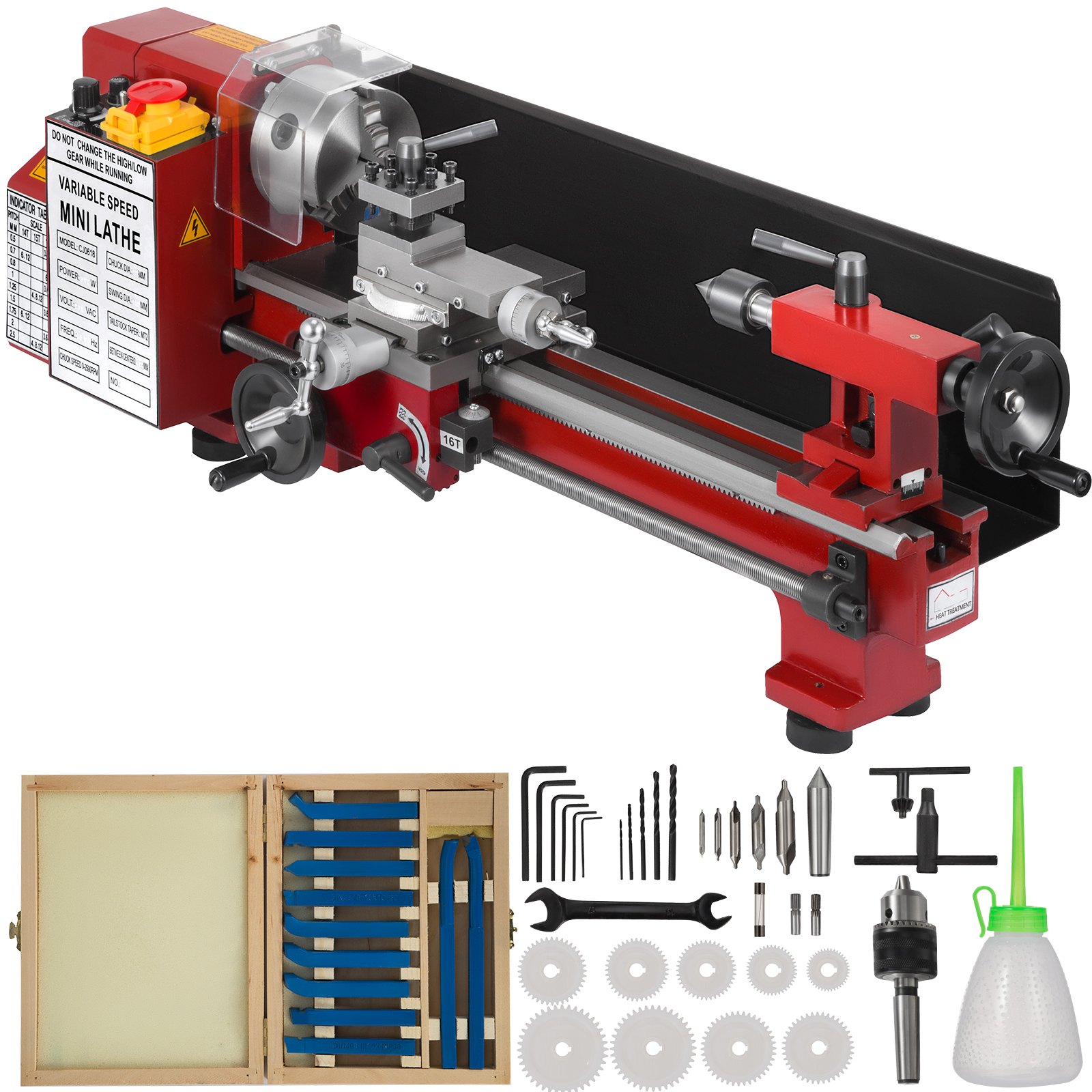

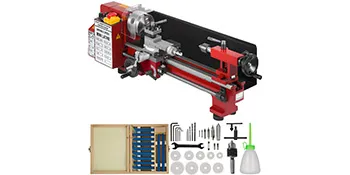

Package Content
- 1 x Mini Metal Lathe
- 11x Cutters
- 6 x Wrenches
- 9 x Feed Rate Gears
- 1 x Oil Can
- Some Related Accessories
- 1 x Manual
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
7" x 16" Metal Lathe
550W Powerful Motor & Variable Speed & Quality Gears
- The 7 x 16 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
- Sturdy Aluminium Construction
- Infinitely Variable Speeds
- Accurate 3-jaw Chuck
- Professional Compound Rest

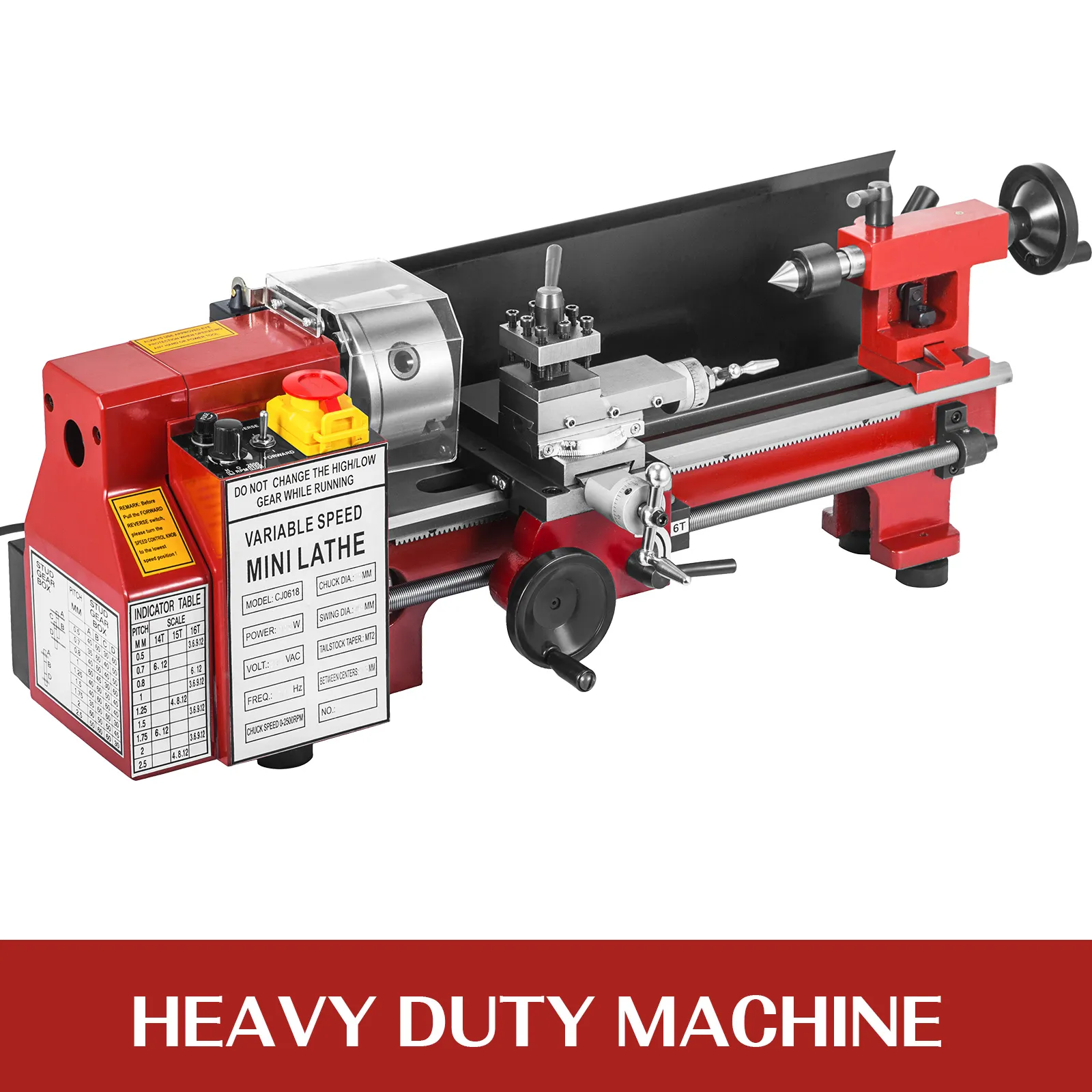

Heavy & Sturdy Machine
Features a 180 mm/ 7 in swing over bed, 400 mm/ 16 in distance between centers, 65 mm cross slide travel, and 20mm spindle bore. Includes a thread range of 12-52 TPI, threading dial indicator and standard and metric handwheel graduations.
Infinitely Variable Speeds
Variable speed from 50 to 2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
Professional Cross Slide
This bench top metal lathe is designed with abrasive resistance, moving blades optionally with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 400mm / 16", providing large work capacity.
Adjustable MT2 Tailstock
The tailstock is compatible with MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation. All accessories are well-packed.
Package Content
- 1 x Mini Metal Lathe
- 11x Cutters
- 6 x Wrenches
- 9 x Feed Rate Gears
- 1 x Oil Can
- Some Related Accessories
- 1 x Manual
Specifications
- Power of Motor: 550W DC Single Phase
- Volt: 220V 50Hz
- Material: Iron
- Swing Over Bed: 180 mm / 7"
- Distance Between Centers: 400 mm / 16"
- Chuck Diameter: 80 mm / 3.15"
- Spindle Bore: 20 mm / 0.79"
- Cross Slide Travel: 65 mm / 2.56"
- Top Slide Travel: 35 mm / 1.38"
- Net Weight: 165 lbs / 55.5 kg
- Item Dimensions (L x W x H): 33.2 x 8.8 x 9.9 in / 84 x 22.4 x 25 cm
