Features & Details
- 【PRODUCT PARAMETERS】- Tooth Form:Mxl, Number Of Teeth Z=20, Pitch Of Teeth P=2.032, Pitch Circle: φ12.936, Outer Circle: φ12.428±0.003,Ratio: 1:2.5 Synchronous Pulley Induction.
- 【EXCELLENT MOTOR】- This router rotary axis uses a new 57-2A two-phase four-wire stepper motor with 1.8N force-torque, stable control, accurate positioning, and high conversion rate.
- 【ACCURATE CHUCK】- The 80mm chuck features high accuracy and good durability, suitable for clamping various types of materials. After special processing, the chuck is not easy to rust.
- 【PRECISE TAIL】- The high-precision tail top installed on the bottom plate can freely adjust the length of the thimble as required, featuring certain strength, toughness, and wear resistance.
- 【SOLID BASE】- The base of the CNC rotational rotary axis adopts special thickening treatment, which makes the machine have good stability during the operation.
Frequently Bought Together
Reviews 4.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 4.0
All reviews are from verified purchases
See all 2 reviews
About this item
Product specification
- Rated Voltage
- 2.07v Dc
- Phase Resistance (20℃) 1.38×(1±15%)ω/Phase
- The Maximum Statictorque
- ≥780mn.M
- Swing( Shaft To See )
- A-Ab-B-Clockwise Direction
- Maximum No-Load Running Frequency
- ≥2500pps
- Electrical Strength
- Ac600v/1ma/1s
- Rotor Inertia
- 220g.㎡
- Step Angle
- 1.8°±0.09°
- Rated Current
- Dc 1a/Phase
- Inductance (1khz)
- 30×(1±20%)Mh/Phase
- Detent Rorque
- 320g.Cm Ref.
- Maximum No-Loadstart Frequency
- ≥1500 Pps
- Insulation Resistance
- ≥100mω(Dc 500v)
- Insulation Grade
- B
- Quality 0.8kg Ref.
- Material Of Pulley
- H62
- Tooth Form
- Mxl
- Number Of Teeth Z=20
- Pitch Of Teeth P=2.032
- Pitch Circle
- φ12.936
- Outer Circle
- φ12.428±0.003

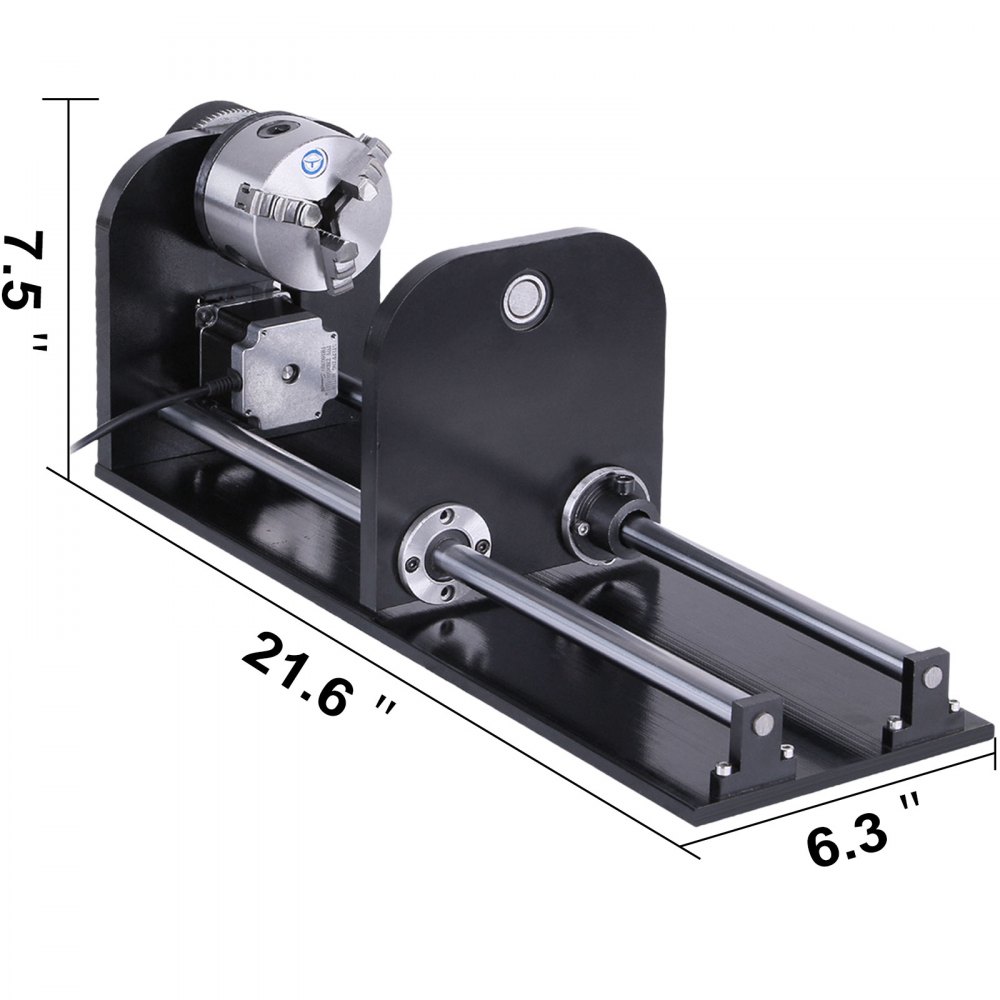

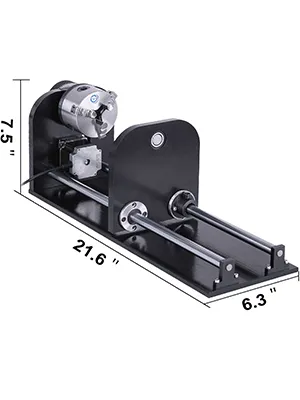

- Product Dimensions
- 152 × 4500 ×178 (H/L/W Mm)
Description

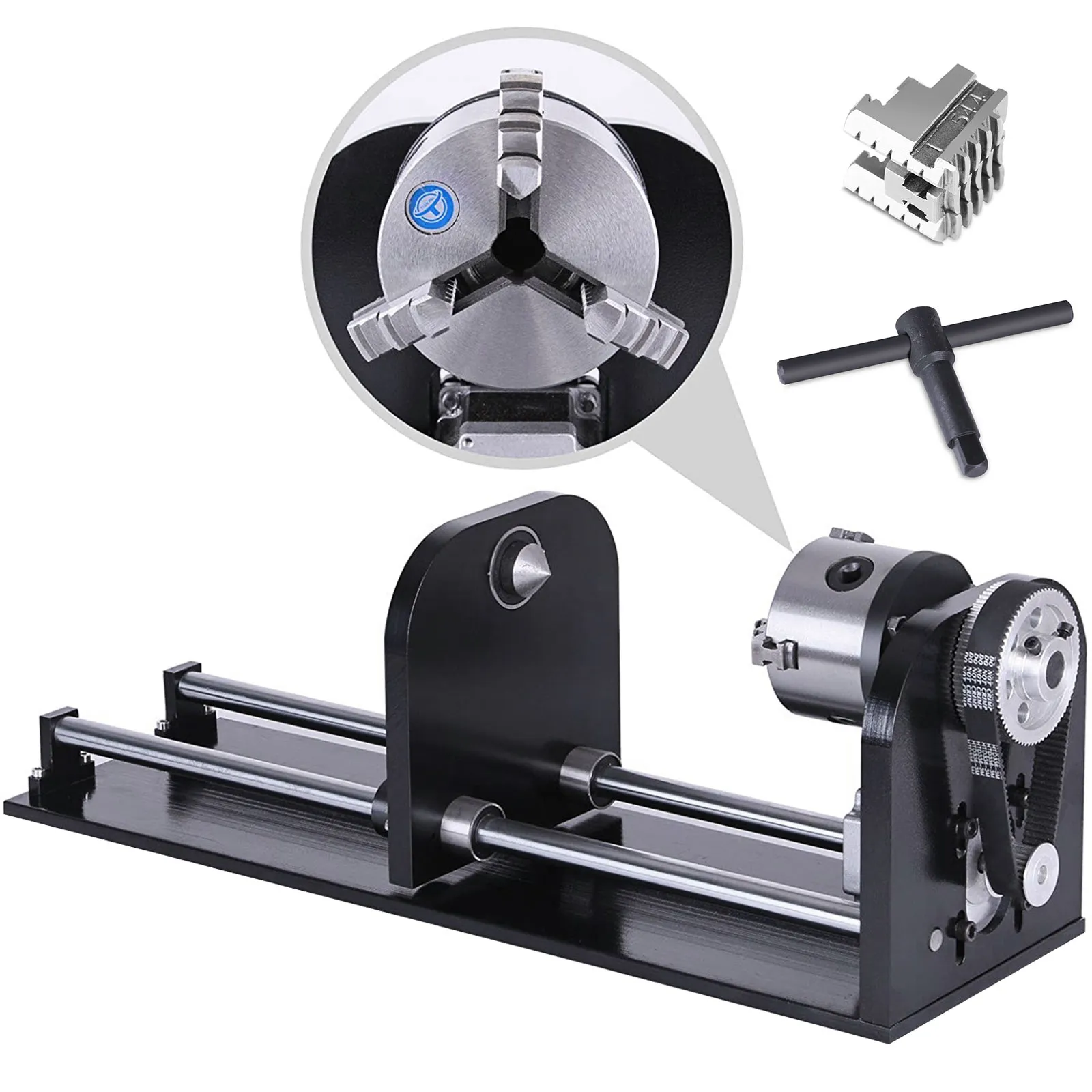

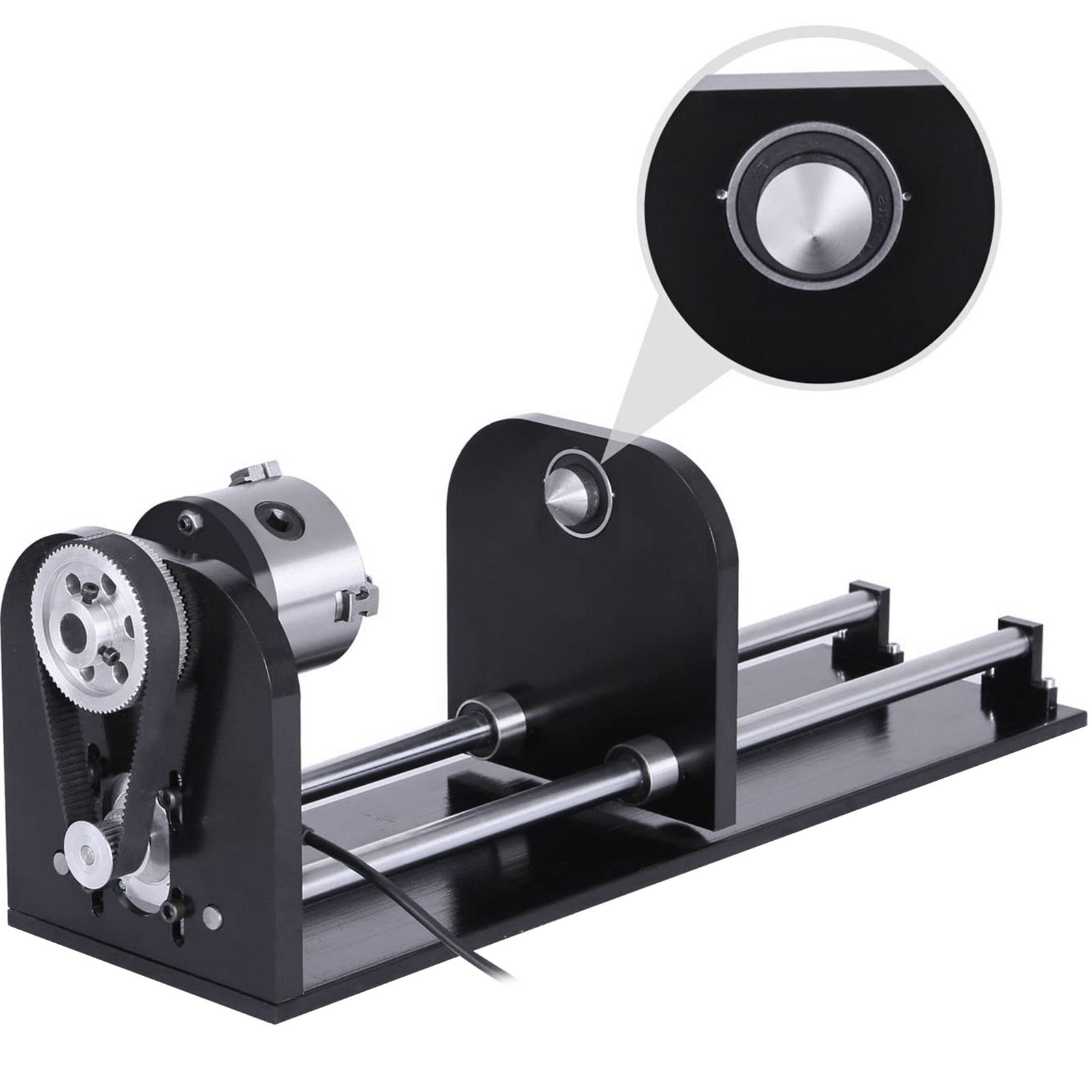

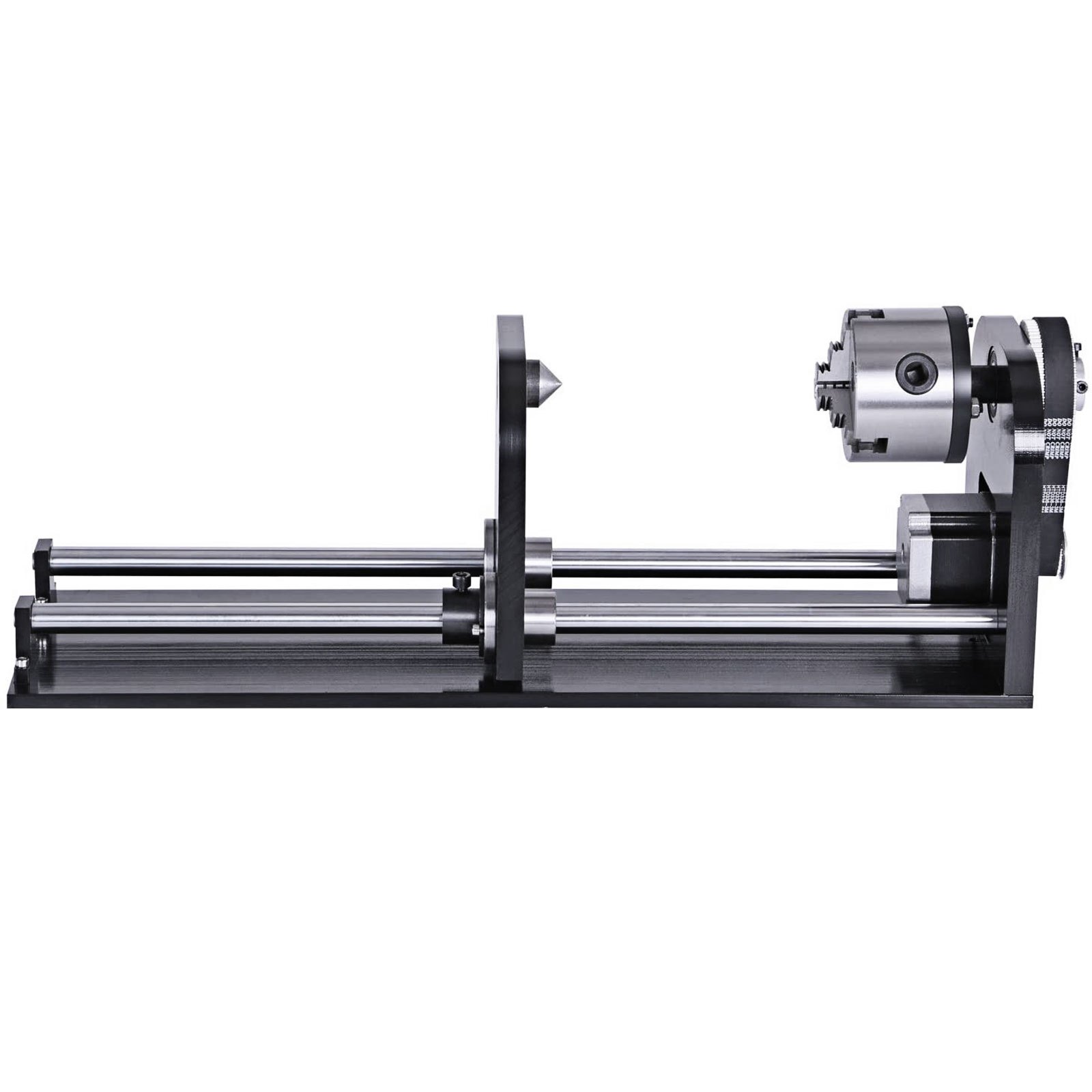

CNC Rotational Rotary Axis
We offer you a superior rotational rotary axis with 80mm 3-jaw scroll chuck. Because of the rotary movement of the fourth rotary axis, it is available for the stereoscopic process for a cylindrical, curved, round, etc. The four-axis engraving machine is widely used in the scroll, stigma, bamboo, and so on so like.
- Product parameters
- Excellent Motor
- Accurate Chuck
- Precise Tail
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

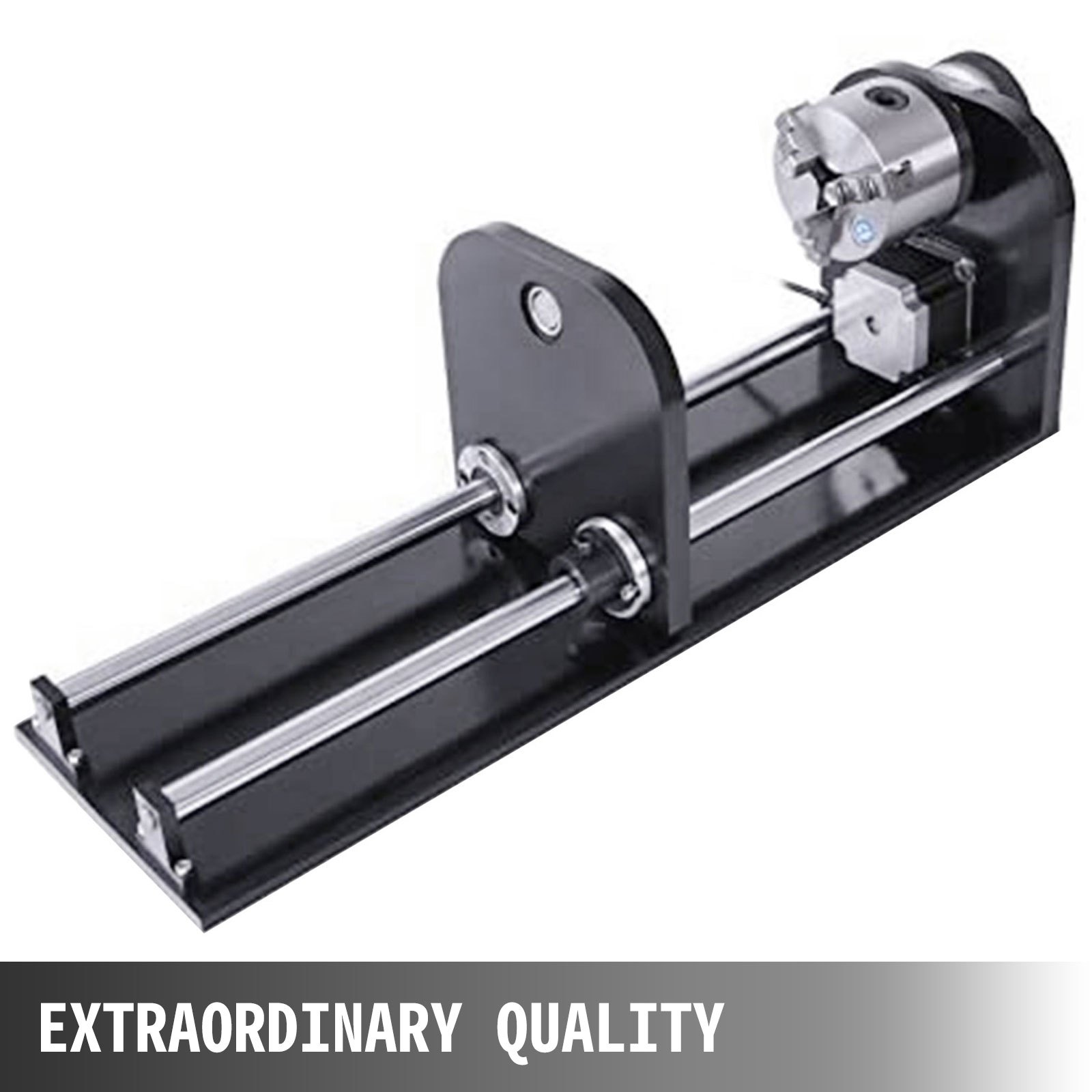

Extraordinary Quality
The all-metal body has a particular strength, toughness, and wear resistance. At the same time, it is not easy to rust after special processing.

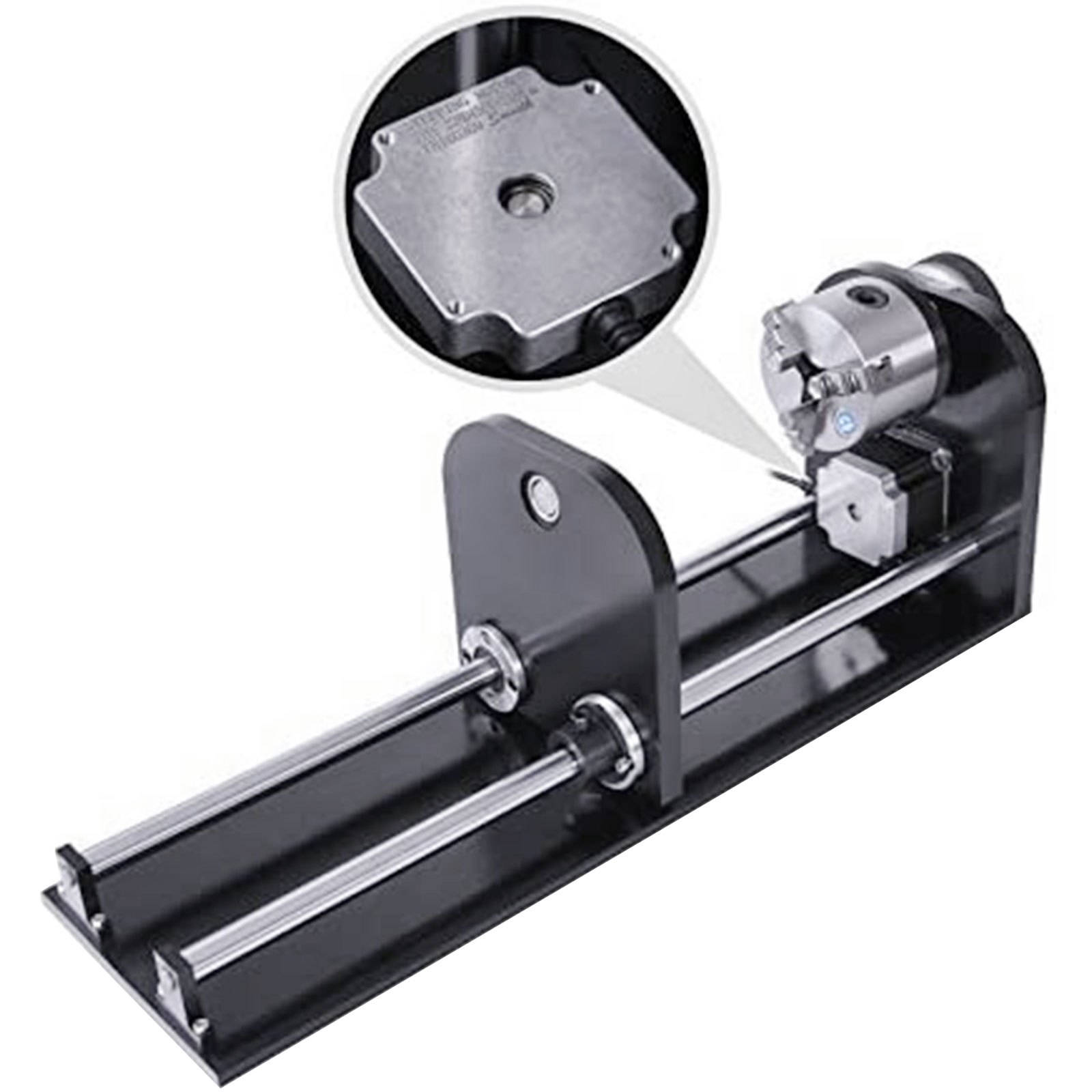

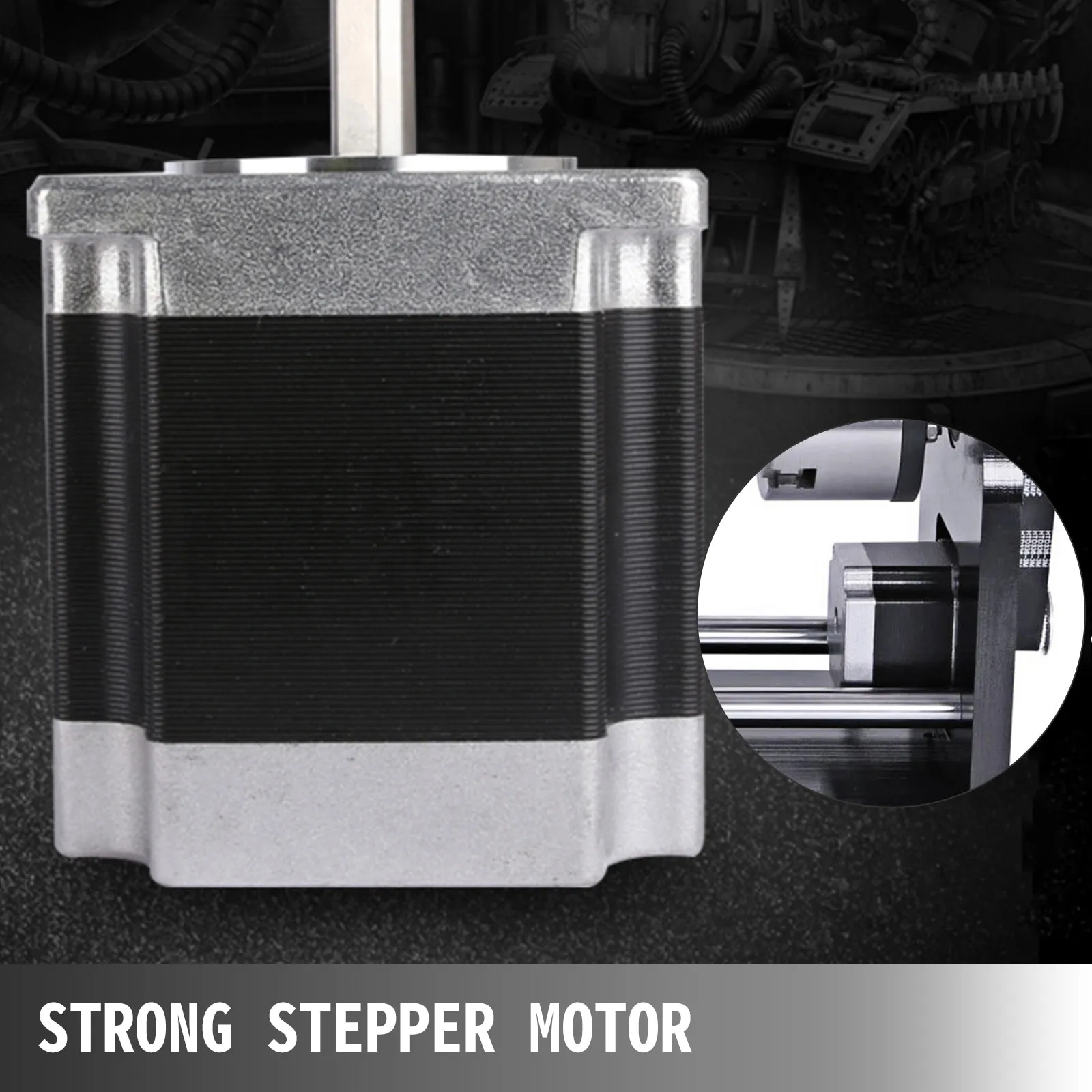

Strong Stepper Motor
The rotary axis and tailstock adopt a two-phase stepper motor with a high conversion rate, stable control, and precise positioning.

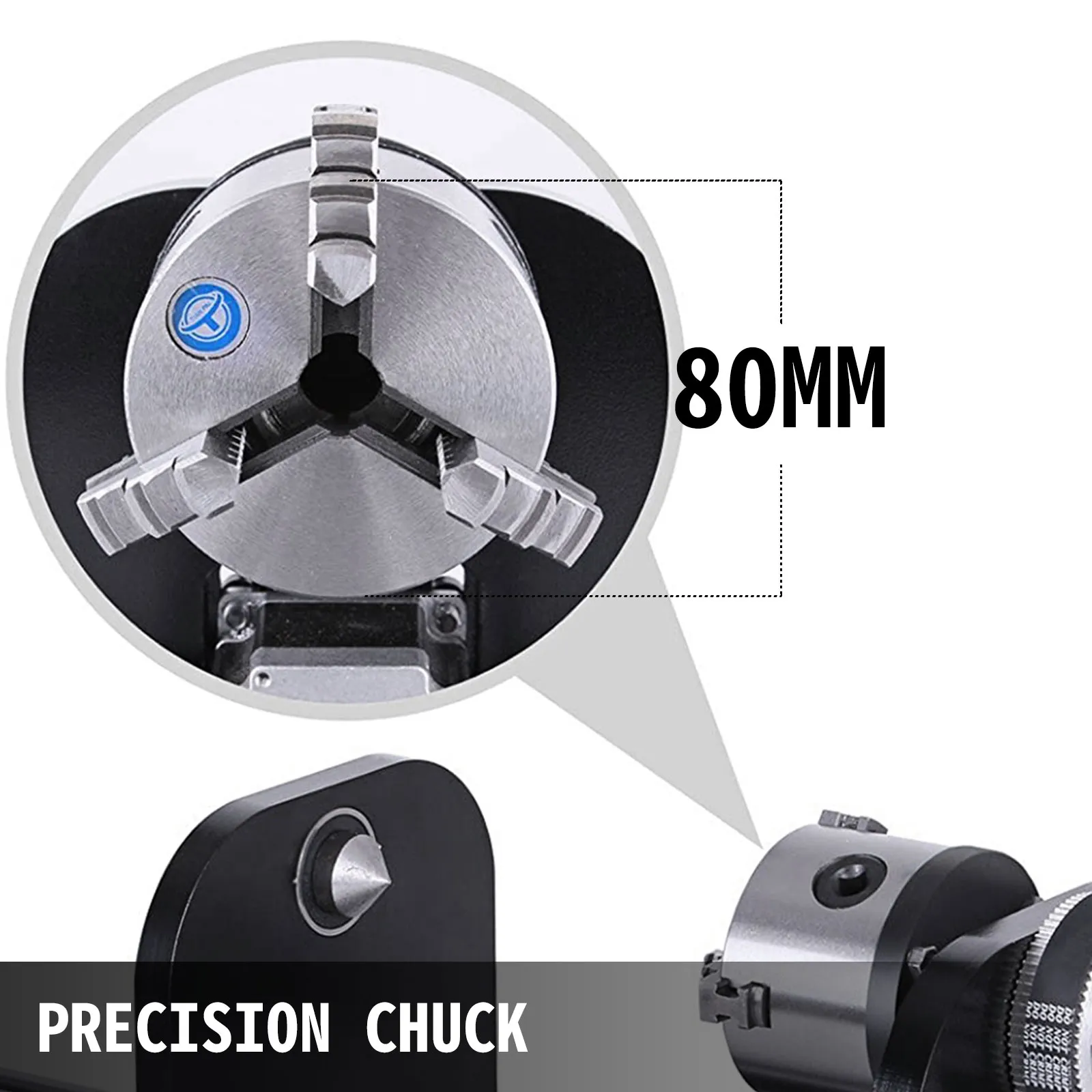

Precision Chuck
80mm chuck with high precision provides better precise positioning and good concentricity, suitable for clamping various types of materials, high compatibility.

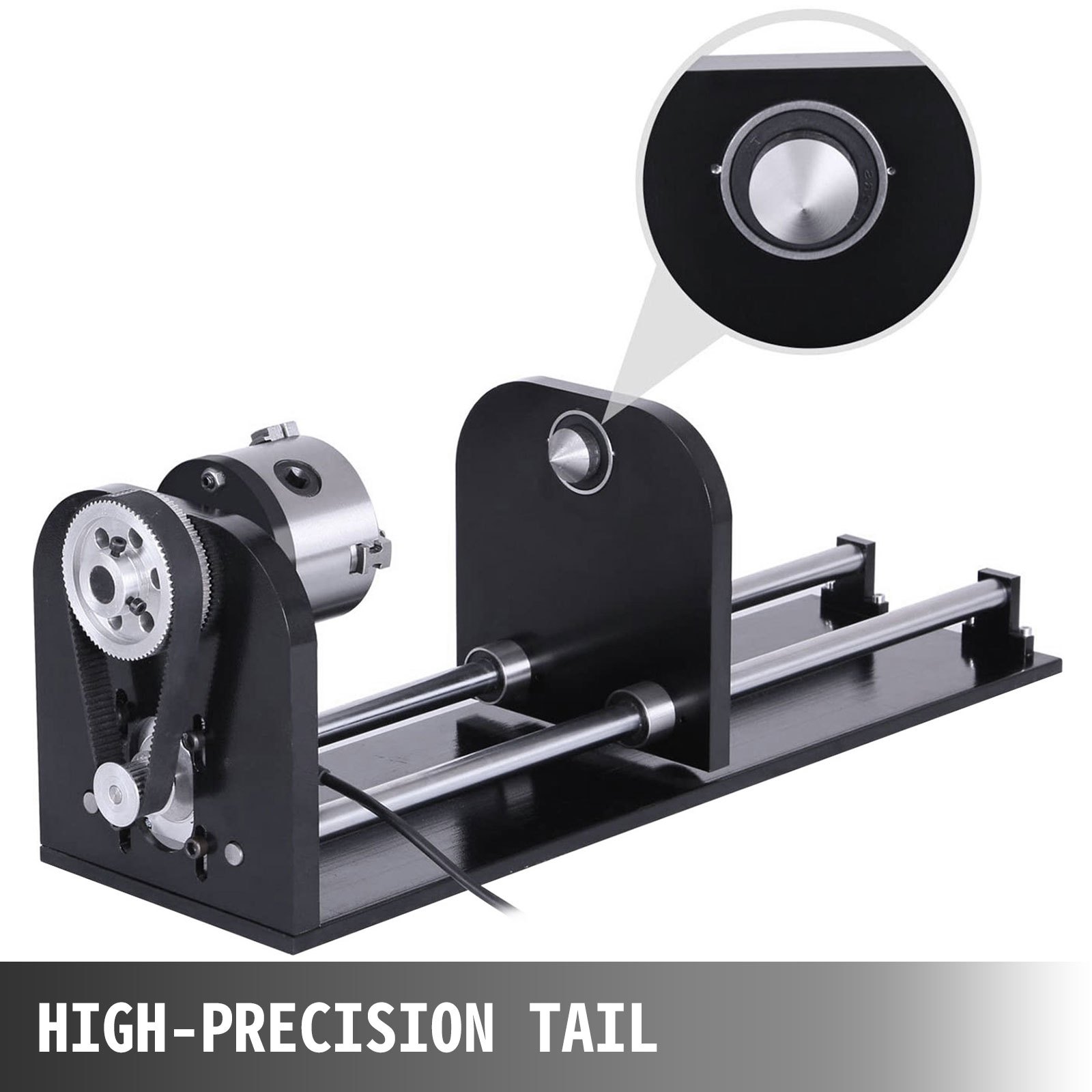

High-precision Tail
High-quality high-precision tail top with better adaptability can adjust the length of the thimble according to actual needs.

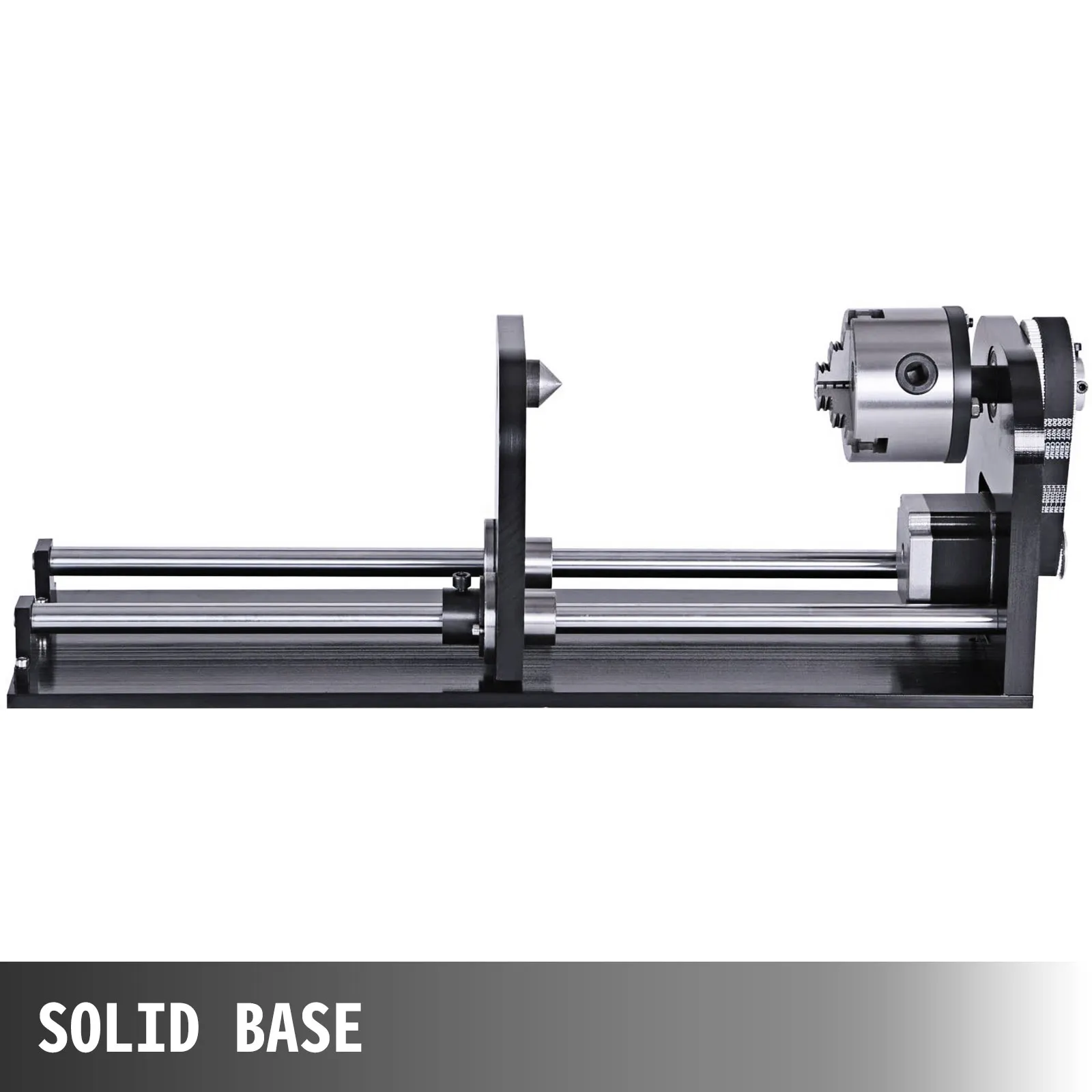

Solid Base
The base of the machine is made of sturdy material and has been thickened to ensure its stability during operation.

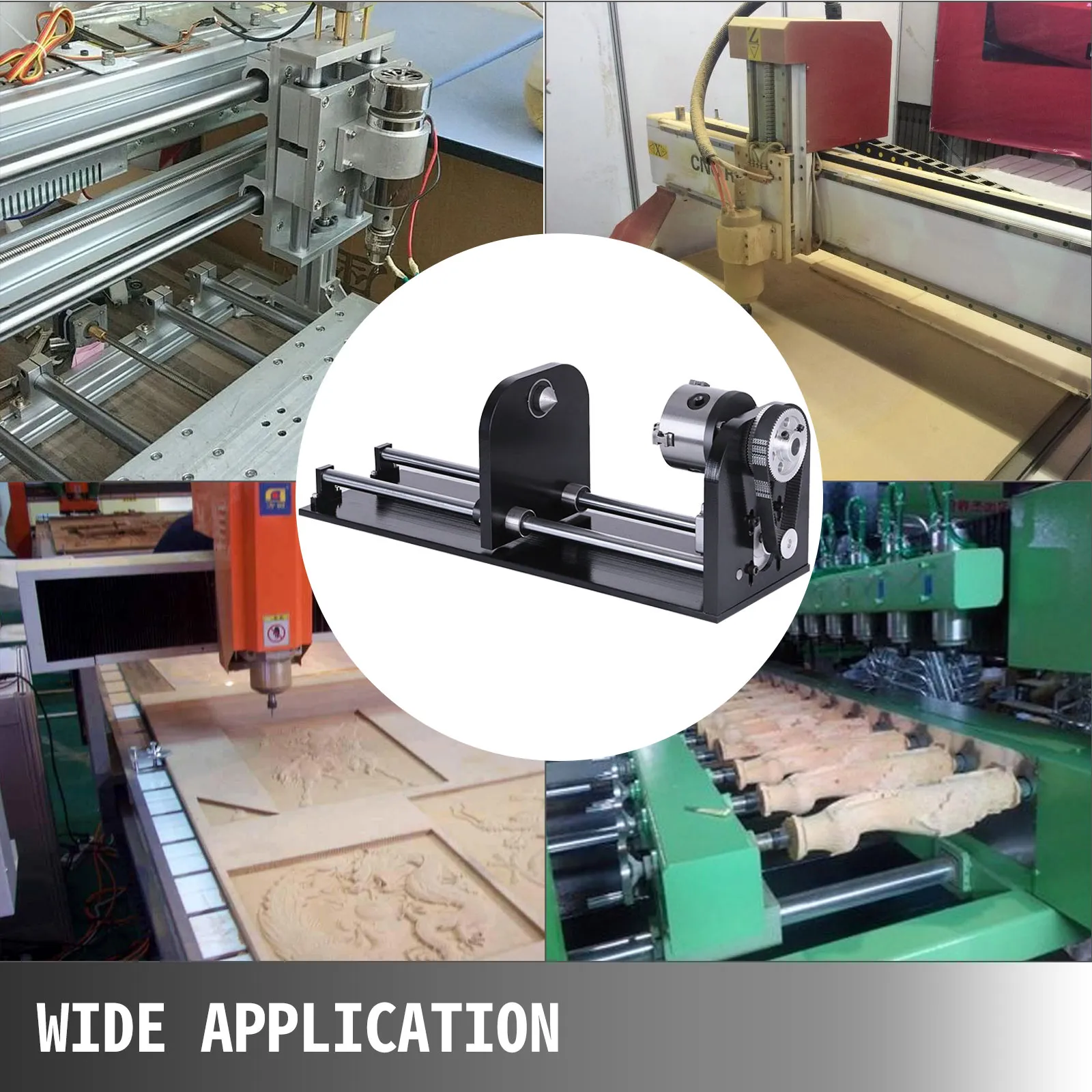

Wide Application
The four-axis engraving machine is widely used in the scroll, stigma, bamboo and also can be applied in cylindrical, curved, round, etc.
Specifications
- Rated Voltage:2.07v Dc
- Phase Resistance (20℃) 1.38×(1±15%)ω/Phase
- The Maximum Statictorque:≥780mn.M
- Swing( Shaft To See ):A-Ab-B-Clockwise Direction
- Maximum No-Load Running Frequency:≥2500pps
- Electrical Strength:Ac600v/1ma/1s
- Rotor Inertia:220g.㎡
- Step Angle:1.8°±0.09°
- Rated Current:Dc 1a/Phase
- Inductance (1khz):30×(1±20%)Mh/Phase
- Detent Rorque:320g.Cm Ref.
- Maximum No-Loadstart Frequency:≥1500 Pps
- Insulation Resistance:≥100mω(Dc 500v)
- Insulation Grade:B
- Quality 0.8kg Ref.
- Material Of Pulley:H62
- Tooth Form:Mxl
- Number Of Teeth Z=20
- Pitch Of Teeth P=2.032
- Pitch Circle:φ12.936
- Outer Circle:φ12.428±0.003
- Product Dimensions: 152 × 4500 ×178 (H/L/W Mm)
Package Content
- 1 x Rotary Axis
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
CNC Rotational Rotary Axis
We offer you a superior rotational rotary axis with 80mm 3-jaw scroll chuck. Because of the rotary movement of the fourth rotary axis, it is available for the stereoscopic process for a cylindrical, curved, round, etc. The four-axis engraving machine is widely used in the scroll, stigma, bamboo, and so on so like.
- Product parameters
- Excellent Motor
- Accurate Chuck
- Precise Tail
Extraordinary Quality
The all-metal body has a particular strength, toughness, and wear resistance. At the same time, it is not easy to rust after special processing.
Strong Stepper Motor
The rotary axis and tailstock adopt a two-phase stepper motor with a high conversion rate, stable control, and precise positioning.
Precision Chuck
80mm chuck with high precision provides better precise positioning and good concentricity, suitable for clamping various types of materials, high compatibility.
High-precision Tail
High-quality high-precision tail top with better adaptability can adjust the length of the thimble according to actual needs.
Solid Base
The base of the machine is made of sturdy material and has been thickened to ensure its stability during operation.
Wide Application
The four-axis engraving machine is widely used in the scroll, stigma, bamboo and also can be applied in cylindrical, curved, round, etc.
Package Content
- 1 x Rotary Axis
Specifications
- Rated Voltage:2.07v Dc
- Phase Resistance (20℃) 1.38×(1±15%)ω/Phase
- The Maximum Statictorque:≥780mn.M
- Swing( Shaft To See ):A-Ab-B-Clockwise Direction
- Maximum No-Load Running Frequency:≥2500pps
- Electrical Strength:Ac600v/1ma/1s
- Rotor Inertia:220g.㎡
- Step Angle:1.8°±0.09°
- Rated Current:Dc 1a/Phase
- Inductance (1khz):30×(1±20%)Mh/Phase
- Detent Rorque:320g.Cm Ref.
- Maximum No-Loadstart Frequency:≥1500 Pps
- Insulation Resistance:≥100mω(Dc 500v)
- Insulation Grade:B
- Quality 0.8kg Ref.
- Material Of Pulley:H62
- Tooth Form:Mxl
- Number Of Teeth Z=20
- Pitch Of Teeth P=2.032
- Pitch Circle:φ12.936
- Outer Circle:φ12.428±0.003
- Product Dimensions: 152 × 4500 ×178 (H/L/W Mm)
