Features & Details
- Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.
- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.
- Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Frequently Bought Together
Reviews 4.7
All reviews are from verified purchases
Average rating based on 38 reviews
Reviews 4.7
All reviews are from verified purchases
See all 38 reviews
About this item
Product specification
- The material of tank
- Metal
- Displacement of hydraulic pump
- 0.562-4.350GPM
- Relief valve pressure
- 22 MPA( 3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
- Rated speed
- 2600R/MIN
- Motor power
- 1.6-3.0KW
- Motor voltage
- DC12V
- Fuel tank
- 4L
- Single acting Power-Up/Gravity Down
- 1500 PS Max Relief Setting on B port
- SAE # 6 Port, Horizontal mount
- Hand held pendant with about 15 foot (4.5 m) removal cord and start solenoid
Description

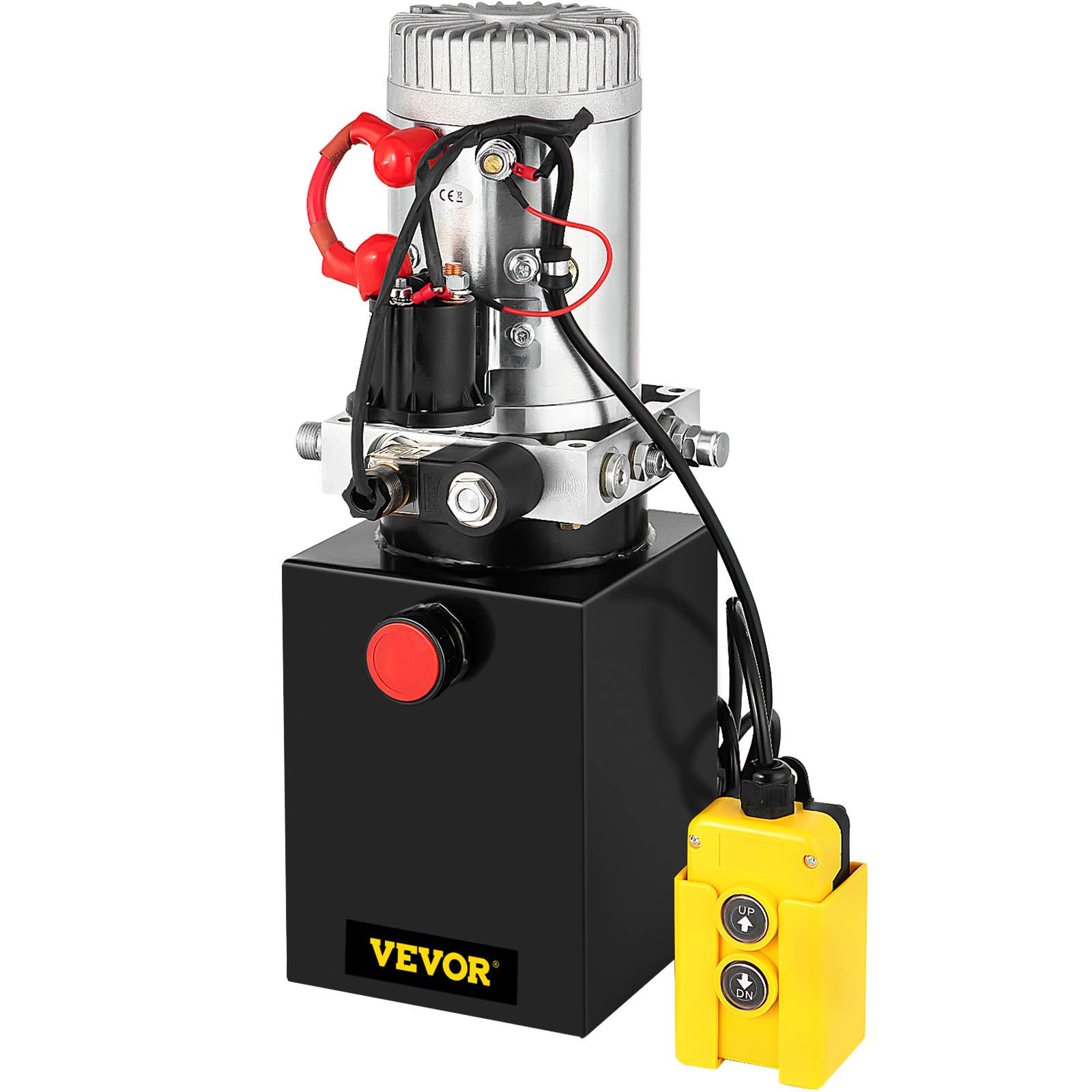

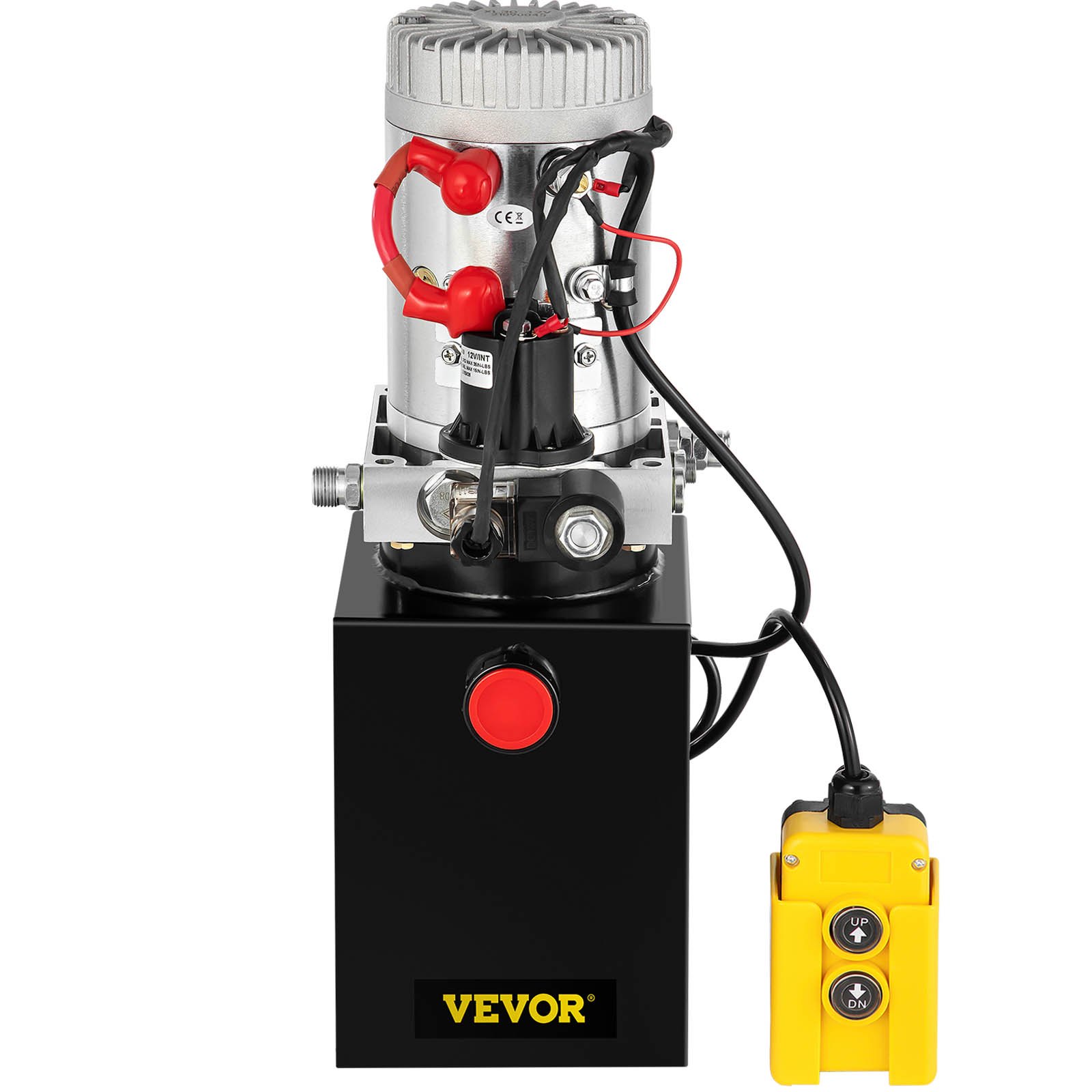

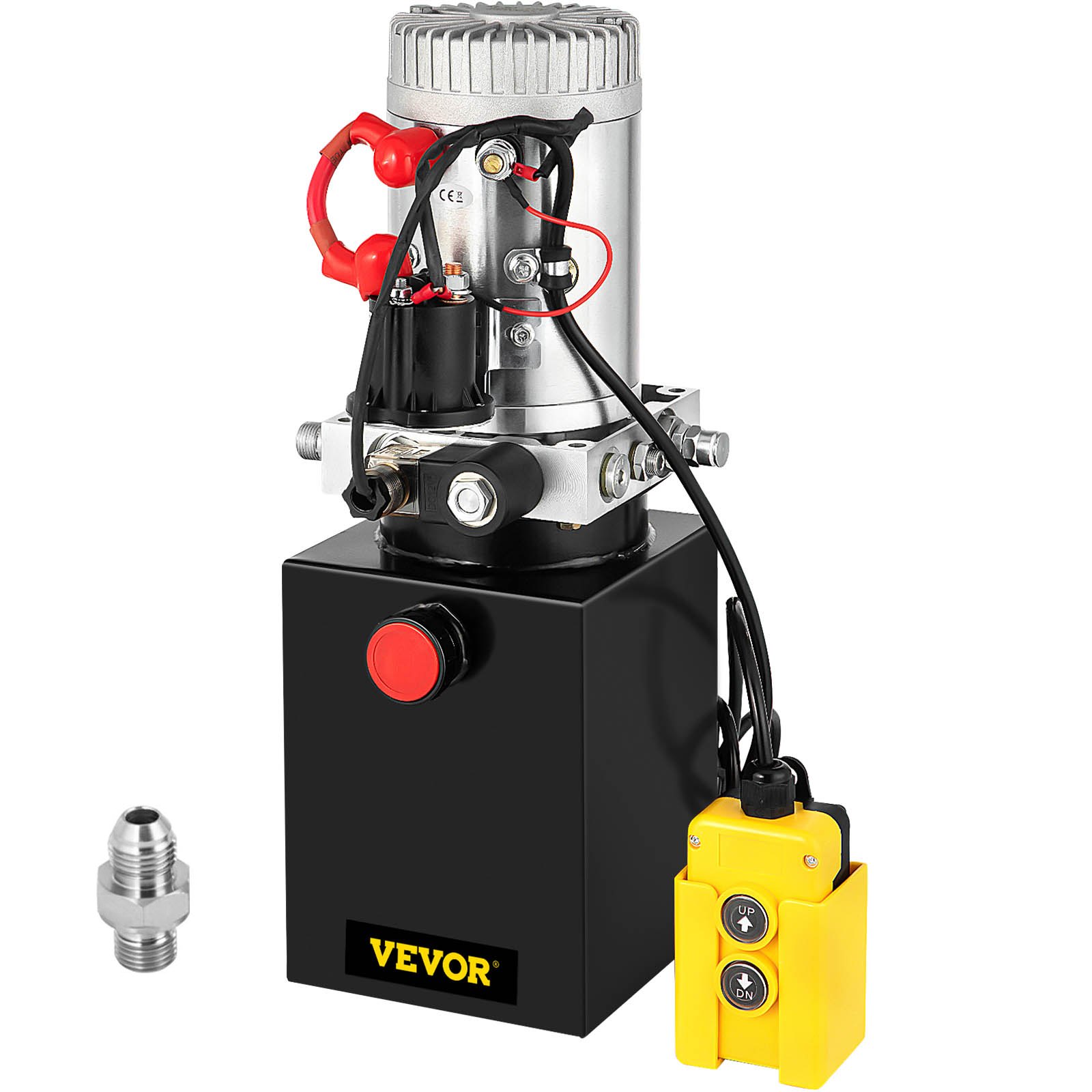

4 Quart Single Acting Hydraulic Pump
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 4-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
- Product Details
- Easy to Use
- Reliable Quality
- Rapid Start
- Wide Application
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

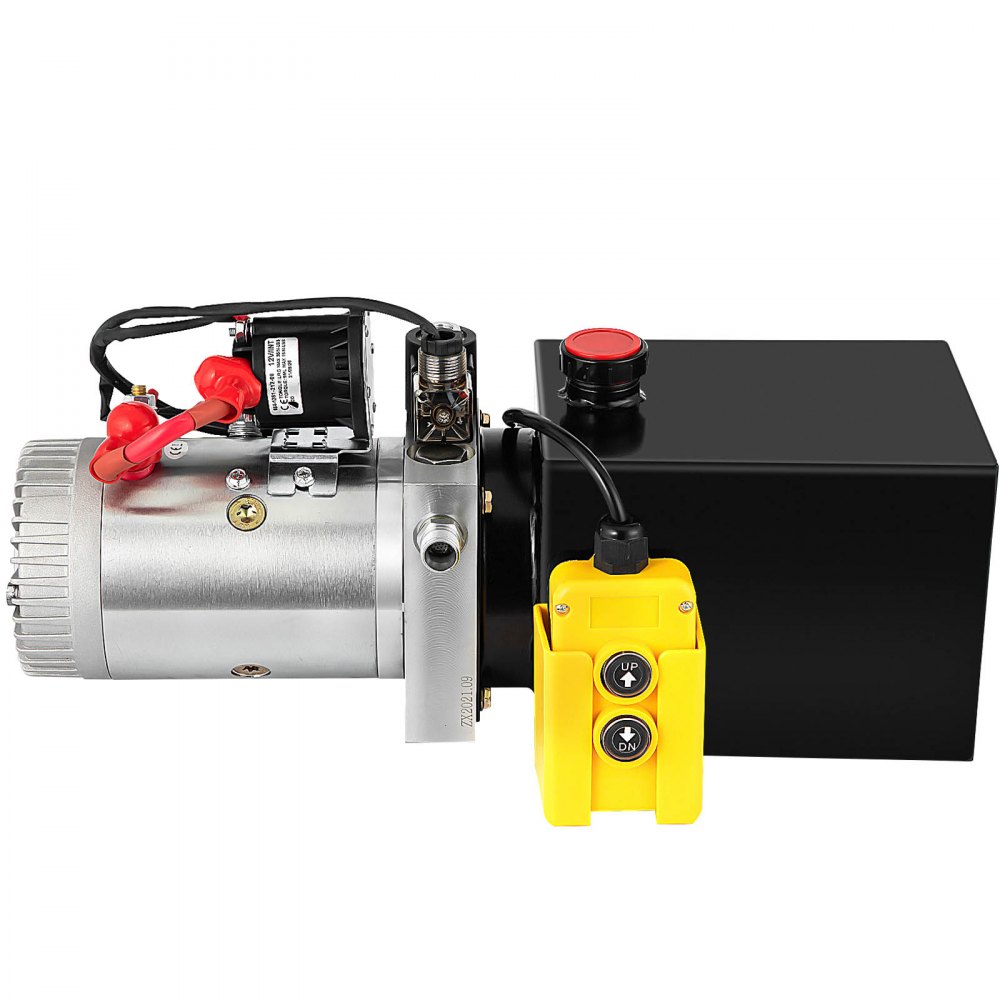

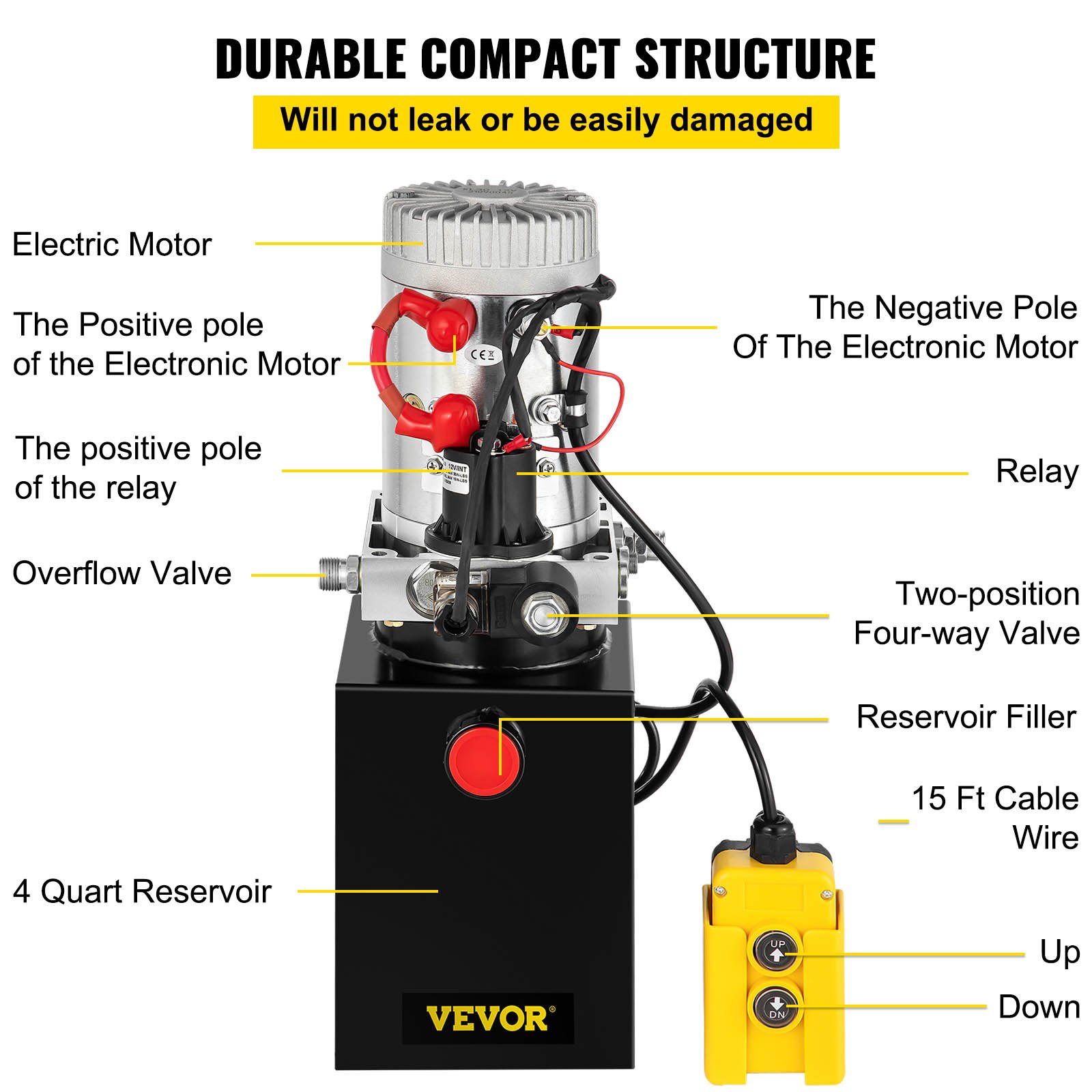

Single-Acting Power Unit
This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 4-quart metal reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.

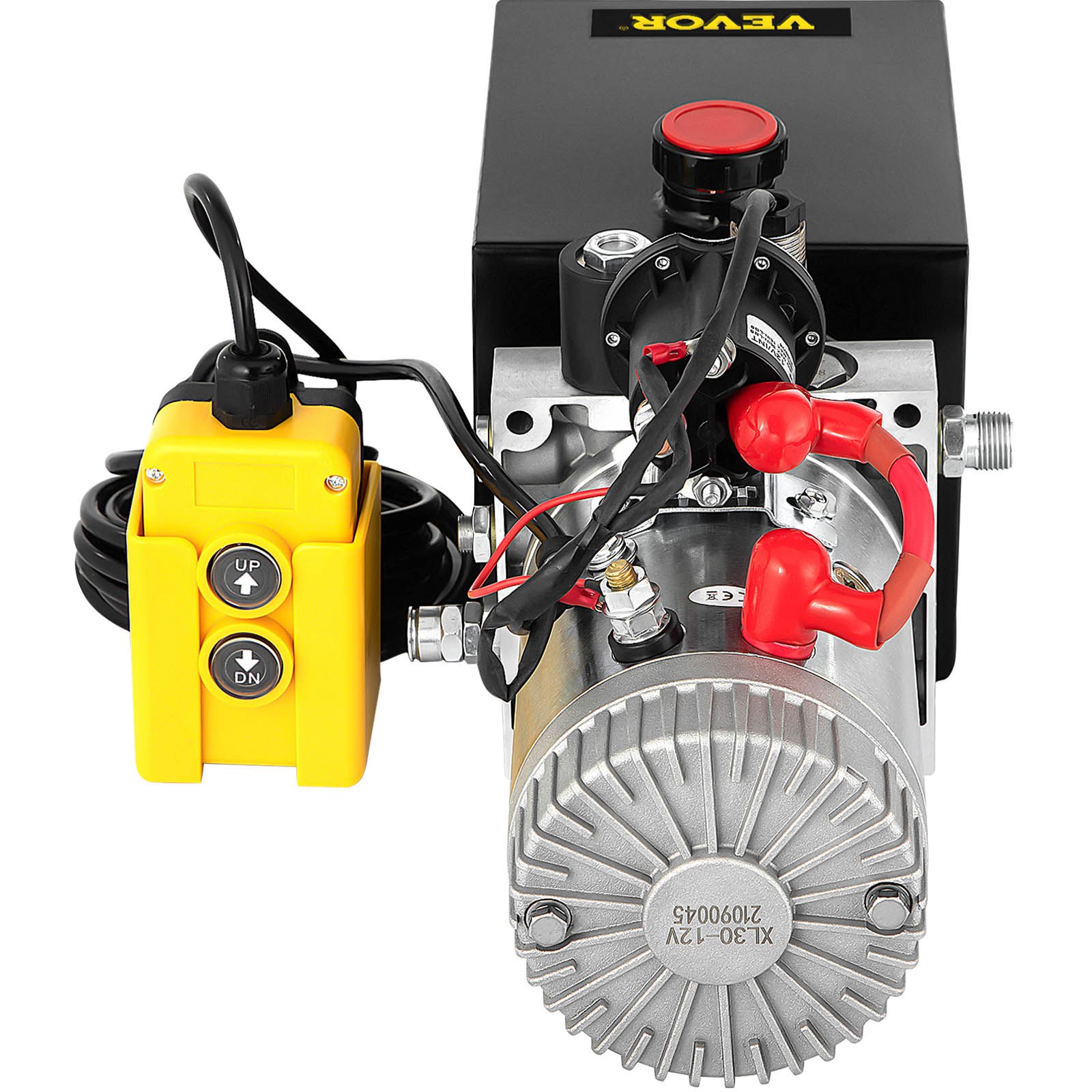

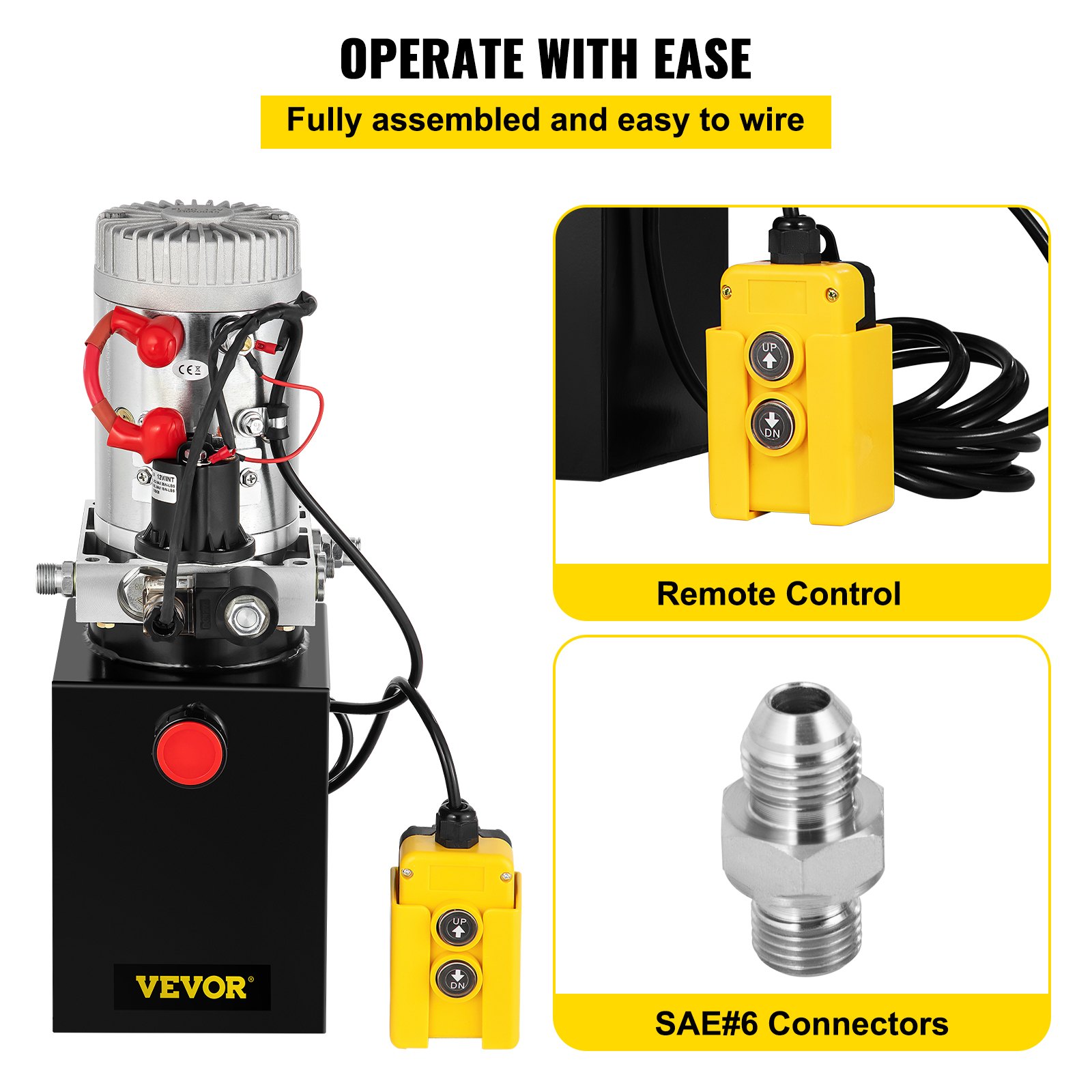

Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.

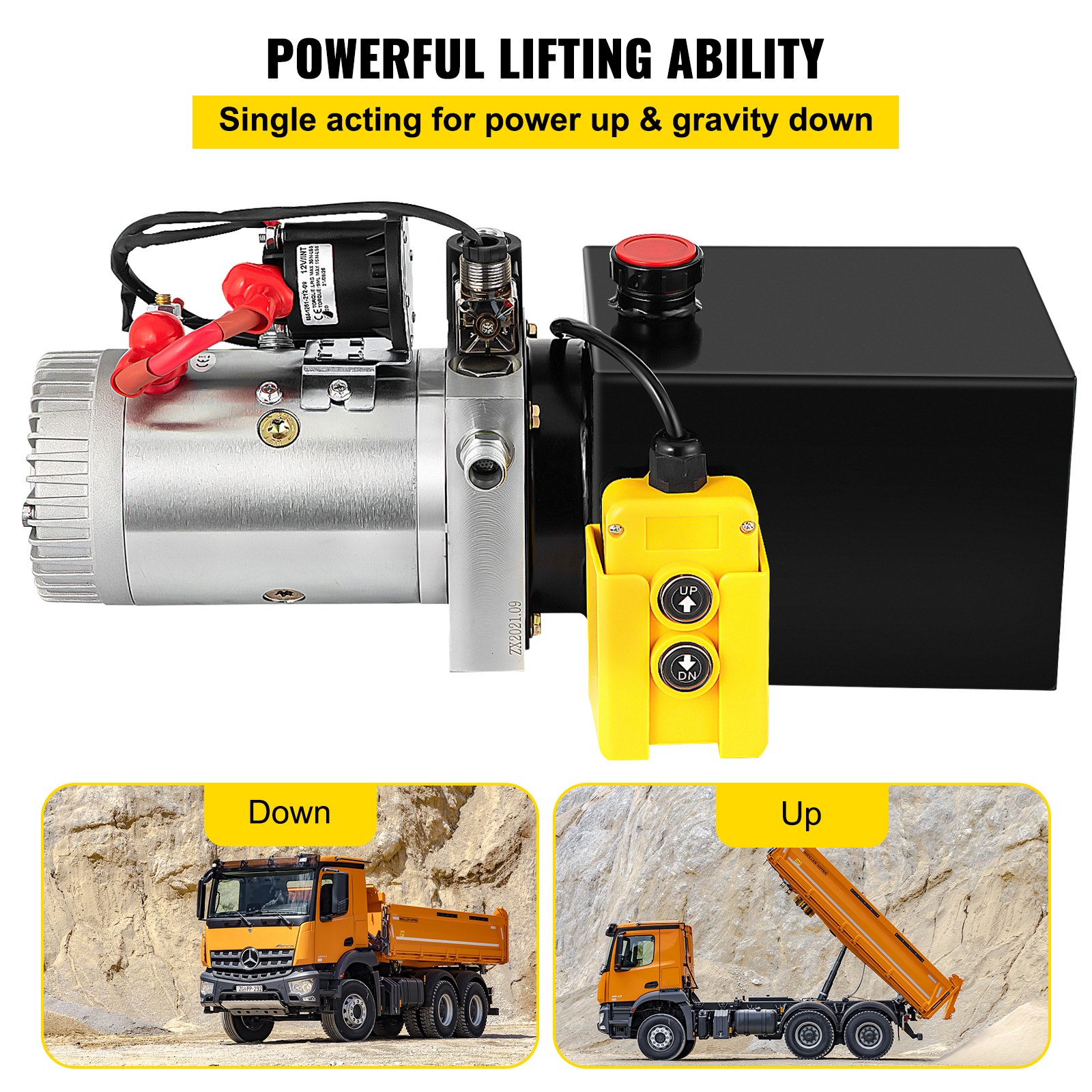

Quick Start＆Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy metal, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.

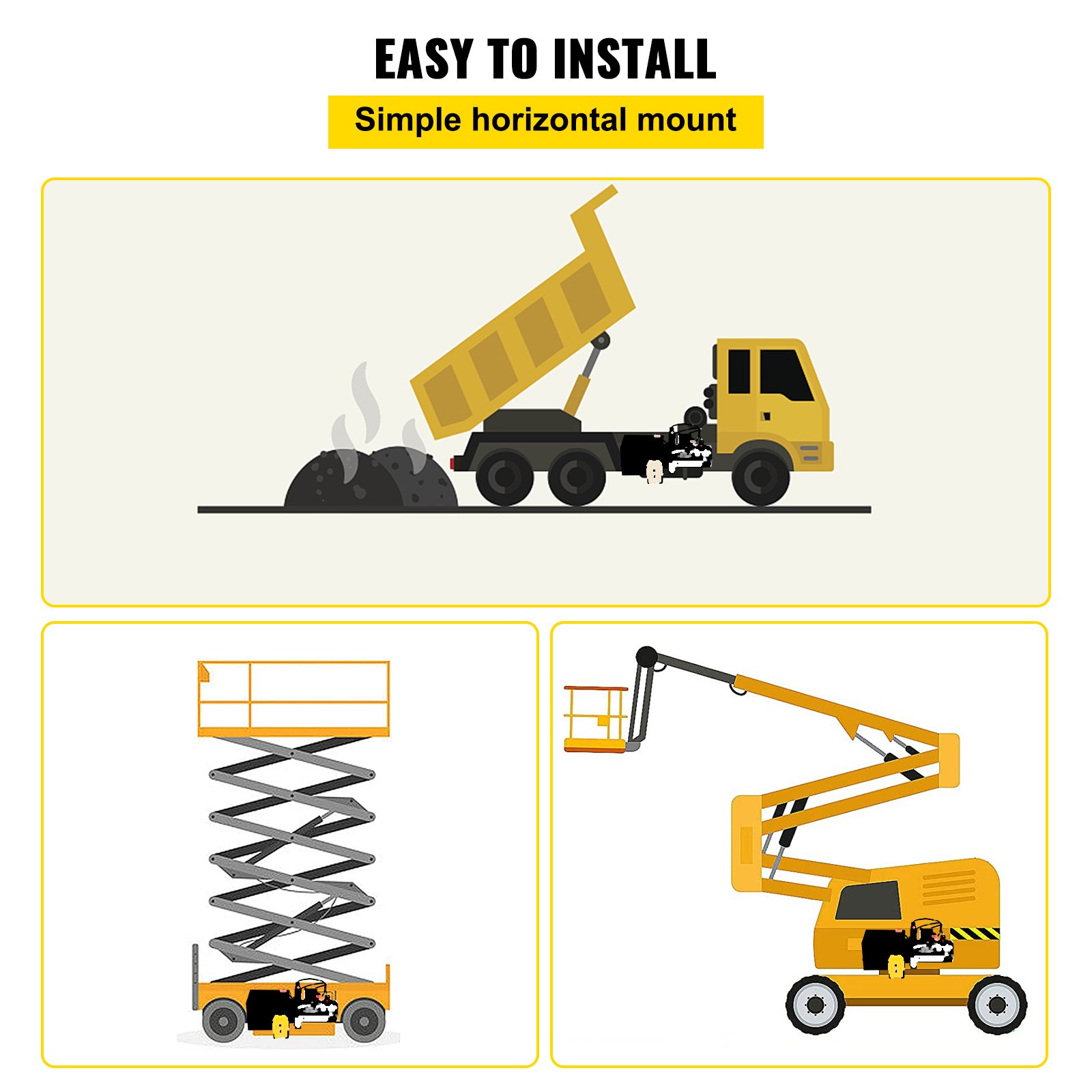

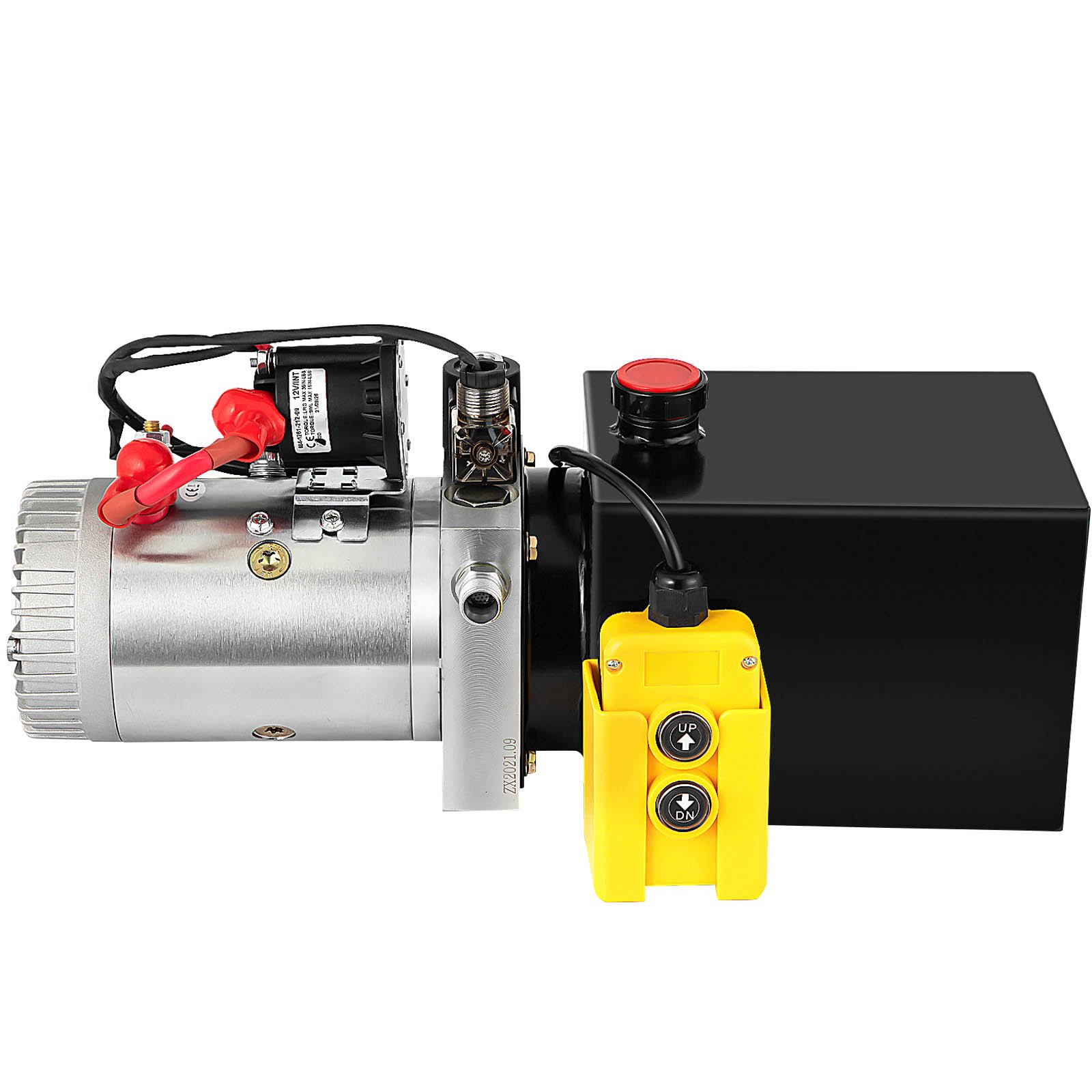

Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.

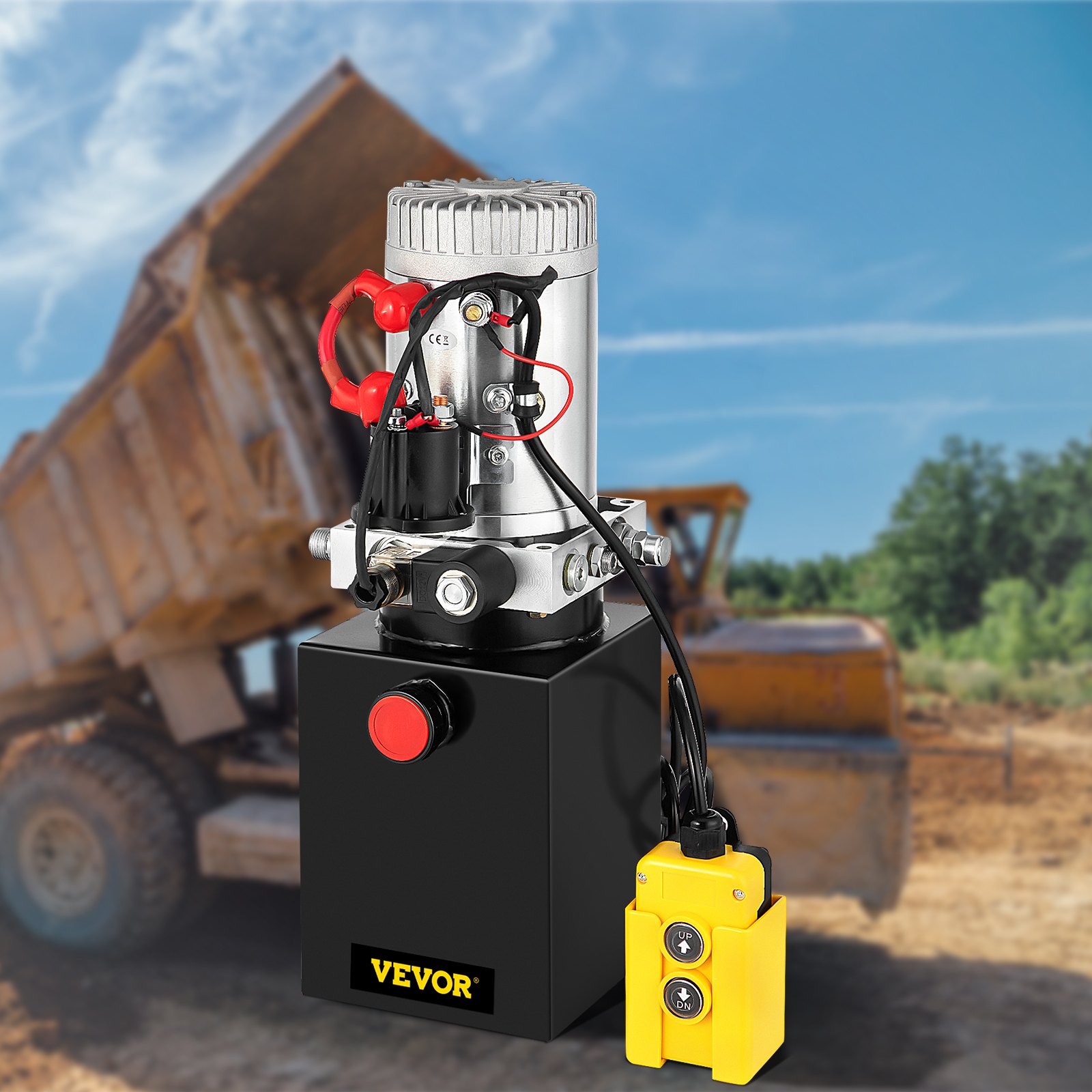

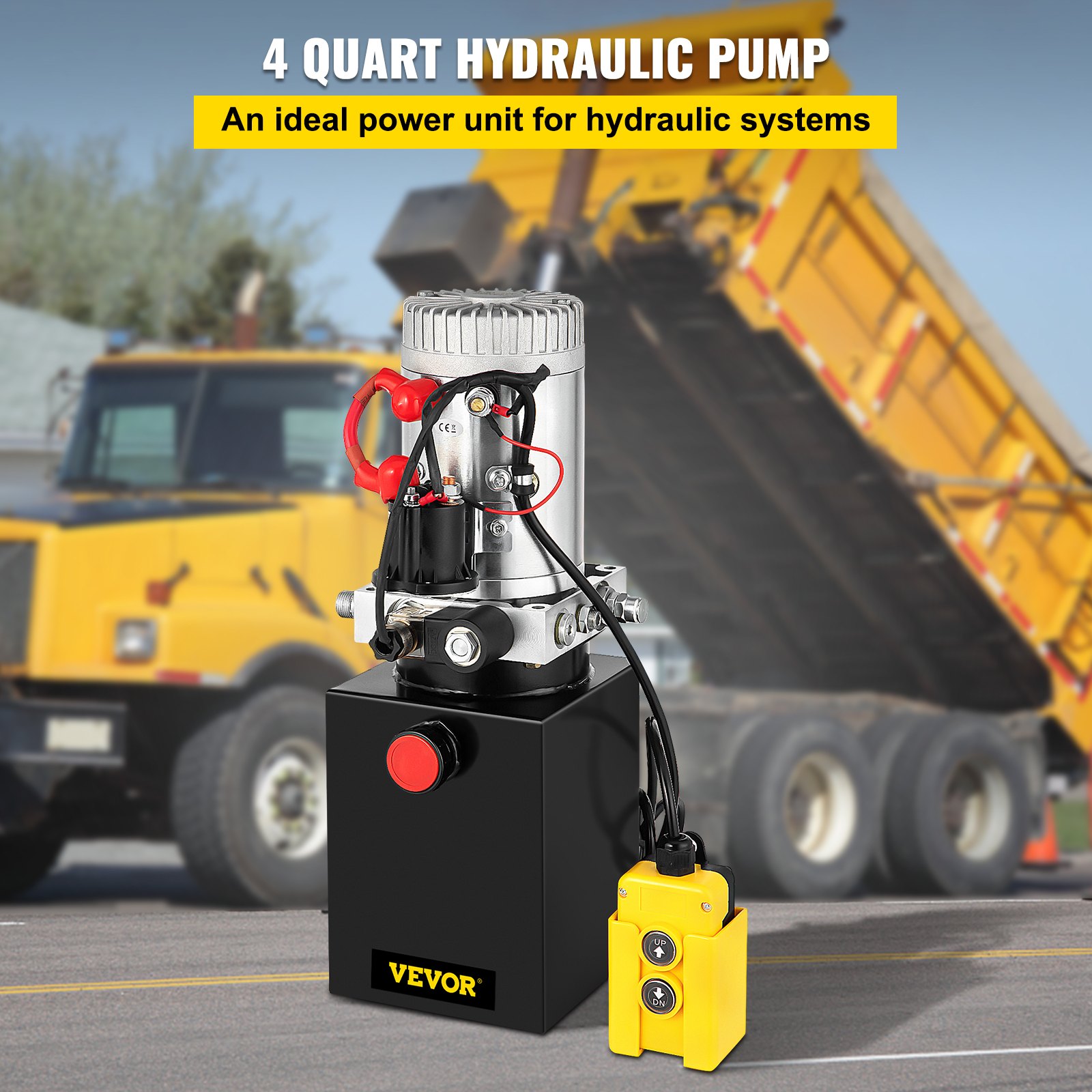

Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.

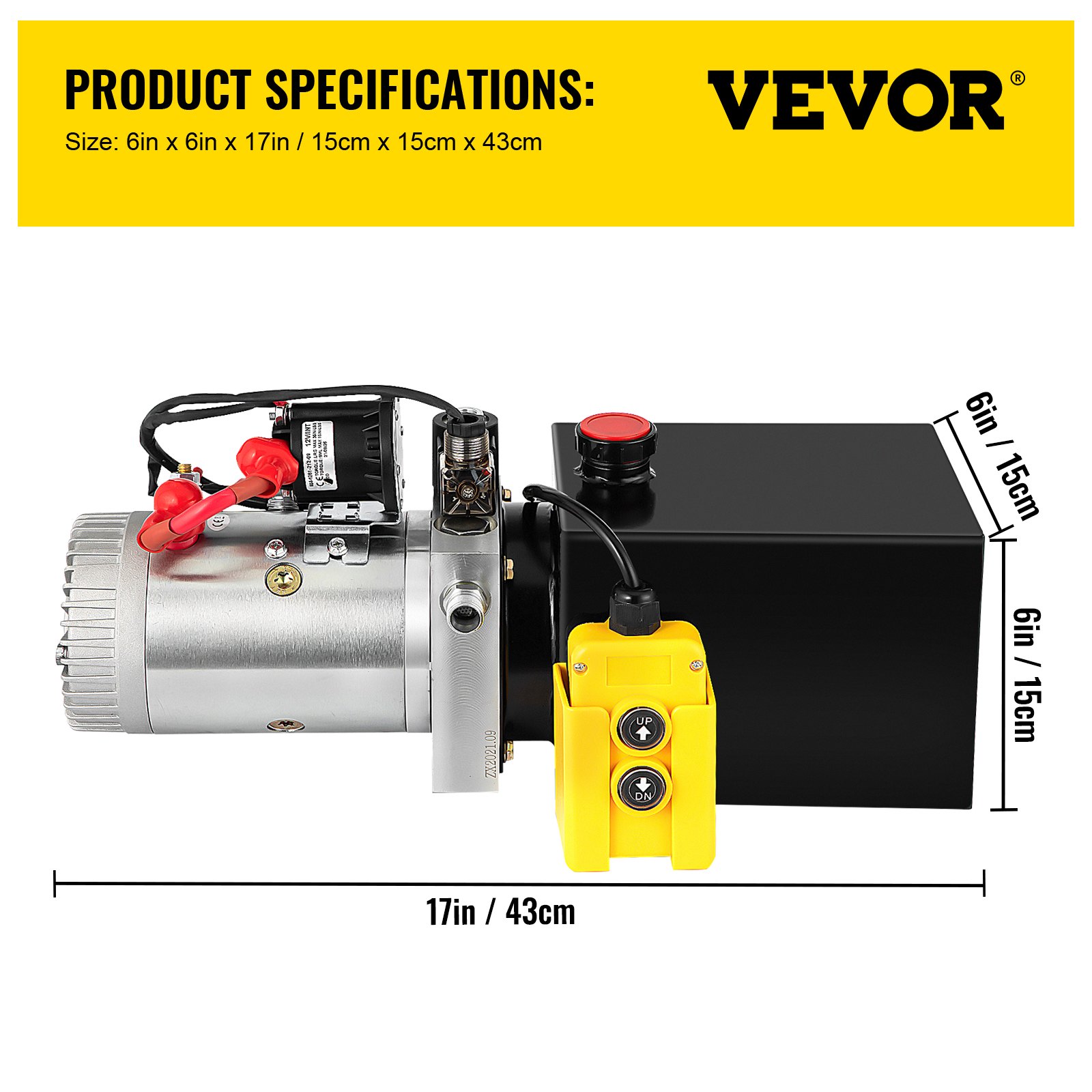

Specifications
- The material of tank: Metal
- Displacement of hydraulic pump: 0.562-4.350GPM
- Relief valve pressure: 22 MPA( 3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
- Rated speed: 2600R/MIN
- Motor power: 1.6-3.0KW
- Motor voltage: DC12V
- Fuel tank: 4L
- Single acting Power-Up/Gravity Down
- 1500 PS Max Relief Setting on B port
- SAE # 6 Port, Horizontal mount
- Hand held pendant with about 15 foot (4.5 m) removal cord and start solenoid
Package Content
- 1 × 4 Quart Single Acting Hydraulic Pump
- 1 × English Manual
- Several Related Accessories (Including connectors)
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
4 Quart Single Acting Hydraulic Pump
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 4-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
- Product Details
- Easy to Use
- Reliable Quality
- Rapid Start
- Wide Application
Single-Acting Power Unit
This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 4-quart metal reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.
Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.
Quick Start＆Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy metal, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
Package Content
- 1 × 4 Quart Single Acting Hydraulic Pump
- 1 × English Manual
- Several Related Accessories (Including connectors)
Specifications
- The material of tank: Metal
- Displacement of hydraulic pump: 0.562-4.350GPM
- Relief valve pressure: 22 MPA( 3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
- Rated speed: 2600R/MIN
- Motor power: 1.6-3.0KW
- Motor voltage: DC12V
- Fuel tank: 4L
- Single acting Power-Up/Gravity Down
- 1500 PS Max Relief Setting on B port
- SAE # 6 Port, Horizontal mount
- Hand held pendant with about 15 foot (4.5 m) removal cord and start solenoid
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (8)
Is there a 24v option for these pumps
No, there isn't.
By vevor
Helpful
(
2
)
Could you please tell me what is the current draw of the electric motor powering the hydraulic pump when the oil is pumping to maximum pressure, and going across the relief valve at 3200 PSI ?
The answer is totally unrelated to whatever may be attached to the hydraulic system. It is an electrical question. Thanks
Thanks
The current is 200a.
By vevor
Helpful
(
1
)
Hello, Could you please tell me what the current drasw is at max pressure ?
Thanks
It depends on the inner diameter of the cylinder. The thicker it is, the greater the traction force will be.
By vevor
Helpful
(
1
)
Waterproof for use on an outboard boat engine?
No, it's not waterproof.
By vevor
Helpful
(
1
)
What amps do this run ?
The starting current is 120 amps, the working current is 80 amps.
By vevor
Helpful
(
1
)
