Features & Details
- 【HIGH TENSILE STEEL STRUCTURE】- This hydraulic lifting cylinder is a welded double-acting cylinder. It has a high tensile honed cold drawn hydraulic tube, a polished piston rod, and sturdy threaded glands. With bearing design on base ends. Carbon steel construction ensures its longevity with max pushing force: 6700 lbs and lifting force: 4500 lbs.

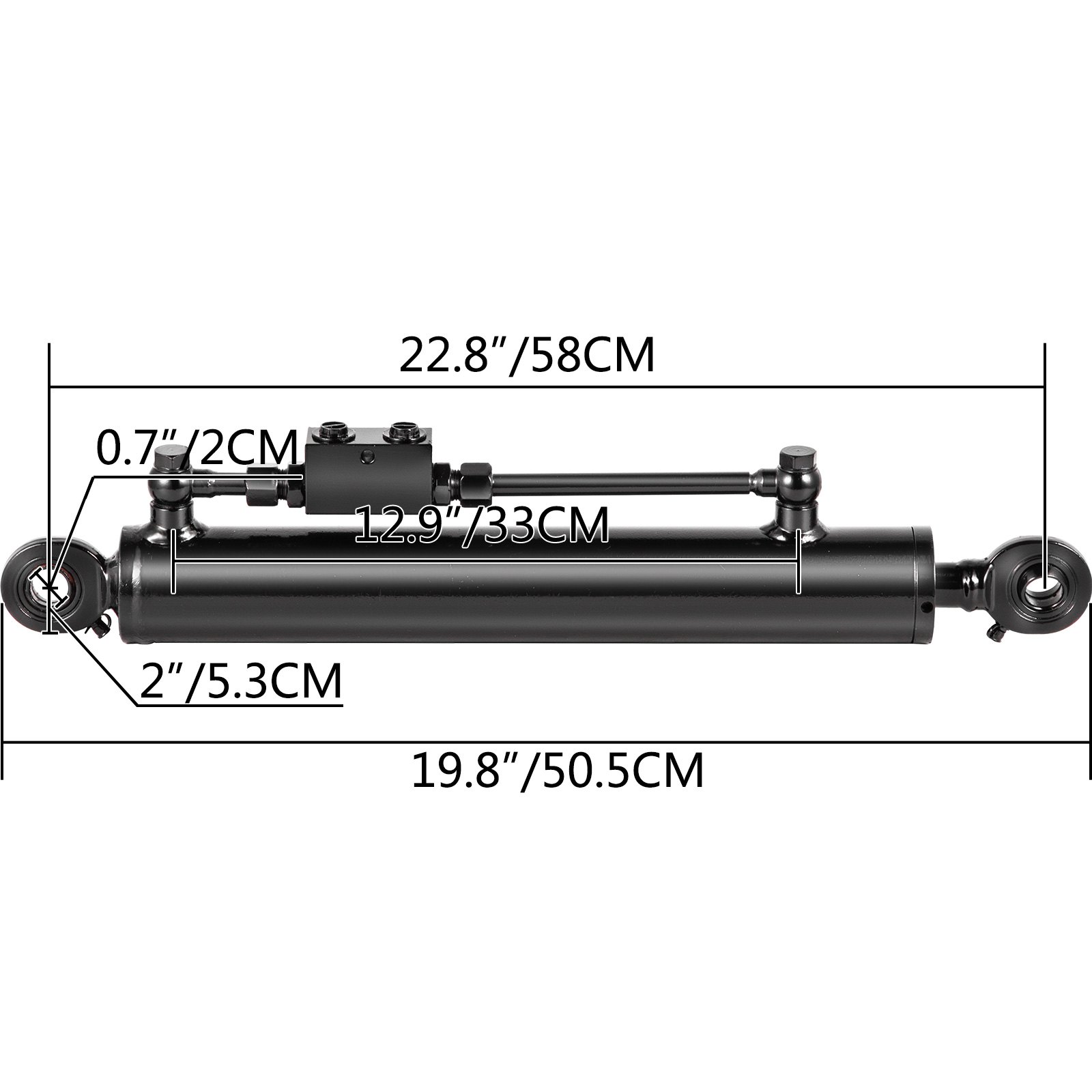

- 【2"-2.5" BORE 13" STROKE TOP LINK】- The top link cylinder is built under specific dimensions. Bore: 2"-2.5". Stroke Length: 13". Rod Size: 1.2". Pin Size: 0.8". With retracted min length 22.8" and extended max length 34". Double Pilot Check Valve Port Size: G3/8. Max Pressure: 5076PSI. Max Flow Rate: 20 L/ min. Opening Pressure: 50.76 PSI.
- 【SWIVEL EYE BEARING DESIGN】- There is a spherical swivel eye bearing design on both ends. Due to the sturdy and flexible bearings, you can quickly fix and install the cylinder on your tractors or min excavators. Joint Bearing Width: 2". Thickness 0.8". Durable enough to hold a lot of force.
- 【WITH CHECK VALVE & FULLY TESTED】- The well-assembled and thoroughly tested tractor top link hydraulic cylinders also come with a double pilot operated check valve to help hold the cylinder and prevent drift. The assembled inside sealing rings guard the high performance of sealing, accessible maintains, and safer use.
- 【VARIOUS APPLICATION】- Our hydraulic top link cat cylinder is the ideal tool for various mobile equipment types in industries like waste, recycling, constructions, transportations, agriculture, and material handling, etc. It works excellently in tractors, excavators, and category 1 and 2.
Frequently Bought Together
Reviews 0.0
All reviews are from verified purchases
Average rating based on 0 reviews
Reviews 0.0
All reviews are from verified purchases
See all 0 reviews
About this item
Product specification
- Cylinder Bore
- 2"-2.5"/ 50-63 mm
- Stroke
- 13"/ 331 mm
- Rod
- 1.2"/ 30 mm
- Pin Hole
- 0.8"/ 20 mm
- Retracted Length
- 22.8"/ 580 mm
- Extended Length
- 34"/ 861 mm
- Max Pushing Force
- 6700 lbs/ 3 t
- Max Lifting Force
- 4500 lbs/ 2 t
- Cylinder Port Size
- M14*1.5
- Double Pilot Check Valve Port Size
- G3/8
- Port Distance
- 13"/ 330 mm
- Joint Bearing Width
- 2"/ 53 mm
- Joint Bearing Thickness
- 0.6"/ 16 mm
- Cylinder Max Pressure
- 2900 PSI/ 20 Mpa
- Check Valve Max Pressure
- 5076 PSI/ 350 Bar
- Check Valve Max Flow Rate
- 20 L/ min
- Check Valve Opening Pressure
- 50.76 PSI/ 3.3 Bar
- Temperature
- -22 to + 176 °F/- 30 to + 80 °C
Description

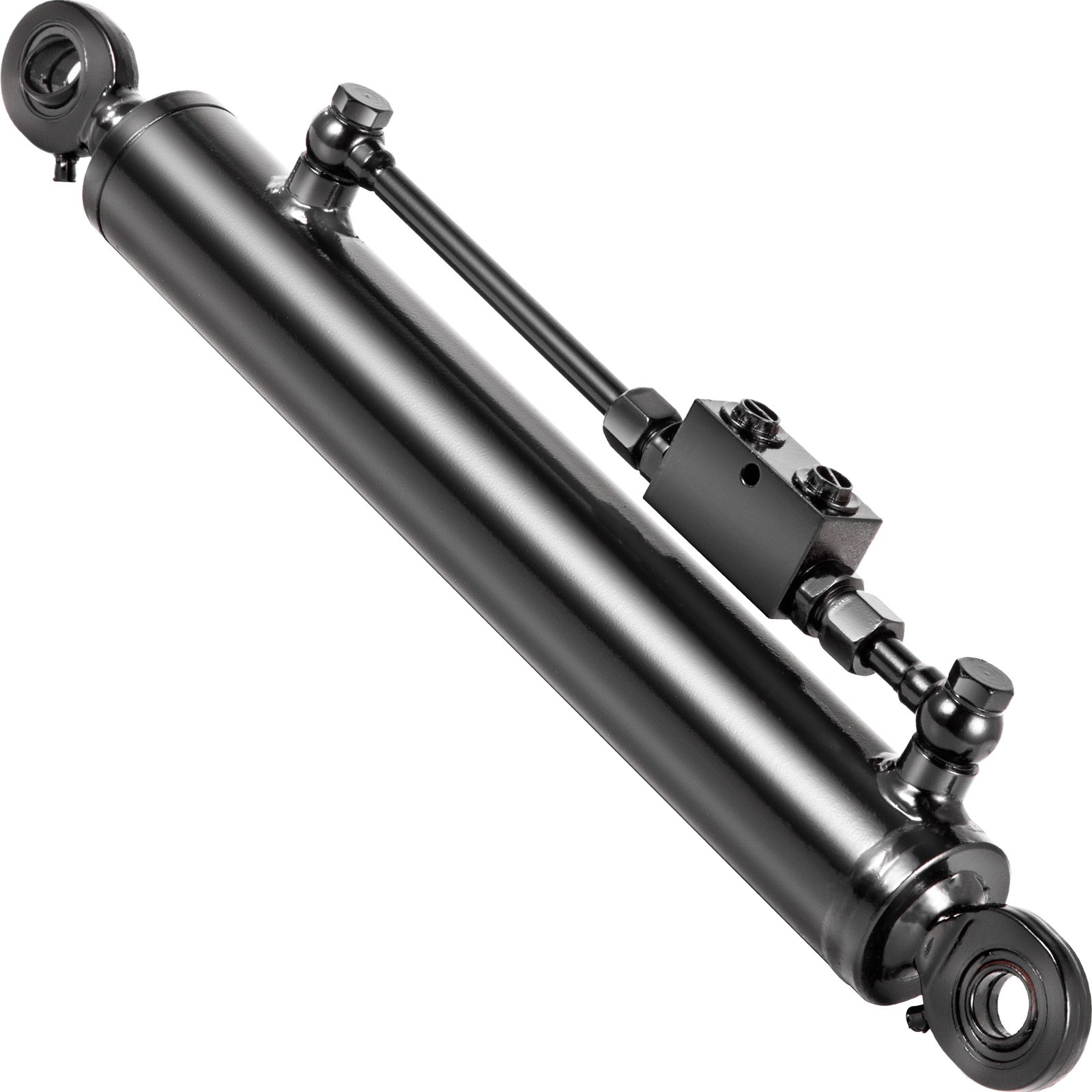

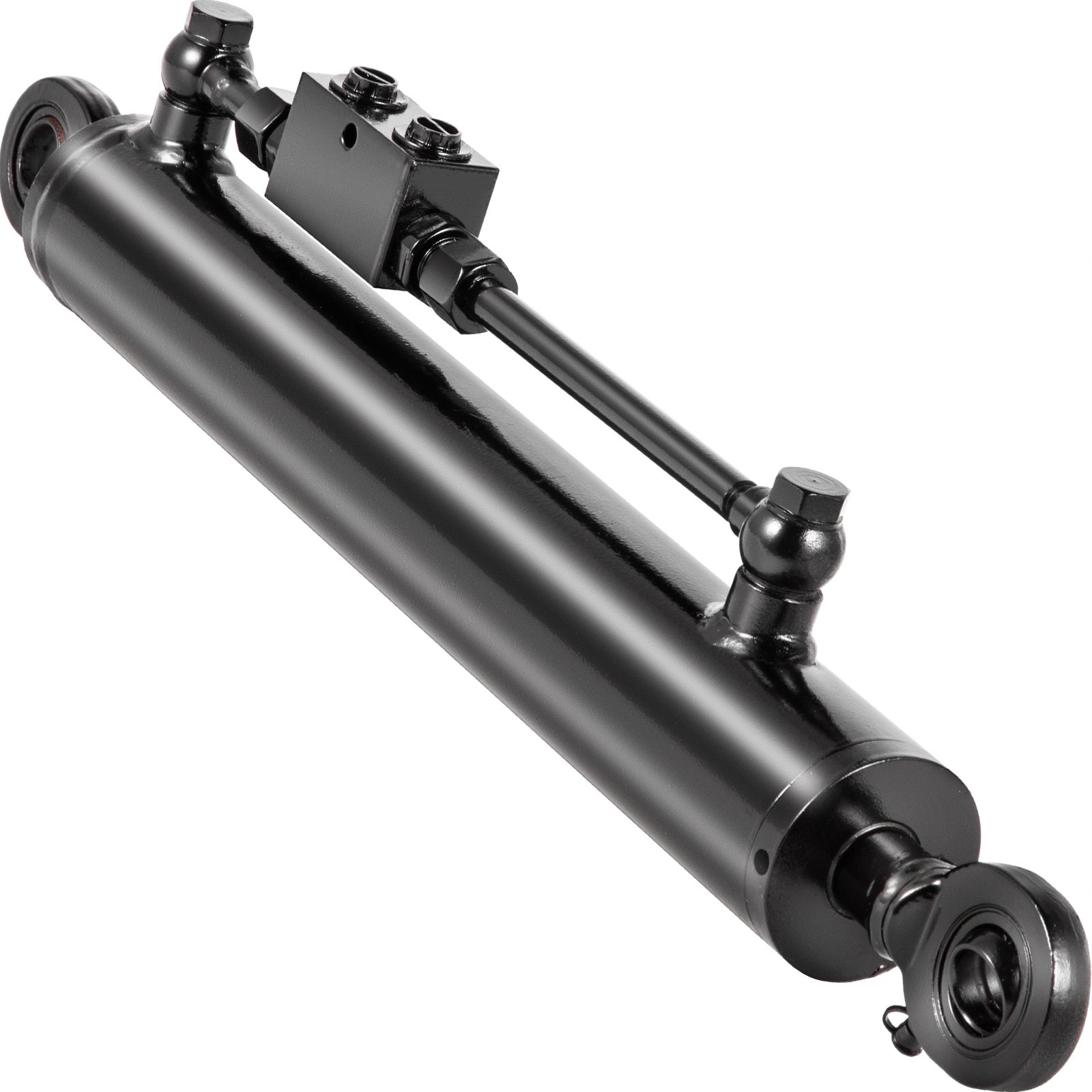

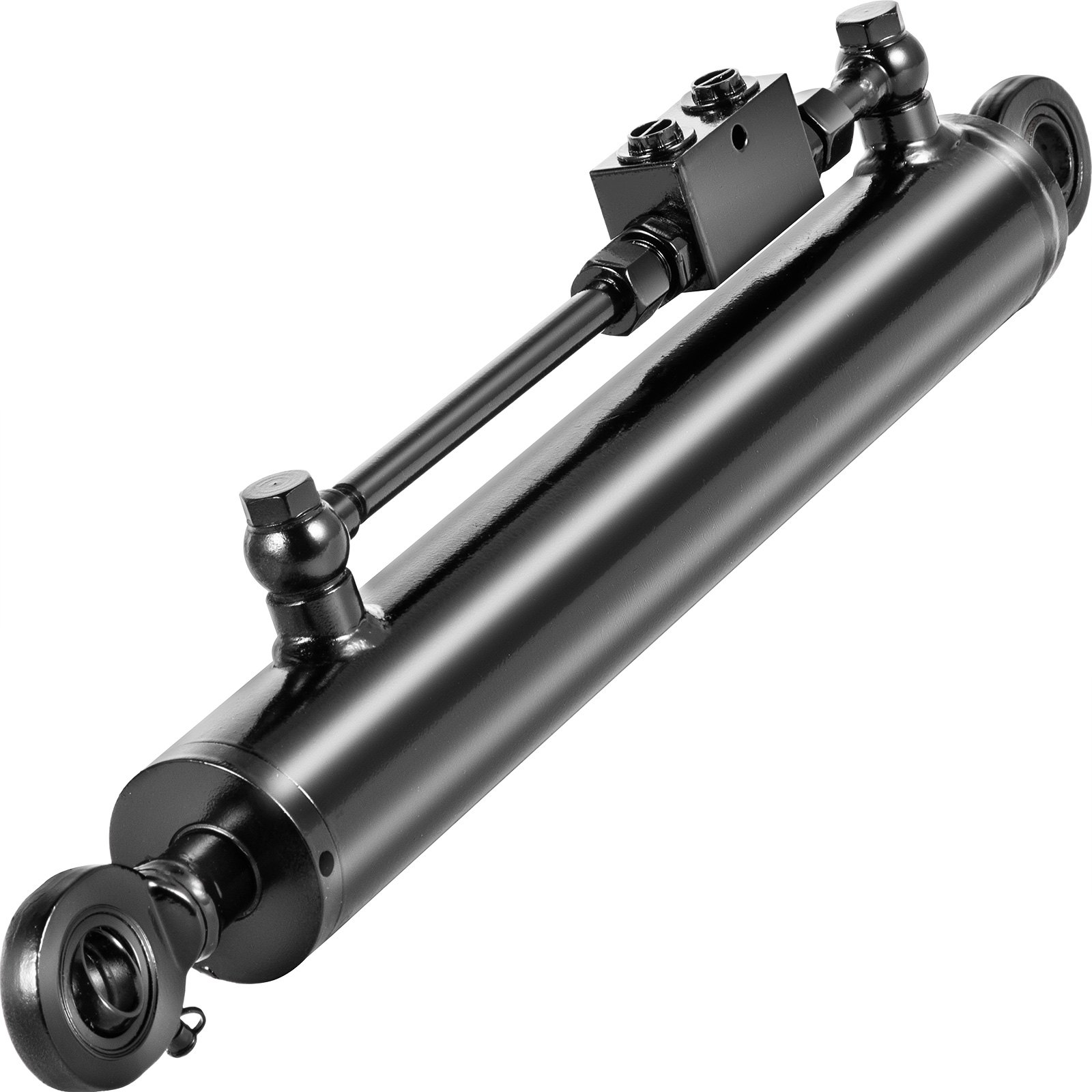

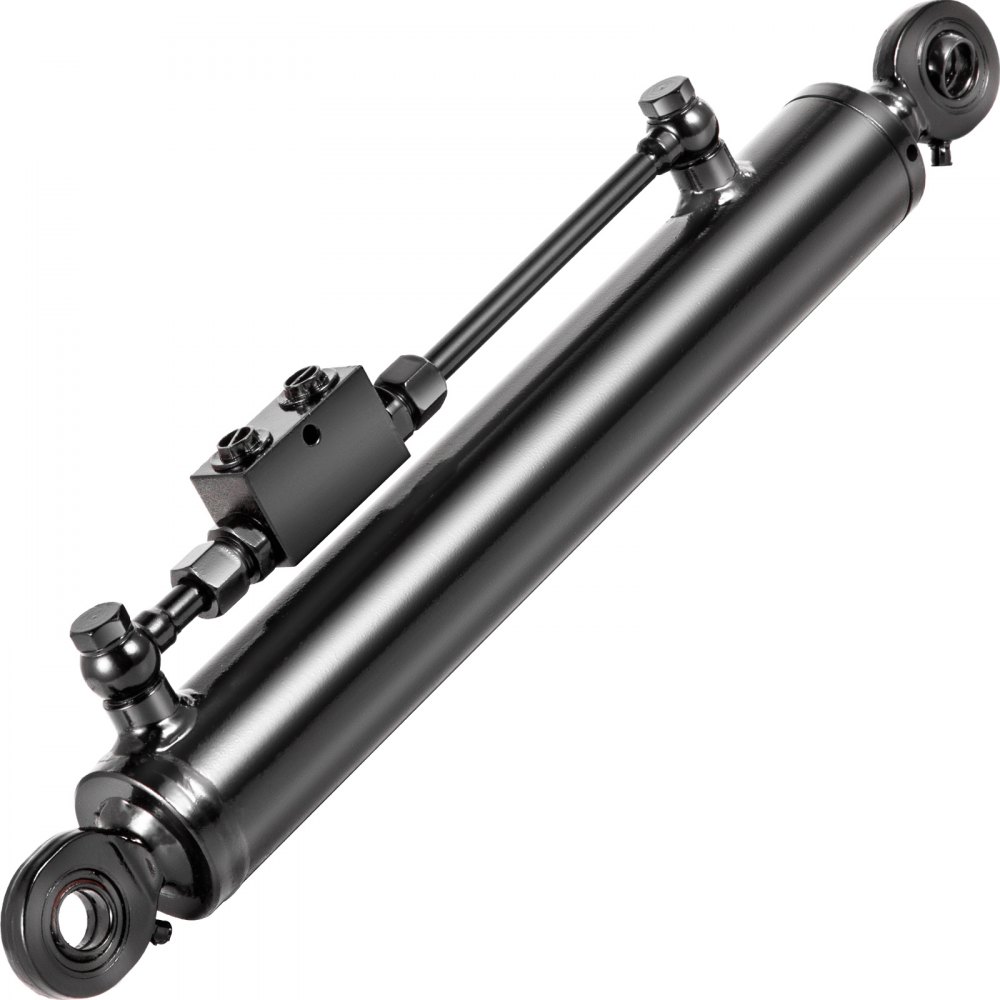

Double Acting Hydraulic Top Link Cylinder w/ Check Valve
This 2"-2.5" bore 13" stroke 22.8"-34" long hydraulic cylinder is built with a rigid welded construction, with 6700 lbs pushing and 4500 lbs lifting, and comes with a double pilot check valve. It has high tensile steel end mounts, threaded glands, and top quality seal components, allowing it to work in harsh conditions. All cylinders are wholly tested, easily maintainable, and are created for use in mobile equipment like wastes, recycling, constructions, transportations, agriculture, material handling, etc.
- High Tensile Steel Structure
- 2"-2.5" Bore 13" Stroke Top Link
- Swivel Eye Bearing Design
- With Check Valve & Fully Tested
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

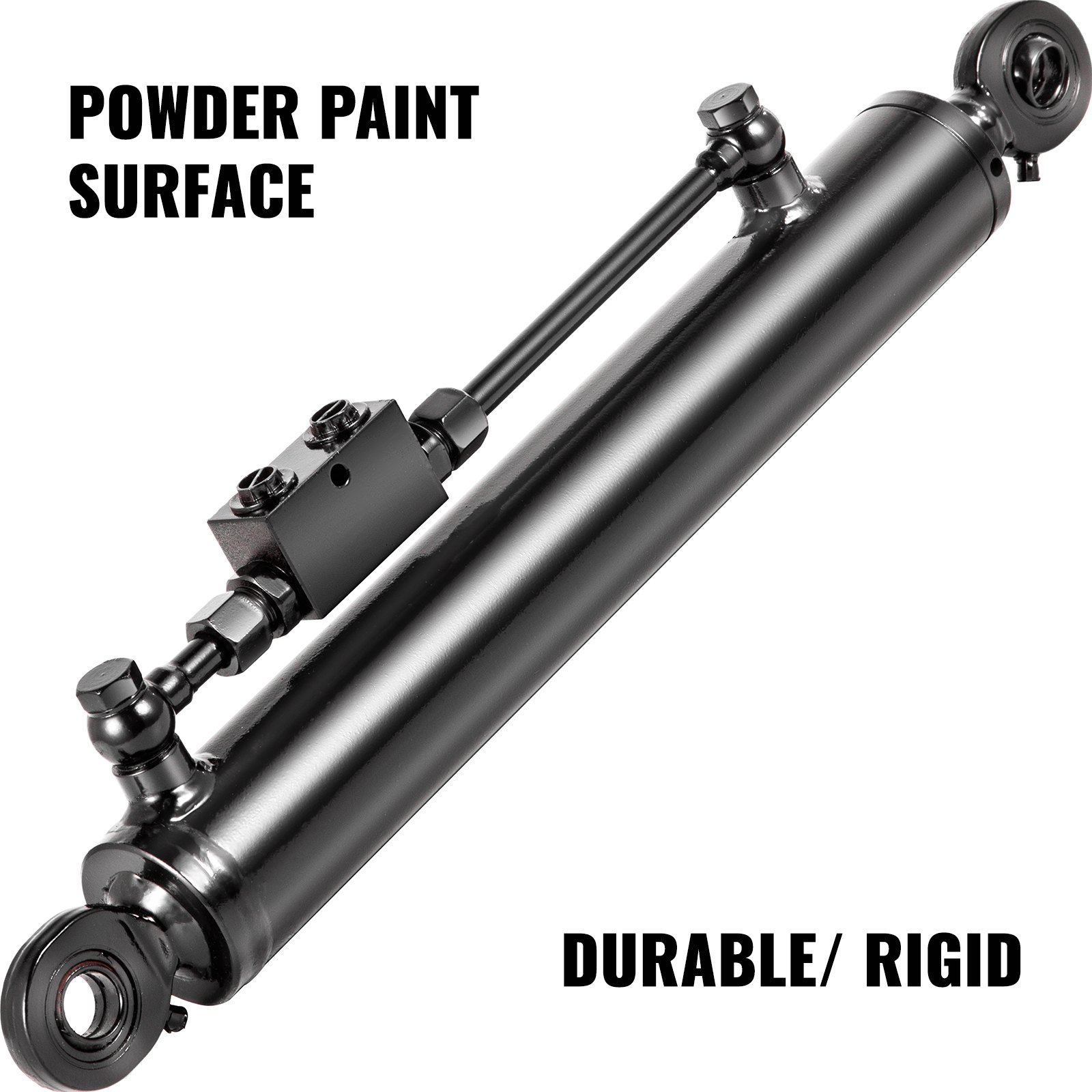

Welded Steel Construction
The loader cylinder is made of rigid carbon steel, polished and welded to be assembled as a top link cylinder, anti-corrosion, weariness, and can endure extreme weather for long-lasting services.

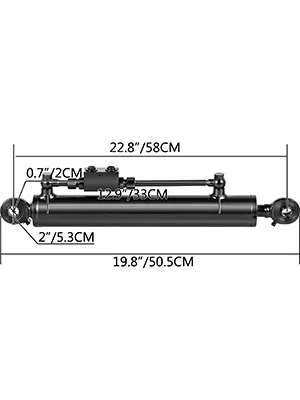

Structure & Dimensions

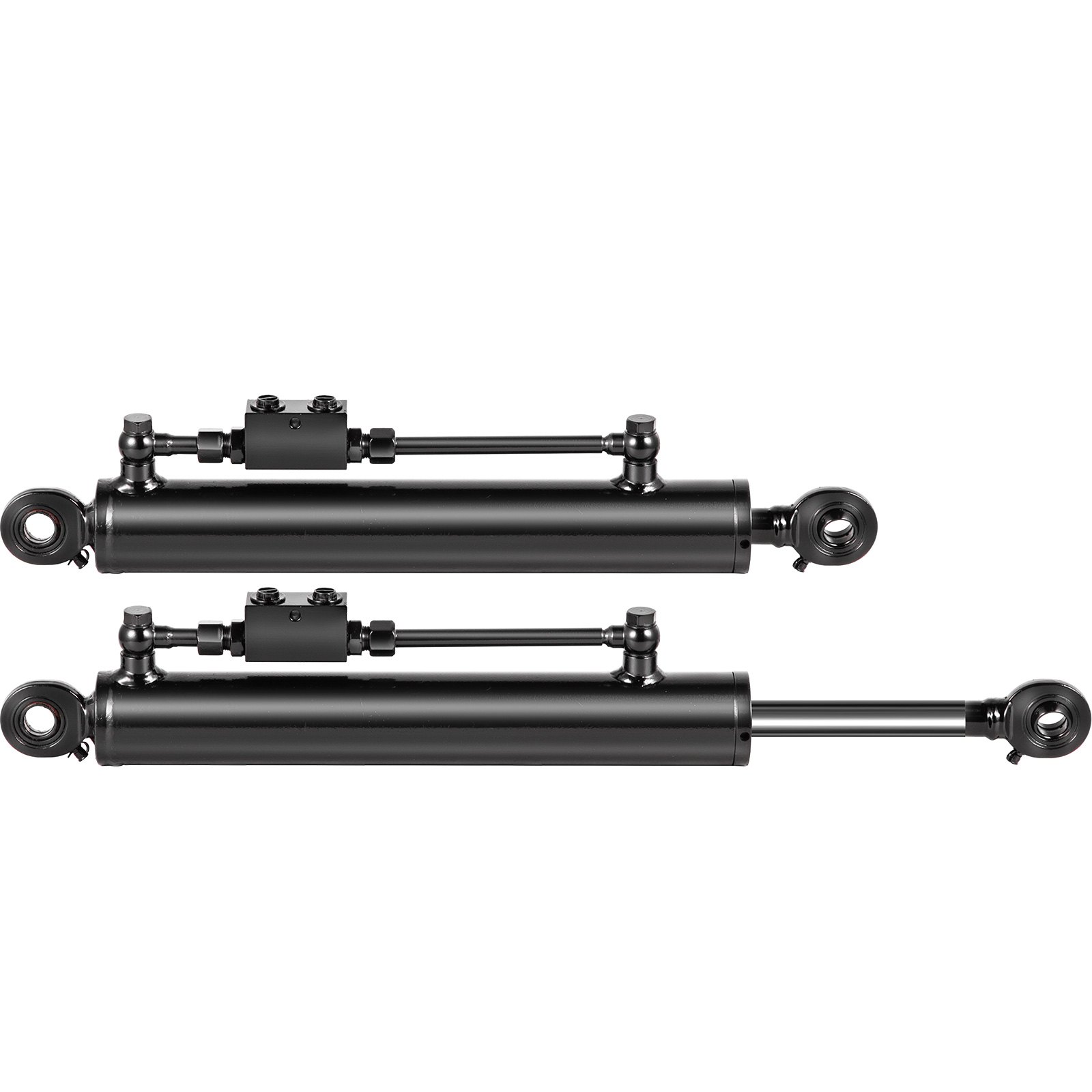

The cylinder is designed in standard dimensions; the cylinder bore is 2" to 2.5". With 13" stroke length, it works excellent in retracting and extending, with length size min 22.8", max 34".

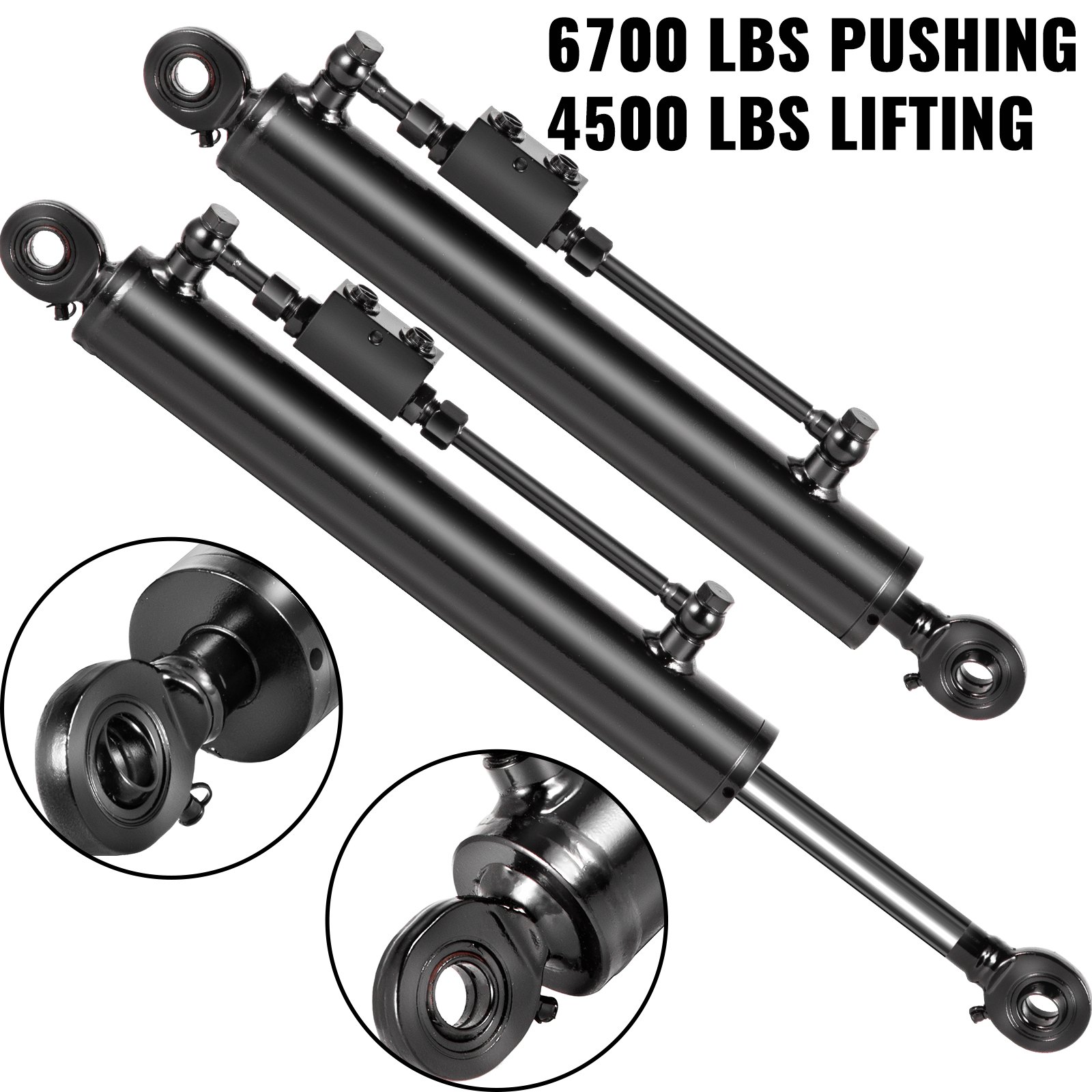

Spherical Bearing Design
Specially designed durable bearings work for pivoting applications and helping to attach with mobile equipment. It features a max pushing capacity of 6700 lbs and a lifting capacity of 4500 lbs.
Check Valve Prevent Drift
The side link cylinder comes with a double pilot operated check valve, aiming to hold the cylinder in places and prevent drift, making the operation process smoother, safer, and reliable.

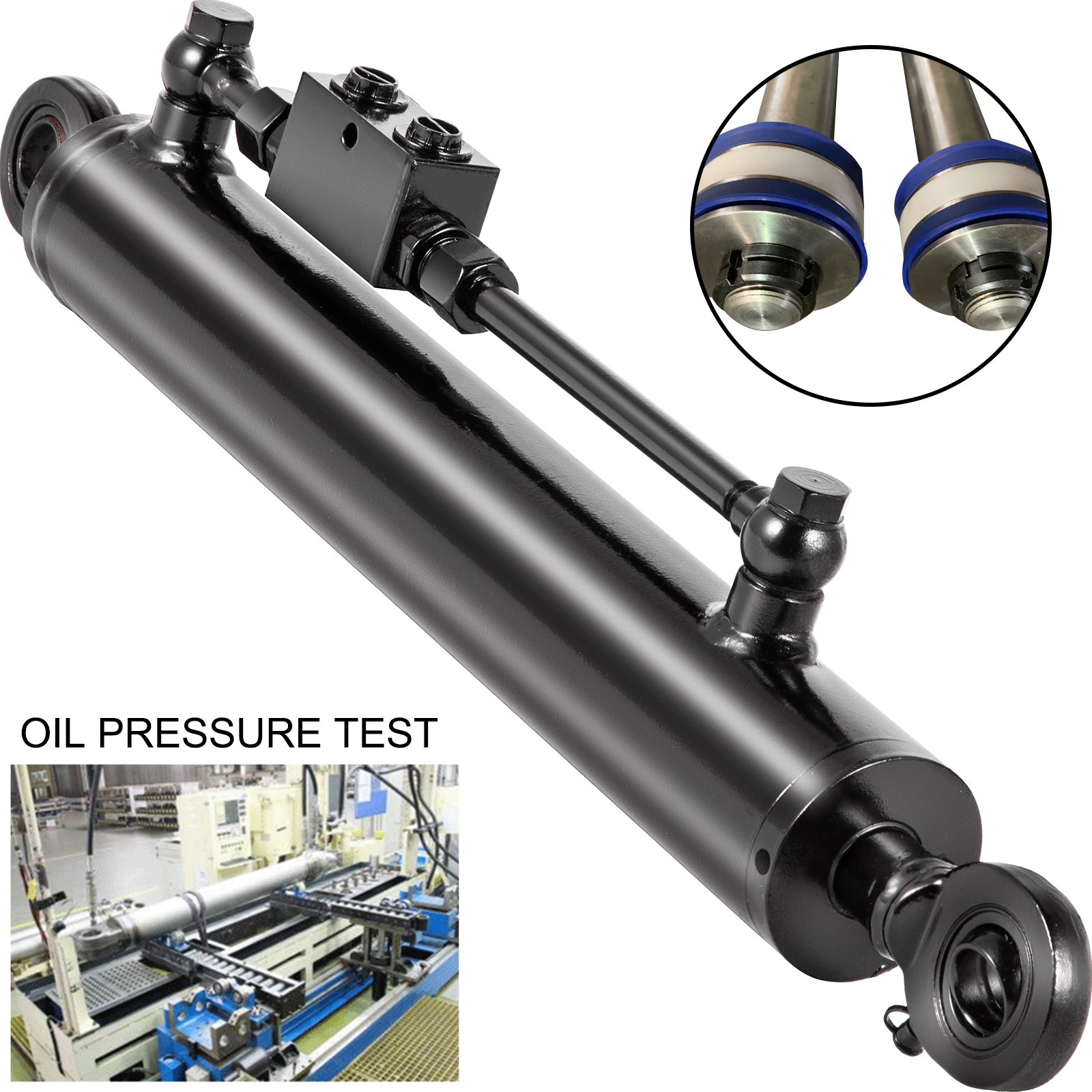

Well-tested & Assembled
All components have gone through oil pressure tests. Assembled sealing rings ensure an excellent sealing performance and contribute to tackling problems like oil evaporate, air leak, and piston blockage.
Wide Range Application
It can be directly mounted to tractors, excavators, and category 1 and 2 equipment, widely applied in industries like wastes, recycling, constructions, transportations, agriculture, material handling, etc.

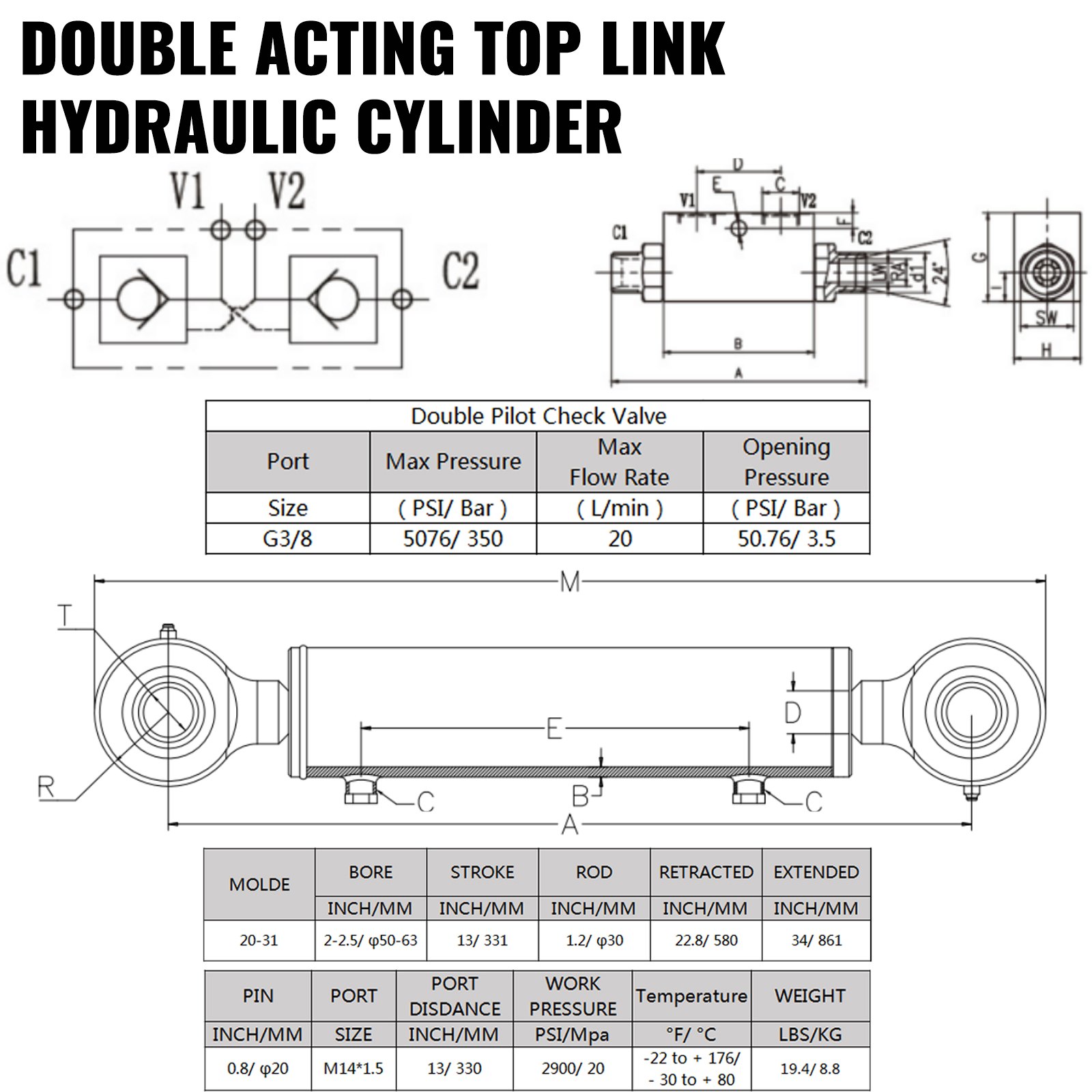

Specifications
- Cylinder Bore: 2"-2.5"/ 50-63 mm
- Stroke: 13"/ 331 mm
- Rod: 1.2"/ 30 mm
- Pin Hole: 0.8"/ 20 mm
- Retracted Length: 22.8"/ 580 mm
- Extended Length: 34"/ 861 mm
- Max Pushing Force: 6700 lbs/ 3 t
- Max Lifting Force: 4500 lbs/ 2 t
- Cylinder Port Size: M14*1.5
- Double Pilot Check Valve Port Size: G3/8
- Port Distance: 13"/ 330 mm
- Joint Bearing Width: 2"/ 53 mm
- Joint Bearing Thickness: 0.6"/ 16 mm
- Cylinder Max Pressure: 2900 PSI/ 20 Mpa
- Check Valve Max Pressure: 5076 PSI/ 350 Bar
- Check Valve Max Flow Rate: 20 L/ min
- Check Valve Opening Pressure: 50.76 PSI/ 3.3 Bar
- Temperature: -22 to + 176 °F/- 30 to + 80 °C
Package Content
- 1 x Hydraulic Cylinder with Check Valve
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Double Acting Hydraulic Top Link Cylinder w/ Check Valve
This 2"-2.5" bore 13" stroke 22.8"-34" long hydraulic cylinder is built with a rigid welded construction, with 6700 lbs pushing and 4500 lbs lifting, and comes with a double pilot check valve. It has high tensile steel end mounts, threaded glands, and top quality seal components, allowing it to work in harsh conditions. All cylinders are wholly tested, easily maintainable, and are created for use in mobile equipment like wastes, recycling, constructions, transportations, agriculture, material handling, etc.
- High Tensile Steel Structure
- 2"-2.5" Bore 13" Stroke Top Link
- Swivel Eye Bearing Design
- With Check Valve & Fully Tested
Welded Steel Construction
The loader cylinder is made of rigid carbon steel, polished and welded to be assembled as a top link cylinder, anti-corrosion, weariness, and can endure extreme weather for long-lasting services.
Structure & Dimensions
The cylinder is designed in standard dimensions; the cylinder bore is 2" to 2.5". With 13" stroke length, it works excellent in retracting and extending, with length size min 22.8", max 34".
Spherical Bearing Design
Specially designed durable bearings work for pivoting applications and helping to attach with mobile equipment. It features a max pushing capacity of 6700 lbs and a lifting capacity of 4500 lbs.
Check Valve Prevent Drift
The side link cylinder comes with a double pilot operated check valve, aiming to hold the cylinder in places and prevent drift, making the operation process smoother, safer, and reliable.
Well-tested & Assembled
All components have gone through oil pressure tests. Assembled sealing rings ensure an excellent sealing performance and contribute to tackling problems like oil evaporate, air leak, and piston blockage.
Wide Range Application
It can be directly mounted to tractors, excavators, and category 1 and 2 equipment, widely applied in industries like wastes, recycling, constructions, transportations, agriculture, material handling, etc.
Package Content
- 1 x Hydraulic Cylinder with Check Valve
Specifications
- Cylinder Bore: 2"-2.5"/ 50-63 mm
- Stroke: 13"/ 331 mm
- Rod: 1.2"/ 30 mm
- Pin Hole: 0.8"/ 20 mm
- Retracted Length: 22.8"/ 580 mm
- Extended Length: 34"/ 861 mm
- Max Pushing Force: 6700 lbs/ 3 t
- Max Lifting Force: 4500 lbs/ 2 t
- Cylinder Port Size: M14*1.5
- Double Pilot Check Valve Port Size: G3/8
- Port Distance: 13"/ 330 mm
- Joint Bearing Width: 2"/ 53 mm
- Joint Bearing Thickness: 0.6"/ 16 mm
- Cylinder Max Pressure: 2900 PSI/ 20 Mpa
- Check Valve Max Pressure: 5076 PSI/ 350 Bar
- Check Valve Max Flow Rate: 20 L/ min
- Check Valve Opening Pressure: 50.76 PSI/ 3.3 Bar
- Temperature: -22 to + 176 °F/- 30 to + 80 °C
