Features & Details

• 【FOR DIFFERENT SIZES】-Thehydraulic SD-1632Y set is a tool kit for connecting pipes with a pressing range of 0.63 to 1.25 in. Made of Aluminum alloy, Our products are sturdy, durable, and maintenance-free, with long service life and higher precision.
• 【BE ECONOMICAL OF TIME】- The tensioner features double compression jaws and is available in two sizes（16/20 mm & 25/32 mm). There is no need to change the tool whenever using, saving your time and effort.
• 【SIMPLICITY OF OPERATOR】-You can easily expand the pipe sleeve fully with a tubing expander, and press the pipe sleeve onto the pipe and pipe fitting with a pipe pressing pile, then cut and clean at last to ensure well expanding and pressing.

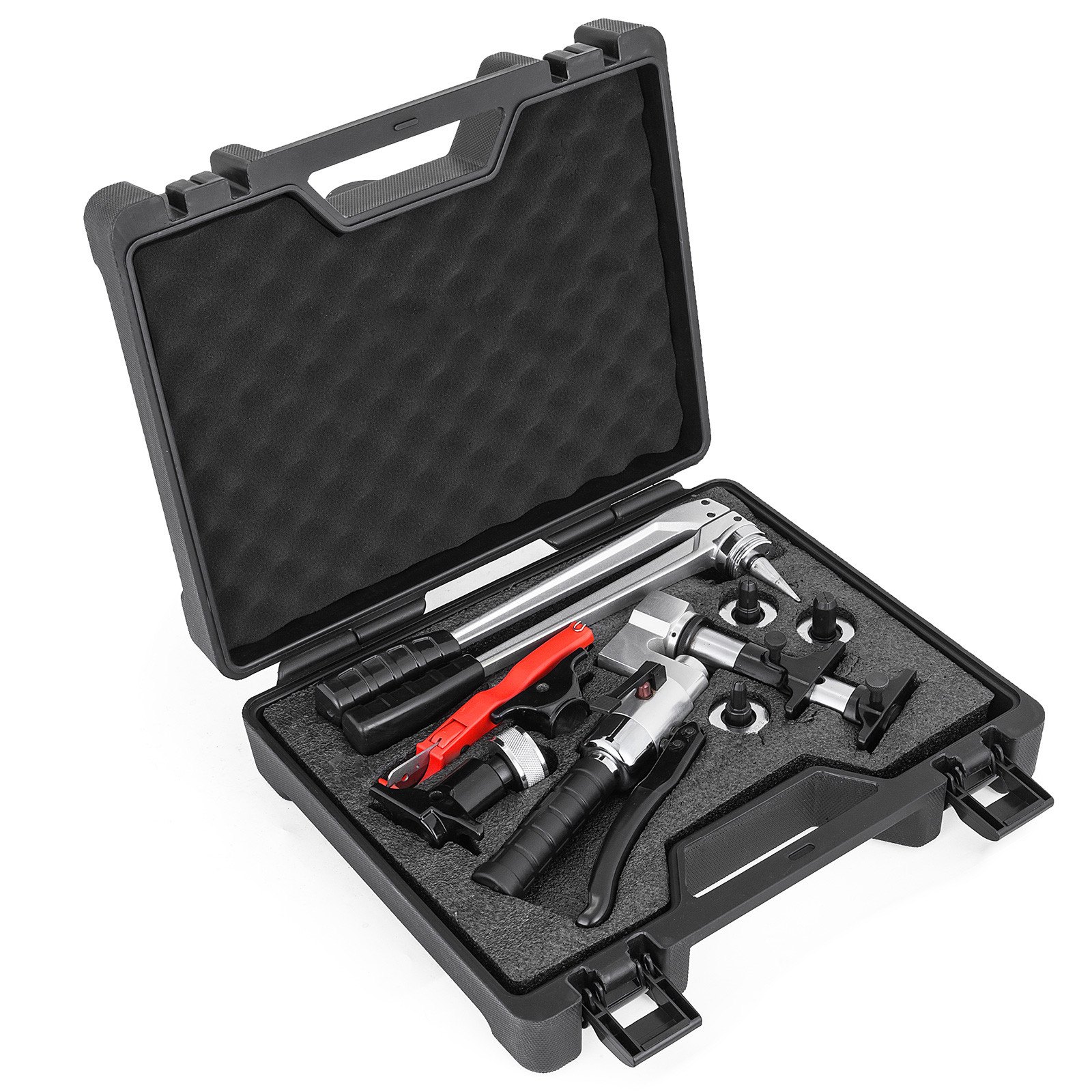

• 【NEAT STORAGE & LONG HANDLE】- We will offer you a solid plastic case for storing all the products, convenient for you to store and carry. Besides, there are also long handles designed for comfortable operation.
• 【WIDE APPLICATIONS】- This expander pulling clamping plumbing tool is widely used in pipe installation. It is suitable for various pipe systems, like heating and cooling water plumbing systems, recycled water, and rainwater systems.

Specifications

• Model: SD-1632Y
• Type: hydraulic
• Material: Aluminum alloy
• Stroke: 28 mm
• Pressing plier: 2.5 kg/5.5 Lbs
• Expanding pilier: 1kg/2.2 Lbs
• Expanding range: 16, 20, 25, 32 mm(0.63 in,0.78 in,0.98 in,1.25 in)
• Expanding dies: 16x2.2, 20x2.8, 25x3.5, 32x4.4 mm(0.63 in, 0.78 in,0.98 in,1.25 in)
• Pressure: 3T
• Package: Plastic box

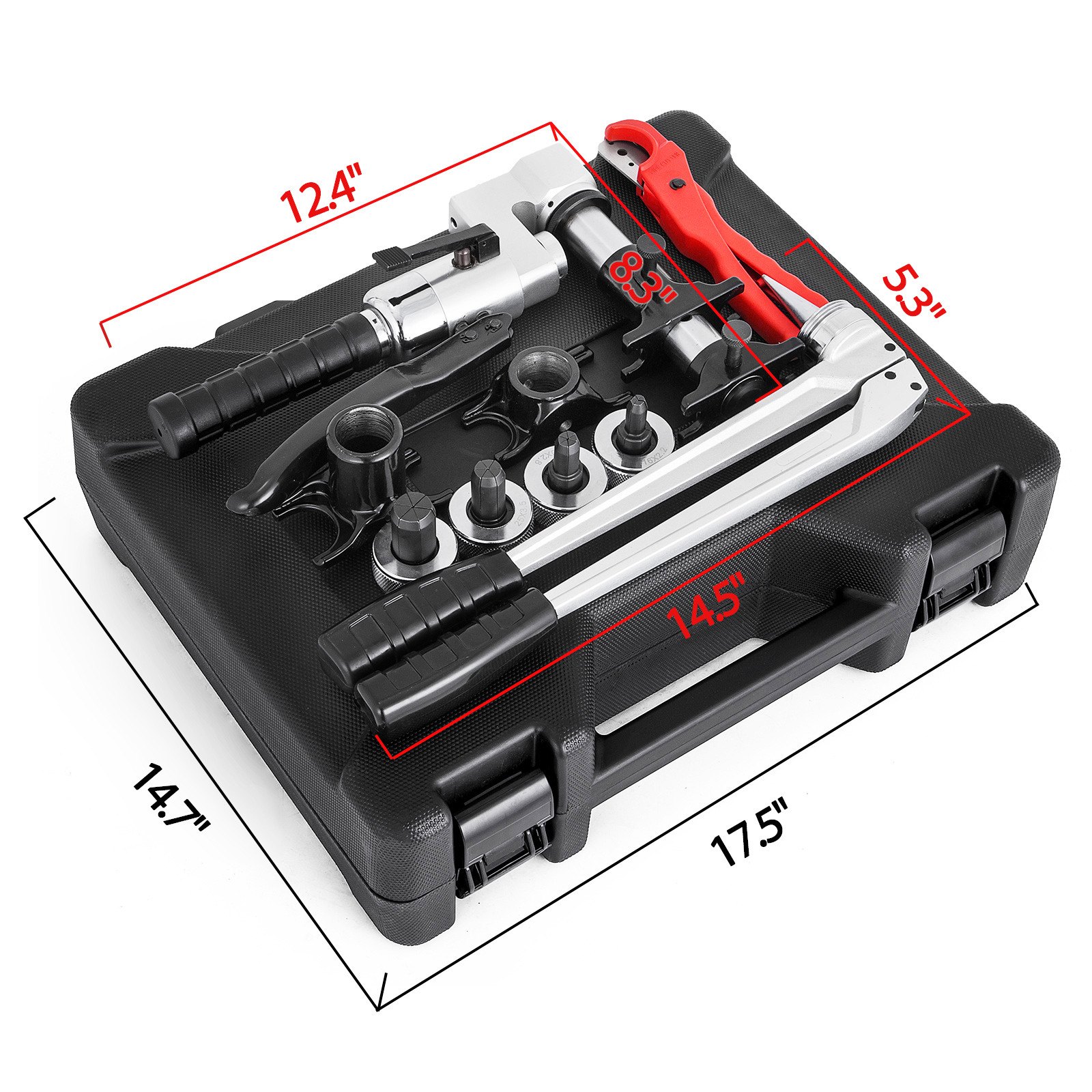

• Packing size: 46x40x13 cm(19x16x6 in)
• Gross weight: 18 kg/39.7lbs

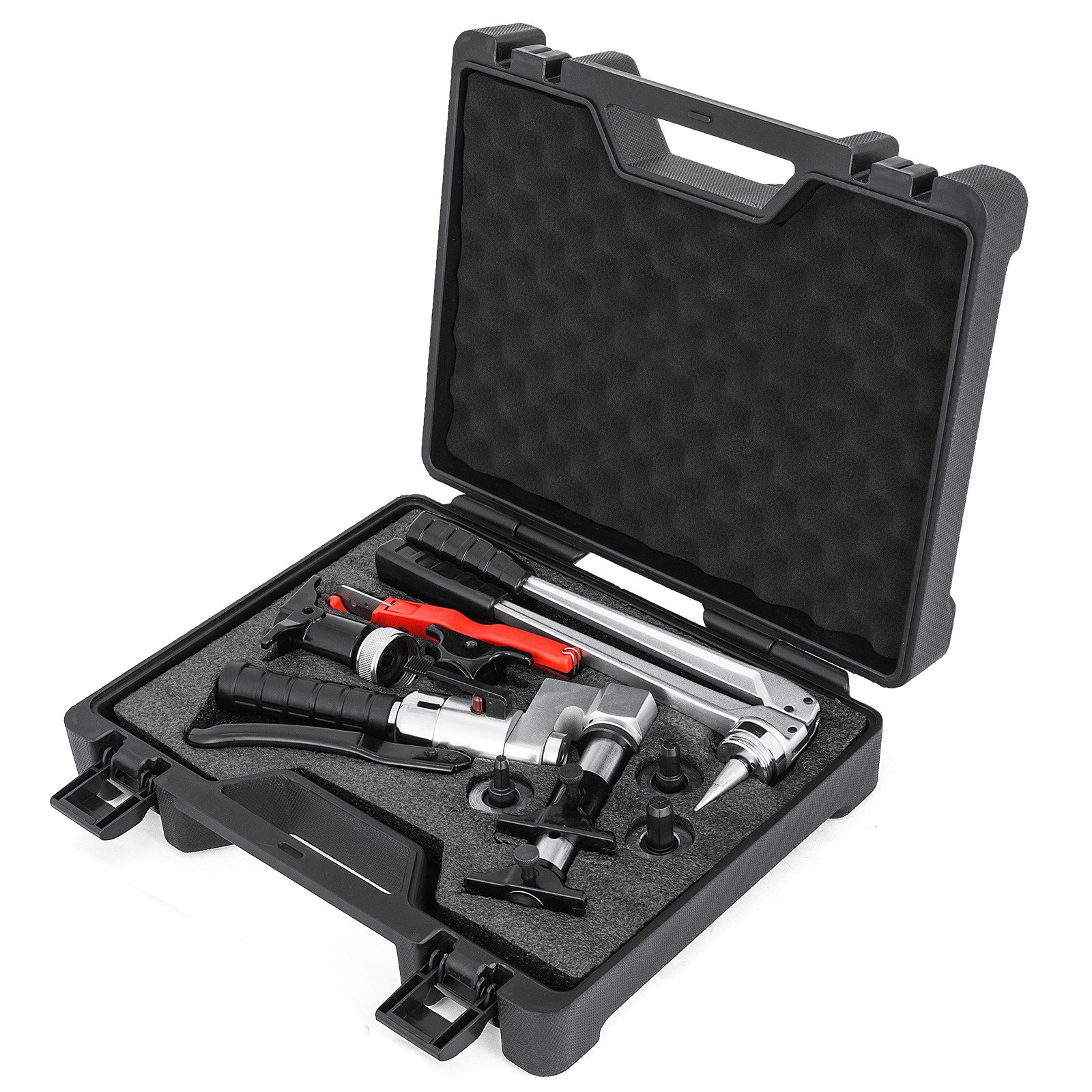

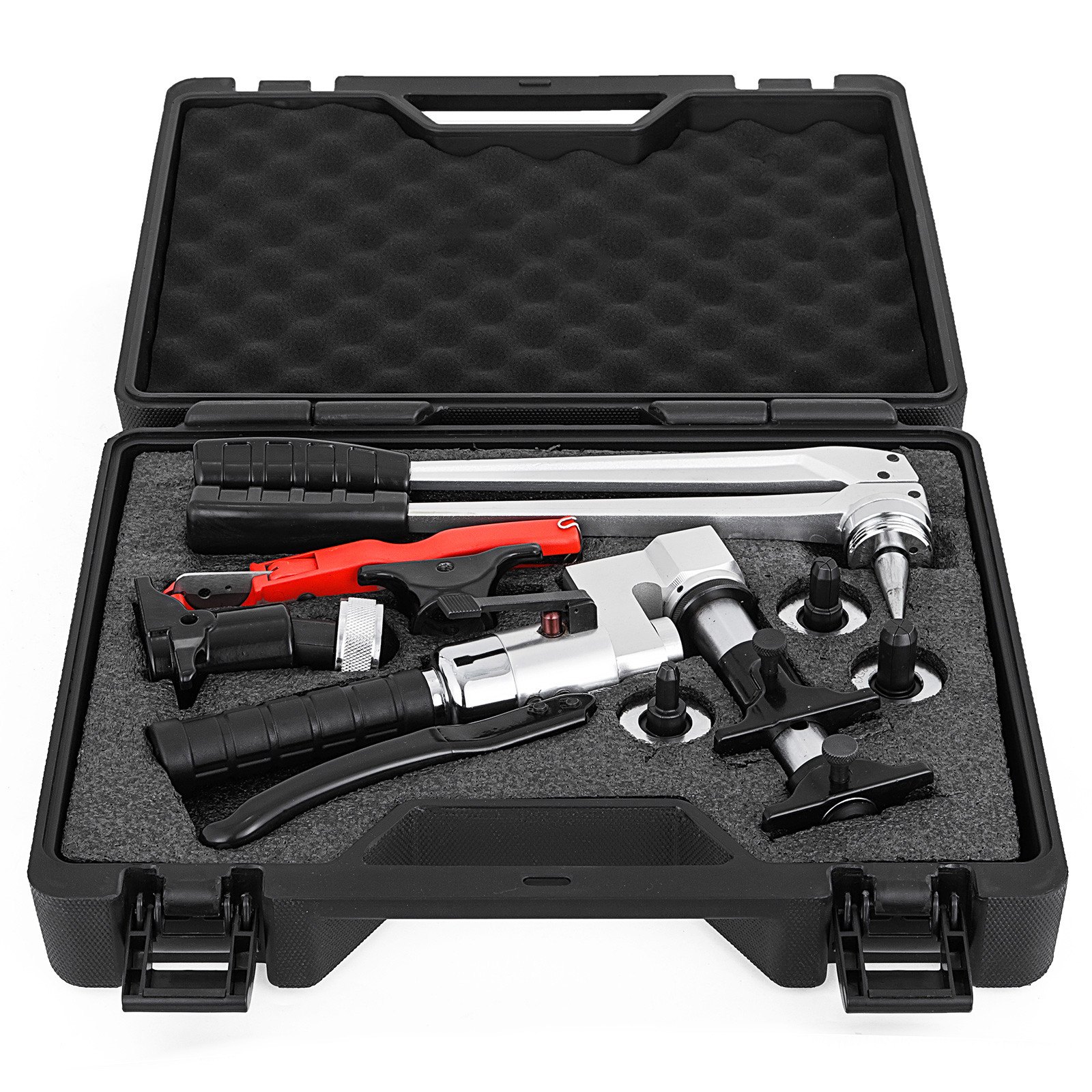

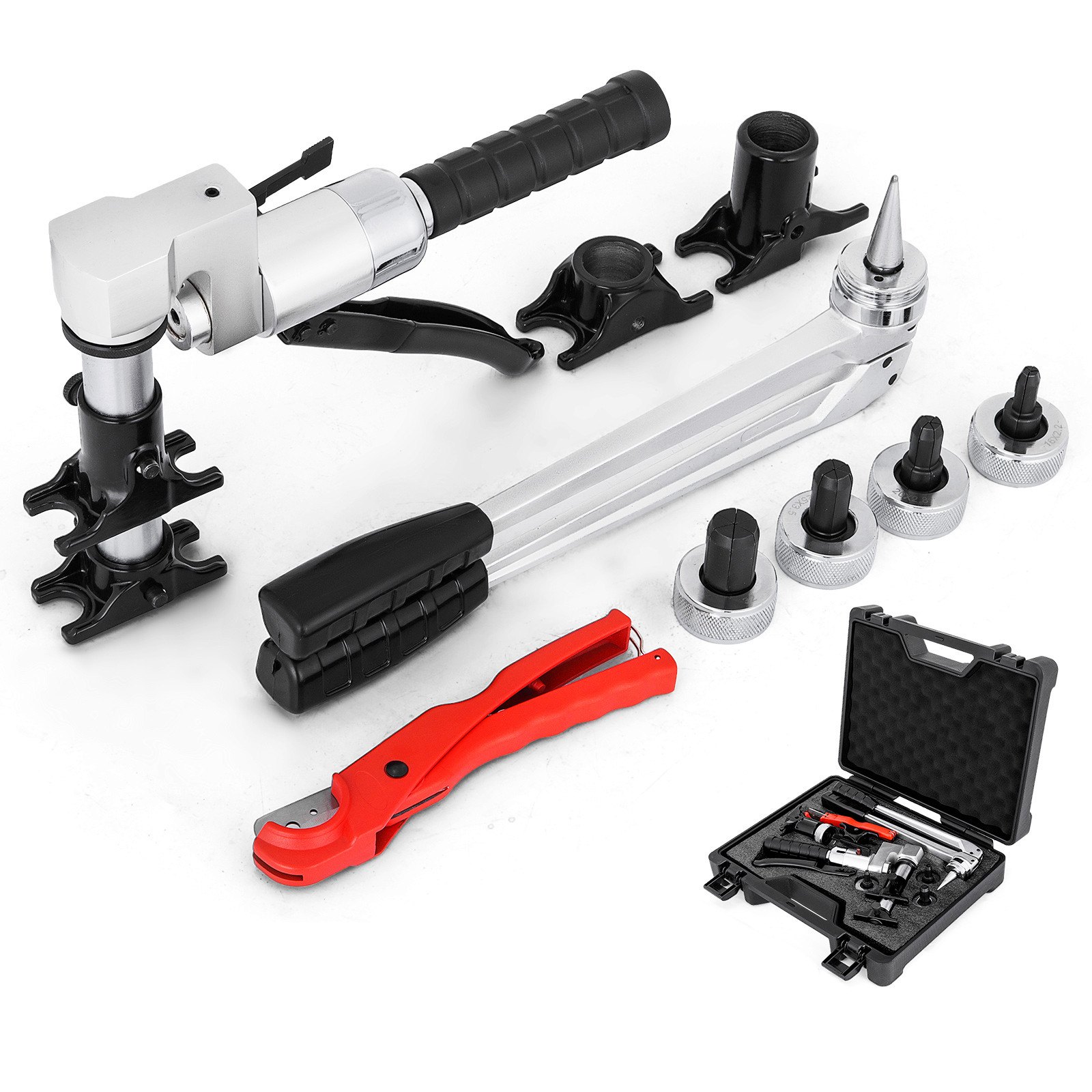

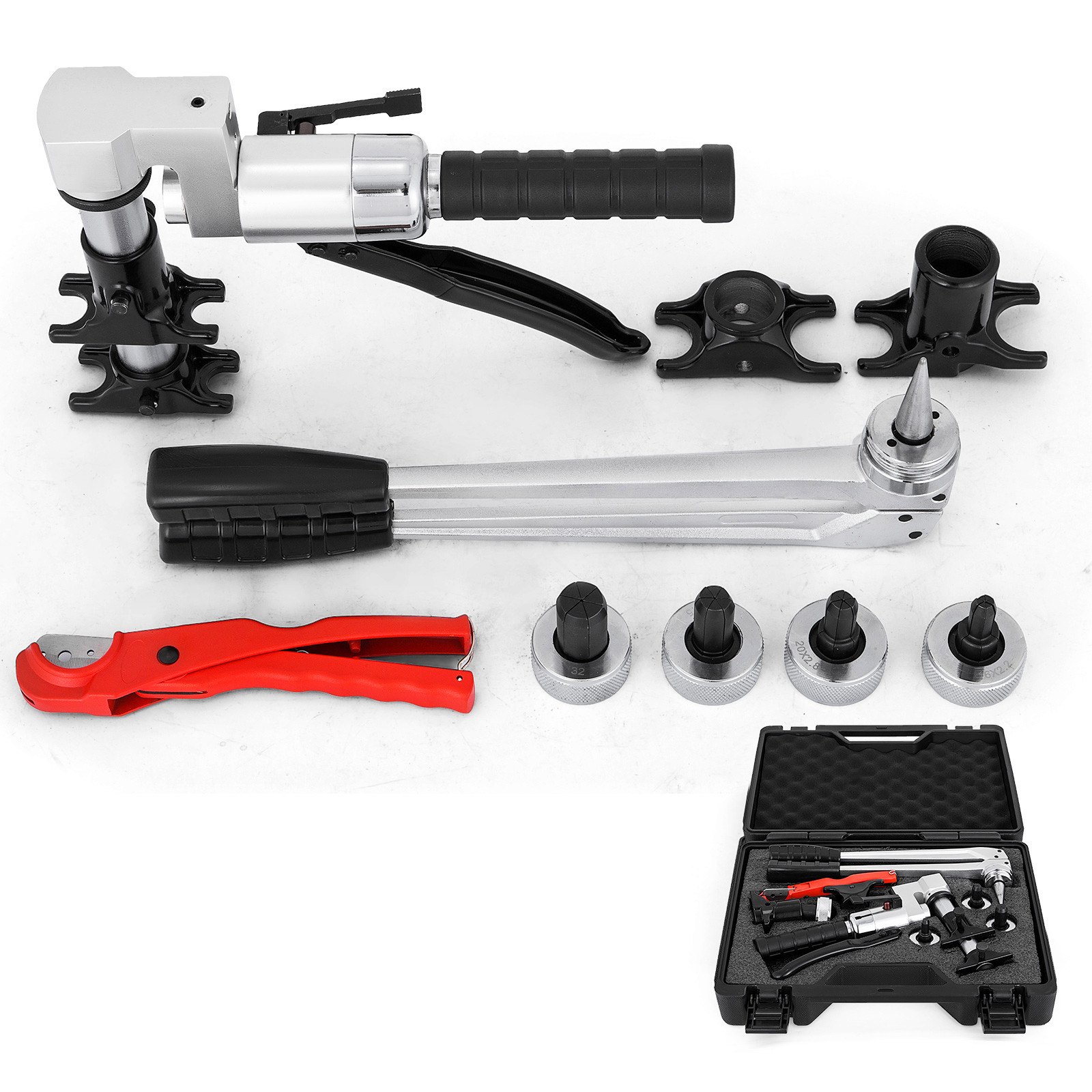

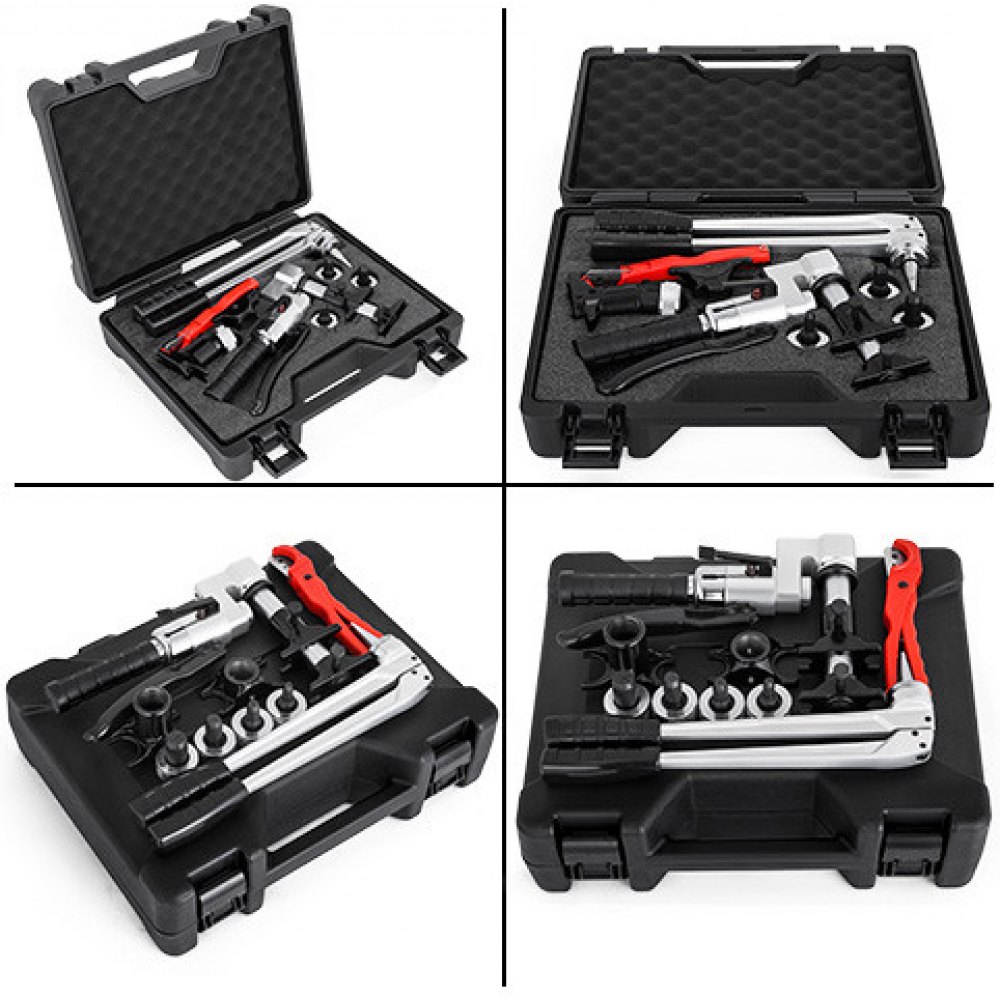

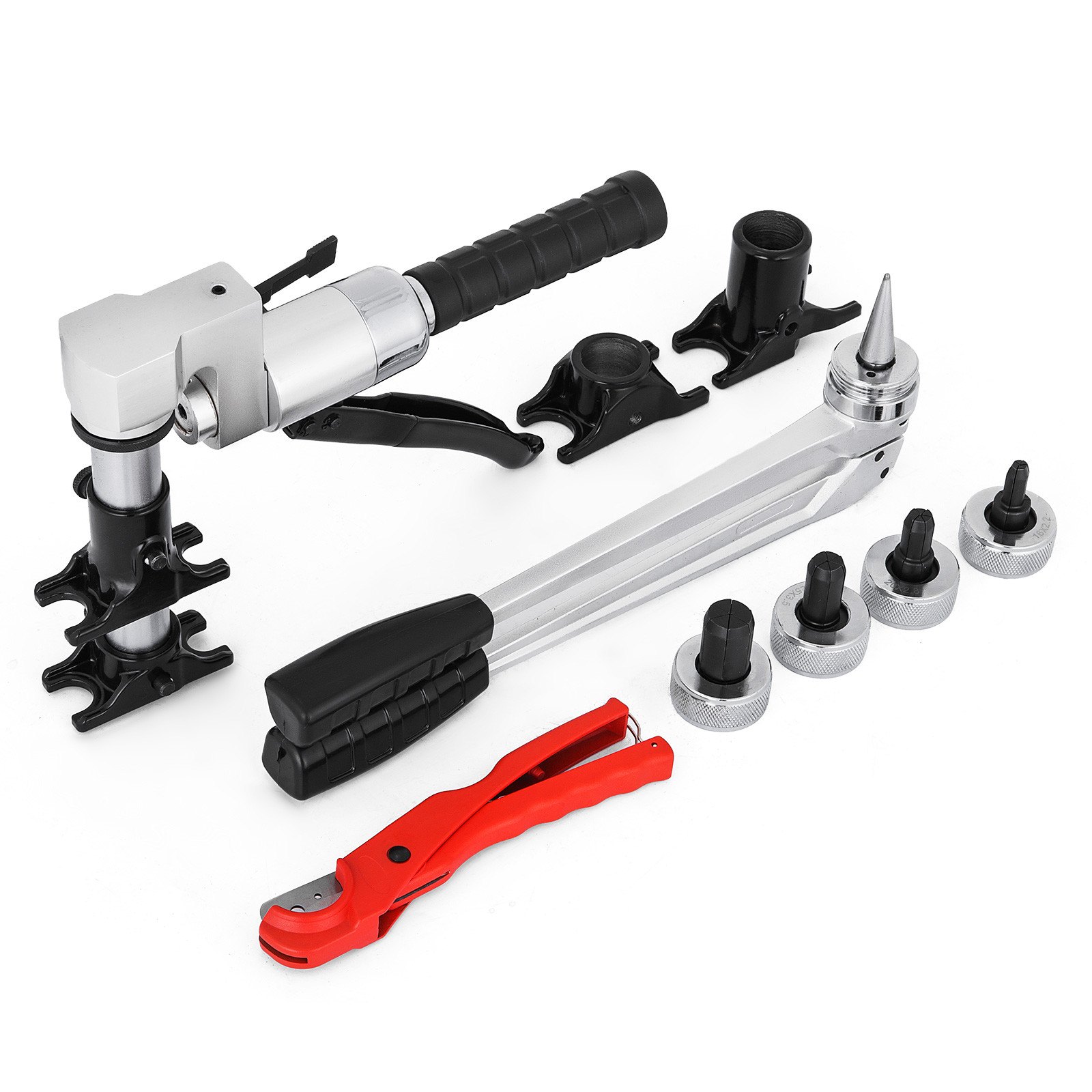

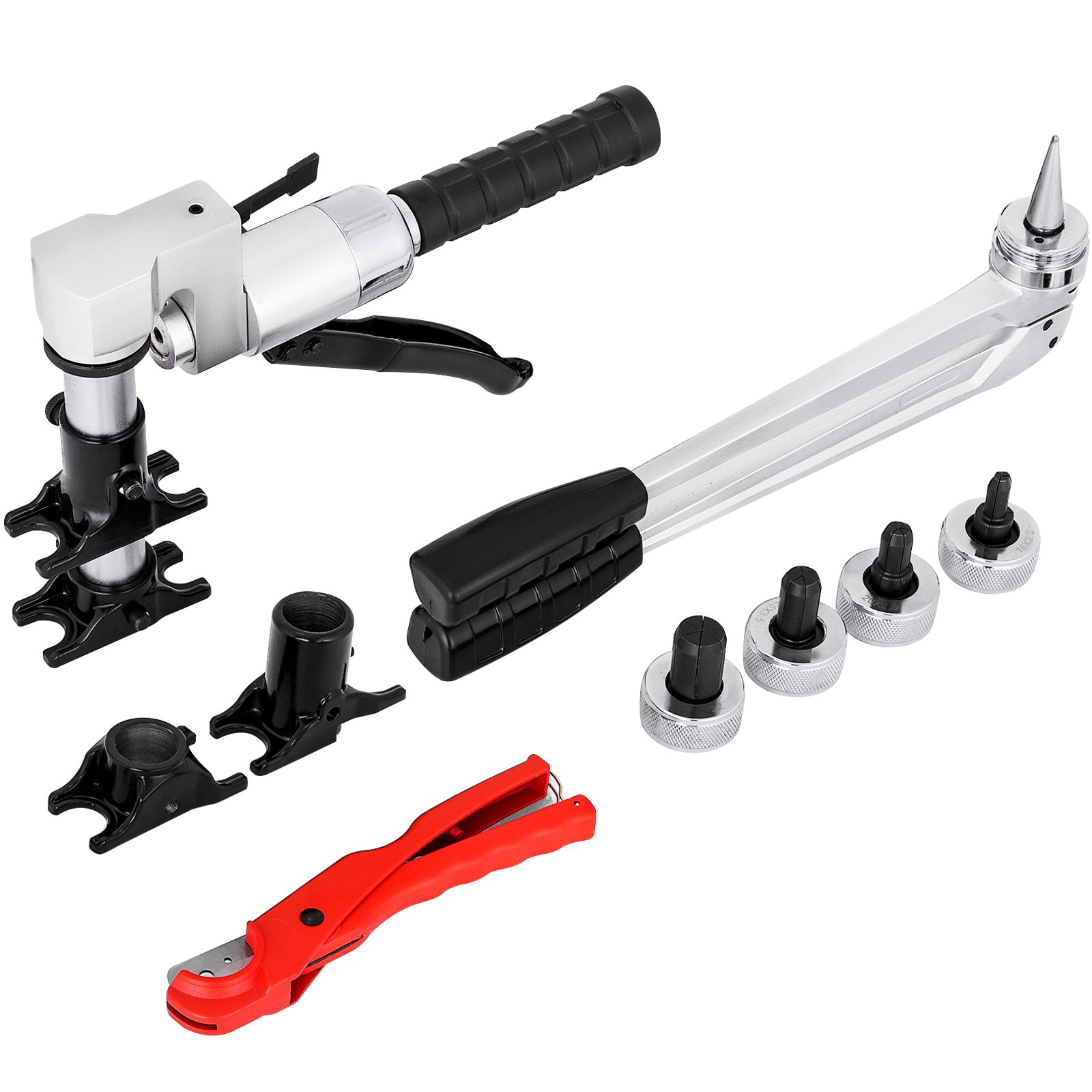

Package Content

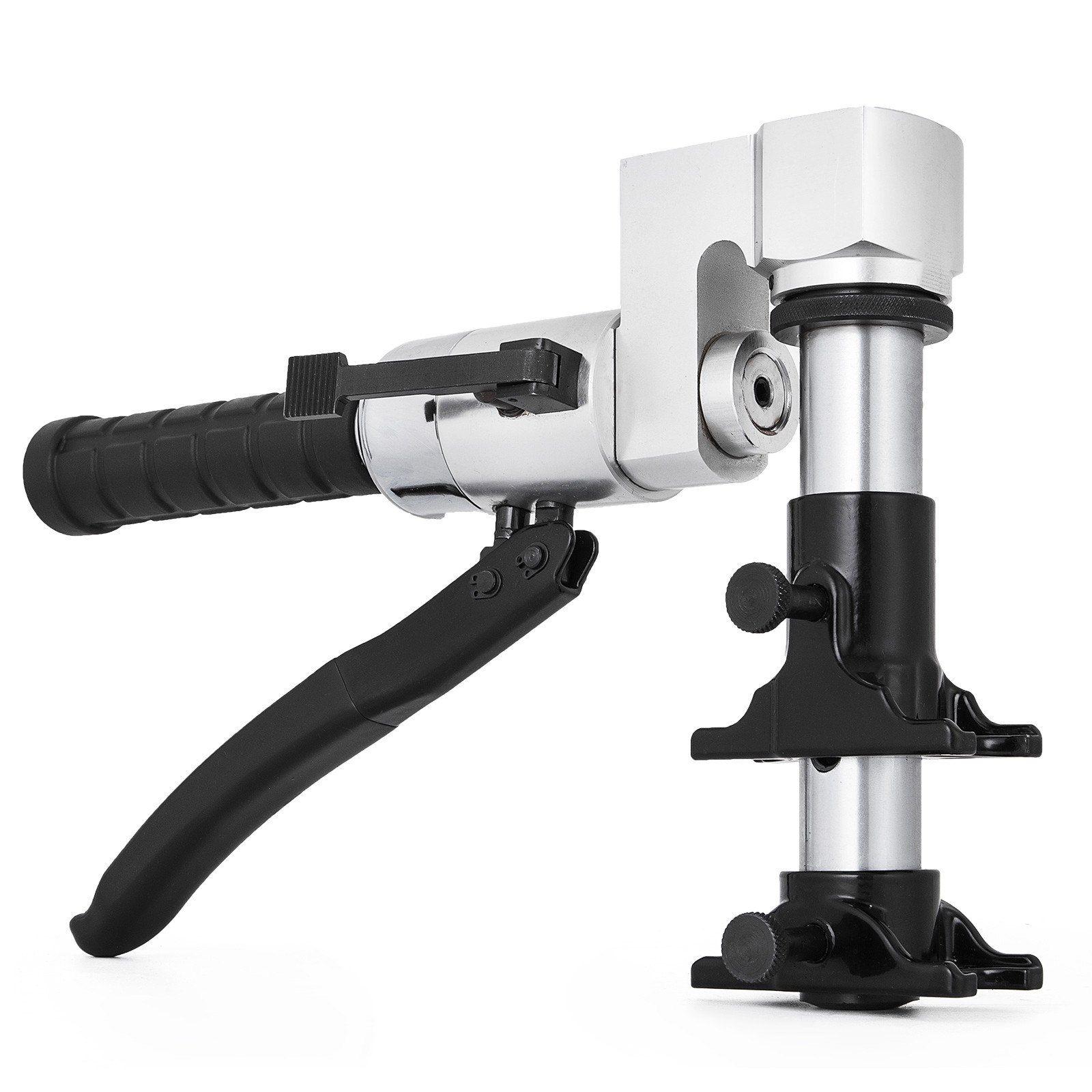

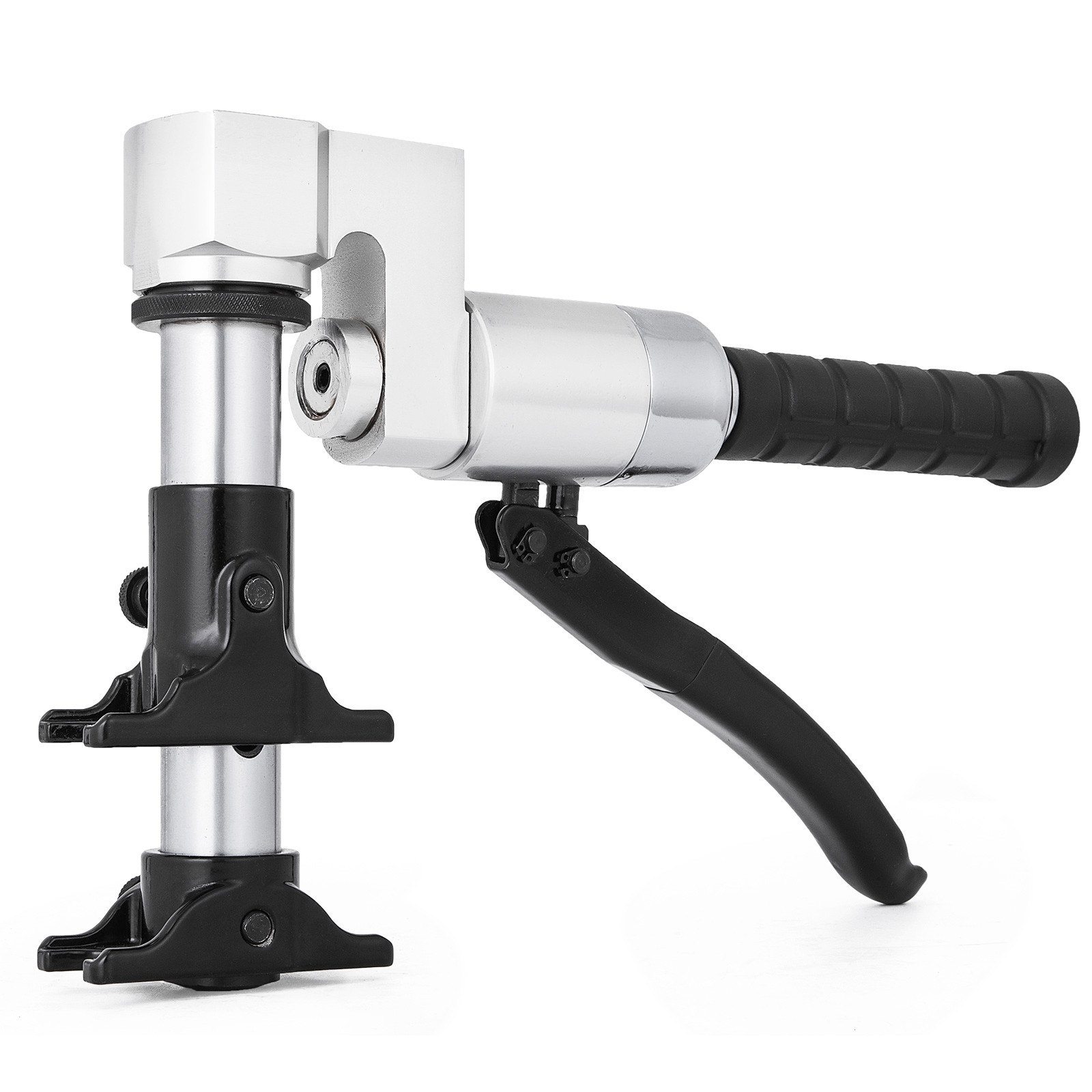

• 1 X Pressing Plier
• 2 X Pressing Forks(for 0.63 in and 0.78 in; for 0.98 in and 1.25 in)
• 1 X Expanding Plier

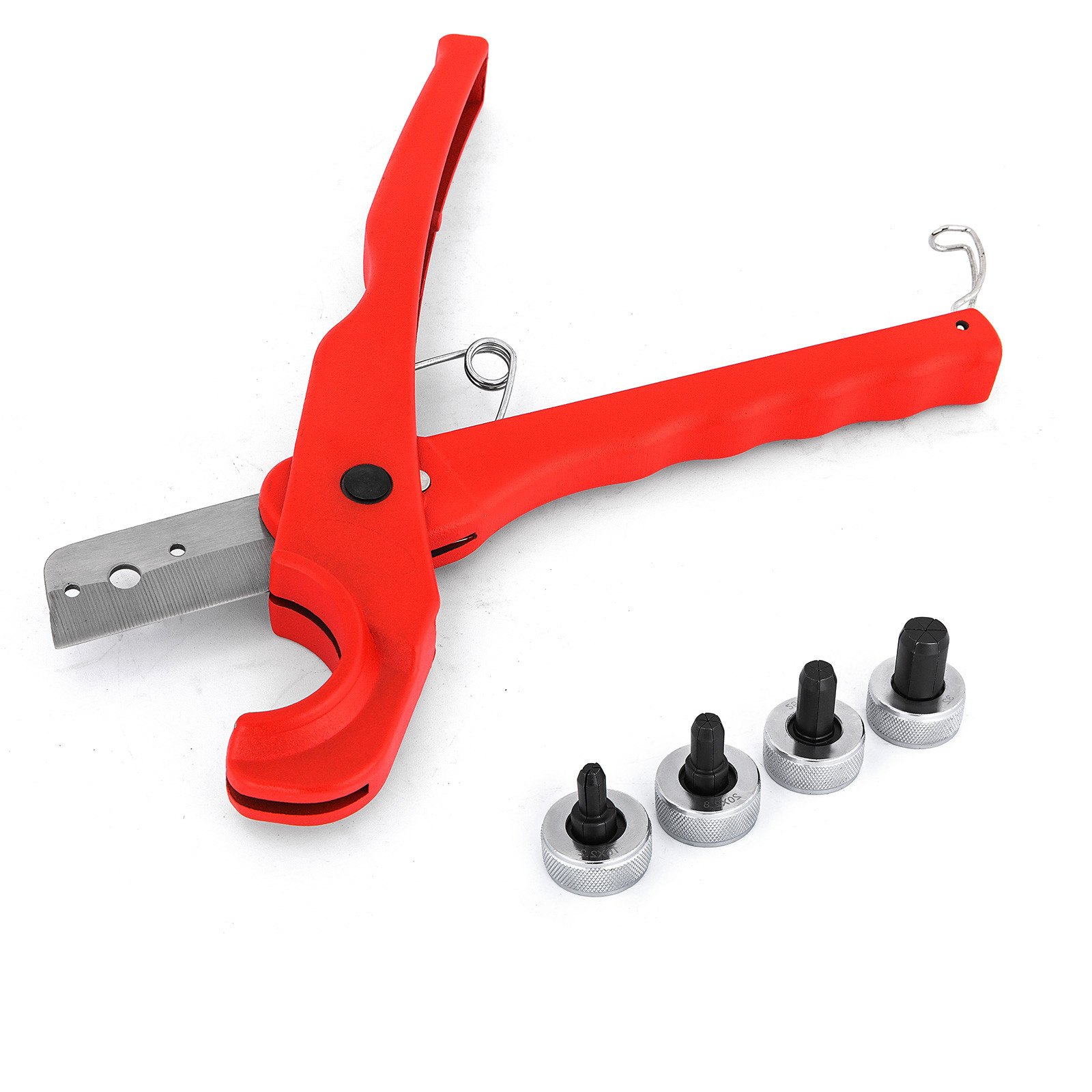

• 4 X Expanding Heads(0.63 in 0.78 in0.98 in1.25 in)
• 1 X Pipe Cutter
• 1 X Plastic Case
