VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
+12
More
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router
VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router VEVOR 3PCS 1.26Nm Nema 23 Stepper Motor 2.8A 56mm 4-wire 5.95mm Shaft CNC Router

Features & Details

  • 【PRECISION CONTROL SYSTEM】- Stepper motor applied new control technology and vector control technology to prevent out-of-control and ensure product accuracy. High torque stepper motor features a stepping-open-loop circuit system that runs smoothly, vibrates mildly, and has less movement synchronization.
  • 【EXCELLENT PERFORMANCE】- Stepper motor is provided with 1.26 N.m / 178.5 oz.in high holding torque, low self-inductance reactance, responsive and can avoid system error. This step motor can lower resistance value than motors of the same thickness and torque, thus enabling good thermal conductivity.
  • 【PREMIUM QUALITY】- The stepping motor is built with a 100% copper core for low noise operation and excellent speed regulating performance. The nema motor adopts a durable metal structure to keep the rotor away from corrosion rust. Magnetic filling materials cover the motor rotor to refrain from skipping steps and getting stuck.
  • 【EFFORTLESS TO USE】- The stepper motor is equipped with a wire stripper commonly used by internal electricians, motor repairs, and instrument electricians to strip plastic & rubber insulated & cable core wires. Insulating rubber tape with excellent insulation performance and good adhesion to prevent leakage.
  • 【MULTIPLE APPLICATION】- A stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.

Frequently Bought Together

Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews

See all 2 reviews

About this item

Product specification
Model
57HS22-2804S
Rated Voltage
2.52V
Rated Current/Phase
2.8A
Number of Phase
2
Holding Torque
1.26 N.m / 178.5 oz.in
Step Angle
1.8°
Step Angle Accuracy
5%
Phase Resistance
0.9 ohms
Shaft Diameter
5.8 ± 0.15 mm / 0.23''
Shaft Length
21 ± 0.5 mm / 0.83''
Inductance
2.5mH ± 20% / 1KHz
Motor Size(L x W x H)
57 x 57 x 56 mm / 2.24 x 2.24 x 2.2''
Weight
0.7 kg / 1.54 lbs
Description
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.
3PCS NEMA 23 1.26Nm High Torque Stepper Motor
This two-phase stepper motor adopts new control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. Position out-of-tolerance alarm function ensures machining equipment safe operation. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
  • Precision Control System
  • Excellent Performance
  • Premium Quality
  • Effortless to Use

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Strong Compatibility
Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output.
High Torque & Speed
The holding torque of the stepper motor up to 1.26 N.m / 178.5 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect.
Pure Copper Coils
This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly.
Sturdy Construction
The white part of the motor is made of durable aluminum alloy material with high strength to resist oxidation. The black part is constructed with silicon steel, durable, and wear-resistant. Complete motor drawings allow users to understand the motor size and structure.
Wire Stripper Included
The wire stripper keeps the cut insulation apart from the wire and prevents electric shock. An insulating rubber tape is presented with good insulating voltage resistance, flame retardant, weather resistance for wire connection, and electrical insulation protection.
Wide Application
Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment.
Specifications
  • Model: 57HS22-2804S
  • Rated Voltage: 2.52V
  • Rated Current/Phase: 2.8A
  • Number of Phase: 2
  • Holding Torque: 1.26 N.m / 178.5 oz.in
  • Step Angle: 1.8°
  • Step Angle Accuracy: 5%
  • Phase Resistance: 0.9 ohms
  • Shaft Diameter: 5.8 ± 0.15 mm / 0.23''
  • Shaft Length: 21 ± 0.5 mm / 0.83''
  • Inductance: 2.5mH ± 20% / 1KHz

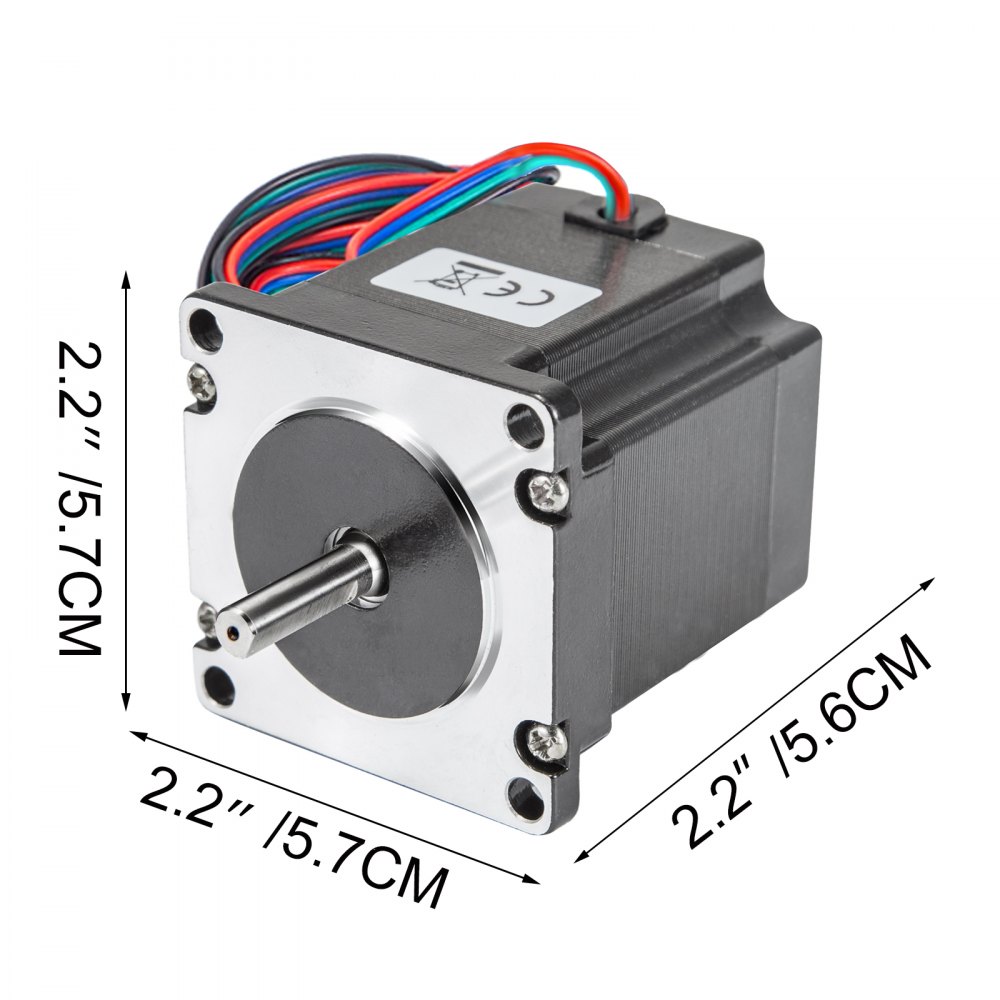

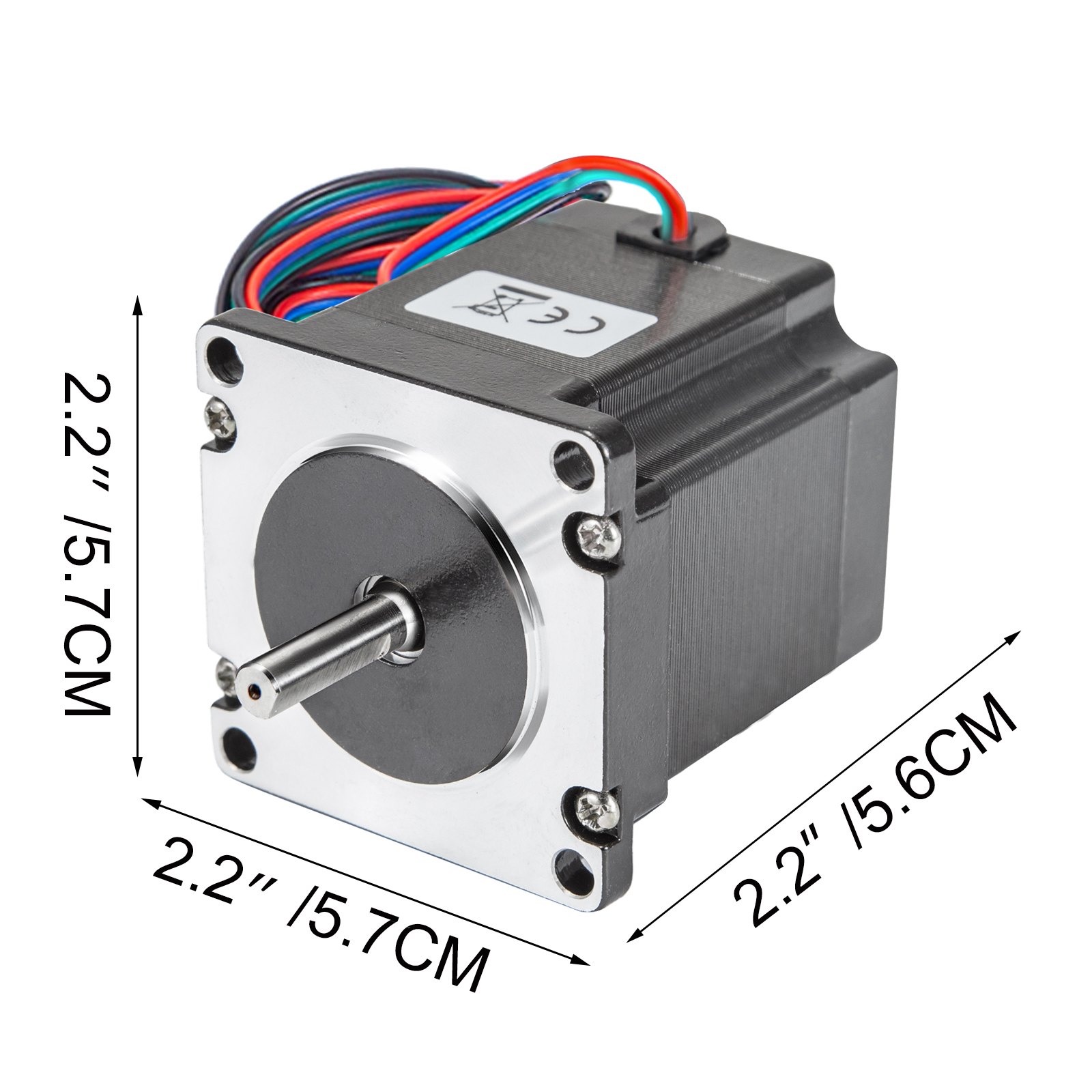

  • Motor Size(L x W x H): 57 x 57 x 56 mm / 2.24 x 2.24 x 2.2''
  • Weight: 0.7 kg / 1.54 lbs
Package Content
  • 3 x Stepper Motors
  • 1 x Wire Stripper
  • 1 x Insulating Rubber Tape
  • 1 x Product Manual
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
3PCS NEMA 23 1.26Nm High Torque Stepper Motor
This two-phase stepper motor adopts new control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. Position out-of-tolerance alarm function ensures machining equipment safe operation. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
  • Precision Control System
  • Excellent Performance
  • Premium Quality
  • Effortless to Use

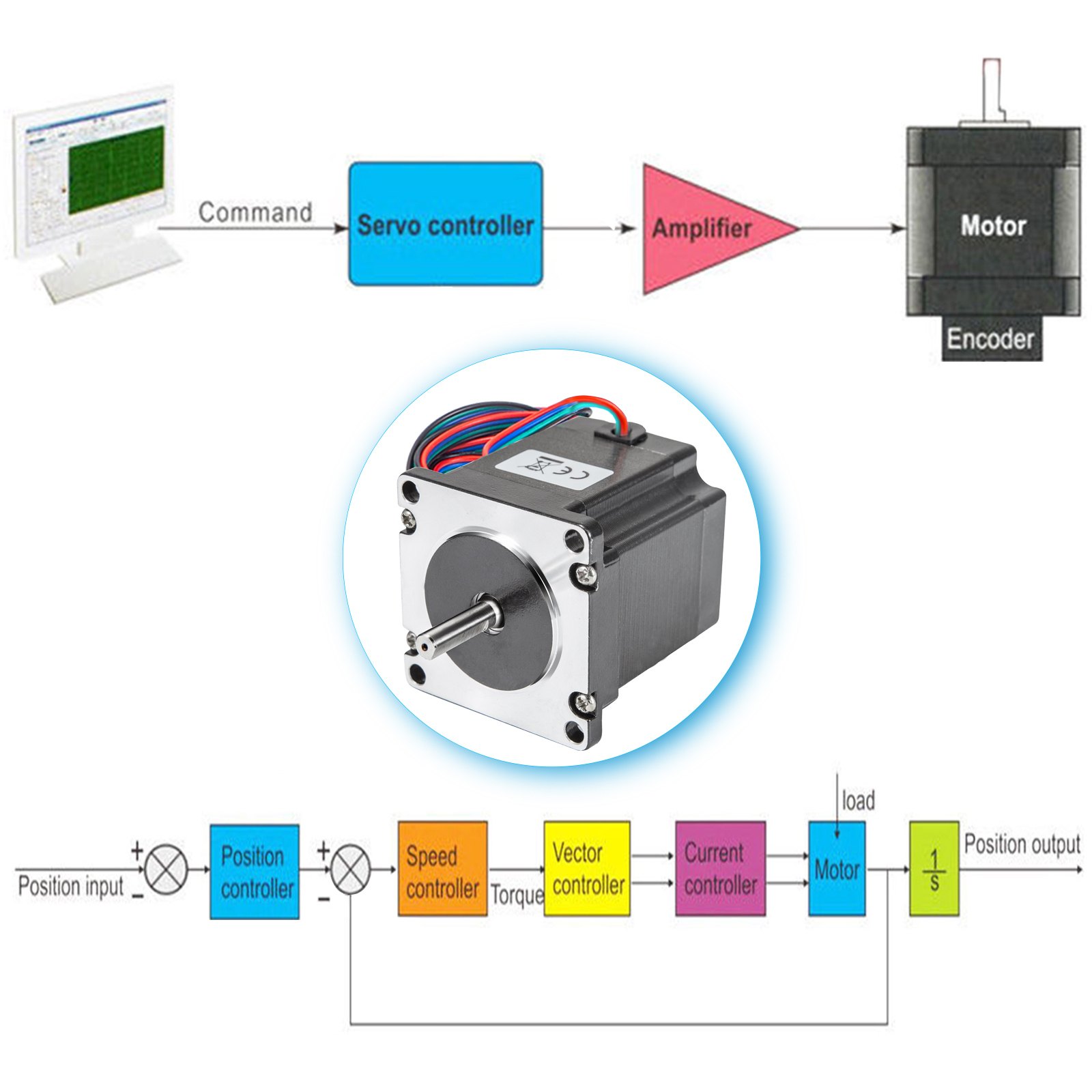

Strong Compatibility
Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output.

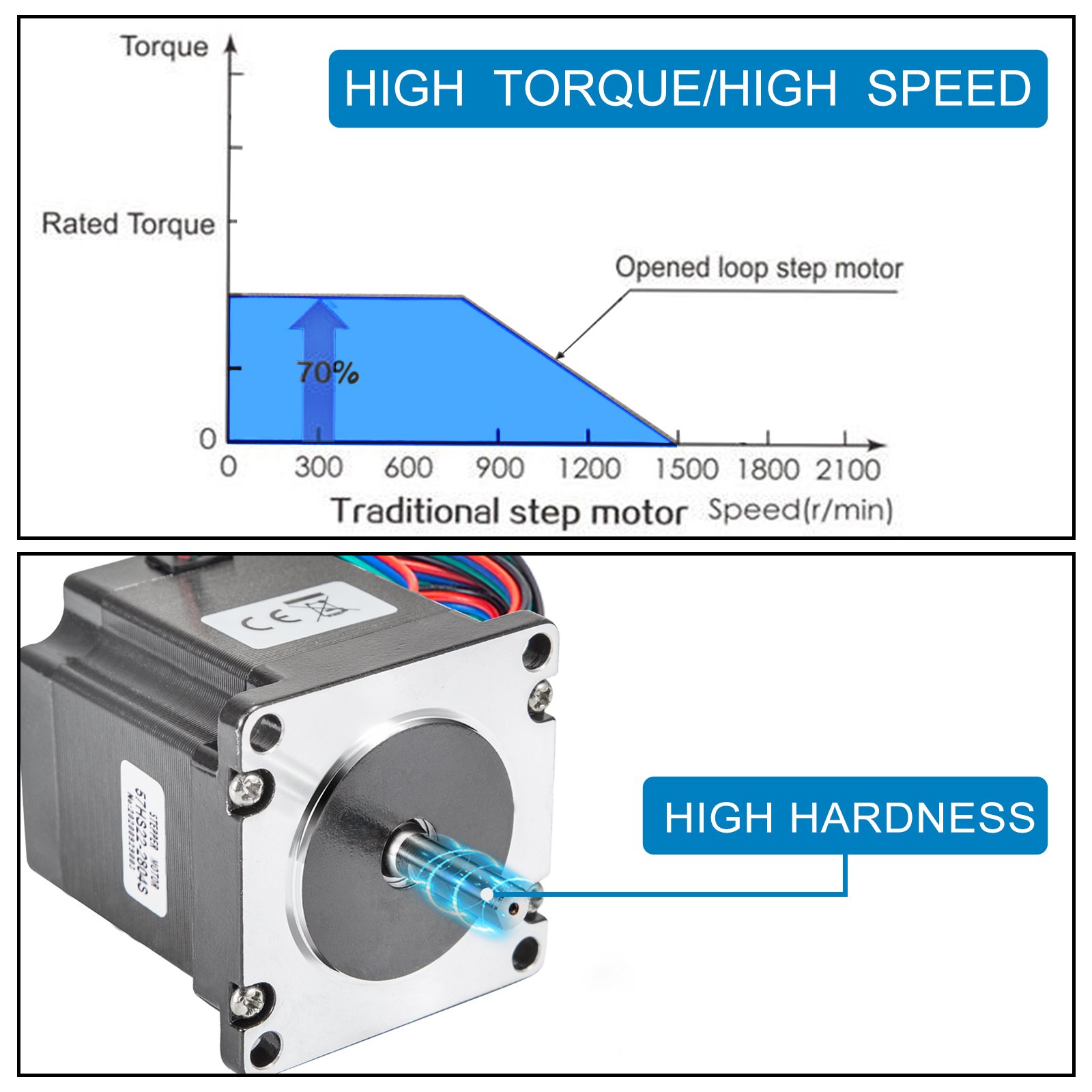

High Torque & Speed
The holding torque of the stepper motor up to 1.26 N.m / 178.5 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect.

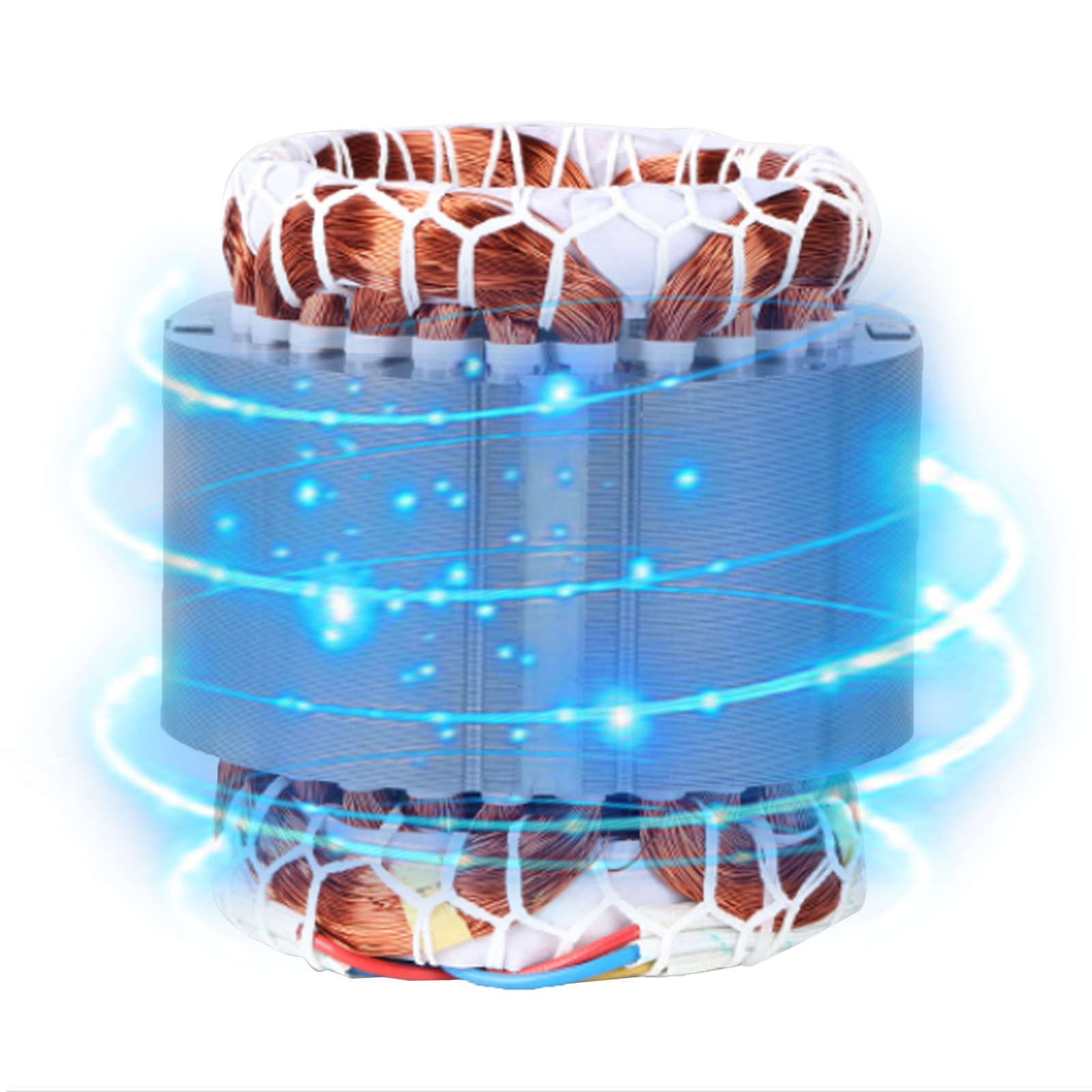

Pure Copper Coils
This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly.

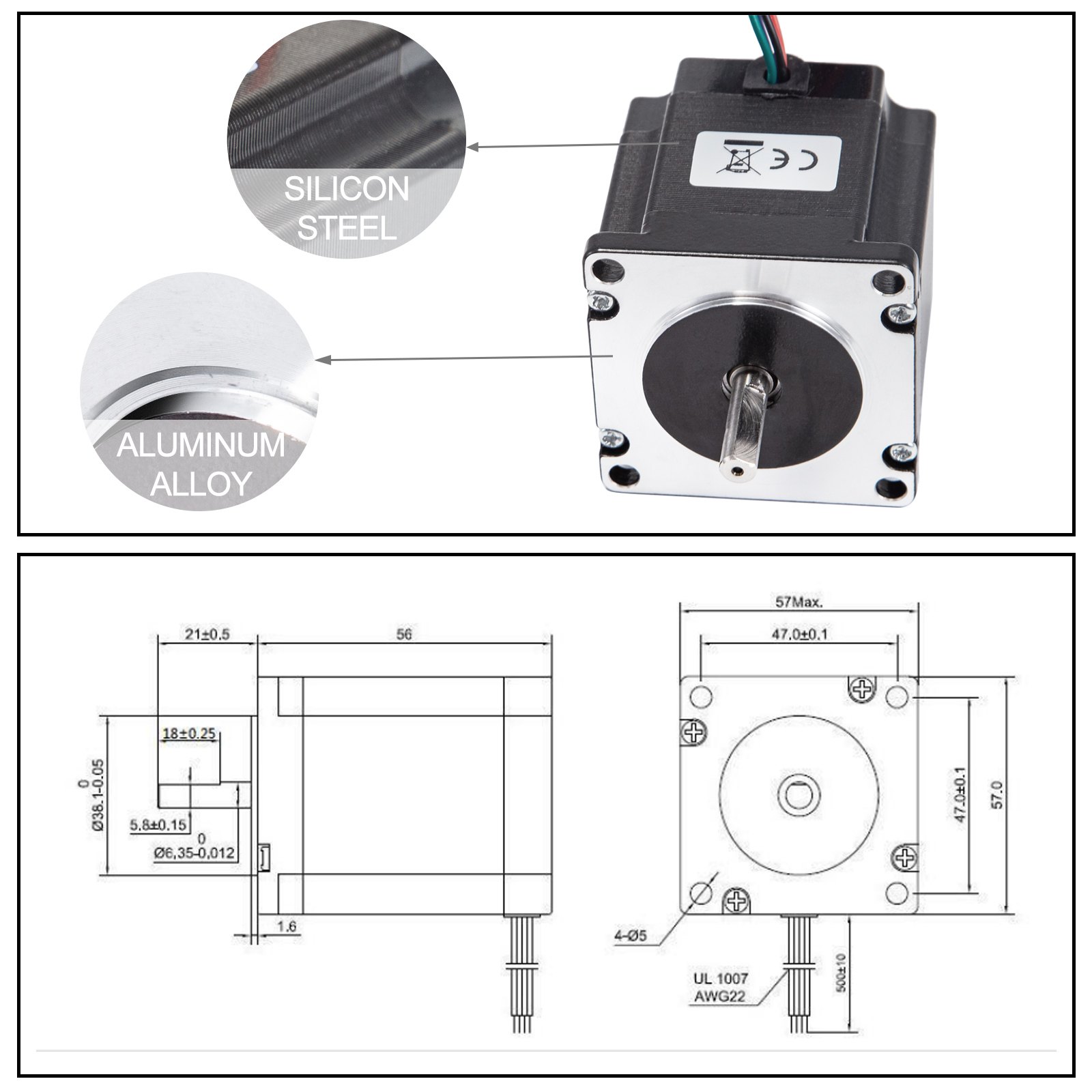

Sturdy Construction
The white part of the motor is made of durable aluminum alloy material with high strength to resist oxidation. The black part is constructed with silicon steel, durable, and wear-resistant. Complete motor drawings allow users to understand the motor size and structure.

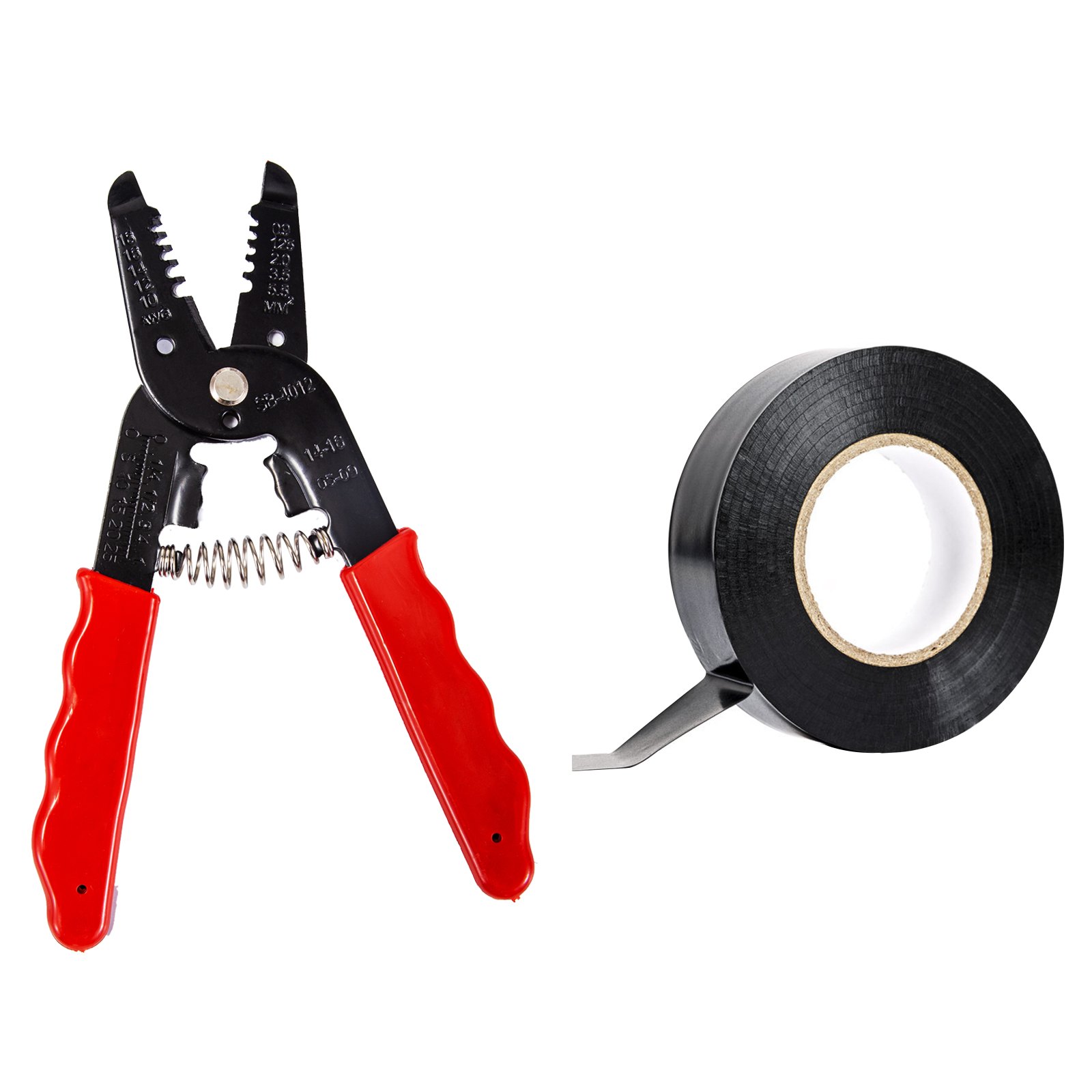

Wire Stripper Included
The wire stripper keeps the cut insulation apart from the wire and prevents electric shock. An insulating rubber tape is presented with good insulating voltage resistance, flame retardant, weather resistance for wire connection, and electrical insulation protection.
Wide Application
Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment.

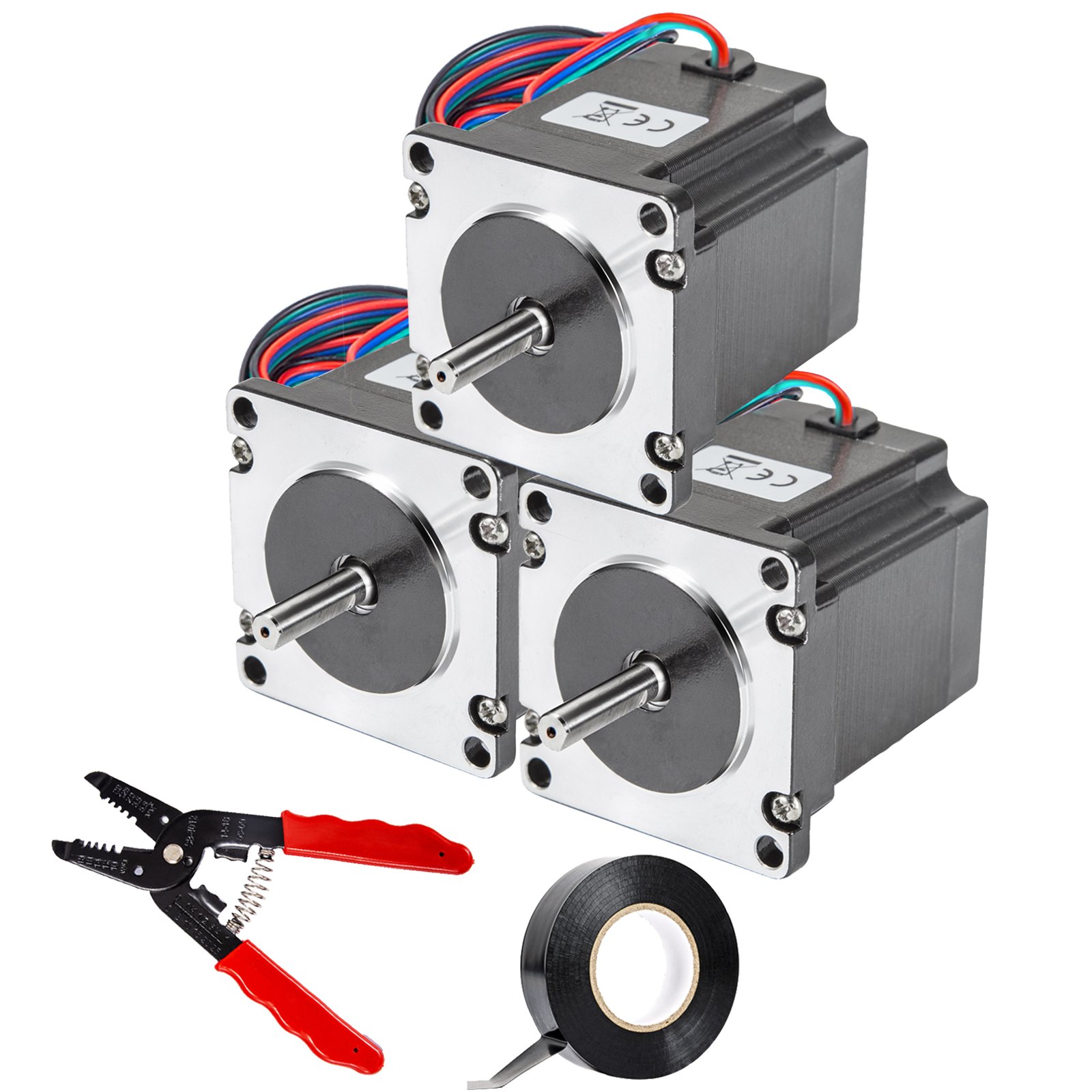

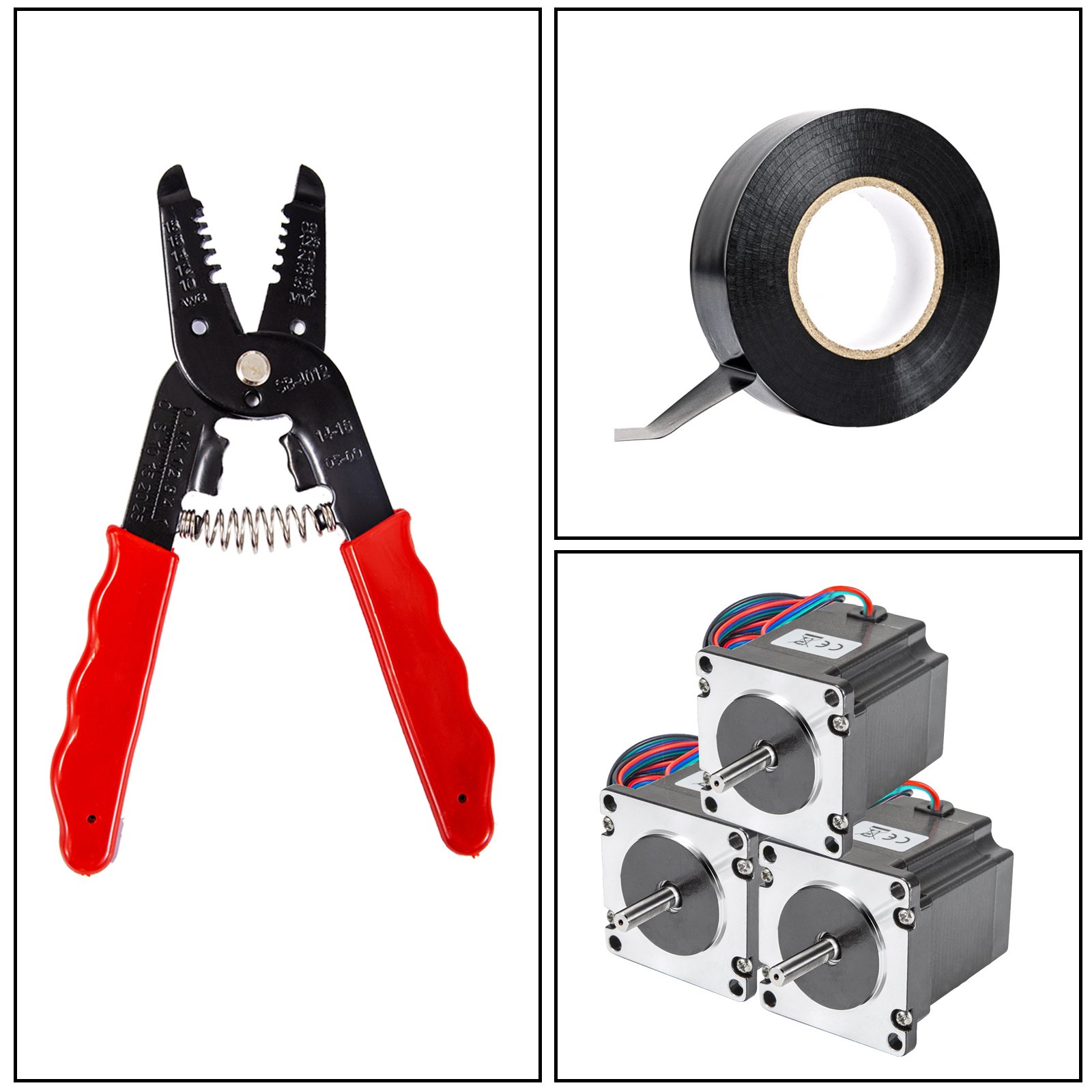

Package Content
  • 3 x Stepper Motors
  • 1 x Wire Stripper
  • 1 x Insulating Rubber Tape
  • 1 x Product Manual
Specifications
  • Model: 57HS22-2804S
  • Rated Voltage: 2.52V
  • Rated Current/Phase: 2.8A
  • Number of Phase: 2
  • Holding Torque: 1.26 N.m / 178.5 oz.in
  • Step Angle: 1.8°
  • Step Angle Accuracy: 5%
  • Phase Resistance: 0.9 ohms
  • Shaft Diameter: 5.8 ± 0.15 mm / 0.23''
  • Shaft Length: 21 ± 0.5 mm / 0.83''
  • Inductance: 2.5mH ± 20% / 1KHz
  • Motor Size(L x W x H): 57 x 57 x 56 mm / 2.24 x 2.24 x 2.2''
  • Weight: 0.7 kg / 1.54 lbs
