Features & Details

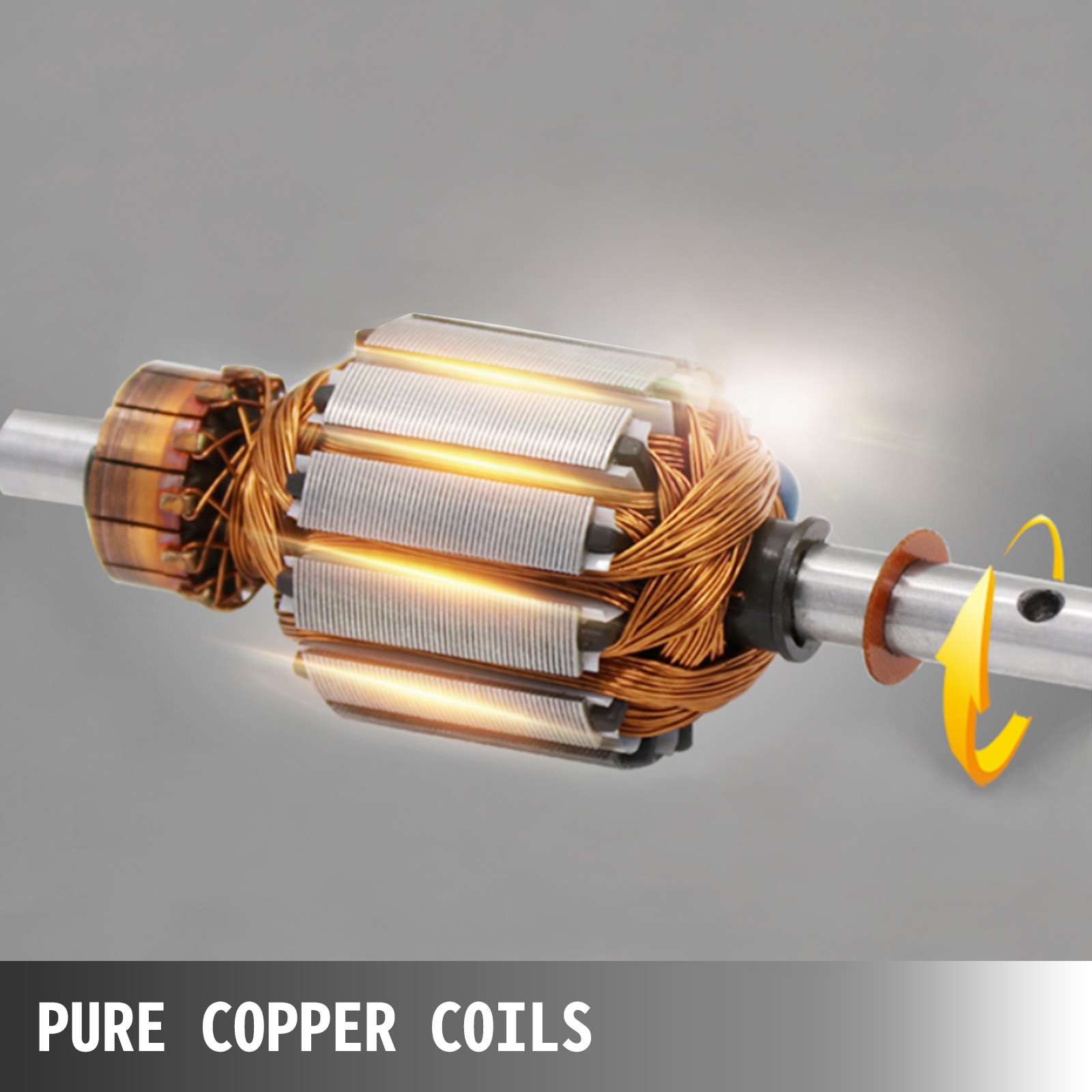

• 【HIGH-PERFORMANCE MOTOR】-This electric motor go-kart features pure copper coils, which means it has better electric conductivity, low electric noise. Power: 800W, Voltage：36 V. Sprocket for 25H chain.

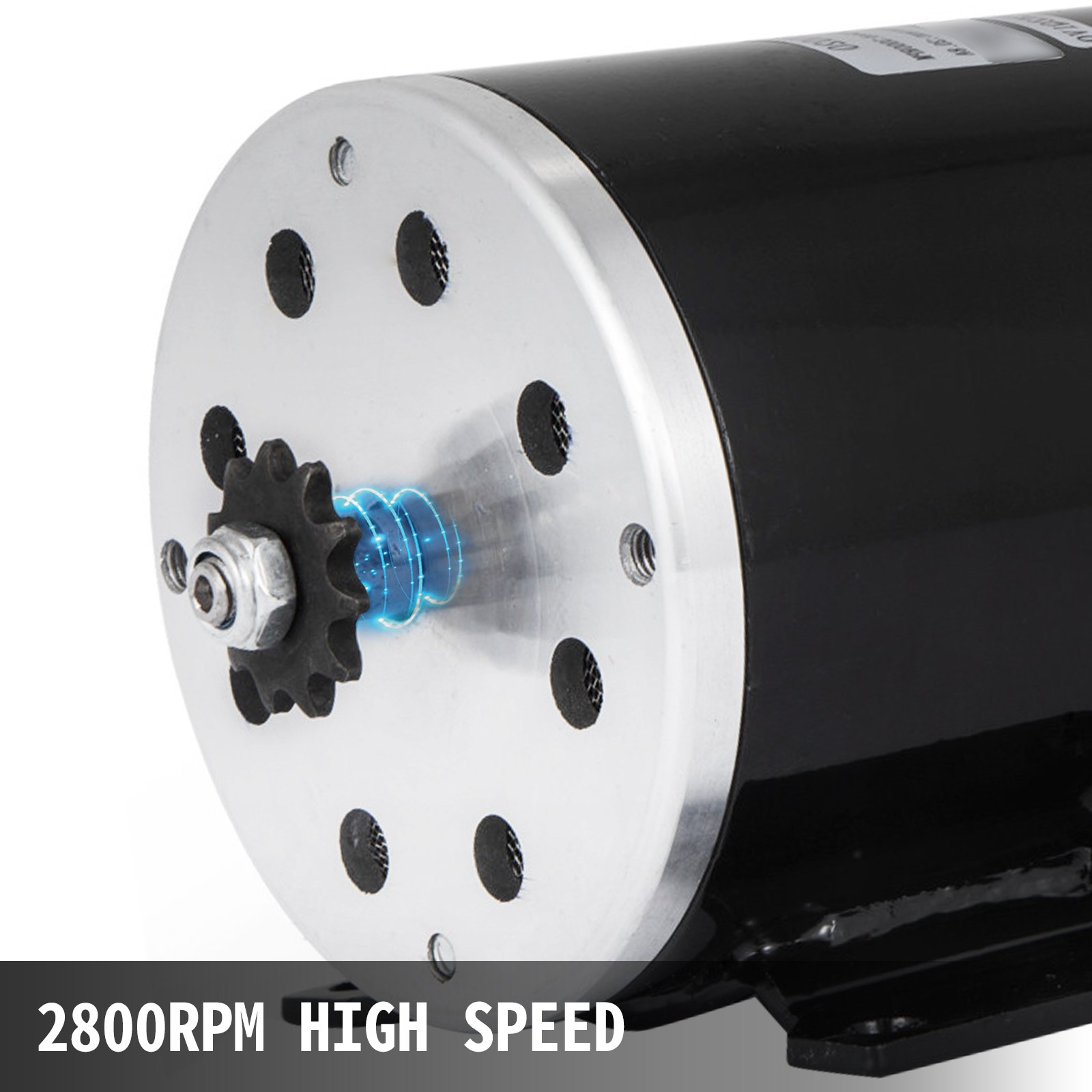

• 【STRONG MOTIVATION】-This 36 V DC motor has excellent torque characteristics and delivers 2800 rpm high-speed dynamic operation, intended to fill the need for a small motor with high performance.

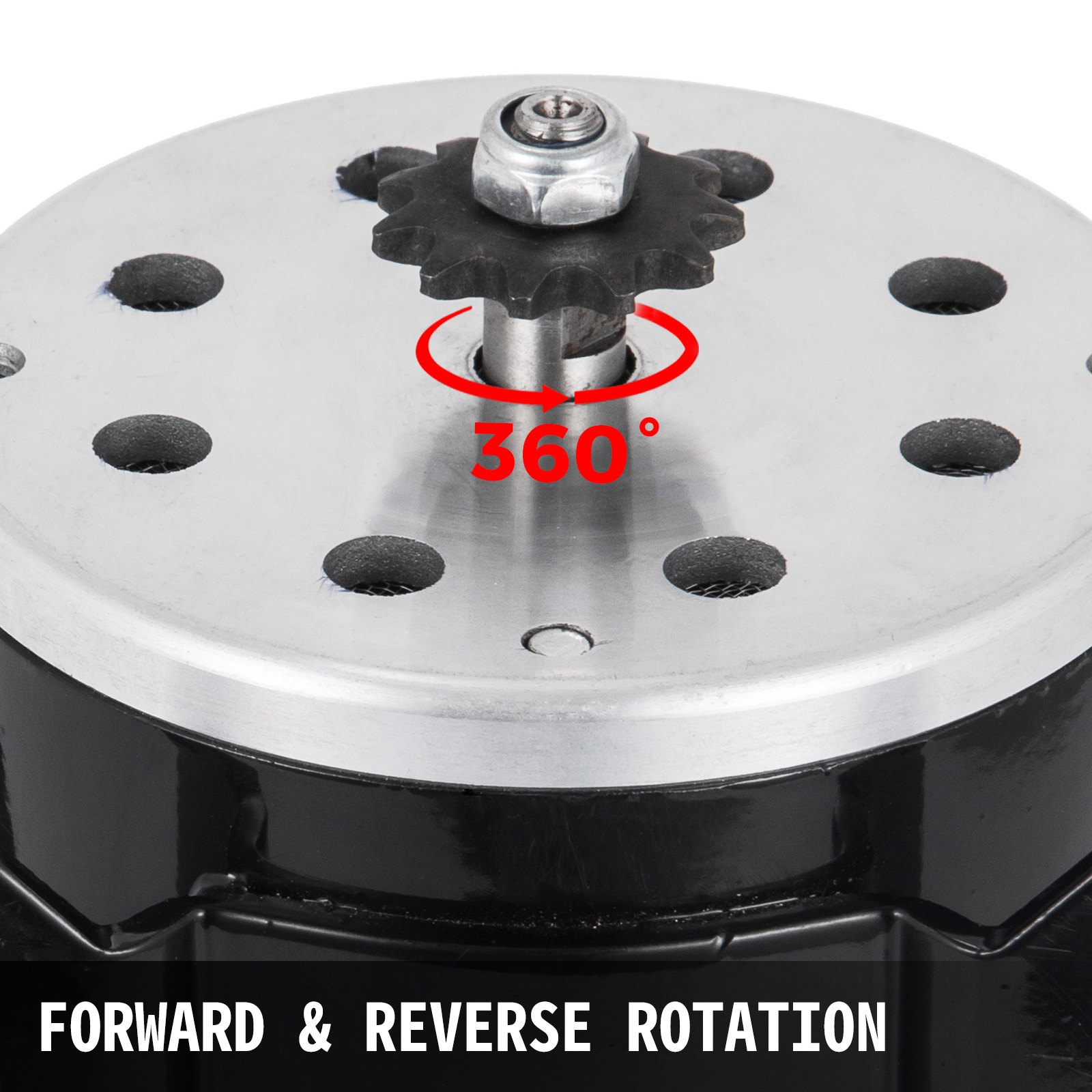

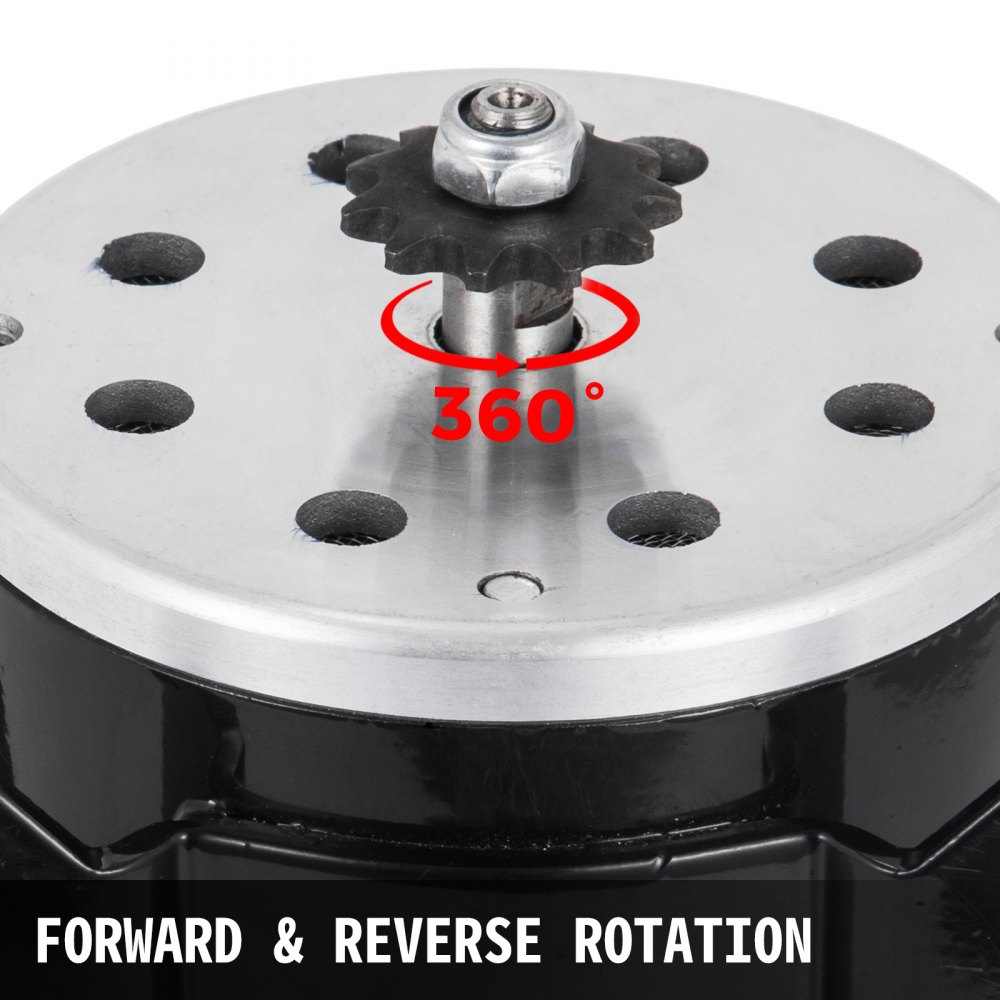

• 【DUAL-DIRECTION DESIGN】-This DC motor bicycle is a forward and backward rotation motor, and you can switch the rotation in either the clockwise or counterclockwise direction by reversing the motor's wires.

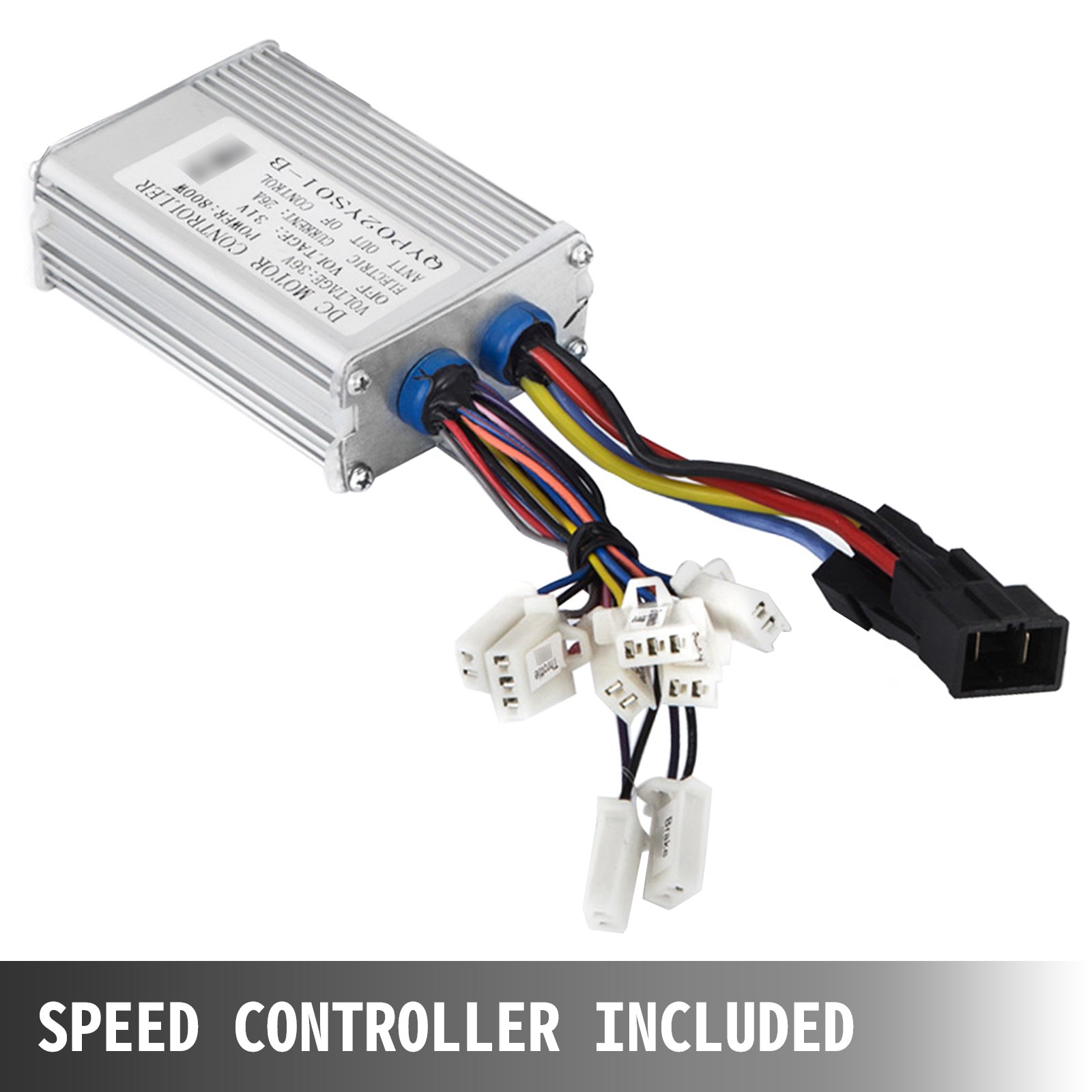

• 【CONVENIENT SPEED CONTROL】-This 36 Volt DC motor comes with a speed controller to provide speed control in the desirable ranger. Besides, two wrenches and one screw set also included for fixing the motor and making a safe operation.

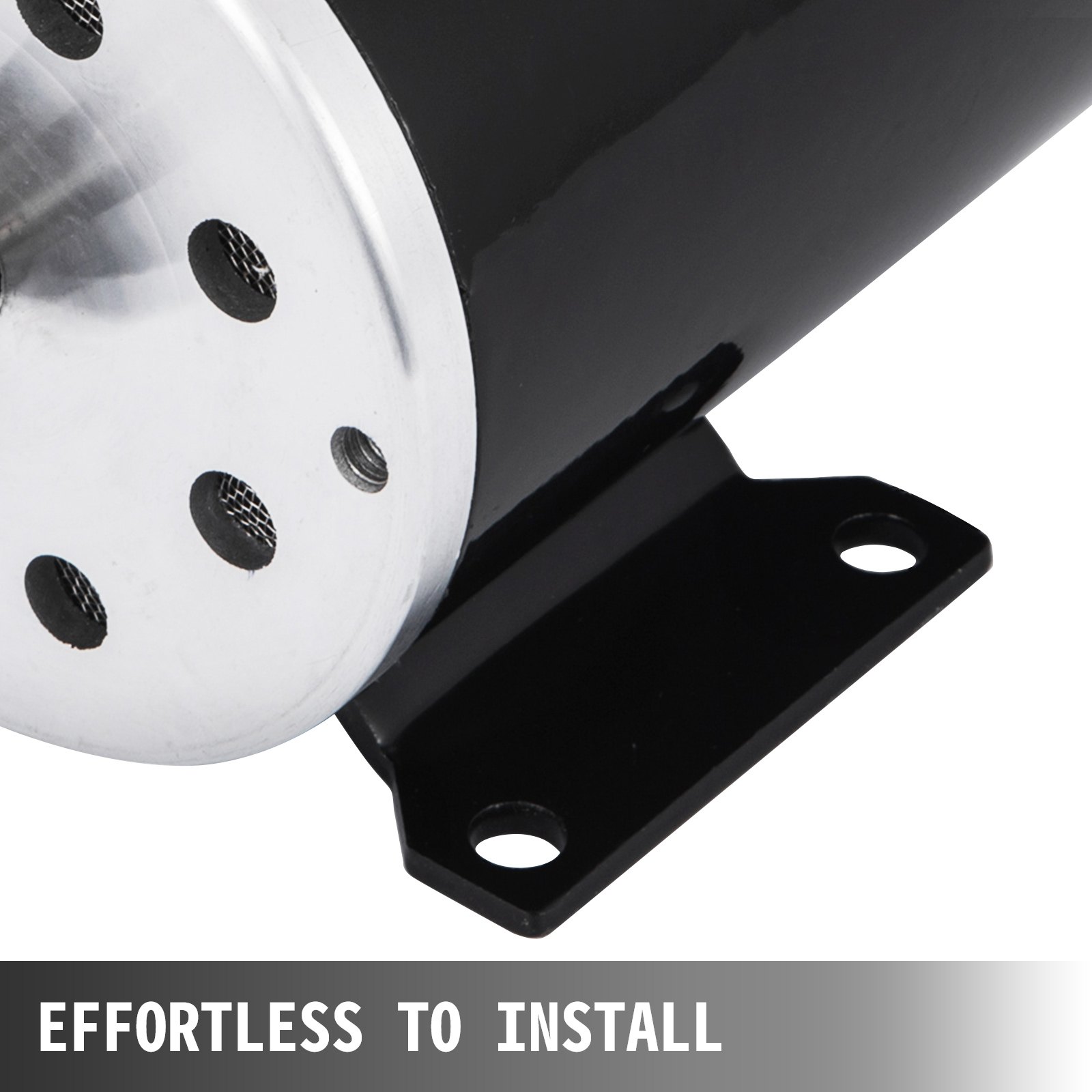

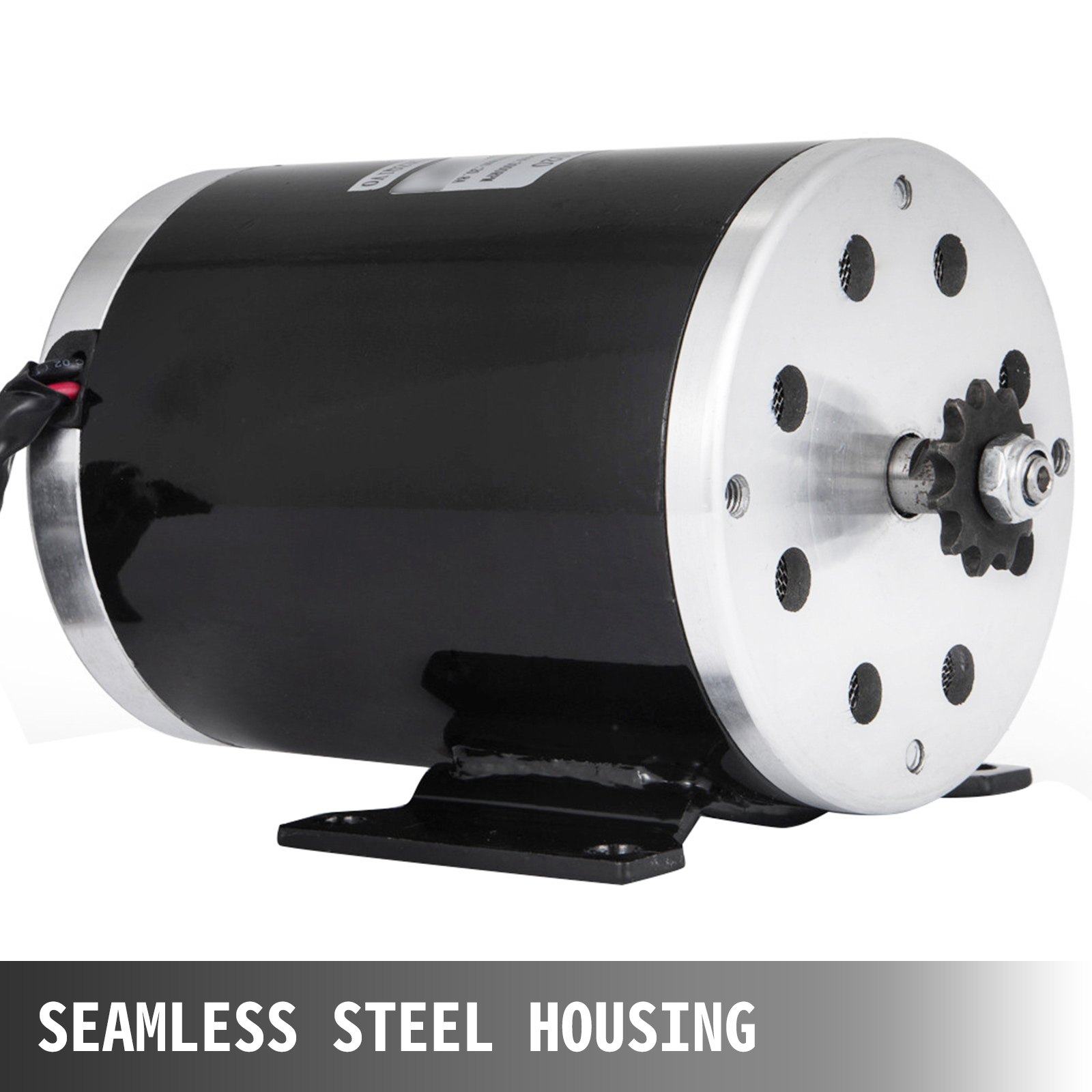

• 【MOUNTING BRACKETS INCLUDED】- Two mounting brackets are designed to reinforce its stability, and for your better installation. It is suitable for go-karts, scooters, e-bike, ATV, motorized bicycle, moped, mini bikes, pocket bikes, and electric dirt bikes.

Please DO TEST the items separately before mounting them to commissioning, especially, the motor or the start / brake system to the motor. Please ensure its safety before riding.

Specifications

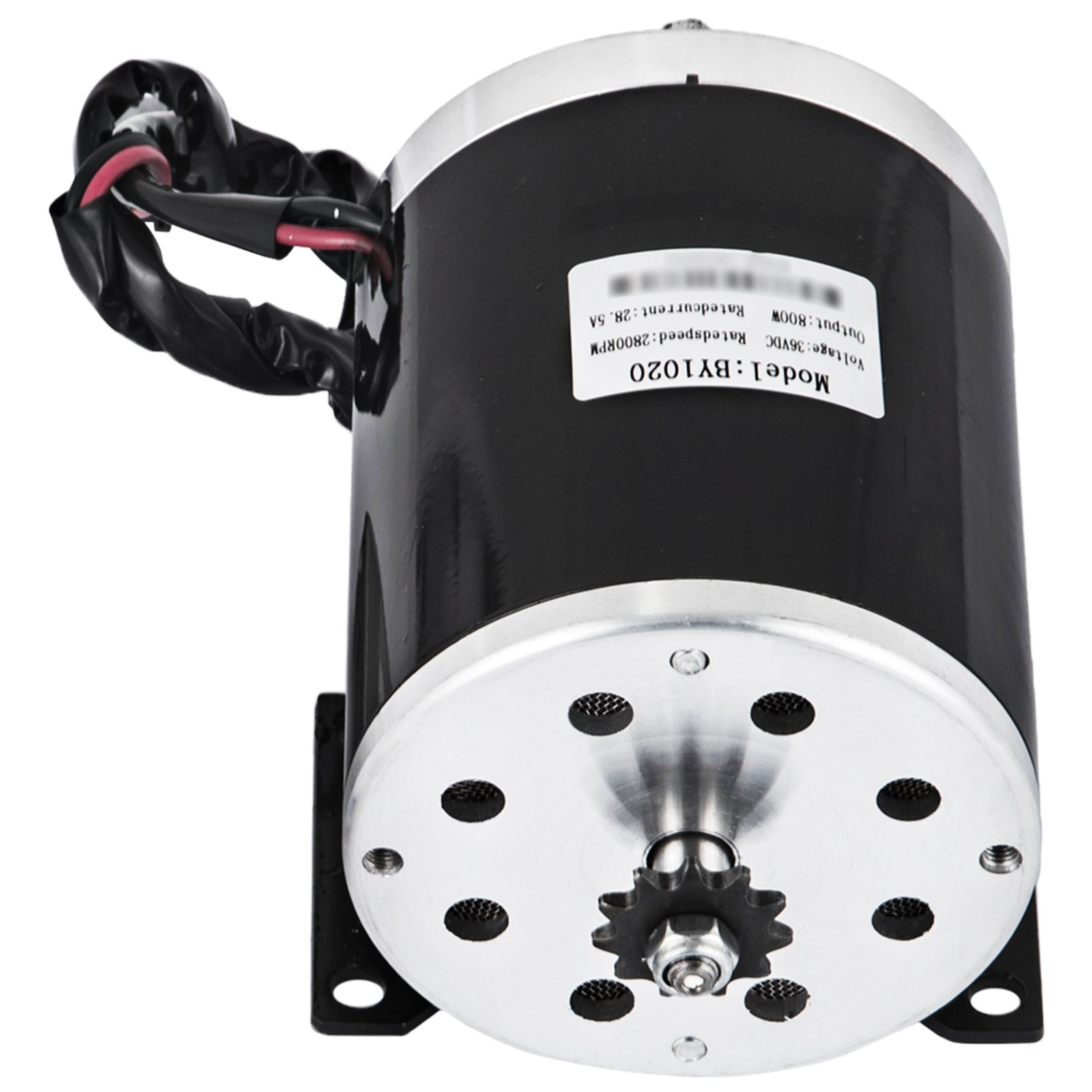

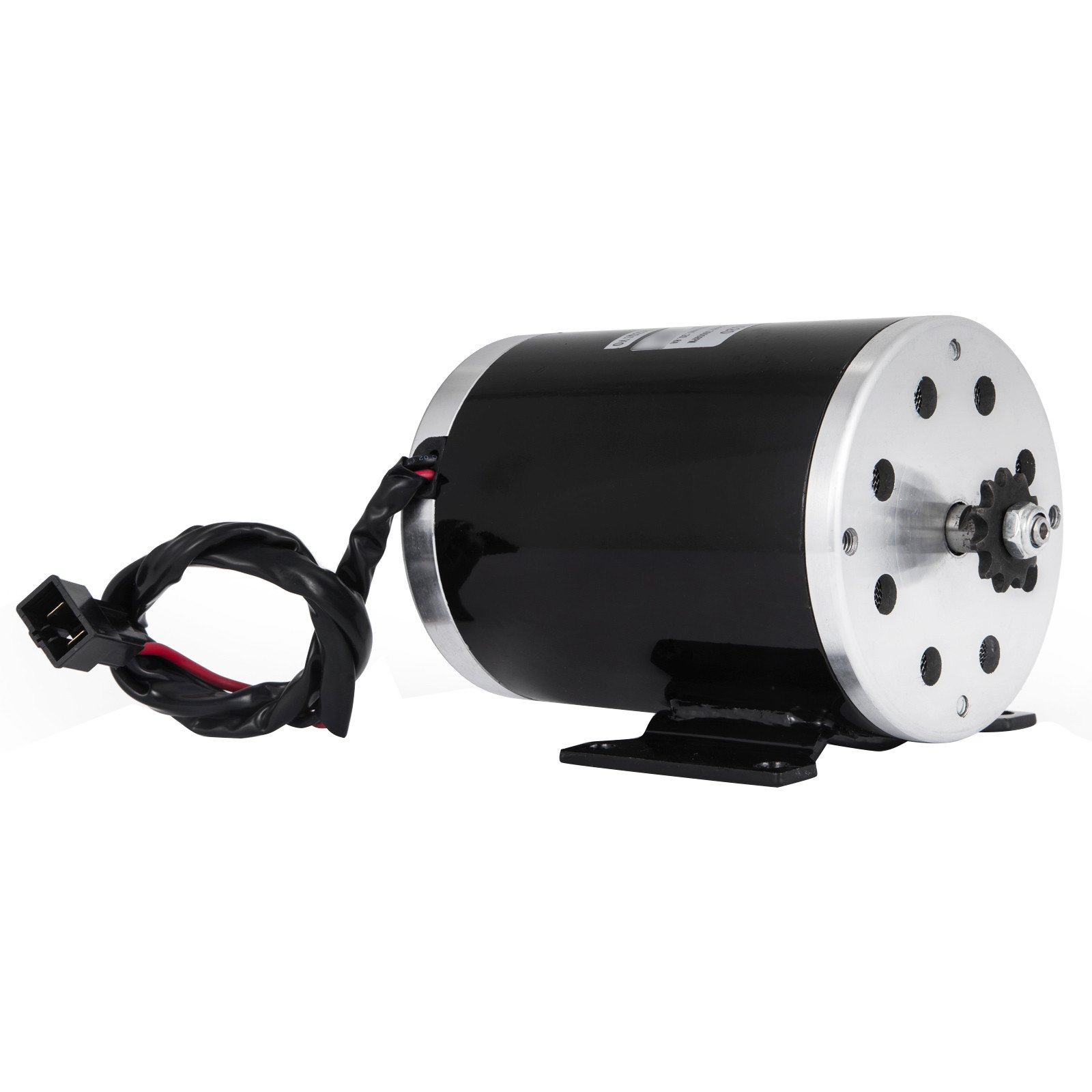

36 V DCMotor

• Rated voltage: 36V DC
• Output: 800W
• Rated speed: 2750-3045 RPM
• Sprocket: 25H-11T
• Rated current: 29.2A
• No-load current: ≤2.6A
• Peak efficiency at 36V: 80 percent
• Reversible: With polarity swap

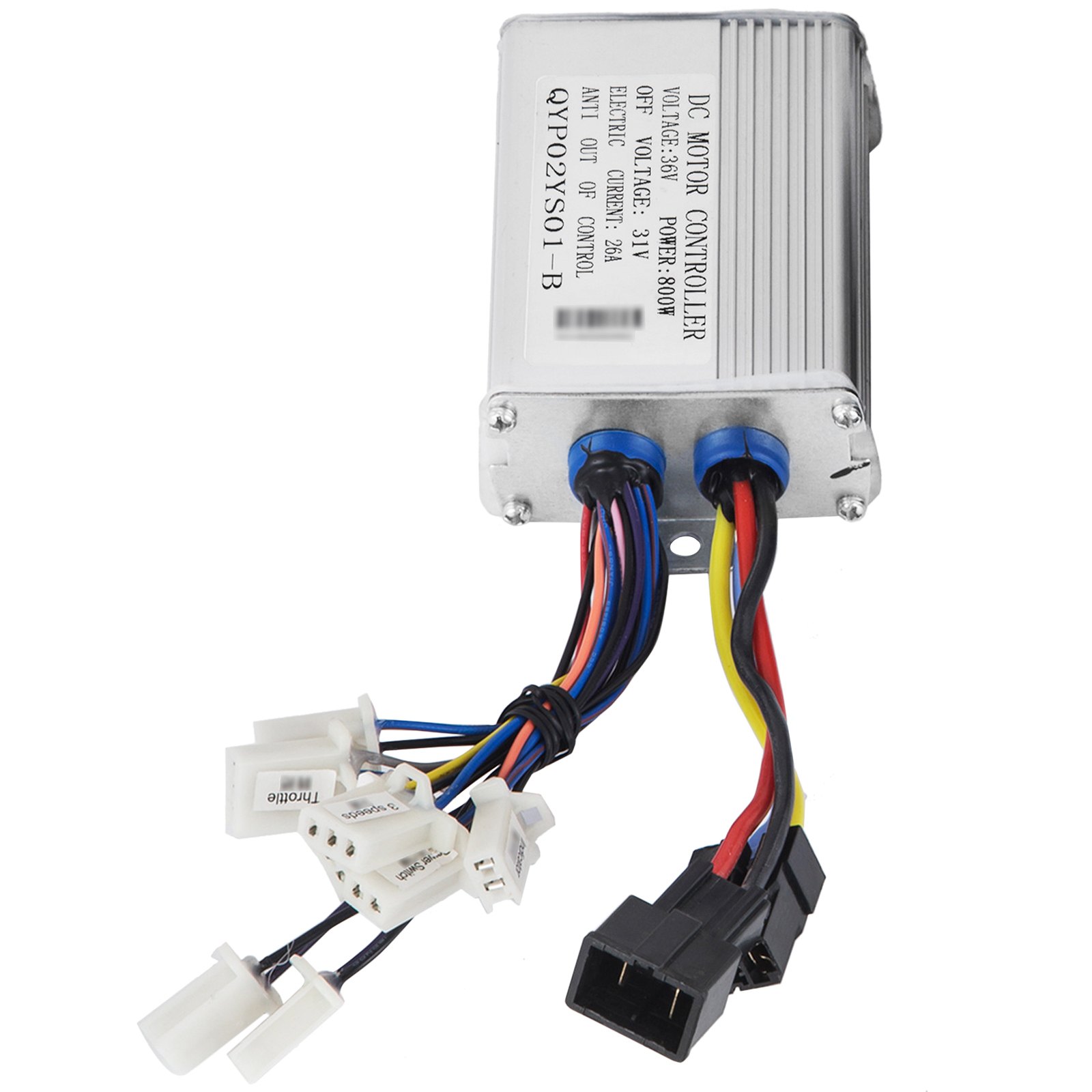

• Matching motor: 36V 800W
• Rated voltage: 36V DC
• Under Voltage Protection: 31±0.5 V
• Speed regulator (throttle): 1-4 V
• Conversion efficiency: 95%

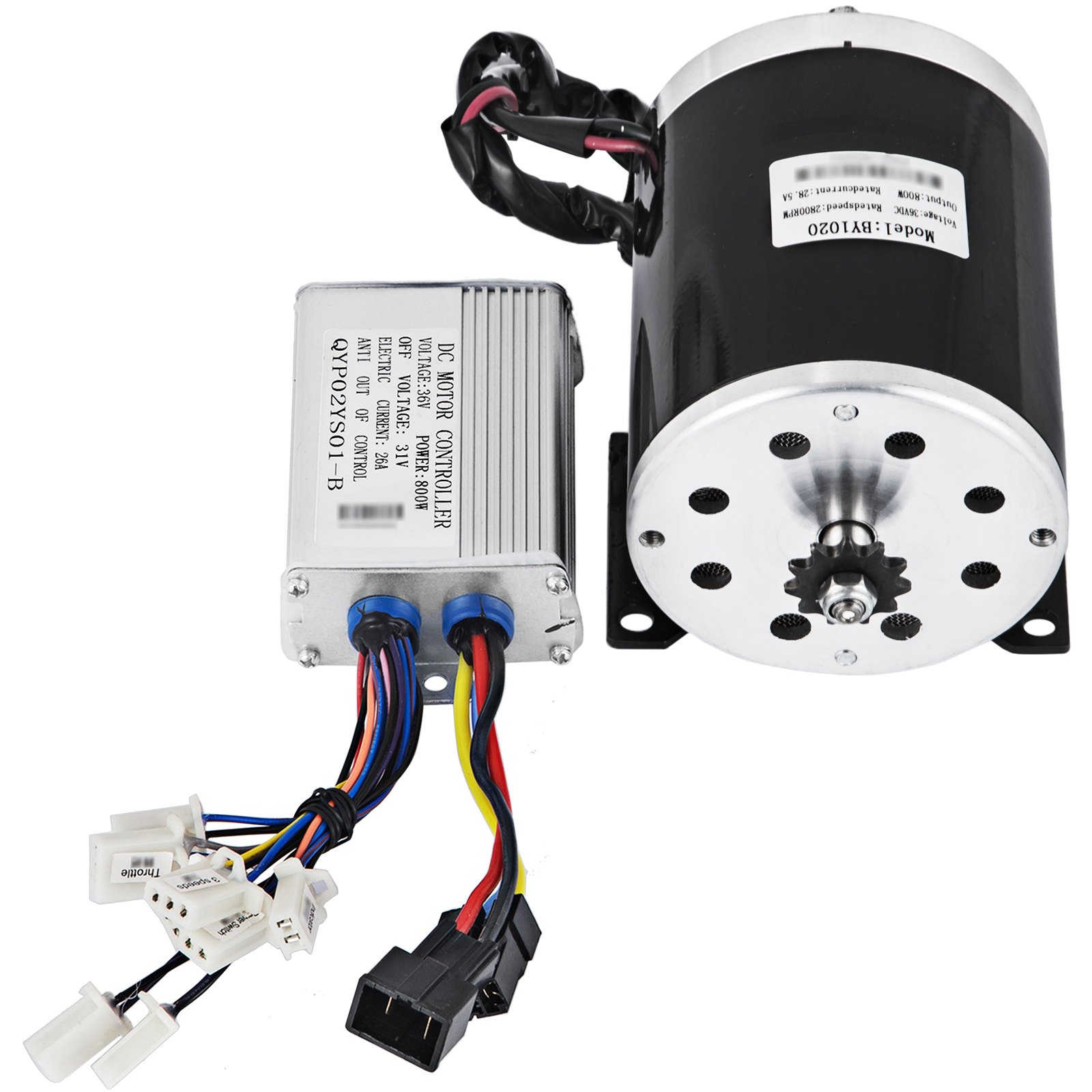

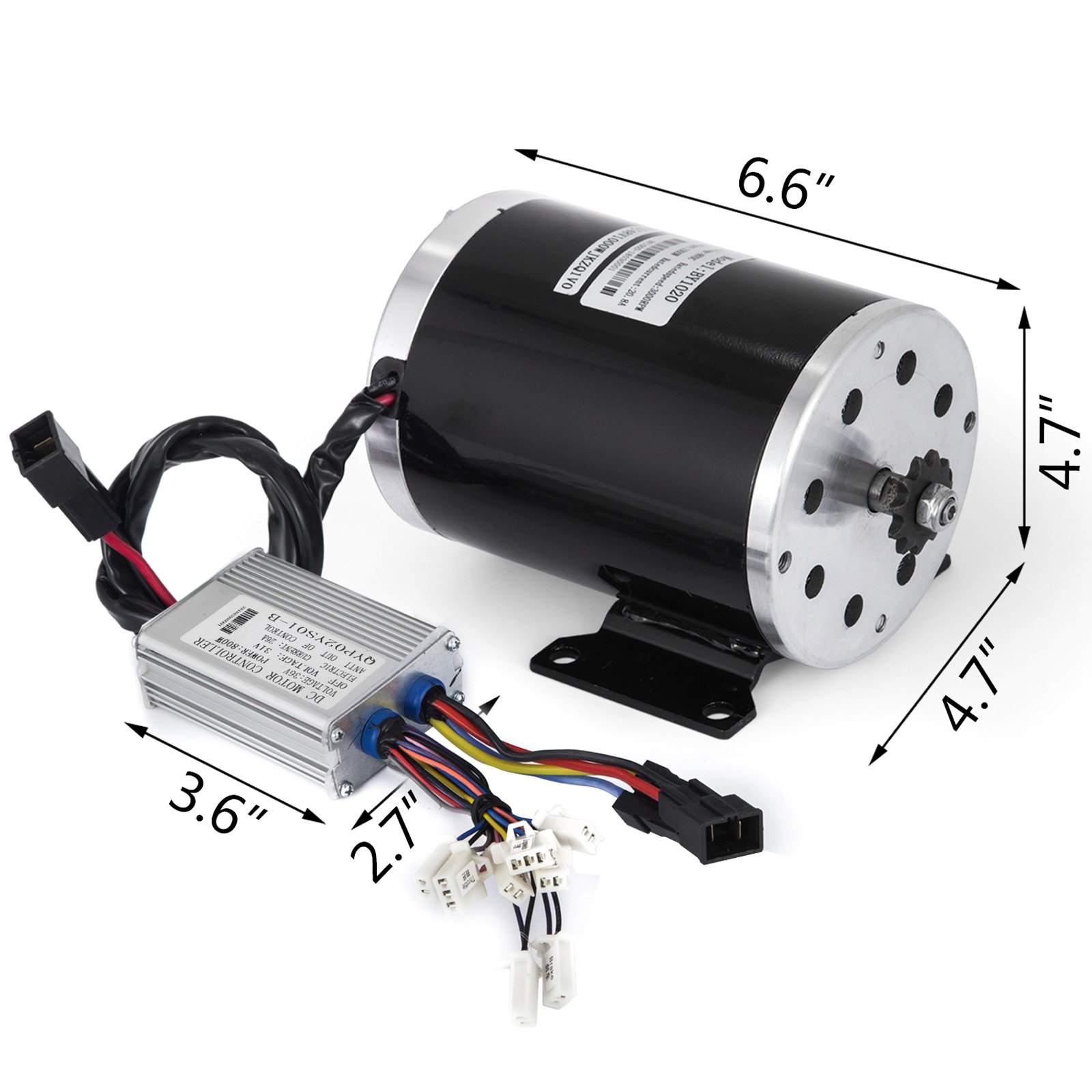

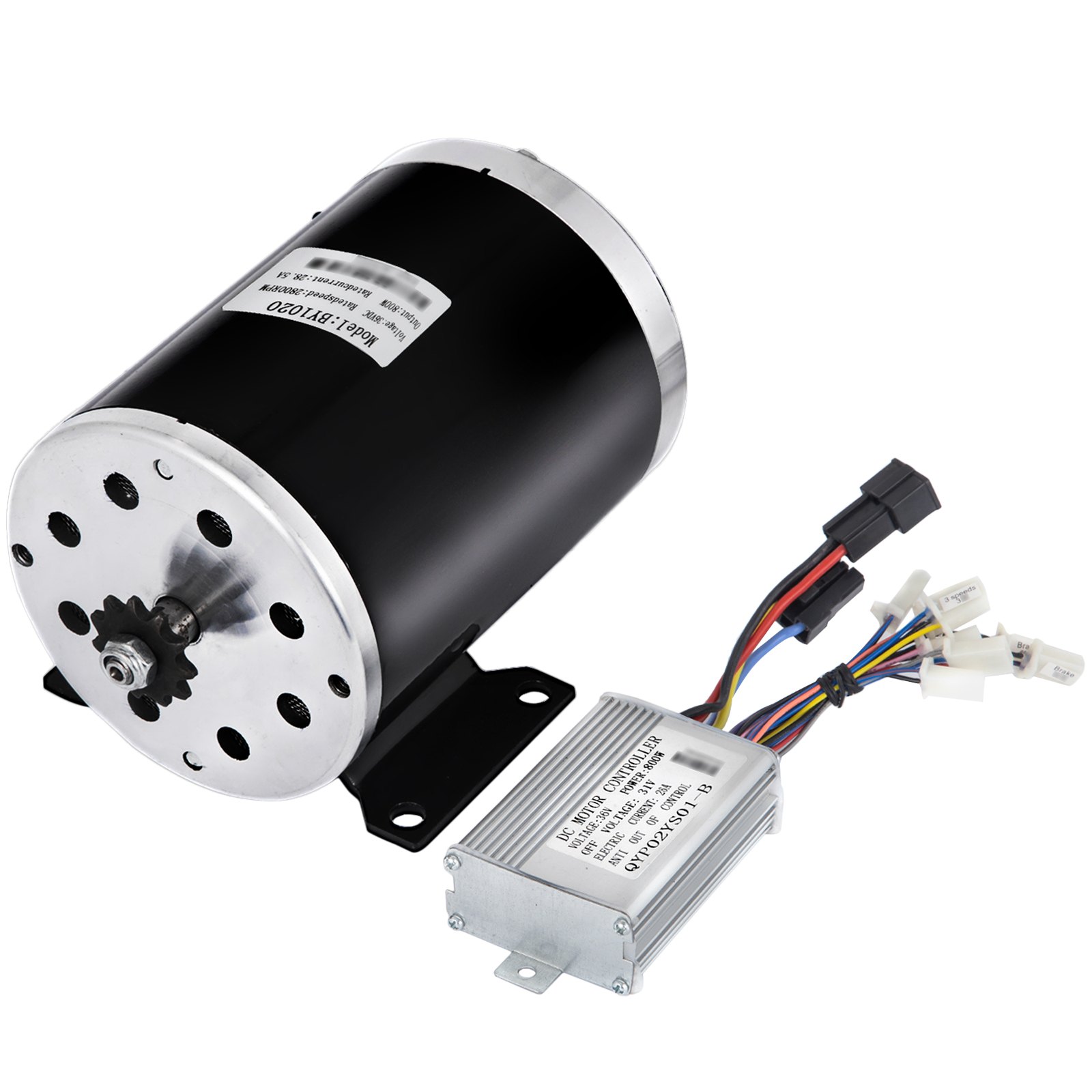

• 1 x Motor
• 1 x Controller
